TOOL APPLICATION GUIDE Your Authorized AME Distributor
Single Piece Wheels Tire Sizes 9.5L - 14 thru 20.5 x 25
3 Piece Wheels Tire Sizes

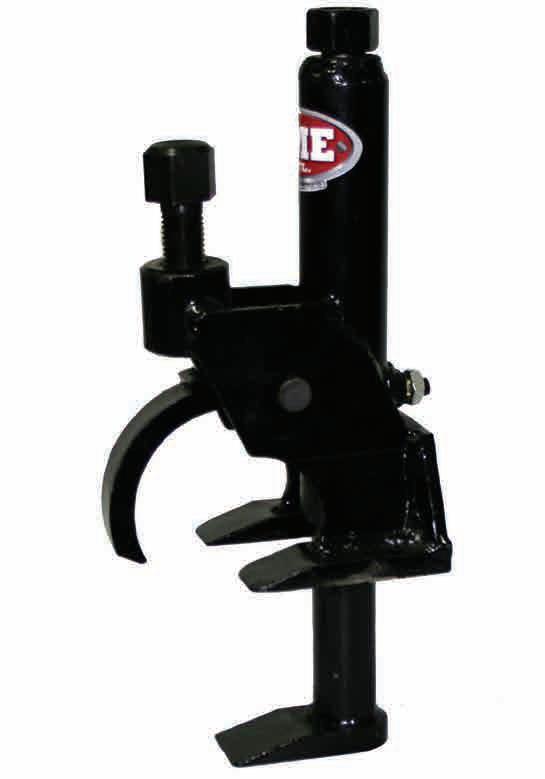

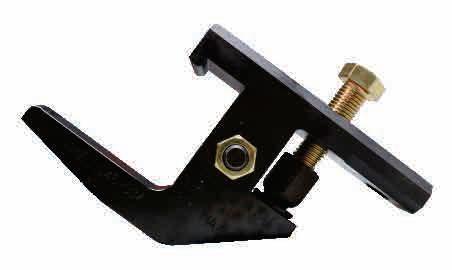

71600 Little Buddy Manual Bead Breaker

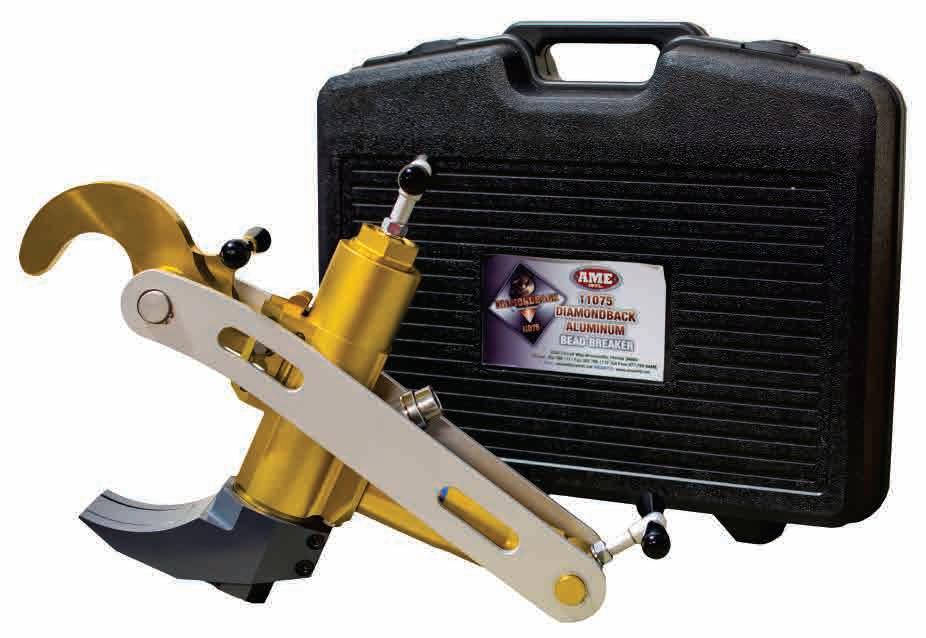

11076 Diamond Bead Breaker w/Case
11020 Modified “Combi” Tire Bead Breaker
23.5 x 25 26.5 x 25 29.5 x 25

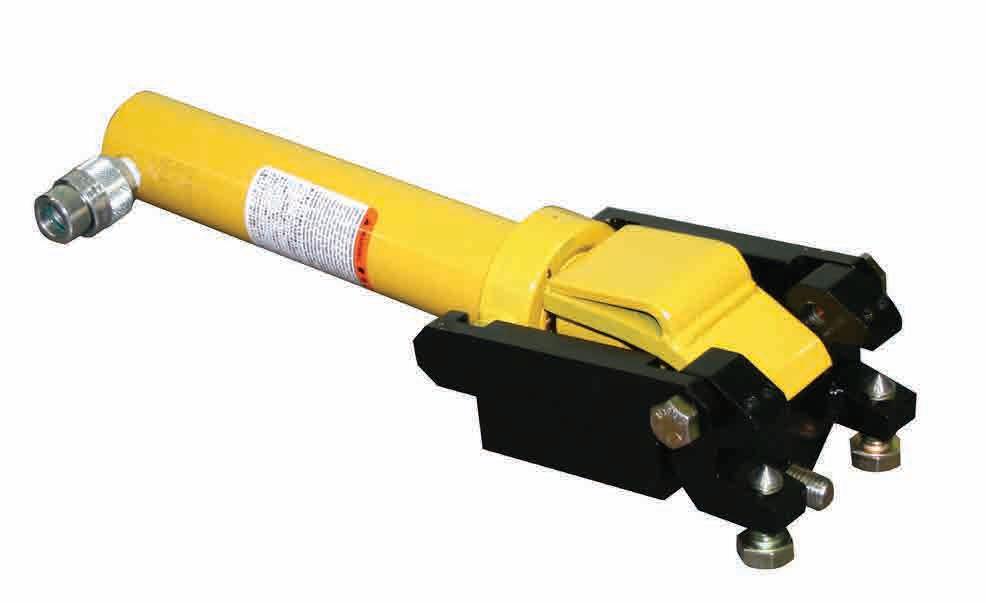

11010 Combi Bead Breaker
11090 Stinger Bead Breaker 11000 OTR 1825 Bead Breaker
5 Piece Wheels Wheel Sizes
11050 OTR Giant Bead Breaker
25” - 49”

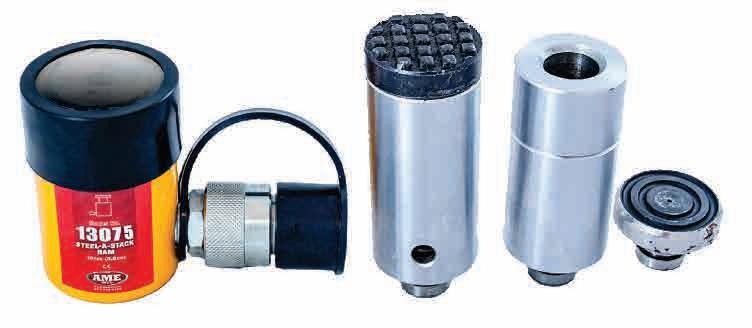

13075 Steel-a-Stack Hydraulic Ram Kit
16070 Shur-Lok Adapter

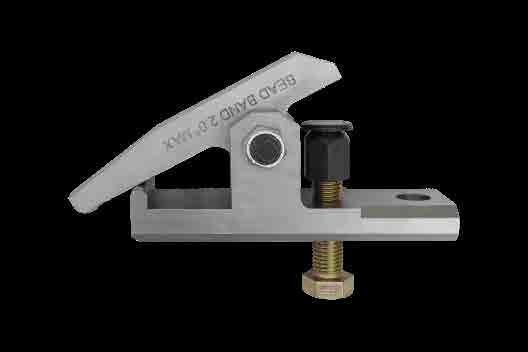

11500 Bead Band Spacer Tool
5 Piece Giant OTR

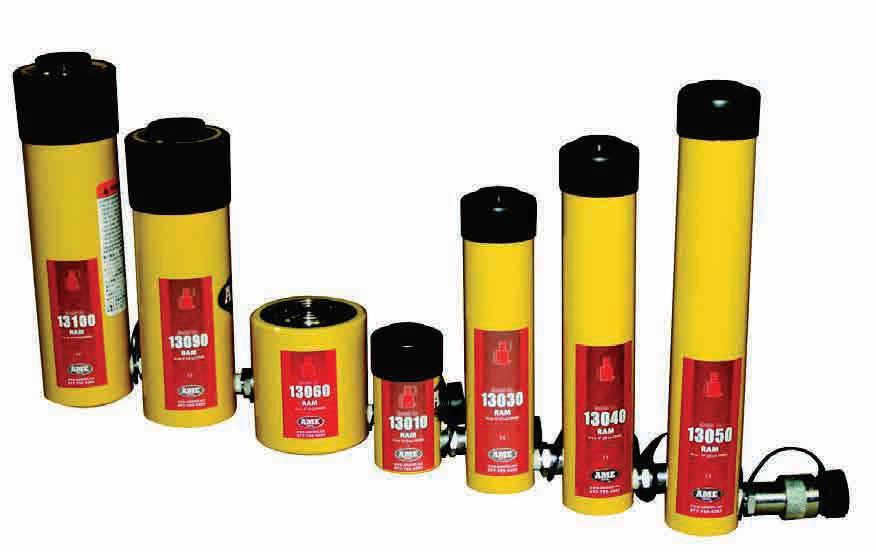

13010 -13100 Hydraulic Rams

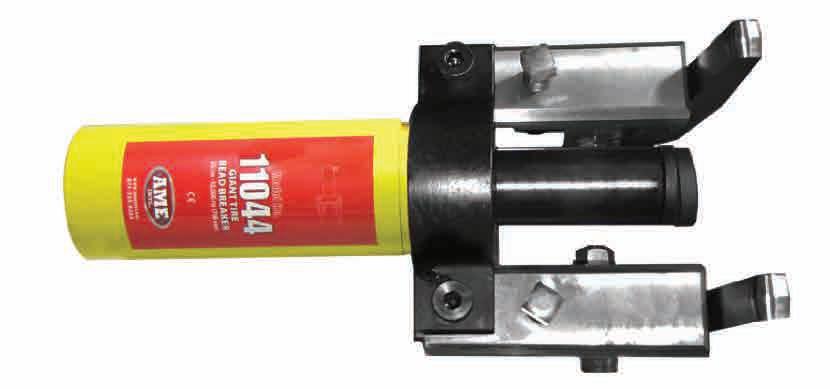

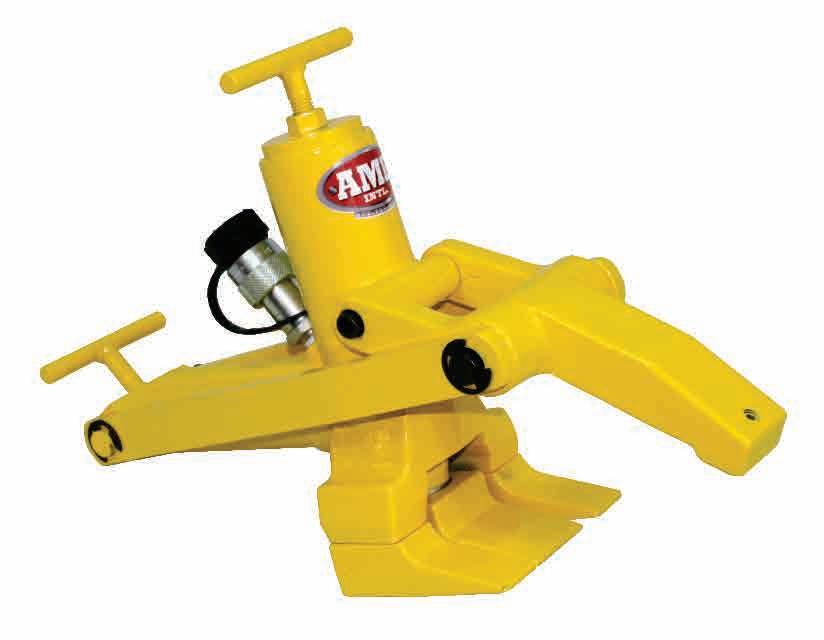

11044 Giant OTR Tire Bead Breaker
Wheel Sizes 49” - 63”
Model
Capacity
13010 13020 13030 13040 13050 13060 13090 13100
10 Ton 10 Ton 10 Ton 10 Ton 10 Ton 30 Ton 25 Ton 25 Ton
11046 Clamping Jaws for 11044
Stroke
Retracted Height
2-1/8” (5.4 cm) 4-3/4” (12.1 cm) 4” (10.5 cm) 6-3/4” (17.14 cm) 6-1/8” (15.57 cm) 9-3/4” (24.77) 8” (20.32 cm) 11-3/4” (29.84) 10-1/8” (25.73 cm) 13-3/4” (35 cm) 2-7/16” (6.19 cm) 4-5/8” (11.75 cm) 8-1/4” (21 cm) 12-3/4” (32.39 cm) 6-1/4” (15.75 cm) 10-3/4” (27.3 cm)
11043 Shur-Loc Bead Band Jaw
11046-003 Extra Clamping Jaws for 11044

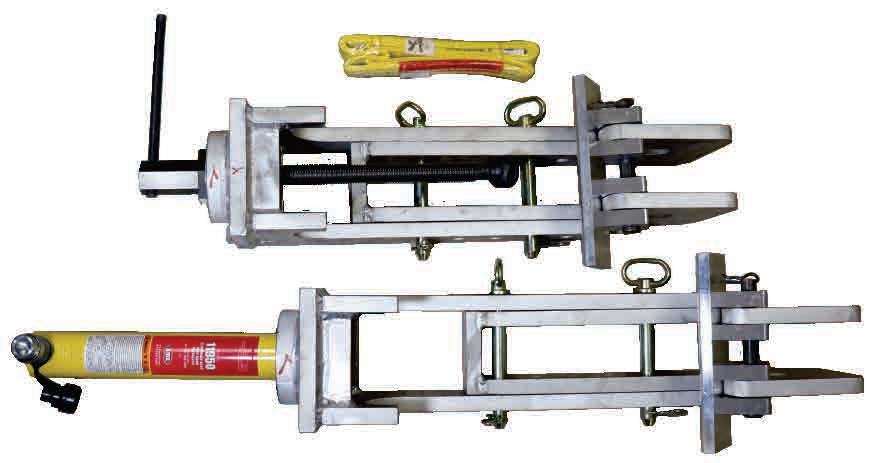

11950 Bead Seat Band Installer
Hydraulic Pumps 10,000 PSI for use with all AME Tools.

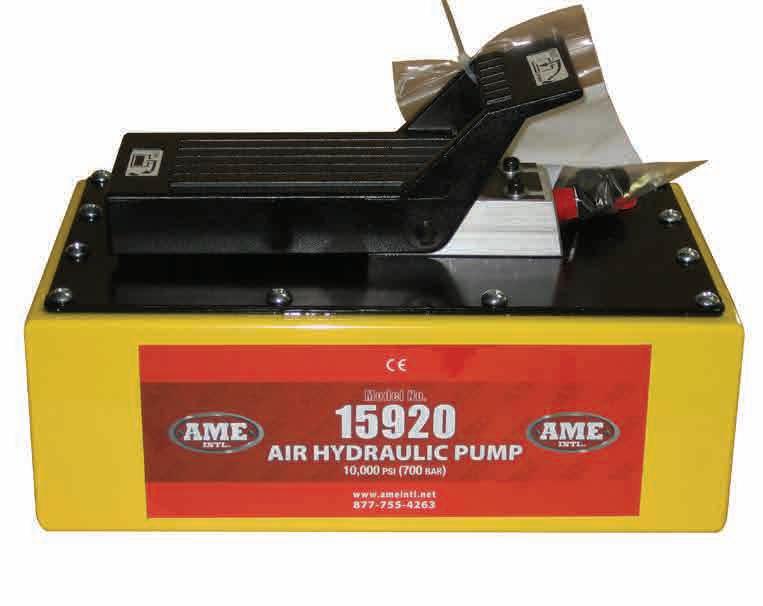

15920 5 Quart Air Hydraulic Pump

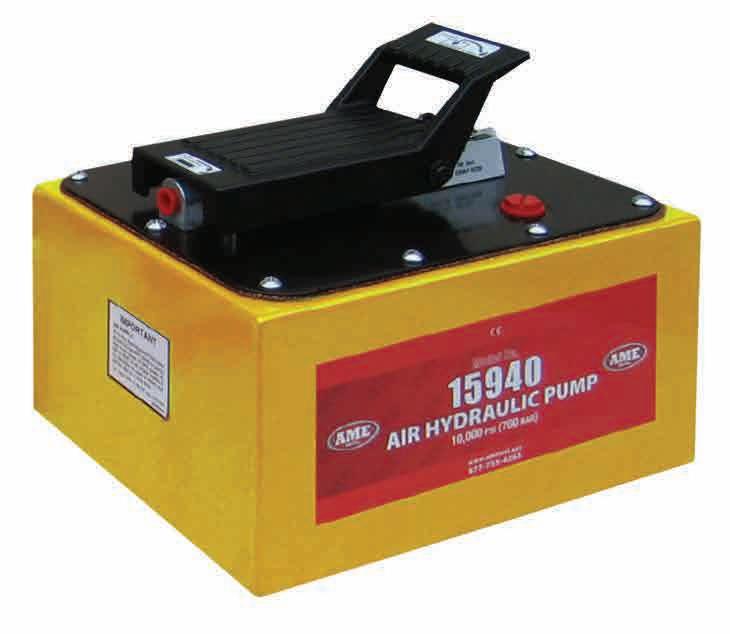

15940 8 Quart Air Hydraulic Pump

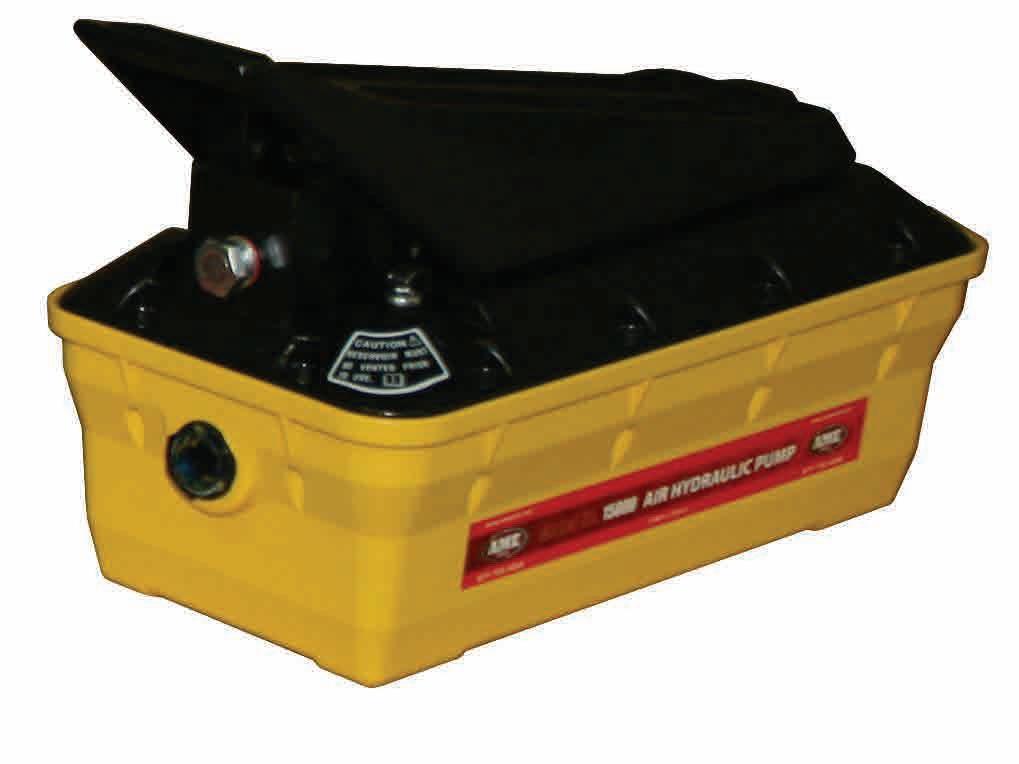

15000 3.5 Quart Turbo II Air Hydraulic Pump
Jacks & Jack Stands
SLJS200 SLJS100
High Tonnage Jack Stands

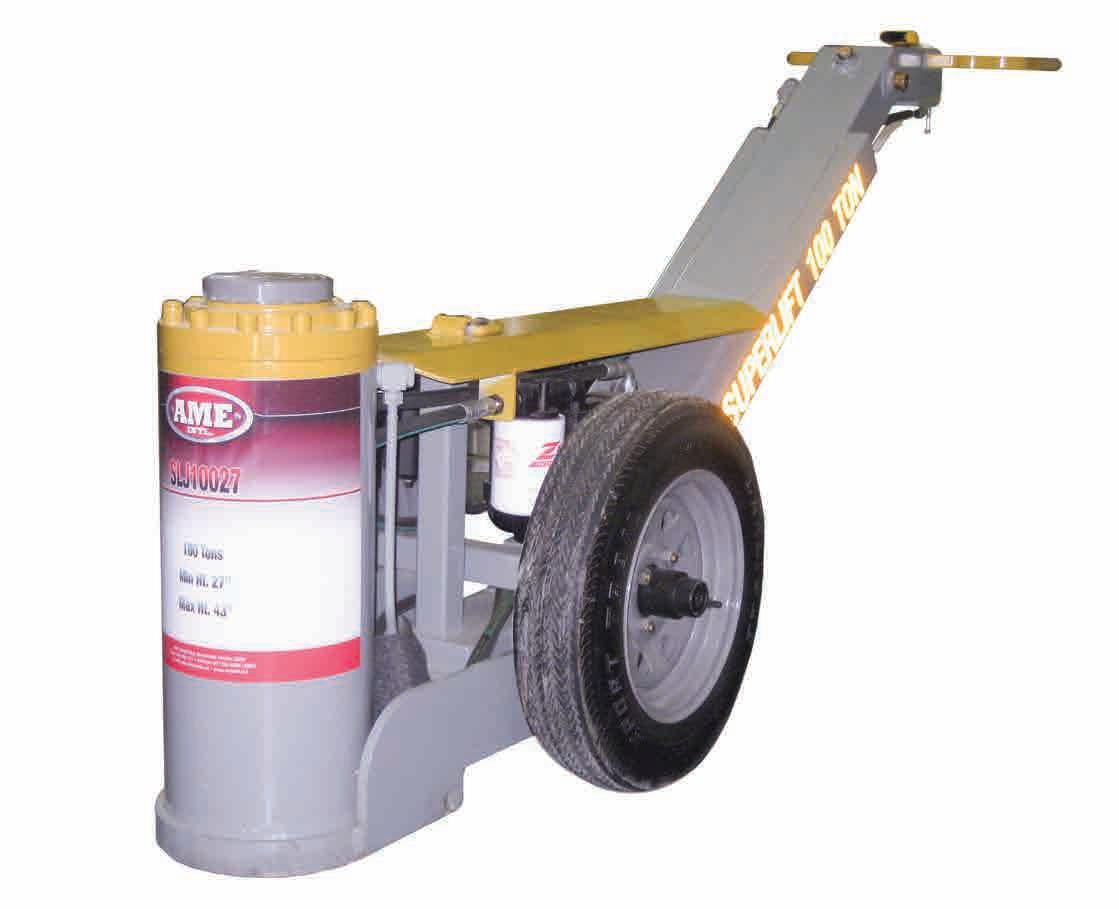

SLJ10027
Super Lift Jacks

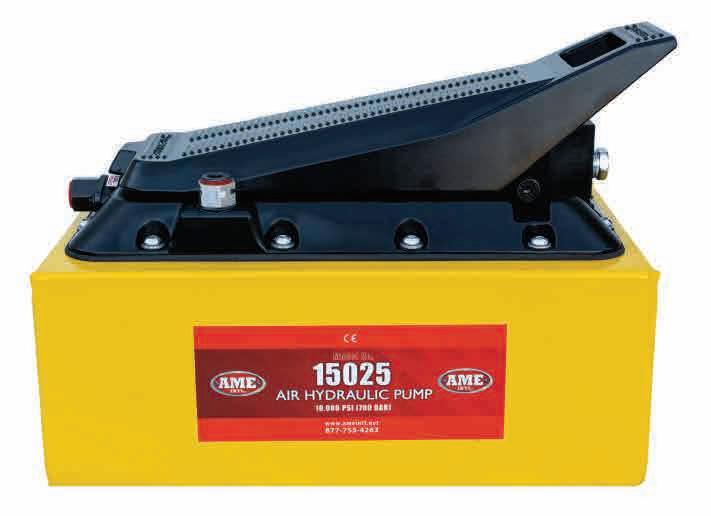

15025 5 Quart Air / Hydraulic Pump
Model
Description
SLJST
SuperLift Jack Stand Transporter

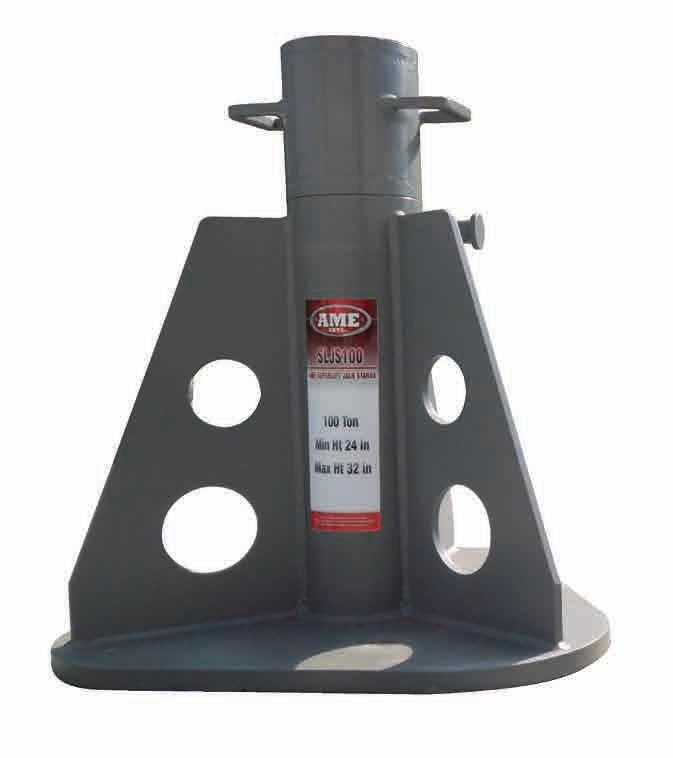

SLJS100
100 Ton Support Stands
SLJS200
200 Ton Support Stands
Model
Capacity (Tons)
Minimum Height
Maximum Height
Total Width
Frame Length
Handle Height
Cylinder Base
Weight
SLJ10027 SLJ10038 SLJ15027 SLJ15038 SLJ20027 SLJ20038 SLJ25027 SLJ25038
100 100 150 150 200 200 250 250
27” (69 cm) 38” (97 cm) 27” (69 cm) 38” (97 cm) 27” (69 cm) 38” (97 cm) 27” (69 cm) 38” (97 cm)
43” (109 cm) 65” (165 cm) 43” (109 cm) 65” (165 cm) 43” (109 cm) 65” (165 cm) 43” (109 cm) 32” (82 cm)
29” (74 cm) 29” (74 cm) 29” (74 cm) 29” (74 cm) 32” )82 cm) 32” (82 cm) 32” (82 cm) 32” (82 cm)
96” (244 cm) 96” (244 cm) 96” (244 cm) 96” (244 cm) 96” (244 cm) 96” (244 cm) 96” (244 cm) 96” (244 cm)
40” (101 cm) 40” (101 cm) 40” (101 cm) 40” (101 cm) 40” (101 cm) 40” (101 cm) 40” (101 cm) 40” (101 cm)
13” (33 cm) 13” (33 cm) 15” (38 cm) 15” (38 cm) 15” (38 cm) 15” (38 cm) 15” (38 cm) 15” (38 cm)
771 lbs. (350 kg) 851 lbs (386 kg) 794 lbs (360 kg) 905 lbs (410 kg) 1243 lbs (564 kg) 1345 lbs (610 kg) 1415 lbs (640 kg 1555 lbs (705 kg)

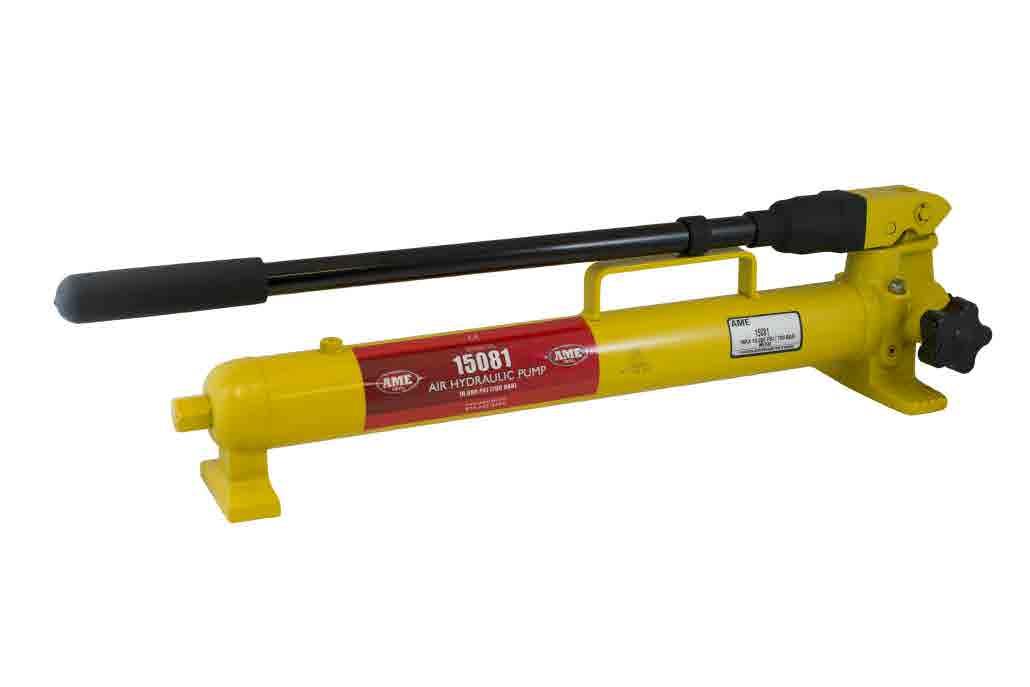

15081 Steel Hydraulic Hand Pump
13000
13121
13170

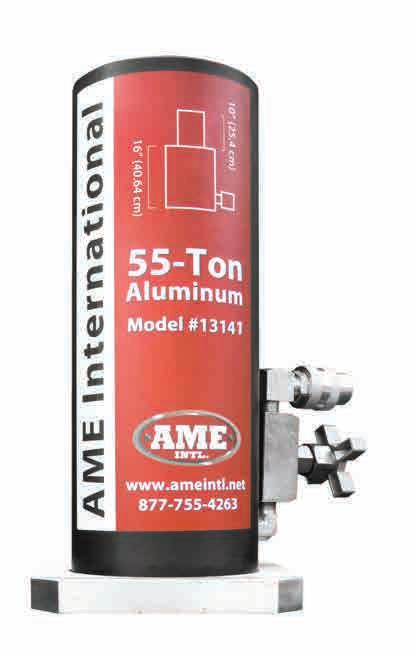

13141
Aluminum Jacks Max Height
Weight 53 lbs (24 kg)
Model Capacity
Stroke
Retracted Height

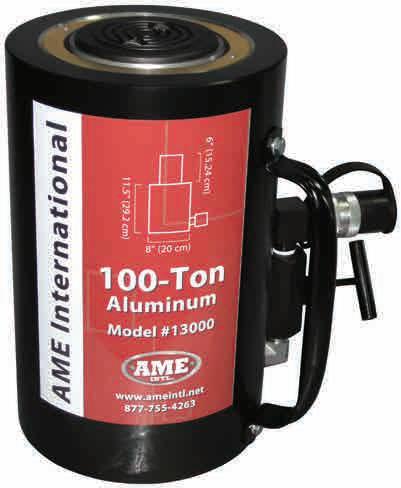

13000
100 Tons
6”(15 cm)
11.75” (30 cm)
17.75” (45 cm)

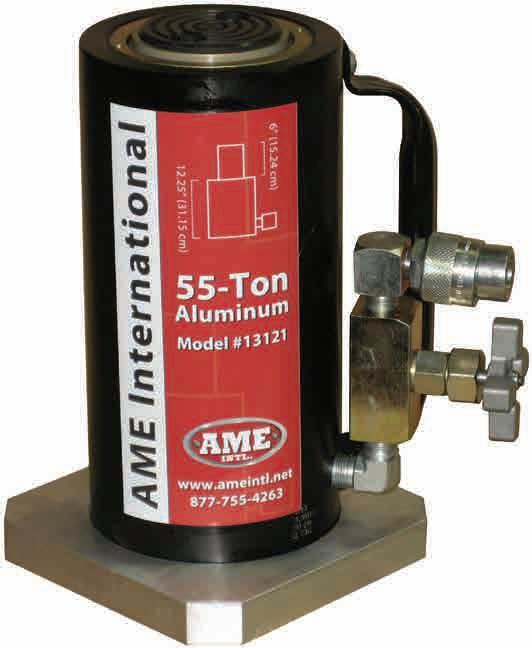

13121
55 Tons
6”(15 cm)
11.75” (30 cm)
12.25” (31 cm) 29 lbs (13.2 kg)
13141
55 Tons
10”(25.4 cm) 16.25” (41 cm) 26.25” (66.5 cm) 38 lbs (17.2 kg)

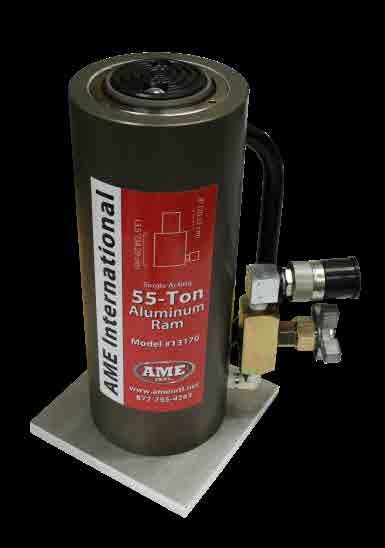

13170
55 Tons
8” (20.3 cm) 13.5” (34.3 cm) 21.5”(54.6 cm)
31 lbs (14 kg)
Wheel Chocks & Cribbing 15266-PLB 14 Piece Cribbing Kit

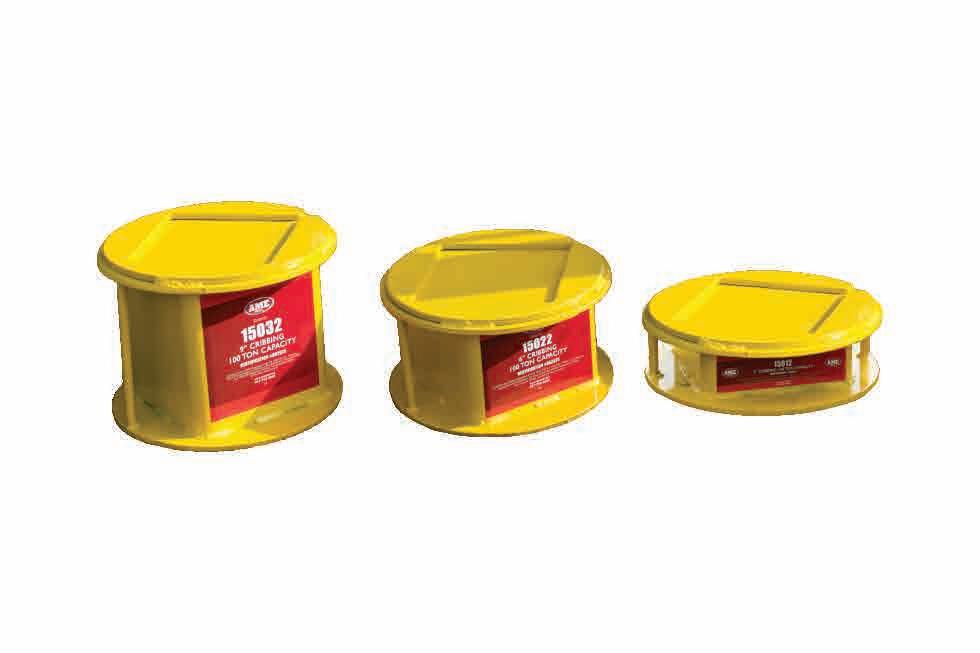

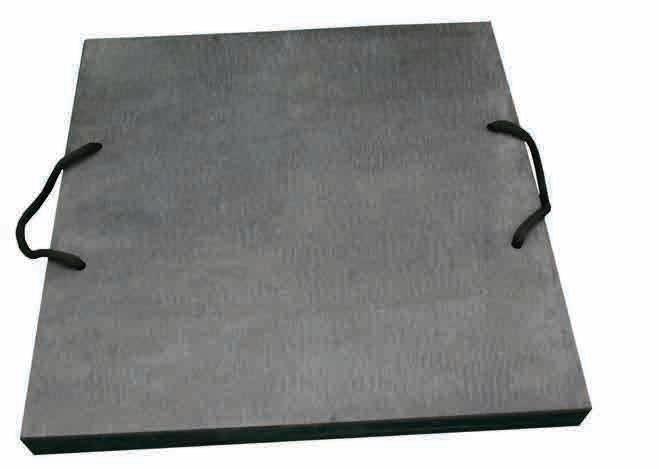

15002 100 Ton Steel Cribbing (3-piece) 14463 200 Ton Jack Plate 36” x 36” x 3”
www.ameintl.net

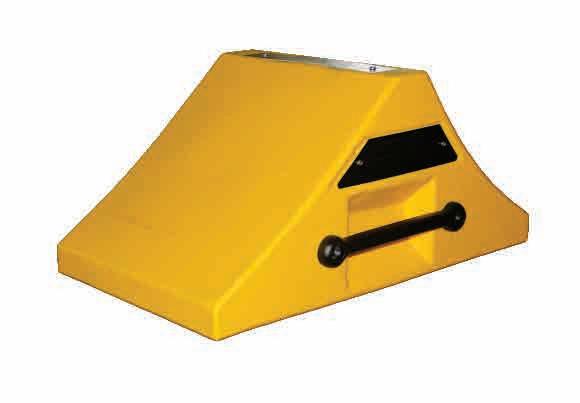

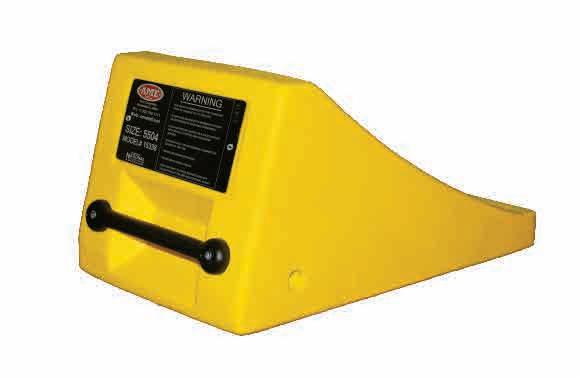

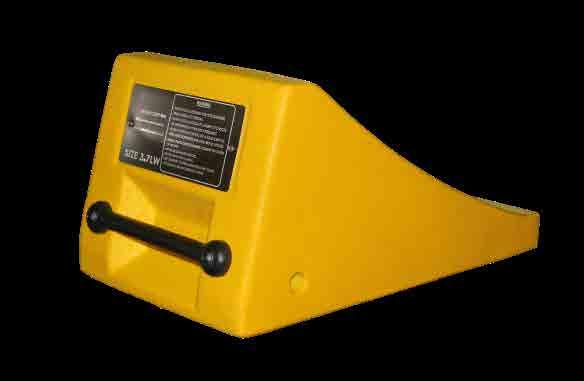

15337 OTR Wheel Chock 15338 OTR Wheel Chock 15339 OTR Wheel Chock 15341 OTR Wheel Chock

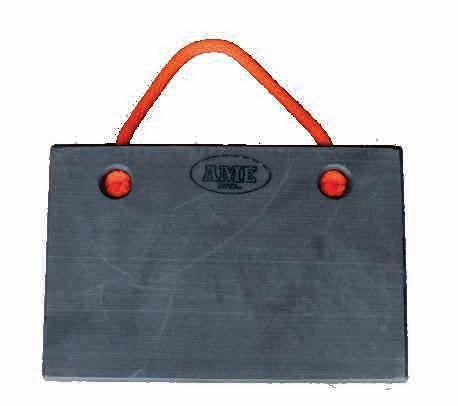

14466 200 Ton Jack Plate 18” x 12” x 3” Phone 352.799.1111
Model
Description
Length
Width
Height
Weight 13 lbs (6 kg)
15337
Best for medium to large mining trucks and equipment. Tire sizes 47.2” - 86” (120 cm - 218 cm)
18” (475 mm)
12” (3 mm)
9” (225 mm)
15338
Perfect for extra large mining equipment. Tire sizes 70.8” - 118” (180 cm - 300 cm)
22.5” (570 mm)
13” (340 mm)
14” 19.8 lbs (355 mm) (9 kg)
15339
Best for extra large mining equipment. Tire size 110” - 165” (280 cm - 419 cm)
26.7” (680 mm)
13” (340 mm)
14” 31 lbs (355 cm) (14 kg)
15341
Can be used for both large and small equipment. Tire sizes 31.5” - 118” (78 cm - 300 cm
22” (559 mm)
13” (340 mm)
11” (280 mm)
2347 Circuit Way Brooksville, FL 34604
E-Mail sales@ameintl.net
Follow Us
17 lbs (8 kg)
