2023 TOOL & EQUIPMENT CATALOG

OTR & MINING

OUR MISSION IS SIMPLE:

AME International – More Than a Supplier.

We are a worldwide supplier of tire service tools, accessories, and shop equipment.

AME produces all aspects of tire-changing tools and accessories,

CONTENTS

from passenger to off-the-road. Technicians worldwide insist on AME

MEET OUR TEAM

4

HYDRAULIC BEAD BREAKERS

6

AIR HYDRAULIC PUMPS

16

ALUMINUM JACKS

22

HYDRAULIC RAMS

26

EARTH MOVER TOOLS

28

MINING JACKS

34

WHEEL CHOCKS

41

CRIBBING AND BLOCKING

46

HYDRAULIC JACKS AND STANDS

58

TRUCK TIRE CHANGING TOOLS

74

HEAVY DUTY TRUCK

78

TORQUE

86

INFLATION

90

TIRE SPREADERS & REPAIR

96

SAFETY

98

AUTOMOTIVE SHOP TOOLS

101

TPMS

115

CHARTS & KITS

119

INDEX

133

for bead breakers, hydraulic rams and pumps, mining jacks, wheel chocks, jack stands, cribbing, inflation and torque accessories – everything needed to service the tire and wheel assembly.

From our humble beginnings in 2007, we’ve taken pride in working with the technicians who use our tools to develop quality products that best suit their needs. Our goal remains simple: service the customer. AME tools utilize new technology and continuous improvement to ensure customer satisfaction. We build tools and equipment for the tire industry designed by the tire industry.

In 2015, AME became part of the Haltec group of companies, including Great Lakes Parts and BMS Torque Solutions. In 2018, we launched our ACME Division, focused on Agricultural & Construction Maintenance Equipment and the dealers who provide it. Finally, in 2020, we received certification in ISO 9001:2015. We promise

that we’ll continue to improve our company and we’re pleased to have you be part of our journey.

AME INTERNATIONAL ESTABLISHED IN 2007 In 2007, the founders, Keith, Luis, Brett and Tim, established AME International. With over 50+ years of industry-related knowledge, the AME family is proud to supply the world with the most innovative tire service tools and equipment.

4 | MEET OUR TEAM

MEET THE

SALES TEAM KEITH JARMAN

LUIS GOYENECHE

BRETT WAGGONER

President

V.P. Sales - International

V.P. Sales - ACME Division

Email: kjarman@ameintl.net Phone: 352-799-1111 ext. 221

Email: lgoyeneche@ameintl.net Phone: 352-799-1111 ext. 224

Email: bwaggoner@ameintl.net Phone: 352-799-1111 ext. 225

FOUNDED AME IN 2007

FOUNDED AME IN 2007

FOUNDED AME IN 2007

DAWN VINCENT

KYLE SPARKMAN

SHANE WILEY

Strategic Accounts

Domestic Key Accounts / Asia

Director of E-Commerce

Email: kyle@ameintl.net Phone: 352-799-1111 ext. 359

Email: swiley@ameintl.net Phone: 352-799-1111 ext. 242

Email: dvincent@ameintl.net Phone: 352-799-1111 ext. 230

JOINED AME IN 2008

JOINED AME IN 2011

JOINED AME IN 2012

ROBIN MAYNARD

CHRIS BROTHEN

DON TINKER

Business Development

NA Business Development

Sales & Marketing Liaison

Email: cbrothen@ameintl.net Phone: 352-799-1111

Email: dtinker@ameintl.net Phone: 352-799-1111 ext. 302

Email: rmaynard@ameintl.net Phone: 352-799-1111 ext. 357

JOINED AME IN 2013

JOINED AME IN 2016

JAMES COTTON

JOHN MELOSCI

Domestic Sales

National Account Sales

Email: jcotton@ameintl.net Phone: 352-799-1111 ext. 358

Email: jmelosci@ameintl.net Phone: 352-799-1111 ext. 360

JOINED AME IN 2021

JOINED AME IN 2022

KEEP IN TOUCH

CONTACT US 2347 Circuit Way Brooksville, FL 34604 Web: www.ameintl.net Email: sales@ameintl.net Phone: 352-799-111 Toll Free: 877-755-4263

JOINED AME IN 2021

FOLLOW OUR SOCIALS Keep up with the latest products, upcoming events, and deals.

TIA TRAINING | 5

TRAINING IS KEY

AME International proudly supports the Tire Industry Association to provide the tire service industry with the most innovative training.

INDUSTRY STANDARDS Learn industry standards and best service practices from tire professionals. Hands-on courses provide education on safe and proper procedures with the industry’s most innovative tools.

PROMOTE SAFETY Instructors advocate industry-set safety regulations to promote safe practices and prevent common accidents while in the field. Learn the essentials to minimize exposure to hazards.

PRIVATE TRAINING Private, accelerated classes are available for those who want to learn more about tire service and equipment application.

Nearly half of our office staff is trained in order to promote safety and proper application

Interested in becoming TIA trained? Ask your AME representative today!

HOW TO TRAIN:

ORDER TIA TRAINING KIT: #36200 Basic Automotive Tire

Hands-on training takes place at the AME Brooksville, FL facility multiple times each year.

Service Training & Certificate

#36205 Basic Farm Tire

Service Training & Certificate

#36100 Basic Commercial Tire Service Training & Certificate

#36000 Basic Earthmover Tire

Service Training & Certificate

ATTEND TRAINING: Visit tireindustry.org/training

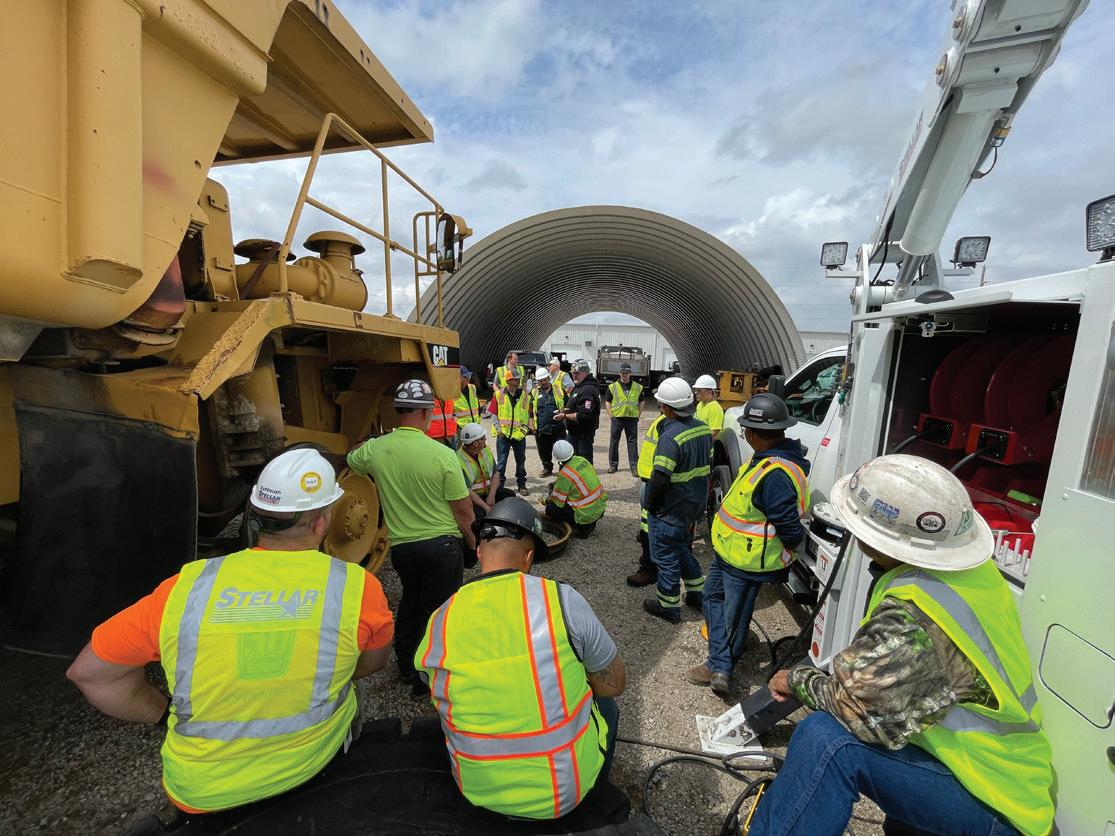

Each year, stellar Industries hosts training from May to September in Garner, IA.

AME INTERNATIONAL PROUDLY SUPPORTS

HYDRAULIC

BEAD BREAKERS

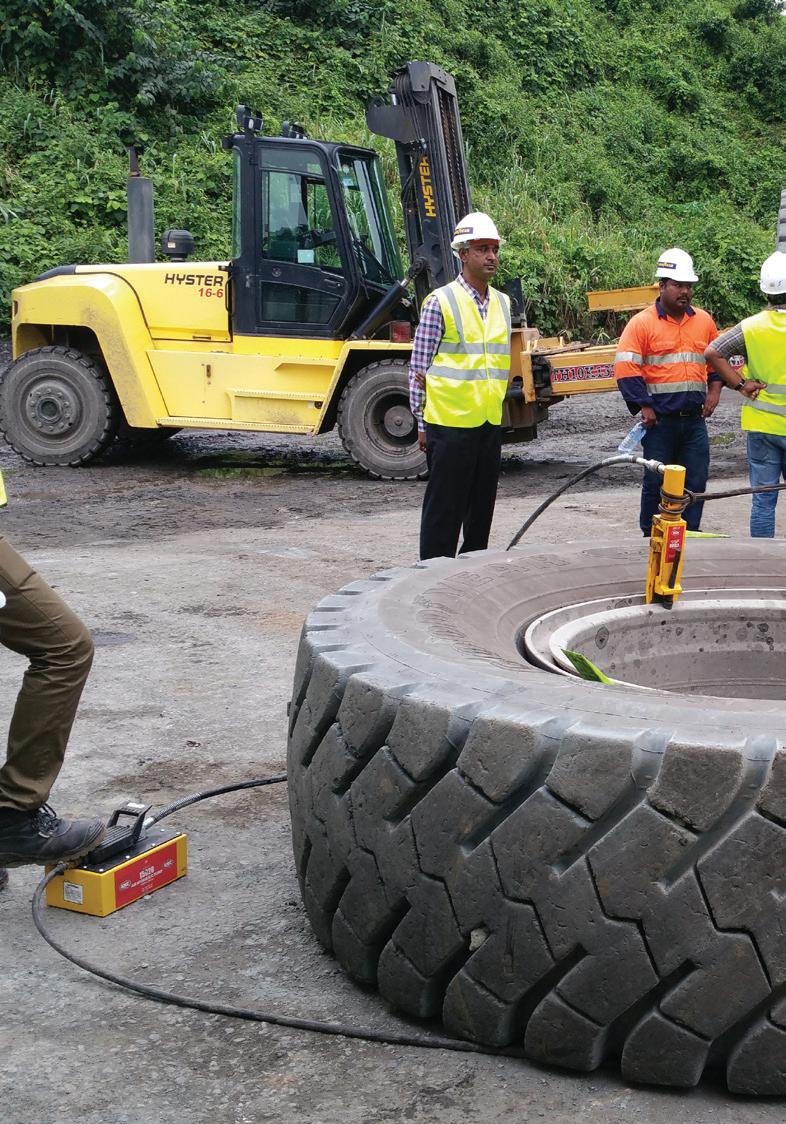

AME is the world leader in bead breakers.

These tools are essential items for breaking down wheel assemblies.

The bead breaker helps the technician safely push the beads off wheel assemblies or separate wheel components depending on the wheel design. In today’s global economy, there is no shortage of wheel types. AME’s line of breakers provides options to meet your needs and we continue to innovate to meet market demand as changes are made.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

HYDRAULIC BEAD BREAKERS | 7

SINGLE & THREE-PIECE WHEEL BEAD BREAKERS

A single-piece wheel is the component of the assembly used to hold the tire, form part of the air chamber (with tubeless tires), and provide the means of attachment of the assembly to the vehicle axle. In 1984, OSHA amended the safety standard for servicing multi-piece rim wheels (29 Code of Federal Regulations 1910.177) to include requirements for the safe servicing of single-piece rim wheels used on large trucks, trailers, buses, and off-road machines.

Single and three-piece rims are commonly found on farm tractor, grader, combine, skidder, and other construction and agricultural equipment. There has been a more than 70-percent reduction in multi-piece rim wheel servicing injuries since the original standard was issued in 1980 – based on a review of the record of multi-piece rim wheel accidents investigated by OSHA. Three-piece wheels, also referred to as multi-piece wheel components, shall not be interchanged except as provided in the charts or in the applicable rim manual.

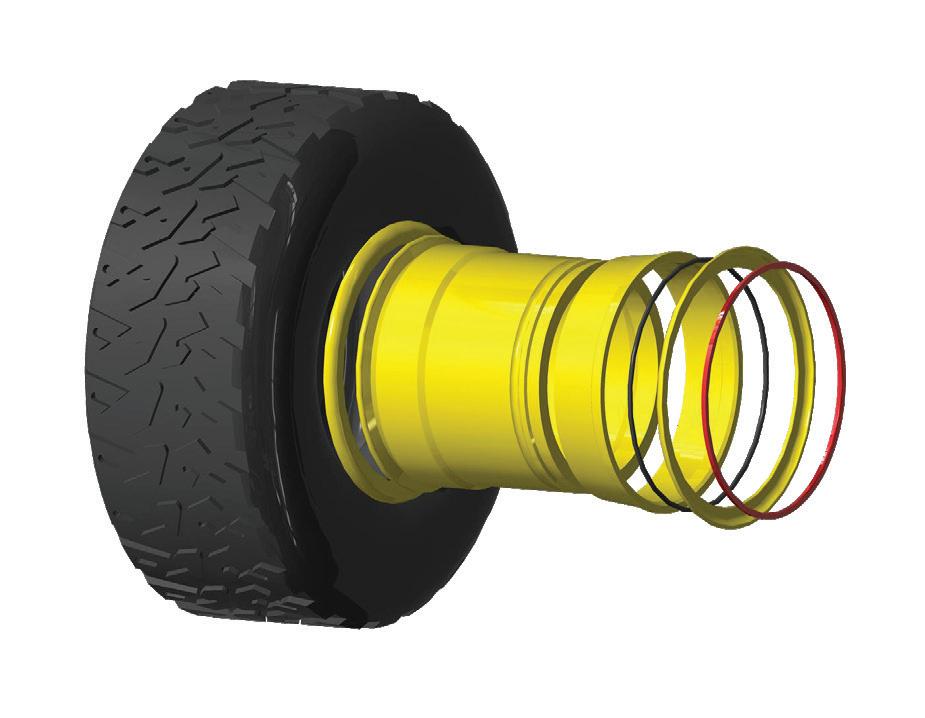

THREE-PIECE WHEEL COMPONENTS: 1.

Rim Base

2. Combination Flange Ring (Bead Seat Band) 3. Lock Ring (O-Ring required)

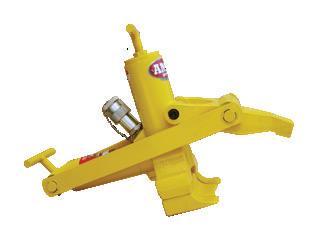

11010

HYDRAULIC “COMBI” BEAD BREAKER

• Used on construction wheels up to 25” • Tool clamps hydraulically to the wheel and then breaks bead with 11 tons of force

• Used with 10,000 psi (700 bar) air hydraulic pump

• 3.75” (9.5 cm) stroke length • Weight: 34 lbs (15.5 kg) • Works on single, two and most three-piece wheels

• Model 16200 Upgrade Conversion Kit allows tool to be used on 23.5” x 25”, 26.5” x 25”, and 29.5” x 25” wheels

ACCESSORIES

FOR "COMBI" STYLE BEAD BREAKERS 16200 UPGRADE KIT • Conversion Kit & Upgrade Kit - easy to apply

to bead breakers and will fit models from IMT, FEC, Stellar and older ESCO • Converts standard "Combi" style bead breakers to fit three-piece wheels • Converts “Combi” style bead breaker to allow the foot to reach down into flange • 16200 also includes 16150 Conversion Kit to guarantee fit on all tools - regardless of age

11010

8 | HYDRAULIC BEAD BREAKERS

11015

11025

• Ideal for tire dealer who requires occasional

• Economy “Combi” bead breaker • Larger upper clamp and feet allow for

TITAN FARM TIRE BEAD BREAKER

use of bead breaker • 10 ton cylinder has enough force to break most beads • 4” (10 cm) stroke length • Unit will break all single and two-piece and most three-piece wheels • Weight: 34 lbs (15.5 kg)

TITAN PRO BEAD BREAKER

greater bite

• Ideal for large OTR three-piece wheel assemblies

• Designed to work on the front or back of the wheel assembly

11015

11020

MODIFIED “COMBI” BEAD BREAKER

• The bead breaker that operators are most familiar with

• Larger clamp and feet allow the tool to clamp onto the wheels easily

• Compact design allows the tool to be used on the front or back side of the wheel

• Most parts interchange with common bead breakers in the market

• Most affordable bead breaker for new three-piece wheels

• Ideal to break large OTR three-piece wheels • Weight: 38 lbs (17 kg)

11020

HYDRAULIC BEAD BREAKERS | 9

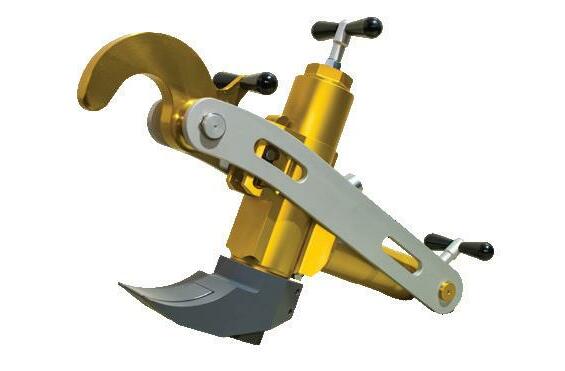

11076

DIAMONDBACK ALUMINUM BEAD BREAKER

• Used on construction wheels up to 25” • Tool clamps hydraulically to the wheel and then breaks bead with 11 tons of force

• Used with 10,000 psi (700 bar) air hydraulic pump

• 3.75” (9.5 cm) stroke length • Weight: 34 lbs (15.5 kg) • Works on single, two and most three-piece wheels

• Designed to work on high-flange mounted

11076

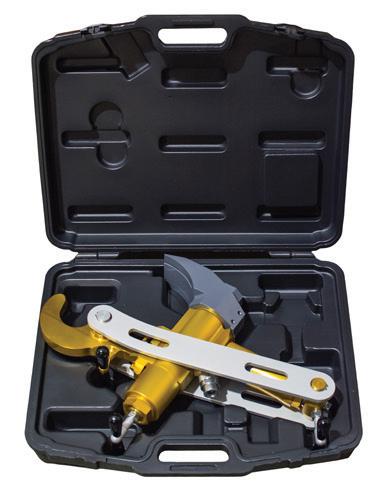

on 23.5” x 25”, 26.5” x 25”, and 29.5” x 25” COMES WITH HD CARRYING CASE!

11076K INCLUDES 11077 VOLVO ADAPTER

ACCESSORIES FOR ALUMINUM BEAD BREAKERS

11090

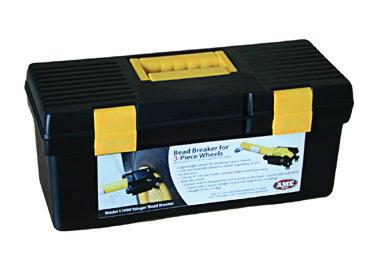

“STINGER” BEAD BREAKER

11076

11077 VOLVO ADAPTER • Used on the back side of certain assemblies • Ideal for low-clearance sections • Adapter easily changes out on 11076 Diamondback Aluminum Bead Breaker

• Lightweight option for breaking three-piece wheels

• Unit mechanically clamps to the wheel, regardless of size or clearance

• 10 ton, 8” (20 cm) stroke cylinder pushes the

17200 DIAMONDBACK BEAD BREAKER UPGRADE KIT • Will work with existing Aluminum Bead

Breakers, including AME model 11076 and IMT-1000 • Longer feet allow the tool to fully engage the bead of the tire • Helps tool push on the bead – not the sidewall

bead back away from the wheel

• Unique head is designed for the tool to push on the bead – not the sidewall of a tire

• Comes with 2 spacer wedges to prevent the bead from re-seating (#11040-011)

• Weight: 29 lbs (13 kg)

COMES WITH CARRYING CASE!

11090

10 | HYDRAULIC BEAD BREAKERS

FIVE-PIECE WHEEL BEAD BREAKERS

Five-piece rims are commonly referred to as multi-piece wheels, defined by a vehicle wheel consisting of two or more parts, one of which is a side or locking ring designed to hold the tire on the wheel by interlocking components when the tire is inflated.

Five-piece wheel bead breakers are unique in that they typically push the rim flange off the bead seat band, breaking the bead without touching the tire. These tools are commonly held into place with a hook that fits into a pocket on the wheel, although some tools exist which clamp to the rim flange. AME International offers a complete range of earthmover bead breakers.

FIVE-PIECE WHEEL COMPONENTS: 1. Rim Base 2. Back Side Rim Flange 3. Front Side Rim Flange 4. Bead Seat Band 5. Lock Ring (O-ring required)

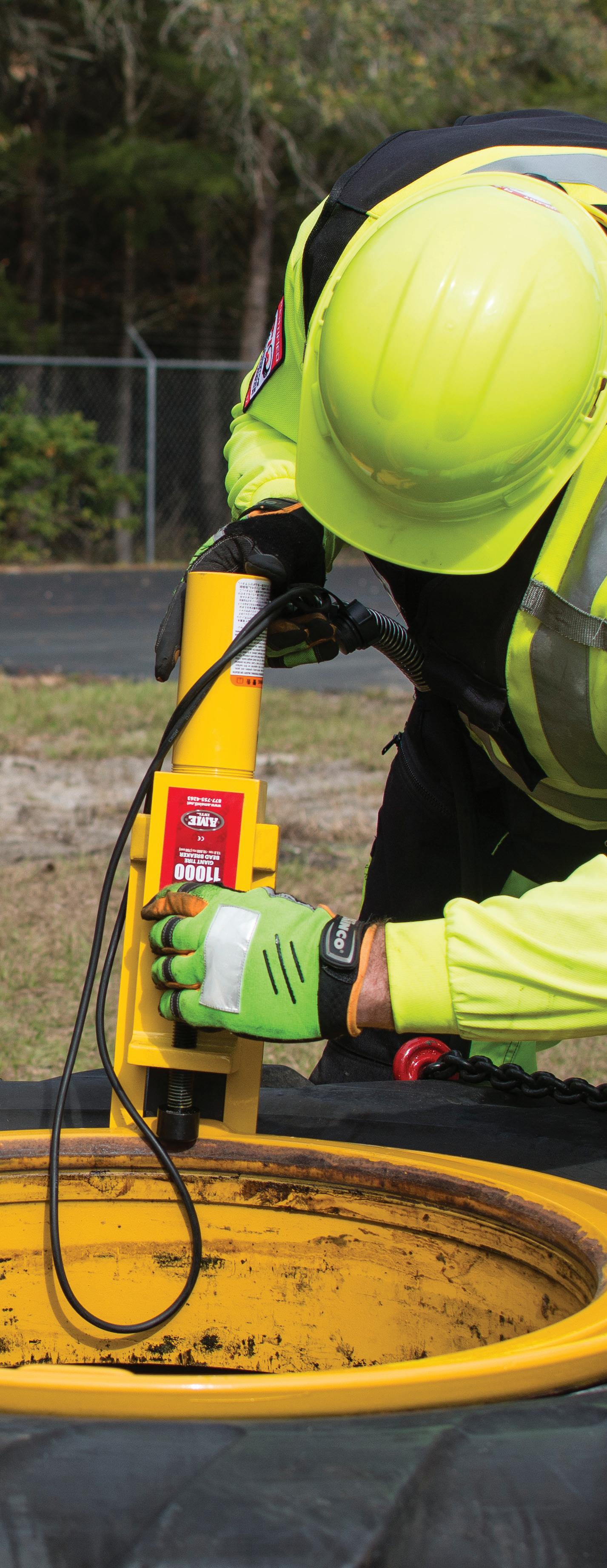

11000

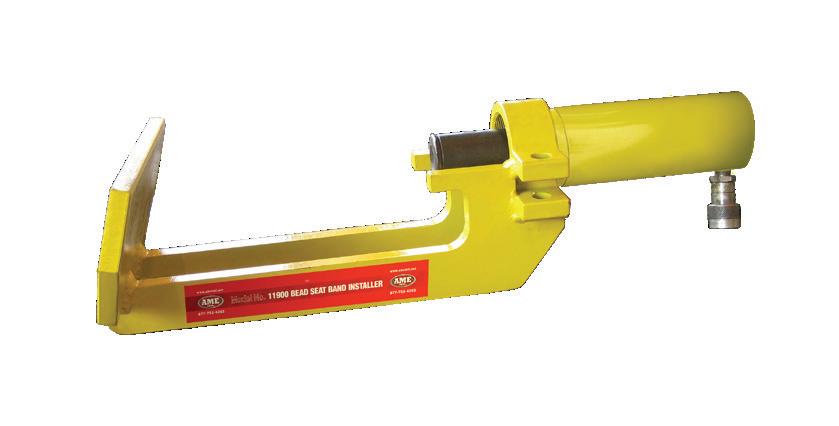

OTR GIANT BEAD BREAKER

• Most popular tool for breaking beads on earthmover tires, sizes 25”-51”

• Works only on five-piece wheels with bead-loosening pockets

• 4 ¼” (10.8 cm) stroke ram • Use with any 10,000 psi (700 bar) air/ hydraulic pump

• Weight: 33 lbs (14.5 kg) • 16070 Adapter allows the use of the 11000 on Caterpillar Shur-Lok rims (sold separately)

11000

HYDRAULIC BEAD BREAKERS | 11

11005

11050

• Ideal for tire dealer who requires occasional

• Compact, lightweight tool used primarily on

TITAN EARTHMOVER BEAD BREAKER

use of bead breaker • 10 ton cylinder has enough force to break most beads • 4” (10 cm) stroke length • Unit will work on five-piece wheels with bead loosening pockets • Weight: 34 lbs (15.5 kg)

OTR GIANT TIRE BEAD BREAKER

25” and 29” earthmover wheels

• Originally marketed as Goodyear T0-1600-HA • Works only on five-piece wheels with bead loosening pockets

• 2 1/8” (5.4cm) stroke • 10 tons of hydraulic force • Used with 10,000 PSI (700 bar) air/

11005

hydraulic pump

• Weight 23 lbs (10kg)

12105, 11000

DUAL GIANT TIRE BEAD BREAKER KIT

11040

OTR TIRE BEAD BREAKER

12105

• Breaks the bead on five-piece wheel

assemblies at two points of contact • Twice the bead-breaking power for stubborn OTR wheel assemblies • Equivalent pressure helps depress rim assembly on OTR wheels for bead separation • Recommended for use on five-piece wheel assemblies up to 49” COMPLETE KIT INCLUDES:

• 10,000 PSI manifold assures equal oil delivery • (2) 11000 OTR Giant Tire Bead Breaker • (1) 15920 5 Quart Air Hydraulic Pump with Steel Reservoir

• (2) 16040 8’ Hydraulic Hoses rated at 10,000 PSI (proper couplings included)

• (1) 16100 8’ Hydraulic Hose rated at 10,000 PSI • (1) 16165 Hydraulic Manifold Kit (proper couplings included) pressure to both units

• Original Earthmover tire bead breaker • Clamps to wheel mechanically, hydraulic ram assembly is then used to break the bead

• Designed for use on five-piece wheels which do not have bead-loosening pockets

• Offers 10” (25.4 cm) of stroke to break bead • Includes 6 curved wedges, which are used to

prevent the tire from ‘re-seating’ when the tool is moved around the wheel for additional bead breaking • Used with 10,000 PSI (700 bar air/ hydraulic pump or hand-operated hydraulic pump) • Model 12150–Frame Assembly only (TO-100-FA) • Model 12160–Ram Assembly only (TO-100-RA) • Weight: 65 lbs (29.4 kg)

11040

12 | HYDRAULIC BEAD BREAKERS

11030

OTR GIANT TIRE BEAD BREAKER

• Bead breaker for use on 39” up through 49” earth mover wheels

• Originally marketed as TO-2000-HA OTR-2000 • 6” (15.25 cm) stroke breaks most beads • 16270 kit has longer hooks in order to fit onto larger 57” or 63” wheels

• Used with large capacity (5 quart or more) 10,000 PSI (700 bar) air/hydraulic pump

• Available in 8” Stroke, model 11031 • Weight: 55 lbs (25 kg)

11030

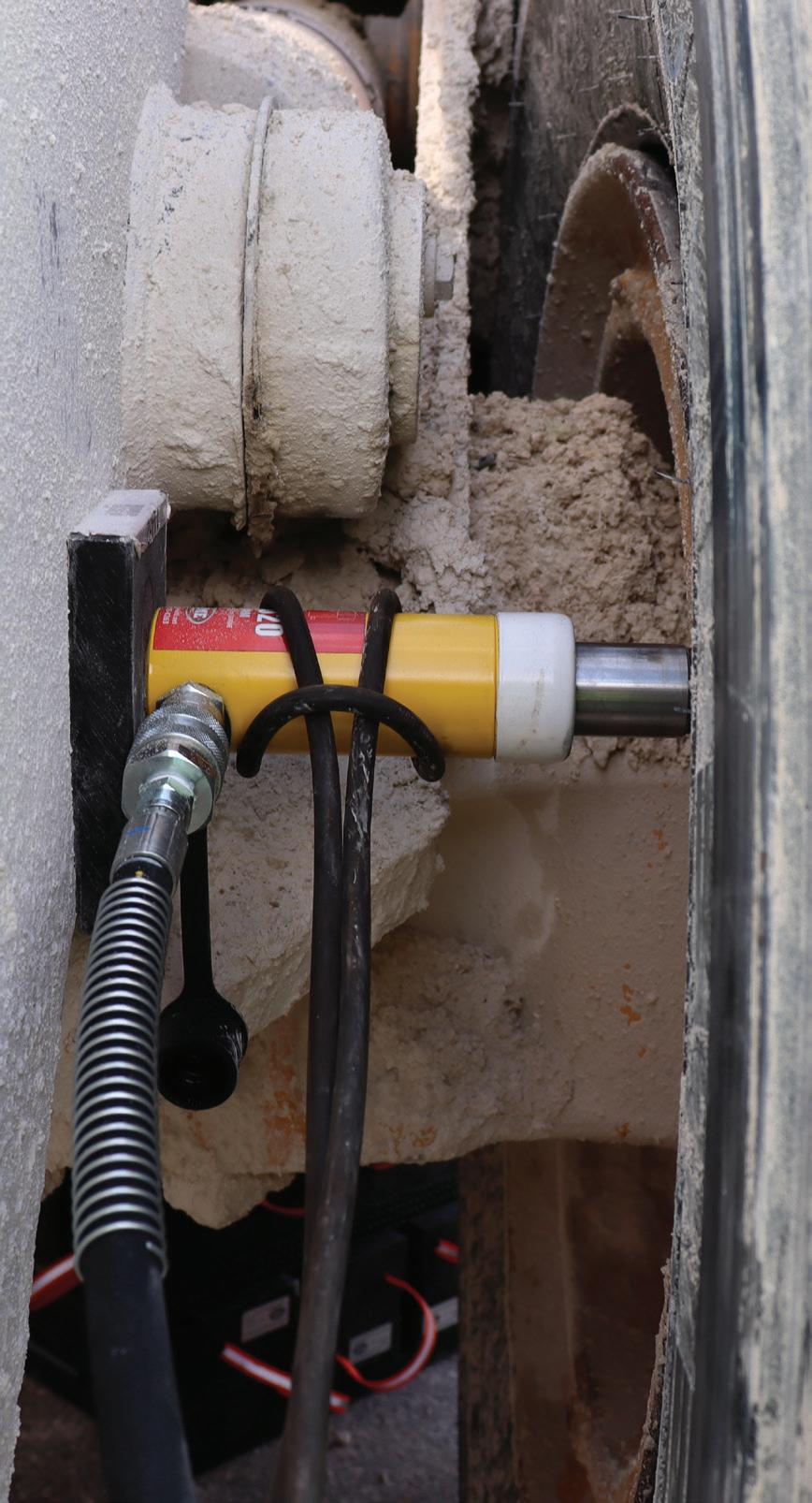

11055-830E BACK SIDE TIRE BEAD BREAKER

NEW • Designed specifically for Komatsu 830 rear wheel applications

• Engineered to mount on rear axle lug of Komatsu 830 vehicles

• Light-weight, made from aluminum • Optional ram saddles available for wheel applications

• Comes assembled with the 13100 25-ton cylinder with a 6" stroke

11055-830E

HYDRAULIC BEAD BREAKERS | 13

11044

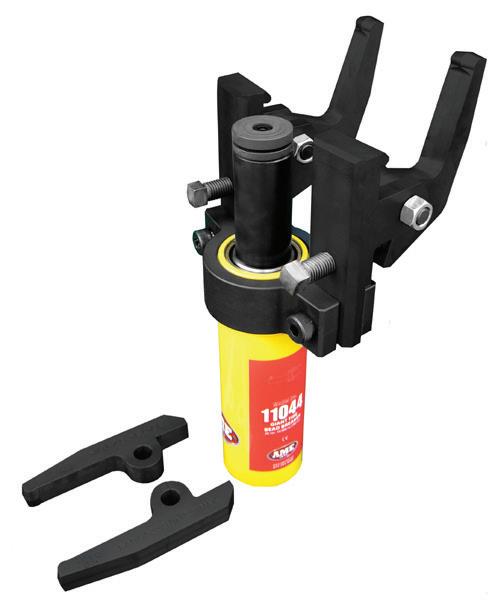

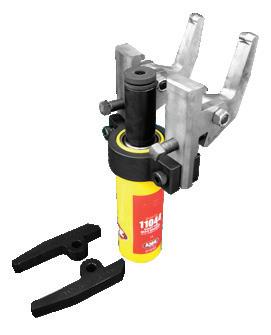

OTR-3000 GIANT TIRE BEAD BREAKER • Designed specifically to work on Topy and

Rimex OE wheels found on Terex, Komatsu, Liebherr and Le Tourneau • Designed to prevent the tool from kicking out while under load • 6” stroke ram • 25-ton cylinder delivers maximum force • Jaw design works on most wheels 51” – 63” • Weight: 54 lbs (24.5 kg) BACK SECTION JAWS INCLUDED

ACCESSORIES FOR

OTR-3000 GIANT TIRE BEAD BREAKER 11046, 11043 OTR-3000 BEAD BREAKER JAW ASSEMBLIES

11044

11046 • High chrome-alloy steel ensures structural integrity in the toughest conditions

• Contains two jaws for the back section and 11046

bead bands

6 7/8 IN. (14.5 CM)

• Fits the majority of five-piece OTR Wheel 1 1/2 IN. (3.8 CM)

assemblies

• Not to be used on CAT Shur-Lock assemblies (see 11043)

11043 • High chrome-alloy steel ensures structural 11043

integrity in the toughest conditions

7 3/4 IN. (19.685 CM)

• Extended Clamping Frame fits over Sur-Lock 2 3/8 IN. (6.03 CM)

Bead Bands

• Model 11049 includes OTR-3000 Bead Breaker already fitted with Shur-Lock Jaws

ADAPTERS FOR OTR-3000 BEAD BREAKER MODEL

11145

11244

11344

DESCRIPTION

SPECIFICATIONS

Bead Breaker Extension

Used on TOPY Wedge Wheels size 49” - 63”

Adapter for 11044 Titan SVM / OVM Wheel

Does not scar / contact rim base Designed to work on narrow bead seat bands Can be added to 11044 in minutes, snap in install

Adapter for 11044 Rimex DGS Wheels

Does not scar / contact rim base Designed to work on narrow bead seat bands

11044

14 | HYDRAULIC BEAD BREAKERS

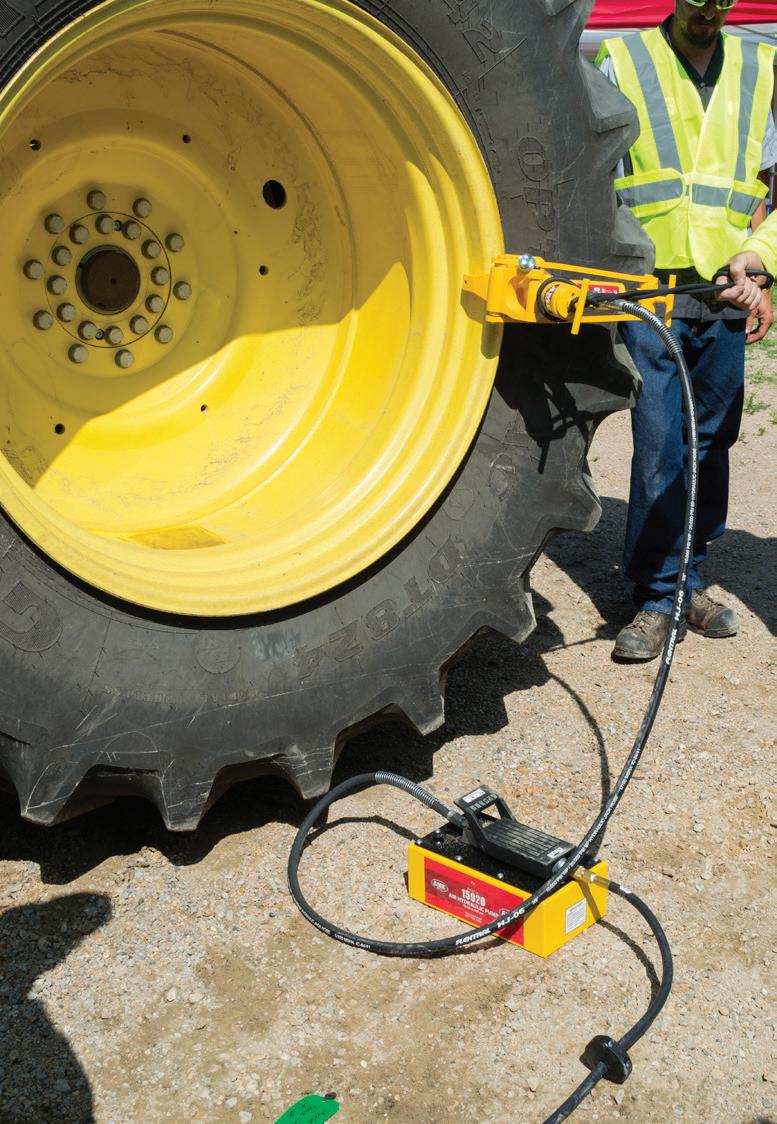

FARM / AG TIRE BEAD BREAKERS

A single-piece wheel is the component of the assembly used to hold the tire, form part of the air chamber (with tubeless tires), and provide the means of attachment of the assembly to the vehicle axle.

In 1984, OSHA amended the safety standard for servicing multi-piece rim wheels (29 Code of Federal Regulations 1910.177) to include requirements for the safe servicing of single-piece rim wheels used on large trucks, trailers, buses, and off-road machines.

FARM / AG WHEEL COMPONENTS: • Single Piece Wheel

11080

BEAD PUSH OFF TOOL

• Lightweight tool for removing combine

and tractor tires after breaking the bead

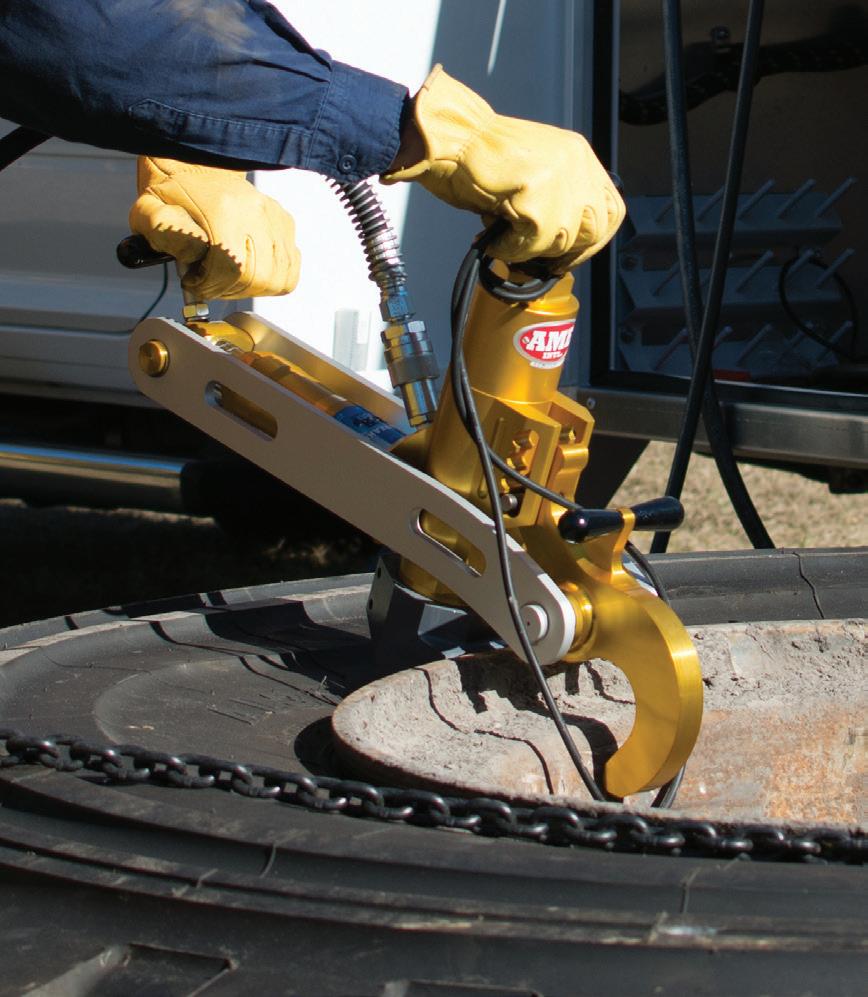

• 4 tons of hydraulic force • 5.5” (13.97 cm) stroke • A removable handle for storage • Use with any 10,000 PSI (700 bar) air/ hydraulic pump

• Weight: 9 lbs (4.1 kg) • New forged head stronger than cast models

11080

HYDRAULIC BEAD BREAKERS | 15

11060

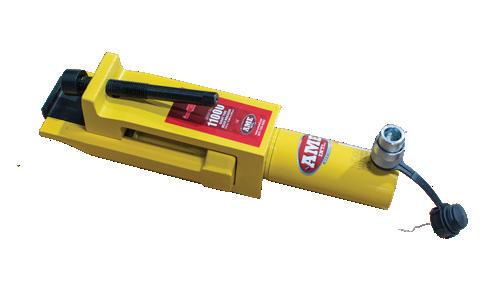

DUAL AGRICULTURAL BEAD BREAKER

11060

• Guaranteed to break any dual AG tire beads • Unique compact design allows the tool to fit in the tightest spaces - only 3” (7.6 cm) wide at narrowest point • Spreads to 26” (66 cm) in width - enough to break any bead • Used to break the inside bead of the outside tire on a dual assembly • Used to break the inside bead of the inside tire when the tool is placed against the frame of vehicle • 10 ton cylinder has enough force to break all tractor beads • Used with 10,000 PSI (700 bar) air/hydraulic pump • Weight: 39 lbs (17.6 kg)

EXPANDS UP TO 26” TO BREAK ANY BEAD!

11060

SIGN UP FOR OUR STICKER CLUB

Who doesn't like free stickers?

Scan the QR code and sign up for our sticker club to receive free AME International stickers.

AIR / HYDRAULIC

PUMPS

AME’s line of hydraulic pumps is the heart that powers our professional hydraulic power tools. Most of our tool applications require 10,000 PSI, but we also have lower PSI pumps tailored for hoists, rolling jacks, or other low PSI applications.

Capacity options, depending on oil needs, and reservoir construction for reduced fatigue are all available. Our certified staff can help you decide which pump will best suit your needs now and down the road. Our line of hydraulic hoses ensures that the power from the pump reaches the tool in at an efficient, safe, certified rate of flow.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

AIR / HYDRAULIC PUMPS | 17

15920

5 QUART AIR/HYDRAULIC PUMP KIT, STEEL RESERVOIR

• Builds 10,000 PSI of pressure • Operates on 40-100 PSI of inlet air pressure • 8’ hydraulic hose with 3/8” NPT High-Flow Coupler • Durable Metal Air Motor Assemblies • Steel reservoir ensures durability • Max Pressure: 10,000 PSI • Kit Weight: 31 lbs (14 kg) • Oil capacity: 5 QT (4.73 liters) • Reservoir Type: Steel • Weight: 26.68 lbs • 85 dBA at 10,000 PSI

15930C AVAILABLE WITH HOSE, COUPLER & MUD FLAP

15940

15900

• Builds 10,000 PSI of pressure • Operates on 40-100 PSI of inlet air pressure

• Builds 10,000 PSI of pressure • Operates on 40-100 PSI of inlet air pressure

• Durable metal air motor assemblies • Designed specifically to conditions normally

• Durable metal air motor assemblies • Designed specifically to conditions normally

• Oil capacity: 2 gallons (7.57 liters) • Reservoir Type: Steel • Weight: 14 lbs (6.4 kg) • 85 dBA at 10,000 PSI

• Oil capacity: 2.5 QT (2.36 liters) • Reservoir Type: Polyethylene • Weight: 14 lbs (6.4 kg) • 85 dBA at 10,000 PSI

2 GALLON AIR / HYDRAULIC PUMP KIT, STEEL RESERVOIR

(standard on most compressors and shop air) associated with OTR sites

2.5 QUART AIR / HYDRAULIC PUMP KIT, POLYETHYLENE RESERVOIR

(standard on most compressors and shop air) associated with OTR sites

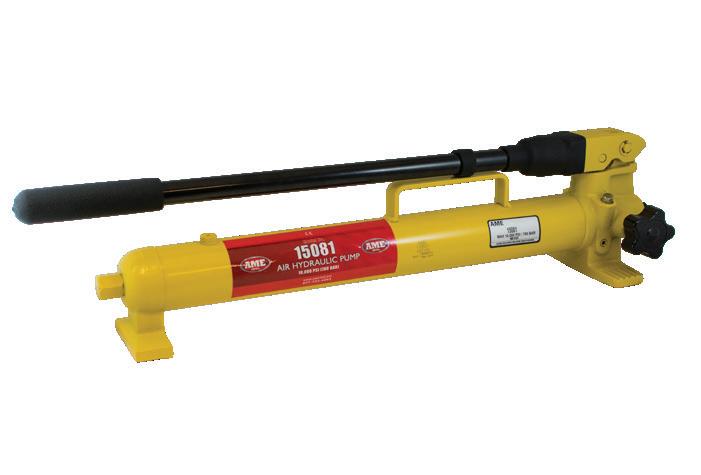

15081

HYDRAULIC HAND PUMP

• 10,000 psi (700 bar) maximum operating pressure

• Low-cost alternative to air hydraulic pumps • Constructed of high-grade steel and built to exact standards for quality and durability

• Single-speed pump for applications with a constantly applied load

• Pump can be operated in either the vertical or horizontal position

• Heavy duty carrying handle for easy transport

• 3/8” NPTF outlet ports • Weight: 19 lbs (8.7 kg)

18 | AIR / HYDRAULIC PUMPS

15000

3.5 QUART AIR/HYDRAULIC PUMP, POLYGLASS RESERVOIR

TITAN PRO BEAD BREAKER

• Builds 10,000 PSI of pressure • Operates on 40-125 PSI of inlet air pressure • Durable metal air motor assemblies • Oil capacity: 3.5 quarts (3.25 liters) • Reservoir type: Polyglass • Sight glass allows technicians to visually inspect oil level

• Weight: 16 lbs (7.3 kg) • Quiet - 76 dBA at 10,000 PSI

15040

2 GALLON AIR / HYDRAULIC PUMP KIT, STEEL RESERVOIR

• Builds 10,000 PSI of pressure • Operates on 40-125 PSI of inlet air pressure • Durable metal air motor assemblies • Oil capacity: 2 gallons (7.57 liters) • Reservoir Type: Steel • Weight: 41 lbs (18.6 kg) • Quiet - 76 dBA at 10,000 PSI

15010C INCLUDES HOSE & COUPLER

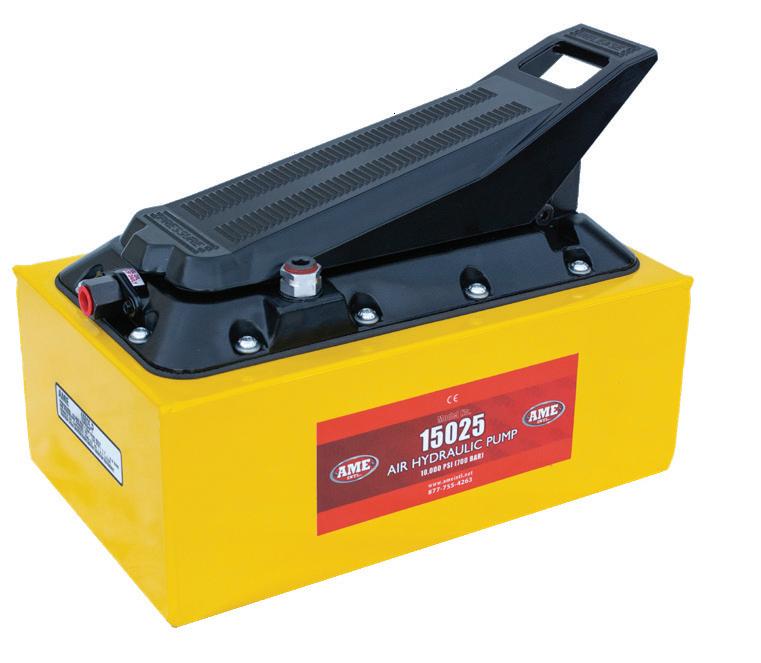

15025

15020

5 QUART AIR / HYDRAULIC PUMP KIT, STEEL RESERVOIR

5 QUART AIR / HYDRAULIC PUMP KIT, POLYGLASS RESERVOIR

• Builds 10,000 PSI of pressure • Operates on 40-125 PSI of inlet air pressure • Durable metal air motor assemblies • Oil capacity: 5 QT (4.73 liters) • Reservoir Type: Steel • Weight: 30 lbs (13.6 kg) • Quiet - 76 dBA at 10,000 PSI

• Builds 10,000 PSI of pressure • Operates on 40-125 PSI of inlet air pressure • Durable metal air motor assemblies • Designed specifically to conditions normally associated with OTR sites

• Oil capacity: 5 QT (4.73 liters) • Reservoir Type: Polyglass • Weight: 23 lbs (10.4 kg) • Quiet - 76 dBA at 10,000 PSI

AIR / HYDRAULIC PUMPS | 19

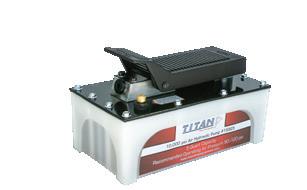

TITAN 10,000 PSI AIR / HYDRAULIC PUMPS

• Affordable air/hydraulic pumps build 3,900, 5,500, & 10,000 PSI (depending on model)

• Ideal for moderate field service • Operates on 80-120 PSI • Durable air motor assemblies • Designed for tools that require large volumes of oil

15905

15924

15925

15906

15907

MODEL

CAPACITY

RESERVOIR TYPE

PSI

WEIGHT

15924

5 quarts (4.73 liters)

Steel

10,000 PSI

23 lbs (10.4 kg)

15925

5 quarts (4.73 liters)

Polyethylene

10,000 PSI

20 lbs (9.1 kg)

15905

2.5 quarts (2.37 liters)

Aluminum

10,000 PSI

23 lbs (10.4 kg)

15906

2.5 quarts (2.37 liters)

Aluminum

5,500 PSI

23 lbs (10.4 kg)

15907

2.5 quarts (2.37 liters)

Aluminum

3,900 PSI

23 lbs (10.4 kg)

20 | AIR / HYDRAULIC PUMPS

HYDRAULIC HOSES & COUPLER SETS

• 10,000 psi (700 bar) working pressure hydraulic hose • Equipped with 3/8” NPT ends, including one swivel end • Meets IJ100 jack hose specifications • Made in the USA

16040

CUSTOM SIZES AVAILABLE

16040

HOSE PART NUMBER

HOSE LENGTH

HOSE WITH HI FLOW MALE (16050)

HOSE WITH COMPLETE HI FLOW (16000)

HOSE WITH QUICK CONNECT FEMALE (TC-371)

HOSE WITH COMPLETE COUPLER (TC-370)

16116

6’

16016

16160

16116-TC

16160-TC

16100

8’

16040

16030

16100-TC

16030-TC

16105

10’

16045

16035

16105-TC

16035-TC

16120

12’

16010

16025

16120-TC

16025-TC

16110

18’

16015

16020

16110-TC

16020-TC

AIR / HYDRAULIC PUMPS | 21

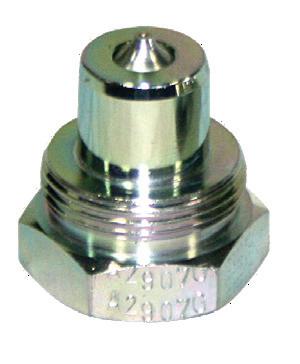

ACCESSORIES FOR HYDRAULIC HOSES HIGH FLOW HYDRAULIC COUPLERS

QUICK CONNECT HYDRAULIC COUPLERS

16050

16060 TC-372

CD411

• Model 16000 - Complete Set (16005 - Male Half, 16006 - Female Half) • Interchange with Enerpac C604 and Power Team/OTC 9795 • Plastic dust cover available (Model CD-411) • CD411-M Metal available

TC-371

• 10,000 PSI (700 bar) quick connect coupling, 3/8” NPT • Parker Series couplings (interchange with IMT couplings) • Model TC-370 - Complete Set (TC-371 - Female Half, TC-372 - Male Half)

*Dust Caps Recommended to Prevent Contamination of Hydraulic Fluid from Dirt and Debris

15901 MILLER MUD FLAP

• Fits AME 15920, 15940, and IMT style pumps • Prevents dirt from contaminating the release valve • Inexpensive solution to improve the service life of your pump

INCLUDED WITH 15930C

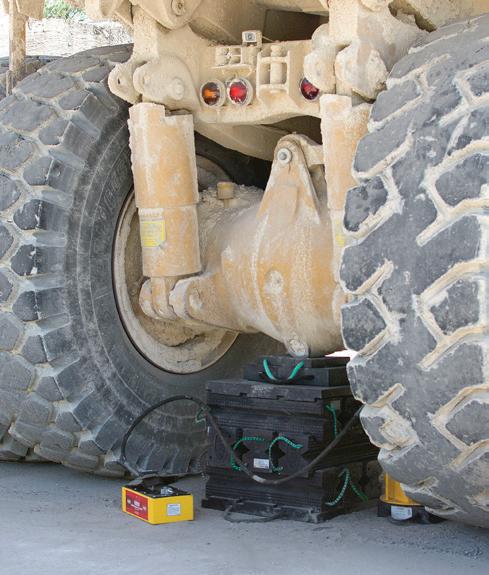

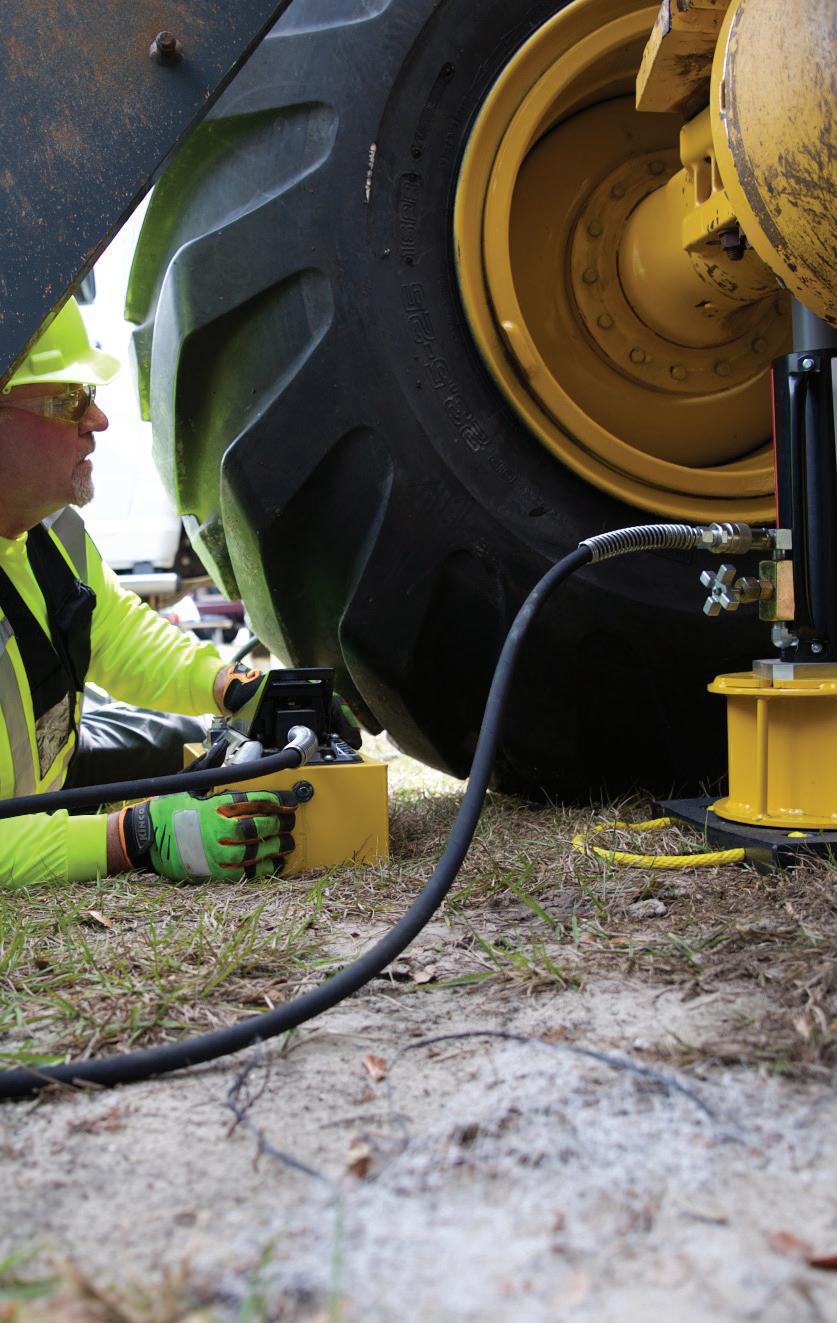

ALUMINUM

JACKS

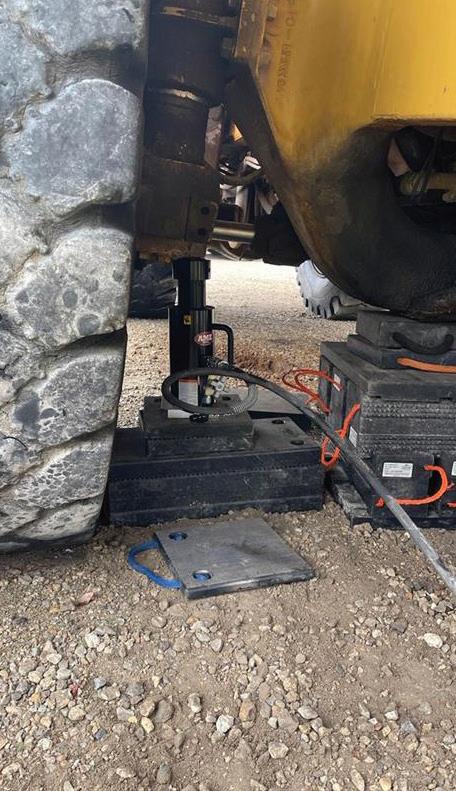

AME offers a wide range of aluminum jack cylinders. The aluminum jack has come to dominate the 50-100 ton range because of weight savings that allow a technician to easily place the jack.

These cylinders operate with a hydraulic pump and hose. See the line for unique features including locking collar jacks and a 75 ton mid-size unit.

HOW-TO VIDEOS Scan the QR code to view helpful tips & maintenance procedures

ALUMINUM JACKS | 23

13000

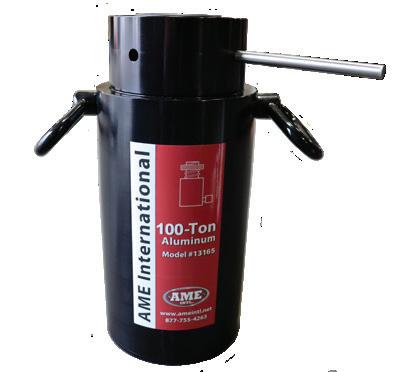

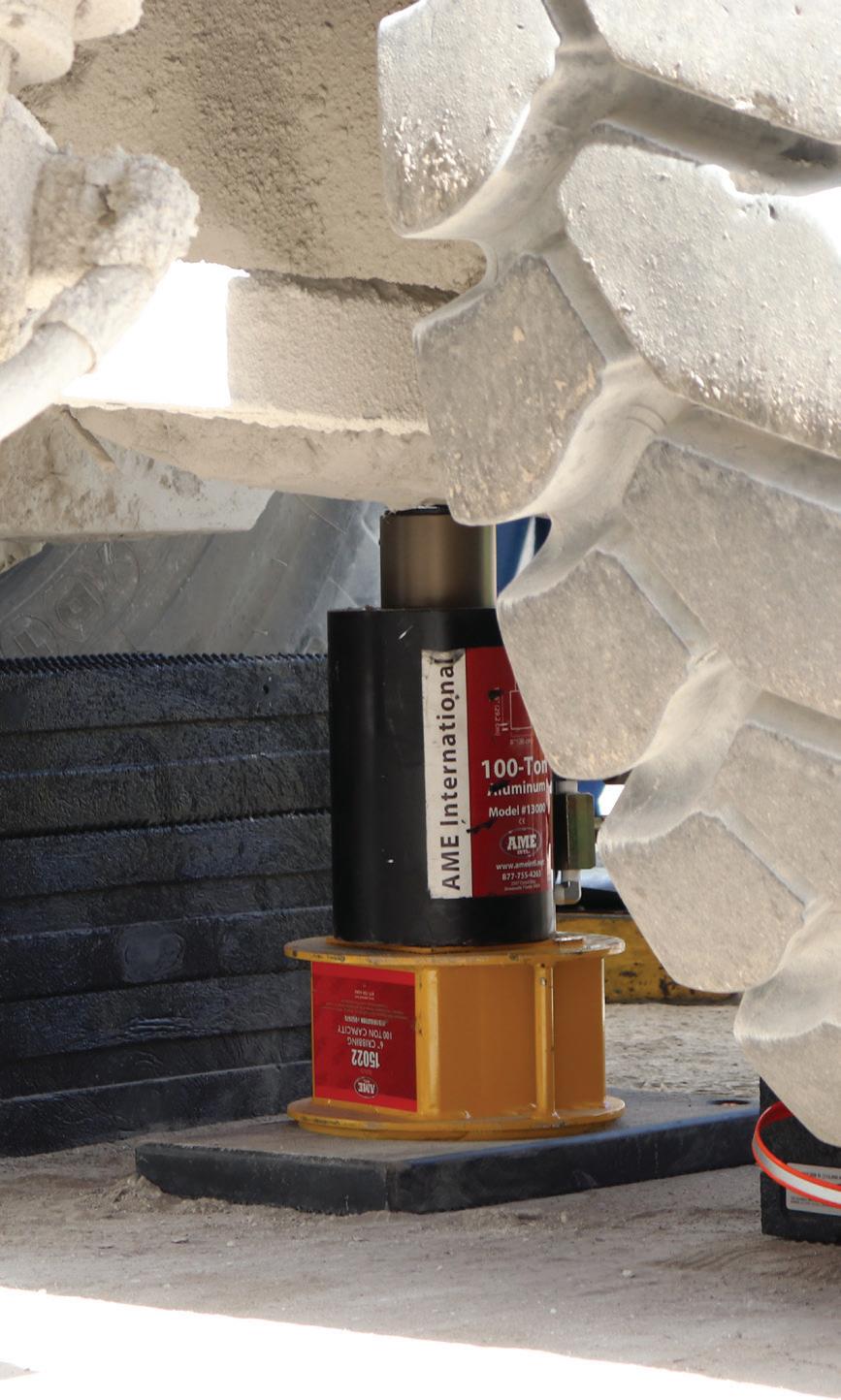

100 TON BLACKJACK

• Includes “Shut-Off Valve” to allow the pump to be removed while the ram is extended

• Stroke: 6” (15 cm) • Retracted height: 12” (30.5 cm) • Maximum height: 18” (48 cm) • Weight: 53 lbs (24 kg)

13000

13005

75 TON BLACKJACK

• Includes “Shut-Off Valve” to allow the pump to be removed while the ram is extended • Stroke: 6” (15 cm) Stroke • Retracted height: 12” (30.5 cm) • Maximum height: 18” (48 cm) • Weight: 38 lbs (17 kg)

13005

24 | ALUMINUM JACKS

13120-13141

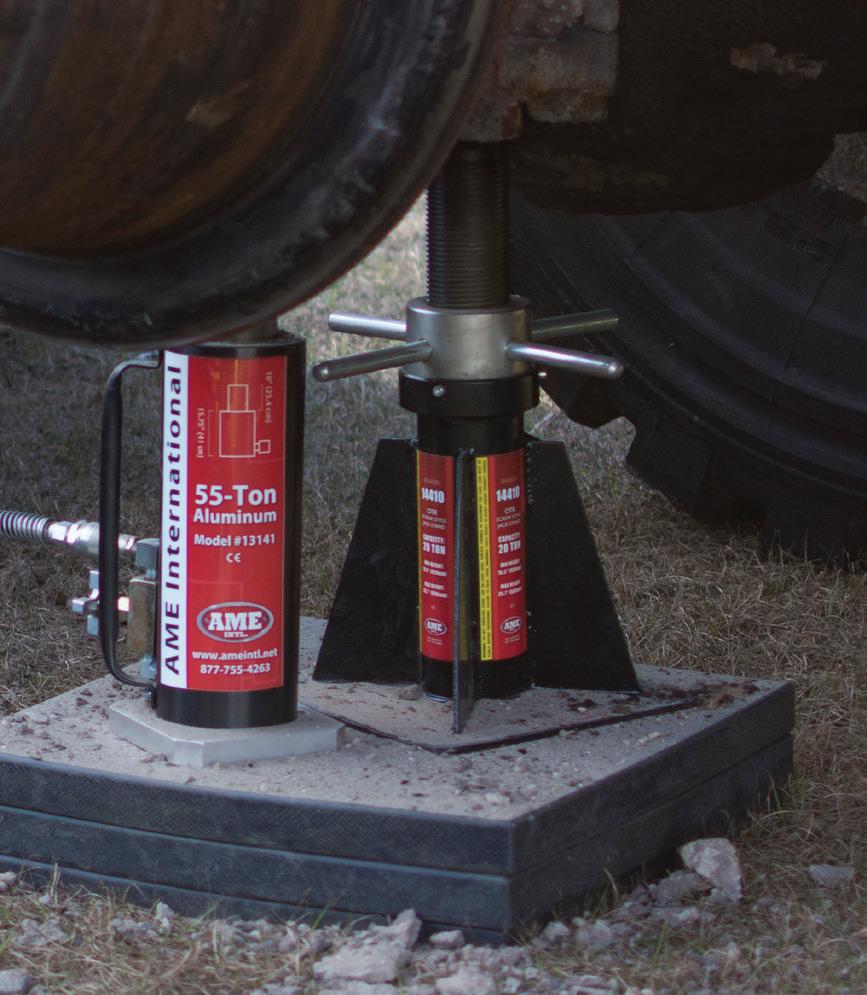

55 TON BLACKJACK SERIES

• Lightweight aluminum for easily handling and placing under the vehicle

• Includes “Shut-Off Valve” which allows

13141

13120

13121

13140

13141

the pump to be removed while the ram is extended • Recessed aluminum base plate allows jacks to nest inside • Recommended for use with 15002 Steel Cribbing and AME Jack Plates for stability • Capacity: 55 tons

MODEL

SERIES

STROKE

RETRACTED HEIGHT

MAX HEIGHT

WEIGHT

13120

Standard

6” (15 cm)

12.25” (31 cm)

18.25” (46 cm)

29 lbs (13.2 kg)

13121

Pro

6” (15 cm)

11.75” (30 cm)

17.75” (45cm)

29 lbs (13.2 kg)

13140

Standard

10” (25cm)

16.25” (41 cm)

26.25” (66.5 cm)

29 lbs (13.2 kg)

13141

Pro

10” (25 cm)

15.75” (41 cm)

25.75” (66.5 cm)

29 lbs (13.2 kg)

ACCESSORIES FOR ALUMINUM JACKS

13122

13121-SBK

• Allows pump to be removed while the ram is

• Reduces point loading of the saddle • Recessed base plate reduces broken bolts • No more bent/broken corners • More stable lifting platform • Upgrade your existing 55 ton jack • Works on models 13120 and 13140

SHUT OFF VALVE ASSEMBLY

extended • For use with single-acting hydraulic cylinder • Rated at 10,000 PSI (700 BAR)

13140

SBK-SADDLE BASE CONVERSION CASE

ALUMINUM JACKS | 25

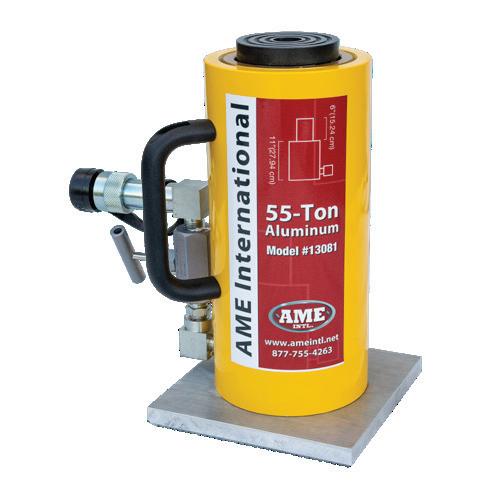

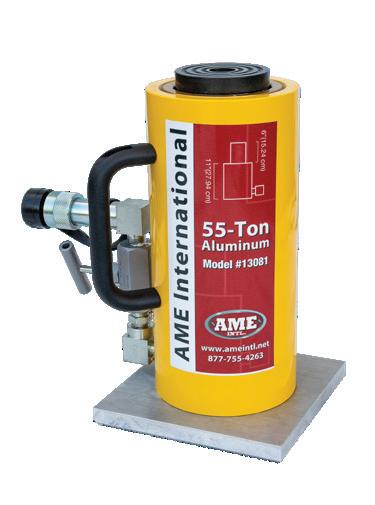

13081

13164 13165

55 TON DELUXE

LOCKING COLLAR JACKS

13164 55 TON

• Includes “Shut-Off Valve” to allow the pump to be removed while the ram is extended (also included on 13005 & 13000) • Aluminum base plate for stability during field use • Extra thick aluminum cylinder walls measure .80” (2 cm) for heavy-duty use • Advanced piston coating resists scarring for longer life • Stroke: 6” (15cm) • Retracted height: 12.25” (31.12 cm) • Weight: 24.5 lbs (11.1 kg)

13165 100 TON

• Aluminum lock nut provides mechanical load holding for extended periods

• Steel base plate and saddle for protection against load-induced damage

• High-strength return spring for rapid cylinder retraction

• 6” (15cm) stroke • 15.59” (36cm) retracted height • 21.5” (55cm) max. height • Weight: 58.4 lbs (26.5kg) • Includes a shut-off valve

NEW DUO-RING™ REDUCES SIDE-LOAD DAMAGE

13164

15002

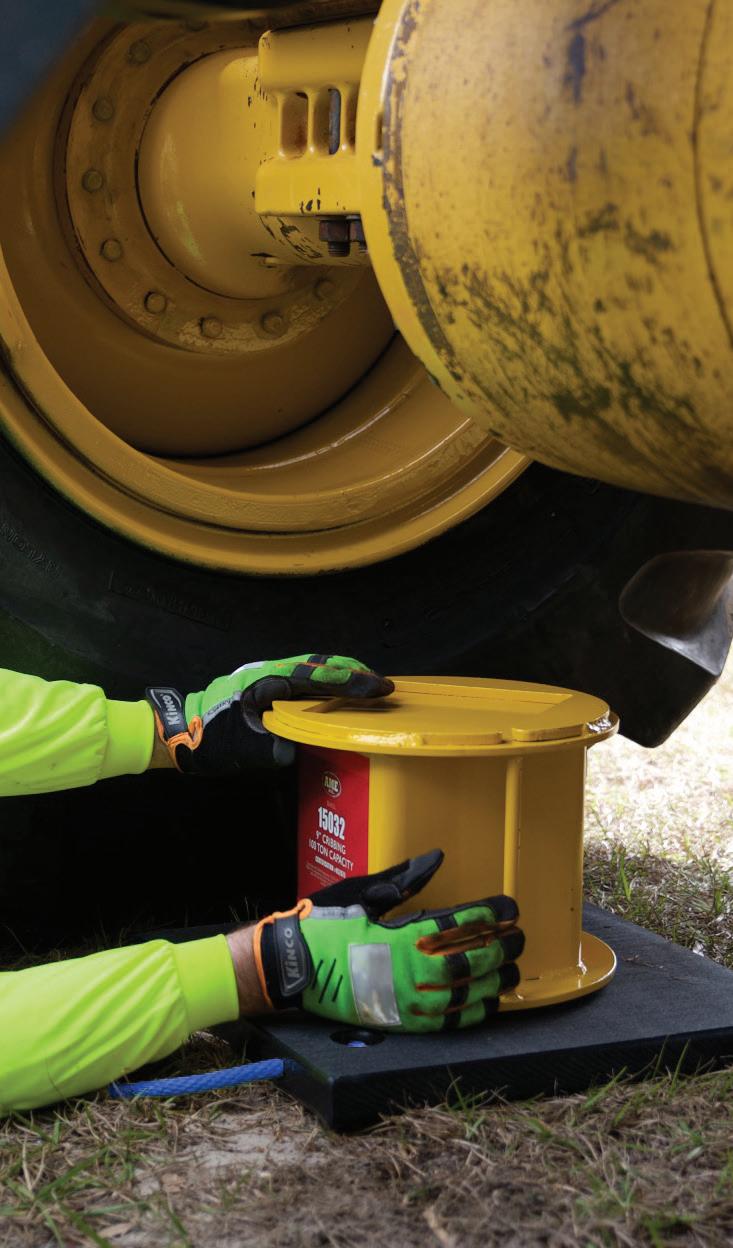

STEEL CRIBBING KIT

12”

• Steel cribbing is durable - it will not bend or warp

12”

• Model 15002 is a complete set - that includes 3”, 6” and 9” stands

• Units can be nested together for an 18” total lift

15022

• Recessed area on cribbing fits 7” square

12”

• Each unit contains built-in carrying handle • Tested/Certified up to 100 tons

plate on 55 ton cylinders

SECURELY LOCKS LOAD FOR MAXIMUM STABILITY ON UNEVEN GROUND

15032

15012 MODEL

DESCRIPTION

WEIGHT

15012

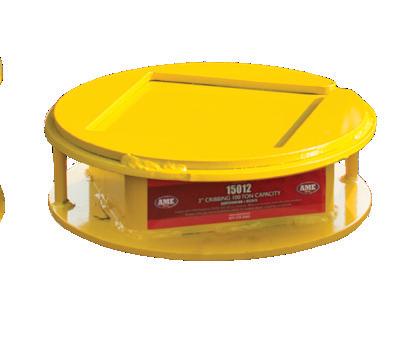

3” Crib Stand

30 lb (13.61kg)

15022

6” Crib Stand

53 lb (24.04kg)

15032

9” Crib Stand

79 lb (35.83kg)

15032

HYDRAULIC

RAMS

AME Hydraulic Rams are an essential tool found in the toolbox of today’s OTR Tire Technician. They are commonly used in separating backside beads from wheel components on five-piece wheels.

Our full line Includes profiles ranging from 4.75” to 13.75” and strokes to match; no job is too tough due to clearance challenges.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

HYDRAULIC RAMS | 27

13075

STEEL-A-STACK 10 TON CAPACITY HYDRAULIC RAM KIT • Versatile ram kit allows you to select your ram length from 3.5” (9 cm) up to 11.5” (29.21 cm) • Steel extensions are durable enough for OTR applications • Comes with three extensions: 1” (2.5 cm) 2” (5 cm) 3” (7.5 cm) • 3” extension includes a screw-in saddle that extends another 2” • Extensions can be used individually or together • Ships in heavy duty carrying case • 10 Ton 1.5” (3.8 cm) stroke • Weight: 11 lbs (5 kg) COMES WITH HD CARRYING CASE

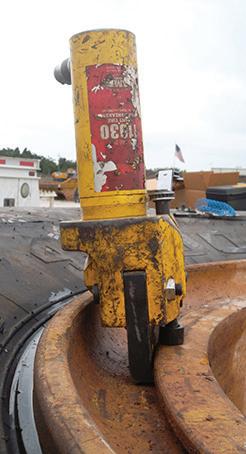

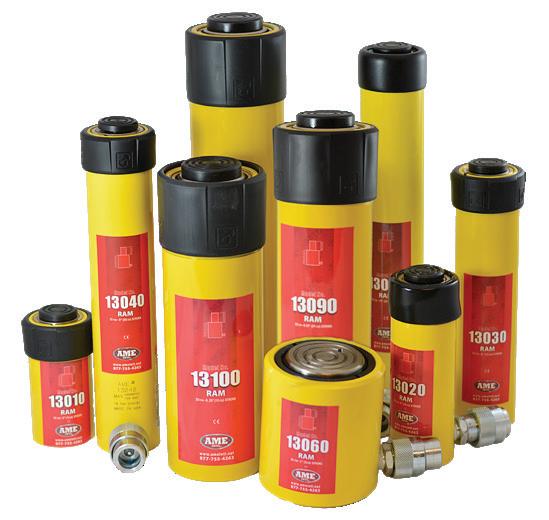

13010 - 13100

13075

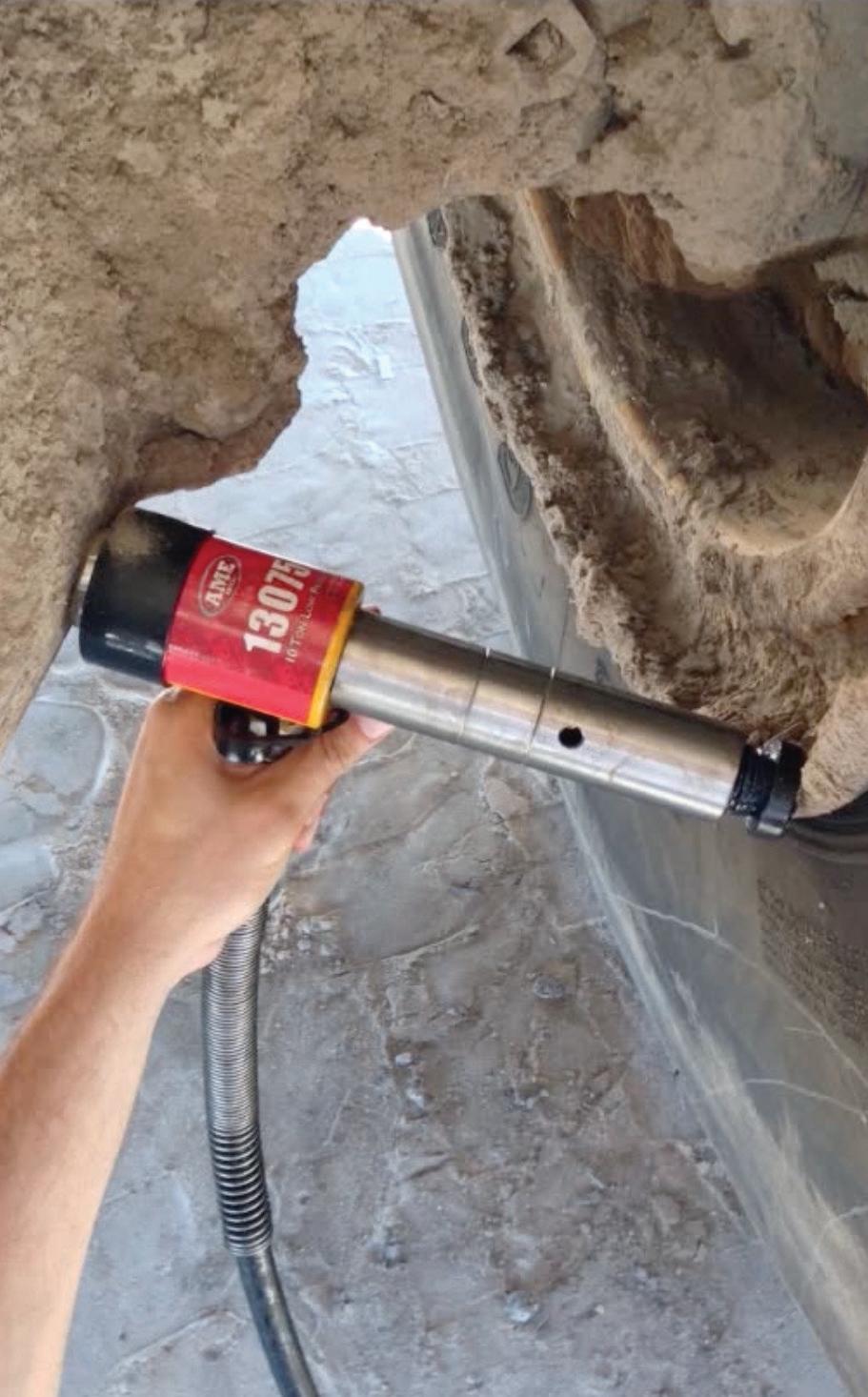

HYDRAULIC RAMS

• Used to break rear beads on five-piece wheels

• Removable plunger adapter allows the use of a variety of threaded attachments

COMPACT, POWERFUL SOLUTION TO FIVE-PIECE WHEEL REAR BEAD BREAKING

MODEL

CAPACITY

STROKE

RETRACTED HEIGHT

13010

10 Ton

2 -1/8” (5.4 cm)

4-3/4” (12.1 cm)

13020

10 Ton

4” (10.5 cm)

6-3/4” (17.14cm)

13030

10 Ton

6-1/8” (15.57 cm)

9-3/4” (24.77 cm)

13040

10 Ton

8” (20.32 cm)

11-3/4” (29.84 cm)

13050

10 Ton

10-1/8” (25.73 cm)

13-3/4” (35 cm)

13060

30 Ton

2-7/16” (6.19 cm)

4- 5/8” (11.75 cm)

13090

25 Ton

8-1/4” (21 cm)

12-3/4” (32.39 cm)

13095

25 Ton

10-1/8” (25.73 cm)

14-3/4” (37.4 cm)

13100

25 Ton

6-1/4” (15.75 cm)

10-3/4” (27.3 cm)

13020

EARTH MOVER

TOOLS

We continue to provide the world’s mines, quarries, construction sites, and marine ports with tools and equipment to service the largest tires and rims.

In the world of Mining and Earthmover equipment, AME understands the importance and value of the safe operating procedure, and the tools and equipment that make that possible.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

EARTH MOVER TOOLS | 29

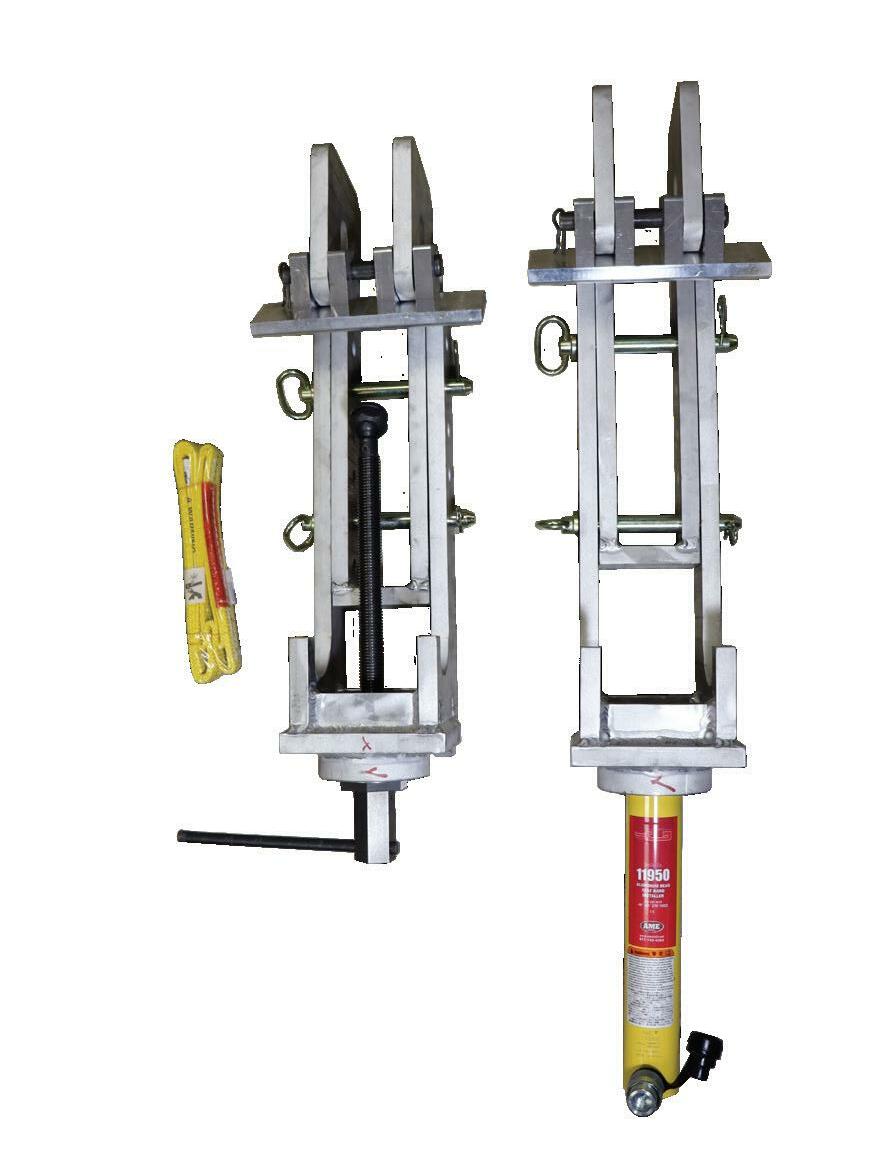

11950

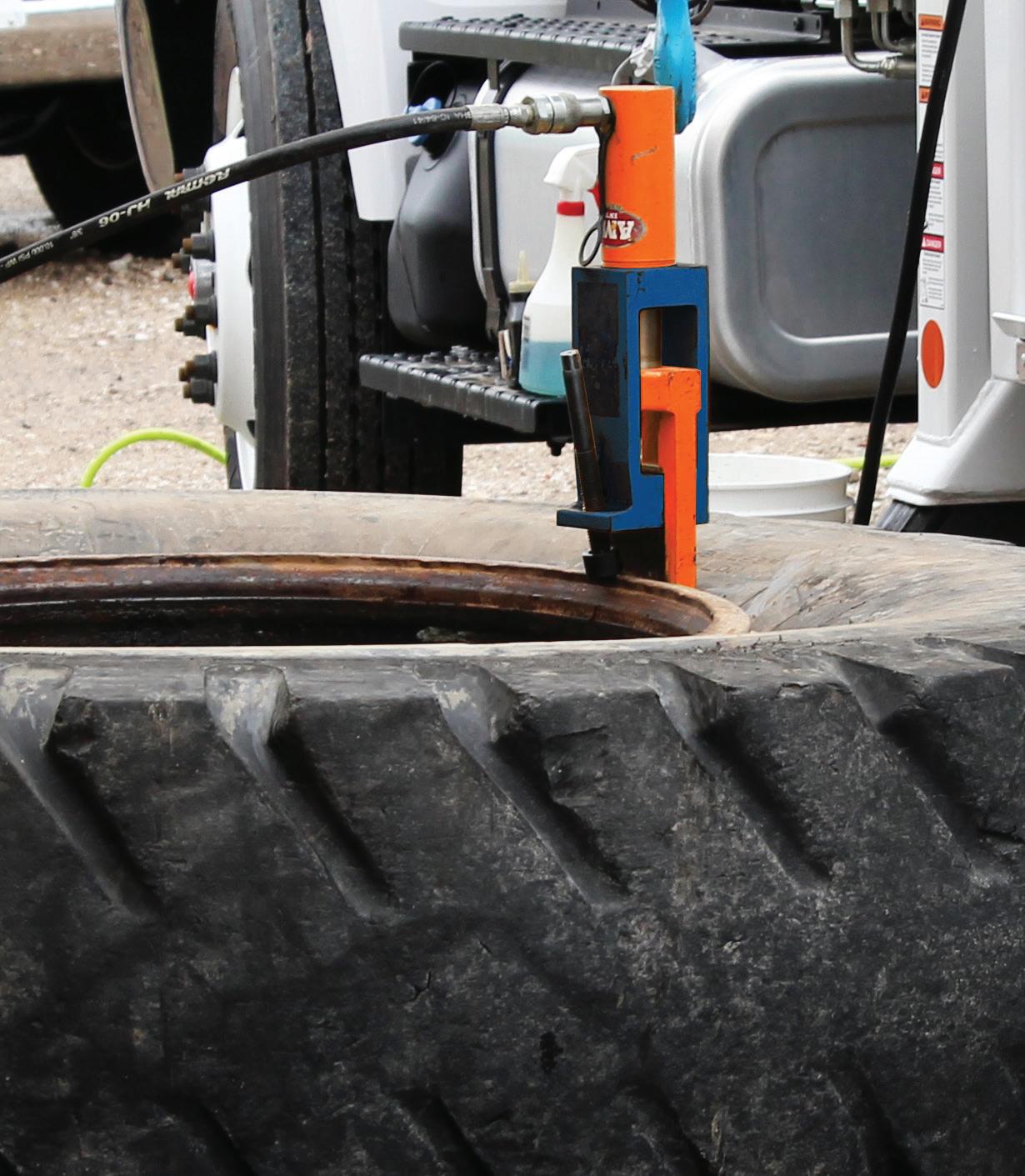

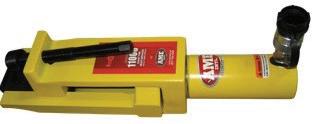

BEAD SEAT BAND INSTALLER

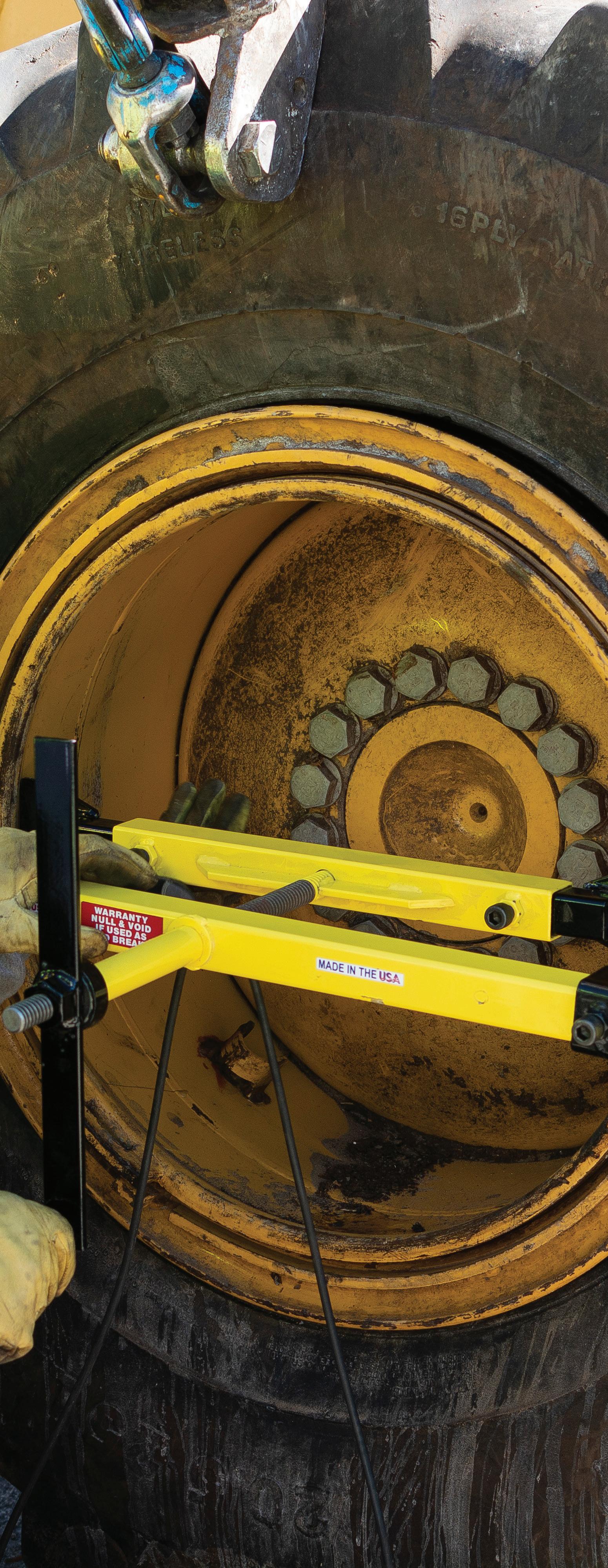

NEW • Installs the bead seat band safely, efficiently, and effortlessly

• Allows for vertical mounting of the tire and rim components

• Tool adjusts to accommodate 49” - 63” OTR rim components

• Reduces the chance of bead seat band separation during vertical mounting

• Works on bias and radial tires • Lightweight aluminum construction makes it easy to handle

11950

11900

BEAD SEAT BAND INSTALLER

93500

RIM FLANGE CLAMP

• Uses hydraulic force to install bead seat

• Clamps to bead seat band to assist in seating

• 25 tons of hydraulic force to ensure that all

• Used to assist in removal of bead seat band

• The angled plate rests against a large section

• Sold individually but frequently used in pairs

bands in earthmover tires

bead seat bands are installed effortlessly

of the tire, ensuring protection of the bead during installation • Permits safe installation of the bead seat band on large wheel assemblies • Weight: 40 lbs (18.1 kg)

for inflation

during the tire service

FOLLOW OUR SOCIALS

Keep up with the latest product demonstrations, upcoming events, and deals.

Compete in our giveaways for a chance to win free AME International swag.

30 | EARTH MOVER TOOLS

91000

LOCKING TIRE SLING

• Locking brass rollers allow the tire to be

positioned as needed • Safe, efficient way to handle tires up to 39” • Rated capacity: 6,500 lbs. (2,950 kg) • For use with every boom-style service truck

• Locking pins allow the tire to be held in any position

• Safely control large tires during one-person operation

• Weight: 50 lbs (22.7 kg)

91000

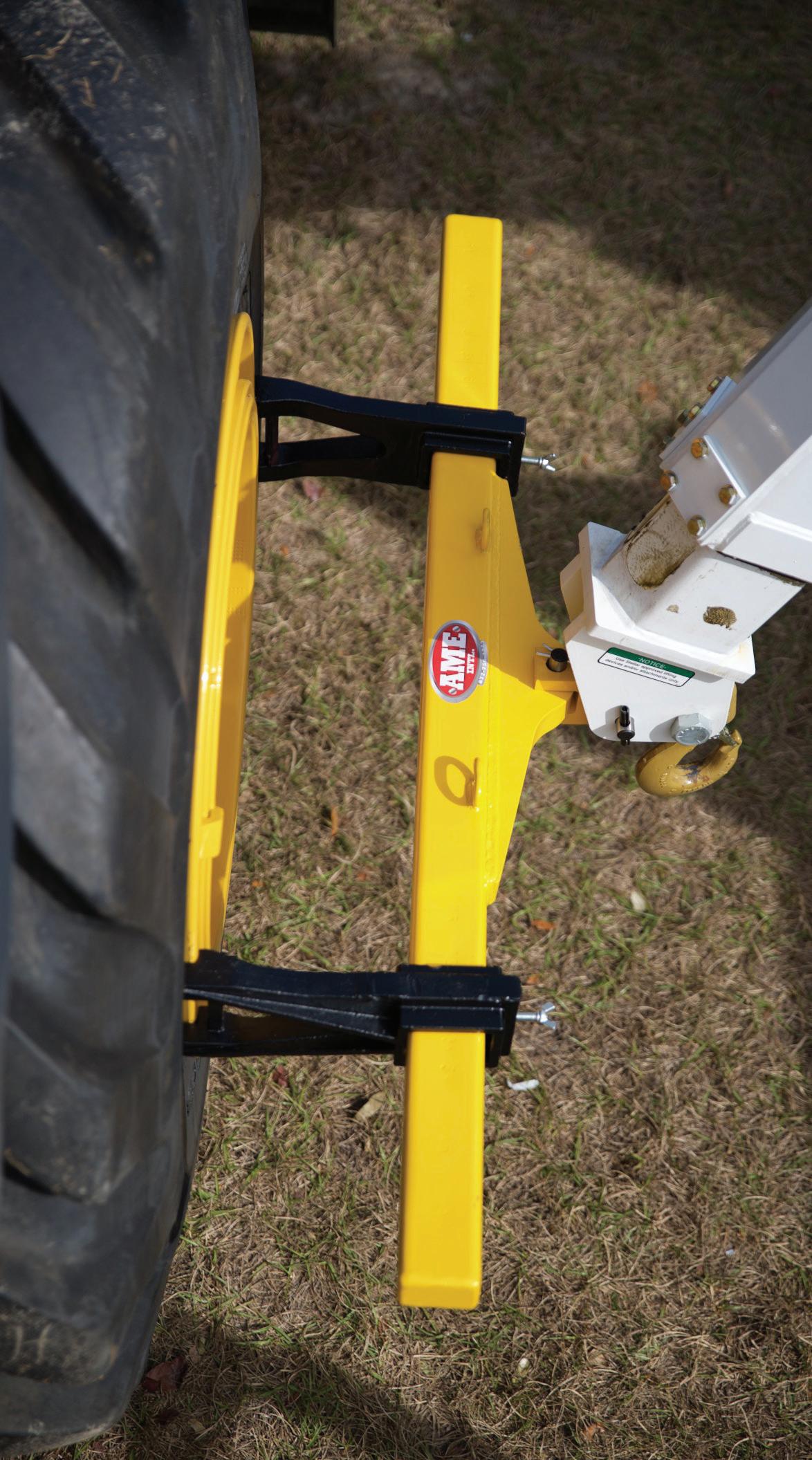

92000 2-POINT PUSH BAR

• The standard unit fits 25” - 51” multi-piece wheels

• Attaches to the boom crane and depresses

the flange ring and bead seat band for efficient mounting of earthmover tires • For use with every boom -tyle service truck • Steel arm castings out-perform aluminum • Replacement steel arm (model 92000-001) can be ordered to replace aluminum castings

92000

EARTH MOVER TOOLS | 31

93000

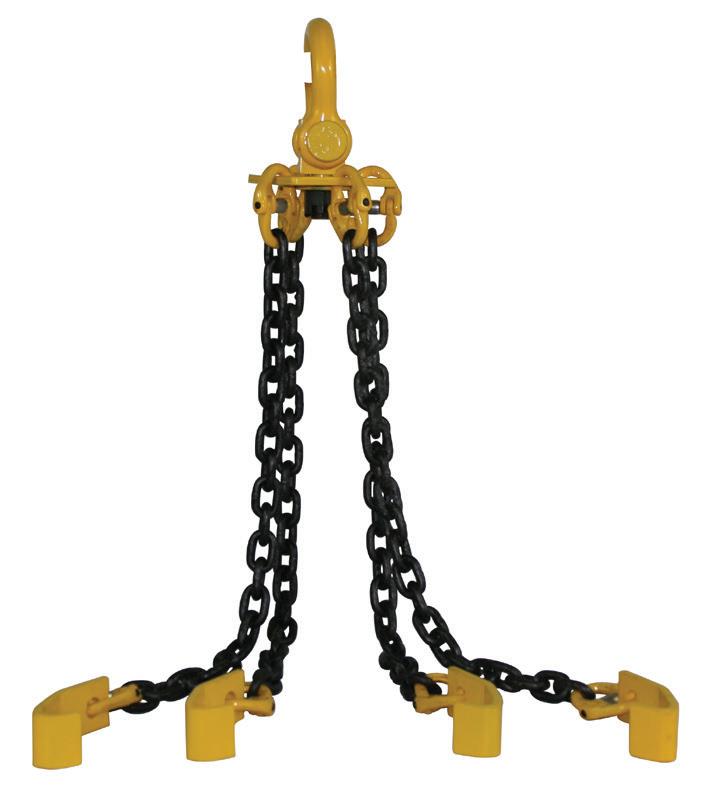

FLANGE RING PULLER

• Lifts the rim base and bead seat band from the tire

• Aids in bead seating during inflation • Attaches to a standard boom style service truck

• 4 point hook/chain assembly for optimal lifting

• Rated capacity: 5,400 lbs (2,449 kg) • Chain lengths of 30” (76.2 cm) • Includes 2 flat hooks and 2 tapered

hooks to allow use on ALL rim styles

• Weight: 32 lbs (14.5 kg)

93000

94000 - 94020 TIRE BEAD HOOKS

• Heavy-Duty steel construction • Connect to hydraulic boom on service truck for easy handling of tires

94000

• NOTE: Recommended only for use with

tires coming out of service or scrap units.

Weight from tire on bead hook can result in damage to bead cable

94020

94010

MODEL

CAPACITY

WEIGHT

94000

5,000 lbs (2,260kg)

34 lbs (15.4kg)

94020

12,000 lbs (5,400kg)

39 lbs (17.7 kg)

94010

16,000 lbs (7,250kg)

66 lbs (29.9kg)

94020

32 | EARTH MOVER TOOLS

92200

92250

• Installs/Removes o-rings on OTR wheel

• Installs/Removes o-rings on 25” (63.5 cm) to

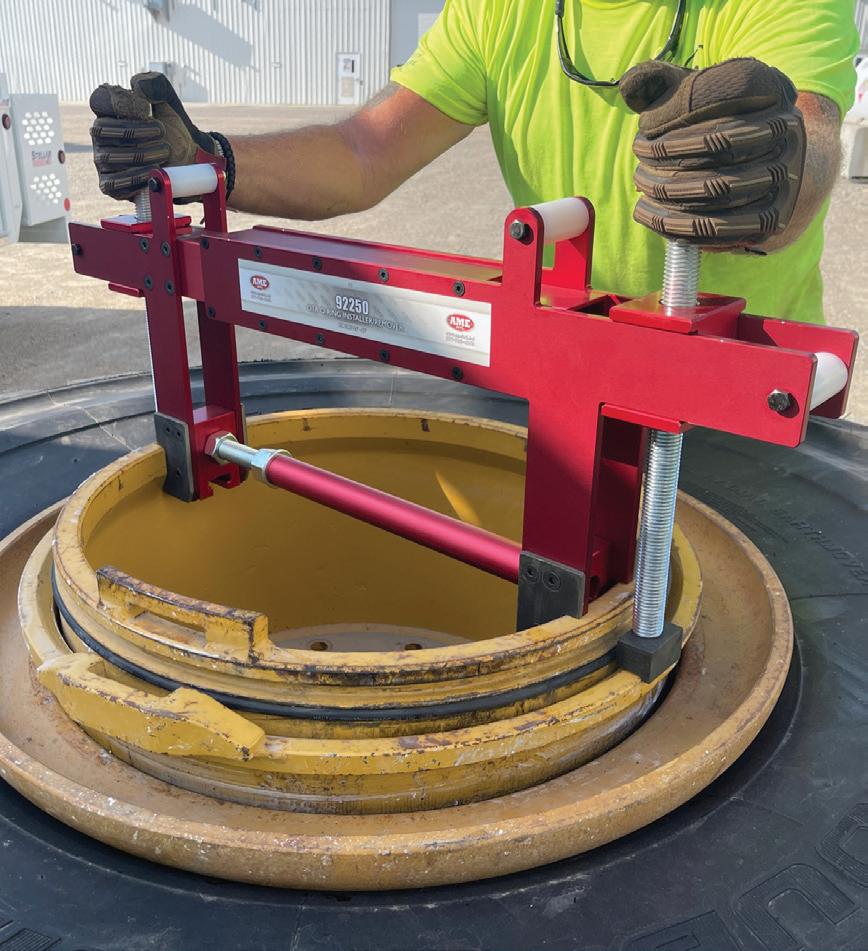

OTR O-RING INSTALLER TOOL

92200

assemblies up to 30” (76.2 cm) • Pushes rim flange back for easy access to service o-ring • NOTE: Wheel components must be separated using an alternative tool prior to use to prevent damage to 92200 • Weight: 22 lbs. (9.9 kg)

OTR LARGE O-RING INSTALLER

36” (91.4 cm) OTR wheel assemblies

• Pushes rim flange back for easy access to service o-ring

• NOTE: Wheel components must be separated using an alternative tool prior to use to prevent damage to 92250 • Lightweight Aluminum construction • Weight: 37lbs (16.3 kg)

92205 PLANETARY KIT AVAILABLE

75005

75010, 75015

• Used to assist in breaking beads on

75010 KIT

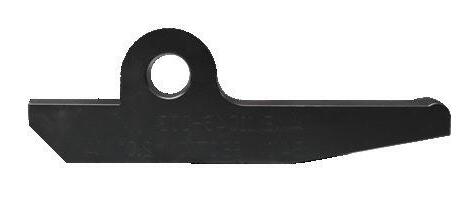

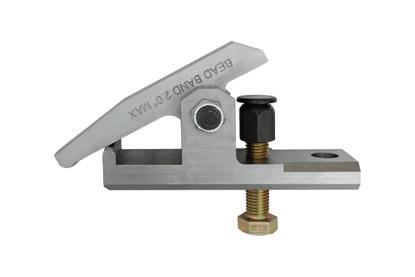

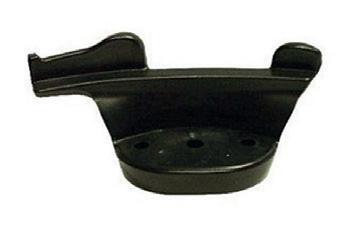

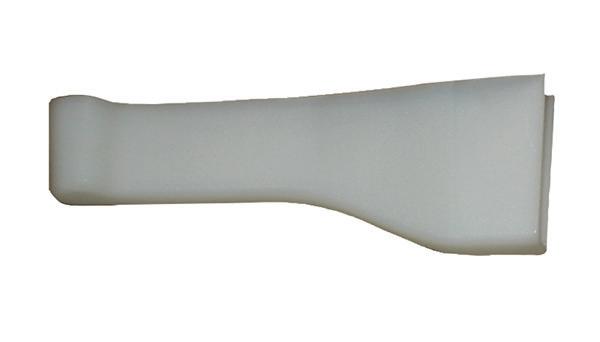

“THE WEDGIE” TIRE BEAD WEDGE

BEAD WEDGE KITS

92250

earthmover, agriculture, construction and forestry tires • Allows bead breaker to fit between the tire and wheel • Helps prevent metal-on-metal contact • Made from high-impact nylon material • Dimensions: 8.5” L x 3.25” W x 1” H • Weight: 10.4 oz.

75005

• Case of 16 Tire Bead Wedges

75015 KIT • (4) Tire Bead Wedges • (1) 51456 - 8 lb Soft Face Hammer

EARTH MOVER TOOLS | 33

O-RINGS

• Designed for sealing tire beads of grader, earthmover and OTR machinery • Manufactured to OEM specifications • 24 O-rings per case • Manufactured of high-quality material • O-rings individually marked in an easy-to-read color • Spliced O-ring with exceptional splice strength • Extruded product allows diameter variation to meet the wide variety of rim O-ring grooves, both domestic and foreign

• Two compounds for all service conditions: Standard -40 to 180 degrees F, Arctic -65 to 180 degrees F

*To order an Arctic Compound O-ring, add an "A" to the part numbers listed in the chart below. (Ex: OR-20-JMA)

MODEL

DESCRIPTION

RIM SIZE (INCH)

SIZE (INCH

UNITS PER BOX

OR-20-JM

O-ring, highway (JM rim)

20

1/4

24

OR-22-JM

O-ring, highway (JM rim)

22

1/4

24

OR-24-JM

O-ring, highway (JM rim)

24

1/4

24

OR-25-T

O-ring, earthmover

25

1/4

24

OR-220-TG

O-ring, grader

20

1/4

24

OR-224-TG

O-ring, grader

24

1/4

24

OR-321-T

O-ring, earthmover

21

3/8

24

OR-325-T

O-ring, earthmover

25

3/8

24

OR-329-T

O-ring, earthmover

29

3/8

24

OR-333-T

O-ring, earthmover

33

3/8

24

OR-335-T

O-ring, earthmover

35

3/8

24

OR-339-T

O-ring, earthmover

39

3/8

24

OR-343-T

O-ring, earthmover

43

3/8

24

OR-345-T

O-ring, earthmover

45

3/8

24

OR-349-T

O-ring, earthmover

49

3/8

24

OR-451-T

O-ring, earthmover

51

1/2

24

OR-457-T

O-ring, earthmover

57

1/2

24

OR-463-T

O-ring, earthmover

63

1/2

24

OR-469-T

O-ring, earthmover

69

1/2

24

MINING

JACKS

AME offers a full line of mining jacks with a wide range of solutions for high-tonnage equipment. Whether you’re working on site on a tire pad, or in the field on rough terrain, we have mining jacks versatile enough for any situation.

With options from self-propelled to electric or hydraulic power, our team can recommend the jack that will best suit your needs. Keeping with safety as a focus, remote controls allow the operator to lift and lower equipment from a safe distance and locking collars ensure load stays in place during service.

Manufactured to the highest standards and designed for use in the harshest climates, our line of mining jacks and stands will keep you working safely.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

MINING JACKS | 35

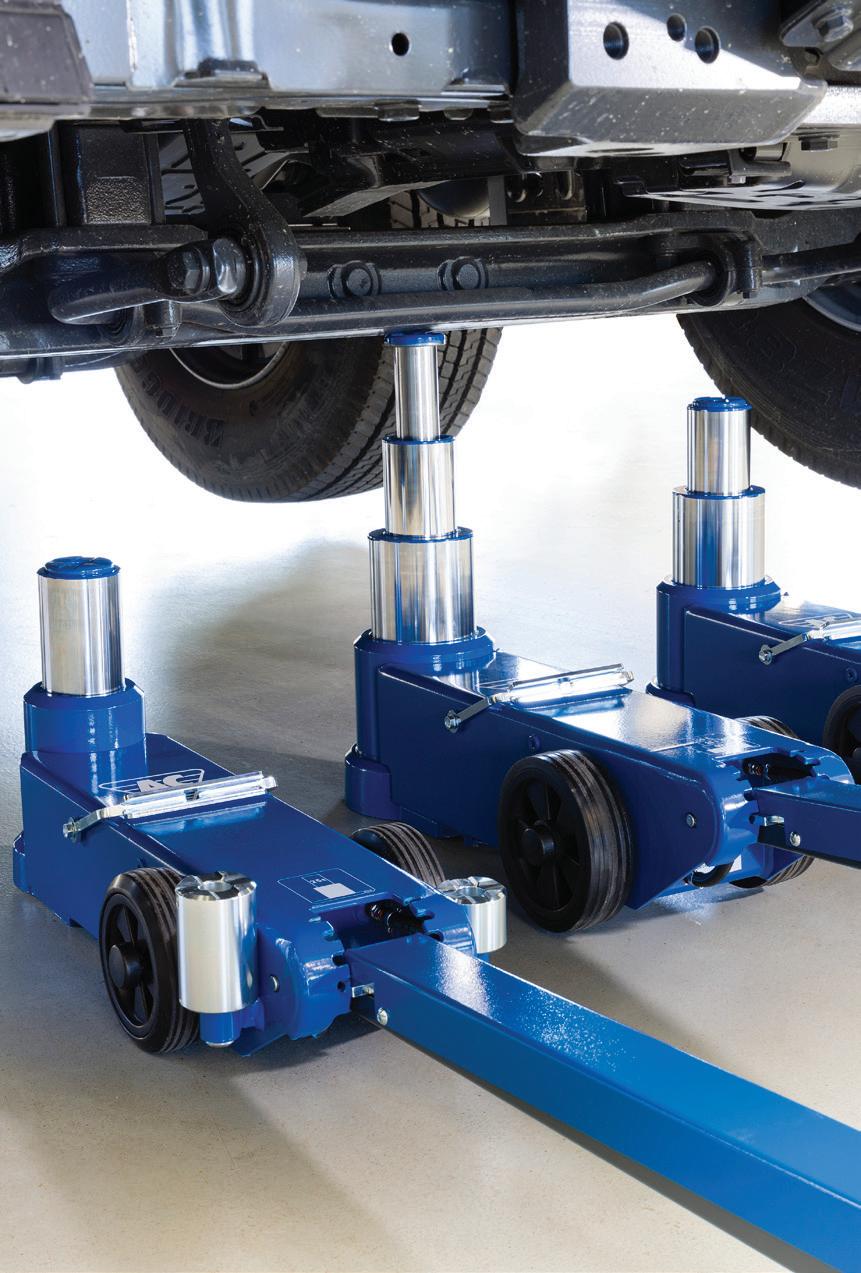

AME International presents AC HydraulicA/S heavy-duty jacks for low-clearance machinery in the mining and construction industries.

LOCKING COLLARS AND EXTENSIONS ARE OPTIONAL FOR ALL MODELS

5 QUART AIR/HYDRAULIC PUMP KIT, STEEL RESERVOIR

100-1

100-1L

• Capacity: 100 tons • Min. Height / Max. Height:

• Capacity: 100 tons • Min. Height / Max. Height:

• Total Width: 27” (68.5cm) • Frame Length: 66” (167.5cm) • Air Supply: 145 psi • Air Consumption: 1200 l/min • Ground Clearance: 2.6” (6.5cm) • Weight: 1049.4 lbs (476kg)

• Total Width: 18.3” (46.5cm) • Frame Length: 61” (155cm) • Air Supply: 145 psi • Air Consumption: 1200 l/min • Ground Clearance: 1.6” (4cm) • Weight: 731.9 lbs (322kg)

150-1

150-1L

• Capacity: 150 tons • Min. Height / Max. Height:

• Capacity: 150 tons • Min. Height / Max. Height:

• Total Width: 27” (68.5cm) • Frame Length: 66” (167.5cm) • Air Supply: 145 psi • Air Consumption: 1200 l/min • Ground Clearance: 2.6” (6.5cm) • Weight: 1049.4 lbs (476kg)

• Total Width: 18.3” (46.5cm) • Frame Length: 61” (155cm) • Air Supply: 145 psi • Air Consumption: 1200 l/min • Ground Clearance: 1.6” (4cm) • Weight: 731.9 lbs (322kg)

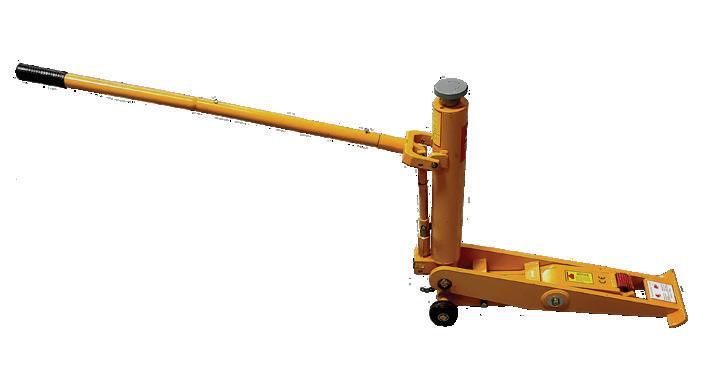

AC HYDRAULIC HEAVY-DUTY JACK, 100 TON

27.6” (70cm) / 43.3” (110cm)

AC HYDRAULIC HEAVY-DUTY JACK, 150 TON

27.6” (70cm) / 43.3” (110cm)

AC HYDRAULIC HEAVY-DUTY JACK, 100 TON

17.1” (43.5cm) / 22.4” (57cm)

50-3

AC HYDRAULIC HEAVY- DUTY JACK, 150 TON

17.1” (43.5cm) / 22.4” (57cm)

150-1

36 | MINING JACKS

100-1H

150-1H

AC HYDRAULIC HEAVY DUTY JACK, 100 TON

AC HYDRAULIC HEAVY DUTY JACK, 150 TON

EXTENSIONS

FOR AC HYDRAULIC JACKS

FDH100

• Capacity: 100 tons • Min. Height / Max. Height:

• Capacity: 150 tons • Min. Height / Max. Height:

• Total Width: 27” (68.5cm) • Frame Length: 66” (167.5cm) • Air Supply: 145 psi • Air Consumption: 1200 l/min • Ground Clearance: 2.6” (6.5cm) • Weight: 1203.7 lbs (546kg)

• Total Width: 27” (68.5cm) • Frame Length: 66” (167.5cm) • Air Supply: 145 psi • Air Consumption: 1200 l/min • Ground Clearance: 2.6” (6.5cm) • Weight: 1203.7 lbs (546kg)

37.4” (95cm) / 63” (160cm)

37.4” (95cm) / 63” (160cm)

LOCKING RINGS

• FHD100 extension, increases the maximum height by 100 mm

• FHD200 extension, increases the maximum height by 200 mm

• Fits all heavy duty models

HOLDERS

FOR AC HYDRAULIC JACKS

SBS2

FDH200

FOR AC HYDRAULIC JACKS

SBS4

SBS6

• SBS2 - Set of 2 locking rings including holder for model 100-1L / 150-1L • SBS4 - Set of 4 locking rings including holder for model 100-1 / 150-1 • SBS6 - Set of 6 locking rings including holder for model 100-1H / 150-1H

HHD • Extension holder allows for extensions to be stored on the side of the jack

• Holds FHD100 / FHD200 extensions • Fits all heavy-duty models

SB65 • SB65 - 65 mm locking ring • SB100 - 100 mm locking ring • SB150 - 150 mm locking ring • Fits all heavy duty models

SB100

SB150

FITS ALL HEAVY DUTY MODELS

MINING JACKS | 37

POW’R - RISER II ® MINING LIFTING JACK

Pow’r -Riser II® OTR / Mining

• 60, 100, 150 and 200-ton capacities with

pneumatic or electric pumps for the toughest jobs • 4” ground clearance for transport over rail and rough terrain • Three position handle provides easy tilt back and transport • Complies with ASME/ANSI B30.1 specifications • Easy-to-change external filter minimizes down time • Rugged, fully enclosed 24” wide frame with no exposed fittings or hoses • SUP-R-STACK™ Extension System allows lifting at all heights without blocking

MODEL

CAPACITY

STROKE

WEIGHT

A

B

C

D

VALVE TYPE

PRAMA06014L

60 tons

14”

390 lbs (177kg)

24”

6.4”

14”

4”

Manual

PRAMA06027L

60 tons

27”

600 lbs (272kg)

37”

6.4”

14”

4”

Manual

PRAMA10016L

100 tons

16”

510 lbs (231.3kg)

26”

7.0”

18”

4”

Manual

PRAMA10027L

100 tons

27”

600 lbs (272kg)

37”

7.0”

18”

4”

Manual

PRASA10016L

100 tons

16”

510 lbs (231.3kg)

26”

7.0”

18”

4”

Pneumatic

PRASA10027L

100 tons

27”

600 lbs (272kg)

37”

7.0”

18”

4”

Pneumatic

PRASA15027L

150 tons

26.5”

600 lbs (272kg)

37”

8.0”

18”

5”

Pneumatic

PRASA15016L

150 tons

15.5”

510 lbs (231.3kg)

26”

8.0”

18”

5”

Pneumatic

PRASA20016L

200 tons

15.5”

640 lbs (90.3kg)

26”

9.5”

18”

6”

Manual

PRASA20027L

200 tons

26.5”

825 lbs (374kg)

37”

9.5”

18”

6”

Manual

PRAMA06014L

38 | MINING JACKS

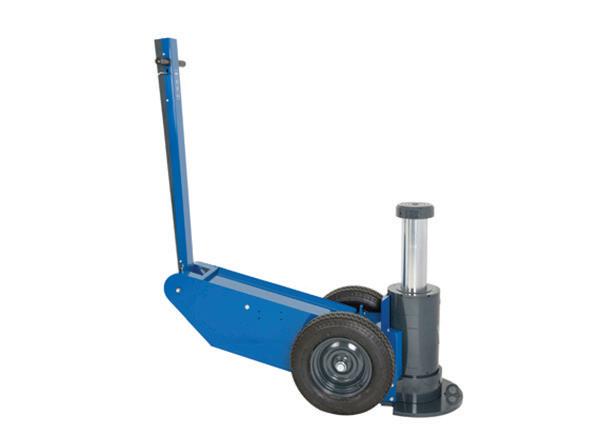

RHINO JACK II

100 TON, 150 TON, 200 TON MINING JACKS

• High profile ground clearance for transport over rough terrain

• Ideal for OTR tire service in underground mining, quarries and construction

• Jack balanced for easy moving • Large pneumatic wheel's hub and axle • Only 30” wide jack, fits in a tight spot • Air motor to power hydraulic pump, 90 to 150 PSI

• Extension holders welded to the frame for easy storage

• Easy to change oil filter for quick maintenance

• Compact design allows for easy storage

RJ2-10027

RJ2-10027

MODEL

CAPACITY

STROKE

WEIGHT

MIN. HEIGHT

MAX HEIGHT

RJ2-10027

100 tons

15.5” (39.37cm)

617 lbs (279.87kg)

27” (69cm)

42.5” (107.95cm)

RJ2-10038

100 tons

26.13” (66.37cm)

736 lbs (333.84kg)

38” (96.5cm)

64.13” (163cm)

RJ2-15027

150 tons

14.75” (37.47cm)

720 lbs (326.59kg)

27” (69cm)

42” (106.68cm)

RJ2-15038

150 tons

25.38” (64.47cm)

899 lbs (407.78kg)

38” (96.5cm)

63.38” (161cm)

RJ2-20027

200 tons

14” (35.56cm)

826 lbs (374.67kg)

27” (69cm)

42” (106.68cm)

RJ2-20038

200 tons

24.5” (62.23cm)

1059 lbs (480.35kg)

38” (96.5cm)

43” (109.22cm)

MINING JACKS | 39

SUPERLIFT MINING JACKS AIR / HYDRAULIC

SLJ20038

SLJ10027

• • • • • • •

Air/Hydraulic Mining Jacks from 100 – 250 Ton Each jack comes with custom extensions based on your specific application Electric power unit available Optional Power Drive System available on jacks 150 Ton and larger Power Drive System self-propels SLJ Jack over terrain with no effort from the operator Frame Length: 96" (244 cm) Handle Height: 40" (101 cm)

MODEL

CAPACITY

MIN. HEIGHT

MAX HEIGHT

TOTAL WIDTH

WEIGHT

SLJ10027

100 Tons

27” (69 cm)

43” (109 cm)

29” (74 cm)

771 lbs (350 kg)

SLJ10038

100 Tons

38” (97 cm)

65” (165 cm)

29” (74 cm)

851 lbs (386 kg)

SLJ15027

150 Tons

27” (69 cm)

43” (109 cm)

29” (74 cm)

794 lbs (360 kg)

SLJ15038

150 Tons

38” (97 cm)

65” (165 cm)

29” (74 cm)

905 lbs (410 kg)

SLJ20027

200 Tons

27” (69 cm)

43” (109 cm)

32” (82 cm)

1243 lbs (564 kg)

SLJ20038

200 Tons

38” (97 cm)

65” (165 cm)

32” (82 cm)

1345 lbs (610 kg)

SLJ25027

250 Tons

27” (69 cm)

43” (109 cm)

32” (82 cm)

1415 lbs (640 kg)

SLJ25038

250 Tons

38” (97 cm)

65” (165 cm)

32” (82 cm)

1555 lbs (705 kg)

SLJ15027

SLJ15027

40 | MINING JACKS

SUPERLIFT EXTENSIONS AND LOCKING COLLARS

SLJST100 - SLJST200 SUPERLIFT®

SETS

JACK STAND TRANSPORTERS

SLJLC150K (100 - 150 TON)

LOCKING COLLAR SET: SLJLC150-1, SLJLC150-2, SLJC150-3, SLJLC150-6, SLJLC150-AR, SLJLC150-TC

• Support weight with

engineered safety stands

SLJLC350K (200 - 350 TON)

• Meets international safety

LOCKING COLLAR SET:SLJLC350-1, SLJLC350-2, SLJLC350-3, SLJLC350-4, SLJLC350-AR, SLJLC350-TC

standards

• Heavy-duty steel plate to ensure longevity

• Transporter allows for easy

Locking Collar Top Cap

placement

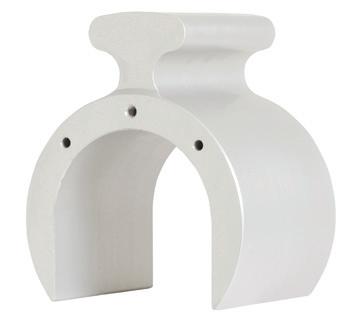

1.5” (3.81 cm) Aluminum Locking Collar

MODEL

CAPACITY

WEIGHT

1.5” (3.81 cm) Aluminum Locking Collar

SLJST100

60 tons

154 lbs (69.85 kg)

4” (10.2 cm) Aluminum Locking Collar

SLJST150

100 tons

159 lbs (72.12 kg)

SLJST200

200 tons

164 lbs (74.39 kg)

4” (10.2 cm) Aluminum Locking Collar

SLJS100 - SLJS200

Locking Collar Adapter

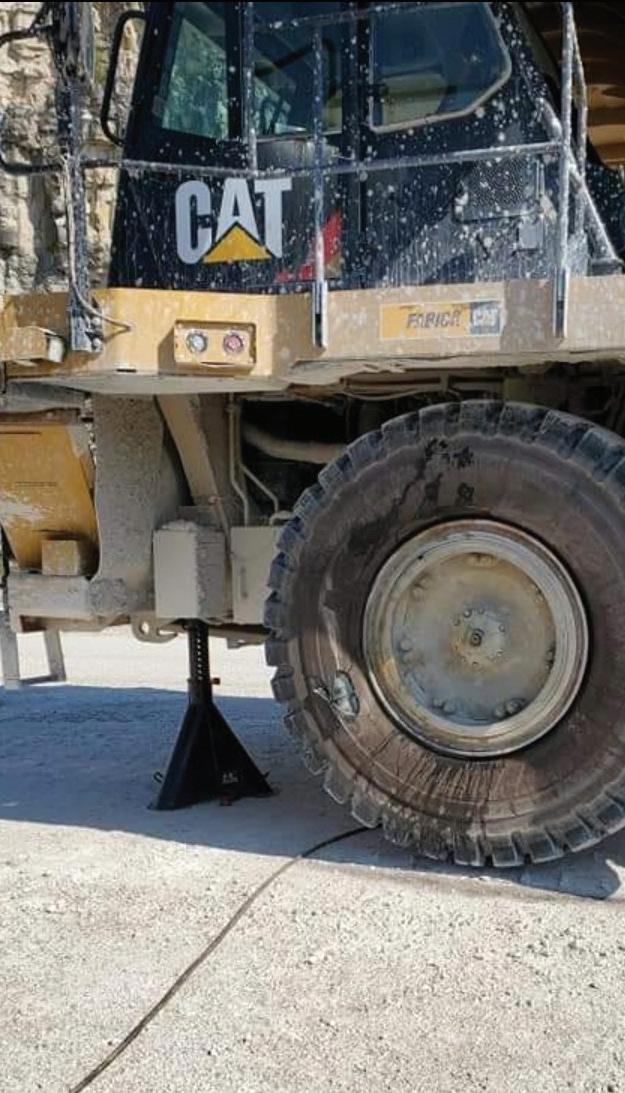

SUPERLIFT® JACK STANDS

#1 Lift Load

• Custom heights can be

#3

determined upon order to meet the customer’s needs • Saddle and custom extension supplied with each stand • Certificates of conformity supplied for international and domestic requirements

Lower load on locking collars

#2 Insert aluminum locking collars as required to support load

SLJE506

SLJE710

MODEL

CAPACITY

MIN. HEIGHT

ADJUSTABLE

SLJS100-28A

100 tons

28” (71.12 cm)

Yes

330 Lb (149.6 kg)

SLJS100-038A

100 tons

38” (96.52 cm)

Yes

350 Lb (158.7 kg)

SLJS200-42

200 tons

42” (106.68 cm)

No

750 Lb (24.04kg)

EXTENSION HEIGHT (INCHES)

WEIGHT

JACK CAPACITY (TONS)

6"

8"

10"

12"

16"

18"

JACK STAND CAPACITY (TONS)

-

SLJE506

SLJE508

SLJE510

SLJE512

SLJE516

SLJE518

40 & 60

75 - 150

SLJE606

SLJE608

SLJE610

SLJE612

SLJE616

SLJE618

80 & 100

-

SLJE706

SLJE708

SLJE710

SLJE712

SLJE716

SLJE718

200

200

SLJE906

SLJE908

SLJE910

SLJE912

SLJE916

SLJE918

-

WHEEL

CHOCKS

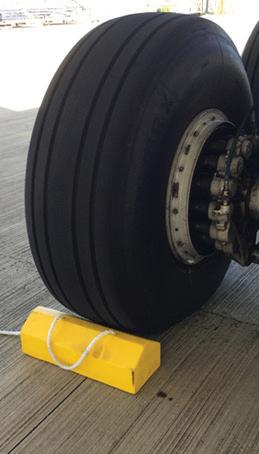

AME is proud to offer a complete selection of wheel chocks to fit a wide variety of tires. We can assist you with applications ranging from the largest mine haul trucks to passenger cars.

Complete wheel chock solutions are available for critical industries like construction, industrial, agriculture, and commercial trucks. Simply match the outer diameter of your tire to our chock for the perfect fit. We offer traditional rubber chocks, lightweight orange polyurethane, yellow polyurethane, and high-tech-formed foam texture chocks for the best resilience and safety. Whatever your chock needs are, AME has it.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

42 | WHEEL CHOCKS

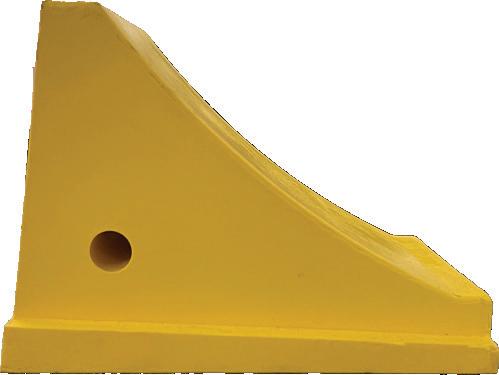

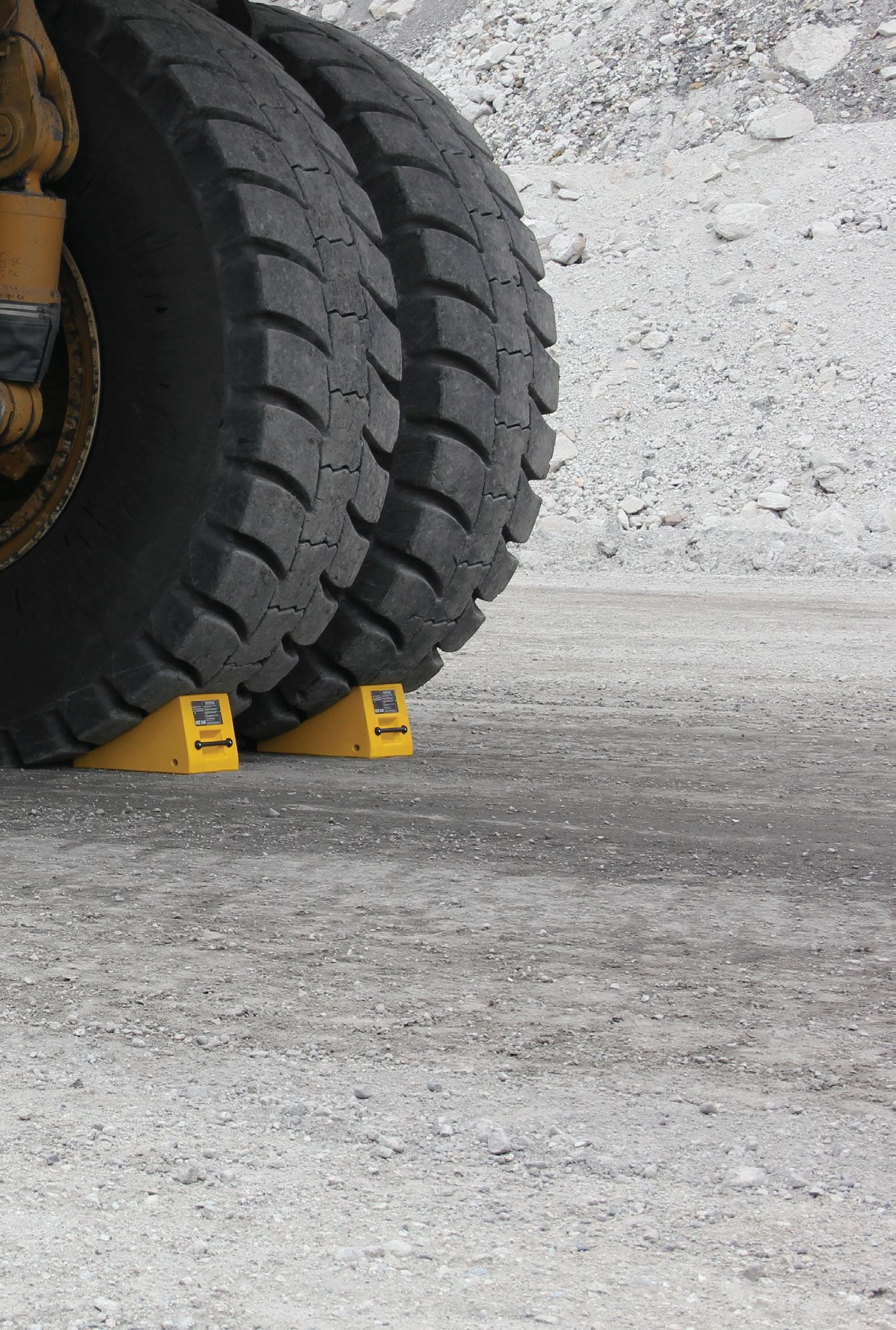

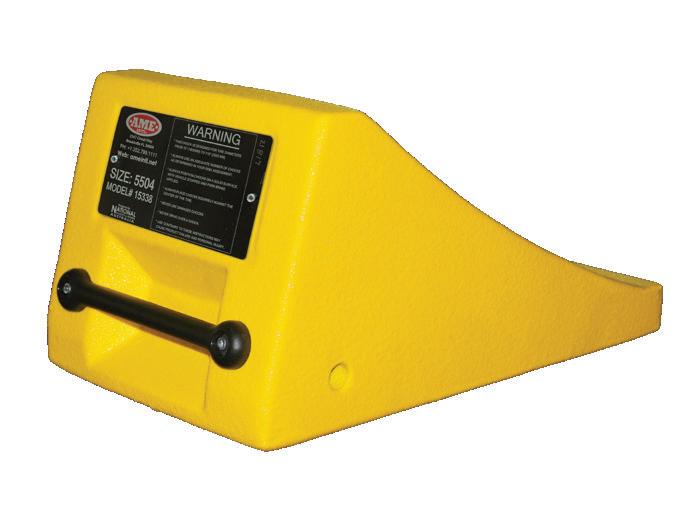

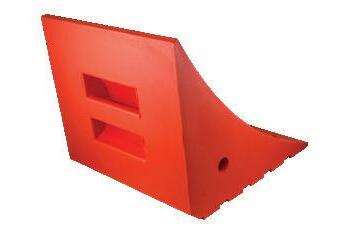

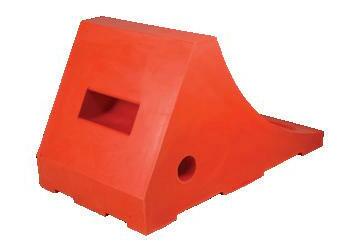

AME POLYURETHANE MINING WHEEL CHOCKS

• Solid lightweight construction, high-impact polyurethane material

• Non-conductive, no threat to puncture the tire • Durable, lightweight, and easy to use extensively field tested

• Impervious to chemicals, salts, rot and resistant to fuel, oils & solvents

• OSHA: 1910.111(f)(9) Chock blocks. At least

two chock blocks shall be provided. These blocks shall be placed to prevent the rolling of the vehicle whenever it is parked during loading and unloading operations.

RIGOROUSLY FIELD TESTED

15337

15342

15338

15338

15339

15342

15341 MULTIPURPOSE DOUBLE-SIDED CHOCK

MODEL

TIRE SIZE

MATERIAL

LENGTH

WIDTH

HEIGHT

WEIGHT

15337

15.25 in to 86.75 in (120 mm to 2200 mm)

Polyurethane

18 in (475 mm)

12 in (305 mm)

9 in (225 mm)

13 lbs (6 kg)

15338

47.2 in to 118 in (1200 mm to 3000 mm)

Polyurethane

22.5 in (570 mm)

13 in (340 mm)

14 in (280 mm)

19.8 lbs (9 kg)

15339

86.75 in to 137.75 in (2200 mm to 3500 mm)

Polyurethane

24 in (621 mm)

13.5 in (343 mm)

12 in (323 mm)

24.3 lbs (11 kg)

15341

31.5 in to 110.25 in (800 mm to 2800 mm)

Polyurethane

22 in (560 mm)

13 in (330 mm)

11 in (280 mm)

17 lbs (8 kg)

15342

110.25 in to 177 in (2800 mm to 4500 mm)

Polyurethane

26.7 in (680 mm)

13 in (340 mm)

14 in (355 mm)

30.86 lbs (14 kg)

WHEEL CHOCKS | 43

AME POLYURETHANE WHEEL CHOCKS

We offer wheel chocks for virtually every application - from over-the-highway trucks to off-the-road equipment.

• Solid lightweight construction, high-impact polyurethane material

• Non-conductive, no threat to puncture the tire • Durable, lightweight, and easy to use extensively field tested

• Impervious to chemicals, salts, rot and resistant to fuel, oils & solvents

• OSHA: 1910.111(f)(9) Chock blocks. At least

two chock blocks shall be provided. These blocks shall be placed to prevent the rolling of the vehicle whenever it is parked during loading and unloading operations.

RIGOROUSLY FIELD TESTED

15336 15335 POLYURETHANE

15336 POLYURETHANE

15353 POLYURETHANE

MODEL

TIRE SIZE

MATERIAL

LENGTH

WIDTH

HEIGHT

WEIGHT

15335

15.75 in to 35.43 in (400 mm to 900 mm)

Polyurethane

8.27 in (210 mm)

7.87 in (200 mm)

5.91 in (150 mm)

3.5 lbs (1.6 kg)

15336

35.5 in to 55 in (900 mm to 1400 mm)

Polyurethane

13.3 in (340 mm)

8.6 in (220 mm)

7.8 in (200 mm)

7.7 lbs (3.5 kg)

15353

15.25 in to 71 in (1200 mm to 1800 mm)

Polyurethane

13.38 in (340 mm)

9.84 in (250 mm)

7.8 in (225 mm)

13.66 lbs (6.2 kg)

15370

WHEEL CHOCK NOTICE SIGN

• Wheel chock warning sign • Aluminum

15353

44 | WHEEL CHOCKS

HEAVY DUTY MULTIPURPOSE WHEEL CHOCKS

15309

15309

15325

15367

Max Height: 26.25” MODEL TIRE SIZE

MATERIAL

LENGTH

WIDTH

HEIGHT

WEIGHT

15309

18 in to 27 in (1200 mm to 2200 mm)

Urethane Orange

7.9 in (200 mm)

7 in (178 mm)

6 in (150 mm)

1.82 lbs (0.83 kg)

15325

24 in to 32 in (600 mm to 810 mm)

Urethane Orange

14 in (360 mm)

8 in (200 mm)

8 in (200 mm)

5.5 lbs (2.5 kg)

15367

27 in to 35 in (6850 mm to 8890 mm)

Urethane Orange

11.5 in (290 mm)

8 in (200 mm)

8 in (200 mm)

3.63 lbs (1.65 kg)

RIBBED PYRAMID CHOCKS

• With eye bolts, for light and heavy duty use • Suitable for application in pairs

CHOCKS SOLD INDIVIDUALLY 15300

15309

15234

15366

Max Height: 26.25” MODEL TIRE SIZE

MATERIAL

LENGTH

WIDTH

HEIGHT

WEIGHT

15300

27 in to 32 in (685 mm to 812 mm)

Rubber Black

9.05 in (230 mm)

7.08 in (180 mm)

5.5 in (140 mm)

2.2 lbs (3 kg)

15324

27 in to 32 in (685 mm to 812 mm)

Urethane Orange

10 in (254 mm)

8 in (203 mm)

6 in (152 mm)

2.8 lbs (1.3 kg)

15366

27 in to 32 in (685 mm to 812 mm)

Urethane Orange

10 in (254 mm)

8.5 in (216 mm)

5.5 in (140 mm)

5.95 lbs (2.69 kg)

HEAVY DUTY & SMALL OTR WHEEL CHOCKS • For tires ranging from 47” to 95” 15301 STEEL HANDLE

15301

15355 SOLID URETHANE

MODEL

TIRE SIZE

MATERIAL

LENGTH

WIDTH

HEIGHT

WEIGHT

15301

47 in to 86 in (1200 mm to 2200 mm)

Rubber Black

11 in (290 mm)

11 in (290 mm)

10 in (250 mm)

22 lbs (10 kg)

15355

65 in to 95 in (1650 mm to 2410 mm)

Urethane Orange

17 in (430 mm)

14.5 in (368 mm)

14.5 in (368 mm)

14 lbs (6.5 kg)

WHEEL CHOCKS | 45

AEROCHOCKS® WHEEL CHOCKS

We offer wheel chocks for virtually every application - from over-the highway-trucks to off-the-road equipment and the aviation industry!

• Lightweight design is up to 30% lighter than comparable chocks - don't risk workplace injuries with heavy equipment

• Foreign object damage free - no bolts or pads that can work loose • Resistant to fuels, oils and chemicals

15372 URETHANE

15371 URETHANE Best suited for:

• Light Aircraft • Corporate Jets • Helicopters • Small/Medium Military Aircraft • Small Commercial Aircraft

Best suited for:

• Corporate Jets • Medium Military Aircraft • Medium Commercial Aircraft (A320, B737, CS300).

15372

(ATR 72, B717, CRJ, ERJ,etc.)

15373 URETHANE

15374 URETHANE

Best suited for:

Best suited for:

• Large Military Aircraft

• Small/Medium Military Aircraft • Small Commercial Aircraft

(C130, C17, A330 MRTT,KC-390, etc.)

• Medium Commercial Aircraft (A320, B737, CS300) • Large Commercial Aircraft (B747, B767, B787, A330,A350, A380)

(ATR 72, B717, CRJ, ERJ,etc.)

• Medium Commercial Aircraft (A320, B737, CS300)

MODEL

TIRE SIZE

MATERIAL

LENGTH

WIDTH

HEIGHT

WEIGHT

15371

15.7 to 35.4 in (400 mm to 900 mm)

Polyurethane

11.8 in (300 mm)

7.9 in (200 mm)

6.4 in (162 mm)

6.6 lbs (3 kg)

15372

35.4 in to 55 in (900 mm to 1400 mm)

Polyurethane

29.5 in (750 mm)

7.9 in (200 mm)

4.3 in (110 mm)

7.7 lbs (3.5 kg)

15373

35.4 in to 55 in (900 mm to 1400 mm)

Polyurethane

21.7 in (550 mm)

8.9 in (225 mm)

6.5 in (165 mm)

13.9 lbs (6.3 kg)

15374

15.7 in to 35.4 in (400 mm to 900 mm)

Polyurethane

47.25 in (1200 mm)

8.9 in (225 mm)

6.5 in (165 mm)

29 lbs (13 kg)

15374

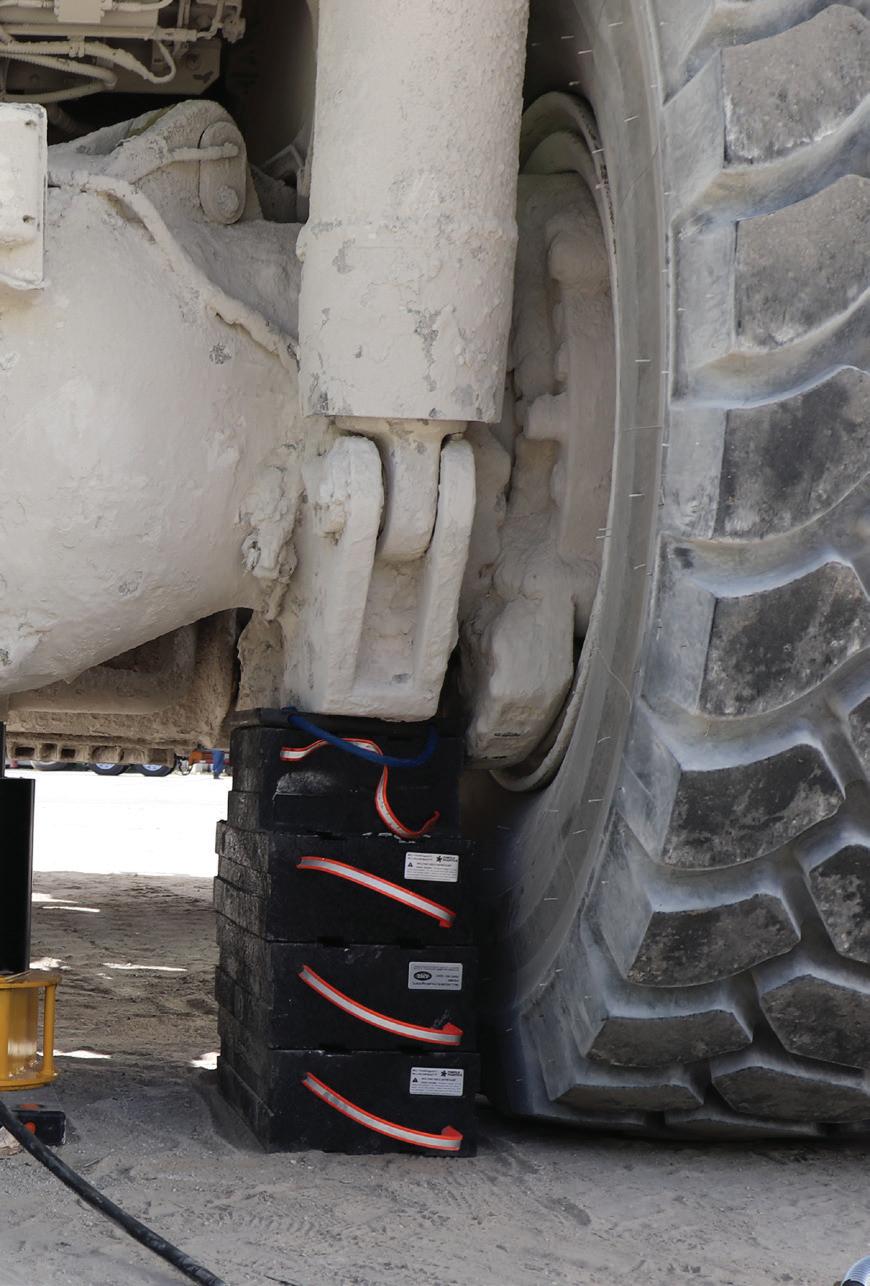

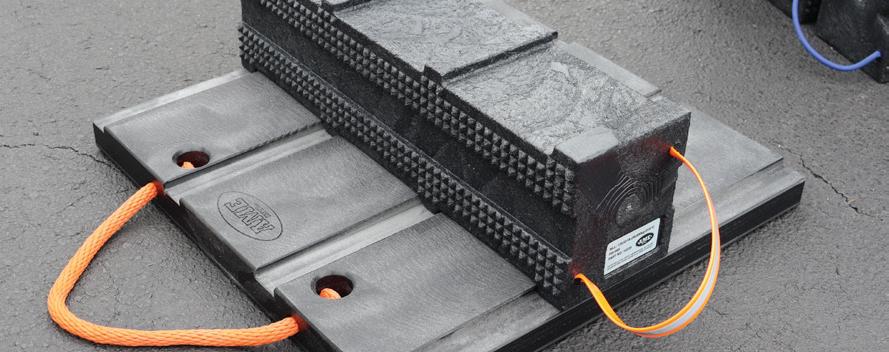

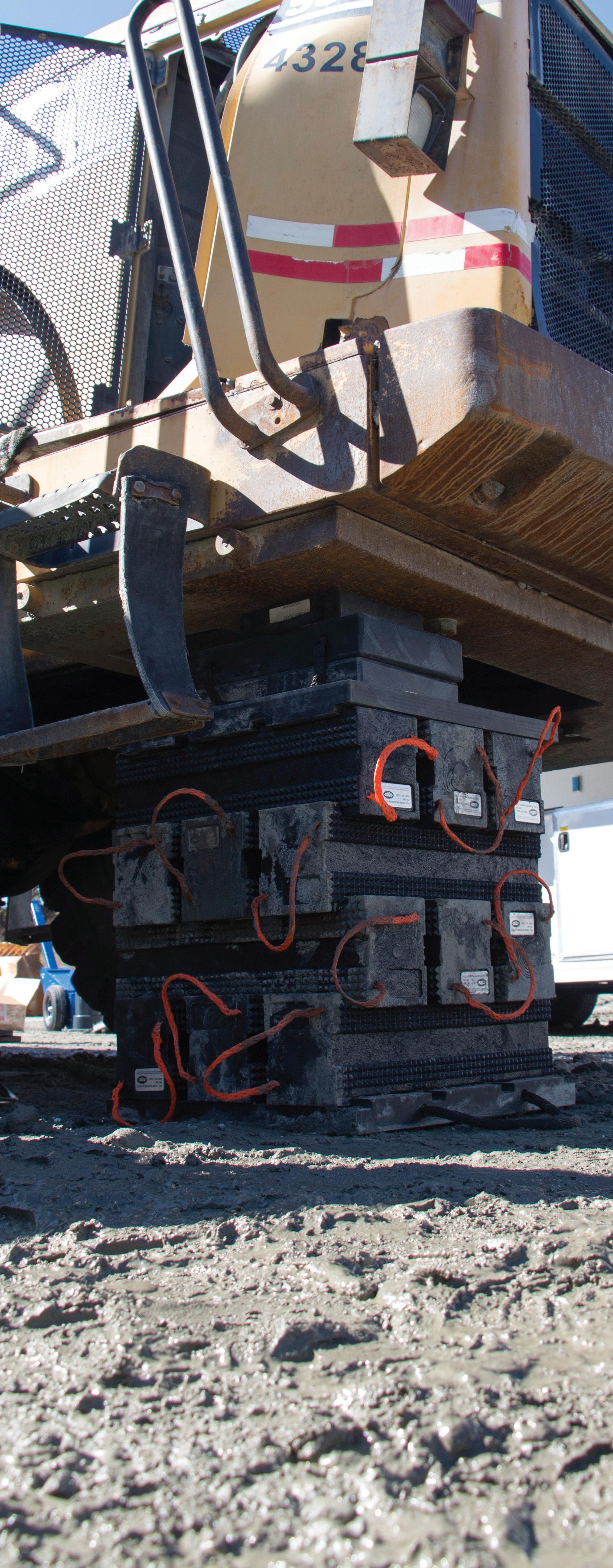

CRIBBING &

BLOCKING

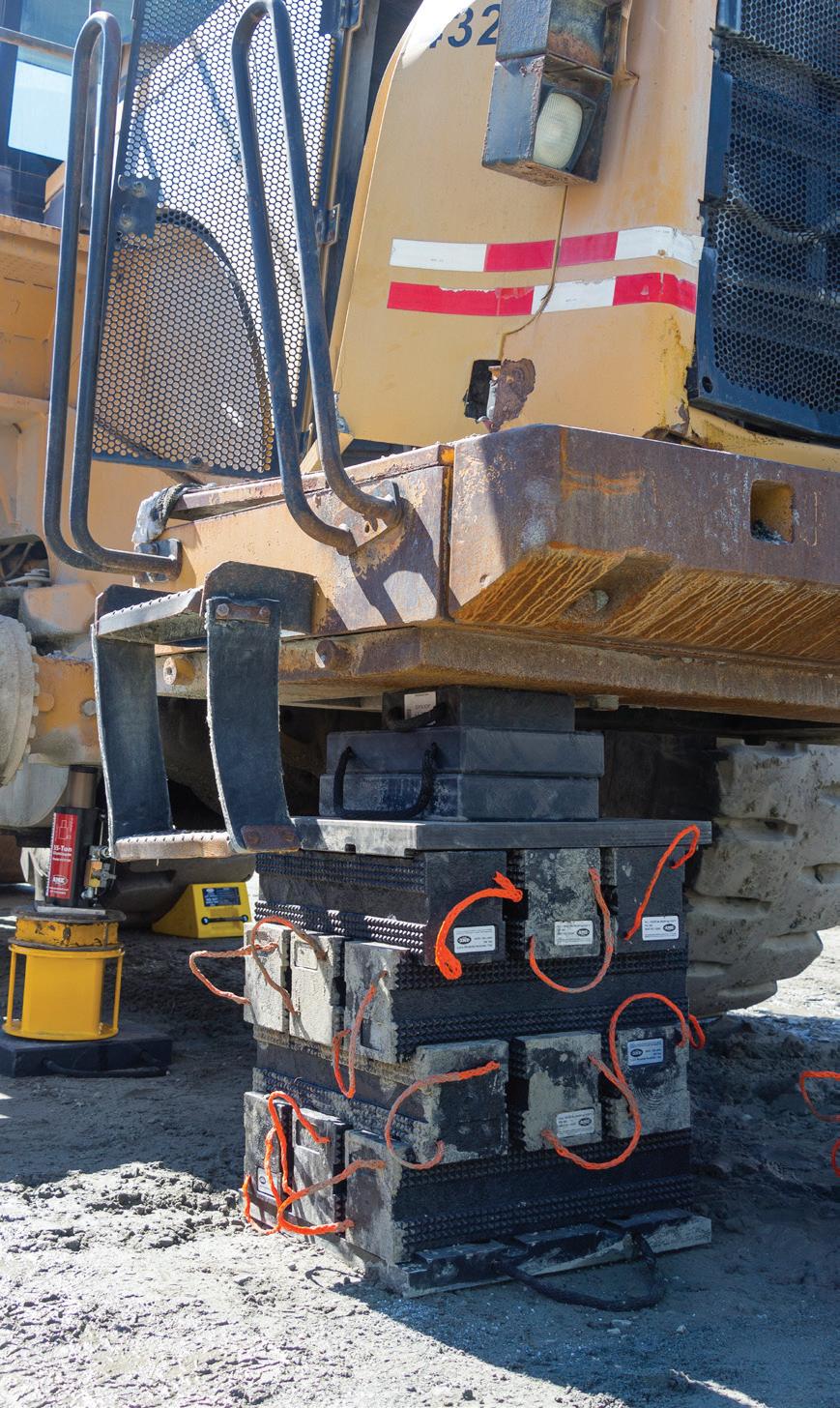

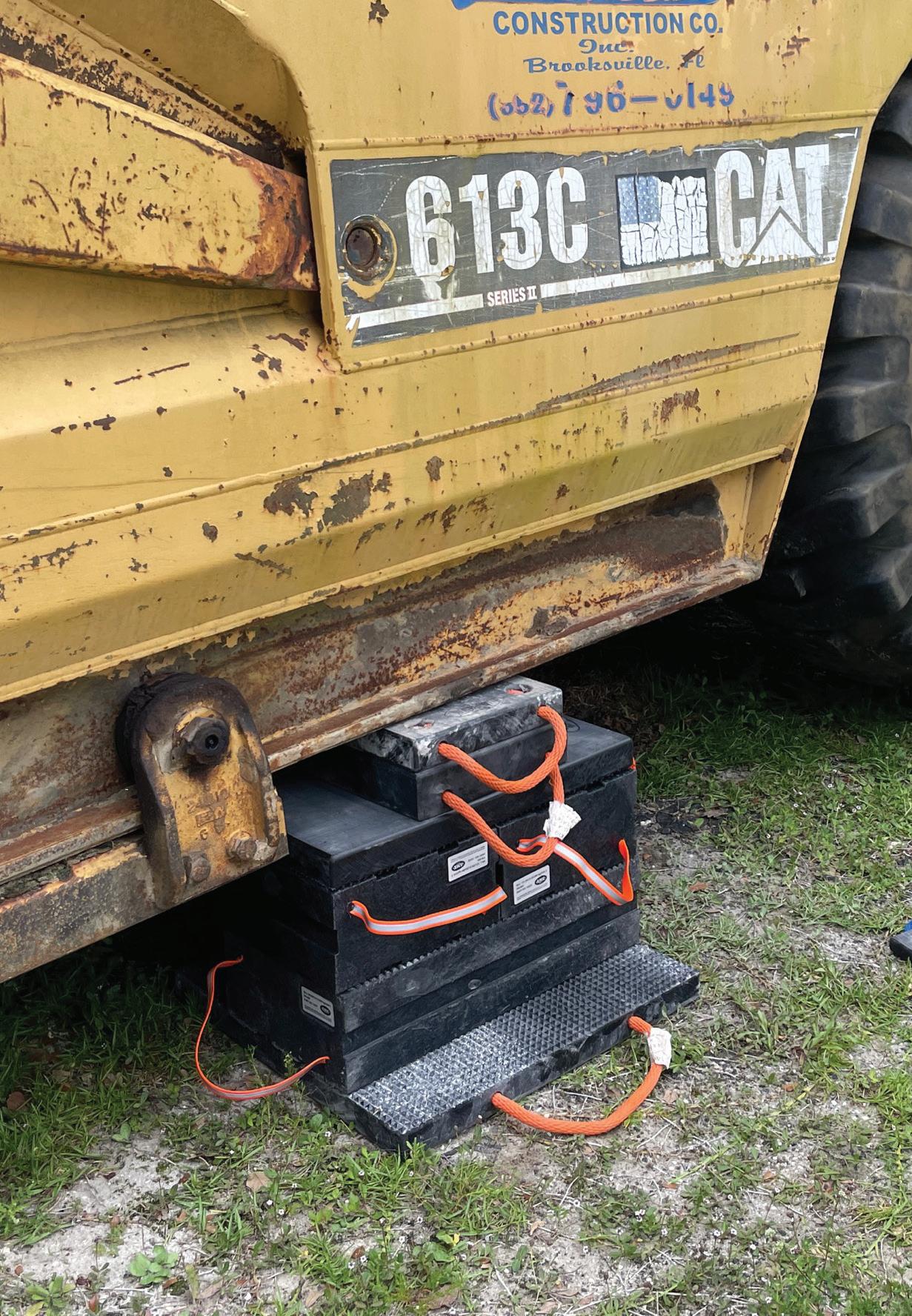

Our world-leading cribbing and blocking products significantly increase safety in the workplace and reduce hazards associated with lifting. AME International’s blocks and jack plates provide stable platforms for jacks and can even help get the jack up to a high lift point.

Once lifted, our cribbing and jack plates can support your load, capturing the hazardous energy of tasking maintenance like tire and wheel service. Let us help make your job a little safer and easier.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

AME International AME International 2347 Circuit Way Brooksville, FL 34604 2347 Circuit Way Brooksville, FL 34604 Phone:+1 352.799.1111 Phone:+1 352.799.1111 Fax:+1 352.799.1112 Fax:+1 352.799.1112 www.ameintl.net www.ameintl.net sales@ameintl.net sales@ameintl.net

Please conspicuously Please conspicuously post this post this Working Load Guide.

Working Load Guide.

CRIBBING & BLOCKING | 47

WORKING LOAD LIMIT

BASED ON SINGLE LAYER APPLICATION

WORKING LOAD LIMIT BASED SINGLE LAYER APPLICATION. WORKING LOAD LIMIT BASED ONON SINGLE LAYER APPLICATION. Lanyard Color Lanyard Color

High-Vis High-Vis Orange Orange

Blue Blue

Total Block Working Total Block Working Load Limit Range Load Limit Range

PartPart # #

WLLWLL (kg)(kg)

WLLWLL (lbs)(lbs)

Total Block Working Total Block Working Load Limit Range Load Limit Range

PartPart # #

WLLWLL (kg)(kg)

WLLWLL (lbs)(lbs)

15230 15230

49,900 49,900

110,000 110,000

PartPart # #

WLLWLL (kg)(kg)

WLLWLL (lbs)(lbs)

14490* 14490* 14491* 14491* 14492* 14492* 15210 15210 15202 15202 15236 15236 15600 15600

31,000 31,000 31,000 31,000 31,000 31,000 20,500 20,500 53,200 53,200 23,700 23,700 4,400 4,400

68,343 68,343 68,343 68,343 68,343 68,343 45,194 45,194 117,285 117,285 52,249 52,249 9,700 9,700

15232 15232 50,000 kg – 100,000 kg 15231 50,000 kg – 100,000 kg 15231 15201 (110,231 lbs – 220,462 lbs) 15201 (110,231 lbs – 220,462 lbs) 15203 15203 15245 Orange = Heavy 15245 Orange = Heavy 15239 15239

21,000 – 50,000 21,000 kg kg – 50,000 kg kg (46,297 – 110,231 (46,297 lbslbs – 110,231 lbs)lbs)

55,000 55,000 110,000 110,000 78,400 78,400 50,800 50,800 71,600 71,600 58,800 58,800

121,254 121,254 242,508 242,508 172,842 172,842 111,994 111,994 157,850 157,850 129,631 129,631

Blue = Medium Blue = Medium Total Block Working Total Block Working Load Limit Range Load Limit Range High-Vis High-Vis Yellow Yellow

0 kg – 21,000 0 kg – 21,000 kg kg (0 lbs – 46,297 (0 lbs – 46,297 lbs)lbs)

Yellow = Light Yellow = Light

*Does*Does not include lanyard. not include lanyard.

Working Working Load Limit Load Limit Pounds PerPer Pounds Square Inch Square Inch PartPart Number Number

Website Link for Website Link for Safety Data Sheet Safety Data Sheet

48 | CRIBBING & BLOCKING

THE EVOLUTION OF CRIBBING

FIRST U.S. COMMERCIAL TIRE DEALER BANS USE OF WOOD 2013 CRIBBING INNOVATED 2008

2007

2008

2010

2013

CRIBBING DISPLAYED FOR THE FIRST TIME AT EXPO IN EUROPE 2010

AME INTERNATIONAL IS FOUNDED 2007

CRIBBING & BLOCKING | 49

FIRST CANADIAN COMMERCIAL TIRE DEALER BANS USE OF WOOD 2014

BIG GRIP JACK PLATE DESIGNED 2019 COLOR CODED HANDLES ADDED 2018

2014

2016

2017

FIRST AUSTRALIAN COMMERCIAL TIRE DEALER BANS USE OF WOOD 2016

JOIN THE REVOLUTION

2018

2019

SERVICE TRUCK COMPANY REDESIGNS TO ALLOW FOR CRIBBING 2017

50 | CRIBBING & BLOCKING

CRIBBING BLOCKS

15234

15200

15203

15236

15210 15239

15230

15203

15210

15245

15230

15236

15239

15245

MODEL NUMBER

DESCRIPTION

DIMENSIONS

WEIGHT

15200

Cribbing Block

2” x 4” x 18” (5.08 cm x 10 cm x 45.7 cm)

6.6 lbs. (3 kg)

15203

Super Cribbing Block

4” x 4” x 30” (10 cm x 10 cm x 76.2 cm)

17.0 lbs. (7.7 kg)

15210

Super Cribbing Block

4” x 4” x 30” (10 cm x 10 cm x 76.2 cm)

17.0 lbs. (7.7 kg)

15230

Super Cribbing Block

6" x 7" x 24" (15 cm x 17.8 cm x 60.9 cm)

25.8 lbs. (11.7 kg)

15234

Ramp Cribbing Block

16" x 12" x 12" (40.6 cm x 30.5 cm x 30.5 cm)

26.5 lbs. (12 kg)

6" x 7" x 10" (15 cm x 17.8 cm x 25.4 cm)

13.3 lbs. (6.03 kg)

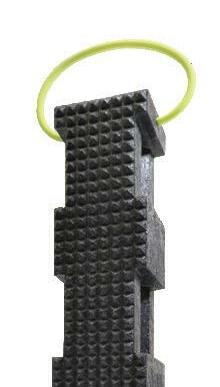

15236

Pyramid Surface Cribbing Block

15239

Primo Cribbing Block

6" x 7" x 24" (15 cm x 17.8 cm x 60.9 cm)

27.3 lbs. (12.3 kg)

15245

Super Cribbing Block

6" x 7" x 30" (15 cm x 17.8 cm x 76.2 cm)

39 lbs. (17.7 kg)

CRIBBING & BLOCKING | 51

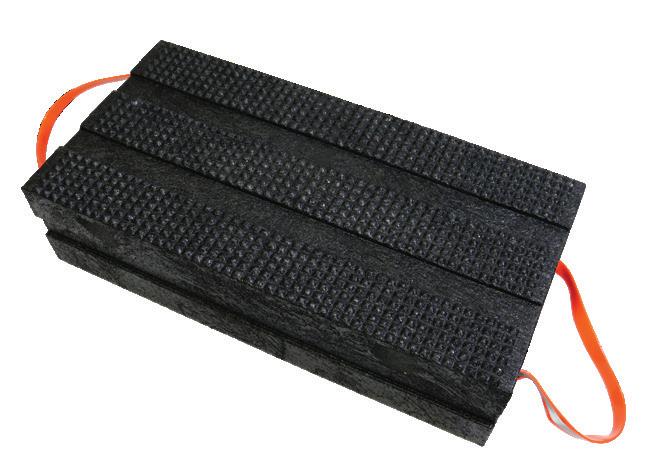

THE SLAB CRIBBING BLOCKS

15231

15231

15232

FULL SLAB & HALF SLAB PERFECT FOR

• The best option for the largest jobs (15231 - 242,508 lbs working load

limit) • Available in Full Slab (15231) or Half Slab (15232) • Can be paired with the 14501 Jack Plate for the 15231 & 14500 Jack Plate for the 15232 • Full Slab and Half Slab can be stacked to a maximum height of 3’ high in a single-row configuration • Full Slab can be stacked to a maximum height of 6’ high in two row configuration 15232 MODEL NUMBER

DESCRIPTION

DIMENSIONS

WEIGHT

15231 Full Slab

Super Cribbing Block

24" x 12" x 6" (60.9 cm x 30.5 cm x 15 cm)

52.85 lbs. (24 kg)

15232 Half Slab

Super Cribbing Block

12" x 12" x 16" ( 30.5 cm x 30.5 cm x 15 cm)

25.35 lbs. (11 kg)

52 | CRIBBING & BLOCKING

15273

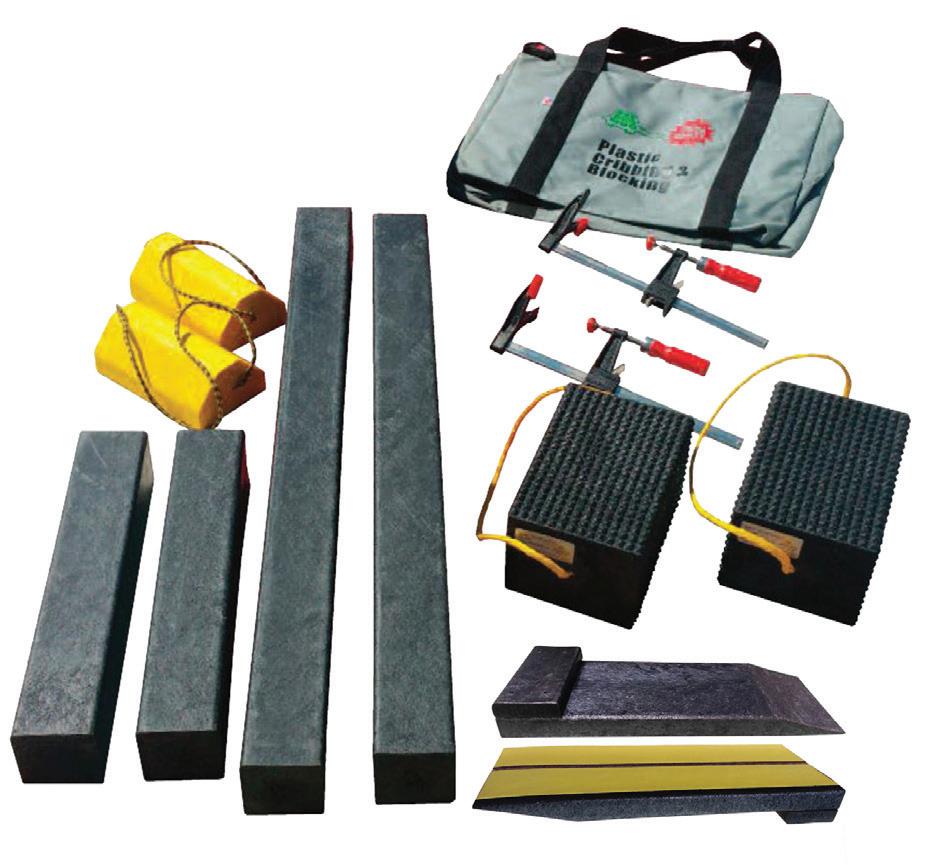

CRIBBING KIT

DOWNLOAD THE WORKING LOAD LIMIT CHART

AME International 2347 Circuit Way Brooksville, FL 34604 Phone:+ 1 352.799.

1111 Scan the QR code above Fax:+1 352.799.

1112a copy of our to download www.am eintl.net working load limit chart and sales@am eintl.net find the full capacity of this kit.

Please conspicuously post this Working Load Guide.

15273 PERFECT KIT FOR

Service WORKING LOAD LIMIT BASED ON• Fleet SINGL E LAYER APPLICATION. • Mini Boom Service Trucks

Lanyard Color COLOR CODED LANYARDSTotal Block Working Load Limit Range HIGH-VIS ORANGE

Block stacks up to 16.5" high when fully assembled

Part #

15232 50,000 kg – 100,000 kg 15231 (110,231 lbs – 220,462 lbs) 15201 COMPONENTS High-Vis 15203 TOTAL BLOCK OrangeWORKING Orange = Heavy 15245 LOAD LIMIT RANGE 15239 Cribbing Block 15239 50,000 kg - 100,000 kg

(110,231 lbs - 220,462 lbs) Orange = Heavy

Blue

Total Block Workin g Jack PlatePart # 14465 Load Limit Range 15230

21,000 kg – 50,000 kg 14466 Jack Plate (46,297 lbs – 110,23 1 lbs)

WLL (kg)

WLL (lbs)

55,000 121,254 110,000 242,508 78,400 DIMENSIONS172,842 50,800 111,994 71,600 157,850 6" x 7" x58,800 24" (15 cm x 17.8 cm x 60.9 cm) 129,631

QTY

12" x 12"WLL x 1.5"(kg) (30.5 cm x 30.5 x 3.8 cm) WLLcm(lbs)

1

49,900

6

110,000

18" x 12" x 3" (45.7 cm x 30.5 cm x 7.6 cm)

1

Blue = Medium Part # Total Block Working WLL (kg) WLL (lbs) Our pyramid surface allows cribbing blocks to mate together, providing Load Limit Range 14490* 31,000 68,343 High-Vis Yellow

a secure, exact fit. The pyramid surface allows for better grip when 14491* 0 kg – 21,000 kg 31,000 68,343jack plates should working on uneven terrain in the field. Accompanying 14492* 31,000 (0 lbs – 46,297 68,343 lbs) have a grip-it surface to lock into the blocks should that 15210for the plates 20,500 45,194 configuration be15202 used.

53,200 117,285 Yellow = Light 15236 23,700 52,249 15600 4,400 9,700 Locky top plate with grooves allows for Lincoln Log Mating, in order to

provide solid contact and better stabilization of the load. Helps to secure the not include energy. lanyard. load while preventing the release of *Does hazardous

CRIBBING & BLOCKING | 53

15269PL CRIBBING KIT

15269PL PERFECT KIT FOR • Mini / Standard Boom Service Truck • Agriculture / Construction / OTR

Block stacks up to 26" high when fully assembled

15269-PL *Extra jack plates shown but not included in kit

COMPONENTS

DIMENSIONS

QTY

15239 Cribbing Block

6" x 7" x 24" (15 cm x 17.8 cm x 60.9 cm)

12

14468LT Jack Plate

24"x 24" x 2" (61cm x 61 cm x 5.08 cm)

2

Our pyramid surface allows cribbing blocks to mate together, providing a secure, exact fit.

Accompanying jack plates should have the grip-it surface for the plates to lock into the blocks should that configuration be used.

Locky top plate with grooves allows for Lincoln Log Mating, in order to provide solid contact and better stabilization of the load.

15269-PL

54 | CRIBBING & BLOCKING

15258-PLB CRIBBING KIT

SCAN TO DOWNLOAD OUR WORKING LOAD LIMIT CHART

AME International 2347 Circuit Way Brooksville, FL 34604 Phone:+ Scan the QR code above 1 352.799.

1111 Fax:+1 352.799.1112a copy of our to download www.am eintl.net working load limit chart and sales@am eintl.net find the full capacity of this kit.

Please conspicuously post this Working Load Guide.

15258-PLB PERFECT KIT FOR

• Large Boom or Tire Hand Service Truck • Construction / OTR

Block stacks up to 43" high when fully assembled

WORKING LOAD LIMIT BASED ON SINGLE LAYER APPLICATION. COMPONENTS Lanyard Color g COLOR CODED LANYARDSTotal Block Workin Part # Load Limit Range HIGH-VIS ORANGE 15232

50,000 kg – 100,00 152390Cribbing Block kg 15231 (110,231 lbs – 220,462 lbs) 15201 High-Vis 15203 TOTAL BLOCK 14468LT Jack Plate OrangeWORKING Orange 15245 = Heavy LOAD LIMIT RANGE 15239 50,000 kg - 100,000 kg

(110,231 lbs - 220,462 lbs) Orange = Heavy

Blue

High-Vis Yellow

14403 Jack Plate

Total Block Working Load Limit Range

Part #

DIMENSIONS WLL (kg) WLL (lbs)

55,000 121,254 110,000 242,508 78,400 172,842 50,800 4 24"x 24" x 2" (61 cm x 61 cm111,99 x 5.08 cm) 71,600 157,850 58,800 129,631

6" x 7" x 24" (15 cm x 17.8 cm x 60.9 cm)

27" x 24" x 2" (68.8 cm x 61 cm x 5.08 cm)

WLL (kg)

WLL (lbs)

QTY

18

1

1

15230 18" x 12" x 3"49,900 14466 Jack Plate (30.5 cm x 30.5 110,00 cm x 7.60cm) 1 21,000 kg – 50,000 kg (46,297 lbs – 110,231 lbs) Our pyramid surface allows cribbing blocks to mate together, providing Blue = Medium a secure, exact fit. The pyramid surface allows for better grip when working on uneven terrain in the field. Accompanying jack plates should Part # for the plates Total Blockhave WLL (kg) Workin WLLthe (lbs) theggrip-it surface to lock into blocks should that Load Limitconfiguration Range be used.

14490* 31,000 68,343 14491* 0 kg – 21,000 kg 31,000 68,343 14492* 31,000 (0 lbs – 46,297 lbs) 68,343 15210 20,500 Locky top plate with grooves allows for Lincoln 45,194 Log Mating, in order to 15202 53,200 117,28 5 Helps to secure the provide solid contact and better stabilization of the load.

Yellow =load 15236 Light 23,700 52,249 while preventing the release of hazardous energy.

15600 4,400 9,700 *Does not include lanyard.

CRIBBING & BLOCKING | 55

15266-PLB CRIBBING KIT

AME International 2347 Circuit Way Brooksville, FL 34604 Phone:+1 352.799.1111 Fax:+1 352.799.1112 www.ameintl.net sales@ameintl.net

15266-PLB PERFECT KIT FOR • Mini / Standard Boom Service Truck

Block stacks up to 28" high when fully assembled

15266-PLB

WORKING LOAD LI

Lanyard Color COLOR CODED LANYARDSTotal Bl Load L HIGH-VIS ORANGE COMPONENTS

DIMENSIONS

QTY

High-Vis

15239 Cribbing Block

6" x 7" x 24" (15 cm x 17.8 cm x 60.9 cm)

12

14468LT Jack Plate

24"x 24" x 2" (61 cm x 61 cm x 5.08 cm)

1

27" x 24" x 2" (68.8 cm x 61 cm x 5.08 cm)

1

14503 Jack Plate

TOTAL BLOCK WORKING Orange LOAD LIMIT RANGE 50,000 kg - 100,000 kg (110,231 lbs - 220,462 lbs)

Orang

Orange = Heavy

Total Bl Load L

Blue

21,000 kg (46,297 lbs

Blue =

Our pyramid surface allows cribbing blocks to mate together, providing a secure, exact fit. The pyramid surface allows for better grip when working on uneven terrain in the field. Accompanying jack plates should have the grip-it surface for the plates to lock into the blocks should that configuration be used.

Locky top plate with grooves allows for Lincoln Log Mating, in order to provide solid contact and better stabilization of the load. Helps to secure the load while preventing the release of hazardous energy.

50,000 kg (110,231 lb

Total Blo Load Li High-Vis Yellow

0 kg – (0 lbs –

Yellow

56 | CRIBBING & BLOCKING

15260

CRIBBING KIT

AME International 2347 Circuit Way Brooksville, FL 34604 Phone:+1 352.799.1111 Fax:+1 352.799.1112 www.ameintl.net sales@ameintl.net

Please conspicuously post this Working Load Guide.

WORKING LOAD LIMIT BASED ON SINGLE LAYER APPLICATION. Lanyard Color

Total Block Working Load Limit Range

50,000 kg – 100,000 kg (110,231 lbs – 220,462 lbs)

15260

High-Vis Orangbut e not included inOrange *Extra jack plates shown kit = Heavy

COLOR CODED LANYARDS BLUE Total Block Working Load Limit Range

21,000 kg – 50,000 kg COMPONENTS Blue (46,297 TOTAL BLOCK WORKING lbs – 110,23 1 lbs) LOAD LIMIT RANGE 21,000 kg - 50,000 kg (46,297 lbs - 110,231 lbs) Blue = Medium

High-Vis Yellow

Part #

WLL (kg)

15232 55,000 121,254 15231 110,000 242,508 15201 78,400 172,842 FOR 4 15203 15260 PERFECT 50,800 KIT 111,99 • Fleet Service Boom Truck 15245 71,600 157,850 • Agriculture 15239 / Construction 58,800 129,631 Stack up to 24" high when fully assembled (Does not include required jack plates)

Part #

WLL (kg)

WLL (lbs)

15230

49,900

110,000

Blue = Medium

15230 Cribbing Block

Total Block Working Load Limit Range

Part #

WLL (kg)

DIMENSIONS

QTY

6" x 7" x 24"

12

WLL (lbs)

14490* 31,000 68,343 14491* 31,000 68,343 14492* 31,000 68,343 15210 20,500 45,194 15202 53,200 117,285 Yellow = Light 15236 23,700 52,249 15600 4,400 9,700 Our pyramid surface allows cribbing blocks to mate together, providing a secure, exact fit. The pyramid surface allows for better grip when working on uneven terrain in the field.

Accompanying *Does not include lanyard. jack plates should have the grip-it surface for the plates to lock into the blocks should that configuration be used.

0 kg – 21,000 kg (0 lbs – 46,297 lbs)

Working Load Limit

WLL (lbs)

CRIBBING & BLOCKING | 57

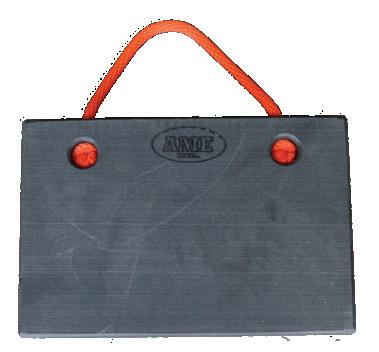

JACK PLATES

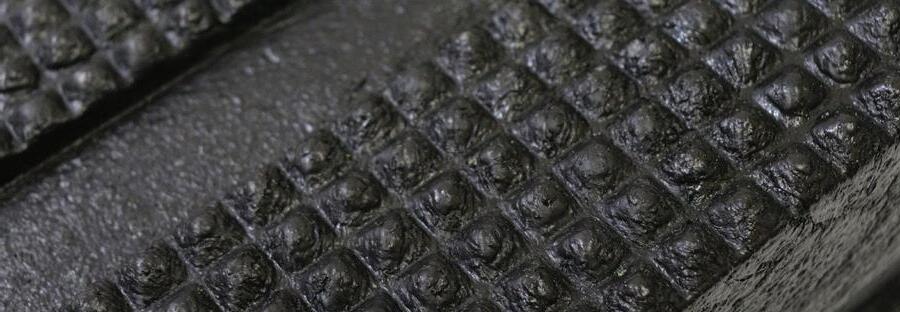

Pyramid surface design ensures a secure, exact fit, as well as provide better grip on uneven terrain in the field.

14500

14464

Locky Top surface with ledge on the locks onto cribbing and provides extra security against slipping.

14501

14503

14466

14473

14468LT

MODEL

WIDTH & HEIGHT

THICKNESS

CAPACITY

WEIGHT

14500

12” x 12” (30.5 cm x 30.5 cm)

2" (5.08 cm)

100 Tons

8.8 lbs (4 kg)

14501

12" x 24" (30.5 cm x 61 cm)

2" (5.08 cm)

100 Tons

17.8 lbs (8.1 kg)

14503

27" x 24" (68.6 cm x 61 cm)

2" (5.08 cm)

100 Tons

36.4 lbs (17.5kg)

14464

12” x 12” (30.5 cm x 30.5 cm)

1" (2.54 cm)

50 Tons

5 lbs (2.3 kg)

14465

12” x 12” (30.5 cm x 30.5 cm)

1.5” (3.81 cm)

100 Tons

8 lbs (3.6 kg)

14466

18” x 12” (45.7 cm x 30.5 cm)

3" (7.6 cm)

200 Tons

21 lbs (9.5 kg)

14468B

24” x 24” (61 cm x 61 cm)

2" (5.08 cm)

100 Tons

24 lbs (10.9 kg)

14468LT

24” x 24” (61 cm x 61 cm)

2" (5.08 cm)

100 Tons

24 lbs (10.9 kg)

14469

18” x 18” (45.7 cm x 45.7 cm)

2" (5.08 cm)

100 Tons

20 lbs (9.1 kg)

14472

18” x 18” (45.7 cm x 45.7 cm)

1" (2.54 cm)

50 Tons

5 lbs (2.3 kg)

14473

18” x 18” (45.7 cm x 45.7 cm)

1.5" (3.81 cm)

100 Tons

5 lbs (2.3 kg)

14499

12” x 12” (30.5 cm x 30.5 cm)

3" (7.6 cm)

200 Tons

21 lbs (9.5 kg)

HYDRAULIC

JACKS & STANDS

AME's high-quality hydraulic jacks and stands offer many options for field and shop use. Our steel stands offer you peace of mind when maintaining various types of equipment.

Our Hydraulic jacks offer many options for equipment, including automotive, HD truck, bus, agriculture, aircraft and more. Follow through to the end of the section to see the specialty wheel trolleys, transmission jacks, and engine stands.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

HYDRAULIC JACKS & STANDS | 59

14361

TITAN PRO 4 TON JACK STANDS (SOLD IN PAIRS)

NEW • Flat top rubber pad grips the lifting point • Ideal for low-profile vehicles or custom cars • Triangular base for stability • Powder coat finish on the base • Sold in pairs • Minimum Height: 13.8" • Maximum Height: 21.81" • Capacity: 4 Tons per stand (always use in pairs)

LOCKABLE SAFETY PIN STYLE

14720

14985

5 TON JACK STANDS (SOLD INDIVIDUALLY)

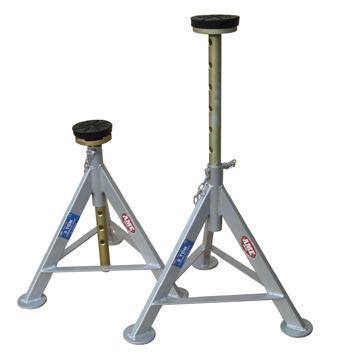

3 TON HIGH LIFT JACK STANDS (SOLD IN PAIRS)

PLACEHOLDER

24 TON HEAVY DUTY JACK STANDS (PAIR)

• European design accommodates truck axles, forklifts & trailers • 5 pin placements • Sold in pairs • Capacity: 5 Tons per stand • Min Height: 13” (33 cm) • Max Height: 21.5” (55 cm) • Weight: 10 lbs (4.5 kg)

• Ideal for light aircraft, flat top

rubber pad grips the lifting point

• Powder coat finish on base, zinc plated post to prevent rust

• Capacity: 3 tons per stand, sold • Ideal for forklift trucks in pairs • Sturdy, welded, heavy gauge steel • Minimum Height: 19” (48.3 cm), construction - prevents distortion maximum cm) • Capacity: 4.5 tons perheight: stand, 31.5” sold (80 in pairs • Weight: 36.5 lbscm) (16.6 kg) • Minimum height: 9.5” (24.1 • Maximum height: 16.5” (41.9 cm) • Weight: 10 lbs (4.5 kg)

60 | HYDRAULIC JACKS & STANDS

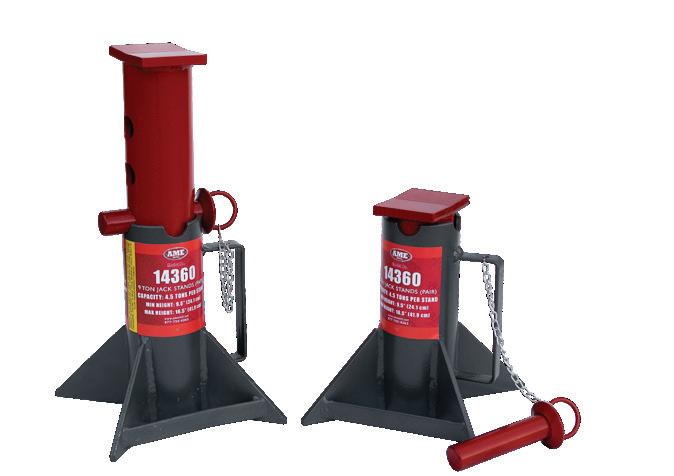

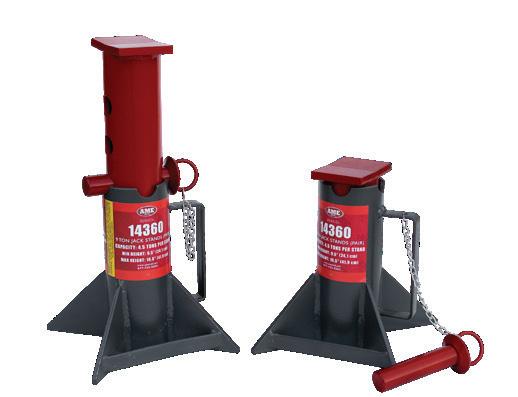

14360

4.5 TON JACK STANDS (SOLD IN PAIRS)

14419

14420

25 TON JACK STAND (SOLD INDIVIDUALLY)

NEW

25 TON JACK STAND (SOLD INDIVIDUALLY)

NEW

NEW

• Ideal for forklift trucks • Sturdy, welded, heavy gauge steel

• Heavy-duty OTR pin-style jack stand • Pin-style stand makes it easy to hold the

construction - prevents distortion • Capacity: 4.5 tons per stand, sold in pairs • Minimum height: 9.5” (24.1 cm) • Maximum height: 16.5” (41.9 cm) • Weight: 10 lbs (4.5 kg)

load at desired height and secure with locking collar • Quick adjustment to the desired heights • Sold individually • Minimum height: 16.5” (14.9 cm) • Maximum height: 21.5” (54.6 cm) • Capacity: 25 tons per stand

• Heavy-duty OTR pin-style jack stand • Pin-style stand makes it easy to hold the

14425

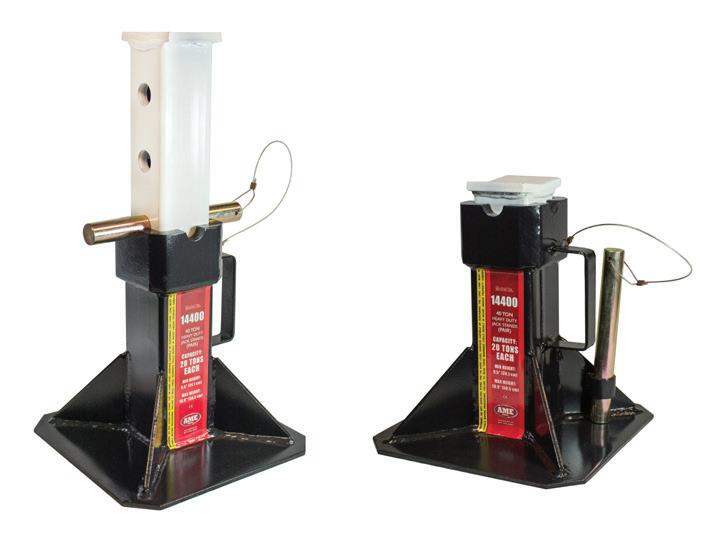

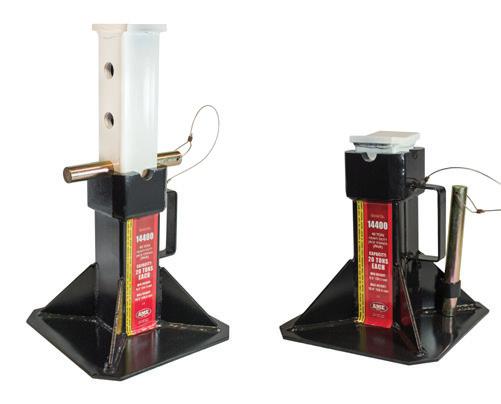

14400

14405

• Sturdy steel construction for superior safety

• Sturdy steel construction for superior safety

• 3 lock pin settings for adjustable heights • Adjustable Swivel allows for 2” of variance at

12 TON HEAVY DUTY JACK STANDS (SOLD IN PAIRS)

and strength • Heavy gauge steel frame helps prevent distortion or twisting • Capacity: 12 tons per stand • Min. Height: 11.81” (30 cm) Max. Height: 18.11” (46 cm) Weight: 46 lbs (20.8 kg)/Pair

22 TON HEAVY DUTY JACK STANDS (SOLD IN PAIRS)

and strength • Heavy gauge steel frame helps prevent distortion or twisting • Capacity: 22 tons per stand, sold in pairs • Min. Height: 12” (30.5 cm) Max. Height: 20” (50.5 cm) Weight: 68 lbs (30.8 kg)/Pair

load at desired height and secure with locking collar • Quick adjustment to the desired heights • Sold individually • Minimum height: 26.5” (67.3 cm) • Maximum height: 38” (96.5 cm) • Capacity: 25 tons per stand

22 TON ADJUSTABLE TOP JACK STANDS (SOLD IN PAIRS)

locked settings

• Capacity: 22 tons per stand, sold in pairs • Min. Height: 12.5 in (31.75 cm) Max. Height: 21.9” (55.63 cm) Weight: 76 lbs (34.4 kg)/Pair

HYDRAULIC JACKS & STANDS | 61

14410

20 TON OTR SCREW STYLE JACK STANDS (SOLD INDIVIDUALLY)

14415

20 TON OTR SCREW STYLE JACK STANDS (SOLD INDIVIDUALLY)

14410 • Screw style stand easily holds load at the

• Screw style stand easily holds load at the

desired height and secures it with a locking collar • Adjustable screw for height extension and retraction • Quick adjustment to the desired heights • Sold individually • Minimum height: 18.5” (42 cm) • Maximum height: 26.7” (68cm)

desired height and secures it with a locking collar • Adjustable screw for height extension and retraction • Quick adjustment to the desired heights • Sold individually • Minimum height: 26" (66.5 cm) • Maximum height: 48” (117 cm)

DURABLE JACK STANDS FOR SHOP AND FIELD APPLICATION

DURABLE JACK STANDS FOR SHOP AND FIELD APPLICATION

14401

22 TON HEAVY-DUTY PIN STYLE JACK STANDS WITH WHEELS AND HANDLE (SOLD IN PAIRS) 14415

• Heavy-duty wheels prevents the need for a technician to place themselves under equipment or vehicle to set stands

• 2-pc handle for maneuverability • Sturdy steel construction for superior safety and strength • Heavy gauge steel frame helps prevent distortion or twisting • Capacity: 22 tons per stand, sold in pairs • Min. Height: 12” (30.5 cm) • Max. Height: 20” (50.5 cm)

14401

62 | HYDRAULIC JACKS & STANDS

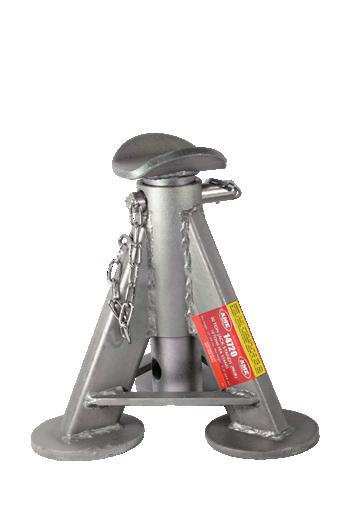

14220, 14225

OTR PIN-STYLE JACK STANDS

• Used to support (block) track-type or rubber tired vehicles • Can be used with separate lifting devices or hydraulic jacks • Rugged, heavy-duty design with welded, all-steel construction • Dual lock-pin design provides two load-bearing surfaces • Adjustable height in 19 mm (0.75 in) increments • Features retractable spring-loaded casters DURABLE JACK STANDS FOR SHOP AND FIELD APPLICATION

14220

14220

14225

MODEL

CAPACITY

MIN. HEIGHT

MAX. HEIGHT

WEIGHT

14220

20 tons

23.55" (59.8 cm)

34.05" (86.5 cm)

150 lbs (68 kg)

14225

25 tons

26" (66.5 cm)

46" (117 cm)

200 lbs (91 kg)

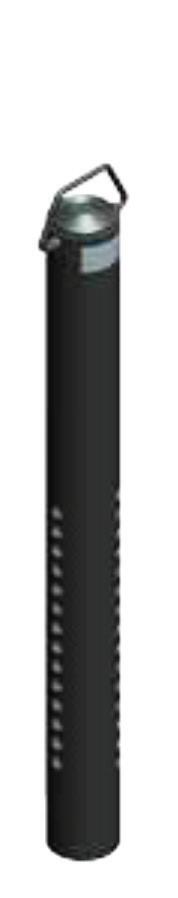

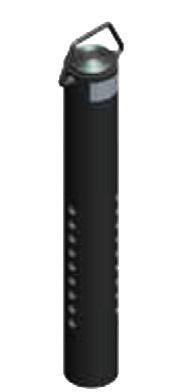

ACCESSORIES

OTR PIN STYLE JACK STANDS

14225

14220-001

14220-002

14225-001

14225-002

Short Tube (Included)

Medium Tube

Long Tube

X-tra Long Tube

23.55” -34.05”

42.3” - 52.8” 64 lbs (30 kg)

49.5” - 69” 90 lbs (41 kg)

65.2” - 84.7” 120 lbs (55 kg)

HYDRAULIC JACKS & STANDS | 63

JACK STANDS

14220

14225

14360

14401

14361

14405

14420

14400

14410

14425

14415

14720

14419

14985

MODEL

SOLD AS

CAPACITY (PER STAND)

CAPACITY (PER PAIR)

MIN. HEIGHT

MAX. HEIGHT

14220

Pair

20 tons

40 tons

23.55" (59.8 cm)

34.05" (86.5 cm)

14225

Pair

25 tons

50 tons

26" (66.5 cm)

42.35" (107.3 cm)

14360

Pair

4.5 tons

9 tons

9.5” (24.1 cm)

16.5” (41.9 cm)

14361

Pair

4 tons

8 tons

13.8" (35.05 cm)

21.8” (55.3 cm)

14400

Pair

22 tons

44 tons

12" (30.5 cm)

20" (50.5 cm)

14401

Pair

22 tons

44 tons

12" (30.5 cm)

20" (50.5 cm)

14405

Pair

22 tons

44 tons

12.5" (31.75 cm)

21.9" (55.6 cm)

14410

Single

20 tons

-

16.5" (42 cm)

26.7" (68 cm)

14415

Single

20 tons

-

26" (66.5 cm)

46" (117 cm)

14419

Single

25 tons

-

16.5" (42 cm)

21.5" (54.6cm)

14420

Single

25 tons

-

26.5" (67.3 cm)

38" (96.5 cm)

14425

Pair

12 tons

24 tons

11.8" (30 cm)

18.1" (45.9 cm)

14720

Pair

5 tons

10 tons

13" (33 cm)

21.5" (55 cm)

14985

Pair

3 tons

6 tons

19" (31.5 cm)

31.5" (80 cm)

64 | HYDRAULIC JACKS & STANDS

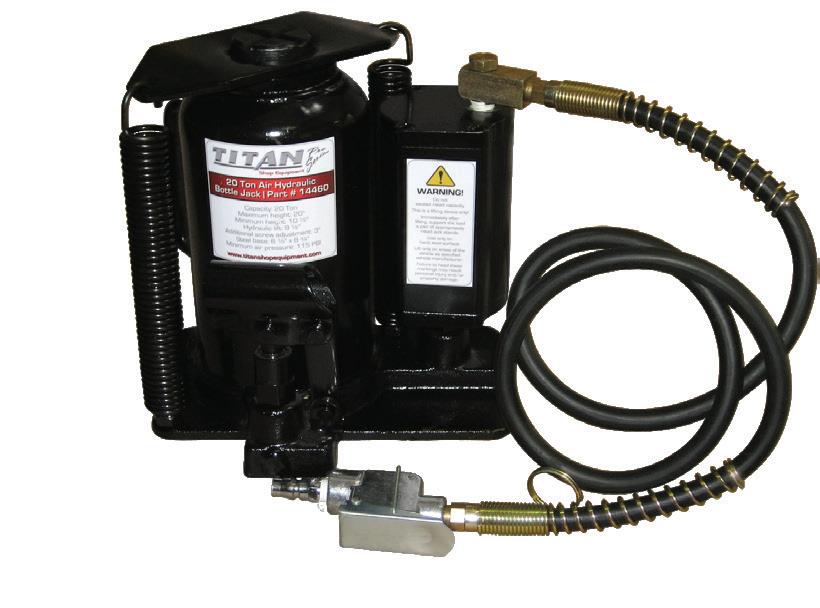

14460, 14475

14461

20 TON / 30 TON TITAN

20 TON TITAN LOW PROFILE

• Chromed ram and aluminum air motor for long life

• Heavy-duty return springs • Each unit factory tested at 150% overload

• Cylinder is welded to the base, assuring strength and eliminating leaks

• Chromed pump piston and ram for added rust resistance

• Extension screw gives added height when necessary

MODEL

CAPACITY

MIN. HEIGHT

MAX. HEIGHT

WEIGHT

14460

20 tons

9.7" (24.5 cm)

18.5" (46 cm)

38 lbs (17.5 kg)

14475

30 tons

11" (27.9 cm)

14140

22 - TON AIR/HYDRAULIC SERVICE JACK

18" (45.7 cm)

60 lbs (27 kg)

14470

20 TON TITAN AIR / HYDRAULIC CART JACK

• Super low minimum height for easy access • Capacity: 20 tons • Measurements: Height: 6” (15.3 cm), Length: 13” (33 cm), Width: 5” (12.7 cm

• Minimum Height: 5.8” (14.8 cm), Maximum Height: 10” (25.6 cm)

• Weight: 21 lbs (9.5 kg)

ACCESSORIES

16005 & 16006 AIR WHIZ

16005

14140SK SADDLE KIT

Male to Female ¼” NPT AIR REDUCER • Regulates inlet pressure 94 PSI to prevent air bypass • Max Pressure: 16 Bar • Outlet Pressure: 6.5 Bar

• Welded steel base, heavy-duty return springs • Chromed ram and aluminum air motor for long life

• Air-operated & easy to maneuver

(operates with only 80 psi of air pressure) • Single piece handle - will not break • Extension saddles include: 1 of each, 1”, 2”, and 4” • Min. Height: 9” (18.5 cm) • Stroke Length: 6” (15 cm) • Weight: 90 lbs (41 kg)

• Capacity: 20 tons • Each unit factory tested at 150% overload • 36” long handle allows for easy placement of jack under vehicle

• Minimum Height: 10” (25.5 cm), Maximum Height: 19” (48 cm)

• Weight: 55 lbs (55 kg)

16006 Male to Male ¼” NPT AIR REDUCER • Regulates inlet pressure 94 PSI to prevent air bypass • Max Pressure: 16 Bar • Outlet Pressure: 6.5 Bar

HYDRAULIC JACKS & STANDS | 65

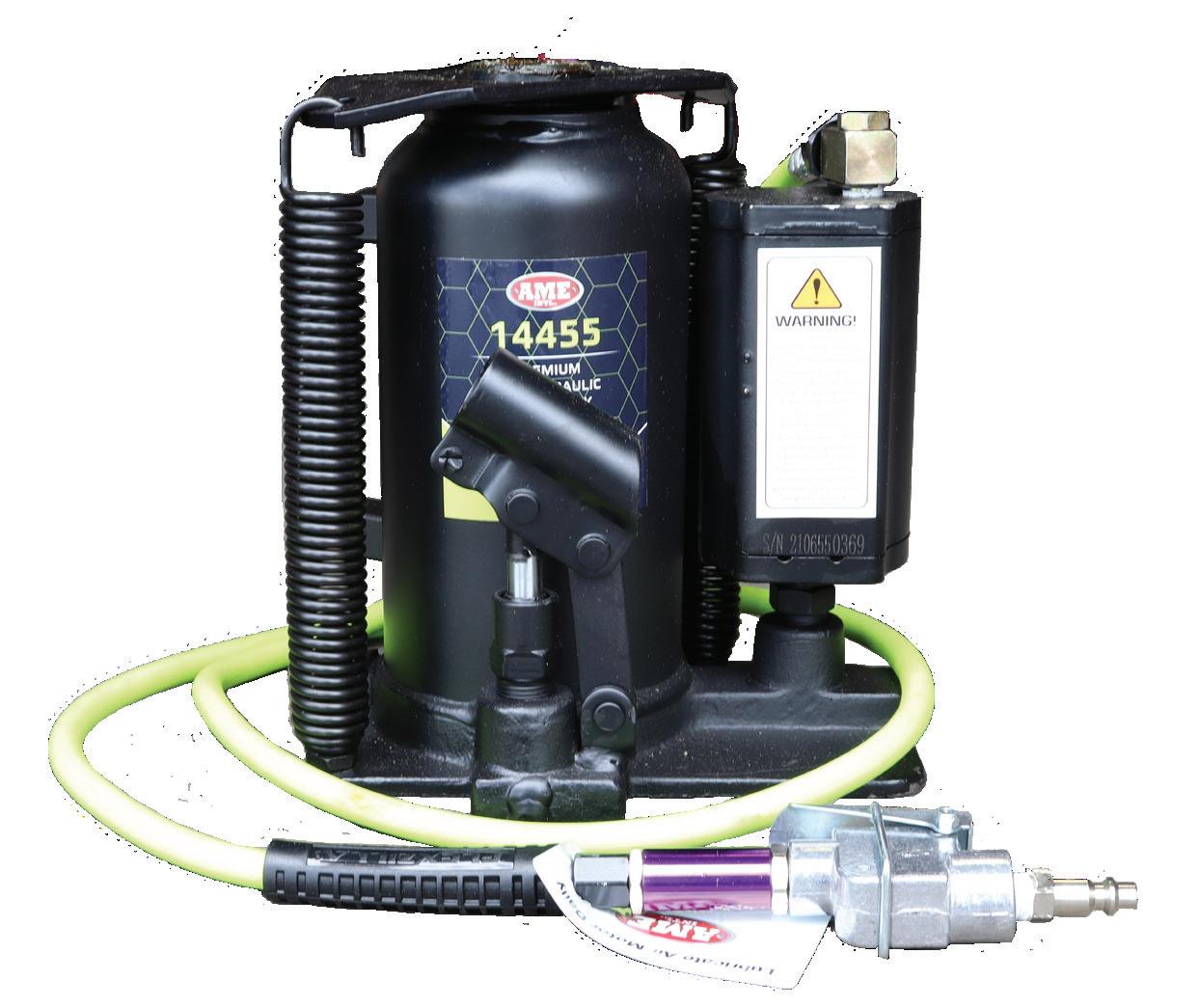

14455

PREMIUM AIR / HYDRAULIC JACK

NEW

14455

• Capacity: 20 ton • Maximum Height: 18.5” • Minimum Height: 9.7” • Flexilla® whip hose for longer life and maximum durability in all climate

conditions

• In-line regulator limits inlet pressure to 94 PSI to prevent air bypass • 10”x10” 50-ton Jack Plate 14453 included for optimal weight displacement

on uneven or non-compacted surfaces

16128K

5FT FLEXILLA® HOSE WITH BALL SWIVEL

• Short-length hose with a swivel coupler on one end to increase the

longevity of the main hose

• Reduces use fatigue by eliminating the weight of the coupler/plug • Features a 14" MNPT ball swivel with 30˚ tilt and 360˚ swivel action • Extreme all-weather flexibility even at subzero temperatures (-40˚ to 140˚) • Maximum working pressure at 70˚: 300 psi

16128K

66 | HYDRAULIC JACKS & STANDS

14304

FORKLIFT STABILIZATION KIT

• Creates a safer repair environment for technicians • Keeps forklift and service truck stable during repairs • Combines both Stacker cribbing and EverBlock components • Contains two true 4˝x4˝x 22˝ and 4˝x4˝x48˝ composite components for masthead repair

14350

• Handy carrying bag makes kit mobile

14350

14370

• Designed specifically for use on forklifts • Features specially designed seals • Strong steel construction with low pickup

• Capacity: 7.5 tons • Minimum height: 2.25” (5.7 cm) low clearance • Maximum height: 16.6” (41 cm) max lifting

• Capacity: 4 Tons • Min.Height: 2.25” (5.7 cm) low clearance • Max. Height: 16” (40.64 cm) max lifting

• Weight: 99 lbs (45 kg)

4-TON FORKLIFT JACK

height

height

• Weight: 69 lbs (31 kg)

14370

PAIR WITH STANDS

7.5 TON FORKLIFT JACK

height

PAIR WITH STANDS

HYDRAULIC JACKS & STANDS | 67

AME International presents AC HydraulicA/S Air Hydraulic Jacks, designed for heavy-duty, intensive commercial use.

AIR / HYDRAULIC JACKS

25-1

25-1H

25-2

25-1

50-2

50-3

MODEL

CAPACITY

MIN. HEIGHT

MAX. HEIGHT

TOTAL WIDTH

FRAME LENGTH

WEIGHT

25-1

25 tons

8.7" (22 cm)

13.6” (34.5 cm)

12" (30.5 cm)

30.3" (77 cm)

136.7 lbs (62 kg)

25-1H

25 tons

14.2" (36 cm)

24” (61 cm)

12.2" (31 cm)

32.3" (82 cm)

156.5 lbs (71 kg)

25-2

25 / 10 tons

7.1" (18 cm)

10.8” / 15" (27.5 / 38 cm)

12" (30.5 cm)

30.3" (77 cm)

132.3 lbs (60 kg)

50-2

50 / 25 tons

8.7" (22 cm)

13.4” / 17.7" (34 / 45 cm)

12.4" (31.5 cm)

31.9" (81 cm)

176.4 lbs (80 kg)

50-3

50 / 25 / 10 tons

5.9" (15 cm)

8.3" / 10.4" / 13.2" (21 / 26.5 / 33.5 cm)

12.2" (31 cm)

31.9" (81 cm)

147.7 lbs (67 kg)

*2" (5 cm) and 3.9" (10 cm) extensions included with all jacks

25-1, 50-3, 25-2

68 | HYDRAULIC JACKS & STANDS

40-4

4-STAGE AIR HYDRAULIC JACK FOR LOW BUSES & OTHER LOW CLEARANCE VEHICLES • The lowest jack on the market with a

minimum height of only 3.94 in (100 mm)

• Telescopic cylinder provides fast and safe 4-stage lift

• Compact and short chassis for even the lowest vehicles

• Hand-operated dead-man’s control for

optimum safety while lifting and lowering

• Ergonomic handle with push buttons • Includes two extensions (1.97/3.94 in.) (50/100 mm)

40-4

MODEL

40-4

CAPACITY (LBS)

88,000 / 59,500 / 35,000 / 22,000

MIN. HEIGHT

3.94" (100 mm)

MAX. HEIGHT

5.71”/7.09”/9.06”/10.83” (145 mm/180 mm/230 mm/275 mm)

FRAME LENGTH

24.8" (63 cm)

HANDLE LENGTH

45.67" (116 cm)

TOTAL WIDTH

10.04" (26 cm)

WEIGHT

120 lbs (54 kg)

AIR / HYDRAULIC AIRCRAFT JACKS

• Compact and slim design for easy operation and maneuverability

• Ergonomic handle with push buttons • The jack can be operated by either

65-1AP

65-1APH

65-1APH

compressed-air, nitrogen from the aircraft wheels or a mobile nitrogen service cart • Fitted with extension screw (80 mm) for optimum use of the stroke • Rapid ram retraction without load • Safety features include manual lowering valve, safety overload valve and deadman’s control • Designed and manufactured according to the aircraft standards: EN 1915-1, EN 1915-2 and EN 12312-19.

MODEL

65-1AP

65-1APH

CAPACITY

71.5 tons

71.5 tons

MIN. HEIGHT

10.59" (27 cm)

12.36" (31.5 cm)

MAX. HEIGHT

16.97" (43 cm)

20.47" (52 cm)

FRAME LENGTH

31.89" (81 cm)

36.73" (93 cm)

HANDLE LENGTH

37.40" - 53.54" (95 - 136 cm)

37.40" - 53.54" (95 - 136 cm)

TOTAL WIDTH

12.20" (31 cm)

12.20" (31 cm)

AIR SUPPLY

9 - 12 bar

9 - 12 bar

AIR CONSUMPTION

350 l/min

350 l/min

WEIGHT

187 lbs (85 kg)

207 lbs (94 kg)

HYDRAULIC JACKS & STANDS | 69

65-1

AIR HYDRAULIC JACK FOR HEAVY-DUTY APPLICATIONS • Min. height of 245 mm and extremely large capacity of 65 Ton

• Designed for hard, intensive and professional use • Hard chrome-plated cylinder ensures long life • Built-in safety valve protects against overload • Dead-man’s control provides optimal safety when raising and lowering

• Ergonomic handle with easy push button operation • Includes two extensions (100/200 mm) • Comes standard with pneumatic rubber wheels MODEL

65-1

CAPACITY (LBS)

143,000

MIN. HEIGHT

9.65" (245 mm)

MAX. HEIGHT

15.04" (380 mm)

FRAME LENGTH

32.44" (825 mm)

HANDLE LENGTH

45.67" (1160 mm)

TOTAL WIDTH

14.96" (380 mm)

WEIGHT

209 lbs (95 kg)

65-1

65-1H

AIR HYDRAULIC JACK FOR HEAVY-DUTY APPLICATIONS WITH HIGH CLEARANCE

• Air hydraulic jack for heavy-duty/intensive

commercial applications with high clearance

• Hard-chromium plated piston rod for long life • Built-in safety overload valve, hand-operated dead man’s control for optimum safety

• Capacity: 65 tons (143000 lbs) • Minimum height of 16.65 in (42.5 cm) • Maximum height of 28.50 in (72.5 cm) and with extensions up to 40.3 in (102.5 cm)

• Includes two extensions: 3.94 / 7.87 in (10 / 20 cm) • Frame length 38.66 in (98 cm), handle length: 53.35 in (135.5 cm)

• Width (with wheels): 14.96 in (38 cm) • Weight: 304 lbs (138 kg)

MODEL

65-1

CAPACITY (LBS)

143,000

MIN. HEIGHT

16.65" (425 mm)

MAX. HEIGHT

28.5" (725 mm)

FRAME LENGTH

38.66" (940 mm)

HANDLE LENGTH

45.67" (1160 mm)

TOTAL WIDTH

14.96" (380 mm)

WEIGHT

304 lbs (138 kg)

65-1H

70 | HYDRAULIC JACKS & STANDS

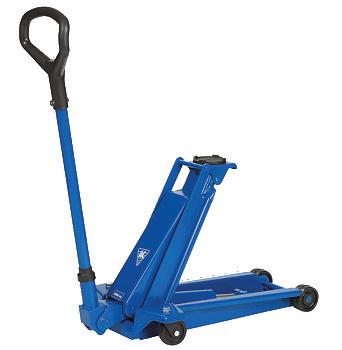

AME International presents AC HydraulicA/S Hydraulic Jacks, available in several models designed for passenger cars, low-clearance cars, vans, and SUVs.

HYDRAULIC JACKS

DK13HLQ

• • • •

DK20

•

DK20Q

DK13HLQ

DK20HLQ

GS-1 RUBBER CUSHION For protection of car body

Each jack is manufactured with a very low minimum height of only 3.15“ (8 cm), a handle length of 37.4” (95 cm), as well as a wide and robust frame made of high-strength steel.

Each model is fitted with quick-lift pedal for easy reach of lifting point and operates with precise and safe control while lowering.

Manual dead man’s release is also included for optimum safety when lowering, along with a built-in safety overload valve.

Noiseless wheels are incorporating a polyurethane central o-ring offer maximum surface protection.

Ergonomically designed handle also ensures positive and safe operation.

HYDRAULIC JACKS & STANDS | 71

HYDRAULIC JACKS

MODEL

DK20Q

DK13HLQ

DK20HLQ

CAPACITY

2.2 tons

1.45 tons

2.2 tons

MIN. HEIGHT

3.15" (8 cm)

3.15" (8 cm)

3.15" (8 cm)

MAX. HEIGHT

19.49" (49.5 cm)

28.94" (73.5 cm)

31.3" (79.5 cm)

TOTAL WIDTH

16.14" (41 cm)

18.9" (48 cm)

19.69" (50 cm)

FRAME LENGTH

25.98" (66 cm)

37.01" (94 cm)

37.4" (95 cm)

WEIGHT

68 lbs (31 kg)

68 lbs (31 kg)

109 lbs (49 kg)

72 | HYDRAULIC JACKS & STANDS

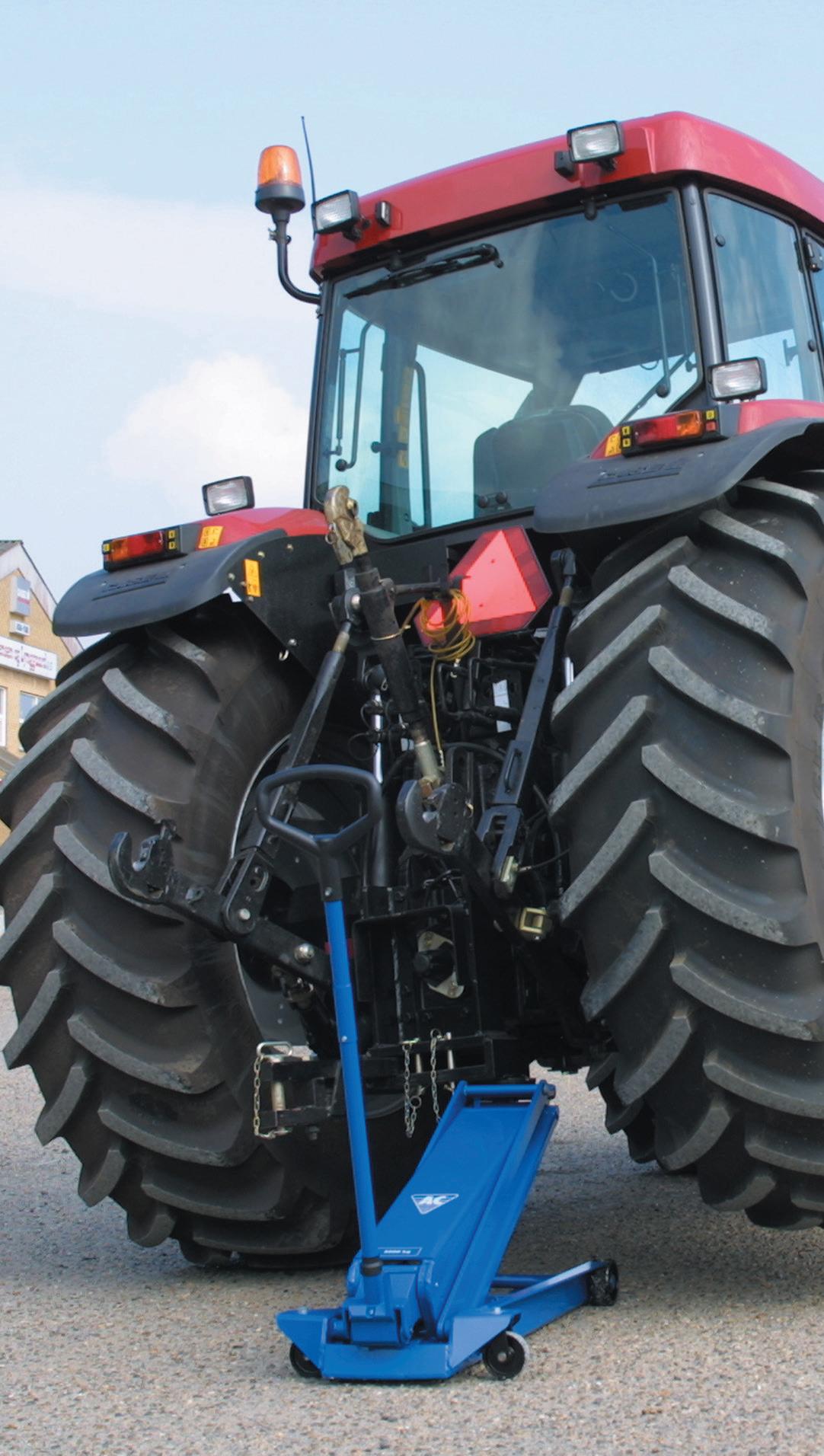

DK40Q

JACK FOR TRUCKS, AGRICULTURE & CONSTRUCTION MACHINERY

• Minimum Height: 140 mm • Possibility of retrofitting pneumatic tires for easier maneuvering (Optional accessories)

• Wide and robust frame made of high-strength steel • Quick-lift pedal for easy and fast lifting to the lifting point • Accurate and safe control when lowering • Hand-operated dead man release provides optimal safety when lowering

• Built-in safety valve protects against overload • Ergonomic handle ensures a good and firm grip • Capacity: 4 Tons (8,800 lbs) • Max Height: 15.04" (600 mm) • Frame Length: 23.62" (800 mm) • Handle Length: 37.4" (950 mm)

DK40Q

MODEL

DK40Q

CAPACITY

4 Tons (3,629 kg)

MIN. HEIGHT

5.51" (140 mm)

MAX. HEIGHT

15.04" (380 mm)

FRAME LENGTH

23.62" (600 mm)

HANDLE LENGTH

37.4" (950 mm)

TOTAL WIDTH

19.69" (500 mm)

WEIGHT

209 lbs (95 kg)

DK50HLQ

HIGH-LIFT JACK FOR TRUCKS

• Minimum Height: 140 mm • Possibility of retrofitting pneumatic tires for easier maneuvering (Optional accessories)

• Wide and robust frame made of high-strength steel • Quick-lift pedal for easy and fast lifting to the lifting point • Accurate and safe control when lowering • Hand-operated dead man release provides optimal safety when lowering

SHOWN WITH OPTION PNEUMATIC TIRES

DK50HLQ

• Built-in safety valve protects against overload • Ergonomic handle ensures a good and firm grip • Capacity: 5 Ton (11,000 lbs) • Min Height: 5.51" (140 mm) • Max Height: 15.04" (380 mm) • Width: 20.67" (525 mm) • Weight: 375 lbs (170 kg)

MODEL

DK50HLQ

CAPACITY

5 Ton (4,536 kg)

MIN. HEIGHT

5.51" (140 mm)

MAX. HEIGHT

15.04" (380 mm)

FRAME LENGTH

38.39" (975 mm)

HANDLE LENGTH

47.24" (1,200 mm)

TOTAL WIDTH

20.67" (525 mm)

WEIGHT

375 lbs (170 kg)

HYDRAULIC JACKS & STANDS | 73

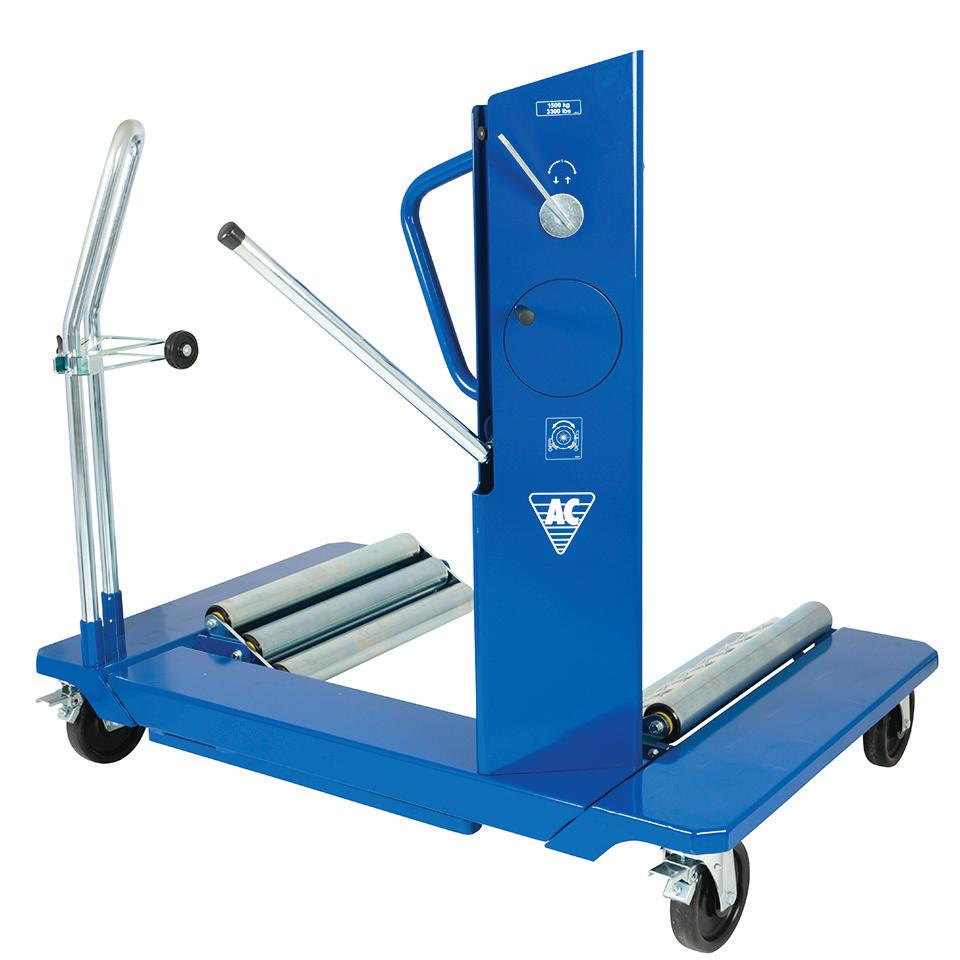

WT1500NT-B 1.5 - TON WHEEL TROLLEY

• Mechanical wheel trolley for tractors,

agricultural and contractors’ machinery

• Unique tire handling by one person only,

precise and easy lifting and lowering by means of mechanical operation • Strongest model in the market • Improved ergonomics designed for the easy and efficient removal of large wheels • Side-adjustable lifting arms • Improved operator safety: robust safety wheel retaining bracket for the safe maneuvering of the trolley • Improved maneuverability due to the 4 large, heavy-duty revolving wheels • Lifting arms fitted with three roller bearings for ensuring the easy location of wheels • New handle for wheel rotation • Includes locking wheel casters • Wheel sizes: Min - 39.37 in, Max - 94.49 in

WT1500NT-B

EACH DOLLY IS EQUIPPED WITH A FOOT BRAKE THAT LOCKS THE WHEEL TO PREVENT ROLLING

MODEL

WT1500NT-B

CAPACITY

3,300 lbs 1.5 tons

MIN. HEIGHT

57.28 in 1,455 mm

MAX. HEIGHT

40.94 in 1,040 mm

FRAME LENGTH

69.98 - 93.50 in 1,625 - 2,275 mm

HANDLE LENGTH

27.17 in 690 mm

TOTAL WIDTH

35.43 - 64.96 in 900 - 1,650 mm

AIR SUPPLY

Ø 3.15 in Ø 80 mm

AIR CONSUMPTION

Ø 39.37 - 94.49 in Ø 1,000 - 2,400 mm

WEIGHT

661 lbs 300 kg

WT1500NT-B

WT1500NT-B

TRUCK TIRE CHANGING TOOLS

Our selection of truck tire-changing tools focuses on the tools used for commercial and light-duty truck tires. Specifically, the tools used in the manual tire mounting and dismounting process.

Our line includes specialty tools, like our popular Golden Buddy System, designed to reduce time and risk of injury. From the innovative 71025 Impact De-mount Tool to the tried and trusted quality of Ken-Tools T-45A, AME has the tools you need.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

TRUCK TIRE CHANGING TOOLS | 75

71050

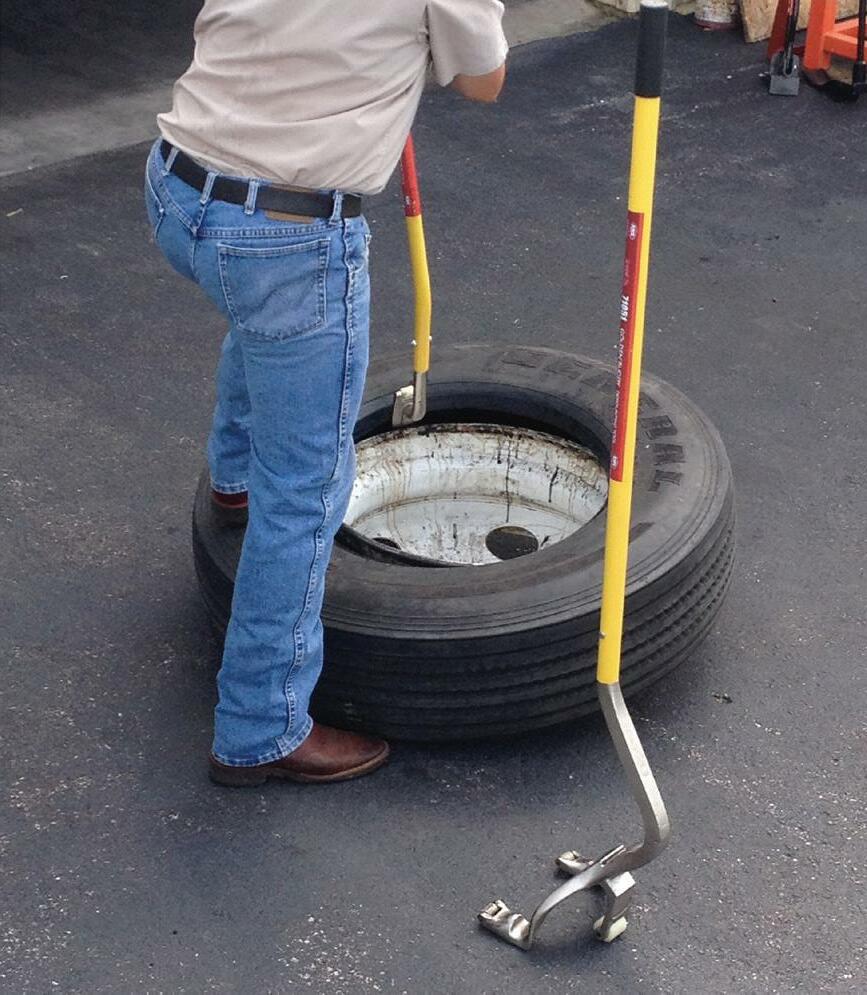

GOLDEN BUDDY

71050 • Demount and Mount tool assembly for 22.5 and 24.5 tires/wheels

FASTEST WAY TO MANUALLY DEMOUNT 22.5/24.5 TRUCK TIRES

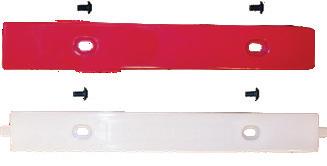

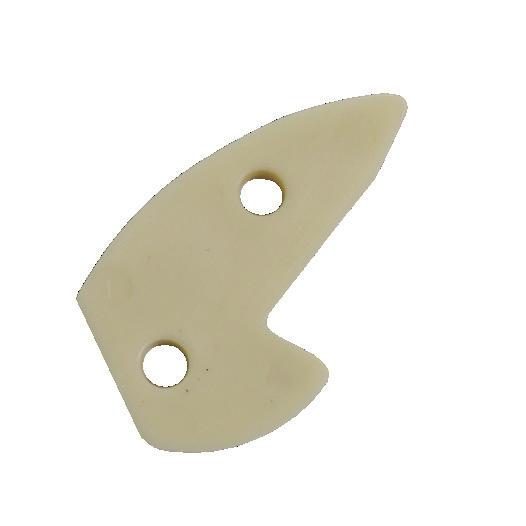

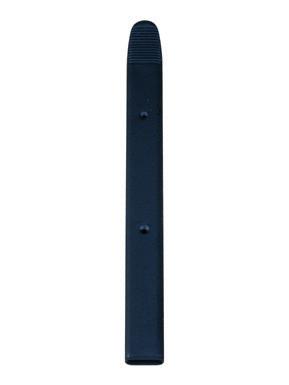

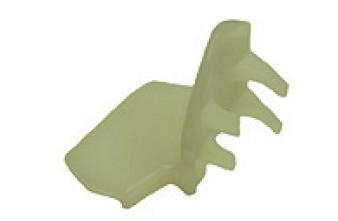

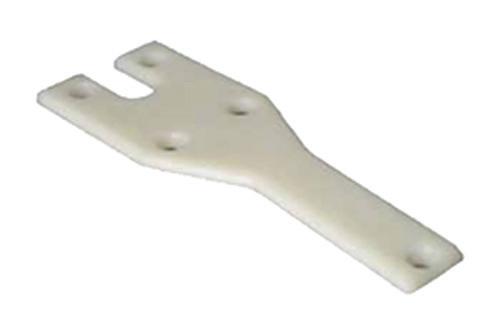

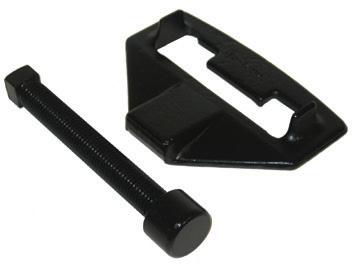

REPLACEMENT PARTS FOR

71050 GOLDEN BUDDY 71055 SUPER GOLDEN BUDDY

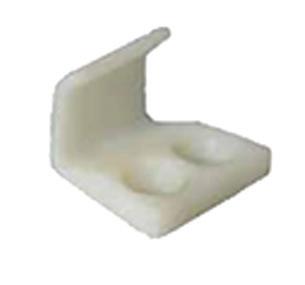

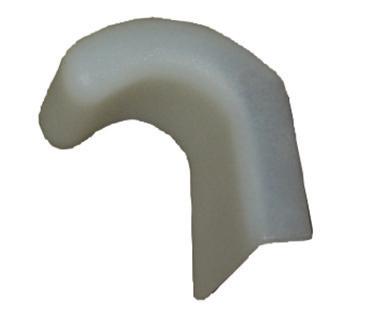

• Nylon coated bead saver included in kit • Heavy-duty steel construction ensures long life • Nylon rollers protect the bead • Sold as a complete set under part 71050 • Weight: 28 lbs (14.5 kg) • 71051 Demount Golden Buddy Tool • 71052 Mount Golden Buddy Tool • 71411 Nylon Coated Bead Saver

71055

SUPER GOLDEN BUDDY TIRE CHANGING SYSTEM

71050-009 Roller for Mount / Demount Head

71050

71050-009A Large Center Roller

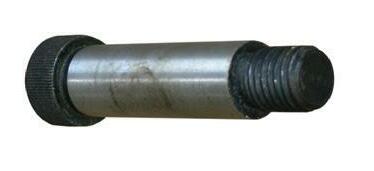

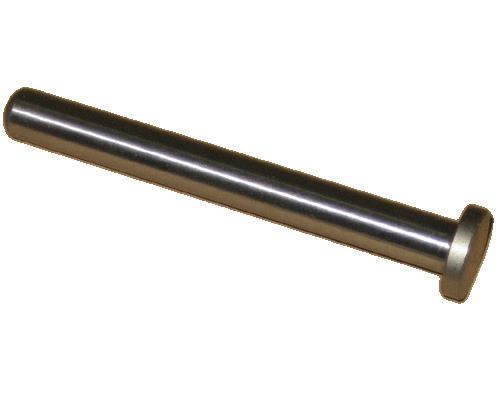

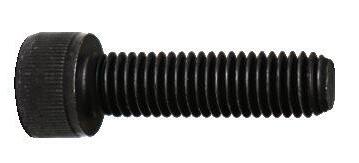

71050-008 Pin for Smaller Roller 71050-008A Pin for Larger Roller

• Demount and Mount tool assembly for super singles 215 to 445

• Will remove both top and bottom beads • Includes bead saver • Heavy-duty steel construction • Nylon rollers protect the bead • Sold as a complete set • Weight: 28 lbs (12.7 kg)

71050-RK Full Golden Buddy Repair Kit For 71050 & 71052

71050

76 | TRUCK TIRE CHANGING TOOLS

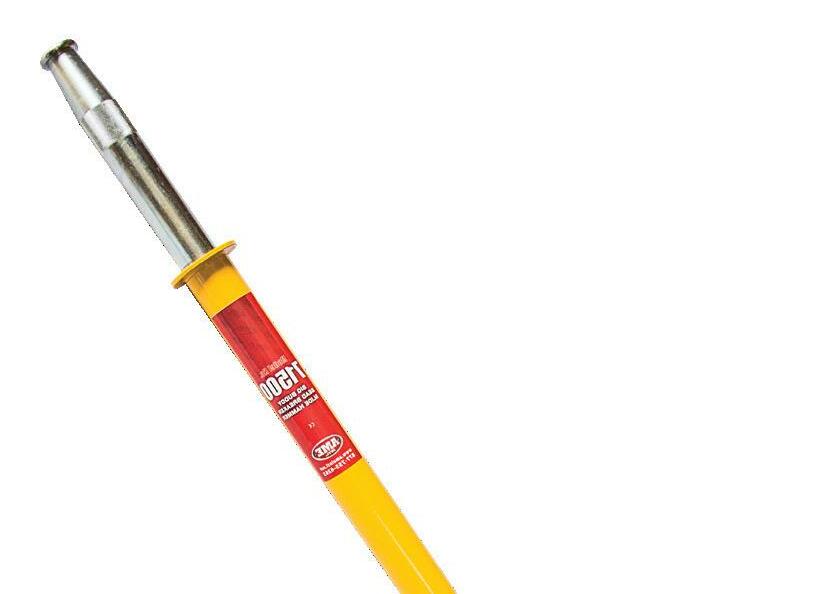

71500

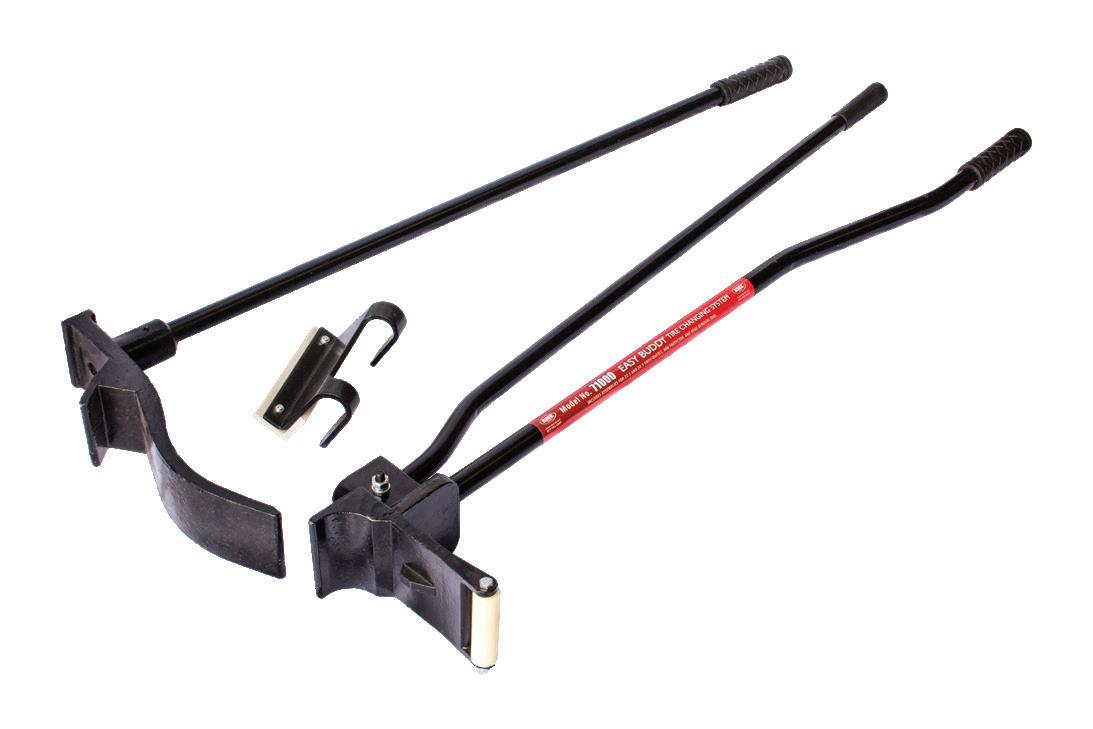

71000

• Easily breaks the most stubborn beads • User fatigue is reduced through the spring-action tip, which

• Mount and dismount tire assemblies for 22.5 and 24.5 tires/wheels • Includes Rim Protector to prevent rim scarring • Easy-to-follow instructions • Includes top bead removal tool and bottom bead removal tool • Weight - 35 lbs (16 kg

BIG BUDDY BEAD BREAKER SLIDE HAMMER

EASY BUDDY TIRE CHANGING SYSTEM

reduces kick-back

• Wedge tip is forced between the tire bead and wheel rim delivering the blow directly to the hammer tip

• Heavy-duty tool with a one year warranty • Weight 24 lbs (11 kg)

71411

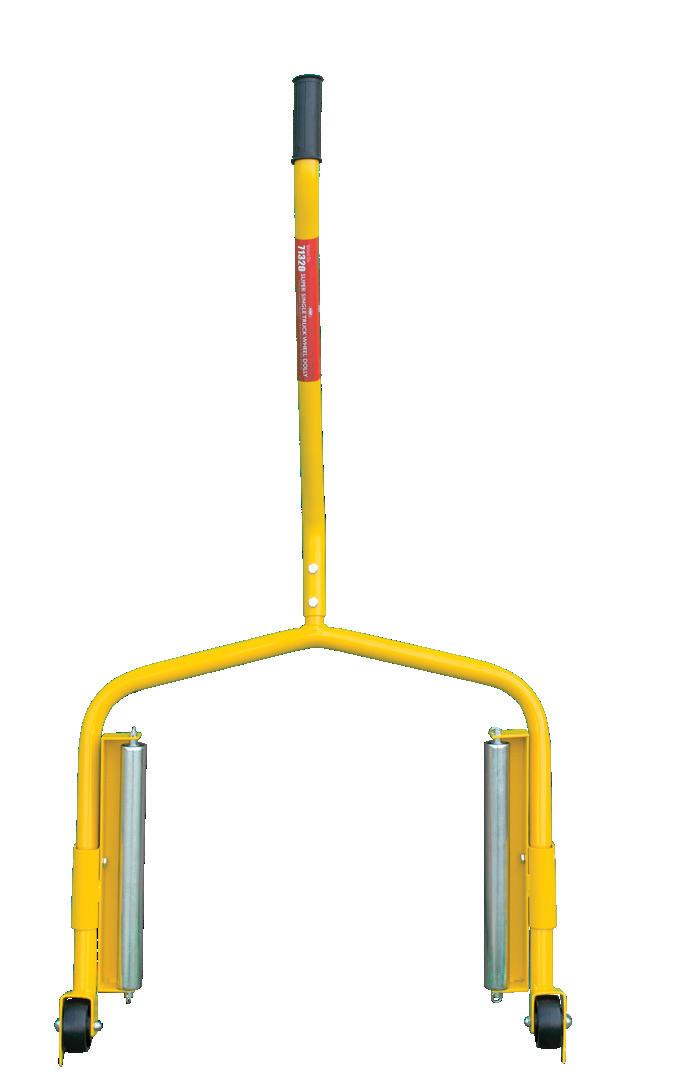

72150

24 TON HEAVYWITH DUTYNEOPRENE BEAD HOLDER JACK STANDS (PAIR)

40 TON TRUCK HEAVY BEAD DUTY HOLDER STEEL JACK STANDS (PAIR)

Same applications as above, head has wider channel for better performance and heavier • Nylon coated bracing in nose of head for reduced flex • Keeps truck tire bead from slipping during during demounting process. Most like OEM mounting of top bead head on new machine • Steel construction with durable no-mark coating • A must-have on all truck tire installations

Same head as above, but includes conversion bracket for all Snap-on, all John Bean, • Clamps on wheels to prevent tire from Accuturn/Bosch 3602(HP), 4260, 4560, 4602, "walking" 5602(HP), Hofmann 1000, 1520, 1565, 1575, • Eliminates the use of vise-grip which can 1620, 1625, 3300, 3550 damage wheels • For use with automatic tire changers and/or manual tire changing tools • Made from heavy duty steel

71600

LITTLE BUDDY MANUAL 40 TON ADJUSTABLE TOP BEADSTANDS BREAKER JACK (PAIR)

• Excellent for working on tire without removing wheel

• Great for all kinds of tires – ATV, golf cart,

truck, bus, agricultural and even back hoe tires • Operates with an air ratchet or manual wrench (not included) • Weight: 12lbs (5.5 kg)

TRUCK TIRE CHANGING TOOLS | 77

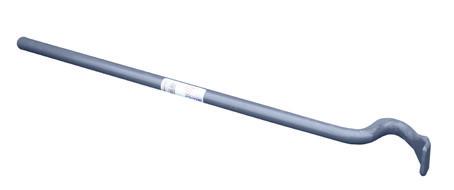

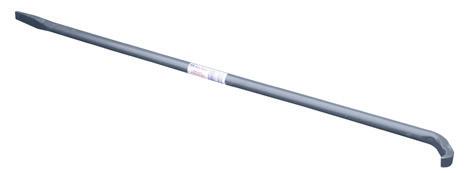

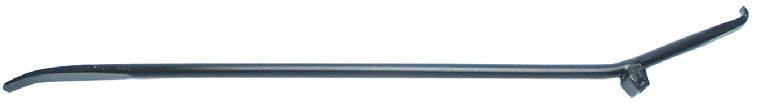

T11E

T20A

T45A

BEAD 24 TON BREAKING HEAVY DUTY WEDGE JACK STANDS (PAIR)

CURVED MOUNT/DEMOUNT 40 TON HEAVY DUTY SPOONSTANDS (PAIR) JACK

40 TON ADJUSTABLE TUBELESS TIRE IRON TOP JACK STANDS (PAIR)

• Wooden handle • Length: 30" (76.2 cm) • Head Weight: 8 1/2 lbs. (3.9 kg)

• Length: 30" (76.2 cm) • Stock: 11/16" (17.5 mm) • Weight: 3 lbs. (1.4 kg)

• Our best selling bar • Length: 37" (94 cm) • Stock: 3/4" (19 mm)

T45AC

T45A-2000K

T45HD

• Mount / Demount tires • Length: 37" (94 cm) • Stock: 3/4" (19 mm)

• Improved blade and knob design • Length: 37" (94 cm) • Stock: 3/4" (19 mm)

• Improved blade and knob design • Length: 41" (104 cm) • Stock: 7/8" (22 mm)

T46A

T47A

T48A

• Use on standard and large truck tires • Length: 36" (91 cm) • Stock: 3/4" (19 mm)

• Use on standard and large truck tires • Length: 36" (91 cm) • Stock: 3/4" (19 mm)

T950

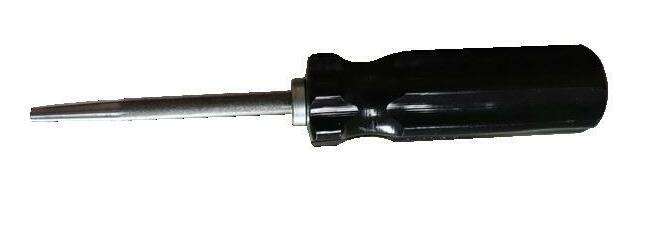

TL-640

• Ergonomic design reduces back strain • Lift all sizes and types of small and large

• Designed to hold on to core for easy removal

TUBELESS CLASSIC 24 TON HEAVY DUTYTIRE IRON JACK STANDS (PAIR)

STRAIGHT MOUNT / DEMOUNT TOOL

IRONMAN TIRE LIFTING BAR

heavy truck wheels • Length: 58" (147 cm) • Stock: 1" (25 mm)

TUBELESS 40 TON HEAVY TIREDUTY IRON JACK STANDS (PAIR)

STRAIGHT MOUNT / DEMOUNT TOOL

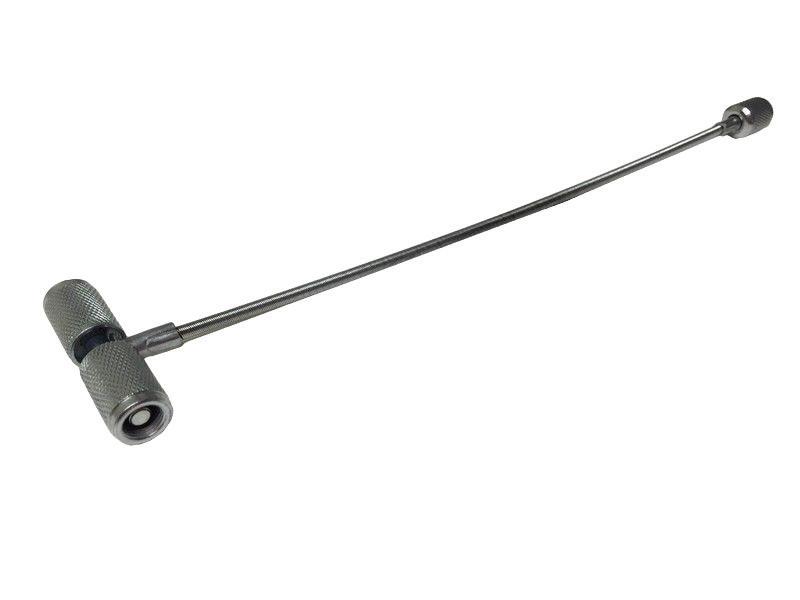

VALVE CAPPER PRO TOOL

and installation

• Longer valve cap grip works on flow-through, double seal valve caps • Length: 11.75" (29.8 cm)

TUBELESS 40 TON ADJUSTABLE TIRE IRON TOP JACK STANDS (PAIR)

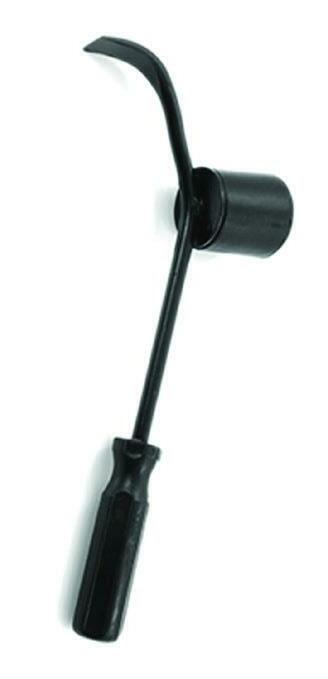

LOCK RING REPLACING TOOL

• Must-have for anyone mounting/demounting multi-piece rims

• Length: 37" (94 cm) • Stock: 3/4" (19 mm)

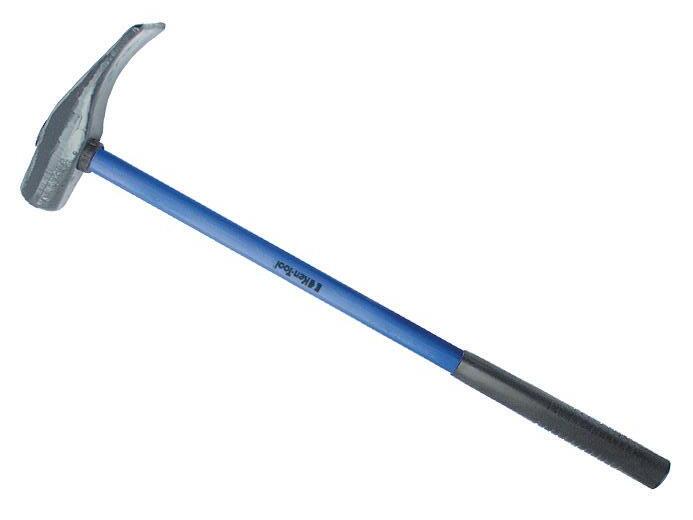

TG11E

FIBERGLASS BEAD BREAKING WEDGE

• Fiberglass handle • Duck-billed • Our most popular bead breaker

HEAVY DUTY

TRUCK TOOLS

We provide innovative Heavy Duty Truck tools & accessories for professional technicians. From wheel pullers to cleaning and inspection, AME offers the right tools for the job at hand.

Our focus on safety and efficiency makes AME the first choice for specialty tools in the heavy-duty trucking industry.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

HEAVY-DUTY TRUCK TOOLS | 79

62030

53010, 52000

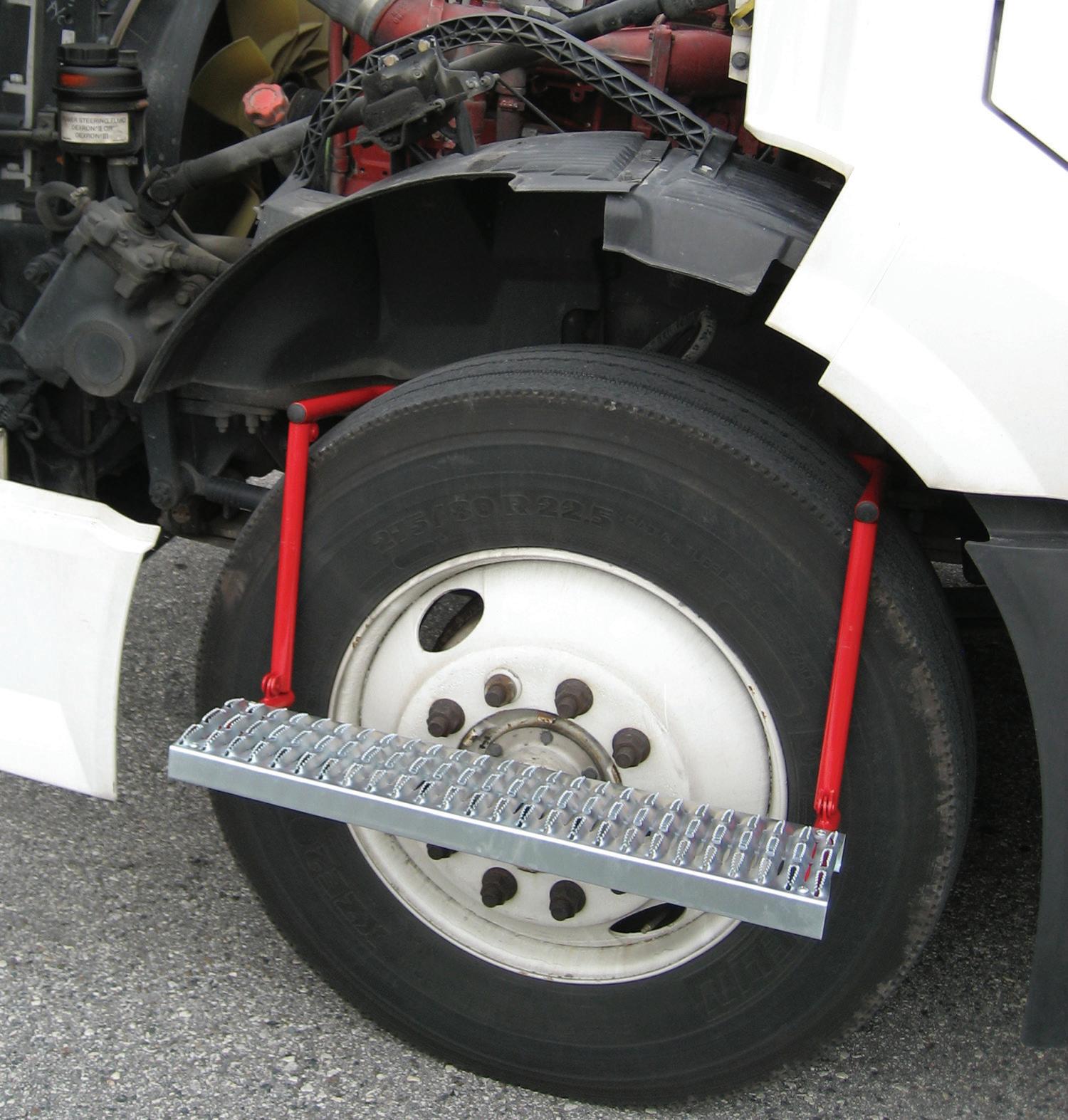

FOLDING TIRE STEP

TORQUE SEQUENCE RIM PROTECTOR

53010

• Fits on all 22.5 - 24.5 truck tires • Enables you to create a step by placing the

52000

• Protects wheel from impact and lug wrench damage

• Impact-resistant polymer material ensures

platform on most tires • Step area designed to reduce slippage • Durable steel construction • Can be folded flat & stores easily • Max rated capacity 400 lbs (181 kg) • Weight:19 lbs (8.5 kg)

long life

• Torque sequence helps operators know which bolts to tighten

• Cost effective

61000-61090

TRUCK WHEEL GUARDS

• Composite separator plate to be placed

62030

between the hub or drum and the wheel, and/or between two wheels in dual applications • Provides protection for wheels against corrosion and excessive wear • Stops rust, scale, salt, and corrosion between steel disc rims in dual or single wheels • Both aluminum and steel wheels can benefit from the use of the Wheel Guard • Prevents galvanic electrolysis between aluminum and steel wheels AME MODEL

ALCOA MODEL

ACCURIDE MODEL

DESCRIPTION

STUD

61000

015000

5901

10 on 11 1/4” U.S. Bus mount

7/8"

61000

017000

5901

10 on 11 1/4” Stud piloted

1-1/8"

61010

016000

5902

10 on 11 1/4” Stud piloted

3/4"

61020

011000

5903

10 on 285.75mm Hub Piloted

22 mm

61030

023000

7901

8 on 285mm, Japan ball seat steer/rear

20 mm - 30 mm

61040

013000

7381

10 on 335mm

22 mm

61040

018000

7381

10 on 335mm, 32mm sleeved

22 mm

61050

012000

7902

8 on 275 mm

20 mm

61050

014000

7902

8 on 275 mm

22 mm

61060

-

8482

8 on 6 1/2”, 4.82” ID, GM & Dodge

5/8"

61070

-

8525

8 on 6 1/2”, 5.25” ID, Ford

5/8"

61080

-

8675

8 on 255 mm, 6.25” ID, locating holes, Ford

5/8"

61090

-

5904

10 on 225 mm, Ford 19.5

5/8"

-

024000

-

6 on 225 mm

22 mm

61000

80 | HEAVY-DUTY TRUCK TOOLS

58033-58036 SKIRTED NUTS

Standard Applications: • The Sleeve offers more thread engagement and deeper penetration • The chamfered nose allows for ease of wheel centering and installation The "Sleeve": • Protects and covers the threads from wear and the elements • Reduces vibration and wear and tear on wheel ends • Fills the gap between the stud and the stud hole and allows the rim to rest on the sleeve • Lengths designed for specific axle applications and wheel configurations

NEED IMAGE

58033

MODEL

SIZE

DESCRIPTION

58033

6 mm

Most popular skirted nut Designated for steel - steers

58034

19 mm

Designated for aluminum - steers Steel/steel - duals Steel outer / aluminum inner - drives

58035

28 mm

Designated for heavy duty aluminum Super single - wide base Steel outer / aluminum inner - drives

58036

39 mm

Designated for dual aluminum - drive axle

67300

NUT BUDDY LUG LOOSENER

• Bust loose the most stubborn wheel nuts • Use on commercial or agricultural wheels • Gear ratio – 58:1 • Rated output torque: 2,950 ft lbs • Two sockets included: 1 ½” (38mm) and 1 5/16th (33mm)

• 1" Drive • Included extension handle used for removing wheel nut once it has been loosened by the Nut Buddy • Weight: 19 lbs (8.5 kg)

67300

HEAVY-DUTY TRUCK TOOLS | 81

71650

71655

• The easiest & quickest way to loosen

• A scaled down version of the AME 71650

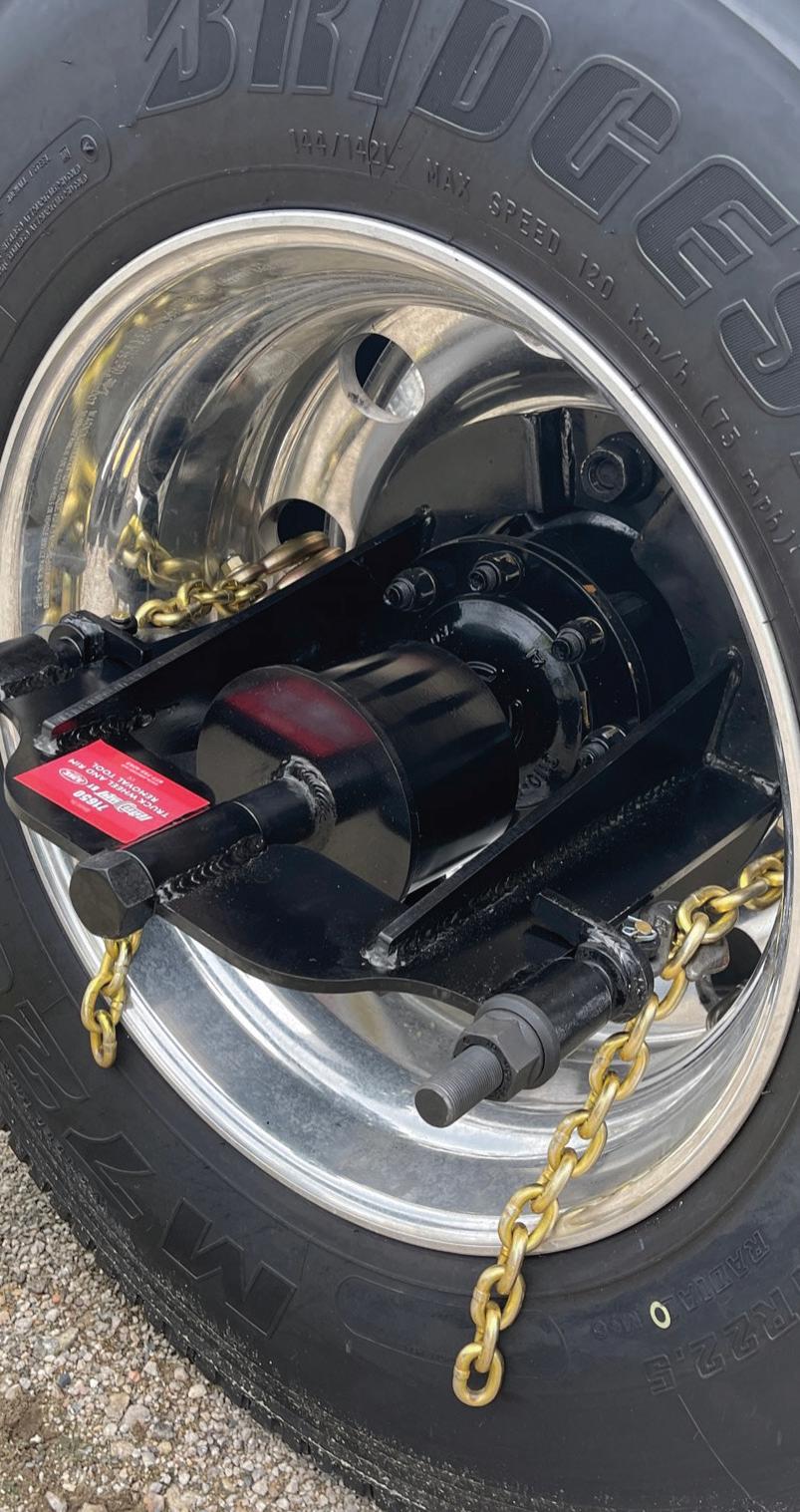

RIMWIT TRUCK WHEEL AND RIM REMOVAL KIT

stubborn, locked up rims! The tool you don’t want to be without!

• Designed to work on 22.5" & 24.5" standard wheels • Retire that back-breaking 20lb sledge that you use to break seized rims apart • Eliminate damaged tire side walls and rims • Fits all standard semi truck rims; aluminum or steel • Safe and efficient

RIMWIT JR. TRUCK WHEEL AND RIM REMOVAL KIT

RimWit

• Designed to work on 19.5” wheels • The easiest & quickest way to loosen

stubborn, locked up rims! The tool you don’t want to be without!

• Retire that back-breaking 20lb sledge that you use to break seized rims apart • Eliminate damaged tire side walls and rims • Fits all standard semi truck rims; aluminum or steel • Safe and efficient

71650

63010-63030

BUDD NUT WRENCHES

STAY IN TOUCH

• Will not damage aluminum wheels • Holds the outer nut securely on dual wheels • Replaceable polymer head, part 63010-001

MODEL

SIZE

WEIGHT

63010

1.5” (38 mm)

1.05 lb (0.48 kg)

63020

1.38" (35 mm)

1.05 lb (0.48 kg)

63030

1.61" (41 mm)

1.05 lb (0.48 kg)

Sign up for our monthly news letter to stay updated on new AME International products, deals, and events.

82 | HEAVY-DUTY TRUCK TOOLS

71300

TRUCK WHEEL DOLLY

• Decreases back injuries when removing and

replacing heavy truck tire/wheel assemblies

• 9 ½” (24 cm) roller accommodates low-profile tires

• Allows for easy removal and installation of tire/wheel assemblies

9.5”

• Rollers allow for simple lug alignment • For use with all 22.5 and 24.5 truck tires • Weight: 18 lbs (8kg)

71300

71320

SUPER SINGLE TRUCK WHEEL DOLLY

• Decreases back injuries when removing and

replacing heavy truck tire/wheel assemblies

• 14” (35.5 cm) roller accommodates low-profile tires

• Allows for easy removal and installation of tire/wheel assemblies

• Rollers allow for simple lug alignment • For use with all 22.5 and 24.5 truck tires (including super singles)

• Weight: 26 lbs (12 kg)

14”

71320

HEAVY-DUTY TRUCK TOOLS | 83

ACCESSORIES FOR

67601, 67751

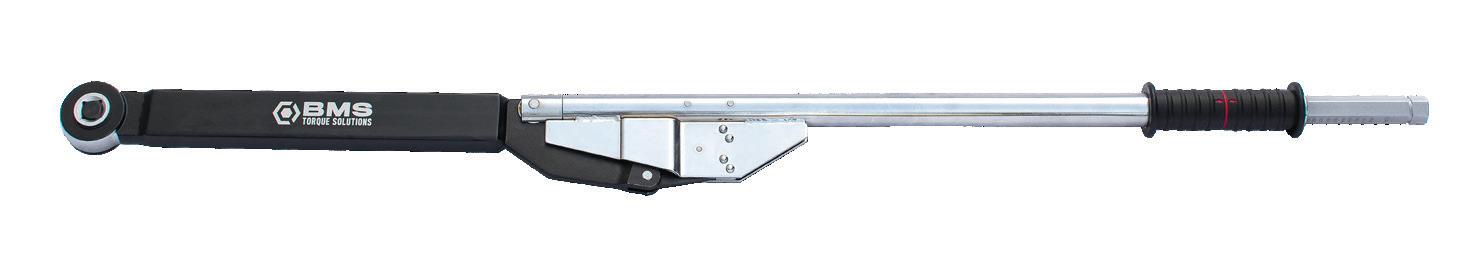

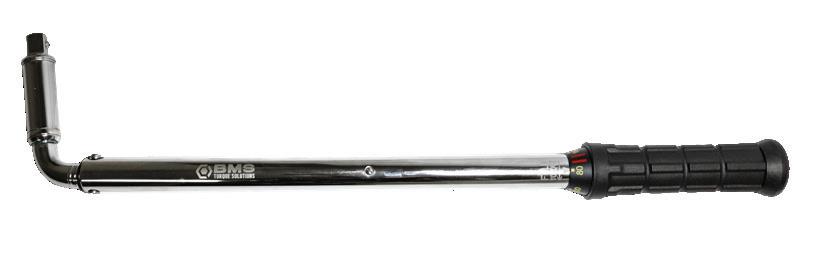

BREAK BACK TORQUE WRENCH

BREAK BACK TORQUE WRENCH

67751-001 3/4" Adapter

67751-002 3/4" - 1" Adapter Included with 67601 and 67751 CARRYING CASE INCLUDED

• Robust construction gives accurate results to ±4% even in arduous working conditions • The break-a-way action gives an unmistakable signal in the handle, which can be seen and felt • The break angle improves accuracy by reducing the possibility of over torquing • Dual scale, NM and FT.LB. • Reversible wrench can torque both left and right-hand threads

3/4" - 1" Extension 13.5"

TORQUE WRENCH SPECIFICATIONS KIT MODEL NO.

SQUARE DRIVE

RANGE - FT/LBS

RANGE - N.M

67601

1"

150 - 600

200 - 800

67751

1"

200 - 750

300 - 1,000

67250

TORQUE FIN

67805 3/4" - 3/4" Extension 13.5"

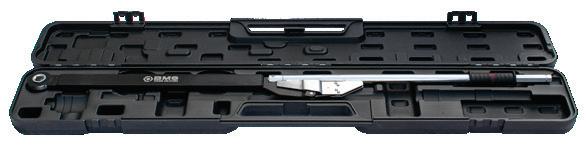

67180, 67185 TORQUE FIN KIT

• Links with, stabilizes, and properly aligns

manual torque wrenches to ensure accurate torque • Eliminates the need for two technicians to torque wheel • Saves time and money • Easy to use - instructions on the tool • Reduces risk of injury and liability due to wheel-off accidents • Works with all 3/4” and 1” torque wrenches • Durable and lightweight • Weight: 8 lbs (3.6 kg) ONE PERSON ACCURATE TORQUE

67807 1” DR. 13” EXTENSION

KIT COMPONENTS INCLUDE: • 1 x Break-A-Way Torque Wrench • 1 x 67807 - 13 in Extension 3/4 x 1 in • 1 x 67250 - Torque Fin • The Torque Fin links with, stabilizes, and properly aligns manual torque wrenches to ensure accurate torque • Eliminates the need for two technicians to torque wheel

TORQUE WRENCH SPECIFICATIONS KIT MODEL NO.

SQUARE DRIVE

RANGE - FT/LBS

RANGE - N.M

67180

1"

150 - 600

200 - 800

67185

1"

200 - 750

300 - 1,000

84 | HEAVY-DUTY TRUCK TOOLS

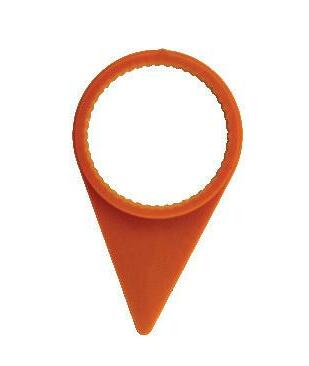

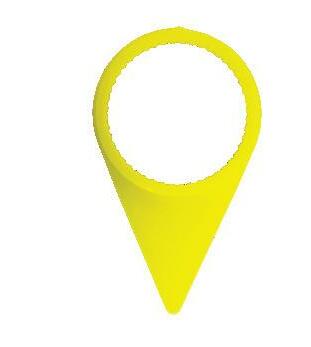

62400, 62400H CHECKMATE WHEEL NUT INDICATORS

• Indicates loose wheel nuts • Available in multiple sizes • Improves safety by visual inspection • Simple solution to preventing wheel-off incidents

62400

62400

62400H

MODEL

DESCRIPTION

SIZE

62400

Standard, high-vis yellow

33 mm

62400H

High temp, orange

33 mm

62419

Standard, high-vis yellow

19 mm

62421

Standard, high-vis yellow

21 mm

62430

Standard, high-vis yellow

30 mm

62432

Standard, high-vis yellow

32 mm

62438

Standard, high-vis yellow

38 mm

62438H

High temp, orange

38 mm

62441

Standard, high-vis yellow

41 mm

69260

69290

• Designed for M22 x 1.5 Uni-Mount Studs • If the thread teeth do not fully engage

• Kit shows when wheel chamfers and wheel

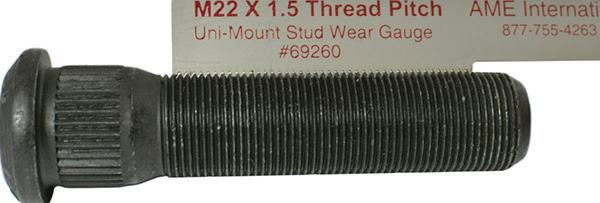

UNI-MOUNT THREAD GAUGE

the stud, the stud should be removed from service • Simple to use

62400H

• Made of polyurethane • Sold in bags of 100

CHAMFER/NUT GAUGE

nuts are worn out

• Visual guide detects excessive wear in bolt holes

• For use with steel stud piloted wheels

HEAVY-DUTY TRUCK TOOLS | 85

37500

HUB BUDDY TRUCK

REPLACEMENT PADS AVAILABLE

37522

10 PACK REPLACEMENT PADS 22MM INCLUDES 10 OF THE FOLLOWING SIZES: • 50mm O.D. x 22mm I.D.

37505

1 PIECE

• 1/2” drive, impact rated • Stud and hub cleaner with pad • 60MM O.D. • 22MM I.D.

6 PACK REPLACEMENT PAD ASSORTMENT INCLUDES 1 EACH OF THE FOLLOWING SIZES: • 50mm O.D. x 12mm I.D. • 50mm O.D. x 13m I.D. • 50mm O.D x 14mm I.D. • 60mm O.D. x 10mm I.D. • 60mm O.D. x 22mm I.D. • 60mm O.D. x 28mm I.D.

37500

26140

LIQUID TIRE BALANCER (CASE OF 12, 32oz BOTTLES)

FOLLOW OUR SOCIALS • Instant tire balance that increases the life of the tire; truck tires run 16% cooler

• Increases casing retread-ability in new and retread tires

• Maintains air pressure – keeps bead area pliable and helps stop dry rot

• Eliminates rust on rims • Tire changer friendly – mounting and dismounting is made easier

• Helps detect valve and tire damage and rim cracks

• Recap shop friendly – cleans out in seconds

with wet vac • Lubricates for a perfect bead seat (tire goes on true) • Will not block valve stem • Does not freeze • Improves fuel mileage • Environmentally friendly and safe product, recognized by the United States E.P.A. Meets E.P.A. standards for safe, risk-free disposal

SOLD IN CASES OF (12) 32 OZ BOTTLES & 5 GALLON BUCKETS

APPLICATOR TIP AND TUBE INCLUDED 1. Connect a hose to valve stem 2. Squeeze bottle to fill 3. Liquid Tire Balance can also be installed while the tire is dismounted

Keep up with the latest product demonstrations, upcoming events, and deals.

Compete in our giveaways for a chance to win free AME International swag.

ELECTRIC TORQUE

It is essential to have proper torque when performing any wheel service. AME has all the tools to apply, validate, check and repeat the process over and over.

From automotive to earthmover, we have the tools you need to implement a torque program for your company. Backed by our partners at Haltec and BMS Torque solutions, the latest technology and digital feedback are available within our precision line. Need recalibration for your tools? AME offers ISO-certified calibration services for all types of manual wrenches.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

ELECTRIC TORQUE | 87

REACTION ARMS & EXTENSIONS

GUNS SOLD SEPARATELY

67512 LONG EXTENDED REACTION ARM

67518 SOCKET-TO-SOCKET REACTION ARMS

67513 STRAIGHT REACTION ARM

67514 SLIDING STRAIGHT REACTION ARM

67552 ARM FOR CT MODELS

67516, 67517, 67519 SOLD SEPARATELY

1" DRIVE MODEL NO.

DESCRIPTION

67512

Long Arm for use w/ Deep Well Sockets

67518

Socket to Socket Reaction Arm

67513

Straight Reaction Arm

67514

Sliding Reaction Arm

67516

6" Nose Extension Only**

67517

12" Nose Extension Only**

67519

18" Nose Extension Only**

67552

Standard Extended Reaction Arm

67511

67513

67519

88 | ELECTRIC TORQUE

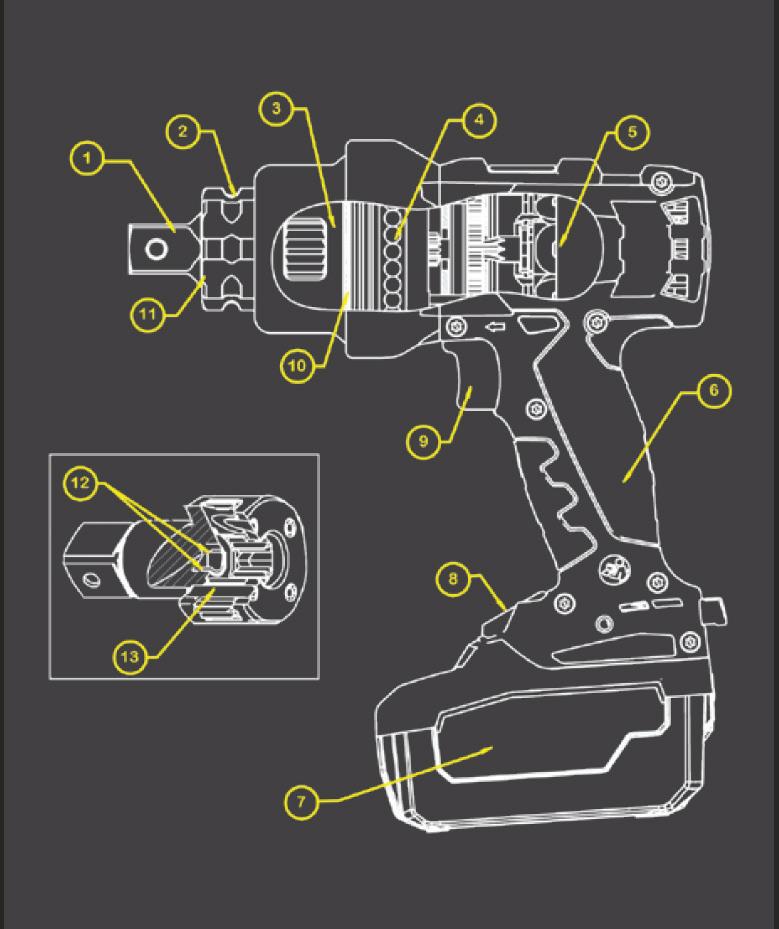

THE POWER INSIDE OF THE

HIGH PRECISION TORQUE • Hardened alloy steel for durability and long cycle life • Bearings support the loads experienced at the square drive • Multi-stage planetary gear systems with optimized tooth design • Smooth ball bearing rotation of the gearbox housing independent from the motor handle

• High-Efficiency Brush-less Motor • Ergonomic glass-filled Nylon handle with a durable slip-resistant over mold

• 18V 8.0 Ah LiHD Battery that provides extended run-time • LCD display for setting and viewing Torque and Units • Soft-Start Trigger • Thrust bearing between stages isolates the motor when used in

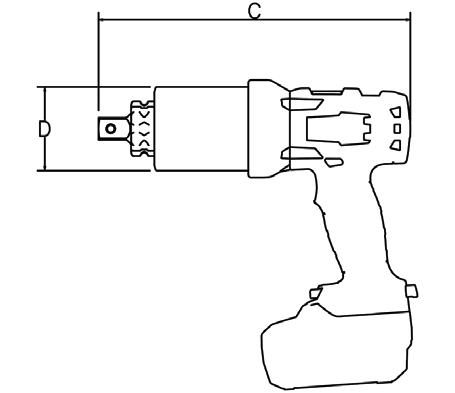

C D

all orientations

• O-Rings seal grease in while keeping dirt and water out • Gears run on low friction, high strength bearing sleeves • Tool steel pins in each stage carrier

A

SPECIFICATIONS MODEL

67510

67510CT

67520

67530

67510-E6

SQUARE DRIVE

1"

1"

1"

1"

3/4"

MIN. TORQUE (ft / lbs)

240

240

500

750

240

MAX TORQUE (ft / lbs)

1,000

1,000

2,000

3,000

1,000

MIN. TORQUE (Nm)

330

330

680

1,020

335

MAX TORQUE (Nm)

1,350

1,350

2,710

4,030

1,355

HEIGHT A (w/ battery) (in)

10.40"

10.40"

10.40"

10.40"

10.40"

HEIGHT A (w/ battery) (mm)

265

265

265

265

265

LENGTH C (in)

10.97"

10.97"

11.45"

13.94"

15.64"

LENGTH C (mm)

279

279

291

355

397

DIAMETER D (in)

2.85"

2.85"

3.09"

3.75"

2.62"

DIAMETER D (mm)

72.4

72.4

78.5

95.3

67

WEIGHT (w/o reaction arm & battery) (lbs)

11.5

11.5

13.1

19.6

13.5

WEIGHT (w/o reaction arm & battery) (kg)

5.3

5.3

5.9

8.9

6.1

WEIGHT (w/ reaction arm & battery) (lbs)

14.5

14.5

15.9

22.5

16.5

WEIGHT (w/ reaction arm & battery) (kg)

6.6

6.6

7.2

10.2

7.5

RPM AT MIN. TORQUE

2

2

1

0.5

2

RPM AT MAX TORQUE

8

8

5

2

8

ELECTRIC TORQUE | 89

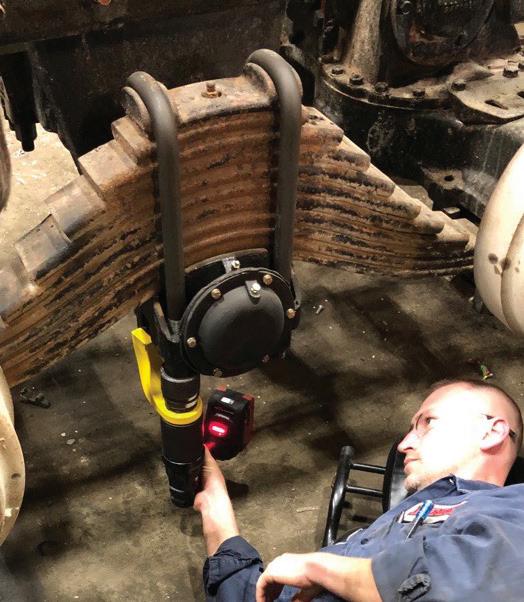

67510-67530K TORQIT

• Durable and Portable Precision Torque • Four Models From 120 Ft/Lbs to 3,000 ft/lbs • Lithium Ion 8.0 Ah Rechargeable Battery - Full Charge in under 60 minutes

• Every Unit Calibrated In ISO17025 Laboratory • 13-Month Warranty from the date of purchase WIRELESS, LIGHTWEIGHT PRECISION TORQUE

CHARGING KIT BATTERY-POWERED FULL CHARGE IN 60 MINS

DURABLE CARRYING CASE INCLUDED

MODEL

DESCRIPTION

MIN. TORQUE

MAX. TORQUE

SQUARE DRIVE

WEIGHT

67510

Wrench Only

240 ft / lbs

1,000 ft / lbs

1"

11.5 lbs (5.2 kg)

67510K

Wrench & battery kit

240 ft / lbs

1,000 ft / lbs

1"

14.5 lbs (5.2 kg)

67510CT

Wrench Only

240 ft / lbs

1,000 ft / lbs

1"

11.5 lbs (5.2 kg)

67510CTK

Wrench & battery kit

240 ft / lbs

1,000 ft / lbs

1"

14.5 lbs (5.2 kg)

67520

Wrench Only

500 ft / lbs

2,000 ft / lbs

1"

13.1 lbs (5.9 kg)

67520K

Wrench & battery kit

500 ft / lbs

2,000 ft / lbs

1"

15.9 lbs (7.2 kg)

67530

Wrench Only

750 ft / lbs

3,000 ft / lbs

1"

19.6 lbs (8.9 kg)

67530K

Wrench & battery kit

750 ft / lbs

3,000 ft / lbs

1"

22.5 lbs (10.2 kg)

67500

Battery pack

-

-

-

1 lbs (0.45 kg)

INFLATION

Maintaining proper air pressure ensures the maximum life of the tire, and that heavier loads are safely handled. AME’s line of handheld, digital, and wall mount inflators check all the boxes for the needs of today’s professional Tire Technicians.

Partnering with Haltec, the industry leader in inflation and inflation components, our line of gauges, air chucks, and other accessories guarantee quality matched only by our hydraulic tools.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

INFLATION | 91

24855

OTR INFLATION/DEFLATION KIT

• Kit ideal for large AG and Construction OTR tire service inflation/deflation • Kit promotes safety during inflation/deflation process • Keeps tire techs out of trajectory rim/wheel area “danger zone” • Comes equipped with all hoses and fittings in Hi-Vis Carrying Bag* INFLATION / DEFLATION KIT COMPONENTS INCLUDE: (1) Air Muffler (2) 20” Hydraulic Hoses (1) Standard Bore Core Remover and Inflation Chuck with - Lock-on Chuck (shown on 20” hose) - Reduces inflation time by 50% - Features a more secure lock-on style chuck - Made of durable steel, brass, and plastic - 1/4 Female NPT allows easy attachment to air hose - Ideal for nitrogen purging and inflation - Retractable core housing allows safe removal and replacement of valve core (1) 51236 Large Bore Core Remover Tool - Prevents core loss during tire inflation and deflation (see details below) (1) 24682 20 ft. Inflation Hose with Liquid Dial Gauge - Equipped with Safety Quick-Connect Coupler for fast and easy connection - Hose rated at 300 PSI - 1/2” Flow-Through On/Off Valve with 180 PSI Liquid Fill Gauge 24855-25 WITH 25FT HOSE

BAG STYLE VARIES*

24861

16128

51236

• 1/2” ball valve with dial gauge for checking

• 5 ft Hose Length • Increased longevity of the main hose • Reduces user fatigue by eliminating weight

• Prevents core loss during tire inflation and

• Increases mobility in tight spaces • Improves air tool ergonomics

• Lock-on chuck attaches securely to the

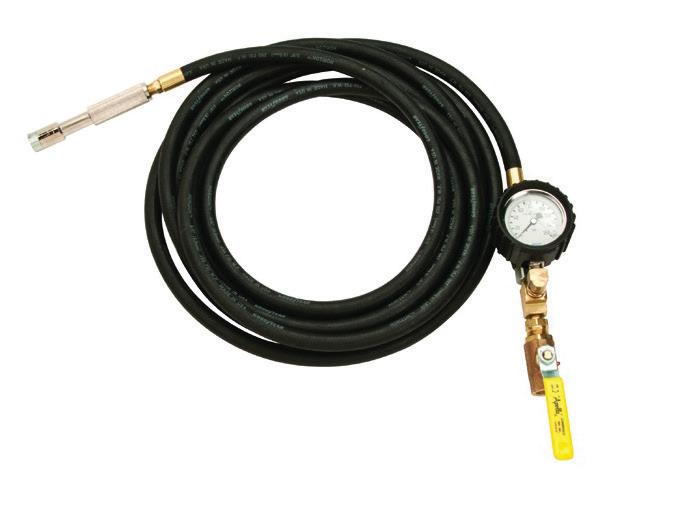

OTR WHIP HOSE

the pressure • Equipped with a safety coupler for releasing the pressure in case of an emergency • 1/2” NPT connection, 3/8” ID for maximum air flow • 20’ Air hose keeps the tire technician in a safe area during inflation 24862 INCLUDES QUICK CONNECT FEMALE COUPLERS

1/4” WHIP HOSE

of coupler/plug

LARGE BORE CORE REMOVER

deflation

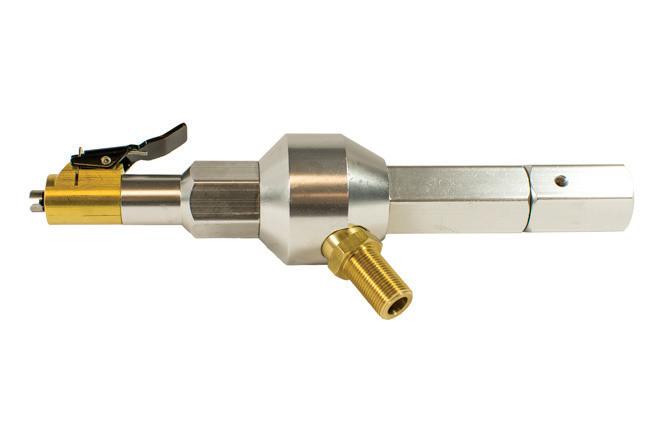

• Full bore inflator/deflator allows for rapid tire inflation and deflation valve

• 360° swivel air inlet for easy access

92 | INFLATION

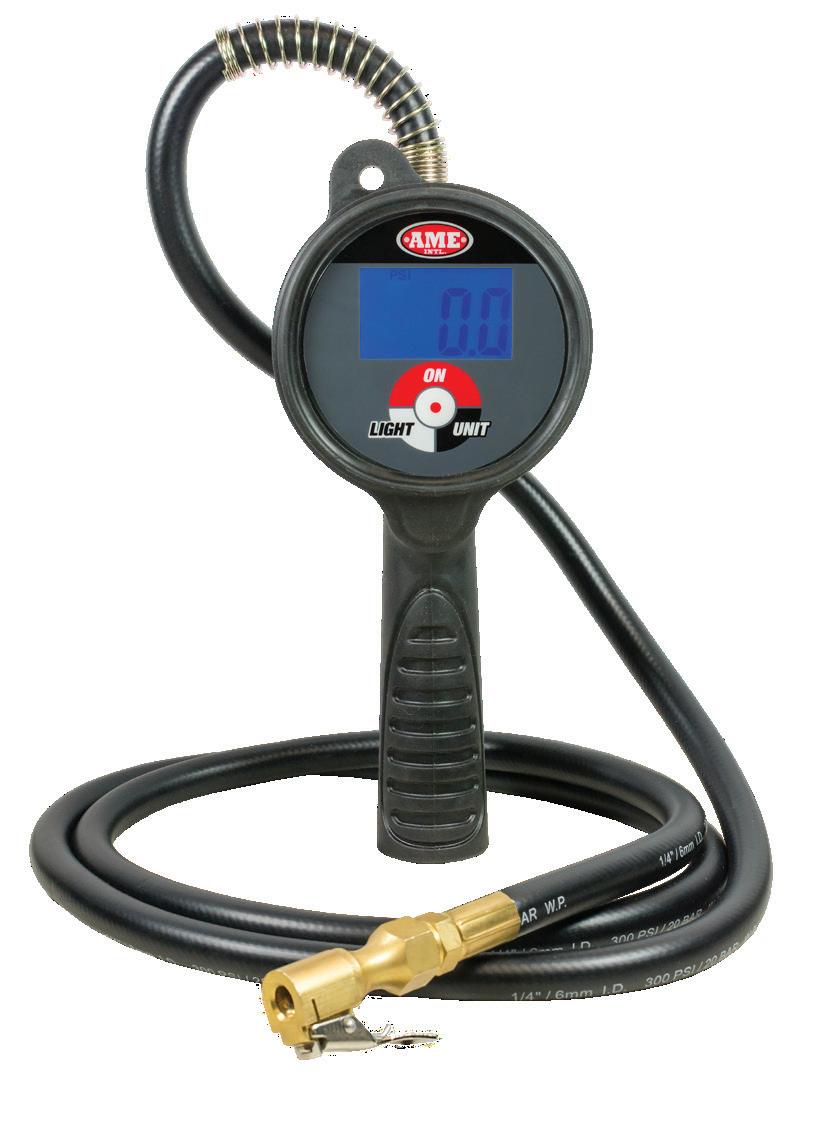

24866, 24867

ACCU-FLATE DIGITAL TIRE INFLATOR

• Fully automated, advanced digital high-precision reading • Ideal for tire fitters • Model 24866 - 20 in. (50.8 cm) hose • Model 24867 - 6 ft (182.88 cm) hose • Swivel, wire sheath on flex area of hose to eliminate kinking • Retail packaging, supplied with official calibration certificate • Die cast aluminum unit with rubber sleeve • Backlight LCD with 9-second auto off • 3 in 1 function: Inflate, deflate, and measure tire pressure • Accuracy: ± 2 p.s.i.

• Units of measurement: PSI, BAR, kPA • Longer hose sizes available • Powered by: 2x AAA batteries (included) • Battery Life (Full Battery): 65 hours (depending upon usage)

POWERED BY 2 AAA BATTERIES INCLUDED

24866

MODEL

HOSE LENGTH

CHUCK TYPE

WEIGHT

24866

20 in (50.8 cm)

Lock-On

2.6 lbs (1.2 kg)

24867

6 ft (182.8 cm)

Lock-On

3 lbs (1.4 kg)

24869, 24871

DURA-FLATE DIGITAL TIRE INFLATOR

• Supply Pressure: Maximum 200 p.s.i. (1380 kPa) Minimum 100 p.s.i. (690 kPa)

• Connection: Inlet 1/4” NPT, Internal thread • Model 24869 - 20 in (50.8 cm) hose with dual hold-on chuck • Model 24871 - 10 ft (304.8 cm) hose with lock-on chuck • Body: Die cast aluminum with steel operating lever and impact absorbing bumpers, Laser etched serial number

• Pressure Range: 0-174 PSI, 0-1200 KPA, 0-12 BAR • Gauge: Digital multi-scale gauge. PSI, KPA, BAR, backlight display

• Calibration: Supplied with official calibration certificate • Auto OFF after 8 seconds, Auto ON once pressure is sensed or air inflation takes place

• Accuracy: ± 2 p.s.i. @ 25-75 p.s.i.

• Longer hose sizes available POWERED BY 2 AAA BATTERIES INCLUDED • Powered by: 2x AAA batteries (included) • Battery Life (Full Battery): 80 hours (depending upon usage)

24869

MODEL

HOSE LENGTH

CHUCK TYPE

WEIGHT

24869

20 in (50.8 cm)

Dual Hold-On

2.6 lbs (1.2 kg)

24871

10 ft (304.8 cm)

Lock-On

3.5 lbs (1.6 kg)

INFLATION | 93

HALTEC INFLATORS & INFLATION SYSTEMS

89XDB

HIGH VOLUME INFLATOR Ideal for fleet operations, tire service centers and tire mounters

• Designed specifically for inflating large OTR tires • 1/2” inlet/outlet • Operating range: 5-145 PSI

89XTC

TEMPERATURE COMPENSATING INFLATOR Specifically designed for OTR industrial, mining and continuous operation applications

• 1/2” inlet • Weather-proof hardware to withstand high impact, heavy use

• Wet and dry tire pressure compensation for normal and liquid-filled tires

• Easily adjustable base/ambient temperature setting to optimize for any environment

• Wireless temperature transmitter • Operating range: 5-145 PSI

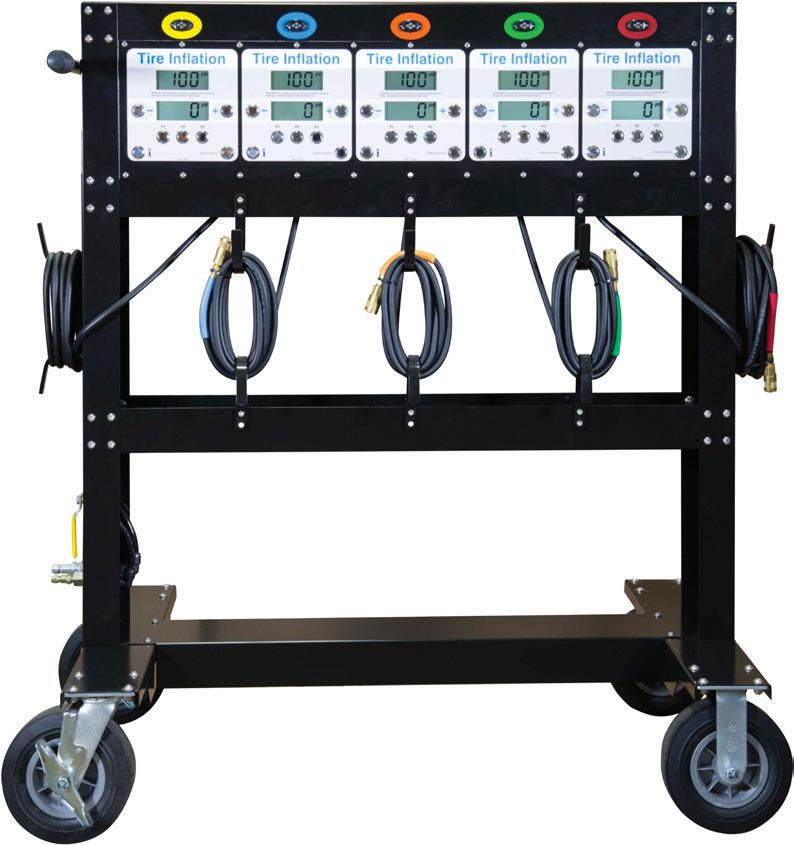

89MTIS

MULTIPLE TIRE INFLATION SYSTEMS The 89MTIS Multiple Tire Inflation System simultaneously inflates 1-5 wheels at a 5-145 psi pressure.

• Three pre-set pressure options programmed to your parameters • Dual display – displays the initial pressure and the corrected pressure • Battery operated, includes a smart charger • Color coded ¼” inflation hose, ½” and ¼” inlet options for air supply • Self calibrating .3 psi inflation accuracy • For use with standard or large bore valves and core extraction tools

94 | INFLATION

24420-24458

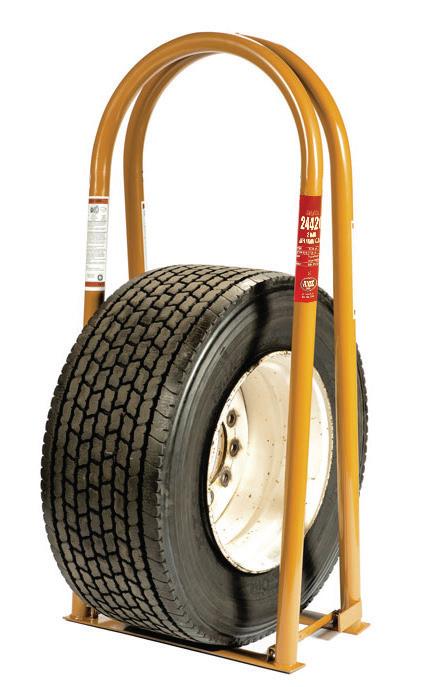

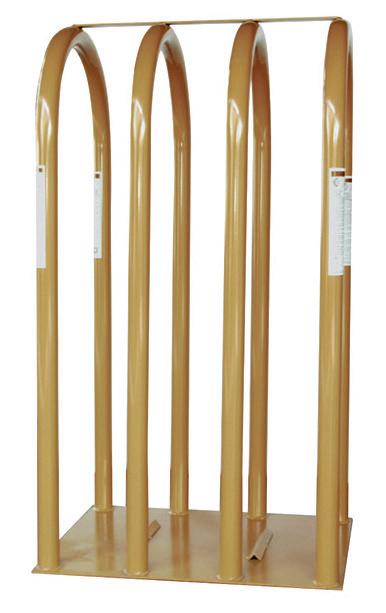

TIRE INFLATION CAGES

• Made from heavy-gauge steel tubing welded to a steel base • Guards against blown lock rings and rims • Meets or exceeds OSHA standards 29 CFR 1910.177 • Designed to meet OSHA regulation requirements for

Medium, Heavy-Duty Trucks, OTR, Tractors, and Super Singles

• Protects technicians during inflation and deflation HEAVY DUTY STEEL CONSTRUCTION

24456

24420

24430

24440

INFLATION | 95

24420-24458

TIRE INFLATION CAGES

FOR REFERENCE ONLY: Height A refers to the approximate height of the cage's inside bend.

It may accommodate taller tires.

MODEL

SIZE

TYPE

COLOR

HEIGHT A**

WIDTH B

BASE

WEIGHT

24420

2 bar

Standard

Yellow

41" (104 cm)

16" (41 cm)

7" closed x 21-1/2" (18 cm closed x 55)

60 lbs (27.2 kg)

24425

2 bar

Super Single

Yellow

43-1/2" (111 cm)

20-1/2" (52 cm)

7" closed x 27" (18 vm closed x 69 cm)

72 lbs (32.6 kg)

24430

3 bar

Standard

Yellow

43-1/2" (111 cm)

20-1/2" (52 cm)

26" x 22" (66 cm x 56 cm)

134 lbs (60.7 kg)

24440

4 bar

Standard

Yellow

43-1/2" (111 cm)

20-1/2" (52 cm)

31-1/2" x 26" (104 cm x 66 cm)

146 lbs (66.2 kg)

24450

5 bar

Standard

Yellow

43-1/2" (111 cm)

20-1/2" (52 cm)

41" x 26" (104 cm x 66 cm)

182 lbs (82.5 kg)

24455

5 bar

Earthmover

Orange

47" (119.4 cm)

19" (48.3 cm)

41" x 26-1/4" (104.1 cm x 145.5 cm)

182 lbs (82.5 kg)

24456

10 bar

Earthmover

Yellow

89" (226.1 cm)

48" (121.9 cm)

72" x 48" (182.9 cm x 121.9 cm)

820 lbs (372 kg)

24458

12 bar

Earthmover

Yellow

87" (220 cm)

48" (122 cm)

60" x 80" (152 cm x 213 cm)

146 lbs (66.2 kg)

TIRE SPREADERS & REPAIR

With the rising cost of raw materials to produce tires, a professional technician will try to repair a damaged tire before recommending replacement. AME offers a line of tire spreaders for applications from passenger cars to commercial trucks.

Pneumatic spread and lift assist for heavier commercial tires and fully manual spreaders for basic passenger repair available for your specific needs.

AME’s line of innovative tire repair tools, like our 51036 Tire De-nailer, continues to set us apart.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

TIRE SPREADERS & REPAIR | 97

73100

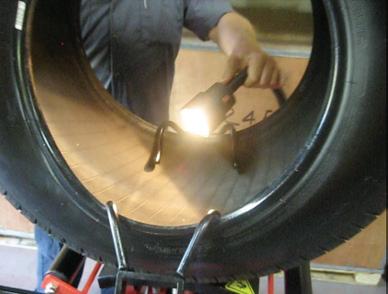

73080

FLOOR MOUNT TIRE SPREADER

FLOOR MOUNT TIRE SPREADER

ADJUSTABLE LIGHT

• Air-operated tire spreader (with stand) • For passenger/RV/light truck tires • Wide platform gives stable work surface • Adjustable light • Weight: 131 lbs (60 kg) REPLACEMENT LIGHT: 73100-437

• Multiple height and width adjustments • For use with passenger and light truck (13” – 20”)

• Heavy duty rollers cradle the tire • Weight 63 lbs (29 kg)

79610

LOW SPEED TIRE BUFFER

73200

AUTOMATIC TRUCK TIRE SPREADER • 2800 RPM Max • Quick Change Slip Chuck • Throttle with Safety Lever • ¼” Whip Hose with Exhaust Muffler • Compare to CP873K • Automatic Tire Spreader - the easiest way to repair tires

• Roll on ramp and air lift allows the operator to

repair without lifting • Heavy gauge steel • Flexible lamp included to illuminate work area • Air regulator / lubricator included • Weight: 310 lbs (140kg)

51036

TIRE DE-NAILER

MAXIMUM TIRE CAPACITY: WEIGHT: 330 lbs (150 kg) DIAMETER: 47 inches (1.2 m) WIDTH: 13.7" (350 mm)

AIR LIFT ALLOWS OPERATOR TO REPAIR WITHOUT LIFTING

• Recessed tip to allow nails or other

puncturing objects to be pushed back through the tire • Prevents further damage to the tire when removing embedded objects

SAFETY

Perform services safely with AME's highvisibility tools. Safety should always be the number one priority when performing any service either in the shop, on the side of the road, or at a customer site.

Here at AME, we make this our priority and have developed easy-to-use tools to help mitigate an already hazardous job. Our high visibility tools ensure you will be noticed while performing your service and help prevent accidents well before they happen.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

SAFETY | 99

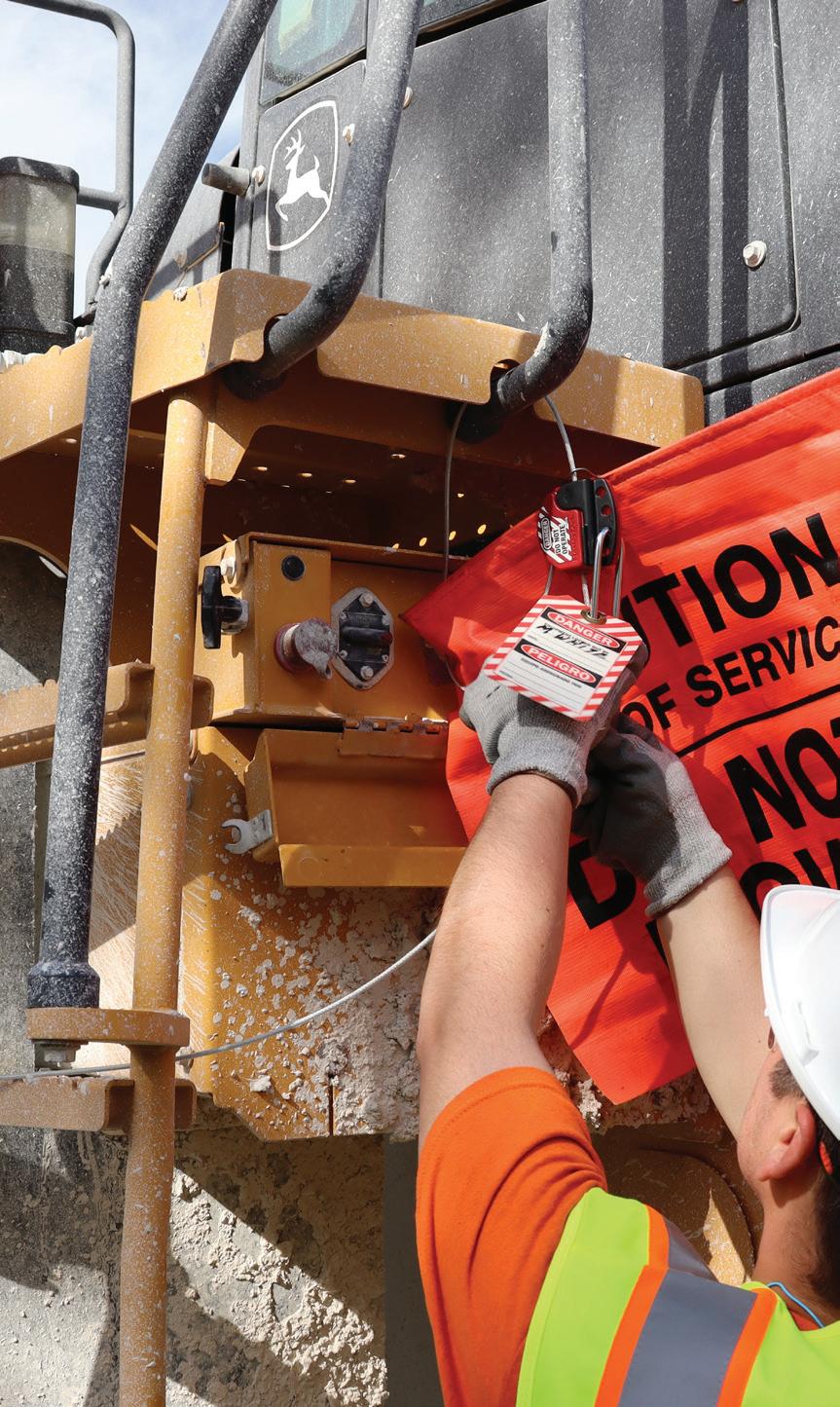

LOCK-OUT-TAG-OUT KITS COMPONENTS

• Kits available for all applications • All AME International Jack Plates are proudly manufactured in the USA • OSHA: Complies with OSHA regulation 29 CFR §1910.147 (b) Tag-out Devices. A prominent warning device, such as a tag... to indicate that the energy-isolating device and the equipment being controlled may not be operated until the tag-out device is removed.

95010

95080

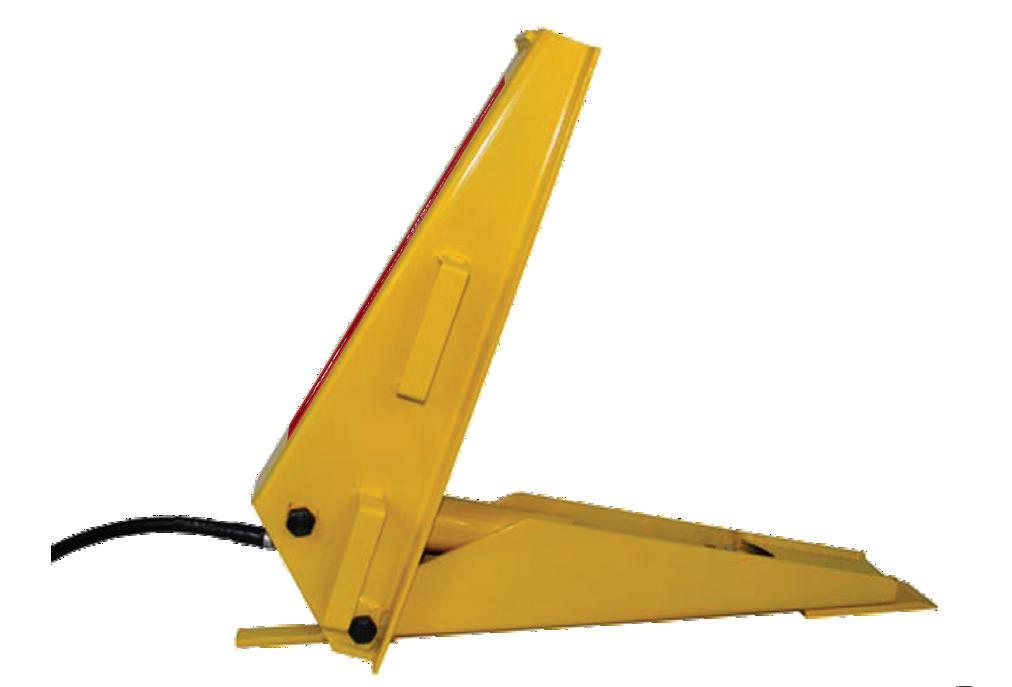

DO NOT OPERATE TAILGATE FLAG

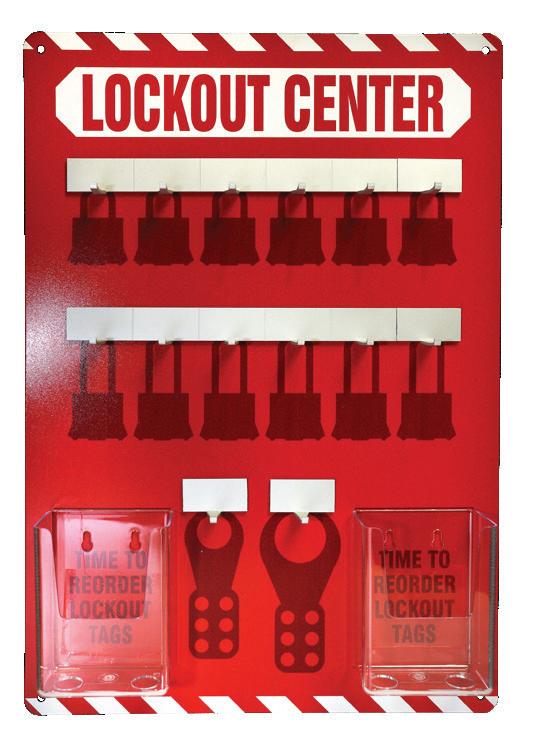

WALL STORAGE (HOLDS 12)

95050

95090

WALL STORAGE (HOLDS 6)

95020

20" STEERING WHEEL COVER

95030

PADLOCK KEYED SAME

95100

MOBILE SERVICE BOX

95060

GLAD HANDS

95040

STEEL HASP

95050

DO NOT OPERATE TAGS

95070

STOPLUG LOCKOUT

95010

100 | SAFETY

LOTOK

LOCK-OUT TAG-OUT KITS

Includes:

36555

THE BASIC AME LOCK-OUT TAG-OUT KIT

• 95010 Tailgate Warning Flag • 95025 “Do Not Start or Move Vehicle” Wheel Cover, 24”

• 95030 Plastic Body Aluminum Padlock • 95035 “Do Not Operate Equipment” Tag • 95045 6 ft. Adjustable Locking Cable Includes:

95200

SMALL SHOP LOCK-OUT TAG-OUT KIT

• 95020 - 20” Steering Wheel Cover (12) • 95030 - Padlock Keyed Same (12) • 95040 - Standard Steel Hasp (12) • 95050 - “Do Not Operate” Tags 25 pack (2) • 95060 - Glad Hands Locks (3) • 95070 - StopPlug Lockout (2) Includes:

95210

MEDIUM SHOP LOCK-OUT TAG-OUT KIT

95035

• 95020 - 20” Steering Wheel Cover (16) • 95030 - Padlock Keyed Same (16) • 95040 - Standard Steel Hasp (16) • 95050 - “Do Not Operate” Tags 25 pack (4) • 95060 - Glad Hands Locks (4) • 95070 - StopPlug Lockout (4)

Includes:

95220

• 95020 - 20” Steering Wheel Cover (24) • 95030 - Padlock Keyed Same (26) • 95040 - Standard Steel Hasp (26) • 95050 - “Do Not Operate” Tags 25 pack (4) • 95060 - Glad Hands Locks (6) • 95070 - StopPlug Lockout (4)

95230

Includes:

LARGE SHOP LOCK-OUT TAG-OUT KIT

RETREAD SHOP LOCK-OUT TAG-OUT KIT

95240

SERVICE TRUCK LOCK-OUT TAG-OUT KIT

• 95030 - Padlock Keyed Same (16) • 95040 - Standard Steel Hasp (16) • 95050 - “Do Not Operate” Tags 25 pack (4) • 95070 - StopPlug Lockout (4)

Includes:

• 95020 - 20” Steering Wheel Cover (2) • 95030 - Padlock Keyed Same (2) • 95040 - Standard Steel Hasp (2) • 95050 - “Do Not Operate” Tags 25 pack • 95060 - Glad Hands Locks (2)

Includes:

95250

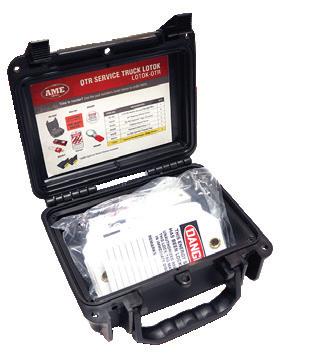

OTR SERVICE TRUCK LOCK-OUT TAG-OUT KIT

95010

• 95010 - Do Not Operate Tailgate Flag • 95020 - 20” Steering Wheel Cover (2) • 95030 - Padlock Keyed Same (2) • 95040 - Standard Steel Hasp (2) • 95050 - “Do Not Operate” Tags 25 pack • 95100 - LOTOK Mobile Service Storage Box

AUTOMOTIVE

SHOP TOOLS

AME's automotive tools and accessories are designed for use on passenger cars, light trucks, and medium-duty applications.

We carry a line of innovative OEM quality products, focusing on improving shop and technician productivity.

AME supports best practice and safety standards endorsed by OSHA, Tire Industry Association, and Rubber Manufacturers Association.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

102 | AUTOMOTIVE SHOP TOOLS

AE183061

AE184432

AE20024335

• Coats models with tapered shaft 50/60/70

• Same applications as AE182960 • Head has different geometry to allow for

• Replacement head for all Snap-on models,

AE0343-1

AE0343-R

NYLON MOUNT/DEMOUNT DUCKHEAD KIT W/ TAPERED HOLE

series • Fits Baseline Series models and Triumph Tireapplications Changers as above, head has wider Same • Perfect everyday use channel forfor better performance and heavier bracing in nose of head for reduced flex

AE14024784

NYLON 40 TON MOUNT/DEMOUNT HEAVY DUTY JACK STANDS DUCKHEAD KIT(PAIR)

•

Same head as AE20024335, but includes conversion bracket for all Snap-on, all John Bean, Accuturn/Bosch 3602(HP), 4260, 4560, 4602, 5602(HP), Hofmann 1000, 1520, 1565, 1575, 1620, 1625, 3300, 3550

AE450327

Fits 24 TON WING STYLE HEAVY DUTY

JACK STANDS (PAIR) MOUNT/DEMOUNT HEAD

• Fits Hunter TCX Models.

• NOTE: Conversion bracket required for

proper fit Same as above, head hasand wider • Fitsapplications Corghi Models, Coats RC, APX, 50 channel better performance and heavier seriesfor with round shaft, All Tool Models, bracing nose ofHofmann head for1510, reduced Cembin Models, 1550,flex during Most like OEM 1610,demounting 3200, 3500, process.

5410, S408maxi, Atlas head on new machine Equipment Models

GREY COATS DUCK HEAD 40 TON ADJUSTABLE TOP JACK STANDS (PAIR)

clearance of high spoke wheels and to assist in the removal of lower-profile tires • Not for everyday use like AE183061

NYLON MOUNT/DEMOUNT 40 TON HEAVY DUTY JACK STANDS (PAIR)

• Replacement Head for Hunter TC Series

models, Butler ELX and Ergolock Series Changers (Non-Leverless Only), Accuturn/ Bosch 220S, 4225, 4230, 4335, 4465, 4540, 5210, 5320 models, Sicam 326, 520, 526, 530, 720, 726, Grifone 516, Colibri 512, Falco 3009 models

NYLON MOUNT/DEMOUNT DUCKHEAD

all John Bean models, Accuturn/Bosch 3602(HP), 4260, 4560, 4602, 5602(HP) models, Hofmann 1000, 1520, 1565, 1575, 1620, 1625, 3300, 3550 models)

HUNTER 24 TON HEAVY TC - SERIES DUTY JACK STANDS (PAIR) REPLACEMENT HEAD

• Same applications as AE0343-1 • Head has wider channel for better

performance and heavier bracing in nose of head for reduced flex during demounting process • Most like OEM head on new machine

AE250309

AE450310

• Same Head as AE450310, but includes

• Replacement head for Corghi models,

NYLON MOUNT/DEMOUNT DUCKHEAD KIT W/ ROUND HOLE

conversion bracket.

• NOTE: Conversion bracket does not fit every model as above.

• Fits Corghi Models, Coats RC, APX, and 50 series with round shaft, All Tool Models, Cemb Models, Hofmann 1510, 1550, 1610, 3200, 3500, 5410, S408maxi, Atlas Equipment Models

NYLON MOUNT/DEMOUNT DUCKHEAD W/ ROUND HOLE

Hunter TCX Series models, Butler HP Series models, Coats 9010, 9024, APX Series, RC Series, 5030, 5040, early 5060 w/ round shaft models, All Tool Models, Sice Models, Cemb Models, Hofmann 1510, 1550, 1610, 3200, 3500, 5410, S408maxi models, Giuliano Models, Atlas Equipment Models

AUTOMOTIVE SHOP TOOLS | 103

AE14120

AE101608

AE20011064

• Fits Bosch and Sicam Tire Changers • OE# SM101608 • 5/Pack

• Fits models 3402, 3450, 3602, 4602, 5602,

AE182963

AE258898

AE20-2684-3

• 12 pack • Fits 8182788, 8183429 heads

• Replacement insert for Corghi • OE# 258898A • 5/Pack

• Hunter V1 & V2 heads only • Corghi Artiglio 50 • Sold Individually

AE20-2685-3

AE254341A

AE247G15A-10

• Hunter V1, V2 & V3 heads only • Corghi Artiglio 50 • Sold Individually

• 10 pack • Corghi 8-11100006

• OE# EAA0247G15A/ST4016079/

HUNTER 40 TON ADJUSTABLE AUTO 34 TOP REPLACEMENT JACK STANDS (PAIR) HEAD

• Replacement head for Hunter Auto34,

TC3700, TC3900 models, All Butler Leverless Series (except Dragster Models)

COATS INSERT FOR METAL HEAD

Same applications as above, head has wider AE182961: 2 PACKand heavier channel for better performance bracing in nose of head for reduced flex during demounting process. Most like OEM

CORGHI/HUNTER LEVERLESS INSERT

BOSCH/SICAM 40 TON HEAVY DUTY PROTECTIVE JACK STANDS INSERT (PAIR)

CORGHI MOUNT/DEMOUNT 40 TON HEAVY BOTTOM INSERTDUTY JACK STANDS (PAIR)

CORGHI RIM PROTECTORS

ACCUTURN 40 TON ADJUSTABLE TOP RIM JACK PROTECTOR STANDS (PAIR)

5802, 5850

CORGHI/HUNTER 40 TON ADJUSTABLE LEVER-LESS INSERT TOP JACK STANDS (PAIR)

INSERT FOR HOFMANN / SNAP ON / JOHN BEAN STEEL HEADS

EAC0078G50A

• 10/Pack

104 | AUTOMOTIVE SHOP TOOLS

AE183606

AE304-4

AE0066

• Replacement cover for Coats tire changers applications as above, head has wider •Same OE#183606 •channel 2/packfor better performance and heavier

• Protective Jaw/Clamp Cover • OE# ST4027645 • 4/pack

• Replacement Rubber Pad for Hunter/Butler

AE183604

AE181851

AE5009408

• Wheel Protection for outside clamping • Fits standard and adjustable jaws • OE#8183604 • 10/Pack

• Bead Breaker Pad for Coats Tire

Changers • Fits 5000/6000/7000 Series Changers

• Replacement grips for Coats Grip-Max jaws • 2 Inserts required per jaw • OE#500059408 • 8/pack

AE461668

72100

72124

• Fits Artiglio Models with 120mm hold-down

• Mounting clamp saves time mounting tires • Fits all passenger rims • Clamp holds tire bead in drop center while

BEAD 24 TON BREAKER HEAVY DUTY SHOVEL COVER JACK STANDS (PAIR)

bracing in nose of head for reduced flex during demounting process. Most like OEM head on new machine

QUILTED CLAMP COVER, COATS

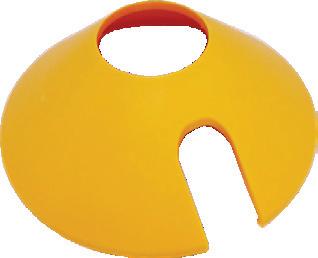

CONE COVER FOR CORGHI, 120MM

cone • OE #461668C • Sold individually

HOFMANN 40 TON HEAVY CLAMP DUTY JACKPROTECTORS JAW STANDS (PAIR)

COATS BEAD BREAKER PAD 40 TON HEAVY DUTY JACK STANDS (PAIR)

TIRE MOUNTING DROP CENTER TOOL

mounting tire

• Heavy-duty polymer construction for long life • Will not scratch, mar or damage custom wheels

RUBBER 40 TON ADJUSTABLE CLAMP PADS TOP - HUNTER / JACK STANDS BUTLER TC SERIES (PAIR) MODELS

Changers

• Fits TC Series Changers • Sold Individually

GRIP - MAX INSERT 40 TON ADJUSTABLE TOP JACK STANDS (PAIR)

BEAD LIFT TOOL SLIDE COVER

• Works with standard bead lift tools • 10/pack • Fits 72110, 72120, 72115

AUTOMOTIVE SHOP TOOLS | 105

72125

72126

LONG SOCK FOR TIRE BAR

BEAD TOOL COVER FOR CORGHI

• Heavy-duty commercial quality • Long sock for complete rim protection • Length: 13 1/2” (34.3 cm) • Fits 72110, 72120, 72115

• Heavy-duty commercial-quality • Long sock for complete rim protection • Length: 13 1/2” (34.3 cm) • Fits 72110, 72120, 72115

72080

72210

WHITE DEMOUNT BOOTIE FOR 72005 COMBO TOOL

• Fits on center post tire bar • Prevents scratching of aluminum rims

72220

TUFFBAR BEAD LIFT TOOL

WHITE MOUNT BOOTIE FOR CENTER POST COMBO TOOL • Tuffbar’s entire top surface is covered

with tough protective polymer plates so there is NO contact between the metal bar and the rim • Length of 25” (63.5 cm) for more leverage • Forged steel makes Tuffbar stronger than standard bars • Perfect for mounting low profile tires on large wide diameter alloy rims without bending • Use Tuffbar with existing rim clamp machines the same way as your regular bar • The replaceable polymer plates are secure, NO BOOT to shift position or fall into the tire

72081 - 72084

POLYMER INSERTS FOR TUFFBAR

72085

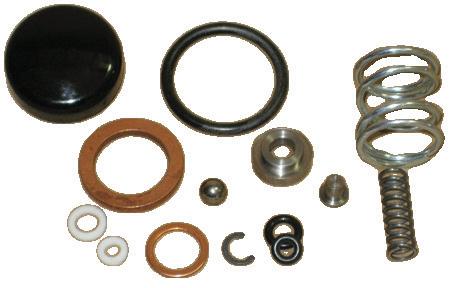

REPAIR KIT FOR TUFFBAR

• Fits on center post tire bar • Prevents scratching of aluminum rims

72215

COMBO TOOL BOOTIE KIT

72081 Polymer insert for Tuffbar Front, red 72082 Polymer insert for Tuffbar Front, red 72083 Polymer insert for Tuffbar Rear, blue 72084 Polymer insert for Tuffbar Bottom, Black

Repair kit for the 72080 Tuffbar Bead Lift Tool KIT INCLUDES: 72081 Polymer insert for Tuffbar Front, red 72082 Polymer insert for Tuffbar Center, white 72083 Polymer insert for Tuffbar Rear, blue 72084 Polymer insert for Tuffbar Bottom, black Screws

KIT INCLUDES: 10 pieces of 72210 10 pieces of 72220

106 | AUTOMOTIVE SHOP TOOLS

72001

THETON 24 WONDER HEAVYBAR DUTY JACKWHEEL MAG STANDS TOOL (PAIR)

Same applications as above, head has wider channel for better performance and heavier bracing in nose of head for reduced flex during demounting process. Most like OEM head on new machine

ACCESSORIES FOR THETON 40 WONDER HEAVYBAR DUTY JACKWHEEL MAG STANDS TOOL (PAIR)

72010 Mag Tool Polymer Insert Kit Polymer nose insert for #72000 Polymer hook insert for #72000

72040 Mag Tool Polymer Hook Insert Polymer hook insert for #72000

72020 Mag Tool Polymer Nose Insert Polymer nose insert for #72000

72070 Mag Tool Polymer Insert Kit Polymer nose insert for #72000 Polymer hook insert for #72000 Metal hook insert for #72000

• Will not damage aluminum or mag wheels • Works with all center post tire changers • Polymer inserts securely attach to tool • Polymer inserts outlast standard booties 72030 Mag Tool Metal Hook Metal hook insert for #72000

72000-005, 72000-006 Screws for Hook & Nose Inserts 72000-005: Hook, 10-32 x 1/2" 72000-006: Nose, 1/4-28 x 3/4"

72110

72120

72115

• Forged steel with chrome plate finish • Curved spoon and curved offset hook ends • Use with tire machine or manual dismount • Heavy-duty commercial-quality tire bar • Mounts and demounts tires on wheels

• Forged steel with chrome plate finish • Curved spoon and curved offset hook ends • Use with tire machine or manual dismount • Heavy-duty commercial-quality tire bar • Mounts and demounts tires on wheels

• Bead Lift “wave” Tool • Specialty design for difficult tire beads • Allows for greater leverage when

• 20” (50 cm) in length

• 24” (60 cm) in length

20” BEAD LIFT TOOL

and rims

24” BEAD LIFT TOOL 40 TON HEAVY DUTY JACK STANDS (PAIR)

and rims

20” WAVE BAR 40 TON ADJUSTABLE TOP JACK STANDS (PAIR)

dismounting low-profile tires

• Overall length 20” • Straight section 16 1/2”

AUTOMOTIVE SHOP TOOLS | 107

51010

51027

51013

Chain style tool for ease of installation and removal of valve stems during tire service

• Measures in 1/32” and millimeter increments • Convenient pocket clip

• Core remover/installer • Rethread valve stem core threads • Rethread valve stem dust cap threads • Hardened black steel

51007

51008

51009

• Easy to read • Color coded for “GO”, “NO GO” readings • Measures in 1/32” and millimeter increments • Convenient pocket clip

• Cable tool for ease of installation and

• Cable tool for ease of installation and

CHANGE 24 TON HEAVY VALVEDUTY FISHING TOOL 10” JACK STANDS (PAIR)

STANDARD 40 TON HEAVY TIREDUTY JACK STANDS THREAD DEPTH(PAIR) GUAGE

FOUR 40 TON WAY ADJUSTABLE VALVE TOOL TOP JACK STANDS (PAIR) (BLACK)

Same applications as above, head has wider channel for better performance and heavier bracing in nose of head for reduced flex during demounting process. Most like OEM head on new machine

COLOR CODED TIRE THREAD DEPTH GAUGE

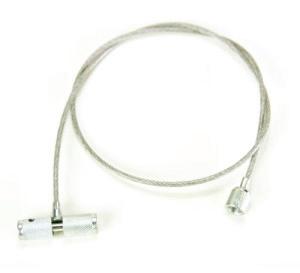

CABLE VALVE FISHING TOOL 8”

removal of valve stems during tire service • T-handle serves as a 2-way valve tool

CABLE VALVE FISHING TOOL 24”

removal of valve stems during tire service

• T-handle serves as a 2-way valve tool

108 | AUTOMOTIVE SHOP TOOLS

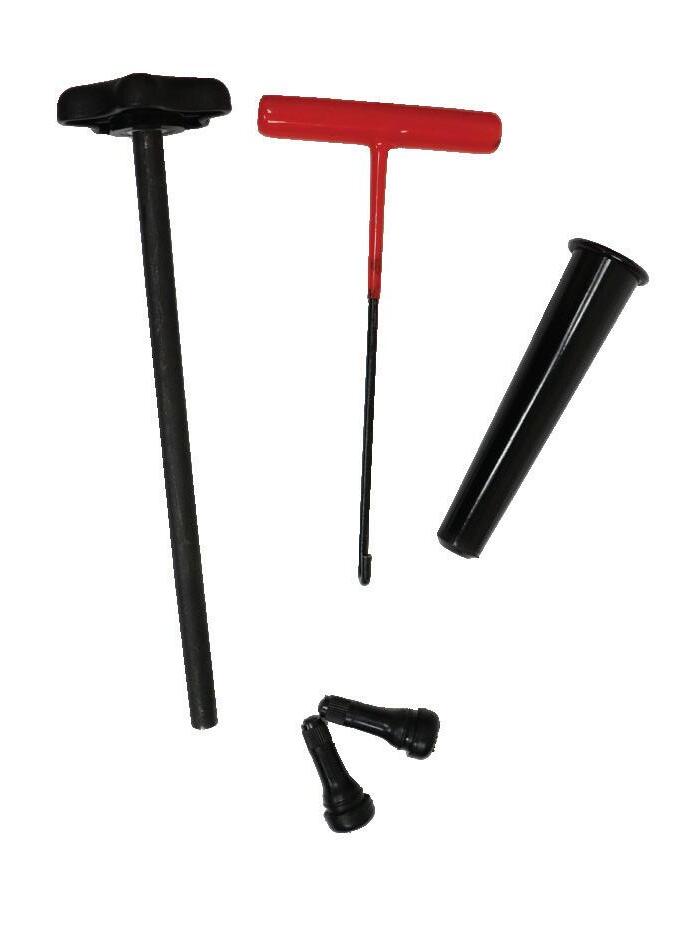

51025

51075

QVCTON 24 QUICK HEAVY VALVE DUTY CHANGE TOOL JACK STANDS (PAIR)

VALVE 40 TONCORE ADJUSTABLE TOOL TOP JACK STANDS (PAIR)

Same applications as above, head has wider channel for better performance and heavier bracing in nose of head for reduced flex during demounting process. Most like OEM head on new machine

• Standard bore • 3” (7.6 cm) shaft length • Made in the USA • Change a tire valve in 10 seconds • Ideal for leaking valve stems • For use only with .453 valve stems • Comes with two TR-413 Valves

51080

VALVE CORE TOOL

• Standard bore • 5 1/4” (13.3 cm) shaft length • Made in the USA

51235

TPM606T

• Standard bore • 6” (15.2 cm) shaft • Locks on to valve core for ease of

• Rubber block adds extra leverage during

LONG ALUMINUM 40 TON HEAVY DUTY LOCKING VALVE CORE TOOL JACK STANDS (PAIR)

installation and removal

VALVE PULLER TOP 40 TONSTEM ADJUSTABLE JACK STANDS (PAIR)

installation and removal of valve stems

AUTOMOTIVE SHOP TOOLS | 109

51070

51140

Same applications as above, head has wider channel for better performance and heavier bracing in nose of head for reduced flex during demounting process. Most like OEM head on new machine

Same head as above, but includes conversion bracket for all Snap-on, all John Bean, Accuturn/Bosch 3602(HP), 4260, 4560, 4602, 5602(HP), Hofmann 1000, 1520, 1565, 1575, 1620, 1625, 3300, 3550

GREEN 24 TONVALVE HEAVYSTEM DUTY JACK STANDS (PAIR) INSTALLER

• Heavy-duty polymer to resist scratching alloy wheels

VALVE 40 TONPULLER, HEAVY DUTY JACK STANDS RUBBER BLOCK(PAIR)

• Unit offers steel construction with

heavy-duty nylon boot that will not wear or mar aluminum

51175

HEAVY 40 TON DUTY ADJUSTABLE PROFFESSIONAL TOP JACK STANDS PLASTIC VALVE(PAIR) PULLER

• Steel tube reinforced handle provides extreme rigidity

• Safety orange color for easy visibility • Protects wheels from damage during

installation/removal of snap-in valve stems

51450

HUB CAP REMOVAL

51490

8 SLIMLINE 40OZ TON HEAVYHAMMER DUTY JACK STANDS (PAIR)

51210

EURO STYLE WW HAMMER 40 TON ADJUSTABLE TOP W/ SOFT HEAD, FORGED VANADIUM JACK (PAIR) STEELSTANDS W/NICKEL PLATE

Same head as above, but includes conversion bracket for all Snap-on, all John Bean, Accuturn/Bosch 3602(HP), 4260, 4560, 4602, 5602(HP), Hofmann 1000, 1520, 1565, 1575, 1620, 1625, 3300, 3550

• Removes wheel hubs and dust caps quickly and easily without scratching • Large rubber hammer is designed to prevent damage

• Internal shot-filled canister for maximum power and impact • Perfect for wheel weight installation • Polyurethane-coated steel core • Made in the USA

• Same as model 51200 Euro Style WW Hammer

• Includes soft head, which protects

wheel from damage during the weight installation 51250: REPLACEMENT HEAD

110 | AUTOMOTIVE SHOP TOOLS

51220

51200

Same applications as above, head has wider channel for better performance and heavier bracing in nose of head for reduced flex during demounting process. Most like OEM head on new machine

Same head as above, but includes conversion bracket for all Snap-on, all John Bean, Accuturn/Bosch 3602(HP), 4260, 4560, 4602, 5602(HP), Hofmann 1000, 1520, 1565, 1575, 1620, 1625, 3300, 3550

• Wheel weight pliers install, trim and remove

• European-style clip-on wheel weight

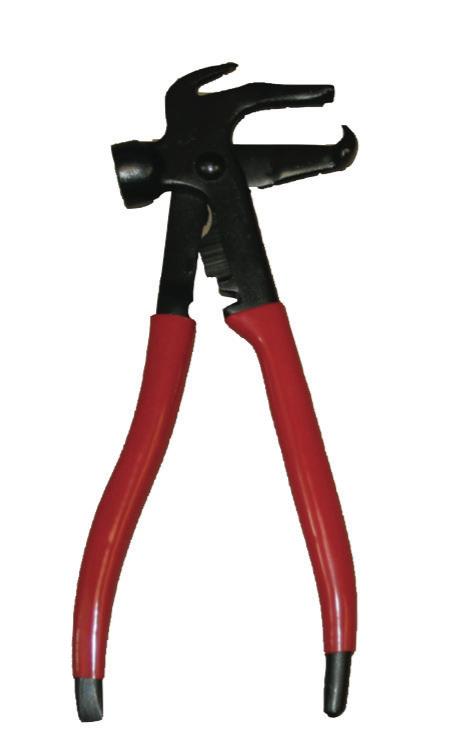

PDQTON 24 STYLE HEAVY WHEEL DUTY WEIGHT PLIER, JACK STANDS NICKEL PLATED (PAIR) VANADIUM

all types of wheel weights • This passenger car wheel weight installation tool is the industry standard • Heavy commercial-duty design with coated handles for comfort • Nickel plated vanadium

51290

EURO STYLE WW HAMMER, FORGED VANADIUM STEEL W/ BLACK OXIDE FINISH

EURO 40 TON STYLE HEAVY WW DUTY HAMMER, FORGED JACK STANDS VANADIUM W/NICKEL (PAIR) PLATE

installation & removal tool • “Clip claw” crowbar and heavy hammer head • PVC coated handles for comfort • Made from forged vanadium steel for extended tool life & stability • Removes, trims, & installs clip-on wheel weights • Lever & offset flat tip for removing wheel covers

51300

EURO STYLE WW HAMMER, 40 TON HEAVY DUTY STEEL, BLACK (PAIR) OXIDE FINISH JACK STANDS

51480

DELUXE 40 TON ADJUSTABLE WHEEL WEIGHT TOP HAMMER JACK STANDS EXTENDED SOFT (PAIR) HEAD

• Deluxe wheel weight hammer easily removes and installs wheel weights

• Made of heat-strengthened steel • Comfortable vinyl handle grips • Nylon-durable hammer tip (replaceable)

51310

HEAVY 40 TON DUTY ADJUSTABLE TOP WEIGHT HAMMER JACK STANDS (PAIR)

Same head as above, but includes conversion bracket for all Snap-on, all John Bean, Accuturn/Bosch 3602(HP), 4260, 4560, 4602, 5602(HP), Hofmann 1000, 1520, 1565, 1575, 1620, 1625, 3300, 3550

• European style clip-on wheel weight

installation & removal tool • “Clip claw” crowbar and heavy hammer head • Made from steel with a black oxide finish • PVC coated handles for comfort • Made from forged vanadium steel for extended tool life & stability

• European style clip-on wheel weight

installation & removal tool • Made from steel with black oxide finish & PVC coated handles for comfort • Lever & offset flat tip for removing wheel covers

• For removal and hammering of wheel weights • Includes soft head which protects wheel from damage during weight installation

AUTOMOTIVE SHOP TOOLS | 111

51400

51460, 51460B

Same applications as above, head has wider channel for better performance and heavier bracing in nose of head for reduced flex demounting process. like OEM •during Specifically designed for useMost on truck head on new machine weights • Includes a plier-type hook for removing weights and hammerhead for installation • The soft plastic handle makes use easy and comfortable • “Clip Claw” design ideal for removing weights with minimum tire/wheel flange clearance • Extra-heavy hammer weight simplifies the installation of large weights • Made from steel with a black oxide finish

Same head as above, but includes conversion bracket for all Snap-on, all John Bean, Accuturn/Bosch 3602(HP), 4260, 4560, 4602, 5602(HP), Hofmann 1000, 1520, • Heavy-duty construction, one 1565, piece1575, 1620, 1625, 3300, 3550 composite • Can be resharpened when needed • Removes wheel weights, emblems, stickers, paint, gaskets & body molding • Model 51460 • Model 51460B - HD Black Tape Weight Scraper

51551

69250

WHEEL 24 TON HEAVY WEIGHTDUTY JACK STANDS TRUCK PLIERS (PAIR)

PCD (PITCH CIRCLE DIAMETER)

ADHESIVE 40 TON HEAVY WHEEL DUTY WEIGHT JACK STANDS (PAIR) REMOVER

WHEEL GAUGE SET

51500

WHEEL 40 TON ADJUSTABLE CALIPER TOP JACK STANDS (PAIR)

• Universal wheel balancer caliper to measure rim width

• Measures 3”-14” in 1/2” or 1” increments • Constructed of ABS plastic for strength and durability

67015

DIGITAL TORQUE TESTER 24 TON HEAVY DUTY JACK STANDS (PAIR)

Same applications as above, head has wider channel for better performance and heavier bracing in nose of head for reduced flex during demounting process. Most like OEM head on new machine

• Universal wheel balancer caliper to measure rim width • Measures 3”-14” in 1/2” or 1” increments • Constructed of ABS plastic for strength and durability

• Includes: 15 gauges, 2 conical adaptors • Easily measure wheel bolt patterns

• Accuracy to +/- 1% • Torque Range 25-250 Ft-Lbs. • Easily Switch Between Ft-Lbs., N·m, IN-Lbs. • Compatible with 1/4”, 3/8”, and 1/2” Drive Wrenches (Adaptors Included)

• Compact Design • 120V Power Source • Large Display with Back Light • Store up to 99 Previous Test Results

112 | AUTOMOTIVE SHOP TOOLS

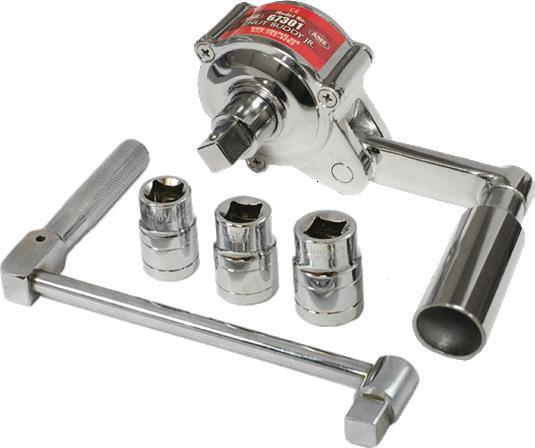

67301

67170, 67171

NUTTON 24 BUDDY HEAVY JUNIOR DUTY JACK STANDS (PAIR)

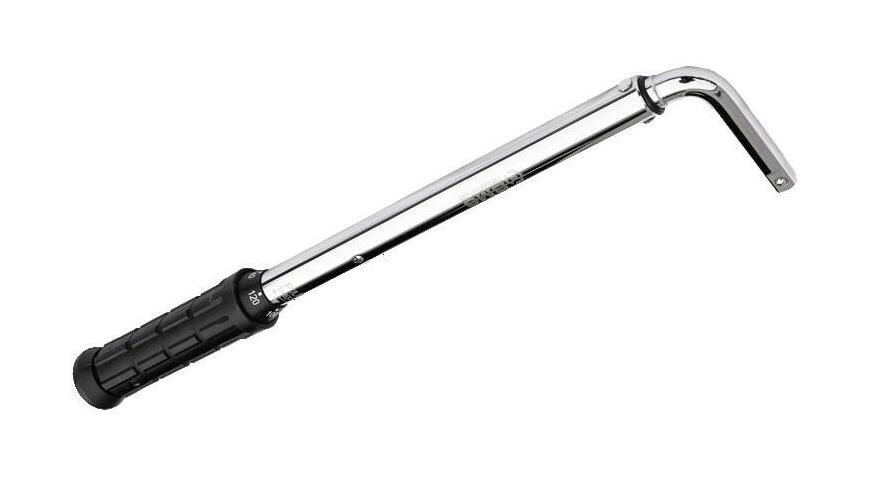

5-IN-1 TORQUE WRENCH

67170

• Easy to Use • Ideal for precision tasks • Turn handle to select from 5 Preset

Values: 80, 100, 120, 140 and 160 ft.-lbs • ±4% Accuracy • 1/2” Drive • Handle with comfort-grip material • Comes with calibration certificate

67171

31210

SAVE-A-STUD 40 TON HEAVY DUTY 9-PIECE RETHREAD KIT JACK STANDS (PAIR)

Same applications as above, head has wider channel for better performance and heavier bracing in nose of head for reduced flex during demounting process. Most like OEM •head Buston loose most stubborn wheel nuts newthe machine • Use on cars and light trucks • Gear ratio–18:1 • 1" Drive • Rated output torque: 885 ft. lbs.

• Three sockets included: 17mm, 19mm, 21mm • Weight 5 lbs. (2.2 kg) COMES WITH CARRYING CASE

31270

SAVE-A-STUD 5-PIECE UNMOUNT BALL SEAT RE-THREAD KIT

31201-31209

SAVE-A-STUD 40 TON ADJUSTABLE TOP DIE JACK STANDS (PAIR)

24 TON HEAVY DUTY JACK STANDS (PAIR)

• Repairs damaged wheel studs • Guaranteed for life • For passenger, light truck, and heavy-duty

Same applications as above, head has wider for better performance •channel Kit includes: 31251, 31320, 31321and heavier nose of head forstuds reduced flex •bracing Repairsindamaged wheel during demounting process.

Most like OEM • Guaranteed for life on new machine •head For passenger, light truck, and heavy duty

• Kit includes: 31201, 31202, 31203, 31204, 31205, 31206, 31207, 31208, 31209

• Repairs damaged wheel studs • Guaranteed for life • For passenger, light truck, and heavy duty • Individual dies available

MODEL

DESCRIPTION

31201

7/16" - 20

31202

1/2" - 20

31203

12mm - 1.75

31204

9/16 "- 18

31205

5/8" - 18

MODEL

DESCRIPTION

31206

12mm - 1.5

31251

22mm - 1.50

31207

12mm - 1.5

31320

3/4" - 16

31208

14mm - 1.5

31321

3/4" - 16

31209

14mm - 2.0

AUTOMOTIVE SHOP TOOLS | 113

37330

HUBTON 40 BUDDY HEAVY XL DUTY JACK STANDS (PAIR)

REPLACEMENT 40 TON ADJUSTABLE TOP CLEANING DISKS JACK STANDS (PAIR) 37330 HUB BUDDY XL

37335 2" DIAMETER

Same head as above, but includes conversion • Impact rated - no need to change tools bracket for all Snap-on, all John Bean, • Removes rust, corrosion and other build-up Accuturn/Bosch 3602(HP), 4260, 4560, 4602, from wheel stud, drums and tire rim 5602(HP), Hofmann 1000, 1520, 1565, 1575, • Helps proper torque of lug nuts by removing 1620, 1625, 3300, 3550 corrosion • A must for easy and accurate tire balancing • Includes: 1 Hub Buddy XL attachment and 1 cleaning disc head REPLACEMENT CLEANING DISCS AVAILABLE IN PACKS OF 6 (PRODUCT 37335)

37340 1.5" DIAMETER

• Replacement cleaning discs for model

37330 Hub Buddy XL Lug / Hub Surface Cleaner • Available in packs of 6 • 37335 - 2” Diameter • 37340 - 1.5” Diameter

37330

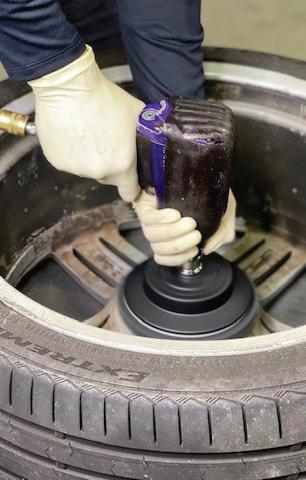

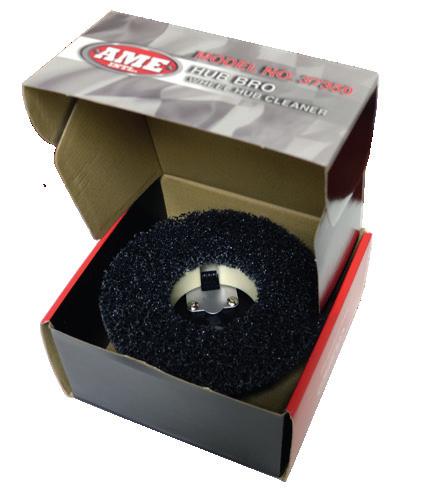

37350 HUB BRO

• Large diameter for cleaning wheel mounting surface

Same head as above, but includes conversion bracket for all Snap-on, all John Bean, Accuturn/Bosch 3602(HP), 4260, 4560, 4602, 5602(HP), Hofmann 1000, 1520, 1565, 1575, 1620, 1625, 3300, 3550

• Ideal for European lug bolt hub cleaning • 160mm x 65mm Diameter • 1/2” Drive Impact rated • Strip-Away style abrasive ensures long life and durability

• Springlock release makes changing pads effortless

HUB BRO REPLACEMENT PAD (PRODUCT 37355)

37350

114 | AUTOMOTIVE SHOP TOOLS

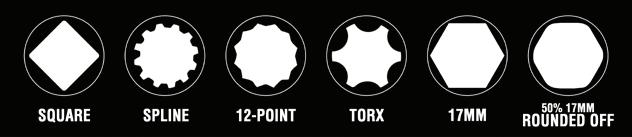

67800

68025

BLUE RED GREEN 17 MM / 11/16" 19 MM / 3/4" 21 MM / 13/16" Same applications as above, head has wider • Works for in cases corrosion, rounded lug channel betterofperformance and heavier heads,inthin walls for specialty aluminum bracing nose of head for reduced flex wheels, etc during demounting process. Most like OEM • Works on atmachine least 6 different fastener types: head on new Spline, 6-Point, 12-Point, Star, Square, 50% Rounded Off Heads • Manufactured using quality Chrome Molybdenum alloy steel for high-torque and durability • Color-coded protective sleeves for easy identification which helps to prevent damage to custom wheels • Impact-rated • 67800SD Demo Stick works on all styles

ORANGE YELLOW PURPLE 22MM 7/8" 15/16" Same head as above, but includes conversion • Works for in cases of corrosion, rounded bracket all Snap-on, all John Bean, lug heads, thin walls3602(HP), for specialty aluminum Accuturn/Bosch 4260, 4560, 4602, wheels, etc 5602(HP), Hofmann 1000, 1520, 1565, 1575, • Works on3300, at least 6 different fastener types: 1620, 1625, 3550 Spline, 6-Point, 12-Point, Star, Square, 50% Rounded Off Heads • Manufactured using quality Chrome Molybdenum alloy steel for high-torque and durability • Color-coded protective sleeves for easy identification which helps to prevent damage to custom wheels • Impact-rated

SPLINE 24 TON HEAVY PLUS DUTY JACK SIX WAY STANDS SOCKET (PAIR) SET

68025

SPLINE 40 TON HEAVY PLUS SUV/LT DUTY SET JACK STANDS (PAIR)

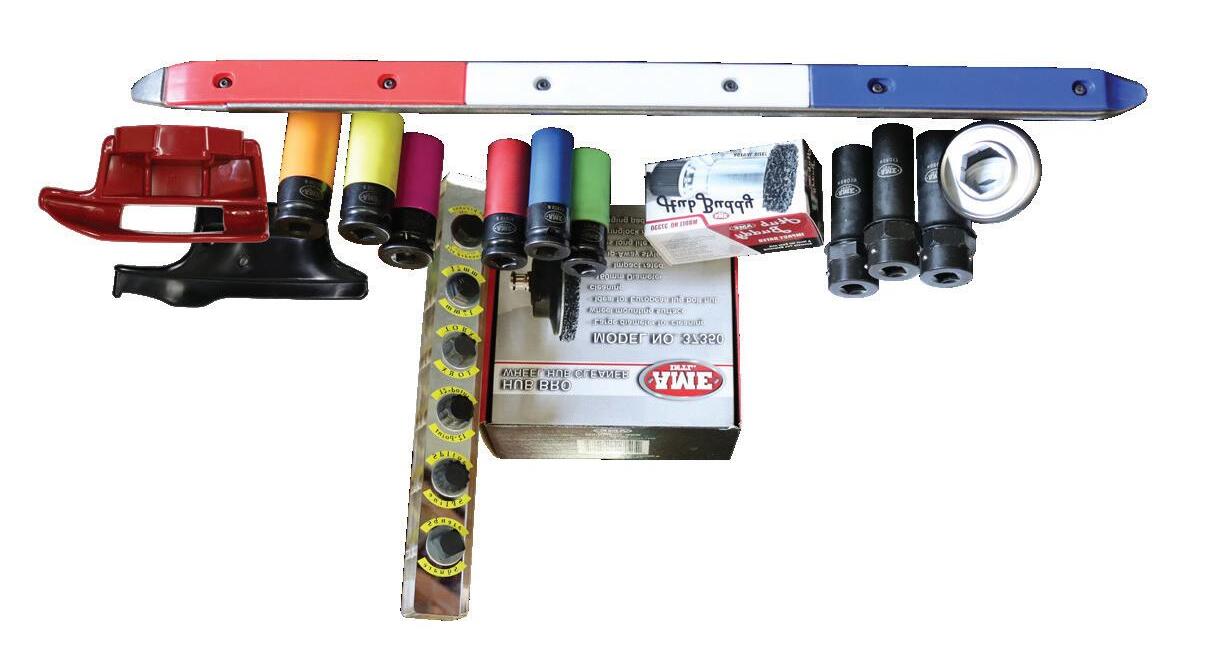

67800SD DEMO STICK

68000

SOCKET BRO

68000

• 1/2” Drive • Socket sizes include: 17mm, 19mm, 21mm • Non-slip design helps protect lug nut/fasteners • Over 40% more busting power with weighted disc • Removes fasteners that are up to 70% rounded off • All centrifugal sockets use the same interchangeable disc

TPMS

TPMS or Tire Pressure Monitoring Systems have been available on passenger cars as far back as the early 1990s. All passenger vehicles produced for resale within the United States after September 2007 were required to have onboard TPMS. Fast forward to today, the industry has evolved, and TPMS has become a staple product for anyone servicing tires in the retail market. AME offers a full line of replacement TPMS components, tools, and universal sensors to ensure compliance and fit.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

116 | TPMS

THE SMART TPMS SOLUTION

40 TON HEAVY DUTY JACK STANDS (PAIR)

• 95% Vehicle Application Coverage • Reduces TPMS Service Time • Reduces Inventory • Truly Universal/Programmable Sensor • Supports Future Vehicle Applications

TPM43042

TPM43049

TPM43046

& Auto-Locate Technologies (WAL, PAL, LocSync) • Manufactured & Tested to OE Specifications & Quality/Performance Standards

SNAP-IN STEMS 40 TON ADJUSTABLE TOP JACK STANDS (PAIR)

TPM50399 Lock Nut

TPM20045 Parallel Key

TPM20008C Parallel Key

TPM20018 Parallel Key

TPM20008 Parallel Key

TPM50395 Square Key

TPM43041

40 TON ADJUSTABLE TOP JACK STANDS (PAIR)

TPM20046 TPM50397 Right Angle Key Clip Lock TPM43046 Aluminum Valve for Smart Sensor One

TPM43048 Matte Black Valve for Smart Sensor One

TPM43047 Matte Black Valve for Smart Sensor One

TPM43049 Aluminum Valve for Smart Sensor One

TPM43050 Snap-In Valve for Smart Sensor One

TPM50398 Parallel Key

• Self tapping screws • 11.5 in/lbs screw torque • 80 psi maximum cold inflation pressure

TPM50388

TPMS REPLACEMENT VALVE WITH PRE-THREADED INSIDE HOLE

TPM140

SMART SENSOR ELITE TOOL

• Easy to follow Icon Based Interface • Perform both stationary & OBD II Relearns with ease

• Comprehensive relearn procedures built-in the tool

• TPMS placard adjusting • Read sensor IDs by OBD II & copy directly onto a Smart Sensor

• Simple wireless update • OE sensor information including part No. & ID locator

• 3.5” color display • VIN code scanner - fast & accurate • Captured Tire Identification Number (TIN)

• For GM, Ford, Chrysler/Dodge/Jeep and more • Maximum Cold Inflation Pressure 65 PSI • T10 Screw included • Torque 11.5in-lbs (1.3Nm) • Sold in bags of 100 • Comparable to VS-950

TPM50389

TPMS REPLACEMENT VALVE W/ HYBRID KEY

-aids in Tire Registration process

• Upload VIN/TIN via PC to Dealer’s shop software

• Print TPMS & VIN/TIN data via PC SMART SENSOR ELITE PROGRAMMING & DIAGNOSTIC TOOLKIT

• Combines PARALLEL and RIGHT ANGLE Key • For GM, Ford • Maximum Cold Inflation Pressure 65psi • T10 Stepped Screw Included • Torque 11.5 in-lbs (1.3Nm) • Sold Individually • Comparable to VS-20

TPMS | 117

TOOL REPAIR SERVICES • Repairs are done by Enerpac-certified technicians • Warranty Center for Enerpac, SPX, Norco • 5S certified • Lengthen the life of your customer’s tools • Rid shops of broken and unwanted tools • Factory Authorized Service Program • Annual Subscription covers all tools for a single shop

location • APP supported with full traceability and repair approvals via the app • Flat repair fee on all AME-branded Bead Breakers and Air/Hydraulic Pumps • Exclusive Discounts for parts and bench fees • FREE Shipping to and from a single location • Increased Buy Back Program Amounts DISCOUNTED CALIBRATION RATE FOR AME/BMS TORQUE WRENCHES

118 | TPMS

RECALIBRATION SERVICES FOR TORQUE WRENCHES

CALIBRATION PROGRAM DETAILS: 1. Customer will contact AME for RA and UPS prepaid call tag.

2. Once the wrench is received, the unit will be inspected, calibrated and re-certified in 24 hours or less. If the unit needs repair, lead time and cost will depend on the repair needed.

3. AME will ship calibrated unit back to exact location as received.

Calibrations and certifications are available for beam, click, or break-away in 1/2” through 1” drives.

GET STARTED:

Contact us to get started in the recalibration program by scanning the QR code below. We'll help you through the next steps in the process from there.

SCAN HERE Scan the QR code to fill out the intake form

KITS & CHARTS

Here at AME International, we understand the challenges faced with the task of outfitting new service fleet vehicles with the proper tools and equipment. We offer a complete line of tools and equipment to service all aspects of wheels and rims along with a range of safety products.

We made it easier for you to choose the right tools by neatly packaging them within a few service truck kits.

These kits include products ranging from inflation and safety to bead breakers and jack stands. Our tire service professionals suggest these kits and include all the basics for fleet service based on your particular needs.

PRODUCT VIDEOS Scan the QR code on a product listing to view a Video Demo

120 | KITS & CHARTS

AME BEAD BREAKER KIT CHART Any AME pump can be used to work with our bead breakers.

24 TON HEAVY DUTY ShownSTANDS below are our most popular kit combinations. Each kit contains 8' Hydraulic Hose & Coupler.

JACK (PAIR) MODEL NUMBER 11000

11010

11015

11020

11025

11044

11076

12070

12000

12005

12002

12081

12004

12007

12058

12059

12061

12063

12082

12066

12067

12017

12010

12018

12019

12083

12040

12022

12090

12020

12023

12021

12045

12065

12075

12015

12030

12047

12049

12050

15000

15025

15900

12084

15920

12085

15925

12020

12070

12058

KITS & CHARTS | 121

AME WHEEL CHOCK APPLICATION CHART Please call and speak with an AME sales representative for sizes or equipment not listed: 352-799-1111 MAKE

MODEL

SERIES

TIRE SIZE

AME MODEL #

Caterpillar

Dump Truck

797

59/80R63

15339

Caterpillar

Dump Truck

793C

40.00R51

15339

Caterpillar

Dump Truck

789

37.00R57

15339

Caterpillar

Dump Truck

785

33.00R51

15338

Caterpillar

Dump Truck

777

27.00R49

15338

Caterpillar

Dump Truck

775

24.00R35

15338

Caterpillar

Dump Truck

773

21.00R35

15337

Caterpillar Caterpillar

Dump Truck

769

18.00R33

15337

Caterpillar

Artic Dump Truck

740

29.5-R25

15337

Komatsu

Dump Truck

930

53/80 R63

15339

Komatsu

Dump Truck

830E

40.00R57

15339

Komatsu

785 797 730E

27.00-R49 59/80R63 37.00-R57

15338

Komatsu

Dump Truck Dump Truck Dump Truck

Caterpillar

Dump Truck

630E

23.5-25 R25

15339

Caterpillar

Dump Truck

DP150

36.00R51

15339

Komatsu

Front End Loader

992G

45/65 x 45

15338

Caterpillar

Front End Loader

988

35/65 x 33

15337

Caterpillar

Front End Loader

980

26.5 x R25

15337

Caterpillar

Front End Loader

966

20.5 x R25

15337

Caterpillar

Front End Loader

950

20.5 x R25

15337

Caterpillar

Grader

14H

20.5-R25

15337

Caterpillar

Grader

16G

18.00R25

15337

Caterpillar

Grader

16H

23.5-25 R25

15337

Caterpillar

Grader

16M

18.00R25

15337

Caterpillar

Grader

24H

29.5-R29

15337

Caterpillar

Grader

24M

29.5-R29

15337

Caterpillar

Scraper

631G

37.50R35

15338

Caterpillar

Scraper

621 & 623

33.25R29

15338

Caterpillar

Scraper

657F

37.5R39

15338

Caterpillar

Loader

994

53.5/85-57

15337

Caterpillar

Loader

938

20.5-R25

15337

Caterpillar

DP 150 Fork Lift

DP150

12.00-20

15336

Caterpillar

IT 28 Tool Carrier

IT 28

20.5-R25

15337

Caterpillar

CS 663E Roller

663E

23.1-26

15337

15339

AME International 2347 Circuit Way Brooksville, FL 34604 Phone:+1 352.799.1111 AME International AME CRIBBING WORKING LOAD LIMIT CHART Fax:+1 352.799.1112 2347 Circuit Way Brooksville, FL 34604 Phone:+1 352.799.1111 www.ameintl.net Fax:+1 352.799.1112 sales@ameintl.net

122 | KITS & CHARTS

Please conspicuously post this Please conspicuously Working Load Guide. post this

Working Load Guide.

WORKING LOAD LIMIT

www.ameintl.net sales@ameintl.net

BASED ON SINGLE LAYER APPLICATION

WORKING LOAD LIMIT BASED ON SINGLE LAYER APPLICATION. WORKING LOAD LIMIT BASED ON SINGLE LAYER APPLICATION.

Lanyard Color Lanyard Color High-Vis Orange High-Vis Orange

Total Block Working Load Limit Range Total Block Working

Part15232 # 50,000 kg – 100,000 kg 15231 Load Limit Range 15232 15201 (110,231 – 220,462 50,000 kglbs – 100,000 kg lbs) 15231 15203 15201 (110,231 lbs – 220,462 lbs) 15245 Orange = Heavy 15203 15239 15245 Orange = Heavy 15239

Total Block Working

Total Block Working Load Limit Range Load Limit Range 21,000 kg – 50,000 kg

Blue

Blue

Part #

21,000 kg lbs) (46,297kg lbs– –50,000 110,231 (46,297 lbs – 110,231 lbs)

Part #

WLL (kg)

WLL (lbs)

121,254 55,000 WLL (lbs) WLL (kg) 110,000 55,000 78,400 110,000 50,800 78,400 71,600 50,800 58,800 71,600 58,800

242,508 121,254 172,842 242,508 111,994 172,842 157,850 111,994 129,631 157,850 129,631

WLL (kg)

WLL (lbs)

Part15230 #

WLL (kg) WLL (lbs) 110,000 49,900

PartPart # #

WLL (lbs) WLL WLL (kg) (kg) WLL (lbs)

15230

49,900

110,000

Blue = Medium

Blue = Medium

Total Block Working Total Block Working Load Limit Range Load Limit Range High-Vis High-Vis Yellow Yellow

0 kg – 21,000 0 kg – 21,000 kg kg – 46,297 (0(0 lbslbs – 46,297 lbs)lbs)

Yellow = Light Yellow = Light

14490* 14490* 14491* 14491* 14492* 14492* 15210 15210 15202 15202 15236 15236 15600 15600

31,000 31,000 31,000 31,000 31,000 31,000 20,500 20,500 53,200 53,200 23,700 23,700 4,4004,400

68,343 68,343 68,343 68,343 68,343 68,343 45,194 45,194 117,285 117,285 52,249 52,249 9,7009,700

*Does not include *Does not lanyard. include lanyard.

Working Working Load Limit

Load Limit

Pounds Per PoundsInch Per Square

Square Inch

Part Number

Part Number

Website Link for Website Safety Data SheetLink for

Safety Data Sheet

KITS & CHARTS | 123

RECOMMENDED BEST PRACTICE ON BUILDING A CRIBBING STACK

The top plate covering the entire stack ensures maximum displacement and utilization of working load limits.

An assortment of jack plates is recommended to connect or fill the gap between the top plate and the load.

Often space will not allow an additional layer of cribbing. Use our variety of jack plate sizes as shims to reach the load.

14466, 14465, 14489

PYRAMID & GRIP-IT CONFIGURATION Additional layers of cribbing as needed to get close to the lift point.

•

•

•

The versatility of AME cribbing allows blocks to be used with pyramid surfaces. Follow the same setup using three by three with crossing additional layers.

Pyramid surface secures blocks together to prevent shifting.

Top and bottom plates are used in the same fashion, but should incorporate Grip-It surfaces for maximum stability.

14468B, 14503

Bottom jack plate provides maximum footprint and displacement.

Essential for non-compacted surfaces.

14468LT, 14503

ALWAYS PREPARE A LEVEL SPOT AS BEST AS POSSIBLE

124 | KITS & CHARTS

96100

AGRICULTURE TRUCK PACKAGE

x2

x6

x2

x2 x2

x2

x4

KITS & CHARTS | 125

LIST OF COMPONENTS INCLUDED IN THE 96100 PART #

DESCRIPTION

QUANTITY

11010

Combi Tire Bead Breaker

1

11080

Bead Push Off Tool

1

13040

10 Ton Hydraulic Cylinder 8in

1

13050

10 Ton Hydraulic Cylinder

1

13060

30 Ton Hydraulic Cylinder 2in

1

13075

Steel-A-Stack Hydraulic Ram

1

13081

55 Ton Hydraulic Jack Deluxe

1

14415

20 Ton Locking Jack Stand Min

2

14462

Titan 36 in x 36 in x 2. 5in Jack

1

14465

Titan 12 in x 12 in x 1.5 in Jack

4

14466

Titan 18inx12inx3in Jack Plate

2

15002

Steel Cribbing Set Includes

1

15266-PLB

12 Piece Primo Cribbing Kit

1

15301

Big Black OTR Wheel Chock

2

15366

Urethane Wheel Chock Orange

2

15930C

5 Quart Air Hydraulic Pump

1

16200

Conversion Kit for Combi Bead

1

24855

OTR 20 Foot Inflator/Deflator

1

25TM

25' Tape Measure

1

31714

Aluminum Cabled Bead Holders

1

51456

8 lb Soft Face Hammer Red

1

67300

Nut Buddy

1

75007

Wedge, 7 1/2" Lime Green (6 pack)

1

91000

Locking Tire Sling

1

92000

2 Point Push Bar 25in - 51in

1

92200

OTR O-Ring Installer Tool,

1

A27A

T27A 18 in lock ring tool

2

T47

T47, C Bar Kit

1

TG35

TG35 Fiberglass Handle 18" 6

1

95250

Lock Out Tag Out Kit Service

1

126 | KITS & CHARTS

96200

SMALL OFF-THE-ROAD TRUCK PACKAGE

x4

x2

x2

x2

KITS & CHARTS | 127

LIST OF COMPONENTS INCLUDED IN THE 96200 PART #

DESCRIPTION

11000 11076 13000 13010 13020 13030 13060 13121 14465 14466 15002 15266-PLB 15301 15366 15930C 24855 51456 75005 79610 91000 93000 94010 95250 165-03110 364F 895 2651 5303 CP-7736-2 CP-7782-6 D17 DOF TC-370 324-1 377 ASP10 CH-315 CH-350-LO-1 GA125 GA-155S-RCL GA250 GA-255 LBTK-1 84H-8 T19 T20A T21R T23A T25 T26A T35 T38 T39 T41 T42 T45A T47 T48A T52 TG11E TG11EH

OTR Giant Tire Bead Breaker Diamondback Aluminum Tire Bead Breaker 100 Ton Aluminum Jack 6in 10 Ton Hydraulic Cylinder 10 Ton Hydraulic Cylinder 10 Ton Hydraulic Cylinder 30 Ton Hydraulic Cylinder 2" 55 Ton Aluminum Jack 6" Titan 12" x 12" in x 1.5" in Jack Titan 18" x 12" x 3" in Jack Plate Steel Cribbing Set Includes 12-Piece Primo Cribbing Kit Big Black OTR Wheel Chock Urethane Wheel Chock Orange 5 Quart Air Hydraulic Pump OTR 20 Foot Inflator/Deflator 8 lb Soft Face Hammer Red Wedge, 7 1/2in Lime Green (6 pack) Low Speed Air Buffer Locking Tire Sling Flange Ring Puller Tire Bead Hook Heavy Duty Lock Out Tag Out Kit Service 1" DR 10 PC Socket Set Metric 364F Reducer 3/8" x 1/4" 50' Length of 1/2in Air Hose 1/2" Square Drive Socket Set 1" Female x 3/4" Male Adapter Impact 1/2in Dr w/2in Anvil CP-7782-6 Wrench C/P 1" 1/2" Quick Coupler, Female 1/2" Adapter, Male 3/8" Quick Connect Hydraulic 324 L.B Dual Ft. Right Angle Large Bore Hang-On Air Chuck Large Bore Aspirator Small Bore, Clip-on Air Chuck Dual Foot Lock On Air Chuck Air Water Gauge Chloride and Dual Foot Truck Service Gauge Large Bore Push-on Gauge Large Bore Swivel Gauge Large Bore Repair Tool Kit 84H-8 T37 8LB Sledge Hammer T19 24" Tire Iron T20A 30 Inch Tire Iron Drop Center Tire Tool T23A 30 in Lock Ring Tool T25 18" Rim Tool T26A Driving Iron T35 Hammer-Wood Handle 30 in Tire Iron 30" Single-End Curved Tire 30" Bead Tool T42 30" Bead Breaker T45A 37" Tubeless T47, C Bar Kit Lock Ring Replacing Tool T52 Bead Breaker Leverage Bar TG11E Tire Hammer TG11EH Tire Hammer Handle

QUANTITY 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 1 1 4 1 1 2 1 1 1 2 1 1 1 1 1 2 4 2 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 1 1 1 1 1 1 1 2 1 2 2 1 1

128 | KITS & CHARTS

96300

LARGE OFF-THE-ROAD TRUCK PACKAGE

x2

x4

x2

x2 x2 x2 x2 x2 x2 x2

x6

x2

x2

x2

x2

x4

x2

x8

KITS & CHARTS | 129

LIST OF COMPONENTS INCLUDED IN THE 96300 PART #

DESCRIPTION

11000 13000 13010 13020 13030 13060 13081 14466 14468B 14489 14500 14501 15002 15231 15232 15341 15930C 24855 51456 75007 79610 91000 93000 94010 95250 165-03110 364F 895 2651 5303 CP-7736-2 CP-7782-6 D17 DOF TC-370 324-1 377 84H-8 ASP10 CH-315 CH-350-LO-1 GA125 GA-155S-RCL GA250 GA-255 IN-95L LBTK-1 N1410 T20A T21R T23A T25 T26A T35 T38 T39 T41 T42 T45A T47 T48A T52 TG11E TG11EH

OTR Giant Tire Bead Breaker 100 Ton Aluminum Jack 6in 10 Ton Hydraulic Cylinder 10 Ton Hydraulic Cylinder 10 Ton Hydraulic Cylinder 30 Ton Hydraulic Cylinder 2in 55 Ton Hydraulic Jack Deluxe Titan 18inx12inx3in Jack Plate Titan Grip-It Jack Plate 10" X 10" X 3" Jack Plate Titan Grip-It Jack Plate Titan Grip-It Jack Plate Steel Cribbing Set 6" x 12" x 24" Slab 6in x 12in x 12in Half Slab Wheel Chock Size 5543 General 5 Quart Air Hydraulic Pump OTR 20 Foot Inflator/Deflator 8 lb Soft Face Hammer Red 7 1/2" Lime Green Wedge (6 pack) Low Speed Air Buffer Locking Tire Sling Flange Ring Puller Tire Bead Hook Heavy Duty Lock Out Tag Out Kit Service 1" DR 10 PC Socket Set Metric 364F Reducer 3/8" x 1/4" 50' Length of 1/2in Air Hose 1/2" Square Drive Socket Set 1" Female x 3/4" Male Adapter Impact 1/2in Dr w/2in Anvil CP-7782-6 Wrench C/P 1" 1/2" Quick Coupler, Female 1/2" Adapter, Male 3/8" Quick Connect Hydraulic 324 L.B Dual Ft. Right Angle Large Bore Hang-On Air Chuck 84H-8 T37 8LB Sledge Hammer Large Bore Aspirator Small Bore, Clip-on Air Chuck Dual Foot Lock On Air Chuck Air Water Gauge Chloride and Dual Foot Truck Service Gauge Large Bore Push-on Gauge Large Bore Swivel Gauge Inflator Adapter Large Bore Repair Tool Kit Tire Tread Depth Gauge T20A 30" Tire Iron Drop Center Tire Tool T23A 30" Lock Ring Tool T25 18" Rim Tool T26A Driving Iron T35 Hammer-Wood Handle 30 in Tire Iron 30" Single-End Curved Tire 30" Bead Tool T42 30" Bead Breaker T45A 37" Tubeless T47, C Bar Kit Lock Ring Replacing Tool T52 Bead Breaker Leverage Bar TG11E Tire Hammer TG11EH Tire Hammer Handle

QUANTITY 1 1 1 1 1 1 1 1 2 1 2 2 1 8 2 4 2 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1 2 4 2 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 1 1 1 1 1 1 1 2 1 2 2 1 1

130 | KITS & CHARTS

BEAD BREAKER PARTS These OEM parts will work with all IMT, FEC, Stellar, SPX, Enerpac, and Esco branded bead breakers built before 2015.

11000 OTR GIANT BEAD BREAKER POLYGLASS OEM PARTS

11030 OTR GIANT BEAD BREAKER OEM PARTS

#11000-005 Hex. HD. Screw

#11030-007 Shoulder Bolt

#11000-006 Pressure Nut w/ Retaining Ring

#11030-008 Pressure Nut

#11000-007 Hook

#11010-049 Cap Screw for 11010-050

#11000-008 Set Screw 3/4 dia. x2 - 1/4 Lg. Torque to 40/60/Ft. lbs.

#11010-022 Center Claw

#11000-009 Clevis

#11010-050 Replaceable Tooth

#11030-004 Hook

#11010-051 Clamping Bolt

#11030-006 Set Screw

#11010-052 Clamping Spacer

KITS & CHARTS | 131

BEAD BREAKER PARTS These OEM parts will work with all IMT, FEC, Stellar, SPX, Enerpac, and Esco branded bead breakers built before 2015.

11075 DIAMONDBACK BEAD BREAKER OEM PARTS

11044 GIANT TIRE BEAD BREAKER OEM PARTS

#11075-003 T-handle with Lock Nut

#11046-001 Swivel Pad

#11075-018 Cross Pin

#11046-002 Hex Tap Bolt

#11075-021 Clamping Teeth

#11046-003 Lower Jaw Bead Band

#11075-022 Center Jaw 3/4 dia. x2 - 1/4 Lg., Torque to 40/60/Ft. lbs.

#11046-004 Lower Jaw Back Section

#11075-025 Screw

#11046-005 Longer Lower Jaw

#11075-035 Retaining Clip

#11046-006 3/4" Shoulder

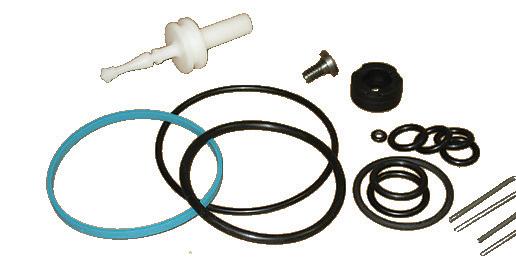

#11075-RK Repair Seal Kit

#11046-007 Hex Nut

132 | KITS & CHARTS

PUMP PARTS These OEM parts will work with all IMT, FEC, Stellar, SPX, Enerpac, and Esco branded pumps.

15000 3QT PUMP, POLYGLASS OEM PARTS

15900 2.5QT OEM PARTS

#15000-094 Foot Pedal

#15900-001 Foot Pedal

#15000-095 Shoulder Screw

#15900-002 Retaining Ring

#15000-150 Cover Assembly

#15900-003 Pin

#15000-168 Poppet Assembly

#15900-078 U-Cup & Back-Up Kit

#15000-159 Gasket Set

#15900-079 Retainer

#15000-163 Air Button Kit

#15900-082 Piston

#15000-AMK Air Motor Kit

#15900-RK Repair Kit, 15900

#15000-PK Hydraulic Pump Kit

#15920-RK Repair Kit, 15920

#15000-RVK Release Valve Kit

#15940-RK Repair Kit, 15940

INDEX | 133

INDEX A27A 125 AE20-2684-3 103 AE20-2685-3 103 AE0066 104 AE247G15A-10 103 AE304-4 104 AE0343-1 102 AE0343-R 102 AE14120 103 AE101608 103 AE181851 104 AE182963 103 AE183061 102 AE183604 104 AE183606 104 AE184432 102 AE250309 102 AE254341A 103 AE258898 103 AE450310 102 AE450327 102 AE461668 104 AE5009408 104 AE14024784 102 AE20011064 103 AE20024335 102 ASP10 127, 129 CD411 21 CH-315 127, 129 CH-350-LO-1 127, 129 CP-7736-2 127, 129 CP-7782-6 127, 129 D17 127, 129 DK13HLQ 70, 71 DK20HLQ 70, 71 DK20Q 70, 71 DK40Q 72 DK50HLQ 72 DOF 127, 129 FDH100 36 FDH200 36 GA125 127, 129 GA-155S-RCL 127, 129 GA250 127, 129 GA-255 127, 129 GS-1 70 HHD 36 IN-95L 129 LBTK-1 127, 129 LOTOK 100 N1410 129 OR-20-JM 33 OR-22-JM 33 OR-24-JM 33 OR-25-T 33 OR-220-TG 33 OR-224-TG 33 OR-321-T 33 OR-325-T 33 OR-329-T 33 OR-333-T 33

OR-335-T OR-339-T OR-343-T OR-345-T OR-349-T OR-451-T OR-457-T OR-463-T OR-469-T PRAMA06014L PRAMA06027L PRAMA10016L PRAMA10027L PRASA10016L PRASA10027L PRASA15016L PRASA15027L PRASA20016L PRASA20027L RJ2-10027 RJ2-10038 RJ2-15027 RJ2-15038 RJ2-20027 RJ2-20038 SB65 SB100 SB150 SBS2 SBS4 SBS6 SLJ10027 SLJ10038 SLJ15027 SLJ15038 SLJ20027 SLJ20038 SLJ25027 SLJ25038 SLJE506 SLJE508 SLJE510 SLJE512 SLJE516 SLJE518 SLJE606 SLJE608 SLJE610 SLJE612 SLJE616 SLJE618 SLJE706 SLJE708 SLJE710 SLJE712 SLJE716 SLJE718 SLJE906 SLJE908 SLJE910 SLJE912

33 33 33 33 33 33 33 33 33 37 37 37 37 37 37 37 37 37 37 38 38 38 38 38 38 36 36 36 36 36 36 39 39 39 39 39 39 39 39 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40

SLJE916 40 SLJE918 40 SLJLC150K 40 SLJLC350K 40 SLJS100-28A 40 SLJS100-038A 40 SLJS200-42 40 SLJST100 40 SLJST150 40 SLJST200 40 T11E 77 T19 127 T20A 77, 127, 129 T21R 127, 129 T23A 127, 129 T25 127, 129 T26A 127, 129 T35 127, 129 T38 127, 129 T39 127, 129 T41 127, 129 T42 127, 129 T45A 77, 127, 129 T45A-2000K 77 T45AC 77 T45HD 77 T46A 77 T47 125, 127, 129 T47A 77 T48A 77, 127, 129 T52 127, 129 T950 77 TC-370 20, 21, 127, 129 TC-371 20, 21 TC-372 21 TG11E 77, 127, 129 TG11EH 127, 129 TG35 125 TL-640 77 TPM140 116 TPM606T 108 TPM20008 116 TPM20008C 116 TPM20018 116 TPM20045 116 TPM20046 116 TPM43041 116 TPM43042 116 TPM43046 116 TPM43047 116 TPM43048 116 TPM43049 116 TPM43050 116 TPM50388 116 TPM50389 116 TPM50395 116 TPM50397 116 TPM50398 116 TPM50399 116 WT1500NT-B 73

134 | INDEX

INDEX 25-1 67 25-1H 67 25-2 67 25TM 125 40-4 68 50-2 67 50-3 35, 67 65-1 69 65-1AP 68 65-1APH 68 65-1H 69 84H-8 127, 129 89MTIS 93 89XDB 93 89XTC 93 100-1 35, 36 100-1H 36 100-1L 35, 36 150-1 35, 36 150-1H 36 150-1L 35, 36 165-03110 127, 129 324-1 127, 129 364F 127, 129 377 127, 129 895 127, 129 2651 127, 129 5303 129 11000 10, 11, 120, 127, 129,130 11000-005 130 11000-006 130 11000-007 130 11000-008 130 11000-009 130 11005 11 11010 7, 120, 125, 130 11010-022 130 11010-049 130 11010-050 130 11010-051 130 11010-052 130 11015 8, 120 11020 8, 120 11025 8, 120 11030 12, 130 11030-004 130 11030-006 130 11030-007 130 11030-008 130 11040 9, 11 11043 13 11044 13, 120, 131 11046 13, 131 11046-001 131 11046-002 131 11046-003 131 11046-004 131 11046-005 131 11046-006 131

11075 131 11075-003 131 11075-018 131 11075-021 131 11075-022 131 11075-025 131 11075-035 131 11075-RK 131 11076 9, 120, 127 11077 9 11080 14, 125 11090 9 11145 13 11244 13 11344 13 11900 29 11950 29 12000 120 12002 120 12004 120 12005 120 12007 120 12010 120 12015 120 12017 120 12018 120 12019 120 12020 120 12021 120 12022 120 12023 120 12030 120 12040 120 12045 120 12047 120 12049 120 12050 120 12058 120 12059 120 12061 120 12063 120 12065 120 12066 120 12067 120 12070 120 12075 120 12081 120 12082 120 12083 120 12084 120 12085 120 12090 120 12105 11 13000 23, 25, 127, 129 13005 23, 25 13010 27, 127, 129 13020 27, 127, 129 13030 27, 127, 129 13040 27, 125

13050 27, 125 13060 27, 125, 127, 129 13075 27, 125 13081 25, 125, 129 13090 27 13095 27 13100 12, 27 13120 24 13121 24, 127 13121-SBK 24 13122 24 13140 24 13141 24 13164 25 13165 25 14140 64 14220 62, 63 14220-001 62 14220-002 62 14225 62, 63 14225-001 62 14225-002 62 14304 66 14350 66 14360 60, 63 14361 59, 63 14370 66 14400 60,63 14401 61, 63 14403 54 14405 60, 63 14410 61, 63 14415 61, 63, 125 14419 60, 63 14420 60, 63 14425 60, 63 14455 65 14460 64 14461 64 14462 125 14464 52, 57, 123, 125, 127 14465 52, 57, 123, 125, 127 14466 52, 54, 57, 123, 125, 127, 129 14468B 57, 129 14468LT 53, 54, 55, 57, 123 14469 57 14470 64 14472 57 14473 57 14475 64 14489 123, 129 14490 47, 122 14491 47, 122 14492 47, 122 14499 57 14500 51, 57, 129 14501 51, 57, 129 14503 55, 57, 123 14720 59, 63

INDEX | 135

INDEX 14985 59, 63 15000 18, 120, 132 15000-094 132 15000-095 132 15000-150 132 15000-159 132 15000-163 132 15000-168 132 15000-AMK 132 15000-PK 132 15000-RVK 132 15002 24, 25, 125, 127, 129 15010C 18 15012 25 15020 18 15022 25 15025 18, 120 15032 25 15040 18 15081 17 15200 50 15201 47, 122 15202 47, 122 15203 47, 50, 122 15210 47, 50, 122 15230 47, 50, 56, 122 15231 47, 51, 122, 129 15232 47, 51, 122, 129 15234 44, 50 15236 47, 50, 122 15239 47, 50, 52, 53, 54, 55, 122 15245 47, 50, 122 15258-PLB 54 15260 56 15266-PLB 55, 125, 127 15269PL 53 15273 52 15300 44 15301 44, 125, 127 15309 44 15324 44 15325 44 15335 43 15336 43, 121 15337 42, 121 15338 42, 121 15339 42, 121 15341 42, 129 15342 42 15353 43 15355 44 15366 44, 126, 127 15367 44 15370 43 15371 45 15372 45 15373 45 15374 45 15600 47 15900 17, 120, 132

15900-001 132 15900-002 132 15900-003 132 15900-078 132 15900-079 132 15900-082 132 15900-082 132 15900-094 132 15900-095 132 15901 21 15905 19 15906 19 15907 19 15920 11, 17, 21, 120, 132 15920-RK 132 15924 19 15925 12, 19 15930C 17, 21, 127 15940 17, 21, 132 15940-RK 132 16005 21, 64 16006 21, 64 16040 11, 20 16050 20, 21 16060 21 16070 10 16100 11, 20 16105 20 16110 20 16116 20 16120 20 16128 91 16128K 65 16165 11 16200 7, 125 17200 9 24420 94, 95 24425 95 24430 94, 95 24440 94, 95 24450 95 24455 95 24456 94, 95 24458 94, 95 24855 91, 125, 127, 129 24861 91 24862 91 24866 92 24867 92 24869 92 24871 92 26140 85 31201 112 31202 112 31203 112 31204 112 31205 112 31206 112 31207 112 31208 112

31209 112 31210 112 31251 112 31270 112 31320 112 31321 112 31714 125 36000 5 36100 5 36200 5 36205 5 36555 100 37330 113 37335 113 37340 113 37350 113 37355 113 37500 85 37505 85 37522 85 51007 107 51008 107 51009 107 51010 107 51013 107 51025 108 51027 107 51036 96, 97 51070 109 51075 108 51080 108 51140 109 51175 109 51200 109, 110 51210 109 51220 110 51235 108 51236 91 51250 109 51290 110 51300 110 51310 110 51400 111 51450 109 51456 32, 125, 127, 129 51460 111 51460B 111 51480 110 51490 109 51500 111 51551 111 52000 79 53010 79 58033 80 58034 80 58035 80 58036 80 61000 79 61010 79 61020 79

136 | INDEX

INDEX 61030 79 61040 79 61050 79 61050 79 61070 79 61080 79 61090 79 62030 79 62400 84 62400H 84 62419 84 62421 84 62430 84 62432 84 62438 84 62438H 84 62441 84 63010 81, 136 63020 81 63030 81 67015 111 67170 112 67171 112 67180 83 67185 83 67250 83 67300 80, 125, 136 67301 112 67500 89 67510 88, 89 67510CT 88, 89, 136 67510CTK 89 67510-E6 88 67510K 89 67512 87 67513 87 67514 87 67516 87 67517 87 67518 87 67519 87 67520 88, 89 67520K 89 67530 88, 89 67530K 89 67552 87 67601 83 67751 83 67751-001 83 67751-002 83 67800 114 67800SD 114, 136 67805 83 67806 83 67807 83 68000 114 68025 114 69250 111

69260 84 69290 84 71000 76 71050 75 71050-008 75 71050-008A 75 71050-009 75 71050-009A 75 71050-RK 75 71055 75 71300 82 71320 82 71411 75, 76 71500 76 71600 76 71650 81 71655 81 72000 106 72000-005 106 72000-006 106 72001 106 72010 106 72020 106 72030 106 72040 106 72070 105 72080 105 72081 105 72082 105 72083 105 72084 105 72085 105 72100 104 72110 104, 105, 106 72115 104, 105, 106 72120 104, 105, 106 72124 104 72125 105 72126 105 72150 76 72210 105 72215 105 72220 105 73080 97 73100 97 73100-437 97 73200 97 75005 32, 127 75007 125, 129, 136 75010 32 75015 32 79610 97, 127, 129 91000 30, 125, 127, 129 92000 30, 125 92200 32, 125, 136 92205 32 92250 32 93000 31, 127, 129

93500 29 94000 31 94010 31, 127, 129 94020 31 95010 99, 100 95020 99, 100 95030 99, 100 95040 99, 100 95050 99, 100 95060 99, 100 95070 99, 100 95080 99 95090 99 95100 99, 100 95200 100 95210 100 95220 100 95230 100 95240 100 95250 100, 125, 127, 129, 136 96100 124, 125 96200 126, 127 96300 128, 129

NOTES | 137

NOTES

136 | INDEX

NOTES

NOTES | 137

NOTES

WWW.AMEINTL.NET Phone: 352-799-1111 2347 Circuit Way, Brooksville, FL 34604

2023 TOOL & EQUIPMENT CATALOG
