Hey, There’s a New Architect in Town! Armed with a backpack brimming with curiosity and pockets full of courage.
I’m on a journey to master the art of designing spaces with empathy and mindfulness, all while cherishing nature and its resources. And of course, sprinkling in a human touch of craftsmanship.
Studio Juggernaut | Intern Architect Jun 2022 - Dec 2022
Delhi, India
Work Experience Projects

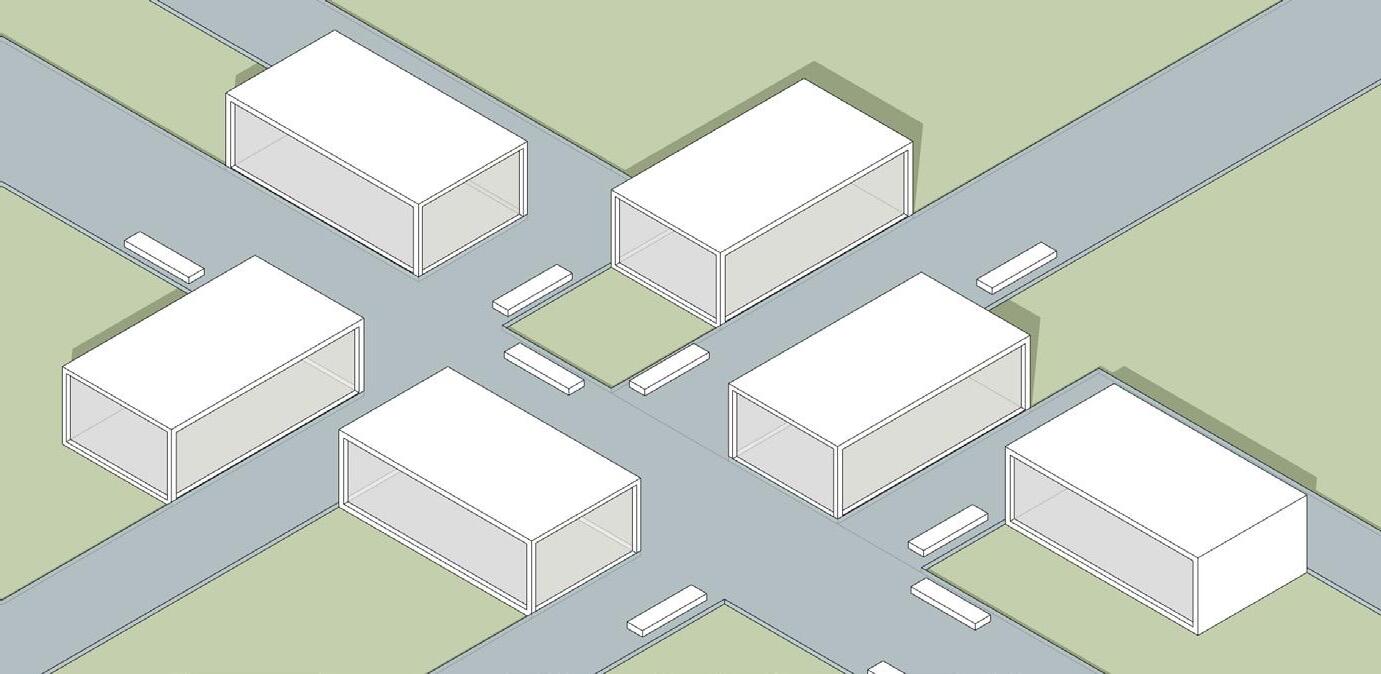

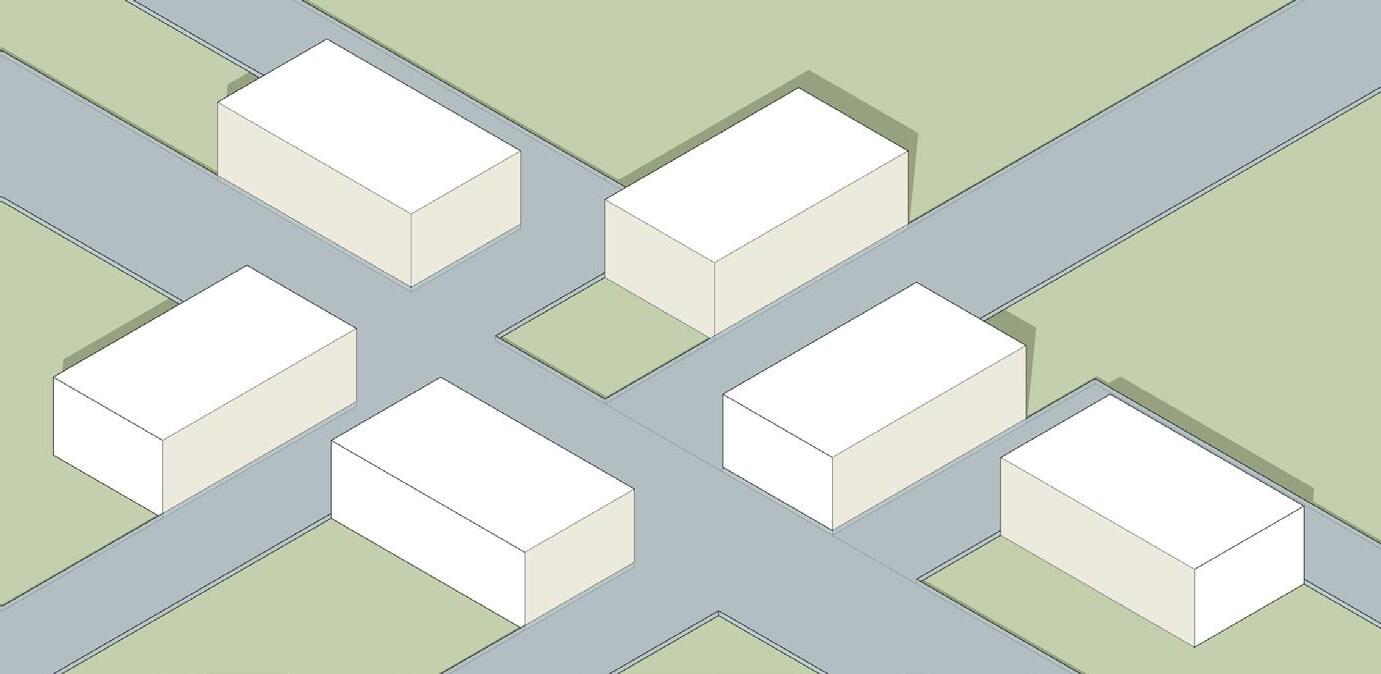

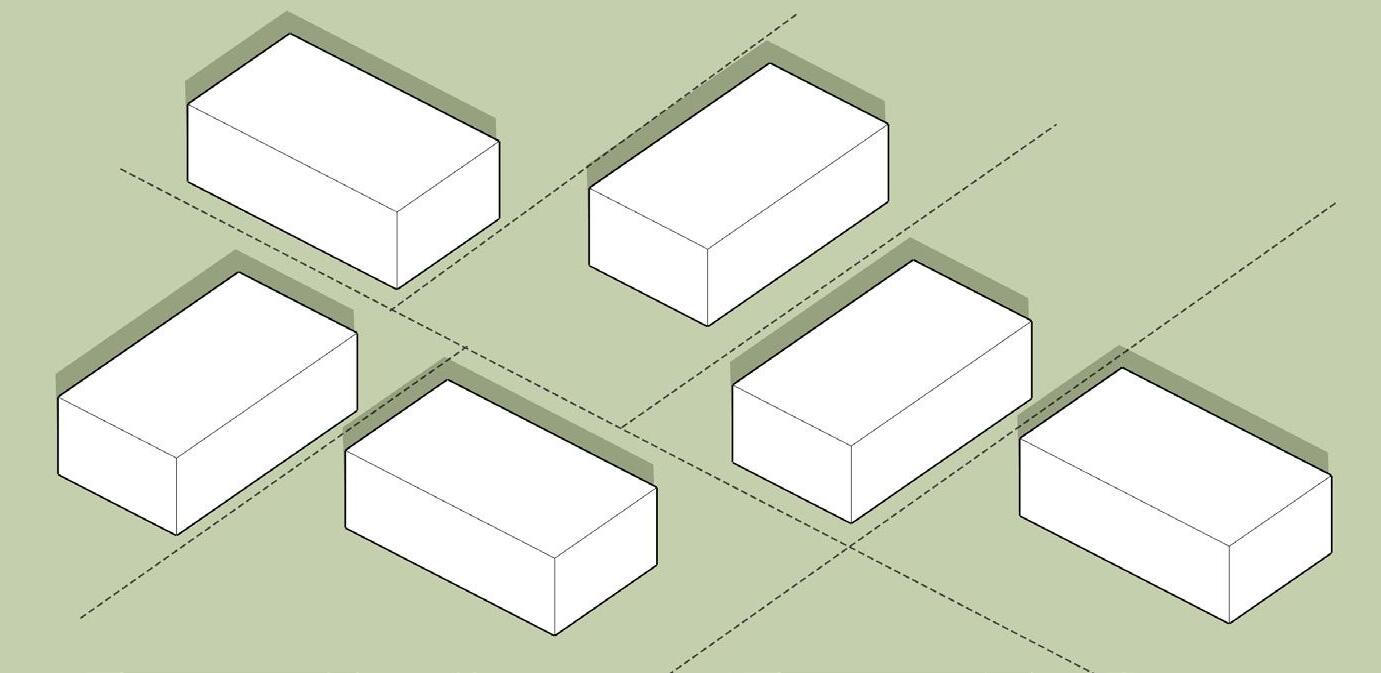

9X9m Grid Design Excercise
Delhi, India
Indian Temple Documentation
Melkote, Karnataka, India
Indiapost Office
Delhi, India
Studio Home
Vijayawada, India
NASA : Landscape Design Trophy
School of Planning & Architecture, Vijayawda
Primary & Nursery School
Amaravati, India
Masterpeace: International Competition by Archmello
Allapuzha, Kerala, India
Cultural & Interpretation Center
Delhi, India
Commercial & Hospitality Mixed use complex
Ranchi, India
Practical Training: Residential Architecture & Construction
Delhi, India
Brownfield Redevelopment Housing Project
Vijayawada, India
Urban Design Intervention: Public Square Redevelopment
Pondicherry, India
Thesis : National Design Institute
Goa, India
Modeling (Massing and Complex Modelling Elements)
Rhinoceros Grasshopper Sketchup Model Making
Visualization (Interior, Exterior, Diagrams)
Enscape Lumion Vray EvolveLab Veras Ai
Adobe (Presentation, Diagrams & Illustration)
Photoshop Indesign Illustrator
Interests & Hobbies
• Speed Skating (State medalist)
• Basketball (University Team Captain)
• Music (Instruments - Drums/Guitar)
• Backpacking
I design with empathy, creating spaces that blend functionality, simplicity, and environmental sensitivity. I believe architecture must deeply understand users’ emotions and needs.
My experiences in state-level speed skating, leading my university basketball team, selftaught music, and extensive backpacking across India have shaped my approach.
These activities have instilled discipline, leadership, continuous learning, and cultural awareness, all of which enrich my architectural perspective and creativity.
Ideology & Design Development

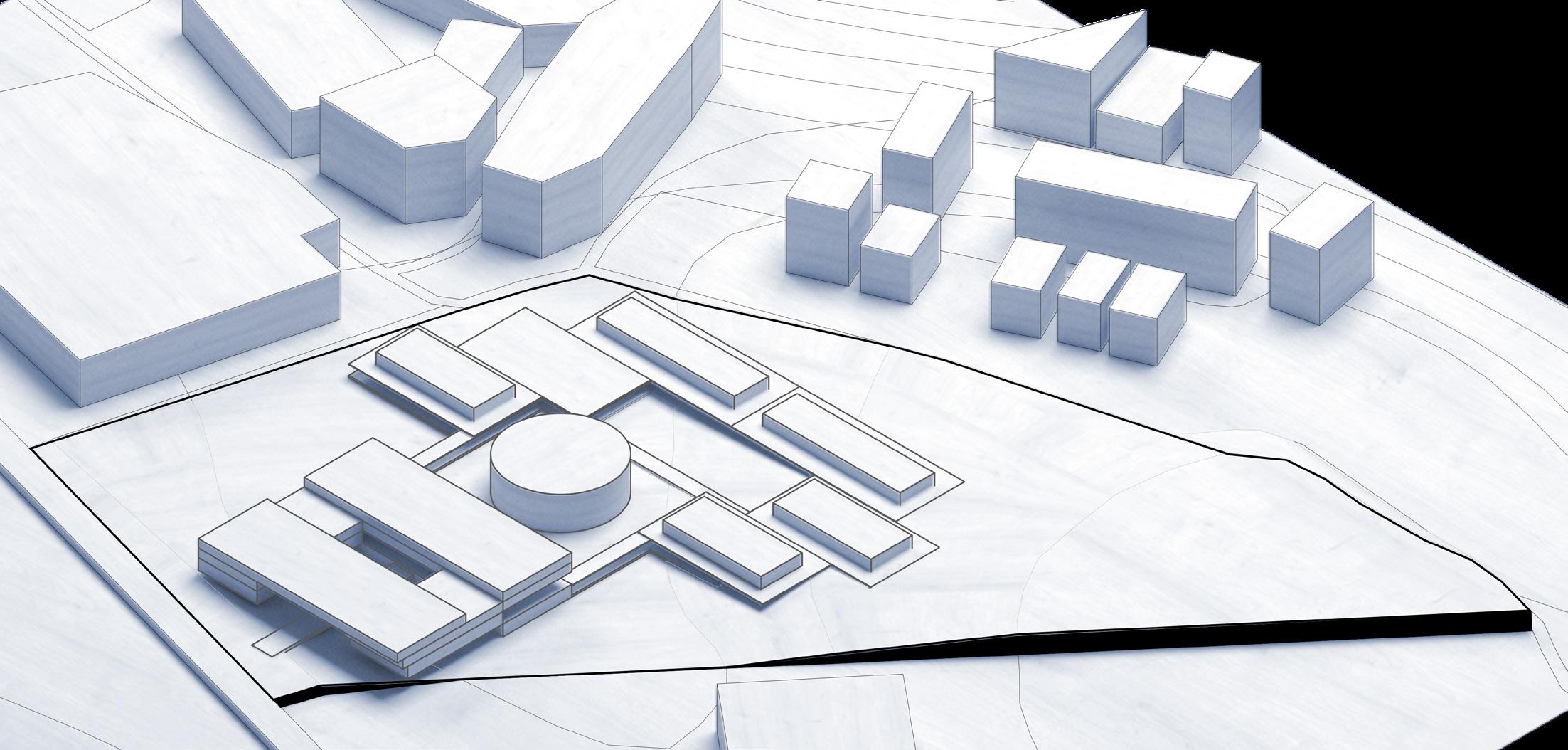

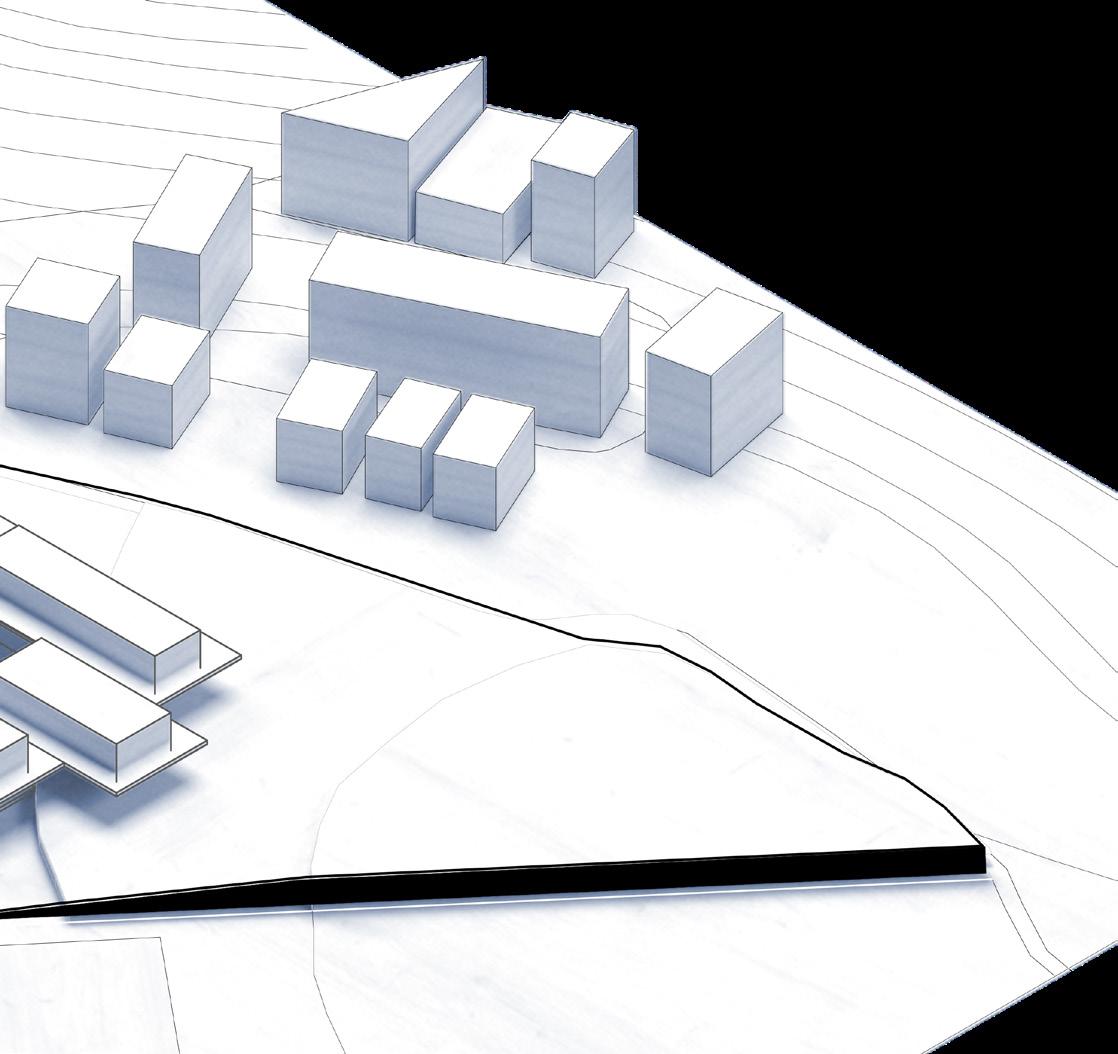

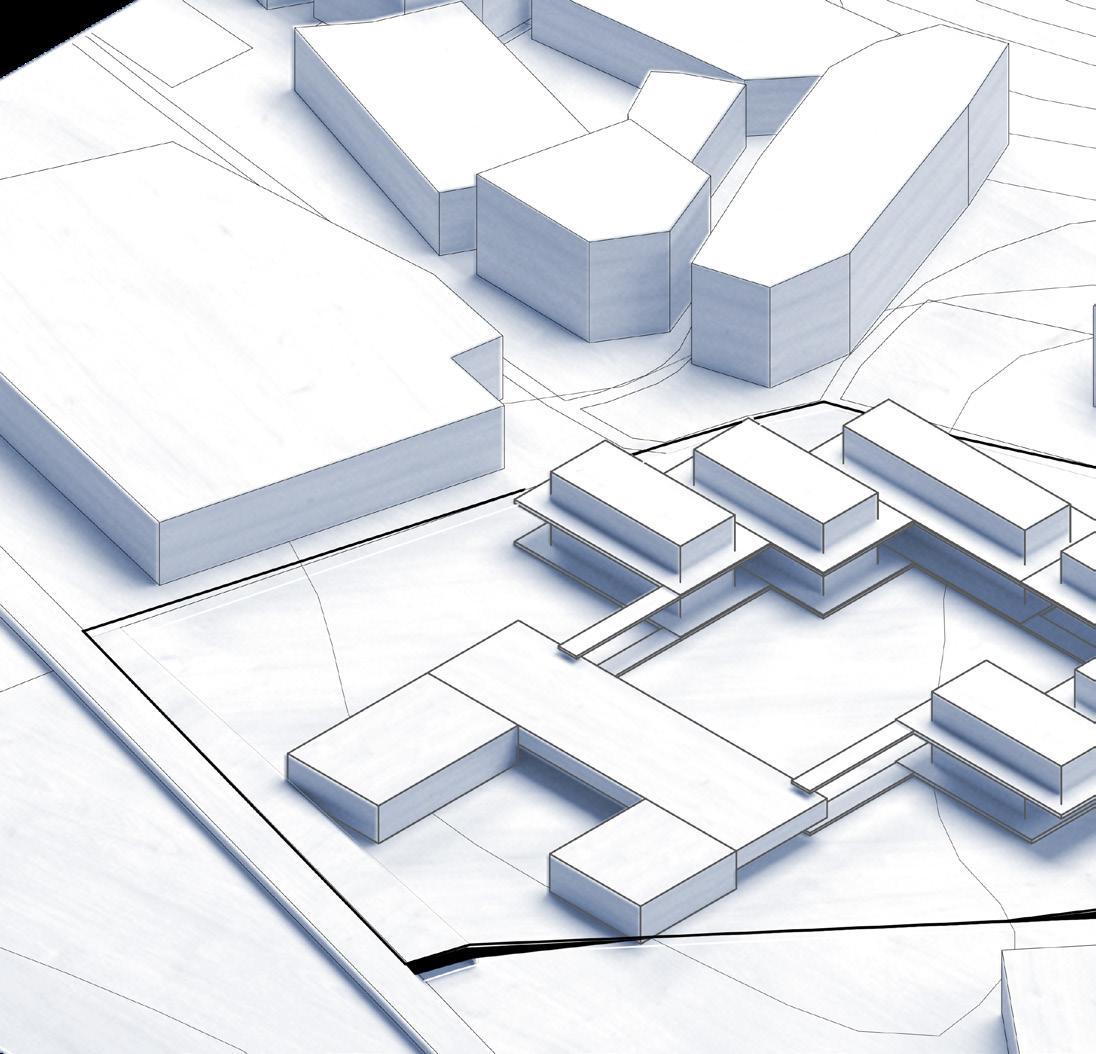

Massing & Final Proposal
Floor Plan & Spatial Design

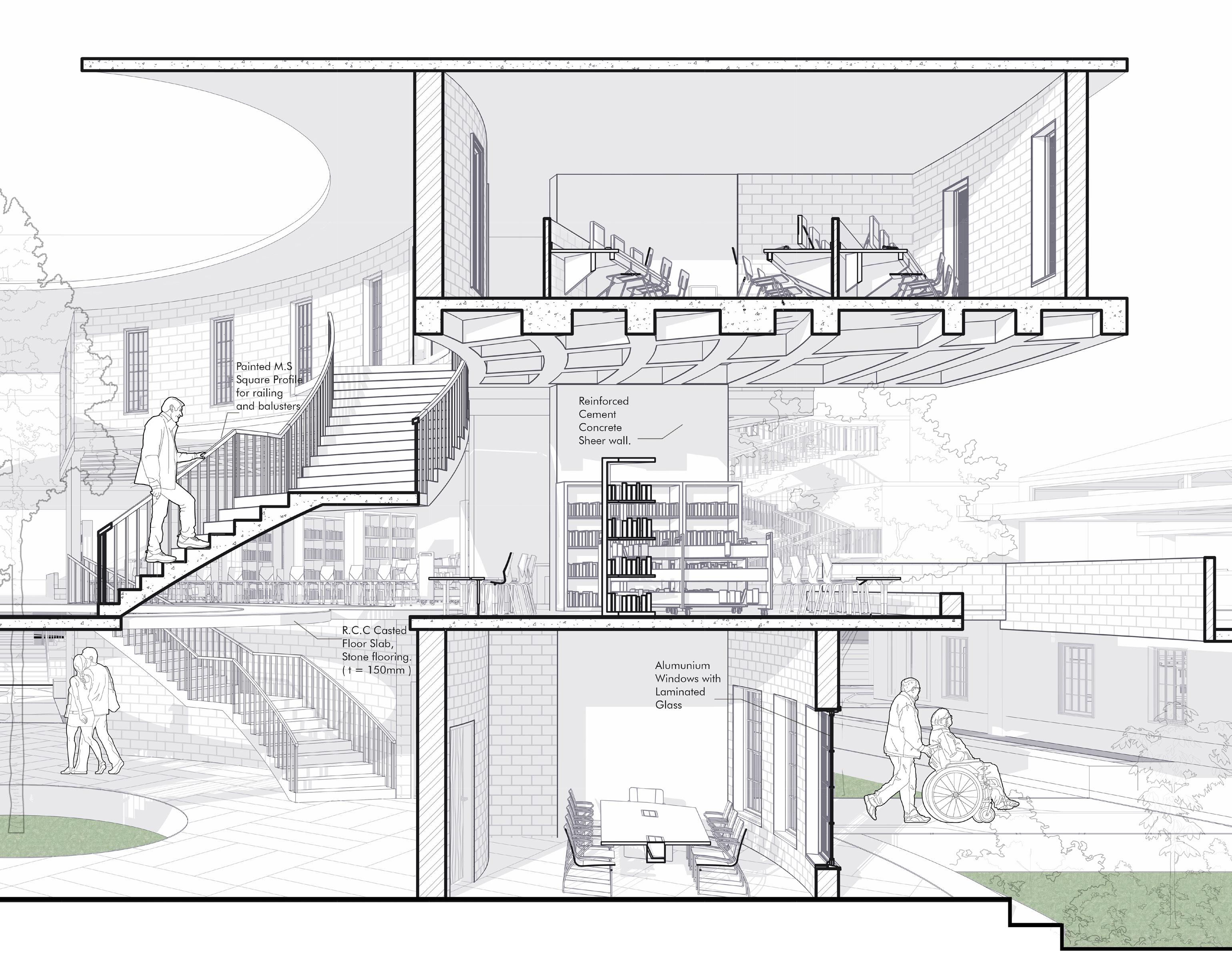

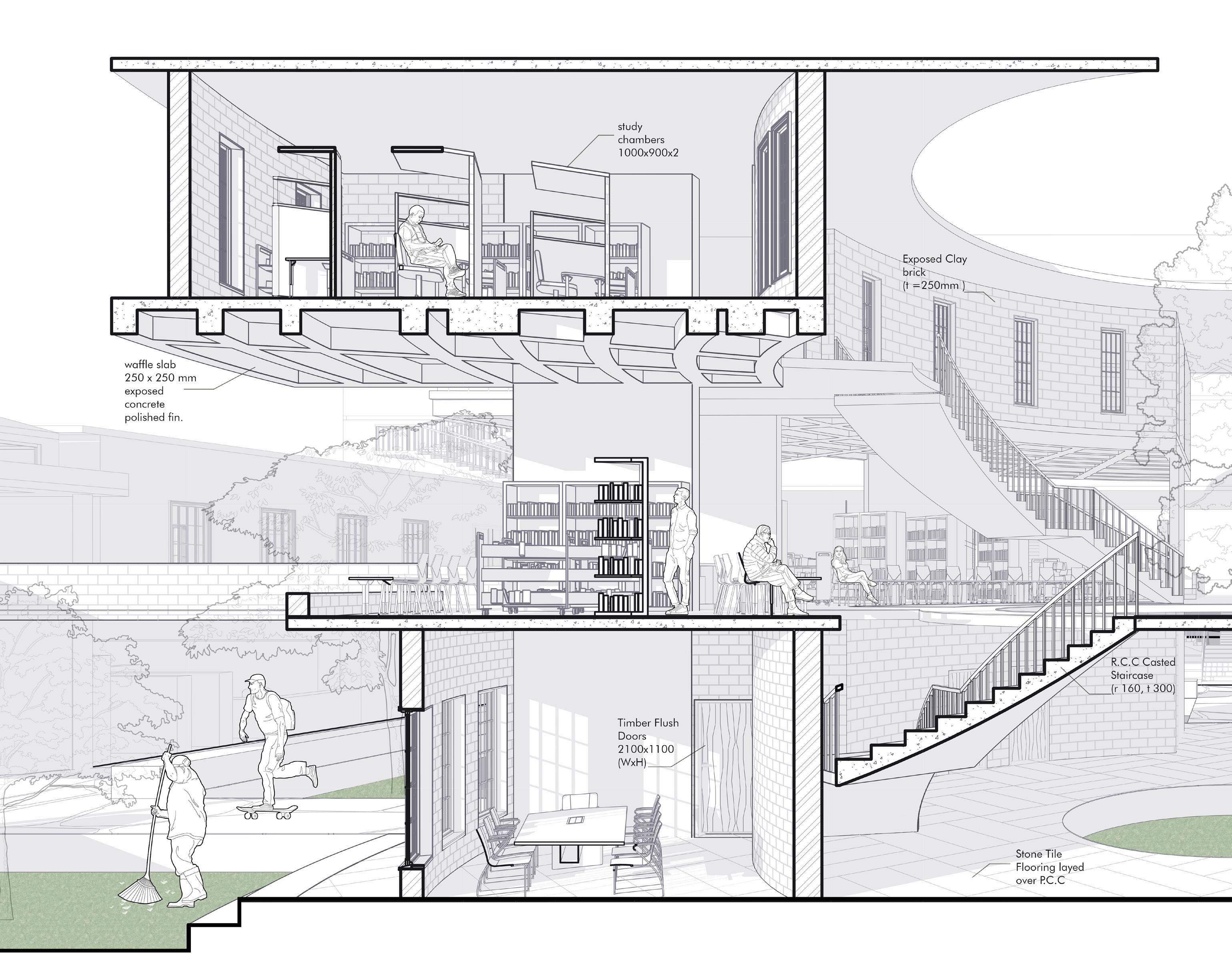

Library Design
Floor Plan
Studio Module Design
Wall Section & Technical Details
Relationship Between Studios
Internship 2. Masterpeace
Project 1: 6/6 Tranformation House
Renovation and Extention Documantation
Construction & Detail Drawings
Project 2 : Terrace Pavillion
Construction & Detail Drawings

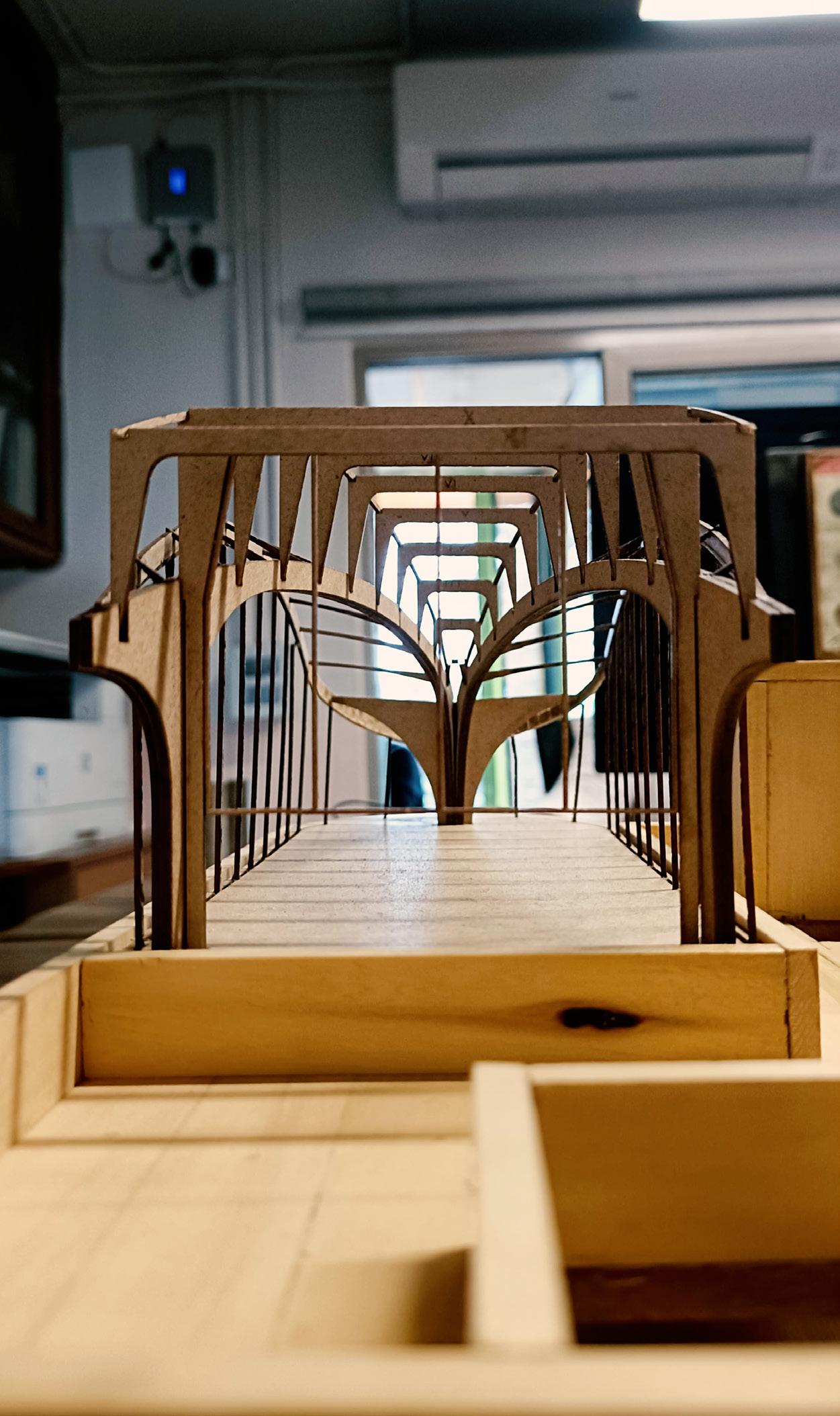

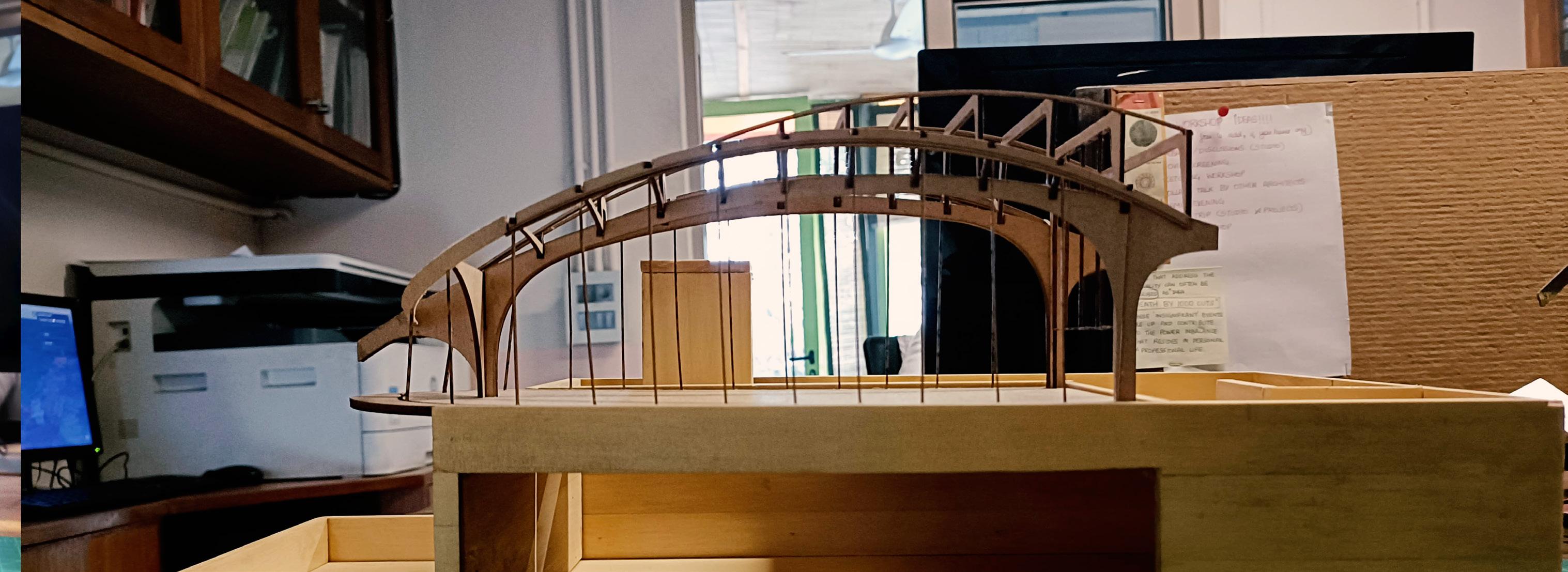

Scaled Modelmaking

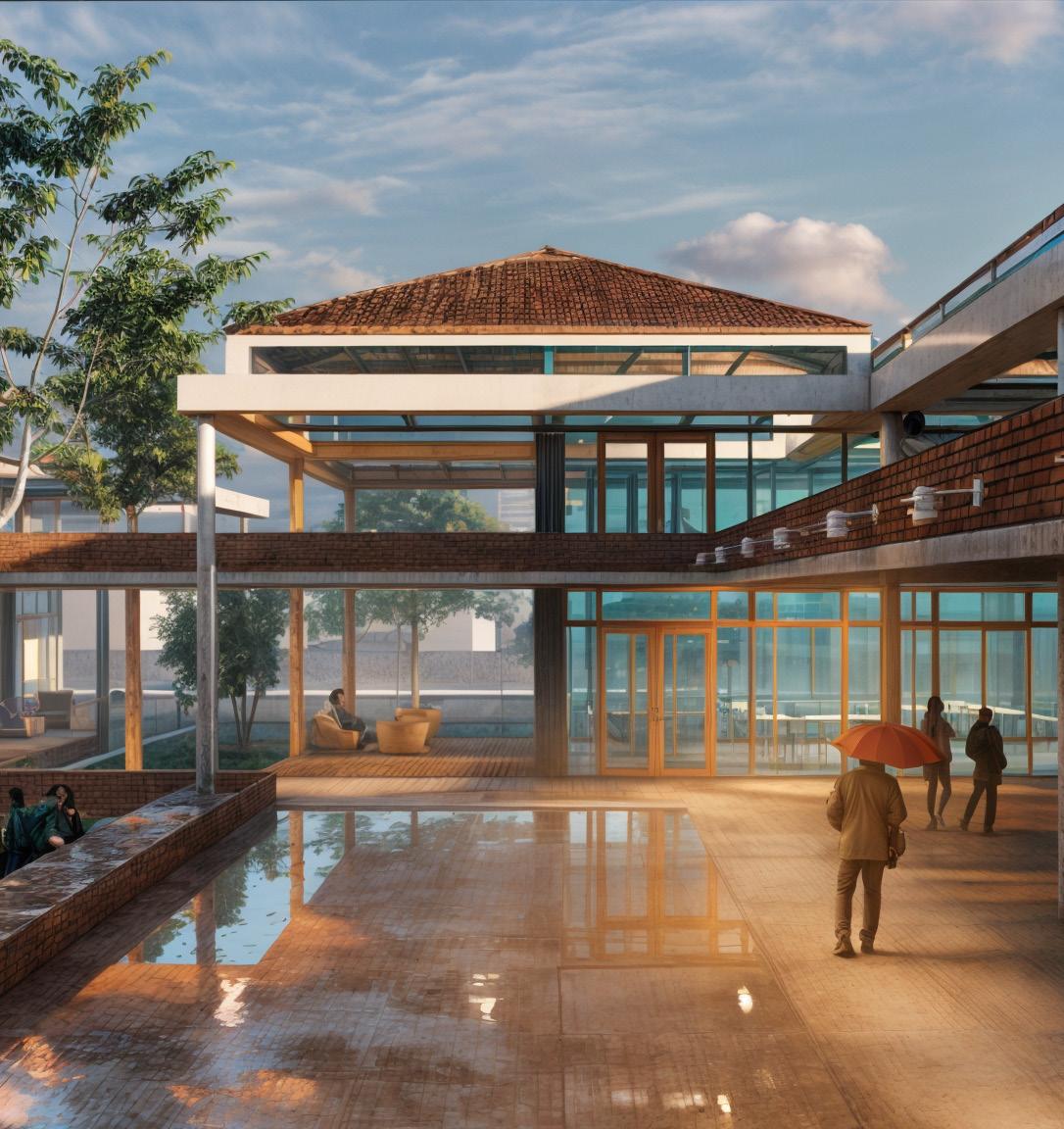

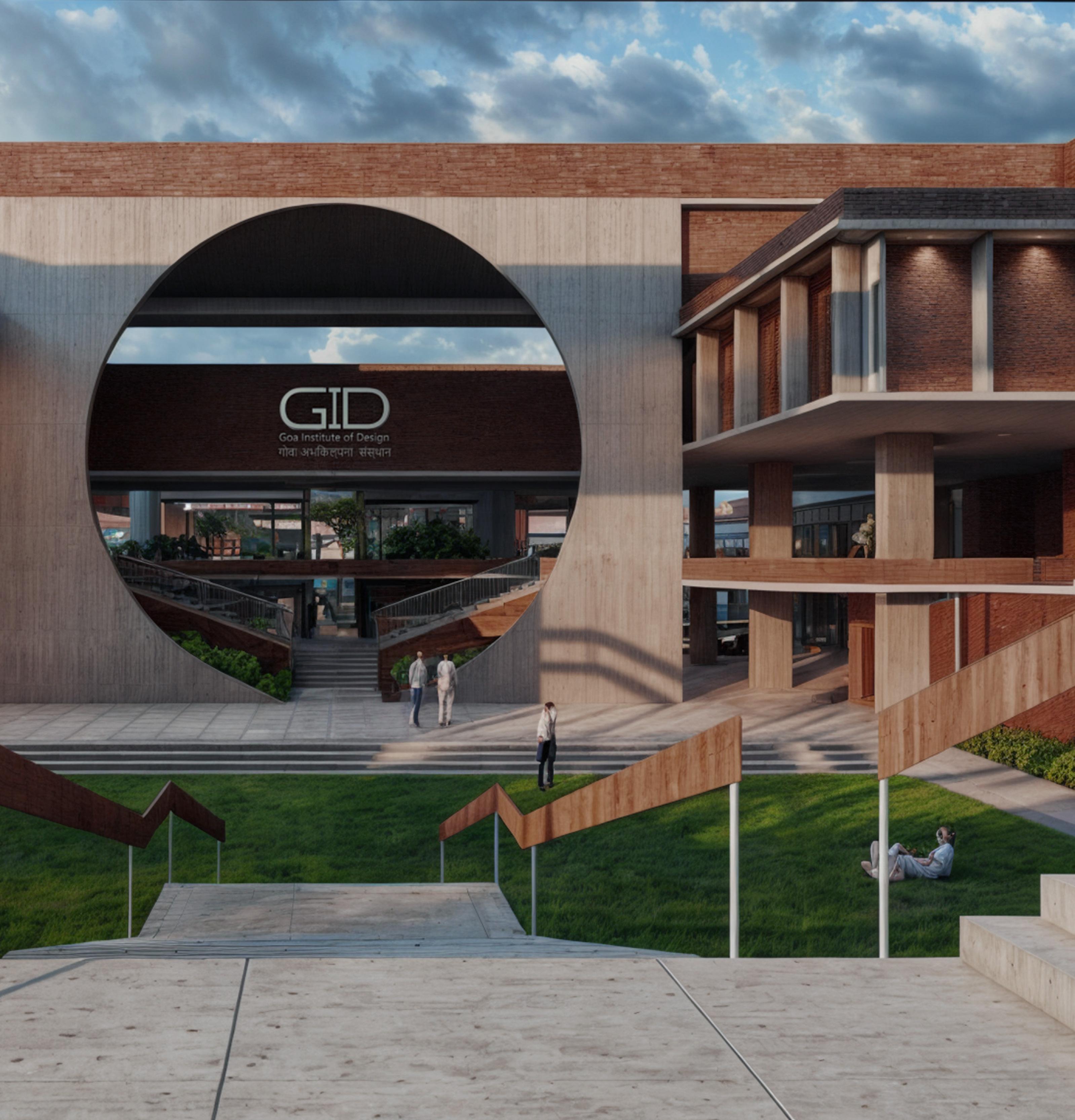

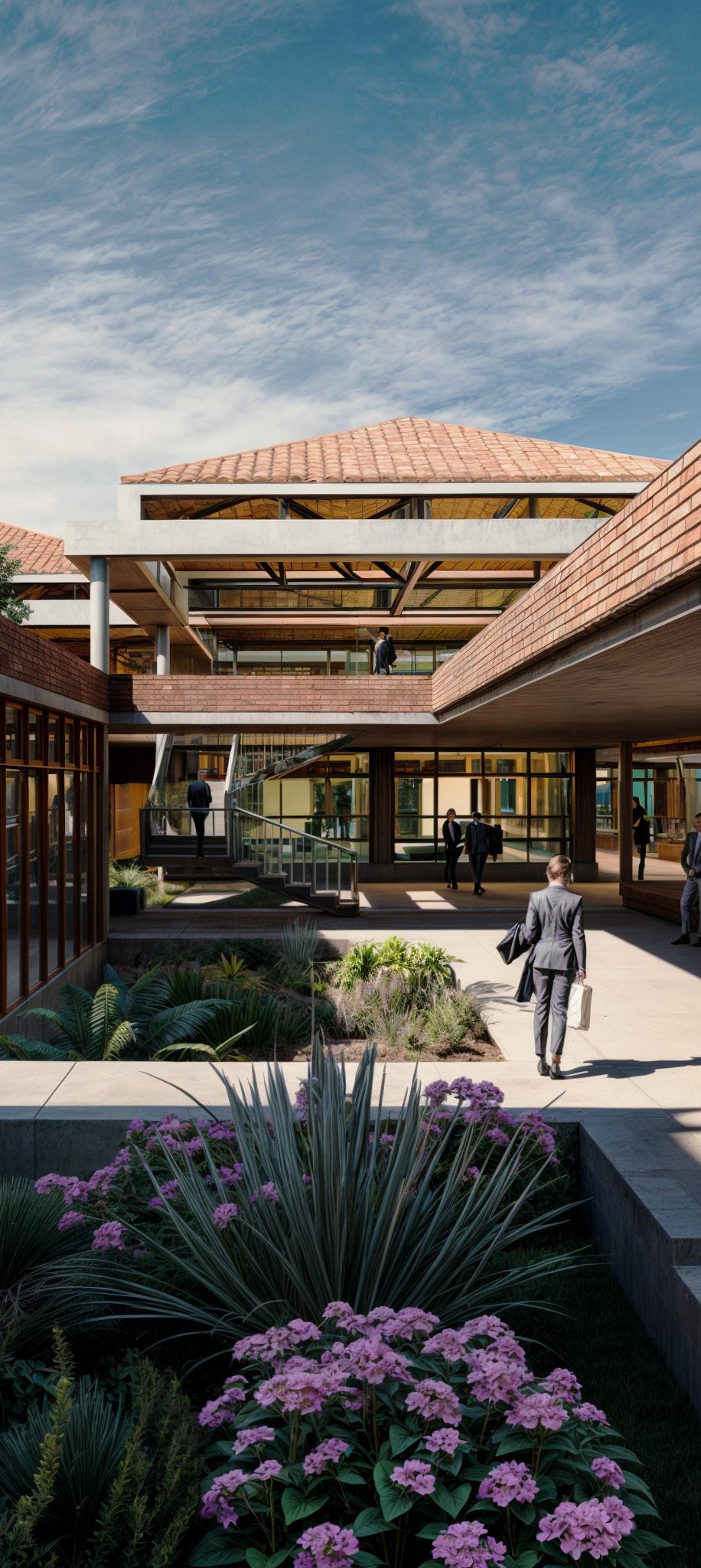

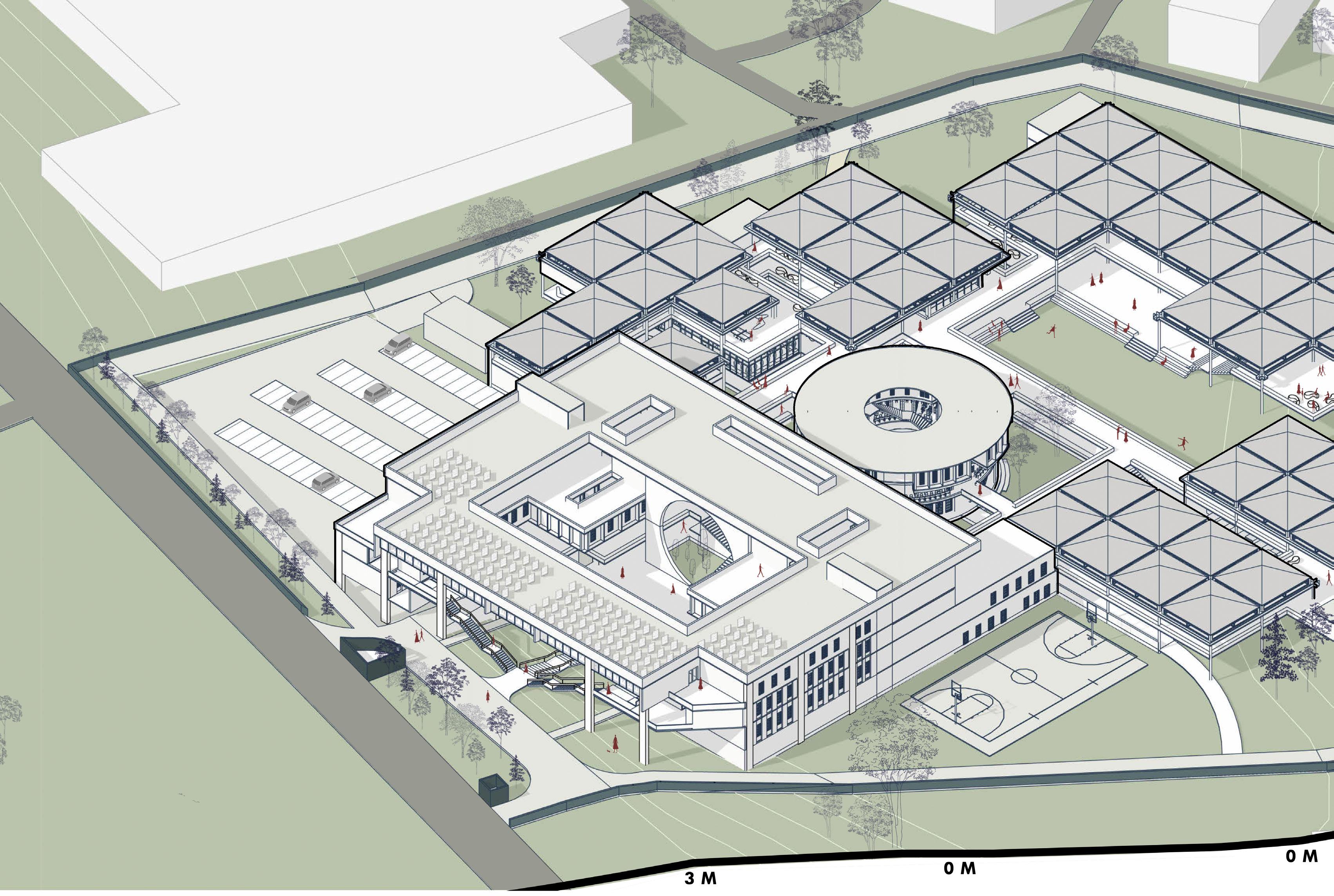

Goa Institute of Design
Creative Campus Environment through Architectural Design
Scale : 9.9 Acres | Goa, India
Xth Semester | Architectural Design Thesis | 2024
‘A Multi-Disiciplinary Design Institution where Architectural Design facilitates Creativity among users.’
Thesis proposal based on the understandings of various Researches on Architectural Design and Creativity. Qualitative Surveys. Interviews. Human Behavior Observation.
Context:
Tropical Monsoon Climate
Ground Coverage- 33%
F.A.R / F.S.I- 1.0/100%
Height Restriction- 15m
Program:
Total Users - 485
Departments:-
Architecture
Film & Video Comm.
Fine Arts
Fashion Design
Graphic Design
Furniture Design
Planning Encounters
Studios
Studios
Studios

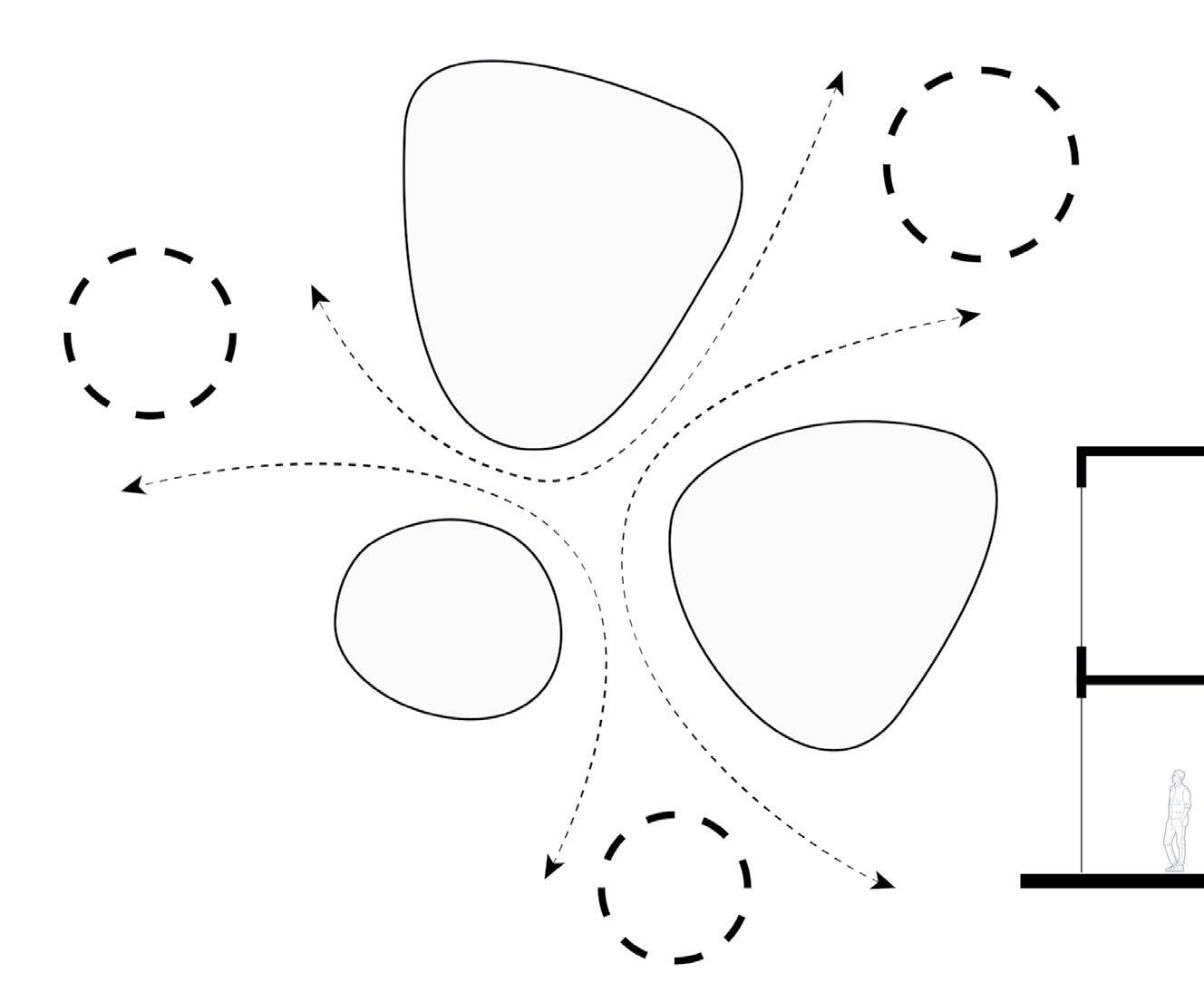

Using Anchors, (Water Fountain, Toilets, Workshops) to Overlap Cirulation between Different Disciplines.
Breaking The Ice

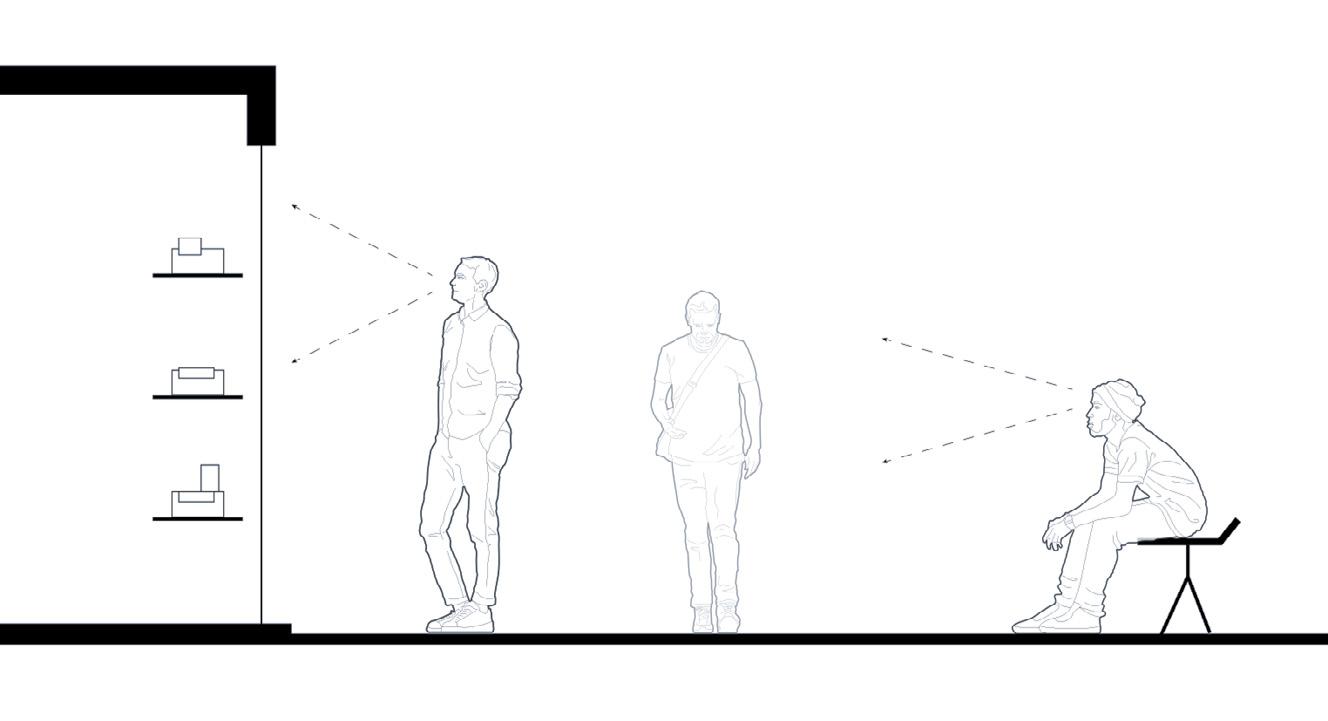

Display of Work in Circulation areas integrated with seating and Glass walls to Enrich Encounters.
Enriching Encounters

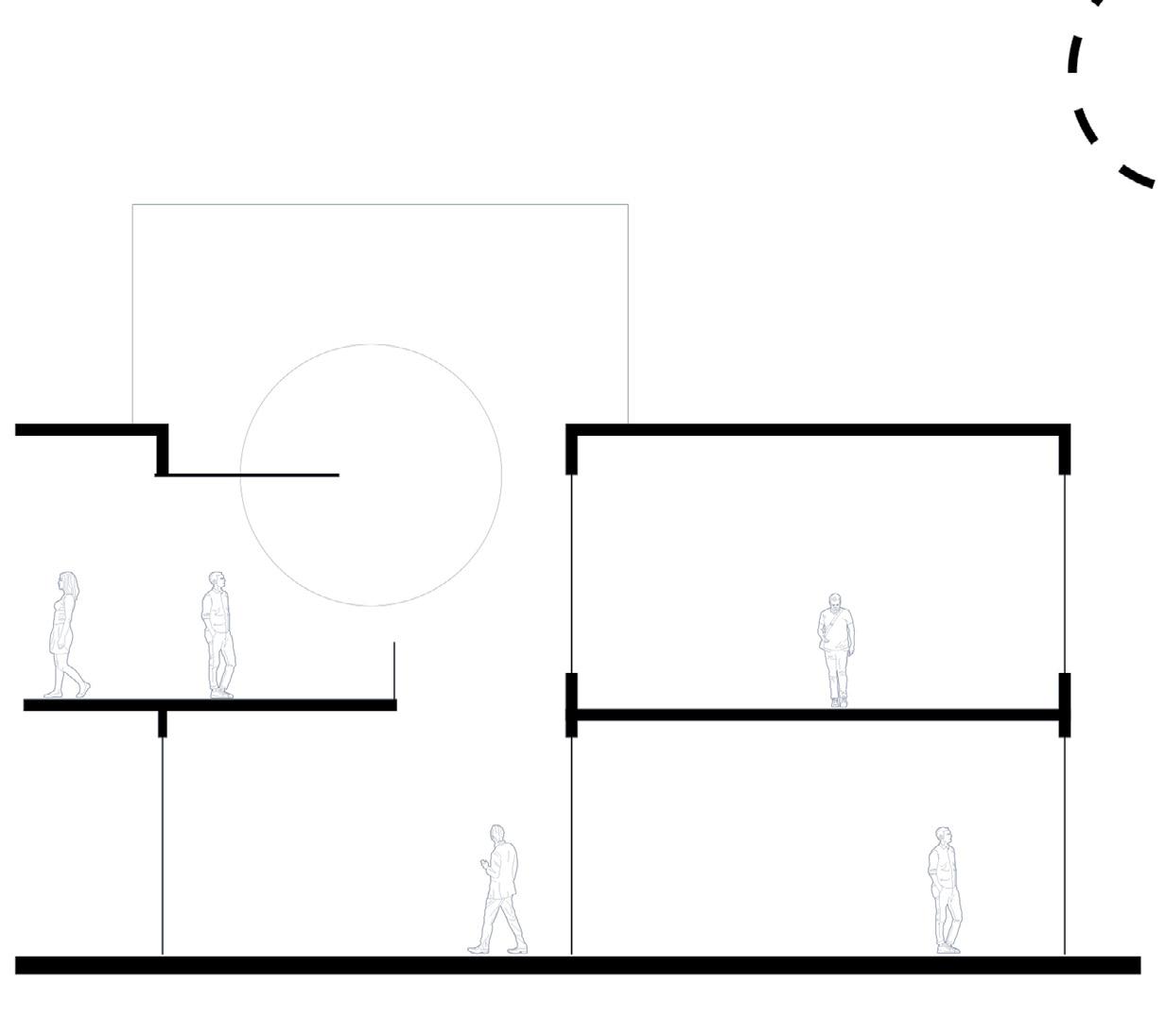

Preserving Human Scale
Circulation & Semiopen Areas on Upper Level. Large Voids to break Mass.
Adaptable Studios
Flexible Layouts| Open Floor Plan | Multifunctional Studios
Circulation areas designed to be Collaborative with Glass walls | Introverted Spaces for Personal Retreat.
Anchor
Anchor
Anchor

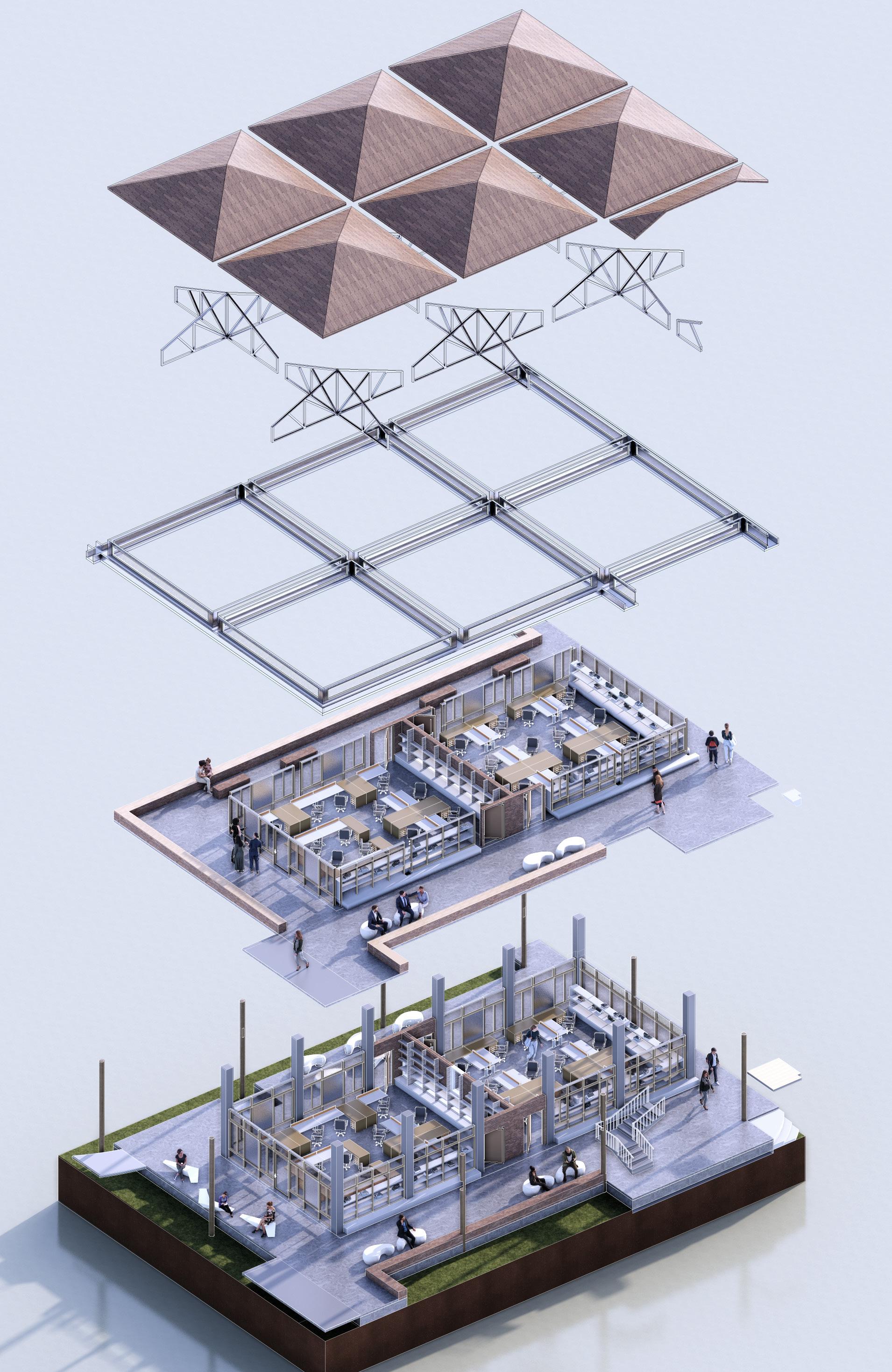

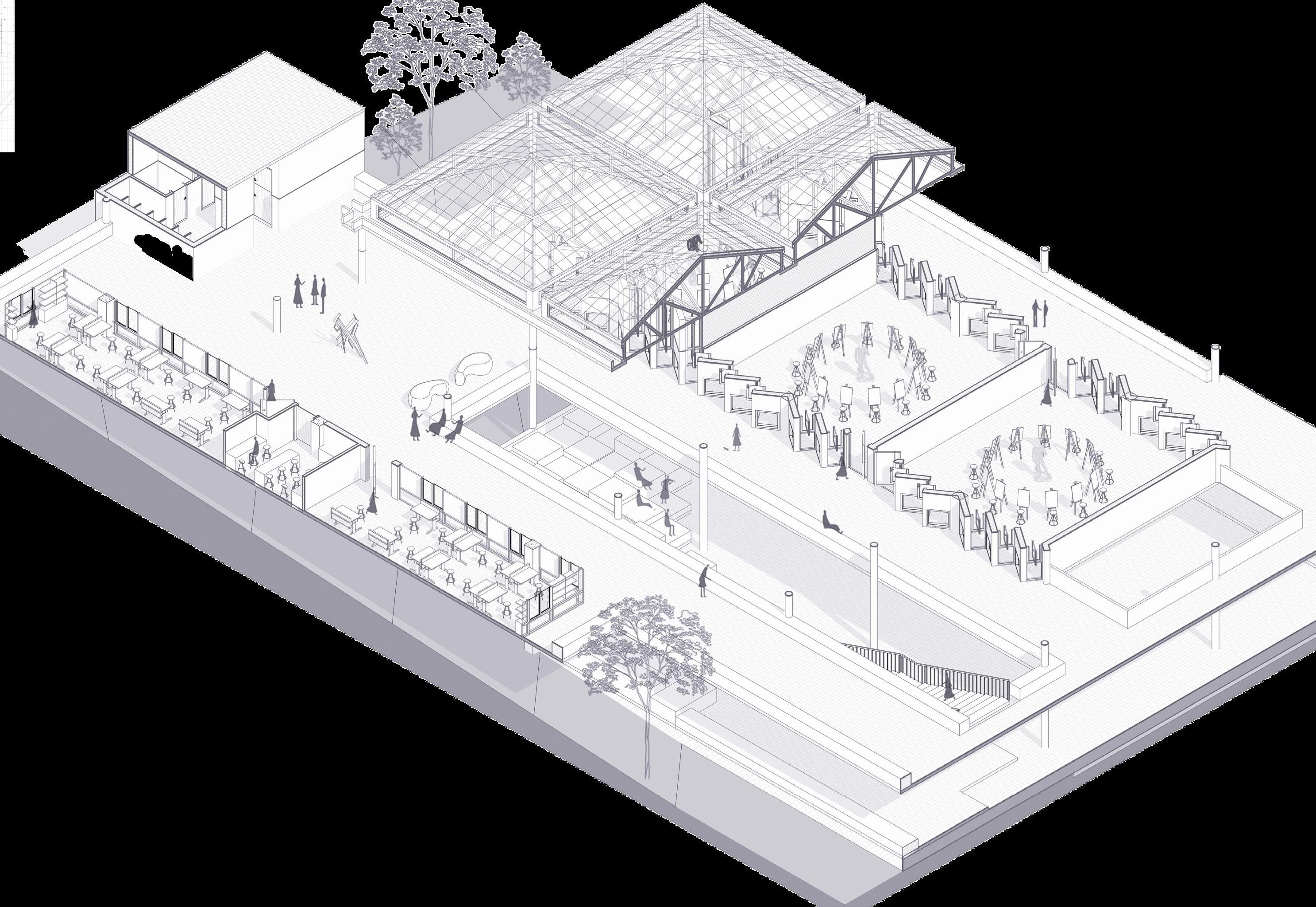

Modular Studio Design| Ciculation Around with Anchors
Identifying Potential Exhibition Planes

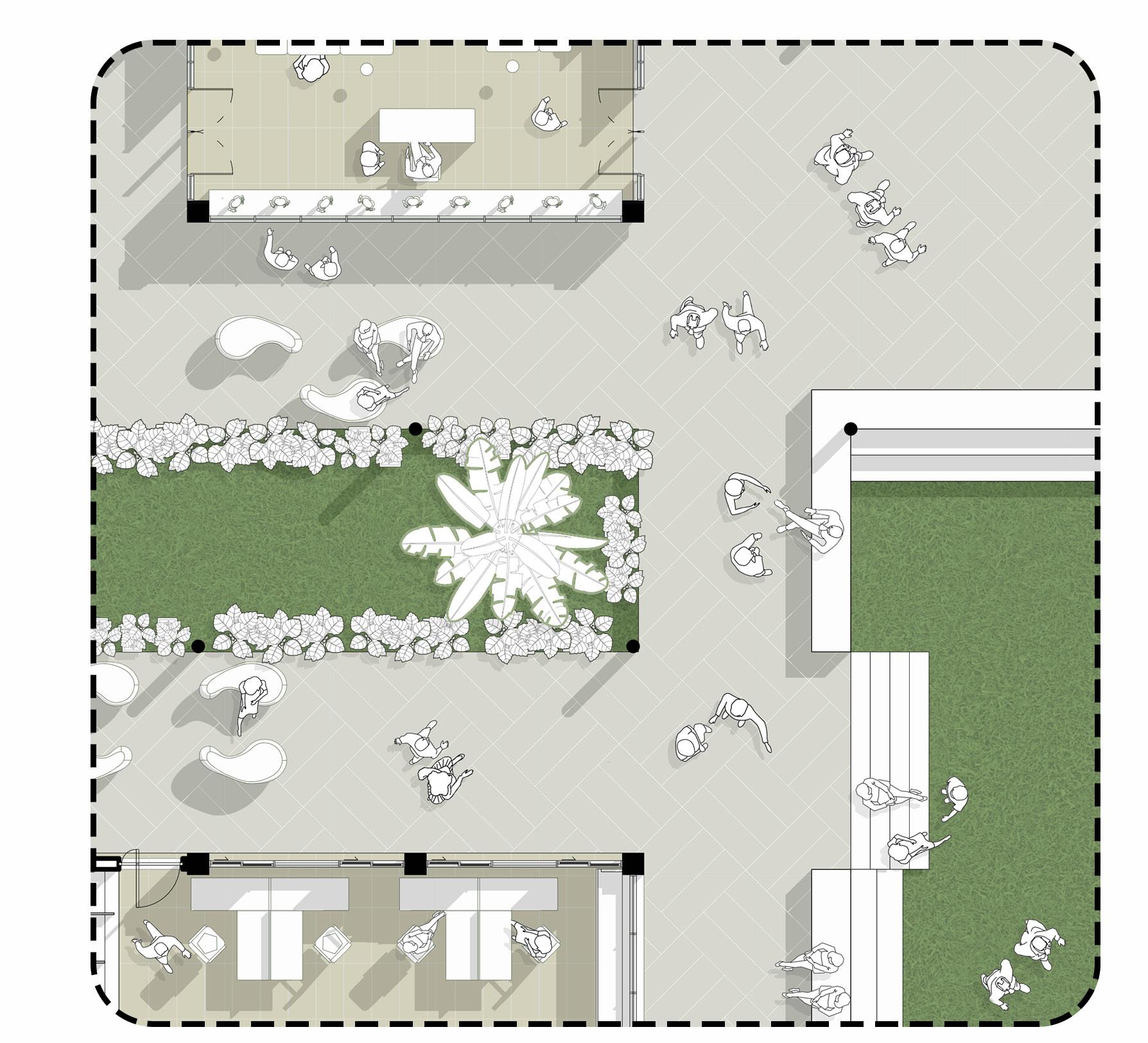

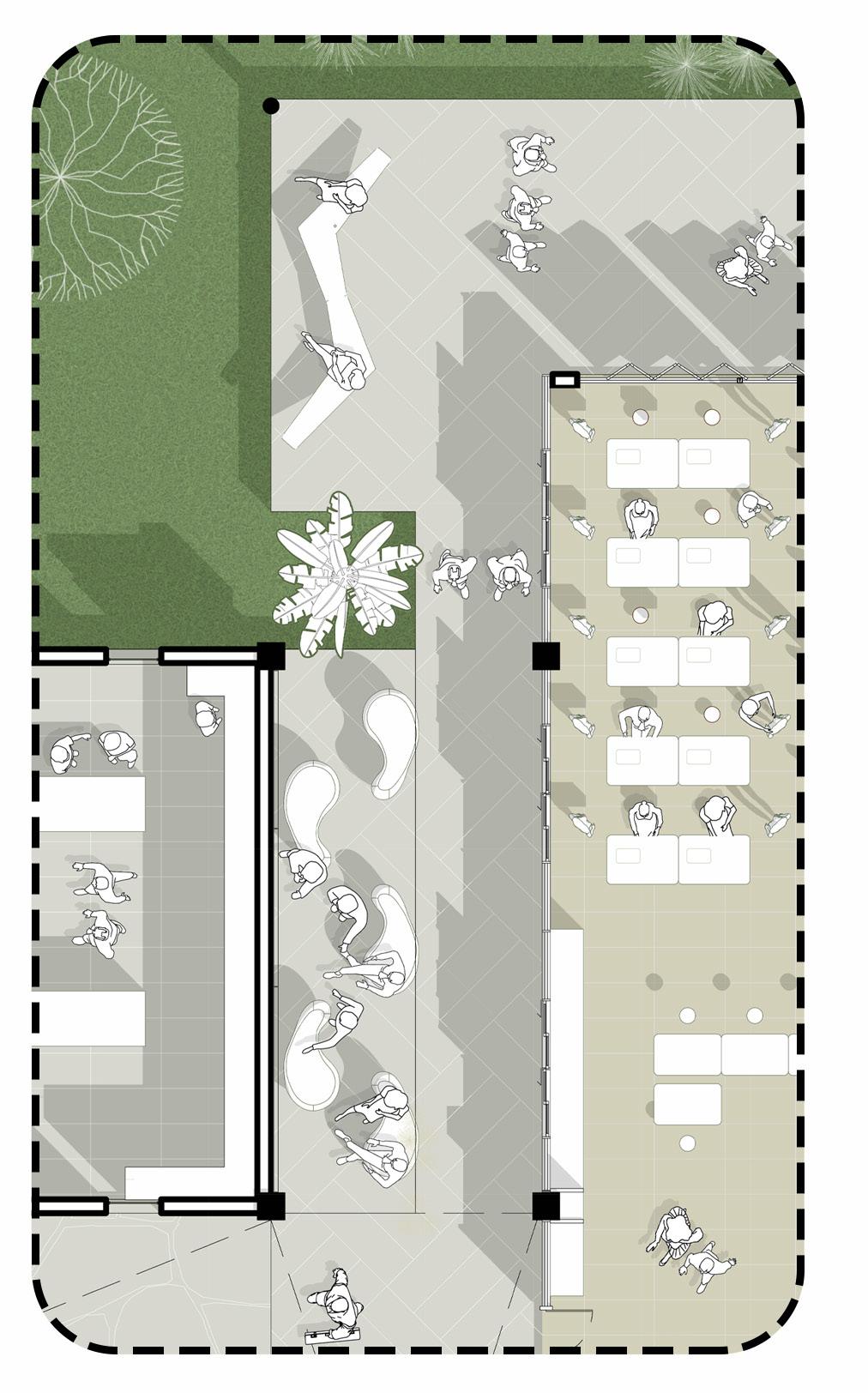

Designing Impromtu Collaborative Spaces
Introverted Personal Spaces towards Open Areas.
Minimizing South-West Sun Exposure, with Verandahs around studios for Windflow.
Maximizing Circulation on Upper Level &

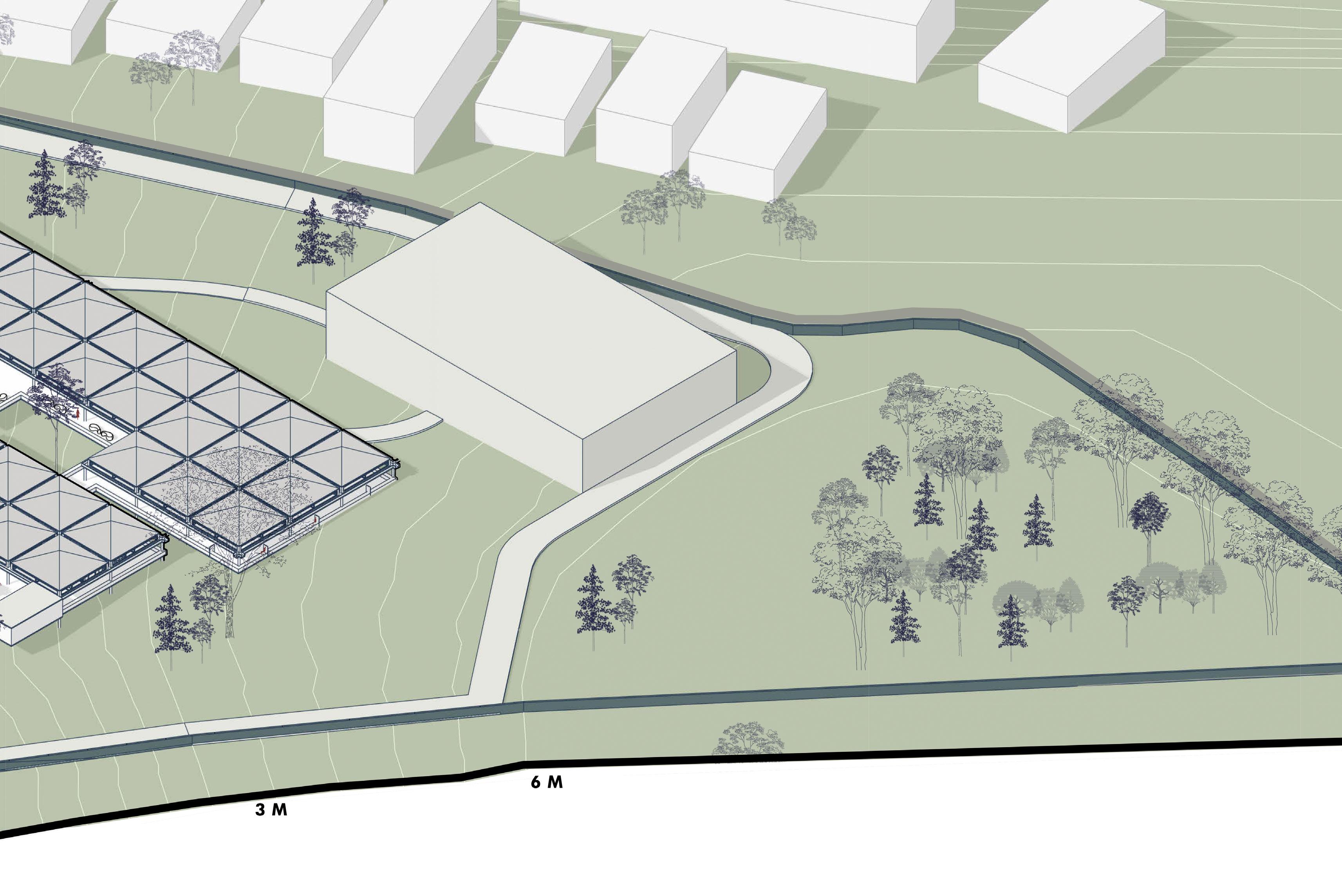

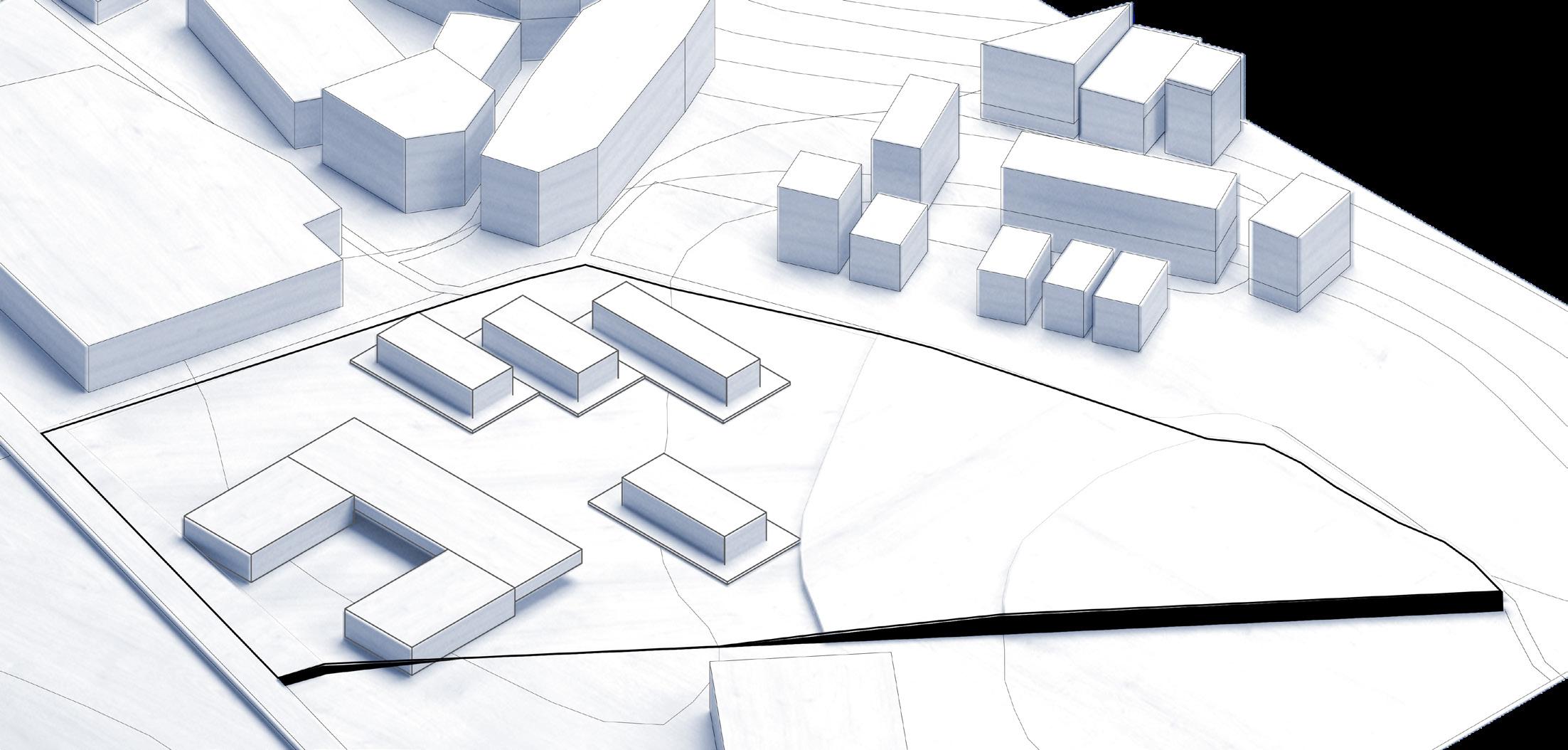

Forming Central Courtyard. Adapting to existing Landform. Adding ‘Parasol’ to Academic block . Central Library.
Residential Zone
Studio spaces
Courtyard
6. Hostel Block
Parking
Future expansion

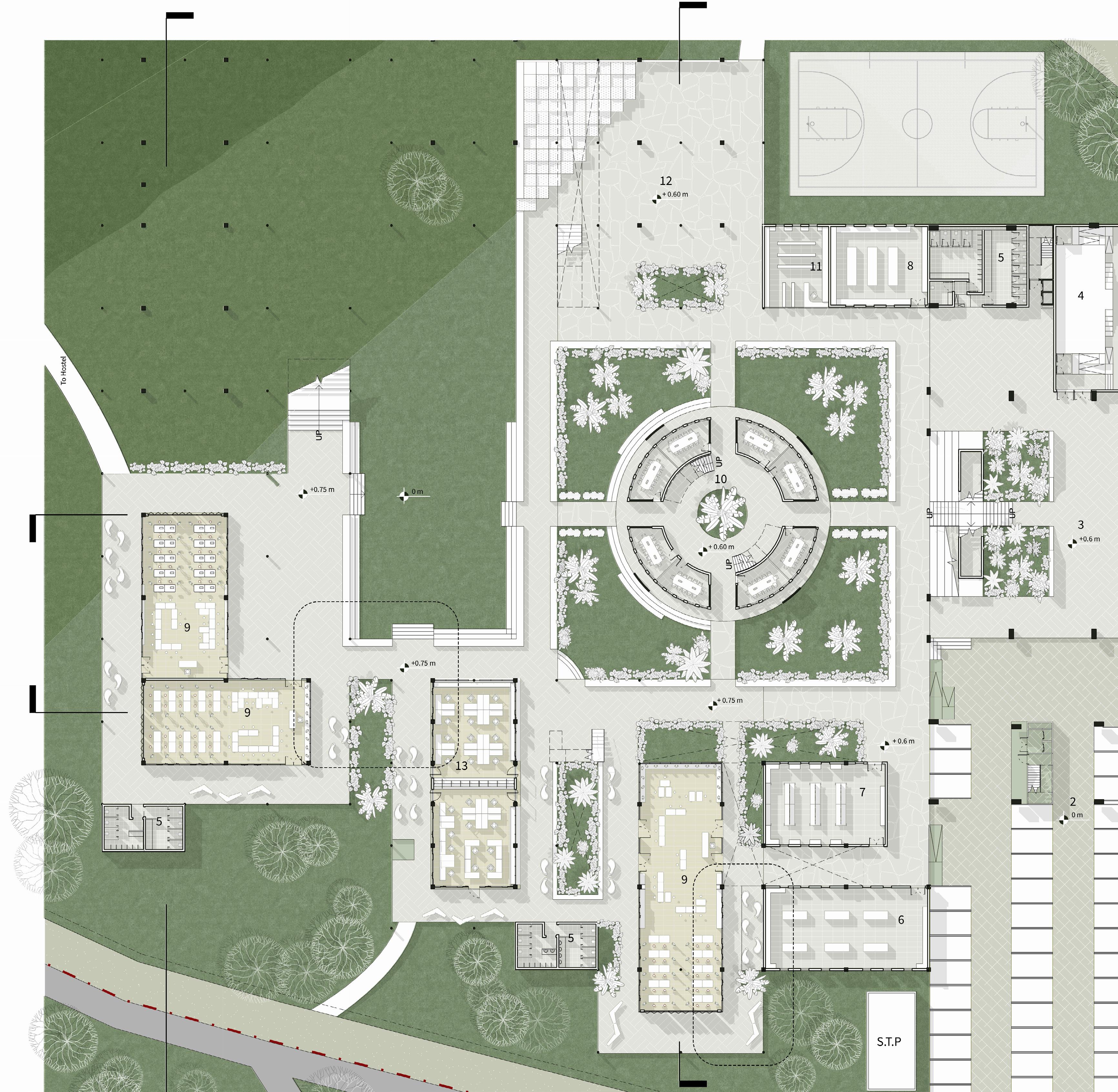

1. Drop off | 2. Parking | 3. Plaza | 4. Auditorium | 5. Toilets | 6. Metal Works Lab | 7. Wood Work Lab | 8. Textile Lab | 9. Fashion Design Studio

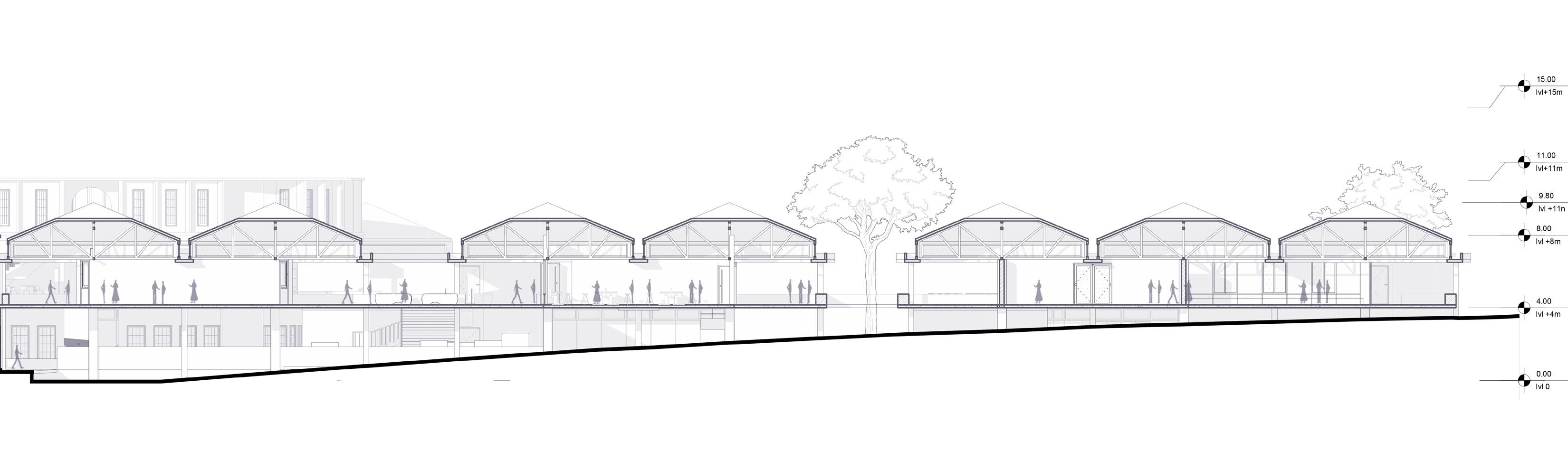

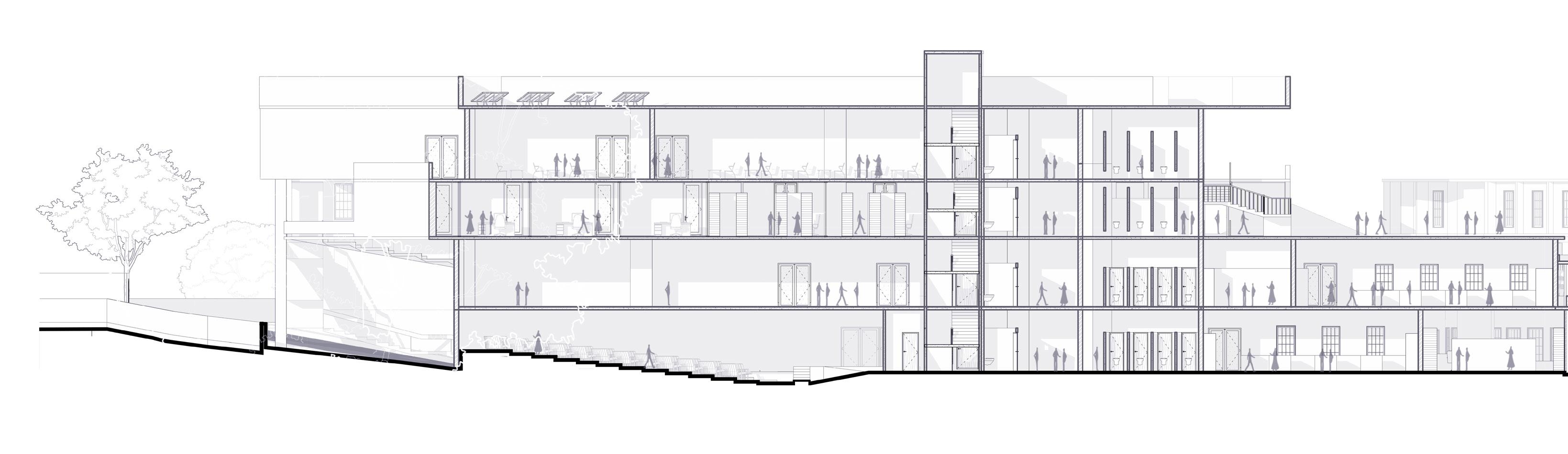

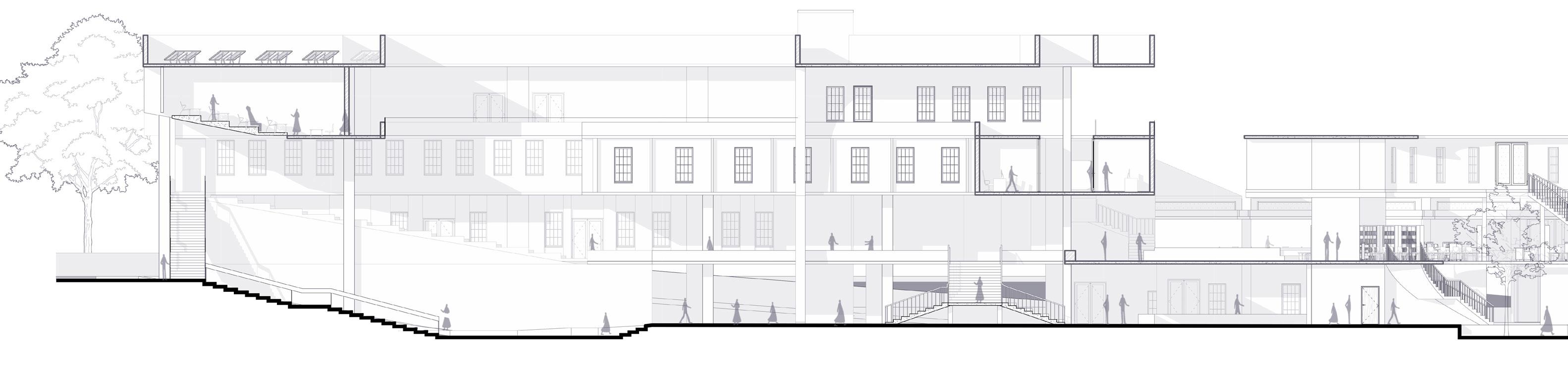

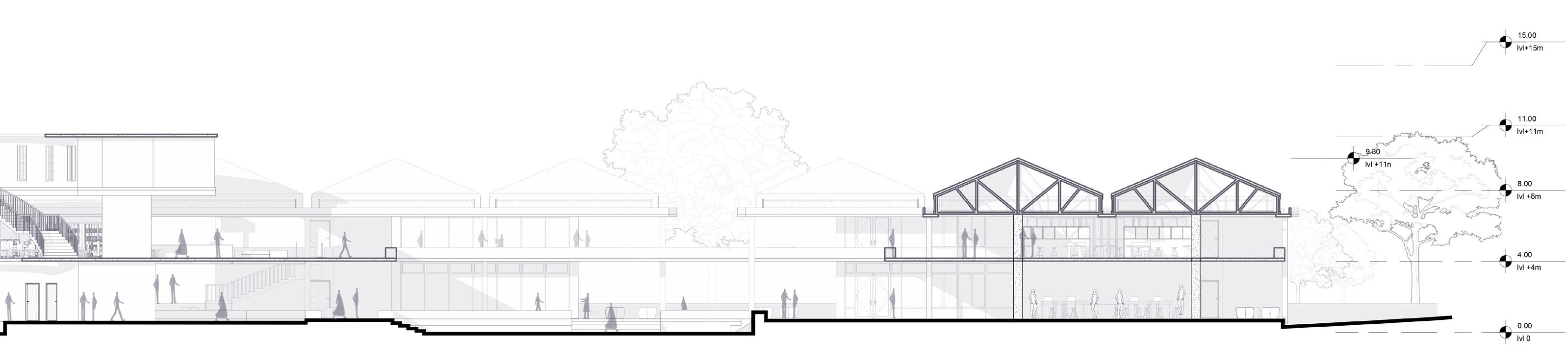

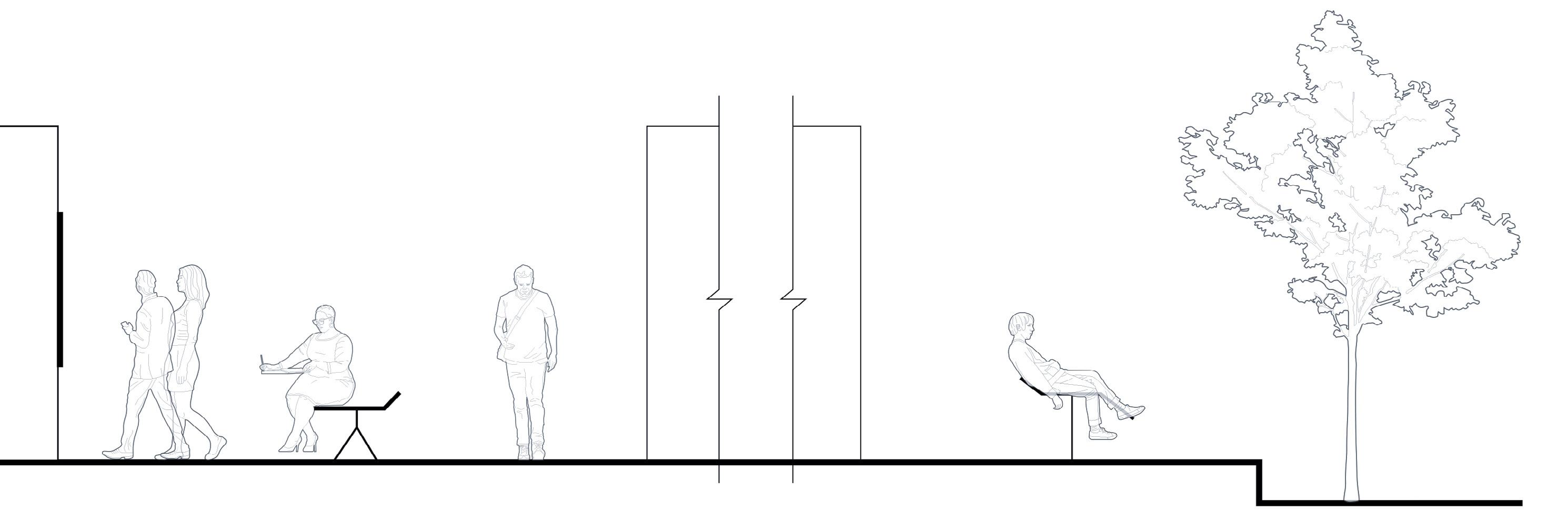

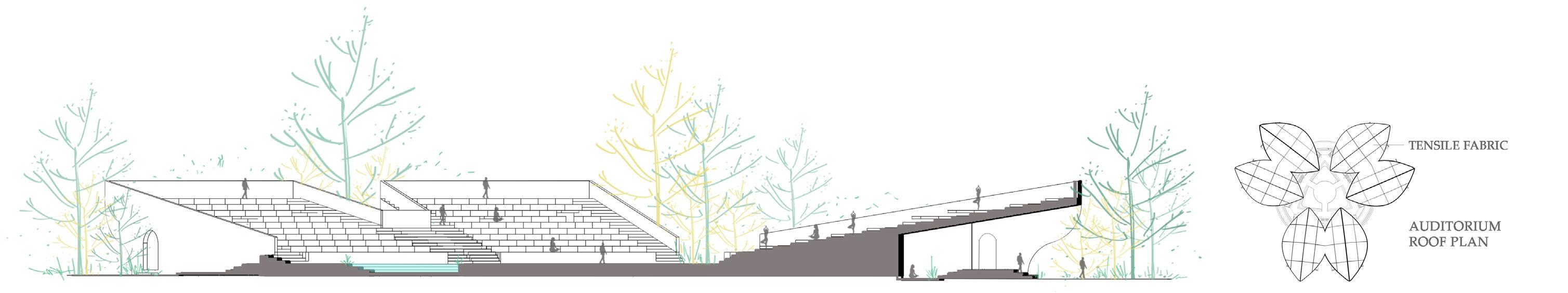

Section : Adaptation to Existing Landform
Study Chambers
Meeting Room
Reading Area
Monumental
Computer Lab

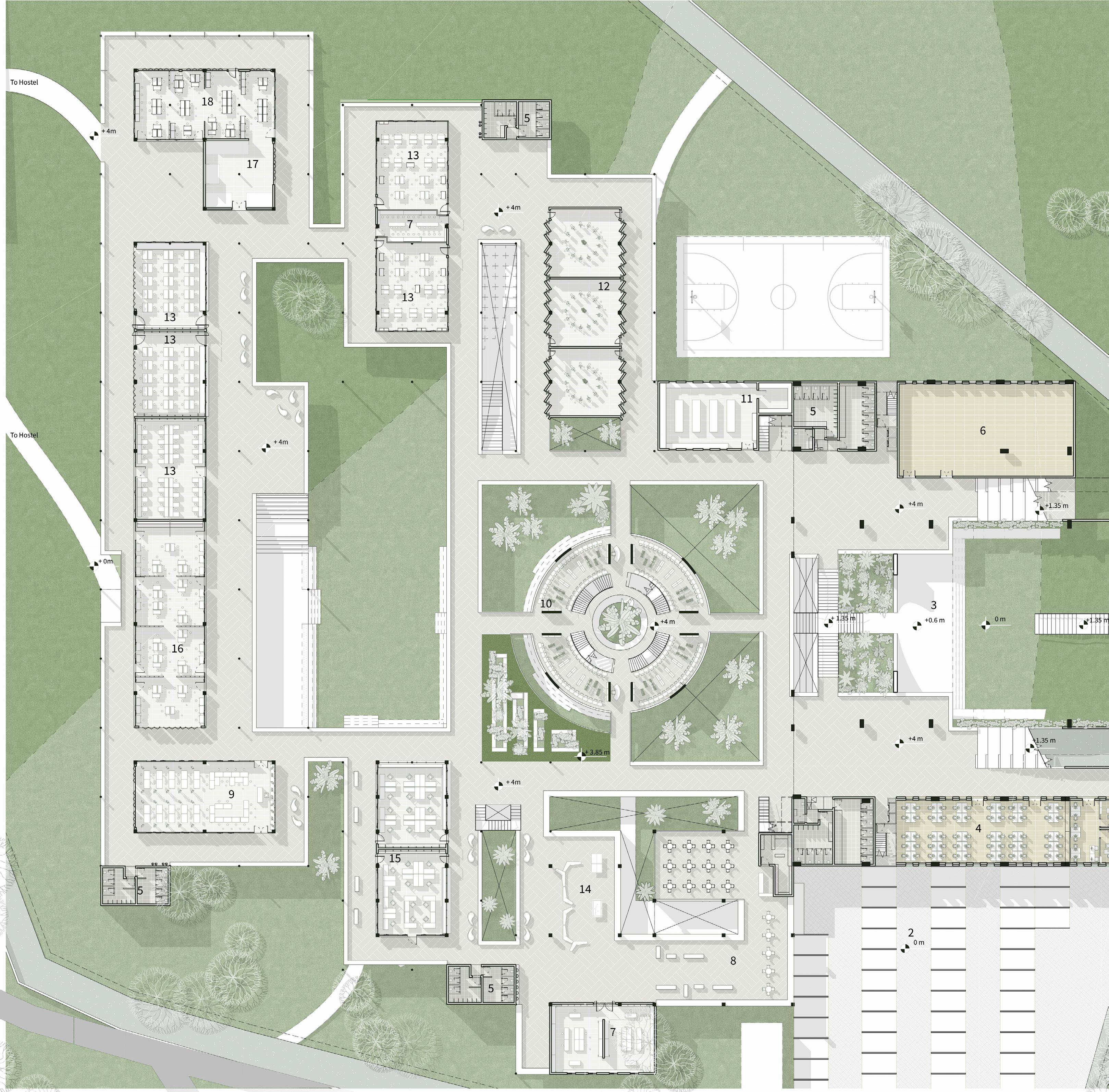

1. Drop off | 3. Plaza | 4. Admin Dept. | 6. Exhibition Hall | 7. Workshop | 8. Cafeteria | 9. Fashion Design Studio | 11. Material Lab | 12. Architecture Studio |14. Play Area | 15. Furniture Design Studio | 16. Graphic Design Studio | 17. Indoor Shoot Set | 18. Film & Video Communication
Fine Arts Studio | 13. Communication Studio

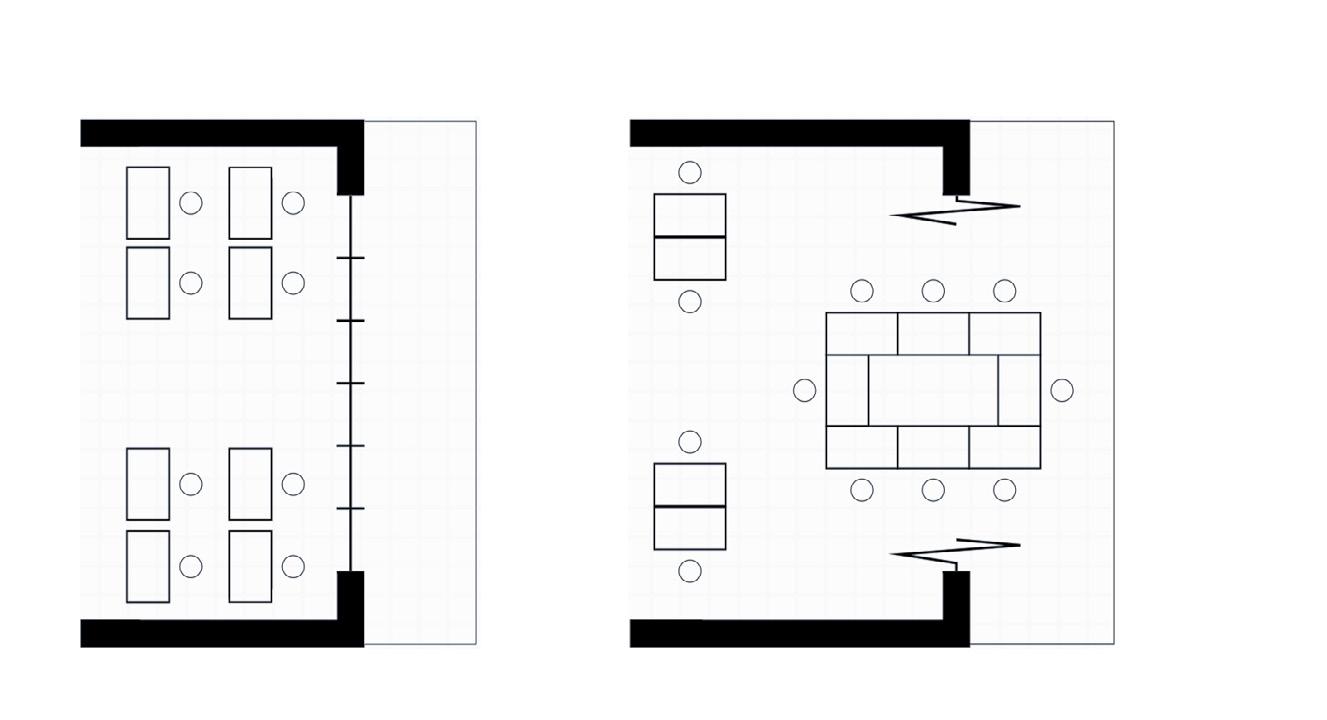

Introverted Seating
Displayed Storage
Collaborative Seating

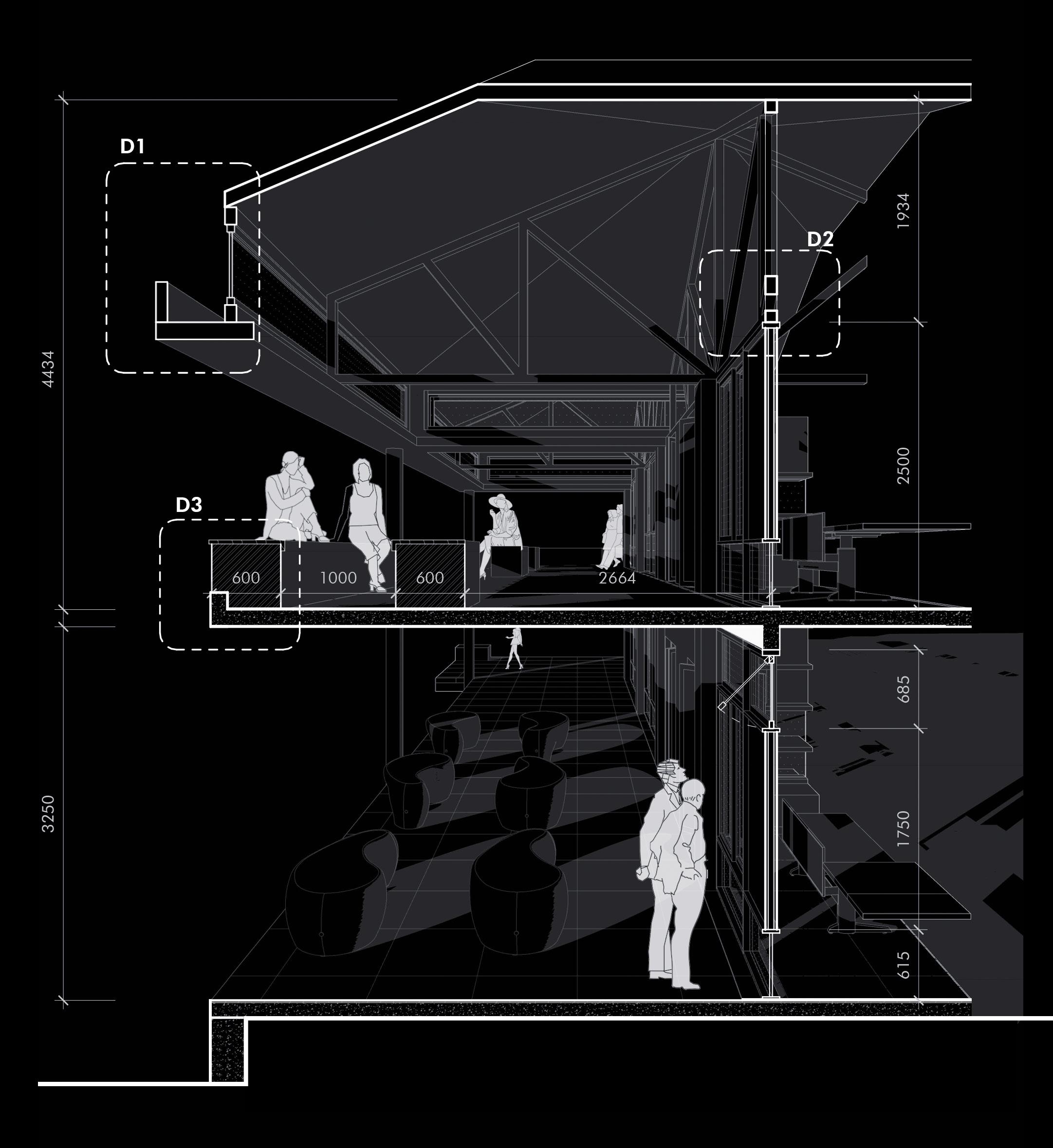

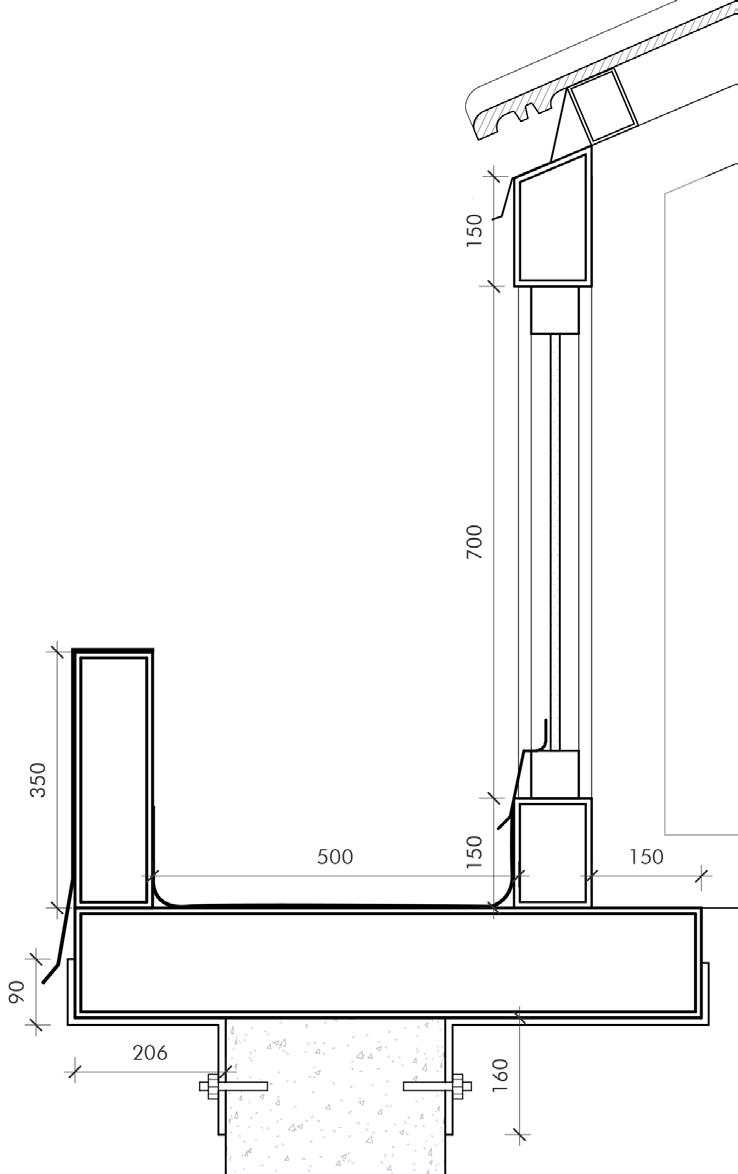

Glazed Terracotta (Clay) Tiles roofing.
Painted M.S Box Pipe King Post Truss
Painted M.S Beam Network with Fixed Windows
Parapet brick wall Seating with Wood Cladding
Timber Curtain Wall with Sliding windows and Dry Erase Boards
405 x 254 x 25 mm
M.S Rafters
75 x 60 x 4 mm
Metal Flashing
M.S Window Lintel (T= 6 mm)
M.S Box Section (T = 6 mm)
M.S King Post Truss (T = 6 mm)
M.S Nut and Bolt (T = 4 mm)
Plate (T= 4 mm)
D1
D2
D3
Glazed Terracotta Tiles
M.S
Aluminium Glazing fixed
Timber planks matt fin. (T = 35 mm)
M.S Box Section (T= 6 mm)
Brick Cladding (T = 18 mm)
M.S Nut and Bolt (T = 4 mm)
P.C.C bed (T= 11 mm)
R.C.C Cast-In-Place Column Ø 150 mm
Kota stone flooring tiles 600 x 300 mm (T= 24 mm)
R.C.C Cast-In-Place Slab (T= 115 mm)
R.C.C Cast-In-Place Column 300 x 300mm
Bending M.S Steel Plate (T= 6 mm)
Exterior wall plaster (T= 6 mm)
Exibition Space for Murals,etc
Work Display & Storage
Shaded Amphitheatre / Recreational Area
Angular Walls Maximizing Surface area for Art Display
Longitudinal

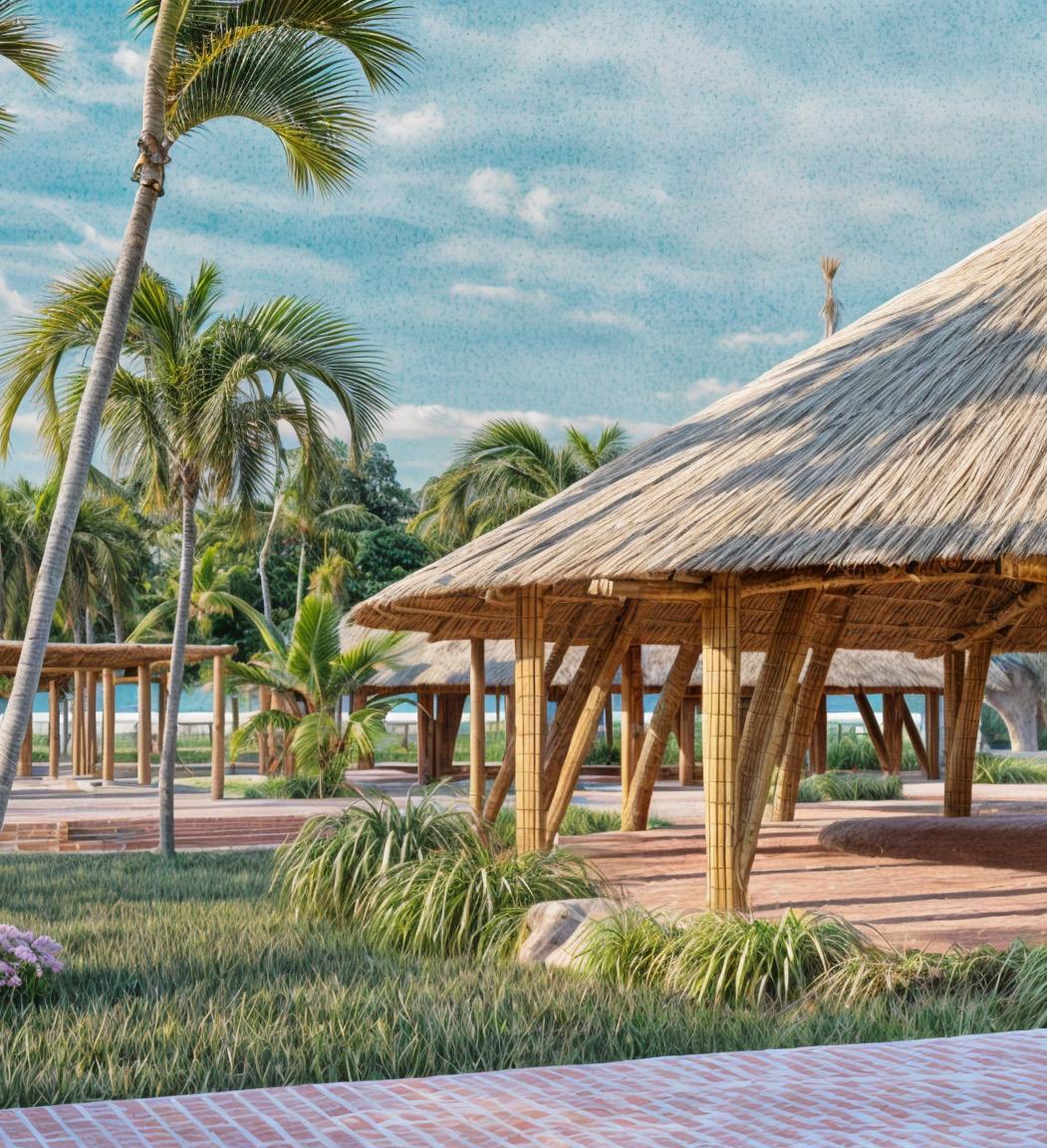

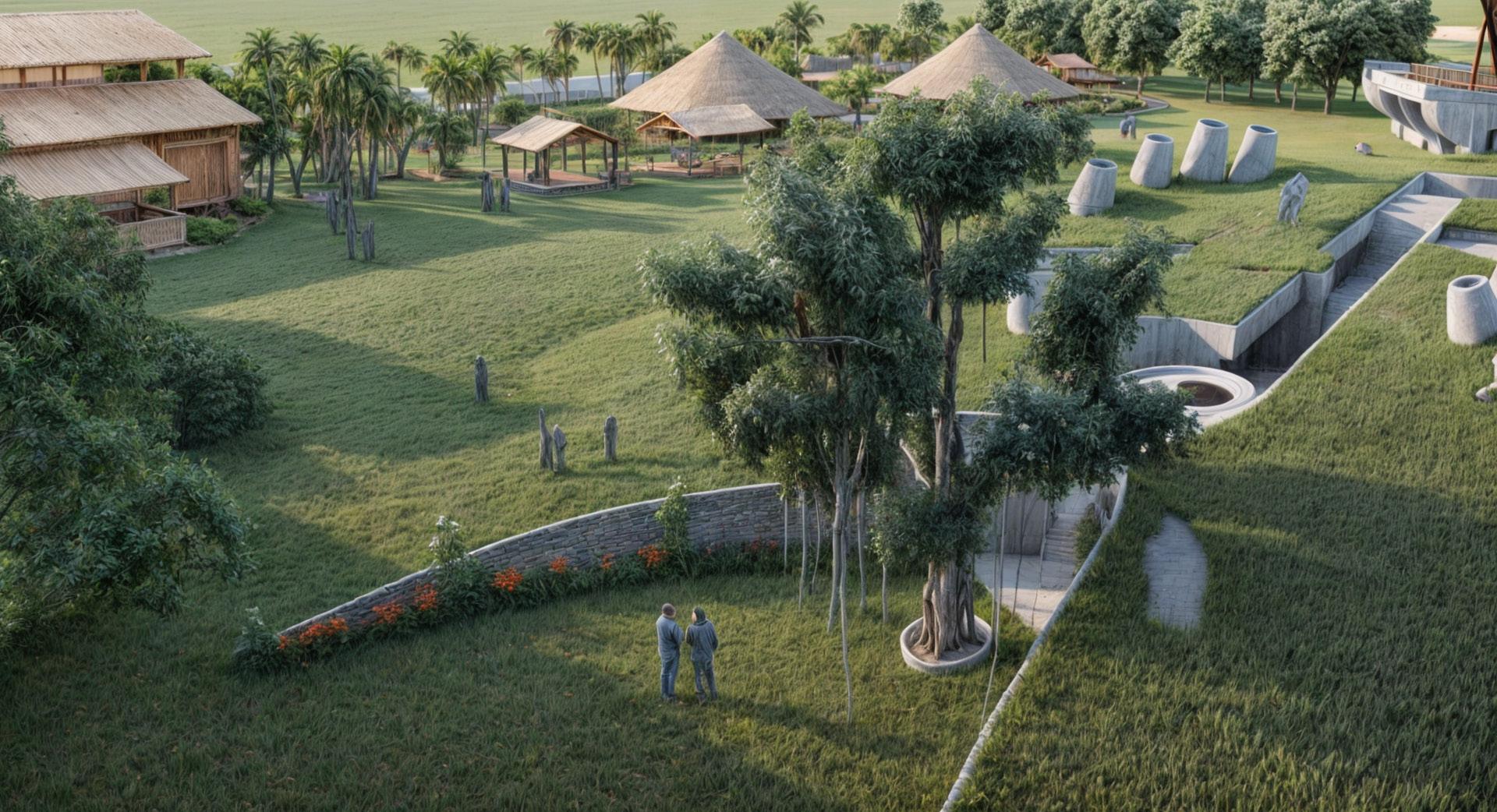

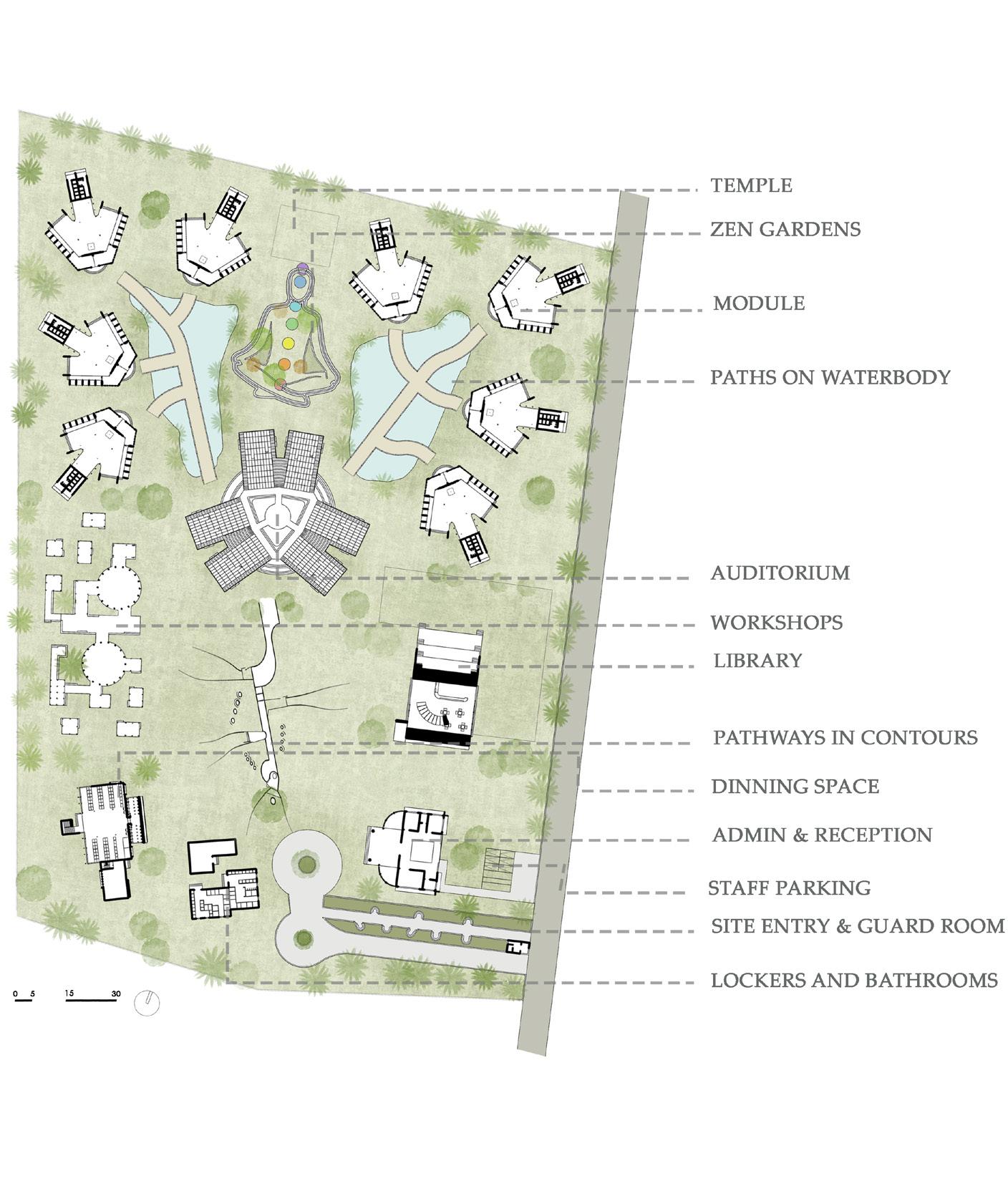

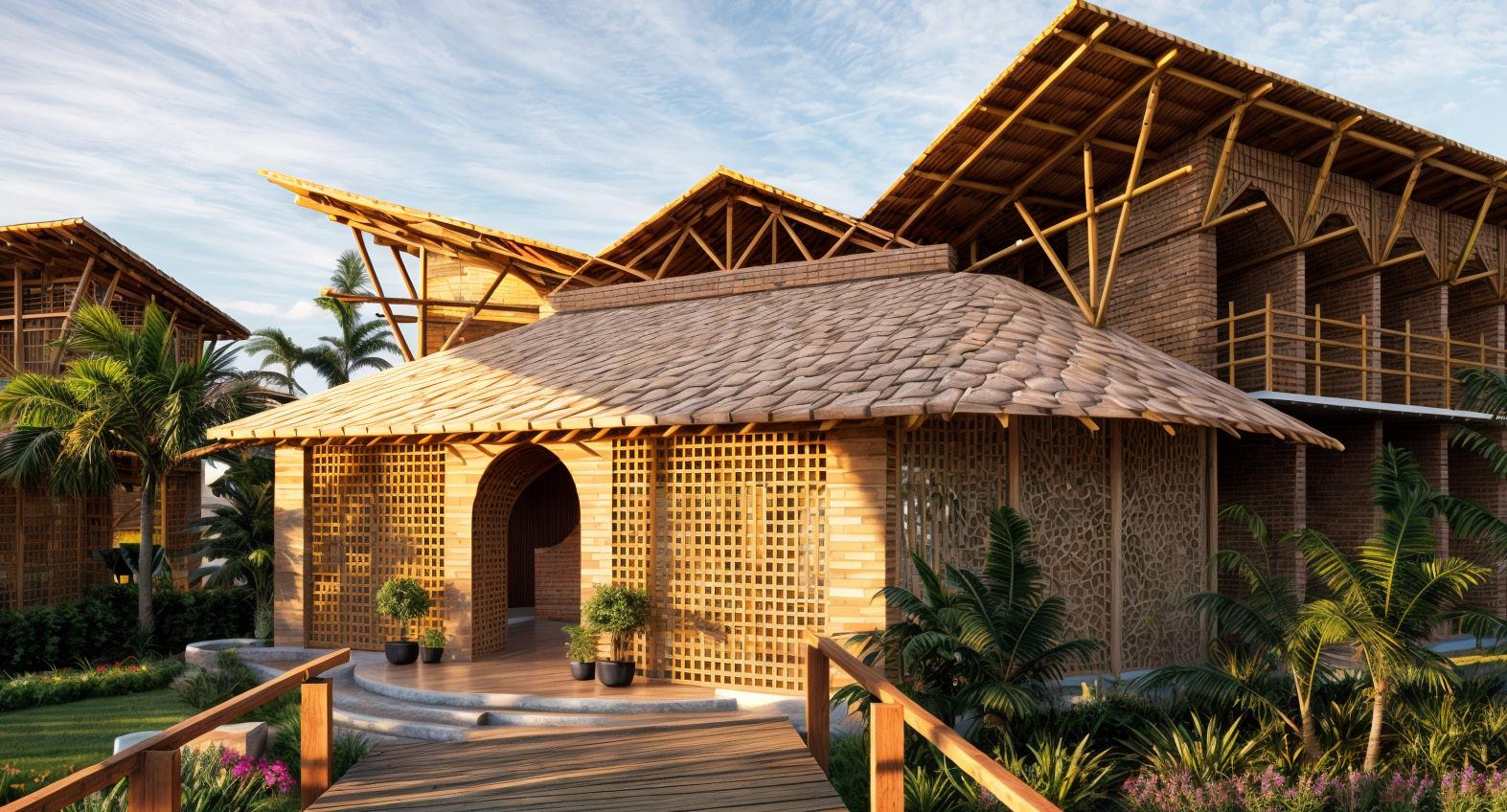

MasterPeace
Alappuzha, Kerala, India
Archmello Competition, 2021 Honorable Mention
Team of 3
‘A Vernacular Retreat in Tropical Coastland for the Discovery of Self’
Work Contribution:
• Collaborative Design Development & Iterations
• Site Planning
• Modelling [Mounds, Amphitheatre, Workshop]
• Visualization of Project
Brief

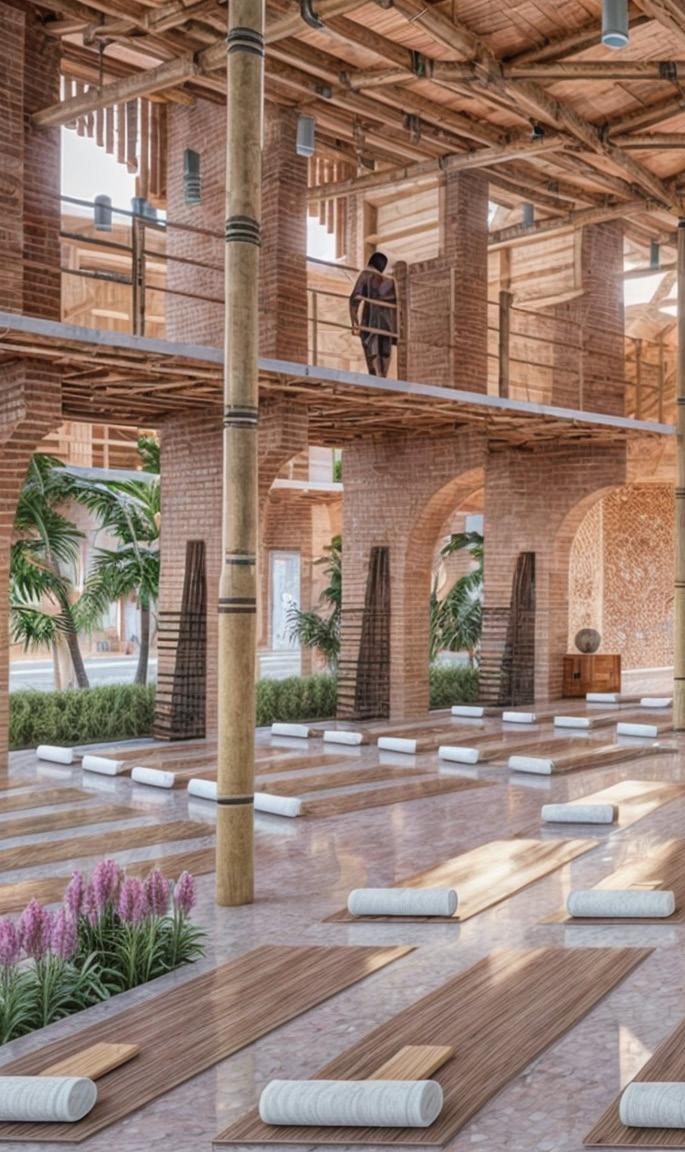

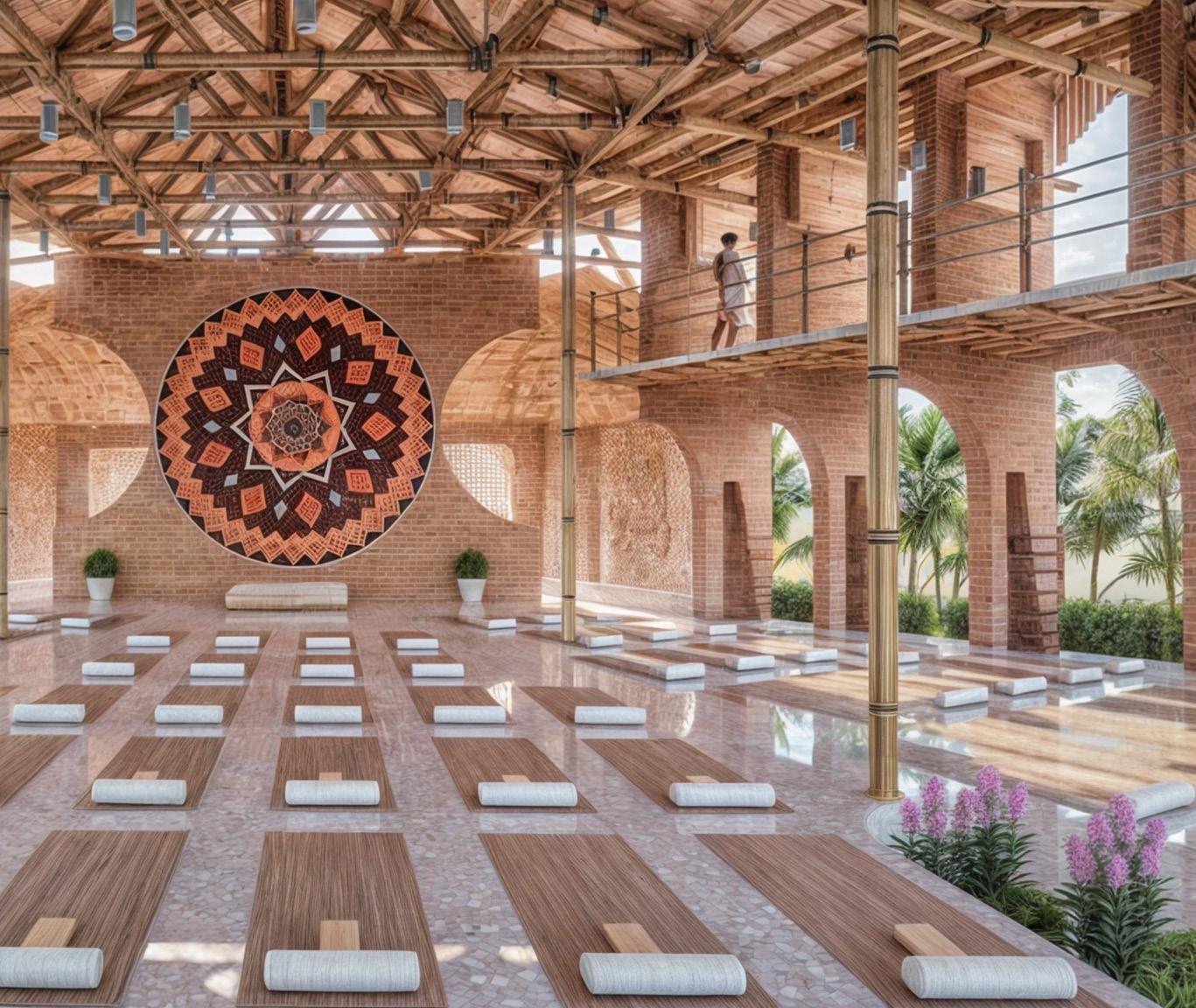

A Yoga & Meditation Center as a retreat.

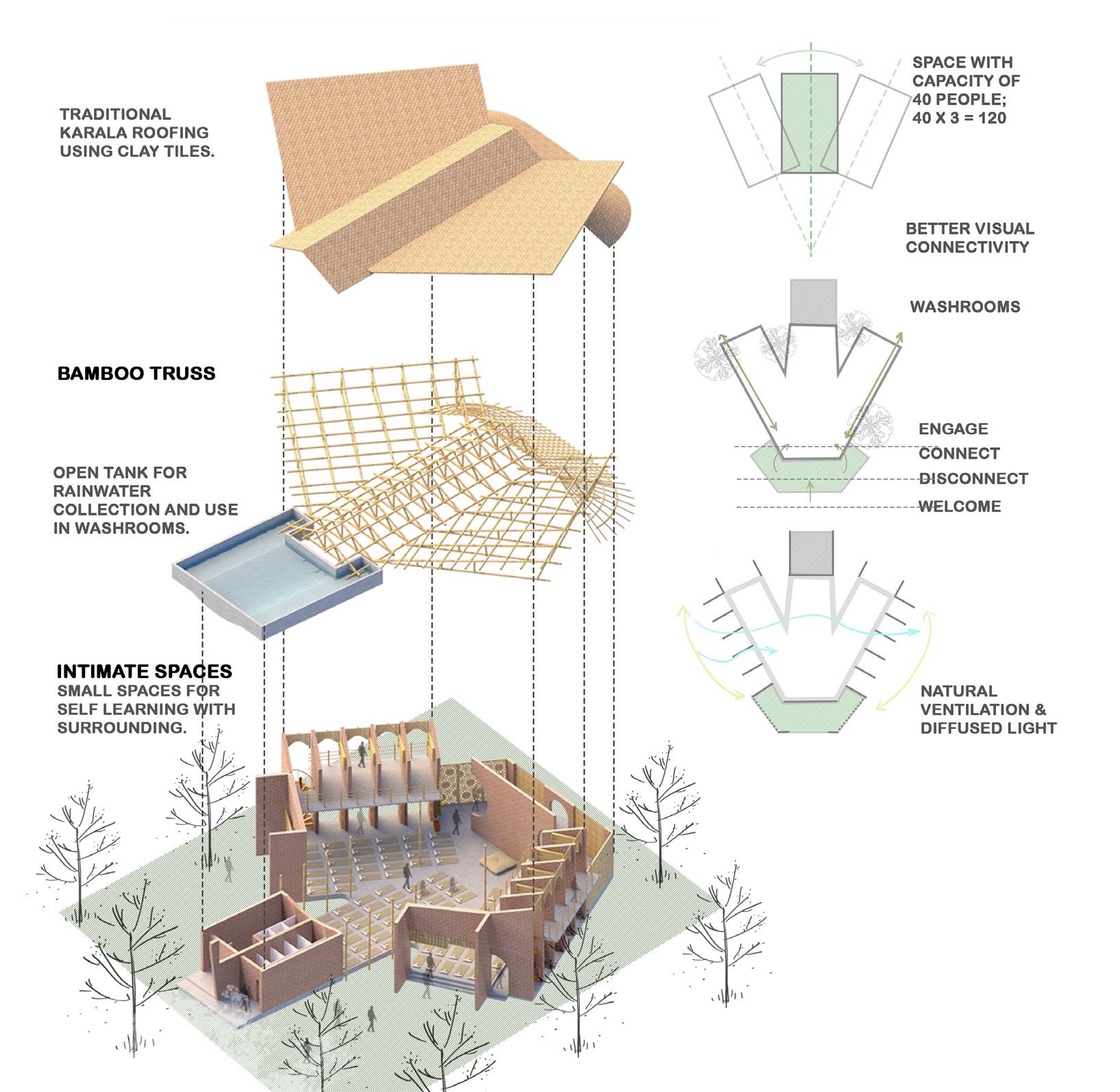

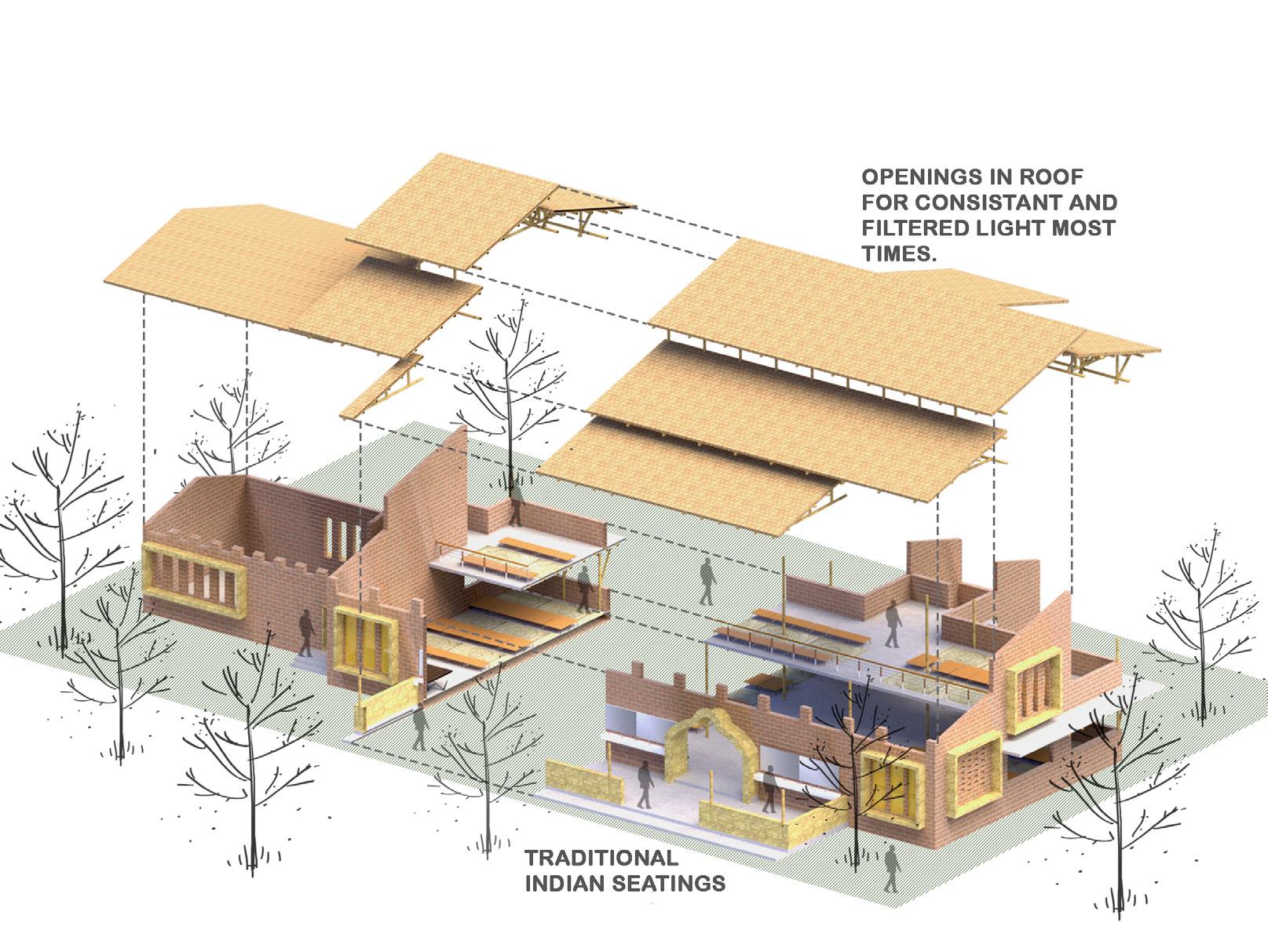

CONCEPT
The proposed design involved the aspects of connect, disconnect, way finding, diverse multifunctional spaces for one to lose track of day to day life & have a conversation with oneself on a spiritual level.
Natural elements with vernacular techniques used mainly.
Restaurant
Studio Juggernaut
Delhi, India
Practical Training Experience
6 months, 2022
Juggernaut is an international Architecture
+ Design firm born out of the combined practices of Harsh Vardhan Jain (Founded Harsh Vardhan Jain architects, 2013) Saurabh Jain (Founded Co.Lab Design, 2014) and Teppei Iizuka (Founded Humanscape Design Lab 2016), with their offices in New Delhi and Tokyo.
Key Learnings
• Design Conceptualization & Iterations
• Construction Documentation
• Project Execution
• Team Coordination

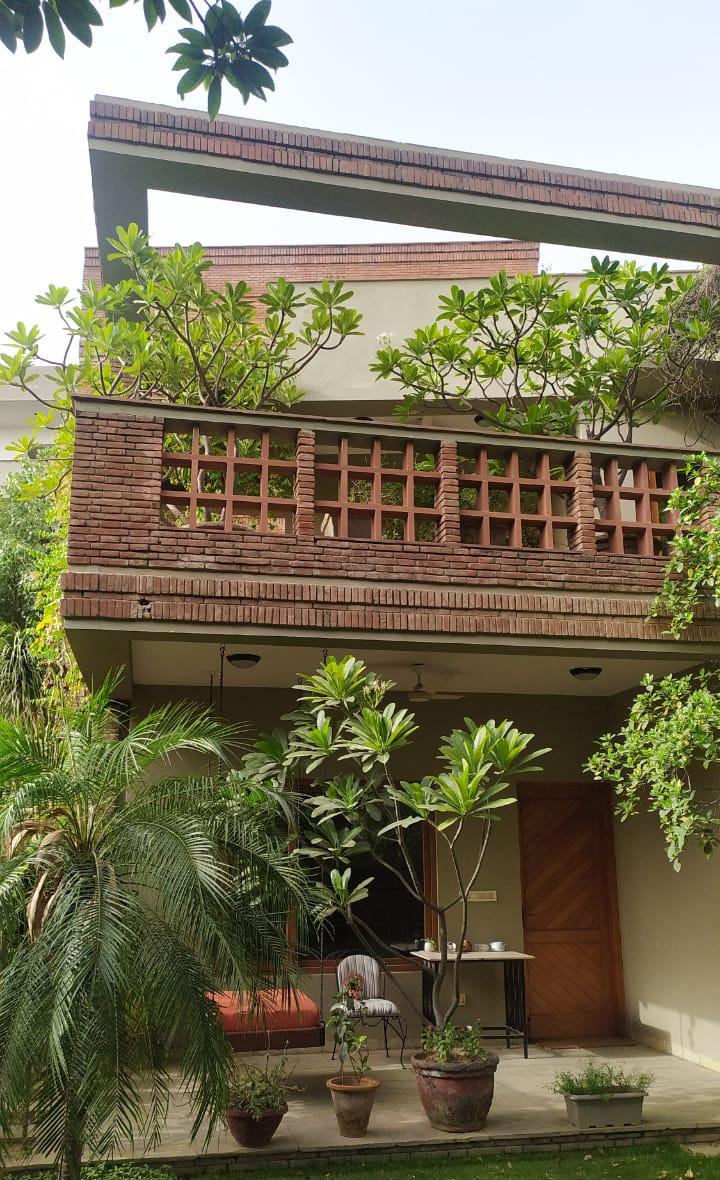

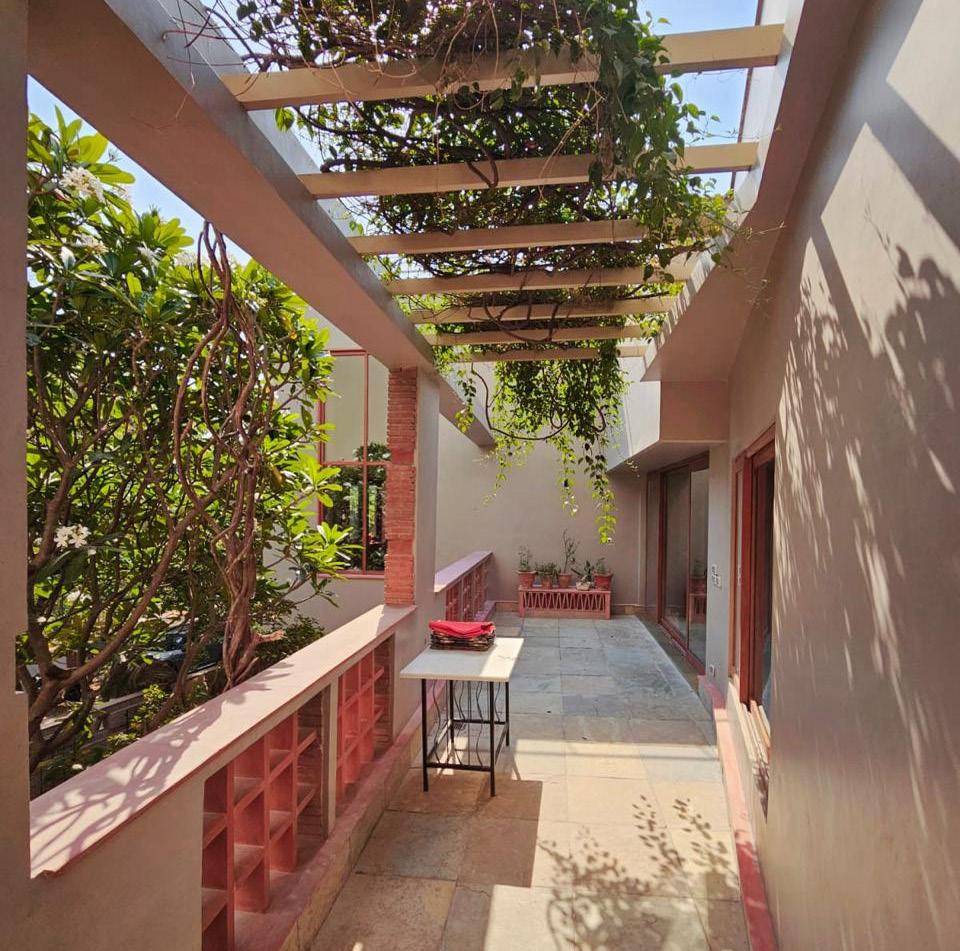

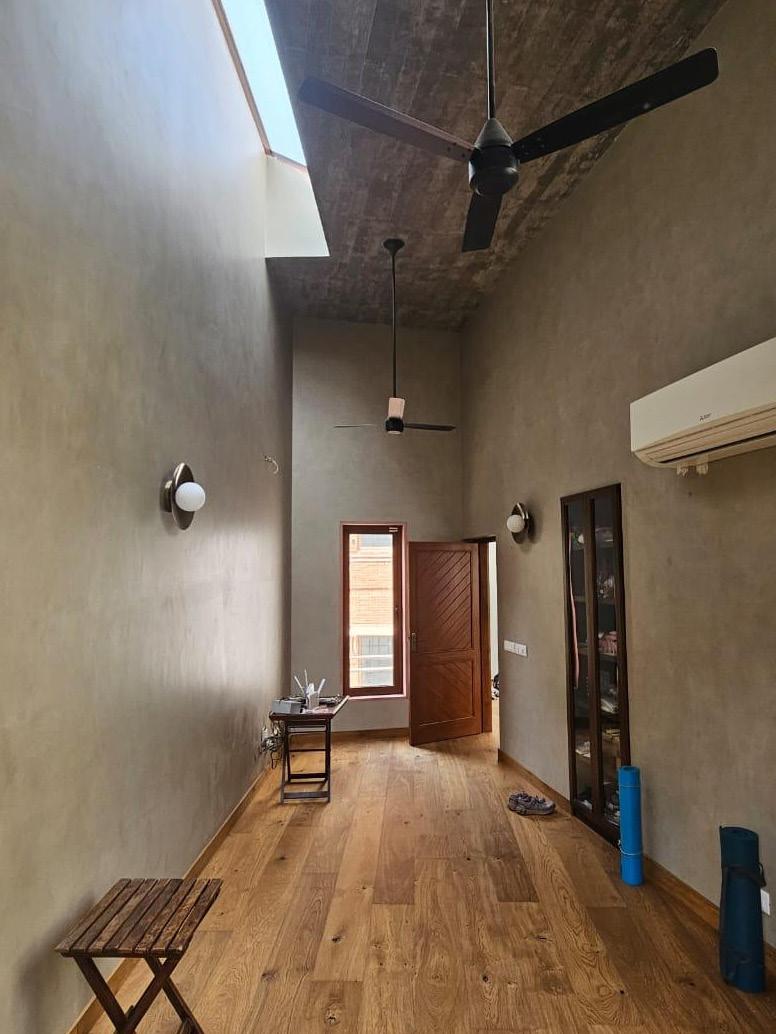

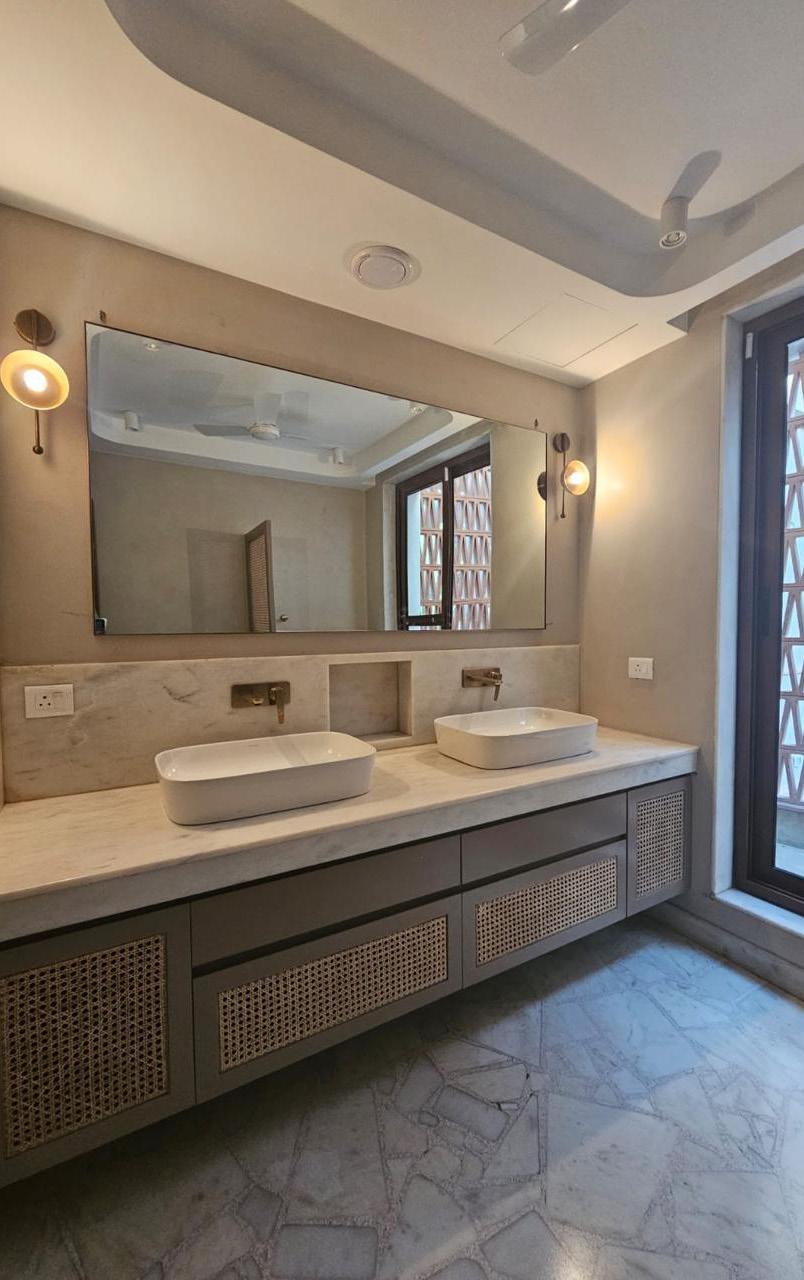

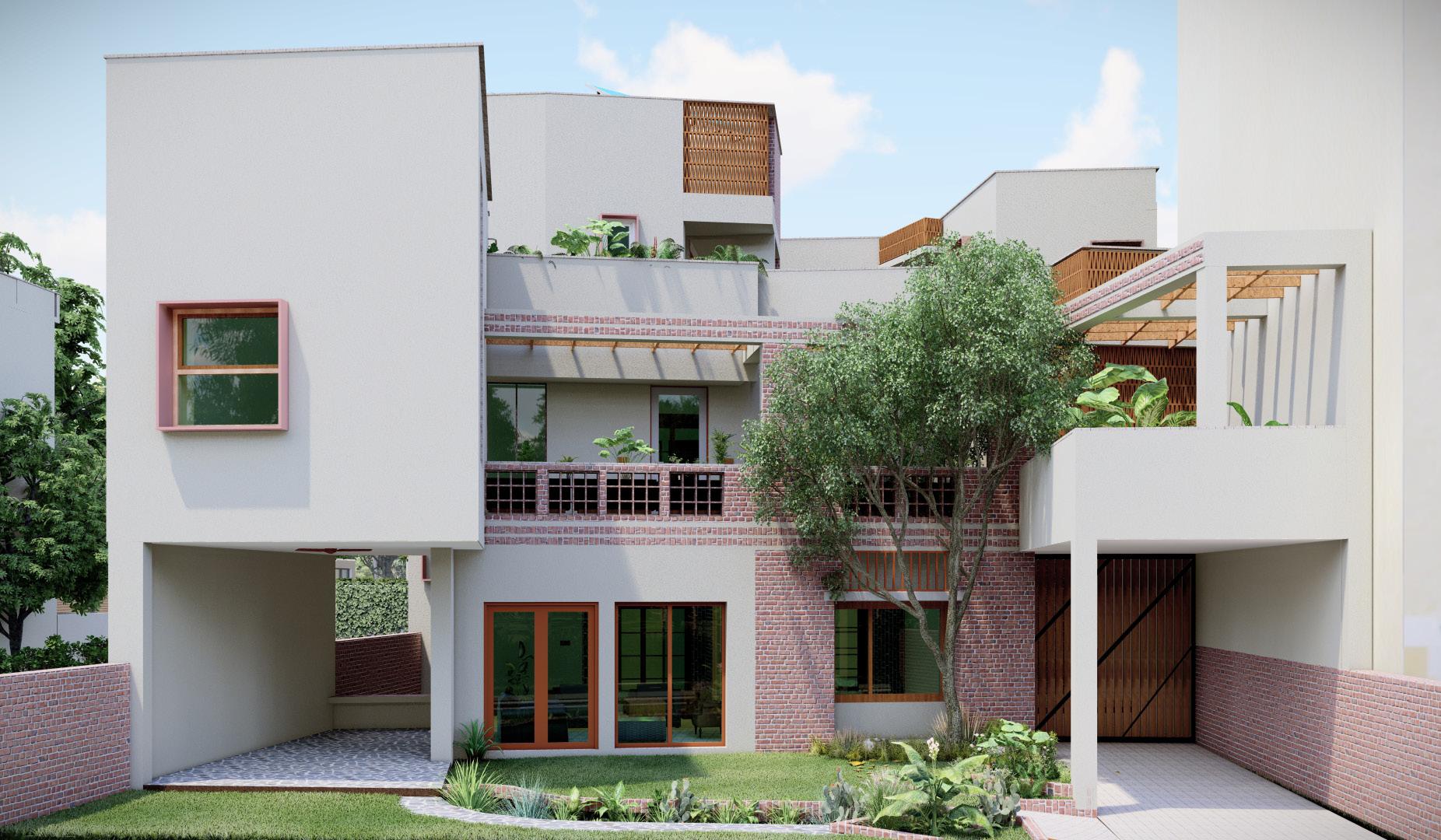

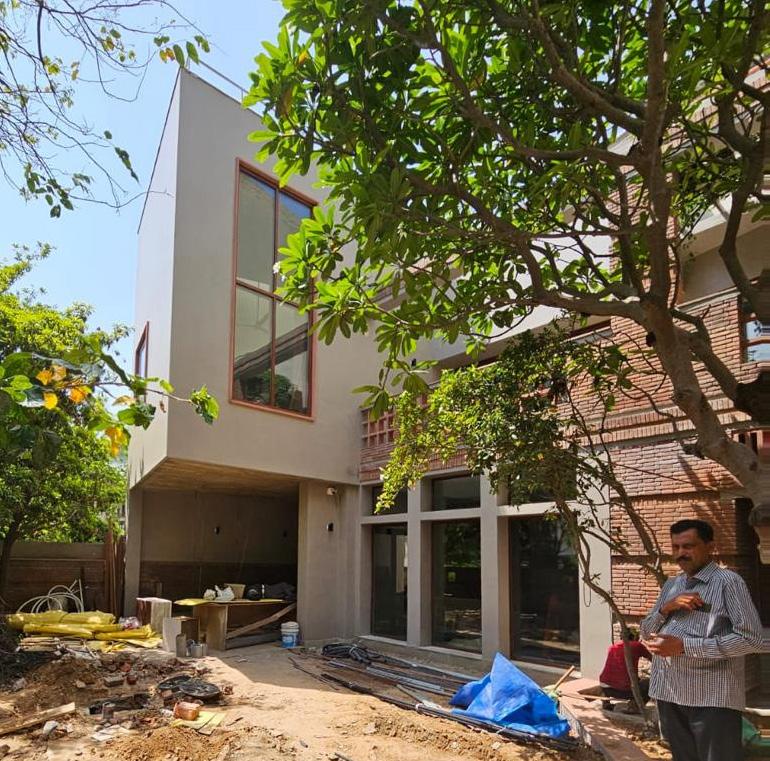

The 6/6 Transformation House Gurugram, India
Status : Completed
A Renovation and Extension Residential project for a Family of 4 and Staff. Blending the New age with Existing Architecture.
Project Intern | Roles & Responsibilites:
• Documentation Drawings (Interior, Toilets, Screen, As Built)
• Cost Estimation (Civil & Interior works)
• Scheduling Quantities (Sanitary and Glazing)
Key Learnings:
Documentation of existing elements for refurbishing. Technical Details. [ Joinery & Edge Treatments ] Gained Clarity in Construction Techniques & Methods. Proficiency in Autodesk Revit
Produced on : Autodesk Revit
STUDIO JUGGERNAUT
Screen Design
White Sandstone tiles joined with Red Sandstone Slabs with M.S rivets joined to the Galvanized Iron frame with M.S bolts.

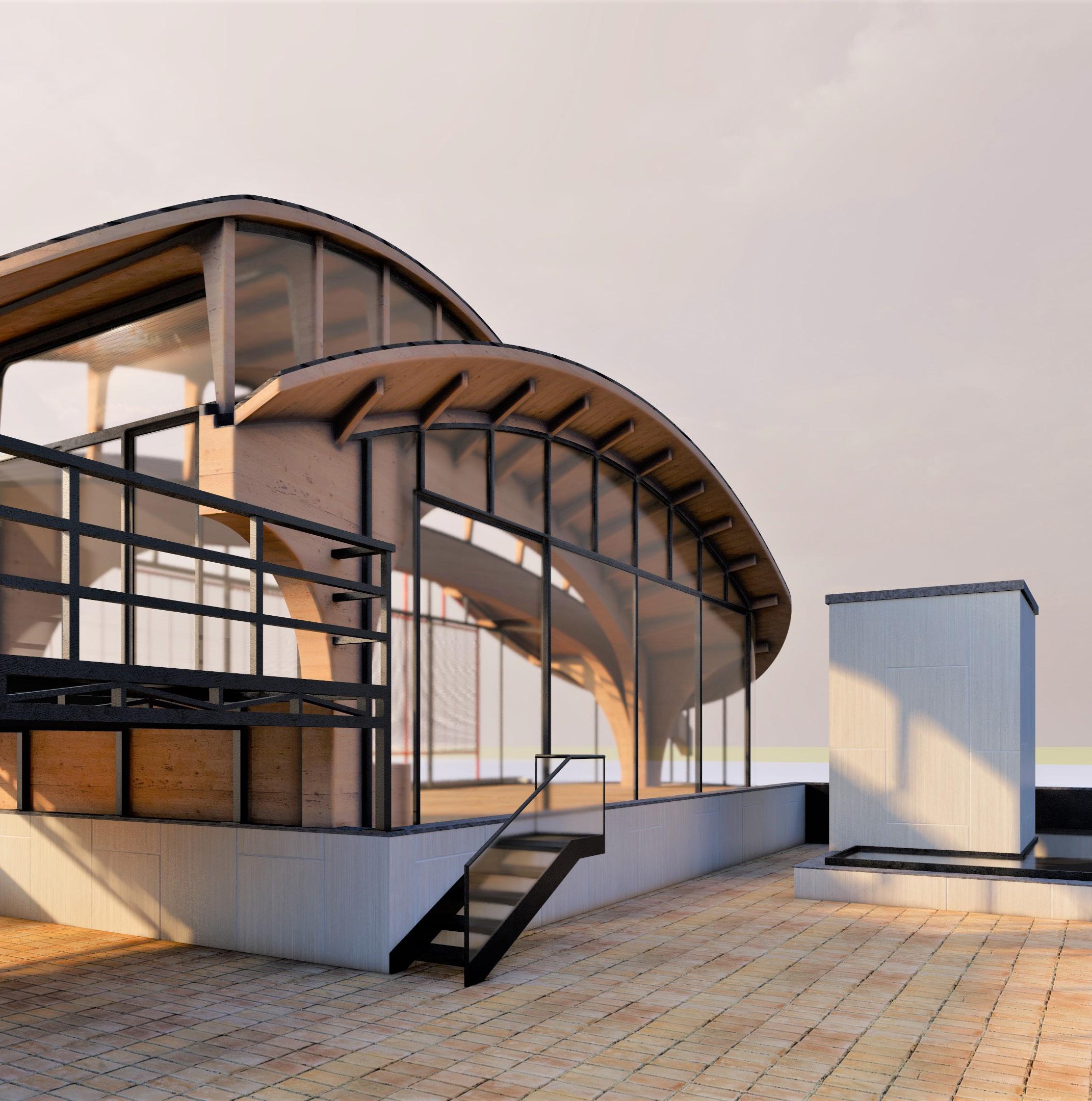

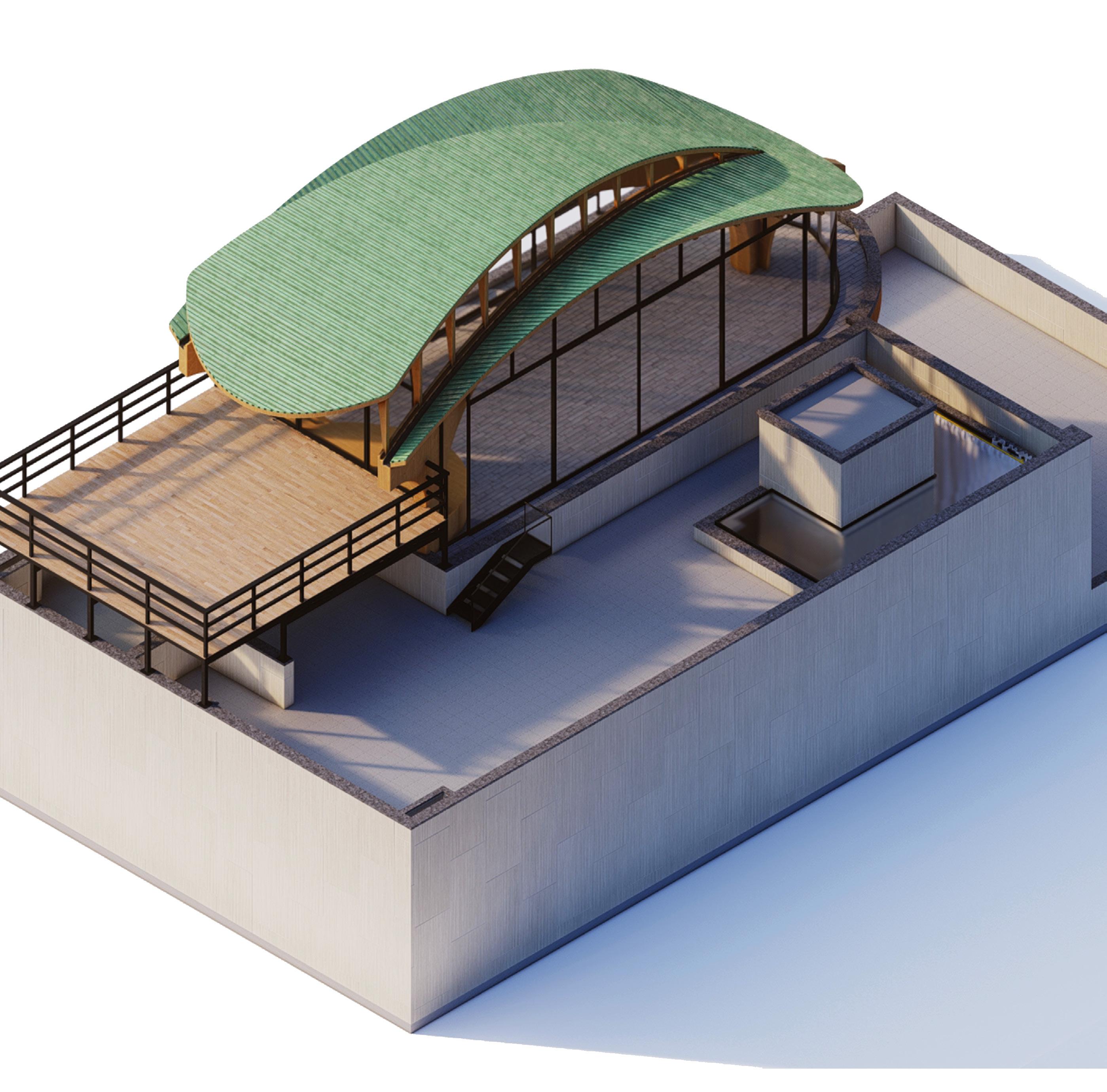

Terrace Folly
Delhi, India
A multi-functional Terrace Pavillion for Recreational Activities. Produced on : Rhinoceros
