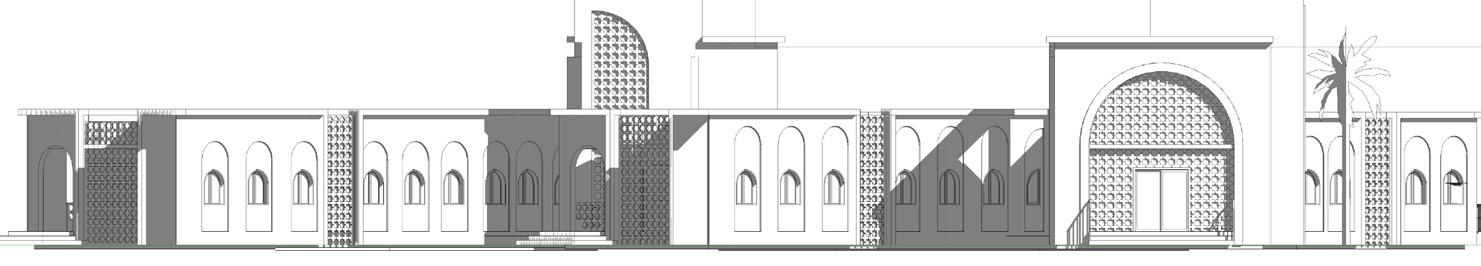

Girls Sanctuary ”EL HARA“ Iraq - El Madain 2021 TEAM WORK: TAMAYOUZ EXCELLENCE AWARD - DEWAN AWARD FOR ARCHITECTURE COMPETITION - HANDELLED RENDERING SHOTS AND VISUALIZATION IN ADDITION TO THE GENERAL CONCEPT AND THEME.

OBJECTIVES: Physical, emotional, intellectual, spirtiual, financial, social, enviromental, professional wellness.

Elements of Islamic Architecture implemented within the design to inspire the girls and give them sense of belonging.

3

EXPO 2030 ”Medical City“ Sharm Al Sheikh WDS 2021 TEAM WORK: TEAM COORDINATOR AND TEAM MEMBER, I PARTICIPATED IN MODELING, GRASSHOPPER, RHINO, PLANS, STUDIES, SIMULATIONS, CONCEPT, PRESENTATION, BOARDS, DATA GATHERING, DATA ANALYSING

THEME: Must address a global issue and reflect the host identity MAAT LIFE: Integrating pharaonic principle of living in sync amongst all creation with the modern approach of Nexus Thinking Food Social

Economic

Nexus Primary goal: Set up a Grand Opening Festival Secondary goal: Enhance visitation, commerce, and local daily life.

Energy

Water

Environmental

4

EXPO 2030 ”Medical City“ Sharm Al Sheikh WDS 2021 The medical zone is derived from harmony with nature due to the presence of flood path by forming harmony with it and creating a natural scenery for the patients instead of being afraid of building around it. it is a complementery project that is of an important need, medical cities tend to develop around a major hospital and as a result, their care delivery model and the path of development tend to orient to highly acute transactional care.

The flood path is usually a major proplem that faces different cities and the zones had to reflect the design so the strategies that were taken when solving the buildings considered the environment and the human needs.

In order to contain the environmental problem the flow is directed into a maze in order to slow down the flood speed.

WELL BEING ZONE (SOUL)

HOSPITALS ZONE (BODY)

EDUCATION ZONE (MIND)

5

EXPO 2030 ”Medical City“ Sharm Al Sheikh WDS 2021 Being a part of the water district, the whole zone responds to the nature the medical zone is located within the water zone in the expo layout.

PETS HOSPITALS VERTICAL FARMING PHYSICAL REHABILITATION CLINICS AND DORMS

MENTAL REHABILITATION

MATERNITY HOSPITAL CANCER HOSPITAL

CHILDREN HOSPITAL

GENERAL HOSPITAL

AUDITORIUM

COLLEGE RESEARCH CENTER

6

EXPO 2030 ”Medical City“ Sharm Al Sheikh WDS 2021 Placing wellness at the center of the community. incorporating culture as it is a part of who we are, is the main drive for the concept of this mental rehabilitation center.

Colors, materials, patterns, forms, spaces configuration and different façade expressions were different tools for enhancing the design.

Mental rehabilitation form generation: Mass along the perimeter for max. exposure to natural light and ventilation

Starting the form with the required area and volume.

Creating an inner court to act as a Private space to have the needed outdoor activities for a healthy environment. cladding

Green roof

Bridges

Parametric pattern entrance

Considering environmental aspects to achieve human comfort (claddings, shades, green roofs).

Using different patterns to give different user experience for the wide range of users and uses.

7

FESTIVAL CITY 2030 ”Hotels and restaurants zone“ Sharm Al Sheikh WDS 2021 Vision: Introducing Sharm ElSheikh as an International EcoResilient city blending with nature and its sensational experiences ( EXCITEMENT, EASINESS AND PEACEFULNESS ) through building an urbanization, design networks between man made assets and the surrounding.

Mission: Build an all in one city that includes various hubs met all modern life activates (Business, entertainment, trade, hospitality, touristic, and cultural , … etc. ) in order to be designed according to sustainable and eco designs principles.

PEACEFUL

EASINESS

Integrated Urban Fabric

SELF SUFFICIENT CITY

Mixed Used Spaces

Cultural Node

Change Consumption

Gamification

ECO CITY

CITY IDENTITY

Secured Ecology

Urban Elements

Local Production

Zero Waste

Zero Carbon Emissions

Reduce depletion

Green Energy Sources

Blending withNature

RESILIENT CITY

Mobility

Interactive Architecture

Techniques

concept: Just like the Bedouin were in a path looking for their needs, then they saw an opportunity on an intersecting path and they settled, our project acts as a guide to the rest of the surrounding projects guiding the tourists through their chosen kind of journey and pointing their attention to different opportunities in a different path.

With

Nature

Culture

Terrorism

Pandemic

Interesting Routes

CITY IDENTITY

SMART CITY

EXCITING

Ecological Awareness

Against Quality Monitoring

Entertainment Hub

Analogy: The magnetic field lines are formed around attraction points presenting our main and secondary functions and are given high or low magnetic charge according to said hierarchy.

8

FESTIVAL CITY 2030 ”Hotels and restaurants zone“ Sharm Al Sheikh WDS 2021

9

FESTIVAL CITY 2030 ”Hotels and restaurants zone“ Sharm Al Sheikh WDS 2021 The building Structural System is combined System which consists of two main systems that collaborate: concrete structure combined with a system of Space Frame.

-1 Inner buildings structural system: Skeleton system (Beam and column) Flat slap Structure.

-2 Outer shade structural system: Space trusses

Using double glazing panels in design hotels façade (Environmental aspect ) Advantages of DoubleGlazed panels: Better Insulation.

Noise Reduction.

Reduced Energy Bills.

It is Eco-friendly.

Reduced Interior damage.

Increased Security.

10

FESTIVAL CITY 2030 ”Hotels and restaurants zone“ Sharm Al Sheikh WDS 2021 the spot skylights are arranged linearly to organize the internal space and facilitate orientation. here in a similar way, the light coming from the top, organizes the internal space. the color and finishing texture of restaurant is in harmony with the surrounding ground. the main material is pigmented concrete, but resembles a natural material such as clay and straw.

The entrance is an important part of the building. it is a place of transition, it should be vast and shaded. in this building, the entrance is obtained by the roof surface downward flexion. We made sparing use of the openings, ‘I design shadows, rather than light’.

11

RESIDINTIAL APARTMENT BUILDING ”LOFIT“ AL FUSTAT CCH 2021

The main challenge was to create an environment that is resistant to the current pandemic and all the pandemics to come ..

Historical area frequented by many people -existing citizens and tourists, both local and international- , because of its powerful identity and the presence of historical places, the lake of Ain Al-Sira, Fustat Museum , ...

Therefore, it is the most risky area exposed to epidemics from all over the world from which could spread to other places.

Raising the quality of life by creating better places for living Maximizing the heritage value of this historic place, rich site Creating sustainable communities.

Investing it in an optimal way for the direct benefit to the people of the fustat region, as well as to the residents of cairo as a whole

Section3-3

Section 1-1

Section 6-6

Section 2-2

Section 7-7

Section 8-8

Section 7-7

Section 8-8

Section 4-4

Section 5-5

The design relied on providing outstanding solutions for a small residential unit which enables users to practice activities efficiently and effectively.

Section 4-4

Section 5-5

12

8

7

6

5

1

2

2

3

3

6

5

7

1

41

Hygienic floor covering provides a fully seamless finish so it prevents the growth of bacteria they are also generally quite slip

4

RESIDINTIAL APARTMENT BUILDING ”LOFIT“ AL FUSTAT CCH 2021

Melamine: The wooden panels covered with a layer of resin are easy to clean Shell wall

slab

Glass: It is very easy to disinfect glass using the usual products columns

The design provide basic daily needs and comfortability that ensures the ability to depend on the interior space without the necessity to go outside in pandemics.

Reception Kitchen Office Kids/ living room Bathroom Bed room/ office Sterilization room

13

HIGHRISE HOSPITAL BUILDING “THE PIXEL“ SEATTLE, USA EERI SDC 2021

THE PIXEL

Towards an adaptive future

Modular design Our plan design is based on a modular grid with fixed structural supports and prefabricated walls that are installed based on need offering various space solutions (even a ward in case of large number of patients).

Level 16 Level 12

Form Generation The idea is to create a modular design that can adapt to various needs and is flexible to change, to increase floor area if needed. This is done by creating a grid (beams and columns) that extends upwards and horizontally if needed.

Circulation Circulation is divided in 4 parts to separate different cores (Patients, Doctors, Services, Visitors). During The pandemic, it is crucial to convert the hospital into two separate sections.

Figure 1: existing structure.

Figure 2: required extension.

Figure 3: pixilation to maximize sun exposure.

Figure 4: adding healing gardens.

Figure 5: chance for extension.

14

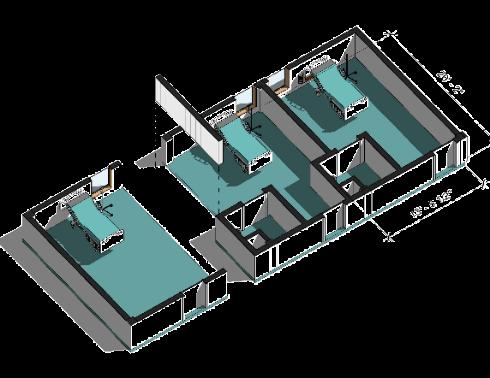

HIGHRISE HOSPITAL BUILDING “THE PIXEL“ SEATTLE, USA EERI SDC 2021 - During Pandemics Two zones to lower the risk of virus transmission, between patients and covid19- patients.

Patients’ rooms+ external clinics+ Healing center Covid19- patients’ rooms - During Regular Days Patients’ rooms+ external clinics+ Healing center LEED Water Efficiency Strategies Applied: -1 Collect rainwater that fall along the façade.

-2 Three-pipe systems enable non-potable water to be used.

-3 Greywater recycling system.

Materials and resource Strategies Applied: -1 Flexibility in design (Modular Design).

-2 Acoustic materials and acoustic treatment.

-3 Reduce the release of (PBTs).

Isolation rooms requires an anteroom. It serves as a controlled area for the transfer of supplies, equipment, and persons. Also acts a barrier against the potential loss of pressurization.

Providing adequate spacing in waiting areas, corridors, hallways, and entrance lobby. a minimum of 2600 mm width for corridors. This is to allow for 1000 mm for social distancing and 300 mm for human movement

15

COMMUNITY CENTER ”NILE VALLEY“ ASWAN 2020 TEAM WORK: TEAM LEADER, I PARTICIPATED IN MODELING, GRASSHOPPER, RHINO, PLANS, STUDIES, SIMULATIONS, CONCEPT, PRESENTATION ACOUSTIC TREATMENTS, DETAUILING. Concept: The nature layers and form of the valley leads the Nile towards a certain direction with inspired the form of the building to follow the nature of the topography and let it leads its

COMMUNITY CENTER ”NILE VALLEY“ ASWAN 2020 This community center benefits from the breathtaking nature of the city and its powerful identity to create a center its main focus is embracing the culture and the beauty of the nature there.

COMMUNITY CENTER ”NILE VALLEY“ ASWAN 2020 Reduce Heat Island By : Underground Parking Providing shade from trees Structure covers by solar panels Use solar reflectance surfaces Architectural shading devices Minimizing the development footprint Reduce Hardscape to reduce overall heat

RESEDINTIAL BUILDING ”PIXEL RESIDENCE“ NEW CAPITAL 2020 The challenge: designing a well integrated unit, effecient in space and suitable for all users. material used in the facade acoording to the increase in the length

RESEDINTIAL BUILDING ”PIXEL RESIDENCE“ NEW CAPITAL 2020 The residence have a varaity of options for the user to choose from, the materials were choosen to enhance the user experience and communicate well with the surroundings.

INTERNATIONAL SCHOOL ”SMART AND RESPONSIVE“ CAIRO, THE FIFTH SETTLEMENT 2019 concept and design approch: coping with the future is what every school with extraordinary students should offer. Taking an interactive Architectural approach designing the building will enhance this. light simulations, mobile forms and environmental responses increases the efficiency of the building and serves the approach perfectly.

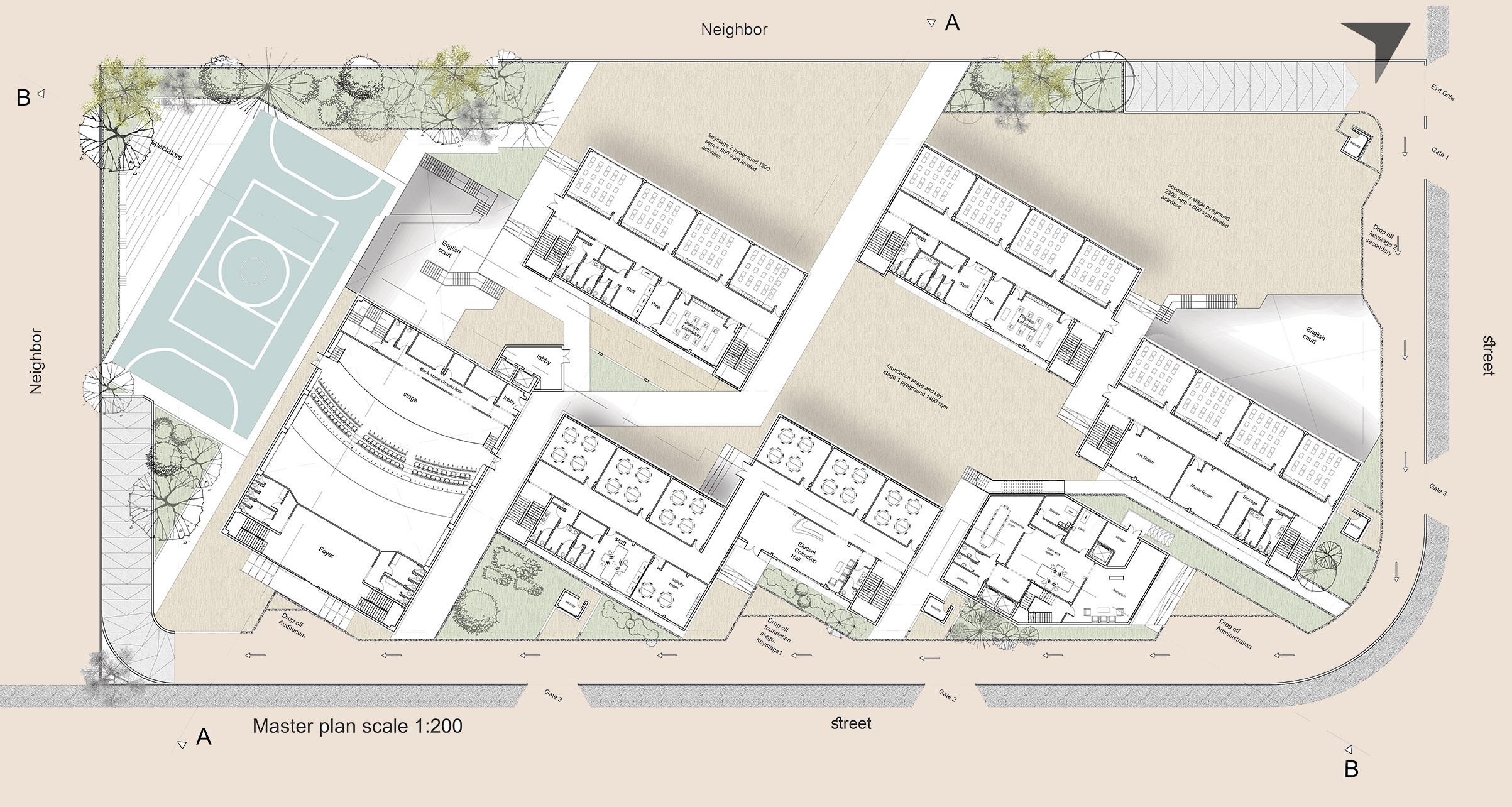

INTERNATIONAL SCHOOL ”SMART AND RESPONSIVE“ CAIRO, THE FIFTH SETTLEMENT 2019 Built up area %33 - using angles 30 and 60 to take the ideal oreintation (natural sunlight, controling ventlation and heat gain).

- maximizing the efficiency of the building and it›s response to nature. (dynamic facades, modern glasses control light transmittance, transparency).

Basement floor

Bird eye view

First floor

Llayout form generation second floor

Third floor

INTERNATIONAL SCHOOL ”SMART AND RESPONSIVE“ CAIRO, THE FIFTH SETTLEMENT 2019 - interaction and connection between the indoor and the out door.

- space program is clear to the user.

- vertical and horizontal connection between all the buildings.

- accessible roofs and english courts increase the range of activities.

visualizing the relations between different masses and how it will respond to each other on different aspects.

massing the buildings to suit the function and respect the oreintation.

final mass compined and color coded

INTERNATIONAL SCHOOL ”SMART AND RESPONSIVE“ CAIRO, THE FIFTH SETTLEMENT 2019 smart facade skin selective skin responive to the sun brightness and heat controlled system (manual and automatic) works as an envelope surrounding the building. smart building energy efficiency, solar panels on inclined roofs. green areas, green roof accessible. interactive landscape, dynamic fixtures and shades. interactive facae, responsive to the environment. improve the quality of atmosphere inside the building wide range of activities can be performed inside (visual presentations, videos display, audio and other means) the panels material according to the place of the panel and the function it is required to perform. materials: blue tinted glass, electro chemical glass, solid panels, translucent panels with the effect of solid panels.

24

MIXED USE TOWER ”THE HIGH RISE“ CAIRO, MASPERO TRIANGLE 2019 TEAM WORK (3 STUDENTS) I PARTICIPATED IN ALL THE PROCESS CONCEPT AND IDEA CREATION, MODELING, RESEARCH, BOARD PRESENTATION, ARCHITERCTURAL DRAWINGS SECTIONS AND PLANS.

25

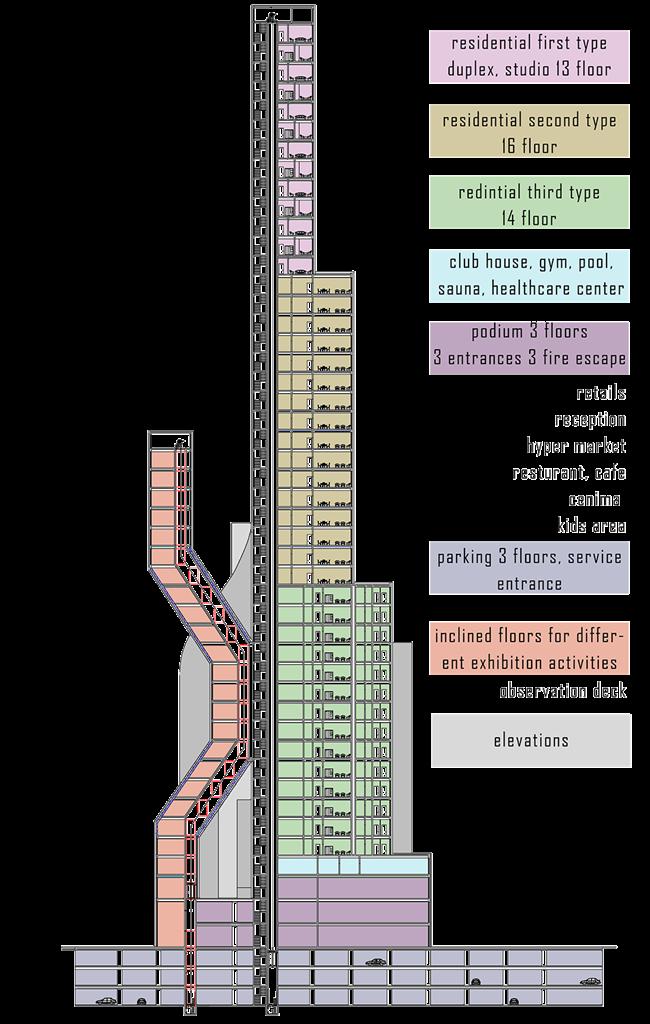

MIXED USE TOWER ”THE HIGH RISE“ CAIRO, MASPERO TRIANGLE 2019 THE SECTION AND THE ANALYSIS IS FROM MY WORK, IT FOCUSES ON SHOWING THE BUILDING’S FUNCTION AND THE USE OF EACH SCAPCE.

26

EXHIBTION ”LIFE IS MOVEMENT“ GIZA, ALONG THE NILE 2018 Uaing repeatative units with different peaks giving the influence of movement, making it a full circle (half above the ground and half below the ground) changing the heights and the diameters of the rings inserting glass strips flixable and heat resistant adding contour and levels to show some parts from the under ground merging with the landscape the strips rotates 360 degrees with different peaks giving the visitor the sensation of movement and life ( slight change of physical location or position)

user experience: the overall experience of the visitors will be mainly concerned with the best way to provide them with the basic knowledge about the nile and its progress along the history in a physical way where they can sense the movement.

27
