PORTFOLIO ALVI N pa k h in tsa n g

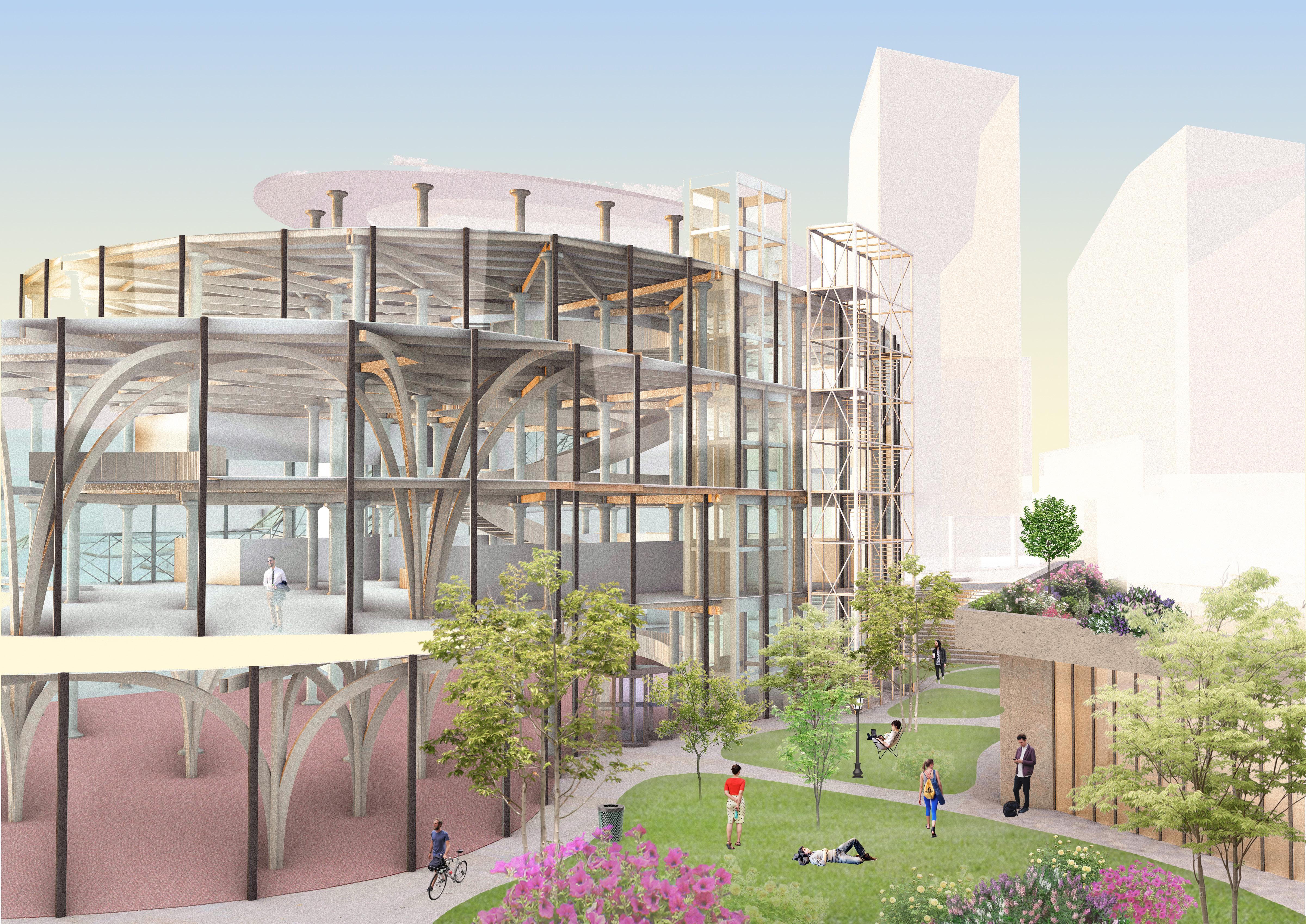

ST. JAMES ART CENTRE Y3

2

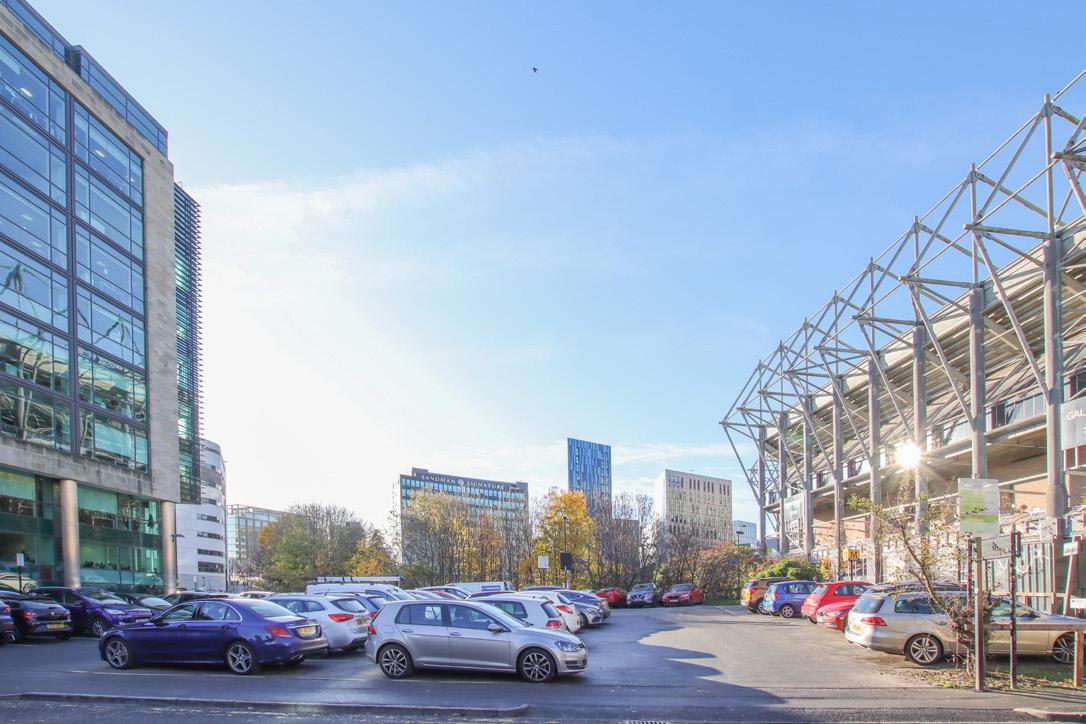

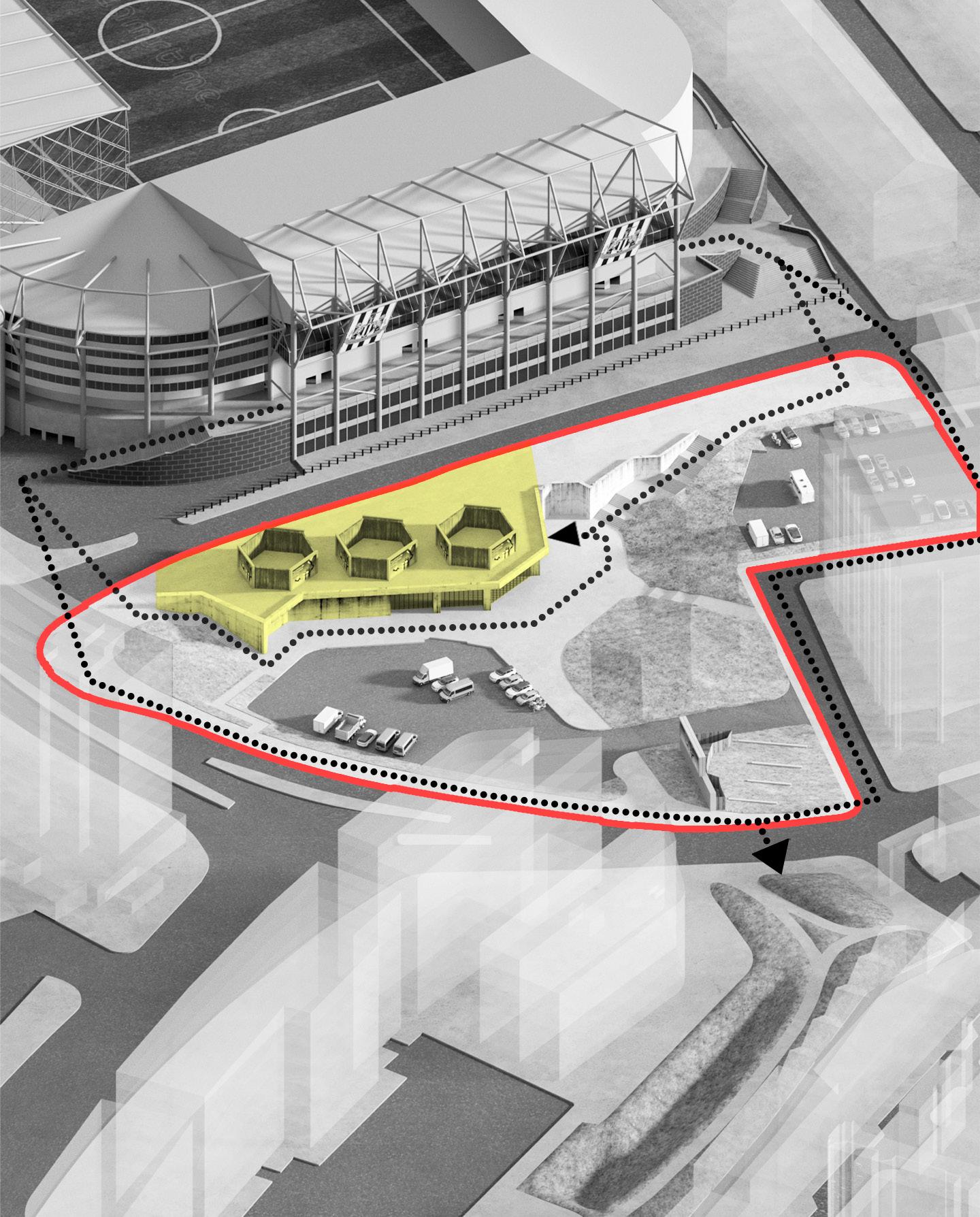

SITE ST. JAMES, NEWCASTLE UPON TYNE, U.K.

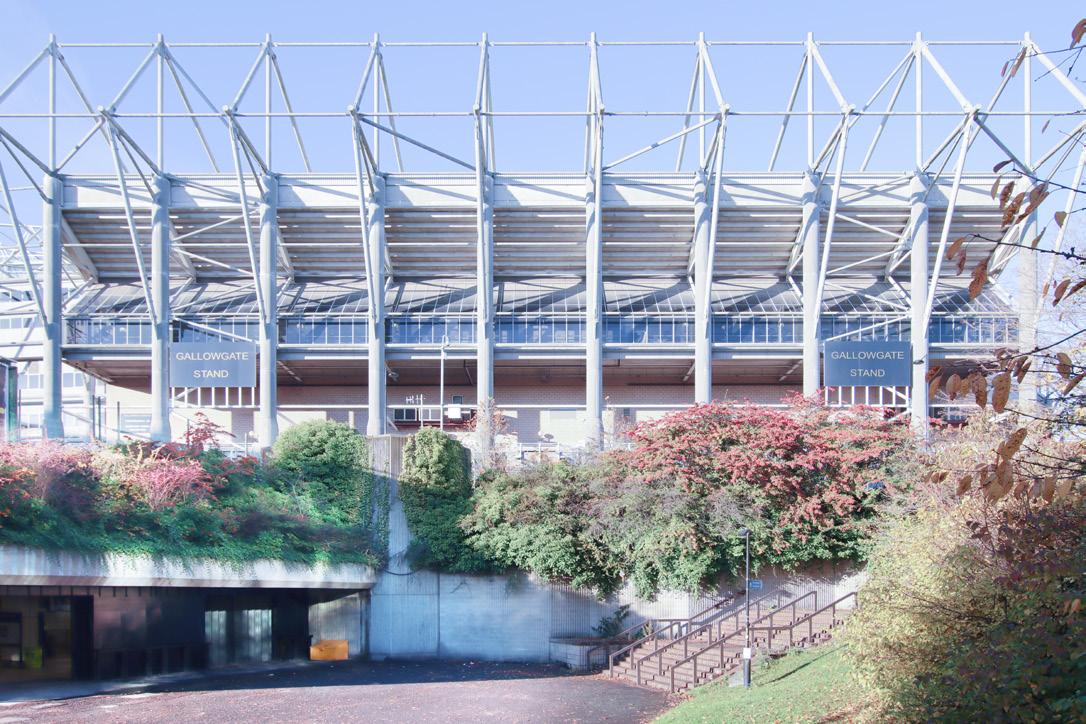

NEWCASTLE UNITED F.C.

ST. JAMES FOOTBALL STADIUM BOUNDARY

AFTER EACH FOOTBALL MATCHES, THOUSANDS OF FANS PROCEED TO THE METRO STATION AND TOWARDS THE CITY CENTRE.

PEDESTRIAN CIRCULATION

TO CITY CENTRE

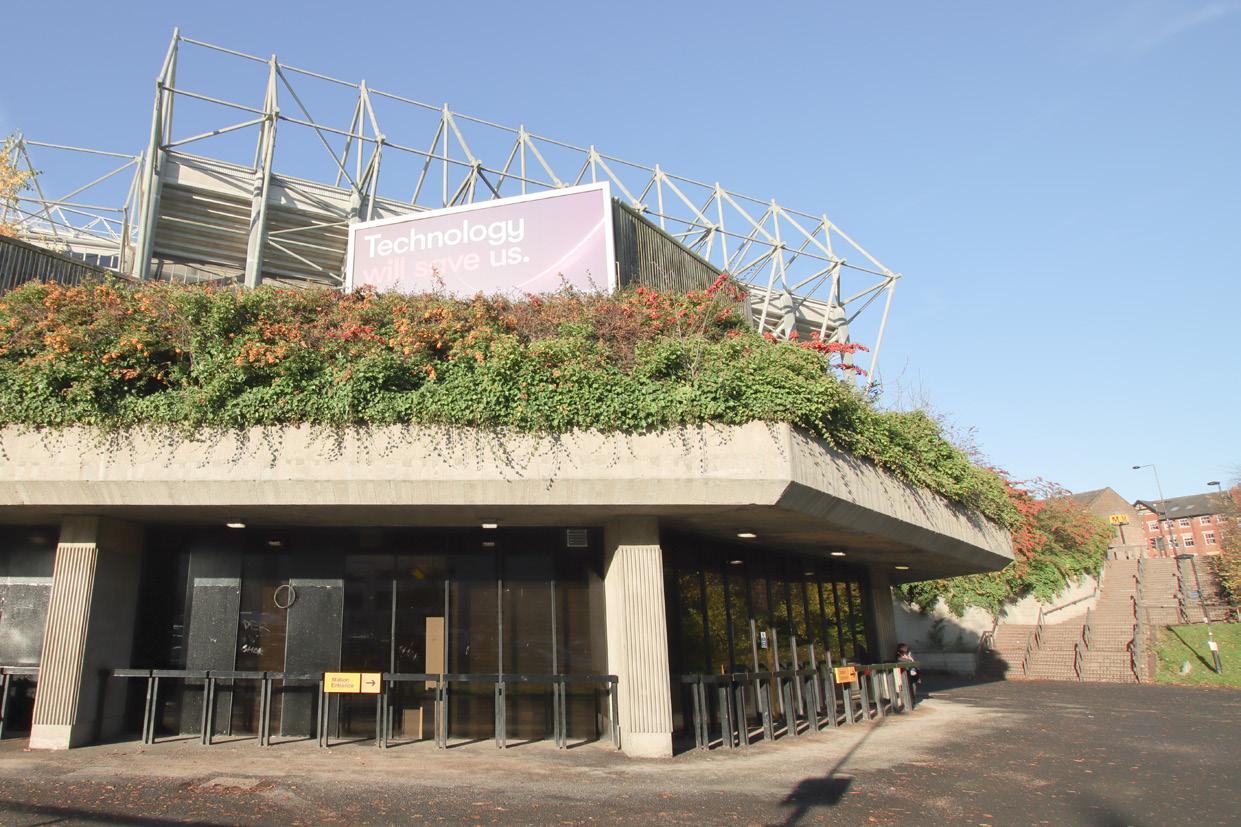

EXISTING METRO STATION IN MODERNIST STYLE

EXCESSIVE CARPARK AND DOWN THE HILL

UP

3

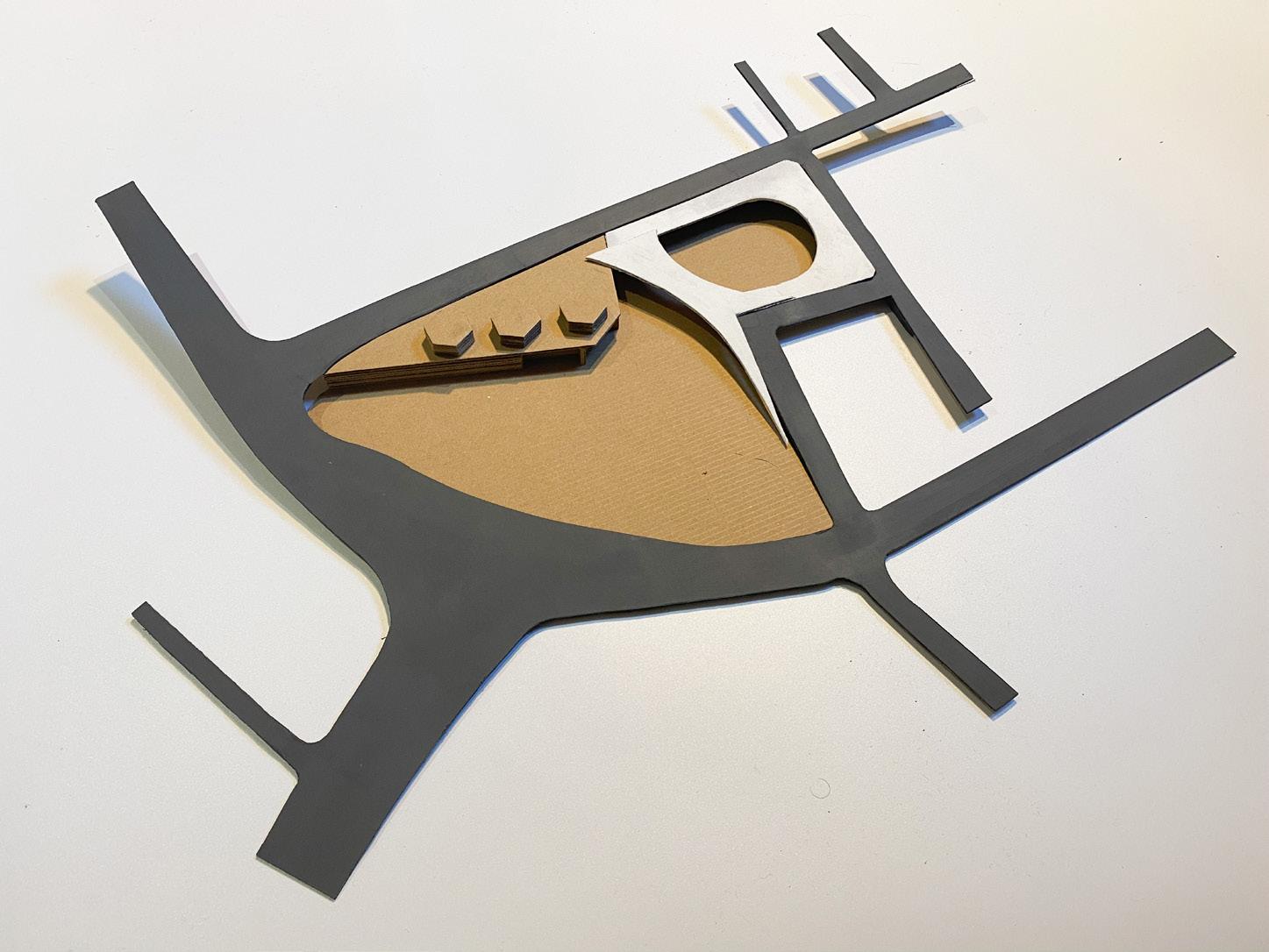

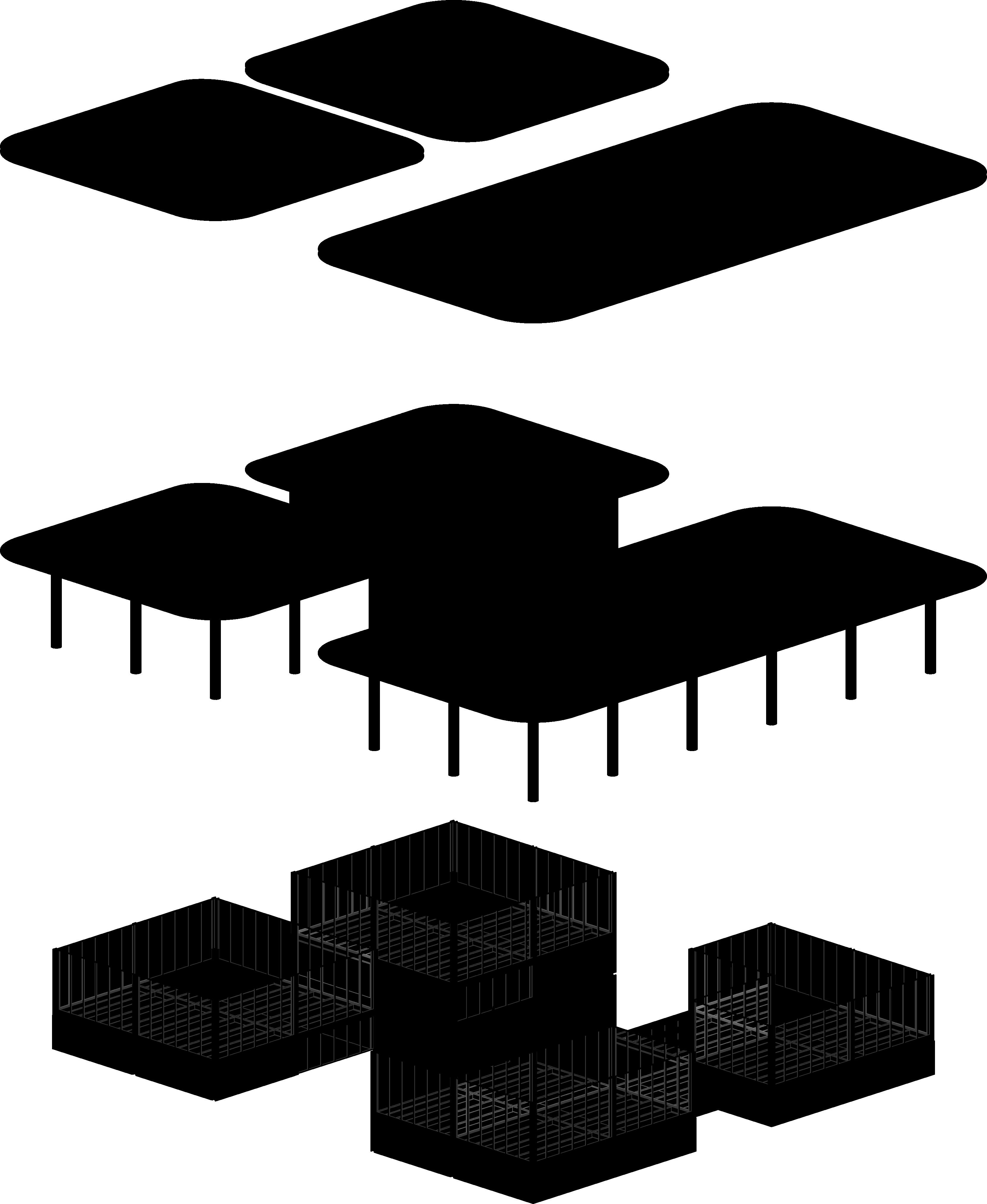

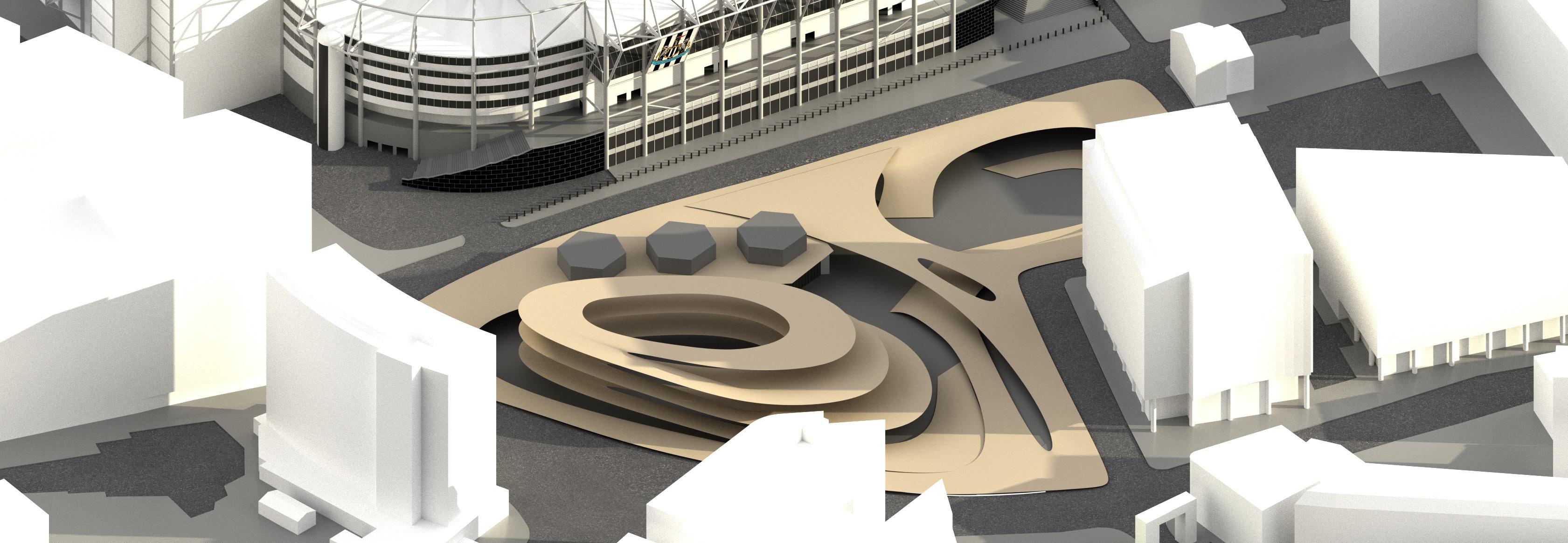

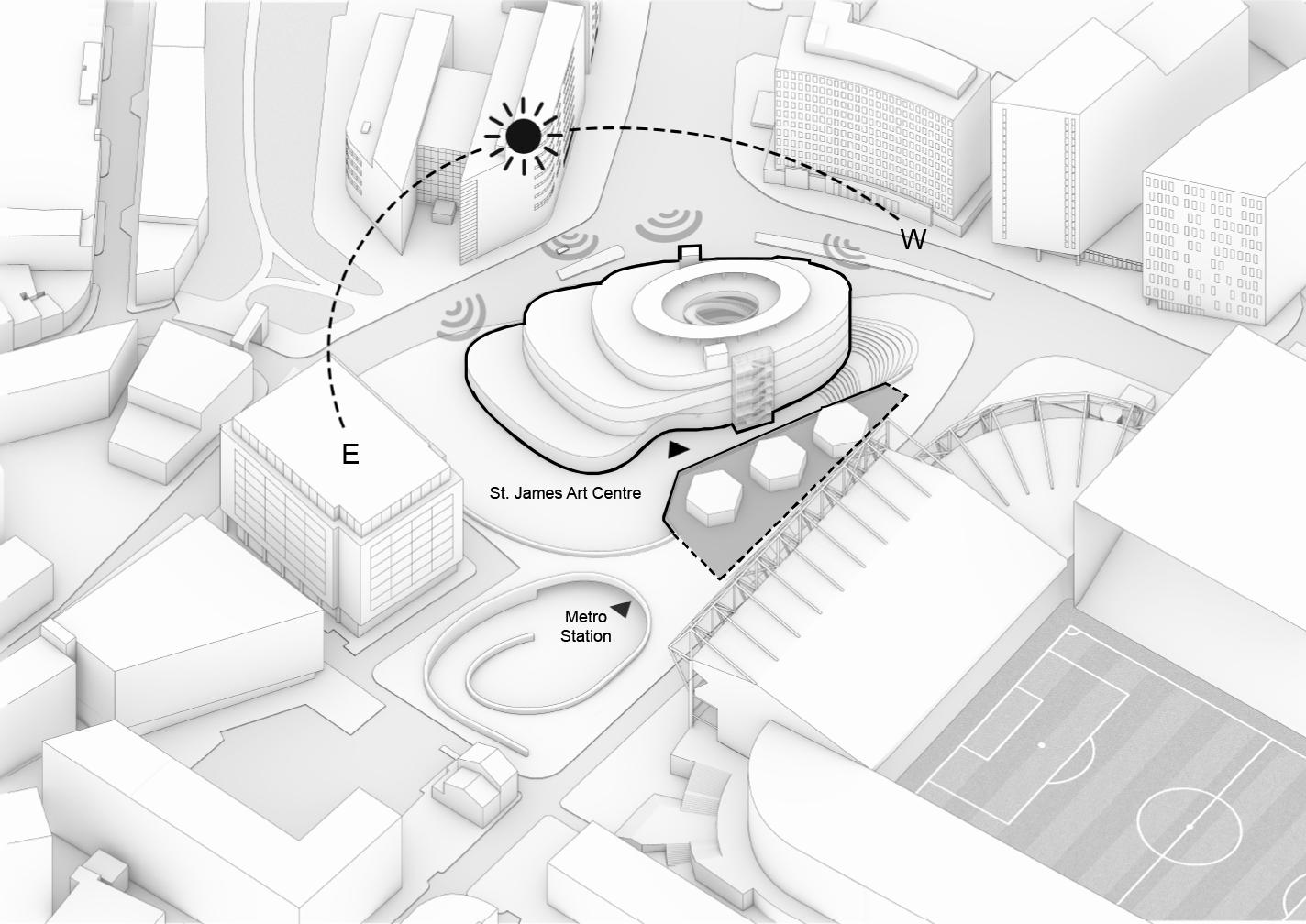

MASSING

4

LANDSCAPING BRIDGE AND RAMP IMPROVE ACCESSIBILTY, FRAMING A COURTYARD FOR COMMERICAL OPPORTUNITIES.

5

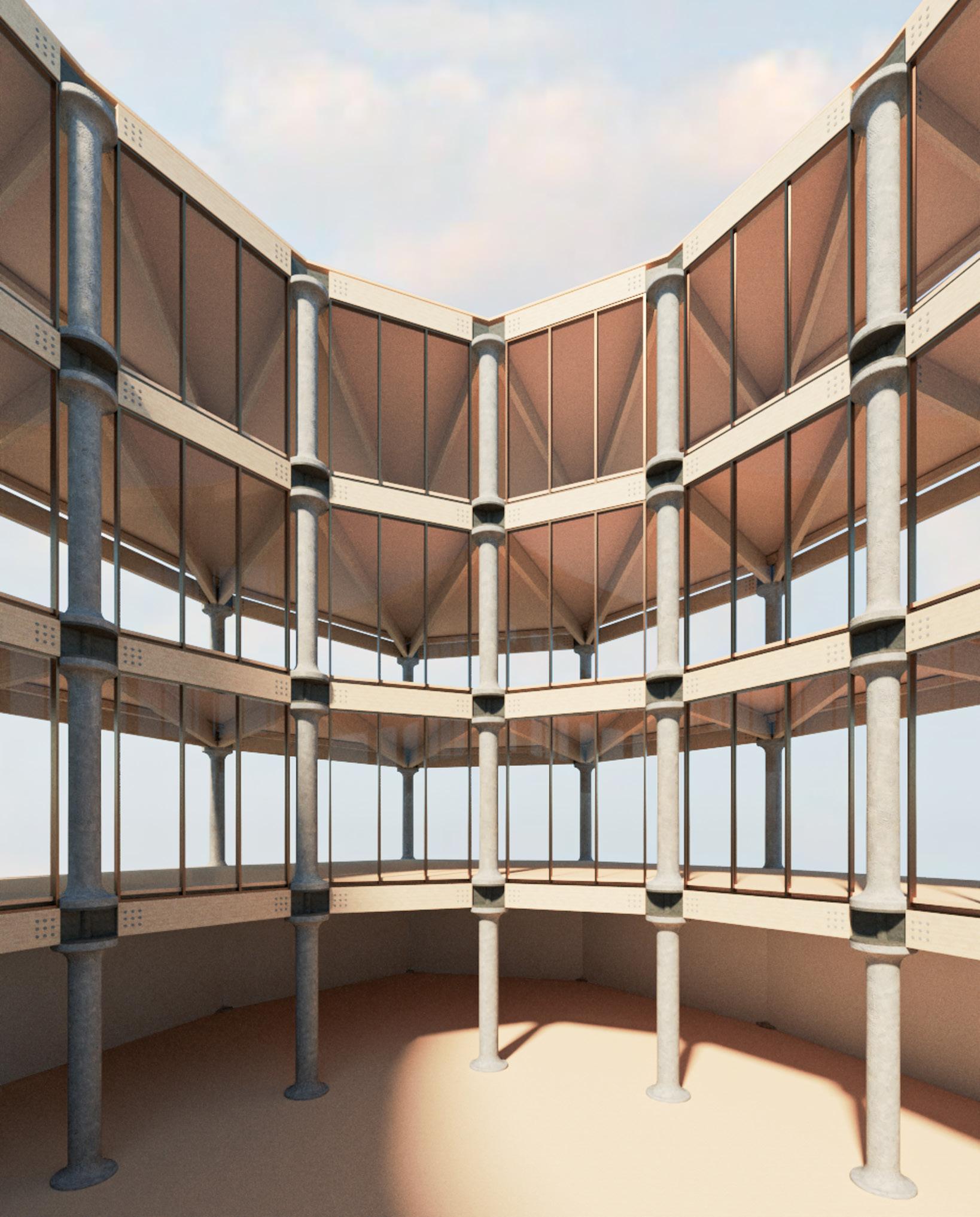

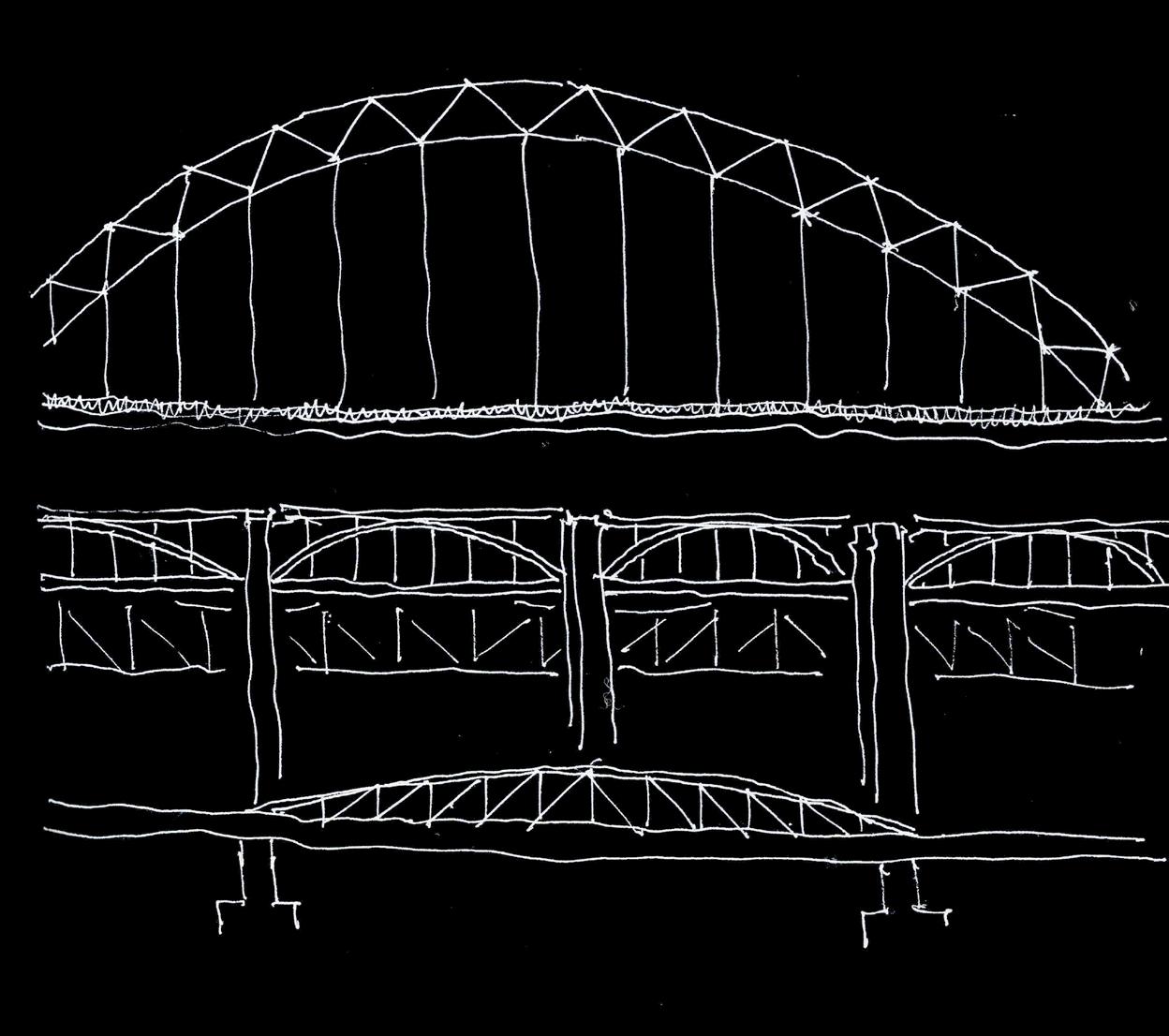

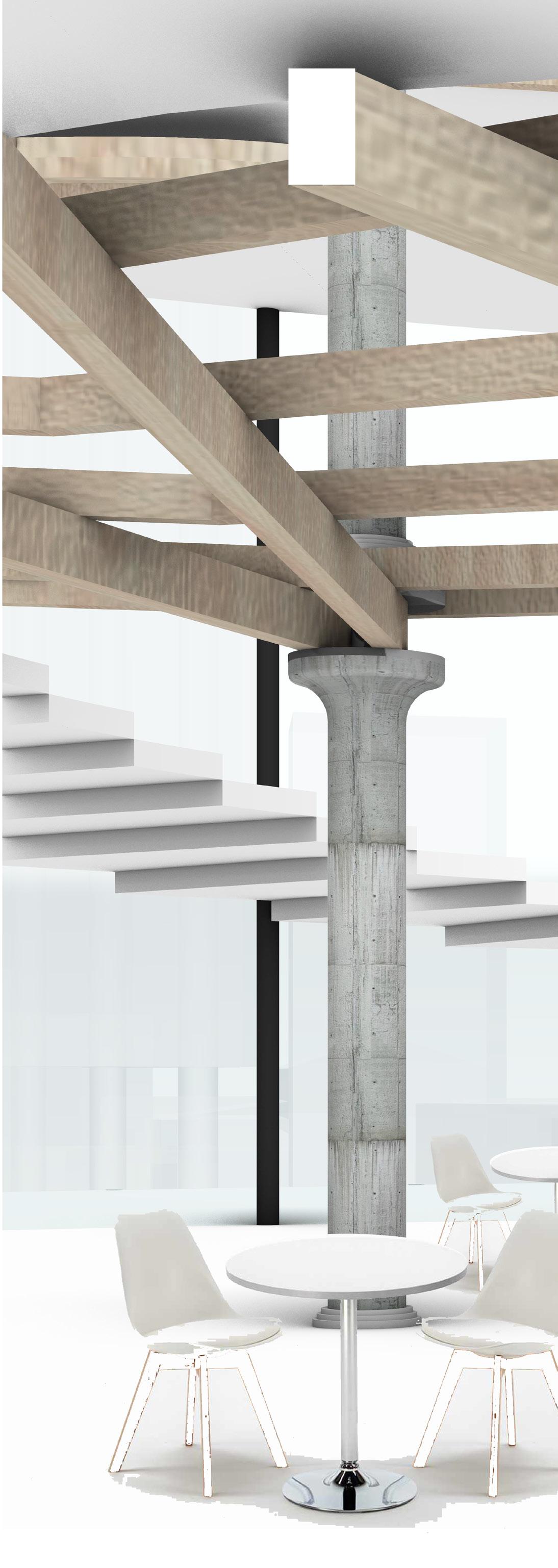

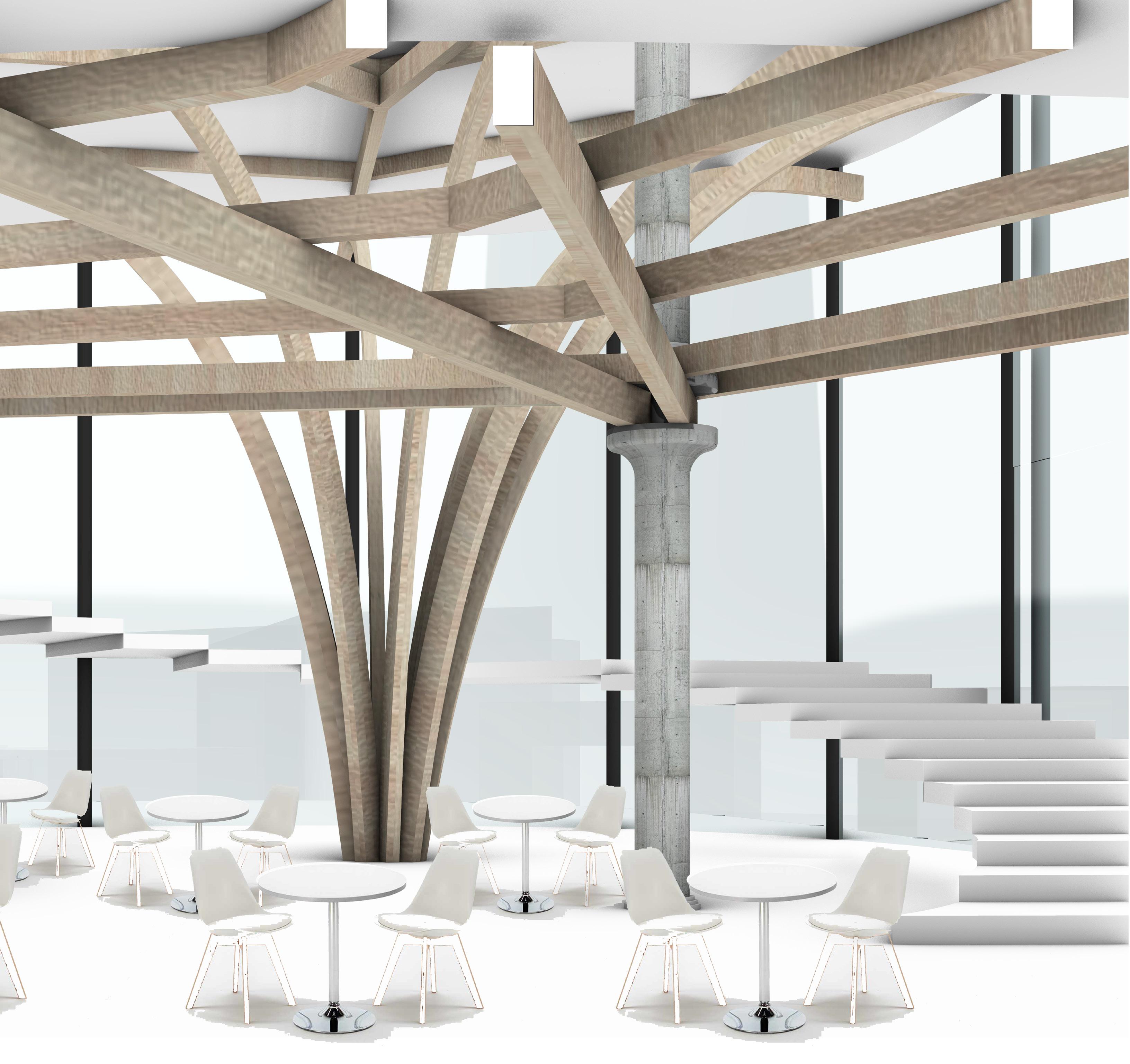

STRUCTURE REINTERPRETING VICTORIAN VAULT AND TRUSS

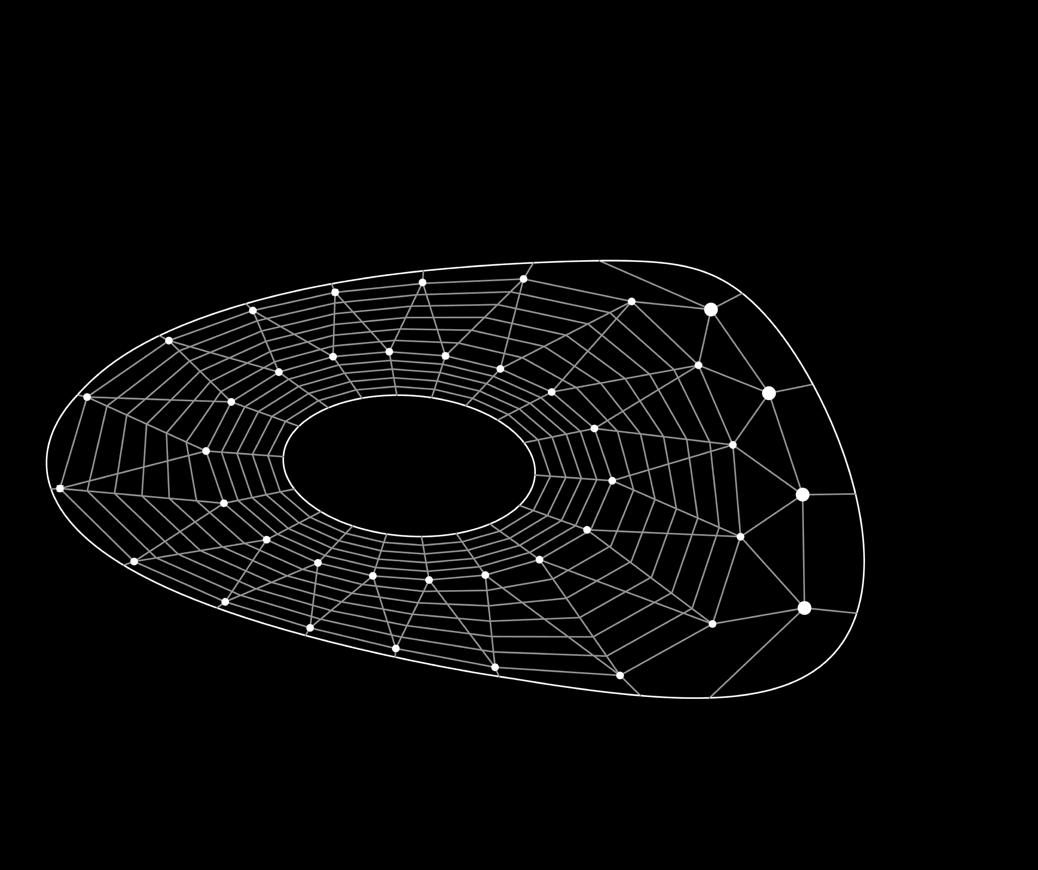

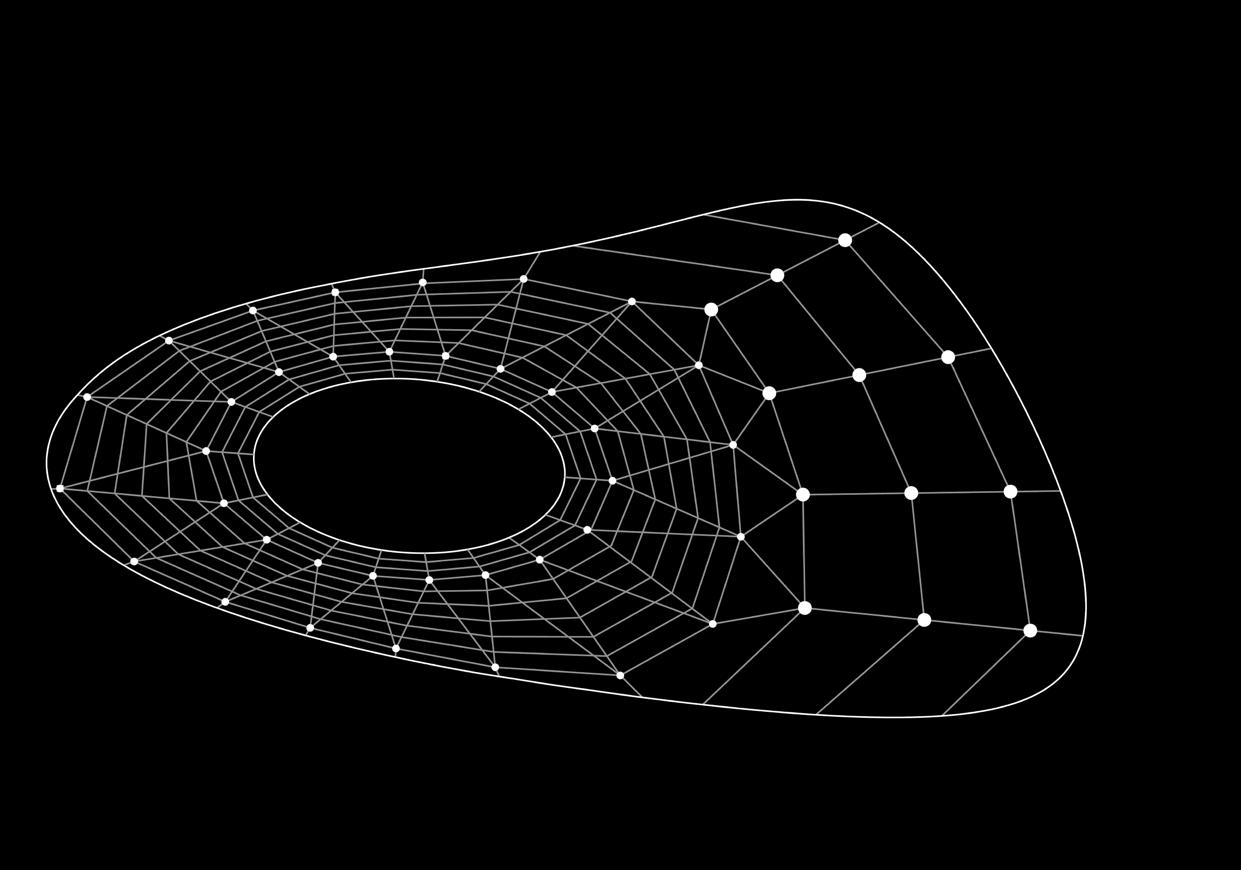

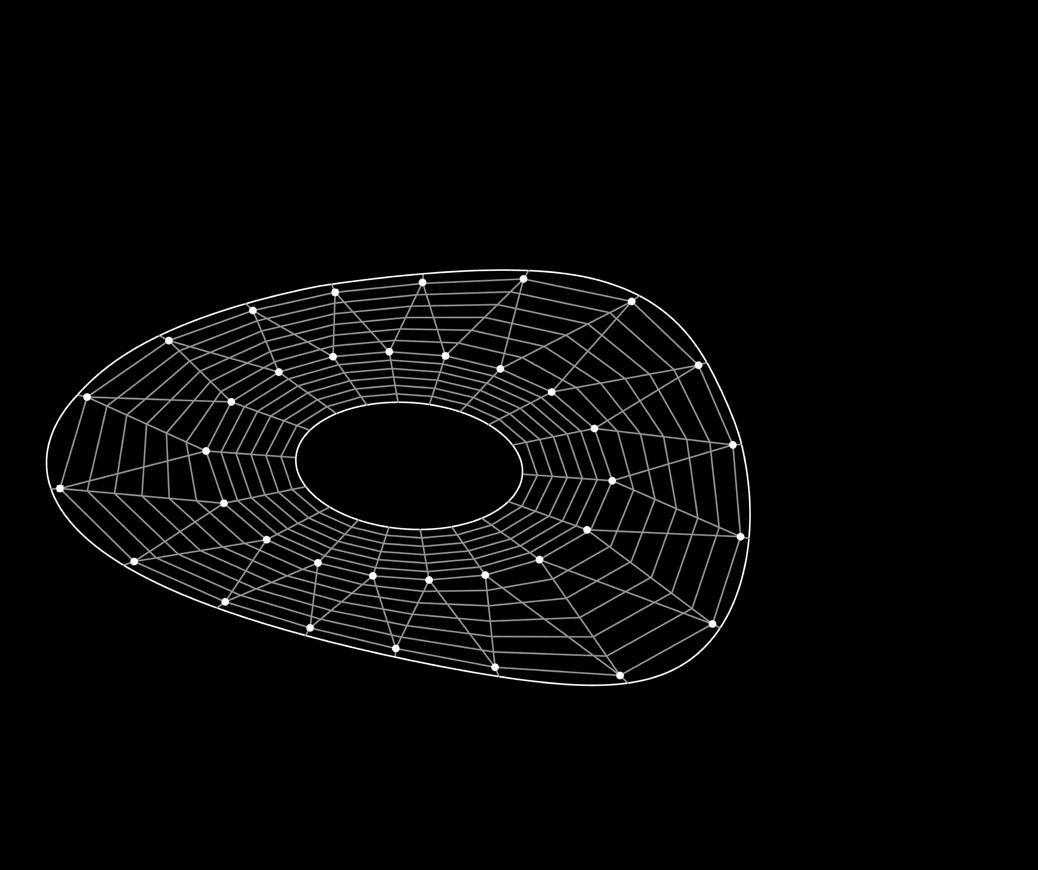

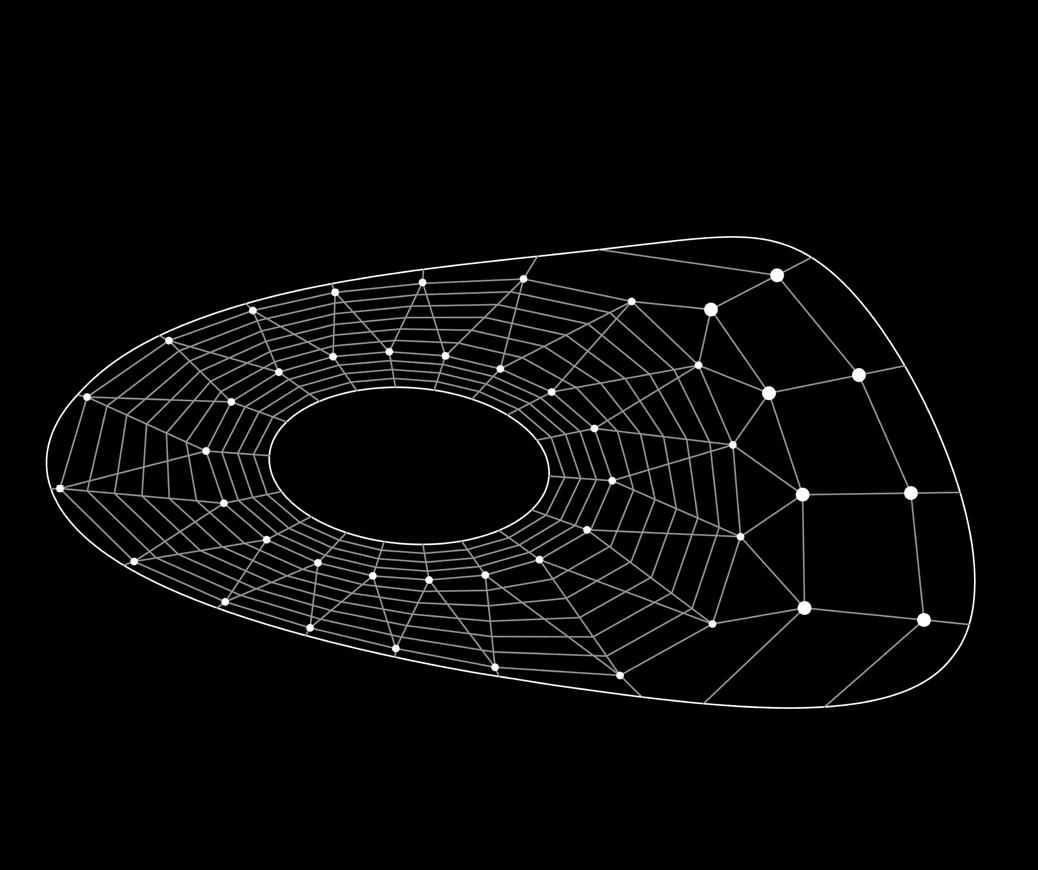

STRUCTURAL GRID

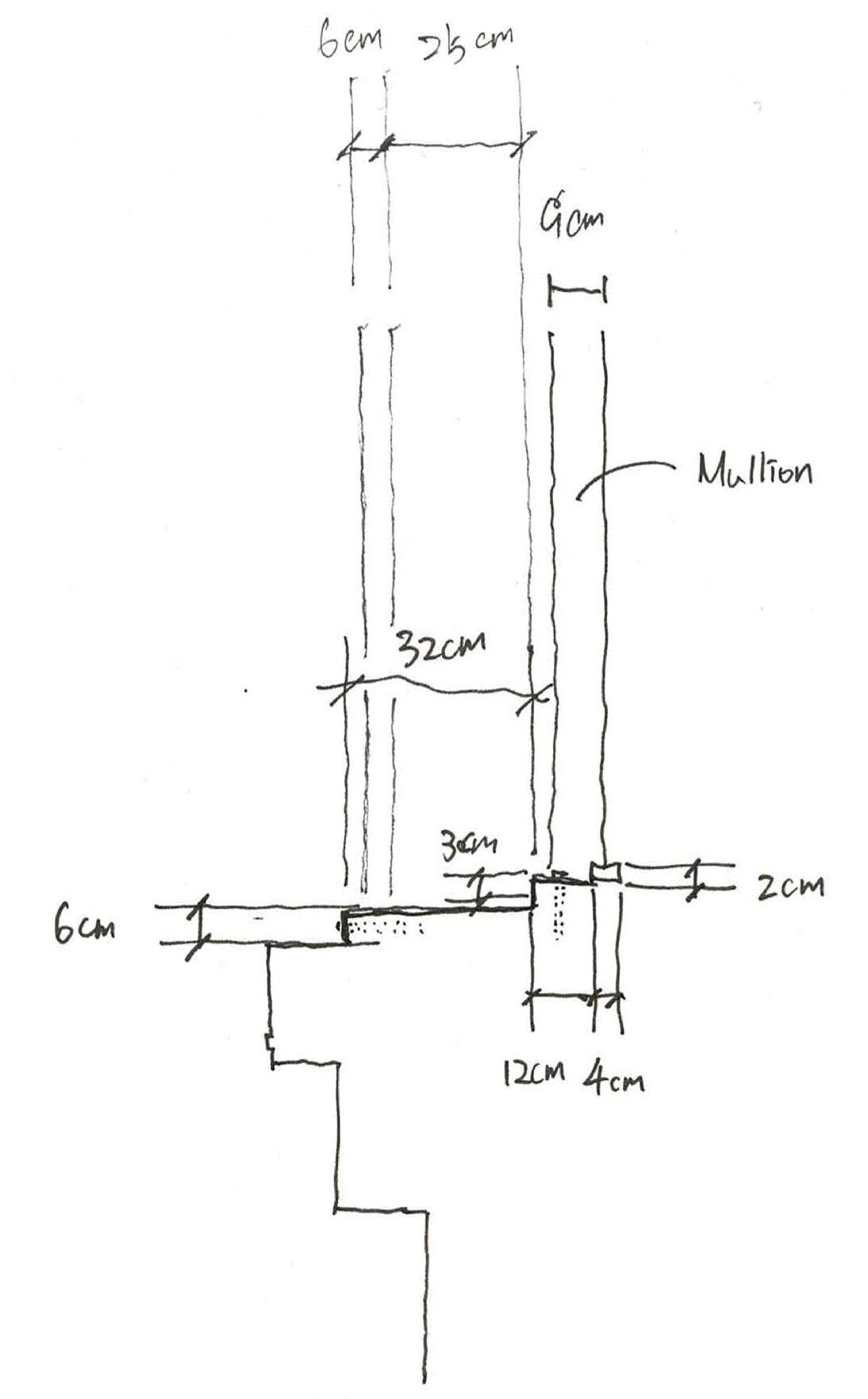

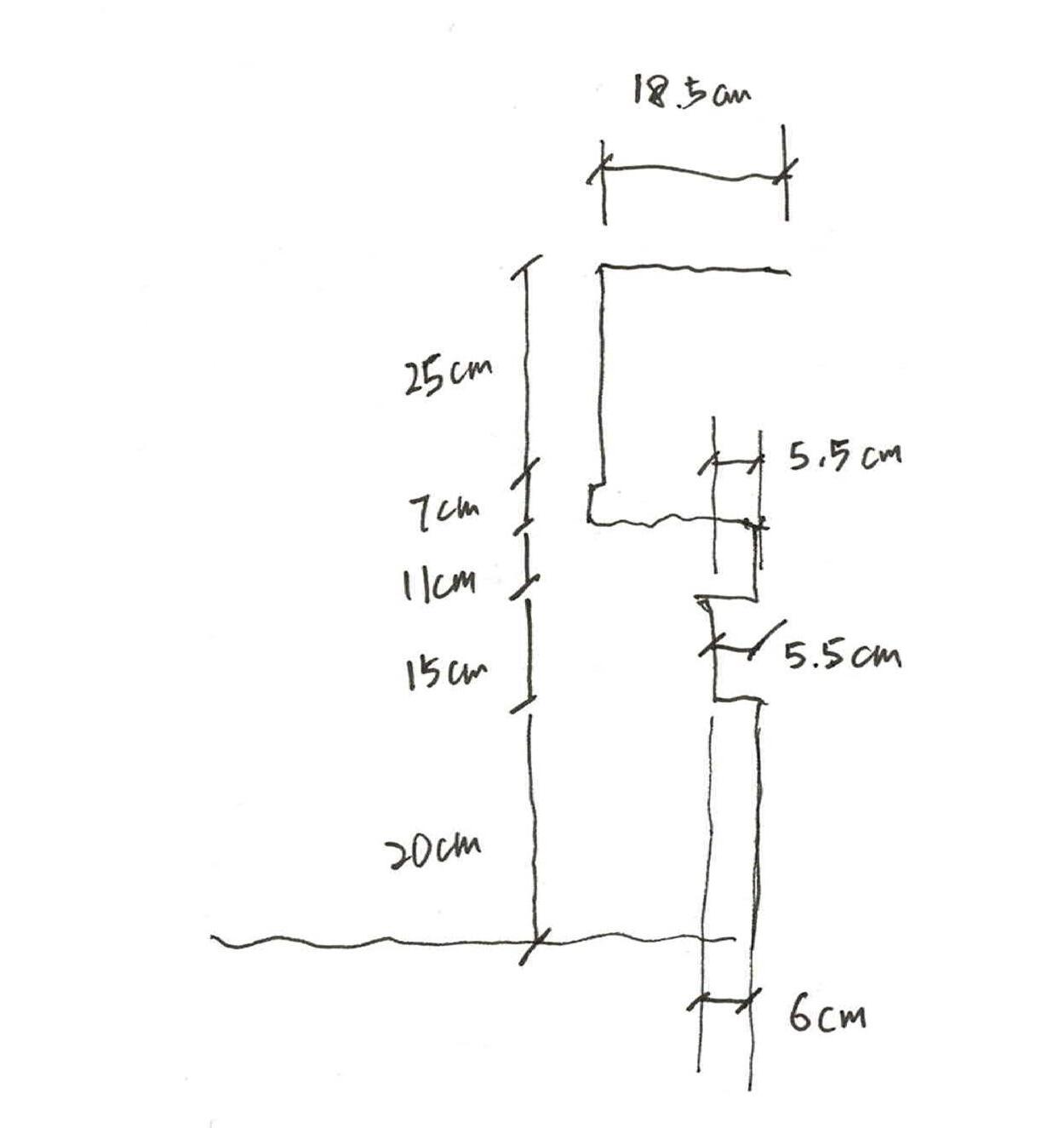

SKETCH

6

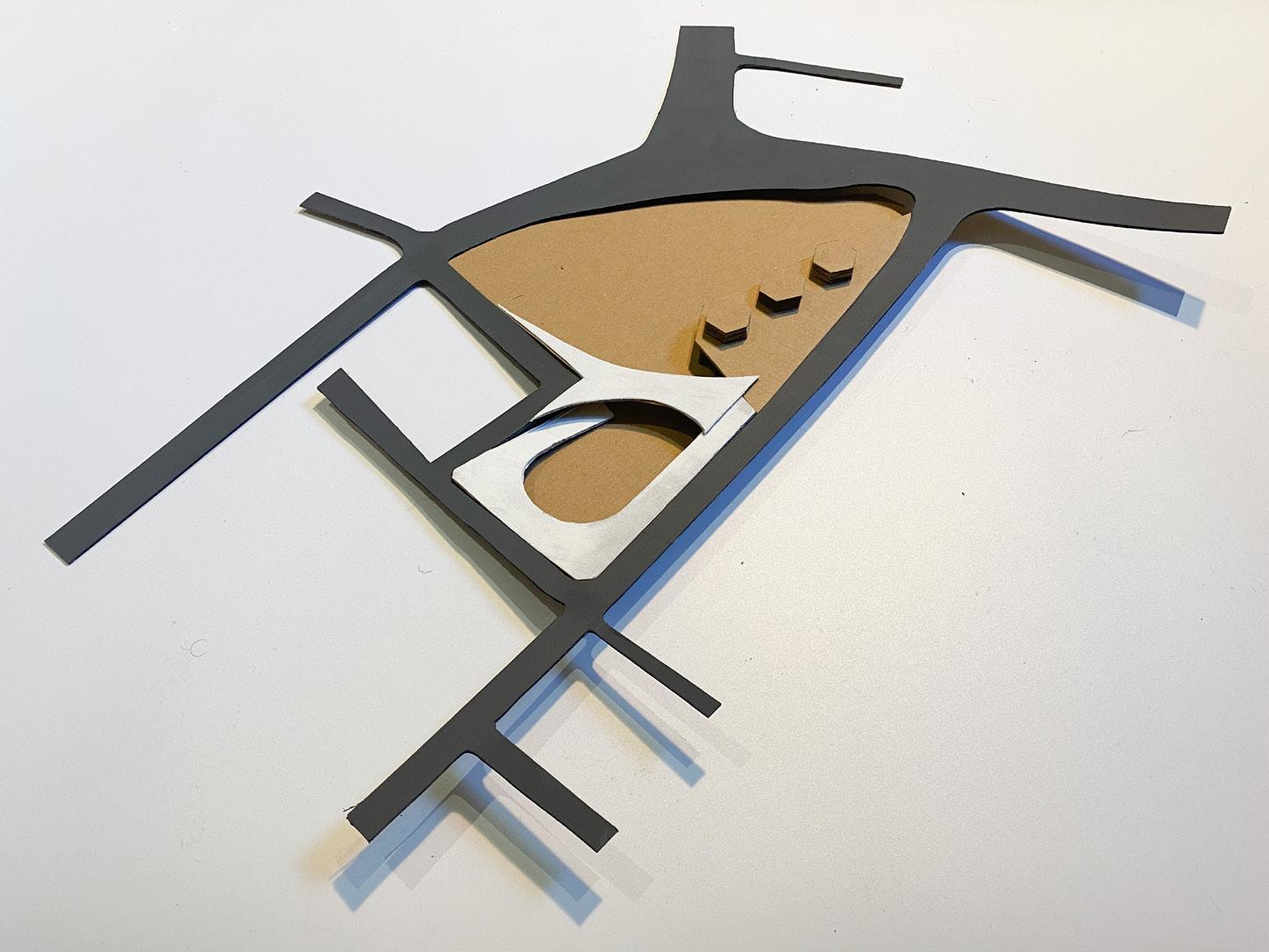

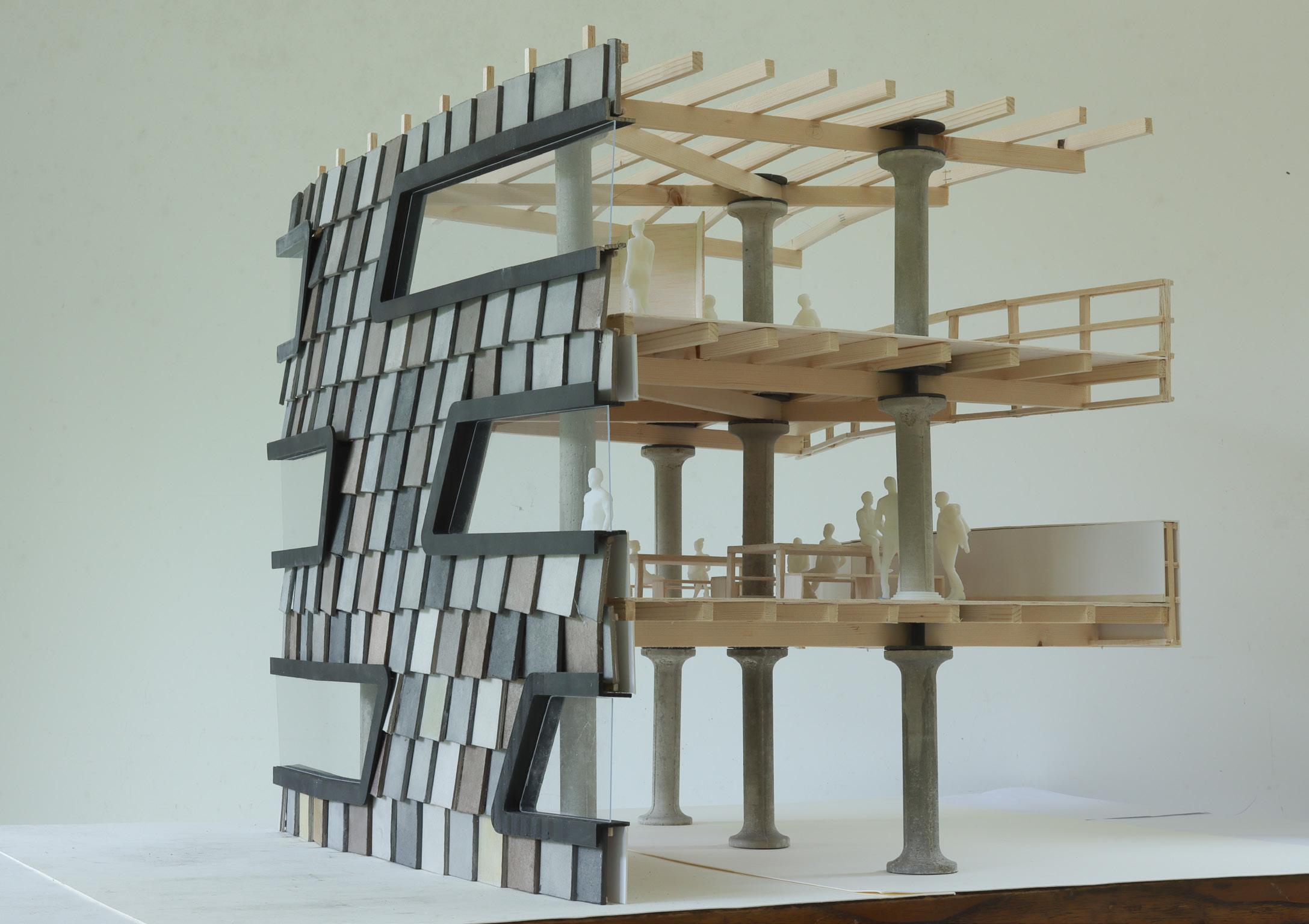

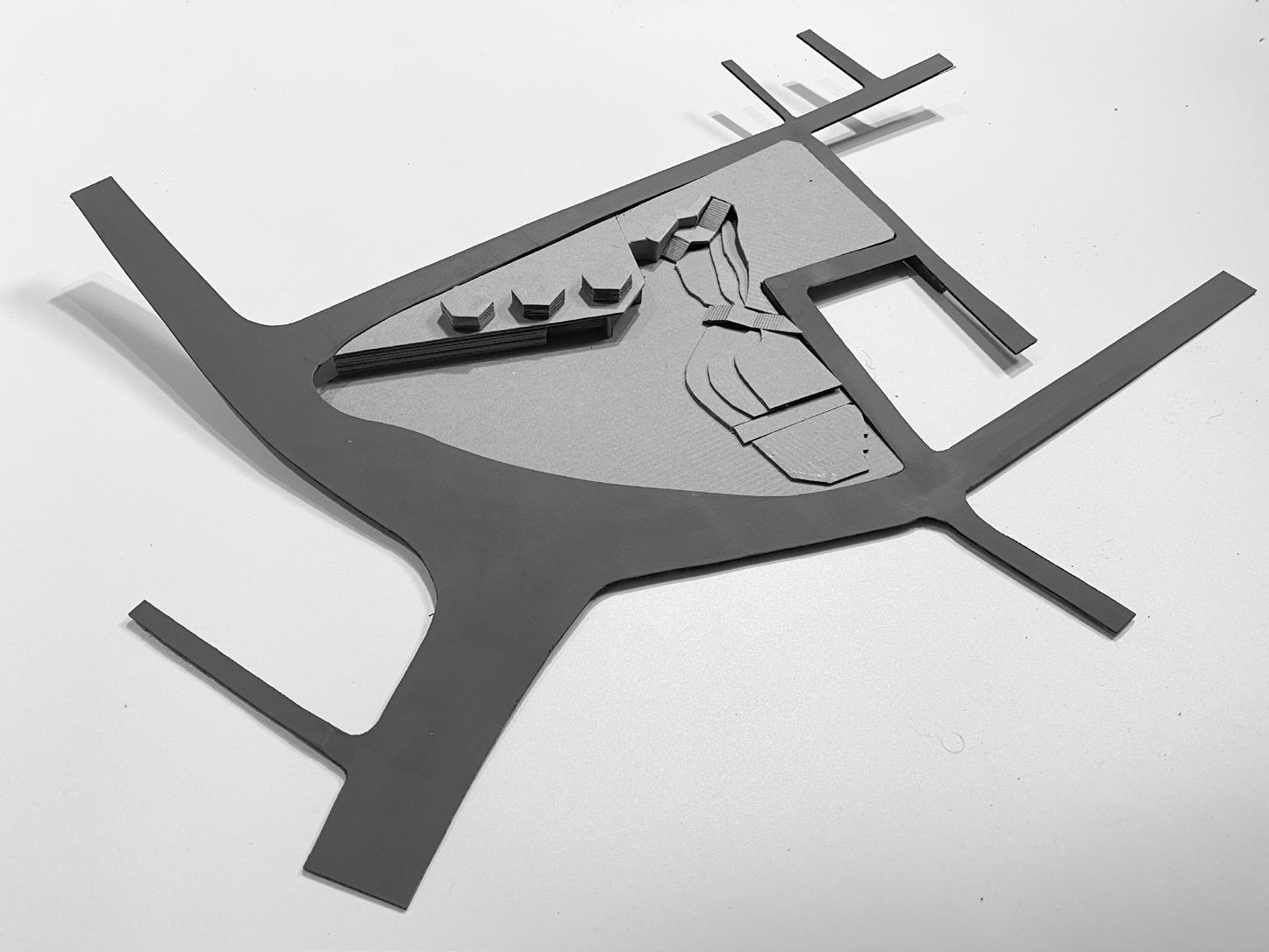

SKETCH MODEL

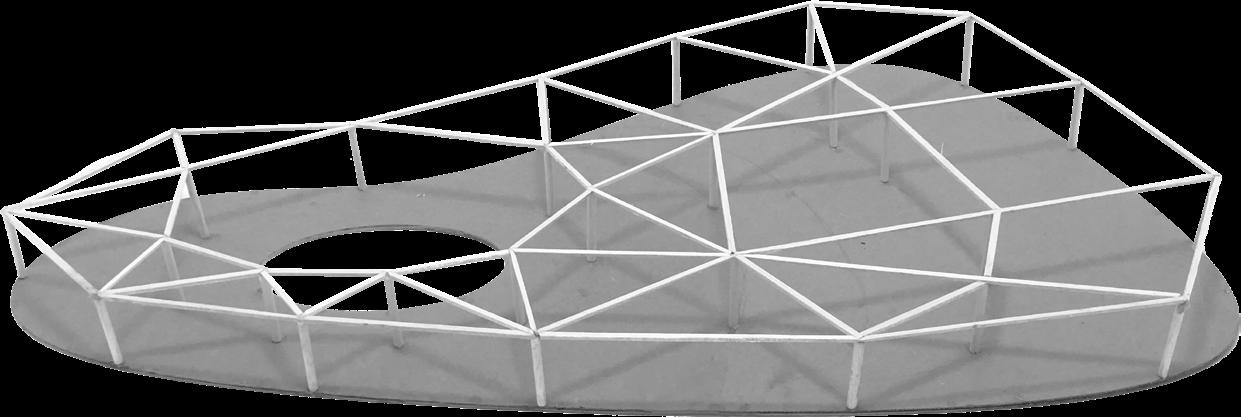

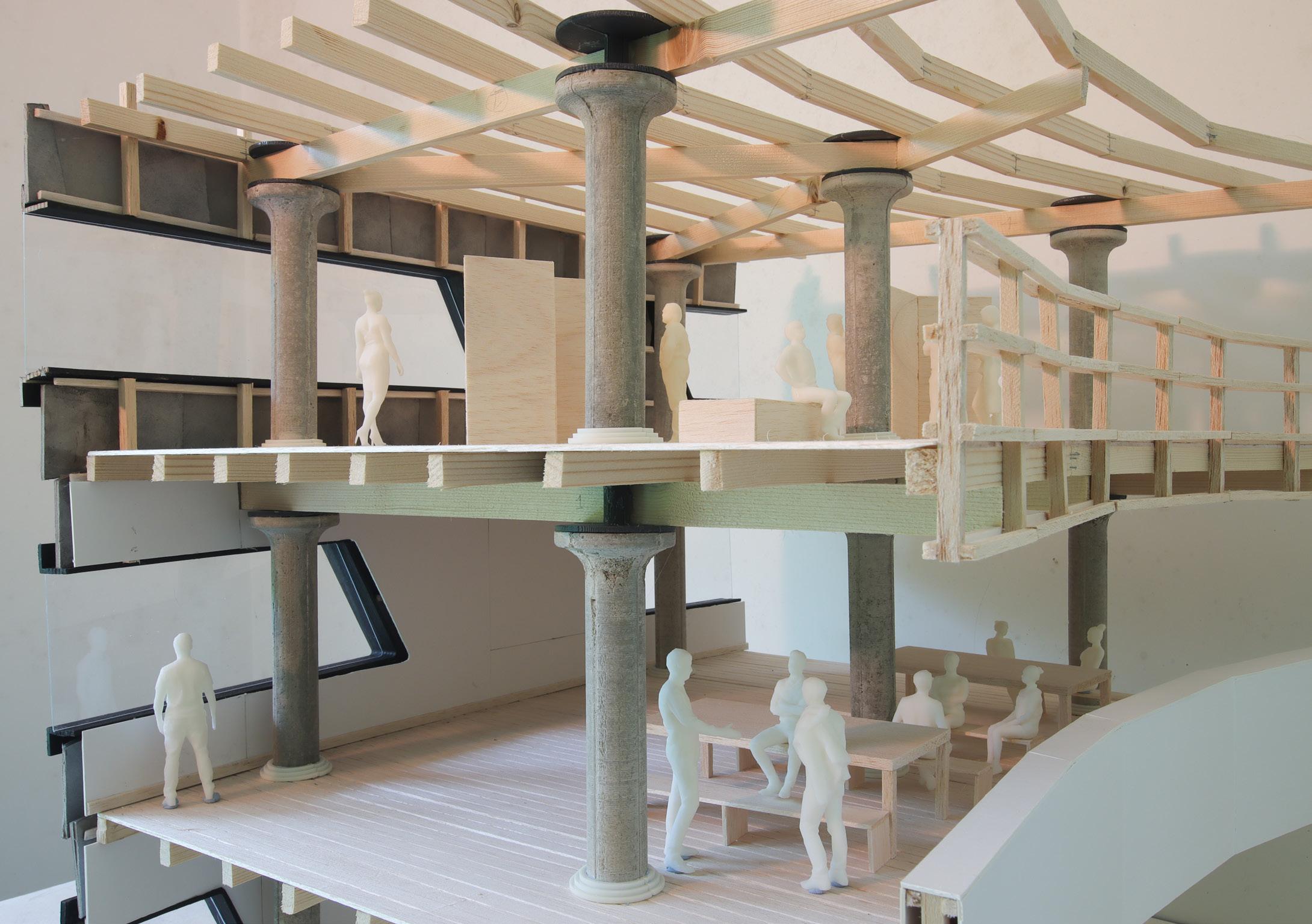

EARLY STRUCTURAL MODEL

GROUND FLOOR PLAN

7

8

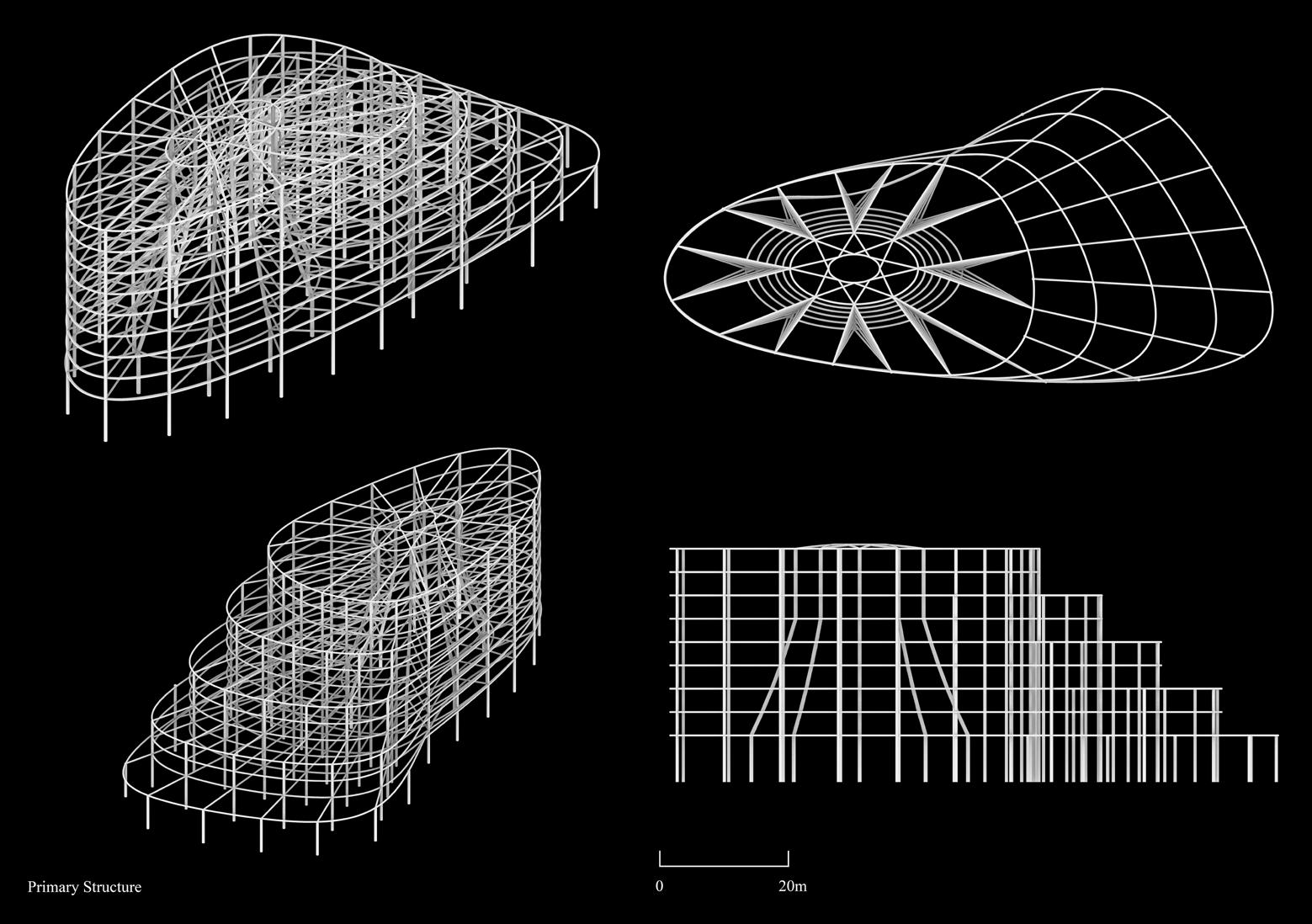

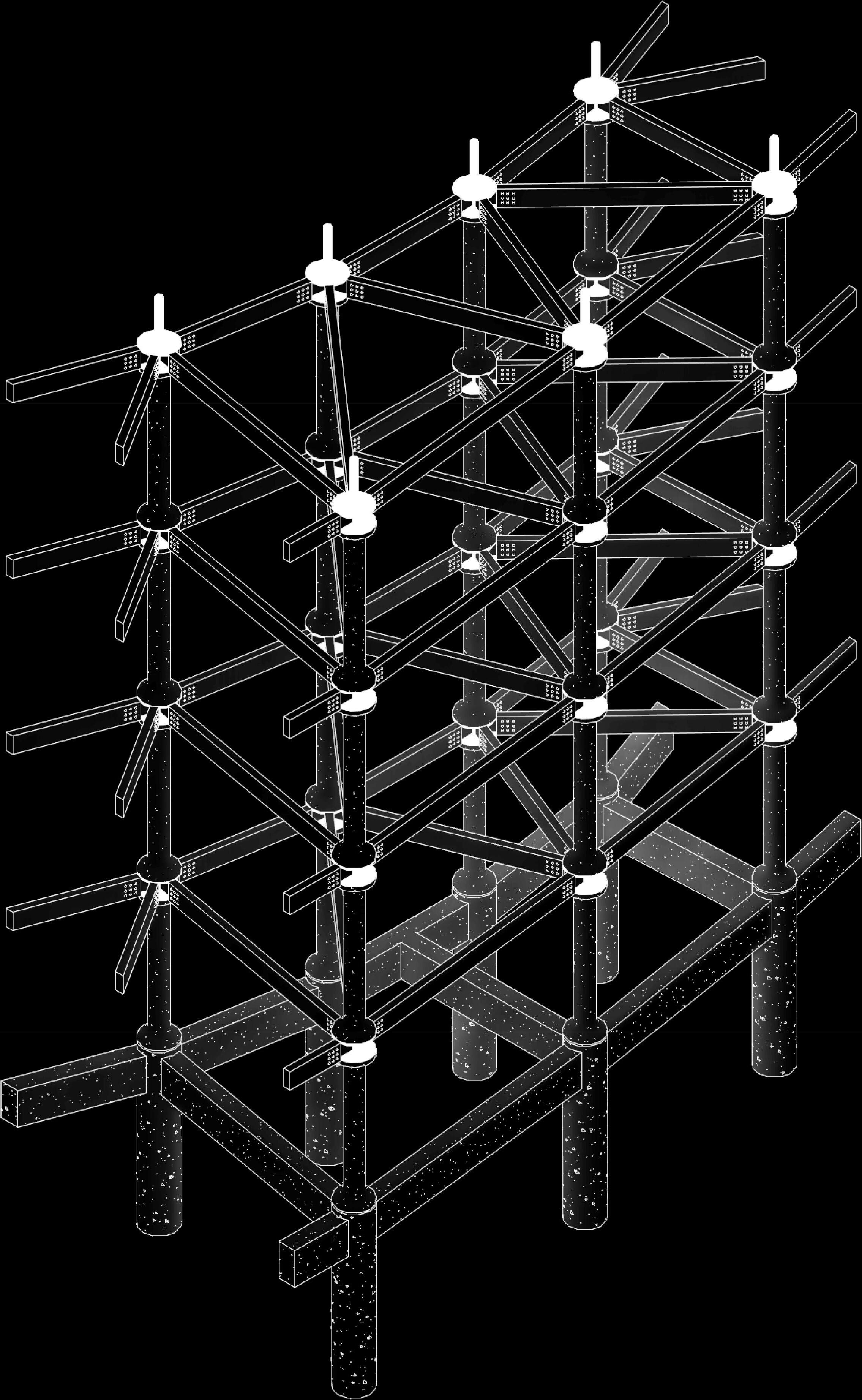

STRUCTURAL AXONOMETRIC

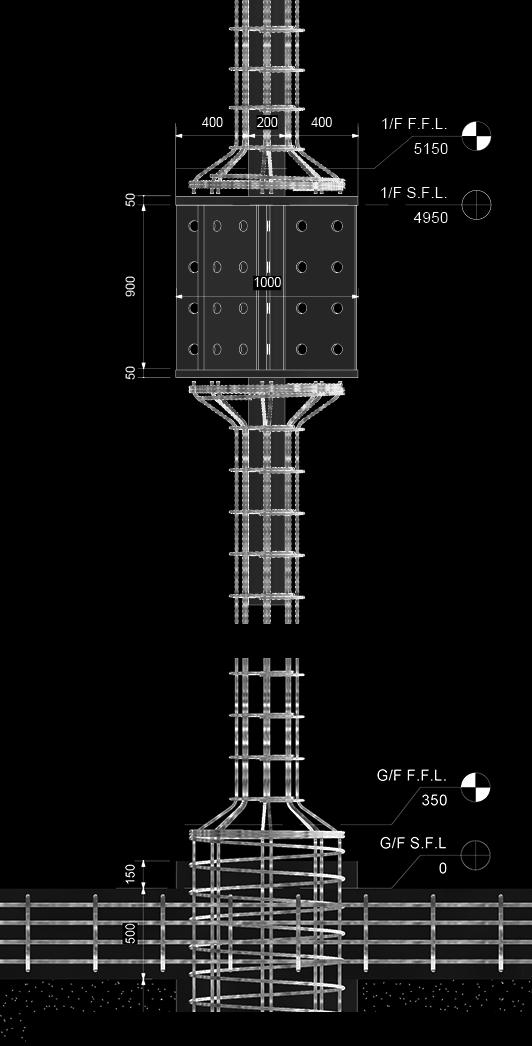

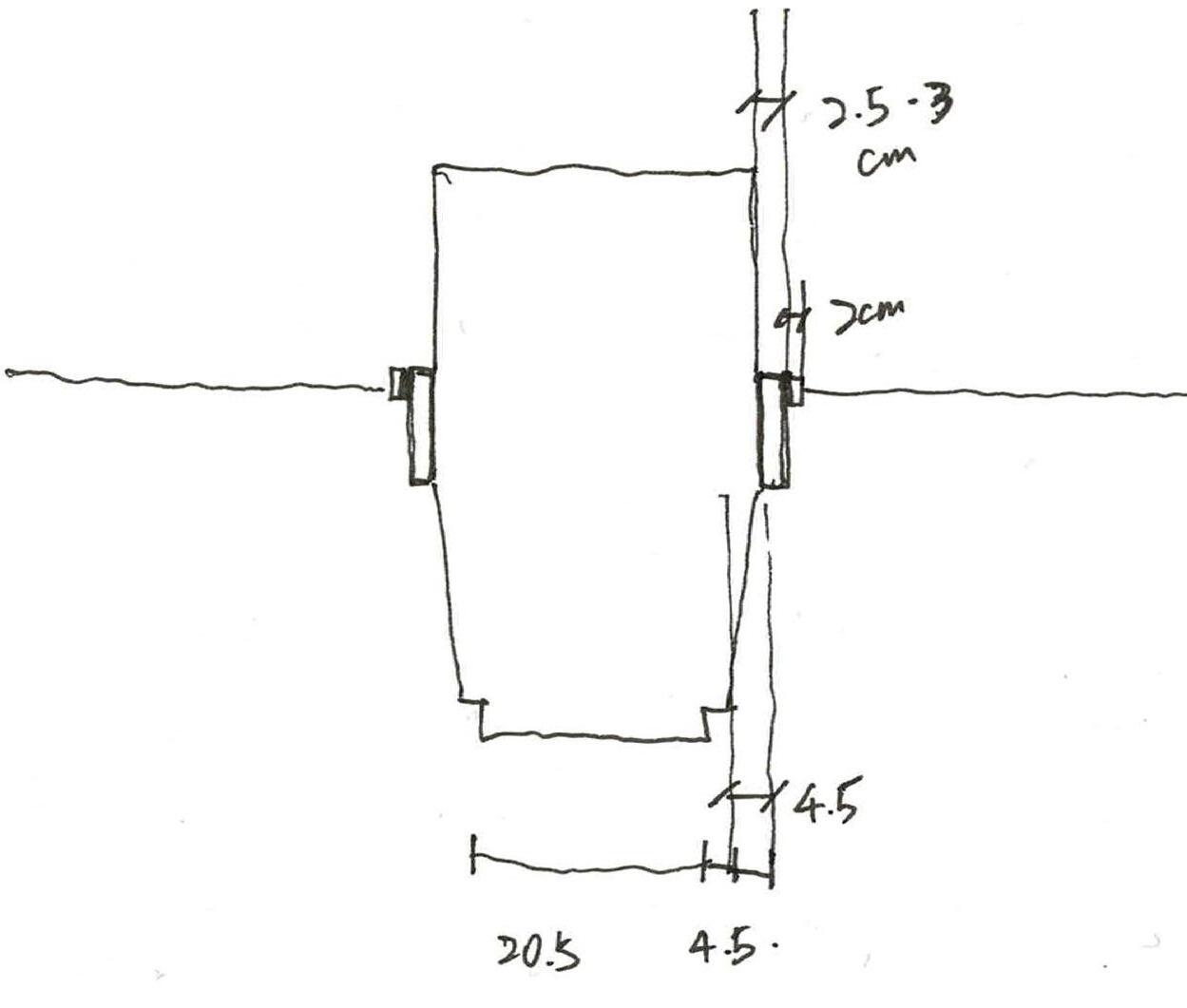

REBAR DETAIL

9

10

MODERN PREFABRICATION is used to produce TRADITIONAL CRAFTSMANSHIP, in response to CONTEXTUAL ARCHITECTURAL History.

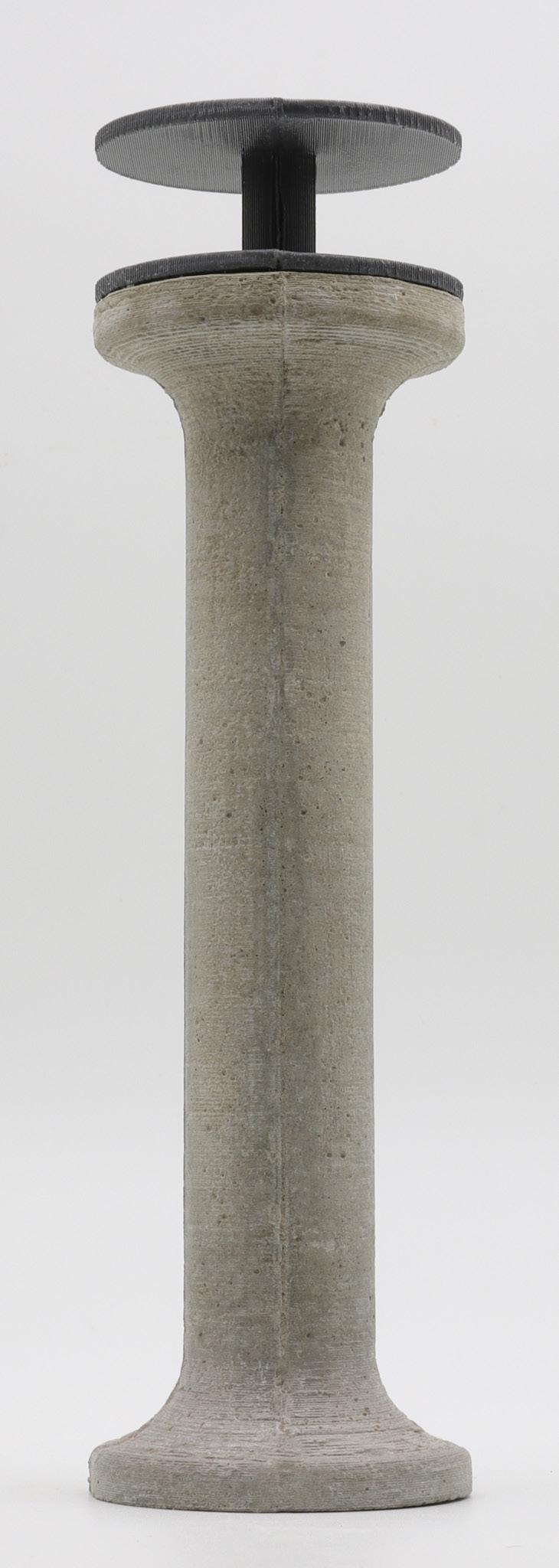

FIRSTLY, CLASSICAL COLUMNS ARE PREFABRICATED IN 3D PRINTED MOULDS. SECONDLY, VICTORIAN WOODEN STRUCTURE ARE PREFABRICATED AND ASSEMBLED ON-SITE. 11

COMMUNITY VENUE

MATERIAL LIBRARY

REFUGEE HOSTAGE

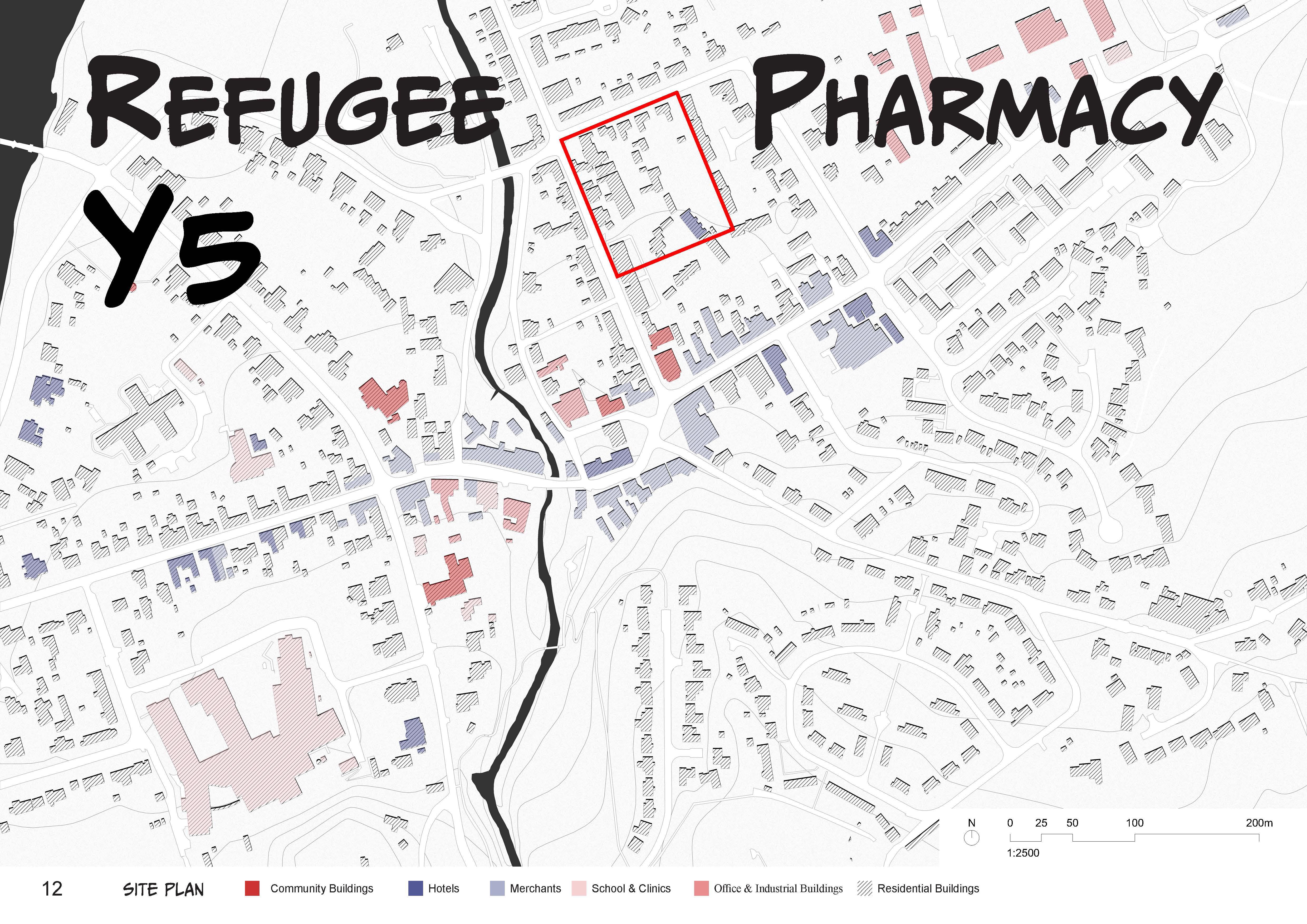

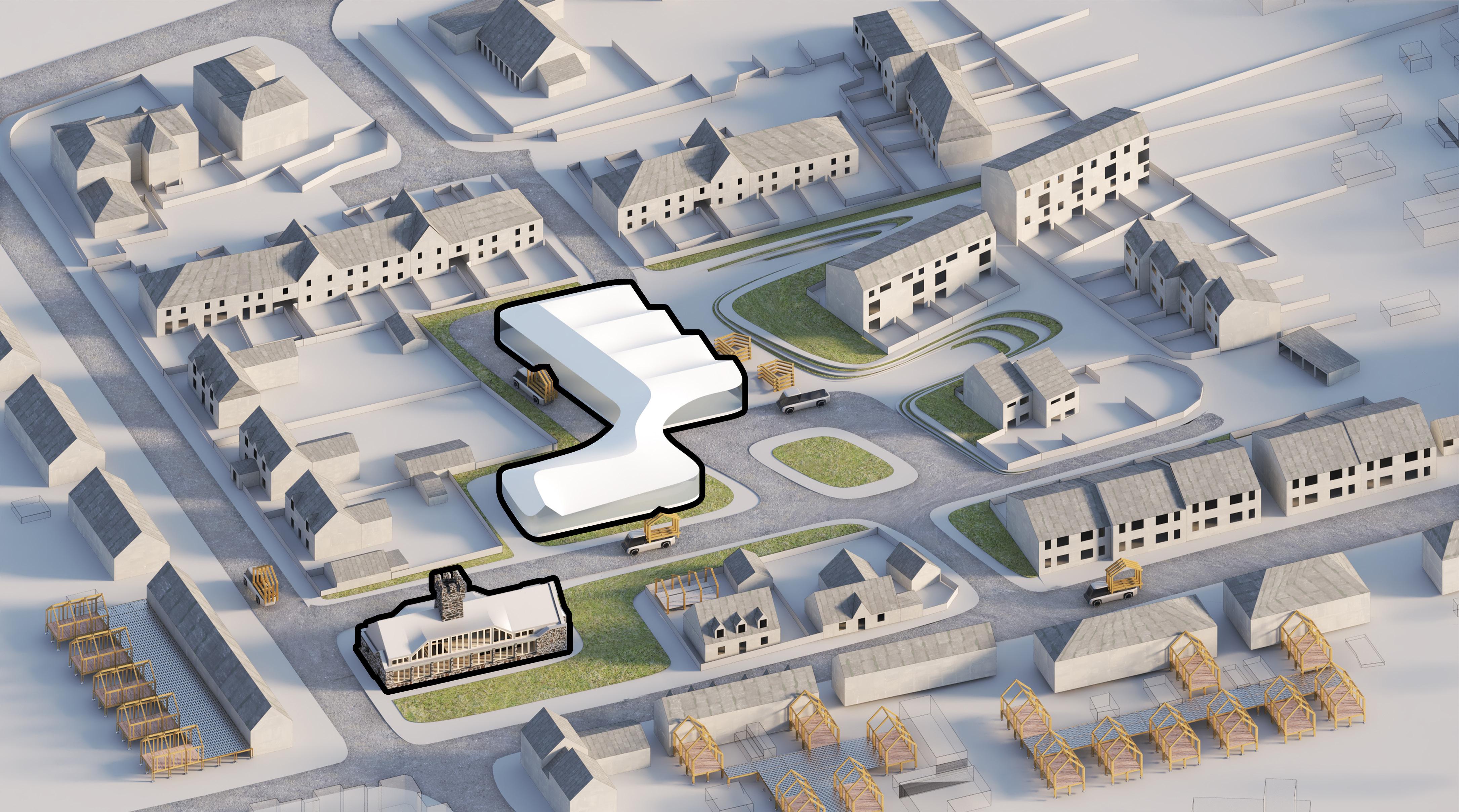

THE PROJECT AIMS TO RETROFIT DERELICT BUILDINGS IN ABERFELDY, SCOTLAND, TO HOST REFUGEES. 13

COMMUNITY A DEMONSTRATOR FOR RETROFITTING DERELICT BUILDINGS FOR REFUGEE HOSTAGE, in aberfeldy gasworks.

14

FIRST FLOOR PLAN

4 2

5 7

4

6

1 3

N

0

5m

1

Refugee Meeting Room

2

Kitchen

3

Hearth

4

W.C.

5

Plant Room

6

Exhibition

7

Storage

8 Administration

9

Rainwater Havesting Tank

10

MVHR

GROUND FLOOR PLAN

RETROFIT GROUND FLOOR PLAN

15

3

N

0

1

Refugee Meeting Room

2

Kitchen

3

Hearth

4

W.C.

5

Plant Room

6

Exhibition

7

Storage

8 Administration

9

Rainwater Havesting Tank

10

MVHR

GROUND FLOOR PLAN

10 9

LONG SECTION

RETROFIT LONGITUDINAL SECTION

16

5m

1 Existing stone wall 2 Kingspan Aquazone waterproof 3 membrane 3 100 mm Celotex PIR Insulation 3 Board 4 20 mm plaster board finish 5 Concrete underpining 6 150 mm Celotex XR4000 PIR 3 insulation board 7 150 mm cast-in-situ concrete 8 Fujitsu Air Conditioning 3 UTZBD100C energy recovery 3 ventilator 9 Column base plate 10 11 mm OSB board 11 SkyFloor Walkable Skylights 11 Series 9 1000 12 50mm engineered oak flooring 13 Yeti Airflow 10 mm thick 11 stainless 11 steel grating, 11 sittng on galvanised 32 steel 11 plenum channel with air 11 supply 14 Schüco Door System AD UP 75 13 Door System 15 250 x 250mm concrete lintel 16 45 x 220 mm MGM C24 Treated 13 Timber 17 Zinc drainage and copping 18 Schüco Window System AWS 11 75 BS.SI+ 19 Zinc flashing 20 Zinc hidden gutter & drainage 21 50mm wool insulation 22 Kingspan Aquazone waterproof 13 membrane 23 50 x 50mm timber rafter 24 50 x 50mm timber batten 25 Tesla Solar Roof Tile 26 French drain

25

24

23

22

21

20 19

18 17

1

16

15

2

14

3 13

12

11

4

26

10

9

7

6

5

8

RETROFIT DETAIL section

17

STRUCTURE

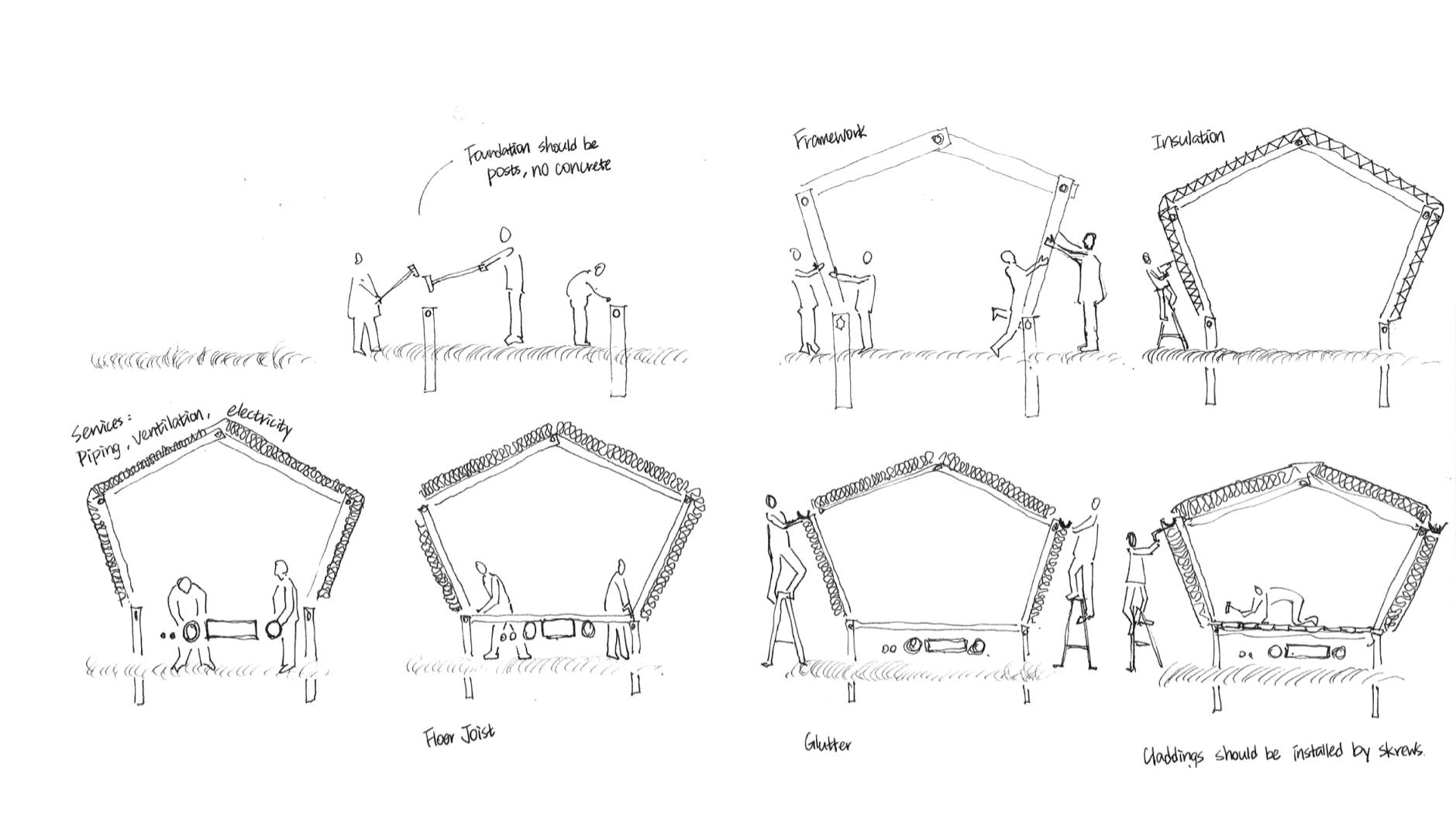

SKETCH OF MODULAR, SELF-BUILD HOMES, WHICH UNDERLIES STRUCTURAL DESIGN. 18

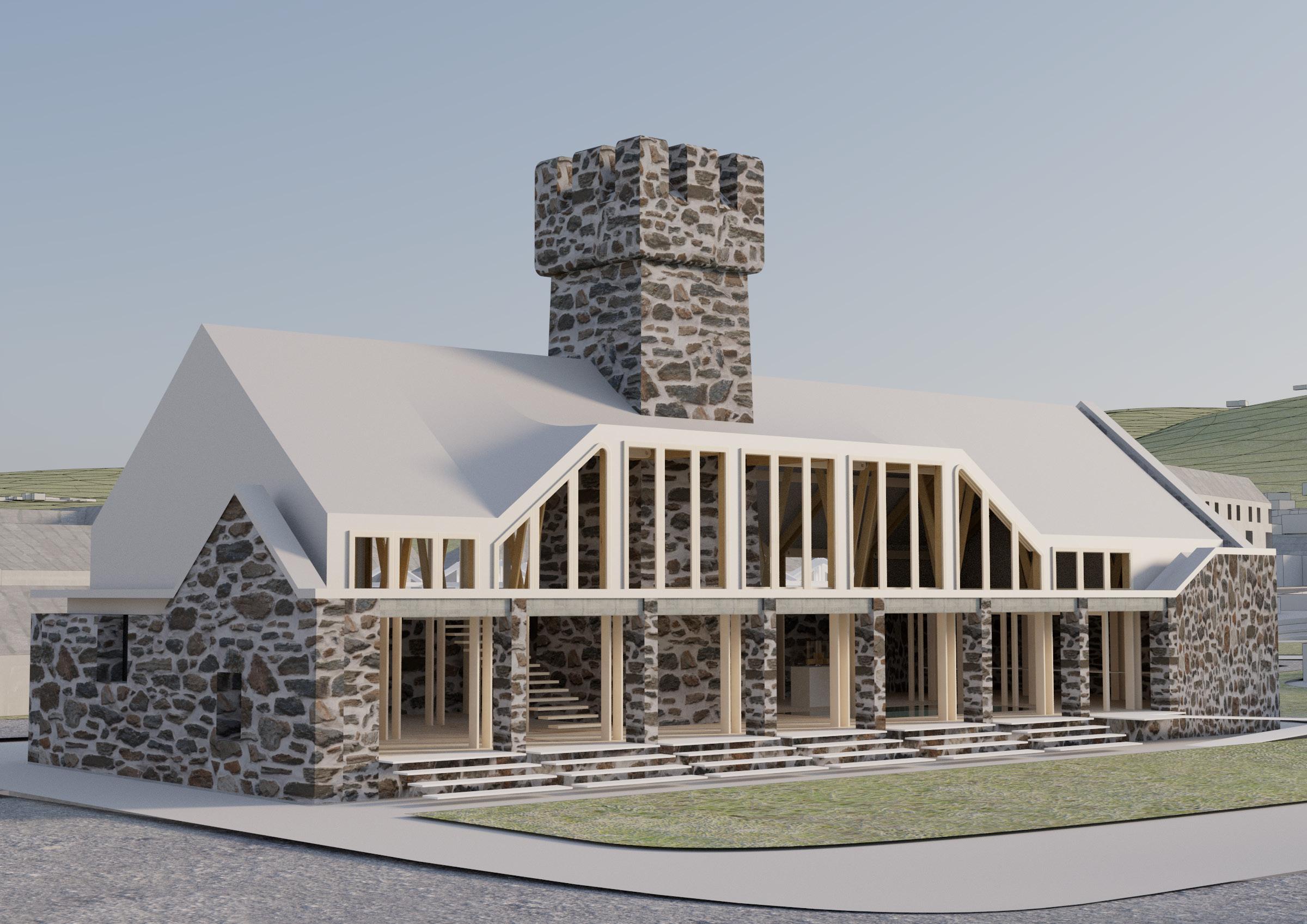

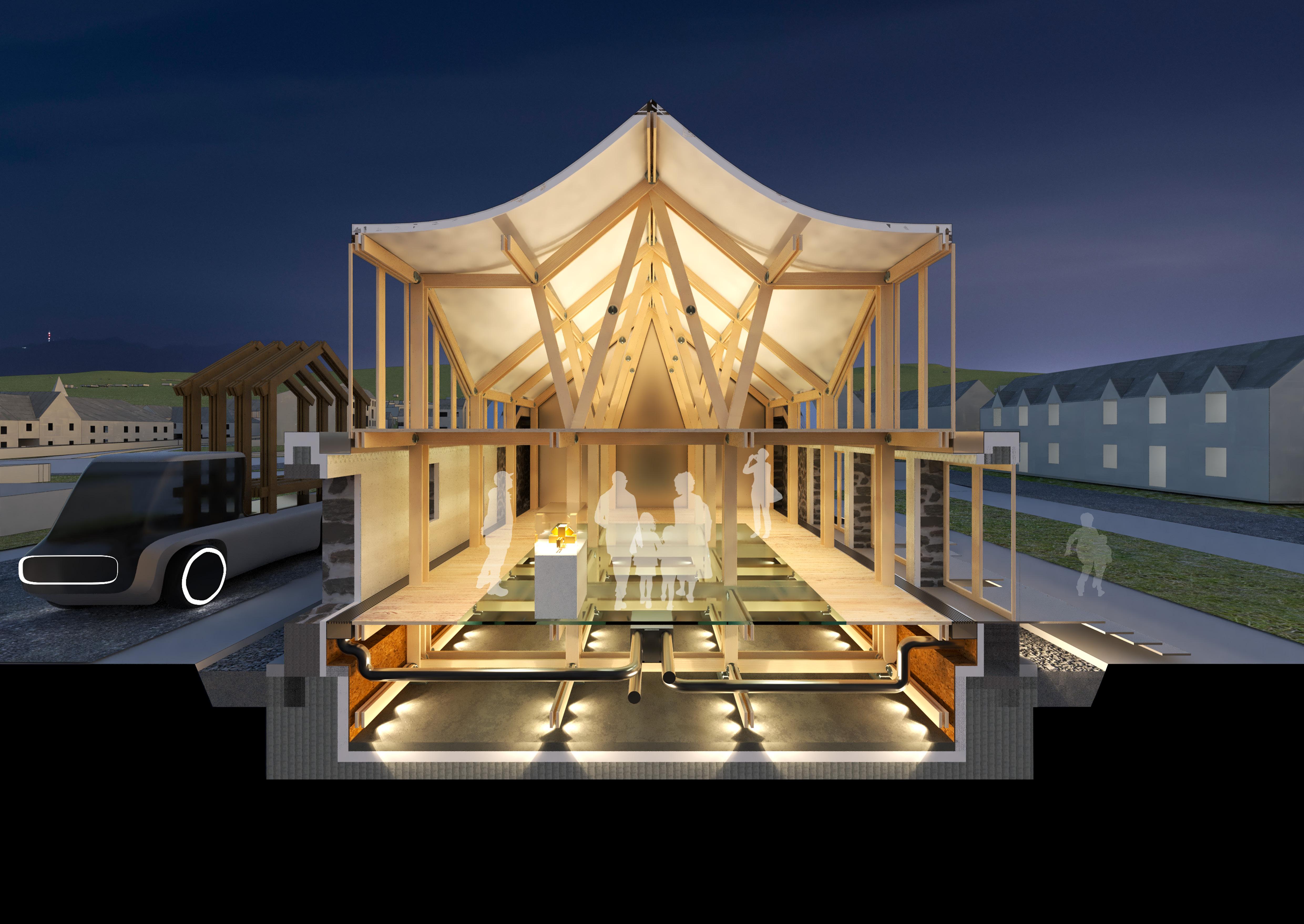

RETROFIT 3D SHORT SECTION

19

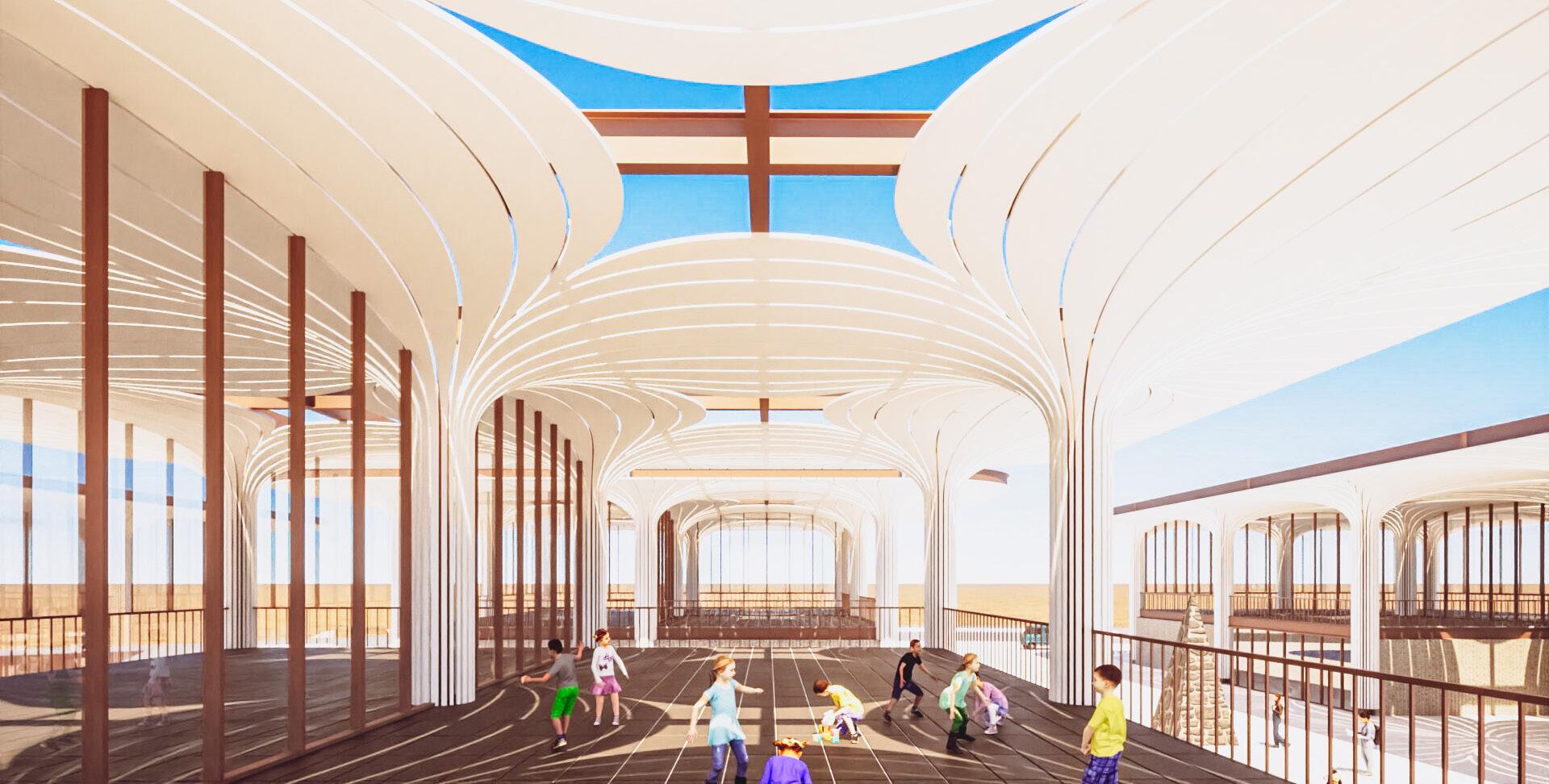

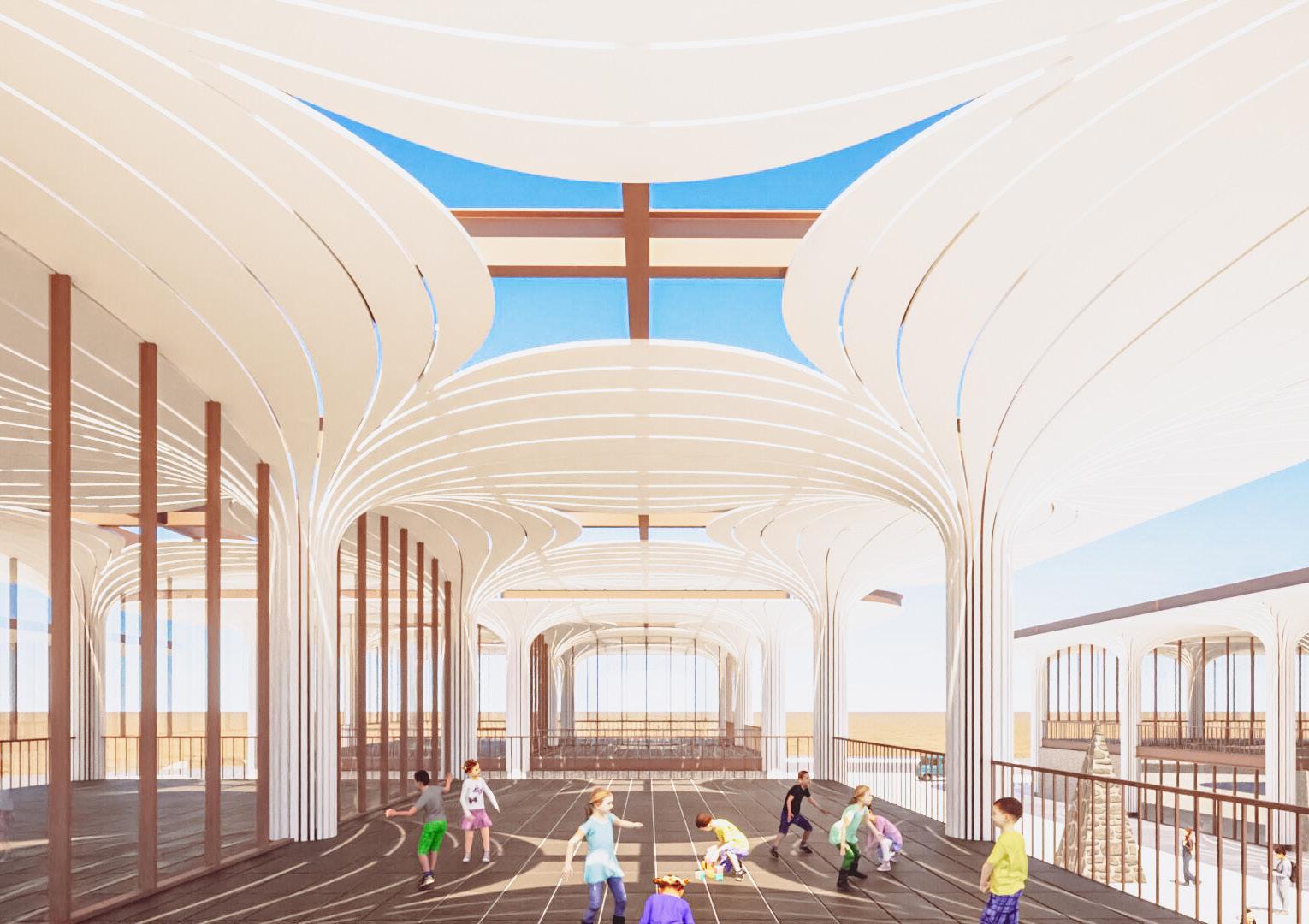

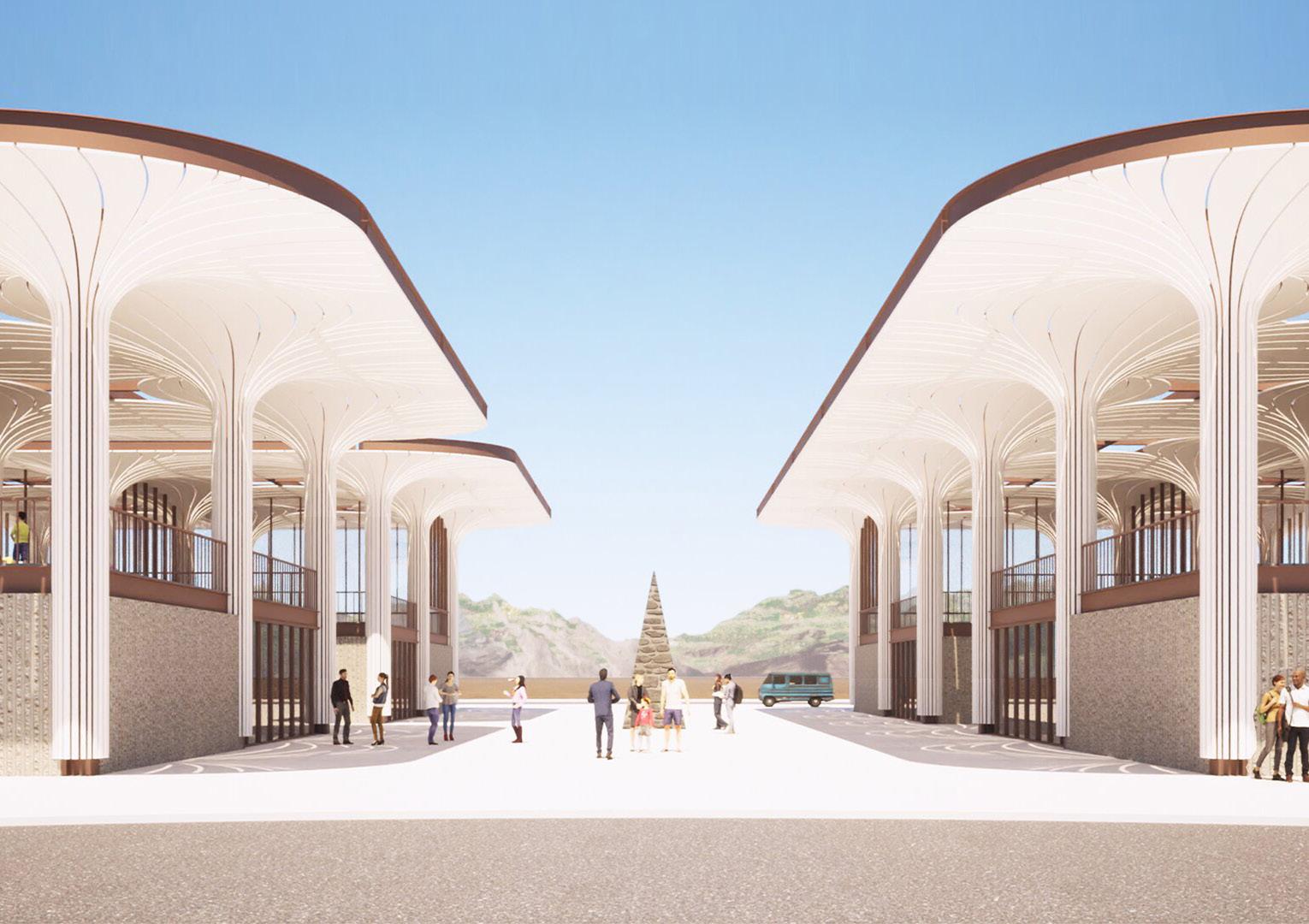

LAST NUCLEAR BOMB WORLD PEACE CENTRE COMPETITION ENTRY

20

SITE TRINITY SITE, NEW MEXICO

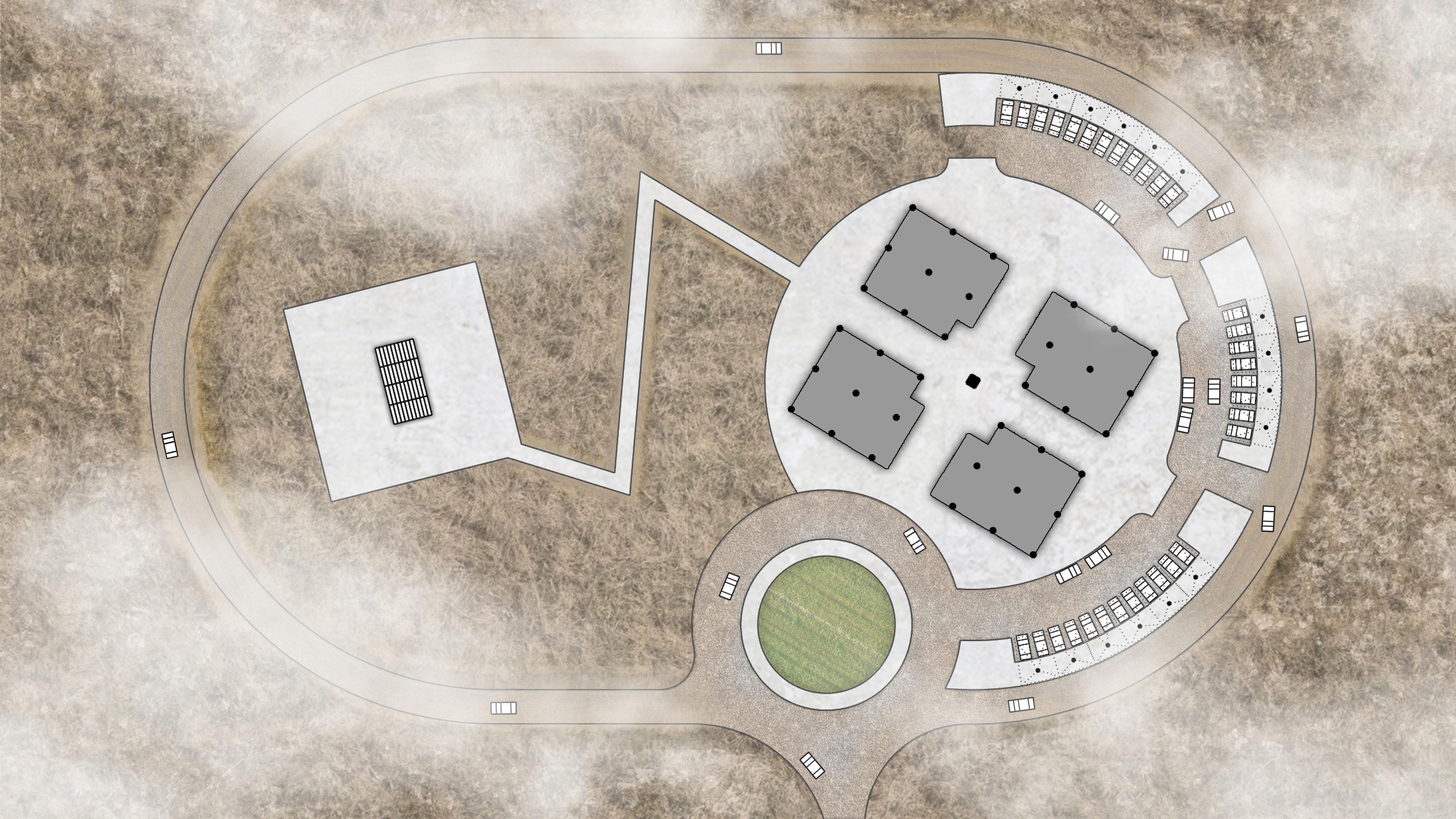

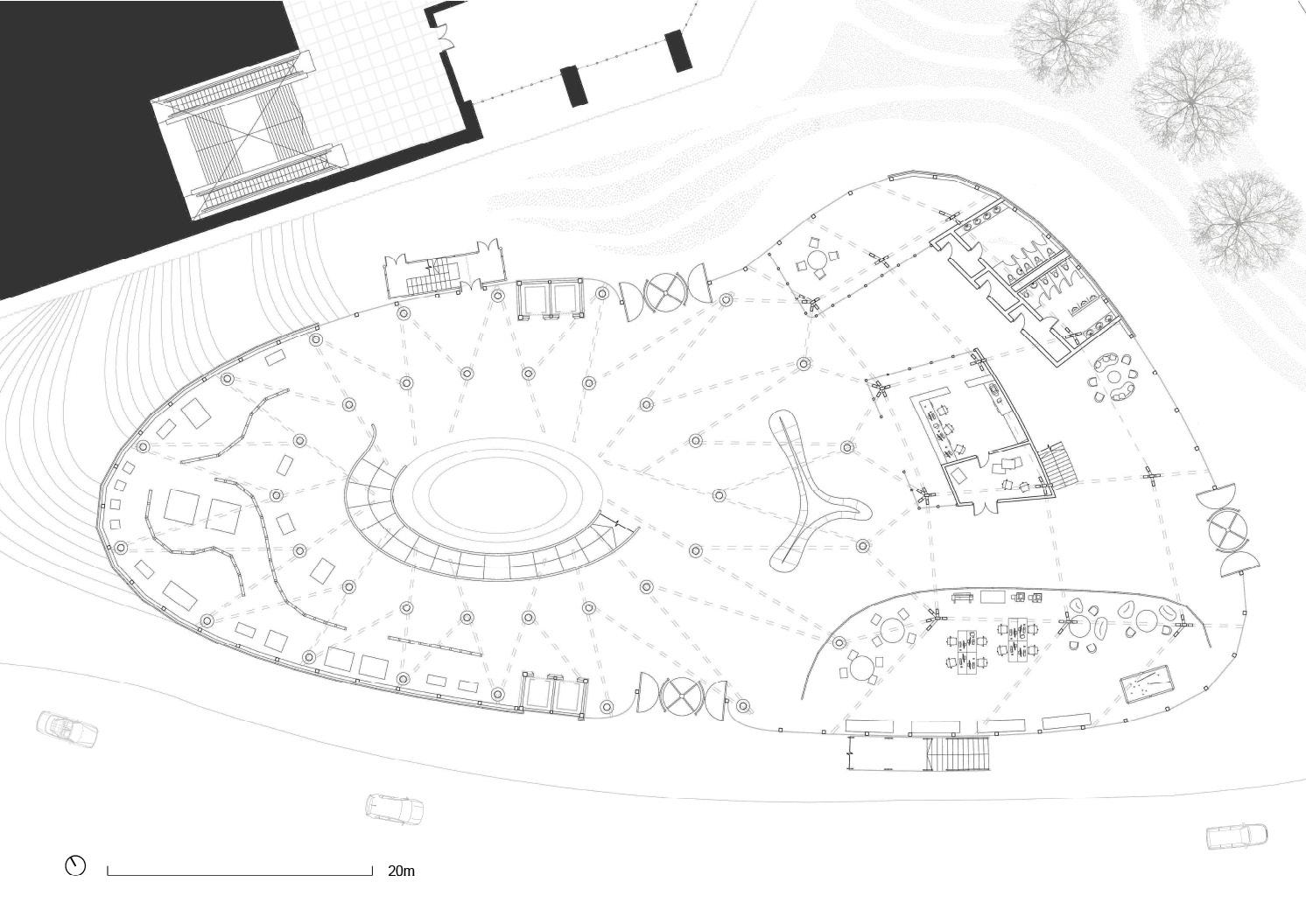

SITE PLAN

21

22

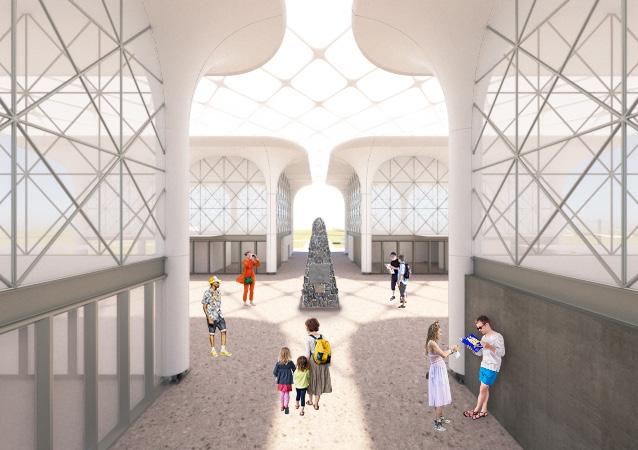

STRUCTURE

IN RESPONSE TO THE EXTREME HEAT AND INACCESSIBILITY TO LOCAL RESOURCES, OFF-SITE MANUFACTURING OF STEEL-FRAME STRUCTURE AND CLADDING SPEEDS UP CONSTRUCTION.

RHINO INSIDE REVIT

23

24

Level 2 9000 Truss Base 7500 Level 1 3500 Level 0 0 4800

9600

9600

9600

9600

9600

4800

ELEVATION

25

26

CRAWFORD BUILDING RETROFIT

Y4

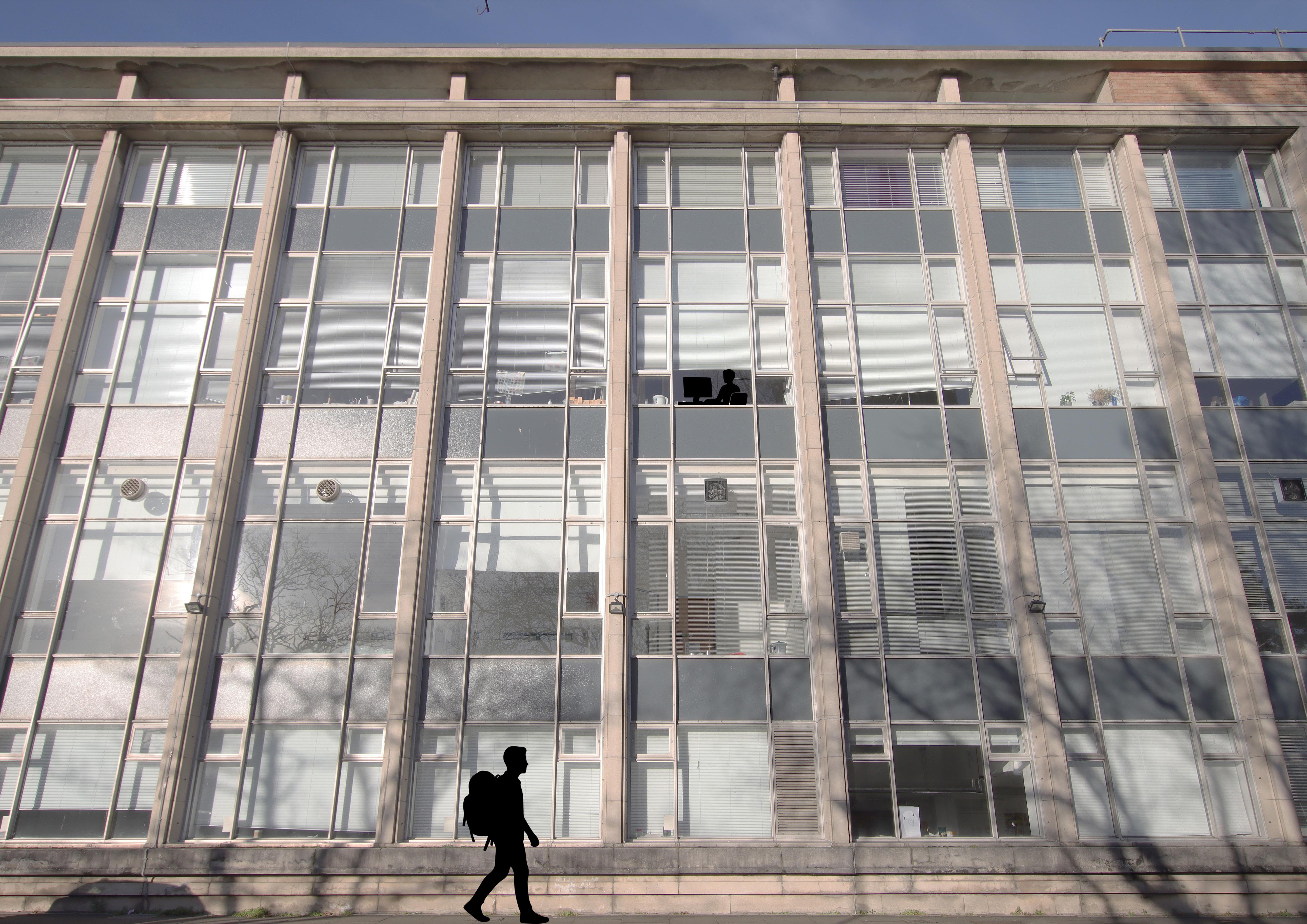

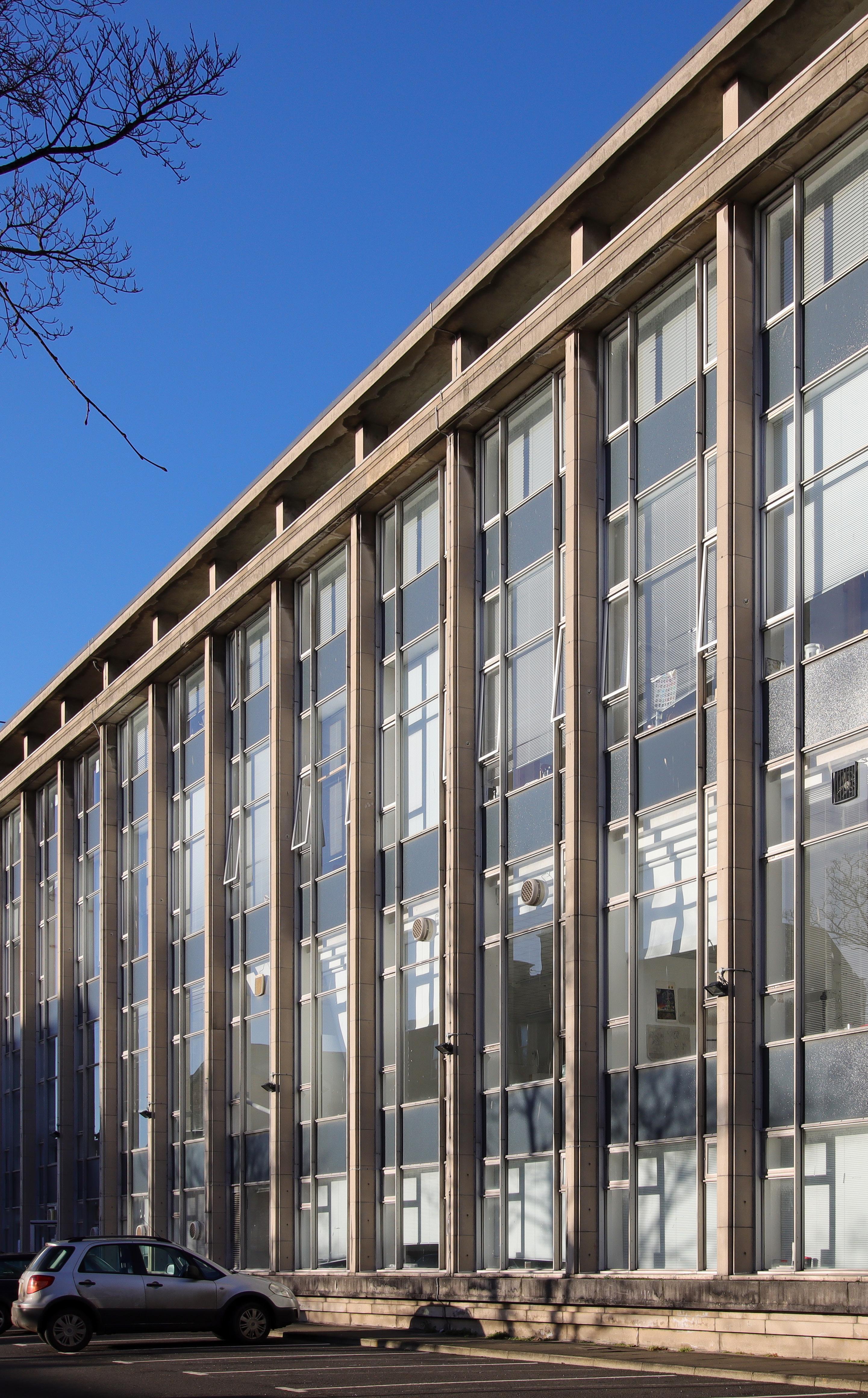

EXISTING BUILDING i NEED green SPACE!

i wish this building can be more open to public.

27

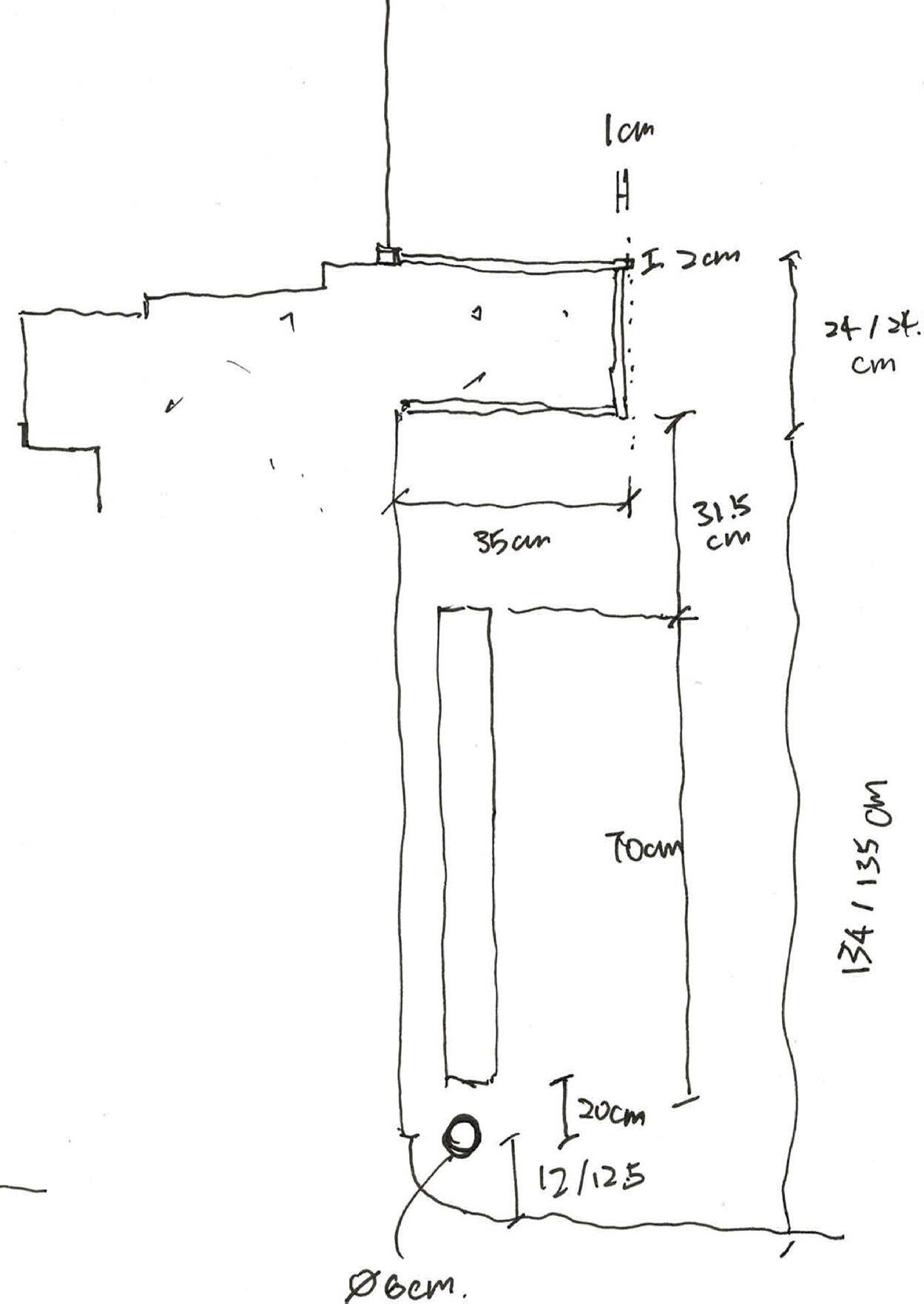

SURVEY

SKETCHES

28

Studios Public Gallery Staffrooms Cantina Workshops Art Shop

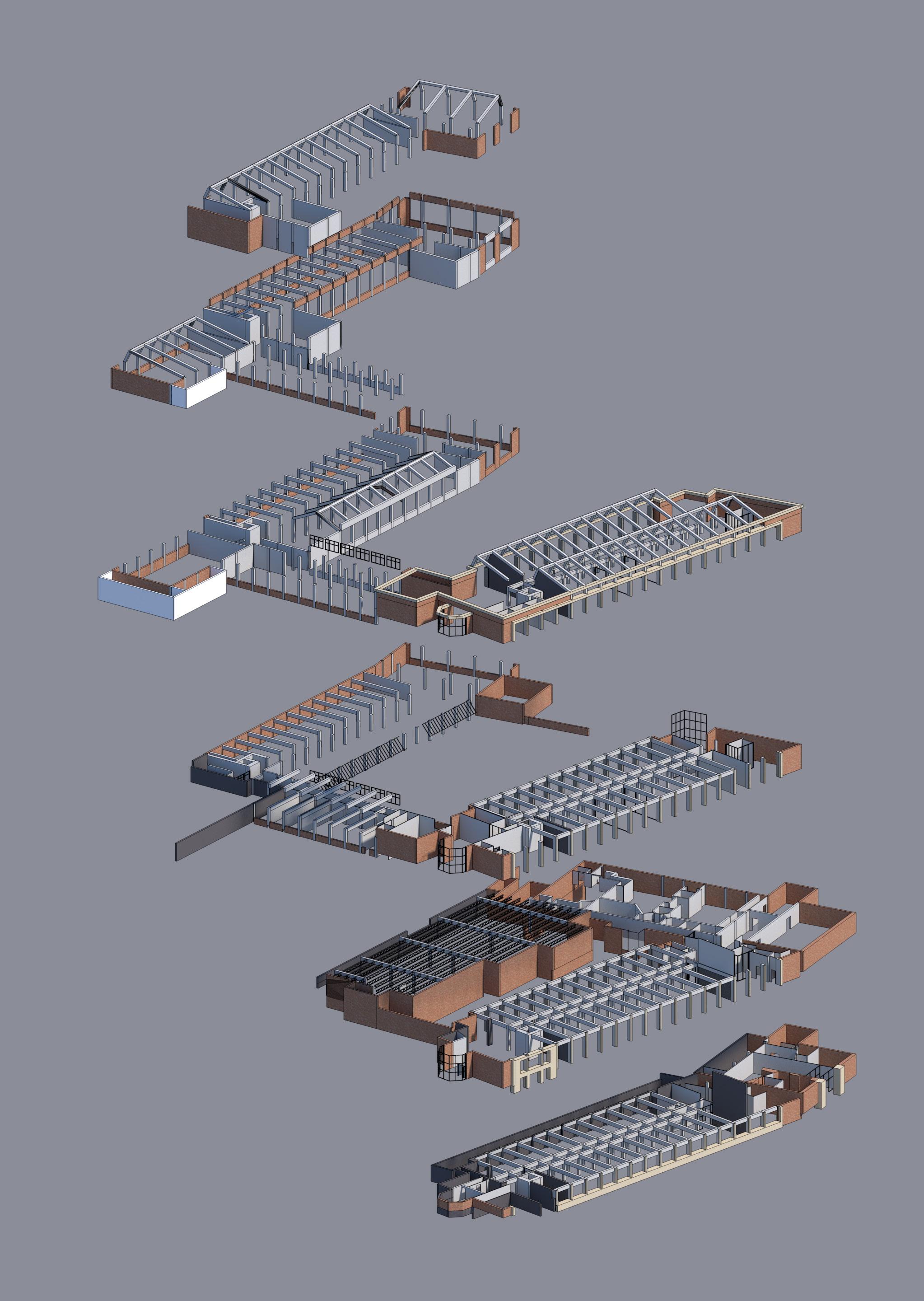

PRIMARY STRUCTURE

PROGRAMME

29

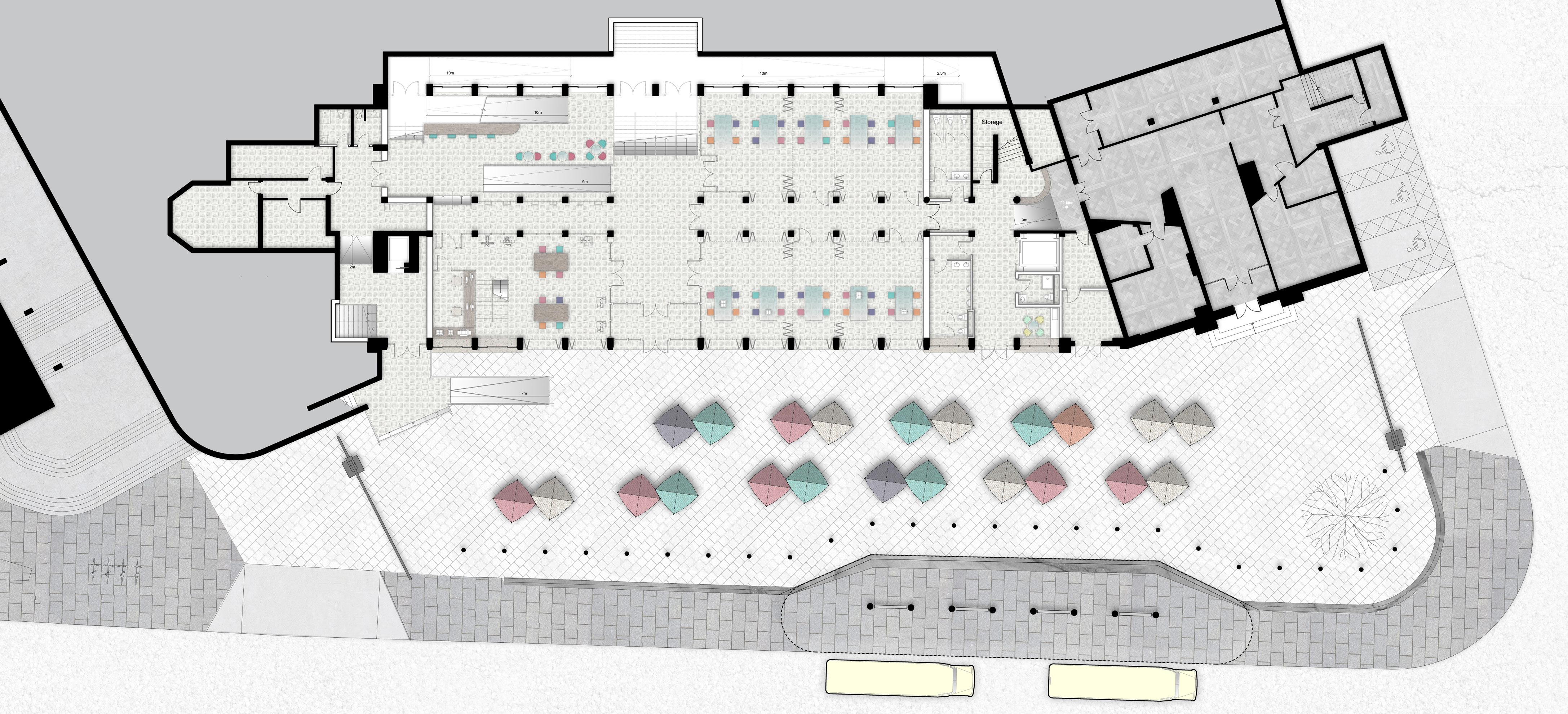

GROUND FLOOR PLAN

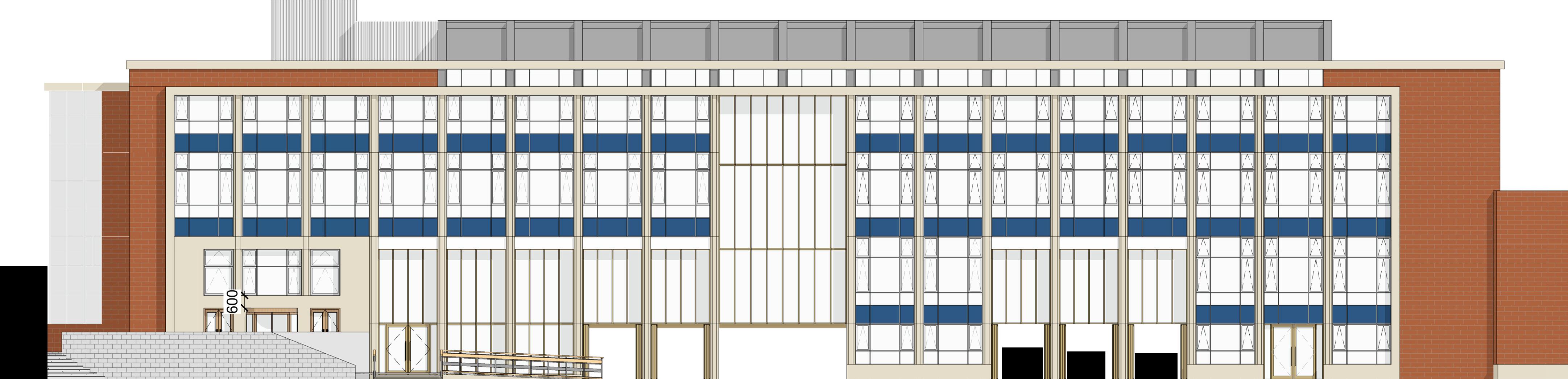

ELEVATION

30

RETROFIT

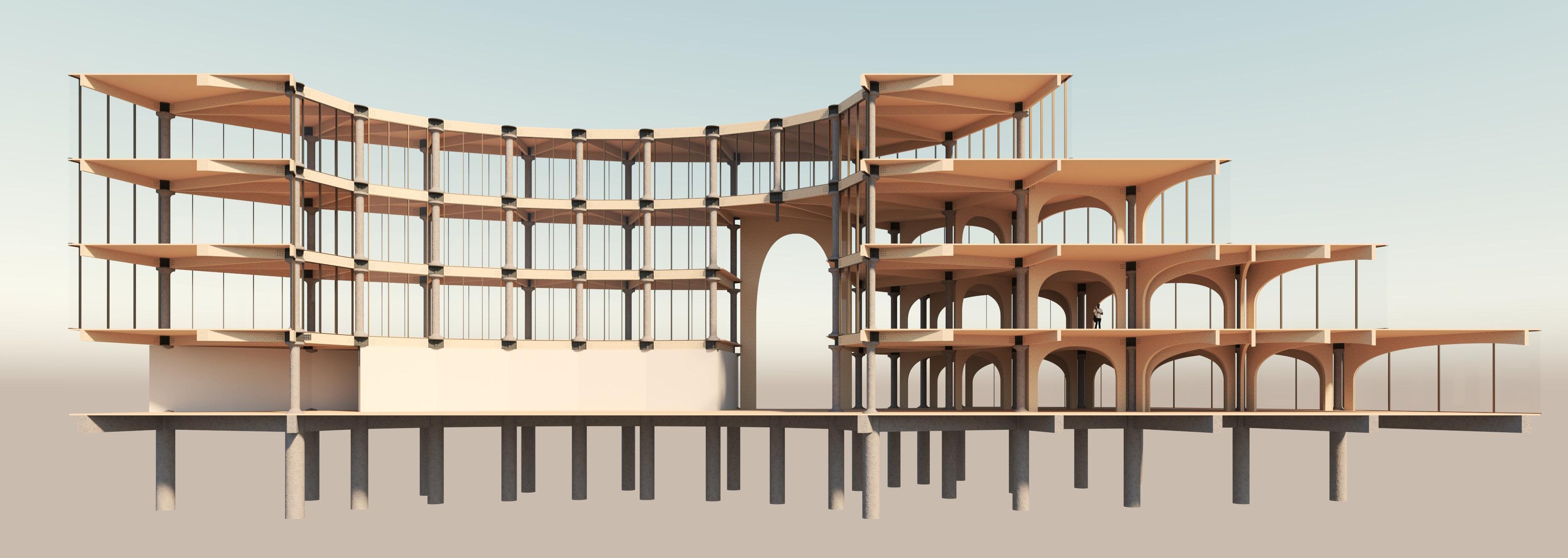

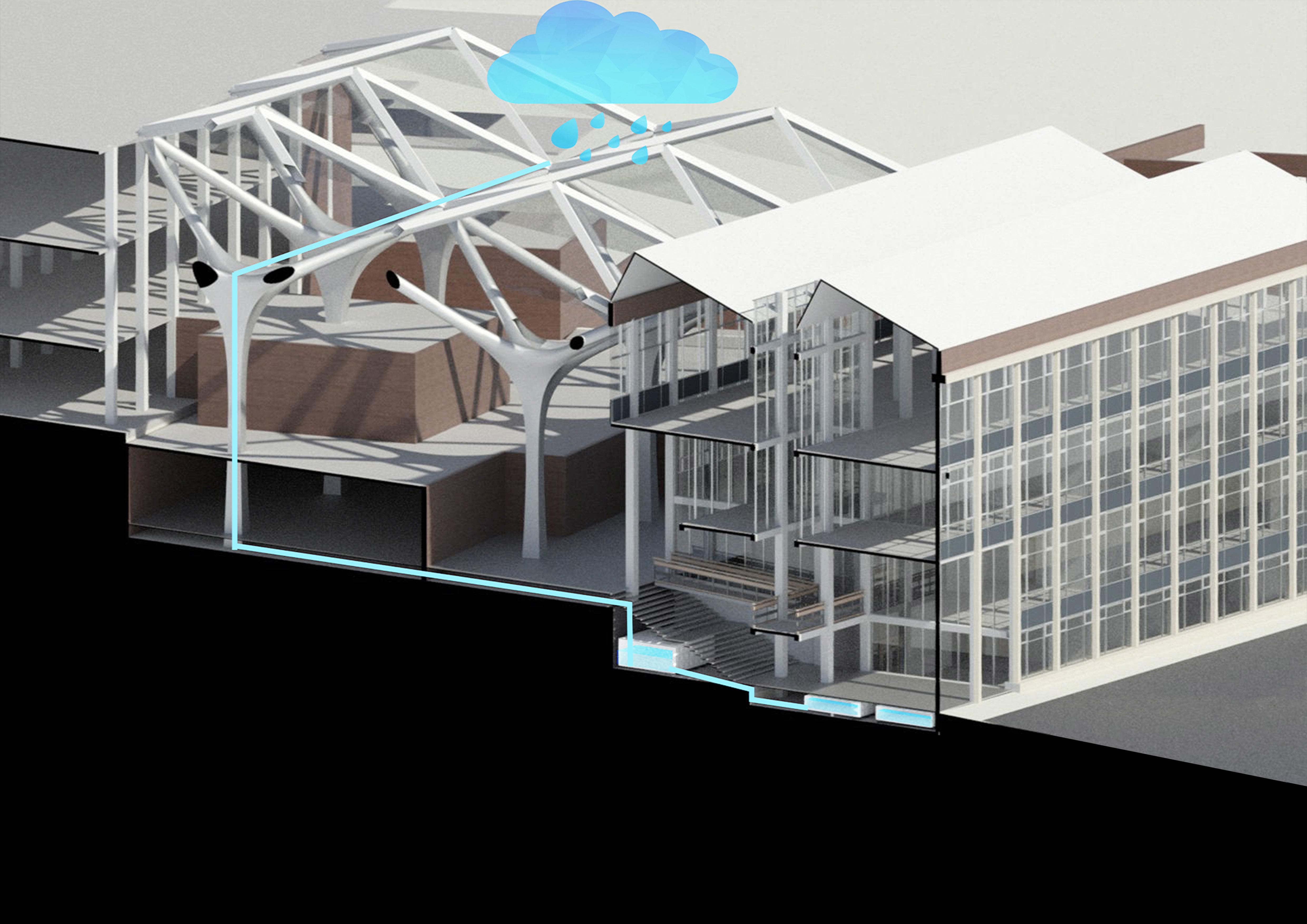

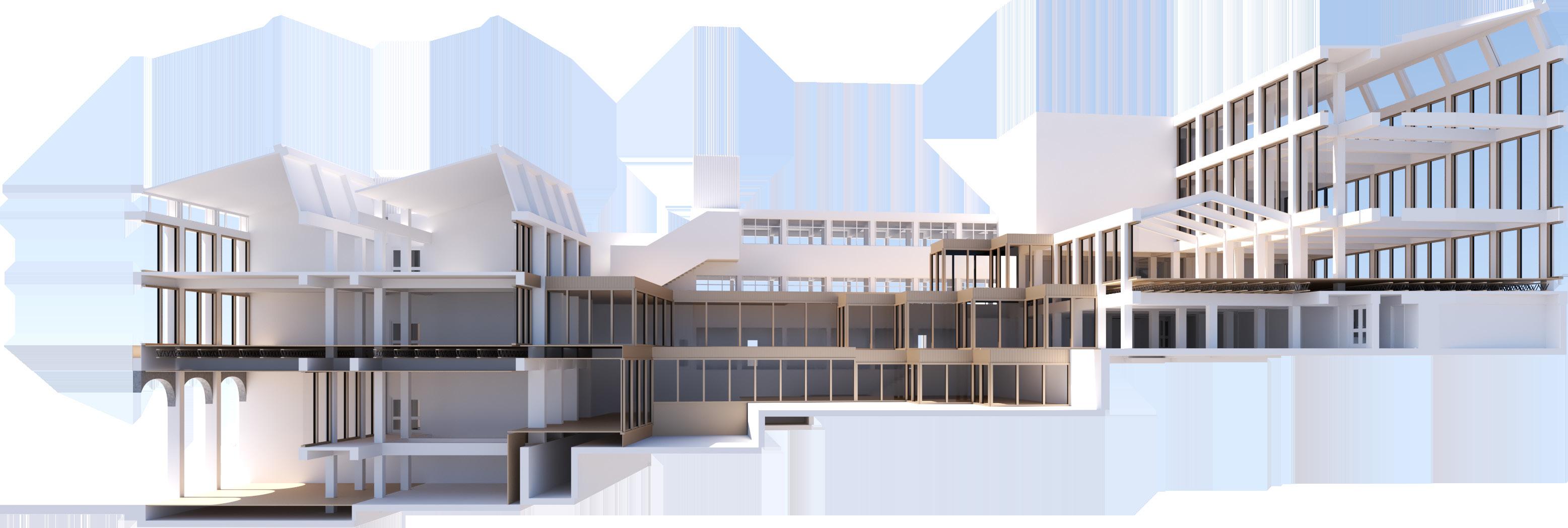

3D SHORT SECTION - OPTION A

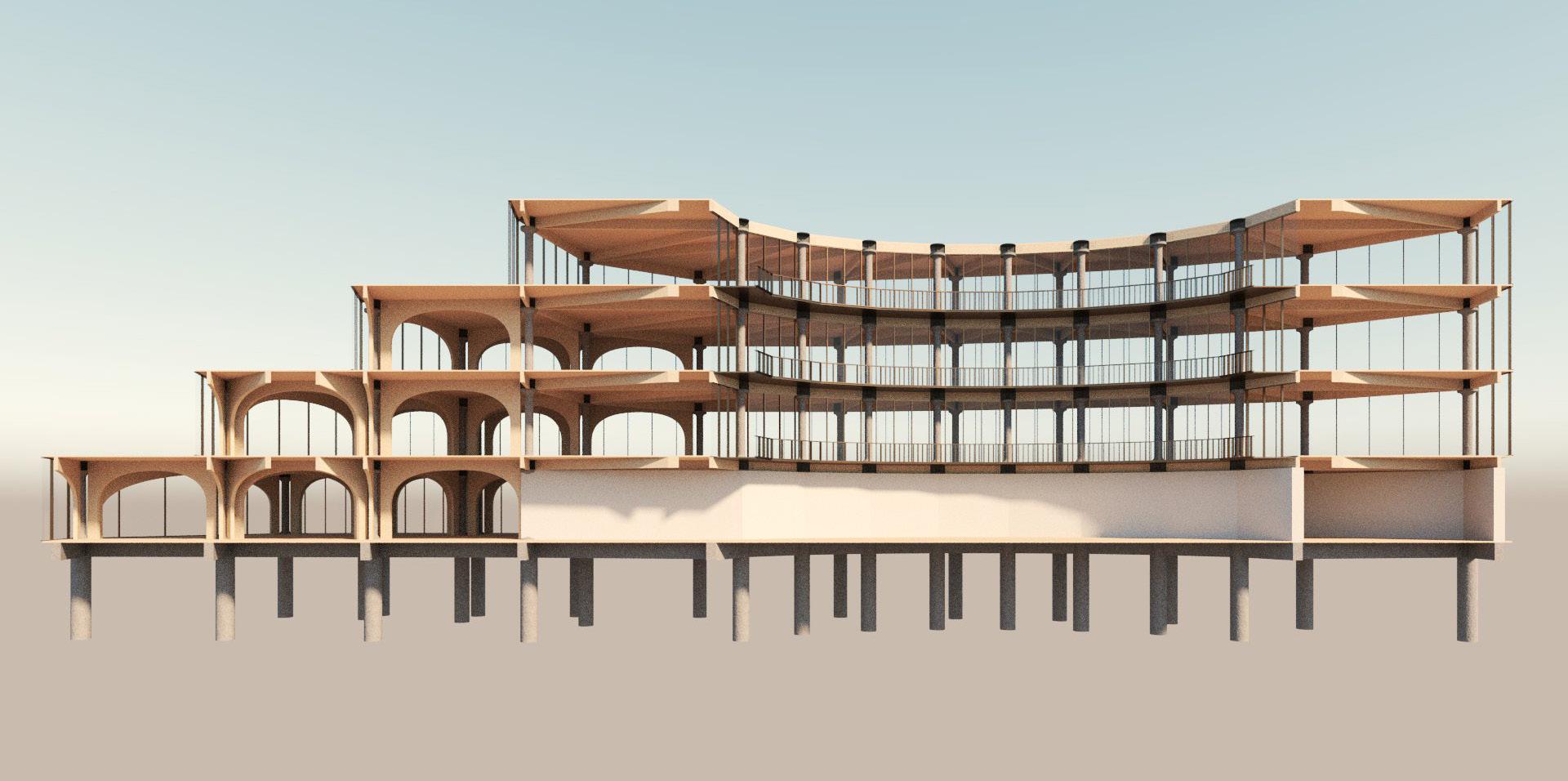

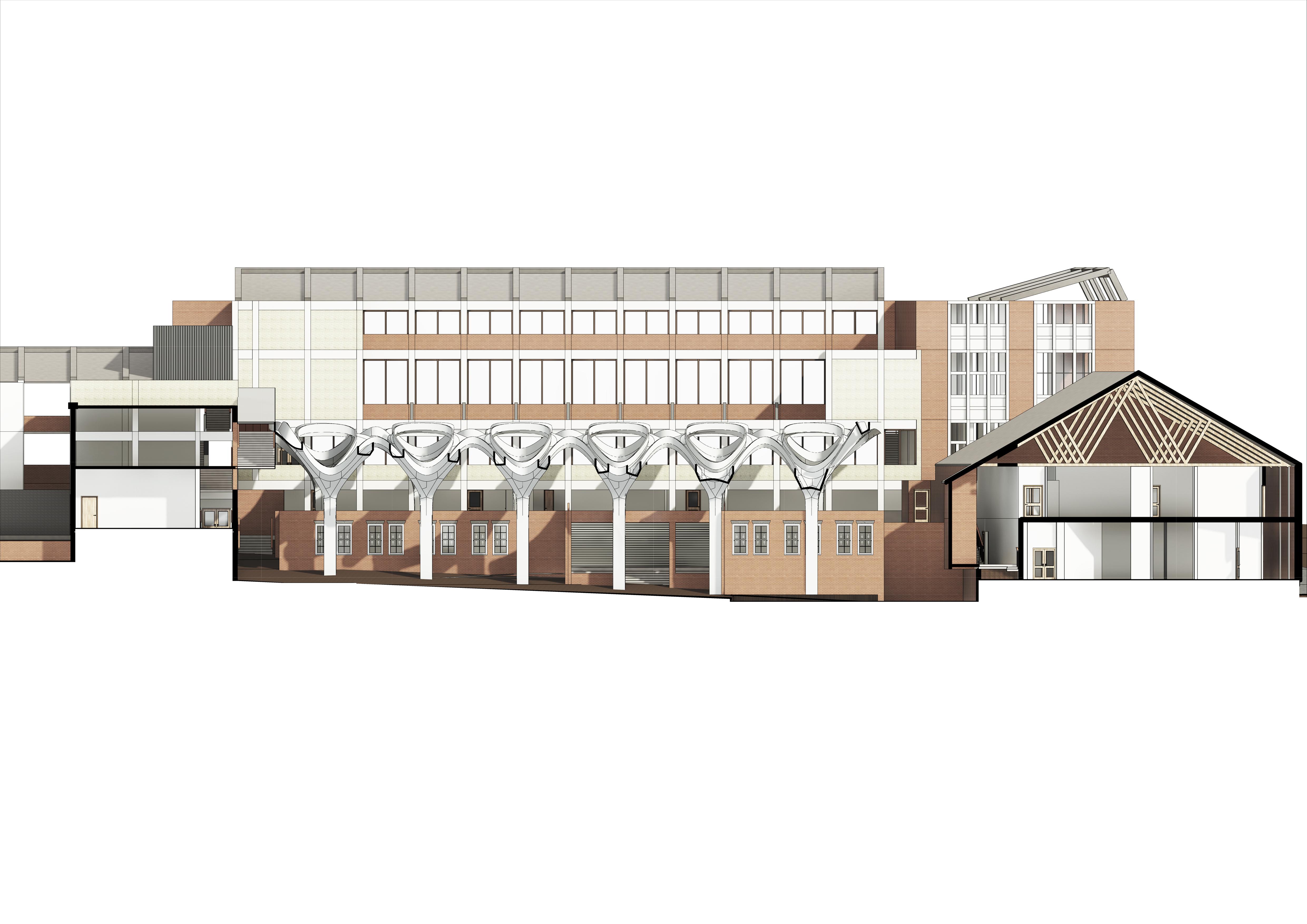

LONGITUDINAL SECTION - OPTION B

31

1:10 ROOF DETAIL SECTION 7

6 5

3

2

4

1

8 9 10

11

12

13

14

15

16

32

17

1 Existing concrete roof 2 Zinc flashing 3 Wooden stud 4 Hidden zinc gutter 5 Kingspan Aquazone waterproof membrane 6 Soprasolar Fix Alu solar panel system 7 114 x 118 mm Velux Low Pitch skylight with 7 shader, electrically operated 8 200 mm Celotex XR4000 PIR insulation 7 board 9 20 mm plasterboard finish 10 Blindspace roller blind with side channel 11 Schuco AWS 75 BS.SI+ Wood Design 7 window 12 90 mm drainage pipe 13 Zinc flashing 14 Existing concrete façade tiled moulding 15 200 mm Celotex XR4000 PIR insulation 7 board 16 20 mm plaster board finish 17 Schuco Facade System AOC 50 TI

1:10 FOUNDATION DETAIL SECTION Schüco Façade System AOC 75 TI Kingspan Aquazone waterproof membrane 200 mm Celotex XR4000 PIR insulation board 125 mm cast-in-place concrete Kingspan Multideck 60-V3 250 - 325 mm adjustable steel pedestal 100 x 100 mm studwork Wade Stainless Steel Hidden Slot Channel with 50mm pipework Concrete tile with 1° slope for drainage

Existing foundation (unknown, to be determined)

33

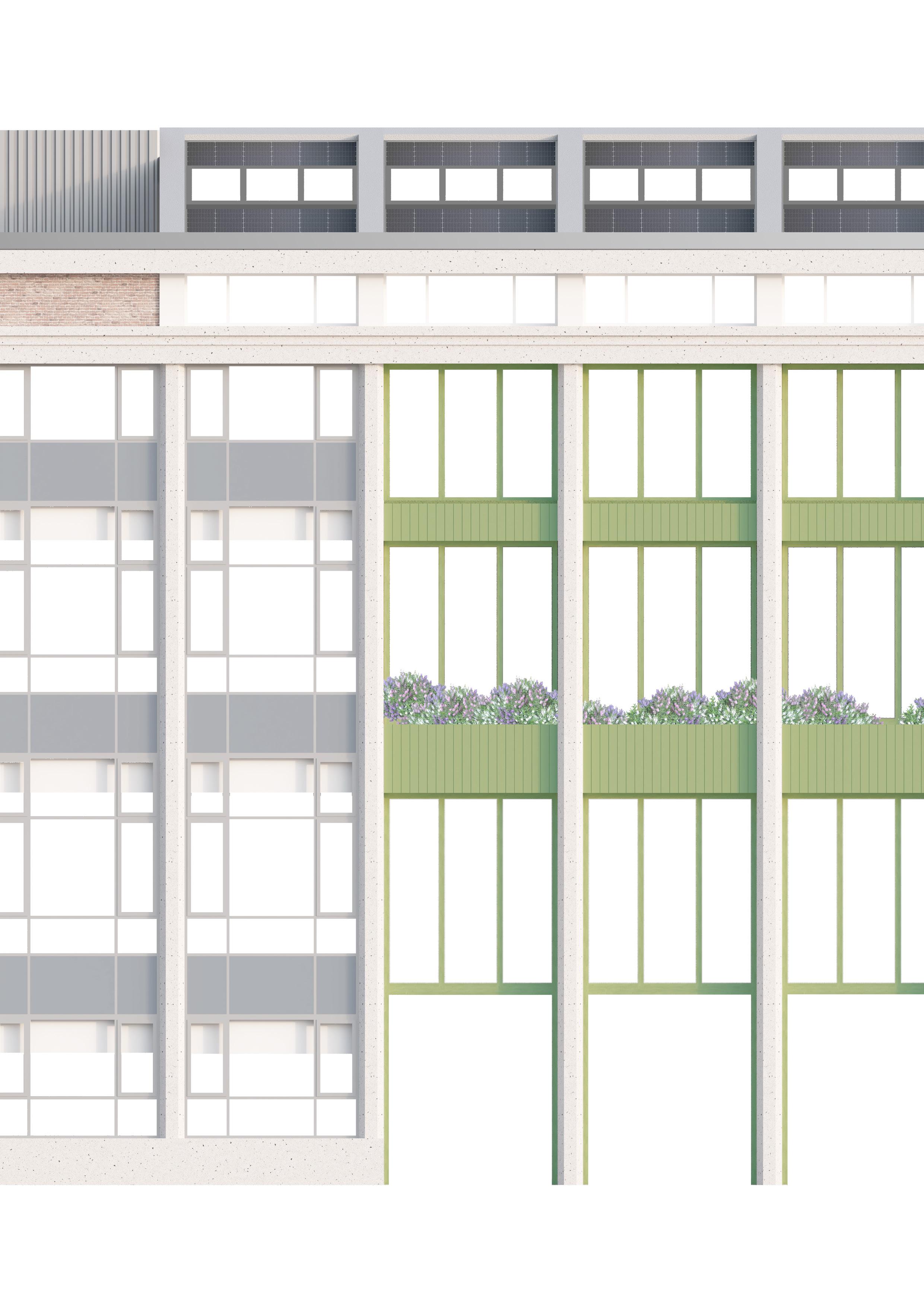

PART ELEAVTION

34
