Sterling 600

S

600 PRESSING STERLING

EXCELLENCE

THE ONLY CHOICE FOR SCREW PRESSES

RoseDowns is a proud part of the global Desmet organisation

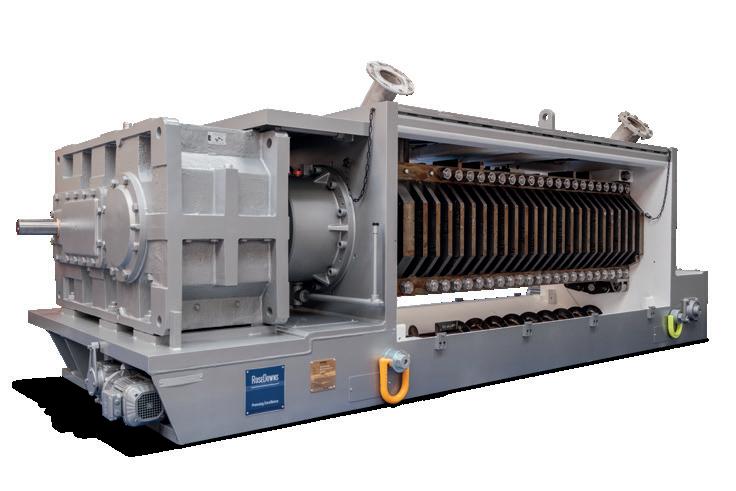

The innovative design of the 600 Series Sterling Screw Press is a result of RoseDowns industry experience and knowledge.

RoseDowns utilize 250 years of British engineering excellence to produce the worlds best equipment for the oils and fats industry.

600 PRESSING STERLING

EXCELLENCE • High Reliability • Operator Friendly • Value Added Options

Key Features

• Feeder Assembly • Worm Assembly • Gearbox & Thrust Bearing Assembly • Discharge End Bearing • Stainless Steel Covers

Press Options

• Barring Motor • Cake Breaker • Press Orientation • Shaft & Choke Cooling • Compress V Control • Feeder Layout • Hard-Faced, Fully Welded or Goldstar Parts • Safety Inspection Kit • Hydraulic Fines Brush

1

Feed End Drive The gearbox and thrust assembly are located at the cooler and cleaner end of the press

4

2

5

Heavy Duty Strong rigid frame with access.

Dimensions

3

Cage Press cages lower to the horizontal position making cage lining quick & easy

Multistage, Low Compression Worm Assembly Designs giving maximum oil yield for minimum power use.

Weight

6

Removable Covers Stainless steel covers around the cake area enables good access for lifting equipment to handle the worm assembly components.

Cake Breaker Reduces the size of the cake pieces for subsequent mechanical handling and processing.

Installed Power (Subject to application)

Length

5,200 mm

Overall Press

18,000 Kg

Main Motor

200-400 kW (270-540 HP)

Frame Width

1,200 mm

Half cage

2,500 Kg

Base Conveyor

1.1 kW (1.5 HP)

Max Width

1,915 mm

Worm Assy

2,300 Kg

Vertical Feeder*

3.0-4.4 kW (4.0-5.4 HP)

Frame Height

1,500 mm

Gearbox

3,300 Kg

Horizontal Feeder

3.0-4.4 kW (4.0-5.4 HP)

Inlet Height

1,900 mm

Cake Breaker*

3.0-5.5 kW (4.0-7.4 HP)

Cage Bore

350 mm

Barring Motor*

7.5 kW (10 HP)

Gearbox Oil Cooler*

2.2 kW (3.0 HP)

(*) Optional. All dimensions are approximate. We reserve the right to alter the specification at any time without prior notice.
