TABLE OF CONTENTS

01

PASEO COLON STATION Transportation Hub

Bachelor´s degree final project

02

THE MEANDER Housing Complex

Master´s degree project

03

RE-BOND

Renovation and Expansion project Master´s Thesis

04

STARTUP HUB Offices Building

Master´s degree project

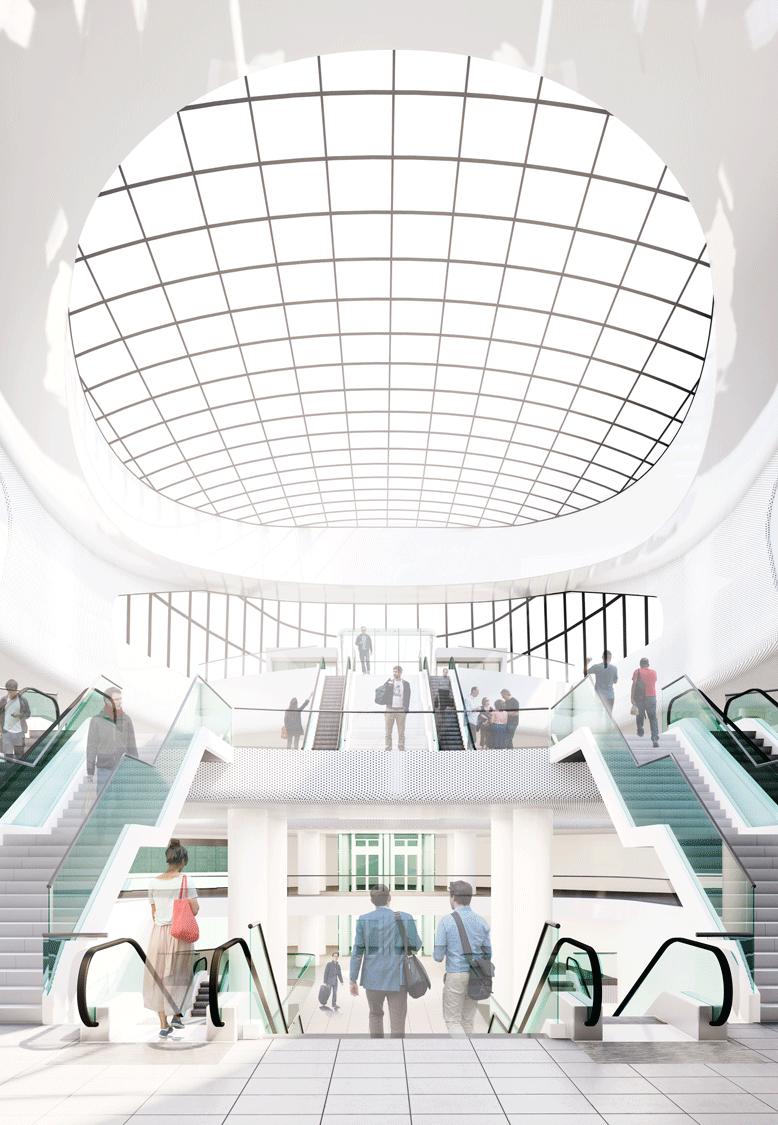

PASEO COLON STATION TRANSPORTATION HUB

BRT System

3

3 Prof: Enrique Santillana, Juan Carlos Arias Time: 2019 Site: Lima, Perú Type: Transportation hub Team: Mauricio Ramirez Honours: Project selected for the annual exhibition

1

Urban Bus

4 5

4

5 2

Metro Line

3

3 The city of Lima is starting a transportation reform to get a better connection of the Lima fencing productive areas and the multiple centralities in the periphery.

The vision of expansion of the city contemplates the integration of all transportation systems under construction and projected, among which are the 6 metro lines, the BRT, the complementary corridors (Urban buses).

It is expected that all these modalities are interconnected at an intermodal point throughout, creating a centrality which aim is to recover its old character as a priority pedestrian route and connection of cultural facilities, all this will create a new space for the city, to benefit exchanges and social interactions.

The centrality of the “Civic Center” is the point of arrival and departure from the city center for thousands of citizens, the estimated maximum demand would be up to 445,690 people per day on a horizon by 2050 when the stations operate at maximum capacity and with all other systems working together.

Vial Ring

2

3

2

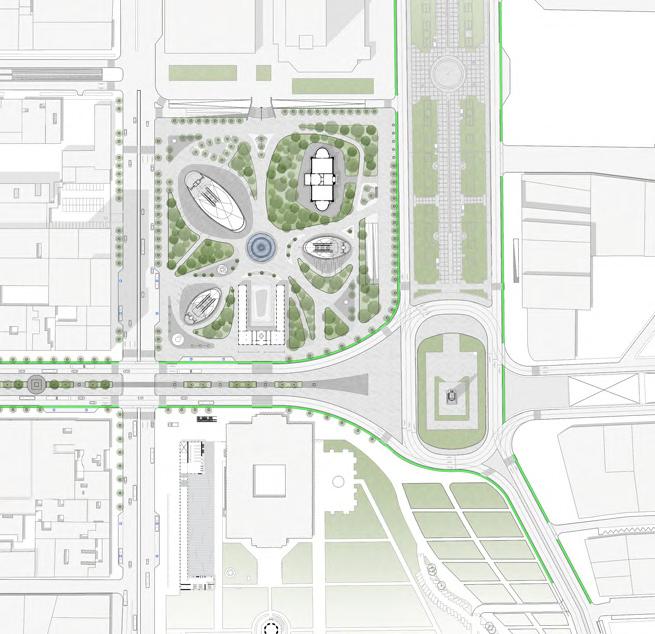

01| Paseo Colón Station

1. Building site

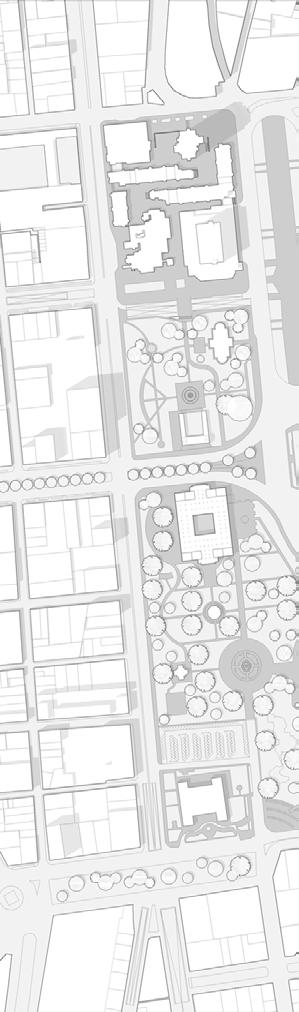

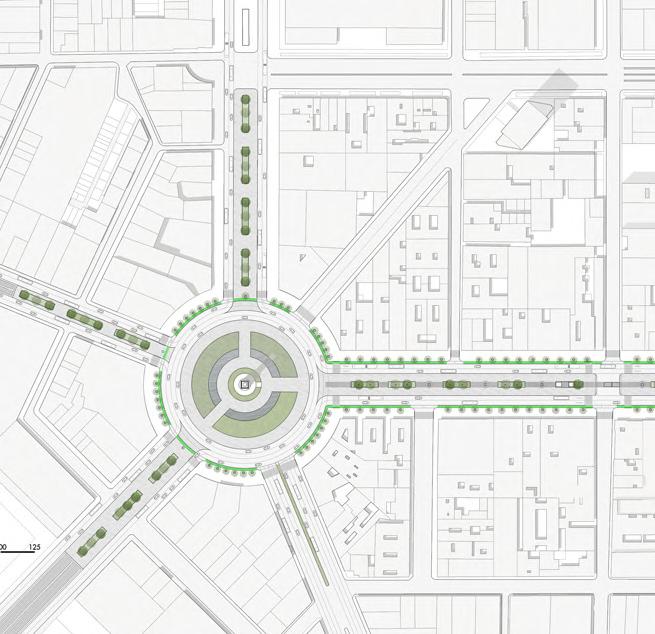

Current situation of the Neptune Park

2. Redefinition

the redesign allows to increase the area of the park to gain walkable paths and public transport bays

3. Paths

Generated by daily activities of different intensity, help to create the new walkable network

Paseo Colón Station |01

4. Tension

The fountaine is under tension as a central object, surrounded by the new volumes

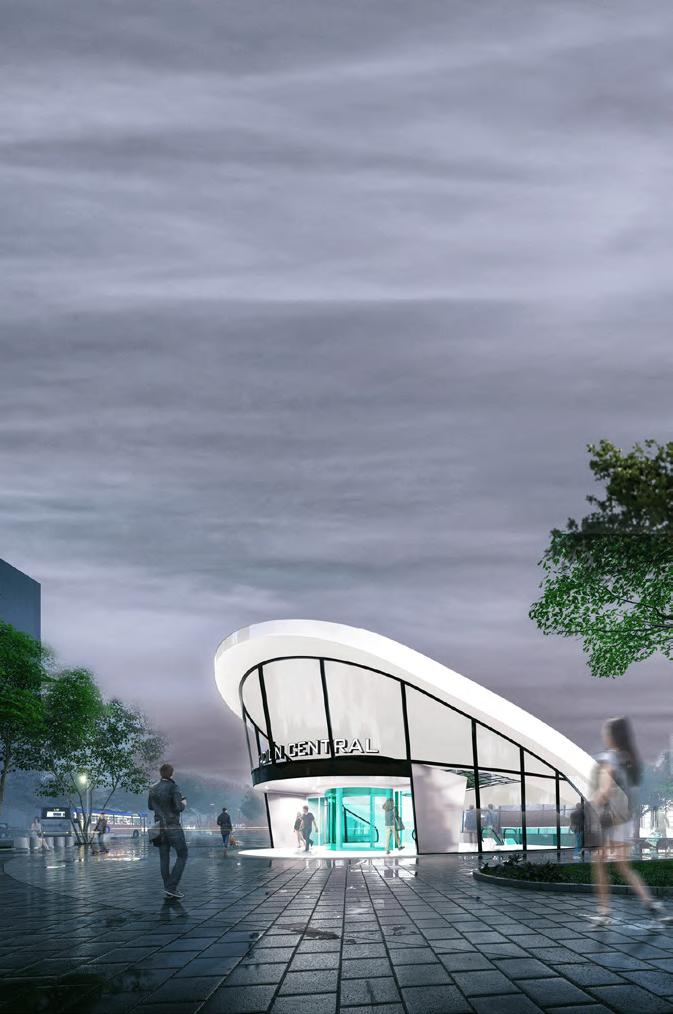

5. Integration

The new green areas, meeting spots and entrance volumes to subway are delimited

0

25

50

6. Restoration

Tree massing is restored to create an urban forest to manages roads and gathring areas

75

100

200

01| Paseo Colón Station

Paseo Colón Station |01

Level

0

Green area Paths Buffer zone

Parking lots

Level

-1

Technical area Retail area Logistic area Bike parking Emergency scape

Parking lots

Level

-2

Level

-3

Level

-4 -5

Technical area Retail area BRT station Emergency scape

Parking lots Technical area Vertical circulation Hall station L2

Parking lots Technical area Vertical circulation

Parking lots

Level

-6

Technical area Vertical circulation Platform station L2 Emergency scape

Level

Emergency scape

-7

Technical area

Level

Emergency scape

-8

Vertical circulation Hall station L3

Technical area Platform Station L3

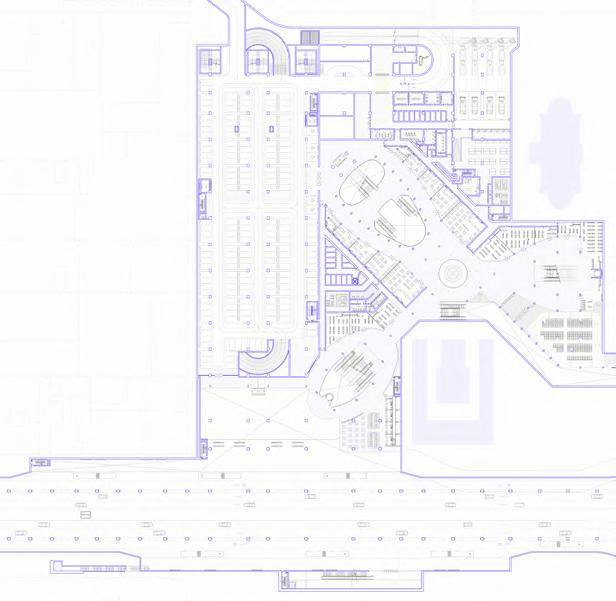

01| Paseo Colón Station A Legend 1. Urban Hall 2. Art Gallery 3. Parking Lots 4. Bike Parking 5. Logistics 6. Food Court 7. Technical Area

5

1

3

2 B

7 4

B

6

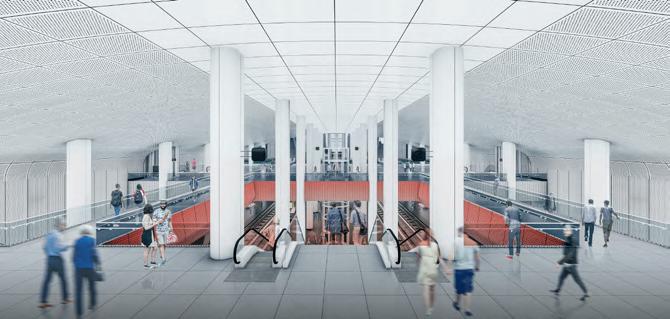

A Underground Level -6.40m

Platform statiom L2

0

10

20

30

50

Paseo Colón Station |01

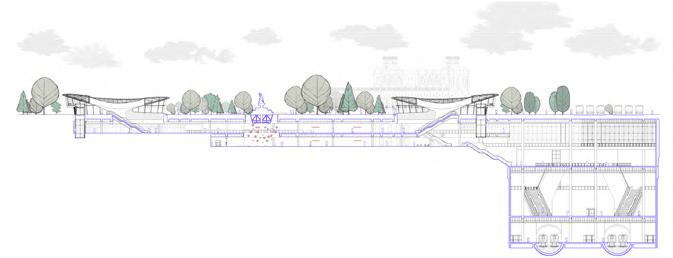

Section A-A´

0

10

20

30

50

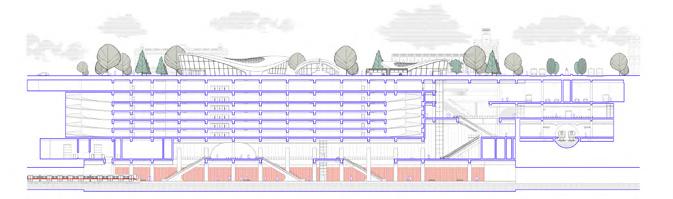

Section B-B´

0

10

20

30

50

Hall statiom L3

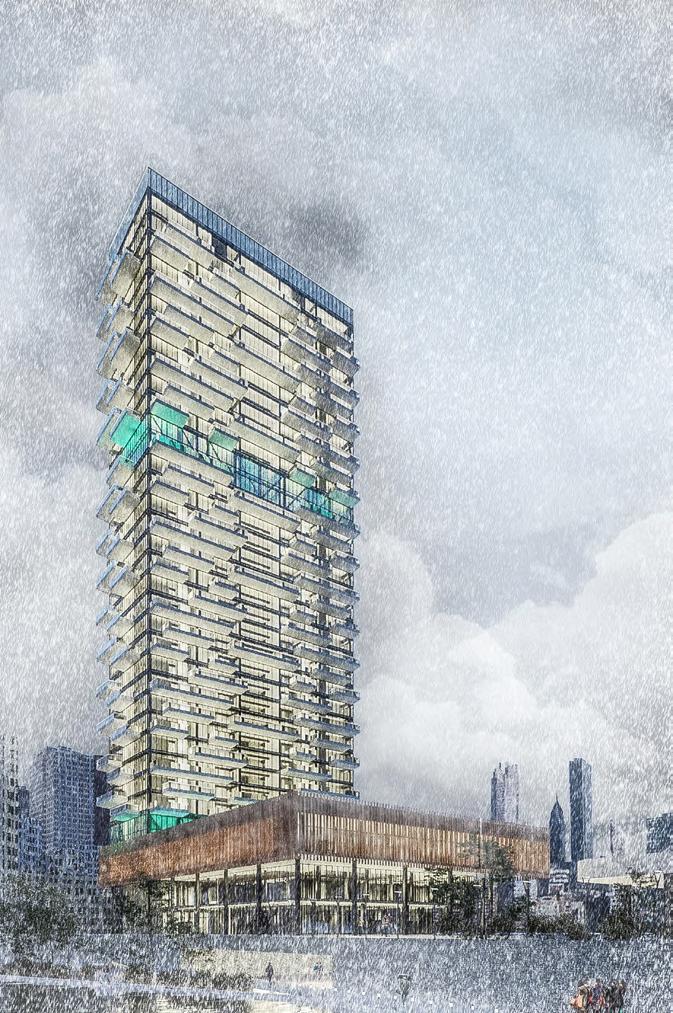

THE MEANDER HOUSING COMPLEX

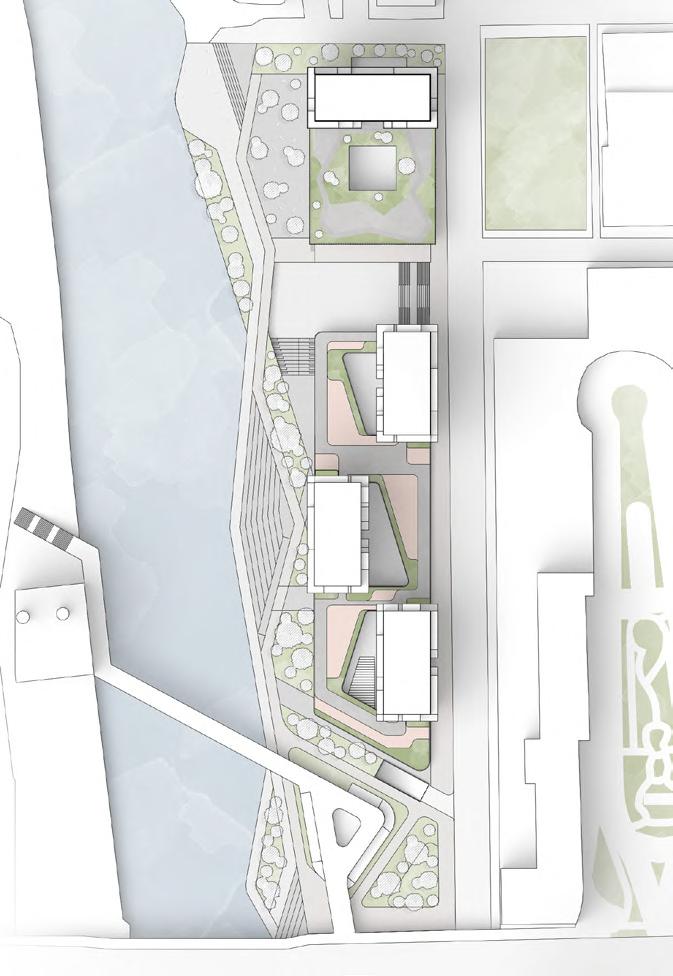

Open Spaces Green areas Empty ground Site

Prof: Maurizio Sabini , Andrea Matteo Azzolini Time: 2020-2021 Site: Chicago, USA Type: Mixed use Team: Irem Topal

Functions Institutions Housing Mixed Use Retail

Transportation The project addresses the challenges of a vertical city with a horizontal experience that can be enjoyed from different points of view, the focus of the project is the integration of many actors of the city such as the river, the people and the existing infrastructure.

The site is composed by one pavilion in the southern entrance, this pavilion concentrates generally free activities related to nature due to is nearness to the riverside, and four buildings with a public basement that consist of two levels of retail space divided onto the ground floor and underground level, on the top of this basement are placed the residential floors.

The volumes are aligned with the structure of the city, due to the existence of urban voids the architectural proposal aims to requalify them and include them in the site to give greater value to them however the program considers public and private uses so that the privacy of the users within the housing program is guaranteed.

In addition, particular strategies were implemented, such as the presence of work spaces from home as well as multifunctional and independent rooms, which are considered for future situations in a post-covid world.

Main Roads Secondary Roads Pedestian Roads Navigation Roads

Heights 16-30 Floor 10-15 Floor 7-9 Floor 4-6 Floor 1-3 Floor

02| The Meander

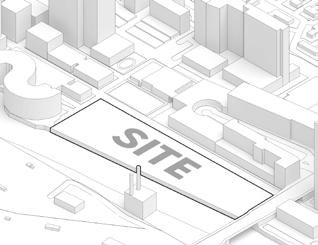

1. BUILDING SITE

2. LANDSCAPE

The site is located in the south Loop district next to river

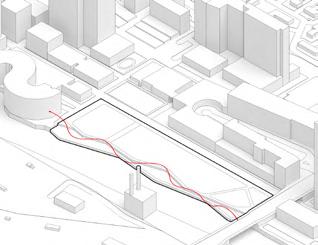

The riverside is designed following the concept of meander to form a wavy shape

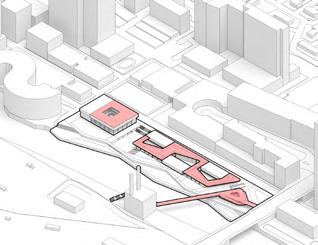

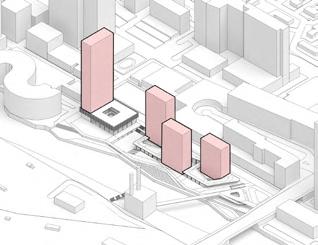

3. EXTRUSION AND EXCAVATION

4. PLATFORMS

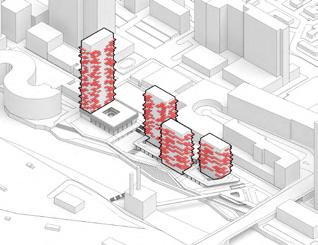

The towers are extruded from the surface while the retail space is located in the underground

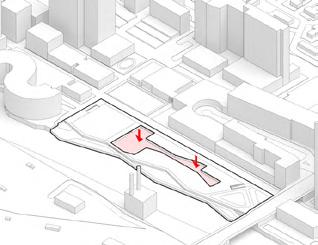

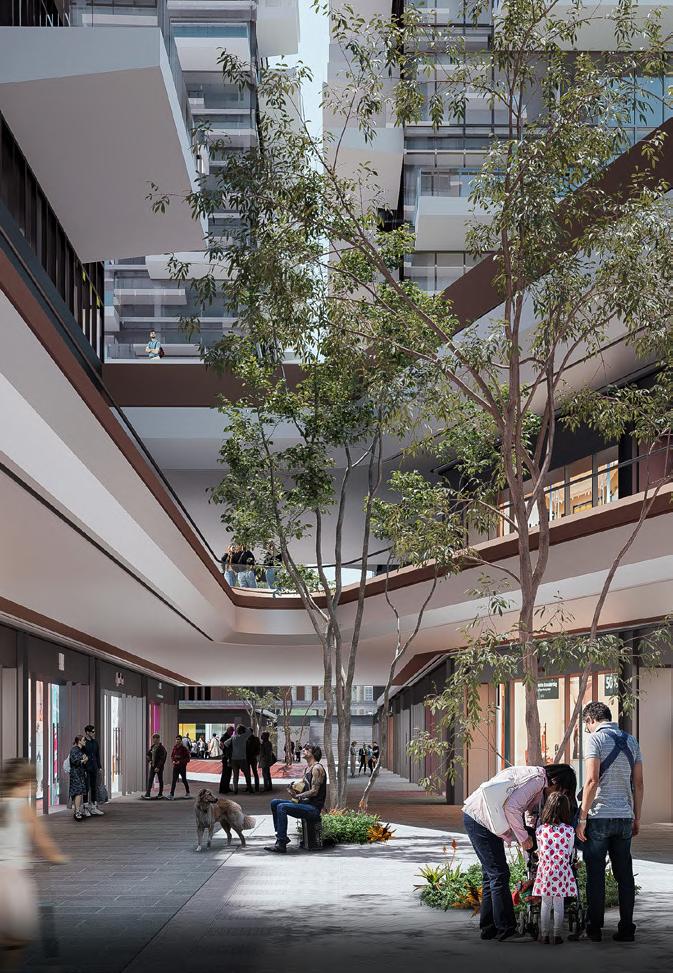

A big platform connect all the emerging volumes and are aimed to collective purposes

5. PRIVACY

6. VIEWS

Housing program is located in the towers separating it from the public program at ground level

Extruded elements from the facade open visual connection with the different parts of the city

The Meander |02

Ground level 0.00m 05

10

20

30

50

02| The Meander

The Meander |02

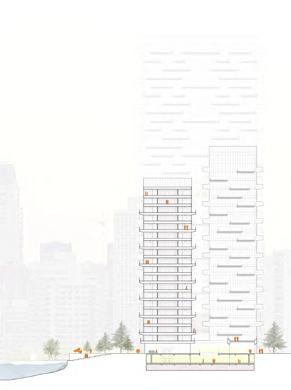

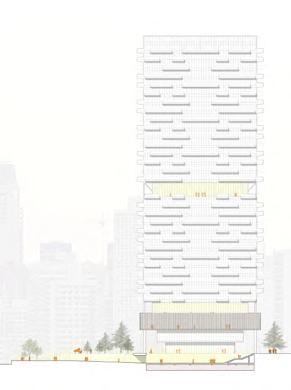

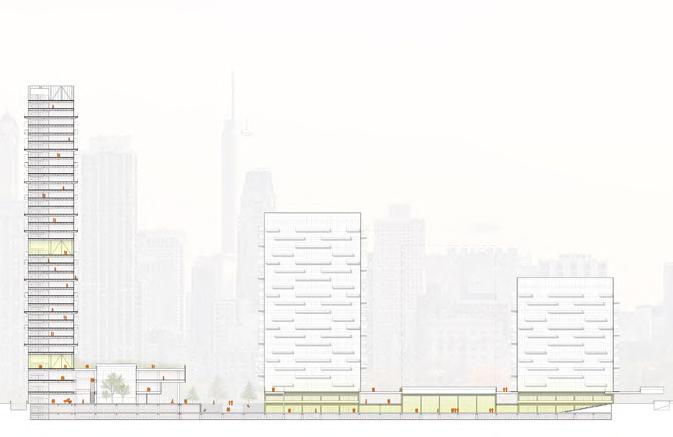

Longitudinal Section

0

10

20

30

50

Transversal Section

0

10

20

30

50

02| The Meander

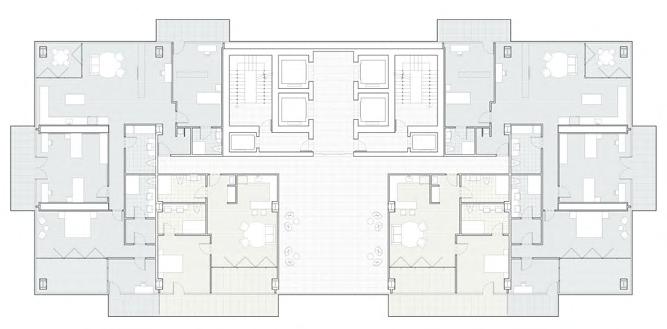

Typical Floor - Tower A 0

1

2

5

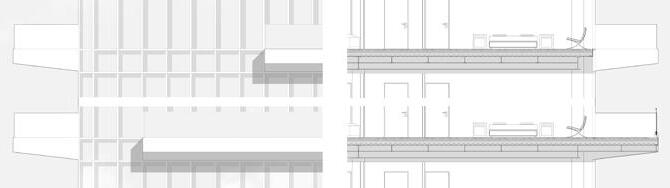

Det 1

Det 2

The Meander |02

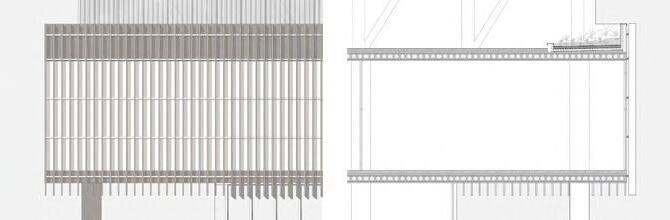

Legend 1. Aluminium profile with opaque panel

1

2. Flooring 20mm Screed 50mm Insulation 80mm Concrete slab 150mm

5

Corrugated metal sheet

3

3. Glass Railing

4

2

4. Flooring 20mm Bearing support

6 8

7

Screed slope 1% Concrete slab 150mm Corrugated metal sheet 5. Aluminium profile - double glazing 6. Floor edge cladding 7. Secondary beam IPE 270

Detail 1

8. Primary beam IPE 550 9. Facade blade system in aluminium

9 11 12

mounting rail 90mm 10. Concrete parapet 1000mm

10

Insulation 80mm Waterproofing membrane Steel flashing 11. Substrate layer Filtering layer Drainage layer Waterproofing membrane Insulation 80mm

13

Vapour barrier Screed slope Bubble slap 350mm 12. 80/400mm Larch strips on batters Bearing support Waterproofing membrane Screed with slope 1% Insulation 80mm Bubble slap 350mm 13. Flooring 20mm Screed 50mm Insulation 80mm Bubble slap 350mm

Detail 2

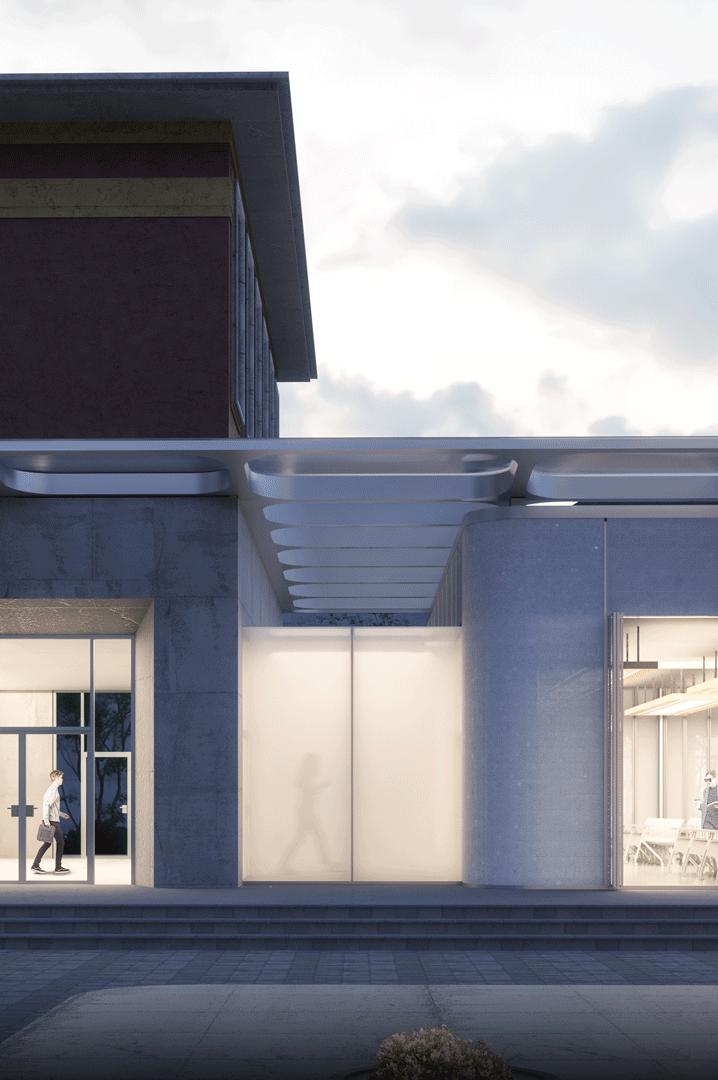

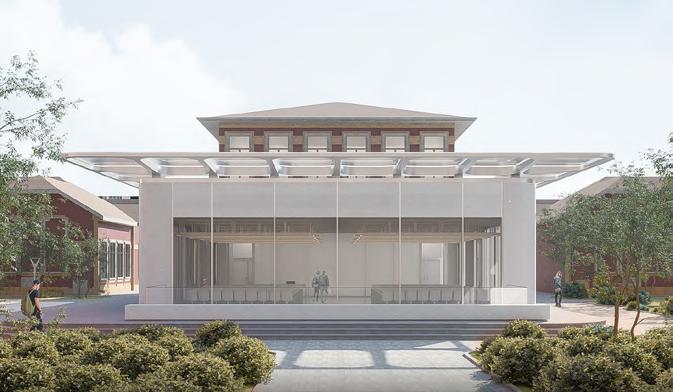

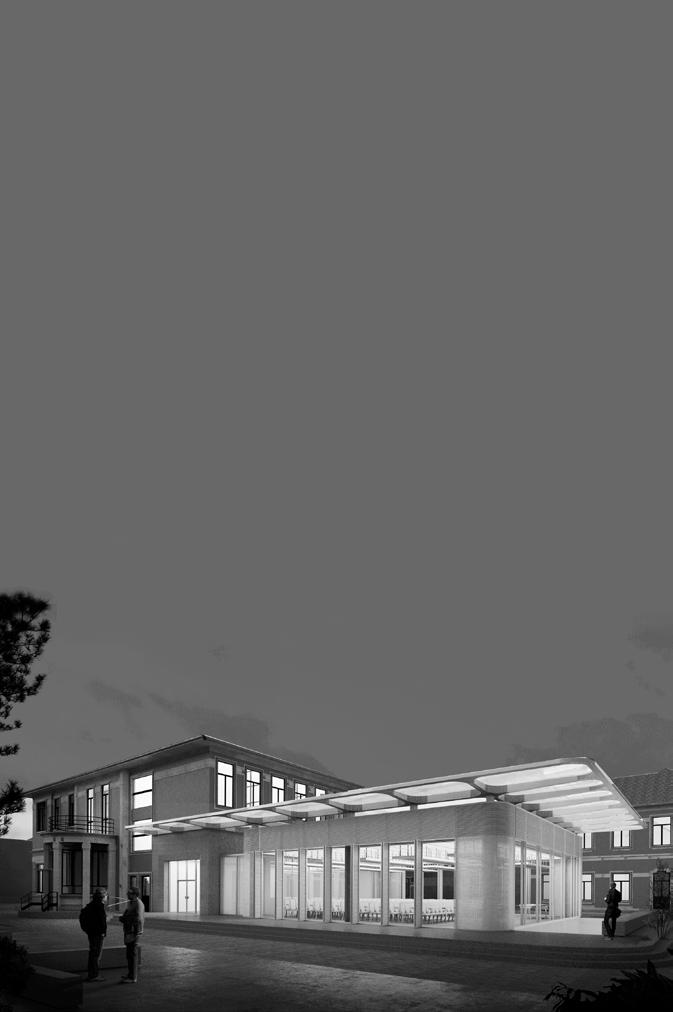

RE-BOND Expansion Project Prof: Giulio Massimo Barazzetta Time: 2022-2023 Site: Cittá Studi, Milan, Italy Type: Educational building Team: Irem Topal

1910

The site is located in the central axis of the Veterinary campus, the role played by this building is that of the first visual impact and reference element since it is located on the primary road that connects transversally with the other buildings in the campus.

The building has been modified over time, increasing its volume, however it has not lost characteristic features such as symmetry and the predominance of mass over void, thus achieving harmony with the other existing buildings.

The first stage of the building dates back to 1910 where there is one storey building that served as a peak animal clinic, later on 1949 the first modification is evidenced, the first level of the building is built and the connection to the north with the paddock it is interrupted.

Towards the present the paddock and the lateral connections are demolished, the use of the building changes to be completely educational, it is also noticed that during this period the building has a variation on its materiality ,the north facade shows 4 columns in concrete and in addition some cladding systems in aluminiun were added to this facade.

Under this background the future implementation of a new volume of classrooms is evaluated, as well as the expansion in underground to house the program of the research center, also with the refurbishment and improvement of the interior spaces in technological and internal climate comfort terms.

1949

2022

Proposal

03| Re-Bond

1. Building site

2. Extension

3. Extrusion

4. Proportions

5. Skylight

6. Form finding

5. Roof

9. Landscape

7. Cover

Re-Bond |03

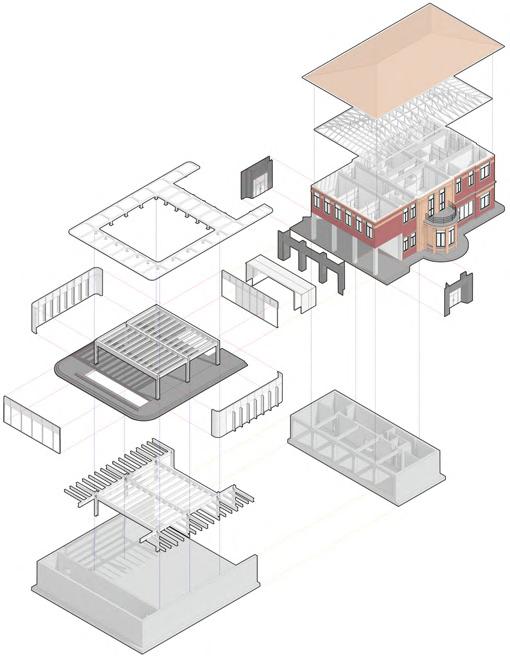

Marseille tile roof Wooden truss structure

Concrete beam Drywall partition

PV Glass

Hollow brick slab

Steel profile box

Perforated aluminium panel

Existing concrete column Concrete panel

Folded panel system Glass volume Brick pavement podium

Interior glass partition

Curtain wall Concrete wall by underpinning method Primary beam HEA 800 Secondary beam HEA 400 Retaining wall

STARTUP HUB Prof: GianLuca Brunetti, Giacomo Boffi , Marco Scaioni Time: 2020-2021 Site: Cittá Studi, Milan, Italy Type: Office building

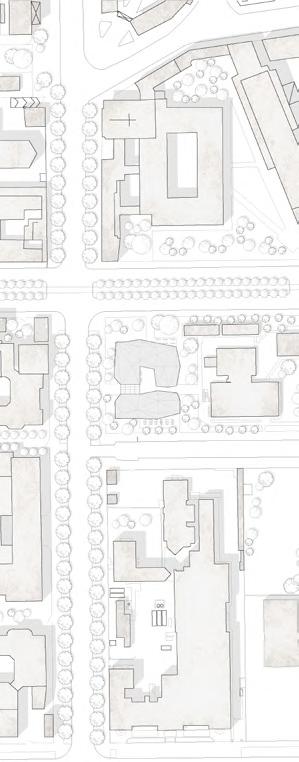

This project was born as a response to a need to promote emerging companies by young university students in the city of Milan, this building is inserted in an unconsolidated area behind the old campus of the Politecnico di Milano.

The area is the current Parco pubblico Smerlo , where there is basically urban furniture provided by the Politecnico to be a meeting place for students and the general public, it is an open space surrounded by green areas where it was planned to insert a contemporary building that generates a reference in the general layout of the university campus. the building has a regular shape in plan and is staggered that has 3 levels only in the last stage of the volume, the program is characterized by shared offices , laboratories , a library and in addition to relaxation spaces for users, the project respects the physiognomy of the adjoining buildings since it takes the form of a building with an interior patio and the architectural program is developed around it.

04| Startup Hub

SITE

CONNECTION

EXTRUSION

FOLDED ROOF

3

4

2 5

1

6

7

8

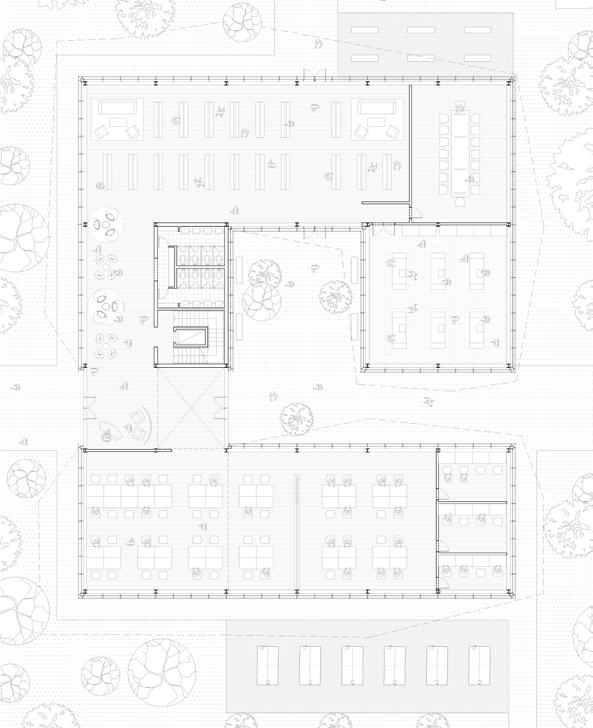

Legend 1. Lobby 2. Wc 3. Library 4. Conference room 5. Laboratory 6. Coworking space 7. Private offices 0

5

15

Startup Hub |04

3

4

1

D1

5

2

6

Legend 1. IQ Optima Homogeneous 2. Finishing tiles 6mm 3. Corrugated metal sheet Vinyl Slab covering 20mm Concrete slab 10mm Sloped roof insulation Waterproof membrane 10mm Acustic insulation RHEINZINK-Art color Thermal insulation 20mm Thermal insulation Fastener Concrete slab Waterproof membrane C-profile Corrugated sheet Light concrete Foundation

5. Horizontal mullion 6. Foam glass insulation 4. Aluminium cover Tempered glass Steel stop removable Drain channel Thermal insulation Polycarbonite panel Soil Fixing bracket Steel pipe Geotextile layer Primary beam Double glazing gravel Vertical mullion Drain pipe Foundation
