Portfolio | Patan Almas 4
MANZAR
LEARNING CENTER
|ARCHITECTURAL DESIGN III|LEARNING SPACE|
CONOID
|ARCHITECTURAL DESIGN V|CIVIC CENTER|
WORKING DRAWING BUILDING CONSTRUCTION DRAWINGS
|ARCHITECTURAL DESIGN IV|RESIDENTIAL FULL SCALE WORKSHOP

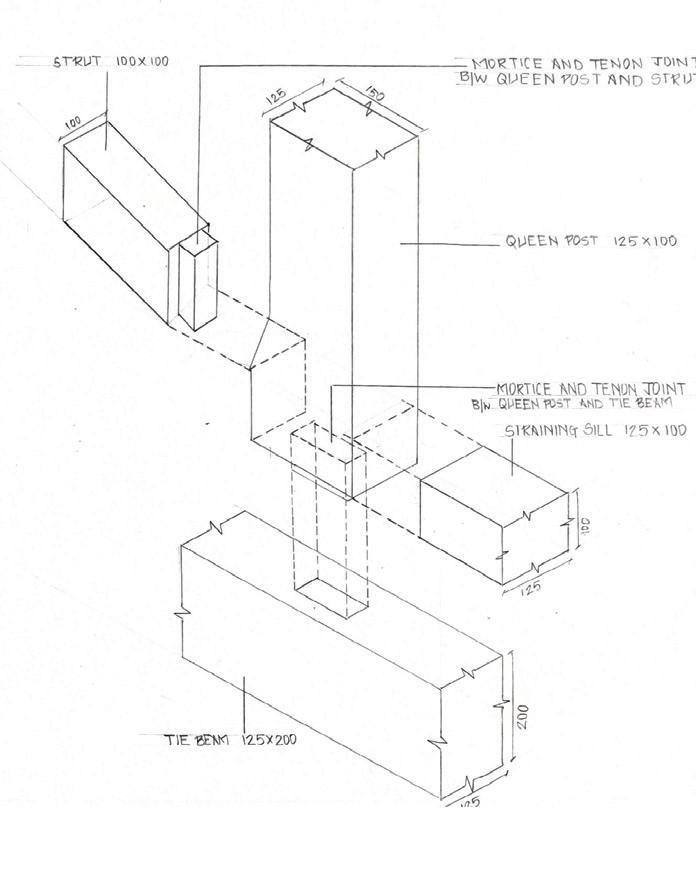

|HAND DRAFTED DRAWINGS| |SEISMIC SHIELD|
5
01. 02. 03. 04.
05. 06. |WORKING DRAWINGS|
Portfolio | Patan Almas 6
RESIDENTIAL PROJECT
MANZAR
LOCATION:ANDUR,KOLHAPUR
SEMESTER FOUR PROF.SNEHA PROF.AKSHARA
THE MANZAR IS A NATURAL RETREAT THAT MANIFESTS THE IDEA OF ENJOYING SIMPLE LIVING ENJOYING NATURE IN AND OUT OF THE STRUCTURE. WITH ALL THE AMAZING VIEWS OF THE ANDUR LAKE AND HILL FROM ALL THE SPACES
EXPLORING THE IDEA OF SPLIT
| Selected works 7
THE LOCATION OF THE SITE IS ON THE OUTSKIRTS OF THE MAIN CITY, MAKING IT AN AMZING SPACE FOR A WEEKEND.
THE MAIN IDEA FOCUSES ON THE VISUAL INTERACTION OF THE SPACES WITH THE CONTEXT. THE IDEA OF SPLIT ENHANCES THE TRANSITION OF BUILT AND UNBUILT
THE PLAN IS ORIENTED TOWARDS THE LAKE AND THE HILL. IT HAS A LINEAR APPROACH, ZONING IS ALSO BASED ON THE VIEWS FROM THE SPACE. THE PLAN OPENS OUT IN BOTH HORIZONTAL AND VERTICAL DIRECTIONS IN FORMS OF SPLITS.
Portfolio | Patan Almas
TRANSITION BETWEEN BUILT AND UNBUILT
VIEWS FROM THE SITE HILL WITH +13M CONTOUR ANDUR LAKE
SUB DIVISION OF PROGRAM
OUTSIDE INTO THE INSIDE
IDEA OF SPLIT
RESIDENTIAL| Selected works 9 1 2 3 4 5 6 7 10 9 8 12 11 14 13 A A' GROUND FLOOR PLAN SECTION
ELEVATION
AA'
10 Portfolio | Patan Almas
VIEW THROUGH COURTYARD|POND|SPLIT(WALKWAY)
PHYSICAL MODELS
RESIDENTIAL| Selected works 11
FRONT VIEW (3D RENDER)
12 Portfolio | Patan Almas
DINING ROOM
LIVING ROOM
RESIDENTIAL| Selected works 13
STUDY SPACE KITCHEN ROOM
Portfolio | Patan Almas 14
LEARNING CENTER
LOCATION:CUBBONPET,BANGALORE
SEMESTER THREE PROF.PRATYUSH PROF.MINU.Z
THE LEARNING CENTER IS A PROJECT WHICH AIMS TO ENHANCE THE HIDDEN CULTURES OF CUBBONPETE BY DISPLAYING THE SHIFT OF CULTURE FROM HANDLOOMS TO POWER LOOMS, AND ALSO CREATING HAND IN HAND WORKSHOPS AND LEARNING SPACES.
THIS SPACE ENCOURAGES INTERACTION BETWEEN USERS AND HANDLLOM ALLOWING THEM TO LEARN AND EXPERIENCE THE CULTURE OF LOOMS.
LEARNING CENTER| Selected works 15
LEARNING SPACE
Portfolio | Patan Almas 16
THE SITE IS LOCATED ON THE BUSY STREET OF CUBBONPET SURROUNDED BY THE HANDLOOMS AND GOVERNMENT OFFICES ON THE OPPOSITE SIDE OF THE SITE. SITE PICTURES
SITE MODEL
1.AUTOBIOGRAPHY
LEARNING SPACE AS CONNECTED DISCONNECT
2.CASE STUDY
LEARNING SPACE AS INTERACTING CLUSTERS
3.SITE ANALYSIS
LEARNING SPACE AS QUALITY OF LIGHT
LEARNING CENTER| Selected works 17
1 2 3 DESIGN ITERATIONS THROUGH TRIPTYCH
CONCEPT DEVELOPMENT IN FORM OF TRIPTYCH
18
GROUND FLOOR PLAN-HAND DRAFTED
SECTION AA'-HAND DRAFTED
SECTION BB'-HAND DRAFTED
PHYSICAL MODEL
LEARNING CENTER| Selected works 19
Portfolio | Patan Almas 20
CIVIC CENTER CONOID
LOCATION:HSR LAYOUT,BANGALORE
SEMESTER FIVE PROF.ATUL PROF.PRATYUSHA
THE CONOID CREATES A SENSE OF CURIOSITY TO THE USERS IN AND AROUND THE SPACE.
THE SEAMLESS FACADE AND THE PROTRUDING CONICAL STRUCTURES MAKE IT POSSIBLE.
THE MAIN OBJECTIVE WAS TO HIGHLIGHT THE PROGRAMS THAT OCCUR IN BACKGROUND OF HSR LAYOUT IN LARGER SCALE YET WITH LESS RECOGNITION.
21 CIVIC CENTER | Selected Works
THE SITE IS SURROUNDED BY PUBLIC BUILDING ON EITHER SIDE AND COMMERCIAL COMPLEXES ON THE OPPOSITE SIDE
Portfolio | Patan Almas 22
ANALYSIS
CONTEXT ANALYSIS
OF EXISTING BUILDING COMPLEX
CONCEPT DEVELOPMENT
FORM DEVELOPMENT
23 CIVIC CENTER | Selected Works
POROUS AND SEAMLESS CONTRAST THROUGH SPACE
CONE ITERATIONS
AXONOMETRIC SECTIONNAL VIEW
ZONING OF SPACES BASED ON CONTEXT
Portfolio | Patan Almas 24 BNG 1 BACKEND 1 2 A B C D E F G H MALE-TOILET FEMALE-TOILET GROUND FLOOR PART PLAN 2 1 AR/001 SCALE 1:100 14 18 15 16 17 19 GROUND FLOOR PART PLAN-2
25 CIVIC CENTER | Selected Works PHC BNG 1 ATM 3 4 A B C D E F G A B 5 6 A B C D E F G H C D A B 13 E F D C B A A 12 13 14 GROUND FLOOR PART PLAN 1 1 AR/001 SCALE 1:100 16 15 GROUND FLOOR PART PLAN-1
Portfolio | Patan Almas 26 SUPERMARKET POST OFFICE LOGISTICS G H A B C D E F 7 8 J A B C D E F G H I 8 9 B C D E F G H I J A 10 11
GROUND FLOOR PART PLAN-3
27 CIVIC CENTER | Selected Works SECTION AA' 6 AR/005 SCALE 1:100 EAST ELEVATION SCALE 1:100 EAST ELEVATION 4 AR/004 SCALE 1:100 SOUTH ELEVATION--PART 1 5 AR/004 SCALE 1:100 SOUTH ELEVATION-- PART 2 5 AR/004 SCALE 1:100 EAST ELEVATION 4 AR/004 SCALE 1:100 SOUTH ELEVATION--PART 1 5 AR/004 SCALE 1:100 SOUTH ELEVATION-- PART 2 5 AR/004 SCALE 1:100 SECTION AA' ELEVATION SOUTH ELEVATION EAST
Portfolio | Patan Almas 28
29 CIVIC CENTER | Selected Works
Portfolio | Patan Almas 30 WORKING DRAWINGS 1 3 5 7 9 11 13 14 16 18 20 22 24 26 28 RCC WAIST SLAB STAIRCASE PLAN A SCALE 1:25 RCC WAIST SLAB STAIRCASE SECTION AA' B SCALE 1:25 2 4 6 8 10 12 14 16 18 20 22 24 26 28 1 A A' C AR001 2 1 3 5 7 9 11 13 14 16 18 20 22 24 26 28 RCC WAIST SLAB STAIRCASE PLAN A SCALE 1:25 RCC WAIST SLAB STAIRCASE SECTION AA' B SCALE 1:25 2 4 6 8 10 12 14 16 18 20 22 24 26 28 1 A' C AR001 TREAD AND RISER DETAIL 1 SCALE 1:10 2 3 TREAD LONGITUDINAL SECTION C SCALE 1:10 1 3 5 7 9 11 13 RCC WAIST SLAB STAIRCASE PLAN A SCALE 1:25 RCC WAIST SLAB STAIRCASE SECTION AA' B SCALE 1:25 2 4 6 8 10 12 14 16 18 20 22 24 26 28 1 A' C AR001 TREAD AND DETAIL 1 SCALE 1:10 2 3 TREAD SECTION C SCALE 1:10 1 3 5 7 9 11 13 14 16 18 20 22 24 26 28 RCC WAIST SLAB STAIRCASE PLAN A SCALE 1:25 4 6 8 10 12 14 16 18 20 22 24 26 28 A A' C AR001 2 -SKIRTING
WORKING DRAWINGS| Selected works 31 RISER 4 LONGITUDINAL STAIRCASE-STAIRCASE-PLAN,SECTION,DETAILS WORKING DRAWING DESCRIPTION DATE OF SUBMISSION PHASE REV. PROJECT Nº ARCHITECTS: PROJECT TITLE SCALE REVISION DRAWING Nº 01CIVIC CENTER WORKING DWG DRAWING Nº 01 CIVIC CENTER NOTES - No dimensions to be scaled from this drawing. All dimensions shown in mm and are to be checked by the contractor/manufacturers on site. - Levels shown are in metres and refer to the - Contractor must verify all dimensions on site before commencing any work or preparing shop drawings. - Work within the scope of the Gibraltar Construction (Design & Management) Regulations is not to start until a Health and Safety Plan has been produced. All works to comply with Health and Safety Regulations. - Drawing is to be read in conjunction with accompanying NBS specifications. Contractor/manufacturers are responsible for full cross-referencing between drawings and specifications. - Contractor is to ensure that the conditions and requirements listed in the planning permit, approval notice and associated documents are to be complied with at all times. - All materials and fittings to be best quality, to British Standards and protected from the elements at all times. - All areas disturbed or exposed during works to be made good to match existing adjacent. - All arisings to be carted away and disposed of in accordance with local regulations. - Contractor to provide samples of exact finishes and fittings for approval prior to placement of orders and/or proceeding with the works. - Refer to Structural Engineer's Drawings and Specifications for all structural elements. - Refer to MEP Engineer's Drawings and Specifications for all MEP elements. 01/AR/009 01/AR/009 1:25,1:10, 1:5 PATAN ALMAS ARZOO KHANAM 24/04/2023 ALL DIMENSIONS IN MM KEYPLAN PLAN,SECTION AND DETAIL AND RISER 4 LONGITUDINAL SECTION 1:10 STAIRCASEWORKING DRAWING DESCRIPTION DATE OF SUBMISSION PHASE REV. PROJECT Nº ARCHITECTS: PROJECT TITLE SCALE DRAWING Nº 01 CIVIC CENTER 01/AR/009 1:25,1:10, 1:5 PATAN ALMAS ARZOO KHANAM 24/04/2023 ALL DIMENSIONS IN MM KEYPLAN PLAN,SECTION AND DETAIL 3 4 TREAD LONGITUDINAL SECTION C SCALE 1:10STAIRCASE-PLAN,SECTION,DETAILS PROJECT TITLE REVISION DRAWING Nº 01CIVIC CENTER WORKING DWG NOTES - No dimensions to be scaled from this drawing. All dimensions shown in mm and are to be checked by the contractor/manufacturers on site. - Levels shown are in metres and refer to the - Contractor must verify all dimensions on site before commencing any work or preparing shop drawings. - Work within the scope of the Gibraltar Construction (Design & Management) Regulations is not to start until a Health and Safety Plan has been produced. All works to comply with Health and Safety Regulations. - Drawing is to be read in conjunction with accompanying NBS specifications. Contractor/manufacturers are responsible for full cross-referencing between drawings and specifications. - Contractor is to ensure that the conditions and requirements listed in the planning permit, approval notice and associated documents are to be complied with at all times. - All materials and fittings to be best quality, to British Standards and protected from the elements at all times. - All areas disturbed or exposed during works to be made good to match existing adjacent. - All arisings to be carted away and disposed of in accordance with local regulations. - Contractor to provide samples of exact finishes and fittings for approval prior to placement of orders and/or proceeding with the works. - Refer to Structural Engineer's Drawings and Specifications for all structural elements. - Refer to MEP Engineer's Drawings and Specifications for all MEP elements. 01/AR/009 KEYPLAN WA DA DA DA DA DT MALE RESTROOM MALE RESTROOM PLAN 1 AR001 SCALE 1:20 A' A B B' c c' -SKIRTING DETAIL TOILET PLAN c' MALE RESTROOM SECTION BB' A SCALE 1:20 NOTES TOILET SECTION BB'
Portfolio | Patan Almas 32 A B C DETAIL B SCALE 1:5 DETAIL C SCALE 1:5 DETAIL A SCALE 1:5 WALL SECTION W4WALL SECTION W4 BUILDIND CONSTRUCTION AND MATERIAL PROJECT TITLE 01CIVIC CENTER 01 CIVIC CENTER NOTES-- & Plan has been produced. All works to comply with Health and Safety Regulations. - Drawing to be read in conjunction with accompanying NBS specifications. Contractor/manufacturers are responsible for full cross-referencing between drawings and specifications. - Contractor to ensure that the conditions and requirements listed in the planning permit, approval notice and associated documents are-- Contractor to provide samples of exact finishes and fittings for approval prior placement of orders and/or proceeding with the - Refer to Structural Engineer's Drawings and Specifications for all - Refer to MEP Engineer's Drawings and Specifications for all MEP 01/AR/009 1:25, 1:5 PATAN ALMAS ARZOO KHANAM 15/05/2023 ALL DIMENSIONS IN MM B C DETAIL B SCALE 1:5 DETAIL C SCALE 1:5 DETAIL A SCALE 1:5 WALL SECTION BUILDIND AND MATERIAL DESCRIPTION DATE OF SUBMISSION COURSE ARCHITECTS: PROJECT TITLE DRAWING Nº CIVIC 01/AR/009 PATAN ALMAS 15/05/2023 ALL DIMENSIONS KEYPLAN LEGEND DETAIL B SCALE 1:5 DETAIL C SCALE 1:5 DETAIL A SCALE 1:5 WALL SECTION CURTAIN WALL(CONE) W3 SCALE 1:25 1 2 3 1 2WALL SECTION W3 REVISION DRAWING Nº 01CIVIC CENTER BCM DWG NOTES - No dimensions to be scaled from this drawing. All dimensions shown in mm and are to be checked by the contractor/manufacturers on site. - Levels shown are in metres and refer to the - Contractor must verify all dimensions on site before commencing any work or preparing shop drawings. - Work within the scope of the Gibraltar Construction (Design & Management) Regulations is not to start until a Health and Safety Plan has been produced. All works to comply with Health and Safety Regulations. - Drawing is to be read in conjunction with accompanying NBS specifications. Contractor/manufacturers are responsible for full cross-referencing between drawings and specifications. - Contractor is to ensure that the conditions and requirements listed in the planning permit, approval notice and associated documents are to be complied with at all times. - All materials and fittings to be best quality, to British Standards and protected from the elements at all times. - All areas disturbed or exposed during works to be made good to match existing adjacent. - All arisings to be carted away and disposed of in accordance with local regulations. - Contractor to provide samples of exact finishes and fittings for approval prior to placement of orders and/or proceeding with the works. - Refer to Structural Engineer's Drawings and Specifications for all structural elements. - Refer to MEP Engineer's Drawings and Specifications for all MEP elements. 01/AR/008 LEGEND KEY SECTION 1 2WALL SECTION W3 DRAWING Nº 01CIVIC CENTER BCM DWG NOTES - No dimensions to be scaled from this drawing. All dimensions shown in mm and are to be checked by the contractor/manufacturers - Levels shown are in metres and refer to the - Contractor must verify all dimensions on site before commencing any work or preparing shop drawings. - Work within the scope of the Gibraltar Construction (Design & Management) Regulations is not to start until a Health and Safety Plan has been produced. All works to comply with Health and Safety Regulations. - Drawing is to be read in conjunction with accompanying NBS specifications. Contractor/manufacturers are responsible for full cross-referencing between drawings and specifications. - Contractor is to ensure that the conditions and requirements listed in the planning permit, approval notice and associated documents are to be complied with at all times. - All materials and fittings be best quality, to British Standards and protected from the elements at all times. All areas disturbed or exposed during works to be made good to match existing adjacent. - All arisings to be carted away and disposed of in accordance with local regulations. - Contractor to provide samples of exact finishes and fittings for approval prior to placement of orders and/or proceeding with the works. - Refer to Structural Engineer's Drawings and Specifications for all structural elements. - Refer to MEP Engineer's Drawings and Specifications for all MEP elements. 01/AR/008 LEGEND KEY SECTION METAL CLADDING WALL SECTION METAL CLADDING JOINERY DETAIL CURTAIN WALL- WALL SECTION CURTAIN WALL-JOINERY DETAIL
CURVED GLASSWINDOW-PLAN,SECTION,ELEVATION
WINDOW CURVED-TRIPLE FIXED W5
SCALE 1:20
WINDOW PLAN,SECTION,ELEVATION
WINDOW DOUBLE SLIDING WINDOW W1
SCALE 1:20
DOOR PLAN,SECTION,ELEVATION
DOOR
SINGLE SWING-WOOD D2
SCALE 1:20
WINDOW CURVED-DOUBLE FIXED W4
SCALE 1:20
WORKING DRAWINGS| Selected works 33
Portfolio | Patan Almas 34 BUILDING CONSTRUCTION DRAWINGS FFL Deck slab Main Beam- B2 Secondary Beam -B3 4200mm 115mm -Brick wall Wall Sheet Z-Purlin Column Roof Sheet Gutter A B C 1 2 3 6000mm 18000mm 1200mm 9m-B2 6m-B1 STAIRCASE STRINGER BEAM COLUMN SUPPORT RISER-150 THREAD-300 200x100mm Cross Beam-B3 125x70mm 250x125mm Detail 1 Detail 2 115mm Wall a SECTION aa' - SCALE PLAN Section AA' Section BB' A A' B B' Column 200x200 Nut/Bolt Base plate Pedestal Bracing Connecting Plate Angle Column Base Plate Pedestal Nut/Bolt PLAN B2 250X125 B2 250X125 DETAIL 3 Plinth Connection Detail -Scale 1:10
35 BCM| Selected works
Portfolio | Patan Almas 36
FULL SCALE WORKSHOP SEISMIC SHIELD
37 WORKSHOP| Selected works
Portfolio | Patan Almas 38 I HEREBY DECLARE THAT THIS DOCUMENT CONTAINS MY OWN ACADEMIC AND PERSONAL WORK. ALMASCBM@GMAIL.COM +91-9972262115 BANGALORE,INDIA -----THANK YOU-----
