All LED Catalogue Version 12

Illuminating Innovation

VERSION TWELVE

THE BRIGHTER CHOICE

Welcome to All LED’s latest catalogue filled with many new and fantastic award-winning products.

Here at All LED we are passionate about delivering high-quality, energy saving lighting and power solutions providing a brighter choice in the LED lighting industry.

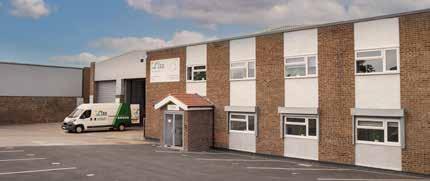

At our UK based Head Office and distribution centre we offer many in-house solutions including our own product studio, marketing & design suite, technical & testing area as well as distribution & logistics. We offer market leading support to provide the highest level of customer experience.

Our highly experienced team of motivated and friendly team are always available and ready to help if you have any questions.

AWARDS

The LIAQA assured company mark shows that as an LIA member we have successfully fulfilled the criteria set by the LIA for product acceptance, manufacturing process requirements, and have provided evidence that supports product conformity. LIAQA Assured Members can showcase to their customers that as suppliers of lighting and lighting related products they have a system in place that effectively addresses product compliance and quality control. All LED are proud to be an assured company member of the LIA.

ICEL is the Industry Committee for Emergency Lighting. It’s mission is to strengthen the industry and promote the benefits of good quality lighting. It represents all aspects of UK, EU and international legislation and standards at the highest level, whilst protecting the interests of the public and LIA ICEL Members.

ISO 9001 is the international standard that specifies requirements for a quality management system (QMS). Organisations use the standard to demonstrate the ability to consistently provide products and services that meet customer and regulatory requirements. All LED is an ISO9001:2015 certified company.

The Electrical Distributors’ Association (EDA) serves as the primary trade association in the UK, dedicated to advocating for the interests of wholesale distributors of electrotechnical products. It supports members by providing resources, training, and a unified industry voice.

Luckins is the UK’s leading specialist in product and pricing data services for the electrical, HVAC and plumbing sectors. Luckins provide comprehensive product databases with seamless integration on existing order processing platforms for electrical wholesalers and distributors.

All LED is partnered with Recolight to help reduce and safely dispose of and recycle all waste electrical goods, ensuring and upkeeping social and ethical standards that form the basis of All LED’s corporate responsibilities.

All LED makes every effort to maintain the accuracy and quality of the information provided in this catalogue. However, All LED cannot guarantee and assumes no legal liability or responsibility for the accuracy or completeness of the information provided. The information contained in this catalogue is for general guidance only. You should neither act, nor refrain from action, on the basis of any such information. You should take appropriate professional advice on your specific installation because the application of our equipment may vary depending on specific circumstances. From time to time we may update products and their technical aspects, so its always best to contact us to verify any details as catalogues tend to sometimes have quite a long life in a contantly changing environment of the technologies that come with LEDs.

The copyright of all content on this catalogue is owned by All LED and/or the various manufacturers of our equipment. No part of the All LED catalogue may be changed, reproduced, stored in or transmitted on any website or medium without the prior written permission of All LED. Requests to republish any material must be sent to sales@allledgroup.com. Dimming compatibility with third party company products is subject to change without prior notice and does not imply full compatibility.

Icons & Symbols

RED DOT AWARD 2025 FOR LIGHTING DESIGN

At All LED, innovation is at the heart of every endeavour. That is why they are incredibly proud and truly honoured to announce that the All LED Polaris Dim-To-Warm LED Fire Rated Downlight has received the prestigious Red Dot Award 2025 for Lighting Design.

Winning a Red Dot is no small feat. It represents one of the highest accolades of design excellence on the global stage — a symbol recognised by lighting

professionals around the world. To have Polaris acknowledged in this way is both an honour and a validation of the passion, precision, and expertise that drive everyone at All LED. A workforce who demonstrates the importance of offering products that are not only technically robust but also beautifully designed — and Polaris delivers on both fronts.

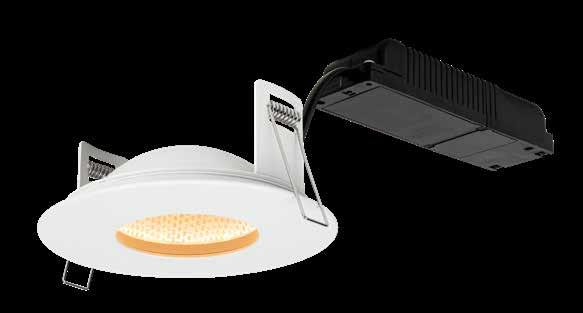

The Polaris Dim-To-Warm LED Fire Rated Downlight transforms the possibilities of ambient lighting. Engineered with advanced Dim-To-Warm technology, it effortlessly transitions from a crisp 3000K down to a golden, intimate 2100K as it dims — emulating the warmth of incandescent lighting. This customisable feature allows users to craft beautifully tailored atmospheres with ease, bringing warmth, depth, and comfort to any space.

POLARIS DIM-TO-WARM DOWNLIGHT

This technology makes Polaris an ideal choice for mood and effect lighting, particularly in residential, hospitality, and lifestyle-focused environments. Whether it is a cosy living room, a luxurious hotel suite, or a boutique retail space, Polaris brings sophistication and comfort to every corner.

Of course, great lighting is not just about aesthetics — it is about assurance. Polaris is fire rated for 30, 60, and 90 minutes in Timber Joist ceilings, as well as 30 minutes in Knauf i-Joists. This level of certified performance can give installers complete confidence when meeting critical building regulations. Polaris is also fully compliant with Part B Fire, Part C Moisture, Part E Acoustic and Part L Air Leakage.

When it comes to safety, compliance, and performance, Polaris delivers across the board — providing a one-stop solution for modern installation requirements.

We believe that excellent lighting design starts with the installer in mind. Polaris was developed to streamline the installation process, reduce time on site, and offer genuine flexibility.

It features a 2-part quick connector system with loopin, loop-out push terminals, allowing for swift, secure wiring without fuss. Polaris is insulation coverable,

giving contractors additional freedom in ceiling construction. And with an IP65 rating from the front when installed, it is fully suited to bathroom zones and high-humidity environments.

The result? A product that offers understated elegance with powerful performance built in.

At a time when the market demands both performance and presentation, Polaris stands as a new gold standard. It offers installers and designers a reliable, regulation-compliant solution that never compromises on visual impact or usability.

To those yet to experience it— now is the perfect time to discover why Polaris truly stands apart.

Award Winning Products

See Page 126

AWARDED TOP PRODUCT 2024

Beam isn’t just another lighting solution; it’s a testament to the fusion of cutting-edge technology, thoughtful design, and a commitment to lasting quality. Beam’s dimming capabilities, paired with its 12V Constant Voltage dimmable LED drivers, create a symphony of lighting possibilities.

In a world saturated with lighting choices, Beam shines brightly. Its combination of enduring quality, adaptable design, and user-friendly features sets it apart. Beam is more than just a lighting solution; it’s an investment in enhanced living.

See Page 50

See Page 265

See Page 20

AWARDED TOP PRODUCT 2023

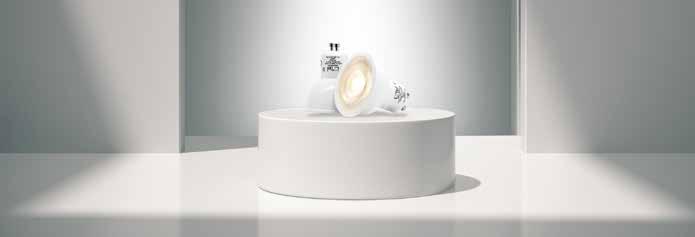

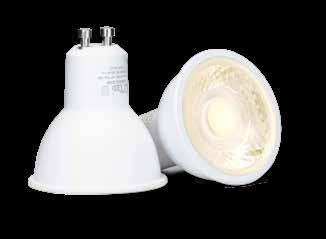

The brand-new Caterham GU10 Lamp - All LED’s newest eco-friendly, low consumption, high output, retrofittable GU10 lamp with OptiDim Technology. An advanced and highly engineered clever dimming technology allowing the lamp to smoothly dim to zero with no flicker or strobing. The only product of its kind boasting 99.1% compatibility with dimmer switches.

Even better, is the fact that these lamps are prepacked in boxes of 10, saving the countless hours wasted unpacking lamps on jobsites, whilst making clean up practically non-existent.

AWARDED TOP PRODUCT 2022

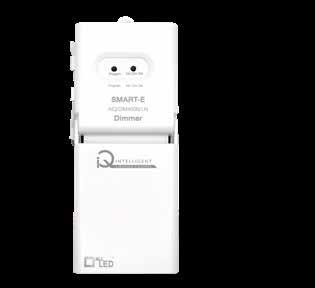

Designed in the UK to replace the standard junction box, the Smart-E contains push terminals and a hand operated cable clamp with ample room for wiring. The innovative, clean and crisp design which contains technology patented by All LED also fits through a 55mm spotlight hole. It is a fully retrofit solution which works with all existing wiring and provides hop and mesh technology.

AWARDED TOP PRODUCT 2020

The revolutionary and award winning iCan75 fire rated GU10 downlight by All LED has remained at the forefront of the lighting industry since its launch. The innovative twist and lock body allows all 24 bezels (fixed, adjustable and IP65) to be installed on the same fire rated body.

The iCan75 is also shallow-void compliant and an insulation-coverable cap accessory is available where required. One can, fire rated, and ultra slim bezels. Fixed Adjustable and IP65 in multiple colour variations, fit on the same fixture. The entire iCan range is 30, 60, 90 minute timber joist fire rated, as well as 30 minute StairCraft i-Joist fire rated and Wolf Systems Metal Web Joist Rated.

AWARDS & INNOVATION

All LED has been crowned with the prestigious award of top product of the year on four occasions. Through our innovative approach to product design, we have pioneered the creation of award-winning products that are not only stylish and functional, but also environmentally friendly. Our commitment to innovation has been recognised by industry experts and consumers alike, and our products have been featured in leading publications in the UK.

One of the key factors that sets us apart from our competitors is our focus on user experience. We have designers and engineers work closely with our customers to understand their needs and wants, and then use that feedback to develop products that meet or exceed expectations. This user-centric approach has resulted in a number of successful products, including the iCan75. We are experts in fire rated downlights as shown by our iCan75, the can that simply does it all. One can, three bezels and eight finishes.

We have also recently taken a new approach to smart lighting systems with our award winning iQ Intelligent Lighting Control system which allows you to keep your existing light switches, and have full control or your lights through voice control, mobile app or just using your light switches.

With sustainability in mind, we use only the highest quality materials in our products and are committed to reducing environmental impact throughout our supply chain. This commitment to sustainability is well represented in the packaging design for our Caterham lamp, with its patented low waste, labour saving, recycled and plastic free packaging

which itself doubles up as its own display unit. We have masterfully dealt with major pollutants and waste focusing on redesigning our innovative and planet friendly multi-unit boxes.

Most recently at the end of 2024 we were recognised for our all new marker light Beam which has been hailed as a testament to the fusion of cutting-edge technology, thoughtful design, and a commitment to lasting quality. Beam’s dimming capabilities, paired with our 12V Constant Voltage dimmable LED drivers, create a symphony of lighting possibilities. From intimate gatherings to focused work sessions, allowing you to control the ambiance with a simple adjustment.

In addition to our innovative approach to product design and its commitment to sustainability, we are also known for our exceptional customer and technical service. We offer a wide range of support services, including product training, installation assistance, and troubleshooting. Our customer service team is available to answer questions and resolve any issues that customers may have.

As a result of our innovative approach to product design, our commitment to sustainability, and our exceptional customer service, we have become a leader in the lighting industry. Our products are used in homes, businesses, and public spaces around the country, and we are consistently recognised for our quality, performance, and design.

P. 241

P. 57

P. 255

P. 78

P. 128

P. 86

P. 66

P. 200

P. 28

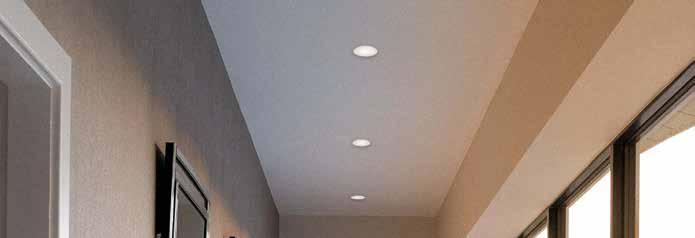

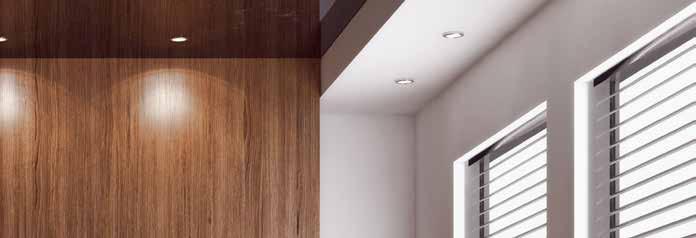

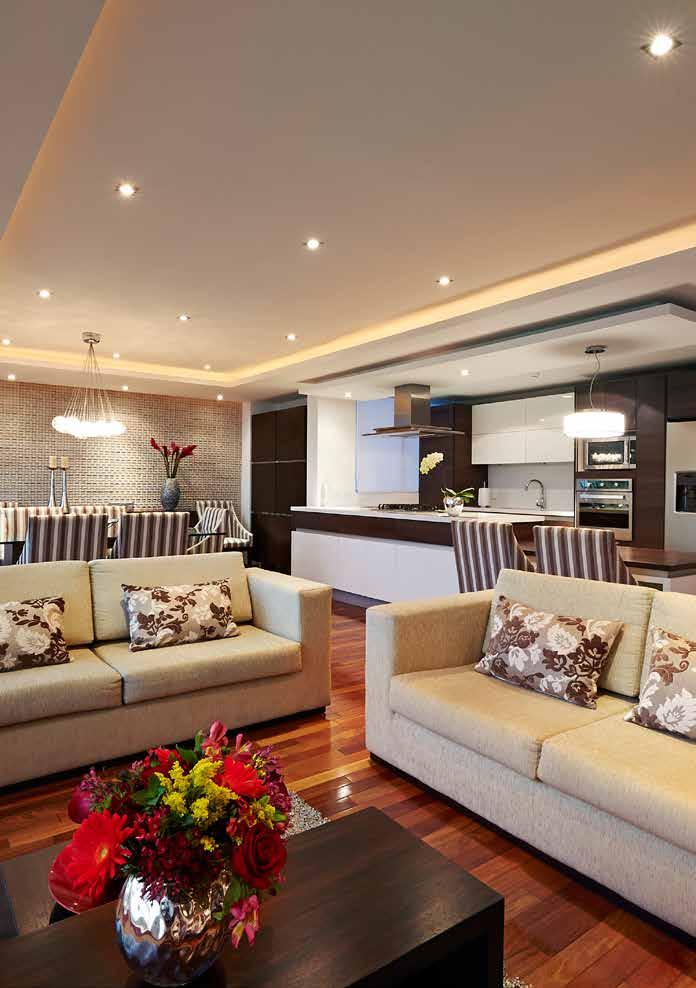

Downlights

Includes iCan, Atom, Defender Ranges & More

LED Lamps

Includes Caterham, Jaguar, Triumph & More

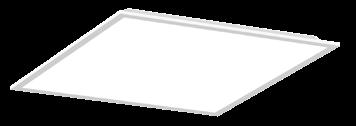

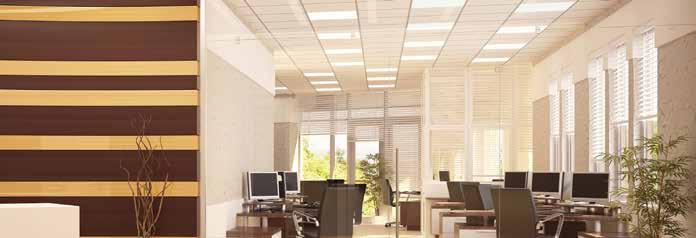

LED Panels

Includes Altitude & Altitude CCT Ranges

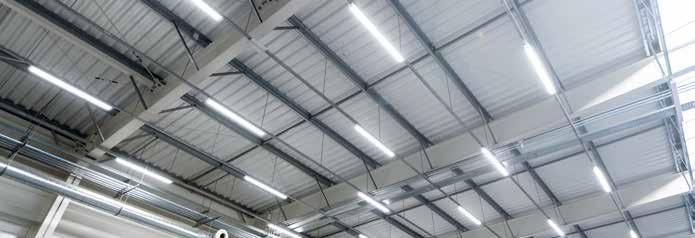

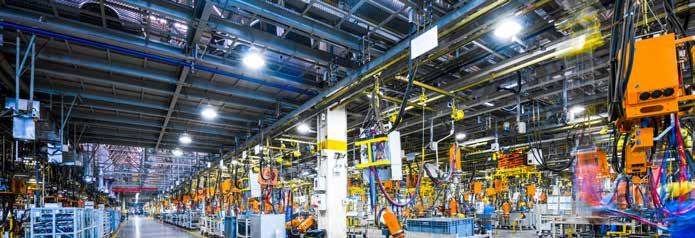

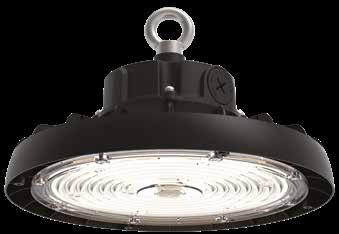

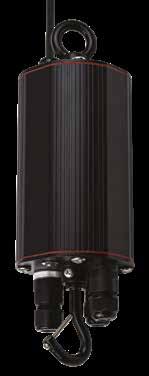

Highbays

Includes LumoMax & Accessories

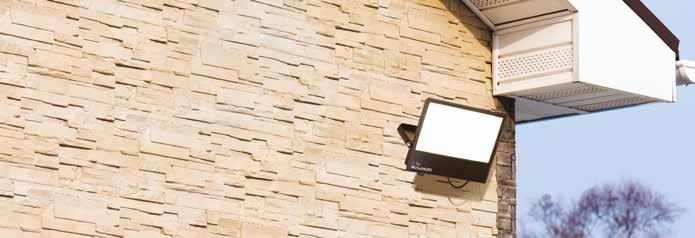

Floodlights

Includes Osprey & Q-Nex Accessories

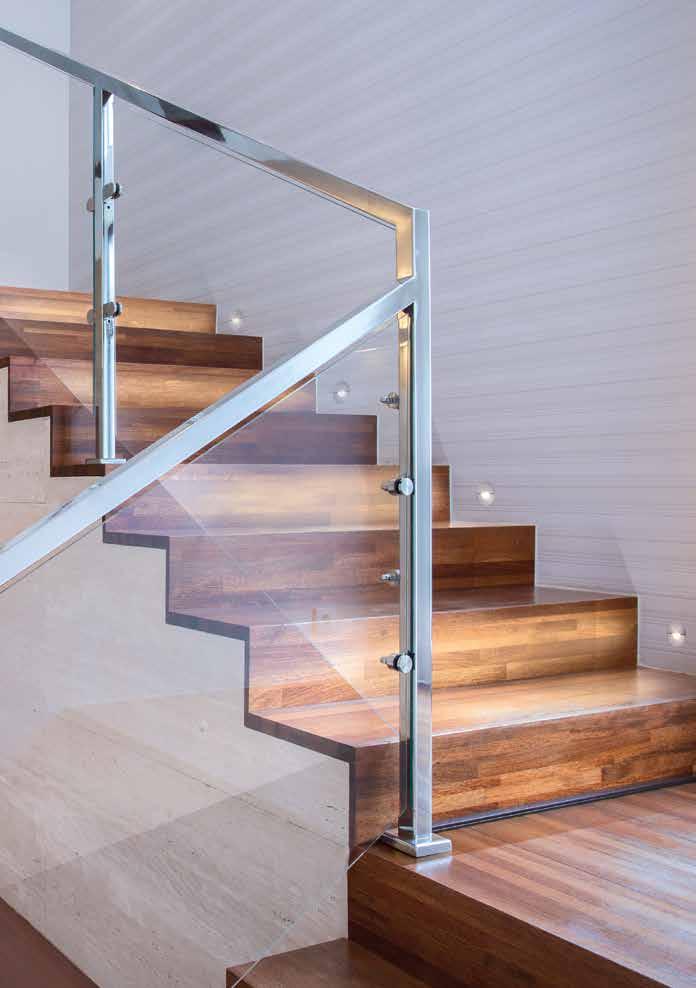

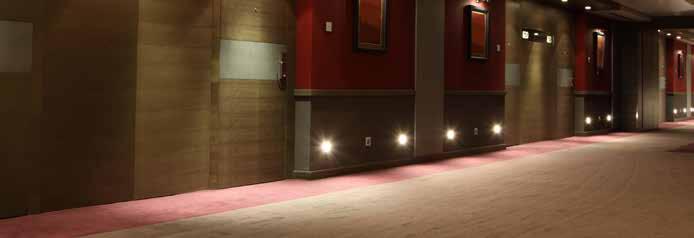

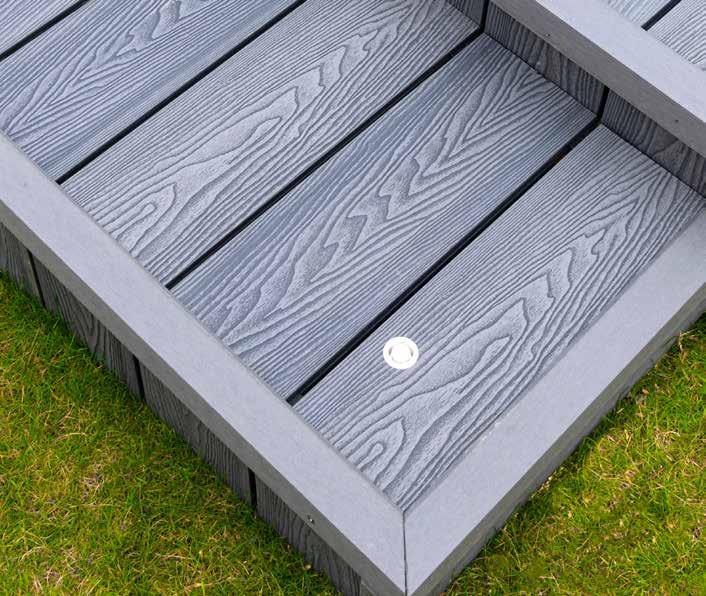

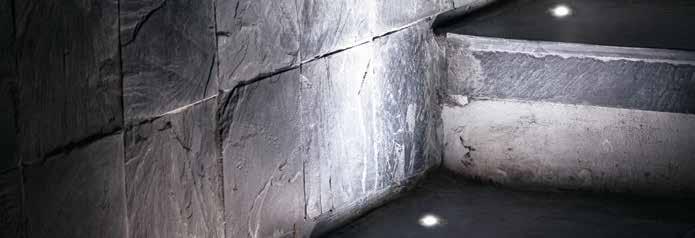

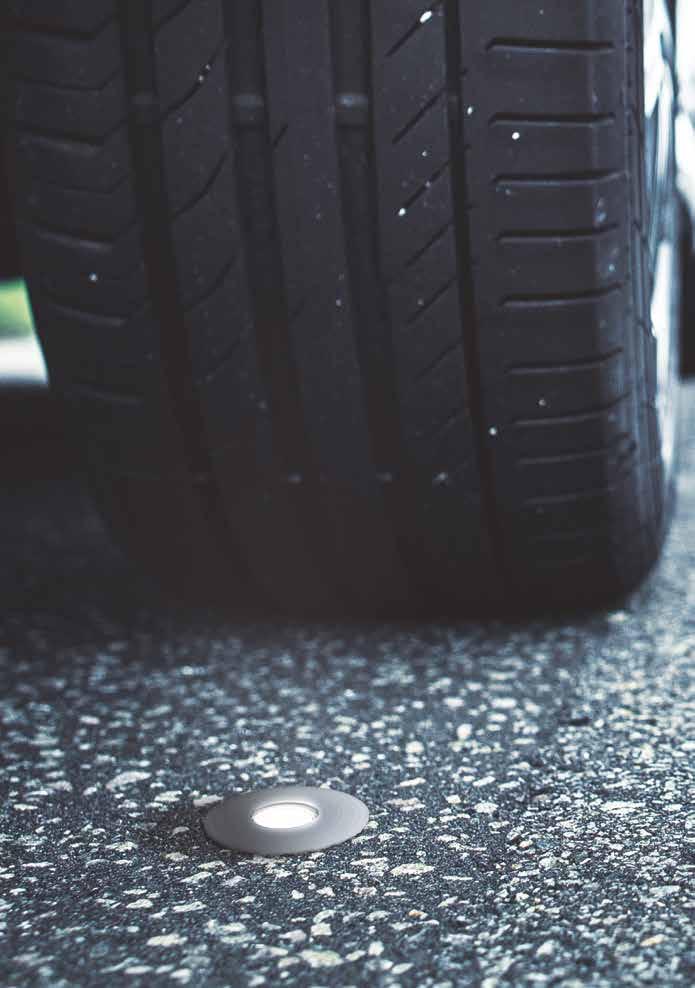

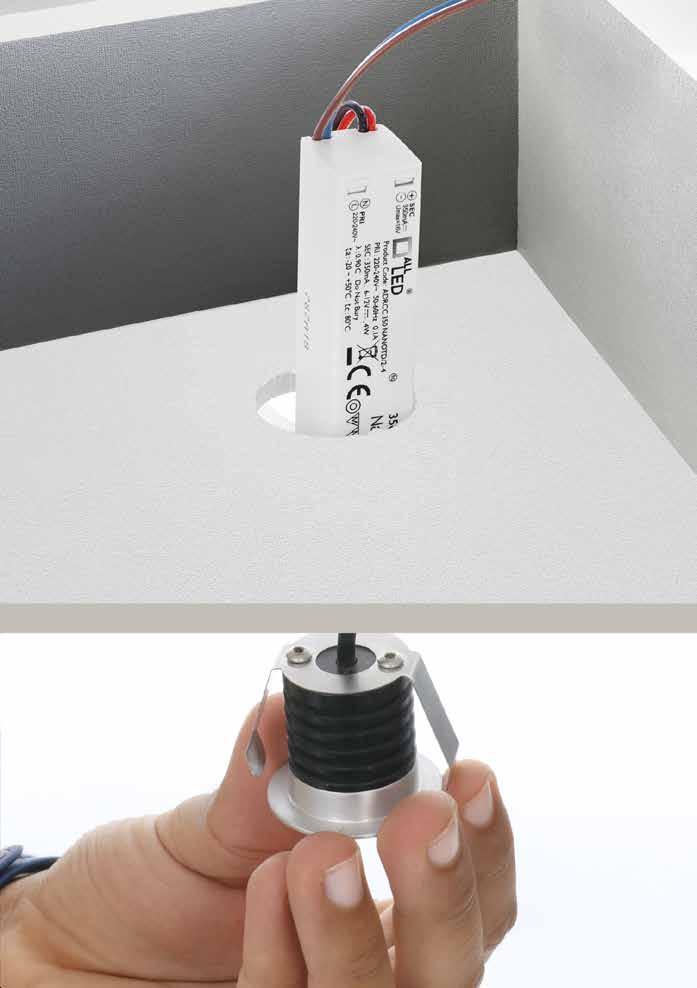

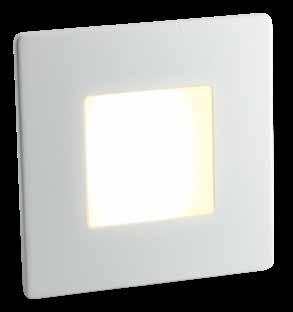

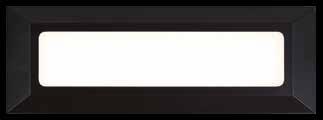

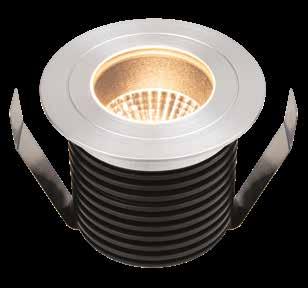

Marker Lights

Includes Noble, Marine, Beam, Valiant & More

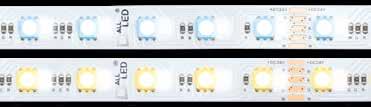

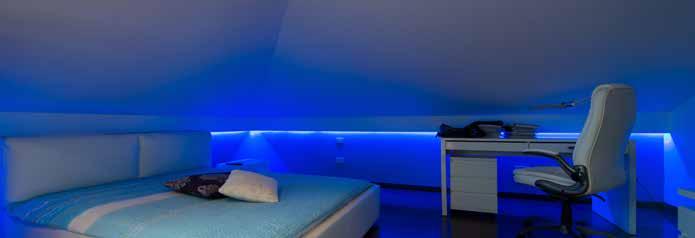

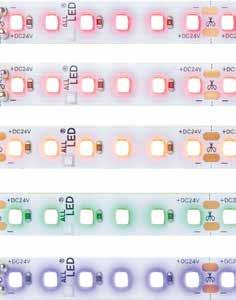

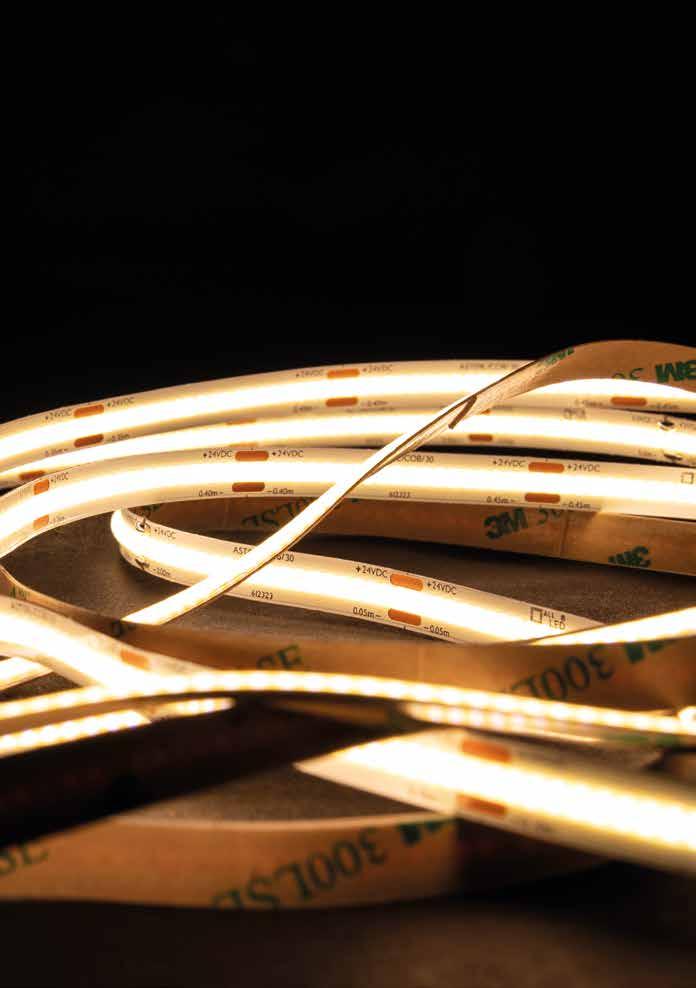

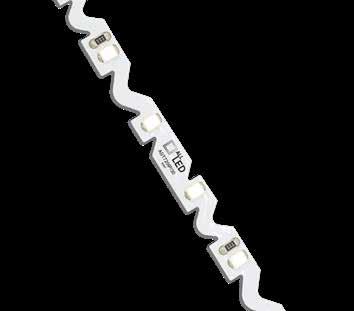

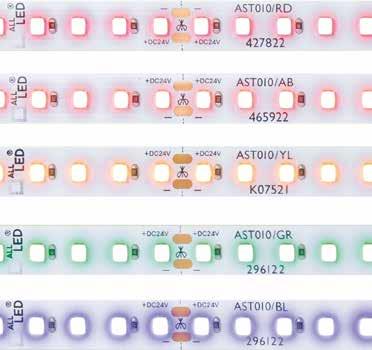

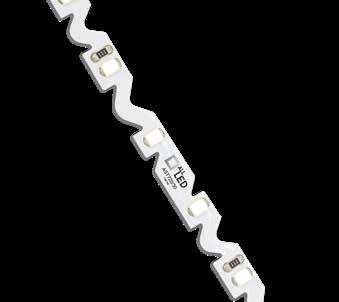

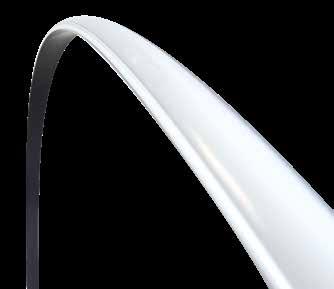

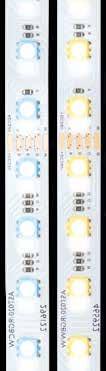

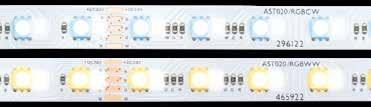

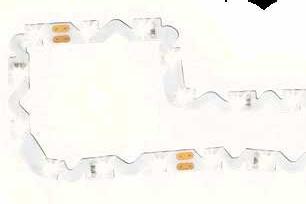

LED Strips

Includes Seamless Pro, Trilogy, Pro Range & More

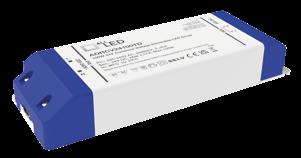

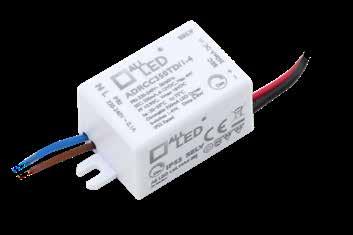

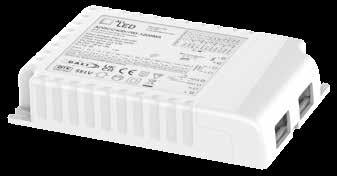

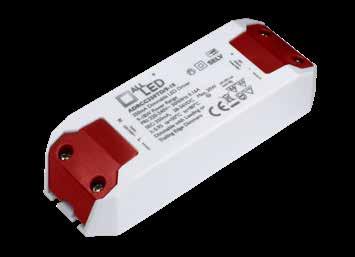

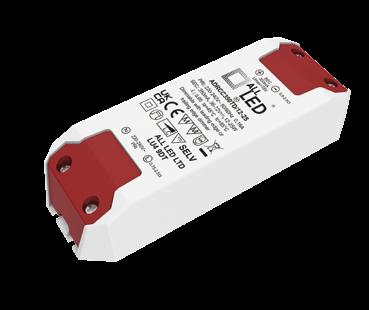

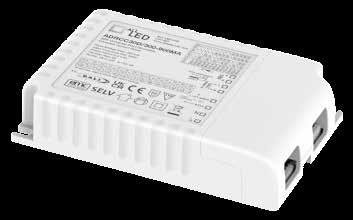

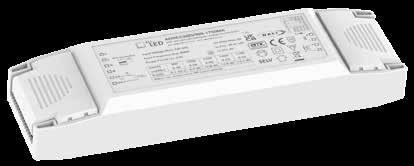

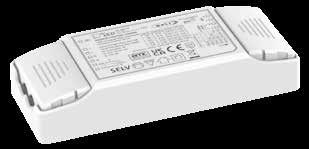

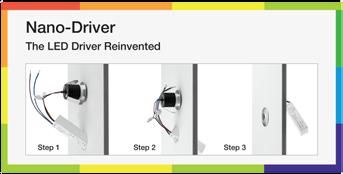

LED Drivers

Includes Drive350, Drive12 & Drive24 Ranges

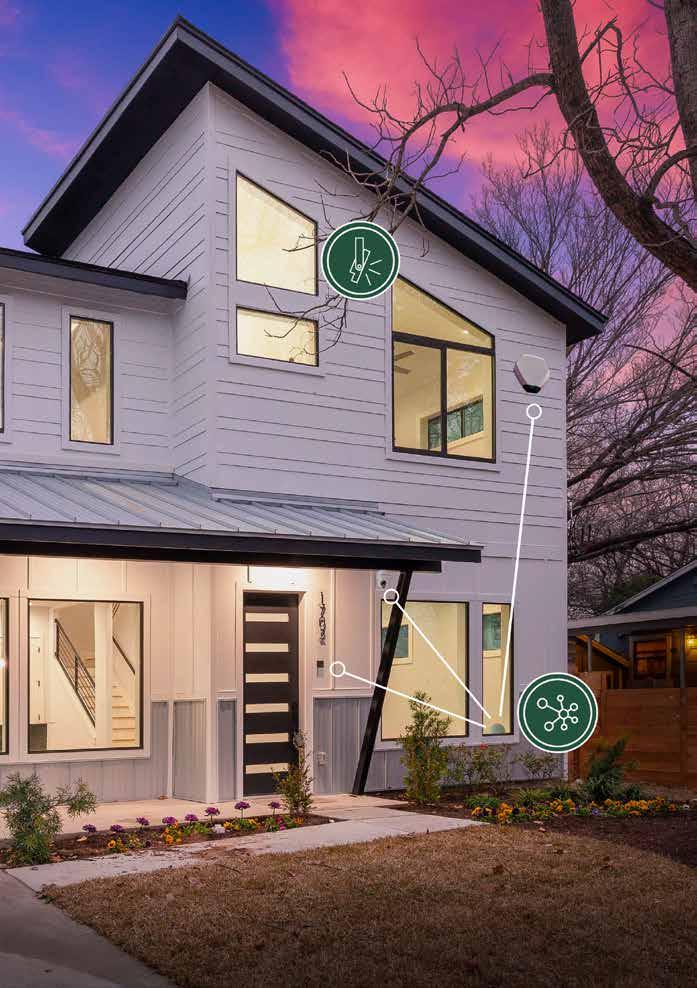

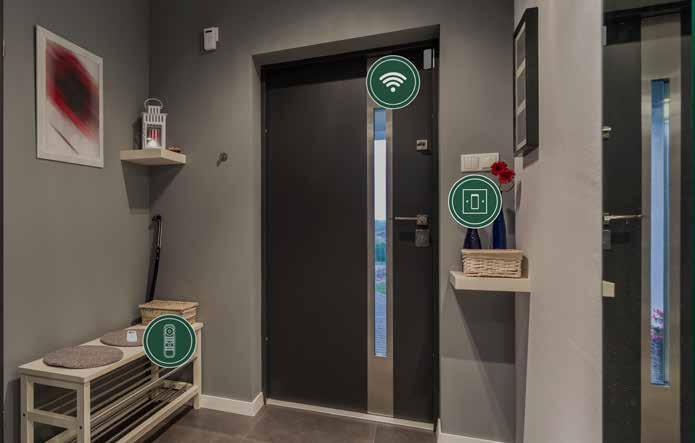

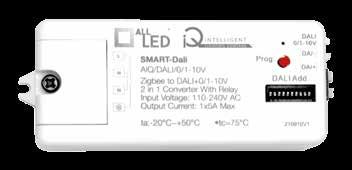

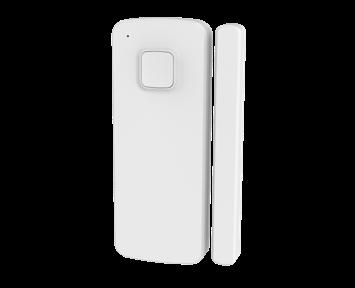

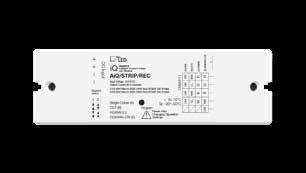

iQ Smart Controls

Includes Smart-E, Smart-R, Smart-T & More

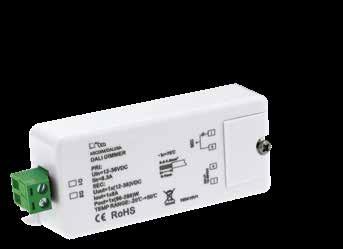

Dimmer Modules

Includes All-Dim, All-Dim Dummy & All-Dim Grid

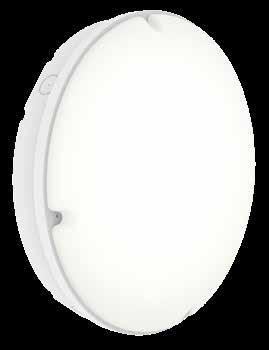

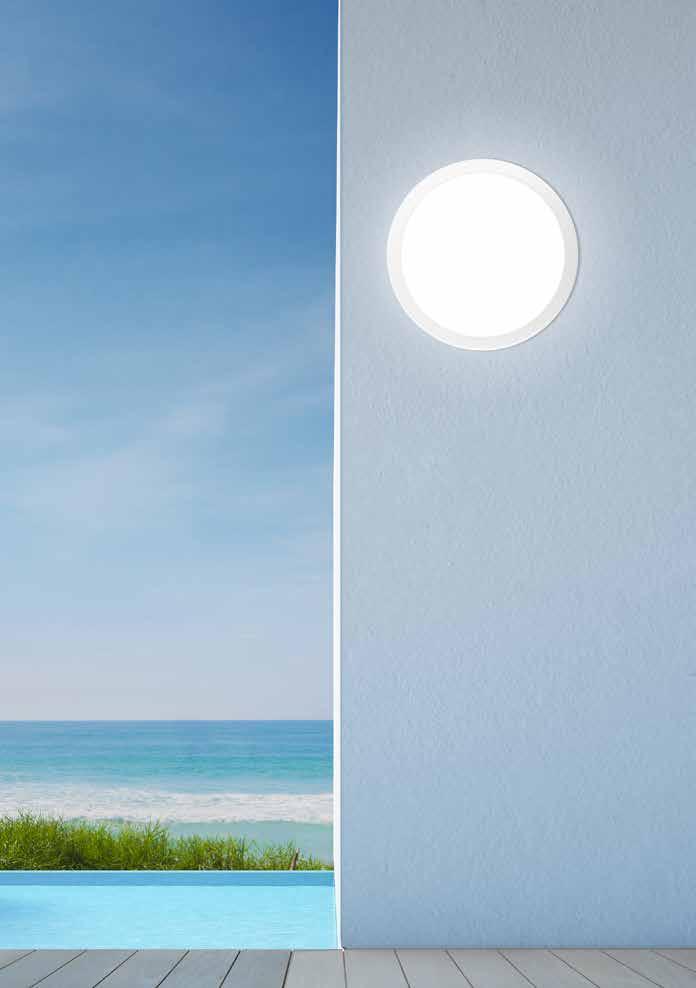

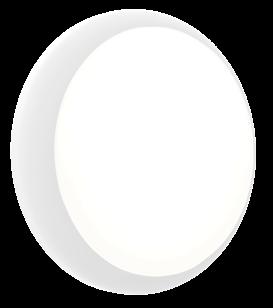

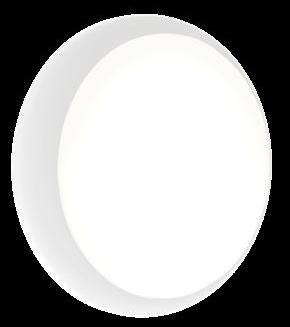

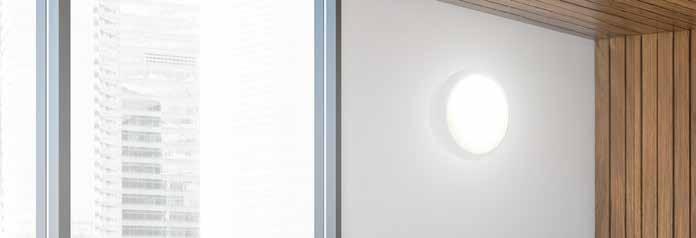

Bulkheads

Includes Bruno 3, Lennox 2, Victory 2 & More

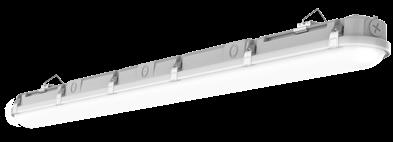

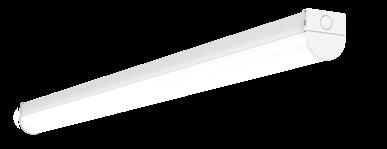

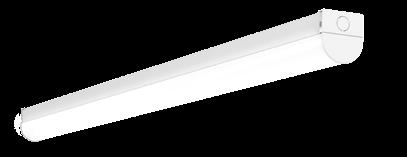

Battens

Includes Barracuda, Barracuda Extreme & Q-Nex

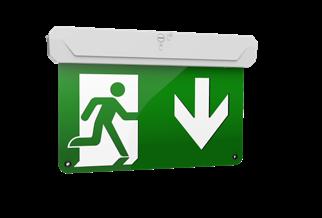

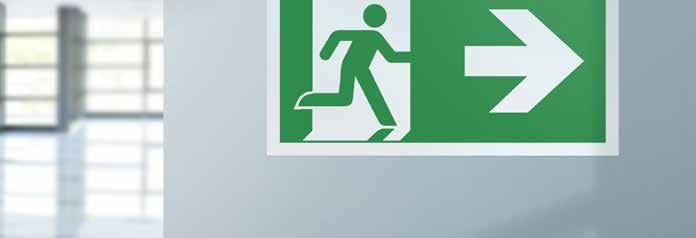

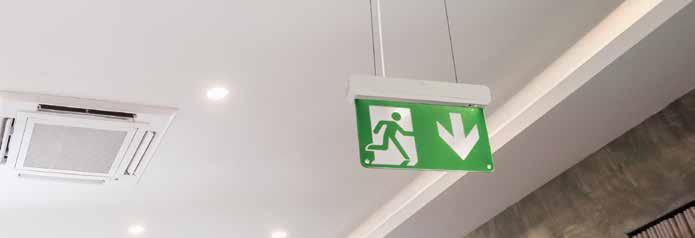

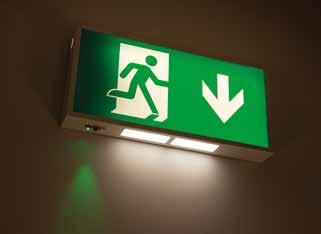

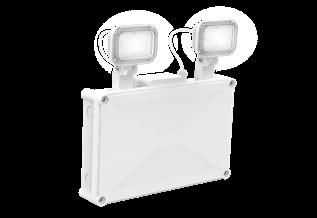

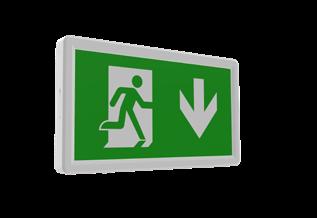

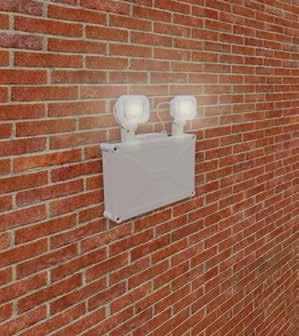

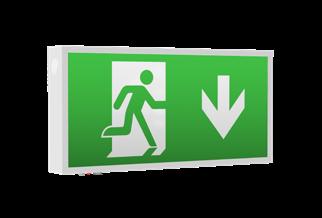

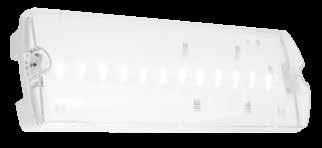

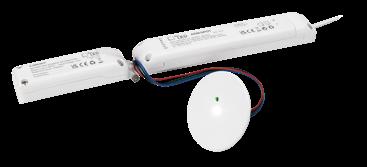

Emergency

Includes Em-Spot, EMPack & New EM Range

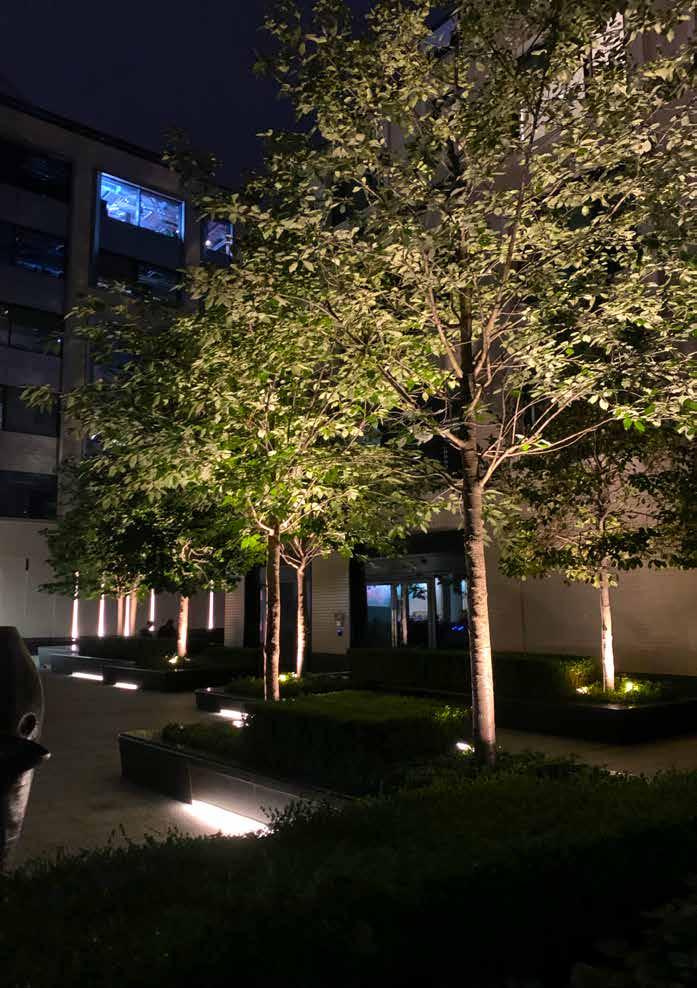

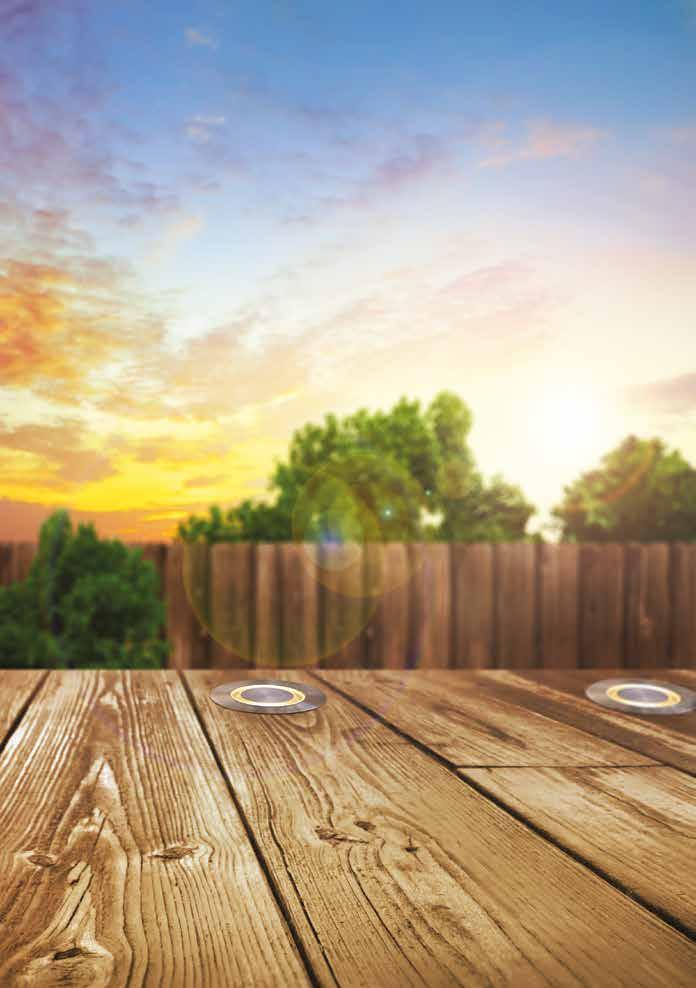

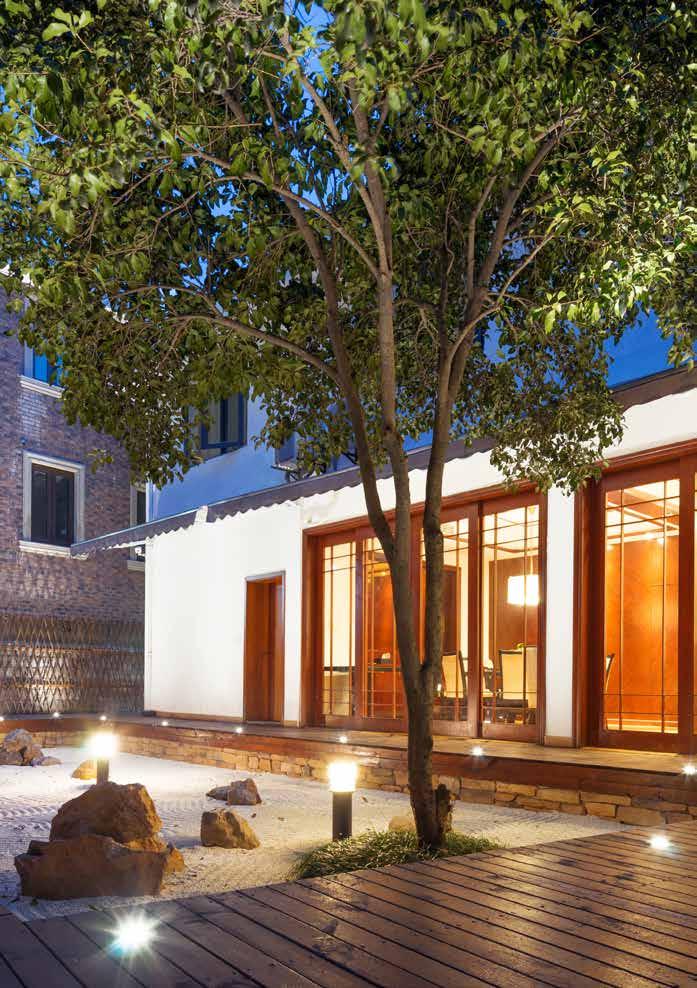

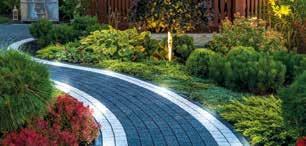

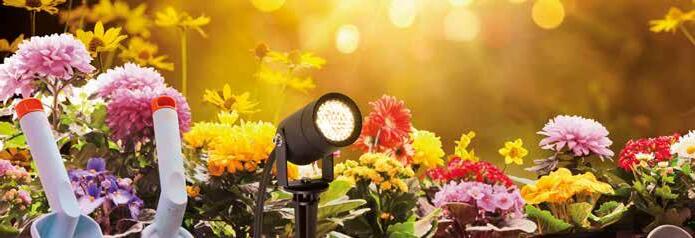

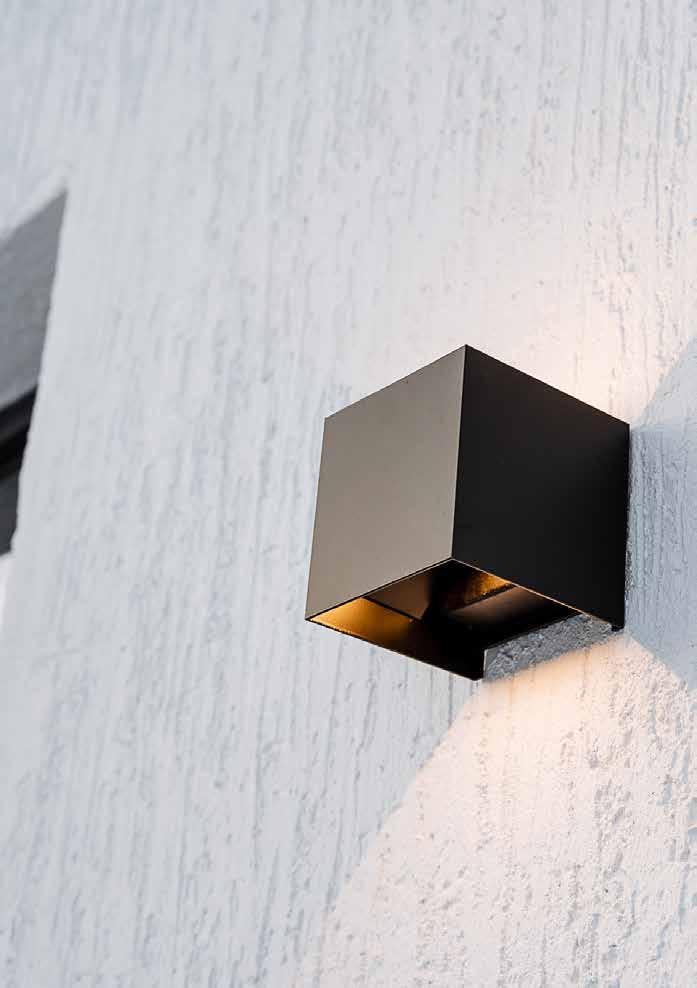

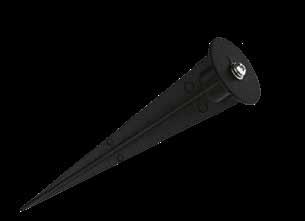

Outdoor

Includes Excalibur2, Sabre2, Morph Range & More

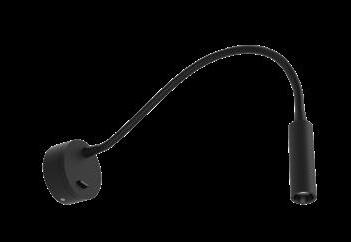

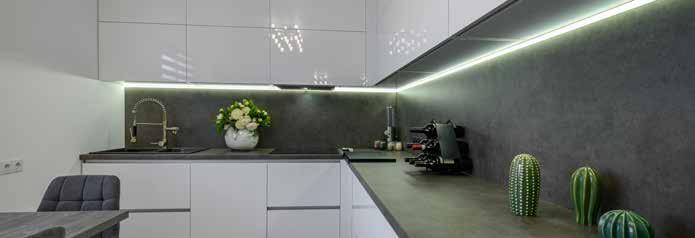

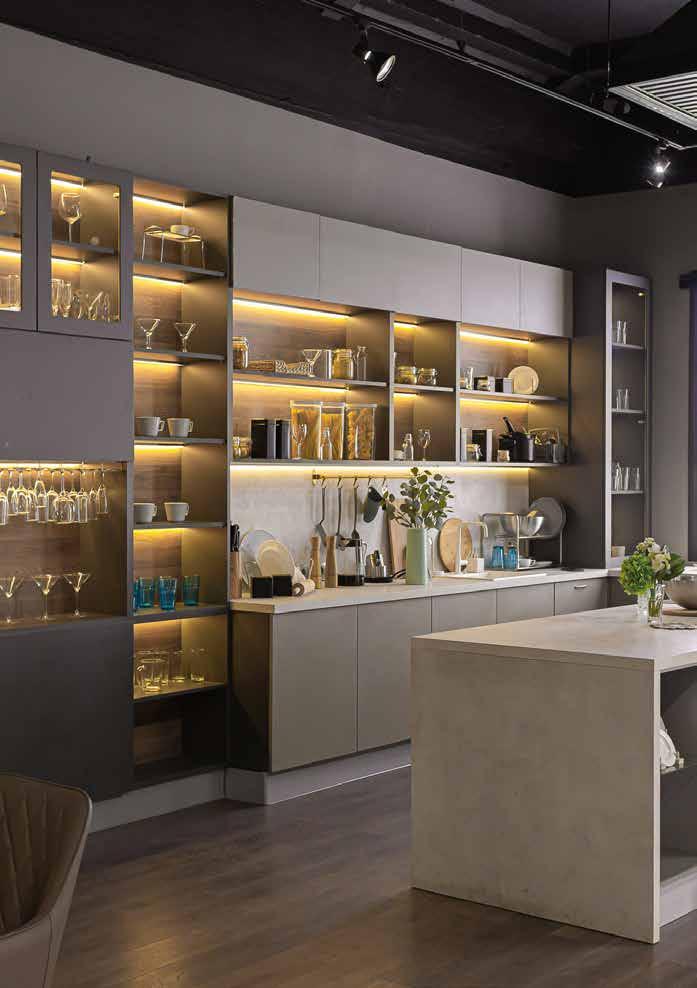

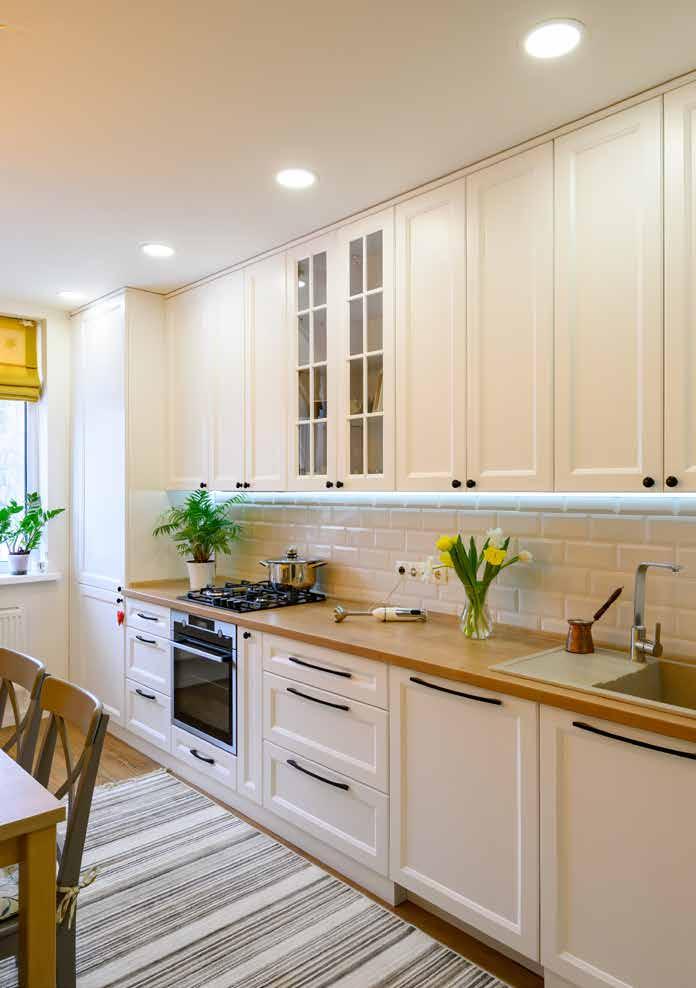

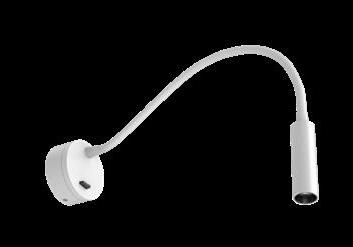

Undercabinet & Bedroom

Includes SwiftCCT & Cygnet Ranges

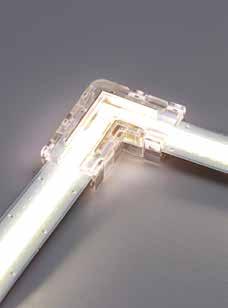

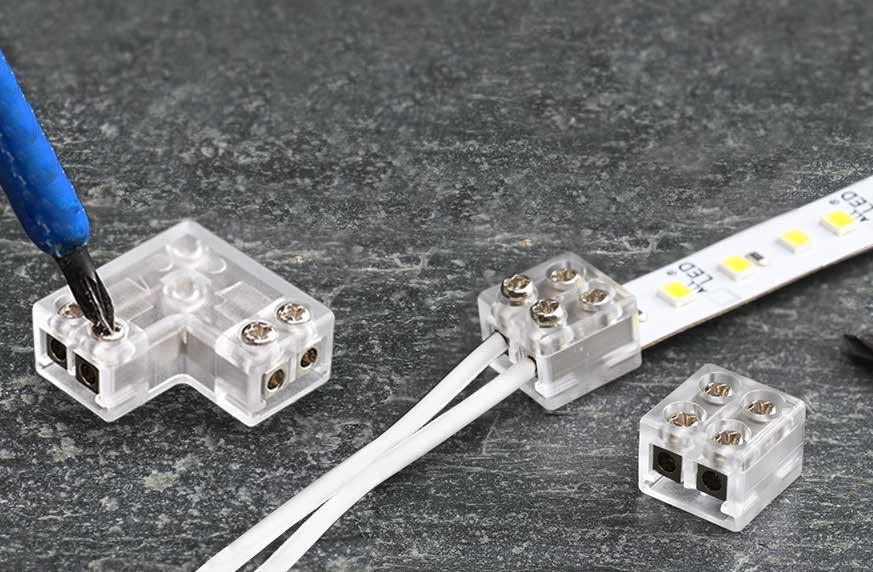

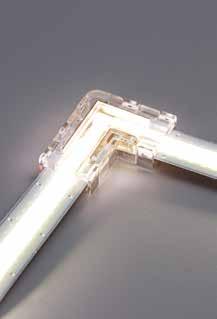

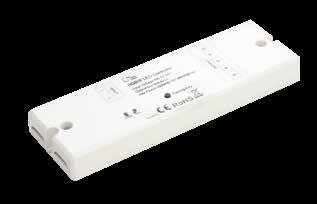

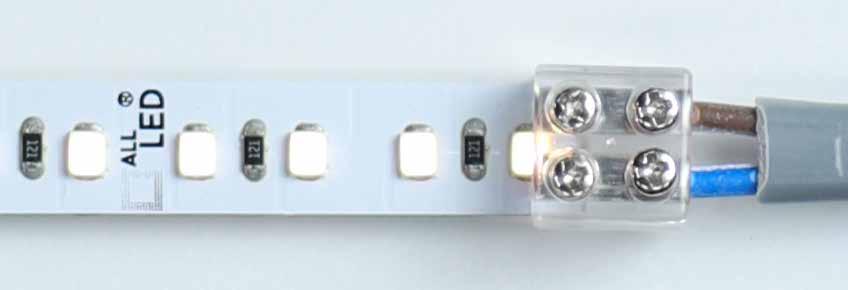

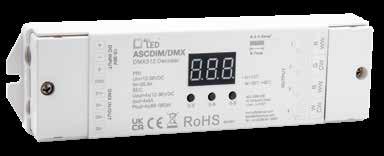

Strip Accessories

Includes Colour1+, StripMOD, UniCube & More

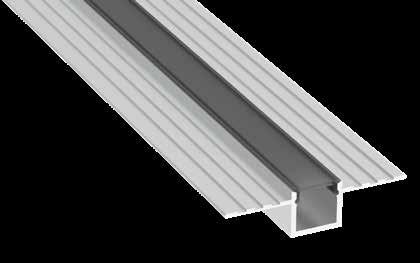

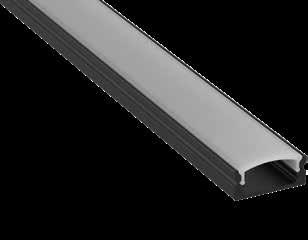

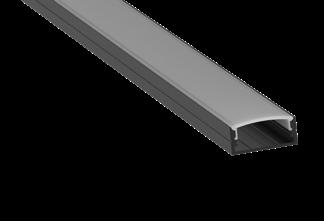

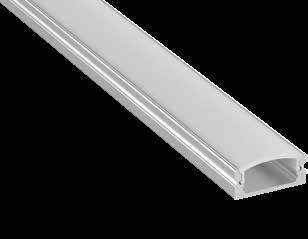

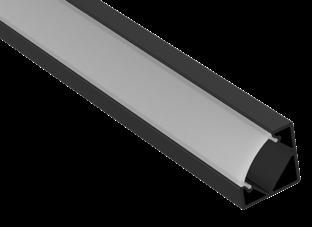

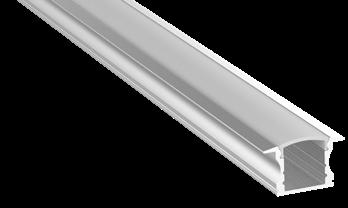

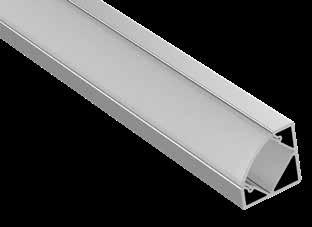

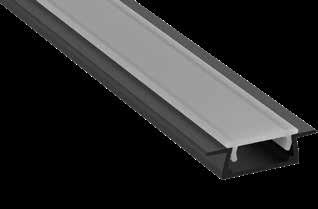

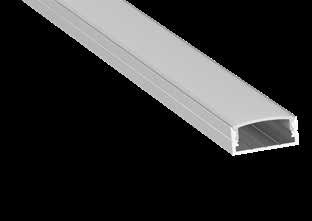

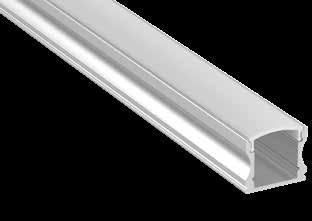

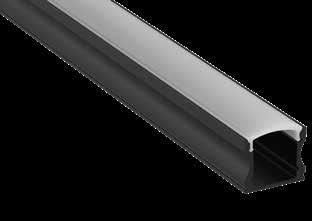

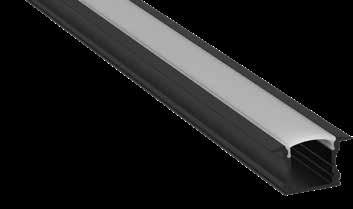

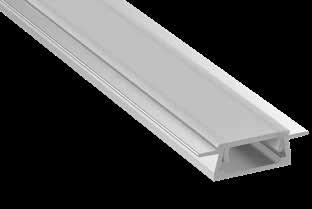

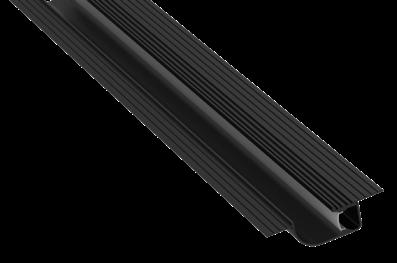

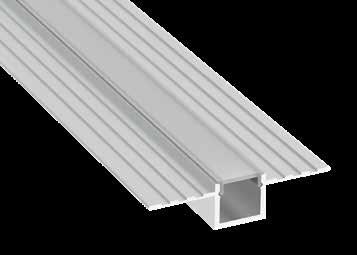

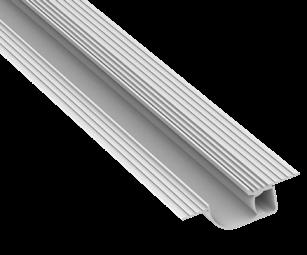

Aluminium Profiles

Includes Profile1, ProFlex, Stealth & More

Information

Includes Index, Dimming Comparisons, LUX Tables & More

Downlights

THIN JUST GOT THINNER

Razor-thin Bezel at 0.8mm

That’s the thickness of just 8 A4 sheets of paper

Spartan Snap-On Bezels*

AFD600DBZ/BLK Carbon Black

AFD600DBZ/SN Satin Nickel

AFD600DBZ/PC Polished Chrome

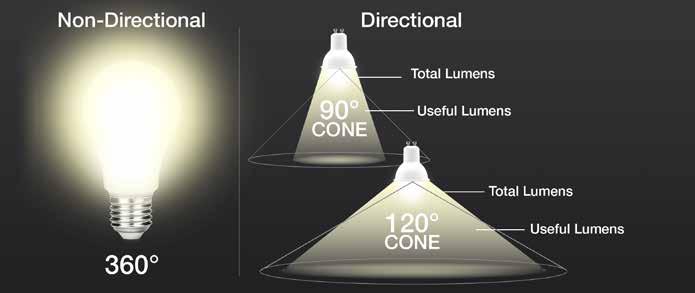

SPARTAN LUMENS COMPARISON

Model Useful Lumens Total Lumens

Spartan Dimensions

Emergency Accessories*

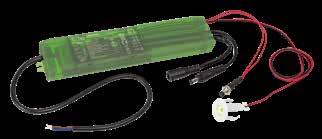

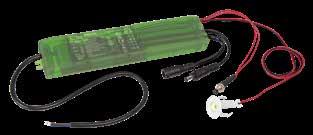

AEMSK10/240V*

Maintained Emergency Pack 3 Hour NI-CD Battery Back-Up 55mm Cutout Required For More Info See Page 105

Check out the All-Dim Dimmer Module on Page 44

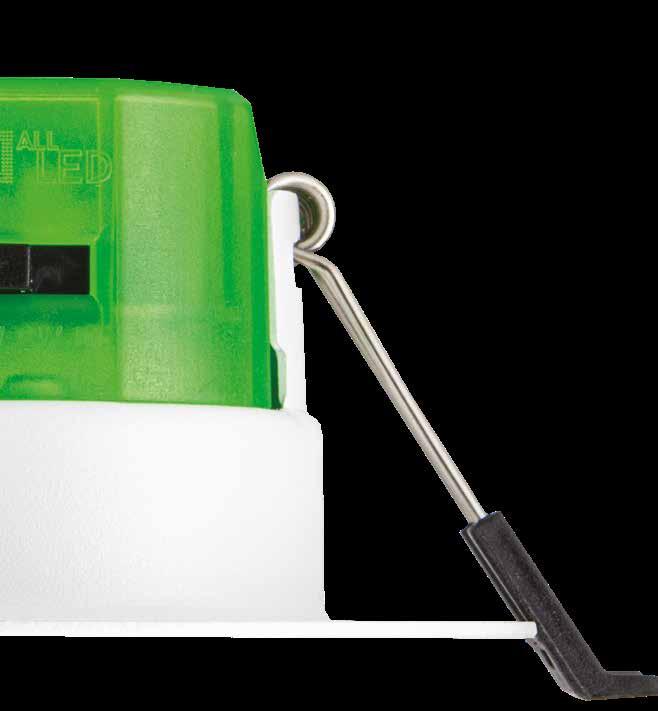

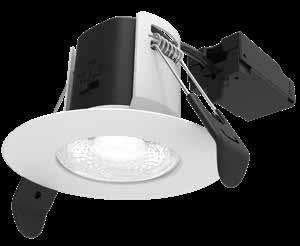

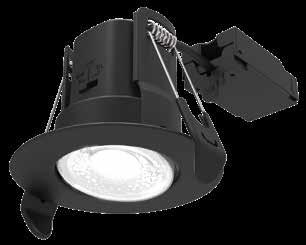

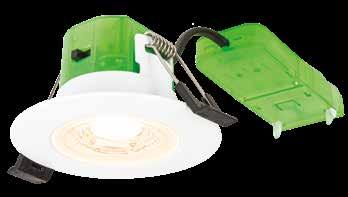

SPARTAN

Code Cutout Overall

AFD600D/CCT Ø55-75mm Ø86mm

▪ 2 Part Connector With Push Terminals

▪ 30, 60, 90 Minutes Fire Rated (Timber Joist)

▪ 30,90 Minutes Fire Rated I-Joist

▪ 30 Minutes Fire Rated Metal Web Joist

▪ Compliant To; Part B - Fire, Part C - Moisture, Part E - Acoustic & Part L Air Leakage

▪ CCT Selectable (3000K, 4000K & 6500K)

▪ IP65 Rated

AFD600D/CCT ≤510lm ≤660lm CCT Switch 2-Part Connector

*Item(s) Sold Separately

▪ Loop-In Loop-Out Quick Connect Push Terminal

▪ Ultra Slim Polar White Bezel As Standard

▪ Insulation Coverable

▪ Low Profile Clip-On Polished  Chrome, Satin Nickel And Carbon Black Bezels Avaliable*

Spartan Details

Fire Rating for iCan Range

In the United Kingdom, it is crucial to consider fire safety when selecting light fittings. Light fittings must be rated for fire safety based on the retaining the fire integrity of the structure they will be installed in.

Our light fittings are available in 30, 60, and 90-minute fire ratings depending on the joists used.

It is important to note that the light fittings must also be compliant with various building regulations, including Part B - Fire, Part C - Moisture, Part E - Acoustic, and Part L - Air Leakage. These regulations aim to ensure that the building’s design, construction, and use meet certain safety, health, and welfare standards.

By prioritising fire safety in your lighting choices, you can protect yourself, people and your property.

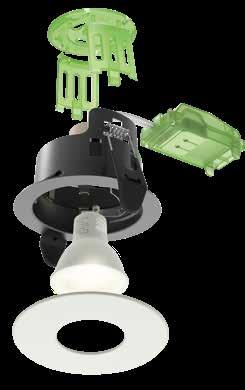

Super Slim Twist & Lock Bezel

Heavy Duty Springs

Insulation Cover*

Quick Connect Push Terminals

Open-Vent Technology

Check out the All-Dim Dimmer Module on Page 44

iCan75 Accessories*

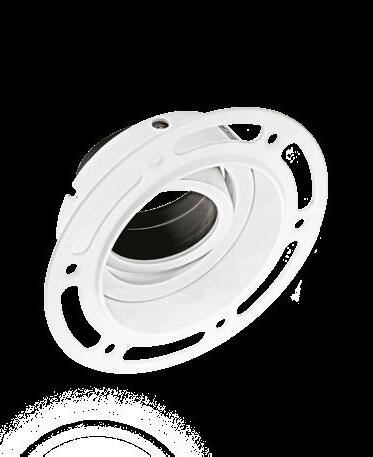

AFD75/TK/WH Fire Rated White Plaster-In Kit

AFD75/TK/BLK Fire Rated Black Plaster-In Kit

Cutout: Ø110mm • Overall: Ø150mm • Depth: 35mm

AFD65/75/IC Click On Insulation Cover

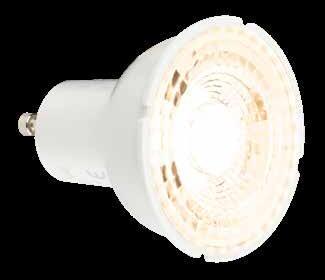

Compatible GU10 Lamps*

AGU700D GU10 Lamp Caterham AGU470D GU10 Lamp

*Item(s) Sold Separately

▪ 30, 60, 90 Minutes Fire Rated (Timber Joist)

▪ 30 Minutes Fire Rated Staircraft i-Joist

▪ 30 Minutes Fire Rated Wolf System Metal Web Joist

▪ Compliant to; Part B - Fire, Part C - Moisture, Part E - Acoustic & Part L Air Leakage

▪ Loop-in Loop-Out Quick Connect Push Terminals

▪ Open Vent Design - Improves Lamp Life

▪ Low Profile With Ultra Slim Twist & Lock Bezel

For More Info See Pages 50-53

AGU501D GU10 Lamp

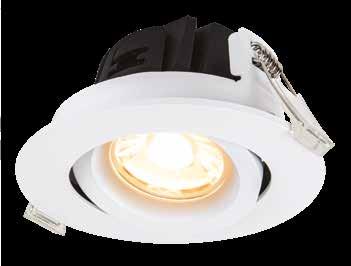

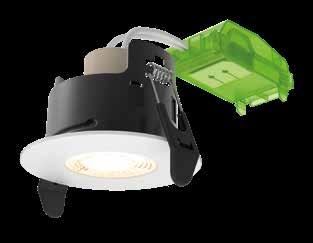

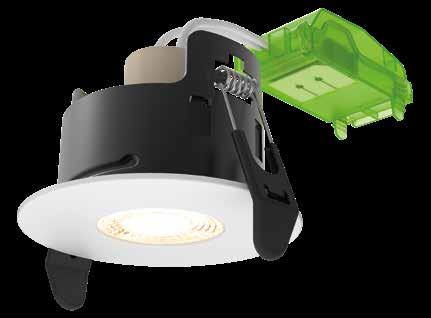

iCan75

Dimensions

Cutout: Ø75mm Overall Diameter: Ø91.5mm Overall Height: 122mm

AFD75 - iCan75

Adjustable IP65 Fixed

AFD75BZ/F/WH

AFD75BZ/F/PC

AFD75BZ/F/SN

AFD75BZ/F/BLK

AFD75BZ/F/PB

AFD75BZ/F/BB

AFD75BZ/F/AB

AFD75BZ/F/BC

AFD75BZ/F/AN

Polar White (WH)

Polished Chrome (PC)

Satin Nickel (SN)

Carbon Black (BLK)

Polished Brass (PB)

Brushed Brass (BB)

Antique Brass (AB)

Brushed Copper (BC)

Anthracite (AN)

iCan75 Converter Plates*

iCan75 Multiples*

AFD75BZ/A/WH

AFD75BZ/A/PC

AFD75BZ/A/SN

AFD75BZ/A/BLK

AFD75BZ/A/PB

AFD75BZ/A/BB

AFD75BZ/A/AB

AFD75BZ/A/BC

AFD75BZ/A/AN

AFD75BZ/IP/WH

AFD75BZ/IP/PC

AFD75BZ/IP/SN

AFD75BZ/IP/BLK

AFD75BZ/IP/PB

AFD75BZ/IP/BB

AFD75BZ/IP/AB

AFD75BZ/IP/BC

AFD75BZ/IP/AN

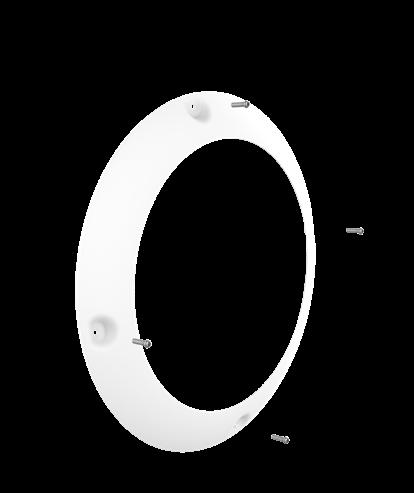

AFD75/CP/WH - Polar White

AFD75/CP/PC - Polished Chrome

AFD75/CP/SN - Satin Nickel

AFD75/CP/BLK - Carbon Black

Suitable for Ø78-125mm Cutouts

Depth: 4mm

Overall: Ø150mm

AFD75/TK/WH

Fire Rated White Plaster-In Kit

AFD75/TK/BLK

Fire Rated Black Plaster-In Kit

Cutout: Ø110mm • Overall: Ø150mm • Depth: 35mm

AFDP75/IC Insulation Cover Click On Design

Compatible GU10 Lamps*

Caterham

AGU470D GU10 Lamp

*Item(s) Sold Separately

Jaguar AGU700D GU10 Lamp

For More Info See Pages 50-53

Morgan AGU501D GU10 Lamp

▪ 30, 60, 90 Minutes Fire Rated (Timber Joist)

▪ 30 Minutes Fire Rated Staircraft i-Joist

▪ 30 Minutes Fire Rated Wolf System Metal Web Joist

▪ Compliant to; Part B - Fire, Part C - Moisture, Part E - Acoustic & Part L Air Leakage

▪ Loop-in Loop-Out Quick Connect Push Terminals

▪ Open Vent Design - Improves Lamp Life

▪ Fixed & Adjustable Low Profile With Ultra SlimTwist & Lock Bezels* Available (Carbon Black/Polar White Paint Finish)

▪ Fully Customisable Carbon Black & Polar White Baffle (Included With Bezel*)

▪ Removable Honeycomb & IP Rated Glass (Included With Bezel*)

iCan75 Platinum Dimensions

Cutout: Ø75mm

Overall: Ø91mm

Depth (With Bracket): 152mm

Depth (Without Bracket): 86mm

iCan75 Platinum Accessories*

iCAN75 PLATINUM

Check out the All-Dim Dimmer Module on Page 44

Bezels*

Polar White

Carbon Black

Polar White With Black or White Baffles

AFDP75BZ/F/WH

Carbon Black With Black or White Baffles

AFDP75BZ/F/BLK

iCan75 Platinum Converter Plates*

iCan75 Platinum Multiples*

Solo Plate AFD75/M/01 130mmx130mm

Polar White With Black or White Baffles AFDP75BZ/A/WH

Carbon Black With Black or White Baffles AFDP75BZ/A/BLK

Fixed or Adjustable Bezel

Duet Plate AFD75/M/02 130mmx237mm

Trio Plate AFD75/M/03 130mmx340mm

AFD75/CP/WH - Polar White

AFD75/CP/PC - Polished Chrome

AFD75/CP/SN - Satin Nickel

AFD75/CP/BLK - Carbon Black

Suitable for Ø78-125mm Cutouts

Depth: 4mm

Overall: Ø150mm

Quad Plate AFD75/M/04 237mmx237mm

iCan65 Accessories*

AFD65/TK Fire Rated White Plaster-In Kit

Cutout: Ø110mm

Overall: Ø150mm Depth: 35mm

AFD65/75/IC Click On Insulation Cover

Compatible GU10 Lamps*

Caterham AGU470D GU10 Lamp

*Item(s) Sold Separately

Jaguar AGU700D GU10 Lamp

For More Info See Pages 50-53

Morgan AGU501D GU10 Lamp

Check out the All-Dim Dimmer Module on Page 44

▪ 30, 60, 90 Minutes Fire Rated (Timber Joist)

▪ 30 Minutes Fire Rated Staircraft i-Joist

▪ 30 Minutes Fire Rated Wolf System Metal Web Joist

▪ Compliant to; Part B - Fire, Part C - Moisture, Part E - Acoustic & Part L Air Leakage

▪ Loop-in Loop-Out Quick Connect Push Terminals

▪ Open Vent Design - Improves Lamp Life

▪ Low Profile With Ultra Slim Twist & Lock Bezel

iCan65 Dimensions

Cutout: Ø65mm

Overall Diameter: Ø85mm

Overall Height: 122mm

GU10

AFD65 - iCan65

AFD65BZ/F/WH

AFD65BZ/F/PC

AFD65BZ/F/SN

AFD65BZ/F/BLK

AFD65BZ/IP/WH

AFD65BZ/IP/PC

AFD65BZ/IP/SN

AFD65BZ/IP/BLK

FIXED IP65

ADJUSTABLE IP65

Product Features

▪ 30, 60, 90 Minutes Fire Rated (Timber Joist)

▪ 30 Minutes Fire Rated Staircraft i-Joist

▪ 30 Minutes Fire Rated Wolf System Metal Web Joist

▪ Compliant to; Part B - Fire, Part C - Moisture, Part

E - Acoustic & Part L Air Leakage

▪ CCT Selectable (3000K, 4000K & 6000K)

▪ IP65 Rated

▪ Loop-in Loop-Out Quick Connect Push Terminals

▪ Ultra Slim Low Profile Bezel

▪ OptiDim - Advanced Dim To Zero Technology

▪ 20° Maximum Tilt (Adjustable Only)

▪ DiamondTec Lens

▪ Dimmable

▪ Integrated LED

AFD05/F/BK/CCT CCT 3000K / 4000K / 6000K

AFD05/F/WH/CCT CCT 3000K / 4000K / 6000K

AFD05/F/SN/CCT CCT 3000K / 4000K / 6000K

AFD05/F/PC/CCT CCT 3000K / 4000K / 6000K

ATOM ADJUSTABLE RANGE

AFD05/A/BK/CCT CCT 3000K / 4000K / 6000K

AFD05/A/WH/CCT CCT 3000K / 4000K / 6000K

AFD05/A/SN/CCT CCT 3000K / 4000K / 6000K

AFD05/A/PC/CCT CCT 3000K / 4000K / 6000K

Atom Accessories

AFD75/TK/** Fire Rated Plaster-In Kit

Converter Plates

Multiples Plates For More Info See Page 20 & 21

Adjustable Finishes*

AFD05/A/BK/CCT

Carbon Black

AFD05/A/SN/CCT

Satin Nickel

Fixed Finishes*

AFD05/F/BK/CCT

Carbon Black

AFD05/F/SN/CCT Satin Nickel

AFD05/A/WH/CCT Polar White

AFD05/A/PC/CCT Polished Chrome

AFD05/F/WH/CCT Polar White

AFD05/F/PC/CCT Polished Chrome

Check out the All-Dim Dimmer Module on Page 44

Easy Access CCT Switch

Keeps light in the ceiling Simply pull down fitting to access CCT Switch

Fixed Atom Product Dimensions

Please refer to LUX charts at the rear of the catalogue for reference purposes.

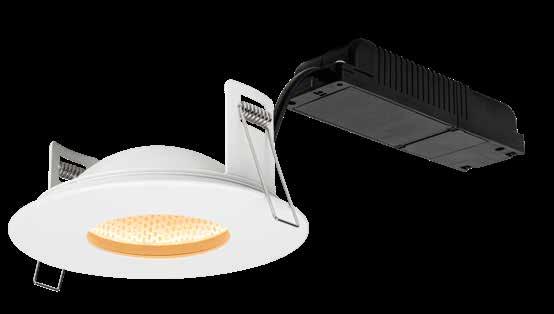

PERFECT FOR ATMOSPHERIC LIGHTING

SCAN FOR VIDEO

Product Features

▪ Dim To Warm Technology - From 2100K To 3000K

▪ 30, 60, 90 Minutes Fire Rated (Timber Joist)

▪ 30 Minutes Fire Rated Knauf i-Joist

▪ Compliant To; Part B - Fire, Part C - Moisture, Part E - Acoustic & Part L - Air Leakage

▪ IP65 Rated From Front When Installed

▪ 2 Part Quick Connector

▪ Loop-In Loop-Out Push Terminals

▪ Insulation Coverable

POLARIS LUMENS COMPARISON Model

Check out the All-Dim Dimmer Module on Page 44

This Product Is Used Mainly For Mood And Effect Purposes. Please Refer To The Lux Table On Datasheet For More Information. We Recommend That This Product Is Supplemented With Other Light Sources.

Please refer to LUX charts at the rear of the catalogue for reference purposes.

ADJUSTABLE

DALI & 0-10V Dimming Options Available FIXED

Excellent Dimming Compatibility Supplied With Driver

Product Features

▪ 30, 60, 90 Minutes Fire Rated (Timber Joist)

▪ Compliant to; Part B - Fire, Part C - Moisture, Part E - Acoustic & Part L Air Leakage

▪ IP65 Rated

▪ Dimmable

▪ Black And White Baffle Included

▪ Magnetic Bezel

▪ Insulation Coverable

▪ High Colour Rendering Index CRI 90+

DEFENDER MINI LUMENS COMPARISON

Check out the All-Dim Dimmer Module on Page 44

DEFENDER MINI RANGE

AFDMR11/30 3000K

AFDMR11/40 4000K

AFDMR11/30/DALI 3000K

AFDMR11/40/DALI 4000K

AFDMR11/30/0-10V 3000K

AFDMR11/40/0-10V 4000K

Image: AFDMR11/30 Shown With White Baffle

AEM/PACK* Maintained Emergency Pack Available. See Page 97.

Defender Mini Dimensions

Cutout: Ø50mm

Overall: Ø70mm Depth: 74mm

* Item(s) Sold Separately Mains Dimmable As Standard Patented Technology

Black Baffle

Magnetic Bezel White Baffle Insulation Cover

Product Features

▪ 30, 60, 90 Minutes Fire Rated (Timber Joist)

▪ Compliant to; Part B - Fire, Part C - Moisture, Part E - Acoustic & Part L Air Leakage

▪ IP65 Rated

▪ Dimmable

▪ Integrated 10W Cree COB LED

▪ Low Glare Design

▪ Halogen Style Lens

▪ Interchangeable Twist & Lock Bezels

▪ Excellent Dimming Compatibility

Please refer to LUX charts at the rear of the catalogue for reference purposes.

Check out the All-Dim Dimmer Module on Page 44

AFD010D/30 3000K

AFD010D/40 4000K

AFD010D/30/DALI 3000K

AFD010D/40/DALI 4000K

AFD010D/30/0-10V 3000K

AFD010D/40/0-10V 4000K

Defender Fixed Dimensions

Bezels*

AFD010BZ/WH Polar White

AFD010BZ/BK Carbon Black

AFD010BZ/SN Satin Nickel

AFD010BZ/MWMW

Matte White With White Baffle

AFD010BZ/PC Polished Chrome

AFD010BZ/MWBB

Matte White With Black Baffle

Trimless Plaster-in Kit*

AFD010TK

Matte White Baffled Fire Rated Trimless Kit 95mm Cutout (Bezel & Luminaire Required)

Emergency Accessory*

AEMPACK*

Maintained Or Non Maintained Emergency Pack 3 Hour LiFePO4 Battery 52mm Cutout Required Self Test Option Available (AEM/PACK/ST*)

*Item(s) sold separately

Product Features

▪ 30, 60, 90 Minutes Fire Rated (Timber Joist)

▪ Compliant to; Part B - Fire, Part C - Moisture, Part E - Acoustic & Part L Air Leakage

▪ IP44 Rated

▪ Dimmable

▪ Integrated 10W Cree COB LED

▪ 30° Maximum Tilt

▪ Halogen Style Lens

▪ Interchangeable Twist & Lock Bezels

Please refer to LUX charts at the rear of the catalogue for reference purposes.

on Page 44

AFD110ADJD/30 3000K

AFD110ADJD/40 4000K

AFD110ADJD/30/DALI 3000K

AFD110ADJD/40/DALI 4000K

AFD110ADJD/30/0-10V 3000K

AFD110ADJD/40/0-10V 4000K

Bezels*

AFD110ADJBZ/WH

Polar White

AFD110ADJBZ/PC

Polished Chrome

AFD110ADJBZ/SN

Satin Nickel

AFD110ADJBZ/MW

Matte White

Trimless Plaster-in Kit*

AFD110ADJTK

Fire Rated Trimless Installation Kit

Bezel AFD110ADJBZ/MW

Bezel & Luminaire Required* Cutout: 120mm

Emergency Accessories*

AEMPACK*

Maintained Or Non Maintained Emergency Pack

3 Hour LiFePO4 Battery 52mm Cutout Required Self Test Option Available (AEM/PACK/ST*)

* Item(s) Sold Separately Mains Dimmable As Standard Patented Technology

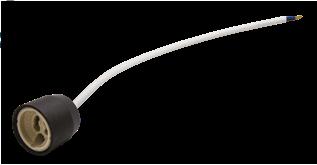

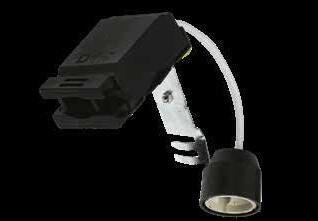

GU10 Lamp Holder With Connection Box GU10 Lamp Holder With 30cm Cable

▪ Ceramic GU10 Lampholder

▪ Open Platform Connection Box

▪ Cable Length 18cm

▪ Loop-In & Loop-Out

▪ Ceramic GU10 Lampholder

▪ Long 30cm Cable Length

▪ GU10 Cable Retention

Compatible GU10 Lamps

ALHGU101/B

ALHGU101/L30

Product Features

▪ Modern Low Glare Design

▪ Matte White RAL9016 & Black Baffle

▪ 360° Rotatable

▪ 35° Horizontal Tilt

▪ Spring Retention Lamp Holder

▪ Cast Aluminium Construction

▪ Accessories: White Baffle Available* (ABAF002/MW)

Details Compatible GU10

Lamps

Image: ABAF002/MWWhite Baffle Accessory*

360° Adjustable Plaster-in Design With Standard Black Baffle

Cutout: Ø85mm

Please refer to LUX charts at the rear of the catalogue for reference purposes.

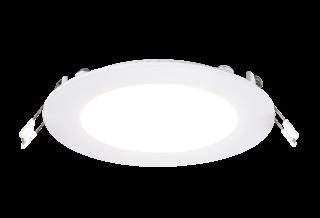

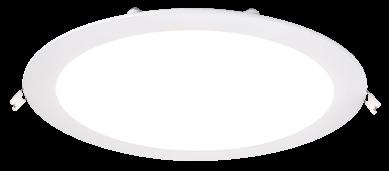

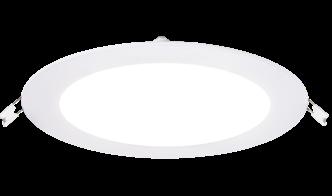

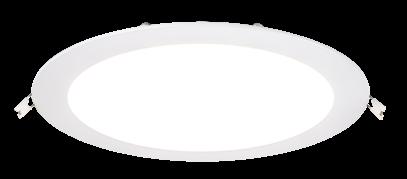

Product Features

▪ 5 Year Guarantee

▪ CCT Selectable (3000K/4000K/6000K)

▪ UV Stable

▪ Flicker Free Driver

▪ Low Glare Edge-Lit Design

▪ Slimline Design

▪ Ideal For Use In Shallow Ceiling Voids

▪ High Luminous Efficiency

▪ Plug & Play DC Connector Driver

▪ Uniform Light Output

▪ 0-10V & DALI Dimmable Options Available

Orbit 6 Dimensions

Cutout:Ø105mm

Overall: Ø120mm Depth: 25mm

ORBIT 6 STANDARD MODEL

ORBIT 6 MAINS DIMMABLE

AFPD006TD/CCT

AFPD006TD/CCT/EM

AFPD006TD/CCT/EM/ST

ORBIT 6 DALI

ORBIT 6 LUMENS COMPARISON

ORBIT 6 0-10V DIMMABLE

AFPD006/CCT/0-10

AFPD006/CCT/0-10/EM

AFPD006/CCT/0-10/EM/ST

Please refer to LUX charts at the rear of the catalogue for reference purposes.

Product Features

▪ 5 Year Guarantee

▪ CCT Selectable (3000K/4000K/6000K)

▪ UV Stable

▪ Flicker Free Driver

▪ Low Glare Edge-Lit Design

▪ Slimline Design

▪ Ideal For Use In Shallow Ceiling Voids

▪ High Luminous Efficiency

▪ Plug & Play DC Connector Driver

▪ Uniform Light Output

▪ 0-10V & DALI Dimmable Options Available

Orbit 12 Dimensions

ORBIT 12 LUMENS COMPARISON

Cutout: Ø155mm

Overall: Ø170mm

Depth: 25mm

ORBIT 12 MAINS DIMMABLE

ORBIT 12 DALI

ORBIT 12 0-10V DIMMABLE

Please refer to LUX charts at the rear of the catalogue for reference purposes.

Product Features

▪ 5 Year Guarantee

▪ CCT Selectable (3000K/4000K/6000K)

▪ UV Stable

▪ Flicker Free Driver

▪ Low Glare Edge-Lit Design

▪ Slimline Design

▪ Ideal For Use In Shallow Ceiling Voids

▪ High Luminous Efficiency

▪ Plug & Play DC Connector Driver

▪ Uniform Light Output

▪ 0-10V & DALI Dimmable Options Available

Orbit 18 Dimensions

ORBIT 18 LUMENS COMPARISON

Cutout: Ø205mm

Overall: Ø225mm Depth: 25mm

ORBIT 18 STANDARD MODEL

ORBIT 18 MAINS DIMMABLE

AFPD018TD/CCT

AFPD018TD/CCT/EM

AFPD018TD/CCT/EM/ST

ORBIT 18 DALI

ORBIT 18 0-10V DIMMABLE

AFPD018/CCT/0-10

AFPD018/CCT/0-10/EM

Please refer to LUX charts at the rear of the catalogue for reference purposes.

Product Features

▪ 5 Year Guarantee

▪ CCT Selectable (3000K/4000K/6000K)

▪ UV Stable

▪ Flicker Free Driver

▪ Low Glare Edge-Lit Design

▪ Slimline Design

▪ Ideal For Use In Shallow Ceiling Voids

▪ High Luminous Efficiency

▪ Plug & Play DC Connector Driver

▪ Uniform Light Output

▪ 0-10V & DALI Dimmable Options Available

Orbit 24 Dimensions

ORBIT 24 LUMENS COMPARISON

Cutout: Ø225mm

Overall: Ø240mm

Depth: 25mm

ORBIT 24 MAINS DIMMABLE

ORBIT 24 DALI

ORBIT 24 0-10V DIMMABLE

Dimmer Modules

Product Features

▪ Programmable Leading Edge And Trailing Edge Modes

▪ 5W - 150W LED Max Load

▪ No Maximum Luminaire Quantity

▪ Adjustable Minimum Brightness Setting

▪ Advanced OptiDim Technology

▪ Wide Dimming Compatibility

▪ Slightly Off-Centre Slim Spindle

▪ Compact Size With Earth Lug Void

▪ Ideal For Retrofit And New Installations

▪ Enlarged Terminals For Easy Wiring

▪ Designed For All Lighting Especially LEDs

Product Features

▪ Dummy Dimmer Module

▪ 6 Amps (1000W Max Load)

▪ Slim, Off-Centre Spindle - Fits Almost All Dimmer Plates

▪ Two Way On/Off Switching Function

▪ Compact Size With Earth Lug Void

▪ Suitable For Retrofit And New Installations

▪ Identical In Appearance To Dimmer Switch (ADIM/150W) DUMMY DIMMER SWITCH MODULE

All-Dim 1000W Push On/Off Dimmer Switch Module All-Dim 150W 2 Way LED Dimmer Module

Plate Not Included

▪ 5W - 150W LED Max Load. Designed For Use With LED Loads

▪ Includes 9 White Adaptors: BG, Crabtree, Deta, Hamilton, Hager, MK Logic, Schneider Lisse, Schneider Ultimate And Wandsworth

▪ Adaptors Available In Black

▪ Includes ALL LED Dimmer Nut Tool

▪ No Maximum Luminaire Quantity

▪ Adjustable Minimum Brightness Setting

▪ Advanced OptiDim Technology

▪ Wide Dimming Compatibility

▪ Centre Spindle

▪ Ideal For Retrofit And New Installations

▪ Enlarged Terminals For Easy Wiring

Electric Green 5W - 150W LED

ADIM150/GRID/BLK/ADAPT Black Adaptors Only†

LED Lamps

Dim to Zero Technology

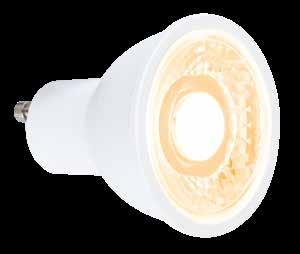

4.7W High Output LED GU10

Available in 4 different colour temperatures

Please refer to LUX charts at the rear of the catalogue for reference purposes.

Product Features

▪ Advanced OptiDim Technology

▪ High Lumen Output

▪ Energy Saving Up To 92%*

▪ Labour & Waste Saving

▪ Packed In Sleeves Of 10

▪ 100% Recycled Packaging

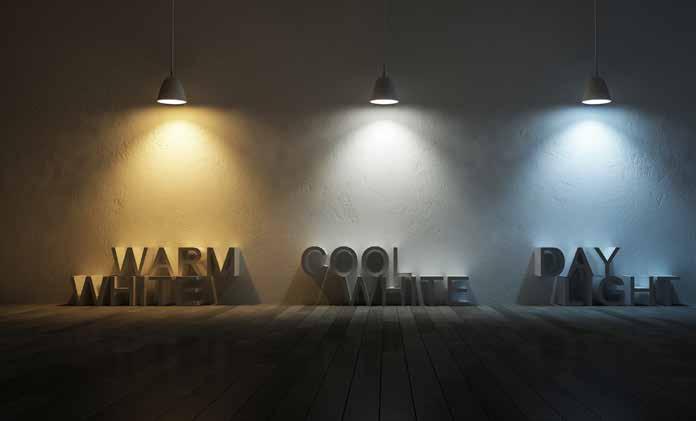

Colour Temperatures

AGU470D/27 2700K GU10

AGU470D/40 4000K GU10

AGU470D/30 3000K GU10

AGU470D/60 6500K GU10

CATERHAM RANGE

Caterham Dimensions

Overall: Ø50mm Depth: 55mm

Emergency Accessories

AEMSK10/240V Maintained Emergency Pack 3 Hour NI-CD Battery Back-Up

*Compared to a 50W Halogen

Please refer to LUX charts at the rear of the catalogue for reference purposes.

Product Features

▪ High Efficiency

▪ Retrofit Size For Replacing Halogen Lamps

▪ Latest Technology For Optimum Beam Angle

▪ Dimmable

▪ Slimline Multi-Faceted Lens

Product Details

Multi-Faceted Lens Retrofit Size

Emergency Accessories*

JAGUAR RANGE

AGU700D/30

Jaguar Dimensions

Overall: Ø50mm

Depth: 56mm

For More Info See Page 101

AEMSK10/240V Maintained Emergency Pack 3 Hour NI-CD Battery Back-Up

Accessories See page 55

Glass Colour filters for GU10 lamps

* Item(s) Sold Separately Does Not Imply Full Dimming Compatibility

Please refer to LUX charts at the rear of the catalogue for reference purposes.

Product Features

▪ High Efficiency

▪ Full Polycarbonate & Aluminium Jacket

▪ Retrofit Size For Replacing Halogen Lamps

▪ Dimmable

▪ Diamond Cut Lens Technology For Optimum Beam Angle MORGAN

Product Details

Emergency Accessories*

AEMSK10/240V Maintained Emergency Pack 3 Hour NI-CD Battery Back-Up

Morgan Dimensions

Item(s) Sold Separately Does Not Imply Full Dimming Compatibility

Glass Filters For GU10, MR16 LED Lamps & Fixtures

Product Features

▪ Colour Treated Glass

▪ Designed To Fit Most GU10/MR16 Size Lamps & Fittings

▪ Can Be Installed In Many Fixtures Or Affixed To Lamps To Create A Brilliant Lighting Effect

▪ Maintains Colour Matching

▪ 1mm Thickness

COLOUR GLASS FILTERS

Code Colour

AGF/SPK/RED Red

AGF/SPK/GR Green

AGF/SPK/BLU Blue

AGF/SPK/YEL Yellow

AGF/SPK/DAY Daylight

COMPATIBILITY CHART

Code Product

AGU470D/** Caterham GU10

AGU501D/** Morgan GU10

AGU700D/** Jaguar GU10

Glass Filter Dimensions

*Green Filter (AGF/SPK/GR) With iCan75 Fixed Polar White Bezel (AFD75BZ/F/WH) AGU501D LED Lamp (AGU501D/30)

Red Filter*

Green Filter*

Blue Filter*

Yellow Filter*

Daylight Filter*

To Install Simply Place Filter Between Lamp and Bezel

Product Features

▪ Retrofit Size & Look

▪ Non Dimmable

▪ 2W COB Wafer Technology

▪ Full Glass Construction

Product Details

ASTON LUMENS COMPARISON

Aston Dimensions

TRIUMPH BAYONET CAP RANGE

LUMENS COMPARISON

Product Features

▪ Perfect Replacement For Incandescent GLS Lamps

▪ Dimmable

▪ 360° Omni-Directional Light Distribution

▪ Provides Uniform Lighting

▪ Designed To Emulate Traditional Light Source

TRIUMPH LUMENS COMPARISON

Bulkheads

INTRODUCING FOR BULKHEADS

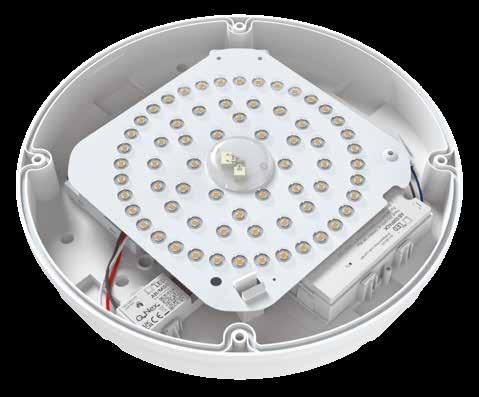

Q-NEX PLUG & PLAY 3-HOUR EMERGENCY PACK

▪ Quick Connection Design

▪ Lithium Battery Technology

▪ Install In Seconds

▪ 3 Hours Emergency Run Time

AB/EMPACK

AB/EMPACK/ST

▪ 24 Hours Charge Time With 3 Hour Discharge Time

▪ Self Test Version Available (AB/EMPACK/ST)

▪ Íntegrated Emergency Indicator

Q-NEX PLUG & PLAY 2-IN-1 MICROWAVE AND CORRIDOR SENSOR

AB/MSC

▪ 2-In-1 Fully Programmable Microwave On/Off And Corridor Function Sensor

▪ Easy Commissioning & Programmable Using DIP Switches

▪ Install In Seconds

▪ Maximum Mounting Height Of Up To 6m

▪ Maximum Detection Range Of Up To 12m

COMPATIBLE BULKHEADS

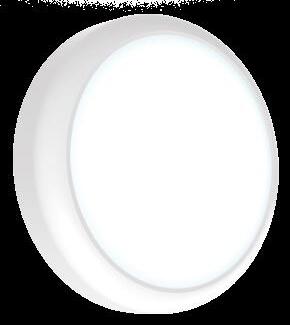

LENNOX 2 14W LED IP65 IK08 CCT SLIM-DESIGN BULKHEAD

▪ IP65 Rating

▪ IK08 Shatter Resistant Construction

▪ CCT Selectable (3000K/4000K/6000K)

▪ Suitable For Wall & Ceiling Mounting

▪ For Indoor, Outdoor & Coastal Applications

▪ Quick Release Flip-Down Gear Tray

▪ Push Terminals

▪ Integrated Besa Mounts

▪ Premium Grade Polycarbonate

▪ Modern Slim-Design

BRUNO 3 16W IP65 IK10 CCT SELECTABLE LED BULKHEAD

▪ Ultra High Efficiency & High Lumen Output ≤148lm/W

▪ Four Side Conduit Entries For Easy Install

▪ IP65 Rating

▪ IK10 Premium Grade Polycarbonate Shatter Resistant Construction

▪ CCT Selectable (3000K / 4000K / 6000K)

▪ White Ring Bezel Included As Standard

▪ Suitable For Wall & Ceiling Mounting

▪ For Indoor, Outdoor & Coastal Applications

▪ Quick Release Flip-Down Gear Tray

▪ Push Terminals

▪ Integrated Besa Mounts

Product Features

3 RANGE

▪ Plug & Play Replaceable Battery Emergency Module (AB/EM/PACK)*

▪ Plug & Play 2-in-1 Fully Programmable Microwave On/Off And Corridor Function Sensor Module (AB/MSC)*

▪ Ultra High Efficiency & High Lumen Output ≤148lm/W

▪ Four Side Conduit Entries For Easy Install

▪ IP65 Rating

▪ IK10 Premium Grade Polycarbonate Shatter Resistant Construction

▪ CCT Selectable (3000K / 4000K / 6000K)

▪ White Ring Bezel Included As Standard

▪ Suitable For Wall & Ceiling Mounting

▪ For Indoor, Outdoor & Coastal Applications

▪ Quick Release Flip-Down Gear Tray

▪ Push Terminals

▪ Integrated Besa Mounts

BRUNO 3 LUMENS COMPARISON

PLUG & PLAY ACCESSORIES*

3 Dimensions

Polar White Ring (Included)

Satin Silver Eyelid

ABD16BZ/EYE/SS

Carbon Black Ring

ABD16BZ/BLK

Rose Gold Ring

ABD16BZ/RG

Gold Ring

ABD16BZ/G

Polar White Eyelid

ABD16BZ/EYE/WH

Satin Silver Cross Grill

ABD16BZ/GRB/SS

Carbon Black Eyelid

ABD16BZ/EYE/BLK

Rose Gold Eyelid

ABD16BZ/EYE/RG

Gold Eyelid

ABD16BZ/EYE/G

Polar White Cross Grill

ABD16BZ/GRB/WH

BRUNO 3 BEZELS*

ABD16BZ/EYE/WH Polar White Eyelid

ABD16BZ/GRB/WH Polar White Cross Grill

ABD16BZ/EYE/SS Satin Silver Eyelid

ABD16BZ/GRB/SS Satin Silver Cross Grill

ABD16BZ/BLK Carbon Black Ring

ABD16BZ/EYE/BLK Carbon Black Eyelid

ABD16BZ/RG Rose Gold Ring

ABD16BZ/EYE/RG Rose Gold Eyelid

ABD16BZ/GRB/RG Rose Gold Cross Grill

ABD16BZ/G Gold Ring

ABD16BZ/EYE/G Gold Eyelid

ABD16BZ/GRB/G Gold Cross Grill

Rose Gold Cross Grill

ABD16BZ/GRB/RG

Gold Cross Grill

ABD16BZ/GRB/G

BRUNO 3 ACCESSORIES*

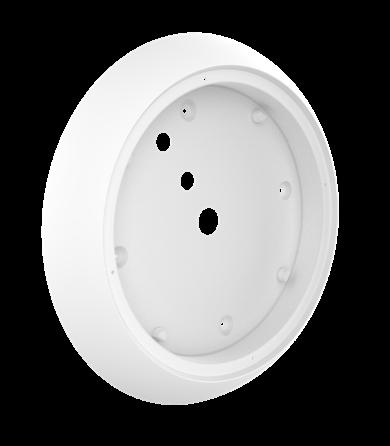

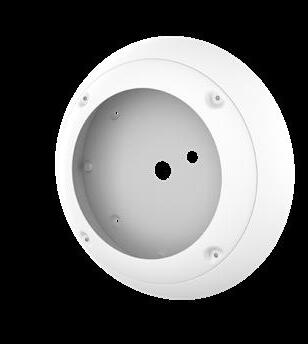

AB/BRU/ALB Polar White Anti-Ligature Base

Anti-Ligature Base

For Bruno 3

Bulkhead

ALLNEW

Anti-Ligature Bruno 3 Base

▪ Ultra-Strong Sheet Steel Formed Single Piece Base

▪ Designed To Create A Safe Environment In High Risk Areas

▪ Ideal For Hospitals, Courts, Prisons & Cells, Public Transport & All Public Facilities

▪ Aesthetic, Modern Design - Powder Coated Polar White Finish

▪ Anti-Tamper Non-Grindable, Recessed Security Screws With Tool Included

▪ IK10+ Rating, Designed For The Toughest Environments

▪ Designed For Use With The Bruno Bulkhead

▪ Loop-In Loop-Out Design With Multiple Entries

▪ Totally Flush Installation - Surface Designed To Receive Anti-Pick Sealant

▪ STRONG

▪ DURABLE

▪ COASTAL RATED

▪ CCT SELECTABLE

▪ EASY INSTALLATION

▪ ALL-IN-1 DRUM OR BULKHEAD

Q-NEX

Versatile Lighting Solutions

ULTIMATE PLUG & PLAY TECHNOLOGY 14W LED IP65 IK08 CCT Selectable Slim-Design Bulkhead

Suitable For Wall & Ceiling Mounting | Quick Release Flip-Down Gear Tray | Push Terminals Integrated Besa Mounts | Premium Grade Polycarbonate | Accessory Bezels Available* Lennox 2 Can Be Easily Upgraded, Either Together Or Separately, To Include An Emergency Pack* And A Microwave/Corridor Sensor*

Plug & Play 2-In-1 Microwave And Corridor Sensor

2-In-1 Fully Programmable Microwave On/Off And Corridor Function Sensor Easy Commissioning & Programmable Using DIP Switches Install In Seconds

▪ With Q-Nex Plug & Play Technology

▪ Plug & Play Replaceable Battery Emergency Modules (AB/EMPACK & AB/EMPACK/ST)

▪ Plug & Play 2-in-1 Fully Programmable Microwave On/Off And Corridor Function Sensor Module (AB/MSC)

▪ IP65 Rating

▪ IK08 Shatter Resistant Construction

▪ CCT Selectable (3000K/4000K/6000K)

▪ Suitable For Wall & Ceiling Mounting

▪ For Indoor, Outdoor & Coastal Applications

▪ Quick Release Flip-Down Gear Tray

▪ Push Terminals

▪ Integrated Besa Mounts

▪ Premium Grade Polycarbonate

▪ Modern Slim-Design LENNOX2 RANGE Code Option

Accessories

Product Features Overall: Ø330mm Depth: 79mm * Item(s) Sold Separately

AB/LEN/BZ-BLK* Matte Black Decorative Trim

Polished Chrome Decorative Trim

Q-NEX PLUG & PLAY ACCESSORIES*

Code Description

AB/EMPACK Q-Nex Plug & Play 3-Hour Emergency Pack

AB/EMPACK/ST Q-Nex Plug & Play 3-Hour Emergency Pack Self Test

AB/MSC Q-Nex Plug & Play 2-In-1 Microwave And Corridor Sensor

LENNOX2 BEZELS* Code Finish Style

AB/LEN/BZ-BLK Matte Black Ring

AB/LEN/BZ-PC Polished Chrome Ring

Lennox2 Dimensions

Product Features

▪ Quick Install Hinged Terminal Box

▪ Loop-In Loop-Out Design With Push Terminals

▪ CCT Selectable (3000K/4000K/6500K)

▪ For Indoor, Outdoor & Coastal Applications

▪ IK06 Impact Resistant

▪ IP65 Rating

Details

Hinged Terminal Box at rear

Romano Dimensions

Loop-In Loop-Out Push Terminals and CCT Switch

▪ Quick Install Hinged Terminal Box

▪ Loop-In Loop-Out Design With Push Terminals

▪ CCT Selectable (3000K/4000K/6500K)

▪ For Indoor, Outdoor & Coastal Applications

▪ IK06 Impact Resistant

▪ IP65 Rating

Details

Hinged Terminal Box at rear

Loop-In Loop-Out Push Terminals and CCT Switch

Product Features * Item(s) Sold Separately

Costello Dimensions

Product Features

▪ IP65 Rating

▪ IK08 High Impact Durable Polycarbonate Housing

▪ CCT Selectable (3000K/4000K/6000K)

▪ Wall And Ceiling Mounting

▪ Loop In Loop Out Pre-Moulded Cable Entries

▪ Black And White Standard Trims Included

▪ Additional Decorative Trims Available*

▪ Polycarbonate Body Ideal For Coastal Applications

▪ 3 Years Guarantee

Accessories*

ABHW12BZ/BK Black Decorative Trim Pack Includes:

VICTORY 2 DETAILS

VICTORY 2 ACCESSORIES*

Includes Black & White Framed Trims

Victory 2 Dimensions

Tridirectional Lighting

Tridirectional Lighting

Bidirectional Lighting

Bidirectional Trim Tridirectional Trim

Bidirectional Lighting

* Item(s) Sold Separately

ABHW12BZ/WH

White Decorative Trim Pack Includes: Bidirectional Trim Tridirectional Trim

: 24H/10LUX/20LUX/

10sec±3sec/1min±10sec/5min±30sec/ (adjustable) 25min±2min/30min±3min 300LUX/500LUX (adjustable)

leave off You can set the closing delay time to meet your needs For TIME sliding controller to select the delay time 10sec~30min when you think The TIME sliding controller is as follow (Keep away from the detecting zone time or that the detecting time will be inaccurate when any moving object is product) when the sensor is installed inside the ceiling floor, the sensitivity to light will be invalid

output of

S P E C I F I C A T I O N S

(sensitivity)

Product Features

Suitable For Use With LEDs

▪ Low Load Switching Capacity

▪ In-Built Lux Sensor

▪ 5.8Ghz Frequency

▪ Push Fit Terminals

Time setting: 10min±1min/15min±1min/20min±2min/

Time setting: 10min±1min/15min±1min/20min±2min/

25min±2min/30min±3min

10sec±3sec/1min±10sec/5min±30sec/ (adjustable)

25min±2min/30min±3min

10sec±3sec/1min±10sec/5min±30sec/ (adjustable)

Light-control: 24H/10LUX/20LUX/50LUX/100LUX/200LUX/

Light-control: 24H/10LUX/20LUX/50LUX/100LUX/200LUX/

300LUX/500LUX (adjustable)

300LUX/500LUX (adjustable)

Working temperature: -15 +60

Working temperature: -15 +60

▪ Adjustable Detection Range

▪ Adjustable Lux Range

▪ Adjustable Timer Function

Power consumption approx 0 5W : : indoors, ceiling mounting Installation sit

Power consumption approx 0 5W : : indoors, ceiling mounting Installation sit

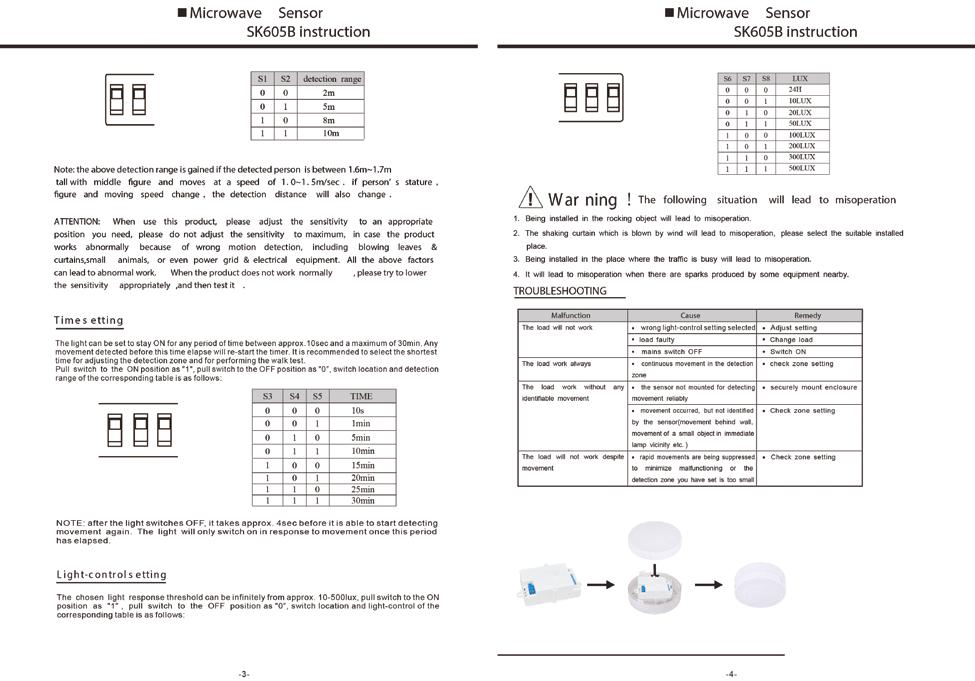

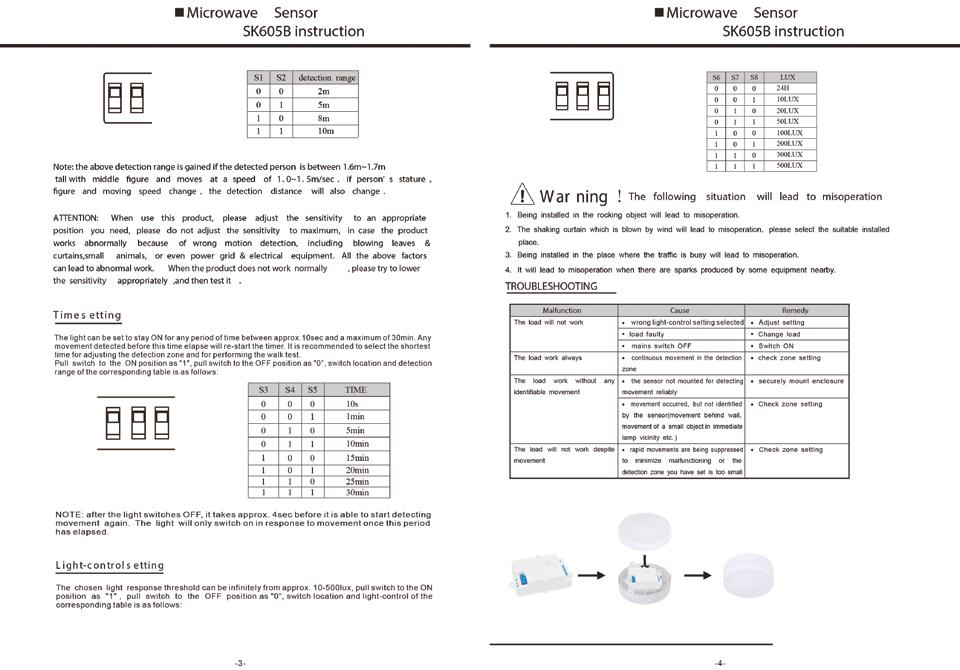

MICROWAVE SENSOR

W arning !

Light-control: 24H/10LUX/20LUX/50LUX/100LUX/200LUX/

SENSOR INFORMA TION

UTILIZING FIELD AND INTRODUCTION

the

This product will be faithfully waiting for you It will turn on the light automatically when off the light automatically when you leave off You can set the closing delay time to meet example, you may adjust the TIME sliding controller to select the delay time 10sec~30min you will come back in 30mins The TIME sliding controller is as follow (Keep away from after adjusting the testing time or that the detecting time will be inaccurate when detected again by the product) when the sensor is installed

This product will be faithfully waiting for you It will turn on the light automatically when you off the light automatically when you leave off You can set the closing delay time to meet example, you may adjust the TIME sliding controller to select the delay time 10sec~30min you will come back in 30mins The TIME sliding controller is as follow (Keep away from after adjusting the testing time or that the detecting time will be inaccurate when detected again by the product) when the

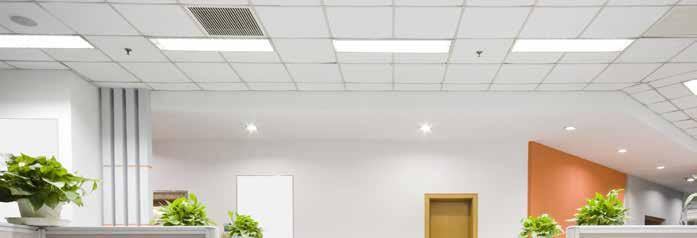

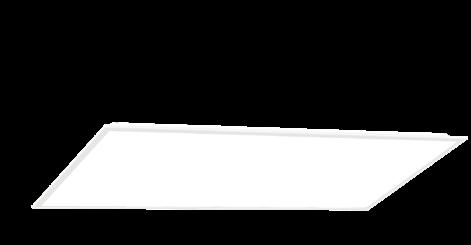

LED Panels

Emergency

See page 93 for emergency options

▪ 5 Year Guarantee

▪ 4000K Or 6000K Versions

▪ TP(a) Flame Retardant Diffuser

▪ UV Stable

▪ Flicker Free Driver

▪ UGR <19 Glare Rating

ALTITUDE 32W Code

APNL632A/40 ≤3900lm 4000K Standard

APNL632A/40/EM ≤3900lm 4000K Em

APNL632A/40/EM/ST ≤3900lm 4000K Em ST

APNL632A/60 ≤4000lm 6000K Standard

APNL632A/60/EM ≤4000lm 6000K Em

▪ Pre-Wired LED Driver & DC Connector

▪ White Painted Frame (RAL9016)

▪ Back-Lit

▪ Emergency Plug & Play Pack

▪ Plug and Play LED Driver DALI and 0-10V

APNL632A/60/EM/ST ≤4000lm 6000K Em ST

ALTITUDE 32W DALI Code

APNL632A/40/DALI ≤3900lm 4000K DALI

APNL632A/40/DALI/EM ≤3900lm 4000K DALI + Em

APNL632A/40/DALI/EM/ST ≤3900lm 4000K DALI + Em ST

APNL632A/60/DALI ≤4000lm 6000K DALI

APNL632A/60/DALI/EM ≤4000lm 6000K DALI + Em

APNL632A/60/DALI/EM/ST ≤4000lm 6000K DALI + Em ST

ALTITUDE 32W 0-10V

APNL632A/40/0-10 ≤3900lm 4000K 0-10V

APNL632A/40/0-10/EM ≤3900lm 4000K 0-10V + Em

APNL632A/40/0-10/EM/ST ≤3900lm 4000K 0-10V + Em ST

APNL632A/60/0-10 ≤4000lm 6000K 0-10V + Em

APNL632A/60/0-10/EM ≤4000lm 6000K 0-10V

APNL632A/60/0-10/EM/ST ≤4000lm 6000K 0-10V + Em ST

Please refer to LUX charts at the rear of the catalogue for reference purposes.

Emergency

See page 93 for emergency options EM

Product Features

▪ 5 Year Guarantee

▪ CCT Selectable (3000K, 4000K, 6500K)

▪ TP(a) Flame Retardant Opal Diffuser

▪ UV Stable

▪ Flicker Free

▪ UGR <19 Glare Rating

▪ White Painted Single Piece Frame (RAL9003)

▪ Pre-Wired LED Driver & DC Connector

▪ Maintenance Free

▪ Emergency Plug & Play Pack

▪ Plug and Play LED Driver DALI and 0-10V ALTITUDE 32W CCT

Altitude 32W CCT Dimensions

APNL632A/CCT

ALTITUDE 32W CCT LUMENS COMPARISON

ALTITUDE 32W DALI CCT

APNL632A/CCT/DALI

ALTITUDE 32W 0-10V CCT

APNL632A/CCT/0-10

APNL632A/CCT/0-10/EM

Altitude 32W Accessories

APNL632/SBOX Surface Box

APNL600/SUSPKIT Suspension Kit

Please refer to LUX charts at the rear of the catalogue for reference purposes.

EM

Emergency

See page 93 for emergency options

Product Features

▪ CCT Selectable (3000K, 4000K, 6500K)

▪ Up to 121 Lumens Per Watt, High Efficiency

▪ White Painted Single Piece Frame (RAL9003)

▪ TP(a) Flame Retardant Opal Diffuser

▪ UV Stable

▪ Flicker Free

▪ UGR <19 Glare Rating

▪ 5 Year Guarantee

▪ Plug & Play Emergency Pack Available

▪ 0-10V Dimming Or DALI Options Available

▪ Pre-Wired LED Driver & DC Connector

Altitude 32W CCT Accessories

APNL1232/SBOX Surface Box

APNL600/SUSPKIT Suspension Kit

ALTITUDE 32W CCT LUMENS COMPARISON

Model Useful Lm Total Lm

All 32W

Please refer to LUX charts at the rear of the catalogue for reference purposes.

ALTITUDE 32W CCT

APNL1232A/CCT ≤3900lm CCT Standard

APNL1232A/CCT/EM ≤3900lm CCT Em

APNL1232A/CCT/EM/ST ≤3900lm CCT Em ST

ALTITUDE 32W CCT DALI Code

APNL1232A/CCT/DALI ≤3900lm CCT

APNL1232A/CCT/DALI/EM ≤3900lm CCT

APNL1232A/CCT/DALI/ST ≤3900lm CCT DALI+Em ST

ALTITUDE 32W CCT 0-10V DIMMABLE Code

APNL1232A/CCT/0-10 ≤3900lm CCT

APNL1232A/CCT/0-10/EM ≤3900lm CCT

APNL1232A/CCT/0-10/EM/ST ≤3900lm CCT

Altitude 32W CCT Dimensions

See page 93 for emergency options EM

Product Features

▪ 5 Year Guarantee

ALTITUDE 40W CCT Code Lumens

APNL1240A/CCT ≤5000lm CCT

▪ CCT Selectable (3000K, 4000K, 6500K)

▪ TP(a) Flame Retardant Opal Diffuser

▪ UV Stable

▪ Flicker Free

▪ UGR <19 Glare Rating

▪ Pre-Wired LED Driver & DC Connector

▪ White Painted Single Piece Frame (RAL9003)

▪ Back Lit LED Panel

▪ Plug & Play Emergency Pack

▪ Plug and Play LED Driver DALI and 0-10V

Altitude 40W CCT Accessories

APNL1240/SBOX Surface Box

APNL600/SUSPKIT Suspension Kit

ALTITUDE 40W CCT LUMENS COMPARISON

Model Useful Lm Total Lm

All 40W Models ≤5000lm ≤5000lm Emergency

Please refer to LUX charts at the rear of the catalogue for reference purposes.

APNL1240A/CCT/EM ≤5000lm CCT Em

APNL1240A/CCT/EM/ST ≤5000lm CCT

ALTITUDE 40W CCT DALI Code

APNL1240A/CCT/DALI

APNL1240A/CCT/DALI/EM

APNL1240A/CCT/DALI/EM/ST ≤5000lm CCT

ALTITUDE 40W CCT 0-10V DIMMABLE Code Lumens Colour Option

APNL1240A/CCT/0-10 ≤5000lm CCT

APNL1240A/CCT/0-10/EM

APNL1240A/CCT/0-10/EM/ST

Altitude 40W CCT Dimensions

Battens & Weatherproofs

INTRODUCING FOR BATTENS

Q-NEX PLUG & PLAY 3-HOUR SELF-TEST EMERGENCY PACK

▪ Quick Connection Design

▪ Lithium Battery Technology

▪ Conversion In Seconds

▪ 3 Hours Emergency Run Time

▪ 24 Hours Charge Time With 3 Hour Discharge Time

▪ 5 Year Guarantee

▪ Suitable For Use With Barracuda And Barracuda Extreme Battens

Q-NEX PLUG & PLAY 2-IN-1 MICROWAVE AND CORRIDOR SENSOR

▪ Easy Commissioning & Programmable Using DIP Switches

▪ Install In Seconds

▪ Maximum Mounting Height Of Up To 5m

▪ Maximum Detection Range Of Up To 10m

▪ 5 Year Guarantee

▪ Suitable For Use With Barracuda And Barracuda Extreme Battens

FOR BATTENS

CCT Selectable

Wattage Selectable

IP20 Rating

Multiple Cable Entry Holes

4ft, 5ft and 6ft Versions

CCT Selectable

Wattage Selectable

IP66 & IK10 Rating

Anti-Corrosive

2ft, 4ft, 5ft and 6ft Versions

Please refer to LUX charts at the rear of the catalogue for reference purposes.

Product Features

▪ Featuring Q-Nex Plug & Play Technology

▪ Plug & Play Self Testing Emergency Module Available (ABAR/EMPACK/ST)*

▪ Plug & Play 2-In-1 Fully Programmable Microwave On/Off And Corridor Function Sensor Module Available (ABAR/MS2IN1)*

▪ CCT Selectable (3000K / 4000K / 6500K)

▪ Wattage Selectable

▪ Available in 4Ft, 5Ft and 6Ft Versions

▪ Drop Down Geartray For Easy Installation

▪ Ultra High Efficiency & High Lumen

▪ Dynamically Located Push Terminals

▪ Integrated Besa Mounts

▪ Multiple Cable Entry Holes

▪ 5 Year Guarantee

▪ Suspension Kit Available (APNL600/SUSPKIT)*

Barracuda Dimensions

* Item(s) Sold Separately

BARRACUDA 4FT BATTEN

Code Wattage Lumens

33W ≤4800lm

ABAR/4FT/CCT

28W ≤4000lm 23W ≤3400lm 18W ≤2600lm

BARRACUDA 5FT BATTEN

Code Wattage Lumens

55W ≤8100lm

ABAR/5FT/CCT

47W ≤7000lm 38W ≤5700lm 29W ≤3900lm

BARRACUDA 6FT BATTEN

Code Wattage Lumens

ABAR/6FT/CCT 64W ≤9800lm 55W ≤8100lm 44W ≤6700lm 33W ≤5000lm

Accessories*

Q-NEX SELF-TEST EMERGENCY PACK

Code Duration Charge Time

ABAR/EM/ST 3 Hrs 24 Hrs

Q-NEX 2-IN-1 MICROWAVE SENSOR

Code

Range Max Height

ABAR/MS2IN1 10m 5m

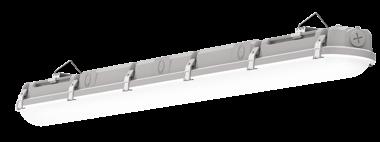

PERFECT FOR INDUSTRIAL FREEZERS

Product Shown

Clips available in 316L Stainless Steel ABAR/XTCLIP/SS*

Please refer to LUX charts at the rear of the catalogue for reference purposes.

Product Features

▪ Featuring Q-Nex Plug & Play Technology

▪ Plug & Play Self Testing Emergency Module Available (ABAR/EMPACK/ST)*

▪ Plug & Play 2-In-1 Fully Programmable Microwave On/Off And Corridor Function Sensor Module Available (ABAR/MS2IN1)*

▪ CCT Selectable (3000K / 4000K / 6500K)

▪ Wattage Selectable

▪ Available in 2ft, 4ft, 5ft and 6ft Versions

▪ Ultra High Efficiency & High Lumen

▪ IP66, IK10 Rating

▪ Dynamically Located Push Terminals

▪ Integrated Besa Mounts

▪ Drop Down Geartray For Easy Installation

▪ 5 Year Guarantee

▪ Suspension Kit Available (APNL600/SUSPKIT)*

Barracuda Extreme Dimensions

* Item(s) Sold Separately

BARRACUDA EXTREME 2FT BATTEN Code Wattage Lumens

ABAR/XT2FT/CCT 18W ≤2430lm 15W ≤2091lm 12W ≤1822lm 10W ≤1426lm

BARRACUDA EXTREME 4FT BATTEN Code Wattage Lumens

ABAR/XT4FT/CCT 33W ≤5000lm 28W ≤4200lm 23W ≤3500lm 18W ≤2600lm

BARRACUDA EXTREME 5FT BATTEN Code Wattage Lumens

ABAR/XT5FT/CCT 55W ≤8750lm 47W ≤7600lm 38W ≤6200lm 29W ≤4750lm

BARRACUDA EXTREME 6FT BATTEN Code Wattage Lumens

ABAR/XT6FT/CCT 64W ≤10100lm 55W ≤8600lm 44W ≤7000lm 33W ≤5300lm

Accessories*

Q-NEX SELF-TEST EMERGENCY PACK

Code Duration Charge Time

ABAR/EM/ST 3 Hrs 24 Hrs

Q-NEX 2-IN-1 MICROWAVE SENSOR

Code

Range Max Height

ABAR/MS2IN1 10m 5m

ABAR/*FT/CCT

Available in 4ft, 5ft & 6ft

BARRACUDA RANGE

ABAR/XT*FT/CCT

Available in 2ft, 4ft, 5ft & 6ft

Lock EM Pack into batten and plug into driver using connector

STEP 2

SCAN ME FOR FULL INSTALLATION VIDEO STEP 1

Plug the EM Pack test indicator into the provided slot in the batten

& Play

STEP 3

BARRACUDA RANGE

EASY INSTALLATION

ABAR/MS2IN1 Plug & Play

Install Microwave Sensor and lock into place in the batten

STEP 4

Connect the Microwave Sensor cables into the batten driver

SCAN ME FOR FULL INSTALLATION VIDEO

Highbay Lights & Accessories

Product Features

▪ High Efficiency & High Lumen Output ≤176lm/W

▪ IP65 & IK08 Perfect For Harsh Environments

▪ CCT Selectable (3000K / 4000K / 5000K)

▪ Wattage Selectable

▪ 2m Pre-Wired Tough Rubber Cable

▪ High Quality Diecast Carbon Black Aluminium Body

▪ Compatible With 110V Site Transformer For Building Sites

▪ 1-10V Dimmable

▪ Emergency Pack Available (AHB/EM/ST)*

▪ Plug & Play Microwave Sensor Available (AHB/MS)*

▪ One Programmable Remote Required For Unlimited Amount Of Microwave Sensors (AHB/RMT)*

▪ 5 Year Guarantee

LumoMax Dimensions

* Item(s) Sold Separately

LUMOMAX 100W HIGHBAY Code Wattage Lumens

AHB/100/CCT

≤16,210lm

≤13,230lm

≤10,585lm

≤23,479lm

≤19,936lm

LUMOMAX 150W HIGHBAY Code Wattage Lumens AHB/150/CCT

≤17,543lm

LUMOMAX 200W HIGHBAY Code Wattage Lumens

AHB/200/CCT

≤32,208lm

≤25,226lm

≤21,461lm

SELF TESTING IP65 EMERGENCY PACK

Product Features

▪ Self-Testing

▪ IP65

▪ Over Temperature Protection, Over Charge Protection, Over Discharge Protection, Short Circuit Protection

▪ Compatible with LumoMax Highbays

▪ 3 Years Guarantee (Includes Battery)

▪ Battery: Li-ion battery

PLUGIN MICROWAVE/CORRIDOR SENSOR

Product Features

▪ IP65

▪ 2-in-1 Microwave and Corridor Sensor

▪ DayLight Sensor Function, 10 - 500Lux

▪ Up to 12M Max Range, 10 sec - 60 Min Timer Function

▪ Hold time 10 sec - 60 Min

▪ Compatible with LumoMax Highbays ( AHB/100/CCT, AHB/150/CCT, AHB/200/CCT)

▪ Sensor Remote Programmer Required (AHB/RMT)

SENSOR REMOTE PROGRAMMER

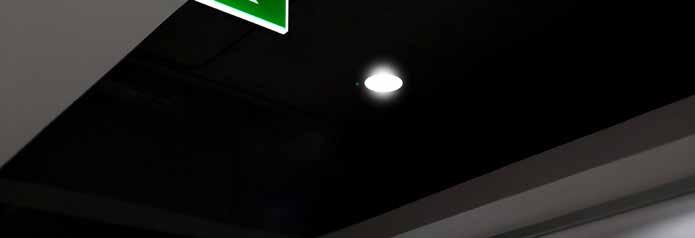

Emergency Lighting

Product Features

▪ >3 Hour Duration

▪ Lithium LiFePO4 Battery

▪ Remote Indicator & Mounting Collar

▪ Wide Compatibility, Including 24V LED Strips

▪ Up To 150W Load Supported (LED Strip Only)

▪ Can Be Wired As Maintained Or NonMaintained

▪ Self Test Option Available (AEM/PACK/ST)

Unique 20mm Cutout Recessed Low Profile LED Indicator

EMPack Dimensions

Product Features

▪ Functions As A Maintained Or Non-Maintained Luminaire

▪ 20mm Conduit/Side Entries And Besa Box Mounts

▪ IK10 Vandal Resistant Design

▪ Loop In And Out Push Terminals For Easy Wiring

▪ IP65 Rated - Suitable For Internal & External Applications

▪ Marine Grade Tough Polycarbonate Construction - Suitable for Coastal Areas

▪ Universal Self-Adhesive Legends Included

▪ >3 Hours Of Continuous Light In Emergency Mode

▪ Suitable for Wall & Ceiling Mounting

▪ 160lm/w High Lumen Output

Product Features

▪ Functions As A Maintained Or Non-Maintained Luminaire

▪ 20mm Conduit/Side Entries And Besa Box Mounts

▪ IK10 Vandal Resistant Design

▪ Loop In And Out Push Terminals For Easy Wiring

▪ IP65 Rated - Suitable For Internal & External Applications

▪ Marine Grade Tough Polycarbonate Construction - Suitable for Coastal Areas

▪ Universal Self-Adhesive Legends Included

▪ >3 Hours Of Continuous Light In Emergency Mode

▪ Suitable for Wall & Ceiling Mounting

▪ 140lm/w High Lumen Output

EVACULITE MINI EMERGENCY BULKHEAD Code Lumens Duration

AEMBH/MINI/M ≤140lm 3 Hrs

▪ Functions As A Maintained Luminaire

▪ 20mm Cable Entries

▪ Loop In And Out Push Terminals For Easy Wiring

▪ Down Arrow Included. Different Exit Sign Plates Available*

▪ >3 Hours Of Continuous Light In Emergency Mode

▪ Wall & Ceiling Mounting Kits Available*

▪ Supplied With Down Legend

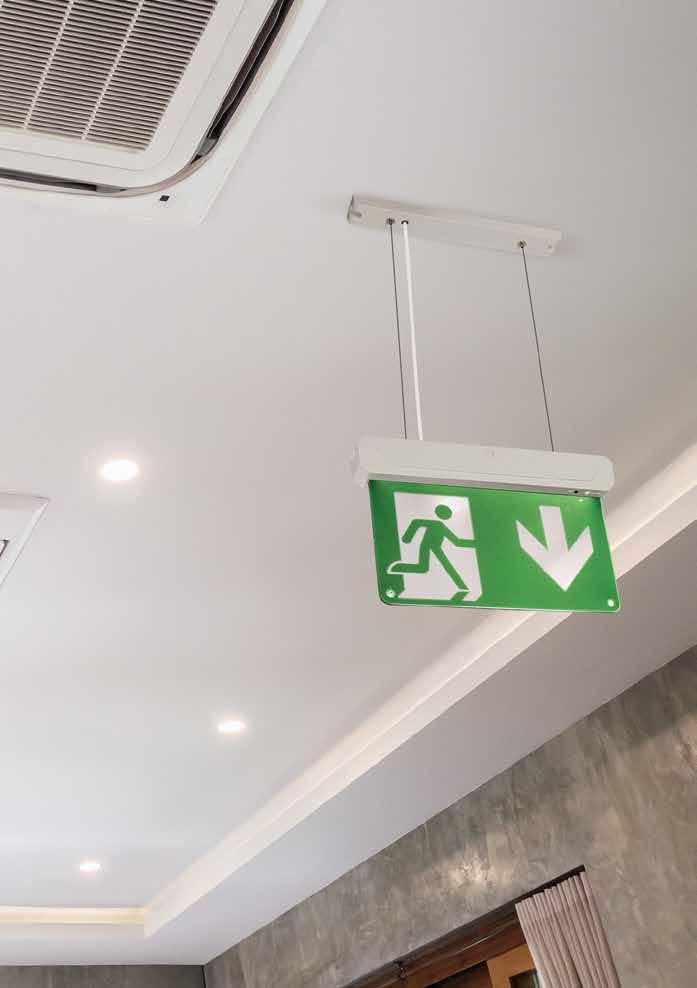

5-IN-1 EMERGENCY BLADE Code Lumens Duration

AEMBLADE/M ≤36lm 3 Hrs

5-IN-1 EMERGENCY BLADE ACCESSORIES*

Code Description

AEMBLADE/L/R Left/Right Arrow Exit Sign Plate

AEMBLADE/UP Up Arrow Exit Sign Plate

AEMBLADE/RKIT Recessed Mounting Kit

AEMBLADE/SKIT Suspension Mounting Kit

AEMBLADE/WKIT Wall Mounting Kit

Item(s) Sold Separately

5-In-1

Product Features

▪ Functions As A Non-Maintained Luminaire

▪ 20mm Conduit/Side Entries

▪ IK10 Vandal Resistant Design

▪ Loop In And Out Push Terminals For Easy Wiring

▪ IP65 Rated - Suitable For Internal & External Applications

▪ Marine Grade Tough Polycarbonate Construction - Suitable for Coastal Areas

▪ >3 Hours Of Continuous Light In Emergency Mode

▪ Suitable For Wall & Ceiling Mounting

SecureBright Dimensions

Product Features

▪ Functions As A Maintained Or Non-Maintained Luminaire

▪ LEDs Directionally Illuminate The Door Way

▪ 20mm Conduit/Side Entries And Besa Box Mounts

▪ Loop In And Out Push Terminals For Easy Wiring

▪ Down Arrow Included. Different Exit Sign Plates Available*

▪ >3 Hours Of Continuous Light In Emergency Mode

BrightGuard MT Dimensions

BRIGHTGUARD METAL EMERGENCY SIGN

AEMBOX/M/M ≤90lm

BRIGHTGUARD METAL ACCESSORIES*

Code Description

AEMBOX/R Right Arrow Exit Sign Plate

AEMBOX/L Left Arrow Exit Sign Plate

* Item(s) Sold Separately

Product Features

▪ Functions As A Maintained Or NonMaintained Luminaire

▪ LEDs Directionally Illuminate The Door Way

▪ 12mm Conduit Entries And Besa Box Mounts

▪ Loop In And Out Push Terminals For Easy Wiring

▪ Legends Included

▪ >3 Hours Of Continuous Light In Emergency Mode

▪ 1.2W High Lumen Output LED

▪ Polar White, Anthracite Grey & Carbon Black Bezels Included

▪ >3 Hours Emergency Duration

▪ Non-Maintained

▪ Integrated Charging Indicator

▪ Advanced LiFePO4 Battery Technology

▪ 5 Year Guarantee

Floodlights

FOR FLOODLIGHTS

Featuring Manual Override Sensor

Q-Nex PIR Sensor

AFL/PIR/BK

IP65 Rated Up to 10m Detection Range Easily & Fully Programmable Manual Override Function With Indicator

Q-Nex Photocell

AFL/PCELL/BK

IP65 Rated Automatic Dusk To Dawn Sensor To Be Used With Compatible Products

Standard Product Features

▪ Q-Nex Plug & Play Technology PIR Or Photocell Sensor Accessories*

▪ IP65 Rated

▪ CCT Selectable (3000K/4000K/6000K)

▪ 1m Pre-Wired Tough Rubber Cable

▪ Easy-Install Angled Bracket

▪ Prismatic Toughened Glass

▪ Slimline Diecast Carbon Black Aluminium Body

Accessories

Carbon Black IP65 PIR Sensor With Q-Nex Plug & Play Technology

Carbon Black IP65 Photocell With Q-Nex Plug & Play Technology

OSPREY FLOODLIGHT

Q-NEX FLOODLIGHT ACCESSORIES

Product Features

▪ High Efficiency & High Lumen Output

▪ IP65 & IK06 Perfect for Harsh Environments

▪ Low Profile Design To Reduce Wind Drag

▪ CCT Selectable (3000K / 4000K / 6500K)

▪ Wattage Selectable

▪ 1.3m Pre-Wired Tough Rubber Cable

▪ Easy-Install Angled Bracket

▪ Prismatic Toughened Glass

▪ High Quality Diecast Carbon Black Aluminium Body

▪ Compatible With 110V Site Transformer For Building Sites

▪ 5 Year Guarantee

Skylancer Details

SKYLANCER 150W FLOODLIGHT

200W FLOODLIGHT

CCT & Wattage Selection Pre-Wired 1.3m Cable

Angled Bracket

Tough Glass

Outdoor Lighting

Product Features

▪ Surface Installation

▪ CCT Selectable (3000K / 4000K / 6500K)

▪ IP65 Rated

▪ Two 20mm Cable Entries

▪ Suitable For Coastal Areas

▪ ≤120lm/W

▪ Loop-In and Loop-Out 20mm Cable Entries

▪ 120lm High Efficiency LEDs

▪ Marine Grade Polycarbonate Construction

CCT Comparison

Floyd2 Dimensions

FLOYD2 CCT BRICK LIGHT

Product Features

▪ IP65 Rating

▪ DiamondHalogen Style Lens

▪ Detachable Spike For Surface Mounting

▪ Carbon Black Powder Coat

▪ Aluminium Body Featuring Anti-Glare Cowl

▪ Metal Gland Pre-Wired To 2.5m Of Toughened Rubber Cable

▪ Interchangeable Coloured Glass Filters Available (Sold Separately)

Excalibur 2 Dimensions

Accessories*

Interchangeable Colour Filters AGF/SPK/***

*Item(s) Sold Separately See page 57

EXCALIBUR 2 SPIKE LIGHT

Product Features

▪ IP65 Rating

▪ GU10 Lamp Holder (GU10 Sold Separately)

▪ Wall & Surface Mountable

▪ Carbon Black Powder Coat Finish

▪ Diecast Aluminium Body

▪ Metal Gland Pre-Wired To 2.5m Of Toughened Rubber Cable

▪ Interchangeable Coloured Glass Filters

Available(Sold Separately)

Compatibility

More Info See Pages 50-53

Accessories*

Interchangeable Colour Filters AGF/SPK/***

*Item(s) Sold Separately See page 55

SABRE 2 GARDEN SPIKE LUMINAIRE Code Wattage

ASPKGU10A/BK 1x 35W GU10

Sabre 2 Dimensions

5mm Tempered Glass For Extra Strength Morgan AGU501D* Jaguar AGU700D*

Caterham AGU470D*

Product Features

▪ Glare Reducing Honeycomb & Lens

▪ 3W Cree COB LED

▪ Pre-Flexed To 2.5M Of Cable

▪ Detachable Spike For Surface Mounting

▪ Carbon Black Powder Coat Finish

▪ Colour Rendering Index 90+

▪ Cast Aluminium Construction & Polymer Spike

▪ Dims With Triac Dimmable LED Driver

▪ 350mA Constant Current (Series Wiring)

Gladius Dimensions

GLADIUS GARDEN SPIKE LUMINAIRE

Pre-Flexed To 2.5M Of Cable

ADRCC350/1-11 1-3 x 3W LED

ADRCC350TD/1-4 1 x 3W LED

ADRCC350NANOTD/2-4 1 x 3W LED

ADRCC350TD/4-9 2-3 x 3W LED

ADRCC350TD/9-18 3-6 x 3W LED

ADRCC350TD/12-25 4-8 x 3W LED

ADRCC12D/100-440MA 1-4 x 3W LED

ADRCC30D/300-900MA 1-7 x 3W LED

ASPK3CC

Product Features

▪ IP65 Rating

▪ CCT Selectable (3000K/4000K/6000K)

▪ Adjustable Beam Angle Via Adjustment Doors (0-120°)

▪ Diecast Aluminium Body

▪ Wago Connectors Included

▪ White Finish

▪ Aluminium Accessory Cover Available*

Morph 14W Dimensions

*Item(s) Sold Separately

MORPH 14W WALL LUMINAIRE

14W ACCESSORY

Product Features

▪ IP65 Rating

▪ GU10 (Lamps Sold Separately)

▪ Carbon Black, Polar White Or Brushed Aluminium Finishes Available

▪ Cast Aluminium Wall Bracket

▪ Loop-In Loop-Out Jumbo Sized Integrated Connection Box With 2x 20mm Large Grommets

▪ Easy Installation

Tubular Bidirectional Dimensions

TUBULAR BIDIRECTIONAL

AWLGU/BK/022 GU10

AWLGU/WH/022 GU10

AWLGU/AL/022 GU10

Black Aluminium Spike Accessory

▪ Black Powdercoat Finish

▪ Cast Aluminium

▪ For Use With Hunter Floodlight Range, Excalibur & Sabre Spike Lights

Technology 2 Hole Jelly Filled Cable Crimp*

▪ IDC Technology

▪ 2 Hole Jelly Filled Cable Crimp Connectors

▪ Compact Design

Marker, Ground & Low Level Lights

Product Features

▪ 304 Stainless Steel Construction Rated To IP67

▪ Featuring AquaStop Technology

▪ 1.2W LED Array

▪ 220-240V AC Mains Operating Voltage

▪ Driver Over Rated At 2 Metric Tonnes When Used In Mounting Sleeve

▪ Ultra Tough Polycarbonate Optics

▪ Mounting Sleeve Included

▪ 2.5M Pre-Wired Though Rubber Cable

Valiant Dimensions

Cutout: Ø32-35mm Overall: Ø40mm Depth: 37mm

Guaranteed to stop water ingress through cable joints

Stops capilliary water ingress to luminaire via the cable

Product Features

▪ 5 Year Guarantee

▪ Dimmable When Used With Our 12V CV Dimmable LED Drivers*

▪ Quality Aluminium Construction

▪ 1.5M Pre-Wired Cable

▪ Prismatic Lens

▪ Max. DC Loom Length 20m (0.75mm2 Cable)

▪ Load: 1…20 PCS X 1W LED (ADRCV1225TD) Dimmable Option | 1…20 PCS X 1W LED (ADRCV1230) NON-Dimmable Option

Beam Dimensions

Cutout: 28mm

Overall: Ø37.5mm

Depth: 25mm

* When Used With a Suitable ALL LED Dimmable Driver

ALUMINIUM

Product Features

▪ IP44 Rating

▪ 1W LED

▪ Anti-Glare Trimless Ultra Slim Profile

▪ Frosted Glass For A Soft Edge Beam

▪ Interchangeable Bezels Available*

▪ Matte White Paintable Finish+

▪ Dimmable With A Dimmable LED Driver*

▪ 350mA Constant Current (Series Wiring)

▪ 2 Metre Pre-Wired Cable

Micro Dimensions

Cutout: Ø12mm Overall: Ø16mm Depth: 21mm

MICRO POLAR WHITE

MICRO BRUSHED ALUMINIUM

DRIVER COMPATIBILITY

ADRCC350/1-11 1-11 x 1W LED No

ADRCC350TD/1-4 1-4 x 1W LED Yes

ADRCC350NANOTD/2-4 2-4 x 1W LED Yes

ADRCC350TD/4-9 4-9 x 1W LED Yes

ADRCC350TD/9-18 9-18 x 1W LED Yes

ADRCC350TD/12-25 12-25 x 1W LED Yes

ADRCC12D/100-440MA 3-14 x 1W LED Yes

ADRCC30D/300-900MA 3-23 x 1W LED Yes

* When Used With a Suitable ALL LED Dimmable Driver + Applies to White Finish Models Only † Item(s) Sold Separately

Bezel

Features

▪ Four Bezel Finishes Available†

▪ Threaded Design

▪ Easy-Fit Screw On/Off Bezels

Bezel Colours†

Brass Bezel^ AMKR012BZ/BB

Brass Bezel^ AMKR012BZ/AB

COMPATIBILITY TABLE

Code Colour

AMKR012WH/30 3000K

AMKR012WH/40 4000K

AMKR012AL/30 3000K

AMKR012AL/40 4000K

Copper Bezel^ AMKR012BZ/COP

AMKR012BZ/BLK

^ Bezel Not Recommended For Outdoor Use

† Item(s) Sold Separately

Brushed

Antique

Polished

Carbon Black Bezel

Product Features

▪ IP44 Rating

▪ 1W LED

▪ Anti-Glare Design

▪ Clear Glass Provides A Sharp Edged Beam For Strong Architectural Effect

▪ Interchangeable Bezels Available†

▪ Ultra Slim Profile

▪ Dimmable With A Dimmable LED Driver*

▪ 350mA Constant Current (Series Wiring)

▪ 2 Metre Pre-Wired Cable

Mini Dimensions

MINI POLAR WHITE

MINI BRUSHED ALUMINIUM

DRIVER COMPATIBILITY

* When Used With a Suitable ALL LED Dimmable Driver † Item(s) Sold Separately Cutout: Ø20mm

ADRCC350TD/4-9 4-9 x 1W LED

ADRCC350TD/9-18 9-18 x 1W LED

ADRCC350TD/12-25 12-25 x 1W LED

ADRCC12D/100-440MA 3-14 x 1W LED

ADRCC30D/300-900MA 3-23 x 1W LED

Bezel Features

▪ Four Bezel Finishes Available†

▪ Threaded Design

▪ Easy-Fit Screw On/Off Bezels

Bezel Colours†

AMKR020BZ/BB

AMKR020BZ/AB

COMPATIBILITY TABLE

Code Colour

AMKR020WH/30 3000K

AMKR020WH/40 4000K

AMKR020WH/BL Blue

AMKR020AL/30 3000K

AMKR020AL/40 4000K

AMKR020AL/BL Blue

AMKR020BZ/COP

AMKR020BZ/BLK

Plaster-In Kit† ^ Bezel Not Recommended For Outdoor Use † Item(s) Sold Separately

Cutout: Ø38mm

Overall: Ø85mm

Depth: 40mm

AMKR020/BAFWH

Brushed Brass Bezel^

Antique Brass Bezel^

Polished Copper Bezel^

Carbon Black Bezel

Product Features

▪ IP65 Rating

▪ 1W LED

POLAR WHITE

▪ Diamond Cut Lens

▪ Cree Diode Inside

▪ Matte White Paintable Finish+

▪ Flush Toughened Glass

▪ Interchangeable Bezels Available†

▪ Dimmable with Dimmable LED Driver*

▪ 350mA Constant Current (Series Wiring)

▪ Driveover Rated At 2 Metric Tonnes When Used In 32mm Mounting Sleeve (AGL/MS032)†

▪ 1 Metre Pre-Wired Cable

Midi Dimensions

Ø32mm

MIDI BRUSHED ALUMINIUM

AMKR032AL/30

DRIVER COMPATIBILITY

ADRCC350/1-11 1-11 x 1W LED

ADRCC350TD/1-4 1-4 x 1W LED Yes

ADRCC350NANOTD/2-4 2-4 x 1W LED

ADRCC350TD/4-9 4-9 x 1W LED

ADRCC350TD/9-18 9-18 x 1W LED

ADRCC350TD/12-25 12-25 x 1W LED

ADRCC12D/100-440MA 3-14 x 1W LED

ADRCC30D/300-900MA 3-23 x 1W LED Yes

* When Used With a Suitable ALL LED Dimmable Driver + Applies to White Finish Models Only † Item(s) Sold Separately

Bezel Features

▪ Four Bezel Finishes Available†

▪ Threaded Design

▪ Easy-Fit Screw On/Off Accessory

Bezel Colours†

Accessories† AGL/MS032 Polycarbonate Mounting for 32mm AJKC100PACK Jelly Crimp Connectors 100/Pack

COMPATIBILITY TABLE Code Colour

AMKR032WH/30 3000K

AMKR032WH/40 4000K

AMKR032WH/BL Blue

AMKR032AL/30 3000K

AMKR032AL/40 4000K

AMKR032AL/BL Blue

^ Bezel Not Recommended For Outdoor Use † Item(s) Sold Separately

Brushed Brass Bezel^ AMKR032BZ/BB

Antique Brass Bezel^ AMKR032BZ/AB

Polished Copper Bezel^ AMKR032BZ/COP

Carbon Black Bezel AMKR032BZ/BLK

VECTOR POLAR WHITE

▪ IP44 Rating

▪ 3W COB LED

▪ Baffled Anti-Glare Design

▪ 25° Max Tilt Angle

▪ Diamond Cut Lens

▪ CRI 90+

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable LED Driver*

▪ 1 Metre Pre-Wired Cable

Vector Dimensions

Product Features * When Used With a Suitable ALL LED Dimmable Driver

VECTOR BRUSHED ALUMINIUM

DRIVER COMPATIBILITY

ADRCC350/1-11

ADRCC350TD/1-4

ADRCC350NANOTD/2-4

ADRCC350TD/4-9

Item(s) Sold Separately Cutout: Ø43mm Overall: Ø52mm

x 3W LED

ADRCC350TD/9-18 3-6 x 3W LED

ADRCC350TD/12-25 4-8 x 3W LED Yes

ADRCC12D/100-440MA 1-4 x 3W LED

ADRCC30D/300-900MA 1-7 x 3W LED

Product Features

▪ IP65 Rating

▪ 1W LED

▪ Unique Anti-Glare Optics

▪ 316L Stainless Steel

▪ Suitable For In Ground Use

▪ Toughened Flush Optics

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable LED Driver*

▪ 1 Metre Pre-Wired Cable

Halo Dimensions

POLAR WHITE

HALO

316L STAINLESS STEEL

When Used With a Suitable ALL LED Dimmable Driver † Item(s) Sold Separately

Product Features

▪ IP67 Rating

▪ 1W LED

▪ Glare-Reducing Honeycomb

▪ 316L Stainless Steel

▪ Drive Over Rated (2 Metric Tonnes) When Installed With Included Mounting Sleeve

▪ Toughened Flush Glass

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable LED Driver*

▪ 15° Narrow Beam Angle

▪ Robust Metal Cable Gland

▪ 2 Metre Pre-Wired Tough Rubber Cable BRITANNIA

POLAR WHITE

BRITANNIA 316L STAINLESS STEEL

DRIVER COMPATIBILITY

ADRCC30D/300-900MA 3-23 x 1W LED

When Used With a Suitable ALL LED Dimmable Driver

Item(s) Sold Separately

Product Features

▪ IP65 Rating

▪ 1W LED

▪ Anti-Glare Lighting Solution

▪ Unidirectional & Bi-Directional Options

▪ Ideal for Stair & Path Lighting

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable LED Driver*

▪ Drive-Over - 2 Metric Tonnes When Used in 32mm Mounting Sleeve (AGL/MS032)†

▪ 1 Metre Pre-Wired Cable

Pathfinder Dimensions

Ø32mm

Ø37mm

1-4 x 1W LED

ADRCC350NANOTD/2-4 2-4 x 1W LED

ADRCC350TD/4-9 4-9 x 1W LED

ADRCC350TD/9-18 9-18 x 1W LED

ADRCC350TD/12-25 12-25 x 1W LED

ADRCC12D/100-440MA 3-14 x 1W LED

ADRCC30D/300-900MA 3-23 x 1W LED

When Used With a Suitable ALL LED Dimmable Driver † Item(s) Sold Separately

Product

Features

▪ IP65 Rating

▪ 1W LED

▪ Glare-Reducing Baffle Design

▪ Driveover Rated At 2 Metric Tonnes When Used In 32mm Mounting Sleeve (AGL/MS032)†

▪ Interchangeable Bezels Available†

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable Driver*

▪ Narrow Beam Angle

▪ Toughened Flush Glass

▪ Slim Bezel

▪ 1 Metre Pre-Wired Cable

Noble 1 Dimensions

NOBLE 1 BRUSHED ALUMINIUM

DRIVER COMPATIBILITY

ADRCC350TD/12-25 12-25 x 1W LED

ADRCC12D/100-440MA 3-14 x 1W LED

ADRCC30D/300-900MA 3-23 x 1W LED

When Used With a Suitable ALL LED Dimmable Driver

Bezel Features

▪ Four Bezel Finishes Available†

▪ Threaded Design

▪ Easy-Fit Screw On/Off Bezels

Bezel Colours†

COMPATIBILITY TABLE

AGL032AL/30 3000K AGL032AL/40 4000K

Accessories†

AGL/MS032 Polycarbonate Mounting for 32mm

Crimp Connectors 100/Pack

Brushed Brass Bezel^

AGL032BZ/BB Antique Brass Bezel^

AGL032BZ/AB

Polished Copper Bezel^

AGL032BZ/COP

Carbon Black Bezel

AGL032BZ/BLK

Polar White Bezel

AGL032BZ/WH

Technology

Product Features

▪ IP65 Rating

▪ 3W COB LED

▪ Featuring AquaStop Technology

▪ Glare-Reducing Baffle Design

▪ Driveover Rated At 2 Metric Tonnes When Used in 48mm Mounting Sleeve (AGL/MS048)†

▪ Interchangeable Bezels Available†

▪ Narrow Beam Angle

▪ Toughened Flush Glass

▪ Slim Bezel

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable Driver*

▪ 1 Metre Pre-Wired Cable

Noble 3 Dimensions

NOBLE 3 BRUSHED ALUMINIUM

Bezel Features

▪ Four Bezel Finishes Available†

▪ Threaded Design

▪ Easy-Fit Screw On/Off Bezels

Bezel Colours†

COMPATIBILITY TABLE

AGL045AL/30 3000K

4000K

Product Features

▪ IP65 Rating

▪ 7W COB LED

▪ Featuring AquaStop Technology

▪ Glare-Reducing Baffle Design

▪ Driveover Rated At 2 Metric Tonnes When Used in 60mm Mounting Sleeve (AGL/MS060)†

▪ Interchangeable Bezels Available†

▪ Narrow Beam Angle

▪ Toughened Flush Glass

▪ Slim Bezel

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable Driver*

▪ 1 Metre Pre-Wired Cable

Technology

Noble 7 Dimensions

Bezel Features

▪ Four Bezel Finishes Available†

▪ Threaded Design

▪ Easy-Fit Screw On/Off Bezels

Bezel Colours

COMPATIBILITY TABLE

Brushed Brass Bezel^

Antique Brass Bezel^

Polished Copper Bezel^

Polar White Bezel

AGL060BZ/WH

Carbon Black Bezel

Product Features

▪ IP67 Rating

▪ 1W LED

▪ Featuring AquaStop Technology

Technology

MARINE 1 316L STAINLESS STEEL

▪ Glare-Reducing Honeycomb & Baffle Design

▪ 316L Marine Grade Stainless Steel

▪ Drive Over Rated (2 Metric Tonnes) When Used In 32mm Mounting Sleeve (AGL/MS032)†

▪ Toughened Flush Glass

▪ Slim Bezel

▪ Tough Rubber Robust Cable For Extreme Outdoor Use

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable LED Driver*

▪ 1 Metre Pre-Wired Cable

Marine 1 Dimensions

Cutout: Ø32mm Overall: Ø37mm Depth: 37.5mm

DRIVER COMPATIBILITY

ADRCC350TD/4-9 4-9 x 1W LED

ADRCC350TD/9-18 9-18 x 1W LED

ADRCC350TD/12-25 12-25 x 1W LED

ADRCC12D/100-440MA 3-14 x 1W LED

ADRCC30D/300-900MA 3-23 x 1W LED

Accessories† AGL/MS032 Polycarbonate Mounting For 32mm AJKC100PACK Jelly Crimp Connectors 100/Pack

* When Used With a Suitable ALL LED Dimmable Driver † Item(s) Sold Separately

Product

▪ IP67 Rating

▪ 3W COB LED

▪ Featuring AquaStop Technology

MARINE 3 316L STAINLESS STEEL

▪ Glare-Reducing Honeycomb & Baffle Design

▪ 316L Marine Grade Stainless Steel

▪ Drive Over Rated (2 Metric Tonnes) When Used In 48mm Mounting Sleeve (AGL/MS048)†

▪ Toughened Flush Glass

▪ Slim Bezel

▪ Tough Rubber Robust Cable For Extreme Outdoor Use

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable LED Driver*

▪ 1 Metre Pre-Wired Cable

Marine 3 Dimensions

Features * When Used With a Suitable ALL LED Dimmable Driver † Item(s) Sold Separately

Cutout: Ø48mm

Overall: Ø56mm Depth: 55mm

ADRCC350TD/9-18 3-6 x 3W LED

ADRCC350TD/12-25 4-8 x 3W LED

ADRCC12D/100-440MA

ADRCC30D/300-900MA

Accessories

AGL/MS048 Polycarbonate Mounting For 48mm AJKC100PACK Jelly Crimp Connectors 100/Pack

Product Features

▪ IP67 Rating

▪ 7W COB LED

▪ Featuring AquaStop Technology

MARINE 7 316L STAINLESS STEEL

▪ Glare-Reducing Honeycomb & Baffle Design

▪ 316L Marine Grade Stainless Steel

▪ Drive Over Rated (2 Metric Tonnes) When Used In 60mm Mounting Sleeve(AGL/MS060)†

▪ Toughened Flush Glass

▪ Slim Bezel

▪ Tough Rubber Robust Cable For Extreme Outdoor Use

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable LED Driver*

▪ 1 Metre Pre-Wired Cable

Marine 7 Dimensions

Cutout: Ø60mm

Overall: Ø70mm

Depth: 73mm

DRIVER COMPATIBILITY

ADRCC350TD/12-25 3 x 7W LED

ADRCC12D/100-440MA 1-2 x 7W LED

ADRCC30D/300-900MA 1-3 x 7W LED

Accessories†

Polycarbonate Mounting For 60mm AJKC100PACK Jelly Crimp Connectors 100/Pack

* When Used With a Suitable ALL LED Dimmable Driver † Item(s) Sold Separately

Product Features

▪ IP65 Rating

▪ 1W LED

▪ Low Glare, High Power Output

▪ Cree Diode Inside

▪ Super Slim Bezel

▪ Matte Brushed Aluminium

▪ Flush Toughened Glass

▪ Interchangeable Bezels Available†

▪ Dimmable With Dimmable Driver*

▪ Suitable For Wall & In Ground Use

▪ 1 Metre Pre-Wired Cable

Dawn Dimensions

Cutout: Ø32mm Overall: Ø42mm Depth: 37mm

DAWN ALUMINIUM

ALRE032AL/27 2700K ≤34lm ≤34lm ALRE032AL/30 3000K ≤44lm ≤44lm

ALRE032AL/40 4000K ≤50lm ≤50lm

DAWN BEZEL OPTIONS†

ALRE032BZ/BLK Carbon Black

ALRE032BZ/WH Polar White

Accessories† * When Used With a Suitable ALL LED Dimmable Driver

DRIVER COMPATIBILITY

ADRCC350/1-11

ADRCC350TD/4-9 4-9 x 1W LED

ADRCC350TD/9-18 9-18 x 1W LED

ADRCC350TD/12-25 12-25 x 1W LED

ADRCC12D/100-440MA 3-14 x 1W LED

ADRCC30D/300-900MA 3-23 x 1W LED

Item(s) Sold Separately

Carbon Black Bezel

Polar White Bezel

Product Features

▪ IP65 Rating

OXFORD POLAR WHITE

▪ Low Glare Low Level Lighting

▪ Frosted Glass For A Soft Edge Beam

▪ Ideal For Wall, Stair & Plinth Lighting

▪ Ultra Slim Profile

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable LED Driver*

▪ 1 Metre Pre-Wired Cable

Oxford Dimensions

Cutout: Ø32mm Overall: Ø39mm Depth: 21mm

OXFORD BRUSHED ALUMINIUM

OXFORD POLISHED CHROME

ALRD032PC/30

DRIVER COMPATIBILITY

ADRCC350/1-11 1-11 x 1W LED No

ADRCC350TD/1-4 1-4 x 1W LED Yes

ADRCC350NANOTD/2-4 2-4 x 1W LED Yes

ADRCC350TD/4-9 4-9 x 1W LED Yes

ADRCC350TD/9-18 9-18 x 1W LED Yes

ADRCC350TD/12-25 12-25 x 1W LED Yes

ADRCC12D/100-440MA 3-14 x 1W LED Yes

ADRCC30D/300-900MA 3-23 x 1W LED Yes

* When Used With a Suitable ALL LED Dimmable Driver

† Item(s) Sold Separately

SLOANE

CLASSIC POLAR WHITE

▪ IP65 Rating

▪ Low Glare Low Level Lighting

▪ Frosted Glass For Optimum Light Distribution

▪ Ideal For Wall & Stair Lighting

▪ Ultra Slim Profile

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable LED Driver*

▪ 1 Metre Pre-Wired Cable

Sloane Classic Dimensions

Product Features * When Used With a Suitable ALL LED Dimmable Driver † Item(s) Sold Separately Cutout: Ø32mm

DRIVER COMPATIBILITY†

ADRCC350/1-11 1-11 x 1W LED

ADRCC350TD/1-4 1-4 x 1W LED

ADRCC350NANOTD/2-4 2-4 x 1W LED

ADRCC350TD/4-9 4-9 x 1W LED

ADRCC350TD/9-18 9-18 x 1W LED

ADRCC350TD/12-25 12-25 x 1W LED

ADRCC12D/100-440MA 3-14 x 1W LED

ADRCC30D/300-900MA 3-23 x 1W LED

Product Features

▪ IP65 Rating

SLOANE SQUARE POLAR WHITE

▪ Low Glare Low Level Lighting

▪ Clear Glass For Optimum Light Distribution

▪ Ideal For Wall & Stair Lighting

▪ Ultra Slim Profile

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable LED Driver*

▪ 1 Metre Pre-Wired Cable

Sloane Square Dimensions

Cutout: Ø32mm Overall: 37.5mm Depth: 22mm

SLOANE SQUARE BRUSHED ALUMINIUM

SLOANE SQUARE POLISHED CHROME

DRIVER COMPATIBILITY

ADRCC350/1-11 1-11 x 1W LED No

ADRCC350TD/1-4 1-4 x 1W LED Yes

ADRCC350NANOTD/2-4 2-4 x 1W LED Yes

ADRCC350TD/4-9 4-9 x 1W LED Yes

ADRCC350TD/9-18 9-18 x 1W LED Yes

ADRCC350TD/12-25 12-25 x 1W LED Yes

ADRCC12D/100-440MA 3-14 x 1W LED Yes

ADRCC30D/300-900MA 3-23 x 1W LED Yes

* When Used With a Suitable ALL LED Dimmable Driver † Item(s) Sold Separately

SLOANE LINEAR POLAR WHITE

▪ IP65 Rating

▪ Low Glare Low Level Lighting

▪ Clear Glass For Optimum Light Distribution

▪ Ideal For Wall & Stair Lighting

▪ Ultra Slim Profile

▪ 350mA Constant Current (Series Wiring)

▪ Dimmable With Dimmable LED Driver*

▪ 1 Metre Pre-Wired Cable

LINEAR BRUSHED ALUMINIUM

Sloane Linear Dimensions

Product Features * When Used With a Suitable ALL LED Dimmable Driver † Item(s) Sold Separately Cutout: Ø32mm

ADRCC350/1-11 1-11 x 1W LED

ADRCC350TD/1-4 1-4 x 1W LED

ADRCC350NANOTD/2-4 2-4 x 1W LED

ADRCC350TD/4-9 4-9 x 1W LED

ADRCC350TD/9-18 9-18 x 1W LED

ADRCC350TD/12-25 12-25 x 1W LED

ADRCC12D/100-440MA 3-14 x 1W LED

ADRCC30D/300-900MA 3-23 x 1W LED

Product Features

▪ IP54 rating

▪ 3W LED

Pre-Wired Cable

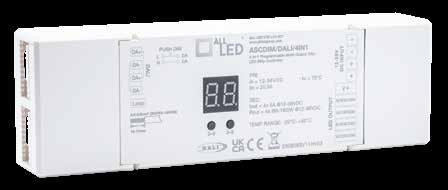

Check out the All-Dim Dimmer Module on Page 44

TRAFALGAR POLAR WHITE

▪ CCT Selectable (3000K/4000K/6000K)

▪ Opal Polycarbonate Lens

▪ Ideal For Stair & Plinth Lighting

▪ Ultra Slim Profile

▪ Strong Polycarbonate Body

▪ Mains Dimmable

▪ Paintable Polar White Finish Bezel

▪ Fixings Included

▪ Clip-On Carbon Black & Stainless Steel Screwless Bezels Available†

▪ Fits in a 35mm Galvanised Metal & Dry Lining Box

Trafalgar Dimensions

TRAFALGAR BEZEL OPTIONS† Code Finish

ATRAF/BZ/BLK

ATRAF/BZ/SS

Information

Fits in a 35mm Depth Galvanised Metal & Dry Lining 1 Gang Box†

Mounting Sleeves for Driveover Rated Lights

AGL/MS032 32mm Mounting Sleeve

AGL/MS048 48mm Mounting Sleeve

AGL/MS060 60mm Mounting Sleeve

DETAILS

Code Material

AGL/MS032 Polycarbonate

Internal Diameter: 30.5mm

External Diameter: Ø35mm / Ø38mm

Height: 90mm

For Use With

▪ Midi Range (AMKR032) Page 136

▪ Pathfinders (APF032AL) Page 143

▪ Noble 1 (AGL032AL) Page 144

▪ Marine 1 (AGL032SS) Page 150

DETAILS

Code Material

AGL/MS048 Polycarbonate

Internal Diameter: 49mm

External Diameter: Ø53mm / Ø57mm

Height: 90mm

For Use With

▪ Noble 3 Range (AGL045AL) Page 146

▪ Marine 3 Range (AGL045SS) Page 151

DETAILS

Code Material

AGL/MS060 Polycarbonate

Internal Diameter: 58mm

External Diameter: Ø64mm

Height: 90mm

For Use With

▪ Noble 7 Range (AGL060AL) Page 148

▪ Marine 7 Range (AGL060SS) Page 153

Undercabinet & Bedroom Lights

Product Features

▪ 240V Direct To Mains

▪ CCT Selectable (3000K / 4000K / 6000K)

▪ Pre-Wired With 1 Metre Flexible Cable

▪ Side & Rear Entry Cable Design

▪ Surface Mounting Pattress Included Product May Be Surface or Recess Mounted

▪ Low Power, High Output

Details

SWIFT CCT RANGE

Swift CCT Dimensions

Cutout: Ø55mm

Overall: Ø69mm

Depth: 22mm

Depth Without Pattress: 17mm

Product Features

▪ Flexible Silicone Arm

▪ Recessed Low Glare LED

▪ Matte Black Baffle

▪ Powder Coated Body

▪ Striking Contrasting Low Profile Switch

▪ Precision CNC Milled Base And Head Available in Carbon Black* or Polar White*

CYGNET READING LIGHT

AWLG030/WH/30 Polar White 3000K

AWLG030/WH/40 Polar White 4000K

AWLG030/BK/30 Carbon Black 3000K

AWLG030/BK/40 Carbon Black 4000K

CYGNET LUMENS COMPARISON

Cygnet Dimensions

LED Strips

“Using

Customised & Ready To Go

▪ Express Service

▪ Cost Effective & Reliable

▪ Supplied On Reels & In Bags

▪ Work Carried Out To The Highest Standard

▪ Tailored Labelling To Suit Your Project Requirements

▪ Every Item Is Tested Before Packaging

▪ Circuit Design Service Available

LED’s Bespoke LED Strip Service made my life so much easier and saved me a huge amount of time on this incredible job!”

Iulian Dascalu, Electrician, London

LED Strip Bespoke Service

Customised & Ready To Go

On Average, you will spend over 30 minutes setting up a soldering station.

• Measured

• Cut

• Soldered

• Sealed

• Quality Tested

• Individually Packaged

▪ Continuous And Even Dotless Light Effect

High CRI 90+

Mains Dimmable With Dimmable LED Driver ▪ Customised Bespoke Service Only#

Express Service

Available in 4 different colour temperatures

Adhesive

Supplied In 40m Reels Or With Bespoke Cutting Service#

Supplied In 30m Reels Or With Bespoke Cutting Service#

AST010/COB 10W/M RANGE PRODUCT FEATURES

▪ Continuous And Even Dotless Light Effect

▪ Max Length Powered Single End 5m And 10m

Double Ended

▪ High CRI 90+

SEAMLESS IP20 LED STRIP

AST010/COB/27 ≤760lm ≤760lm 2700K

AST010/COB/30 ≤760lm ≤760lm 3000K

AST010/COB/40 ≤860lm ≤860lm 4000K

AST010/COB/60 ≤1020lm ≤1020lm 6000K

CONNECTORS

▪ 50mm Cut Points*

▪ 480LED/m

▪ Mains Dimmable With Dimmable LED Driver

▪ Customised Bespoke Service Only#

SEAMLESS IP67 LED STRIP

AST010IP/COB/27 ≤670lm ≤670lm 2700K

AST010IP/COB/30 ≤760lm ≤760lm 3000K

AST010IP/COB/40 ≤823lm ≤823lm 4000K

AST010IP/COB/60 ≤828lm ≤828lm 6000K

ASCC8MM/CUP/10PK Coupler 10 Pack

ASCC8MM/2CAB/10PK Double Ended 10 Pack

DIMENSIONS

24V COB Strip Accessories

24V LED DRIVERS+

24V DIMMABLE LED DRIVERS+

Choice

Adhesive

Supplied In 40m Reels Or With Bespoke Cutting Service#

Supplied In 30m Reels Or With Bespoke Cutting Service#

AST09L/COB 10W/M RANGE PRODUCT FEATURES

▪ Continuous And Even Dotless Light Effect

▪ High CRI 90+

▪ 50mm Cut Points

▪ Mains Dimmable With Dimmable LED Driver*

SEAMLESS PRO IP20 LED STRIP

AST09L/COB/27 ≤650lm ≤650lm 2700K

AST09L/COB/30 ≤700lm ≤700lm 3000K

AST09L/COB/40 ≤740lm ≤740lm 4000K

AST09L/COB/60 ≤780lm ≤780lm

CONNECTORS

▪ Max Length Powered Single End 10m And 20m Double Ended

▪ 420LED/m

▪ Customised Bespoke Service Only#

SEAMLESS PRO IP67 LED STRIP

AST09LIP/COB/30 ≤700lm ≤700lm

AST09LIP/COB/40 ≤740lm ≤740lm

AST09LIP/COB/60 ≤780lm ≤780lm

ASCC8MM/2CAB Double Ended

ASCC8MM/LE/10PK Live End 10 Pack

ASCC8MM/CUP/10PK Coupler 10 Pack

ASCC8MM/2CAB/10PK Double Ended 10 Pack

ASCC/COB8/COR Corner Connector for COB ASCC/COB8/COR/10PK Corner Connector for COB 10 Pack

DIMENSIONS

24V COB LED Strip Accessories

24V LED DRIVERS+

24V DIMMABLE LED DRIVERS+

Choice Of IP20 Connectors

PROFILE COMPATIBILITY

Adhesive

Maximum Runs

50M Single End Feed

100M Double End Feed

Supplied In 100m Rolls Or Bespoke Service Available

AST05L 5W/M Range Product Features

▪ Maximum 100m Length†

▪ 100mm Cut Point Intervals

▪ Low Consumption Fluorescent Alternative

▪ Soldered Connection Only

▪ Mains Dimmable When Used With A Dimmable Driver*

▪ 60 LED/m

▪ Customised Bespoke Service Available#

5W/M NFINITI5 ULTRA LONG LED STRIP

Profile Colour Add Suffix

Anodised

Black & Clear Diffusers

5W/m 24V IP20 LED Strip Accessories

24V LED DRIVERS+

ADRCV24150

24V DIMMABLE LED DRIVERS+

Adhesive

Maximum Runs

35M Single End Feed

70M Double End Feed

Supplied In 60m Rolls Or Bespoke Service Available

AST08L 8W/M Range Product Features

▪ Maximum 70m Length†

▪ 100mm Cut Point Intervals

▪ Low Consumption Fluorescent Alternative

▪ Soldered Connection Only

▪ Mains Dimmable When Used With A Dimmable Driver*

▪ 60 LED/m

▪ Customised Bespoke Service Available#

8W/M NFINITI8 ULTRA LONG LED STRIP

24V LED DRIVERS+

24V DIMMABLE LED DRIVERS+

Supplied In 40m Reels Or With Bespoke Cutting Service#

Adhesive

▪ Designed For Corners & Complex Shapes

▪ Designed To Bend On Horizontal Surfaces

▪ 100mm Cut Point Intervals

▪ Soldered Connection Only

Supplied In 30m Reels Or With Bespoke Cutting Service#

FEATURES

Adhesive

▪ Mains Dimmable When Used With A Dimmable Driver*

▪ 60 LED/m

▪ Customised Bespoke Service Available#

PRO-FLEX IP65 LED STRIP

Master The Corner

Drivers

24V LED DRIVERS+

More Info See Page 241

24V DIMMABLE LED DRIVERS+

See page 97 for emergency options

AHSTC Clear Heat Shrink Tubing 30cm Length

Non-Acidic LED Strip Silicon Sealant

Solder Butt Water Resistant Insulated Heat Shrink Connector (100 Pack)

DIMENSIONS

Description

Bespoke Cut To Length AB20 Bespoke IP20 Soldered Ends 50cm Cable

AB65 Bespoke IP65 Soldered Ends 50cm Cable

ABADD 1m Additional Cable

Item(s) Sold Separately ^ Recommended 10m Max Length (>10m Wire In Parallel)

When Used With A Dimmable Driver

Bespoke Services At Additional Cost

3 Colours, 1 Strip

Colour Selectable At The Time Of Installation.

120 LED/m

Colour Selectable At The Time Of Installation & Adjustable With Controls

Ideal For Effect Lighting

Stable 10W Power

Can Be Cut At 100mm Intervals

Can Be Used On Secondary CCT Controls Mains Dimmable*

* When Used With A Dimmable Driver

Select Colour At Time Of Installation

Supplied In 40m Reels Or With Bespoke Cutting Service#

▪ Constant Colour & Wattage

▪ 100mm Cut Point Intervals

▪ 120 LED/m

▪ Product Code Featured On All LED Strips

Select Colour At Time Of Installation

Supplied In 30m Reels Or With Bespoke Cutting Service#

PRODUCT FEATURES

▪ Mains Dimmable When Used With A Dimmable Driver*

▪ High Output, Compact Light Source

▪ Customised Bespoke Service Available#

Profile Colour Add Suffix

= Anodised Aluminium

BK = Carbon Black

Black & Clear Diffusers Available As Accessories+

Drivers+

24V LED DRIVERS+

Supplied In 40m Reels Or With Bespoke Cutting Service#

Supplied In 30m Reels Or With Bespoke Cutting Service#

AST010/** 10W/M RANGE PRODUCT FEATURES

▪ Available in A Range of Colours: Filament Yellow, Apple Green, Corsa Red, Azure Blue, Ambient Amber

▪ 50mm Cut Point Intervals

COLOUR PRO IP20 LED STRIP

Code Useful Lm Total Lm Colour

AST010/YL ≤464lm ≤464lm Filament Yellow

AST010/GR ≤915lm ≤915lm Apple Green

AST010/RD ≤250lm ≤250lm Corsa Red

AST010/BL ≤132lm ≤132lm Azure Blue

AST010/AB ≤796lm ≤796lm Ambient Amber

▪ Mains Dimmable When Used With A Dimmable

Driver*

▪ 120 LED/m

▪ Customised Bespoke Service Available#

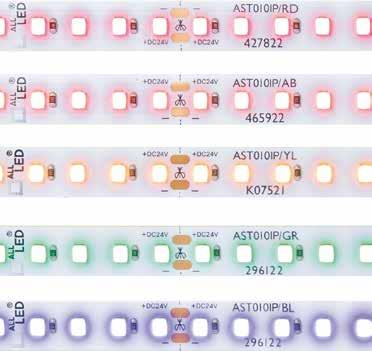

COLOUR PRO IP65 LED STRIP

Code

AST010IP/YL ≤453lm ≤453lm Filament Yellow

AST010IP/GR ≤887lm ≤887lm Apple Green

AST010IP/RD ≤239lm ≤239lm Corsa Red

AST010IP/BL ≤128lm ≤128lm Azure Blue

AST010IP/AB ≤792lm ≤792lm Ambient Amber

ADDITIONAL ITEMS

Accessories+ Bespoke Service# For More Info See Page 172

Code Description

AHSTC Clear Heat Shrink Tubing 30cm Length

ASGL01 Non-Acidic LED Strip Silicon Sealant

ASBWC Solder Butt Water Resistant Insulated Heat Shrink Connector (100 Pack)

DIMENSIONS

Code Description

AB00 Bespoke Cut To Length

AB20 Bespoke IP20 Soldered Ends 50cm Cable

AB65 Bespoke IP65 Soldered Ends 50cm Cable

ABADD 1m Additional Cable + Item(s) Sold Separately * When Used With A Dimmable Driver # Bespoke Services At Additional Cost

Our range of professional single colour LED strips.

Features

Available In 5 Amazing Colours

Available In IP20 and IP65

Mains Dimmable With Dimmable Driver*

50mm Cut Points

Azure Blue

Filament Yellow Apple Green

Corsa Red

Ambient Amber

Adhesive

Supplied In 40m Reels Or With Bespoke Cutting Service#

Supplied In 30m Reels Or With Bespoke Cutting Service#

AST005 5W/M RANGE PRODUCT FEATURES

▪ Mains Dimmable When Used With A Dimmable Driver*

▪ Product Code Featured On All LED Strips

▪ 50mm Cut Point Intervals ▪ 60 LED/m ▪ Customised Bespoke Service Available#

Drivers Connectors

12V LED DRIVERS+

UNICUBE CONNECTORS+

P1 CONNECTORS†

Adhesive

Supplied In 40m Reels Or With Bespoke Cutting Service#

Supplied In 30m Reels Or With Bespoke Cutting Service#

AST010 10W/M RANGE PRODUCT FEATURES

▪ Mains Dimmable When Used With A Dimmable Driver*

▪ Product Code Featured On All LED Strips

▪ 50mm Cut Point Intervals

▪ 140 LED/m

▪ Customised Bespoke Service Available#

PRO 10W IP65 LED STRIP

Drivers Connectors

24V LED DRIVERS+

UNICUBE CONNECTORS+

P1 CONNECTORS†

ASCC10MM/LE 10MM LED Single End Connector

ASCC10MM/2CAB 10MM LED Double Ended Connector

ASCC10MM/IP/LE 10MM LED Single End Connector IP65

ASCC10MM/IP/CUP 10MM LED Coupling Connector

ASCC10MM/IP/2CAB 10MM LED Double Ended Connector IP65

Adhesive

Supplied In 40m Reels Or With Bespoke Cutting Service#

Supplied In 30m Reels Or With Bespoke Cutting Service#

RANGE PRODUCT FEATURES

▪ Mains Dimmable When Used With A Dimmable Driver*

▪ Product Code Featured On All LED Strips

▪ 50mm Cut Point Intervals

▪ 140 LED/m

▪ Customised Bespoke Service Available#

Drivers Connectors

24V LED DRIVERS+

UNICUBE CONNECTORS+

P1 CONNECTORS†

24V DIMMABLE LED DRIVERS+

Supplied In 40m Reels Or With Bespoke Cutting Service#

Supplied In 30m Reels Or With Bespoke Cutting Service#

AST020 20W/M RANGE PRODUCT FEATURES

▪ CRI 90+

▪ 50mm Cut Point Intervals

▪ Product Code Featured On All LED Strips

▪ 160 LED/m

▪ Mains Dimmable When Used With A Dimmable Driver*

▪ Soldered Connection Only

▪ Customised Bespoke Service Available#

Profile Colour Add Suffix

AL = Anodised Aluminium

WH = Matte White

BK = Carbon Black Smoked Black & Clear Diffusers Available As Accessories+

24V LED DRIVERS+

24V DIMMABLE LED DRIVERS+

CRI>90 - Render Colours More Vividly

Supplied In 40m Reels Or With Bespoke Cutting Service#

Supplied In 30m Reels Or With Bespoke Cutting Service#

AST005/COB/RGB 5W/M RANGE PRODUCT FEATURES

▪ Continuous And Even Light Effect

▪ Max Length Powered Single End 10m and 20m Double Ended

SEAMLESS RGB IP20 RGB LED STRIP

▪ 50mm Cut Points - 840 LEDs/m ▪ Customised Bespoke Service Available#

SEAMLESS RGB IP67 RGB LED STRIP

24V RGB COB LED Strip Accessories

Drivers

24V LED DRIVERS+

Controllers†

COLOUR 1+

ASCRF/RGBW/REC One Zone 12-24VDC RGBW LED Receiver

ASCRF/RGBW/RMT RGBW LED Remote Controller ADDITIONAL

Supplied In 40m Reels Or With Bespoke Cutting Service#

Adhesive Adhesive

Supplied In 30m Reels Or With Bespoke Cutting Service#

▪ 100mm Cut Point Intervals

▪ Soldered Connection Only

▪ WW 3000K, CW 4000K

PRO 20W IP20 RGB+W LED STRIP

▪

LED/m ▪ Customised Bespoke Service Available#

PRO 20W IP65 RGB+W LED STRIP

AST020IP/RGBWW

Drivers

24V LED DRIVERS+

Controllers†

COLOUR 1+

Strip Connector & Profile Compatibility Charts

12V Strip Accessories

IP20 5W 12+24

IP20 5W 12+24

ASCC8MM/LE IP20 5W 12

IP20 5W 12

IP20 5W 12

IP65 5W 12

ASCC8MM/IP/2CAB IP65 5W 12

ASCC8MM/IP/CUP IP65 5W 12

24V Strip Accessories

IP20 5-15W 12+24

ASTC/UNI/L90 IP20 5-15W 12+24

ASCC8MM/LE IP20 COB 9-10W 24

ASCC8MM/2CAB IP20 COB 9-10W 24

ASCC8MM/CUP IP20 COB 9-10W 24

ASCC10MM/LE IP20 10-15W 24

ASCC10MM/2CAB IP20 10-15W 24

ASCC10MM/IP/LE IP65 10-15W 24

ASCC10MM/IP/2CAB IP65 10-15W 24

ASCC10MM/IP/CUP IP65 10-15W 24

MADE TO MEASURE STRIP

LET OUR TEAM OF EXPERTS HELP YOU TO DESIGN THE PERFECT LAYOUT FOR ANY LED STRIP LIGHTING PROJECT AS SIMPLE AS 1, 2, 3

““The lighting is not just aesthetically pleasing but allows us to separate training zones and give different atmosphere or intensity depending on what type of session we are running. At ADC we pride ourselves on having a first class facility and All LED lights really give the wow factor.”

- Chris, Owner, ADC

*COB Strip Only Service Features

• Customise any All LED Strip

• IP20, IP65 Or IP67*

• Customise Strip And Cable Lengths

• 100% QC Tested By Our Experts

• Dimmable Or Non-Dimmable Drivers & Control Options Available

• To Suit Your Requirements

All LED’s Technical and Design Team assisted with a bespoke RGB LED strip project requiring cut, soldered and prepared lengths for the Athletic Development Centre in London.

Our made-to-measure bespoke tailoring service was the perfect solution for this project, with it’s simple 3 step process makes it the best solution for projects which have specific requirements and insures the products delivered are exactly what is needed. This ensures the lighting project remians on track and is completed on time.

All LED’s range of strip lighting perfectly complements the atmosphere and aesthetic at ADC allowing for both intense and calming environment lighting as required.

Our Products

The Project

STRIPPACK 25W

▪ 5m IP65 LED Strip 5w/m (25w Total)

▪ 2 X K9 Quick Connectors Included

▪ Dedicated LED Driver With Pre-Wired 13 Amp Plug And DC Connector

▪ High Quality 3M Self Adhesive Backing

▪ 100mm Cut Points

▪ Complete Plug & Play Kit

▪ 30 LED/m

▪ Test Button Feature On Packaging

▪ Available In 3000K & 4000K

LED Strip Accessories

UniCube LED Strip Connector

Perfect Connection Without The Need to Solder

The UniCube LED Strip Connector was developed with speed & simplicity in mind. An elegant and easy to use revolutionary product, merging the terminal block, connector and coupler into one.

UNICUBE STRAIGHT CONNECTOR

UNICUBE 90º CONNECTOR

UniCube Dimensions

Product Features

▪ 3-In-1 Universal Design

▪ Allows Fast Connection Of Strip To Strip, Cable To Strip, And Cable To Cable

▪ Fits In APA004 & APA007 Profiles

▪ Faster Than Soldering

▪ Requires Only A Screwdriver

▪ Fits 8mm And 10mm Width All LED Strips

▪ Manufactured from Clear Optical Polycarbonate to Allow Maximum Light Transmission

▪ Best Used With Solid Core Cables

▪ 10 Packs Available

"I

can't believe nobody thought of this simple but effective solution before. I absolutely love these little beauties!"

Robert Aslan Aslan Electrical Services

▪ Pair Multiple Receivers To One Remote Control

▪ Single Zone Control

▪ Synchronise Receiver Output

▪ Blend Warm, Cool Or Daylight From RGB Or RGBW

▪ Maximum 8 Receivers Can Be Paired To One Remote Control

▪ 30m Maximum Range (Uninterrupted)

▪ 3xAAA Batteries Required*

▪ Compatible With RGB/RGB+W LED Strip

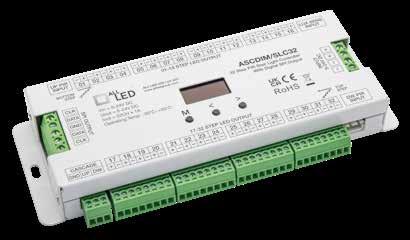

Product Features

▪ 32 Step Capacity, 1A Per Step Max

▪ 2 x Digital RGB SPI Signal Output, Compatible With 28 Digital LED Strip ICs

▪ Easy Programming With OLED Display

▪ Integrated Rapid Self-Test Function

▪ 4 Selectable LED Strip Modes

▪ Adjustable Colour, Speed And Brightness Modes

▪ 2 x PIR Sensors & Daylight Sensor, Option To Use A Retractive Switch

▪ PIR Cut-out 20mm

▪ Can Be Used With Constant Voltage Single Colour LED Strip Or Digital/SPI RGB Strip

Wiring Diagram

STAIR CONTROLLER

Product Features

▪ Compatible With Any 1-10V System

▪ 1-100% Dimming Range

▪ Smooth Dimming

▪ High Performance

▪ 4 Channel 5A Output (4x60w At 12v / 4x120w At 24v)

▪ LED Driver & LED Strip Required

Wiring Diagram 220-240V AC

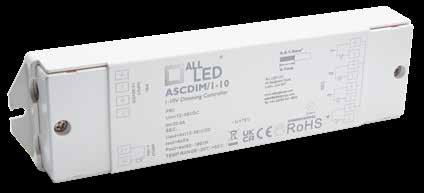

1-10V DIMMING UNIT

LED Strip (AST Range)

LED Strip (AST Range)

LED Strip (AST Range)

LED Strip (AST Range)

1-10V | StripMod Dimensions

Product Features

▪ Compatible With Any DALI System

▪ 1-100% Dimming Range

▪ Smooth Dimming

▪ High Performance

▪ 1 Channel 8A Output (1x96w At 12v / 1x192w At 24v)

▪ LED Driver & LED Strip Required

Wiring Diagram

DALI DIMMING UNIT

Code

Ultra-compact size and high 8A capacity allows precise control of larger LED Strip loads.

Product Features

▪ Compatible With DALI, DALI 2

▪ Compatible With Single Colour / CCT / RGB / RGBW LED Strips

▪ Retractive Switch Push To Dim FunctionOn/Off, Dimming And CCT, RGB(W) Colour Control

▪ Smooth Dimming

▪ High Performance

▪ 1 - 100% Dimming Range

▪ 4 Channels 5A Output (4x 60W At 12V / 4x 120W At 24V)

DALI 4-in-1 Dimensions

DALI 4-IN-1

Code

ASCDIM/DALI/4IN1 4 X 5A

Product Features

▪ Compatible With DMX512

▪ 1-100% Dimming Range

▪ Smooth Dimming

▪ High Performance

▪ 4 Channel 5A Output (4x60w At 12v / 4x120w At 24v)

▪ LED Driver & LED Strip Required

▪ Compatible With RGB/RGB+W LED Strips

Wiring Diagram

Product Features

▪ Universal RGBW And RGB DMX512 Wired Signal Output

▪ Touch Sensitive Glass Control Panel

▪ 1 Zone Control With 4 Programmable Scenes

▪ 10 Built-In Colour Changing Effects, On/Off And 1-100% Dimming Control

▪ Create Over 16 Million Colours Using RGBW Buttons

▪ 1 Gang 35MM Backbox Required

▪ For Use With ASCDIM/DMX

▪ 5 Core Power Cable Recommended For DMX Wiring

▪ 12/24Vdc Driver Required*

▪ Available In Gloss White And Black Finish

LED Drivers

PRODUCT DETAILS

Product Features

▪ IP55 Rating

▪ Compact Size Fits through A 28mm Hole

▪ 1…4W Capacity (On/Off)

▪ 2…4W Capacity (Dimmable)

▪ Pre-Wired Unit With Tough High Temperature Cables

▪ Max. DC Loom Length 200m (1.5mm² Cable)

▪ Load:

▪ 1…4 PCS x 1W LED (350mA)

▪ 1 PC x 3W LED (350mA)

Nano-Drive Dimensions

Fits

1-4W 350mA LED Driver (On/Off) 2-4W 350mA LED Driver (Dimmable)

DRIVE350 1-11W PRODUCT DETAILS

Product Features

▪ Loop-In Loop-Out Terminals

▪ Max. DC Loom Length 200m (1.5mm2 cable)

▪ Easy-Wire Large Terminals

▪ Short Circuit, Overload, Over-Voltage, and Thermal Protection

▪ Load:

▪ 1…11 PCS x 1W LED (350mA)

▪ 1...3 PCS x 3W LED (350mA)

▪ 1 PC x 7W LED (350mA)

Drive350 1-11W Dimensions

Cutout: Ø46mm Length: 98.5mm Height: 22mm Width: 39mm

DRIVE350 1-4W PRODUCT DETAILS

▪ Compact Size

▪ Dimmable

▪ Flicker Free Dimming Pre-Wired Cables

▪ Max. DC Loom Length 200m (1.5mm2 Cable)

▪ Load:

Drive350 1-4W Dimensions

Cutout: Ø35mm Length: 38mm Height: 21mm Width: 27mm

Product Features

▪ Easy Wire Large Terminals

▪ Dimmable

▪ Flicker Free Dimming

▪ Max. DC Loom Length 200m (1.5mm2 Cable)

▪ Load:

▪ 4…9 PCS x 1W LED (350mA)

▪ 1...3 PCS x 3W LED (350mA)

▪ 1 PC x 7W LED (350mA)

Drive350 4-9W Dimensions

Cutout: Ø43mm

Length: 115mm

Height: 22mm

Width: 39mm

Product Features

▪ Easy Wire Large Terminals

▪ Dimmable

▪ Flicker Free Dimming

▪ Load:

▪ 2 PCS x7W LED (350mA) DRIVE350 9-18W PRODUCT DETAILS

▪ Max. DC Loom Length 200m (1.5mm2 Cable)

▪ 9…18 PCS x 1W LED (350mA)

▪ 3...6 PCS x 3W LED (350mA)

Drive350 9-18W Dimensions

Cutout: Ø55mm

Length: 127mm

Height: 28mm Width: 44mm

▪ Easy Wire Large Terminals

▪ Dimmable

▪ Flicker Free Dimming

▪ Max. DC Loom Length 200m (1.5mm² Cable)

▪ Load:

▪ 12…25 PCS X 1W LED (350mA)

▪ 4...8 PCS x 3W LED (350mA)

▪ 1...3 PCS x 7W LED (350mA)

Cutout: Ø55mm Length: 127mm Height: 28mm

Product Features

▪ DALI, DALI2, (0)1-10V, Retractive Push Dimming All-In-One Unit

▪ Selectable Constant Current Output By DIP Switch

▪ Wide Output Voltage

▪ Short Circuit / Over Temperature / Over Voltage Protection

UNIDRIVE-CC 12W Dimensions

UNIDRIVE-CC 12W TECHNICAL DETAILS

Product Features

▪ DALI, DALI2, (0)1-10V, Retractive Push Dimming All-In-One Unit

▪ Selectable Constant Current Output By DIP Switch

▪ Wide Output Voltage

▪ Short Circuit / Over Temperature / Over Voltage Protection

UNIDRIVE-CC 30W Dimensions

PRODUCT COMPATIBILITY

Cutout: Ø73mm

Length: 103mm

Height: 22mm

67mm

UNIDRIVE-CC 30W TECHNICAL DETAILS

Specification Details

Product Code ADRCC30D/300-900MA

Operating Voltage 220-240V AC

/ 3-20W / 9-58V

/ 3.6-23W / 9-58V

/ 4-26W / 9-58V

/ 4.5-29W / 9-58V

/ 5-30W / 9-55V

Operating Current 0.16A Max Power Output 30W Current / Output / Voltages (DC) 300mA / 2.7-17W / 9-58V

/ 5.4-30W / 9-50V

/ 5.8-30W / 9-46V

/ 6.3-30W / 9-42V

/ 6.7-30W / 9-40V

/ 7.2-30W / 9-38V

/ 7.6-30W / 9-35V

Product Features

▪ DALI, DALI2, (0)1-10V, Retractive Push Dimming All-In-One Unit

▪ Selectable Constant Current Output By DIP Switch

▪ Wide Output Voltage

▪ Short Circuit / Over Temperature / Over Voltage Protection

UNIDRIVE-CC 40W Dimensions

Cutout: Ø85mm

Length: 123mm

UNIDRIVE-CC 40W TECHNICAL DETAILS

Specification Details

Product Code ADRCC40D/700-1200MA

Operating Voltage 220-240V AC

Operating Current 0.22A

Max Power Output 40W

Current / Output / Voltages (DC) 700mA / 6.3-40W / 9-57V

/ 6.7-40W / 9-54V

/ 7.2-40W / 9-50V

/ 7.6-40W / 9-47V

/ 8.1-40W / 9-45V

/ 8.5-40W / 9-42V

/ 9.0-40W / 9-40V

/ 9.5-40W / 9-38V 1100mA / 9.9-40W / 9-36V

/ 10.3-40W / 9-35V 1200mA / 10.8-40W / 9-33V

Output Voltage (Max) 68V DC

Dimmable Push Dim, (0) 1-10V, DALI

Height: 23.8mm Width: 79mm † Item(s) Sold Separately

Product Features

▪ DALI, DALI2, (0)1-10V, Retractive Push Dimming All-In-One Unit

▪ Selectable Constant Current Output By DIP Switch

▪ Wide Output Voltage

▪ Short Circuit / Over Temperature / Over Voltage Protection

UNIDRIVE-CC 60W Dimensions

Cutout: Ø67mm

Length: 202mm

Height: 30mm

Width: 58mm

UNIDRIVE-CC 60W TECHNICAL DETAILS

Specification Details

Product Code ADRCC60D/900-1750MA

Operating Voltage 220-240V AC

Operating Current 0.32A

Max Power Output 60W

Current / Output / Voltages (DC)

Output Voltage (Max) 68V DC

Dimmable Push Dim, (0) 1-10V, DALI

Lifetime 50,000 Hrs

Switching Cycles 100000

PRODUCT COMPATIBILITY †

Product Features

▪ 12V Constant Voltage

▪ Available in 15W, 30W, 60W, 75W and 100W

▪ Wide Output Range

▪ Zero Load Function

▪ Non-Dimmable

▪ SELV, Overload, No Load, Short Circuit, Thermal & Overcurrent Protection

▪ Screw Terminals

▪ IP20

For Product Compatibility Please Refer to Rear of Catalogue

Product Features

▪ 12V Constant Voltage

▪ Available in 25W, 50W and 100W

▪ Dimmable - Compatible With Trailing & Leading Edge Dimmers

Check out the All-Dim Dimmer Module on Page 44

▪ SELV, Overload, No Load, Short Circuit, Thermal & Overcurrent Protection

▪ Screw Terminals

▪ IP20

For Product Compatibility Please Refer to Rear of Catalogue

ADRCV1225TD

ADRCV12100TD

Product Features

▪ 24V Constant Voltage

▪ Zero Load Function

▪ Non-Dimmable ▪ SELV, Over Voltage Protection, Over CurrentProtection, Overload Protection, Thermal Cut-out, Short Circuit Protection

For Product Compatibility Please Refer to Rear of Catalogue

Product Features

▪ 24V Constant Voltage

▪ Available In 25W, 50W, 100W And 150W

▪ Dimmable - Compatible with Trailing & Leading Edge Dimmers

Check out the All-Dim Dimmer Module on Page 44

▪ Screw Terminals

▪ SELV, Overload, No Load, Short Circuit, Thermal & Overcurrent Protection

For Product Compatibility Please Refer to Rear of Catalogue ADRCV2425TD

Aluminium Profiles

Product Features

▪ Extruded 6063 Aircraft Aluminium

▪ High Strength Material

▪ Click In Opal Polycarbonate Diffuser

▪ 4 End Caps And 4 Brackets Included

▪ RAL9016 Painted (White Model Only)

Includes

▪ 2m Aluminium Extrusion

▪ 2m Opal Diffuser

▪ 4 Clear Brackets

▪ 4 End Caps

Profile1 Dimensions

Accessory Pack Includes:

• 2 x Open End Caps

• 2 x Closed End Caps

• 4 x Clear Surface Mounting Fixing

† Item(s) Sold Separately

APA001/BK/COR† Black Corner Accessory

APA001/WH/COR† White Corner Accessory

PROFILE1 WHITE

APA001/WH Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE1 ALUMINIUM

APA001/AL Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE1 BLACK

APA001/BK Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE1 ACCESSORY PACKS† Code Description

APA001/WH/ACC White Accessories Pack

APA001/AL/ACC Aluminium Accessories Pack

APA001/BK/ACC Black Accessories Pack

APA/BKDIF† Black Diffuser for APA001

APA001/BK/ACC † Accessory Pack (Black)

APA/ODIF† Opal Diffuser for APA001

APA001/WH/ACC † Accessory Pack (White)

APA/CDIF† Clear Diffuser for APA001

APA001/AL/ACC † Accessory Pack (Aluminium)

Product Features

▪ Extruded 6063 Aircraft Aluminium

▪ High Strength Material

▪ Click In Opal Polycarbonate Diffuser

▪ 4 End Caps And 4 Brackets Included

▪ RAL9016 Painted (White Model Only)

Includes

▪ 2m Aluminium Extrusion

▪ 2m Opal Diffuser

▪ 4 Clear Brackets

▪ 4 End Caps

Profile2 Dimensions

PROFILE2 WHITE

APA002/WH Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE2 ALUMINIUM

APA002/AL Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE2 BLACK

Material

APA002/BK Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE2 ACCESSORY PACKS†

Code Description

APA002/WH/ACC White Accessories Pack

APA002/AL/ACC Aluminium Accessories Pack

APA002/BK/ACC Black Accessories Pack

† Black Diffuser for APA002

Accessory Pack Includes:

• 2 x Open End Caps

† Clear Diffuser for APA002 APA/ODIF† Opal Diffuser for APA002

• 2 x Closed End Caps

APA002/WH/ACC † White Accessory Pack APA002/AL/ACC † Aluminium Accessory Pack 18.5 mm 19.3mm 25.7mm12.2mm

• 4 x Clear Surface Mounting Fixing

† Item(s) Sold Separately

APA002/BK/ACC † Black Accessory Pack

Product Features

▪ Extruded 6063 Aircraft Aluminium

▪ High Strength Material

▪ Click In Opal Polycarbonate Diffuser

▪ 4 End Caps Included

▪ RAL9016 Painted (White Model Only)

Includes

▪ 2m Aluminium Extrusion

▪ 2m Opal Diffuser

▪ 4 End Caps

Profile3 Dimensions

Accessory Pack Includes:

• 2 x Open End Caps

• 2 x Closed End Caps

• Polymer End Caps

Item(s) Sold Separately

PROFILE3 WHITE

APA003/WH Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE3 ALUMINIUM

APA003/AL Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE3 BLACK

APA003/BK Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE3 ACCESSORY PACKS†

APA003/WH/ACC White Accessories Pack

APA003/AL/ACC Aluminium Accessories Pack

APA003/BK/ACC Black Accessories Pack

† Opal Diffuser for APA003

† White Accessory Pack

† Clear Diffuser for APA003

† Black Accessory Pack

† Black Diffuser for APA003

† Aluminium Accessory Pack

Product Features

▪ Extruded 6063 Aircraft Aluminium

▪ High Strength Material

▪ Click In Opal Polycarbonate Diffuser

▪ 4 End Caps And 4 Brackets Included

▪ RAL9016 Painted (White Model Only)

Includes

▪ 2m Aluminium Extrusion

▪ 2m Opal Diffuser

▪ 4 Clear Brackets

▪ 4 End Caps

Profile4 Dimensions

† Black Corner Accessory

PROFILE4 WHITE

APA004/WH Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE4 ALUMINIUM

APA004/AL Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE4 BLACK

Material Diffuser

APA004/BK Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE4 ACCESSORY PACKS† Code Description

APA004/WH/ACC White Accessories Pack

APA004/AL/ACC Aluminium Accessories Pack

APA004/BK/ACC Black Accessories Pack

† White Corner Accessory

† Black Accessory Pack

Accessory Pack Includes: • 2 x Open End Caps

• 2 x Closed End Caps

• 4 x Clear Surface Mounting Fixing

Item(s) Sold Separately

† Clear Diffuser for APA004

† Opal Diffuser for APA004

† White Accessory Pack

Black Diffuser for APA004

† Aluminium Accessory Pack

Product Features Includes

▪ Anodised Aluminium Finish

▪ Engineered For Flexible Surface Mount Solution

▪ High Strength Material

▪ Opal Polycarbonate Diffuser

▪ End Caps & Brackets Included

▪ Bend Radius: 6 Inch Maximum

▪ 2m Aluminium Extrusion

▪ 2m Opal Diffuser

▪ 4 Steel Brackets

▪ 4 End Caps

Profile6 Flexi Dimensions

PROFILE6 FLEXI ALUMINIUM

Aluminium Alloy Opal Polycarbonate

PROFILE6 ACCESSORY PACKS†

† Accessory Pack (Aluminium)

Accessory Pack Includes:

4 x End Caps

4 x Steel Clips

APAC06

Product Features

▪ Extruded 6063 Aircraft Aluminium

▪ High Strength Material

▪ Click In Opal Polycarbonate Diffuser

▪ 4 End Caps And 4 Brackets Included

▪ RAL9016 Painted (White Model Only)

Includes

▪ 2m Aluminium Extrusion

▪ 2m Opal Diffuser

▪ 4 Clear Brackets

▪ 4 End Caps

Profile7 Dimensions

Accessory Pack Includes:

• 2 x Open End Caps

• 2 x Closed End Caps

• 4 x Clear Surface Mounting Fixing

PROFILE7 WHITE

APA007/WH Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE7 ALUMINIUM

APA007/AL Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE7 BLACK

APA007/BK Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE7 ACCESSORY PACKS†

APA007/WH/ACC White Accessories Pack

APA007/AL/ACC Aluminium Accessories Pack APA007/BK/ACC Black Accessories Pack

Accessory Pack (Black)

Accessory Pack (White)

Accessory Pack (Aluminium)

Product Features

▪ Extruded 6063 Aircraft Aluminium

▪ High Strength Material

▪ Click In Opal Polycarbonate Diffuser

▪ 4 End Caps And 4 Brackets Included

▪ RAL9016 Painted (White Model Only)

Includes

▪ 2m Aluminium Extrusion

▪ 2m Opal Diffuser

▪ 4 Clear Brackets

▪ 4 End Caps

Profile8 Dimensions

PROFILE8 WHITE

APA008/WH Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE8 ALUMINIUM

APA008/AL Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE8 BLACK

APA008/BK Aircraft Aluminium 6063 Opal Polycarbonate

PROFILE8 ACCESSORY PACKS†

Code Description

APA008/WH/ACC White Accessories Pack

APA008/AL/ACC Aluminium Accessories Pack

APA008/BK/ACC Black Accessories Pack

Accessory Pack Includes:

• 2 x Open End Caps

• 2 x Closed End Caps

• 4 x Clear Surface Mounting Fixing

† Item(s) Sold Separately APA008/WH/ACC † Accessory Pack (White)

APA008/BK/ACC † Accessory Pack (Black) APA008/AL/ACC † Accessory Pack (Aluminium)

APA008/ODIF† Opal Diffuser for APA008

APA008/BKDIF† Black Diffuser for APA008

Product Features

▪ Extruded 6063 Aircraft Aluminium

▪ High Strength Material

▪ Click In Opal Polycarbonate Diffuser & End Caps Included

▪ Designed For Easy Installation

▪ Engineered For A Continuous Light Effect

▪ 30mm Visible Aperture When Installed

▪ Foam Protection Included To Facilitate Plastering

Stealth Dimensions

▪ 2m Aluminium Extrusion

▪ 2m Opal Diffuser ▪ 4 End Caps

STEALTH ACCESSORIES†

Accessory Pack Includes:

• 2 x Open End Caps

• 2 x Closed End Caps

Product Features

▪ Extruded 6063 Aircraft Aluminium

▪ Anodised Aluminium Finish

▪ High Strength Material

▪ Click In Opal Polycarbonate Diffuser & End Caps Included

▪ Smoked Black Diffuser Available†

▪ Designed For Easy Installation

▪ Engineered For A Continuous Light Effect

▪ 13mm Width Visible When Installed

Stealth Dimensions

▪ 4 End Caps STEALTHLINE

▪ 2m Aluminium Extrusion

▪ 2m Opal Diffuser

iQ

Intelligent Lighting Control

▪ LiLo Technology For Common & L1 Live-In & Live-Out Wiring

▪ Retrofit Solution

▪ 2 - Way Wiring Compatible Using A Retractive Switch

▪ User Friendly Reset & Programming

▪ Can Be Used Independently Or In Conjunction With A Smart Hub

▪ Can Be Used With Remote Control

▪ Can Be Used With Retractive Switch For 2 Way Control

Item(s) Not Included

SMART-T ROTARY DIMMER

Dimensions

1 Gang Plate*

Galvanised Backbox*

SMART-DALI

DALI 0/1-10V Signal

Generator & 5A Relay

SMART Remotes

RGBW, CCT, Single Colour Controls

Product Features

▪ LiLo Technology For Common & L1 Live-in & Live-Out Wiring

▪ Retrofit Solution

▪ Works With A Normal Light Switch (AC Mains)

▪ User Friendly Reset & Programming From The Light Switch

▪ Load Stabiliser Recommended†

▪ Fits In 35mm Backbox

▪ Can Be Used Independently With A Remote Or In Conjunction With A Smart Hub*

SMART-R COMPATIBILITY

SMART-E

Smart Junction Box

Relay Or Dimmer

Alexa Control Allows Cross Platform Integration

SMART-R Module behind existing light switch

Scan Here For

SMART-E

Smart Junction Box

Relay or Dimmer

Alexa Control

Allows Cross Platform Integration

Product Features

▪ Designed To Replace A Traditional Junction Box

▪ Fits Through A 55mm Cutout

▪ Zigbee Hop & Mesh Technology

▪ Works With Existing Wiring

▪ Works With A Normal Light Switch (AC Mains)

▪ User Friendly Reset & Programming From Light Switch

▪ Can Be Used Independently With A Remote Or In Conjunction With A Smart Hub*

SMART-E JUNCTION BOX

Product Features

▪ DIP Switch 5-In-1 LED Strip Controller

▪ AIQ/STRIP/REC Compatible With Single Colour, CCT, RGB, RGBW & RGBWW+CW Strip

▪ Flexibile Can Be Used On Both A Smart System Or Just A Remote Control

▪ Programable Through A Light Switch Or Program Button On Device

▪ 24V Single Colour & RGBW 384W Max. 24V RGB 288W Max. 24V CCT 192W Max.

▪ Internal DIP Switches Allow Multiple Choices For Programming

▪ 5-in-1 Unit Can Be Preset To Control Any One Of The 5 Options

▪ Can Be Used Independently With A Remote Or In Conjunction With A Smart Hub*

▪ 5-in-1 Unit Can Be Preset To Control Any One Of The 5 Options DIP Switch Options

▪ Internal DIP Switches Allow Multiple Choices For Programming

Key

SMART-S STRIP CONTROLLER

Code Description Voltage

AIQ/STRIP/REC 5-In-1 Strip Controller 12-24V DC

Multiple Control Options

Product Features

▪ DALI 0/1-10V Converter

▪ Creates & Converts Smart Signals Into DALI Or 0/1-10V Signals

▪ Compatible With All iQ Devices

▪ DALI Addressable And Able To Be Grouped

▪ DALI Broadcast Mode

▪ RGBW & CCT DALI Control Output

▪ Can Be Used With Or Without Inbuilt Relay

▪ For 0/1-10V Simply Set DIP Switch 10 to Down

▪ Can Be Used Independently With A Remote Or In Conjunction With A Smart Hub*

COMPATIBLE ALEXA HUBS

SMART-DALI

▪ Supports 4 Groups For Connecting A Max. of 30 Lighting Devices

▪ Can Be Used With Or WithoutA Zigbee Smart Hub

▪ Single Colour

▪ Can Control ALL iQ Controllers Only On & Off / Dimming

▪ Supports 4 Groups For Connecting A Maximum Of 30 Lighting Devices

▪ 4 Zone Zigbee 5 Channel

▪ Single Colour, Trilogy/CCT, RGB & RGB/White

Scan Here For More Information

CR2032

SMART-E

Smart Junction Box

Relay or Dimmer

SMART-S

12-24V 5-in-1 Intelligent LED Strip Controller

SMART Remotes RGBW, CCT, Single Colour Controls

SMART-E

Smart Junction Box

Relay Or Dimmer

SMART-WS

Smart Wall Station Controller

SMART-S

12-24V 5-in-1 Intelligent LED Strip Controller

SMART-WS Smart Wall Station

SMART-WS Smart Wall Station Scan Here For

▪ Mains Input (LN)

▪ Touch Sensitive

▪ Glass Construction

▪ Zigbee Hop & Mesh Technology

▪ Single Colour, Trilogy/CCT, RGB & RGB/White

▪ Requires Pairing Prior To Backbox install

SMART-WS MODULE

SMART-WS Dimensions

Product Features

▪ Self-Adhesive Door & Window Contact

▪ Easy Programming - Simply Press and Hold

▪ Routines Enable Automation on Smart System

▪ 2 x CR2045 Batteries Included

▪ Smart Hub Required

SMART-CONTACT

SMART-SL

SMART-SL Load Stabiliser

▪ Load Stabiliser

▪ Replaces The Traditional Synthetic Load Acting As A Load Regulator For Extremely Low Current Or Inductive Circuits

▪ Compact Design Consumes Less Than 1W

Scan Here For More Information

SMART-SL MODULE

SMART-SL Dimensions

As technology in both lighting and construction improves, the attention to the very serious, but containable threat that a fire can pose to a building has become central to a variety of associated industries. Domestic and commercial properties contain ceilings that although normal in appearance, are actually fire barriers and are constructed to British or European standards that will help reduce the spread of a fire and help contain it. If this barrier is breached (for example by using a downlight or by making a hole) the fixture inserted into the breach must be ‘fire rated’ and must not affect the general integrity of the ceiling and/or its fire rating.

In general most UK domestic properties require fire rated fixtures and commercial properties will usually have concrete ceilings that are constructed to double up as a fire barrier (in this case fire rated fixtures are not a requirement).

Please consult with your local electrician for further advice on this. It is important that the fire rated downlight is suitable for the ceiling construction in which it is to be installed in and must not compromise the integrity of the fire barrier.

Minimum Periods of Fire Resistance RESIDENTIAL

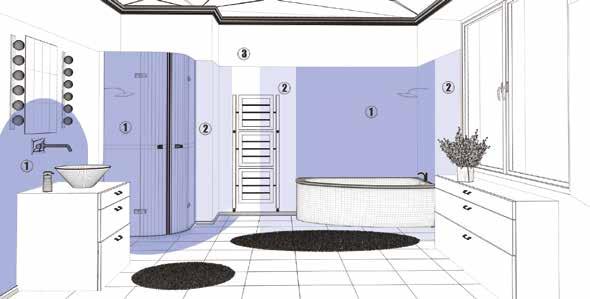

What is IP Zoning?

As a result of European standardisation, Amendment 1 of the 17th addition of the IEE Wiring Regulations (BS7671), the following regulations apply to bathroom lighting. 1

For anything outside zones 0, 1 & 2 this is treated as ‘outside of zones’, therefore no IP requirement (More: Regulation 701.32.4 of BS7671)

ZONE

ZONE

Any fittings used here must be SELV (Separated Extra Low Voltage - Max. 12Volts) and have a minimum rating of IPX7 (IP67) (protected against immersion in water - total immersion proof).

IP (Ingress Protection) Rating explained

IPXX

x (The first digit) x (The second digit)

1. The first digit - Protection against ingress of foreign bodies, like: tools, dust, fingers, etc.

FOREIGN BODY INGRESS

0. - No protection from foreign bodies;

1. - Protected against solid objects greater than 50mm (e.g. accidental touch by hands);

2. - Protected against solid objects up to 12mm (e.g. fingers);

3. - Protected against solid objects greater than 2.5mm (e.g. tools and wires);

4. - Protected against solid objects greater than 1mm (e.g. small tools and wires);

5. - Protected against dust, limited ingress (e.g. no harmful deposit);

6. - Totally protected against dust.

Above the bath or shower to a height of 2.25m. A minimum rating of IPX4 is required.

ZONE The area stretching to 0.6m outside the bath or shower and above the bath or shower if over 2.25m. An IP (rating of at least IPX4 is required).

2

2. The second digit - Protection against ingress of liquids. Ex. IP44 offers protection against solid objects greater than 1 mm and water sprayed from all directions.

LIQUID INGRESS

0. - No protection from liquids;

1. - Protection against vertically falling drops of water (e.g. condensation);

2. - Protection against direct sprays of water up to 15º degrees from vertical;

3. - Protection against direct sprays of water up to 60º from vertical;

4. - Protection against water sprayed from all directions

- limited ingress permitted;

5. - Protected against low pressure jets of water from all directions

- limited ingress permitted;

6. - Protected against high pressure jets of water (use on ship deck)

- limited ingress permitted;

7. - Protected against the effects of immersion between 15cm and 1m;

8. - Protected against long periods of immersion under pressure.

USEFUL LUMENS VS TOTAL LUMENS

▪ Non-Directional Light - Measured in a 360° sphere and displayed as total lumens which reflect the uniform light in all directions

▪ Directional Light - Measured in either a 90° or 120° cone and displayed as useful lumens disregarding light beyond cone area

▪ 120° - applies to light sources with a cone of light (Beam Angle) <120°

▪ 90° - applies to light sources with a cone of light (Beam Angle) <90°

Lumens (Luminous Flux) is the unit of measurement for visible light emitted from a light source. Delving into the concept of useful lumens helps to establish a clear understanding of the distinctions among various light sources and their emitted beams. A regular lamp distributes visible light in numerous directions, creating a broad beam angle, thereby earning the classification of a non-directional light source. On the other hand, spotlight lamps like the GU10 possess a directional beam angle where approximately 80% of their light falls within a 120° cone, categorising them as directional sources.

The measurement of useful lumens holds significant relevance in contemporary product design consideration. The methodology for quantifying useful lumens depends on the beam angle of the light source and the categorisation as directional or non-directional.

Non-Directional Light Sources

In simple terms, when a light source is designated as directional, only the visible light within a 90° or 120° cone is considered for measurement. Any light beyond this cone remains unmeasured and does not contribute to the useful lumens.

For instance, consider a directional lamp that emits a total of 600 lumens; however, the useful lumens might be 500. The remaining lumens are by no means wasted as they continue to be emitted from the light source into the surrounding environment. The concept of useful lumens helps us gauge the portion that falls within the specific 90° or 120° cone.

Conversely, if a light source is categorised as non-directional, it undergoes assessment within a 360° sphere. The total lumens are then presented as lumens or total lumens, given that the product radiates light uniformly in all directions.

Directional Light Sources

Dimming Compatibility Charts

AGU470D - Caterham Range

Dimming Compatibility Charts

AGU700D - Jaguar Range

Dimming Compatibility Charts

Dimming Compatibility Charts

AFD05 - Atom Range

ABAR/4FT/CCT Barracuda 4 Foot

ABAR/5FT/CCT Barracuda 5 Foot

ABAR/6FT/CCT Barracuda 6 Foot

The information presented in the tables above is provided as a recommendation only. We strongly advise that customers

and calculate the advice

The quantities shown are based on the assumption that items are installed in a uniform pattern and have been rounded to match the

in the

All LED Ltd. cannot be held responsible for any discrepancies between actual installations and the provided information. Ultimately, the decision on the number of

to install in any given area rests with the customer.

AFDD10W/DTW Polaris

The quantities shown are based on the assumption that items are

to install in any given area rests with the customer.

APNL1232A - Altitude 32W 1200x300

APNL1240A - Altitude 40W 1200x600

The information presented in the tables above is provided as a recommendation only. We strongly advise that customers verify and calculate the advice given. The quantities shown are based on the assumption that items are installed in a uniform pattern and have been rounded to match the figures in the tables. All LED Ltd. cannot be held responsible for any discrepancies between actual installations and the provided information. Ultimately, the decision on the number of units to install in any given area rests with the customer.

AFPD006/CCT - Orbit CCT 6W

The

are

Ltd. cannot be held responsible for any discrepancies between actual installations and the provided information. Ultimately, the decision on the number of

All

to install in any given area rests with the customer.

AFPD018/CCT - Orbit CCT 18W AFPD024/CCT

The information presented in the tables above is provided as a recommendation only. We strongly advise that customers verify and calculate the advice given. The quantities shown are based on the assumption that items are installed in a uniform pattern and have been rounded to match the figures in the tables. All LED Ltd. cannot be held responsible for any discrepancies between actual installations and the provided information. Ultimately, the decision on the number of units to install in any given area rests with the customer.

AFD010 / AFD110 - Defender Fixed & Adjustable Downlight

Atom Downlight

The information presented in the tables above is provided as a recommendation only. We strongly advise that customers verify and calculate the advice given. The quantities shown are based on the assumption that items are installed in a uniform pattern and have been rounded to match the figures in the tables. All LED Ltd. cannot be held responsible for any discrepancies between actual installations and the provided information. Ultimately, the decision on the number of

to install in any given area rests with the customer.

AGU700D Jaguar 7W GU10

AGU470D Caterham 4.7W GU10

The information presented in the tables above is provided as a recommendation only. We strongly advise that customers verify and calculate the advice given. The quantities shown are based on the assumption that items are installed in a uniform pattern and have been rounded to match the figures in the tables. All LED Ltd. cannot be held responsible for any discrepancies between actual installations and the provided information. Ultimately, the decision on the number of units to install in any given area rests with the customer.

AGU501D Morgan 5.5W GU10

The information presented in the tables above is provided as a recommendation only. We strongly advise that customers verify and calculate the advice given. The quantities shown are based on the assumption that items are installed in a uniform pattern and have been rounded to match the figures in the tables. All LED Ltd. cannot be held responsible for any discrepancies between actual installations and the provided information. Ultimately, the decision on the number of

to install in any given area rests with the customer.

LED Strip & Driver Compatibility Charts

12V Strip LED Drivers - Maximum Length Shown

24V Strip LED Drivers - Maximum Length Shown

LED Strip & Driver Compatibility Charts

24V RGB & RGB+W Strip LED Drivers - Maximum Length

Shown

24V Speciality Strip LED Drivers - Maximum Length Shown

AB00

AB20

AB65

AB67

ABADD

ABAF002/MW

ABAR/4FT/CCT

ABAR/5FT/CCT

ABAR/6FT/CCT

ABAR/EM/ST

ABAR/MS2IN1

ABAR/XT2FT/CCT

ABAR/XT4FT/CCT

ABAR/XT5FT/CCT

ABAR/XT6FT/CCT

AB/BRU/ALB 64

ABD16BZ/BLK 63

ABD16BZ/EYE/BLK 63

ABD16BZ/EYE/G 63

ABD16BZ/EYE/RG 63

ABD16BZ/EYE/SS 63

ABD16BZ/EYE/WH 63

ABD16BZ/G 63

ABD16BZ/GRB/G 63

ABD16BZ/GRB/RG 63

ABD16BZ/GRB/SS 63

ABD16BZ/GRB/WH

ABD16BZ/RG

ABD16/CCT

ABE13OVW/CCT

ABE13RDW/CCT

AB/EM/PACK

ABHW12BZ/BK

ABHW12BZ/WH

ABHW12/CCT

AB/LEN/BZ-BLK

AB/LEN/BZ-PC

AB/LEN/CCT

ABLS240/CCT

AB/MSC

AFD05/F/SN/CCT

AFD05/F/WH/CCT 26

AFD010BZ/BK 33

AFD010BZ/MWBB 33

AFD010BZ/MWMW 33

AFD010BZ/PC

AFD010BZ/SN 33

AFD010BZ/WH 33

AFD010D/30 32

AFD010D/30/0-10V 32

AFD010D/30/DALI 32

AFD010D/40 32

AFD65-75/IC 20

AFD65BZ/F/BLK 25

AFD65BZ/F/PC 25

AFD65BZ/F/SN 25

AFD65BZ/F/WH 25

AFD65BZ/IP/BLK 25

AFD65BZ/IP/PC 25

AFD65BZ/IP/SN 25

AFD65BZ/IP/WH 25

AFD75 20

AFD75BZ/A/AB 21

AFD75BZ/A/AN 21

AFD75BZ/A/BB 21

AFD75BZ/A/BC

AFD75BZ/A/BLK

AFD75BZ/A/PB

AFD75BZ/A/SN 21

AFD75BZ/A/WH 21

AFD75BZ/F/AB

AFD75BZ/F/AN

AFD75BZ/F/BB

AFD75BZ/F/BC

AFD75BZ/F/BLK

AFD75BZ/F/PB

AFD75BZ/F/PC

AFD75BZ/F/SN

AFD75BZ/IP/PB

AFD75BZ/IP/BB

AFD75BZ/IP/BC

AFD75/CP/BLK

AFD75/CP/PC

AMKR012BZ/AB

AMKR012BZ/BB

AMKR020/BAFWH

AMKR020BZ/AB

AMKR020BZ/BB

AMKR020BZ/BLK

AMKR020BZ/COP

AMKR020WH/30

AMKR020WH/40

AMKR020WH/BL

AMKR032AL/30

AMKR032AL/40

AMKR032AL/BL

AMKR032BZ/COP

AMKR032WH/40

AMKR032WH/BL

AMKR044AL/30

AMKR044AL/40

AMKR044WH/30

AMKR044WH/40

AML12V/AL/30

AML12V/AL/40

APNL632/SBOX

APNL1232A/CCT

APNL1232A/CCT/0-10

APNL1240A/CCT

PRODUCT CODE PAGE
