ARCHITECTURE PORTFOLIO

ALISTAIR TEAGLE | Graduate Of Architecture | Selected Works 2019-2023

PROFILE: Freelance architectural draftsperson, recent graduate of the Masters of Architecture at the University of Adelaide.

I have professional experience in commercial and residential construction, documentation, project design and graphical presentation.

Recognised and commended for my considered approach to aesthetics and practicality, I try to approach tasks from an analytical perspective.

I am eager to further develop and apply my skills in a professional environment to obtain my full registration.

CONTAC T S: +0451-231-911 Ajteag@gmail.com Facebook .com/IamTeags PO Box Nth Adl. 5089 Linkedin.com/in/alistairteagle-33668029a/ E XPER TISE:

CONTENTS: NAFC

03

COMMERCIAL RENDERS AND PROMOTIONAL MATERIAL

SHORESCAPE

05

CONCEP TUAL DESIGN AND MATERIAL CONSTRUC TION

REFORMATION

09

ARCHITECTURAL DESIGN AND DOCUMENTATION

REGENER ATION

15

RECONSTRUC TION AND ADAP TIVE RE-USE

THE PROMENADE URBAN DESIGN AND L ANDSCAPING

17

NORTH ADEL AIDE FOOTB ALL CLUB COMMERCIAL RENDERS AND PROMOTIONAL MATERIAL In July 2021, I was commisioned by Billson and Sawley Architects to develop conceptual 3D renders to assist with the promotion and finance of their proposed redevelopments for the North Adelaide Football Club. This involved the construction of digital 3D models of the redevelopments with reference to the existing buildings and official documents outlining the proposed rennovations.

•

E xtra focus was given to the lighting of the rendered spaces. It was crucial to ensure all light sources and levels were accurate to the proposed design.

•

As promotional material, it was essential to include images of people interacting with the new developments to provide an understanding of how the space was used.

GY

FUNCTION CENTRE

M

S NA

IU

M

SHORESC APE CONCEP TUAL DESIGN AND MATERIAL CONSTRUC TION This original building design was developed in response to a program brief presented

by AusOcean research, who held a competition concerning the conceptual design of a new research facility located near the Maslin Beach area. This involved a site analysis to determine the buildings location, consideration for relevant thematic aesthetics as well as detailed construction with regards to material palette.

•

The geometr y of the building was inspired by seashells since their form is a product of the pressures and influences from oceanic activity that Ausocean was formed to research.

•

The major structural elements were selected for their environmental, structural and aesthetic performance.

Rammed-Earth Walls: Uses shells as calcium component for suppor t .

Corrugated Iron: Aesthetically mimics seashells for roofing.

Timber : Reminiscent of driftwood to match coastal theme.

Concrete: Provides necessar y foundation suppor t .

1) Visual Inspiration:

2) E x tr

racting Geometr y:

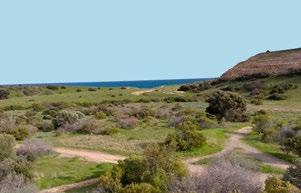

PROJEC T LOCATION The site location was determined with reference to access between the highway and ocean.

3) Developing Form:

4) Refining Design:

5) Final Developments:

Eastern Elevation:

Eastern Section:

Nor thern Elevation:

Nor thern Section:

Shorescape Ground Floor Plan:

Shorescape First Floor Plan:

Reformation Green Roof Detail:

Reformation Window Shading Detail:

.5

L GA

14

KS

m

AC

TB

SE

LE

4m

IES

AR

ND

OU

EB

SIT

Reformation Development Process:

REFORMATION ARCHITECTURAL DESIGN AND DOCUMENTATION Reformation is a development proposal for the Adelaide Lutheran Church of South Australia for potential rennovations/additions at 139-153 Archer Street. The existing church building hosts an active church congregation, but with the surrounding area recently seeing growth in development , the current occupants were interested in exploring options for how the site could grow.

The project involved designs for a new program and built developments, including structural designs and documentation. It was intended to ser ve as a welfare transition center, where tenants would rest and recover after intensive surger y.

Reformation Nor th Section:

Reformation Fire E xit Detail:

Reformation Reverse Brick Veneer Detail:

Reformation Ground Floor Plan:

Reformation West Section:

Reformation First Floor Plan:

REGENERATION

01

RECONSTRUC TION AND ADAP TIVE RE-USE Regeneration is an adaptive re-use stratergy concerned with the total rennovation of The Academy Court Housing District on 640 Militar y Road.

The project was undertaken for my Final Studio and involved a detailed site analysis from local historical context to cataloguing the specific amounts of built material, redesign of each building module with respect to existing architectural aesthetic and detailed documentation of all changes made to built fabric. The project was intended as a housing facility for homeless war veterans.

Original Contex t:

Proposed Demolitions:

04

Modifications To Origin

nal Fabric :

02

03

05

06

Additional Features and Developments:

Organising Circulation and Greenspace:

Building Module 1 Development Process:

Building Module 1 Floorplan:

Building Module 1 Floorplan:

Building Module 2 Development Process:

Building Module 2 Floorplan:

Building Module 2 Section:

THE PROMENADE URBAN DESIGN AND L ANDSCAPING The promenade was a superblock proposal combining the four major city blocks which comprised Uni SA’s major student facilities into a single campus space optimised for pedestrian traffic.

The challenge was to rennovate the existing vehicle infrastructure into a new design which would not impede pedestrian access through the campus whilst also providing avenues for vital ser vices (food deliver y, garbage disposal, firetrucks) to move throughout the site uninterrupted. An urban design experiment which involved a careful balance of considerations between different modes of transportation.

Permeable Brick : Used in the construction of the sidewalk .

Bluestone Paving: Used in the composition of the promenade.

Aranged Stone: Decorative paving for the vehicle paths.

Blunt Leaved Tulipwood: QLD native spreading tree.

Ruby Chip Butterfly Bush: Red, drought resistant shrub.

Bush Ciquefoil: Flowering shrub from the rose familly.

Ex t Gra e n t s : yS tre The et a cam nd Mo pus is rph l ett ocate Str d eet with , an in d N the ort four hT err block ace , Cu distri rrie ct be t Str eet ween .
