01 Gravitas

Location: 435 N Camden Dr. Beverly Hills, CA Gross Exterior: 5,900SF Gross Interior: 16,000 SF https://www.instagram.com/gravitasbeverlyhills/

2

Gravitas is a private social club. A sophisticated escape where members can forge meaningful connections, share experiences, and celebrate a shared identity.

The project features a composite metal-clad overhead structure with a custom tree pattern illuminated bottom, defining the dining space and integrating lighting. Inspired by the transparency and lightness of Philip Johnson’s Glass House, a retractable fabric awning provides shelter while leaving the center open to the sky. This design complements the existing modern commercial building from the Post-World War II era. The exterior includes a garden with a map of Beverly Hills in terrazzo flooring, walnut millwork, and jewel-tone furniture, blending with composite metal beams to create a luminous atmosphere. The surrounding landscape, designed by landscape architect Kelly Rasmussen, enhances the feeling of being encapsulated by nature in the garden area.

Project Involvement: SD, DD, CD, CA

3

INTERIOR BAR

RESTROOM

THE VAULT

KITCHEN

CAMDEN DR.

GARDEN BAR

SANTA MONICA BLVD.

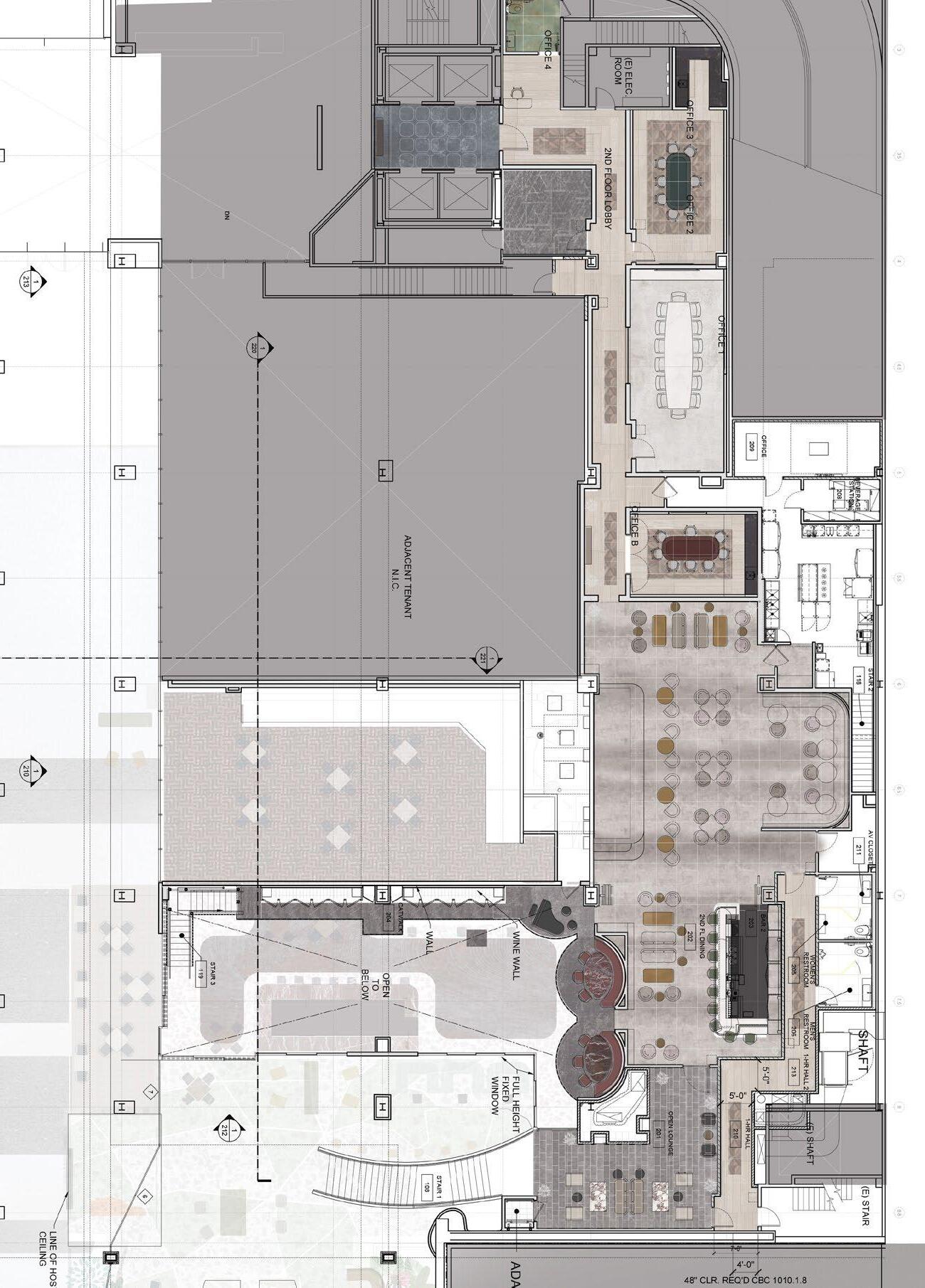

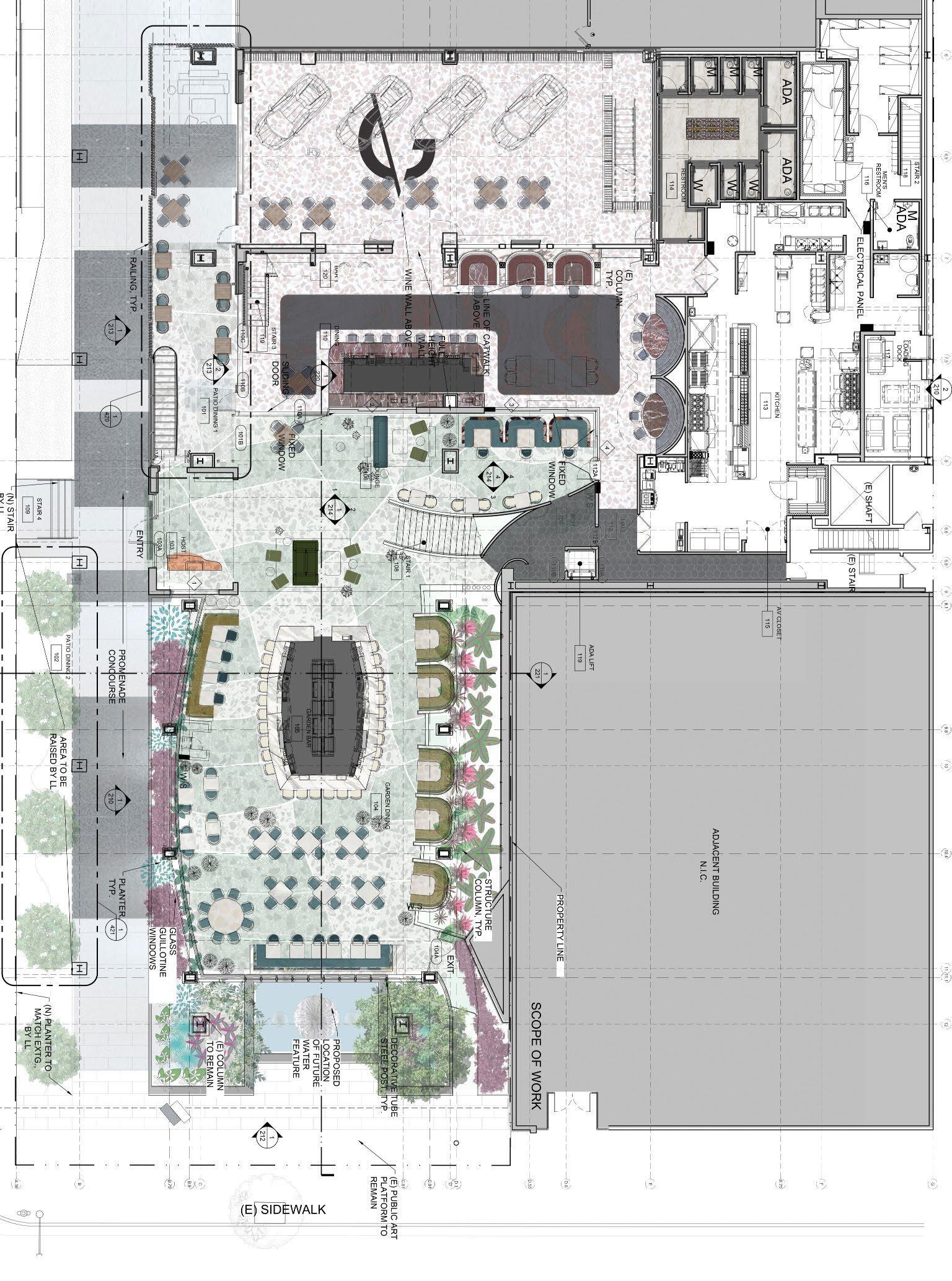

1ST FLOOR PLAN N Not to Scale 4

PODCAST POKER

OFFICE

KITCHEN POKER

THE VAULT

2ND FLOOR DINING

SANTA MONICA BLVD.

OPEN TO BELOW

2ND FLOOR PLAN N Not to Scale 5

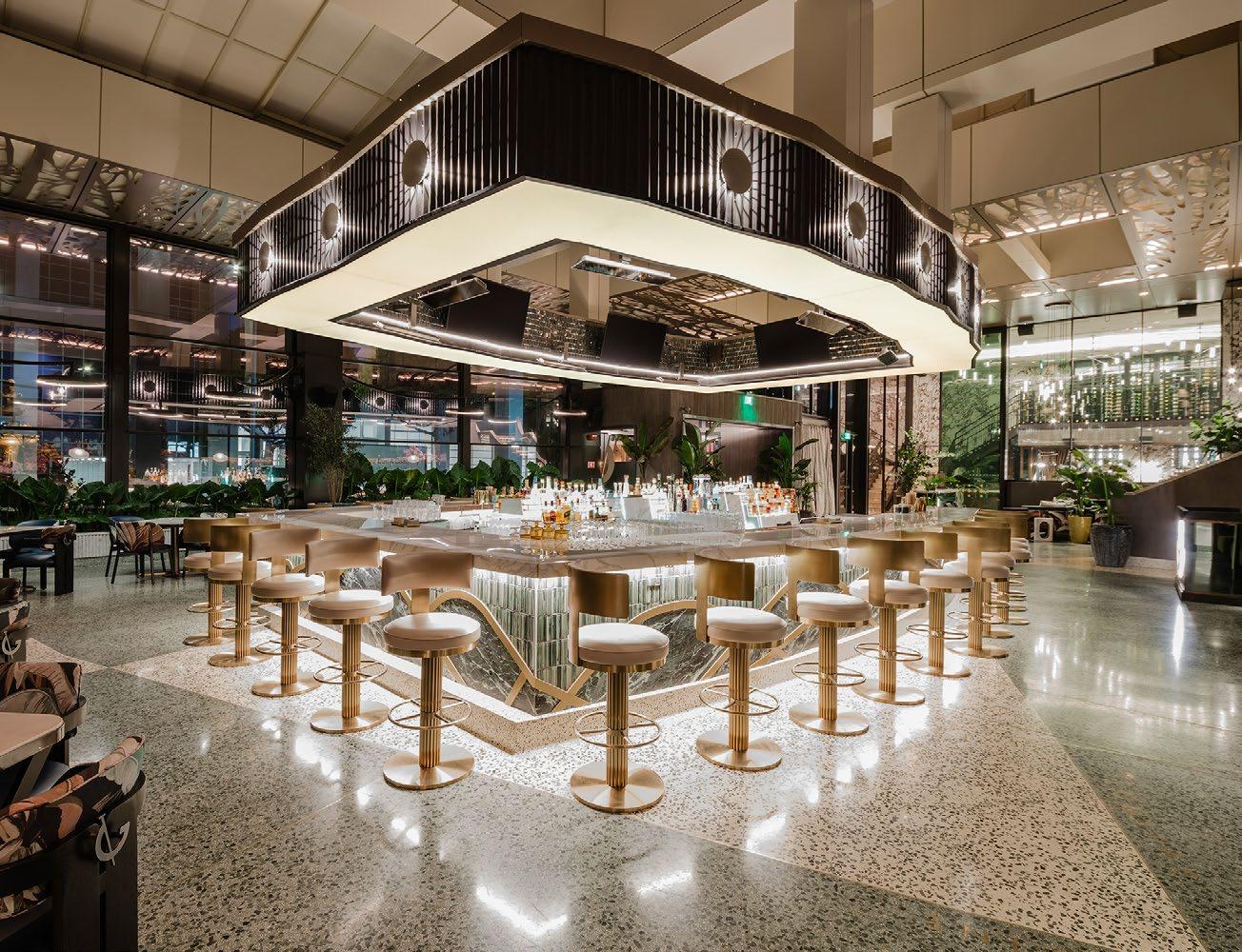

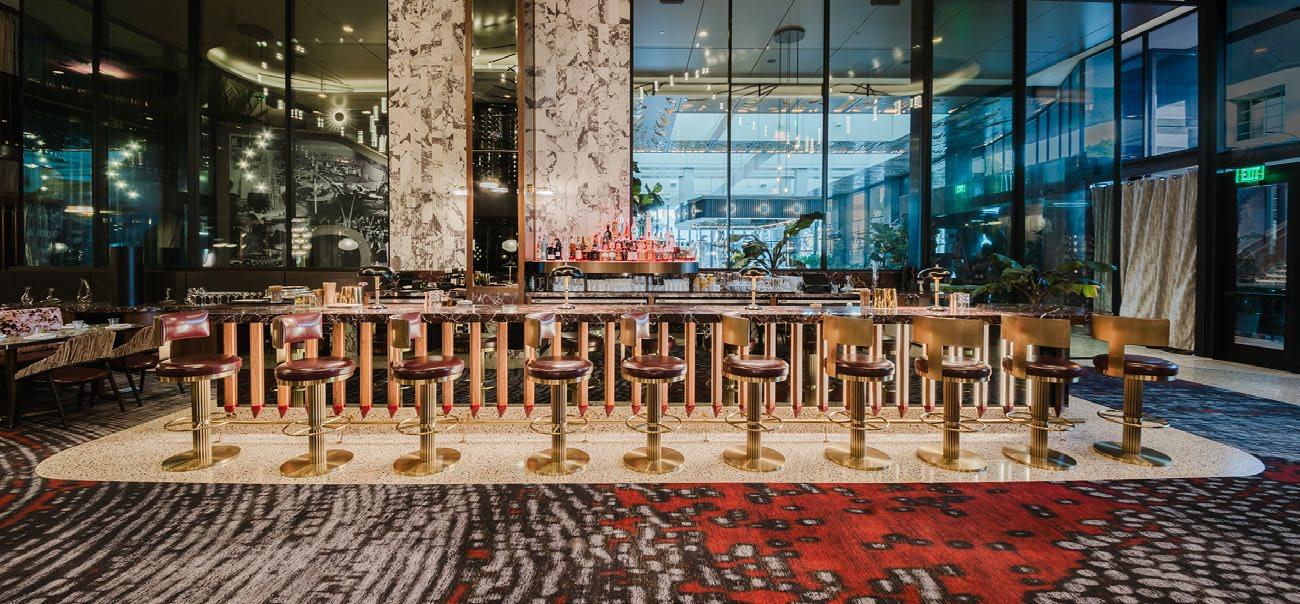

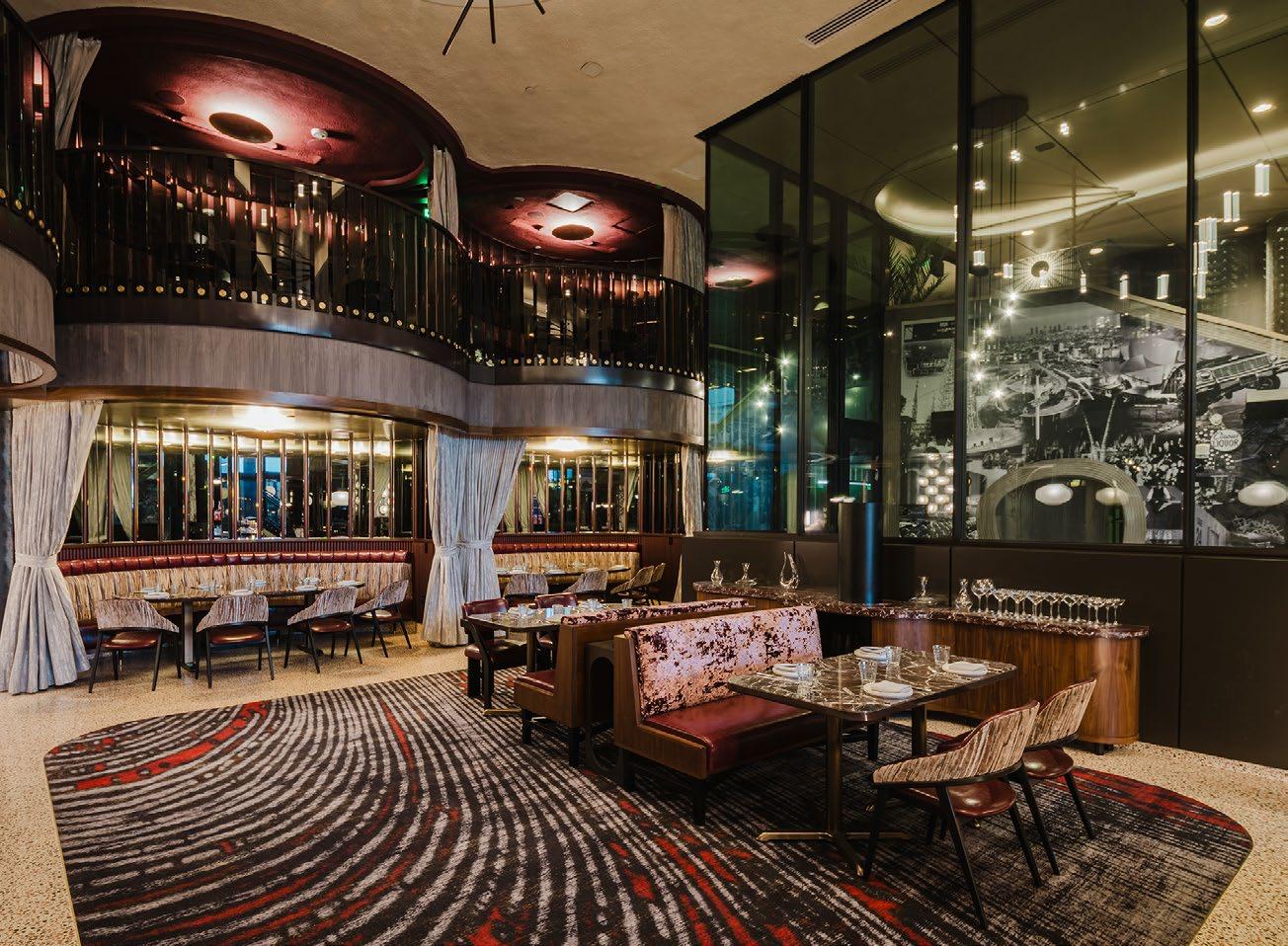

1ST FLOOR INTERIOR BAR Mirror and walnut bar face / Otiima sliding glass doors / Chemetal with lit up back bar millwork / Custom bar stools / Custom pattern terrazzo & carpet flooring

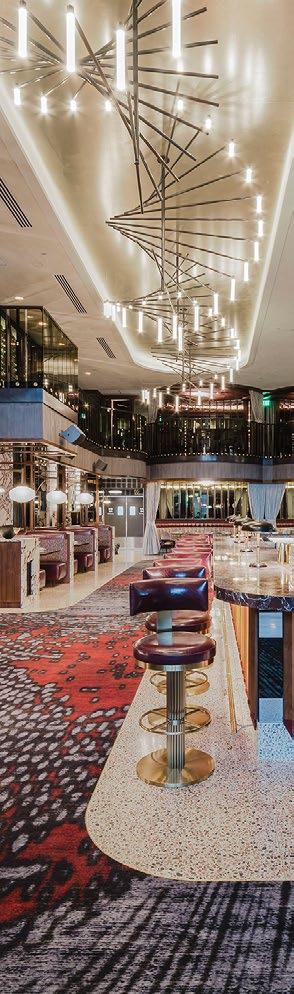

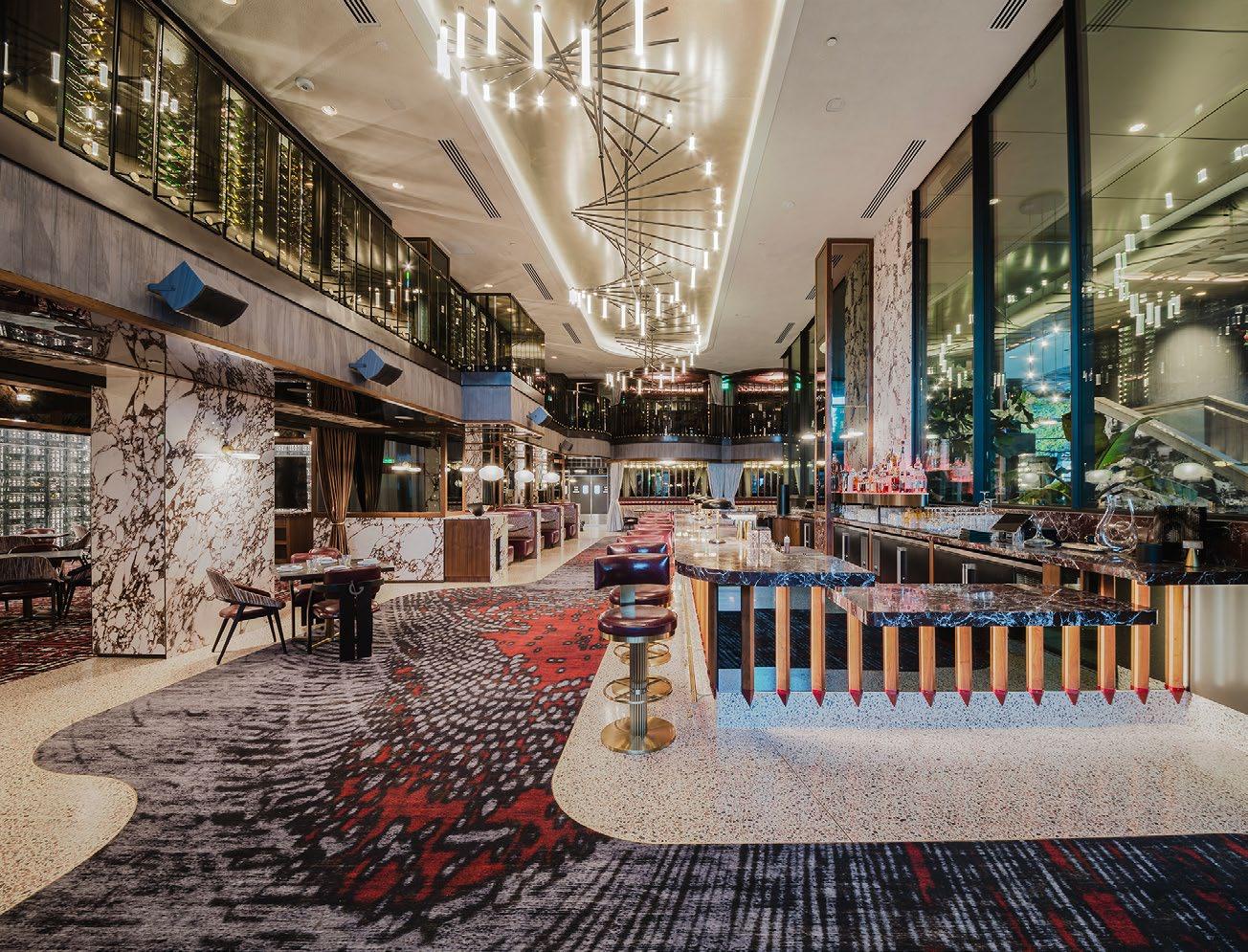

1ST FLOOR INTERIOR Custom chandeliers & Lights/ Wine cellars / Laminated glass railing / Custom seats 6

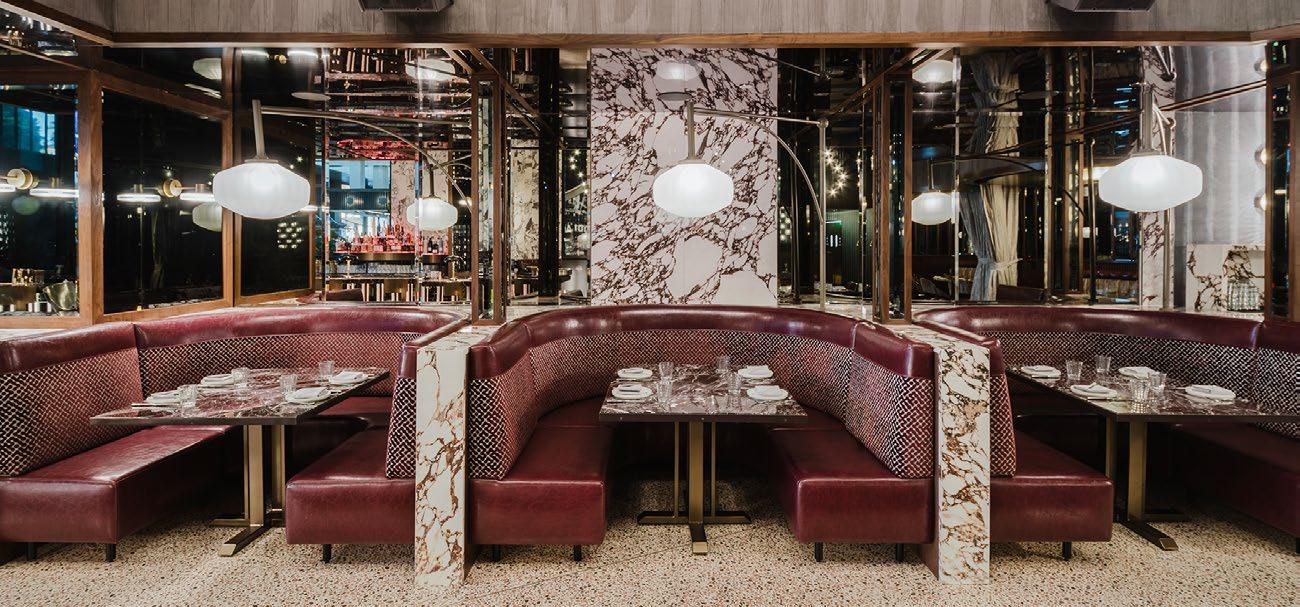

1ST FLOOR INTERIOR BAR BUILT IN BOOTHS Custom designed seats fabric / Custom light fixtures / Porcelain tiles with walnut as low wall / Custom table top & base / Chemetal ceiling / Walnut trim with mirror

1ST FLOOR INTERIOR Custom banquette and seats / Designed side table / Round alcoves with fire treated drapes for privacy / Sonokrete soundproof ceiling / Otiima windows / ACM panels

7

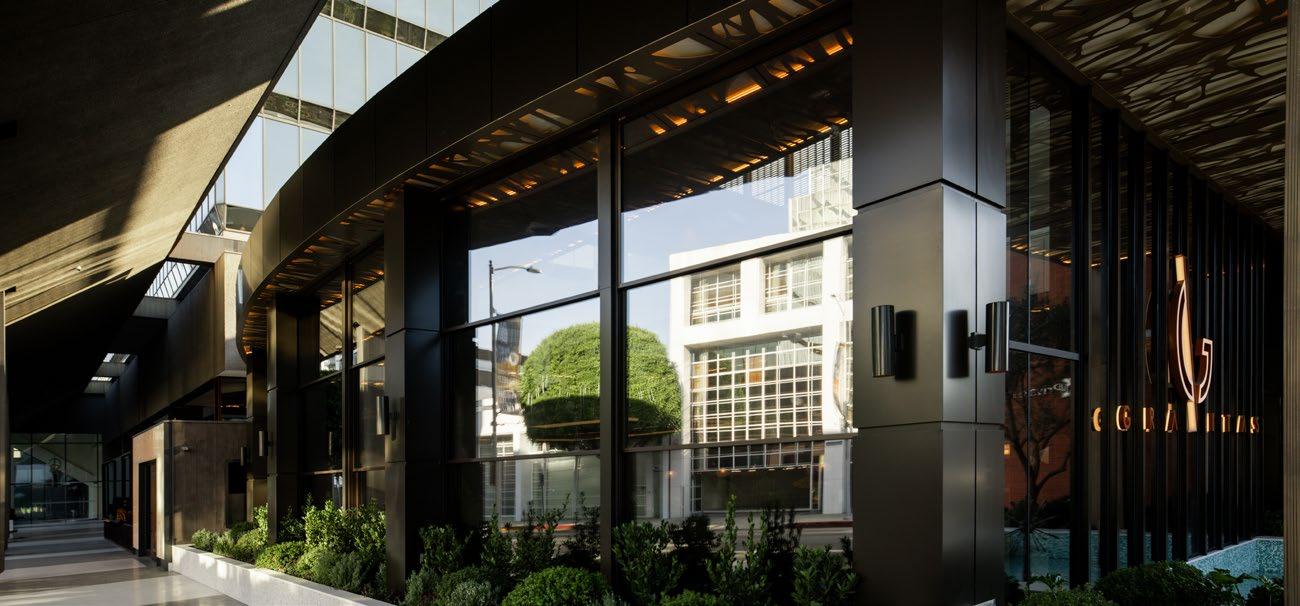

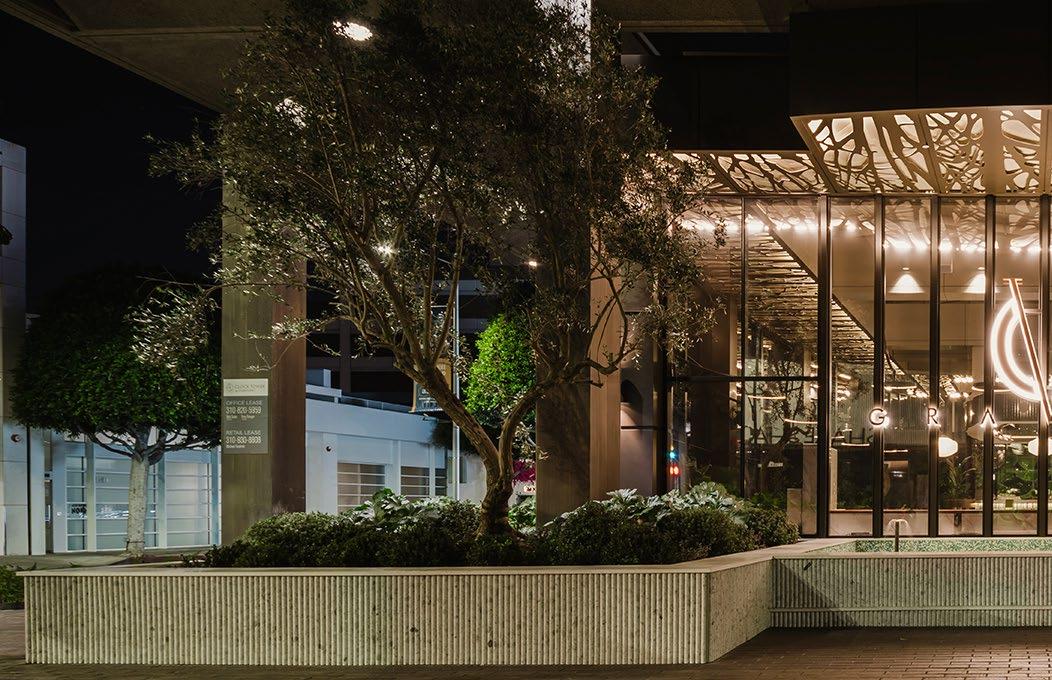

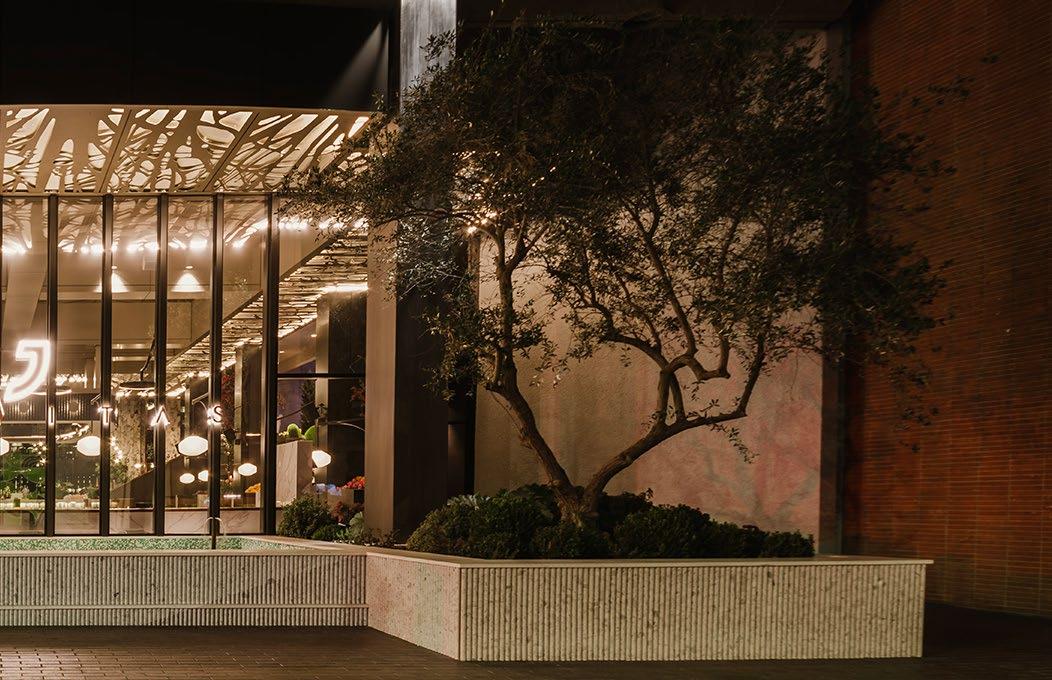

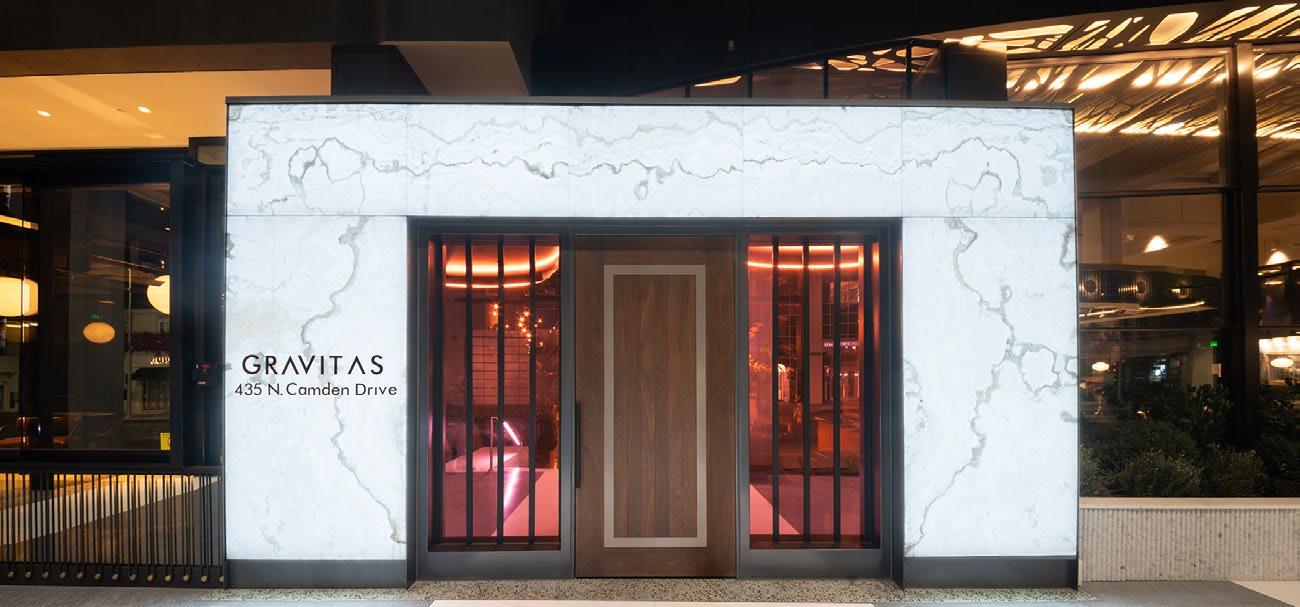

MAIN ENTRY Custom backlit stone / Powder coated steel frame / Laminated pink glass / Solid walnut door

8

1ST FLOOR GARDEN BAR Stone tile, marble, brass on bar face / Terrazzo curb foot rest / Corrugated ACM bar soffit with custom LED panels & lights / Water fountain at center island bar

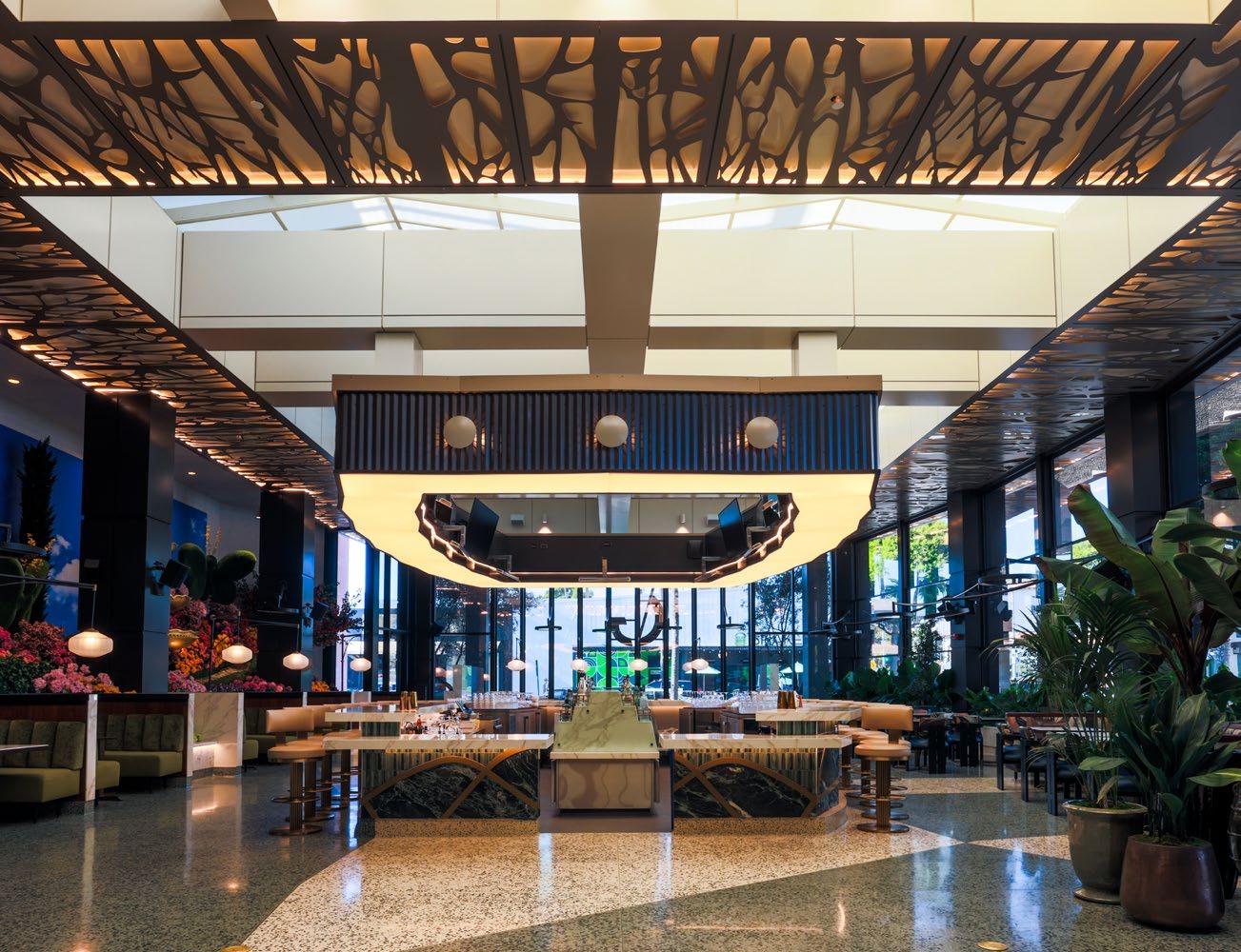

EXTERIOR ACM over intumescent painted columns / ACM roof & tree pattern ceiling / Lift up guillotine windows / Live plants

1ST FLOOR GARDEN BAR Custom bar face / Custom designed booths / Custom ACM tree pattern ceiling / Operable roof / ACM ceiling / Terrazzo floor patterned as Beverly Hills map

9

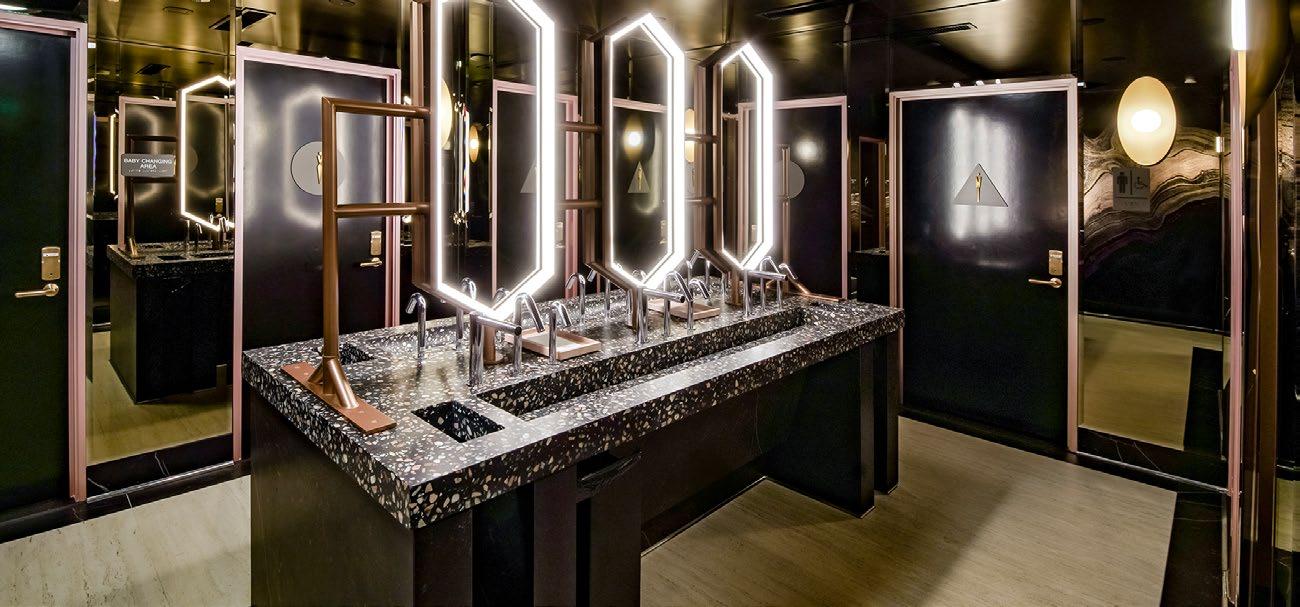

RESTROOM Custom lavatory / Custom brackets mirror support / Lacquer doors / Dekton floors / Bronze beveled mirror / Custom wallpaper

10

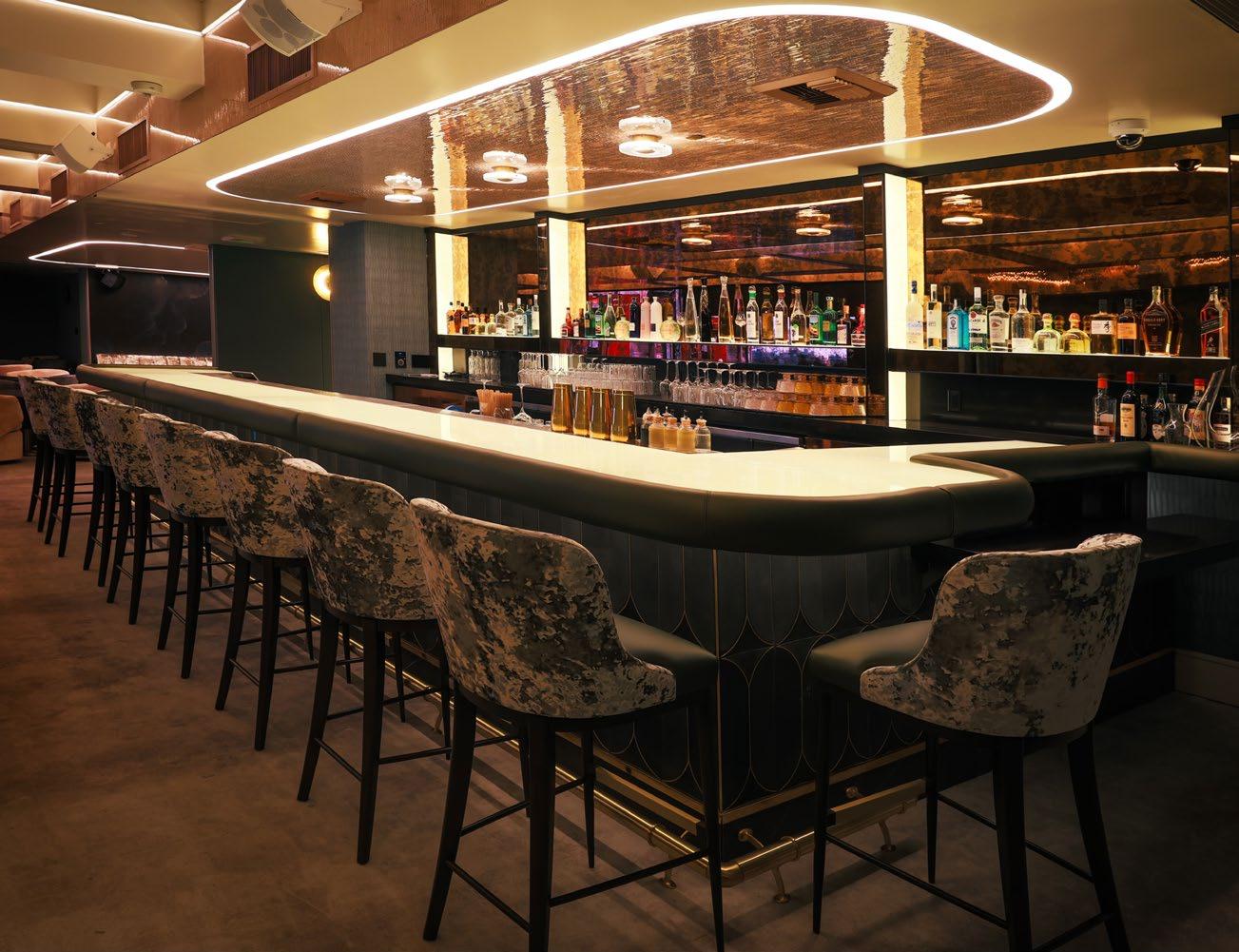

2ND FLOOR BAR Backlit stone bar top & columns / Padded bar nosing / Custom light fixtures / Mirror tile ceiling / Stone bar face / Custom bar stools / Antique mirror

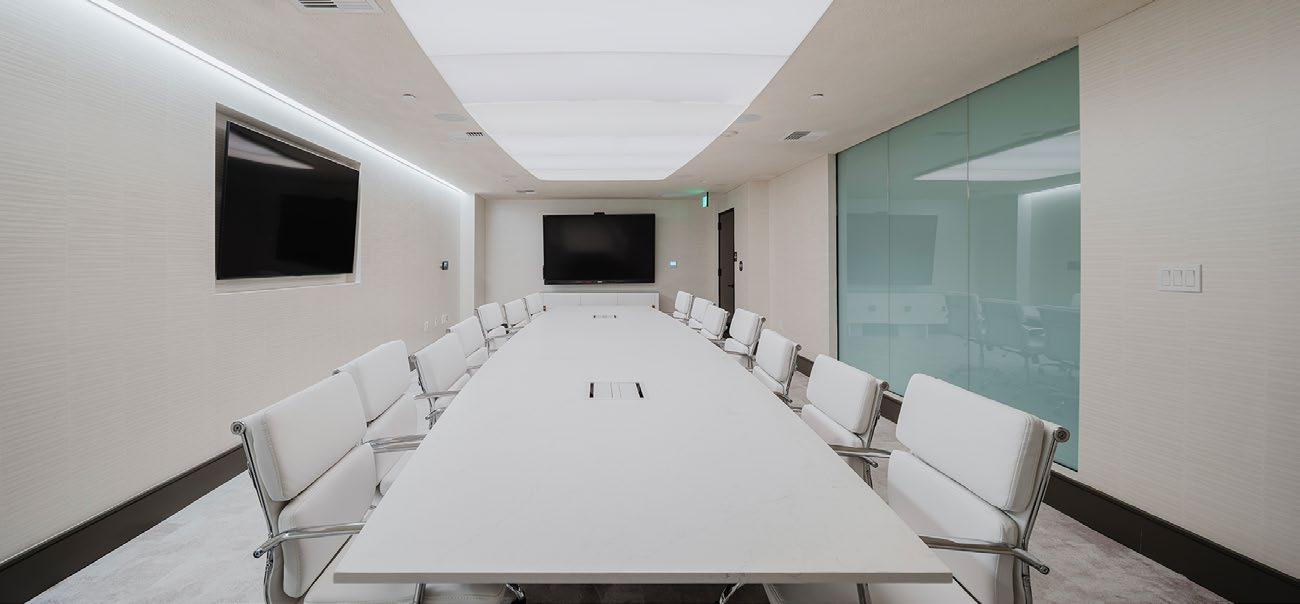

2ND FLOOR OFFICE / CONFERENCE ROOM Sonakrete soundproof ceiling / Privacy on off glass / Custom LED panels / Custom long table / Carpet floor / Patterned wallpaper / Built in TV

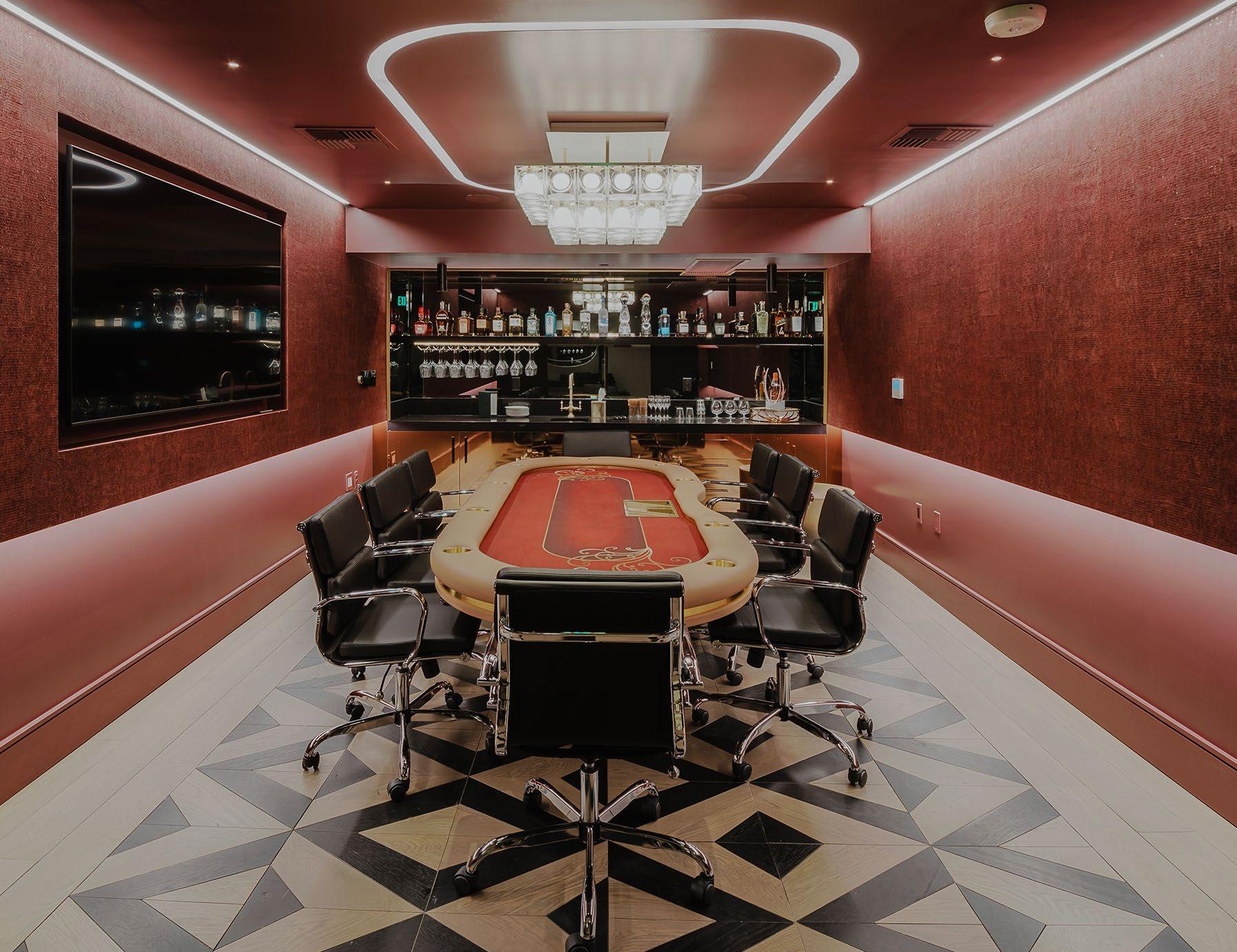

2ND FLOOR RED POKER ROOM Custom wood floor / Custom poker table with flip over dining table top / Cork wallpaper / Custom light fixtures / Built in TV / Quartz bar top / Bronze mirror

11

STONE COUNTER TOP @ 42" ST-6

8'-7"

6'-0"

V.I.F.

V.I.F.

1

3"

9"

2'-1"

V.I.F.

(2) LAYERS 2" MARINE PLYWOOD

+34" A.F.F.

SCALE: 6"=1'-0"

5'-8"

.

3'-10"

9 TYP.

NOSING DETAIL

11 TYP.

STAINLESS STEEL INSERT; COLOR TO MATCH COPPER BAREWARE SAMPLE PROVIDED BY ARCHITECT STAINLESS STEEL SCUPPER TRAY

8"

3'-0"

2'-6"

212"

3'-0"

14'-2"

(2) LAYERS 21" MARINE PLYWOOD

3'-6"

6

6'-5"

7 ST-6

3'-1"

2"

(3) LAYERS OF STONE AT PATRON SIDE ST-6

85 8"

IN 36" M

112"

5'-7"

GRT-7

1'-5"

HANDBAG HOOK LED STRIP LIGHT ATTACHED TO 1"X1" CONTINUOUS ANGLE

WT-3

ST-6

SCALE: 6"=1'-0"

3 TYP. +34" A.F.F.

STONE COUNTER TOP @ 42" ST-6

2'-6"

4 -

5'-7"

SCUPPER DETAIL

5

3'-1"

7

3 4" COPPER PIPE, DRAIN TO FLOOR SINK

3"

6 -

(2) LAYERS 1/2" MARINE PLYWOOD

(3) LAYERS OF STONE AT PATRON SIDE

8" x 8" x 14" STEEL ANGLE

BAG HOOK HW-#

LED STRIP LIGHT INSIDE BAR; SEE A-3.11 FOR MORE INFO

2

LED STRIP LIGHT; SEE A-3.11 FOR MORE INFO

PROVIDE ACCESS HATCH @ EACH TABLE LAMP DIE WALL @ 16" O.C.

WT-3 GRT-7

FRP

3'-6"

P-6

LINE OF BAR EQUIPMENT; SEE K-SHEET

7 ST-12

P-6

B-12 6" CONCRETE BASE

1/2" ANCHOR BOLT @ 36" O.C.

FL-13

FL-2

ECO-GRIP FLOOR

FLOOR

ENLARGED BAR SECTION

WT-3

3'-4"

4'-0"

G8

G18

G8

G8 G9 G9

G10

G8

G18

G8

G8

G8 G4 13

13

12

TYP.

TYP.

1 A-5.22

1 TYP.

TYP. 2" METAL BENT FLAT BAR TO BE CONTINUOUS. SIMILAR TO RAMCAST F22. CURVE AND DOWN CURB AND INTO FLOOR TERRAZZO DIVIDER STRIP. P-6

5

4'-9"

2'-10"

P-6

TYP.

ST-12

B-12

FL-2 FLOOR

ENLARGED ADA BAR SECTION SCALE: 1-1/2"=1'-0"

12 MARCH 2023

BAR FACE 7 DETAIL SCALE: 6"=1'-0"

TERRAZZO POUR UP TO CONCRETE CURB

1'-7"

6" CONCRETE BASE

ECO-GRIP FLOOR FL-13

4

8

1 " 4 ST-12

7 -

1/2" ANCHOR BOLT @ 36" O.C. BASE

1" X 2" STEEL RECTANGULAR TUBE IN BENT SHAPE, SIMILAR TO RAMCAST R1264. P-6

GRT-7

FRP

5 TYP.

G8

3'-2"

7" 13'-5"

3" (2) LAYERS 1/2" MARINE PLYWOOD

8" x 8" x 14" STEEL ANGLE DIE WALL @ 16" O.C.

GRT-7

6 -

LED STRIP LIGHT

2 A-5.21

WT-3

5 " 8

STONE COUNTER TOP @ 42" ST-6

2'-6"

10 TYP.

4"

SCALE: 1-1/2"=1'-0"

2"

3

COVE BASE

4'-9"

B-5

4

1

TYP.

TYP.

23'-6"

27'-1"

-

6'-0"

6

TYP.

TYP.

5"

V.I.F. +42" A.F.F.

2

ST-6

17

3'-0"

2"

8.

9.

10.

11.

4'-6"

16

3

13.

14.

15.

16.

17.

5'-6"

16'-1"

2'-5"

2'-5"

1"

3'-0"

MARBLE STONE

SAGE TERRAZZO POLISHED BASE MOSAIC TILE

3'-2"

5 -

RIBBED ACM PANEL

1'-2"

1 A-5.23

POWDER COATED TUBE

2'-6"

3'-1"

11 ST-6

LIGHT FIXTURE

14'-3"

3'-0"

TYP.

KEYNOTES Die wall at 16" O.C. Line of die wall below.

Line of equipment below.

Line of counter top above.

Bar equipment; see K-Sheet for information.

Stone counter top at 42" AFF. ADA Stone counter top at 34" AFF; see 4/for information.

Line of ADA counter; see 2/- for information.

POS by owner.

Floor sink; see K- sheets for more info.

Stone top bottle shelves with refrigerated drawers on both side; see A-5.23 for more info.

Refrigerated drawers on both side, flat panel with tile finish.

LED strip light; see A-3.11A for more info.

Not used.

Not used.

Stone joints where occur.

Provide 81" radius at edge of stone joints.

5'-6"

3'-1" 36" M IN.

TYP.

12.

TYP.

1'-3"

5'-8"

3'-2"

1"

5"

8"

TYP.

1.

2.

3.

4.

5.

6.

7.

GENERAL NOTES +42" A.F.F.

1.

17

ST-6

2

TYP.

23'-11"

GARDEN BAR TOP PLAN SCALE: 1/2"=1'-0" 1

4

TYP.

TYP.

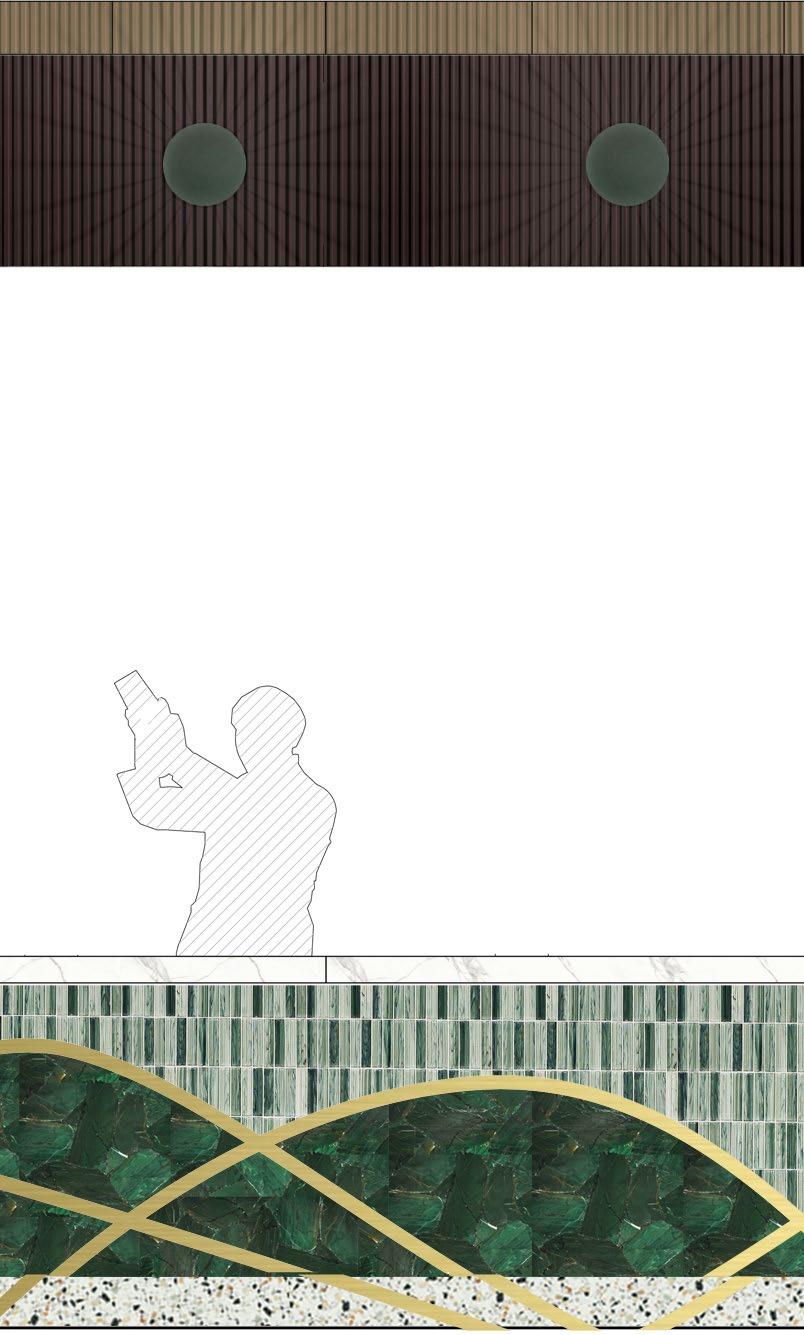

BAR ELEVATION

KEYNOTES 4"

G18

G8

3'-5"

G8

7"

G18

12'-9"

G10

G8 G8 12 TYP.

10 TYP. 13

5"

G6

1 A-5.21

1

GARDEN BAR EQUIPMENT PLAN SCALE: 1/2"=1'-0"

1. Die wall at 16” O.C. 2. Line of die wall below.

3. Line of equipment below.

4. Line of counter top above.

5. Bar equipment; see K-Sheet for information.

6. Stone counter top at 42” AFF. 7. ADA Stone counter top at 34” AFF; see 4/- for information.

8. Line of ADA counter; see 2/- for information.

9. POS by owner.

10. Floor sink.

11. Stone top bottle shelves with refrigerated drawers on both side.

12. Refrigerated drawers on both side, flat panel with tile finish.

13. LED strip light.

14. Not used.

15. Not used.

16. Stone joints where occur.

17. Provide 1/8” radius at edge of stone joints.

8/29/2023

15'-7"

Enlarged Garden Bar Plan & Sections

10

16'-3"

All exterior bars to be covered with kennon rodent proof cover after business hours.

A-5.20

6

13

02 SAN ANTONIO WINERY Location: 737 Lamar St, Los Angeles, CA 90031

Gross Exterior: 6,000SF h t t p s : / / w w w. i n s t a g r a m . c o m / t h e 1917la/

14

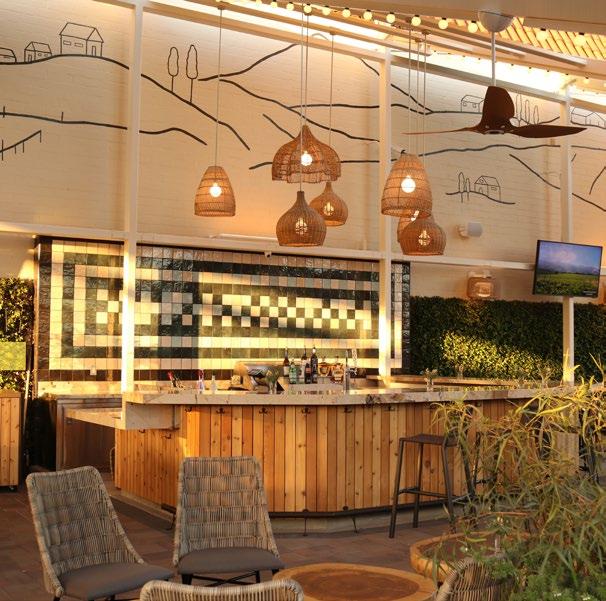

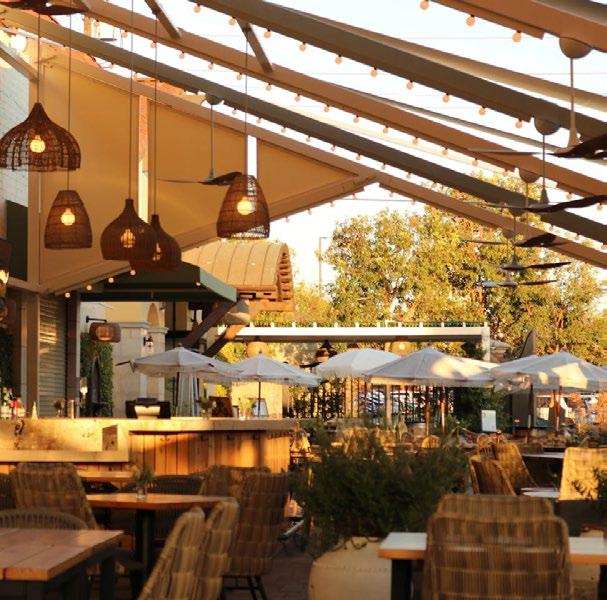

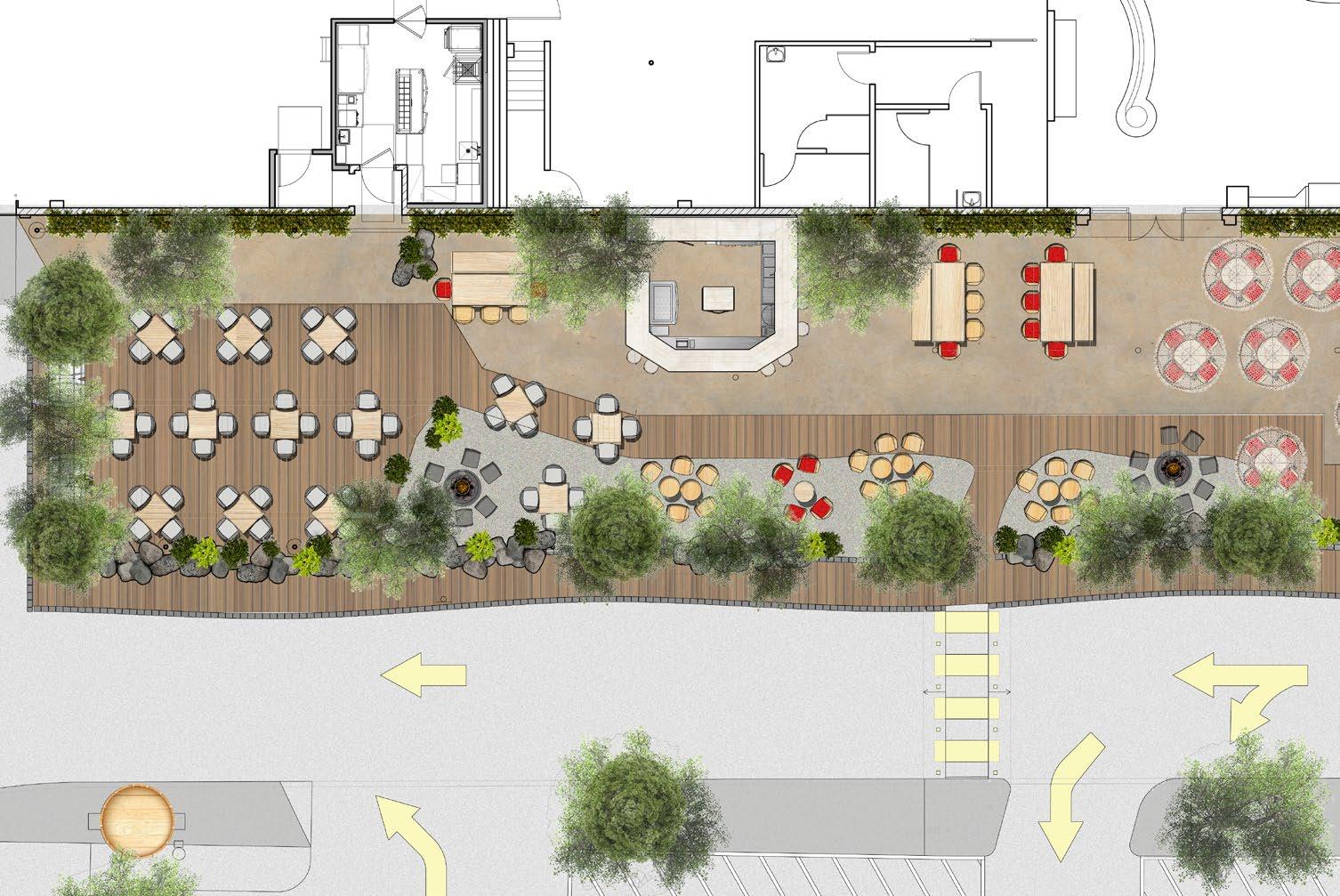

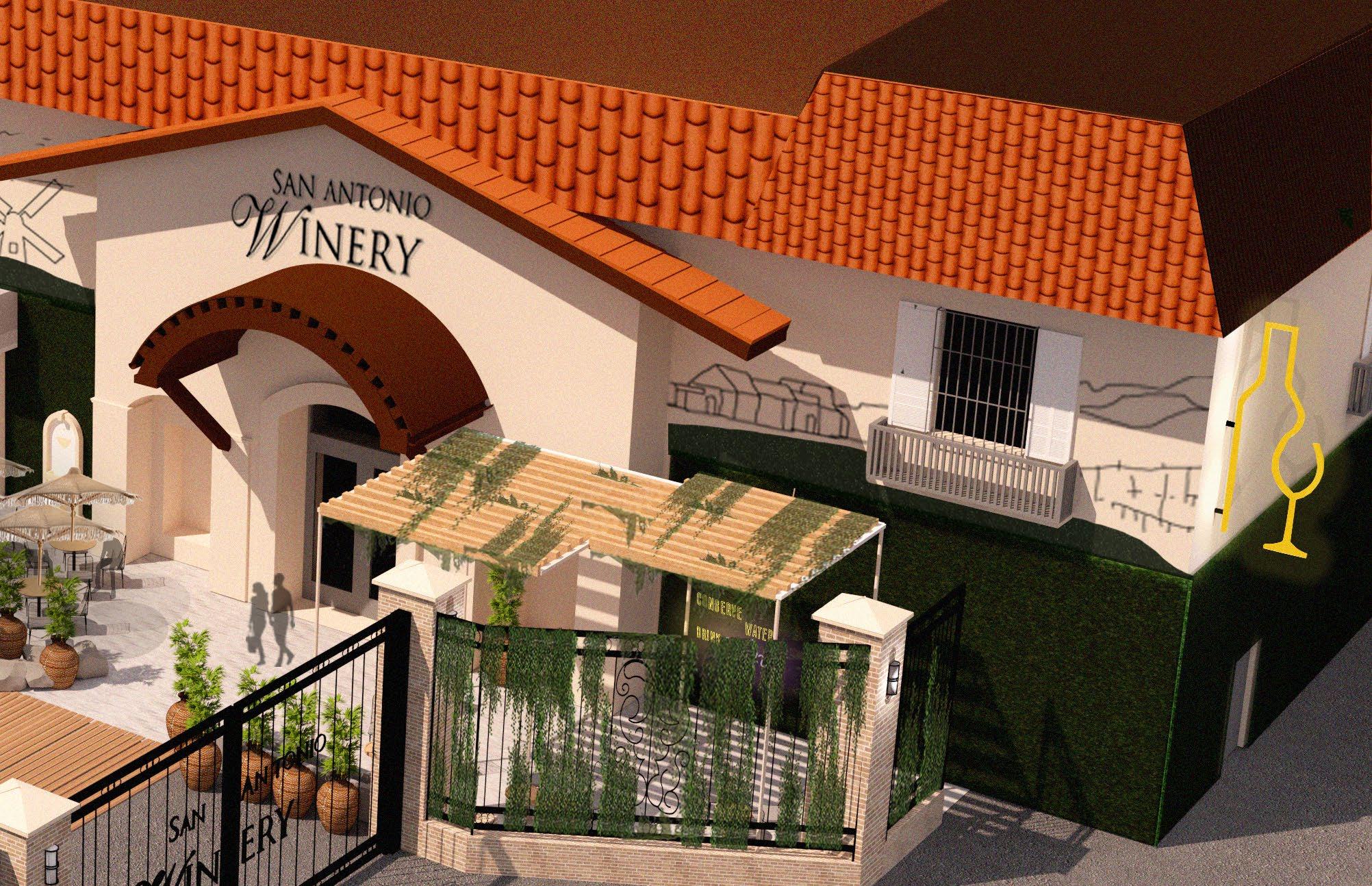

This new outdoor dining and wine tasting addition welcomes guests to experience our historical, original winery location in a whole new way.

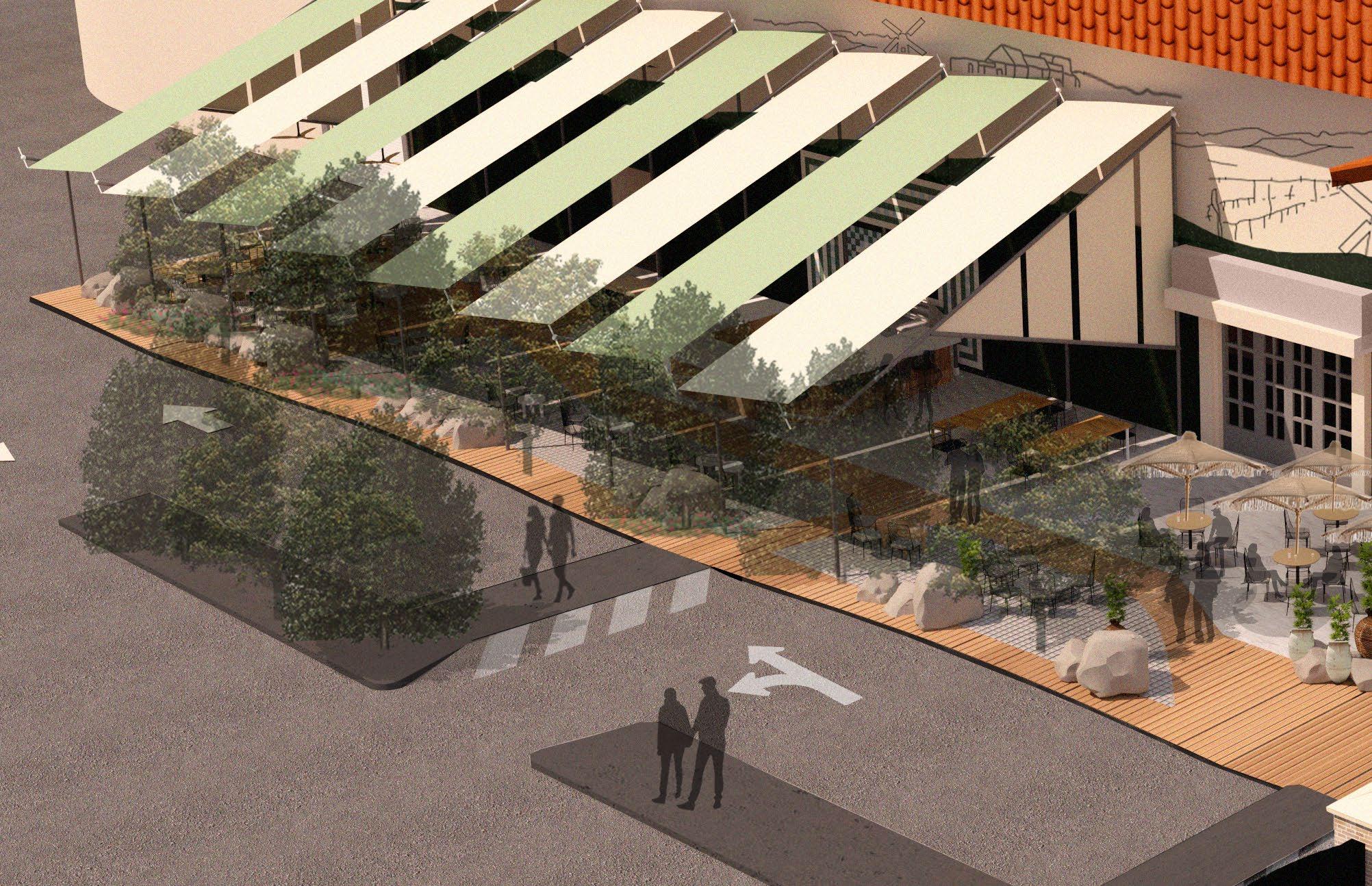

The design aims to recreate an authentic outdoor winery vibe for patrons to enjoy Los Angeles’s beautiful weather. The covered canopy provides shading and ventilation during wine tastings, utilizing fire-rated fabric that allows natural light to filter through.

The central bar location ensures efficient service and accommodation of guest needs.

Additionally, car circulation has been reconsidered, featuring a 5-foot-wide paved walkway along the restaurant perimeter to prevent delivery trucks from hitting the canopy.

Hand-selected pots filled with real little Ollie, shrubs, and lavender create a natural ambiance, while bid boulders meticulously placed by the architect further enhance the authentic outdoor environment.

Project Involvement: DD, CD, CA, Completion

15

CAISSON FOUNDATION

BAR 16

OUTSIDE CANOPY

2A -HIGH

HSS 6”X4”X3/8”

R

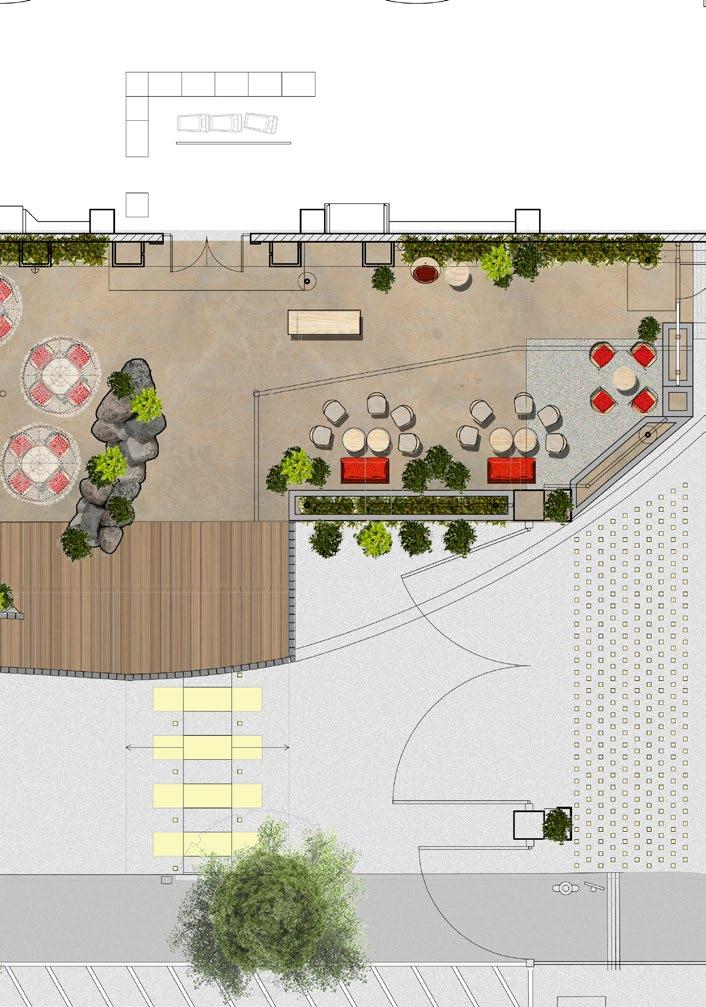

FLOOR PLAN

CANOPY DETAILS

E

SECTION DETAIL SCALE:

1-1/2"=1'-0"

SCALE:

SIDE PANEL ATTACHMENT DETAIL

3/4"=1'-0"

CANOPY DETAIL

SCALE:

2

5

SHADE ATTACHMENT D

INSIDE CANOPY

SCALE:

17

4

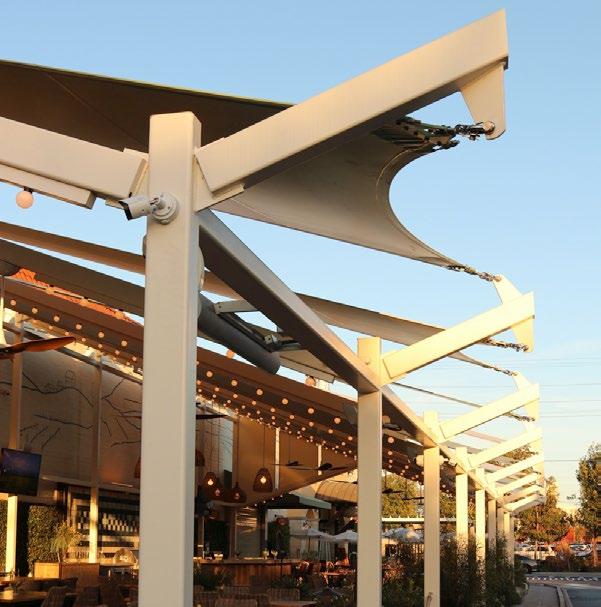

STRETCHED CANOPY FABRIC CANOPY CABLE 1-1/2" Ø ADJUSTMENT COLLAR & 21" Ø ATTACHMENT ARMS

STRETCHED CANOPY FABRIC

4"X6" STEEL TUBE KNIFE PLATE 4"X6" STEEL POST

18

3 -

6'-112"

4"X6" STEEL TUBE

STRING LIGHTS; SEE A-3.11 FOR MORE INFO

6'-8" MIN.

4 A-2.50

FL-1 STONE CURB

SAND SET STONES @ 1% SLOPE MAX LINE OF (E) ASPHALT TO BE REMOVED ROUGHEN (E) ASPHALT PAVING

1% SLOPE MAX

4"

c:\users\alice\zoho workdrive (kelly architects)\ka current projects\2110-san antonio winery\cad\plt sheets\a-2.91.dwg 9/23/2021 10:07 PM

STRETCHED CANOPY FABRIC

18"X10" 3000 PSI CAST IN PLACE CONCRETE WITH #4 REBAR CONTINUOUS

(E) ROAD BED TO REMAIN EXCAVATE (E) ROAD & (N) BACKFILL FOR (N) TREE PLANTING WEED BARRIER OVER ROAD BASE

BOULDER - SCRIBE STONE PAVING AND DECKING TO STONE SHAPE; 21" MAX.

STRETCHED CANOPY FABRIC CANOPY CABLE

4"X6" STEEL POST KNIFE PLATE 4"X6" STEEL TUBE 1-1/2" Ø ADJUSTMENT COLLAR & 21" Ø ATTACHMENT ARMS

2404 wilshire blvd. suite 1 los angeles, ca 90057-331 tel.213.380.8498 fax.213.380.849

STRING LIGHTS

ENLARGED SECTION SCALE: 1-1/2" - 1'-0"

STRETCHED CANOPY FABRIC

THE DRAWINGS, SPECIFICATIONS, IDEAS DESIGNS AND ARRANGEMENT REPRESENTED THEREBY ARE AND SHAL REMAIN THE PROPERTY OF TH ARCHITECT; AND NO PART THEREOF SHAL BE COPIED, DISCLOSED TO OTHERS OR USED IN CONNECTION WITH ANY WORK OR PROJECT OTHER THAN THE SPECIFI PROJECT FOR WHICH THEY HAVE BEE PREPARED AND DEVELOPED WITHOUT TH WRITTEN CONSENT OF THE ARCHITECT VISUAL CONTACT WITH THESE DRAWING OR SPECIFICATIONS SHALL CONSTITUT CONCLUSIVE EVIDENCE OF ACCEPTANC OF THESE RESTRICTIONS

3 -

CANOPY CABLE

© 2014 Kelly Architect

4"x6" STEEL TUBE KNIFE PLATE 4"x6" STEEL POST

PROJECT

9'-5" 20’-0” 20'-0"

DATE

As Shown

Job No.

2110

AT

Checked by:

GK

Scale:

3 A-2.21

60"x18" CAISSON FOUNDATION

4"x6" STEEL POST

Drawn by:

5 A-2.23

9'-0"

1 A-2.22

SCALE: 1/2" - 1'-0"

Issue for Bid

ENLARGED ELEVATION

CANOPY ELEVATION

2

ISSUED FOR

STONE CURB

INFO

LIGHT FIXTURES; SEE A-3.11 FOR MORE INFO

September 3,2021

6'-112"

LINE OF (E) WALL

TITLE

FAN WHERE OCCURS; SEE A-3.11 FOR MORE INFO

Canopy Plan, Elevation, and Sections

4'-1112"

SPEAKER BY OWNER

4"x6" STEEL TUBE

4"x6" STEEL POST

4"x6" STEEL TUBE STRETCHED CANOPY FABRIC BACKFILL (N) CONCRETE TO ALIGN WITH (E) CONCRETE

5'-0"

CANOPY CABLE

CANOPY SECTION SCALE: 1/2" - 1'-0"

1 1'-6"

BUILDING SECTION

CANOPY PLAN SCALE: 1/2" - 1'-0"

ENLARGED CANOPY PLAN

NUMBER

1-1/2" Ø ADJUSTMENT COLLAR & 21" Ø ATTACHMENT ARMS

60"x18" CAISSON FOUNDATION

4

San Antonio Winery 737 Lamar St. Los Angeles, CA 90031

1-1/2" Ø ADJUSTMENT COLLAR & 21" Ø ATTACHMENT ARMS

19

Origin Date:

RUN ELECTRICAL CONDUIT ON TOP OF 2"x4" STEEL TUBES. CUSTOM FITTING 1 41" Ø LIGHTING STEM

A-2.91

3

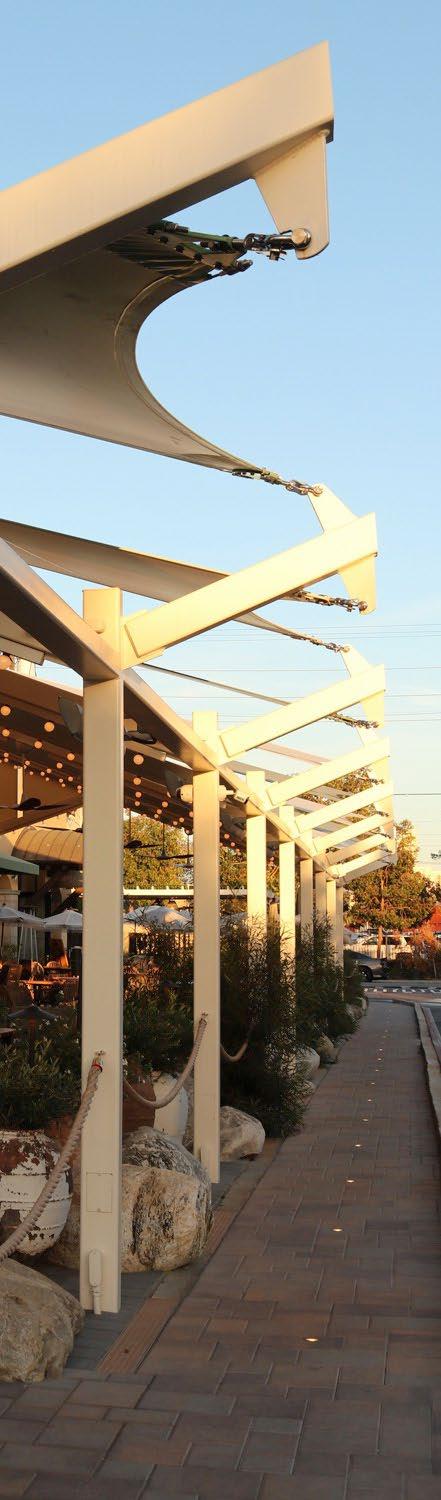

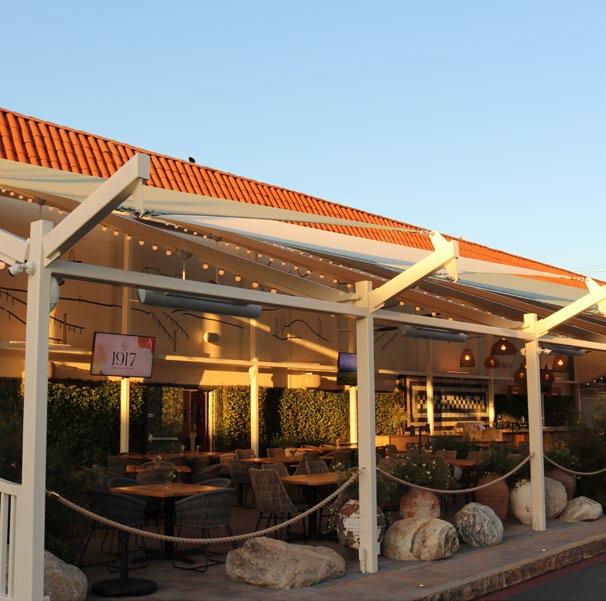

COMPLETION PHOTO

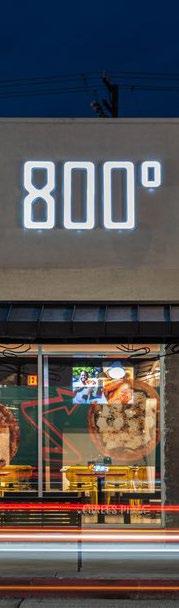

03 800 DEGREES

Location: Burbank, CA Gross Interior: 1,500 SF Involvement: CD, CA, Completion

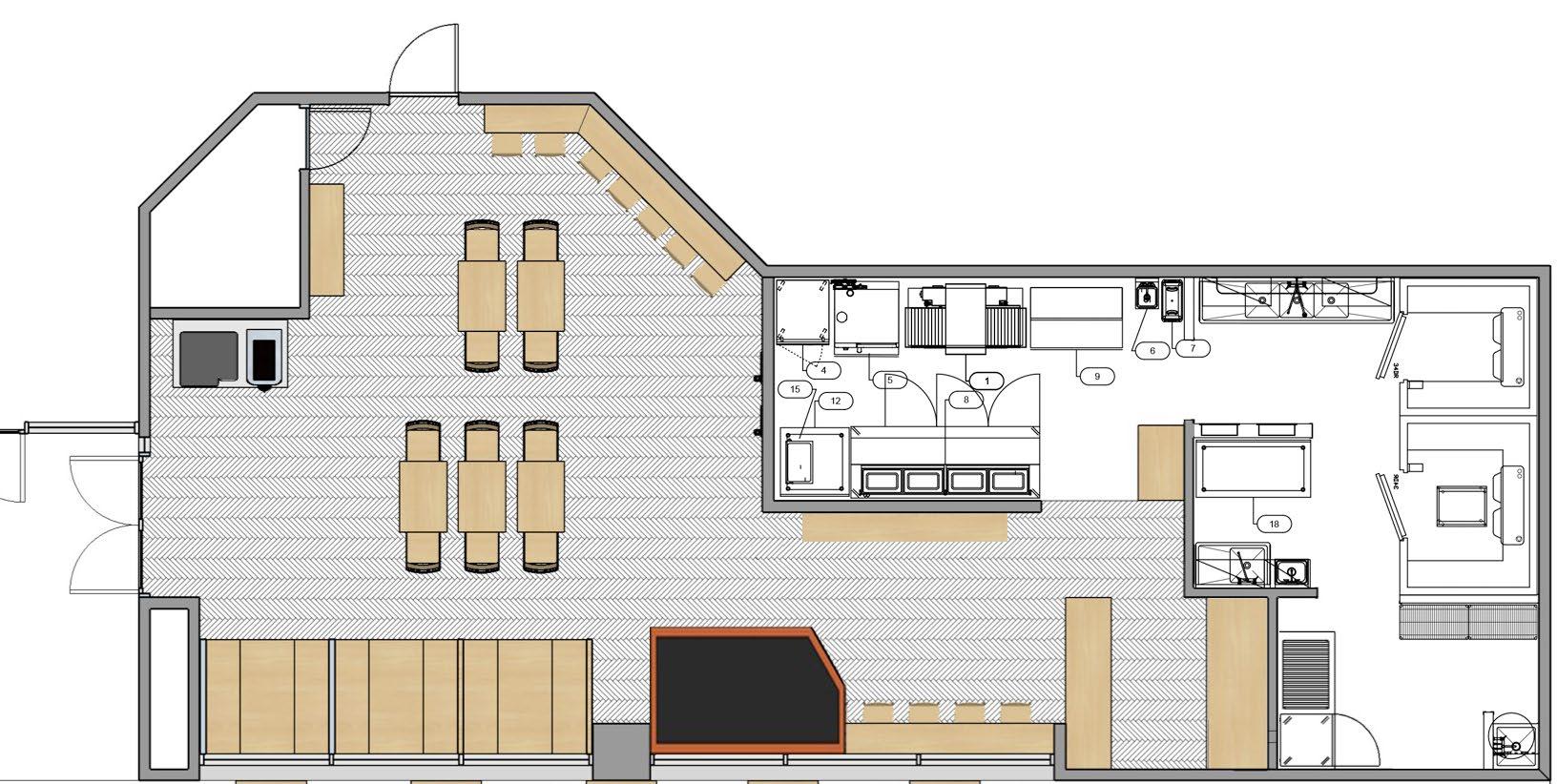

FLOOR PLAN 20

EP

EP

RENDERING 2'-6"

4'-11"

3'-

6'-912"

61 2"

1'-1012"

2'-812"

9'-712"

3'-11"

5'-2"

DB

5'-9"

3'-0"

3'-8" 7'-2"

5'-0"

3'-11"

3'-

0"

2'-6"

The project is designing a space where customers can enjoy skateboarding activities while also indulging in pizza and other food offerings.

5'-0"

2'-1012"

Gross Interior: 1,500 SF

2'-1112"

3'-0"

Location: 2461 Mission St Unit A, San Marino, CA 91108

8'-1012"

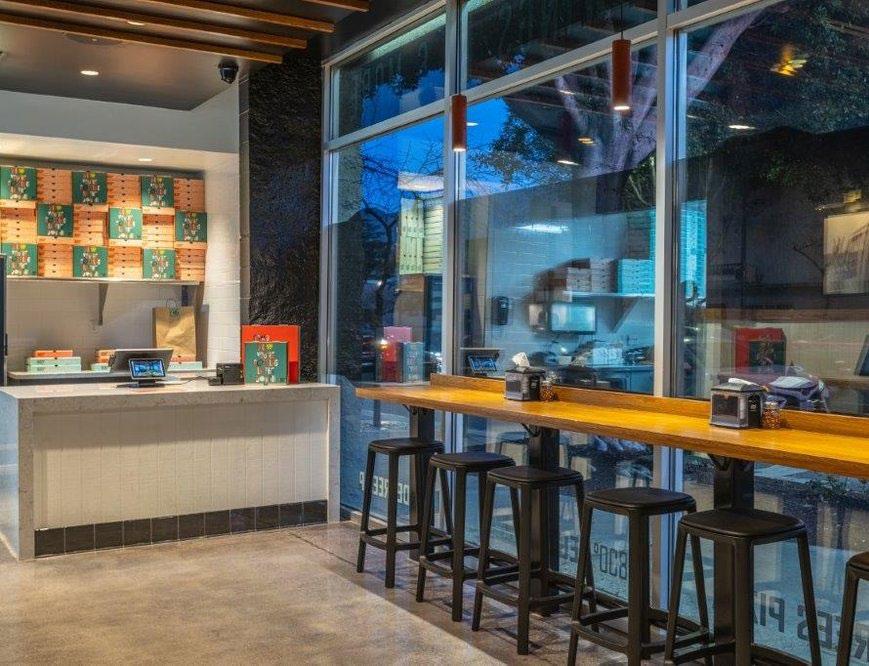

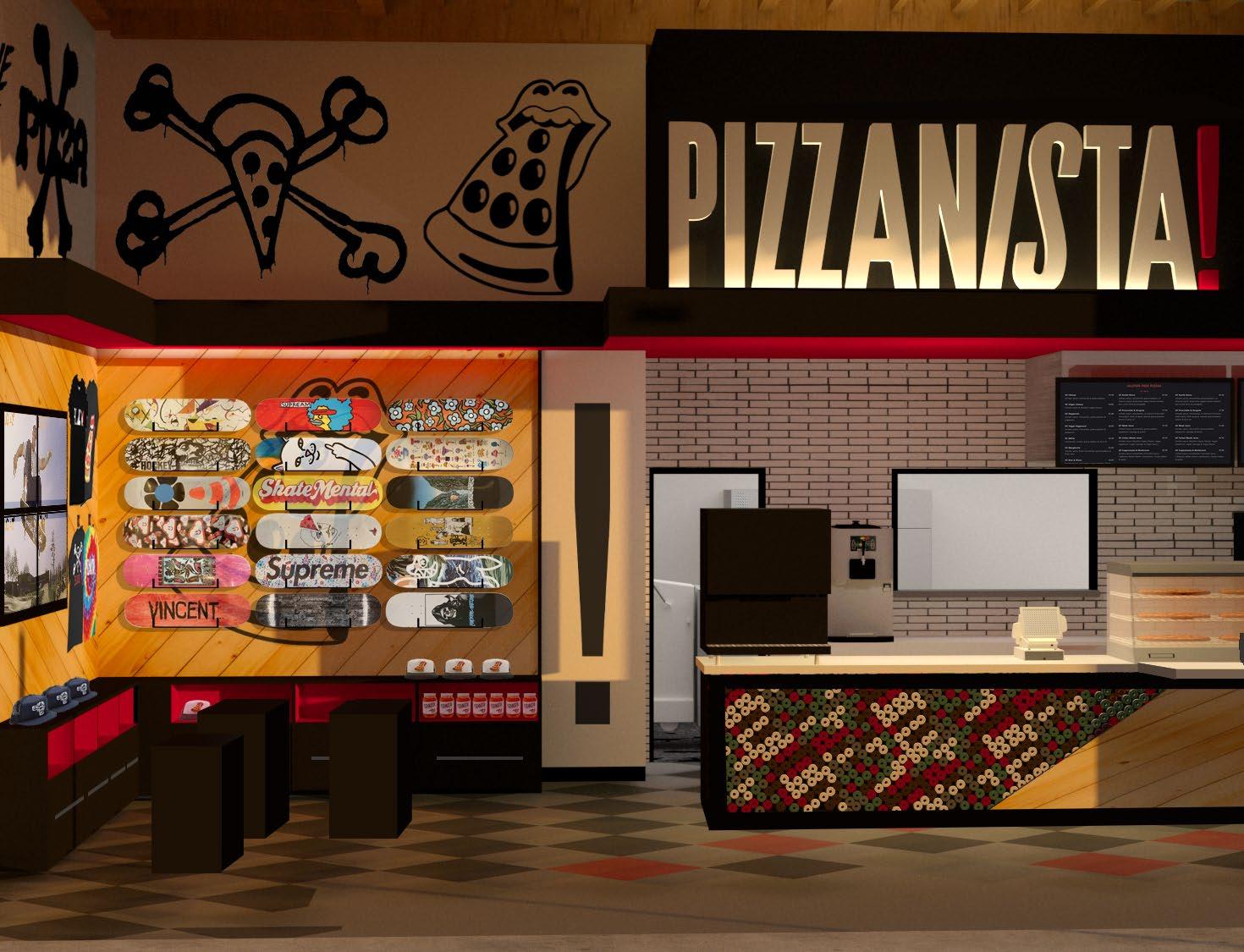

04 PIZZANISTA

Involvement: CD, CA, Completion FLOOR PLAN 21
