BIM PORTFOLIO

MUHAMMED ALI ALHAN.M

BIM Architect

INDEX

About the Project

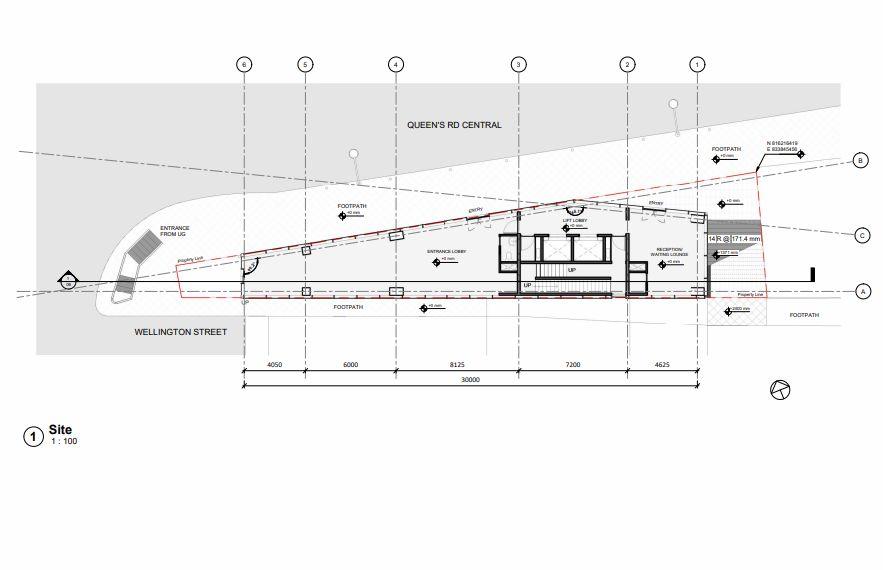

Site Plan

Floor Plans

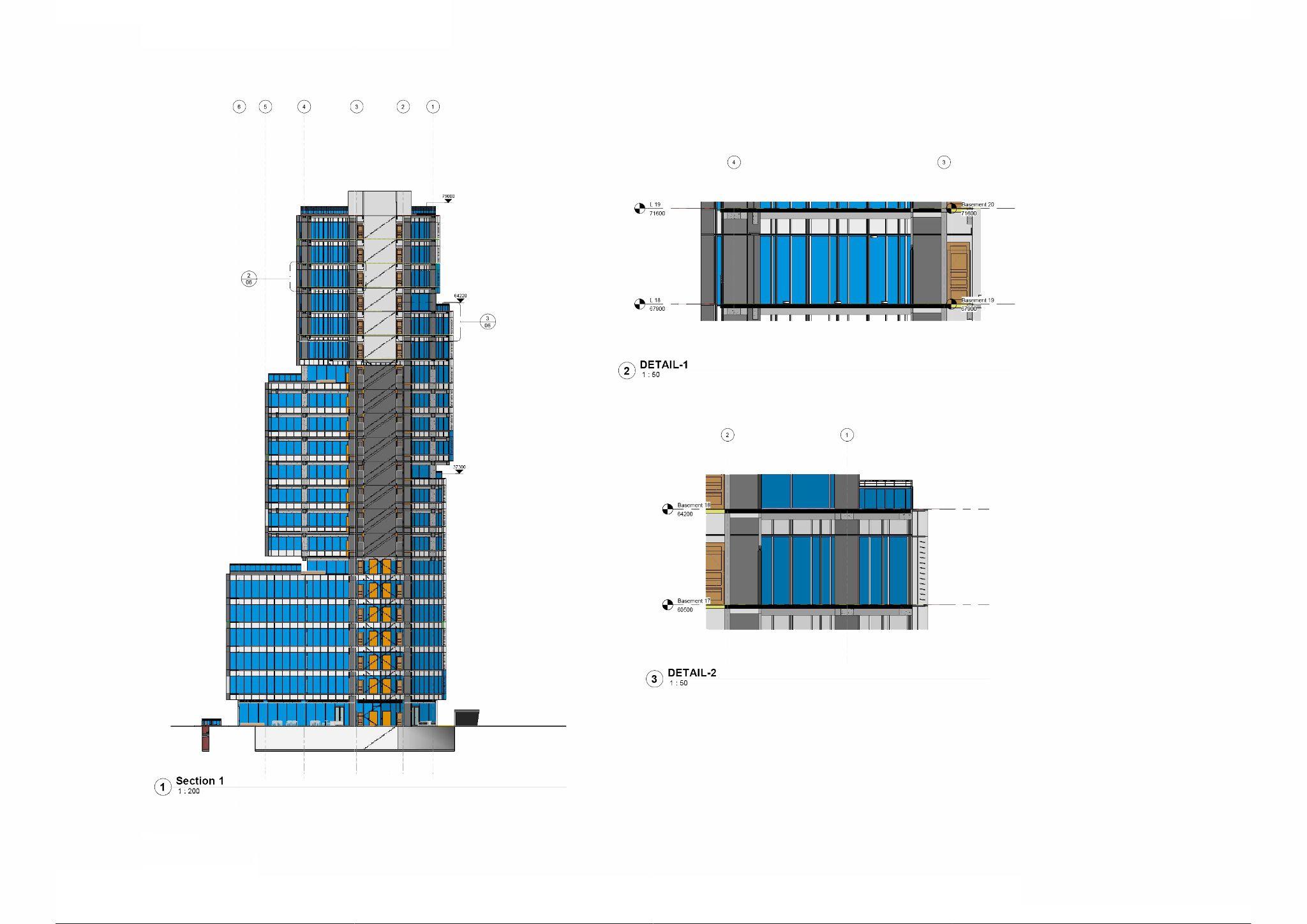

Sections

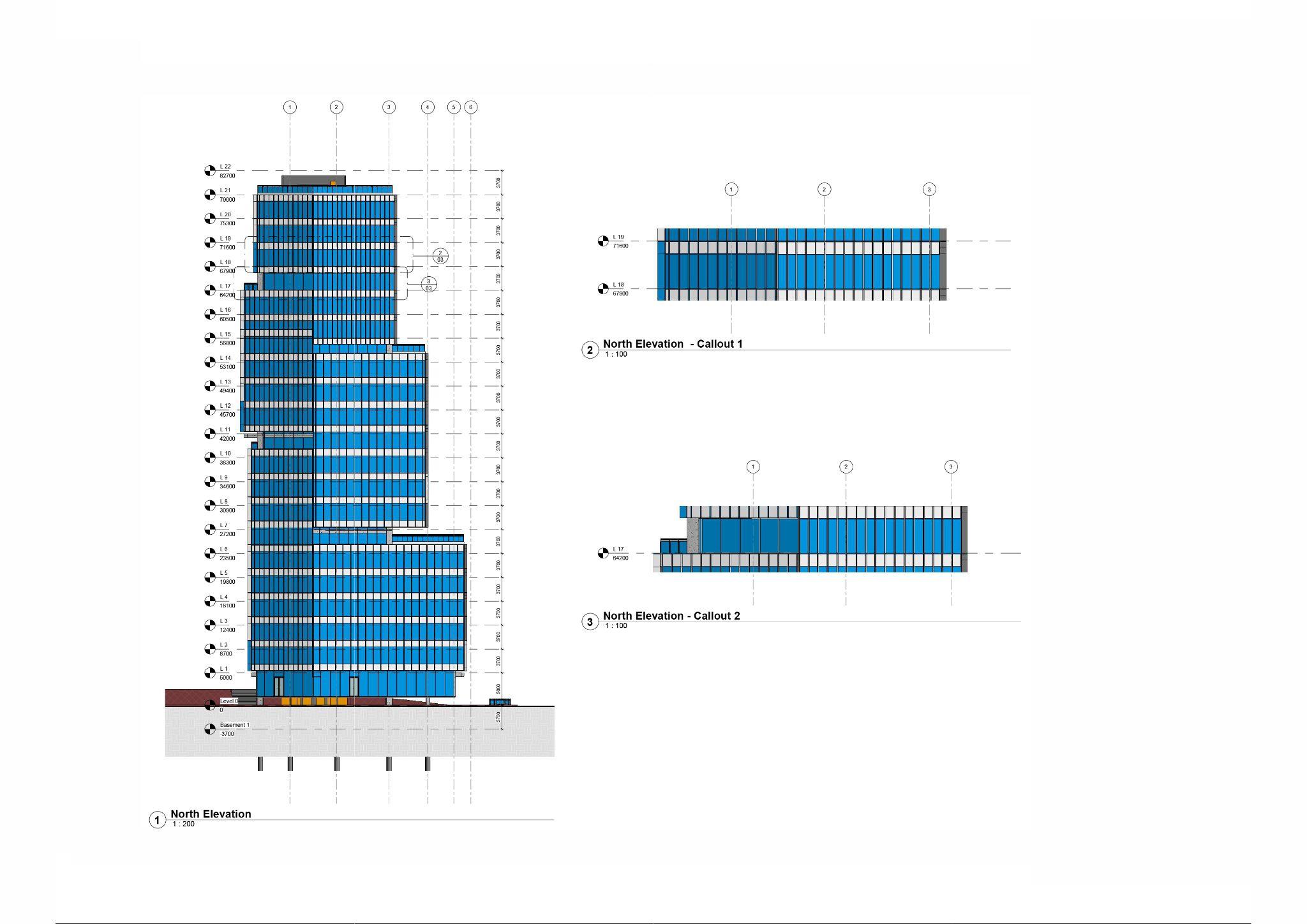

Elevations

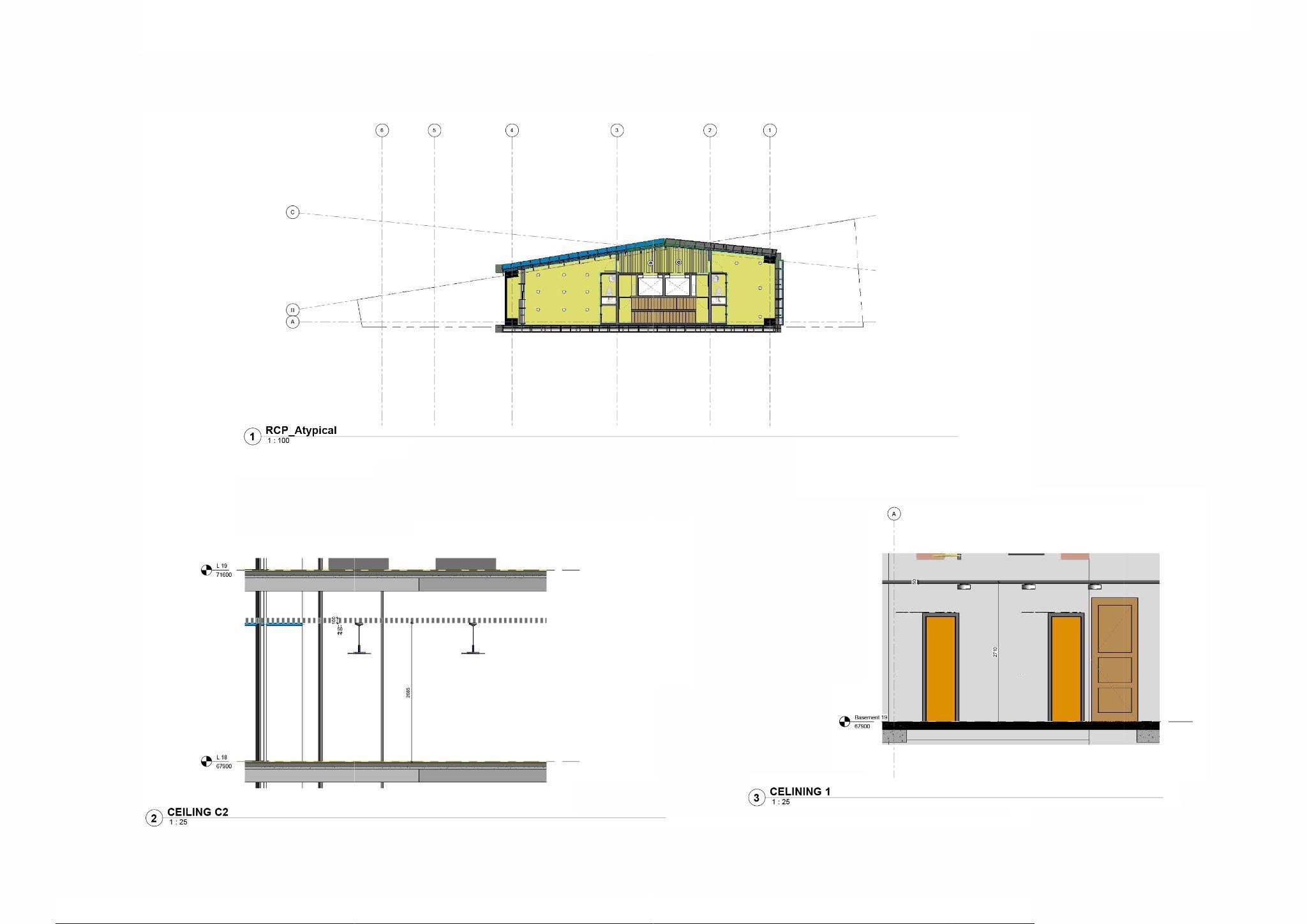

Details

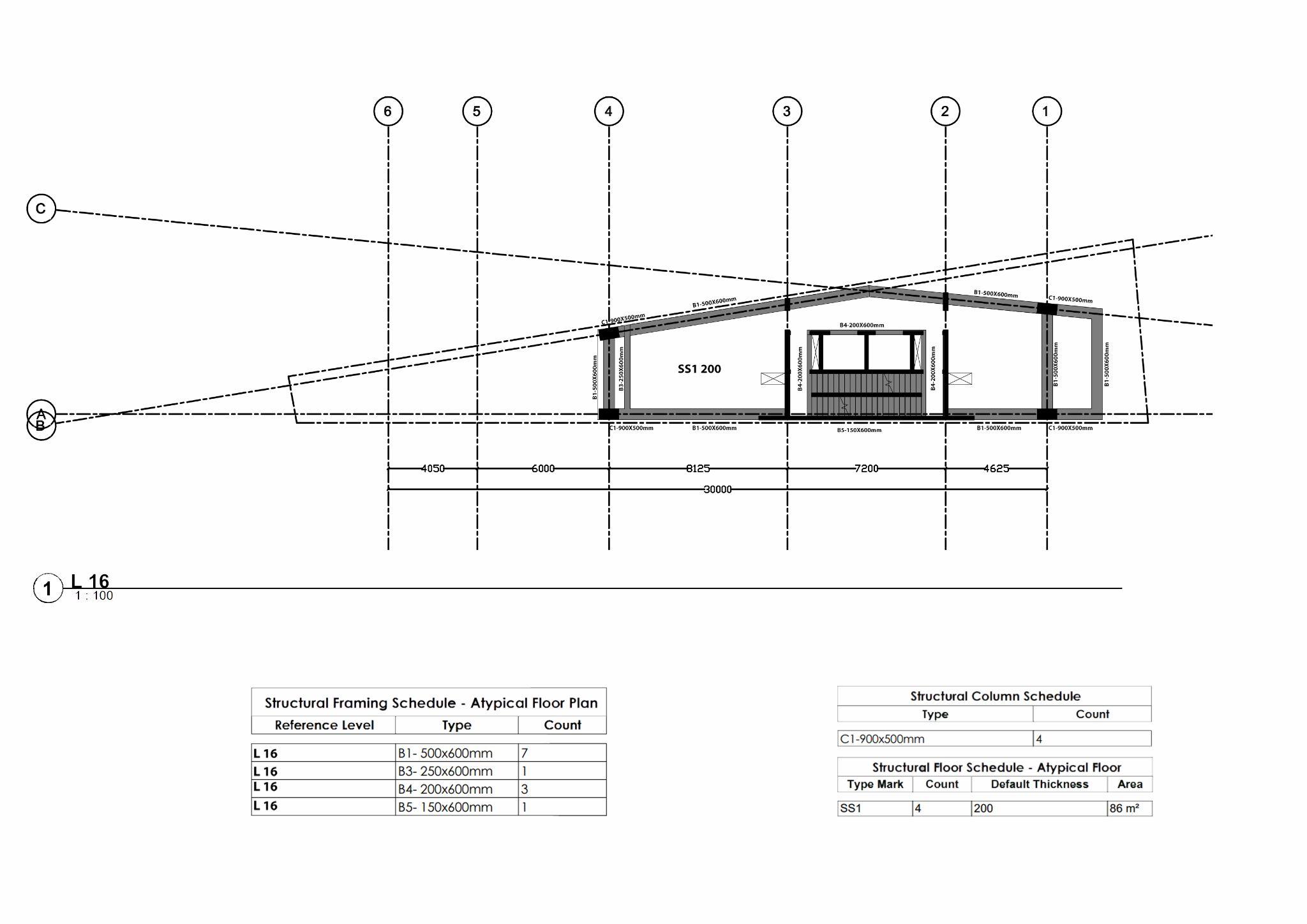

Framing Plans

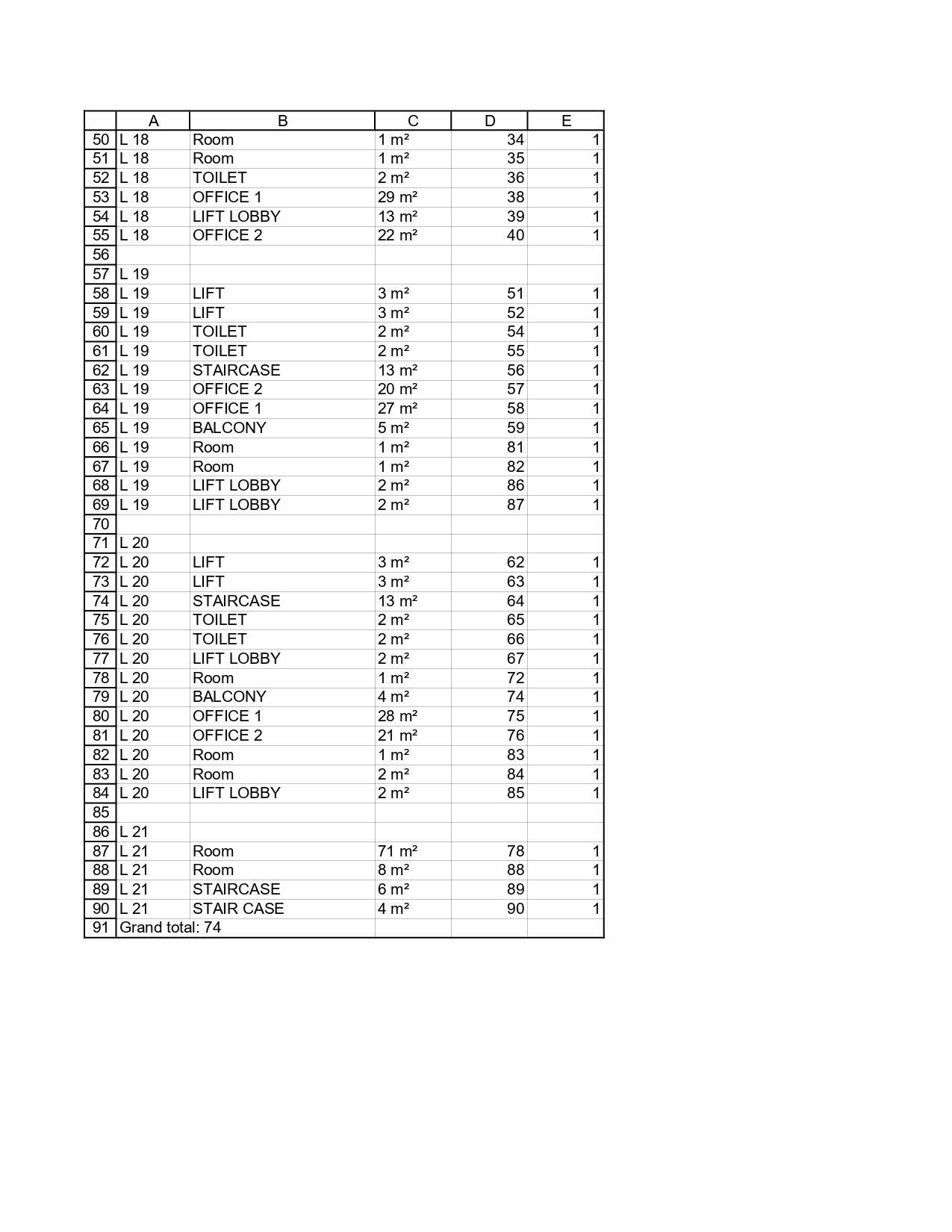

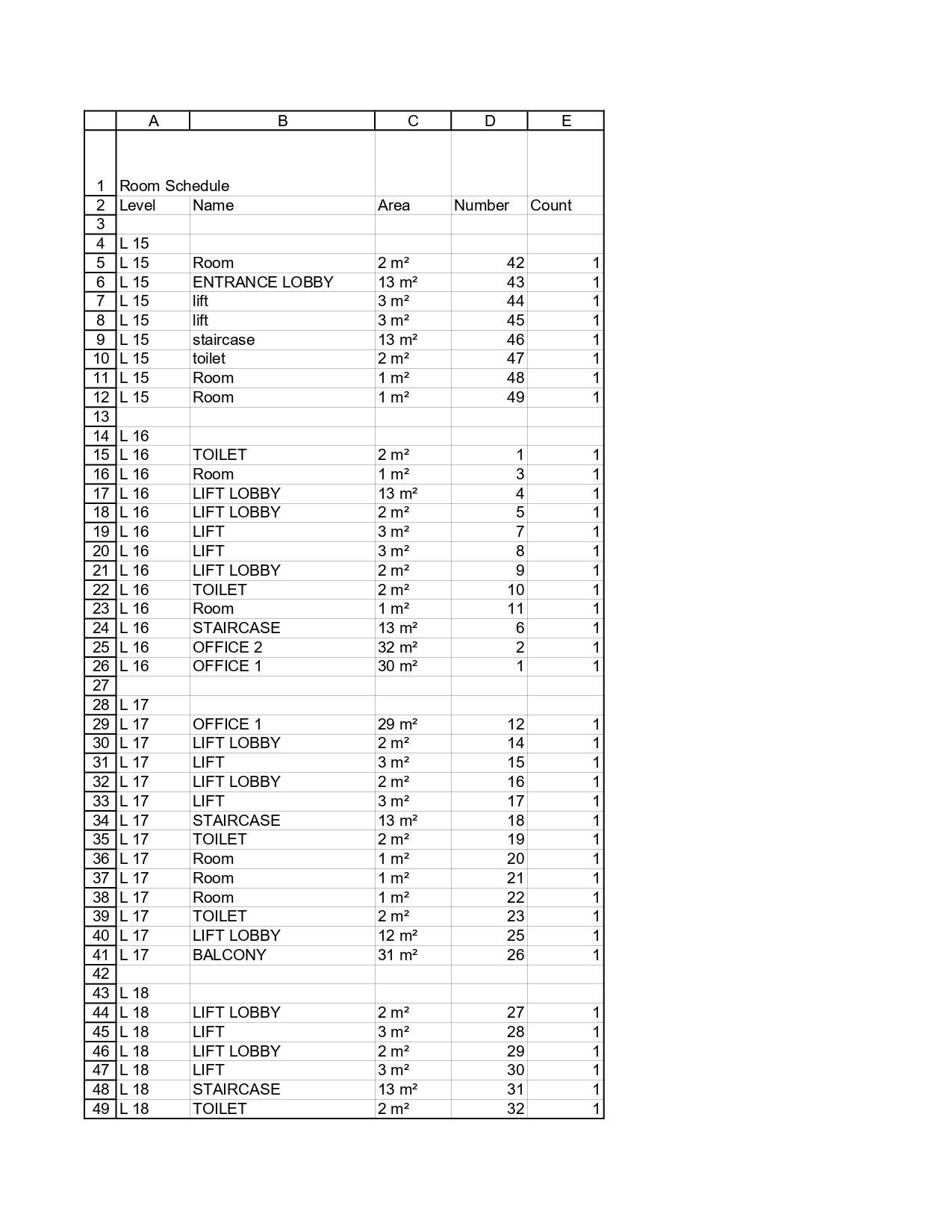

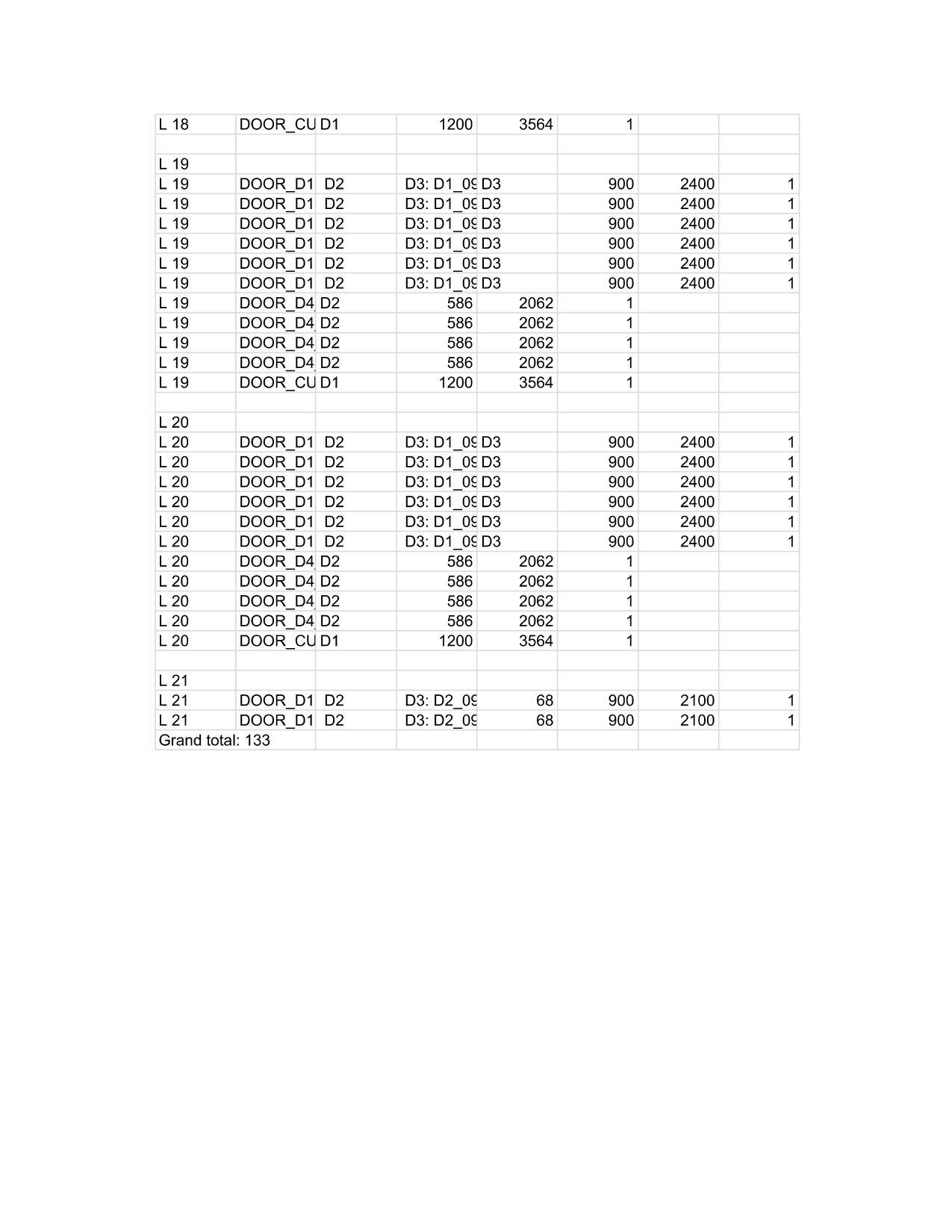

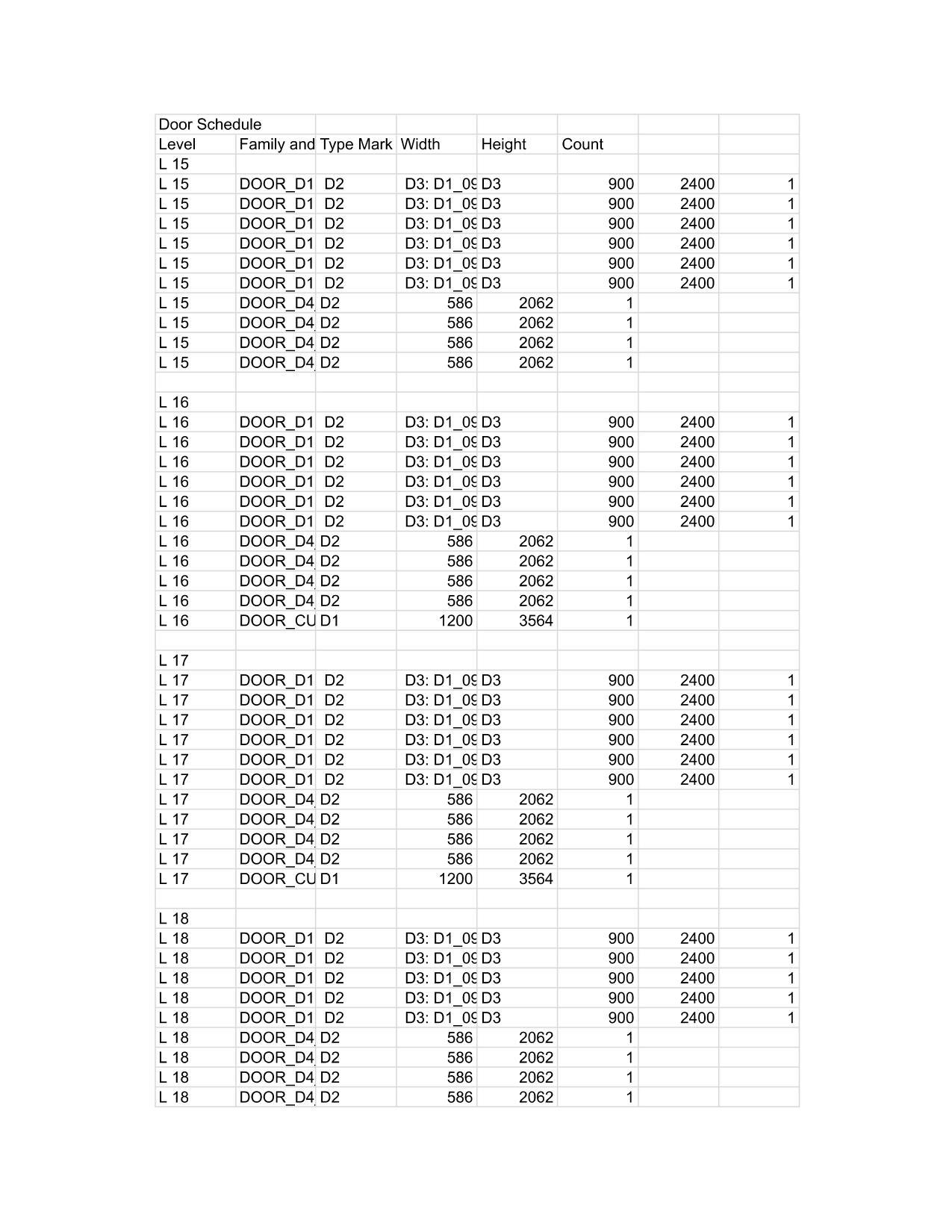

Schedules

Views

ABOUT THE PROJECT

: The project is located at the intersection of Wellington St. and Queens Road Central in the Central district of Hong Kong Island. The existing building, built in the 70's, doesn't maximise the current allowed GFA of the plot. The owner is looking at the possibility of another building volume that can provide a better ROI while creating a landmark in a critical urban

Achieved : 13.7

: Mixed Use Building - (Offices and Service

CONCEPT DEVELOPMENT

● Setting up the Necessary project details,grids and levels in Revit.

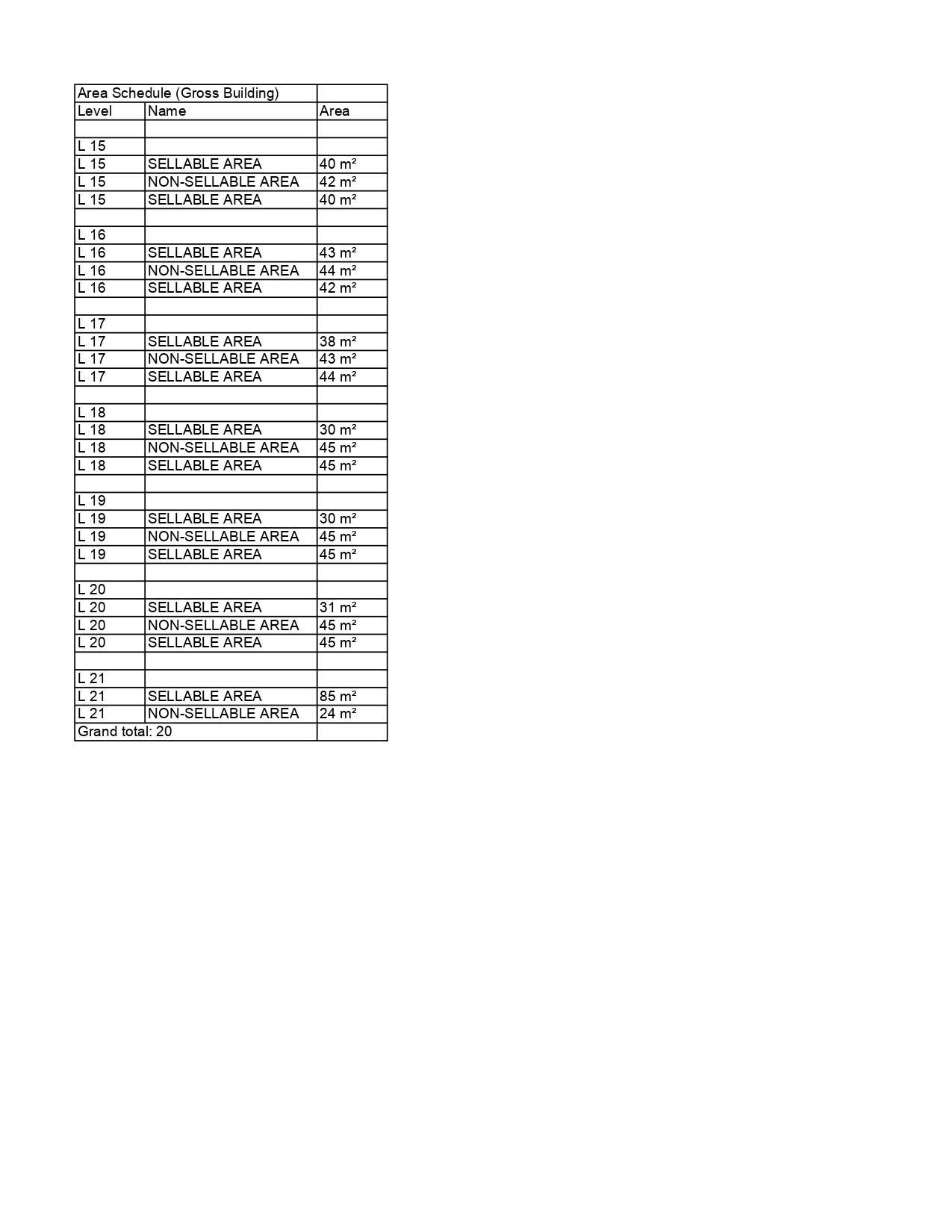

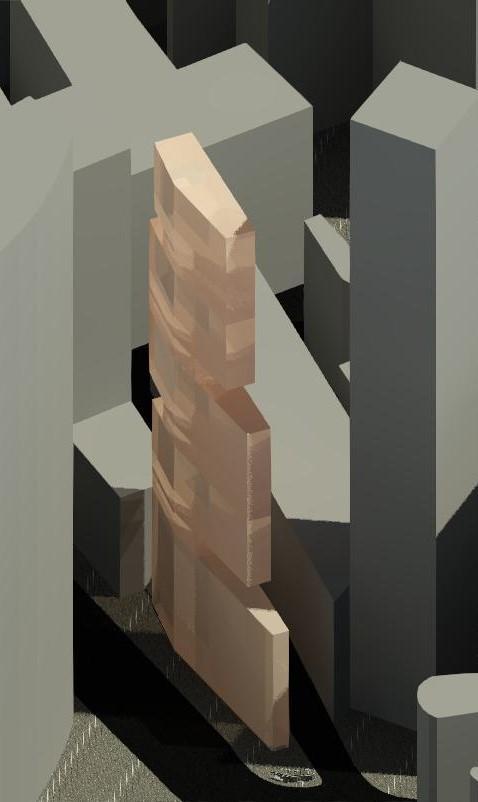

● Working on Comceptual Massing options and generating schedules for the ﬂoor area.

● Creating sheets

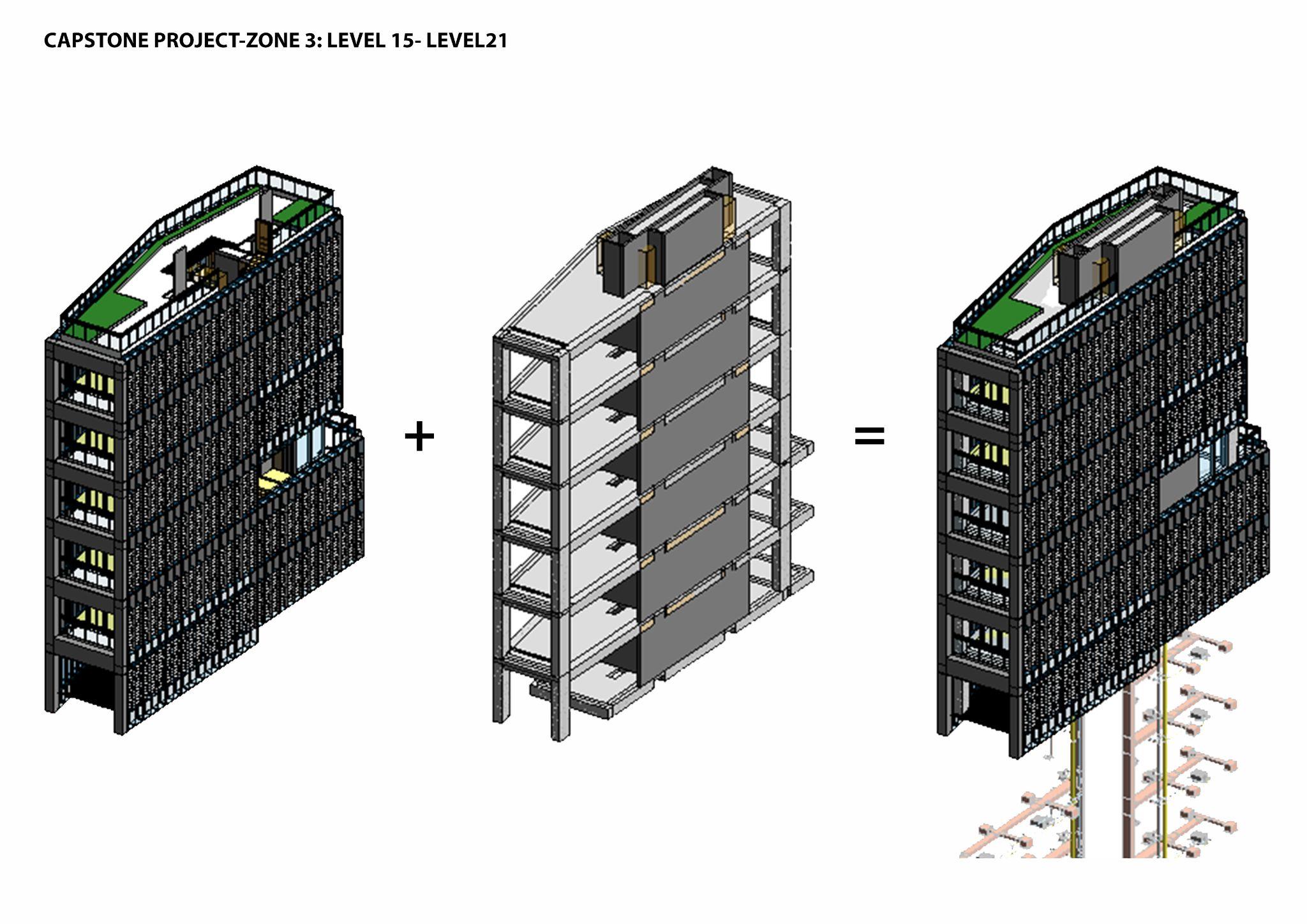

● Setting Axonometric views & rendering.

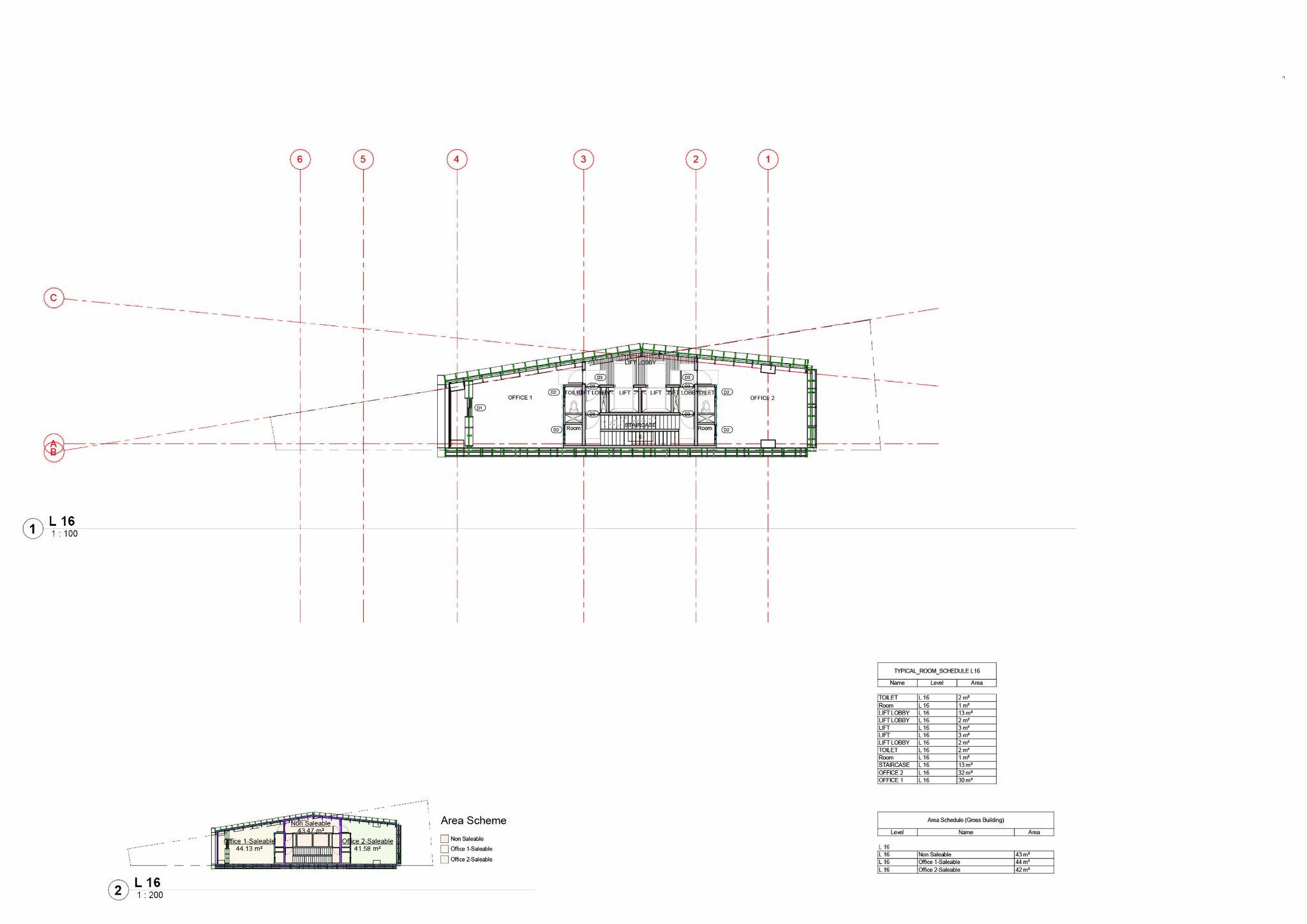

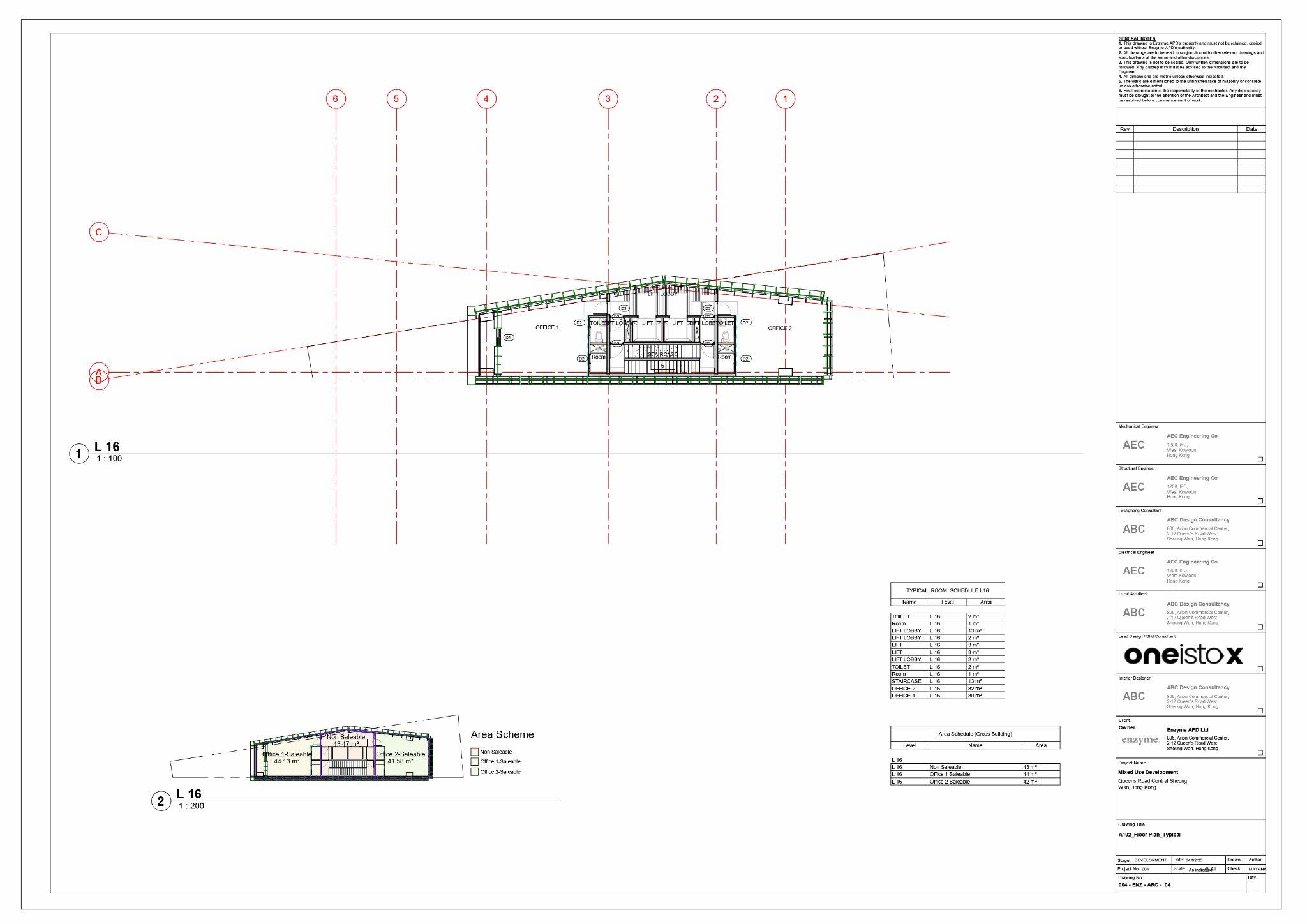

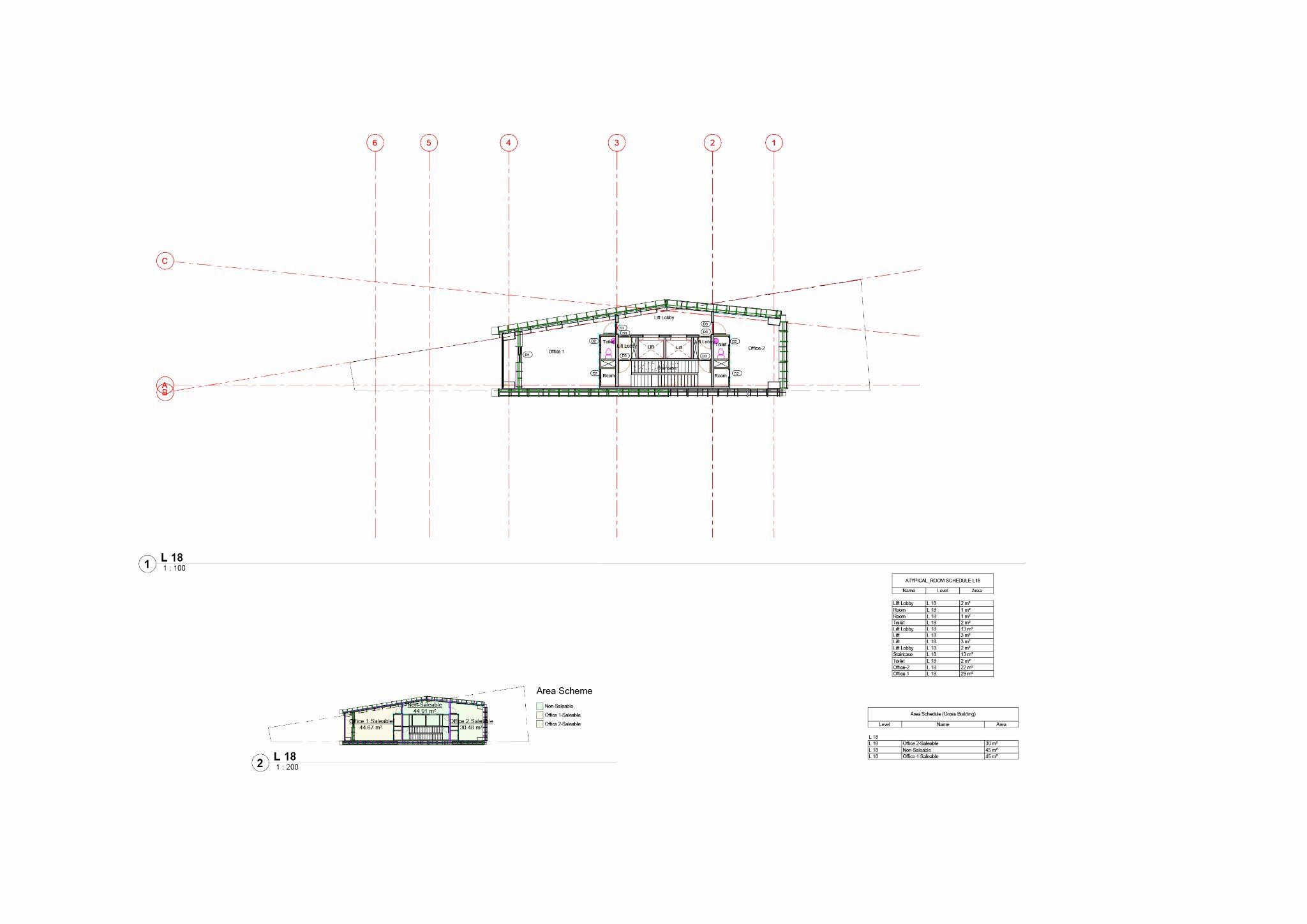

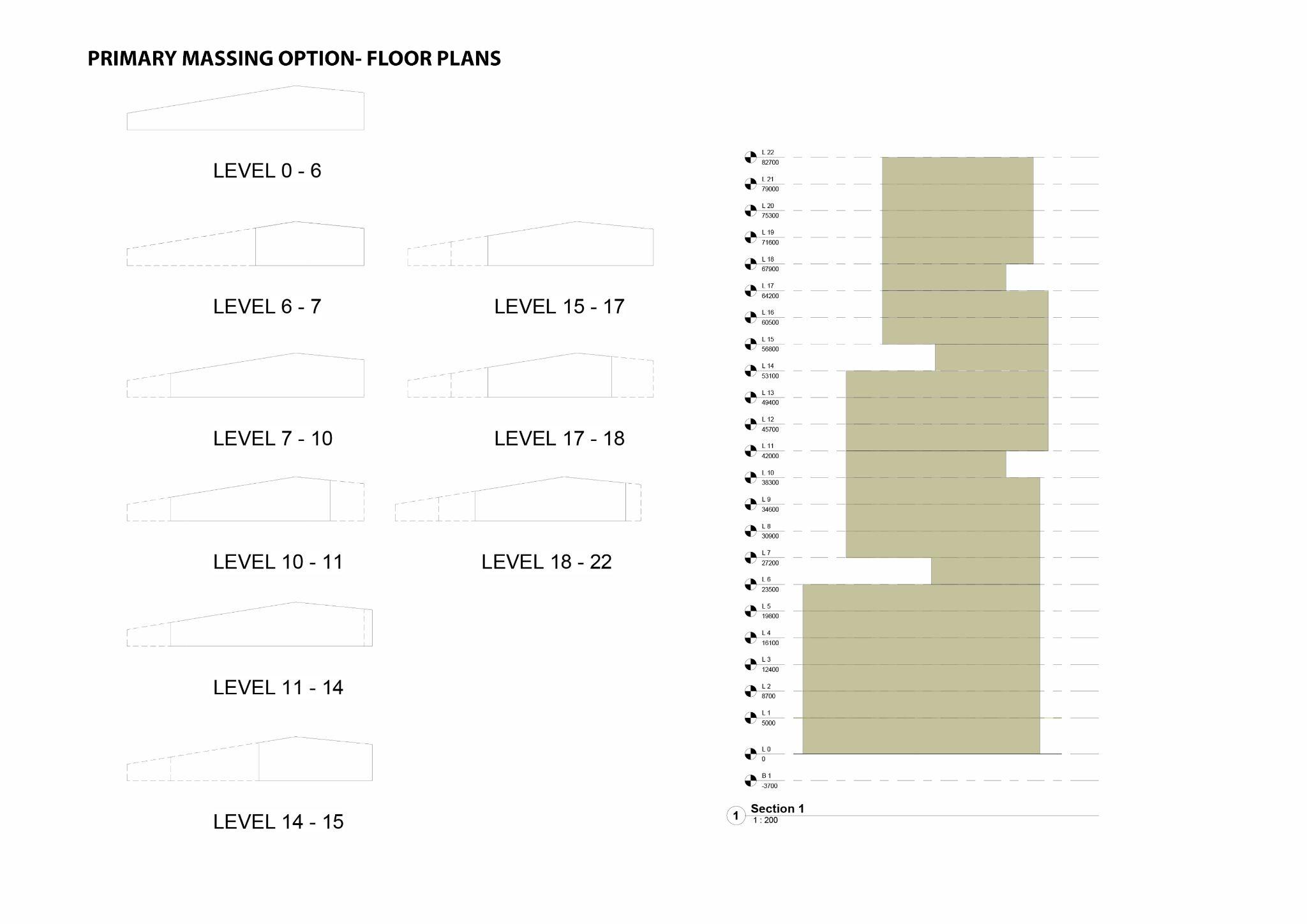

PRIMARYMASSING OPTION- FLOOR PLANS

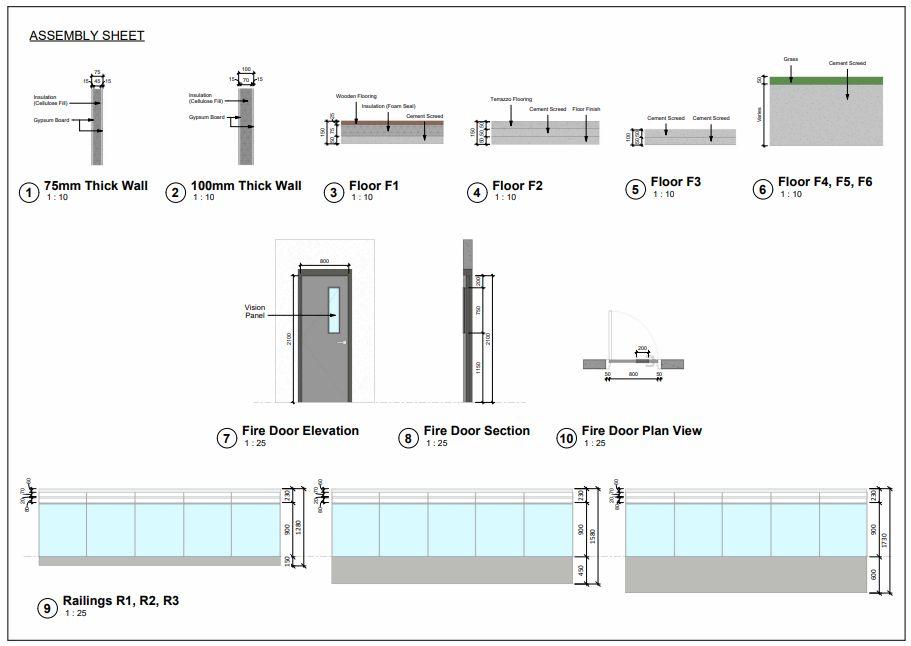

ASSEMBLYSHEET

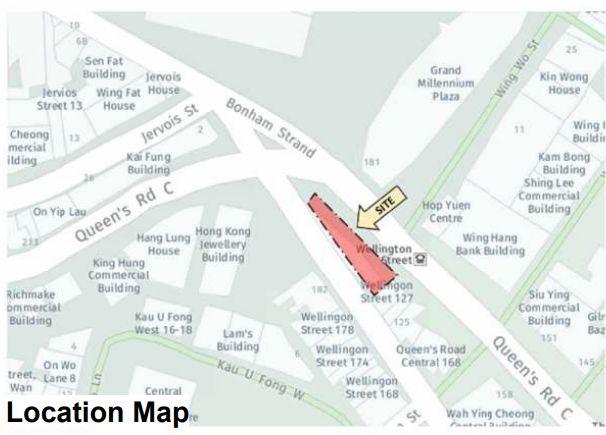

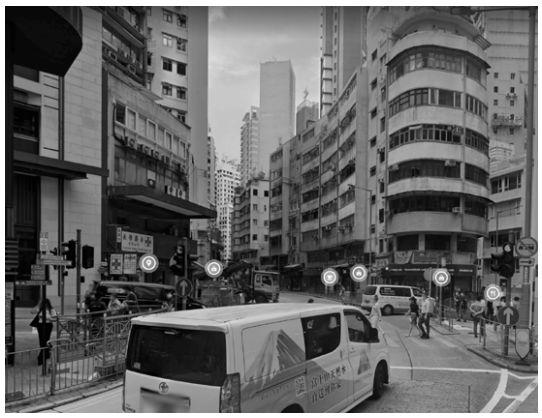

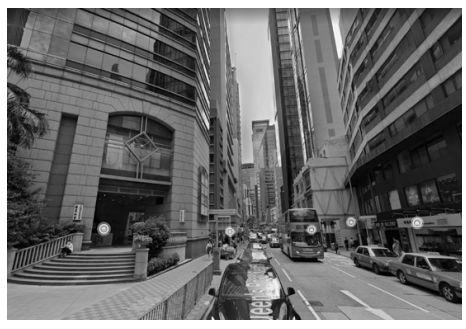

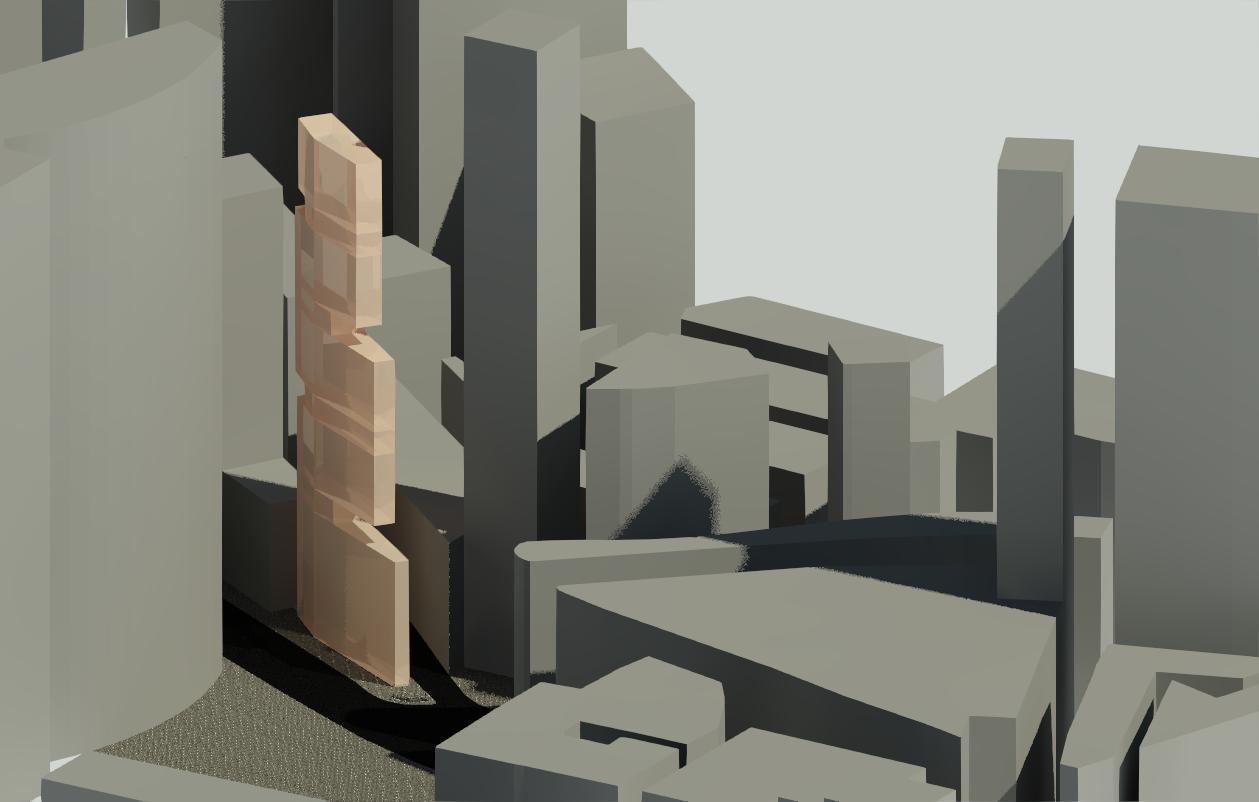

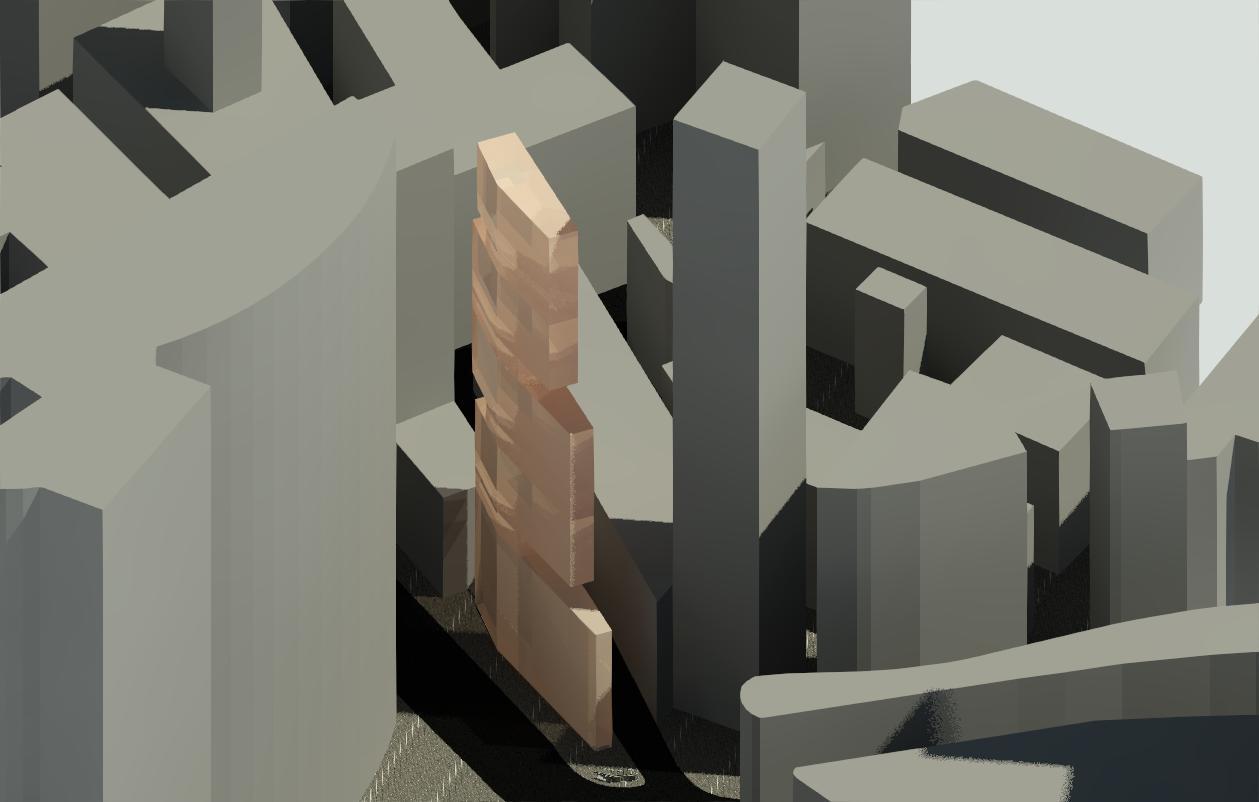

SITE AND CONTEXT

The site present unique characteristic in terms of urban life and located in one the most privileged area of the Hong Kong,the site itself ask or demand unique architecture, so the building must be one of the most attractive point in urban fabric., there is a vast ocean that become one the most important view to capture regardless of being an office building. it’s important to provide the comfort of a home.
