SELECTED WORKS (2020-2025)
.1 .3 .4 .2
UBS Place St. François
Lausanne, CHE
Professional (page 4 - 11)
Casa Ameuroso
Sonora, MEX
Professional (page 12 - 19)
ME Operational Offices
Tamaulipas, MEX
Professional (page 20 - 25)
30 Housing Units
Oulu, FIN
Academic (MCH) (page 26 - 31)
Lausanne, Switzerland
21,000 m 2
RDR Architectes
Drafting + Schemes Intern

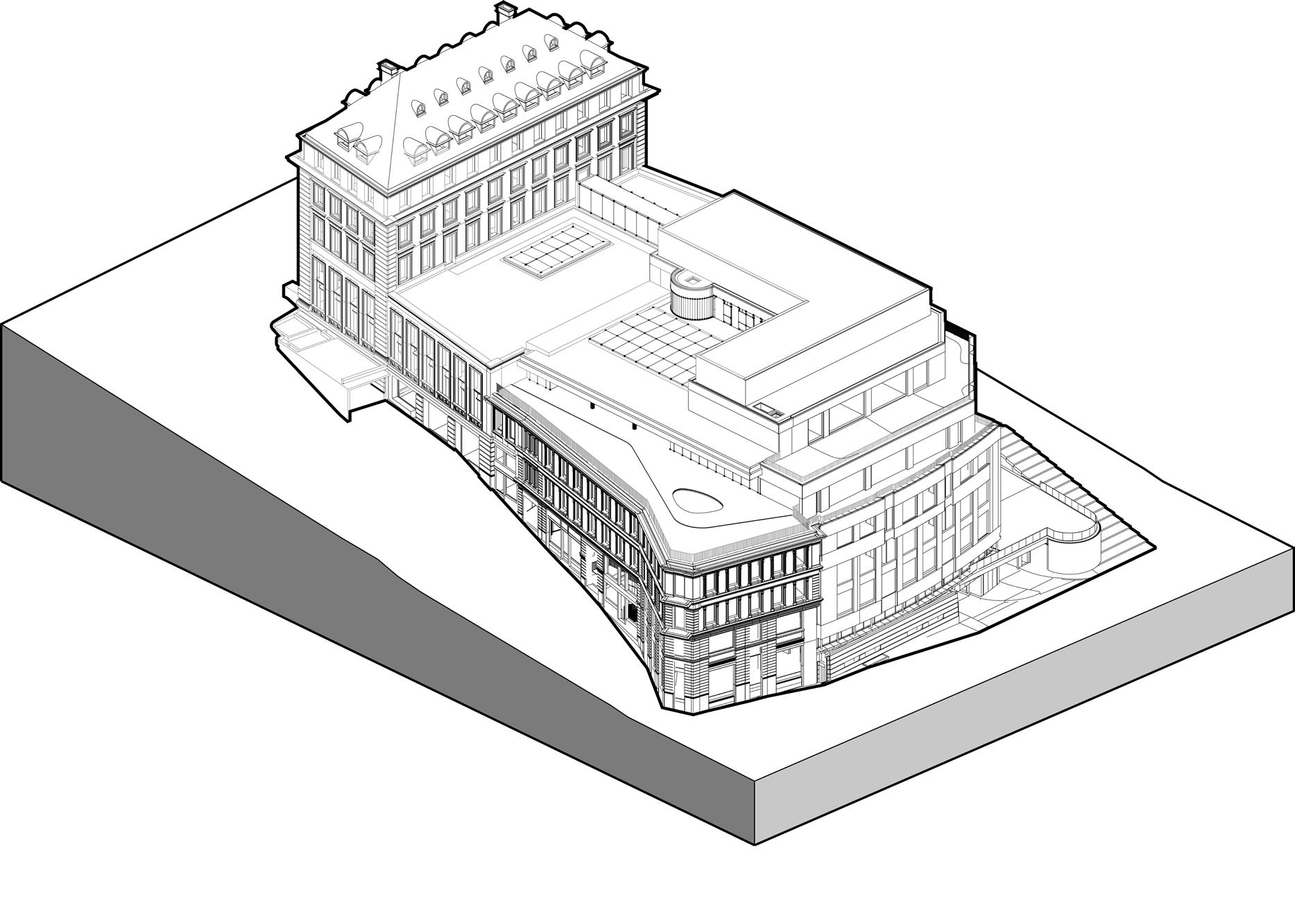

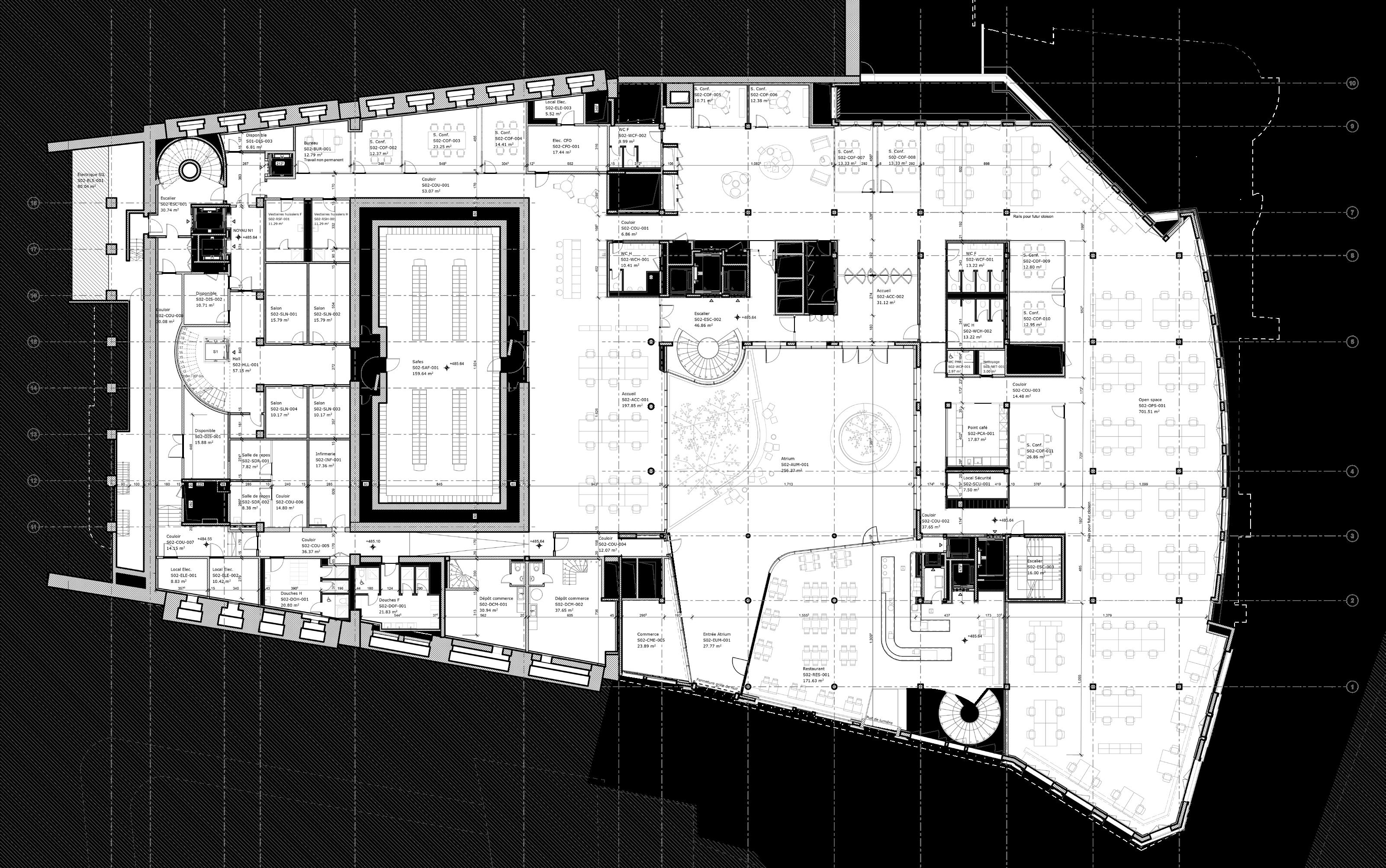

Place Saint François

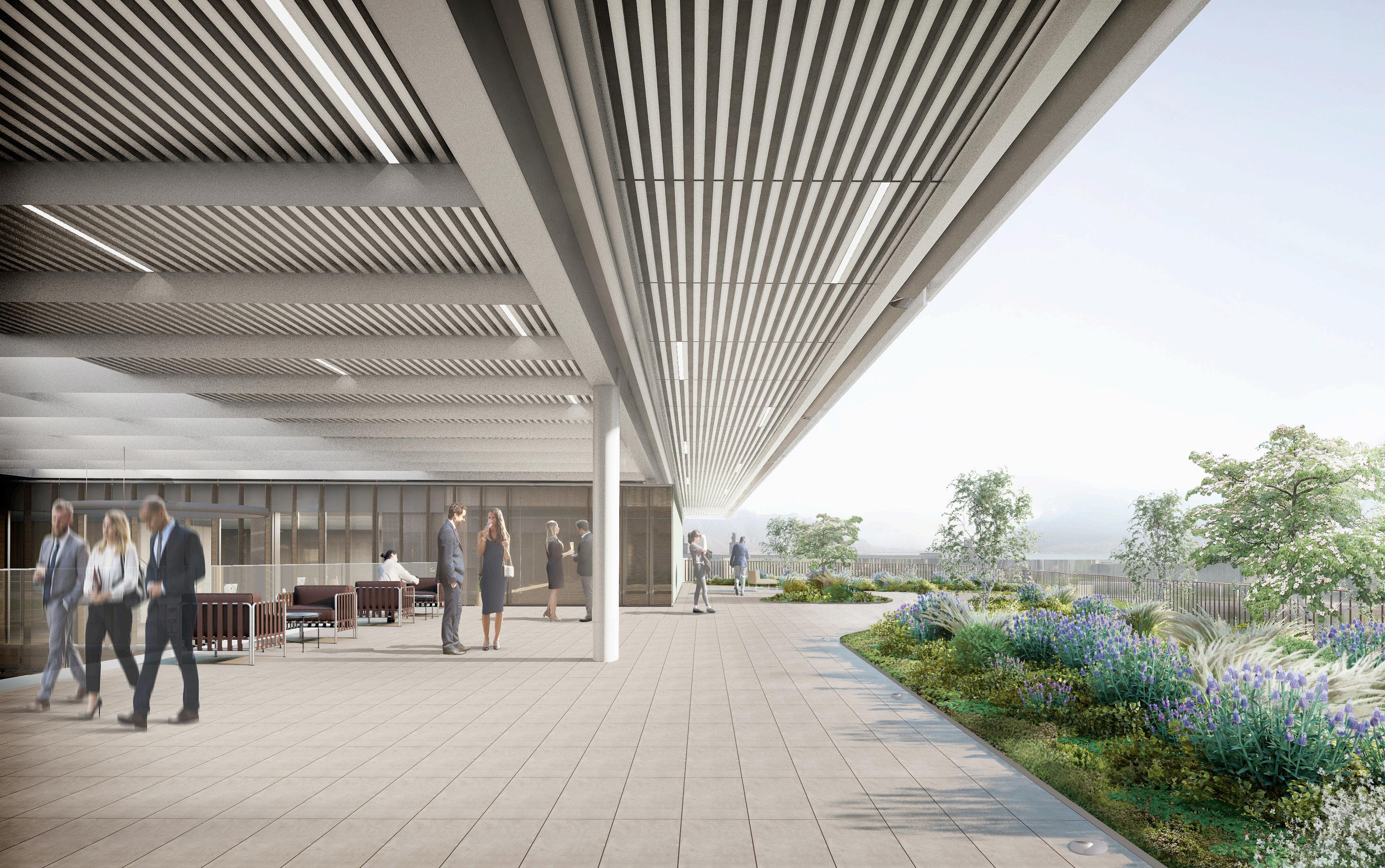

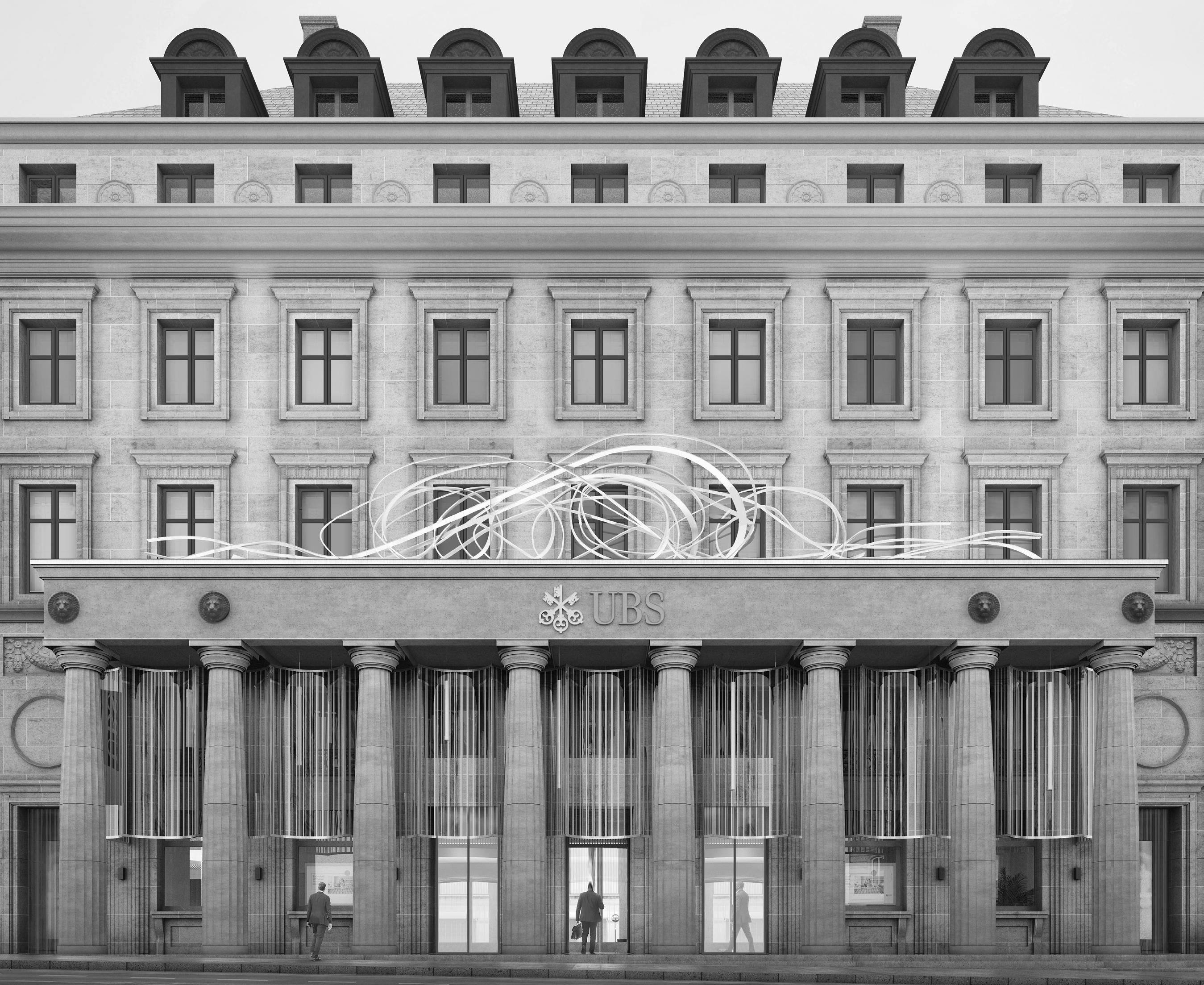

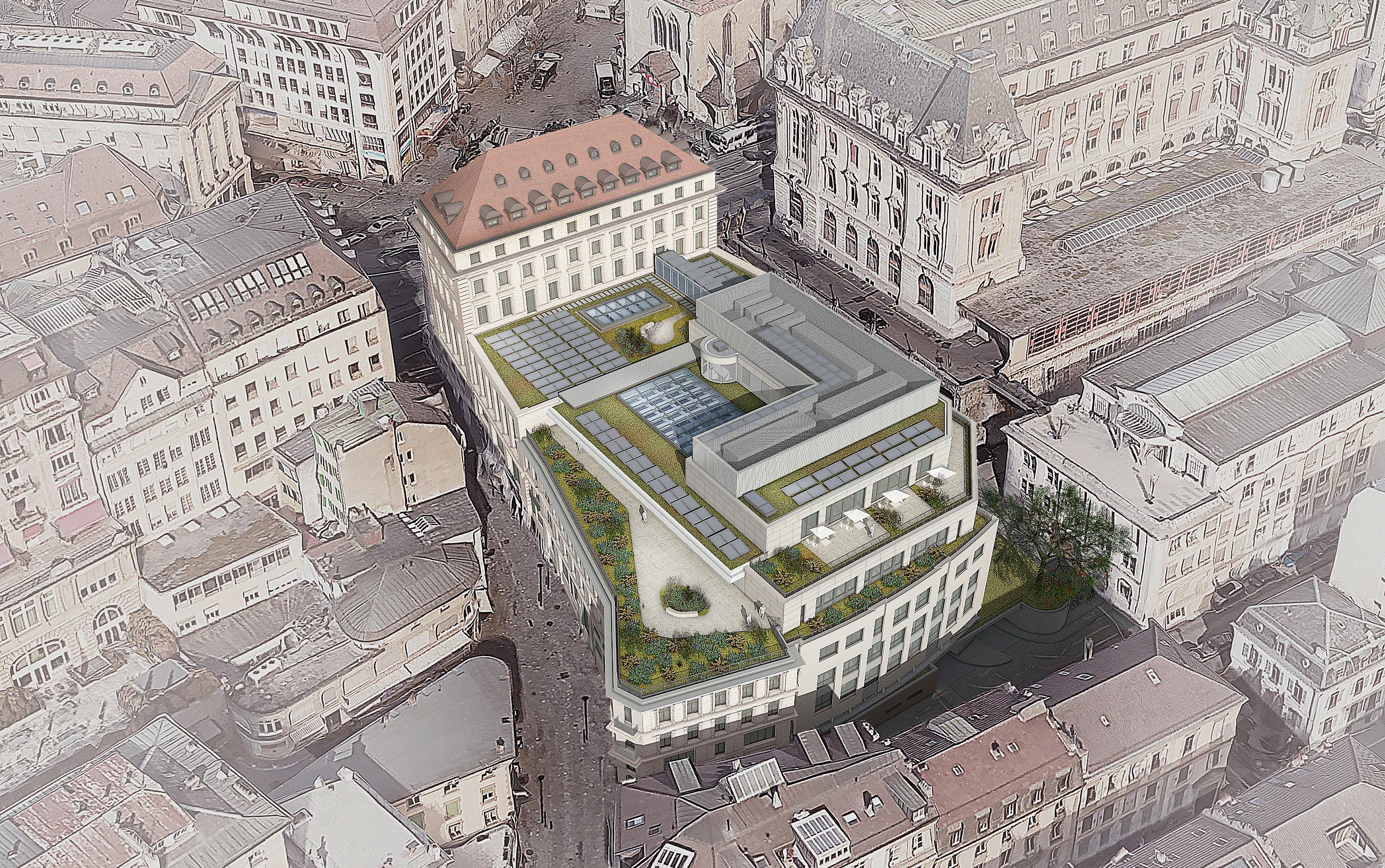

Located in the historic center of Lausanne, this building holds significant historical and contextual importance within the city. UBS launched a competition to refurbish and adapt its Paradeplatz branch in Zurich to meet the current architectural, economic, and environmental needs. Although RDR Architectes placed second behind Herzog & de Meuron’s project, UBS decided to commission RDR Architectes for the renovation of its branch in Place Saint-François.

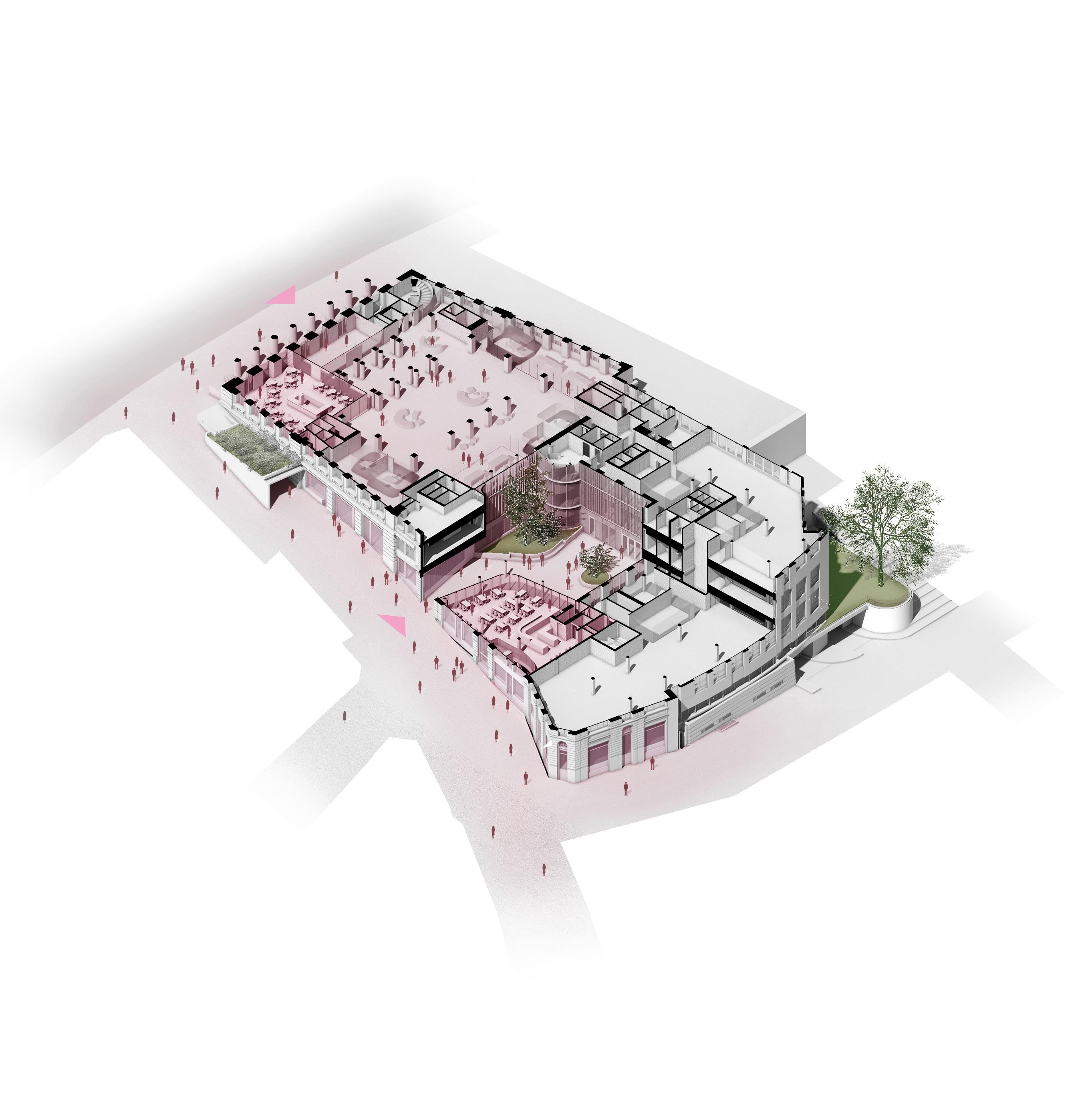

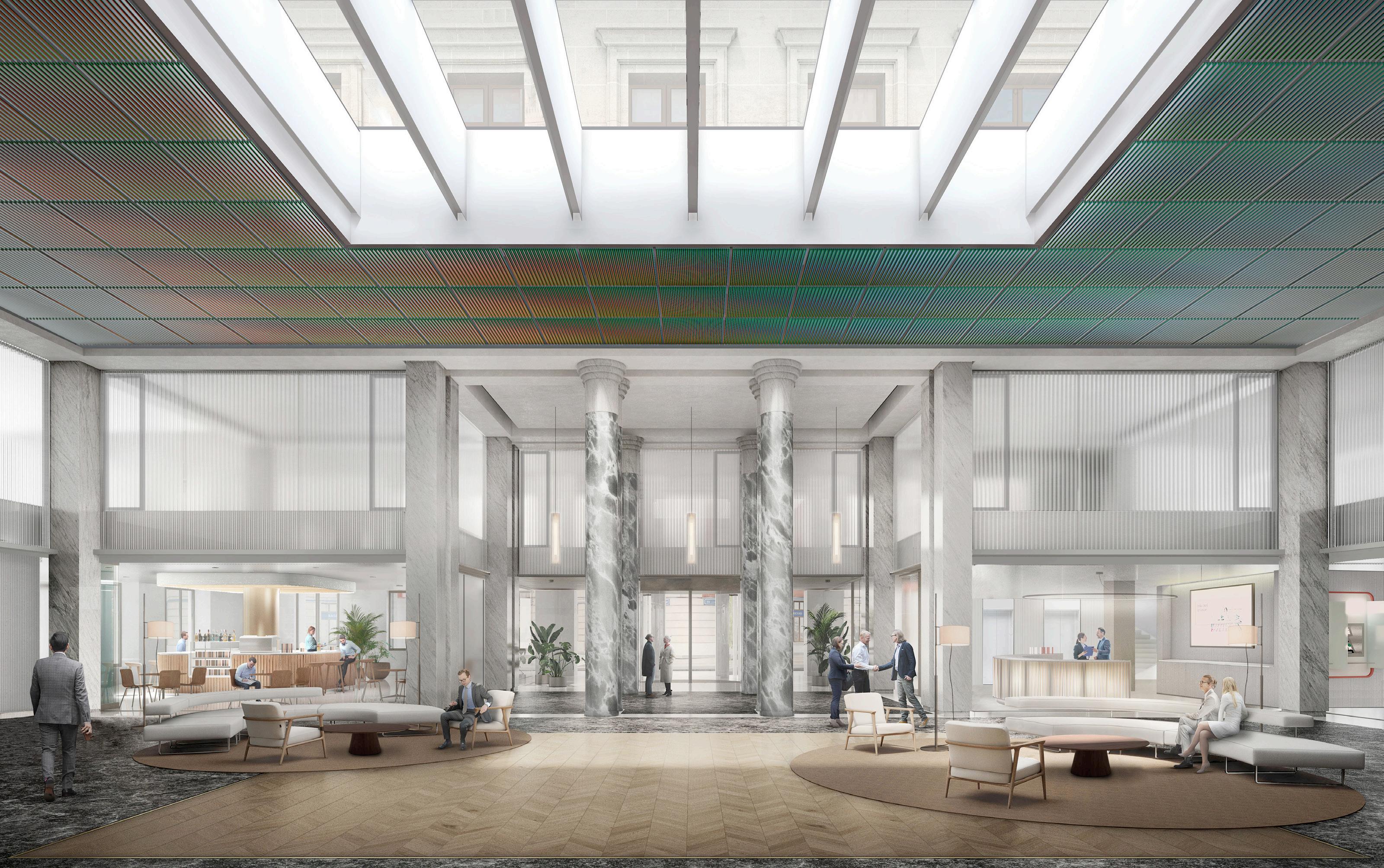

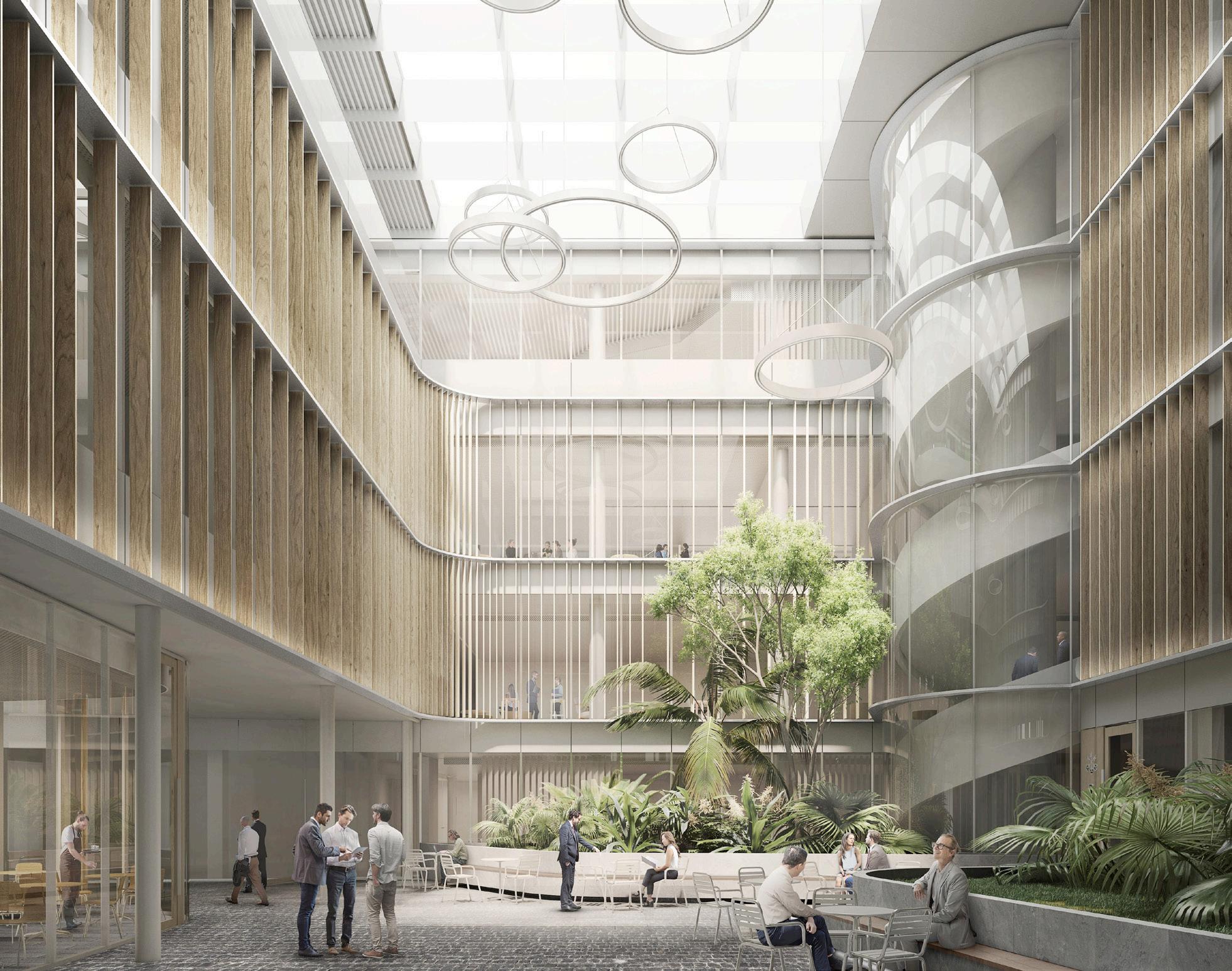

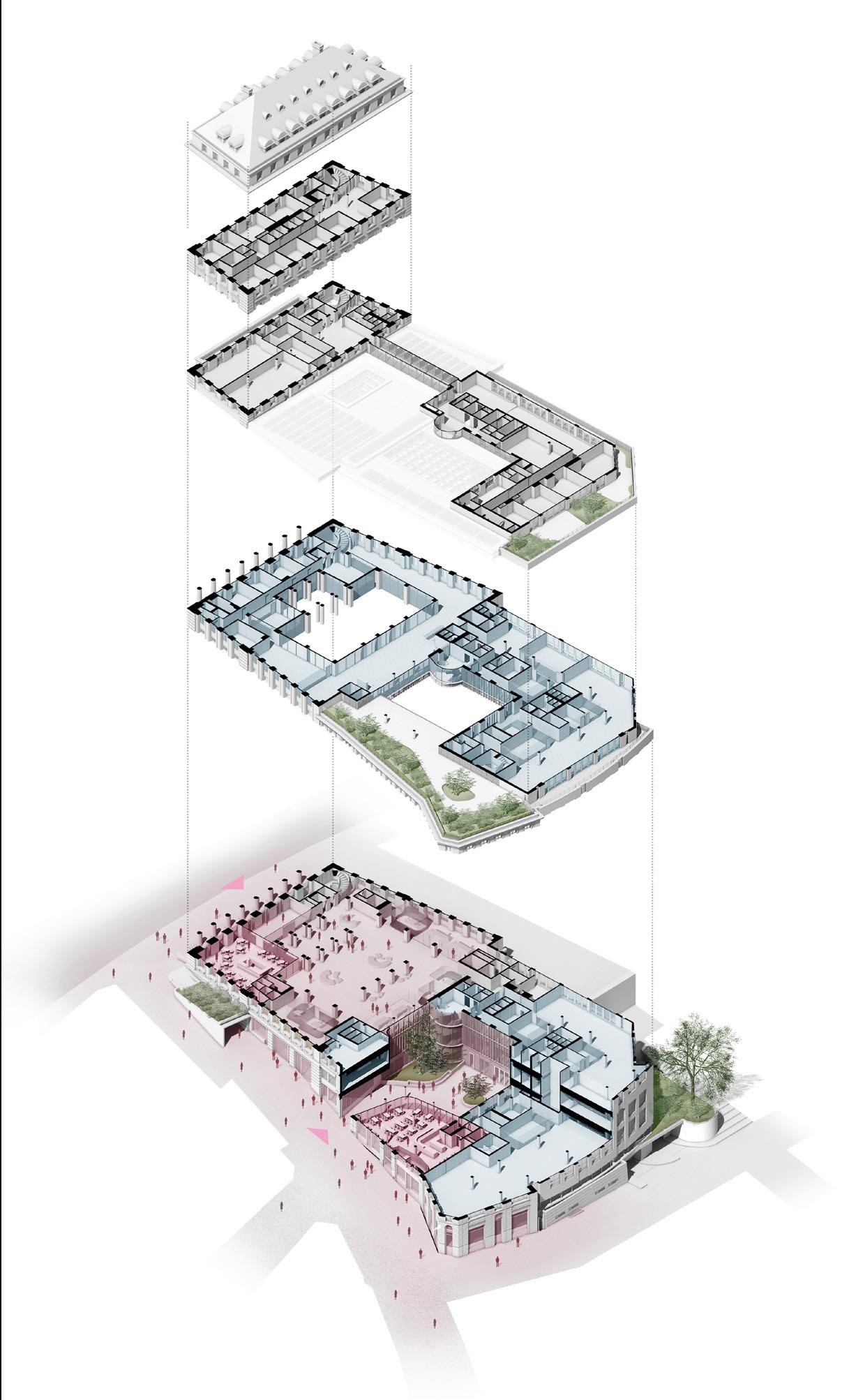

The project aims to improve the flow from the street through the building, achieved by demolishing and reconfiguring the interior architecture to create more green spaces and enhance the circulation on the public levels. These new public spaces will be complemented by the addition of new shops and cafés.

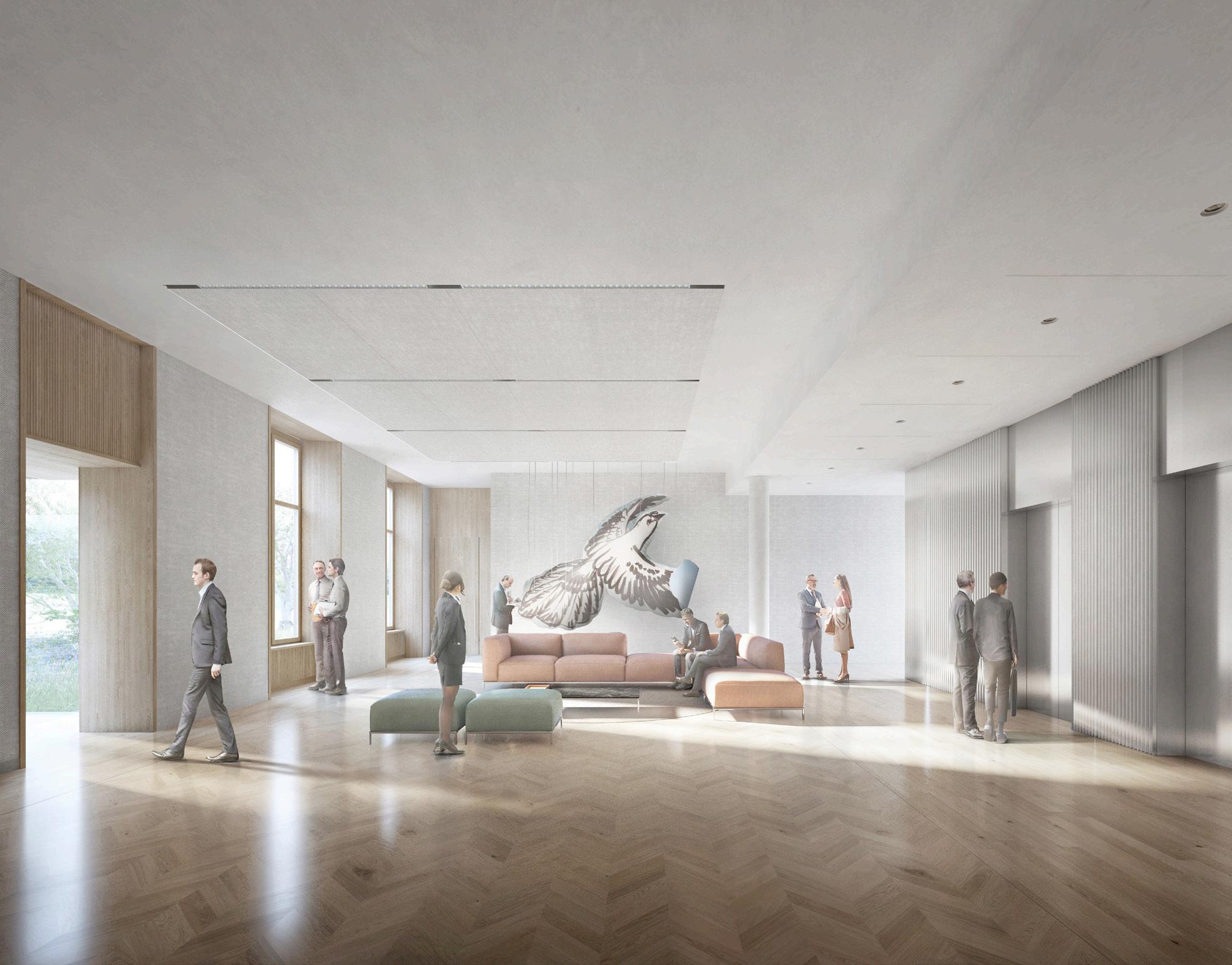

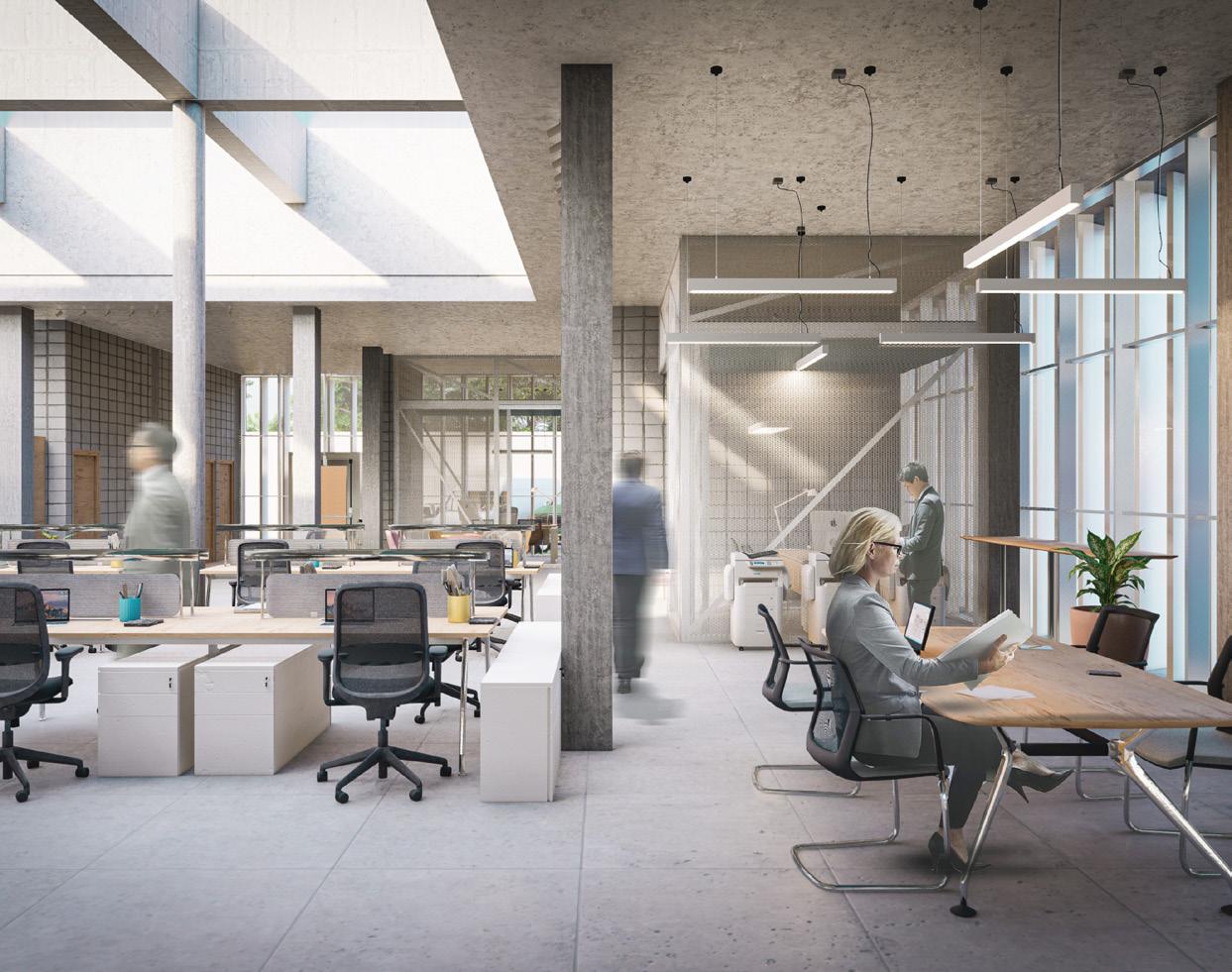

Moreover, the renovation also includes updating the office areas to meet current architectural standards, ensuring a modern and comfortable environment for UBS employees.
Even though the project is in its final stages, UBS has decided to hold an exhibition in Lausanne to showcase the work of RDR Architectes behind the future renovation. This is the stage where I was involved.

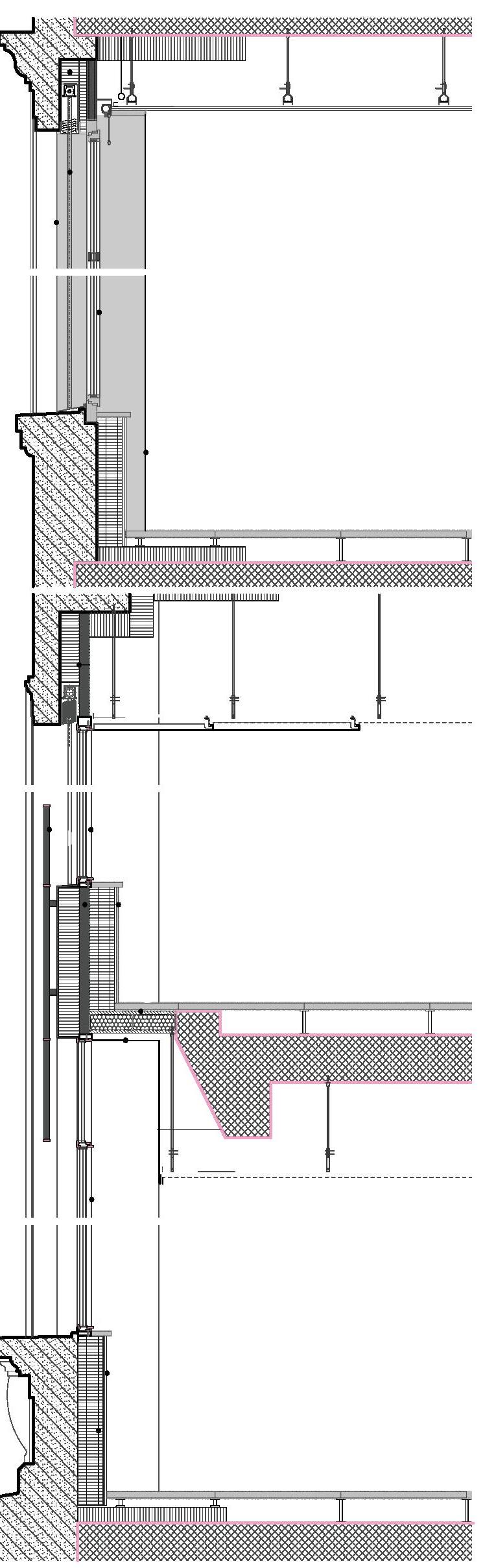

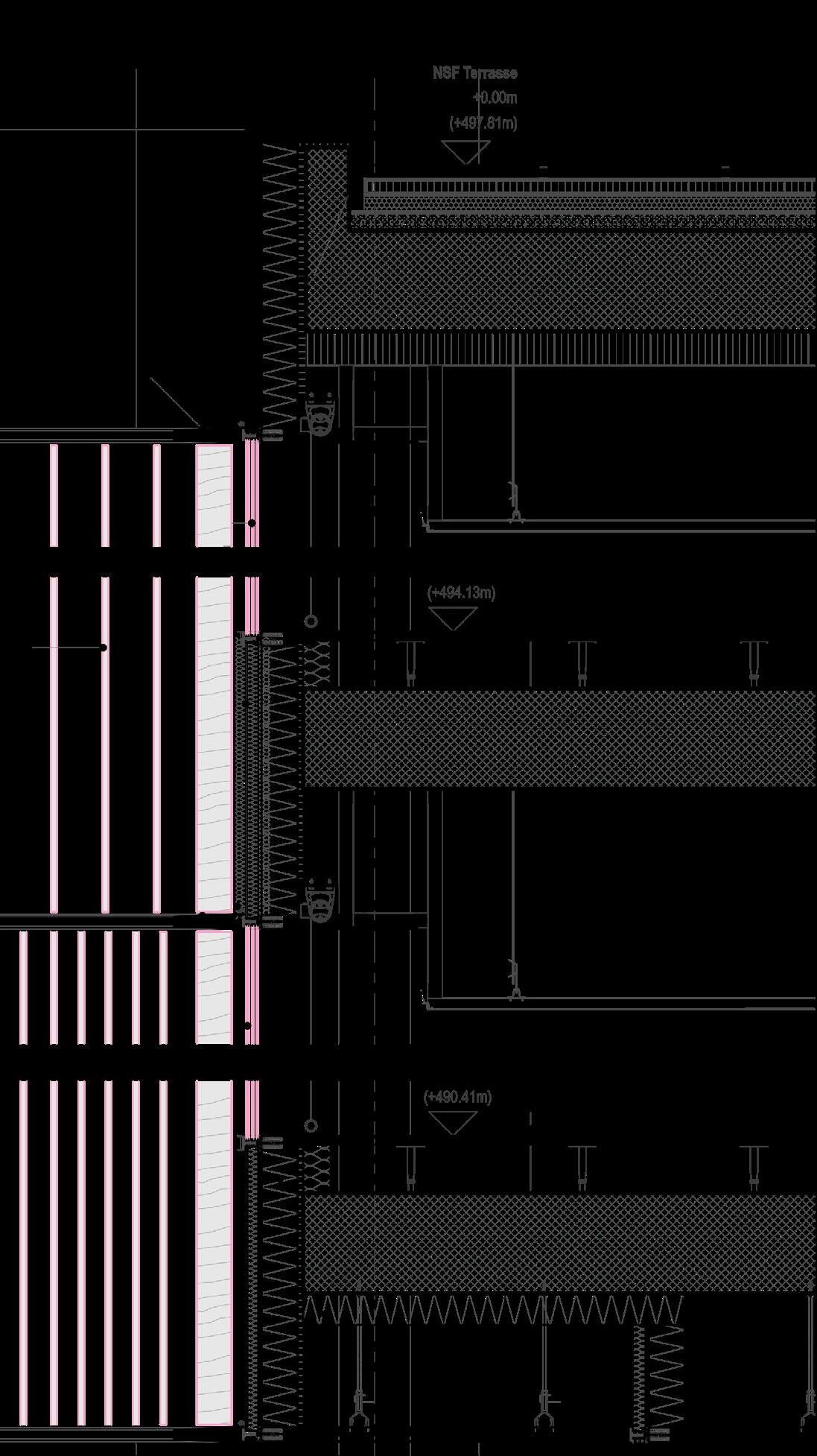

Poteau-traverse façade with a satin white RAL 9016 powder-coated finish and triple glazing. Fire resistance EI30. Load-bearing profile of 50x125mm.
Aluminum profile with a satin white RAL 9016 powder-coated finish of 50mm x 30mm.
Aluminum profile plated with oak wood of 20 x 120 x 3700mm.
Mineral wool panel with a thermal conductivity of U=0.16 W/(m²·K).
Triple-glazed panel with enamel on the inside and mineral wool insulation. White glass RAL 9016. Laminated glass guardrail.
U-profile for glass guardrail.
Brushed anodized aluminum finish RAL 9007.
Cladding of aluminum composite panels.
White satin powder-coated finish RAL 9016 with LED at 45-degree beam angle.
Triple glass with an opaque interior surface.
Fachada Poteau-traverse, acabado satinado blanco RAL 9016, recubrimiento en polvo, triple acristalamiento. Resistencia al fuego EI30. Perfil portante de 50x125 mm.
Perfil de aluminio con acabado satinado blanco RAL 9016 con recubrimiento en polvo de 50mm x 30mm.
Perfil de aluminio revestido con madera de roble de 20 x 120 x 3700 mm.
Panel de lana mineral con una conductividad térmica de U=0,16 W/(m²·K).
Panel de triple acristalamiento con esmalte en el interior y aislamiento de lana mineral. Vidrio blanco RAL 9016. Barandilla de vidrio laminado.
Perfil en U para barandilla de vidrio.
Acabado de aluminio anodizado cepillado RAL 9007.
Revestimiento de paneles compuestos de aluminio.
Acabado satinado blanco RAL 9016 con recubrimiento en polvo y LED con un ángu -
lo de haz de 45 grados.
Vidrio triple con superficie interior opaca.
Double glazing type ISO PYRAN G8 (8 mm PYRAN G8 / 16 mm steel spacer / 66.2 laminated) with argon and low emissivity. (Ug value: 1.1) Slab extension (new slab limit).
Support wall for the curtain wall with FW60 Schüco profile.
Horizontal support of the curtain wall with FW60 Schüco profile.
Aluminum profile with a satin white finish RAL 9016 and powder coating, 50mm x 30mm.
Curtain wall retaining wall.
Vidrio doble tipo ISO PYRAN G8 (8 mm PYRAN G8 / 16 mm espaciador de acero / 66.2 laminado) con argón y baja emisividad. (valor Ug: 1.1)
Extension de losa (nuevo limite de losa).
Muro de apoyo del muro cortina con Perfil FW60 Schüco. Apoyo horizontal del muro conrtina con Perfil FW60 Schüco.
Perfil de aluminio con acabado satinado blanco RAL 9016 con recubrimiento en polvo de 50mm x 30mm. Murete de contención de muro cortina.

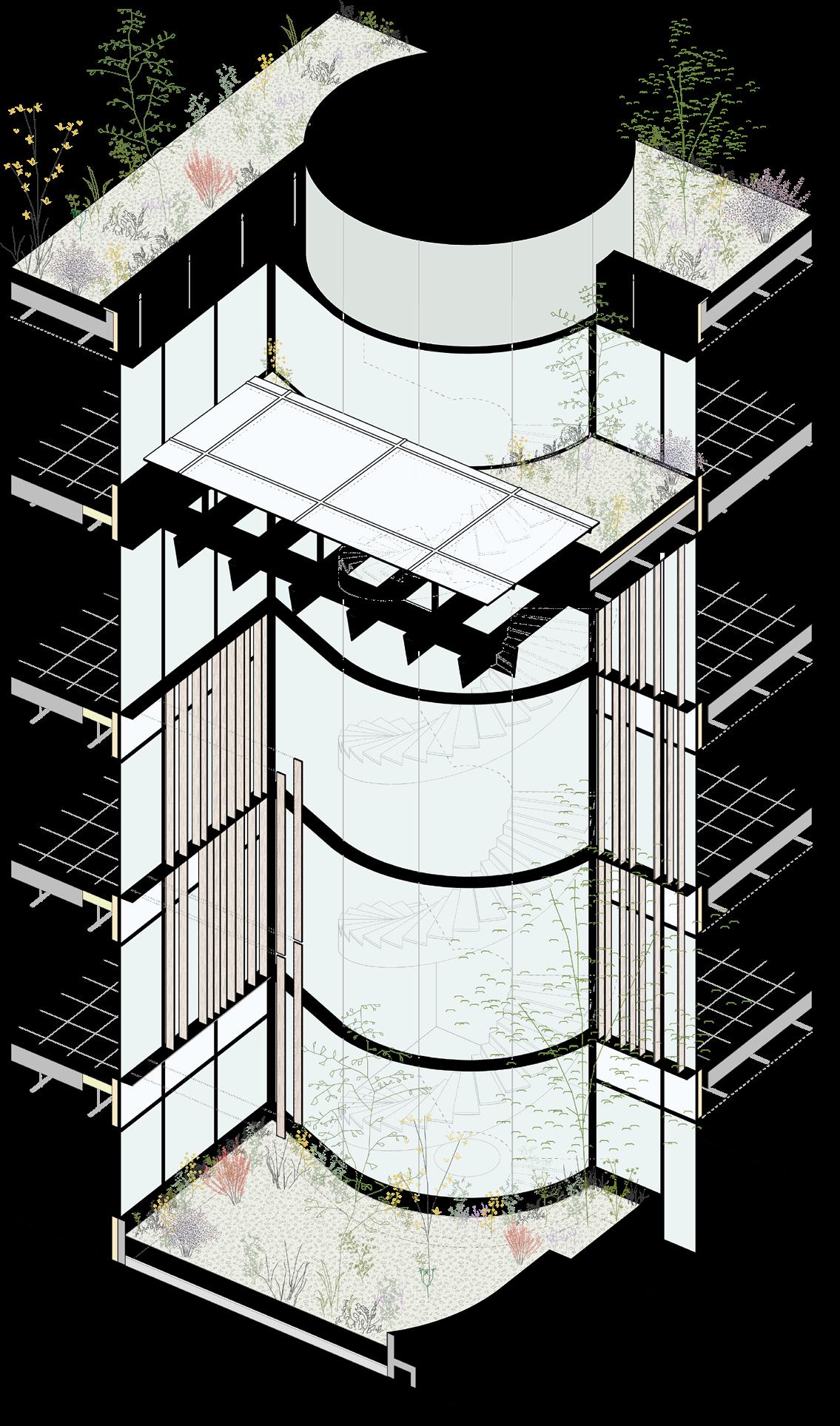

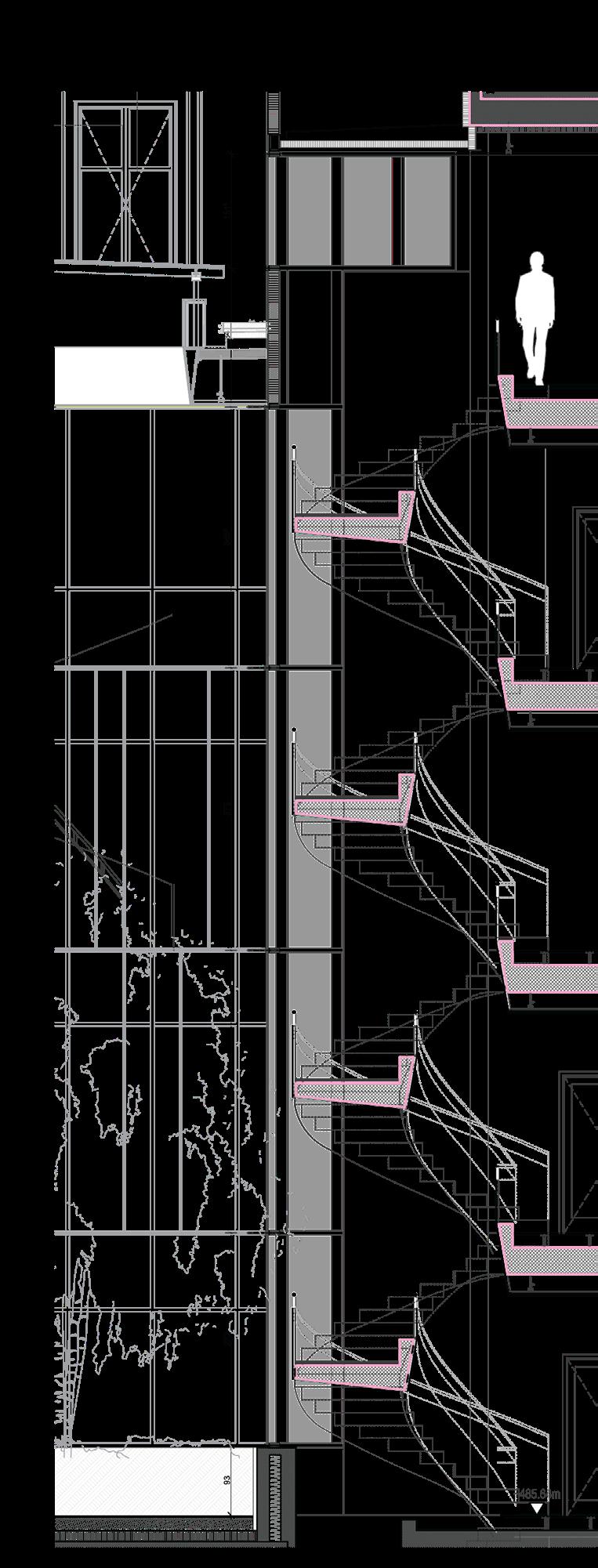

Staircase Section
Solid stained oak window with triple glazing.
Exterior frames in powder-coated aluminum IGP, color of your choice.
Louvered blinds type Lamisol Griesser.
130 mm thick glass wool.
Steel frame with RAL 9007 powder-coated finish. Triple glazing, ultra-slim window from the MHB range.
Perforated metal plate. 40 x 8 mm, spaced every 30 mm / 60 mm / 120 mm. Isolated metal frame.
Interior frames in solid stained oak.
EI60 acoustic and non-combustible closure.
5 mm folded sheet metal frame with satin white RAL 9016 powder-coated finish. Plasterboard 25 mm - Glass wool 30 mm - Glass wool 80 mm - Glass wool 60 mmRubble 400 mm.
Ventana de roble macizo teñido con triple acristalamiento.
Marcos exteriores de aluminio termo-lacado IGP, color a elegir.
Persiana de lamas tipo Lamisol Griesser.
Lana de vidrio de 130 mm de espesor.
Marco de acero con acabado termolacado RAL 9007. Triple acristalamiento, ventana
ultra delgada de la gama MHB.
Placa metálica perforada. 40 x 8 mm, separada cada 30 mm / 60 mm / 120 mm.
Marco de metal aislado.
Marcos interiores de roble macizo teñido.
Cierre EI60 acústico e incombustible.
Marco de chapa plegada de 5 mm con acabado termolacado satinado blanco RAL 9016.
Cartón yeso de 25 mm - Lana de vidrio de 30 mm - Lana de vidrio de 80 mmLana de vidrio de 60 mm - Mampostería de 400 mm.
Sonora, Mexico
1,400 m 2
Independent Work
Schematic Design + Construction Documents
Lead Architect & Executive
Project Director

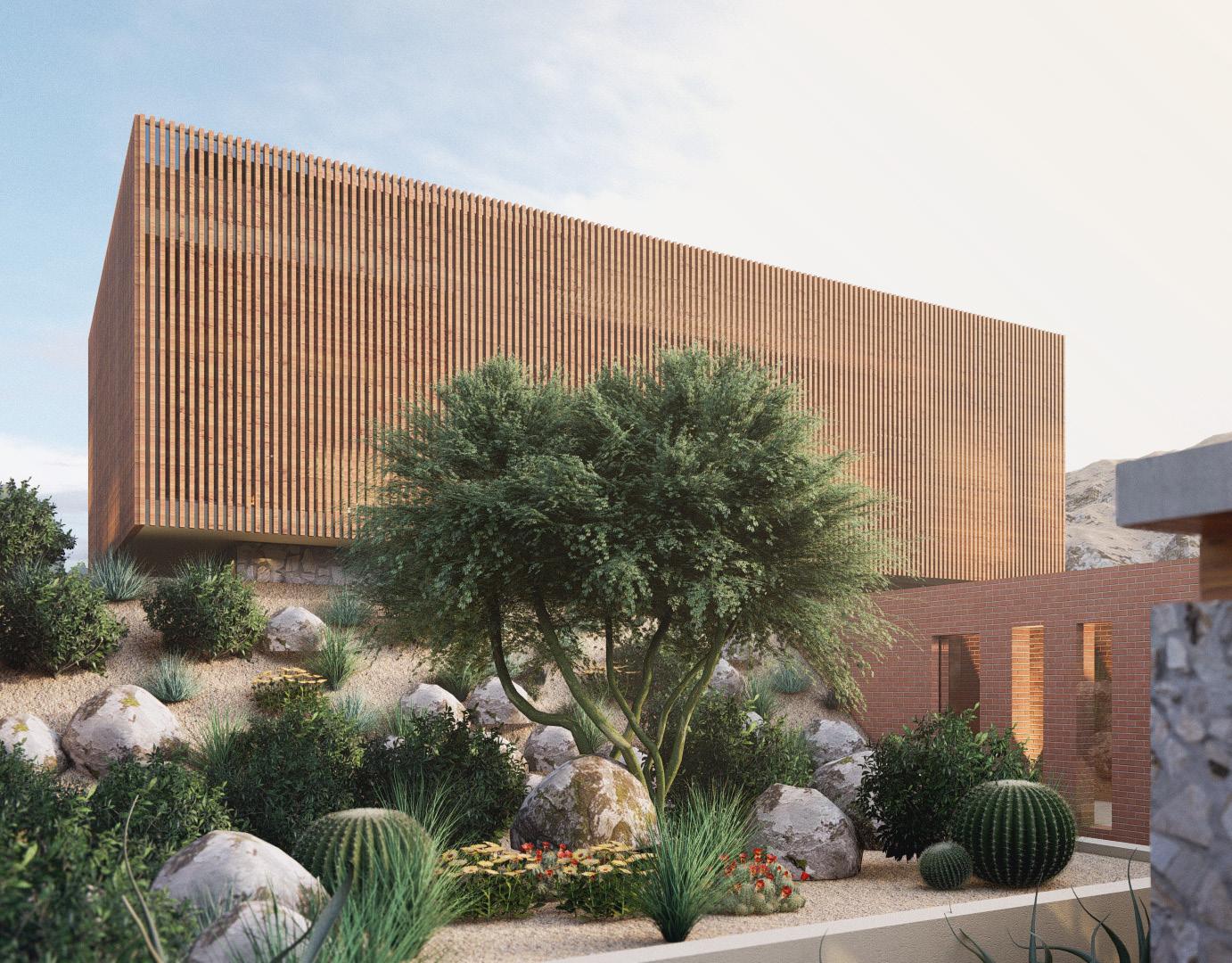

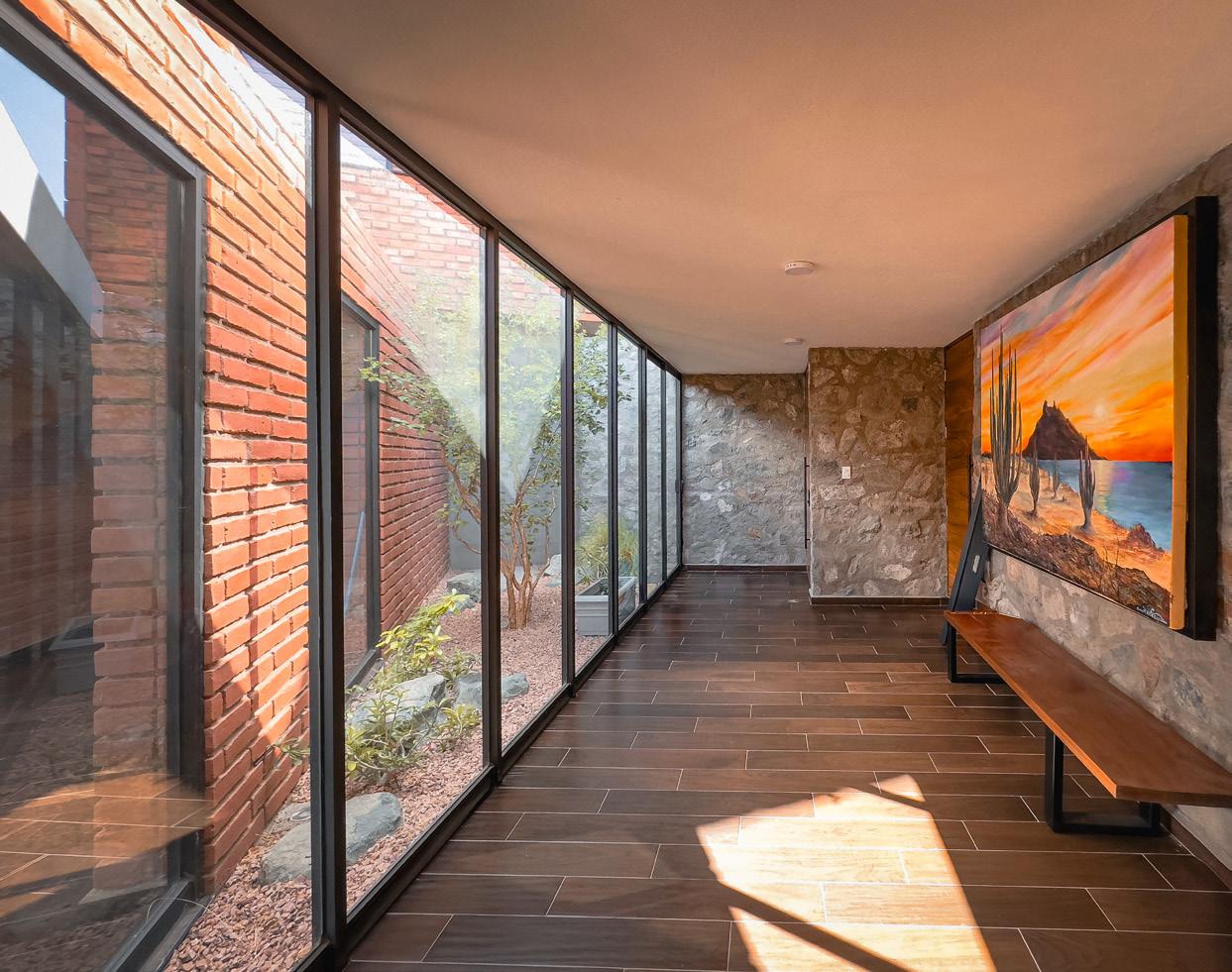

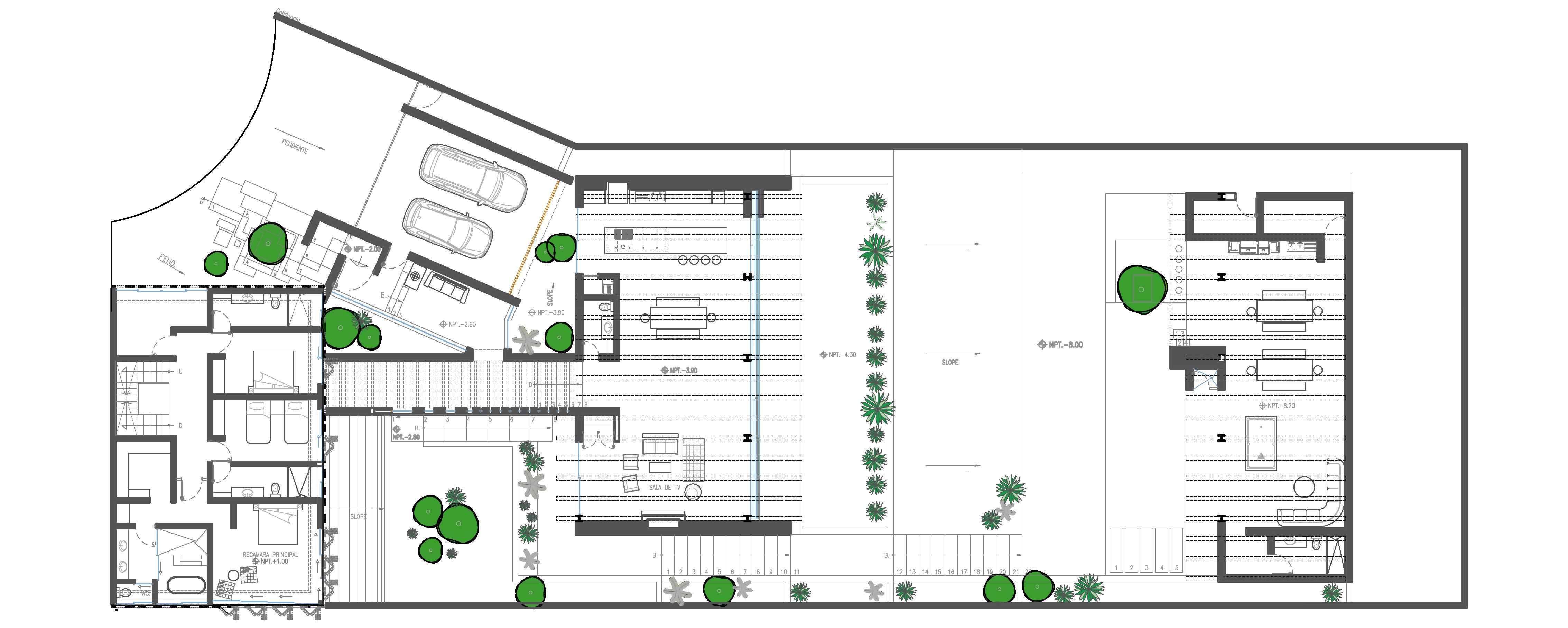

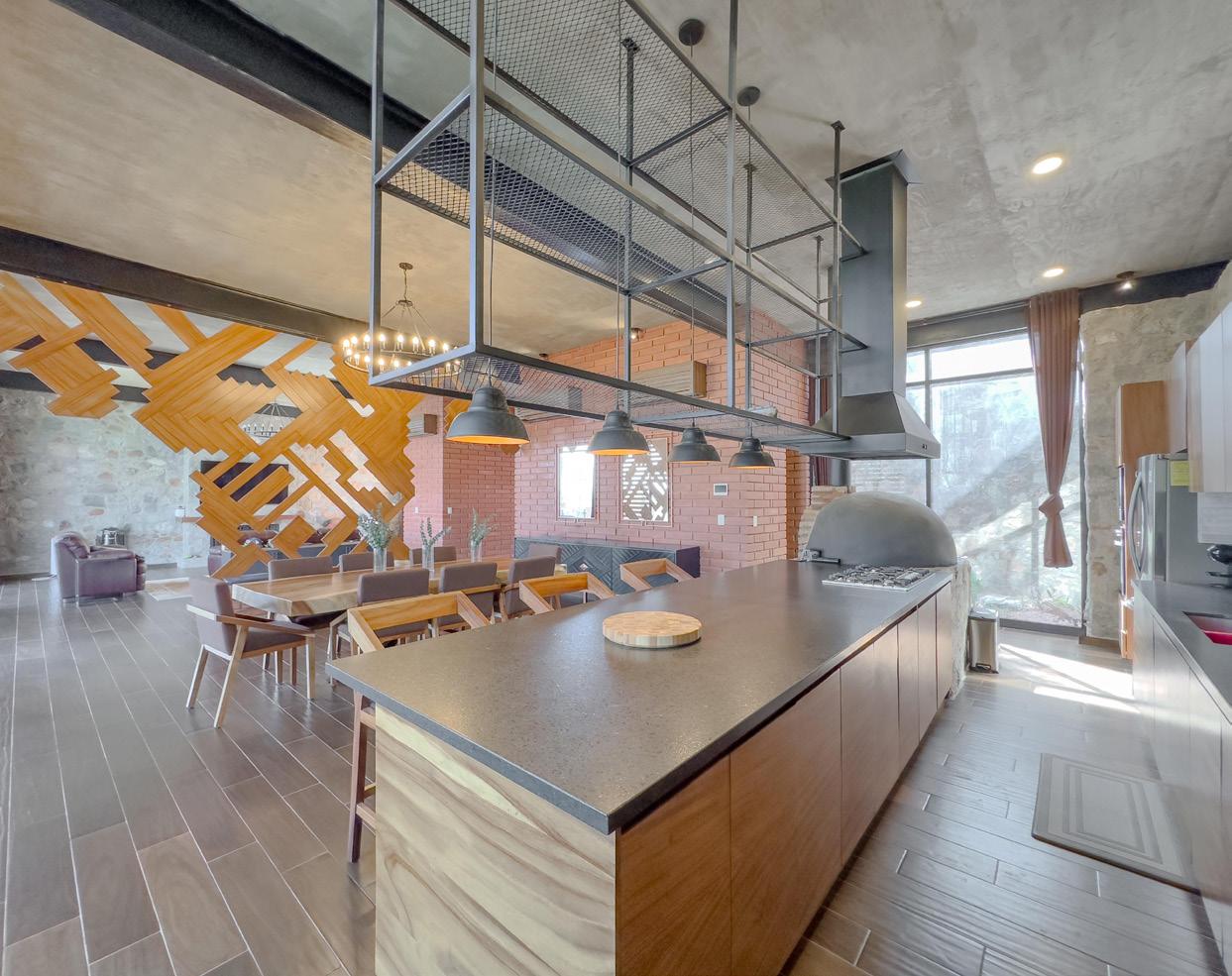

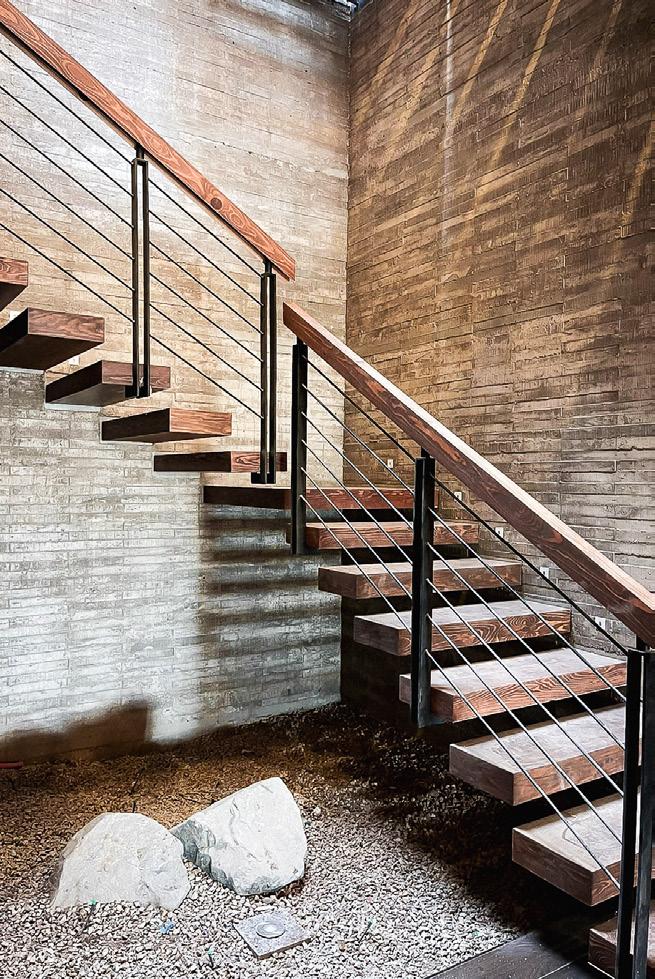

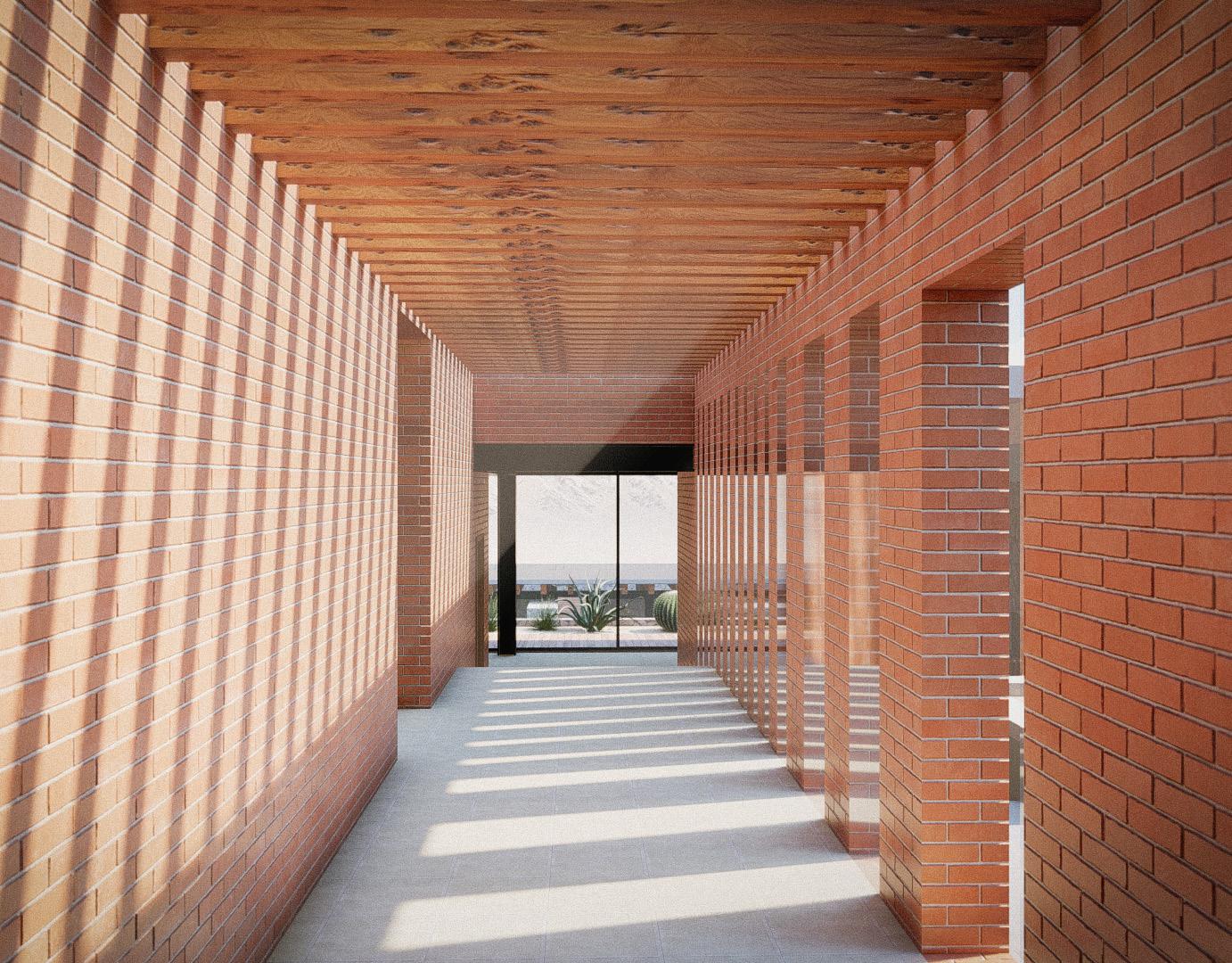

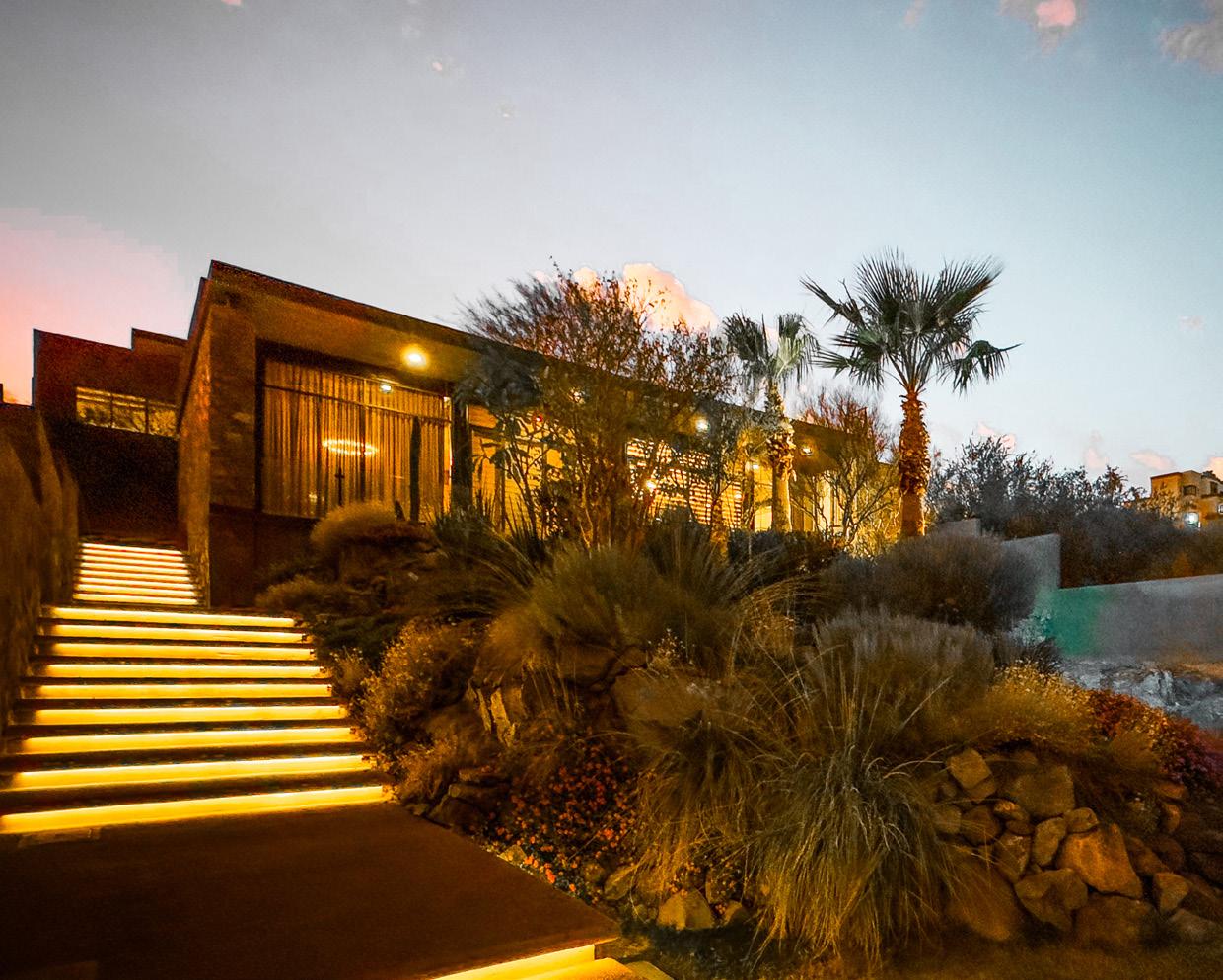

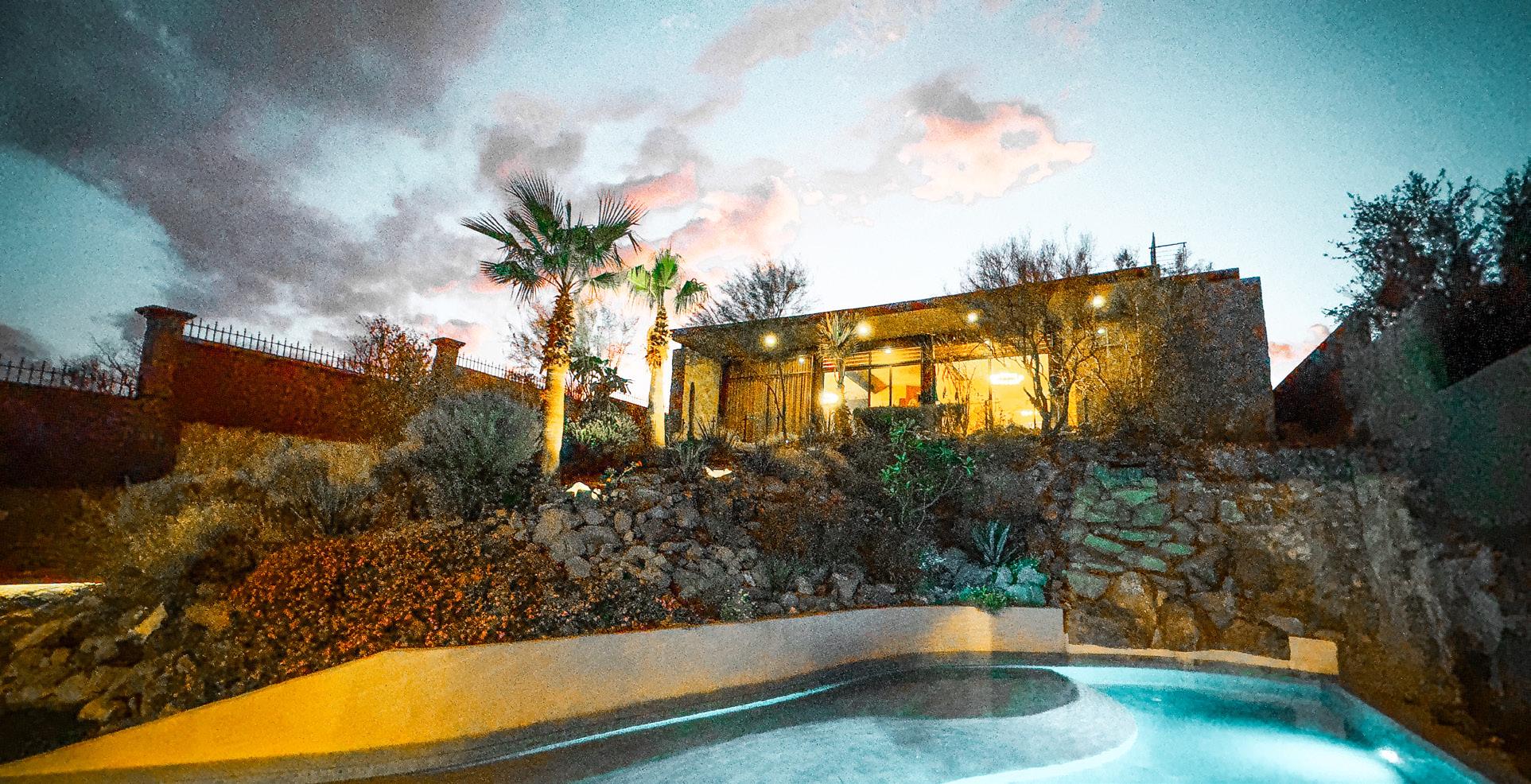

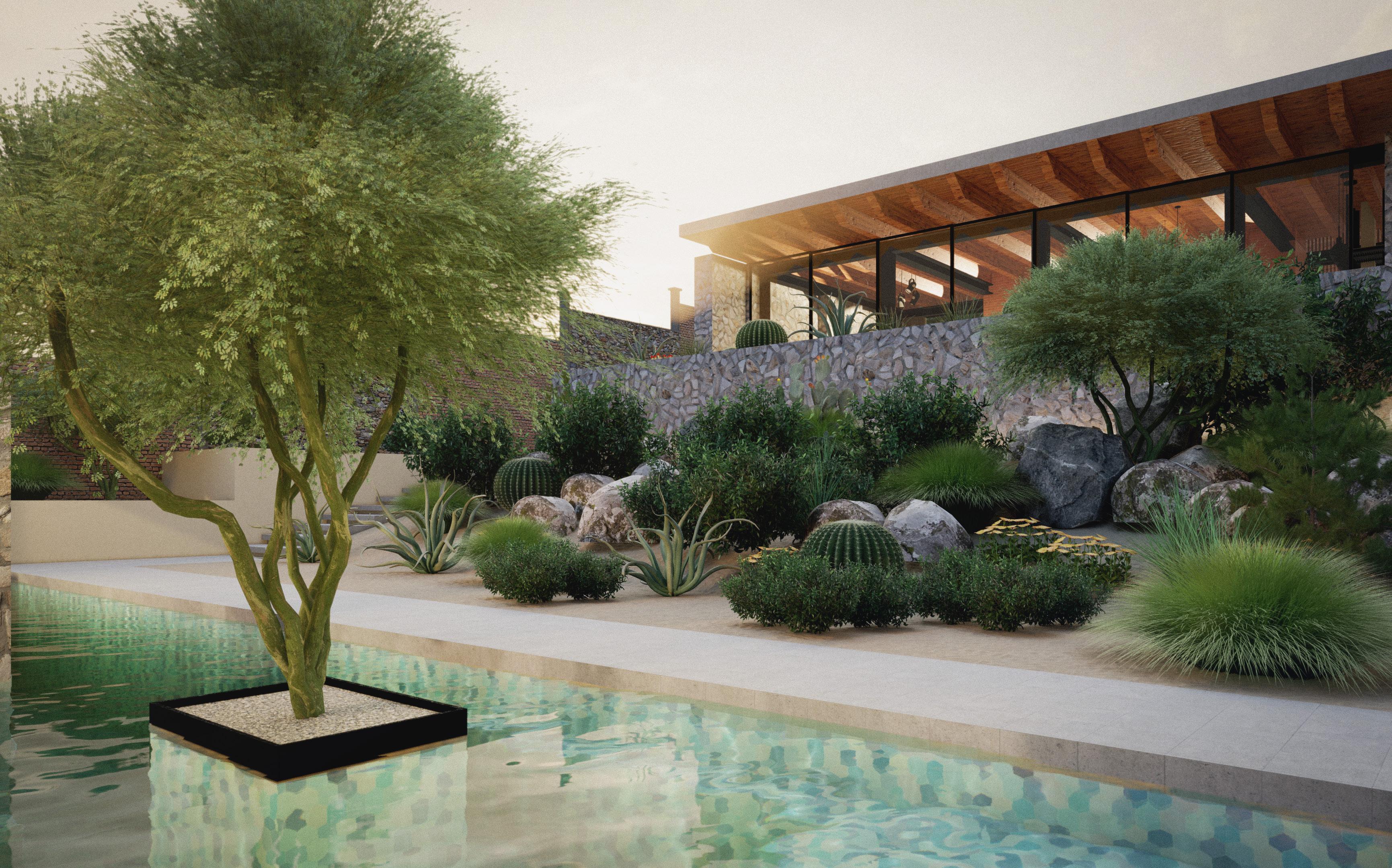

The Ameuroso House is a commission located on the Sonoran Desert, just on the peripheries of the city of Hermosillo. The commission was given by Mr. Alessio Ameuroso, an Italian businessman and investor.

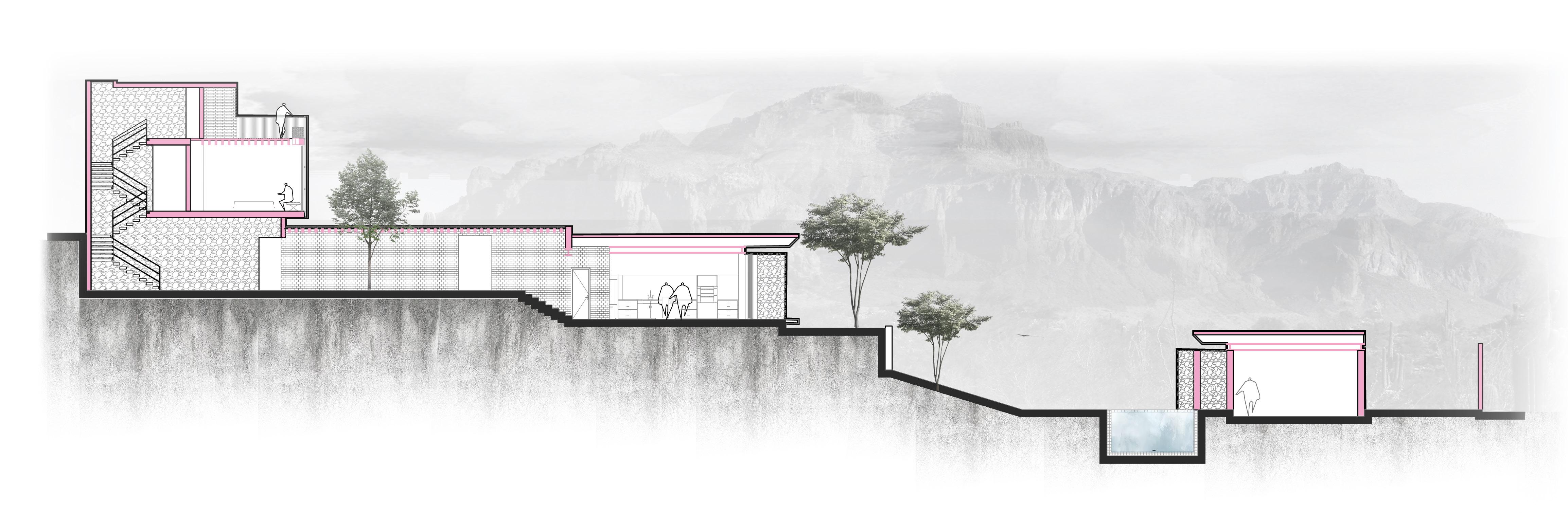

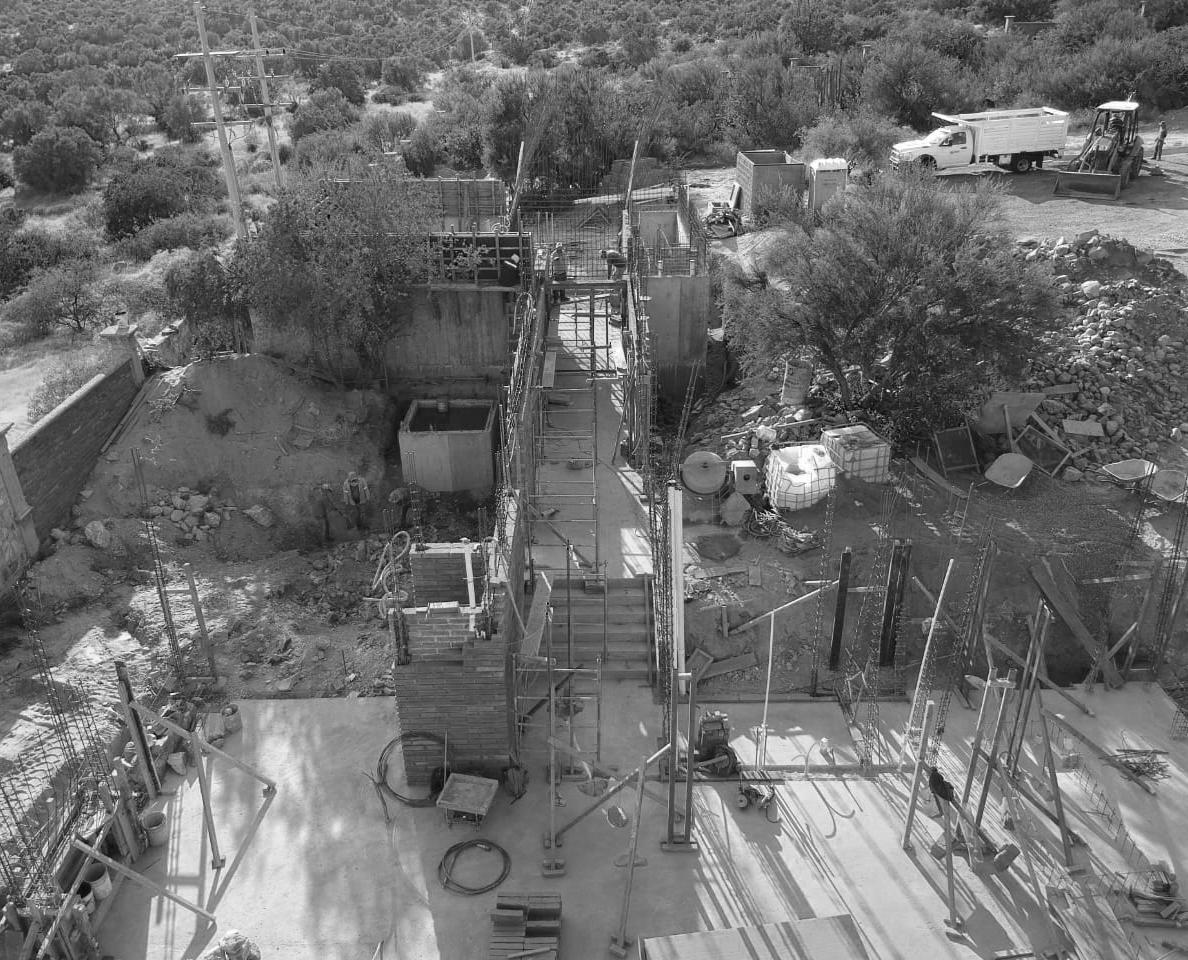

The plot is found on top of a hill which results in a challenging topography with a difference of 11 meters of elevation.

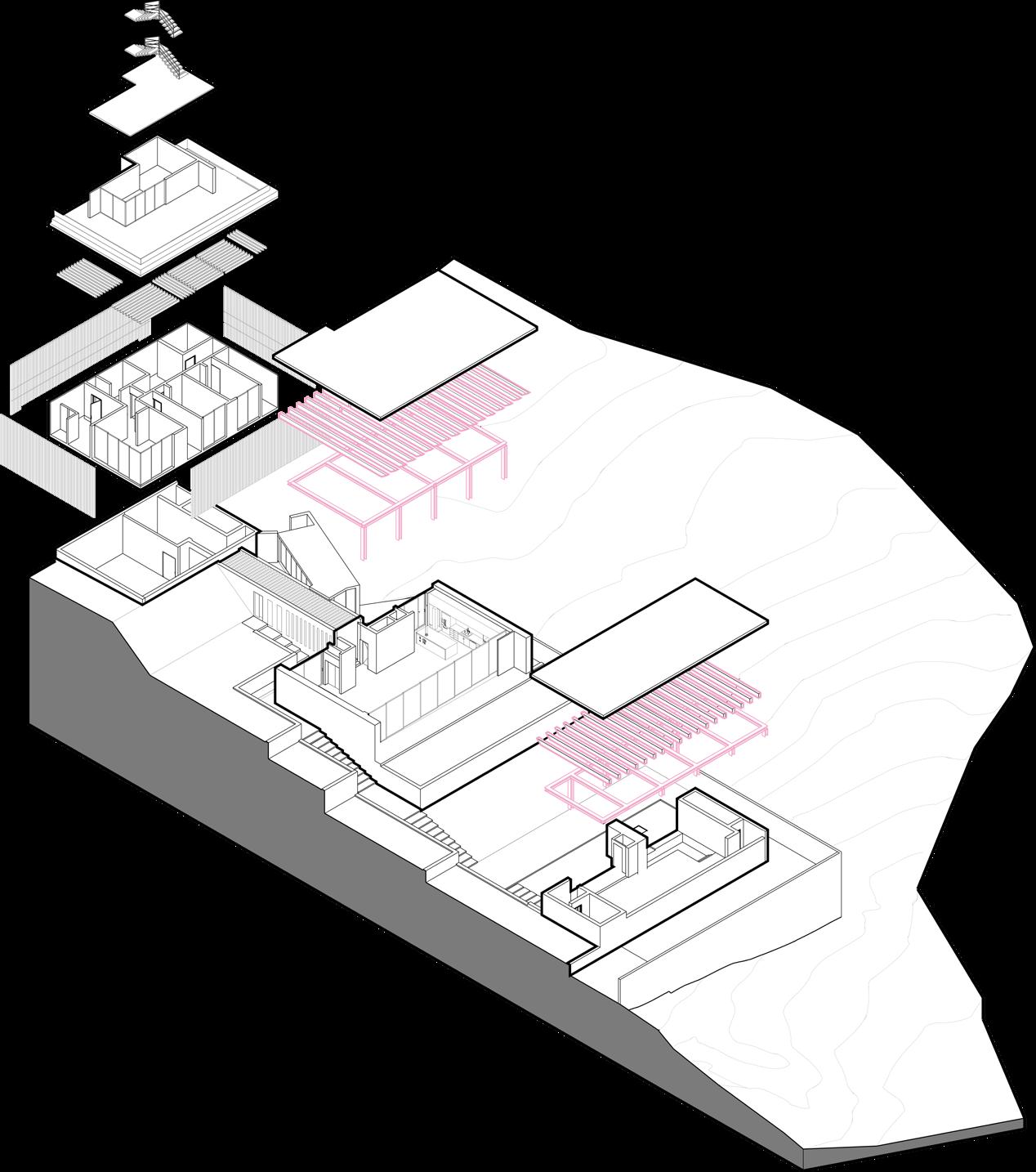

The clients characteristics resulted in 3 main volumes, public, semi-public and private. Lastly, due to the aggressive topography of the plot, and the contrasting program of the project, it became essential to create transitional spaces that could harmonize the different personalities within the project.

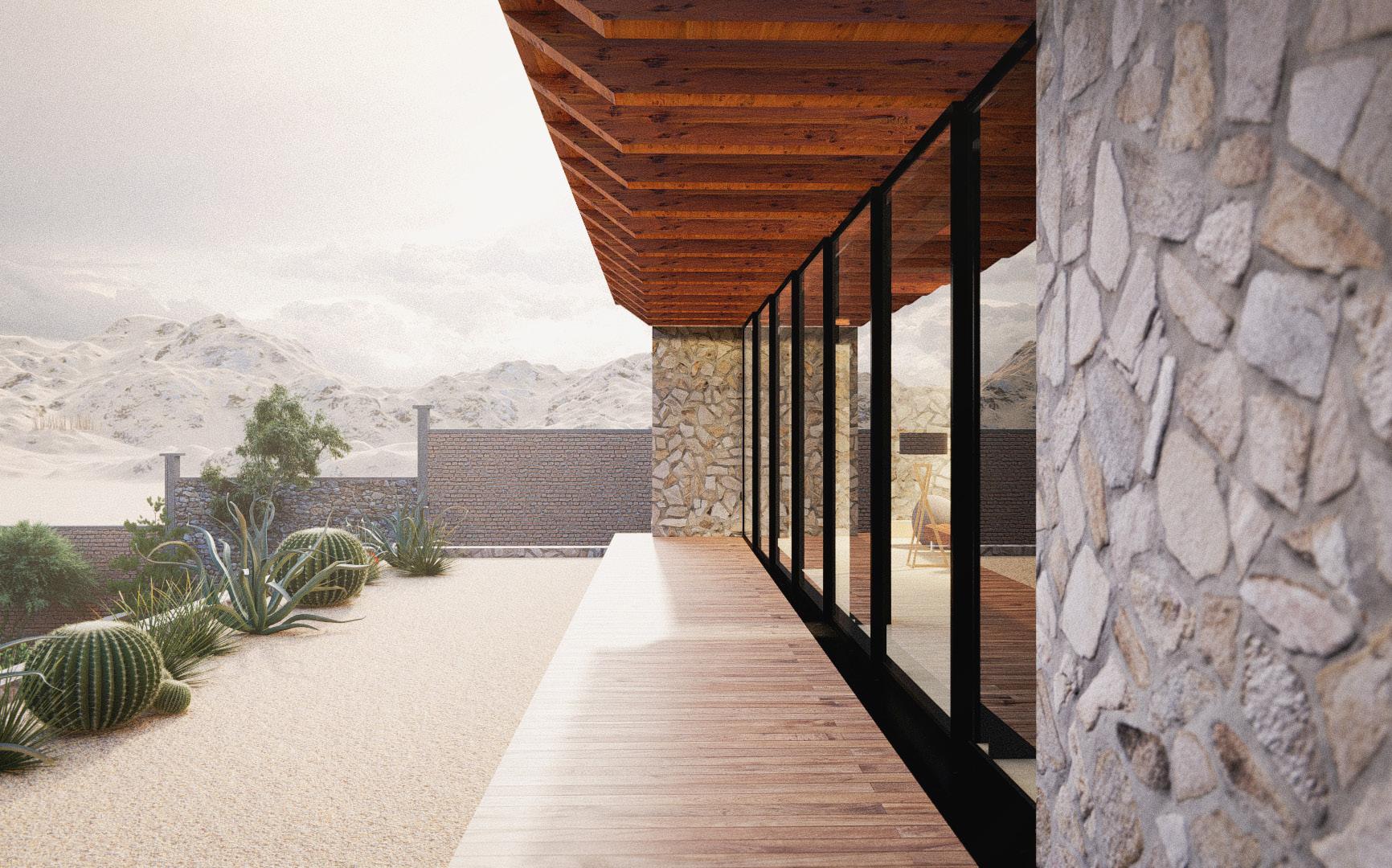

It was essential to uncover and discover the house within the beautiful landscapes of the dessert while protecting it from its extreme weather conditions, giving as a result a handful of climatic strategies that would allow the possibility of being protected while being on the rawness of the outside.
The Project is developed with local materials, reinforcing the sensibility towards the land and its environment.

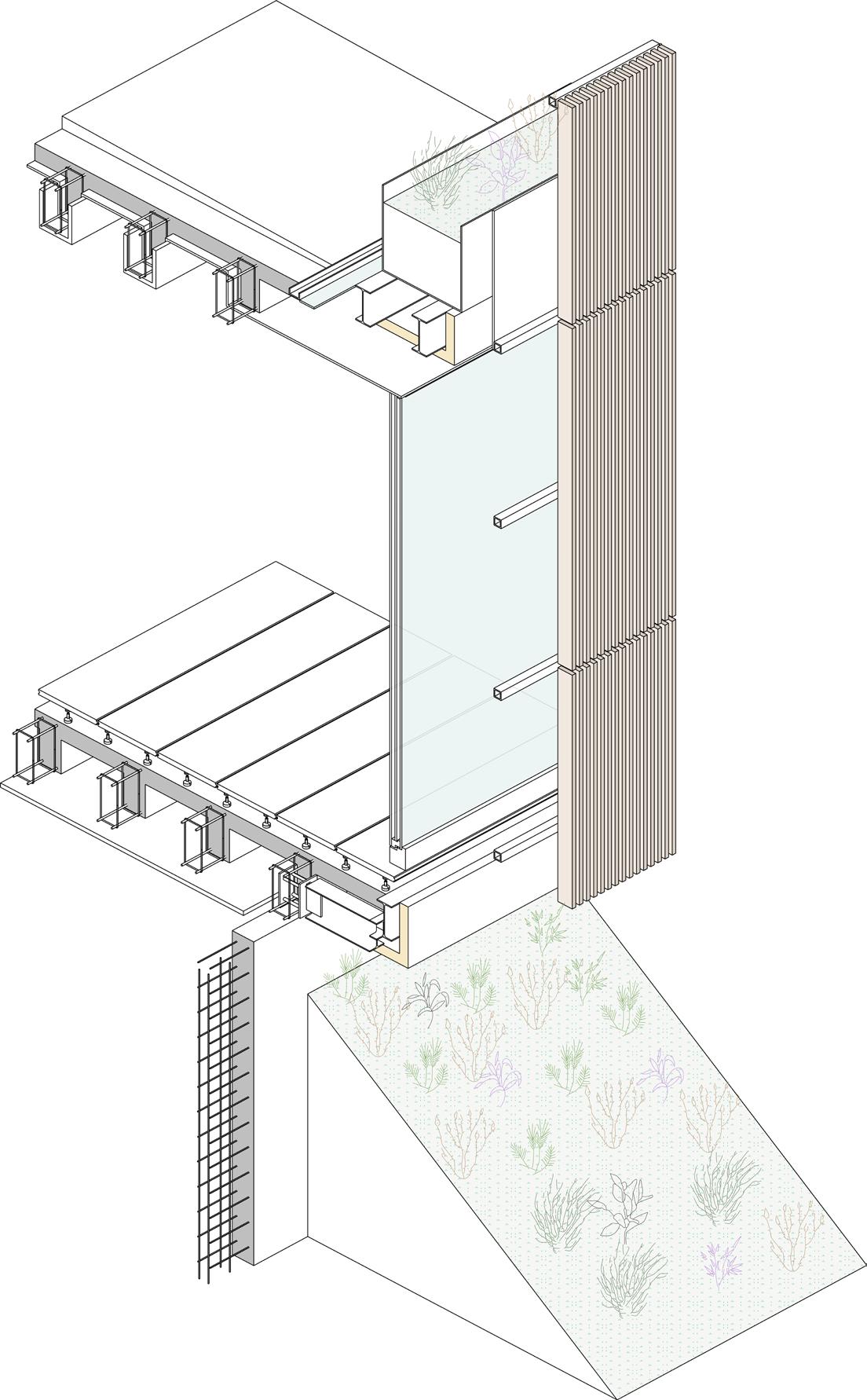

Galvanized RHS profile of 2 x 2”, matte black finish
Screen made with rectangular wooden profiles of 2”x1” @ 2” each
Steel plate of 5/16” for roof garden
Planting soil and fertilizer
UB Beam of 203 x 133 x 30 mm
Thermal Insulation of 50 mm
Steel plate on both sides of 1/4”
Steel plate join on both sides of beam of 1/4”
4 steel anchors of 5/18”
Ribbed slab, beams made with rods of 3/8” and stirrup of 2/8” @ 15cm
Finish made with laminated wood around each rib.
Triple glazed window
Ceramic tile, Rainforest Ivory 20 x 60 cm
Suspended ceiling made with plaster
Reinforced concrete wall with rods of 3/8” and stirrups of 2/8” @ 15 cm
PTR de acero galvanizado de 2 x 2”, acabado mate negro
Celosia con polín de madera de primera de 2” x 1” @ 2” c/u
Placa de acero de 5/16” para jardinera en techo
Tierra y fertilizante para jardinera
Trabe universal tipo de 203 x 133 x 30 mm
Aislante térmico de 50 mm
Placa de acero 1/4” ambos lados
Atiesador ambos lados de placa de 6 (1/4”)
4 anclas de 5/8” Acero A36
Losa nervada con armado de 3/8”, nervaduras con var. de 3/8”,es. 2/8” @ 15 cm
Acabado con lamina de acabado de madera en cada nervadura
Ventana de triple hoja
Piso cerámico tipo Rainforest Ivory 20 x 60 cm.
Plafón de Durock
Muro de concreto reforzado con var. de 3/8” y estribos de 2/8” @ 15 cm
Reinforced concrete column of 16 x 16 cm with 4 rods of 3/8” and stirrups of 2/8” @ 15 cm
Column of 12 x 12 cm with 4 rods of 3/8” and stirrups of 2/8” @ 15 cm
Reinforced concrete column of 40 to 17 cm of width with 5 rods of 3/8” and stirrups of 2/8” @ 15 cm
Concrete column with 2 rods of 3/8” and stirrups of 2/8” @ 15 cm
Double glazed window of 6 mm over an aluminum frame colour matte black
Double brick wall with thermal insulation panel of 5 mm in between
Double glazed door with 6 mm of security glass with aluminum frame colour
matte black
Double glazed window of 4 mm with aluminum frame colour matte black
Columna de 16 x 16 cm con 4 varillas de 3/8” y estribos de 2/8” @ 15 cm
Castillo de 12 x 12 cm con 4 varillas de 3/8 “ y estribos de 2/8” @ 15 cm
Columna de 40 a 17 cm con 5 varillas de 3/8” y estribos de 2/8” @ 15 cm
Castillo de concreto con 2 varillas de 3/8” y estrivos de 2/8” @ 15 cm
Ventana de doble acristalamiento de 6 mm de espesor sobre marco de aluminio negro mate.
Muro con doble hilada de ladrillo y panel aislante de 5 mm de espesor entre hiladas
Ventana de cristal corrediza de doble acristalamiento de 6 mm, cristal de seguridad, sobre marco de aluminio color negro mate
Ventana fija de doble acristalamiento de 4 mm de espesor sobre marco de aluminio negro mate.
Tamaulipas, Mexico
850 m 2
Independent Work
Schematic Design
Work in process...
Lead Architect .3

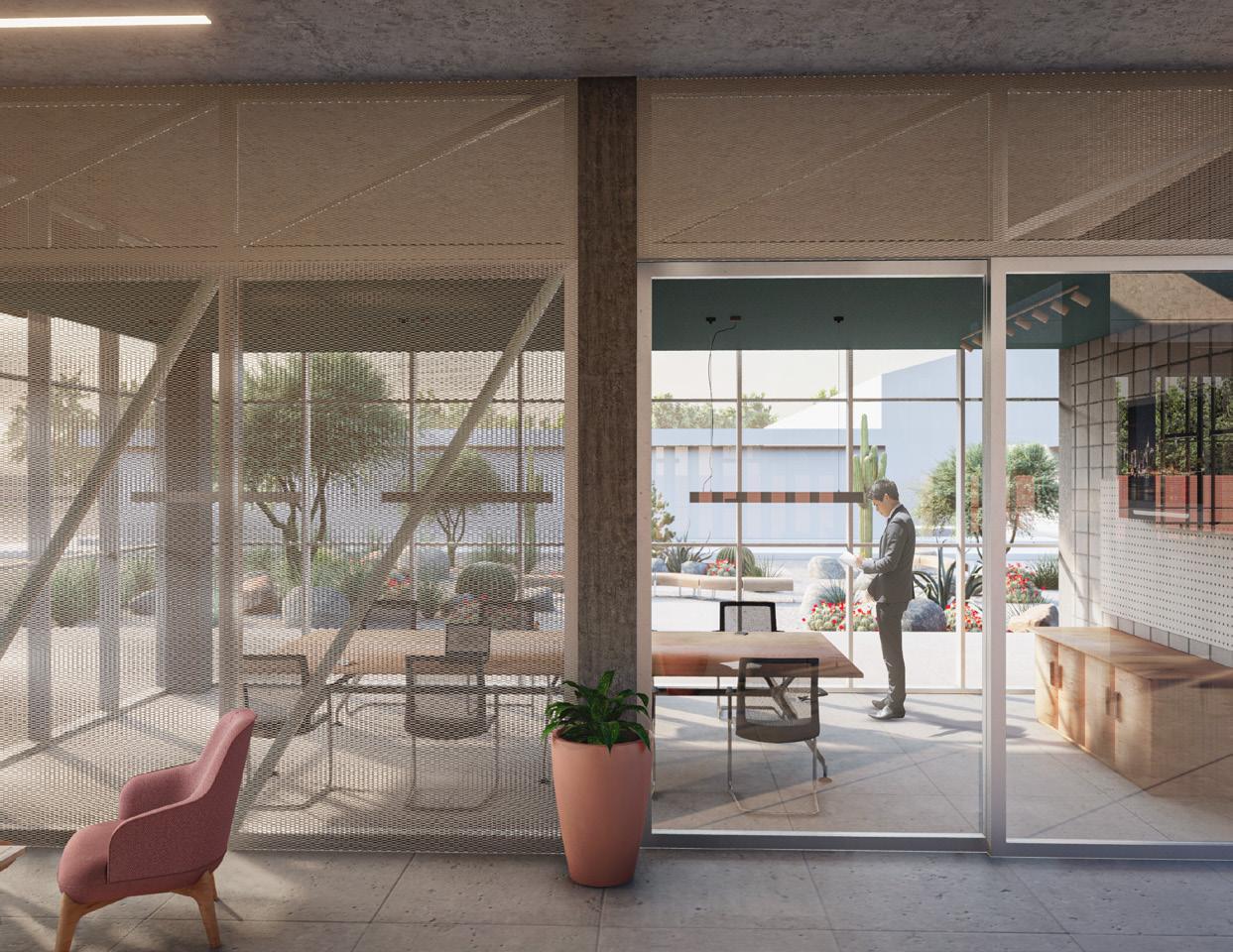

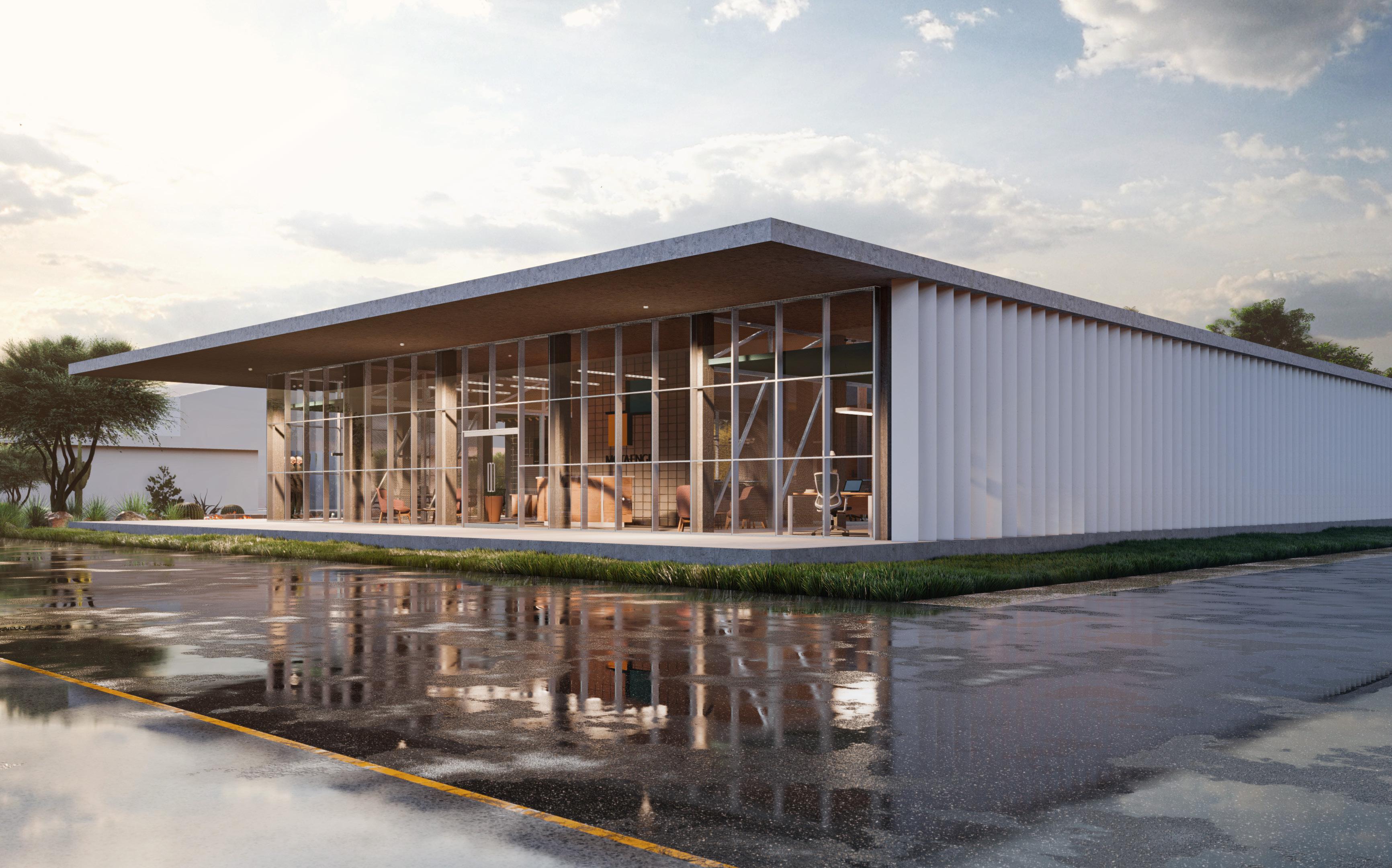

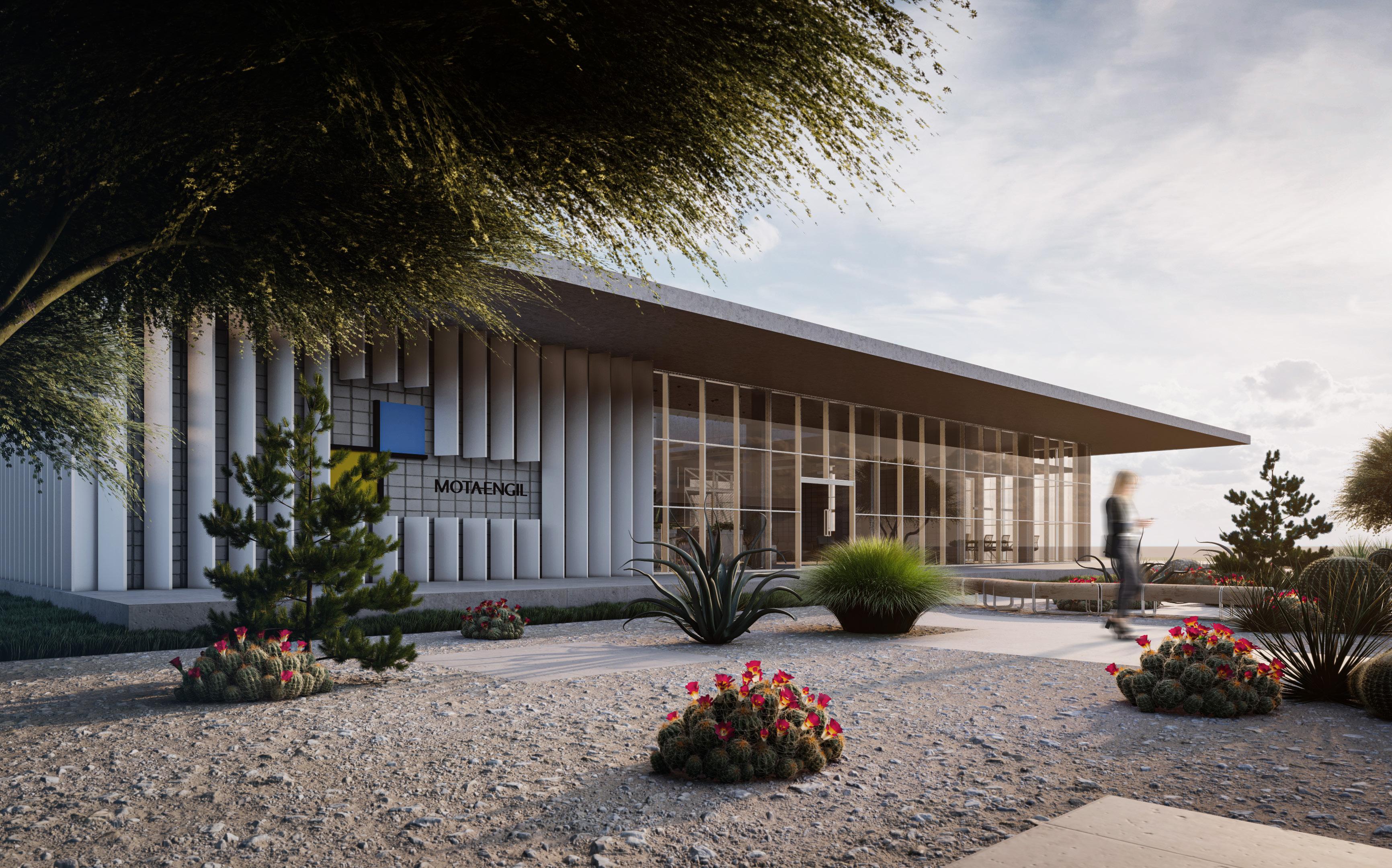

The concept of this project arises from the need to address the extreme climatic conditions of Tamaulipas and the demand for a functional building for the administrative offices of the port in operation. The design seeks to balance efficiency and comfort without sacrificing the quality of the workspace. To achieve this, the structure is conceived as simple yet well thought out, with strategically designed slabs that regulate solar incidence, allowing heat to enter in winter while reducing radiation in summer.

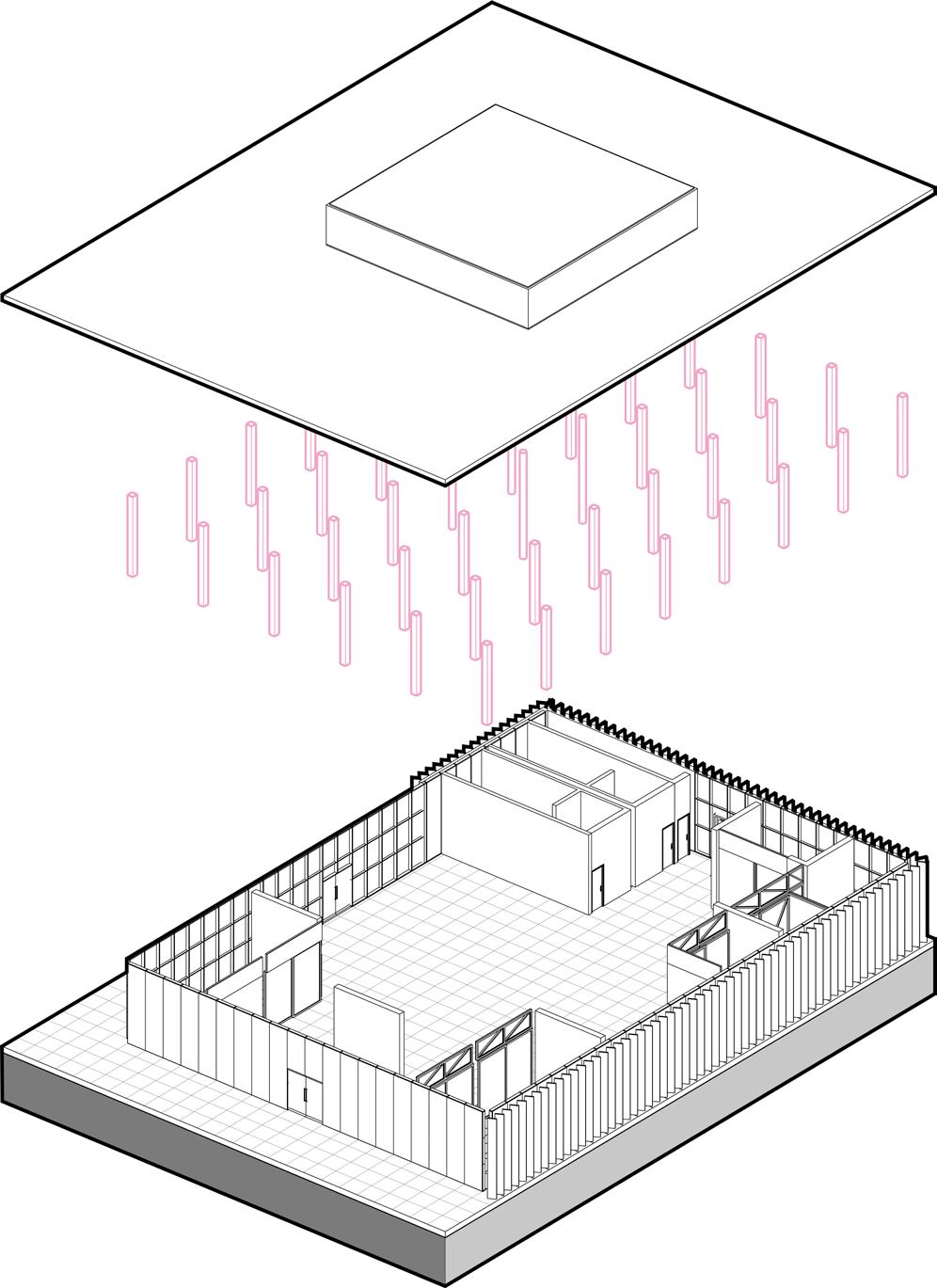

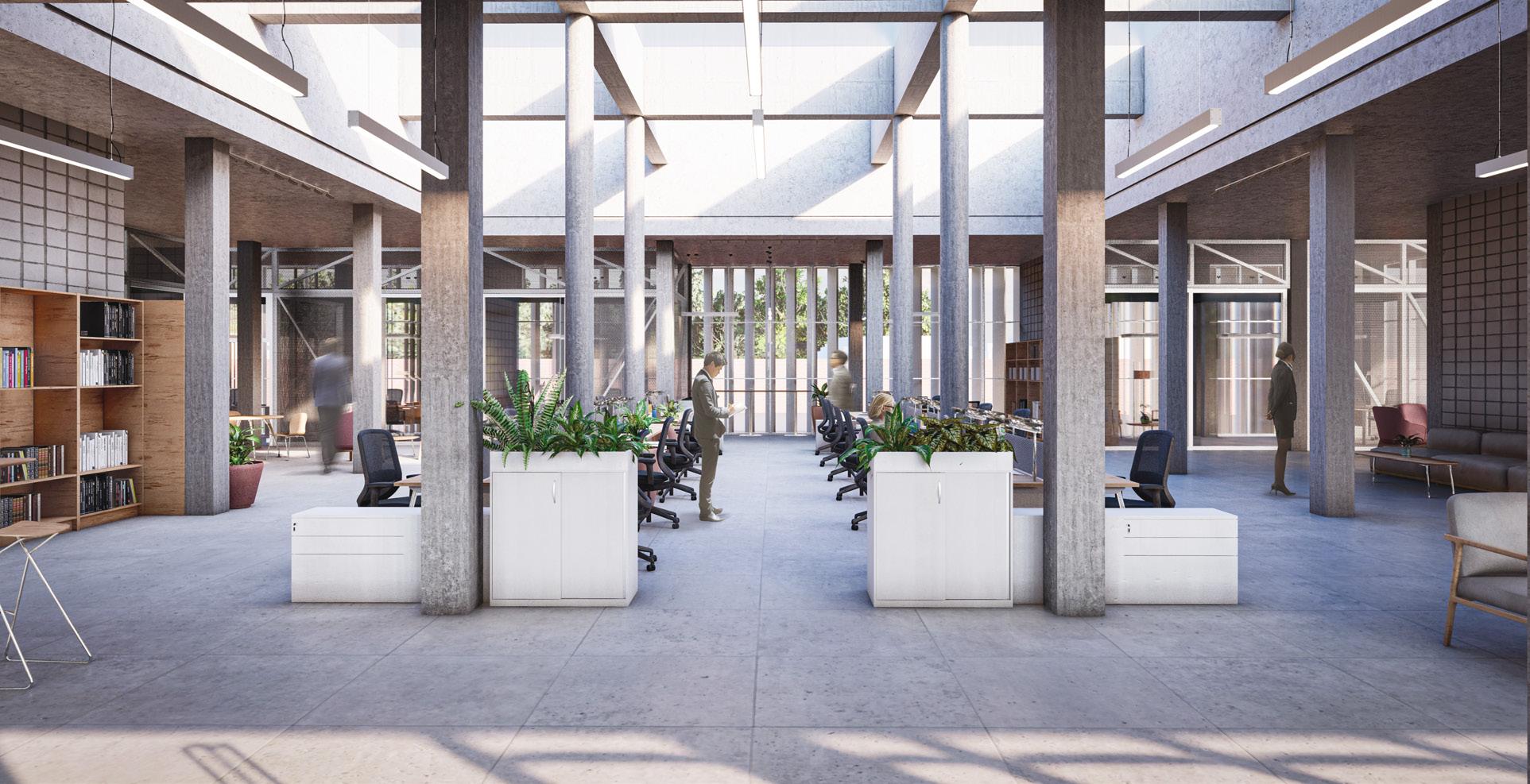

The columns, arranged in a four-meter modular grid, create an efficient structural order, while an aluminum solar protection system wraps the building, providing shade and enhancing natural ventilation by channeling desirable winds inside. This proposal not only responds to the site’s climatic and operational challenges but also dignifies the work environment with a sober, functional design focused on the well-being of its occupants.
The Project is inspired from the consequences of taking a project from Paris (Rues des Orteaux) to any place with extreme weather conditions on Earth and making the needed adaptations for its success.

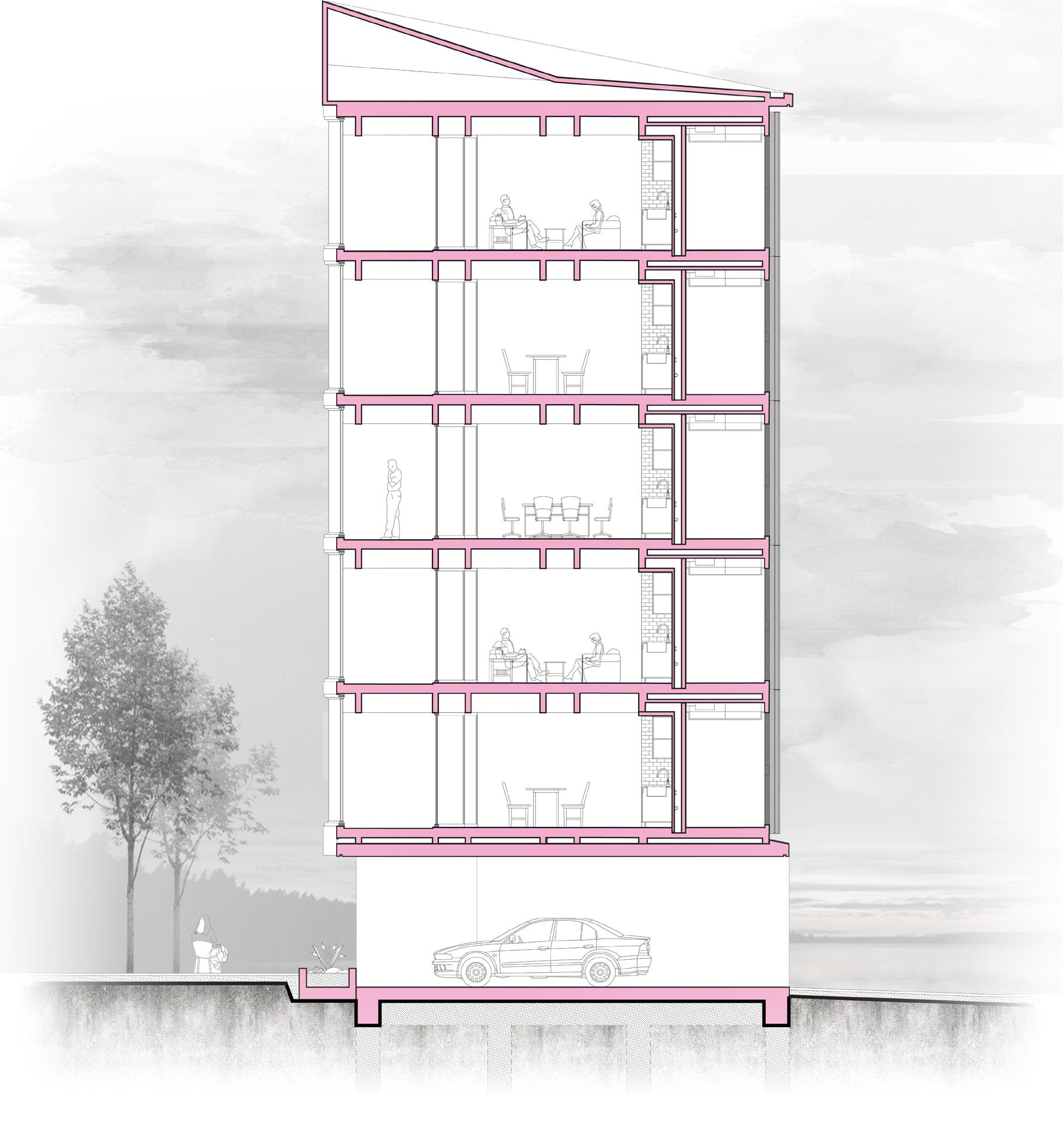

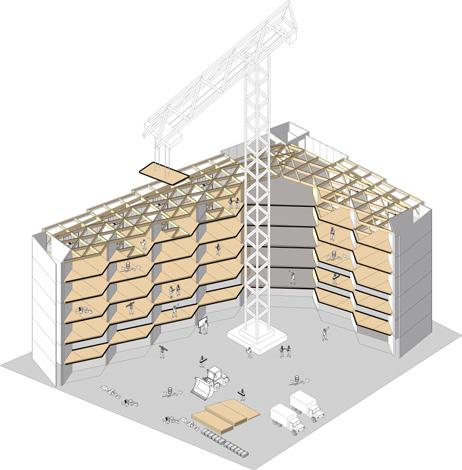

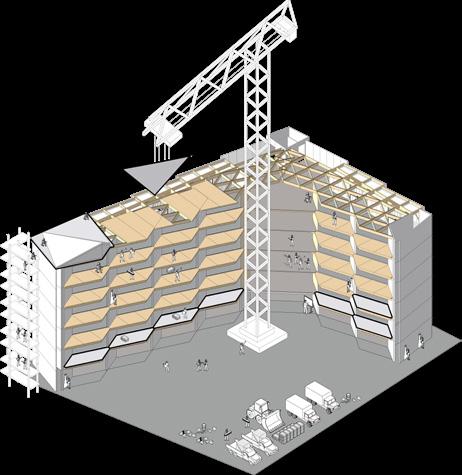

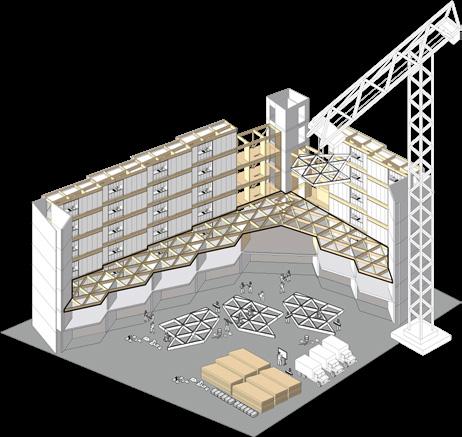

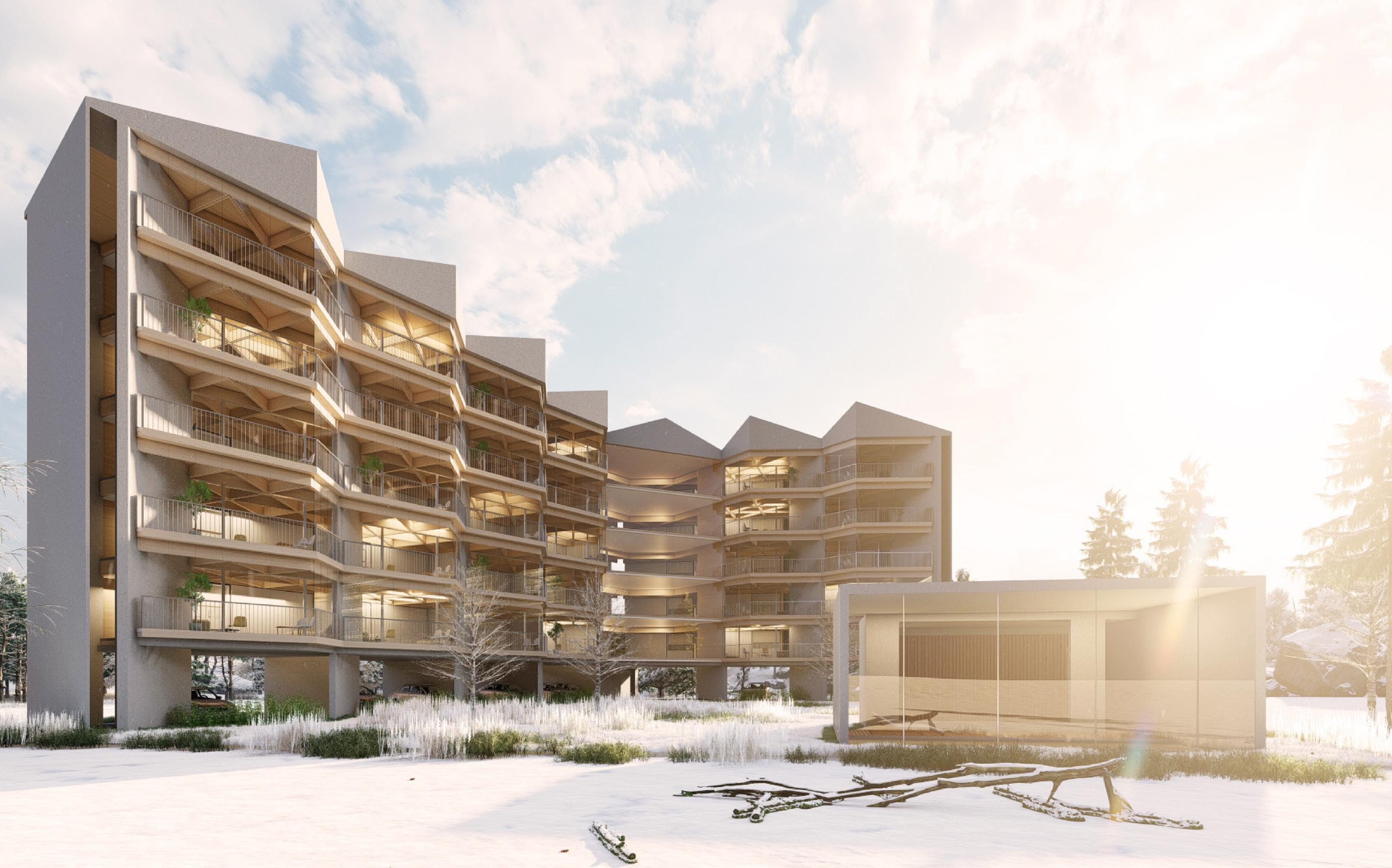

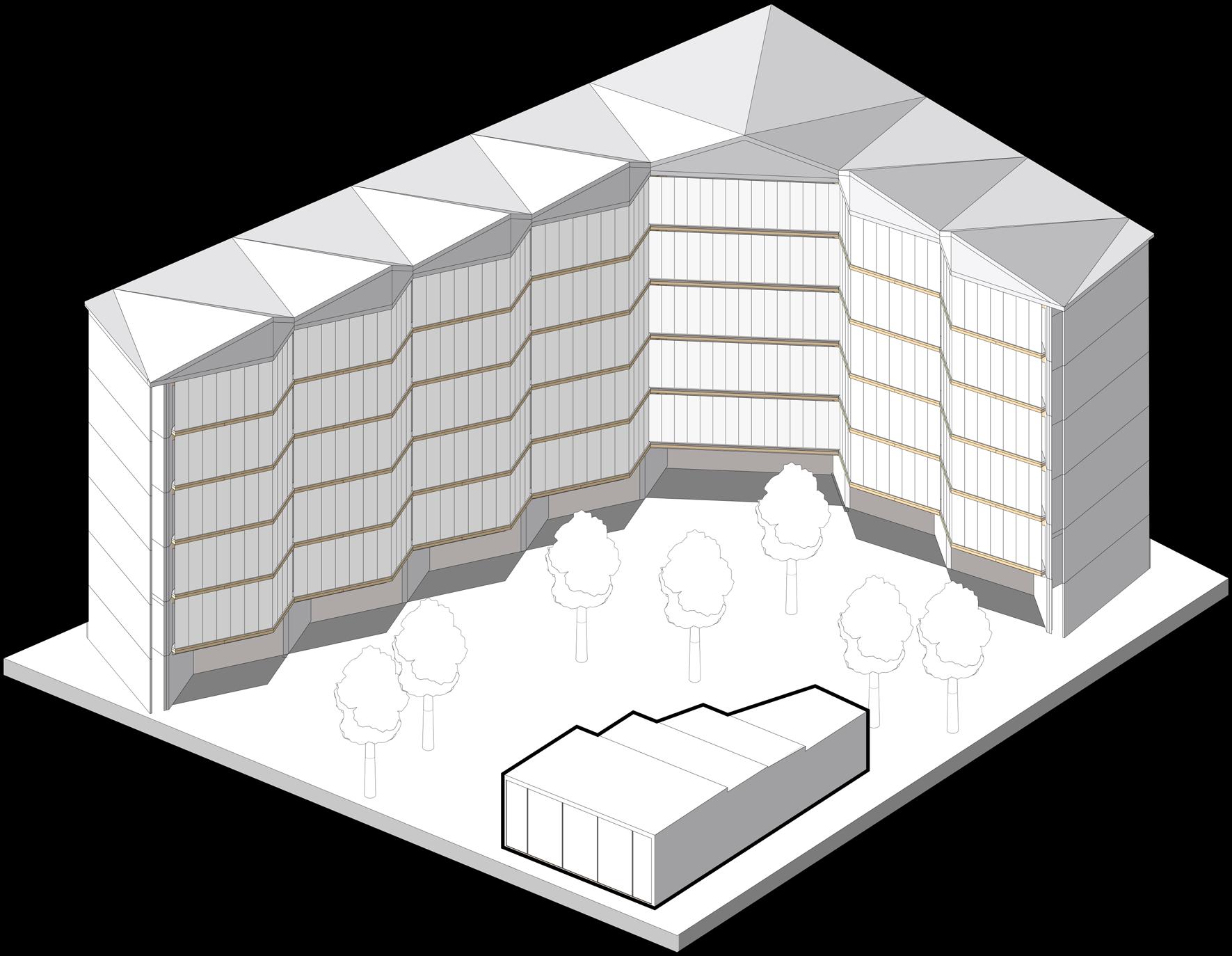

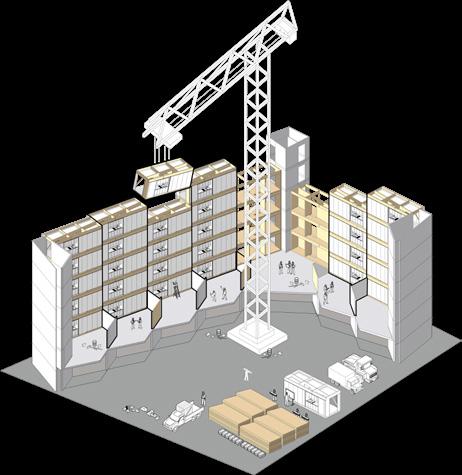

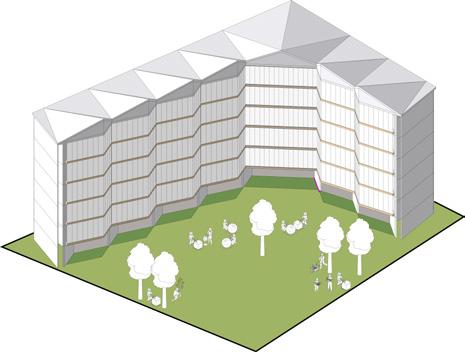

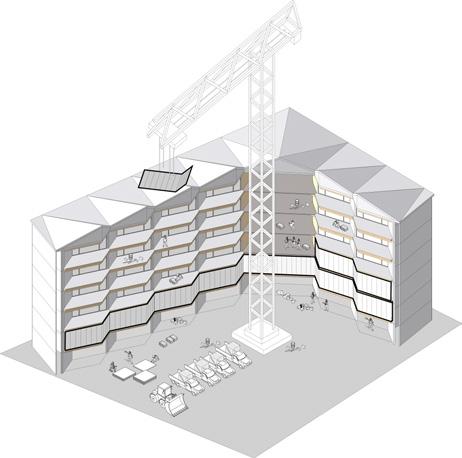

Given that, a collective housing project is created at the edge of the river in Oulu, Finland. Moreover, the development of the project goes according to social, cultural, economic and constructive necessities of Finland, considering the most minimal constructive detail of the project.
As an example of the constructive differences, we have from the communal sauna of the building to the apartments design for the scientific and academic community of Oulu, to the CLT-Concrete prefab construction details and the reinforcement of isolation to counteract the extreme weather conditions.

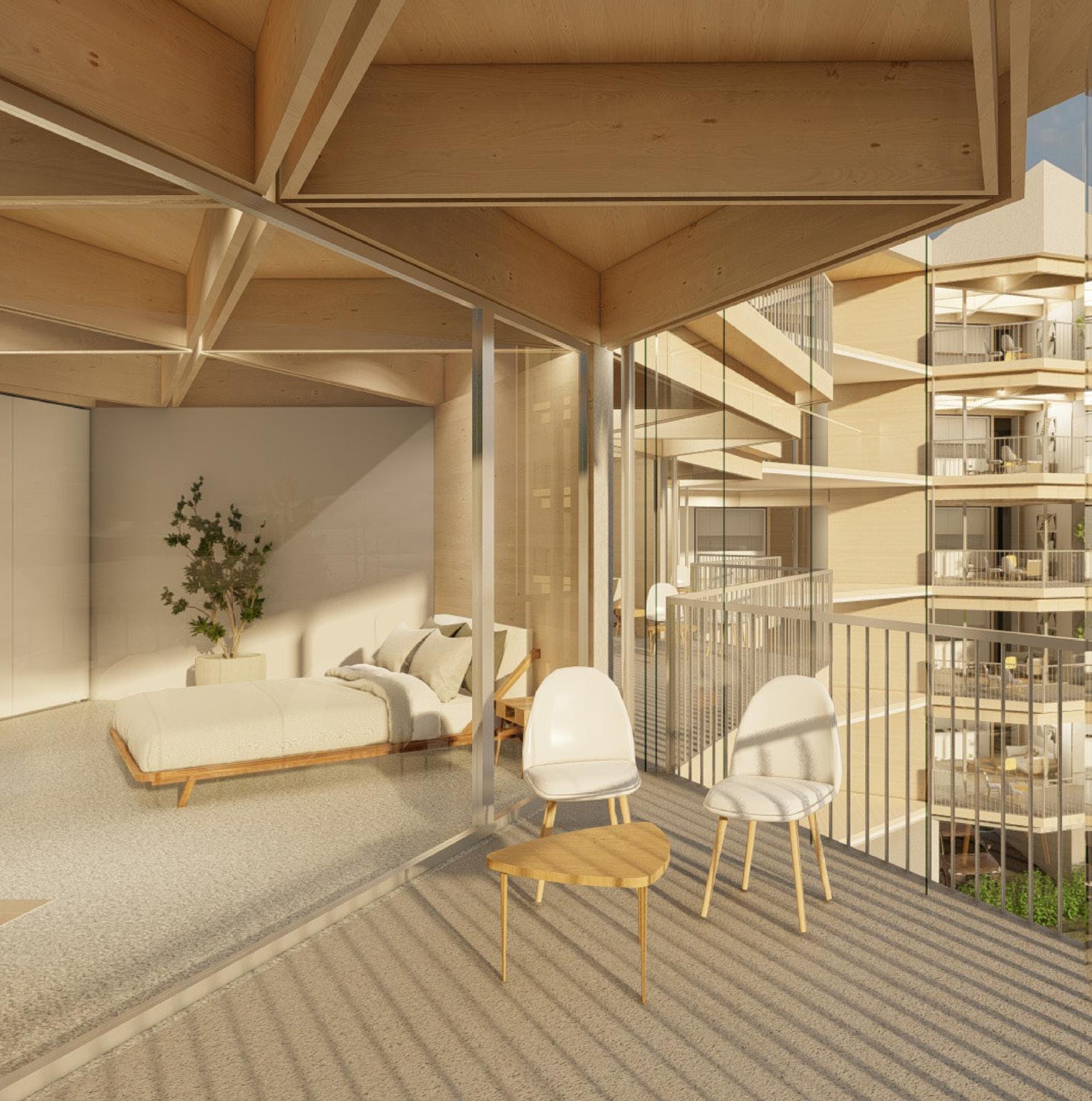

Therefore, it was decided to have a 50 m2 apartment that has the minimum comfortable living conditions, thus, focusing on the communal living of the building, focusing on creating social and interactive spaces between the habitants of the project.
Lastly, the building emphasizes the importance of generating low carbon emissions, creating strategies like, rainwater collection systems, which is used for bathrooms, to then be treated on a local water plant, and then pumped back to create a hydraulic heating system and converting heating into energy for the building.

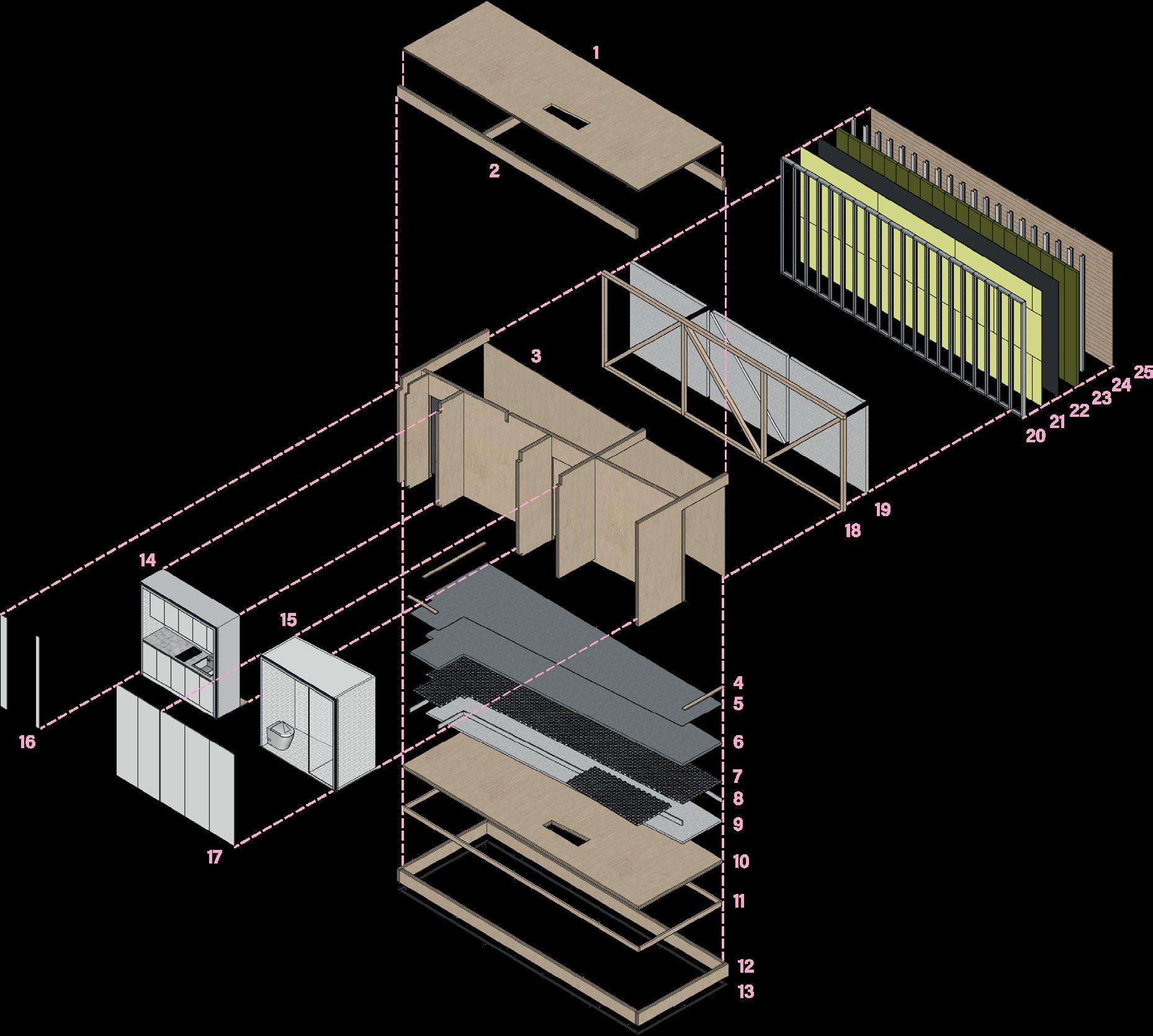

Single Glazing in Aluminum Panel of 4mm with laminated safety glass
Window base of 120 x 120 mm
Triple Glazed window made of 6 mm sheets, finished in wood frame
Cross Laminated Timber beam of 40 mm
Cross Laminated Timber slab of 100 mm
Self-Leveling mortar of 22 mm thickness
Radiant floor with a 3 mm layer of cement placed over a 50 mm insulation panel
CLT beam of 280 mm thickness with a thermal insulation in between sheets.
CLT beam of 400 mm
Expansion joint for prefabricated kitchen module
Thermal insulation of 50 mm of thickness
Radiant floor with 3 mm layer of cement
Cross Laminated Timber wall of 90 mm on prefabricated kitchen module
Kitchen module made with timber structure
Prefabricated facade with steel frame, AWV barrier, 75 mm rainscreen wool, finished with wood cladding
Ventana de acristalamiento sencillo, de cristal de seguridad en panel de aluminio de 4 mm
Base de ventana de 120 x 120 mm
Ventana de triple acristalamiento con hojas de 6 mm, terminado en panel de madera aparente
Trabe de Madera contra laminada (CLT) de 40 mm de espesor
Techo de Madera contra laminada (CLT) de 100 mm de espesor
Hormigón autonivelante de 22 mm de espesor
Calefacción por radiación de piso con 3 mm de cemento sobre un panel aislante de 50 mm
Trabe CLT esp. 280 mm de espesor con aislante térmico al centro
Trabe CLT de 400 mm de espesor
Junta de expansión para unión de modulo prefabricado de cocina
Panel aislante térmico de 500 mm de espesor
Calefacción por radiación de piso con 3 mm de cemento
Muro de madera contra laminada (CLT) de 90 mm de ancho
Cocina prefabricada con estructura de madera
Fachada prefabrica con marco de acero, barrera de aire y agua, panel de lana de 75 mm impermeable, terminado con fachaleta de madera.
