Alemlube Bi-Anuuals

QUICK E ASY

NEXT LEVEL GREASING

• Grease pressures of up to 7,250psi (500bar)

• Adjustable delivery rates of 160g/min (high) or 100g/min (low)

• Able to dispense up to 16 cartridges before battery recharge is required

• Backlit display provides real time battery level, grease level and grease dispensed feedback information

• Lightweight and ergonomical 430A also available $784.00

QUICK

428262

Samoa 180kg

Air Operated Grease Kit

• 55:1 ratio grease pump develops up to 7,950psi (548bar)

• Integral filter eliminates the chance of pump tube contamination

• Lightweight ergonomic, cast alloy, grease control valve included

• Grease control valve has single shot or continuous flow option

• Ideal for busy workshops where greasing is undertaken all day, every day

• 180kg drum not included

$2,026.00

Alemlube Trigger Action Grease Gun

• Grease pressures of up to 8,500psi (586bar)

• Delivers up to 1.1g of grease per stroke

• Twin Lock System seals the piston and eliminates the possibility of dummy lubrication

• Ever-Flow System enables the gun to be used with thick tacky greases even in the coldest conditions

• High volume / high pressure option facilitates fast and efficient greasing

• Manufactured in Germany

$138.60

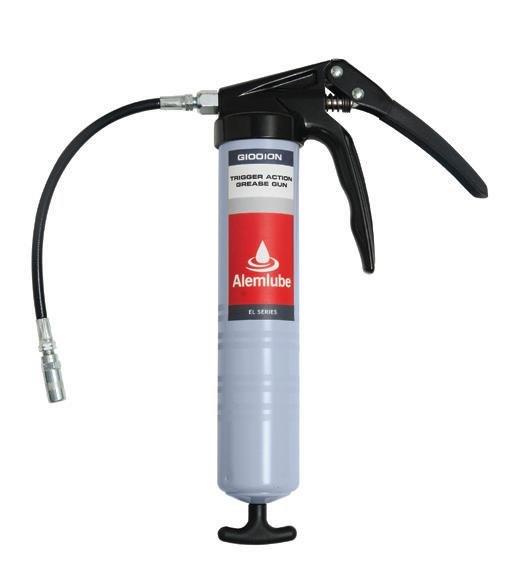

Alemlube EL Series Trigger Action Grease Gun

• Grease pressures of up to 4,000psi (276bar)

• Delivery rates of up to 1.15g per stroke

• Robust die cast aluminium head assembly

• Heavy duty 4 jaw coupler

• Exceptional value for money for cost conscious customers

G10020N also available in but lever action $48.80

$70.70

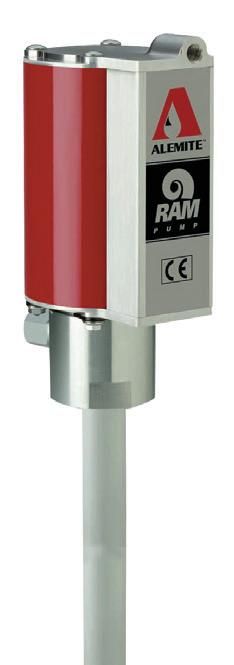

ALEMITE 7785-A5 180KG GREASE PUMP

The Alemite 7785-A5 180kg Grease Pump ia heavy duty high volume pump ideally suited to demanding operations in mine sites, contractor workshops & installations and mobile service vehicles where hazardous and demanding conditions exist.

The 7785-A5 can deliver hard to pump fluids and viscous lubricants up to NLGI #3. Built for continuous duty, the 7785-A5 double acting pump is consistent, reliable, and maintains pressure over long distances.

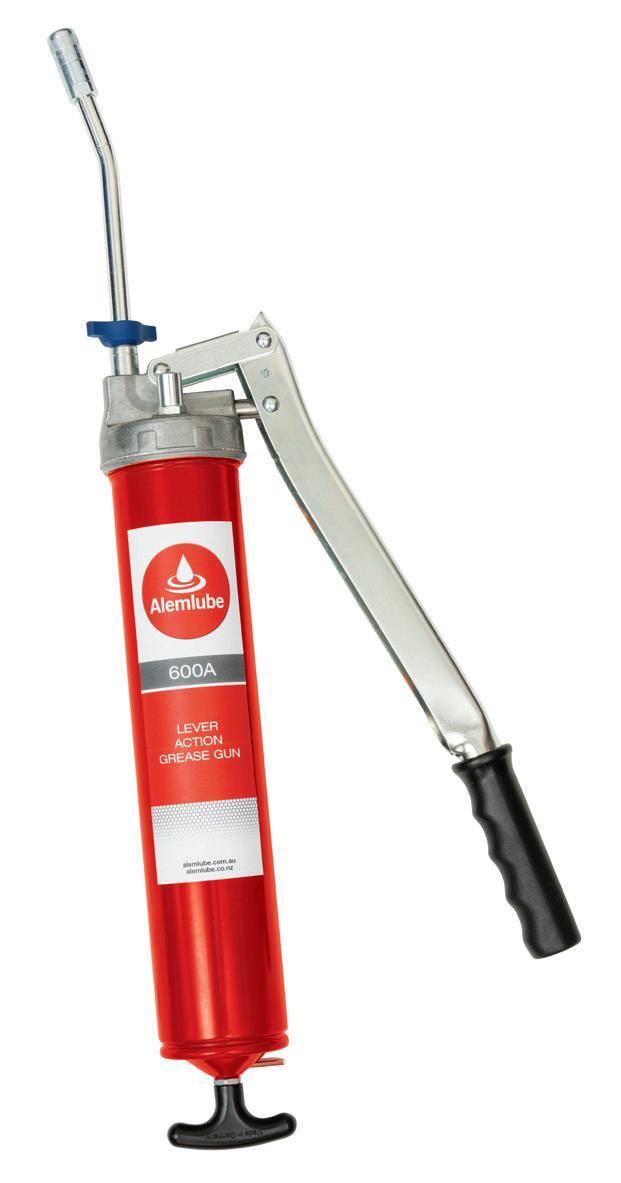

Alemlube Lever Action

Grease Gun

• Grease pressures of up to 12,000psi (828bar)

• Delivers up to 1.6g of grease per stroke

• 450g capacity

• Suitable for all grease grades up to NLGI3

• Twin Lock System seals the piston and eliminates the possibility of dummy lubrication

• Ever-Flow System enables the use of thick/tacky greases

$101.70

424170

Samoa 20kg Grease Kit

• Delivery rates of up to 0.9kg/min

• 55:1 ratio air motor develops grease pressures of up to 7,950psi (548bar)

• Will handle high density, tacky greases up to NLGI2

• Supplied with a 4m long hose assembly enabling quicker and easier greasing of your plant and equipment

• Heavy duty 3 jaw coupler ensures a tight and precise grease nipple connection

• Manufactured in Spain

424150 also available with trolley

$1,496.00

$1,334.00

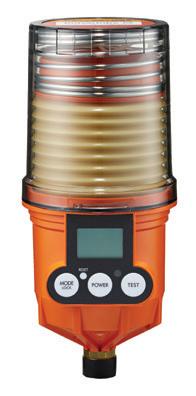

PULSARLUBE E SERIES ELECTRO-CHEMICAL GAS DRIVEN GREASE LUBRICTORS

Pulsarlube E Series Electro-Chemical Gas Driven Grease Lubricators are one of the most popular & widely used in all industrial applications. The safe & environmently friendly Nitrogen Gas (N 2) Generation system is a reliable and steady dispensing mechanism which makes the E series unique in the market. Nitrogen Gas Generation E series are stable & not affected by any ambient temperature variations & are simple & easy to operate via a Mode Selector Switch with instant on/off options.

E Series are intrinsically safe with IECEx & ATEX EXD Explosion-proof certification for use within any hazardous area. E Series are available with capacities of 60, 120 & 240cc, provide low cost lubrication solutions and can be installed in any confined area. Complete with IP68 protection class these lubricators are suitable for use in dusty environments such as Quarries, Brick Plants, Mining etc. Empty E Series lubricators can be custom filled on site using a grease gun.

KPL-24EX

Alemlube 24V 20kg Grease Kit

• A unique product, this 24V, 20kg grease pump kit is ideal for mining & heavy industrial applications

• Suitable for grease up to NLGI2

• Working pressure of 4,000psi (276bar)

• Continuous operation

• Dispenses up to 70-80g/min

• Suitable for working temperatures of -10°C to +40°C

• Can be used with a hose reel inclusive of up to 15m of hose

EPL-240SP also available in 240V

$7,055.00

$6,782.00

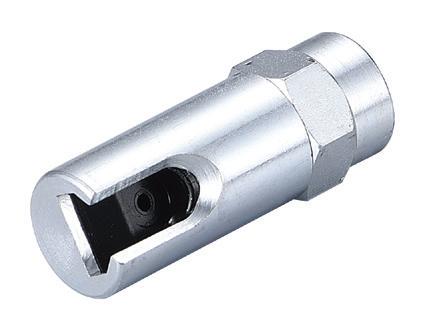

14512 Alemlube Quick Release Grease Gun Coupler

• Works with all grease gun types - pneumatic, manual and battery

• 1/8" BSP(f) thread

• Maximum working pressure of 10,000psi (690 bar)

• 90mm long

A14512 also available in packaging

$42.50

14511 also available - 1/8” NPT(f) thread

$50.30

14510 also available - 1/8” BSP(f) thread & 135mm long $61.30

$40.90

18V Lithium-ion Cordless Grease Gun

• Generates grease pressures of up to 10,000psi (690bar)

• Capable of delivering up to 80g/min

• 25 minutes continuous working time

• Supplied with two batteries, 3,000 mAh & 1,500 mAh

• Recharge time of 75 minutes (1,500 mAh battery)

• Dispenses grease from up to 12 x 450g cartridges before changing over or recharging of the 3,000 mAh battery is required

$574.00

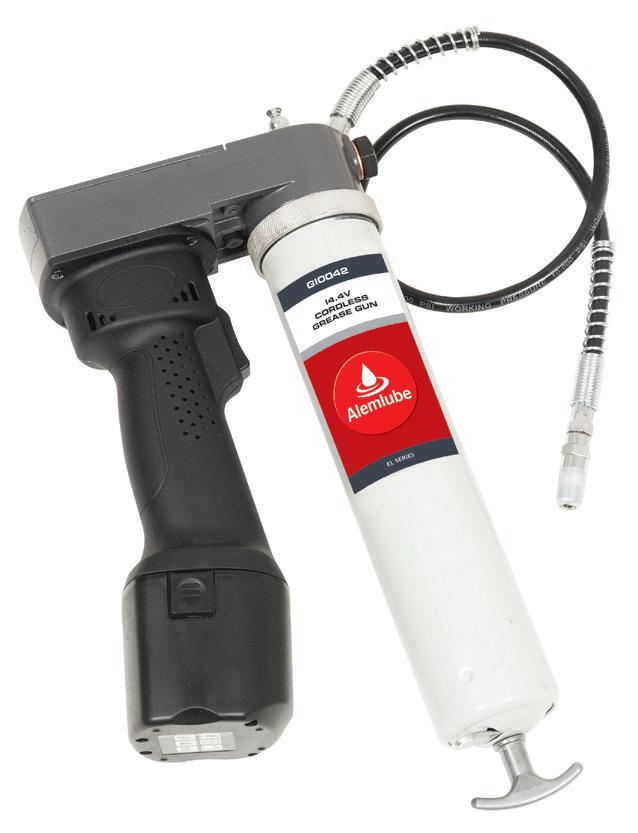

G10042 Alemlube EL Series

14.4V NiCad Battery

Cordless Grease Gun

• Heavy duty carry case supplied standard

• Light weight at just 2.1kg

• Battery capacity: 14.4 NiCad battery 1500 mAH

• High pressure delivery: 7500psi (517bar)

• High flow rate of 74cc/min

• 1 x 1 hour quick charger

• 2 x 1500 mAH battery packs

$380.00

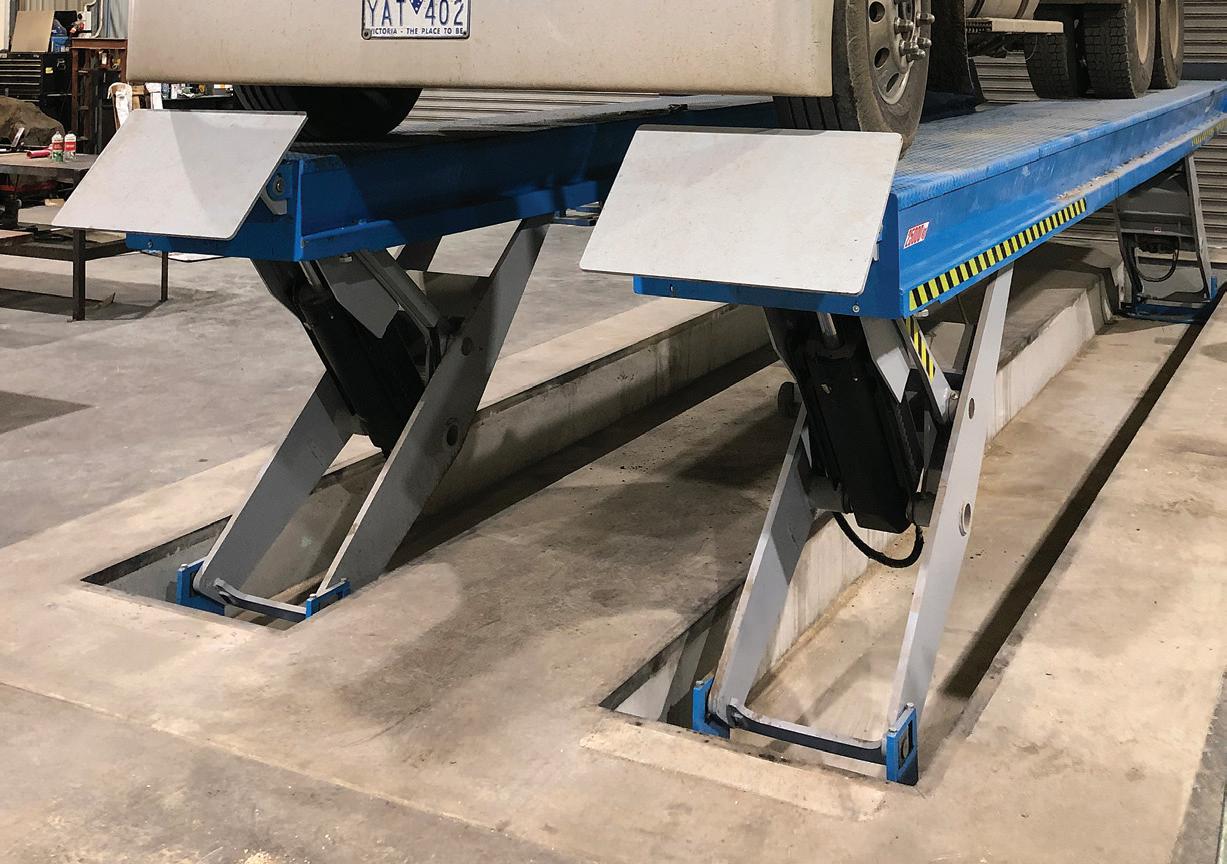

RAVAGLIOLI 25t RAV825.10 COMMERCIAL VEHICLE KNUCKLE LIFT

The RAV825.10 25t Commercial Vehicle Knuckle Lift that makes light work of heavy lifting. No cross rails or torsion bars between lifting platforms maximises accessibility in the working area facilitating greater workflow and productivity. Manufactured with a mechanical locking device with automatic engagement and pneumatic release, the RAV825-10 ensures maximum safety for workshop technicians when the lift is in standing position.

All pivot points are fitted with self lubricating bushings for long life performance and in combination with platform surfaces of ribbed anti-slip steel plate, the strength of Ravaglioli knuckle lifts out of Italy is unsurpassed.

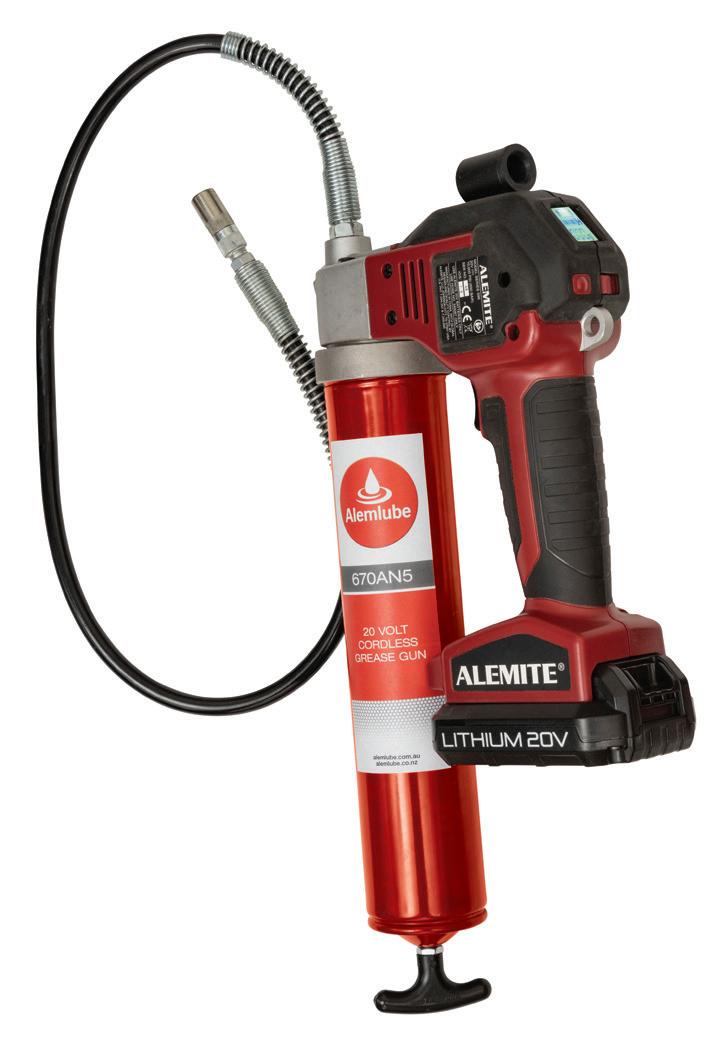

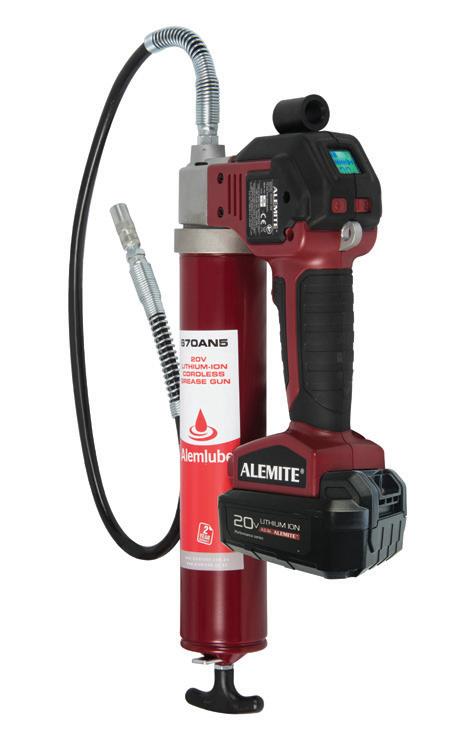

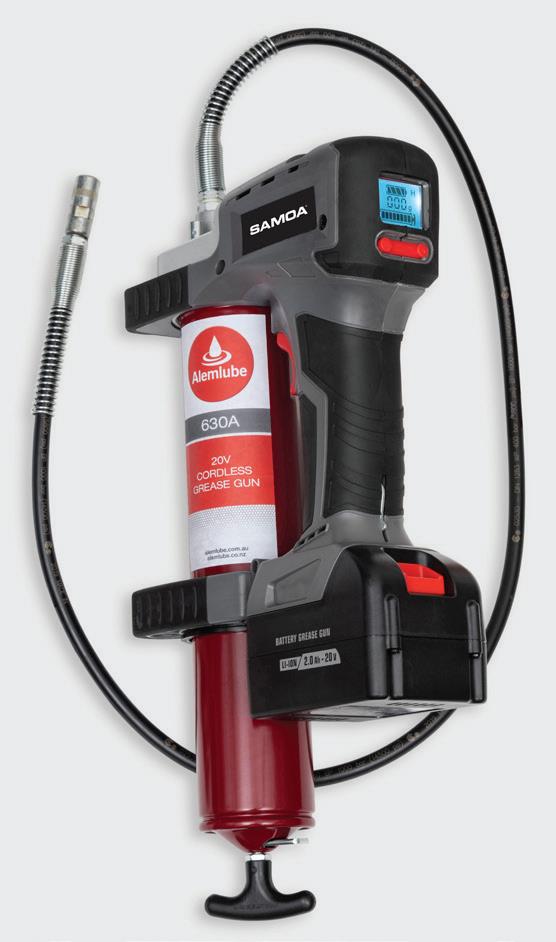

Alemlube 20V Lithium-ion Cordless Grease Gun

• Delivery rates of up to 170g/min (high) & 113g/min (low)

• Grease pressures of up to 10,000psi (690bar)

• Up to 35 cartridges per battery charge

• Built in Intelligence

• LCD with real time battery capacity, grease level and grease metering information

• Supplied with two batteries, 4.0Ah and 2.5Ah

• Impact resistant LCD lens surrounded by impact absorbing bezel

$1,429.00

*5

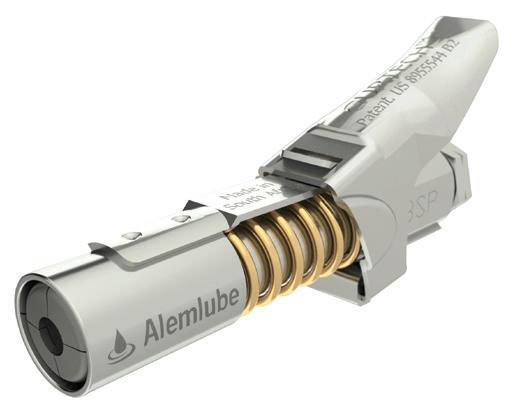

ALEMLUBE 14512 QUICK CONNECT GREASE GUN COUPLER

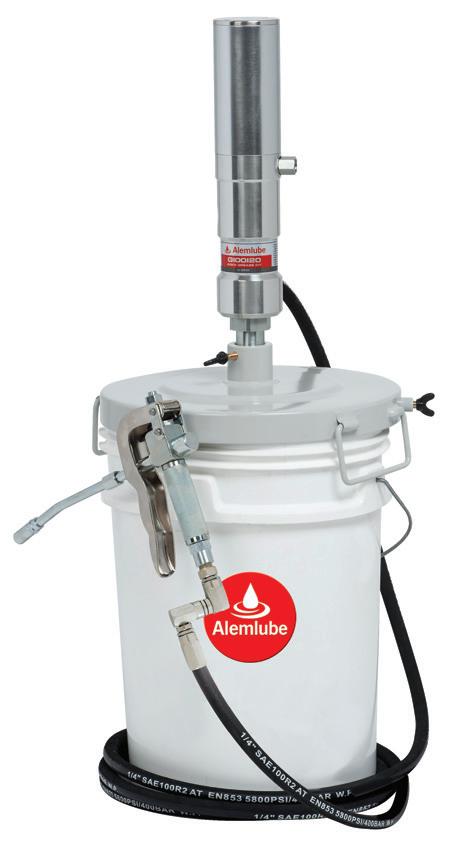

G100120

Alemlube EL Series

20kg Grease Kit

• Effortless greasing

• Heavy duty grease control valve

• 4m long hose assembly

• Affordable and robust

• Maximum fluid pressure of 5,800psi (400bar)

• All types of grease up to NLGI2

• Delivers up to 600g/min

• Tested to up to 24,000kg

• Air consumption of 3.6cfm at 150psi

• Air inlet pressure from 70psi (5bar) to 150psi (10bar)

$875.00

Assortment Kits

All grease nipples included in the kit are case hardened, fully chromated, zinc passivated, batch tested to 8,000psi (552bar) and conform to international standards including BSS 1486, DIN 71412, SAE J534 and JIS B1575

• Manufactured in the UK

L4674 101 Agricultural grease nipple assortment kit $104.00

L4675 101 Industrial grease nipple assortment kit $100.90

L4676 100 Metric grease nipple assortment kit $91.00

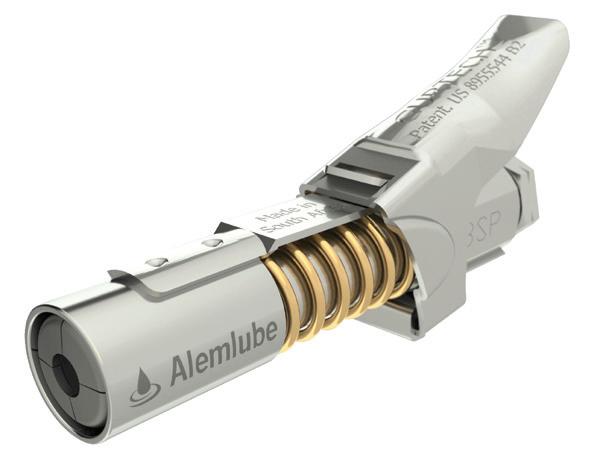

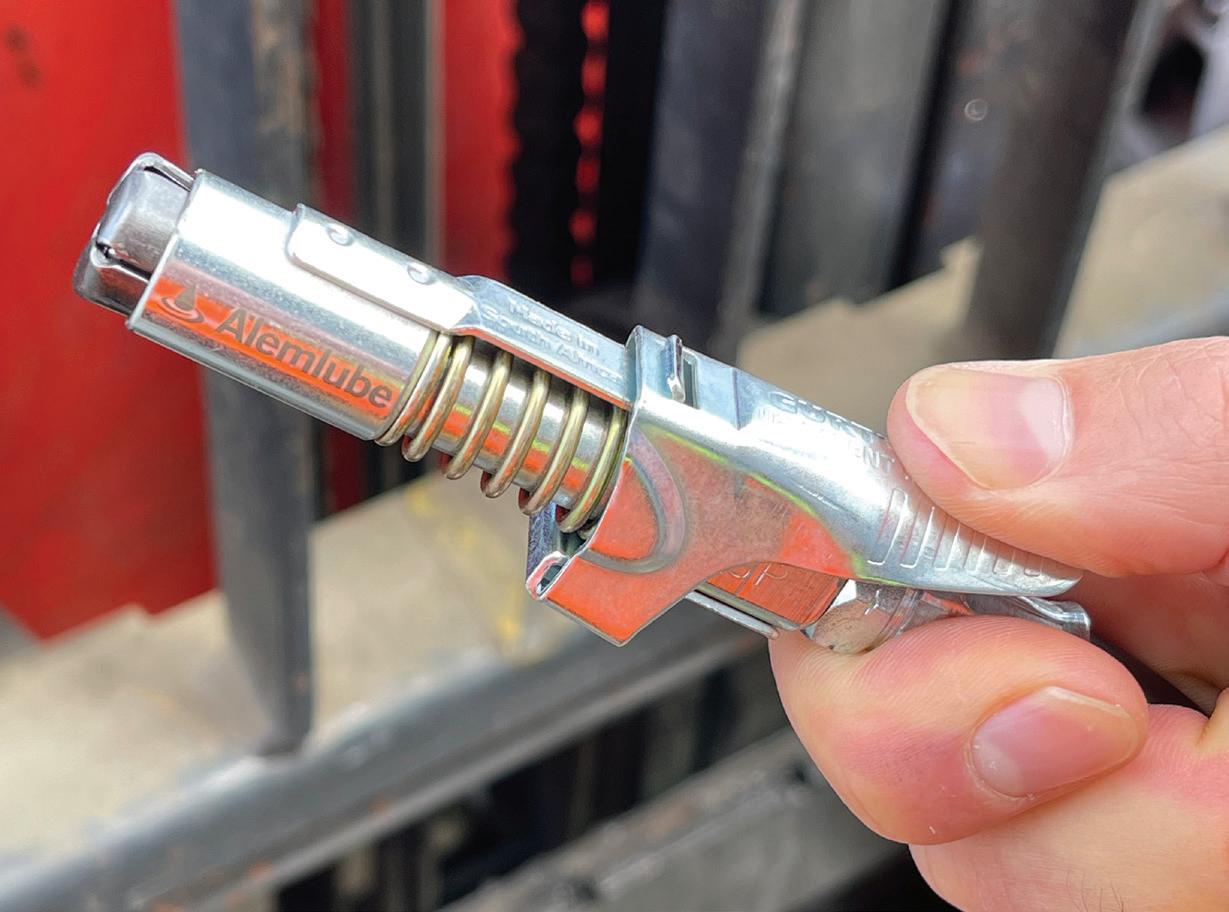

The Alemlube 14512 is a patented lock-on grease gun coupler with a lever action and sliding sleeve that securely locks the coupler onto a grease nipple creating a leak proof seal. Hands-free greasing is now a reality!

Simply by depressing the trigger, attaching and releasing the coupler for a tight fit is a breeze and no hands are needed to align the coupler or keep it on the nipple. Even at extreme angles, once the 14512 is attached, greasing can be performed at pressures of up to 10,000psi (690bar) - and can be forced to extreme angles on the grease nipple without leaking.

The 14512 works with all grease gun types – pneumatic, manual and battery. and accurately day in day out, in the field and in the workshop.

QUICK EASY

354120 Samoa 3:1 Ratio Oil Drum Pump

• For medium size systems that involve hose reels and metered oil dispensing guns without simultaneous operation

• Flow rates of up to 35L/min

• Air inlet pressures between 40-140psi (3-10bar)

• 1/2" BSP(f) fluid outlet

• 1/4" BSP(f) air inlet

• Suits 205L drums

353120 also available but suitable for bulk tank application $969.00

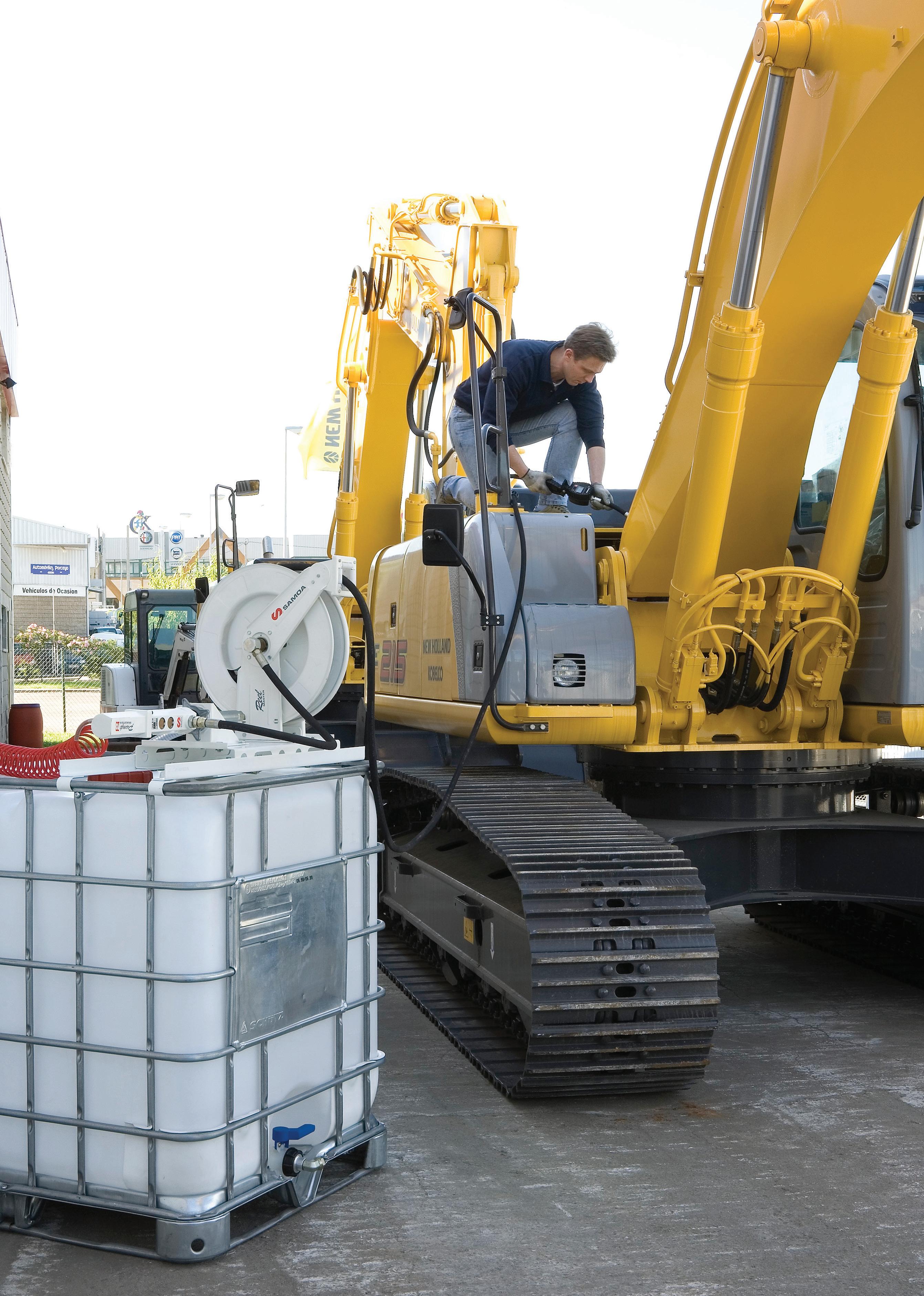

454697 Samoa IBC Oil Storage & Transfer Kit – Side Mount

• 3:1 ratio pump facilitates flow rates of up to 18L/min

• Includes a 3:1 ratio pump, hose reel inclusive of 10m of hose, side mounting bracket & electronic oil meter

• IBC not included

454697C also available includes 1,000L IBC container, 3:1 ratio pump, dual pedestal hose reel with 10m of hose and electronic oil meter $5,079.00

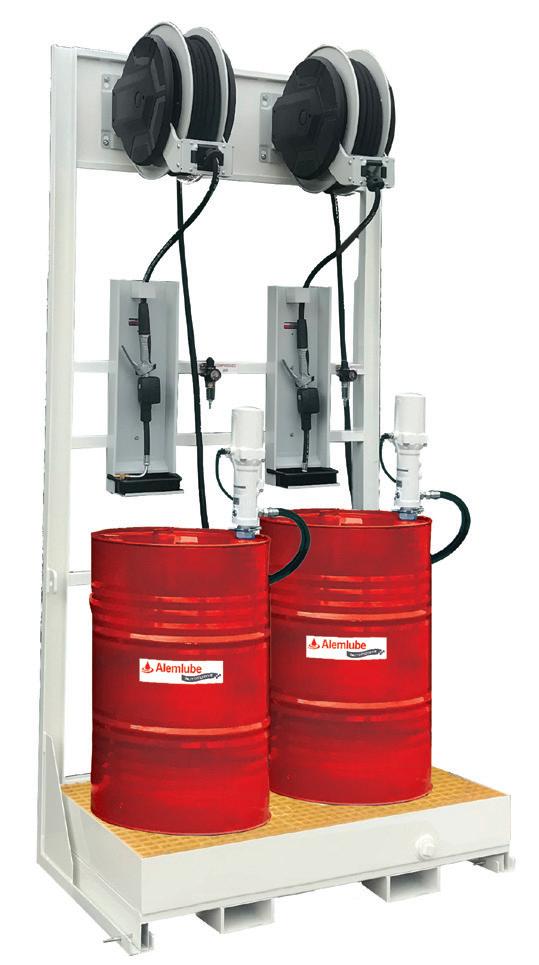

AA205-2DG

Alemlube 205L 2 Drum

Oil Gantry

• Steel bund with drain port & internal supports

• Moulded fibreglass mesh for drum support

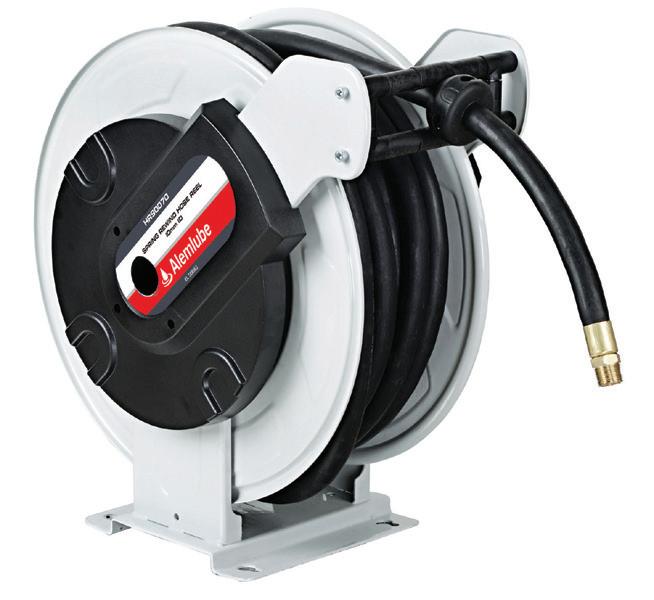

• Alemlube 20m x 1/2" ID spring rewind oil hose reels

• Digital metered control guns, with drip trays

• Heavy duty 5:1 oil drum pump

• Tie down points for 205 drums

• 2" BSP drain port for bund included

$1,001.00 $6,887.00

4,342.00

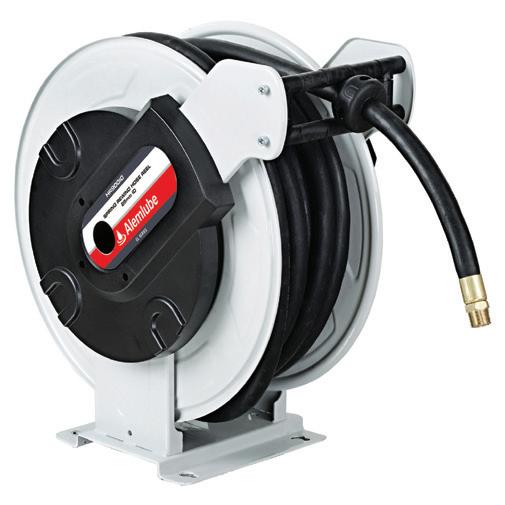

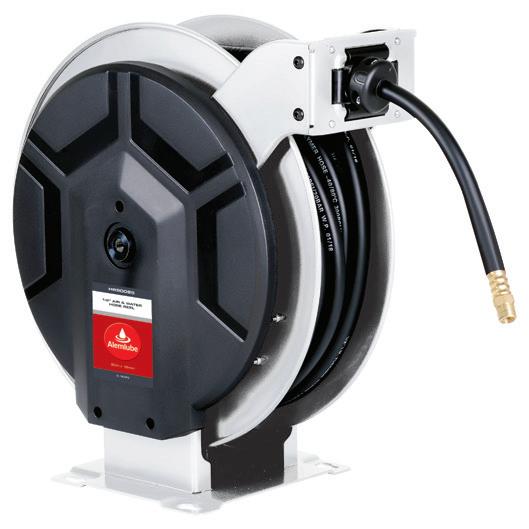

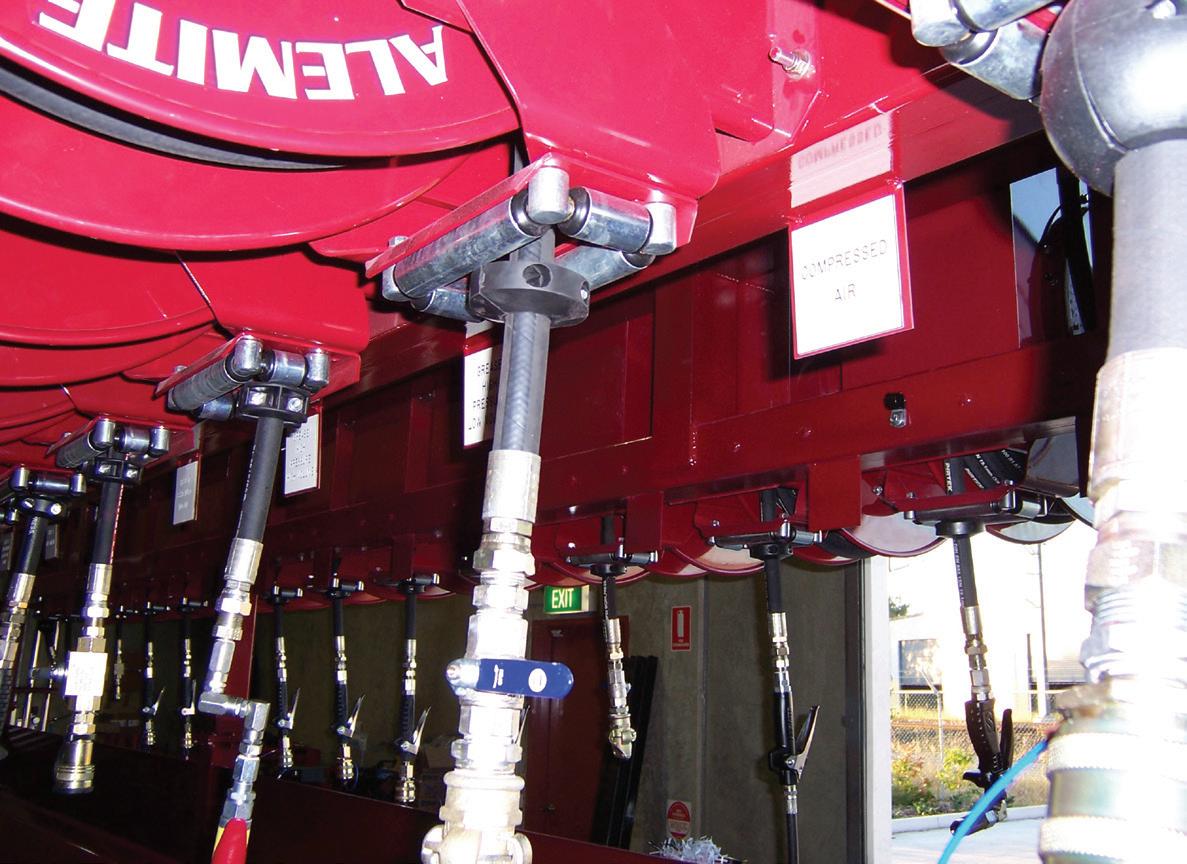

ALEMITE 8080 SERIES HEAVY DUTY AIR, WATER, OIL & FUEL HOSE REELS

The Alemite 8080 Series hose reel is the first choice for many large mining and fleet service facilities. Its heavy duty construction and full flow fluid path allows for day in, day out reliability in many of Australia’s most rugged workshops.

Key features include sealed for life bearings, a fully sealed spring rewind cassette and stainless steel roller guide assemblies covered by a lifetime warranty.

Available for a wide range of applications including the delivery of new oil, grease, engine coolant and diesel fuel, it can also be used for the reclamation of waste oil and other products.

TRANSFER & METERING

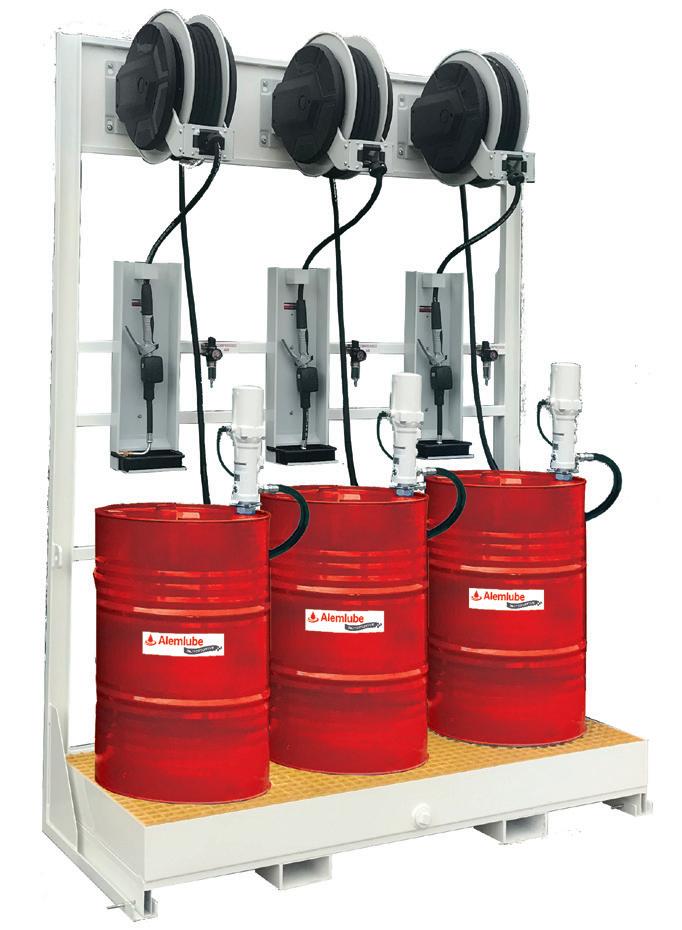

AA205-3DG

Alemlube

Oil Gantry

205L 3 Drum

• Designed to be a cost effective, low maintenance oil delivery system

• Steel bund with drain port & internal supports

• Alemlube 20m x 1/2" ID spring rewind oil hose reels

• Digital metered control guns, with drip trays

• Heavy duty 5:1 oil drum pump

• Tie down points for 205 drums

• 2" BSP drain port for bund included

$8,176.00

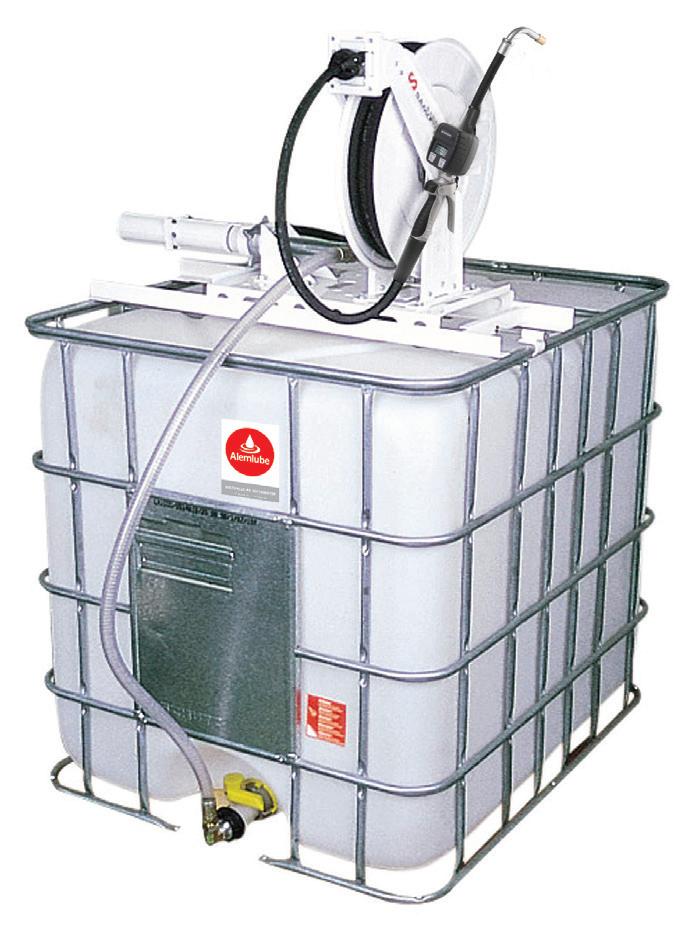

454695 Samoa IBC Oil Storage & Transfer Kit

• 3:1 ratio pump, dual pedestal hose reel with 10m of hose, a top mounting bracket and electronic oil meter

• 3:1 ratio pump facilitates flow rates of up to 18L/min

• Electronic oil meter powered by quickly and easily replaceable AAA batteries

• IBC not included

454695C also available includes 1,000L IBC container, 3:1 ratio pump, dual pedestal hose reel with 10m of hose & electronic oil meter $4,922.00

$4,401.00

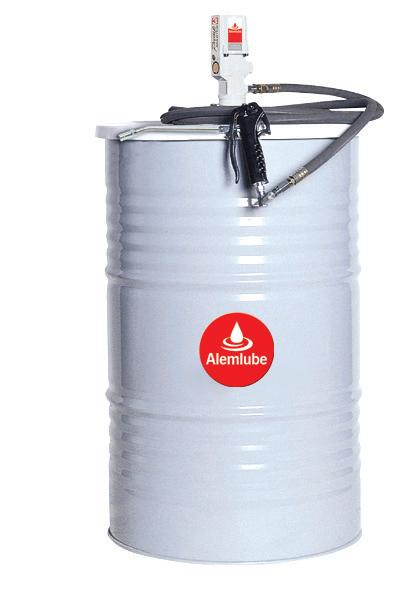

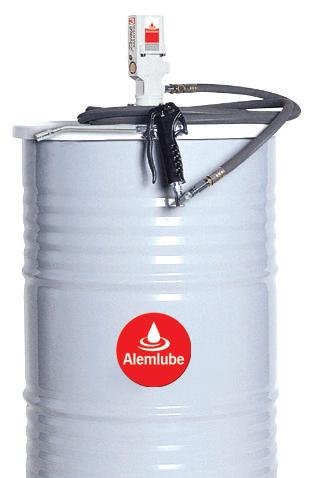

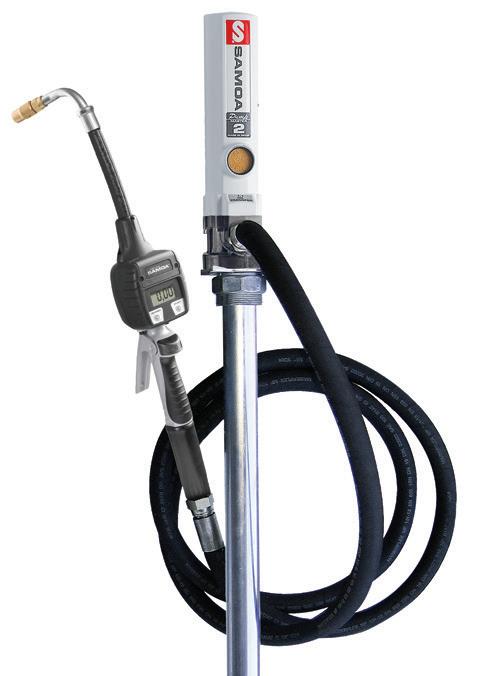

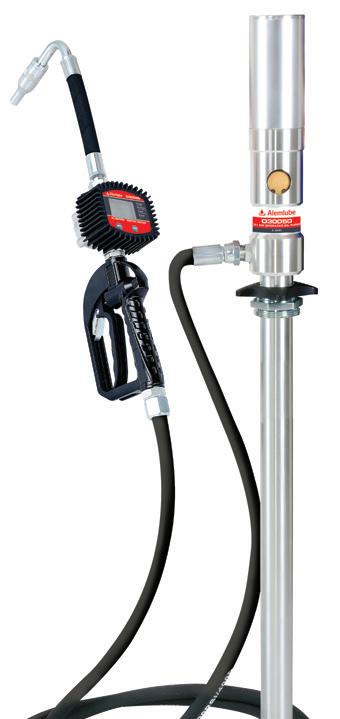

348120

Samoa 5:1 Ratio

Oil Drum Pump

• 5:1 ratio oil transfer pump designed to be used in 205L drums

• Maximum flow rate of up to 30L/min

• 3/4" BSP(f) fluid outlet

• 3/8" BSP(f) air inlet

• The ideal pump for dispensing high viscosity lubricants

• Powerful 90mm diameter air motor with a 100mm stroke

• Can service up to 8 reels

347120 also available as above but suitable for bulk tank applications

$1,247.00

$1,298.00

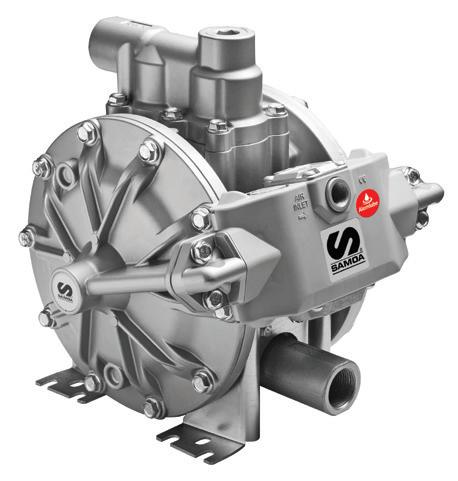

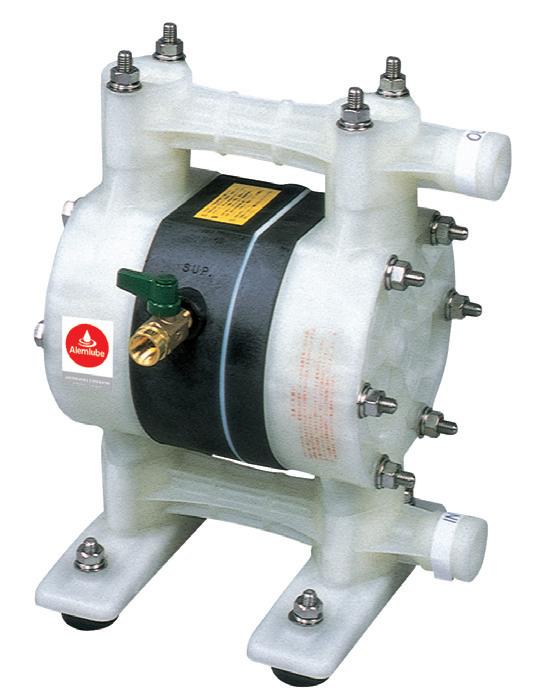

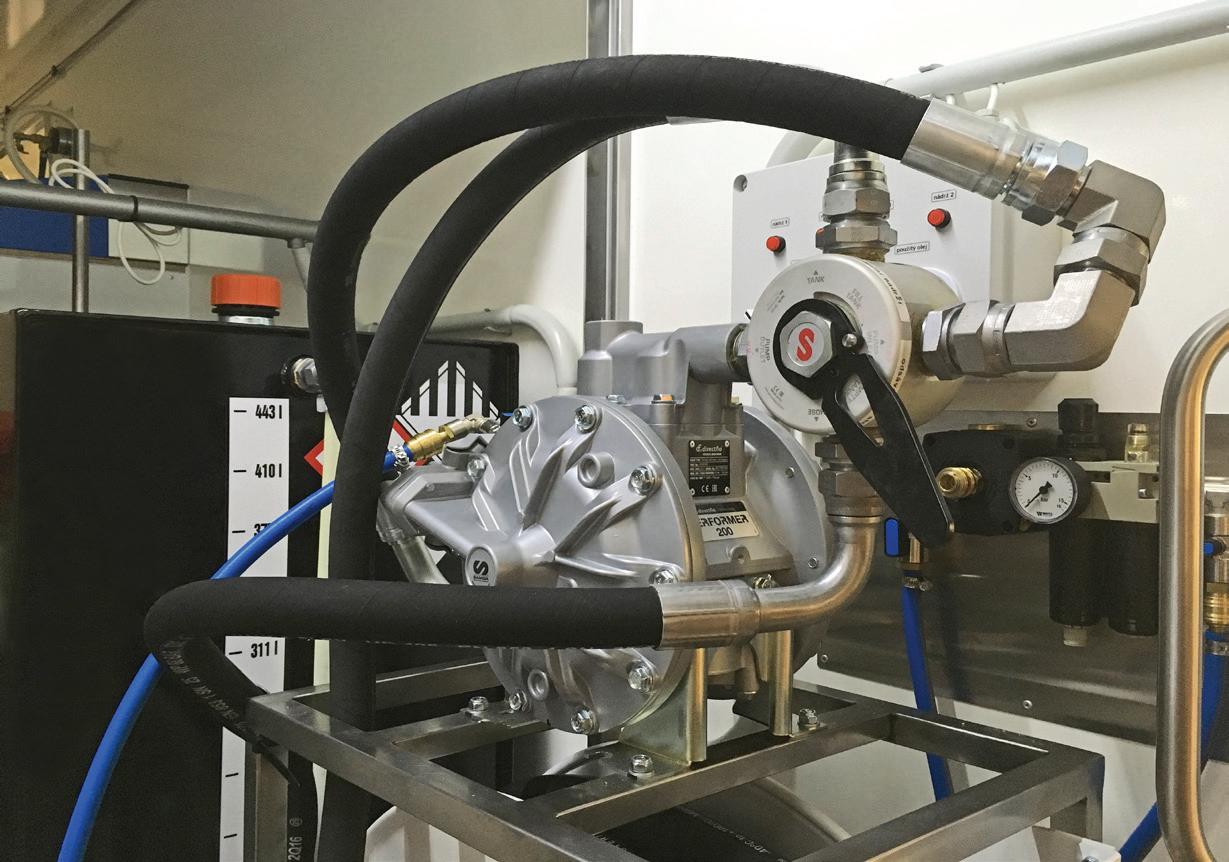

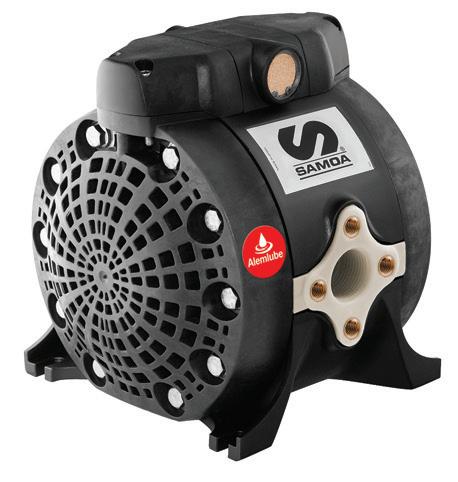

555030 SAMOA 1" AIR OPERATED DIAPHRAGM PUMP

The Samoa 1” Air Operated Diaphragm Pump sets new standards of performance and efficiency created by its Directflo® technology. New check valve design, improved air motor, top & lower fluid manifolds, orientable ports and one-piece diaphragms are just a few of the advanced features behind the Samoa 555030 performance. Higher suction capacity, reduced air consumption, shorter strokes and quiet operation all contribute to the 555030 resulting in extended diaphragm life, better resistance to abrasion, less stress on parts with minimum pulsation and vibration. The Samoa 555030 offers maximum fluid flow with minimum air consumption, a no stalling, non-icing, reliable start up and multiple mounting options

QUICK

ALE-25BAH

Alemlube 1" Aluminium

Diaphragm Pump

• 1" BSP(f) inlet/outlet

• Flow rates of up to 160L/min

• Suitable for the transfer of diesel fuel, gear oil, engine oil, waste oil, brake fluid, antifreeze

• Aluminium body and hytrel diaphragms

• Teflon and stainless steel models also available

ALE-20BAH also available with 3/4" BSP(f) inlet/outlet $2,036.00

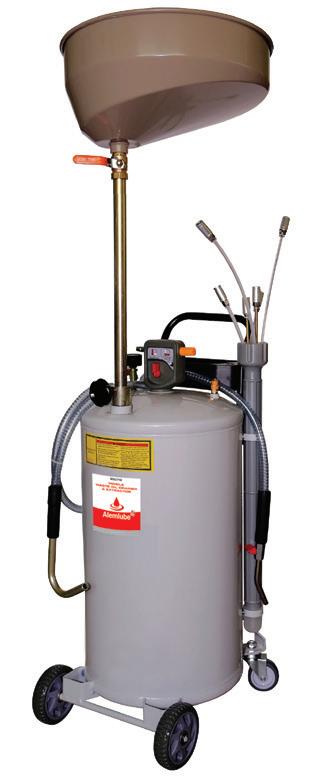

Drainer/Extractor

• Premium quality and European engineering

• Drain bowl capacity of 20L

• Holding tank capacity of 100L

• Maximum working height of 2,000mm

• Minimum working height of 1,400mm

• Unique specially molded tray can be used to hold bolts, filters & washers

• Waste fluids can be pressurised or pumped out of the 100L capacity holding tank

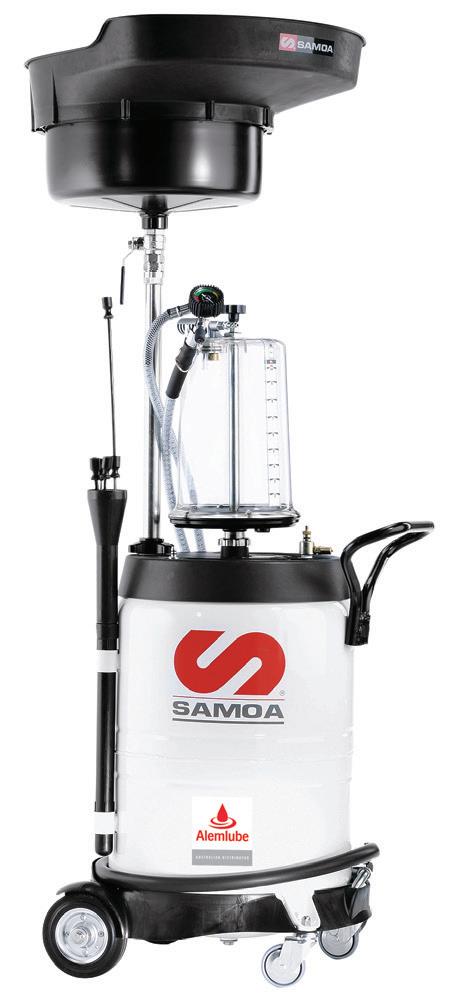

Drainer/Extractor

• Includes a 10 litres transparent chamber that can be used as vacuum reservoir and allows an immediate inspection of the extracted waste oil

• Venturi effect creates vacuum to suck waste oil out of vehicles dipstick by way of probe accessories

• Can be used as an autonomous unit, disconnected from air (once primed) Discharge hose is 1.6m

$2,544.00

$1,164.00

$2,071.00

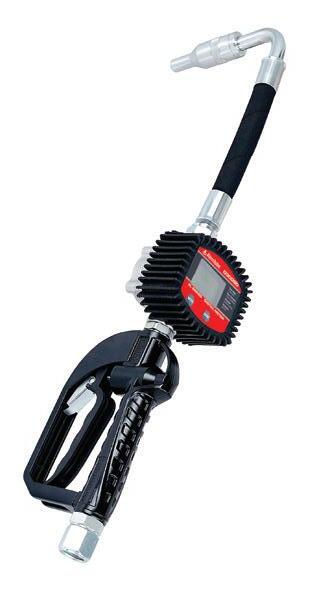

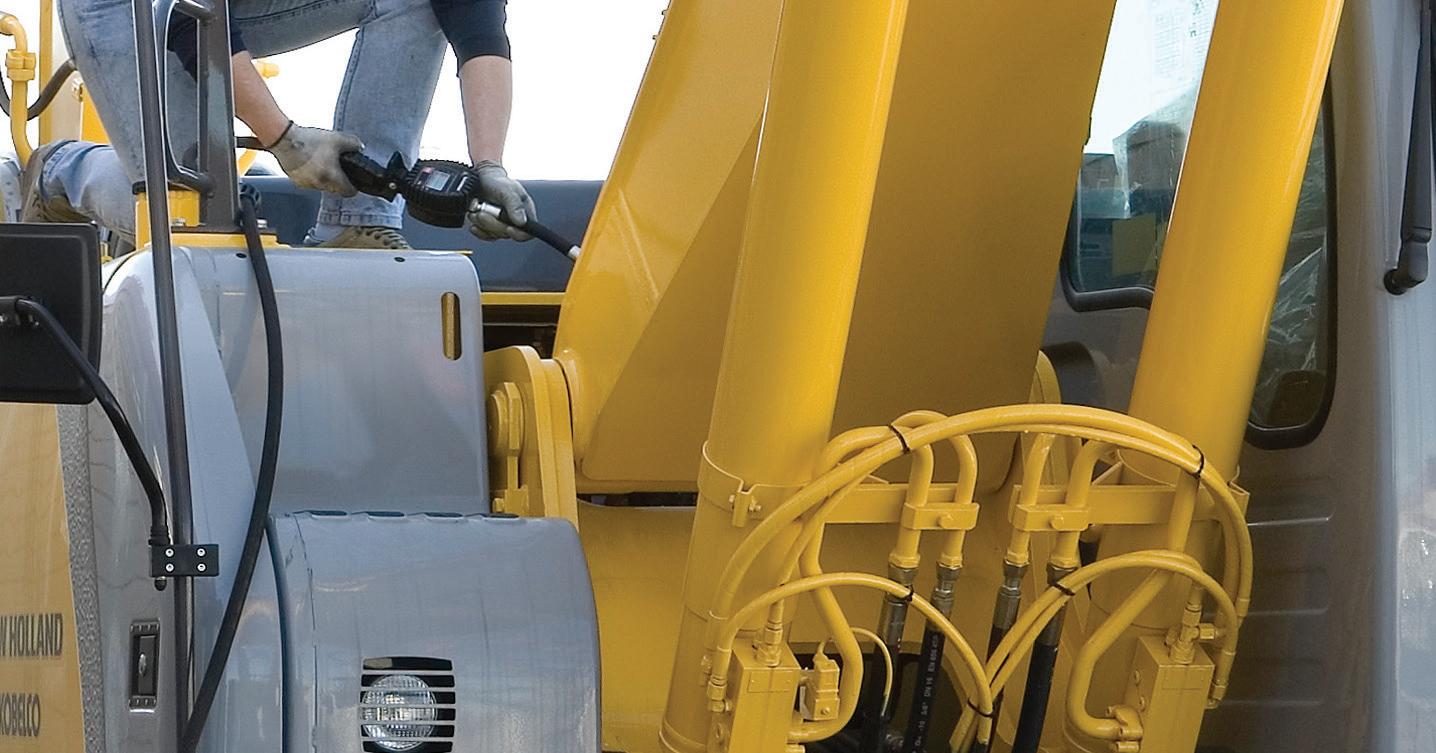

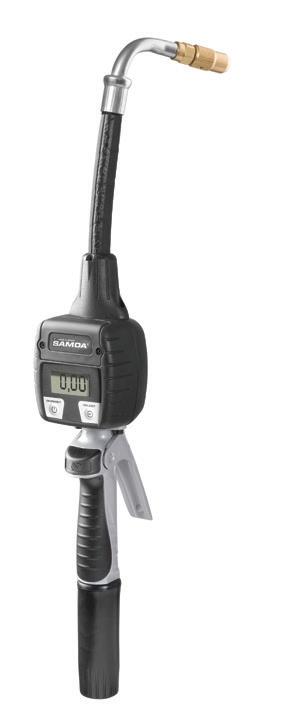

SAMOA ELECTRONIC ENGINE OIL METER

The Samoa 365534 electronic engine oil meter has been specifically designed to measure and dispense a range of synthetic and mineral oils. With flow rates of up to 30L/min and a maximum working pressure of 1,450psi (100 bar), no calibration is required and the new pressure balanced spool valve is designed for unrestricted flow, superb control and comfortable use.

The latest innovative design features a trigger lock button that will lock the valve in the open position and also prevents accidental dispenses.

The oval gear meter component of the 365534 with its electronic 5-digit digital display powered by 2 x 1.5V AAA batteries offers high count precision and low flow resistance and registers the current amount dispensed displayed to the second decimal, a resettable partial totaliser (trip) and a total amount (total) can be alternatively selected.

The Samoa 365534 covers the needs of fluid dispensing ranging across truck, fleet, off-road, mining & construction and marine maintenance facilities.

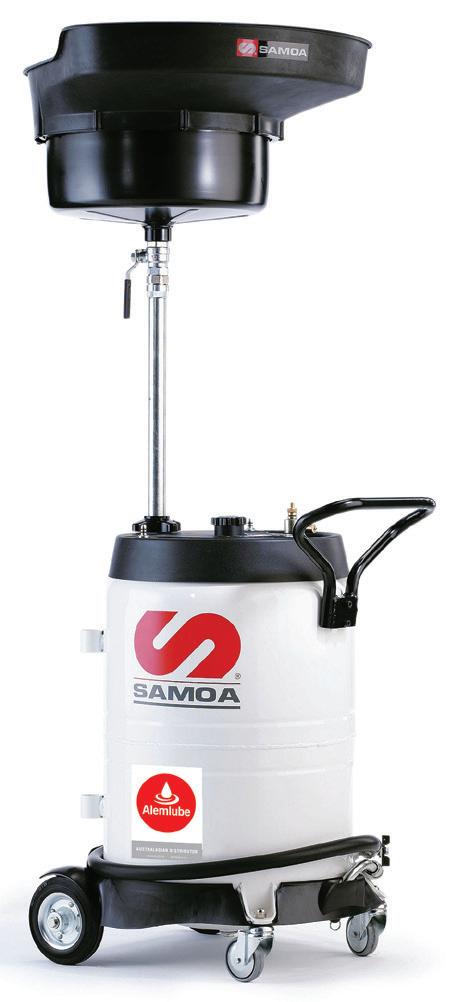

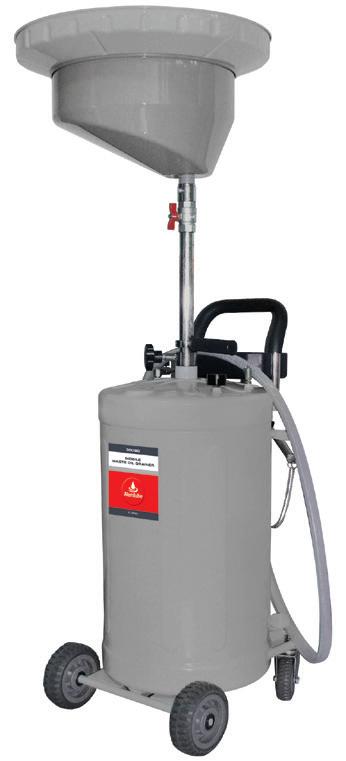

372400 Samoa Waste Oil

372100 Samoa Mobile Waste Oil

MANAGEMENT

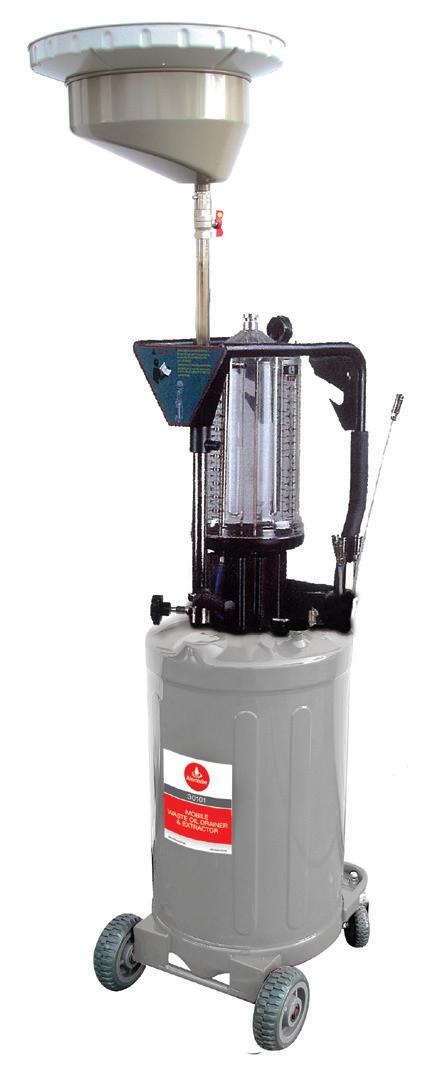

30101

Alemlube

Mobile Waste Oil

Drainer/Extractor

• Extracts and captures waste oil from crankcases, transmissions and differentials

• Draining hose length of 1" x 2,000mm

• Draining pressure of 14psi (1bar)

• 1/4" air inlet connection

• Clear inspection chamber capacity of 12L

• Collection bowl capacity of 20L, diameter of 420mm

• Holding tank capacity of 80L

• Suction hose specification of 1/2" x 2,000mm

$1,507.00

10070

Alemlube Mobile Waste Oil

Drainer/Extractor

• Collects waste oil from vehicle gear box or engine

• Air Consumption: 200L/min

• Air Inlet Pressure (for vacuum): 87~116PSI/6~8Bar

• Oil ejection pressure: 10~14PSI/0.7~1Bar

• Vacuum Degree: 0~-14PSI/0~-1Bar

• Tank Capacity: 70L

• Collect tray capacity: 16L

• Height: 1,100mm~1,680mm

• Working Temperature: 40~60°C (for engine oil)

$660.00

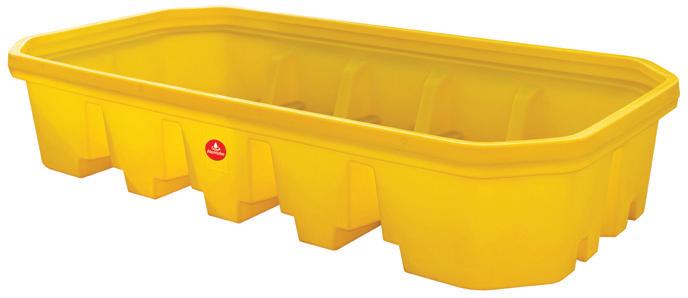

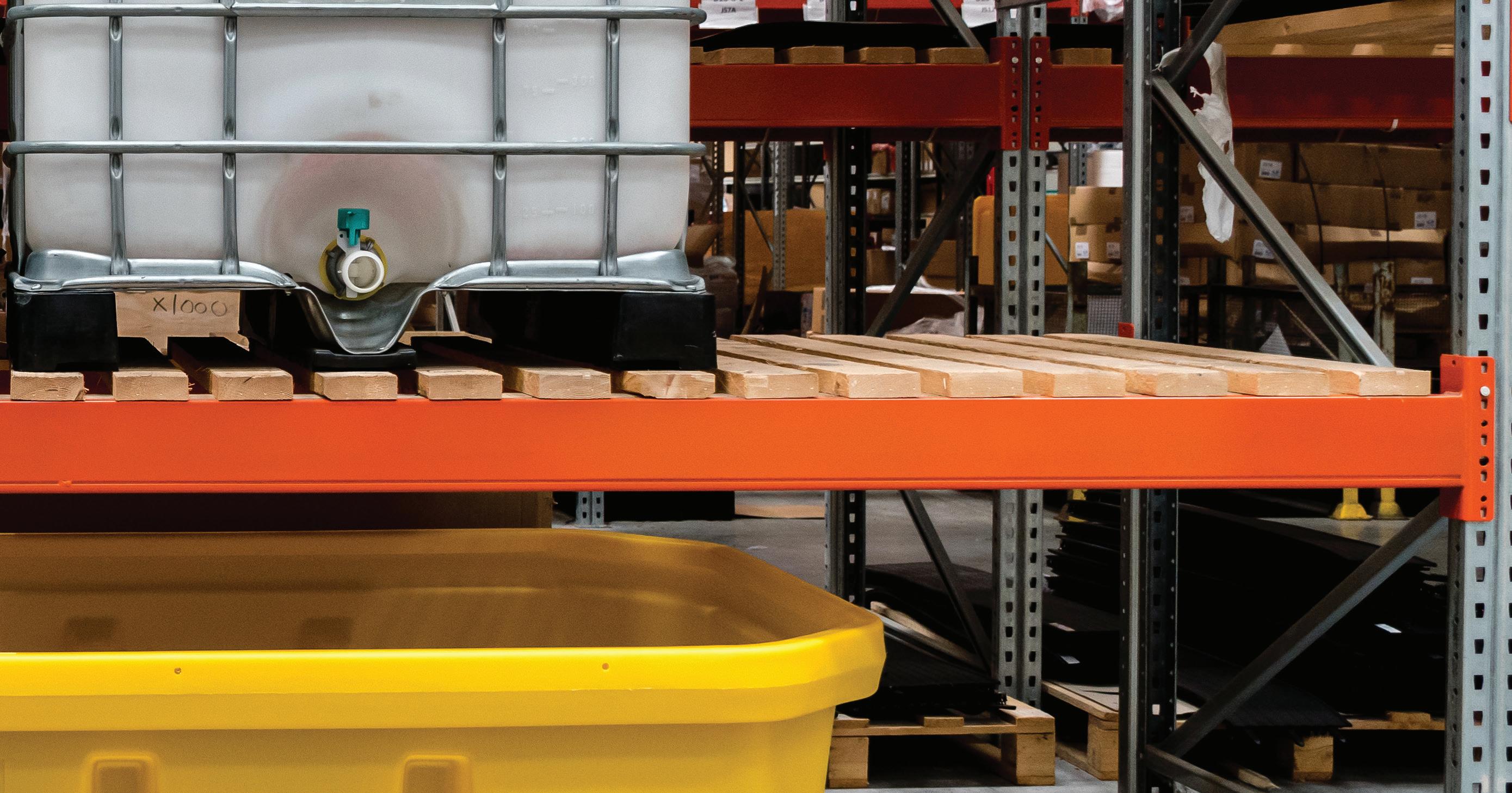

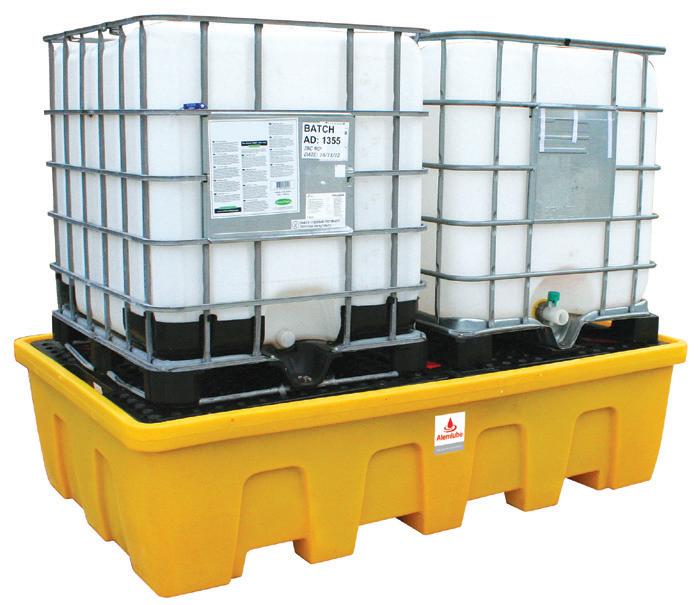

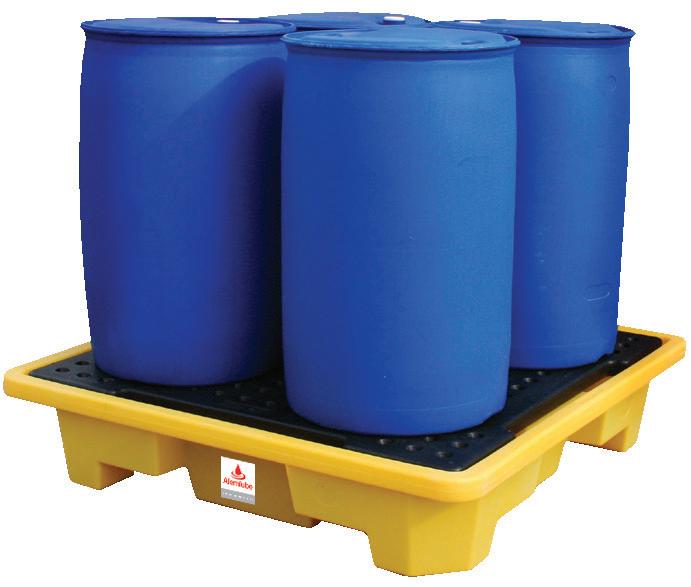

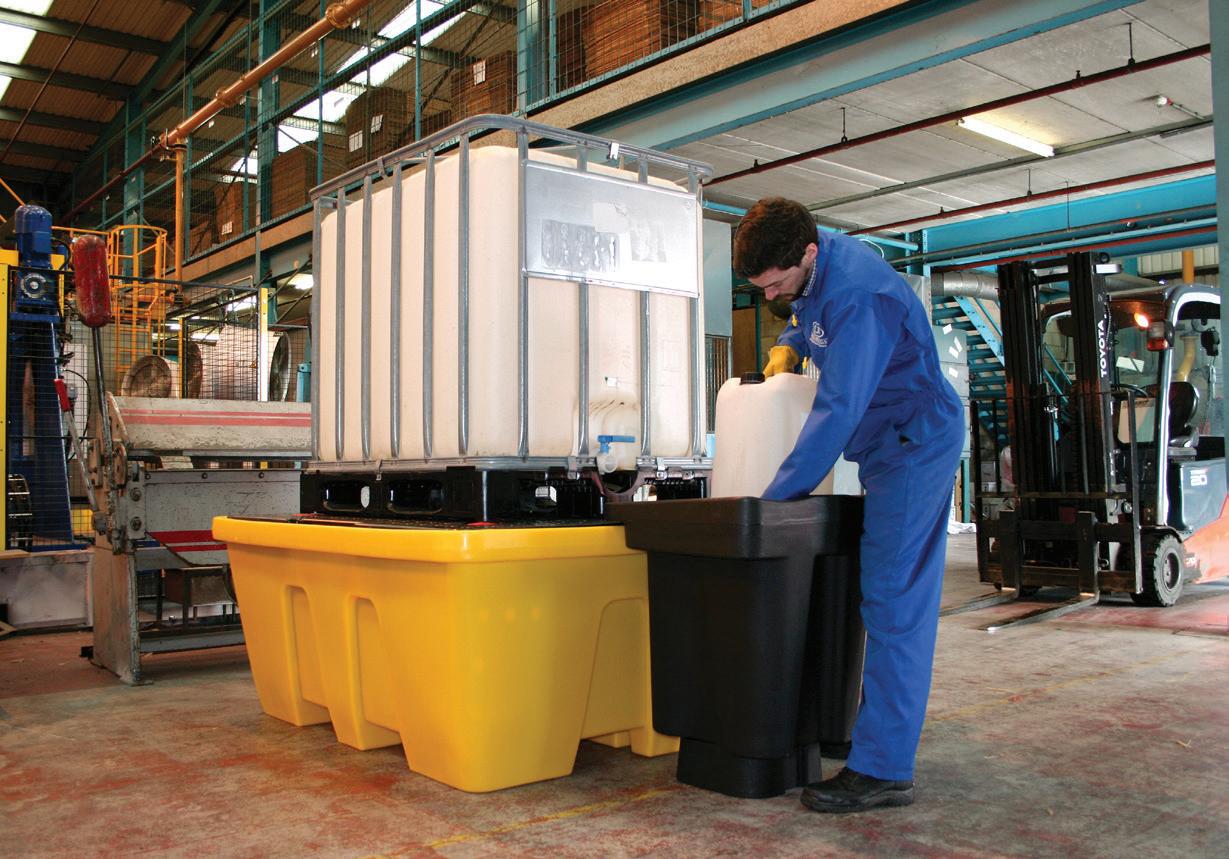

ALEMLUBE SPILL CONTAINMENT SOLUTIONS

Alemlube addresses the need for safe workplace practices in all market sectors with a range of spill containment products suitable for most production facilities and applications.

Containing spills from IBC’s, 205L drums and small containers of all capacities, the spill containers are manufactured in 100% polyethylene that will not rust or corrode, have excellent chemical compatibility and help to create a WH&S compliant workplace environment.

In addition to drum spill containers with non-slip removeable decks that are compatible with most forklifts & pallet trucks and under racking requirements, modular workfloors and ramps are available to create a safe storage centre that can be laid out in any shape to suit available floor space.

ALE-15FPH

Alemlube 1⁄2" Air

Diaphragm Pump

Operated

• Flow rates of up to 45L/min

• 1/2" BSP(f) inlet/outlet

• Rugged bolted construction eliminates leaks and simplifies post maintenance reassembly

• Also suitable for the transfer of waste water, fuel, oil and some pesticides and herbicides

$1,334.00

QUICK EASY

505224N

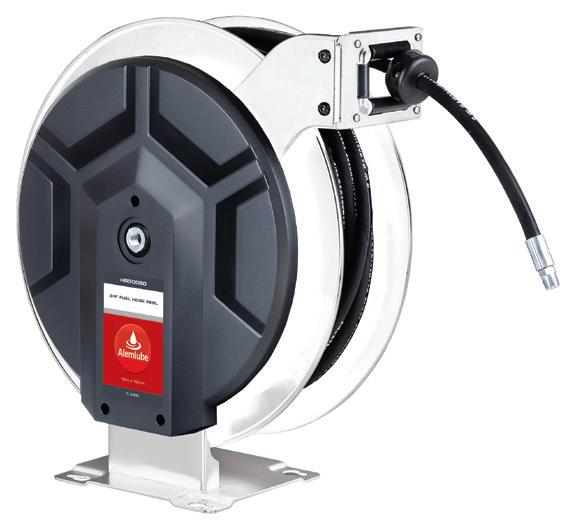

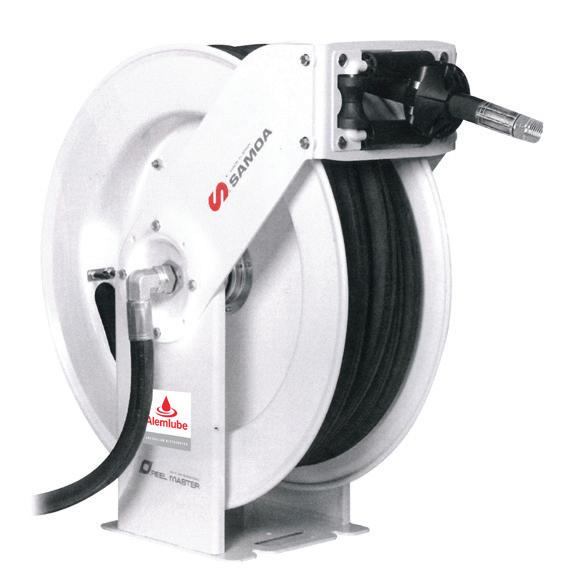

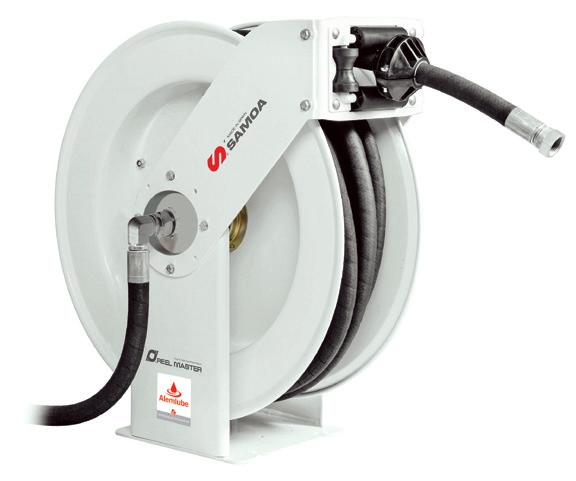

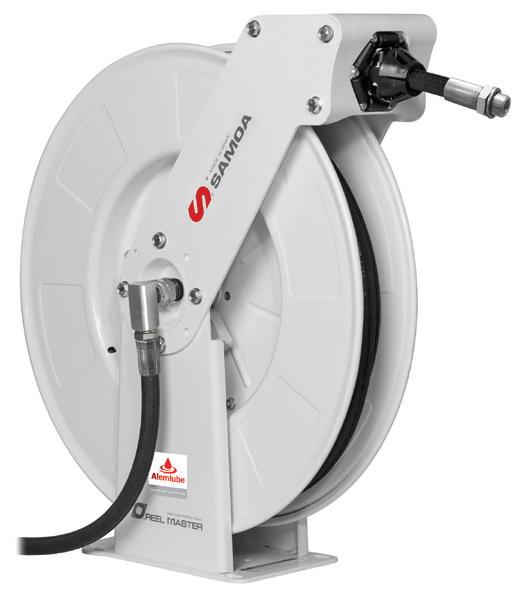

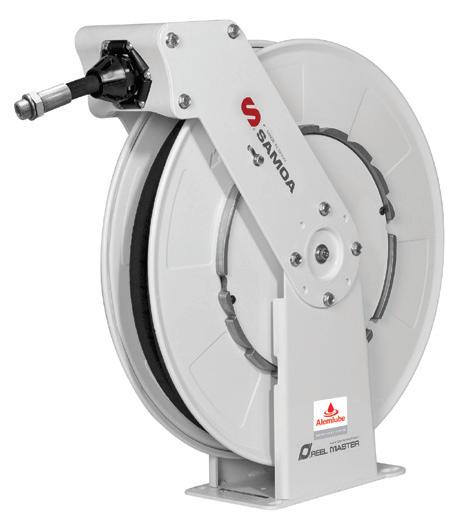

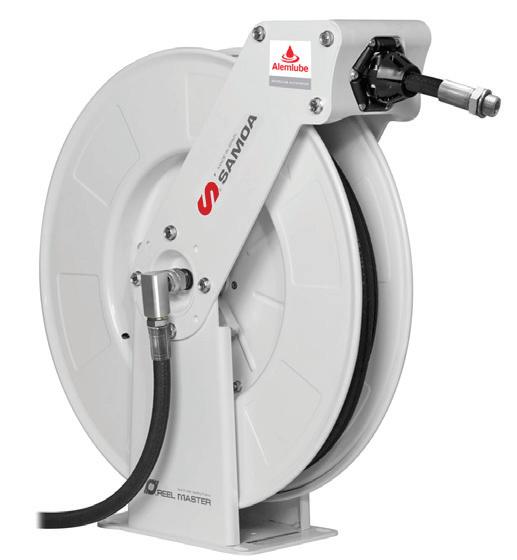

Samoa 3/4" Fuel, Oil, Air & Water Hose Reel

• Heavy duty full metal double pedestal construction

• Hose capacity: 15m x 19mm ID

• Hose pressure rating 1,520psi (105bar)

• 3/4" BSP(f) inlet/outlet

• True 3/4" full flow shaft & ports

• Seven position outlet arm

• Full port nickel protected steel shaft

505232 also available with 20m x 12mm ID hose $2,508.00

504250

Samoa 1/2" Twin Pedestal Oil Hose Reel

• Maximum working pressure of 2,300psi (160bar)

• 1/2" BSP(m) inlet/outlet

• Supplied complete with 15m x 1/2" ID

R1 hose and 0.8m inlet hose

• Full 1/2" ID port, shaft and swivel

• Heavy duty double pedestal construction

• Large effective radial latching area

• Floor, wall, ceiling or tank mountable

SO600

Alemlube S Series

Oxy-Acetylene Hose Reel

• 5/8" BSP inlet/outlet

• Maximum working pressure of 300psi (21bar)

• 15m x 6mm ID hose & 0.9m lead in hoses

• Ideal for back of ute or service vehicle use

• Adjustable spring tension & high flow swivel and fluid path also available

SA630 Argon Gas hose reel $439.00

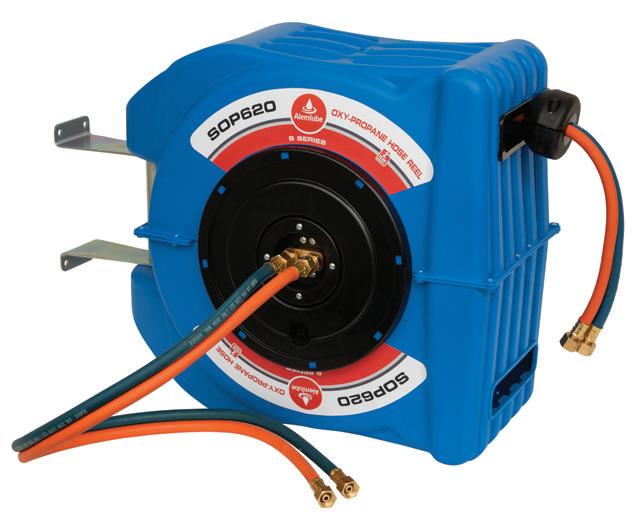

SOP620 Oxy-Propane hose reel

$679.00

ALEMLUBE 51201N TYRE INFLATOR WITH GAUGE

The Alemlube 51201N Tyre Inflator with Gauge is heavy duty with an aluminium die cast body, impact absorbing bumpers and spiral protected air hose. Ideal for automotive, industrial and trade use, the 51201N incorporates slim ergonomic design features and is easy to use when inflating or deflating.

Highly accurate, the 51201N with magnified sight glass clearly indicates dual scale pressure reading of 0-150psi and 0-1,050Kpa.

Quality manufacturing and robust construction ensures dependable and trouble-free use day in, day out.

Also available is the Alemlube 51114 Digital Tyre Inflator designed with an LCD backlit digital display powered by two CR2032 batteries providing a life of 140 hours with normal use.

$2,631.00

$1,625.00

$613.00

SA300N

Alemlube S Series

Air Hose Reel

• 18m x 10mm ID hybrid polymer hose & 0.9m lead in hose

• High flow swivel and fluid path

• Detachable steel mounting bracket enables 180° hose reel rotation

• 3/8" BSP(f) inlet/outlet

• Dimensions: 490mm (L) x 448mm (H) x 228mm (W)

SA400N also available with 15m x 12mm hose $366.00

$344.00

HR90005

Alemlube EL Series 1”

Air, Water & Fuel Hose Reel

• Reinforced steel frame provides maximum strength and stability

• Working pressure of up to 300psi (20bar)

• Includes 30m x 25mm ID rubber hose & hose stop

• 1.5mm thick robust drum with stiffening ribs and flange edges

• Reliable spring life of 20,000 cycles and positive ratchet lock design

HR90010 also available with 15m x 25mm ID hose $1,879.00

$2,275.00

508225

Samoa 1" High Volume Hose Reel

• Long-life heavy duty double arm design

• Supplied with 15m x 1" BSP(f) ID hose

• 1,250psi (86bar) hose pressure rating

• 1" port nickel coated steel shaft and swivel

• Zinc plated steel hose guide rollers

• Suitable for use with fuel, oil, air, water and waste oil

• Ideal for high volume applications

508925 also available bare reel with 15m x 1” ID hose capacity $2,445.00

$3,198.00

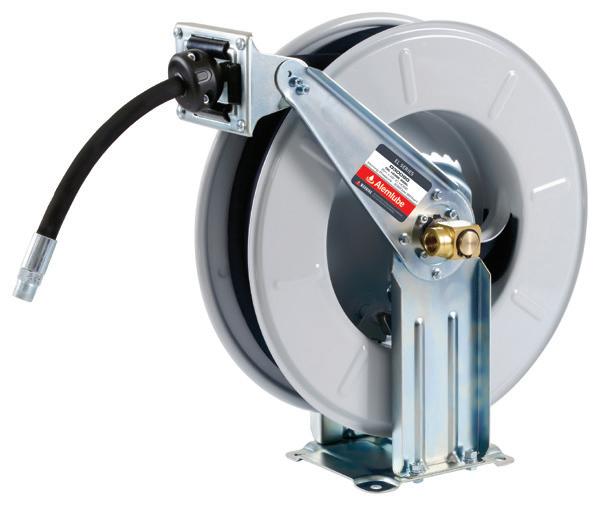

ALEMLUBE EL SERIES HR90000 HOSE REELS

The HR90000 Series Alemlube EL Series Air & Water Spring Rewind Hose Reels are available in low, medium and high pressure.

Medium pressure hose reels are supplied standard with S.A.E 100R1 at one wire braid hose suitable for air, water or oil application in auto and truck workshops. High pressure reels are supplied standard with S.A.E 100R2 at two wire braid hose suitable for grease applications.

With working pressures of 300-4,000psi and with adjustable arms, they allow for floor, wall or ceiling mounting according to needs.

The hose reel drum is sturdy and practical with stiffening ribs and flange edges.

QUICK

WORKSHOP

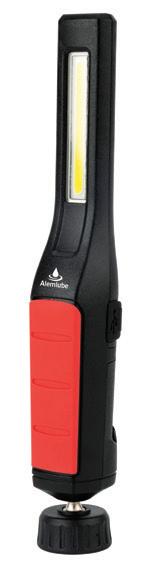

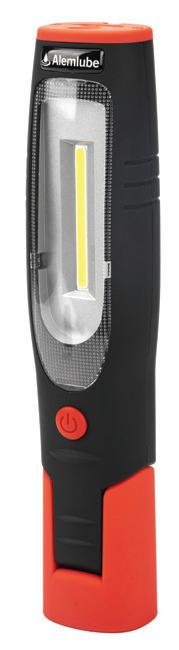

20066N2

Alemlube LED

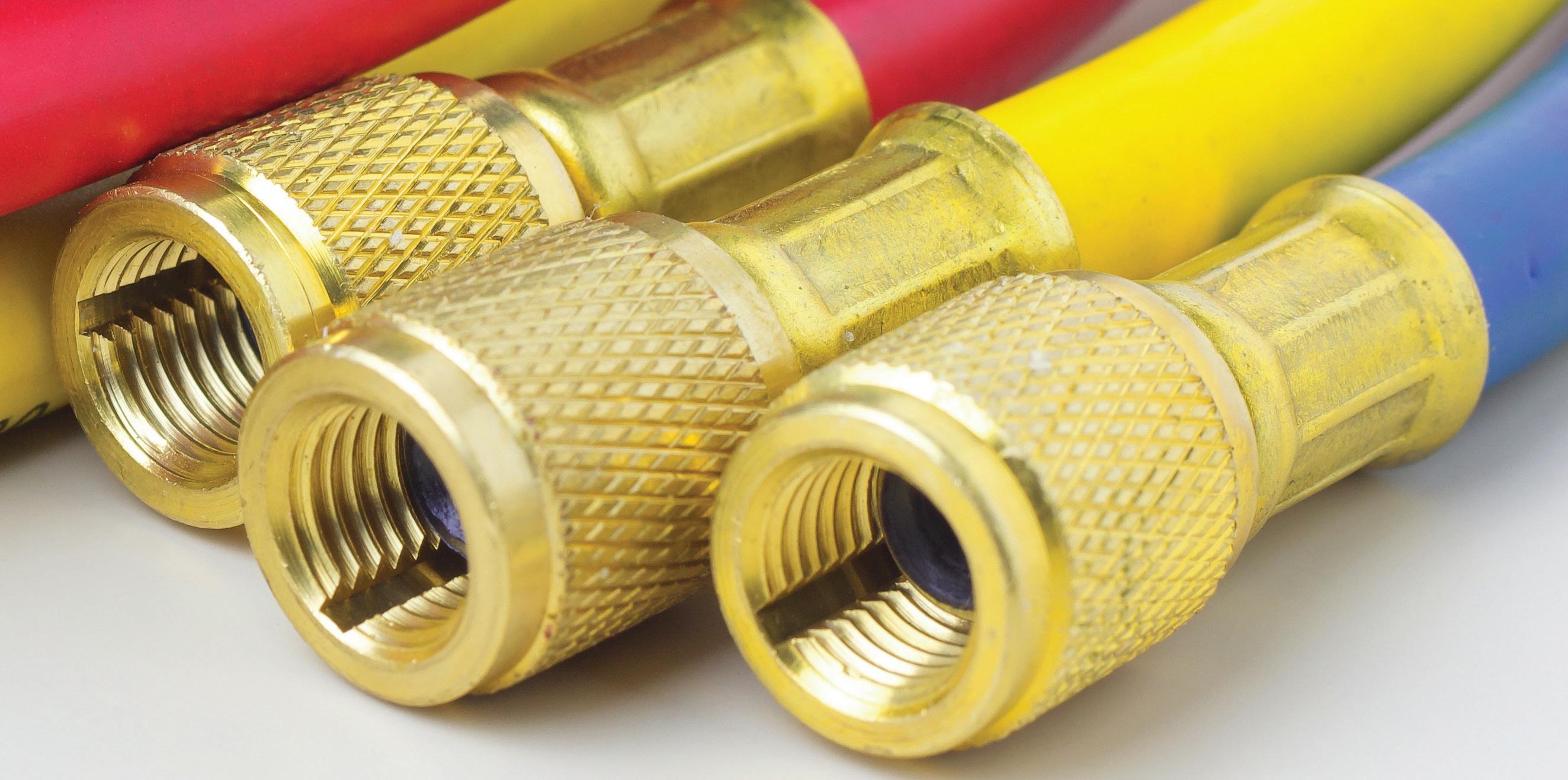

Work Light with Aircon Gas Leak Detection

• 4W COB LED, 400lm on body

• 3W SMD LED, 100lm on top

• 80 CRI to illuminate true colours

• 3.7V 2200mAh Li-ion battery

• 3 hour main light run time

• 10 hour top light run time

• 28 hour top UV light run time

• 3.5 hour charge time

• 180˚ adjustable handle

• 3 strong magnets

• 2 foldaway hanging hooks

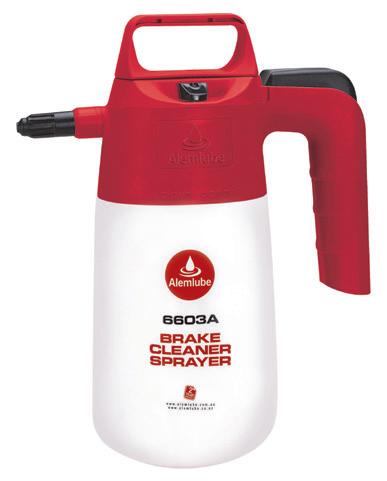

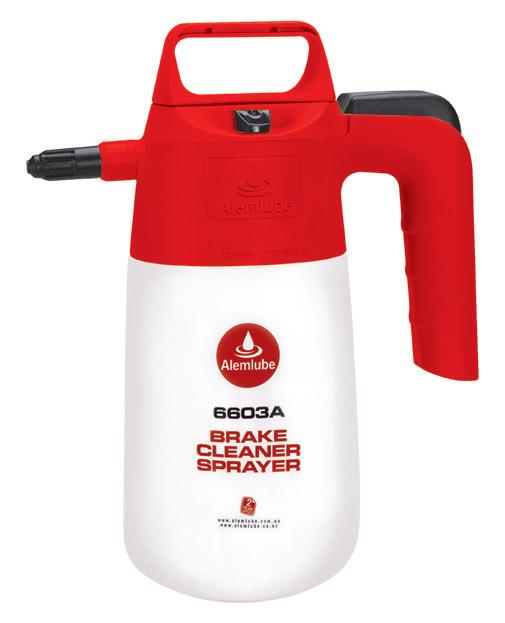

6603A

Alemlube 1L

Brake Cleaner Sprayer

• Large filling opening

• Safety valve at 36psi (2.5bar) with depressurisation option

• Easy tool free maintenance

• Ergonomic design

• Strong translucent bottle with level indicator

• Not suitable for use with acids

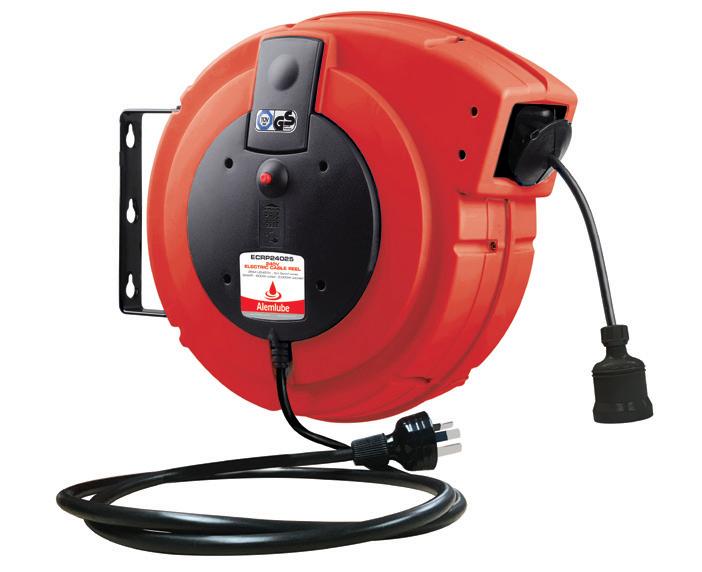

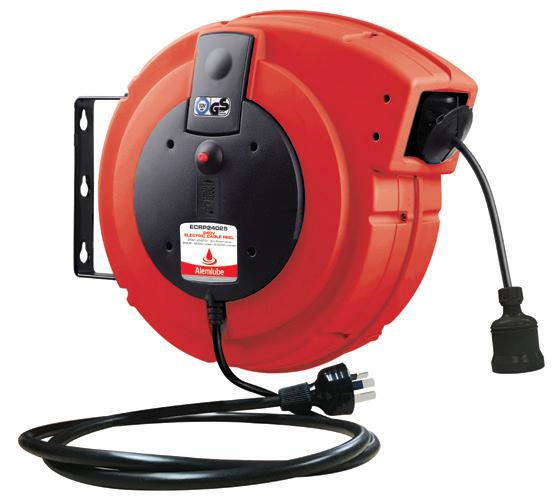

CR30060

Alemlube EL Series 240V

Electric Cable Reel – 15amp

• Supplied with 20m of 3 x 2.5mm2 cable

• Maximum power when coiled is 1,600W, when uncoiled 3,200W

• Thermal overload protection

• Automatic and consistent speed control mechanism helps address WH&S concerns

• Australian Standard compliant in accordance with AS/NZ5 3000 CR30050 also available with Electric Cable Reel - 10amp $396.00

$

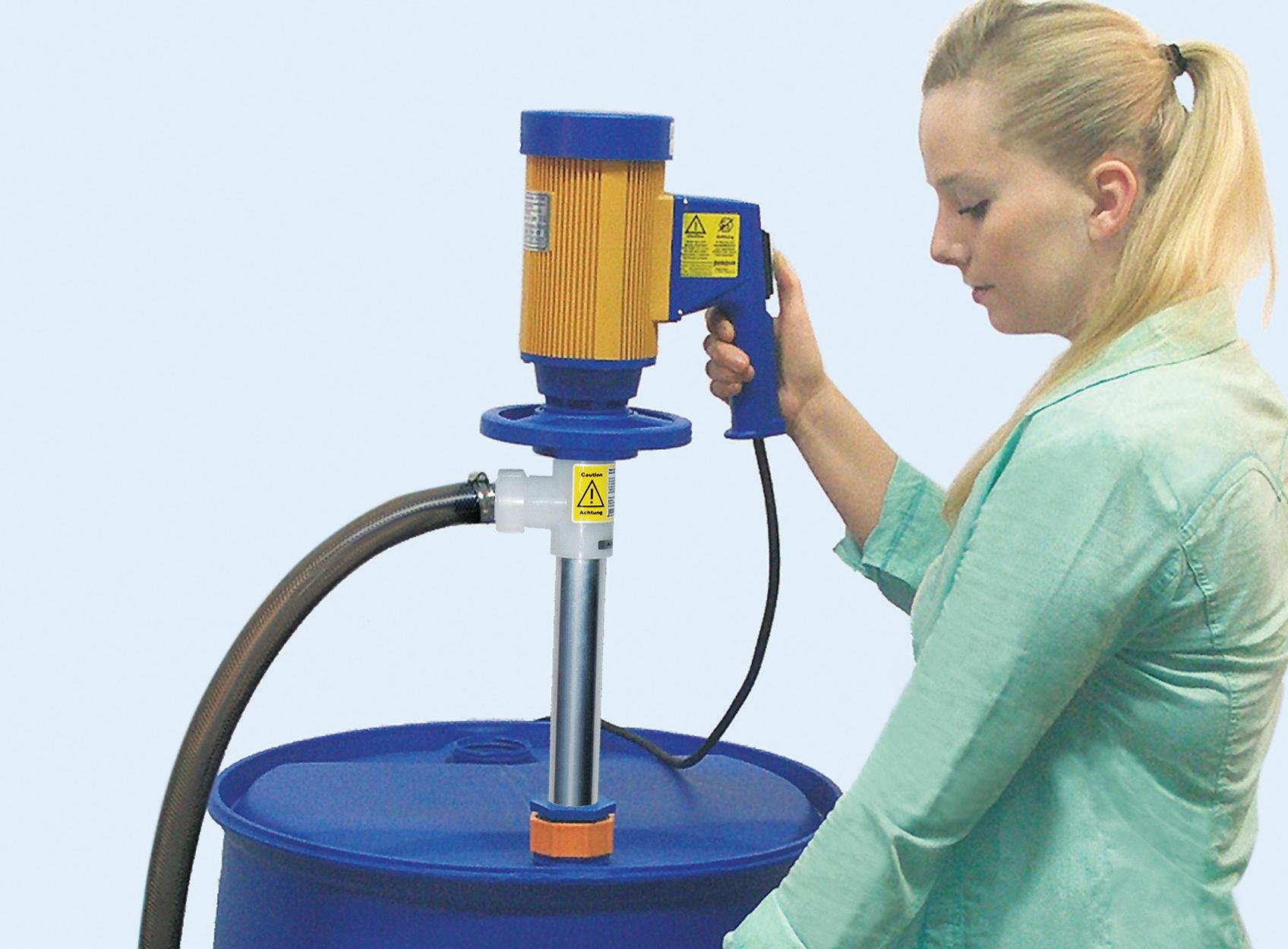

240V CHEMICAL & SOLVENT TRANSFER

205L DRUM PUMPS

Jessberger 240V drum pumps consist of a high performance, internally or externally ventilated universal motor, which is also available in an explosionproof version and a pump tube that is suitable for your specific application. The pump tubes are available in Polypropylene for aggressive media as cleaning agents, acids and alkalies, up to 50 °C, PVDF (or highly aggressive media or when the medium temperature is between 50 °C and 90 °C, Aluminium for mineral oil products or Stainless steel 316Ti for flammable liquids such as petrol or solvents or thin liquid food.

The Jessberger pumps available from Alemlube are light weight, powerful and have been precision designed and manufactered in Germany.

MUST HAVES

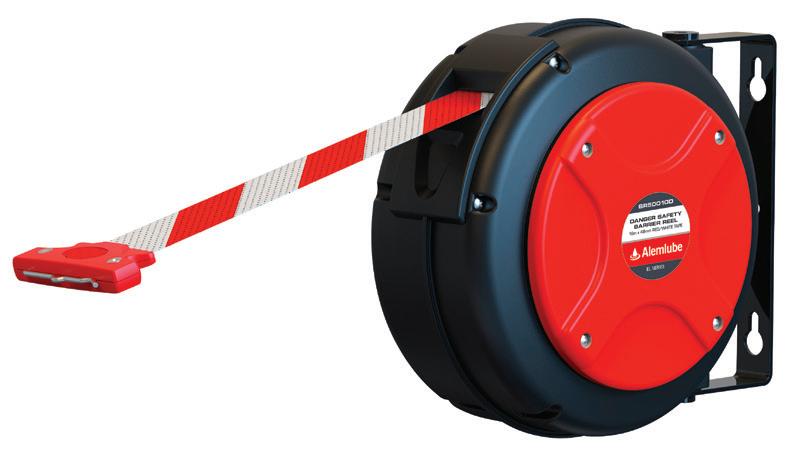

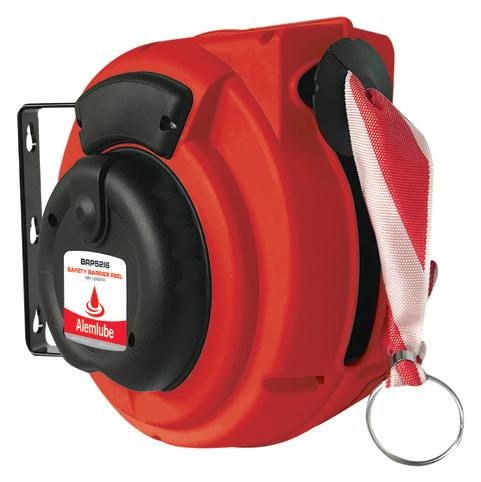

BRP5216D

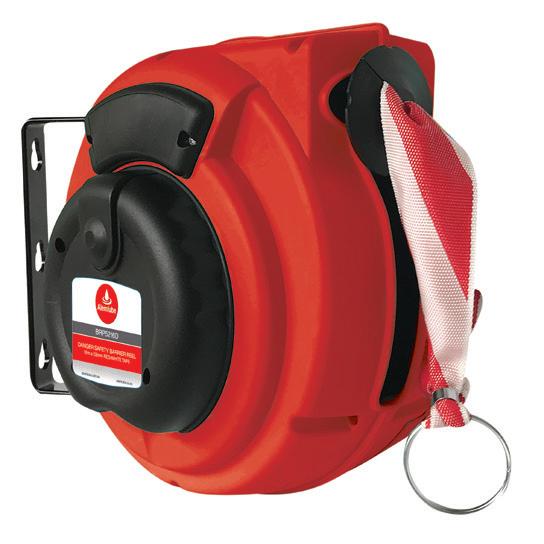

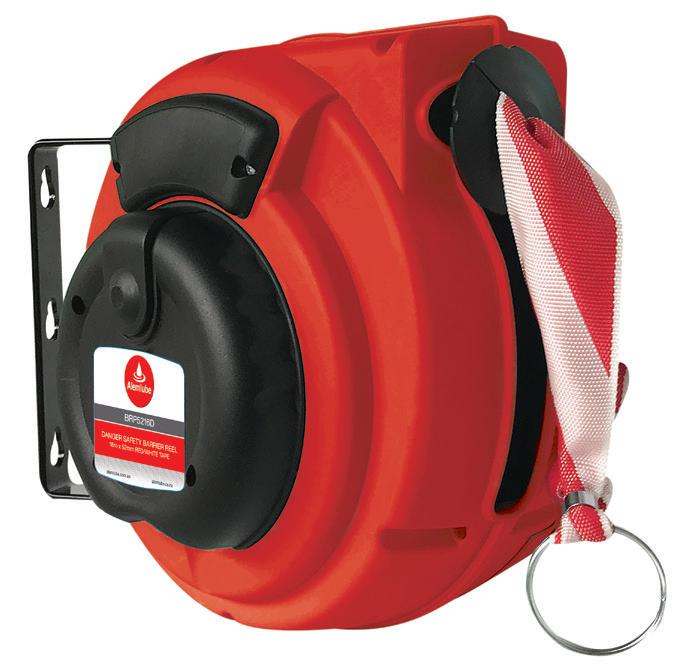

Alemlube Danger

Safety Barrier Reel

• Provides a temporary barrier to clearly identify dangerous areas

• Supplied complete with 16m x 52mm ID of durable red/white band with eyelet

• Automatic spring rewind mechanism

• Compact design suitable to mount in most workplace environments

• A must for addressing workplace and employee safety

BRP5216C also available complete with 16m x 52mm of durable yellow/ black band with eyelet $405.00

$405.00

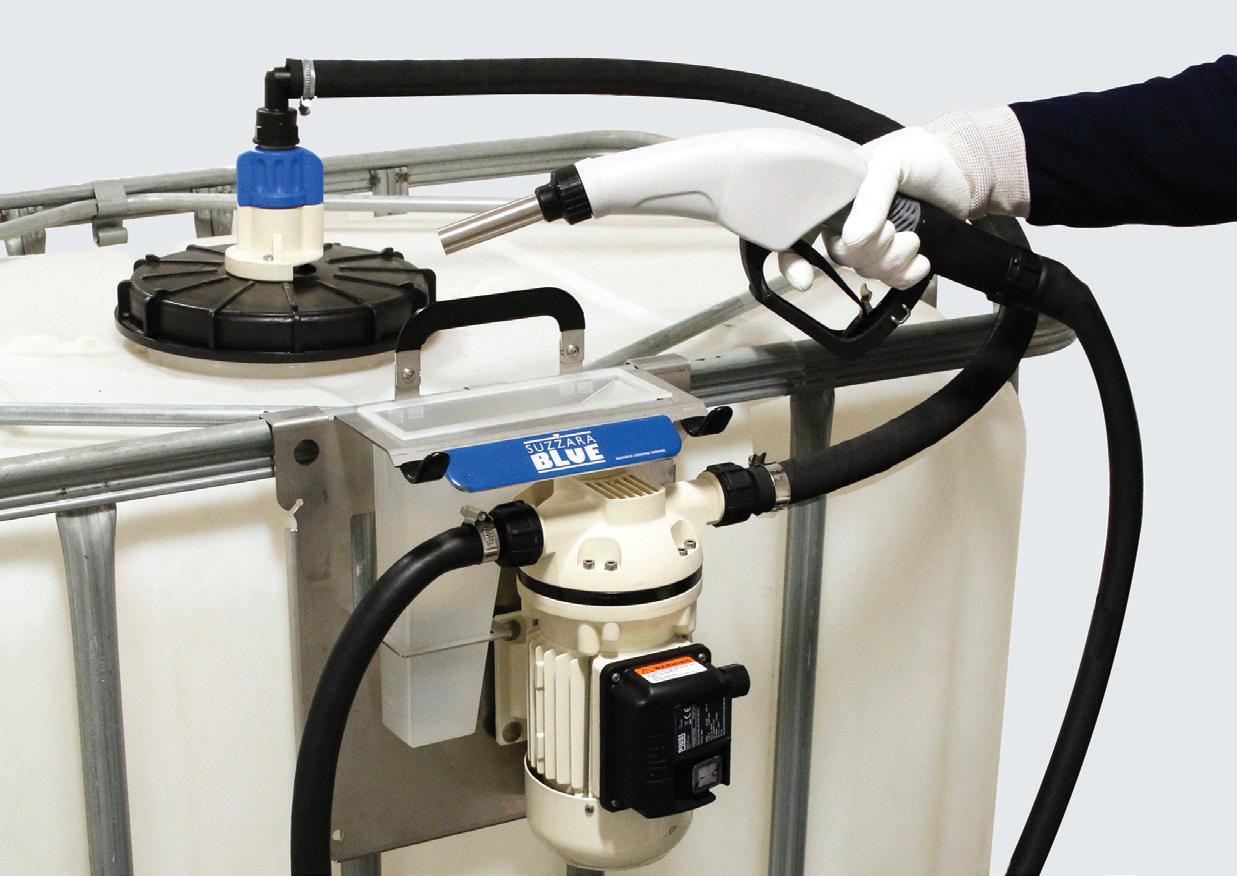

THE ADBLUE® ADVANTAGE

8828N2

20084N

Alemlube

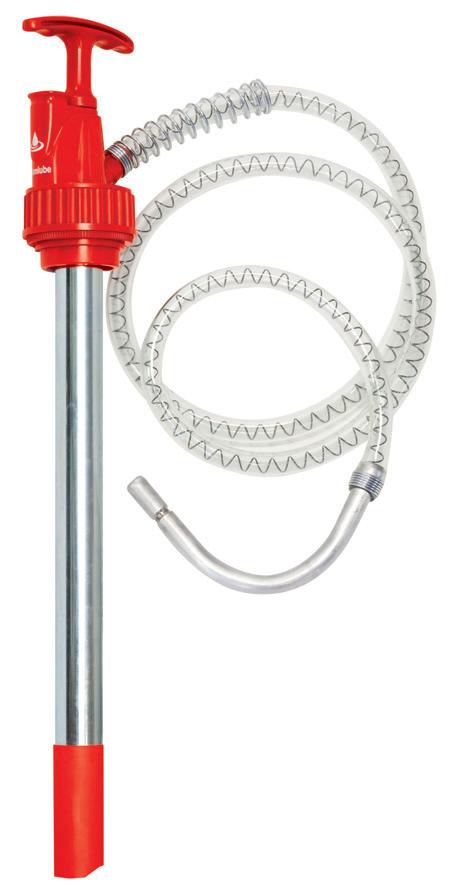

20L Gear Oil Drum Pump

• Capable of delivering up to 110mL per stroke

• Downtube extension and extra Rieke adaptor make the pump suitable for use with a variety of 20L drums

• Ideal pump for the transfer of engine, gear, diff and hydraulic oils

• Drainback nozzle holster ensures that excess oil ends up back in the drum

• UV stabilised long life hose ensures a long service life

O30010N also available delivers 80mL on the downstroke $52.70

$58.70

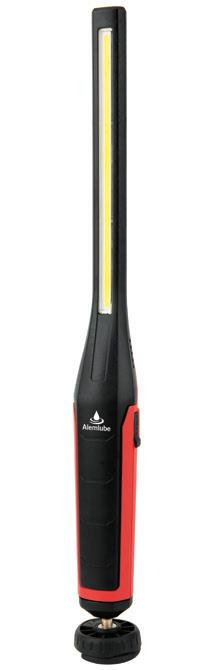

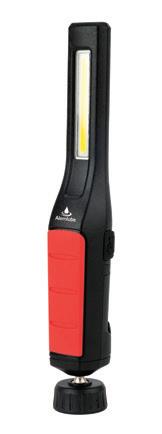

Alemlube Rechargeable LED Slimline Work Light

• Utilises LED technology to provide incredible brightness via 50 LED lights with energy efficiency when working on your vehicles engine

• The flexible attachment clamps can be extended from a 117cm minimum to a maximum of 190cm

• The shatterproof polycarbonate lens combined with LED technology ensures longevity of life in your tough workshop environment

AdBlue ® is a non-toxic urea solution used to chemically reduce N 2 O (Nitrous Oxides) – emission from heavy duty diesel powered vehicles. It is neither explosive nor harmful to the environment and is classified under the minimum-risk category of transportable fluids.

AdBlue ® is stored in a seperate tank in the vehicle and the fluid is precisely injected into the engine’s hot exhaust manifold, where the gases in the presence of a catalytic converter. The oxides formed at combustion are converted into harmless elementary nitrogen and water. This method is known as Selective Catalytic Reduction (SCR).

$195.20

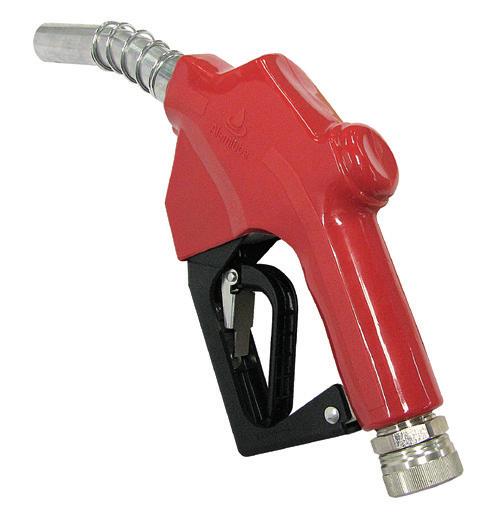

51039

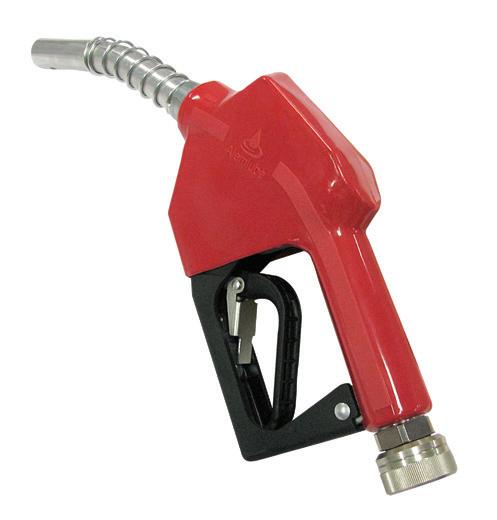

Alemlube 1" Auto Shut Off

Diesel Nozzle

• Automatically cuts off when a fuel tank is full

• Can operate with flow rates of up to 120L/min

• 1" BSP(f) swivel included

• Suitable for applications involving an electric diesel transfer pump

51037 also available with delivery rates of up to 60L/min $308.00

370.00

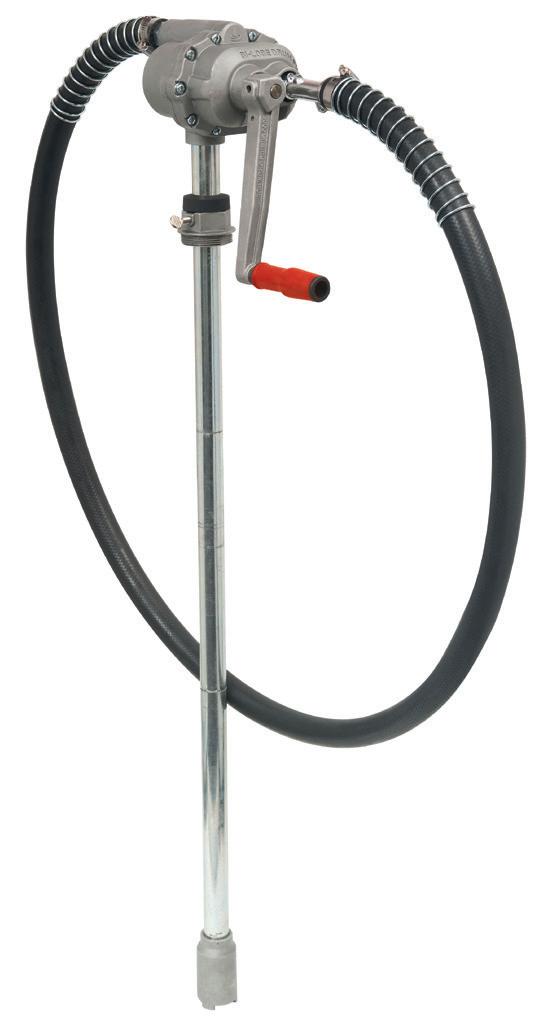

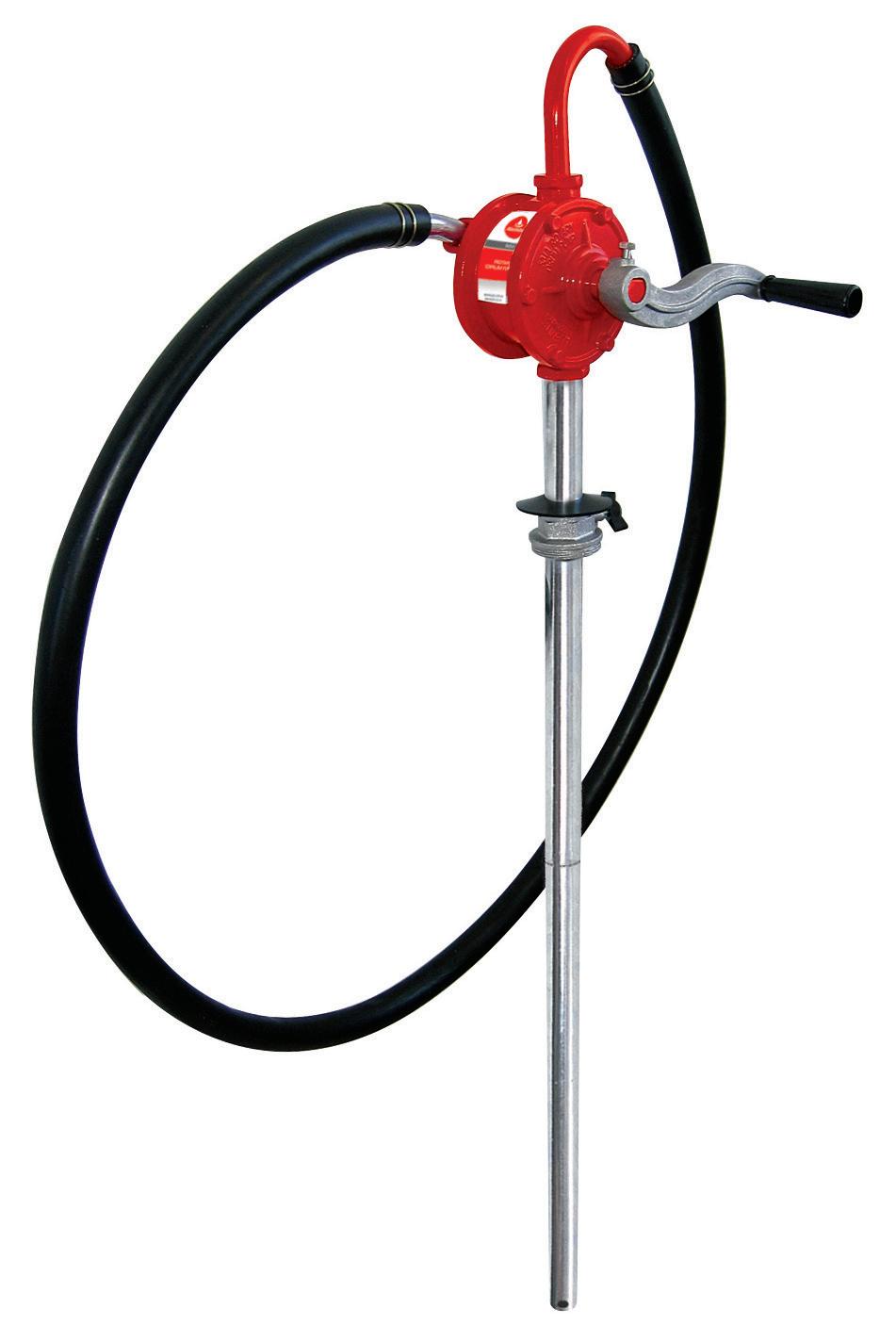

Alemlube Rotary Action

Drum Pump

• Suitable for the transfer of diesel, petrols, kerosene, lube oil and machine oil

• 2" BSP bung adaptor

• Anti static fuel hose

• Delivery rates of up to 18L/min or 0.26L per rotation

• Can syphon and transfer fuels and lubes in reverse

• Includes 2.2m of farm tank hose, bung adaptor, rubber gasket, a four chamber rotor assembly, spout and spout holster

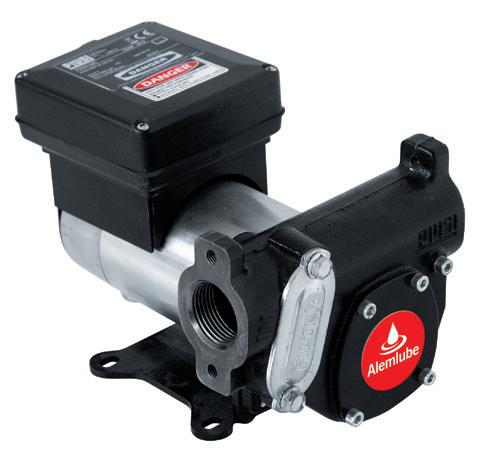

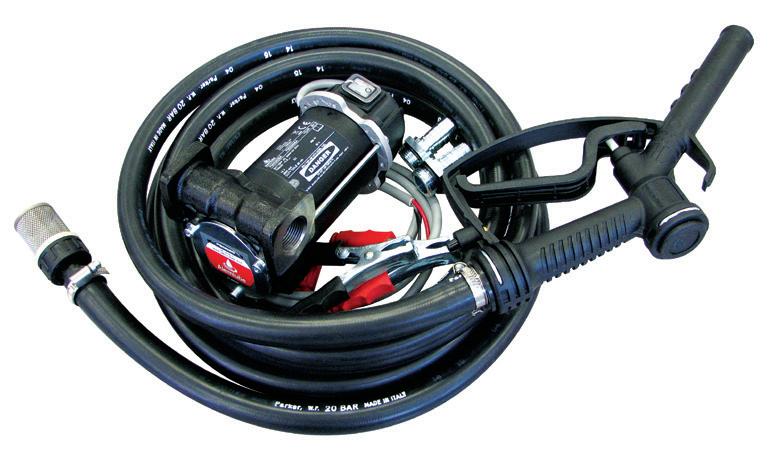

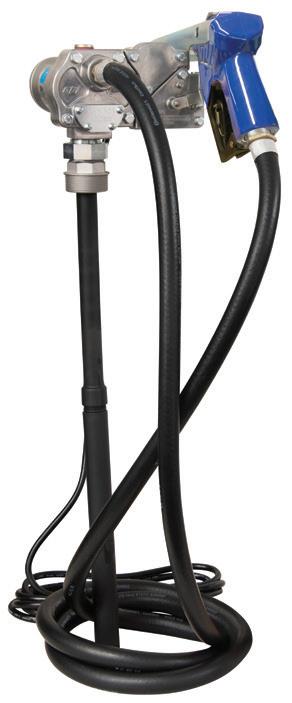

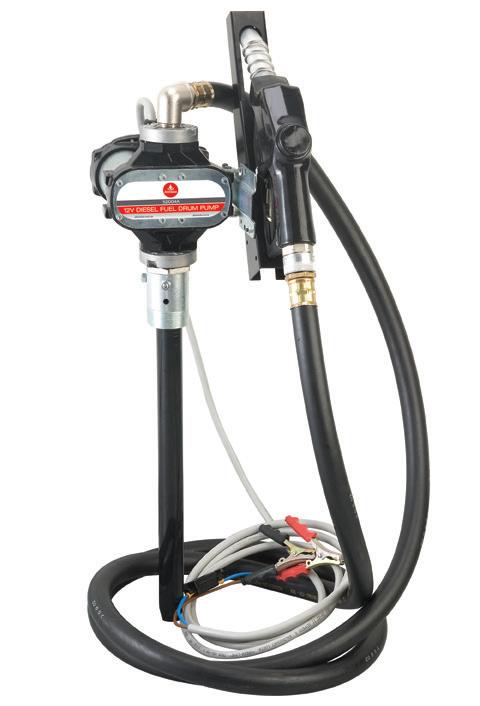

52004A

Alemlube

12V High Volume

Diesel Drum Pump

• Flow rates of up to 80L/min

• 1" BSP(f) inlet/outlet

• Telescopic down tube suits fuel tanks up to 1,000mm deep

• Includes an automatic shut off nozzle

• Self priming vane pump with sintered steel rotor and acetyl resin vanes

• Duty cycle of 30 minutes on / 30 minutes off

• Dry prime of 2m

52004 also available with manual nozzle $1,294.00

$1,573.00

ALEMLUBE SERVICE VEHICLES

In the Pilbara, out at Roxby Downs and in the Bowen Basin, Service Vehicles are taking workshop services directly tovehicles and mobile equipment operating in the field.

For over a decade, Alemlube has supplied a good number of the Service Vehicles OEM’s with a wide range of oil, diesel fuel, grease and waste oil transfer and metering equipment and currently Alemlube products and after sales service is a part of that programme.

5060AN Alemlube Heavy Duty Hi-Flo Refuelling Drum Pump

• Low torque, high volume easy to use pump delivers up to 110L/min

• Supplied complete with 2.6m of UV and fuel resistant hose, spout, in built spout holster, 3-piece downtube, heavy duty bung adaptor

• Suitable for the transfer of diesel fuel, petrol, light oils up to SAE30 and kerosene

5080AN also available with filter

$765.00

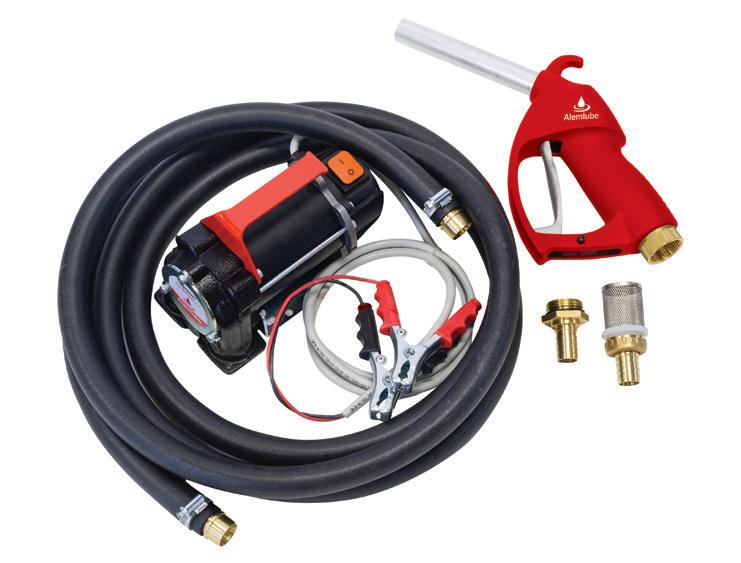

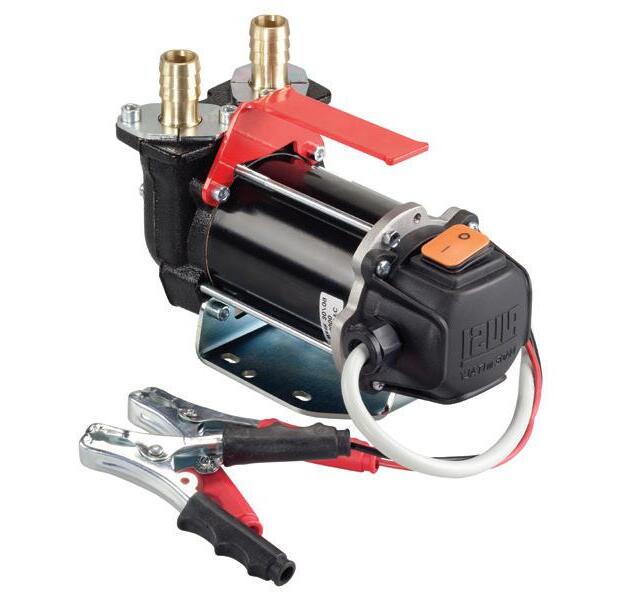

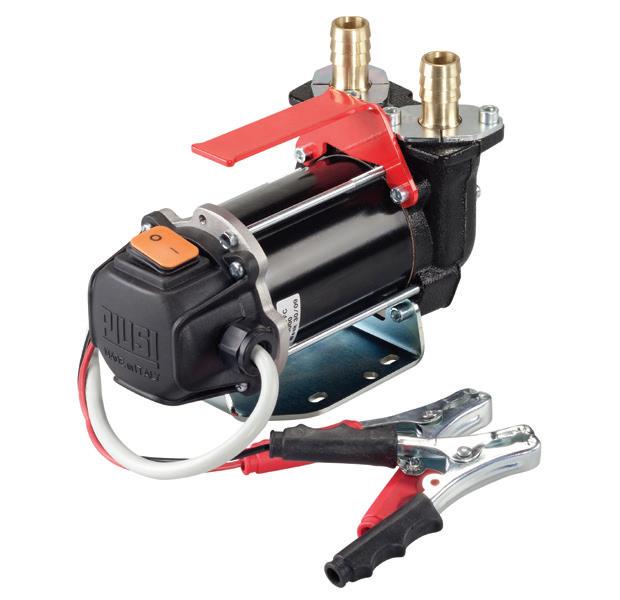

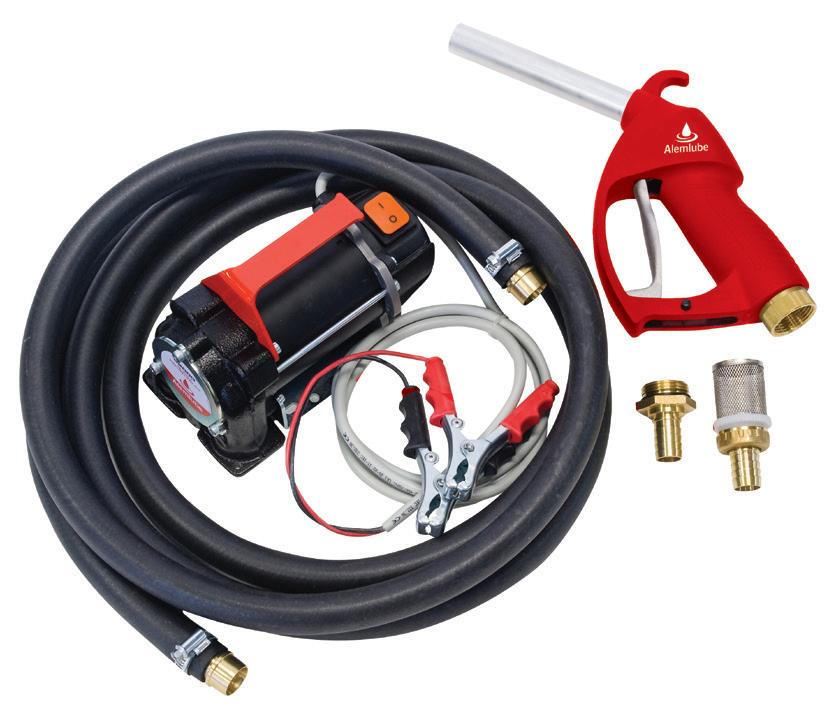

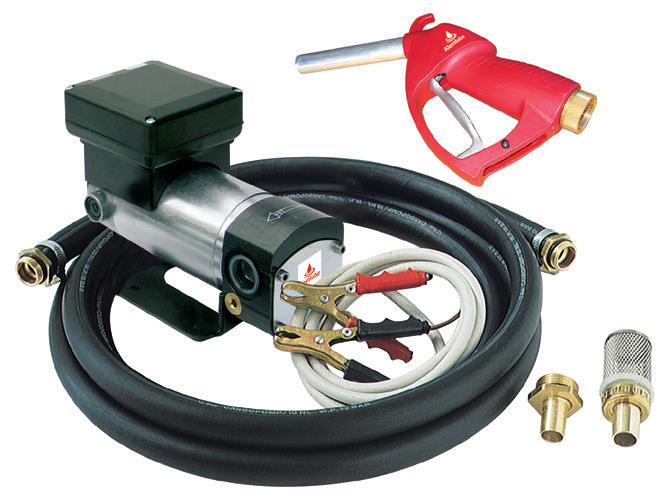

52000 Alemlube 12V Diesel Refuelling Tank Kit

• Capable of flow rates of up to 50L/min

• Includes 4m of antistatic fuel delivery hose, 2m of battery cable, a stainless steel & brass fuel filter and a manual nozzle

• Maximum head capacity of 15m

• Self priming vane pump includes a built-in bypass

• Duty cycle of 30 minutes on, / 30 minutes off

• Suction capacity of up to 2m

5200A also available in 24V $760.00

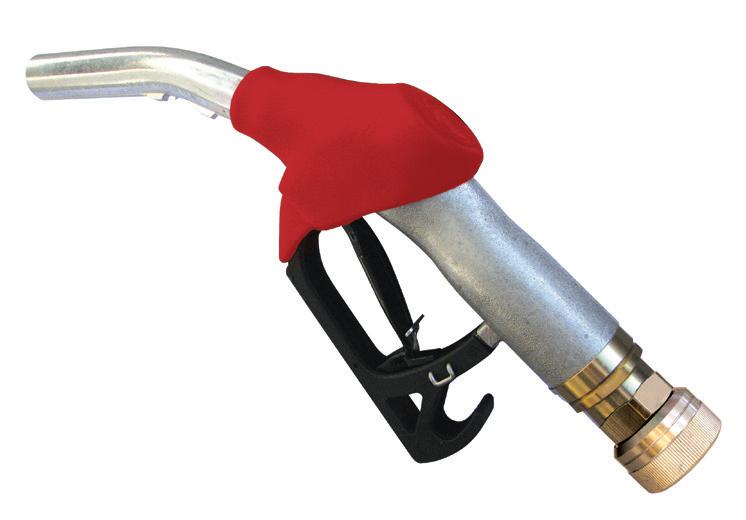

51040 Alemlube 1” Hi-Flo Auto Shut Off Diesel Nozzle

• High speed, reliable & robust automatic nozzle

• Maximum flow rate of 140L/min

• 1" BSP(f) hot stamped brass swivel

• 3-speed lever with removable latch pin

• 3-position stay open latch

• Soft PVC cover/scuff guard

• Suitable for dispensing petrol, diesel fuel and bio diesel up to B5

B.SMART FUEL MANAGEMENT SOLUTIONS

Piusi B.SMART is an intuitive and simple Smart Fuel Management System comprising hardware and software driven by Bluetooth technology to easily monitor and manage diesel fuel usage in a fleet of any size, large or small

• Utilising a smart device App for drivers and a Web App on the Cloud for fleet managers, the new Piusi Smart Fuel Management System with its integrated software is fully managed in the Cloud meaning that no complicated PC installation is required to get you up and running

• B.SMART allows you to manage your fleet from anywhere and to monitor all fuel transactions in real-time

• Your Flexible and Modern Fuel Management Solution

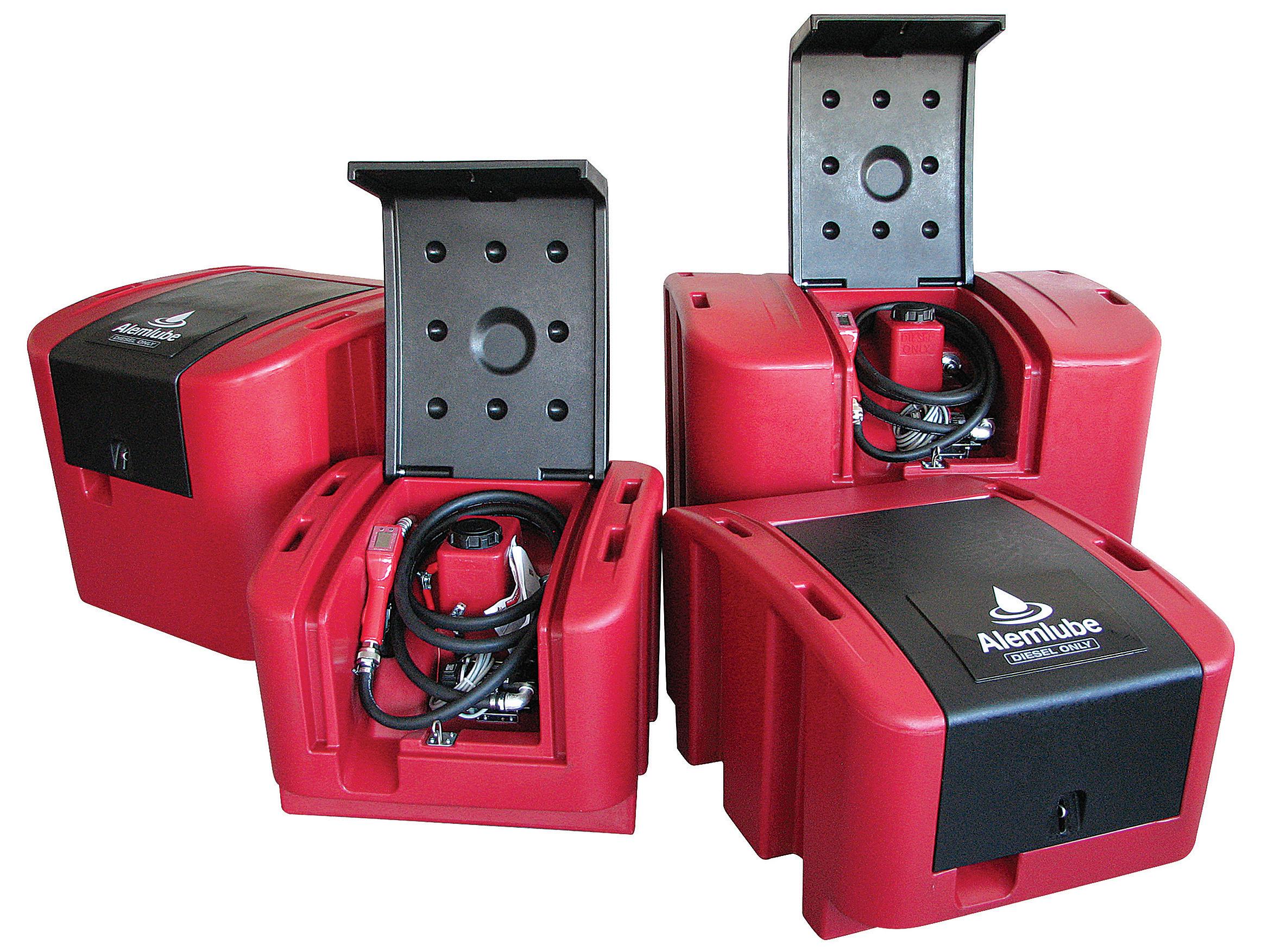

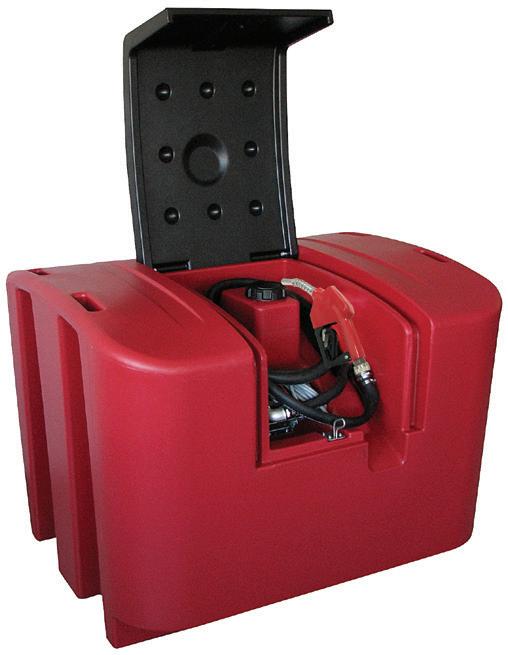

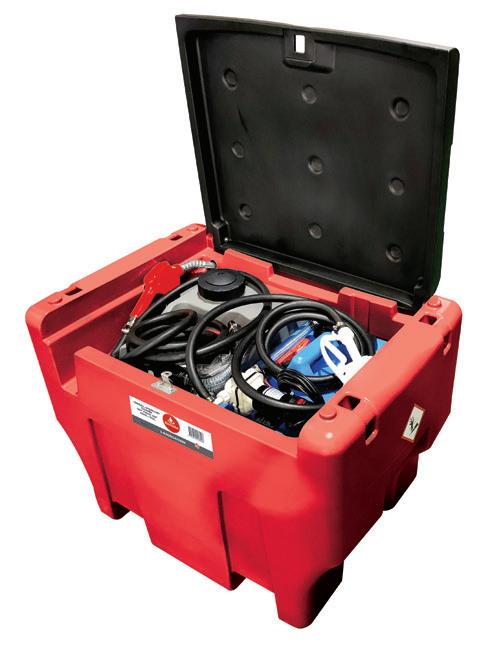

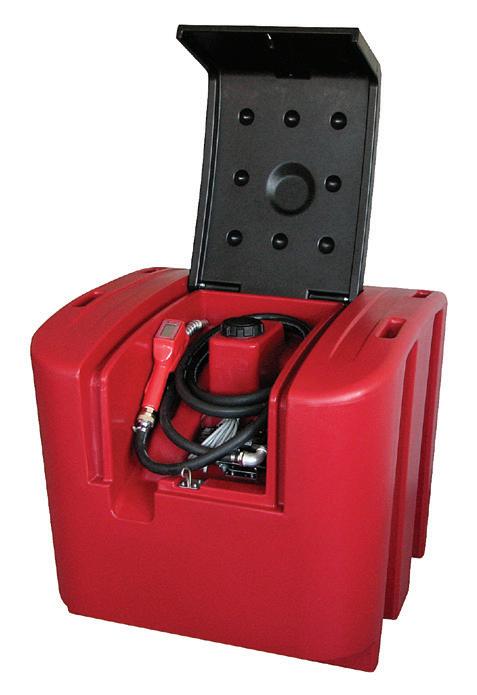

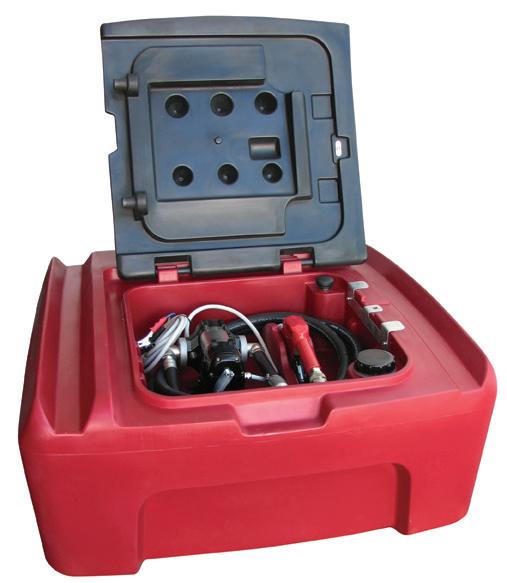

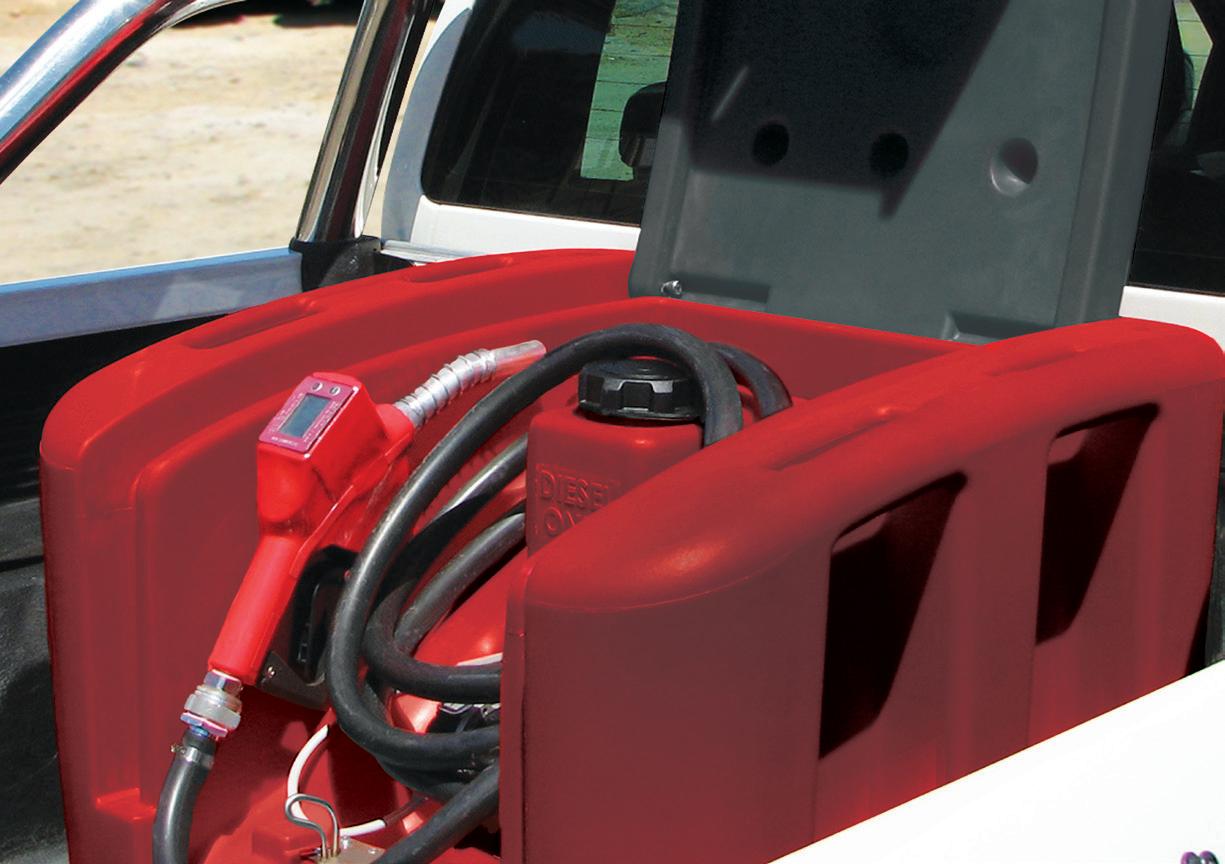

Alemlube Lockable Diesel Refuelling Storage and Dispensing Kits

• Flow rates of up to 50L/min

• Heavy duty, robustly constructed polyethylene tank

• Built in nozzle holster

• Unique user friendly design with lockable lid to aid fuel and dispensing kit security

• Dispensing kit consists of a 12V pump, 4m antistatic fuel delivery hose, 2m battery cables and automatic nozzle

• Recesses for tie down straps on the tank aid handling

• Forklift lift points and tie down capability

LOCKABLE DIESEL FUEL STORAGE & DISPENSING

Alemlube has addressed the need for user friendly, transportable lockable diesel fuel storage and dispensing kits with the introduction of the new lockable range of 600L, 450L, 200L & 100L polyethylene tank/dispensing kits. Covered by the comprehensive Alemlube 2 year warranty, the kits comprise of a 12V pump manufactured in Italy, 4m antistatic fuel delivery hose and automatic nozzle. Capable of delivery rates of up to 50L/min, each capacity kit is available with the addition of a fuel meter. Pallet lift points and tie down strap recesses greatly assist in handling and transportation. Already in use by earth moving contractors, road builders, in industry, agriculture and minesites, the Alemlube lockable diesel fuel storage and dispensing kits represent mobile refuelling at its best.

Italian Pumps

GENERAL WORKSHOP & REFUELLING EQUIPMENT

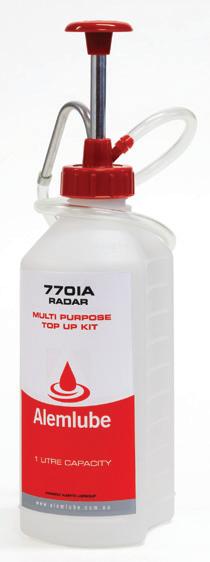

7700 Series

Alemlube

• Spring operated

• Reliable & robust

• Inclusive of an aluminium spout & holster

• Suitable for use with hydraulic oil, engine oil, gear oil and transmission fluids

• Delivery rates of up to 0.9kg/min

• 55:1 ratio air motor develops grease pressures of up to 7,950psi (548bar)

• Will handle high density, tacky greases up to NLGI2

• Supplied with a 4m long hose assembly enabling quicker & easier greasing of your plant and equipment

• Heavy duty 3 jaw coupler ensures a tight & precise grease nipple connection

• Integral filter protects pump from foreign particle contamination

• Cast alloy dual cylinder air motor won’t dent or distort prematurely

• Ergonomic grease control valve is easy & comfortable to operate

• Easily adjustable bung adaptor enables the kit to be used on a variety of drum sizes & types

• Manufactured in Spain

424150 as above but with a trolley

14508

Alemlube Right Angle Grease Gun Coupler

• Industrial quality grease gun coupler suitable for standard hydraulic grease nipples

• Compact design enables access to difficult to reach lube points

14512

Alemlube Quick Release Grease Gun Coupler

• Works with all grease gun types: pneumatic, manual & battery

• 90mm long

A14512 as above but in a blister pack

GREASING

• Grease pressures of up to 4,000psi (276bar)

• Delivery rates of up to 1.15g per stroke

• Robust die cast aluminium head assembly

• Heavy duty 4 jaw coupler

Alemlube

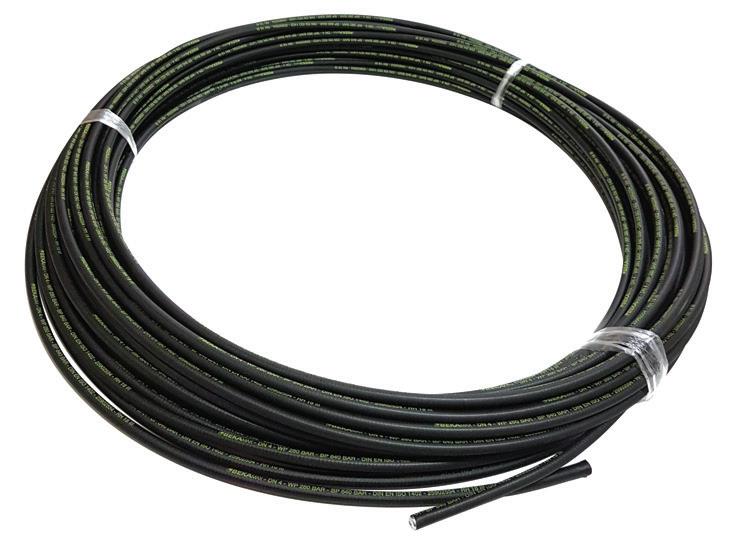

8.3mm Grease Hose

• Alemlube hose 8.3mm diameter 280 bar grease filled (10m rolls)

• Suitable for Alemlube automatic grease systems

5115481-10 as above but empty

• Industrial quality grease gun coupler suitable for standard hydraulic nipples

• 1/8" BSP(f) thread

• Compact design enables access to difficult to reach lube points

• Spare battery, recharger, 106cm long grease gun flex & plastic moulded carry case

9950-D1

Alemite 180kg Air Operated Grease Pump

• 50:1 ratio double acting grease pump capable of delivery rates of up to 2kg/min

• Includes pump, cover & 3m air hose

• Can service up to three hose reels

• 1/4" NPT(f) air inlet & 3/8" NPT(f) grease outlet

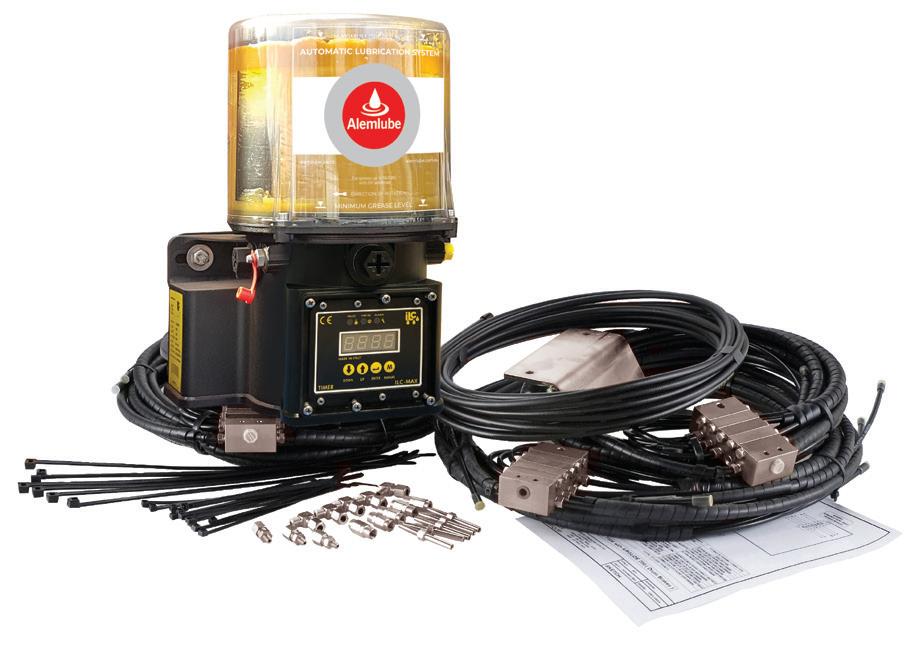

Alemlube Lubrication System Chassis Kit

• Pump with on board timer & 1.9kg reservoir, 12vdc or 24vdc

• MX-F divider valves, designed, assembled & tested for the particular application

• 8.3mm OD grease filled main line hose

• 6mm grease filled tube bearing lines

504350

Samoa Twin Pedestal Grease Hose Reel

• Maximum working pressure of 5,075psi (350bar)

• 1/4" BSP(m) inlet/outlet

• Supplied complete with 15m x 10mm ID R2 hose & 0.8m inlet hose

• Floor, wall, ceiling or tank mountable 504351 as above but with 15m

Cordless Grease Gun

• Delivery rates of up to 170g/min (high) & 113g/min (low)

• Grease pressures of up to 10,000psi (690bar)

• LCD with real time battery capacity, grease level & grease metering information

M125/PL1 M250/PL1 M500/PL1

Alemlube

Lever Action Grease Gun

• Grease pressures of up to 12,000psi (828bar)

• Delivers up to 1.6g of grease per stroke

• 450g capacity

• Ever-Flow System enables the use of thick/tacky greases

Trigger Action Grease Gun

• Grease pressures of up to 8,500psi (586bar)

• Delivers up to 1.1g of grease per stroke

• Twin Lock System eliminates the possibility of dummy lubrication

• The ultimate greasing tool

Multi Point Grease Lubricators

• Long term electro-mechanical lubricators

• Operating pressure of up to 870psi (60bar)

• Large LCD screen & easy to program

• Up to 8 points of multipoint lubrication

M125/PL1 - 125cc with PL1 Grease

M250/PL1 - 250cc with PL1 Grease

M500/PL1 - 500cc with PL1 Grease

409200

Samoa 180kg Air Operated Grease Pump

• 55:1 ratio double acting grease pump capable of delivery rates of up to 540g/min

• 1/4" NPT(f) air inlet & 1/4" NPT(f) grease outlet

• Noise level of 92dB

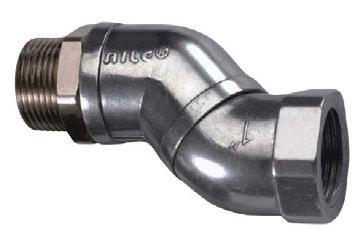

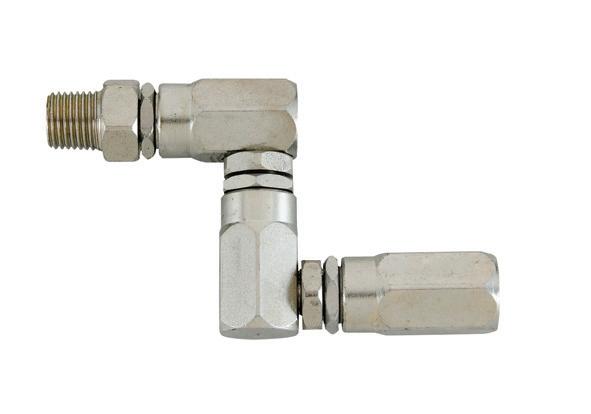

Samoa Grease Z-Swivel

• Heavy duty, three way swivel

• 1/4" BSP(m) x 1/4" BSP(f)

• Suitable for use with pneumatic, hydraulic & electric grease pumps and kits

• Rated to 7,140psi (492bar)

EPL-240SP

Alemlube 240V 20kg Grease Kit

• Maximum working pressure of 4,000psi (276bar)

• Dispenses up to 120-190g/min

• Suitable for greases up to NLGI2

• Operating temperatures of -10°C to +40°C

• Supplied complete with 2.5m x 1/4" R2 grease hose & 2.5m power cable

DH180240

Alemlube

240V 205L/180kg Drum Heater

• Suits 205L oil drums & 180kg grease drums

• Heats viscous fluids to a pourable temperature

• Maximum operating temperature of 218ºC

• Dimensions of 1,740mm (L) x 125mm (W)

413077

Grease Control Valve Rigid Extention

• High pressure aluminium grease control gun with steel insert

• Maximum working pressure 7,150psi (500bar)

• 1/4" BSP(f) inlet thread

• 1/8" BSP(f) outlet thread

414300

Pulsarlube M Series

REFUELLING

01A12LM

GPI

1" Inline Electronic Fuel Meter

• For use with diesel only on gravity feed or electric transfer pumps

• Flow range: 10L/min to 100L/min

• 1" BSP(f) inlet/outlet

• Maximum working pressure of 300psi (21bar)

51007

Piusi

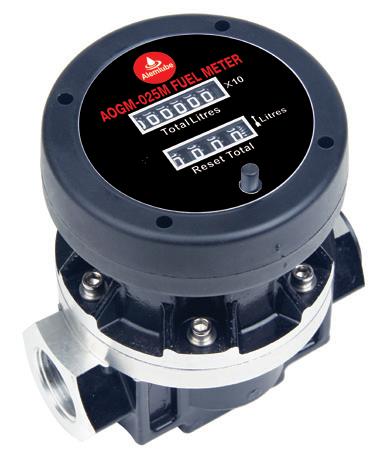

1" Mechanical Diesel Fuel Meter

• Accurate between flow rates of 20L/min to 120L/min

• Maximum working pressure of 145psi (10bar)

• 1" BSP(f) inlet/outlet ports

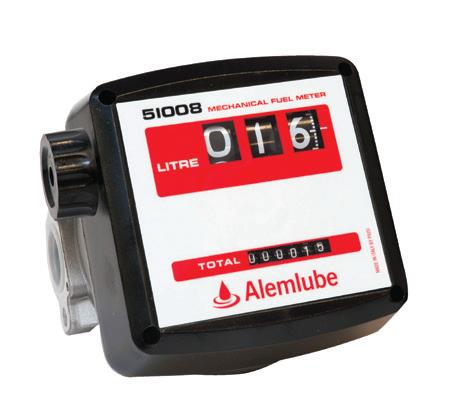

51008 as above but 3-digit batch display

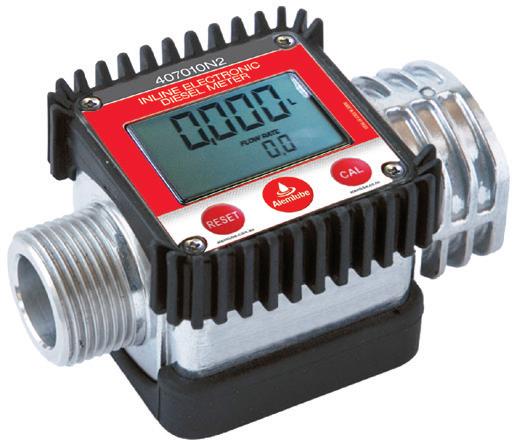

407010N2

Piusi

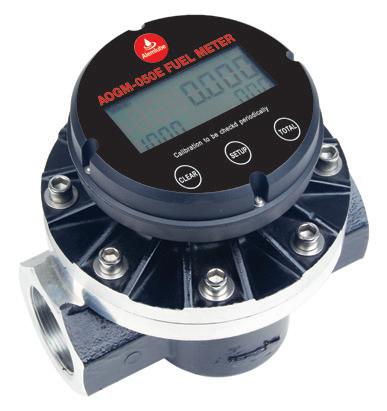

Electronic Diesel Fuel Meter

• Accurate between flow rates of 7L/min & 120L/min

• 1" BSP inlet and outlet ports

• Maximum working pressure: 290psi (20 bar)

• Bi-directional flow as required

380000

Piusi 12V Petrol & AVGAS Tank Pump

• Cast iron pump body construction

• Flow rates of up to 75L/min

• 1" BSP(f) inlet/outlet

• Duty cycle of 30 minutes on & 30 minutes off

• Also suitable for the transfer of diesel fuel

52004A

Piusi 12V High Volume

Diesel Pump

• Flow rates of up to 80L/min

• Heavy duty cast iron housing protects the dual motors & the pump head assembly

• Telescopic down tube suits fuel tanks up to 1,000mm deep

• Includes an automatic shut off nozzle

Piusi 12V Petrol

F20025

Alemlube EL Series

3/4" Automatic Diesel Nozzle

• 3/4" BSP(f) swivel included

• Automatically cuts off with full fuel tank

• Can operate with flow rates of up to 70L/min

• Suitable for applications involving an electric diesel transfer pump

51039

Alemlube

1" Automatic Diesel Nozzle

• 1" BSP(f) swivel included

• Automatically cuts off with full fuel tank

• Can operate with flow rates of up to 120L/min

• Suitable for applications involving an electric diesel transfer pump

L40049GA

Alemlube

400L Lockable Diesel Refuelling Storage & Dispensing Kit

• Dispensing kit consists of a 12V pump, 4m antistatic fuel delivery hose, 2m battery cables & manual nozzle

• Tank dimensions: 1,165mm (W) x 1,165mm (D) x 566mm (H)

M150SA

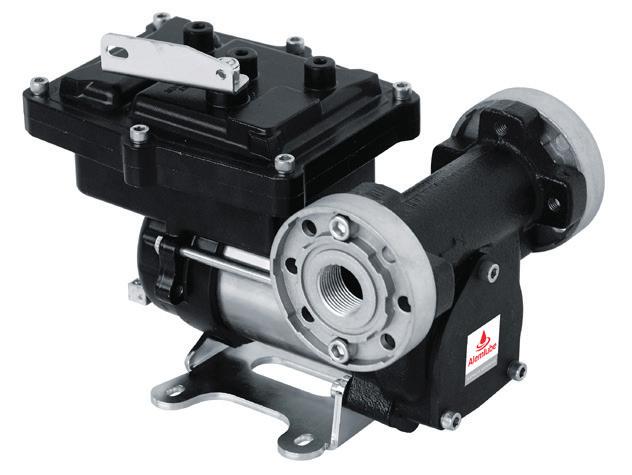

GPI 12V Heavy Duty Auto Diesel Pump 49L/min

• Flow rates of up to 49L/min

• Suitable for 205L drums or bulk tanks up to 1,000mm deep

• Fuse prevents overheating & motor burn out

• Suitable for diesel fuel transfer only

732000

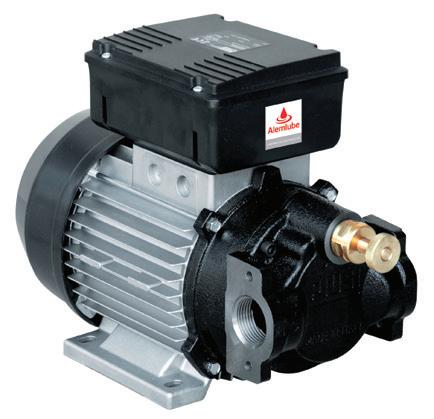

Piusi Diesel Fuel Transfer Pump

• 1" BSP(f) inlet/outlet

• Vane type pump with sintered steel rotor & acetylic resin vanes, flow rates of up to 72L/min

• 240V continuous running operation

• Ideal for diesel fuel transfer out of bulk tanks where 240V power is available

326000

Piusi High Volume Diesel Fuel Transfer Pump

• Flow rates of up to 100L/min

• Vane type pump with sintered steel rotor & acetylic resin vanes

• 240V continuous running operation

• 1" BSP inlet/outlet

• Thermal motor overload protection

L45040PA

Alemlube 450L Lockable Diesel Refuelling Storage & Dispensing Kit

• Dispensing kit consists of a 12V pump, 4m antistatic fuel delivery hose, 2m battery cables & automatic nozzle • Flow rates of up to 50L/min

SAFETY & LIGHTING

BR50020C

Alemlube

Caution Safety Barrier Reel

• Supplied with 16m of yellow/black band with fixed-handle

• Provides a temporary barrier to clearly identify dangerous areas in the workplace or public environments

• Automatic spring rewind mechanism

BR50010D

Alemlube Danger Safety Barrier Reel

• Supplied with 16m of red/white band with fixed-handle

• Provides a temporary barrier to clearly identify dangerous areas in the workplace or public environments

CR30060

Alemlube EL Series

240V Electric Cable Reel - 15amp

• Supplied with 20m of 3 x 2.5mm2 cable

• Maximum power when coiled is 1,600W, when uncoiled 3,200W

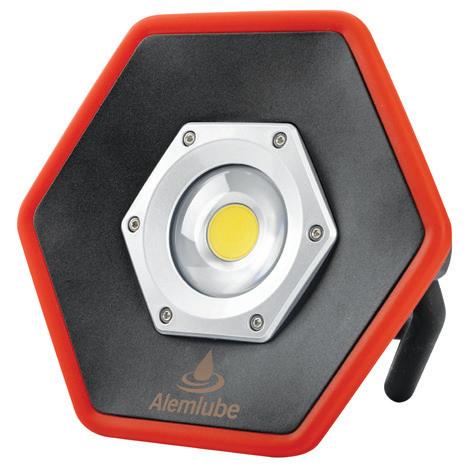

20055

Alemlube LED Flood Light

• COB LED, 500 / 1000 / 2100lm

• 11.1V 4400mAh Li-ion battery

• IP65 water resistance rating

• Three brightness settings – 500 lm, 1,000 lm & 2,100 lm with run times of 9hrs, 5hrs & 2.5hrs

20055C with Telescopic Tripod

SJ-110-006

Alemlube 100 Series 4 Drum In-line Spill Pallet

• Durable, removable non-skid platform

• Holds up to 4 x 205L drums

• Sump capacity of 249L (236L to underside of platform)

• Dimensions: 1,460mm (W) x 1,460mm (D) x 305mm (H)

20084

Alemlube LED Vehicle Bonnet Light

• Light emitted from 120 high intensity LED elements

• Bonnet hooks attach to the vehicle allowing maximum access to the workspace

• 8m cable plugs directly into mains power

• Integral swivelling steel wall bracket Alemlube Double IBC

CR30050 as above but 10amp & with 1.5mm2 cable and power when coiled is 1,000W, when uncoiled 2,000W

20066N2

Alemlube LED Work Light with Aircon

Gas Leak Detection Capabilities

• The UV light is ideal for detecting ultra violet leak detection dye used in vehicle air conditioning systems

• Magnet on the back & base with a 180º adjustable handle

Spill Container

SJ-520-001 • Sump capacity of 1,165 litres to underside of the deck • Dimensions of 575mm (H) x 2,260mm (W) x 1,460mm (D) • IBC’s not

SJ-100-002

Alemlube Drum Spill Container

• Sump capacity of 236L

• Holds up to 2 x 205L drums

• Excellent chemical resistance

• 100% recyclable polyethylene construction

• Dimensions of 750mm (L) x 1,300mm (W) x 440mm (H)

• Supplied with 25m x 3 x 1.5mm2 wires cable & plugs • Automatic spring rewind mechanism

• Thermal overload protection kicks in at 56ºC ± 5ºC

• The safest way to store electric cable

BRP5216D

Alemlube

• Supplied complete with 16m x 52mm of durable red/white band with eyelet

• Automatic spring rewind mechanism

• Swivelling steel wall bracket

• Provides a temporary barrier to clearly identify dangerous areas

BRP5216C

Alemlube

ECRP24025 Alemlube EL Series 2 Drum Spill Container

Caution Safety Barrier Reel

• Supplied complete with 16m x 52mm of durable yellow/black band with eyelet

• Automatic spring rewind mechanism

• Swivelling steel wall bracket

• $600.00 $405.00 $405.00 $111.60 $84.40 $102.50 $1,147.00 $875.00 $687.00

• SC60010N • Designed for static spill containment for up to 2 x 205L drums • 400L capacity • Removable platform for ease of cleaning • Dimensions of 1,320mm (L) x 670mm (W) x 450mm (H)

OIL STORAGE, TRANSFER, METERING

363114

Samoa Oil Control Valve

• Flow rates of up to 40L/min

• Maximum working pressure of 1,450psi (100bar)

• 1/2” BSP(f) inlet port & swivel

• Ergonomic grip & trigger

• Manual open/close nozzle operation minimises annoying oil drips & leaks

O30080

Alemlube EL Series

Digital Oil Meter

• Delivers up to 35L/min

• Pressure range of 70-725psi (5-50bar)

• 5 digit liquid crystal display

• 1/2” BSP(f) inlet connection

• Suitable for the transfer of engine, gear, hydraulic oils up to SAE130 and ATF

365534

Samoa Electronic Oil Meter

• Maximum flow rate of 30L/min

• Fluid inlet is a 1/2" BSP(f) swivel

• Electronically meters & totalises the amount of lubricant dispensed

• Maximum operating pressure of 1,450psi (100bar)

• Accurate to ± 0.5%

656110N

Alemlube 1,000L Self Bunded Oil Storage & Dispensing Kit

• Includes a 3:1 ratio pump, 3m of R1 delivery hose & an electronic oil meter

• Flow rates of up to 12L/min

• Tank dimensions of 1,280mm (L) x 770mm (W) x 1,420mm (H)

656111N as above but with on/off gun

75460

Alemlube 400L Self Bunded Tank

• Suitable for the storage of fresh oil, waste oil and diesel fuel

• 2" BSP(f) inlet ports

• Air breather available as an accessory

• Dimensions of 730mm (L) x 700mm (W) x 1,170 (H)

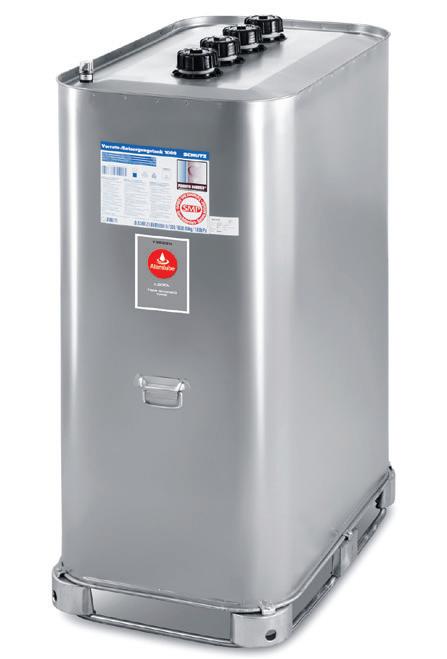

75490

Alemlube

1500L Twin Skinned Tank

• Internal HDPE tank surrounded by an integrated galvanised sheet steel bund

• Suitable for the storage of fresh oil, waste oil & diesel fuel

• Dimensions of 1,630mm (L) x 770mm (W) x 1,950mm (H)

AA402-240V

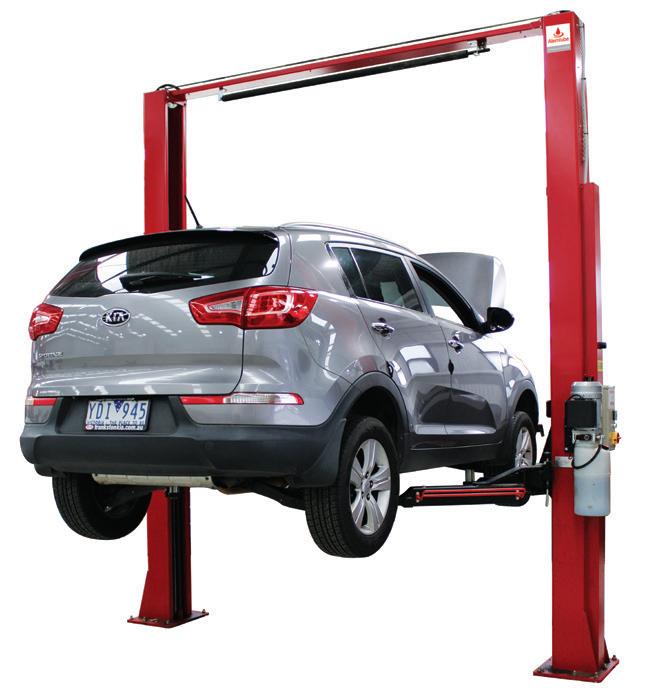

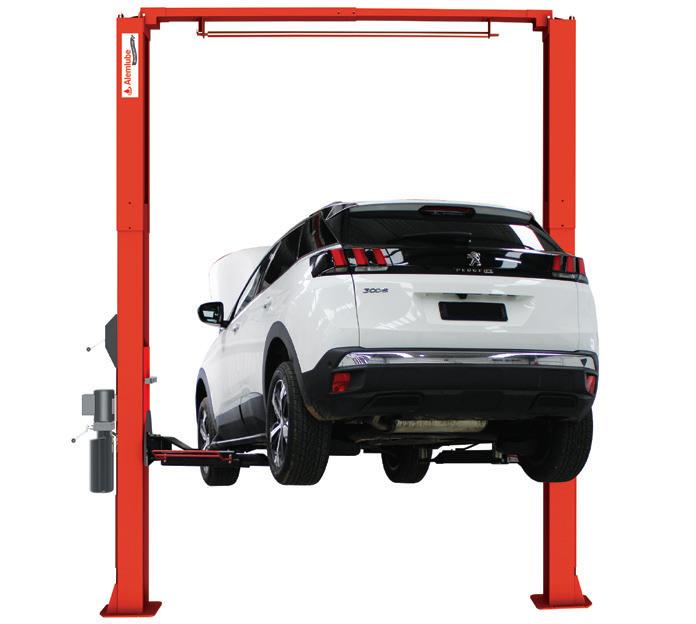

Alemlube Automotive 4.0t Electro-Hydraulic 2-Post Clear Floor Hoist

• 240V single phase operation

• Lifting capacity of 4,000kg

• Maximum lifting height of 2,000mm

• Minimum lowered height of 110mm

• 100mm 4WD spacers included

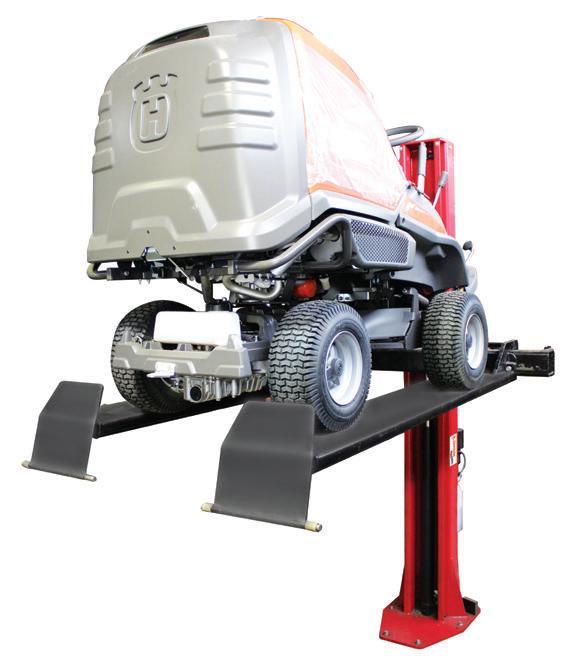

Alemlube Automotive 1.0t Single Post Vehicle Hoist

• 240V single phase power supply

• Hydraulic cylinder lifting mechanism

• Maximum lift height of 1,750mm

• Each platform measures 350mm wide

• Platform length of 1,850mm with ramps 2,010mm

RAV825.10

Ravaglioli 25.0t Commercial Vehicle Knuckle Lift

• Long platform length of 10m

• No cross rails or torsion bars between lifting platforms

• Ribbed anti-slip steel plate surface

• Electronic platform synchronisation, independent of load distribution

METERING & CAPITAL WORKSHOP

365654

Samoa High Flow Metered Oil Control Valve

• Flow rates of up to 70L/min

• Maximum working pressure of 1,450psi (100bar)

• 3/4" BSP inlet/outlet

• Dispenses & meters synthetic & mineral oils

73920N

Alemlube

1,000L Twin Skinned Tank

• Suitable for the storage of fresh oil, waste oil and diesel fuel

• Low centre of gravity for stability & ease of handling

• Dimensions of 1,280 (L) x 770mm (W) x 1,420mm (H)

363054

Samoa High Volume Oil Control Valve

• Flow rates of up to 70L/min

• Maximum working pressure of 1,450psi (100bar)

• 3/4" BSP(f) inlet port & swivel

• Suitable for use in the transport, mining, construction & manufacturing sectors

186300

Samoa Oil Control Valve

• Maximum flow rate: 15L/min

• Maximum working pressure: 580psi (40bar)

• Inlet: 1/2" BSP(f)

• Complete with swivel, flex extension & non drip nozzle

• Suitable for oil, glycol, water & water based fluids

Alemlube

700L Self Bunded Tank

• Integrated pallet for driving under with a forklift or hand forklift from any of the four sides

• 2" BSP(f) inlet ports

545113

Alemlube 400L Self Bunded Oil Storage & Dispensing Kit

• Complete with 353120 3:1 Ratio Oil Transfer Drum Pump with downtube 365534 Electronic Oil Meter

• Dimensions of 700mm (W) x 730mm (D) x 1,170mm (H)

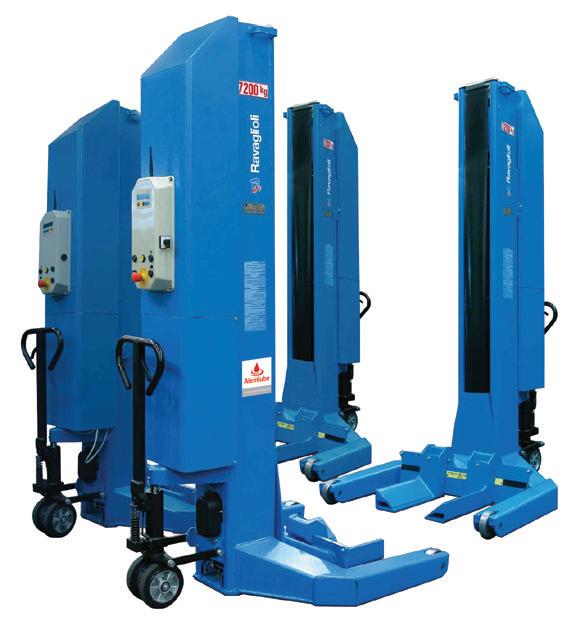

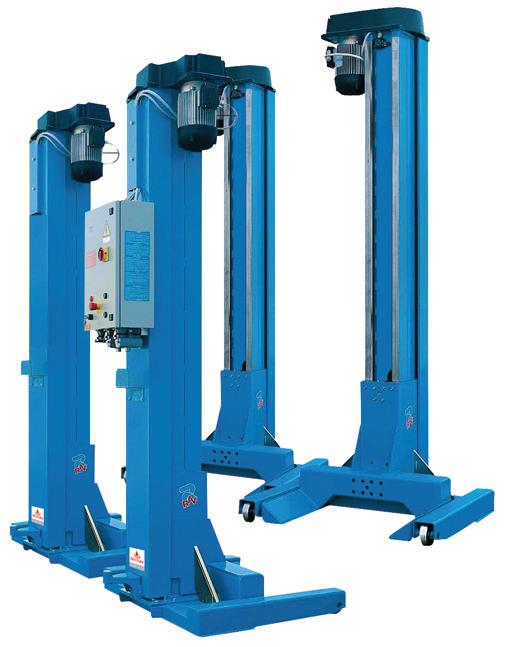

RAV307H.4WS-AF • 7,500 kg each column lifting capacity Ravaglioli Commercial Vehicle Tyre Changer

• Sets of 4, 6 and 8 columns can be configured • Handles tyre diameters from 900mm to 1,200mm GRS926 • Truck Tyre Changer for both roadside & workshop service, suitable for closed vans and/or small workshops. • Controls on console • Handles rim size from 11" to 27" • Also suitable for agricultural tyres

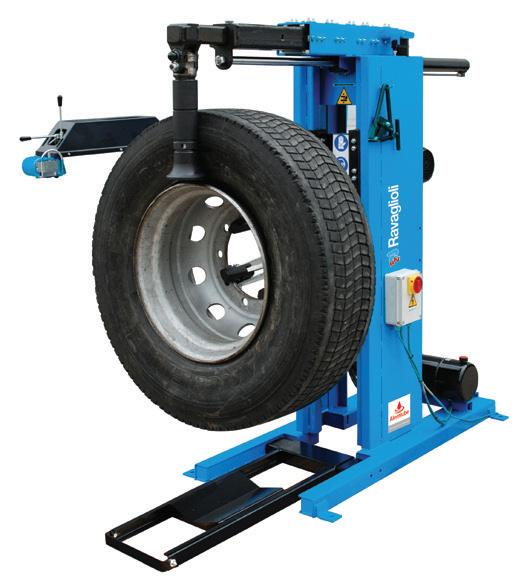

EQUIPMENT Alemlube Automotive ElectroHydraulic Truck Tyre Changer AA290-240V • Automatic electro-hydraulic operation • Simultaneous movement of lifting arm & tool carrier • Handles rim sizes from 14" to 26" • Maximum tyre diameter of 1,200mm • Maximum tyre width of 700mm MONTH $1,182.00 $467.00 $374.00 $3,619.00 $3,152.00 $5,949.00 $82,200.00 $16,850.00 $10,165.00

OIL STORAGE, TRANSFER & METERING

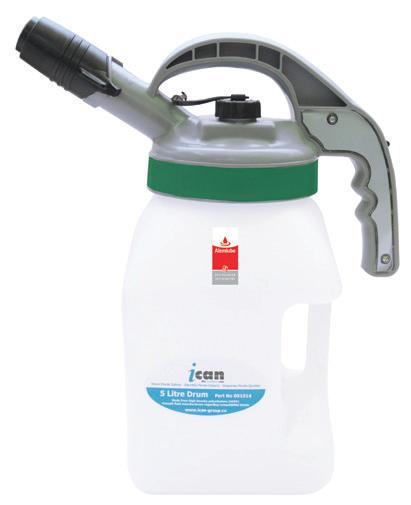

001014-ST

iCan

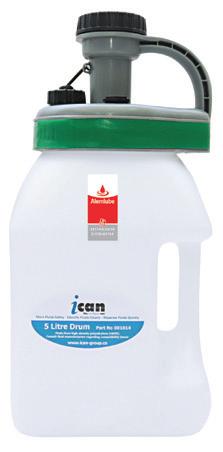

5L Oil Container Storage Lid Kit

• Suitable for use with a variety of lubricants, fluids and coolants

• Colour code labelling system for easy lubricant identification

• Quick fill port for safe contaminant free refills

001021-PU

iCan 10L Oil Container Pump Kit

• Sturdy hand pump for fast dispensing

• Manufactured in high density HDPE

• Prevents cross contamination

• Suitable for use with a variety of lubricants, fluids and coolants

• iPouch holds and stores important documents on container

7701A

Alemlube

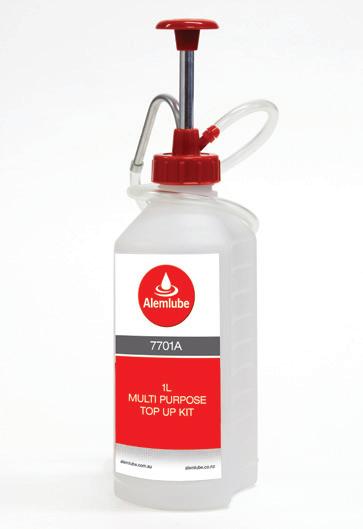

1L Multi nPurpose Top Up Kit

• Ideal for topping up difficult to access oiling points in the workshop & at home

• Suitable for all oils, automatic transmission fluids, brake fluids & some hand cleaners

80100

Alemlube 205L Drum Dolly

• Includes 4 x 75mm heavy duty casters

• Provides a convenient and easy means of moving 205L drums

• Industrial quality steel construction

• Can convert an empty drum into a mobile container

• Workplace Health & Safety friendly

21040

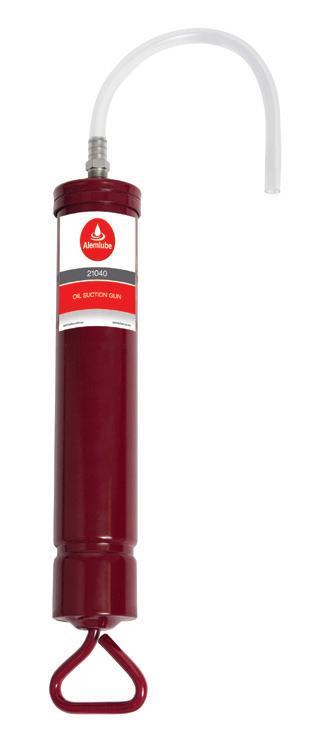

Alemlube 530mL Capacity Oil Suction Gun

• 530mL capacity

• Ideal for the draining & filling of diffs, gear boxes and engine blocks

• A double ’V’ packing ensures that oil does not leak through the rear of the gun

Oil Suction Gun 775mL Capacity

• 775mL capacity

• Ideal for the draining & filling of diffs, gear boxes and engine blocks

• A double ‘V’ packing ensures that oil does not leak through the rear of the gun

29304C-504

Alemlube Hose Reel Gantry & Storage Cabinet

• Conveniently storesl workshop equipment

• Complete with 3 x 10m x 12mm ID hose reels

• Dimensions: 2,500mm (H) x 1,290mm (W) x 600mm (D)

29306C-504 as above but 6-reel gantry cabinet with 6 x 15m x 12mm ID hose reels

39203C-506

Alemlube Hose Reel Gantry

• Comes complete with 3 x 10m x 12mm ID hose reels

• Ideal to install close to servicing bays

• Manufactured with high quality materials

• Durable powdercoat paint finish

• Gantry dimensions: 2,408mm (H) x 650mm (W) x 262mm (D)

39201C-506

Alemlube Hose Reel Gantry

• Comes complete with 1 x 10m x 12mm ID hose reel

• Convenient and cost effective

• Manufactured with high quality materials

• Durable powdercoat paint finish

• Gantry dimensions: 2,408mm (H) x 400mm (W) x 102mm (D)

METERING

5000MFN

Alemlube

5L Multi Purpose Oil Measure

• Flexible delivery spout makes the topping up of engines, gear boxes, diffs, transmissions & crank cases a quick and easy proposition

2000MFN as above but 2L

309060

Piusi

12V Portable Oil Transfer Kit

• Supplied inclusive of a 2m battery connection cable with clips, 4m x 3/4" diameter oil delivery hose, on/off control valve & intake hose filter

• Ideal for applications in construction, agriculture, boating & remote areas 310070 as above but 24V

O30070

Alemlube EL Series

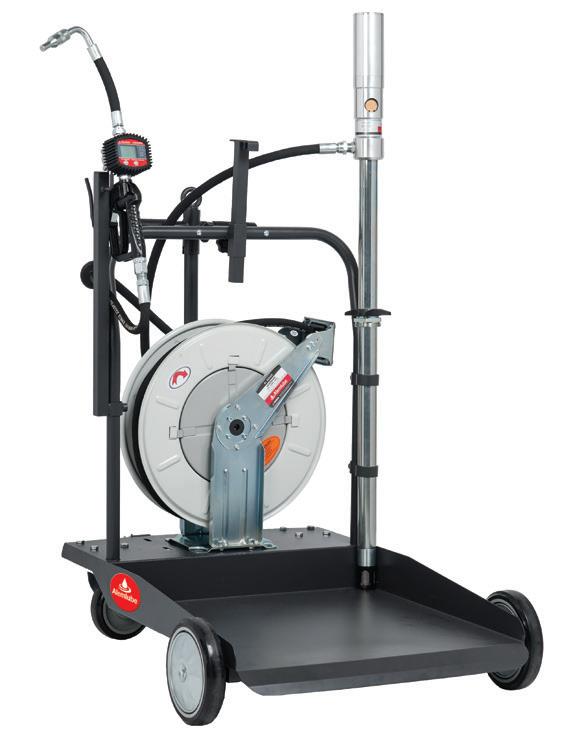

Mobile 205L Oil Transfer Kit

• Transfer kit flow rates of up to 8L/min

• Kit complete with 3:1 ratio oil pump, oil hose reel with 15m x 1/2" ID hydraulic hose, electronic oil meter, 2" bung adaptor to suit 205L drum & robust trolley

O30060 as above but without hose reel

10028

Alemlube Heavy Duty 20L Gear Oil Drum Pump

• Heavy duty fully serviceable drum pump delivers 170mL on the downstroke

• Bung adaptor + two extra adaptors suit local & international 20L drums

• Ideal for use with engine, hydraulic, gear, diff & synthetic oils

8828N2

Alemlube 20L Gear Oil Drum Pump

• Capable of delivering up to 110mL per stroke

• Suitable for use with a variety of 20L drums

• Ideal pump for the transfer of engine, gear, diff & hydraulic oils

80082

Alemlube 20L/20kg Drum Dolly

• Includes 4 heavy duty casters

• Provides a convenient and easy means of moving 20L drums around a workshop

• Workplace Health & Safety friendly

• Also suitable for 20kg drums

O30020

Alemlube EL Series

Waste Oil Drip Tray

• Controls and collects oil drips

• Suitable for all brands of hose reels/ control valves

• Dimensions: 704mm (H) x 214mm (W) x 81.5mm (D) 165mm (D) inclusive of drip tray

Samoa IBC Oil Storage & Transfer Kit – Side Mount

• 3:1 ratio pump facilitates flow rates of up to 18L/min

• Includes a 3:1 ratio pump, hose reel inclusive of 10m of hose, a side mounting bracket & an electronic oil meter 454697C as above but c/w 1,000L IBC

454695C

Samoa IBC Oil Storage & Transfer Kit

• Includes 1,000L IBC container, 3:1 ratio pump, dual pedestal hose reel with 10m of hose, a top mounting bracket & electronic oil meter

• Flow rates of up to 18L/min

as above but without IBC

WORKSHOP MUST HAVES

AAHA90

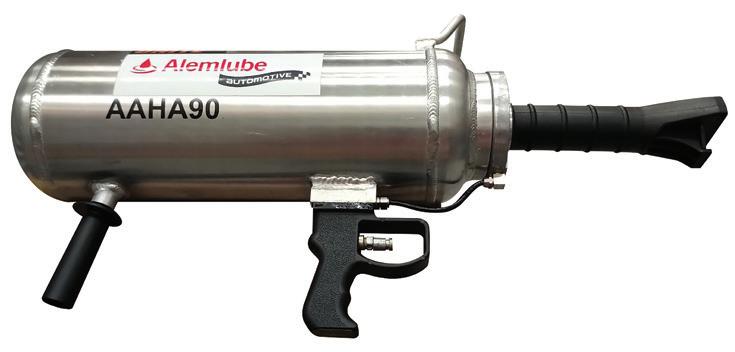

Alemlube 9L Bead Breaker

• Air volume of 9L

• Maximum air pressure of up to 145 psi (10 bar)

• Normal air pressure of up to 116 psi (8 bar)

• Push button trigger allows technician to keep both hands on the tank for more control

41006N

Alemlube

Manual Waste Oil Extractor

• 6.5L capacity

• Portable, lightweight & self-contained

• Extracts waste oil from motor vehicles, motor bikes, lawn mowers, marine engines, stationary engines & all-terrain vehicles

Alemlube Commercial Vehicle Mobile Waste Oil Drainer

• Holding tank capacity of 100L

• 145mm high swiveling front rubber wheels facilitate accurate mobility

• 860mm handle length

• Dimensions: 1,200mm (L) x 645mm (W) x 200mm (D)

660ANP

Alemlube 450g Trigger Action Grease Gun & Carry Case

• Grease pressures of up to 8,500psi (586bar)

• Contaminant free protection for your 660AN grease gun & greasing accessories

• Convenient & handy storage for an extra grease cartridge

660ANP5 with Castrol cartridge

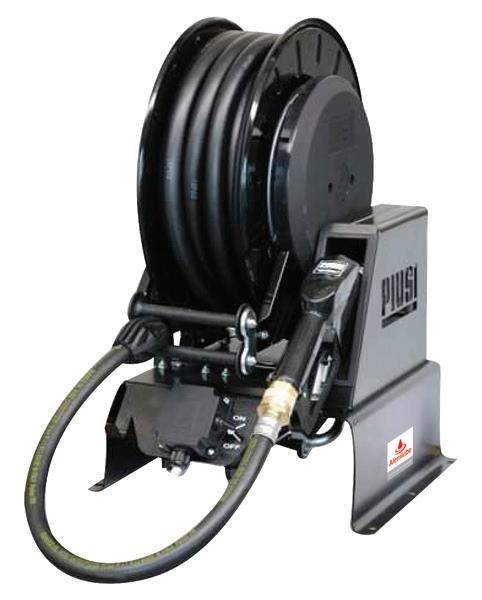

Piusi

Diesel Refuelling Tank Kit

• Includes 4m of antistatic fuel delivery hose, 2m of battery cable, a stainless steel & brass fuel filter and a manual nozzle

52040

Piusi 12V Self Priming Diesel Fuel Transfer Pump

• Flow rates of up to 50 L/min

• Maximum working pressure of 22psi (1.5 bar)

• Sturdy handle for convenient portability

• BSP inlet & outlet connections

• Power: 300 Watt: 2900 rpm

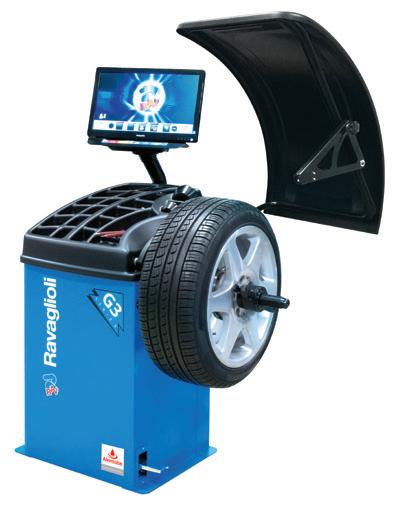

G7645IV.26-A & G3.150

Ravaglioli Automatic Tilt Back Tyre Changer & Electronic Wheel Balancer Combo

• Automatic 26” tyre changer with mount/ demount device and rotating arm (includes assist arm PLUS83)

• Colour TFT SVGA 19” monitor with 3D graphics

• Both manufactured in Italy

AA1500-3C-

OTN

Alemlube Automotive Triple Modular Bench Oil Tank with Samoa Equipment

AA1000-2C-GN

Alemlube Automotive

1,000L Double Compartment Bench Tank

• Stainless steel bench tops with 3/4", 1", 2" & 3" BSP male or female delivery ports

• Tank Dimensions: 1,800mm (W) x 750mm (D) x 1,050 (H) (including bench splash back) 2,600mm (H) Gantry height from ground to top

372400

Samoa Waste Oil Drainer

• Premium quality & European engineering

• Drain bowl capacity of 20L

• Unique specially molded tray can be used to hold bolts, filters & washers

• Waste fluids can be pressurised or pumped out of the 100L capacity holding tank

30080

Alemlube Waste Oil Drainer

• Transfers and captures waste oil from crankcases, transmissions & differentials

• Catchment bowl capacity of 20L

• Holding tank capacity of 80L

• Equipped with a pneumatic safety relief valve calibrated at 14psi (1bar)

10070

Alemlube Mobile Waste Oil Drainer / Extractor

• Collects waste oil from vehicle gear box or engine

• Air Consumption: 200L/min

• Tank Capacity: 70L

• Collect tray capacity: 16L

• Height: 1,100mm~1,680mm

52041

Piusi 24V Self Priming Diesel Fuel Transfer Pump

• Flow rates of up to 50 L/min

• Maximum working pressure of 22psi (1.5 bar)

• Sturdy handle for convenient portability

• BSP inlet & outlet connections

• Power: 300 Watt: 2900 rpm

501A

Alemlube

• Delivery rates of up to 18L/min or 0. 26L per rotation

• Suitable for the transfer of diesel, petrols, kerosene, lube oil & machine oil

• 2" BSP bung adaptor

• 2.2m antistatic fuel hose

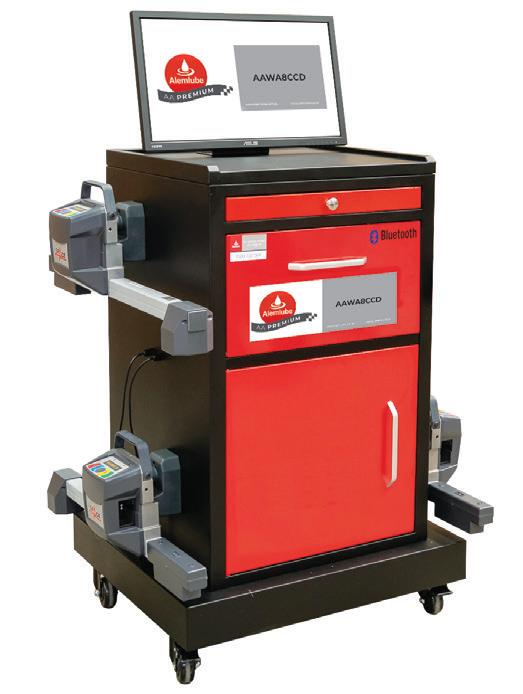

AAPWA8CCD

Alemlube Automotive Premium

8CCD Wheel Aligner

• Large 24" LCD display

• Bluetooth transmission between measuring heads and control unit

• Spoiler program for sports suspension

• Databank with over 90,000 vehicle data sheets

AA1500-3C-GN

Alemlube Automotive

1,500L Triple Compartment Bench Tank with Gantry

• Stainless steel bench tops with 3/4", 1", 2" & 3" BSP male or female delivery ports

• Tank Dimensions: 2,700mm (W) x 750mm (D) x 1,050 (H) (including bench splash back) 2,600mm (H) Gantry height from ground to top

Alemlube Automotive 1,000L Double Compartment Bench Tank with Oil Taps

• Stainless steel bench tops with 3/4", 1", 2" & 3" BSP male or female delivery ports

• Tank Dimensions: 1,800mm (W) x 750mm (D) x 1,050 (H) (including bench splash back) 2,600mm (H) Gantry height from ground to top

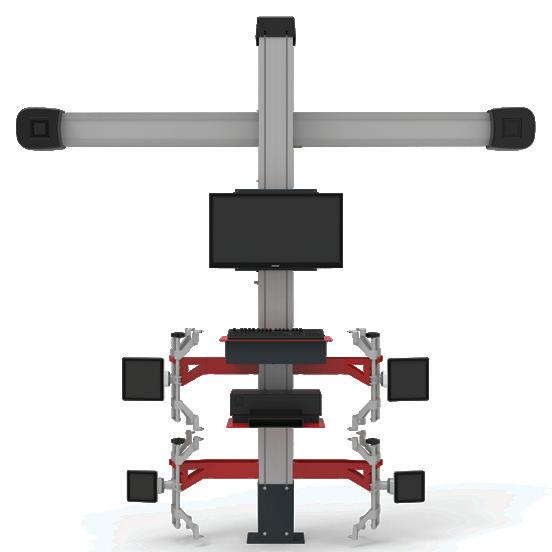

AAPWA3D

Alemlube Automotive

3D Wheel Aligner

• Compact targets with no electronics & batteries

• 4-point clamps 12" - 24" with universal grips & targets

• Large 27" LCD display

• High definition cameras

AA1000-2C-OTN

Rotary Action Drum Pump

HOSE STORAGE & RETRIEVAL

SA400N

Alemlube S Series Air Hose Reel

• 15m x 12mm ID hybrid polymer hose

• Working pressure of 300psi (20bar)

• 1/2" BSP(f) inlet & outlet

• Can be wall, ceiling or floor mounted

SA300N as above but 18m x 10mm ID hybrid polymer hose & 0.9m lead in hose

HR40040

• Supplied complete with 15m x 12mm ID PVC hose & 0.9m lead in hose

• 1/2" BSP inlet/outlet

• Can be wall, ceiling or floor mounted

HR40030 as above but 20m x 10mm ID PVC hose & 0.9m lead in hose

SOP620

Alemlube S Series

Oxy-Propane Hose Reel

• 15m x 6mm ID hoses & 0.9m twin rubber lead in hoses

• 5/8" UNF inlet/outlet

• Can be mounted on the wall or ceiling

8080-G

505224N

505232

Alemite

Duty Spring Rewind Hose Reels

• 15m x 1" ID hose

• Sealed and plated bearings

• Suitable for the transfer of air, water, oil & fuel

8080-F as above but 25m x 3/4" ID hose

HR90096

Alemlube

Rewind Grease Hose Reel

• Includes 20m x 10mm ID S.A.E.100R2AT hose & hose stop

• Working pressure of 4,780psi (330bar)

• Reinforced steel mounting frame

• Can be mounted on the floor, wall or ceiling

Samoa

Rewind Fuel, Oil, Air & Water Hose Reel

• Hose capacity: 15m x 19mm ID

• Hose pressure rating 1,500psi (103bar)

• 3/4" BSP(f) inlet/outlet

• Seven position outlet arm

• Full port nickel protected steel shaft

• Manufactured using 4mm gauge steel

Samoa Spring Rewind Hose Reel - 20m x 12mm ID

• True 3/4" fluid section maximises product delivery

• Dual ball bearing spool support results in very low rotary friction

• Unique non ratch out design enables total mounting flexibility (7 different positions)

HR90005

Alemlube EL Series Air, Water & Fuel Hose Reel

• Working pressure of up to 300psi (20bar)

• Includes 30m x 25mm ID rubber hose & hose stop

• Can be mounted on the floor, wall or ceiling

• Durable long lasting powder coated finish

HR90085

Alemlube EL Series Spring

Rewind Air & Water Hose Reel

• Working pressure of 290psi (20bar)

• Includes 20m x 12mm ID Hybrid Polymer hose & hose stop

• Black non corrosive plastic cover

• Can be mounted on the floor, wall or ceiling

Alemlube EL Series Air Hose Reel

Heavy

3/4" Spring

EL Series Spring

Alemlube

Oxy-Propane Hose Reel

• 5/8" BSP inlet/outlet

• Maximum working pressure of 300psi (21bar)

• 15m x 6mm ID hose & 0.9m lead in hoses

• Detachable steel mounting bracket enables 180° hose reel rotation

HR30070

Hot Water Hose Reel

• Supplied complete with 20m x 10mm ID hybrid polymer hose & 1.9m lead in hose

• 3/8" BSP inlet/outlet

• 1/2" BSP(m) outlet

• Temperature range from -40°C to +80°C

HR30080

Alemlube

Hot Water Hose Reel

• Supplied complete with 15m x 12mm ID hybrid polymer hose & 1.2m lead in hose

• 3/4" BSP(f) inlet & 1/2" BSP(m) outlet

• Maximum working pressure of 300psi (20bar)

HR30070C as above but with nozzle

HR30080C as above but with nozzle

504250

Samoa Twin Pedestal Oil Hose Reel

• Maximum working pressure of 2,300psi (160bar)

• 1/2" BSP(m) inlet/outlet

• Supplied complete with 15m x 1/2" ID R1 hose and 0.8m inlet hose

• Full 1/2" ID port, shaft & swivel

508225

Samoa

1” x 15m High Volume Hose Reel

• Supplied with 15m x 1" BSP(f) ID hose

• 1,250psi (86bar) hose pressure rating

• 1” port nickel coated steel shaft and swivel

• Zinc plated steel hose guide rollers

• Suitable for use with fuel, oil, air, water & waste oil

1175-6-100

Coxreels Large Capacity

Hand Rewind Air, Water or Fuel Bare Hose Reel

• Working pressures of up to 3,000psi (207bar)

• 1" NPT(f) inlet/outlet

• Can store & retrieve up to 30m x 25mm ID hose (Hose not included)

HR90080C $438.00 $460.00

Alemlube EL Series 3/4” Fuel Hose Reel with Auto Shut Off Nozzle

• Working pressure of 145psi (10bar)

• Includes 10m x 19mm ID NBR rubber hose, hose stop & auto shut-off nozzle

Alemlube EL Series 3/4" Fuel Hose Reel

• Working pressure of 145psi (10bar)

• Includes 10m x 19mm ID NBR rubber hose & hose stop

• Black non corrosive plastic cover

• Can be mounted on the floor, wall or ceiling

1185-1124

Coxreels Hand Rewind Bare Hose Reel

• Working pressures of up to 3,000psi (207bar)

• 1" NPT(f) inlet/outlet

• All metal construction

• Can store and retrieve up 15m x 19mm ID hose (Hose not included)

Alemlube EL Series

EL Series

S Series

WORKSHOP & REFUELLING

• Includes a 3:1 ratio oil pump, 1/2" hydraulic hose, electronic oil meter & adjustable 2" bung adaptor

• Flow rates of up to 10L/min

• Maximum operating pressure of 450psi (30bar)

• 3:1 ratio pump, 3m x 1/2" ID hydraulic hose & on/off control value

• Transfer rates of up to 15L/min

• Suits 60L & 205L drums

• Suitable for engine, gear, diff & hydraulic oils

454110N

Samoa Oil Transfer Kit with Meter

• 3:1 ratio pump, 3m x 1/2" ID hydraulic hose & electronic resettable meter

• Flow rates of up to 12L/min

• Air pressure range from 20psi to 140psi

• Air inlet: 1/4" BSP(f)

• Fluid outlet: 1/2" BSP(f)

Samoa Electronic Grease Metering Control Valve

• Maximum operating pressure of 7,150psi (500bar)

• Battery life of up to 10,000 hours

• Can be used with pneumatic, electric or hydraulically powered greasing equipment 411100 as above but meter only

Samoa 180kg Grease Kit

• 55:1 ratio grease pump develops up to 7,950psi (548bar)

• Lightweight ergonomic, cast alloy, grease control valve & integral pump filter included

• Grease control valve has single shot or continuous flow option

• 180kg drum not included

531010

• 10:1 ratio Double acting grease pump

• Maximum free flow of 34kg/min

• Develops grease pressures of up to 1,000psi (70bar)

• 1/2" BSP(f) air inlet, 1" BSP(f) grease outlet

• High volume intermediate pressure pump grease transfer

Samoa 180kg Grease Pump

MAINTENANCE & FLUID MANAGEMENT

Lockable Diesel Refuelling Storage and Dispensing Kits

• Delivery rates of up to 50L/min

• Recesses for tie down straps on the tank aid handling

• Suitable for storing & dispensing diesel fuel only

• Dispensing kit consists of a 12V pump, antistatic fuel delivery hose, 2 metre battery cables and auto nozzle

630A

20V Lithium-ion Cordless Grease Gun

• Adjustable delivery rates of 100g/min or 160g/min

• Maximum working pressure of up to 10,000psi/700bar limited to 7,250psi for operator safety

• Able to dispense up to 21 cartridges before battery recharge is required (free flow)

• Backlit display provides real time battery level, grease level & grease dispensed feedback and information

• Blocked lube point and loss of prime alarms confirmed when the backlit display turns red

• Battery recharge time of 70 minutes

• Rubber supports enable free standing ground functionality

• Optional 4.0Ah battery capable of dispensing up to 35 cartridges also available (free flow)

430A as above but 400g cartridge & up to 24 cartridges per battery charge

$663.00 $754. 00

52007

1" Manual Diesel Fuel Nozzle

• 1" BSP(f) swivel included

• Capable of flow rates up to 150L/min

• Suitable for gravity feed applications & applications including pressures of up to 140psi (10bar)

52155 as above but for ULP

51037

1" Automatic Shut-Off Diesel Nozzle

• Delivery rates of up to 60L/min

• Suitable for applications involving an electric diesel transfer pump only

• Stainless steel outlet spout with Viton cased oil seal

• Maximum working pressure of 26psi (2bar)

611200

1" Diesel Fuel & ULP Filter

• Capable of delivering flow rates of up to 100L/min

• Maximum pressure 50psi (3.5bar)

• Removes water & particles

• Filtration down to 5 micron

• For use with pumps up to 100L/min

52004A

High Volume Diesel Fuel Drum Pump

• Delivery rates of up to 68L/min

• 12V motor, 16amp voltage

• Self priming vane pump with sintered steel rotor and acetyl resin vanes

• Pump by pas incorporated into the pump body

• 1" BSP(f) inlet/outlet

340140

12V/24V Diesel Fuel Transfer Pump

• 12V & 24V operation

• Flow rates of up to 70/35 L/min

• Maximum Amps of 25/16

• Duty cycle of 30 minutes

• 1" BSP(f) inlet & outlet

• Maximum head of 2m up and 6m across

• Supplied inclusive of an on/off switch & pump head filter

F20020N

Alemlube EL Series

12V Diesel Refuelling Tank Kit

• Flow rates of up to 38L/min

• Self priming rotary vane pump

• Suction capacity of up to 2m

• Duty cycle of 30 minutes on, 30 minutes off

• Equipped with a 12V DC motor and supplied with suction & delivery hoses, battery cable with clamps, inlet filter & a manual plastic nozzle

BRP5216

Alemlube

Caution Safety Barrier Reel

• Provides a temporary barrier to clearly identify dangerous areas

• Supplied complete with 16m x 52mm of durable red/white band with eyelet

• Automatic spring rewind mechanism

• Swivelling steel wall bracket

• Compact design suitable to mount in most workplace environments

BR50010C

Alemlube EL Series

Caution Safety Barrier Reel

• Designed for isolating dangerous areas in industry & construction, traffic accidents & emergency situations

• Supplied complete with 16m 48mm durable red/white band, magnet, eye hook & masonry wall plug

• Also ideal for use in workshops, loading docks, carparks and warehouses

50070

240V Diesel Fuel Bowser

• Flow rates of up to 70L/min

• Facilitates quick, secure and safe fuel transfer for non-commercial users

• 30 mins duty cycle, IP 45 protection grade

• Complete with self priming vane pump, meter, intake filter, 4m of antistatic delivery hose, automatic shut off nozzle, support bracket & built in nozzle holster

FA2 Fuel Tank Filter

• Fuel filter suitable for use with gravity feed fuel tanks & hand, air or electric pumps

• Features a 10 micron fuel filter element, a drain cock & a replaceable clear plastic bowl

• 1" BSP(f) inlet/outlet

51039

1" Automatic Diesel Nozzle

• Can operate with flow rates of up to 120L/min

• 1" BSP(f) swivel included

• Suitable for applications involving an electric diesel transfer pump

F20025

Alemlube EL Series Automatic Shut-Off Diesel Nozzle

• Delivery rates of up to 70L/min

• 3/4" BSP(f) swivel included

• Suitable for applications involving an electric diesel transfer pump only

52000

12V Diesel Refuelling Tank Kit

• Capable of flow rates of up to 50L/min

• Includes 4m of antistatic fuel delivery hose, 2m of battery cable, a stainless steel & brass fuel filter and a manual nozzle

• Maximum head capacity of 15m

• Self priming vane pump includes a built-in bypass 52001 as above but 24V

52040

Self Priming Diesel Fuel Transfer Pump

• Flow rates of up to 50L/min

• Sturdy handle for convenient portability

• Maximum working pressure of 22psi (1.5 bar)

• BSP inlet & outlet connections 52041 24V 20amps 32L/min

M150SA 12V GPI Heavy Duty Diesel Pump

• Flow rates of up to 49L/min

• Duty cycle of 30 minutes on, 30 minutes off

• Suitable for 205L drums or bulk tanks up to 1,000mm deep

• Fuse prevents overheating & motor burn out

• Suitable for diesel fuel transfer only

• Supplied complete with automatic nozzle

50090

240V High Flow

Diesel Fuel Dispenser

• Facilitates quick, secure and safe fuel transfer for non-commercial users

• Flow rates of up to 90L/min

• 30 mins duty cycle, IP 45 protection grade

• Complete with self priming vane pump, 4-digit mechanical meter, 4m of antistatic delivery hose, and an automatic shut off nozzle with swivel connection

BARRIER REELS

BR50020D

Alemlube EL Series

Danger Safety Barrier Reel

• Designed for isolating dangerous areas in industry & construction, traffic accidents & emergency situations

• Automatic slow retraction mechanism enhances user & workplace safety

• Supplied complete with 16m 48mm durable yellow/black band, magnet, eye hook & masonry wall plug

• Also ideal for use in workshops, loading docks, carparks and warehouses

BRP5216-YAB

Alemlube

Danger Safety Barrier Reel

• Provides a temporary barrier to clearly identify dangerous areas

• Supplied complete with 16m x 52mm of durable yellow/black band with eyelet

• Automatic spring rewind mechanism

• Swivelling steel wall bracket

• Compact design suitable to mount in most workplace environments

504150

Samoa 1/2" Dual Pedestal Air and Water Hose Reel

• Maximum working pressure of 290psi (20bar)

• 1/2" BSP(m) inlet/outlet

• Supplied complete with 15m x 1/2" ID hose & 0.8m inlet hose

• Full 1/2" ID port, shaft and swivel

• Narrow footprint measuring 168mm wide

HR90085

Alemlube EL Series 1/2" Air & Water Hose Reel

• Maximum working pressure of 290psi (20bar)

• 1/2" BSP(m) inlet/outlet

• Supplied complete with 20m x 1/2" ID hybrid polymer hose

• Brake mechanism slows down & controls hose retraction speed

HR90095

Alemlube EL Series 1/4" Grease Hose Reel

• Maximum working pressure of 5,800psi (400bar)

• 1/4" BSP(m) inlet/outlet

• Supplied complete with 20m x 1/4" ID SAE R2 hose

• Brake mechanism slows down & controls hose retraction speed

HR90080

Alemlube EL Series 3/4" Fuel Hose Reel

• Maximum working pressure of 145psi (10bar)

• 3/4" BSP(m) inlet/outlet

• Supplied complete with 10m x 3/4" ID

NBR hose

• 50% less rewind speed

• Reinforced steel mounting frame provides maximum strength & stability

505224N Samoa 3/4" Spring Rewind

Fuel, Oil, Air & Water Hose Reel

• Heavy duty full metal construction

• Hose capacity: 15m x 19mm ID

• Hose pressure rating 1,500psi (103bar)

• 3/4" BSP(f) inlet/outlet

• Dual ball bearing spool supports results in very low friction

• Optimised power spring ensures smooth & comfortable operation

HR90010

Alemlube EL Series 1" Air & Water

Spring Rewind Hose Reel

• Working pressure of up to 300psi (20bar)

• Includes 15m x 25mm ID rubber hose & hose stop

• 1.5mm thick robust drum with stiffening ribs & flange edges

• Reliable spring life of 20,000 cycles

• Reinforced steel frame

HR40030

Alemlube EL Series Air Hose Reel

• Supplied complete with 20m x 10mm ID PVC hose & 0.9m lead in hose

• Increase safety by reducing rewind speed by up to 80%

• High quality impact and UV resistant polypropylene covers

• 3/8" BSP(f) inlet/outlet

• Maximum working pressure of 300psi (20bar)

SA300N

Alemlube S Series Air Hose Reel

• 18m x 10mm ID hybrid polymer hose & 0.9m lead in hose

• Can be mounted on the wall, floor or ceiling

• 3/8" BSP(f) inlet/outlet

• High flow swivel and fluid path

• Detachable steel mounting bracket enables 180º hose reel rotation

• Dimensions: of: 490mm (L) x 448mm (H) x 228mm (W)

SG800

Alemlube S Series Grease Hose Reel

• Supplied with 10m x 6mm ID hose & lead in hose

• Automatic and positive latching mechanism

• Working pressure of up to 5,000psi (345bar)

• 1/4" BSP(f) inlet & outlet

• Impact resistant UV stabilised covers for maximum durability

• High flow swivel and fluid path

• Can be wall, ceiling or floor mounted

HR90096

Alemlube EL Series 3/8" Grease Hose Reel

• Maximum working pressure of 4,785psi (330bar)

• 3/8" BSP(m) inlet/outlet

• Supplied complete with 20m x 3/8" ID SAE R2 hose

• New innovative latching solution enables the hose to be stopped in multiple positions as required

HR90090

Alemlube EL Series 1/2" Oil Hose Reel

• Maximum working pressure of 2,300psi (160bar)

• 1/2" BSP(m) inlet/outlet

• Supplied complete with 20m x 1/2" ID SAE R1 hose

• New innovative latching solution enables the hose to be stopped in multiple positions as required

504250 Samoa

1/2" Twin Pedestal Oil Hose Reel

• Maximum working pressure of 2,300psi (160bar)

• 1/2" BSP(m) inlet/outlet

• Supplied complete with 15m x 1/2"” ID

R1 hose & 0.8m inlet hose

• Full 1/2" ID port, shaft and swivel

• Heavy duty double pedestal construction

HR90005

Alemlube EL Series 1" Air, Water & Fuel Hose Reel

• Reinforced steel frame provides maximum strength & stability

• Working pressure of up to 300psi (20bar)

• 30m x 25mm ID rubber hose & hose stop

• 1.5mm thick robust drum with stiffening ribs & flange edges

8080-G

Alemite 1" Large Capacity Hose Reel

• Suitable for use with air, water, oil & fuel

• Sealed and plated bearings

• 1,000psi (60bar) hose pressure rating

• Supplied complete with 15m x 25mm ID hose

8080-F also available with 25m x 19mm capacity reel

HR90080C

Alemlube EL Series 3/4" Fuel Hose

Reel with Auto Shut Off Nozzle

• Maximum working pressure of 145psi (10bar)

• 3/4" BSP(m) inlet/outlet

• Supplied complete with 10m x 3/4" ID NBR hose and auto shut off nozzle

• Reinforced steel mounting frame provides maximum strength & stability

SOI700

S Series Oil Hose Reel

• 1/2" BSP(f) inlet/outlet

• Supplied with 10m x 12mm ID hose & lead in hose

• Impact resistant UV stabilised covers for maximum durability

• Automatic and positive latching mechanism

• Working pressure of up to 2,000psi (138bar)

HR40040

Alemlube EL Series Air Hose Reel

• Supplied with 15m x 12mm ID PVC hose & 0.9m lead in hose

• 1/2" BSP inlet/outlet

• Maximum working pressure of 300psi (20bar)

• High quality impact and UV resistant polypropylene covers

• Speed control rewind system makes for a safer workplace

SA400N

Alemlube S Series Air Hose Reel

• Working pressure of 300psi (20bar)

• 15m of 12mm ID hybrid polymer hose

• Automatic and positive latching mechanism

• 1/2" BSP(f) inlet & outlet

• New hybrid polymer hose is more flexible, easier to handle and longer lasting

• Adjustable spring tension

• Can be wall, ceiling or floor mounted

O30090

Alemlube EL Series 1/2" Oil Hose Reel

• Maximum working pressure of 2,320psi (160bar)

• 1/2" BSP(m) inlet/outlet

• Supplied complete with 15m x 1/2" ID R1 hose and 0.8m long inlet hose

• Full 1/2" ID port, shaft and swivel

• Heavy duty double pedestal construction

• Powder coated with a galvanised base

O30050

Alemlube EL Series Oil Transfer Kit with Meter

• Flow rates of up to 10L/min

• Includes a 3:1 ratio oil pump, 1/2" hydraulic hose, electronic oil meter & adjustable 2" bung adaptor

• Maximum operating pressure of 450psi (30bar)

O30040 also available but with on/off gun & 12L/min

O30070

Alemlube EL Series Mobile 205L Oil Transfer Kit

• Transfer kit flow rates of up to 8L/min

• High mobility kit complete with 3:1 ratio oil pump, oil hose reel with 15m x 1/2" ID hydraulic hose, electronic oil meter, 2" bung adaptor to suit 205L drum & robust heavyduty trolley

O30060 also available but without hose reel

365654

Samoa High Flow Metered Oil Control Valve

• Flow rates of up to 70L/min

• Dispenses & meters synthetic & mineral oils

• Maximum working pressure of 1,450psi (100bar)

• 3/4" BSP inlet/outlet

363054

Samoa High Volume Oil Control Valve

• Flow rates of up to 70L/min

• Maximum working pressure of 1,450psi (100bar)

• 3/4" BSP(f) inlet port & swivel

• Suitable for use in the transport, mining, construction and manufacturing sectors & in service vehicle applications

347120

Samoa 5:1 Ratio Oil Transfer Tank Pump

• Can service up to 8 reels

• Maximum free flow of up to 30L/min

• 3/4" BSP(f) fluid outlet

• 3/8" BSP(f) air inlet

348120 as above but suits 205L drums

551164

Samoa 1" Air Operated Diaphragm Pump

• Flow rates of up to 100L/min

• Polypropylene body & TPE diaphragms

• Air pressure operating range of 22 to 102psi (1.5 to 7bar)

• Delivery per stroke approximately 0.25L

• Fluid inlet & outlet connections: 1" BSP(f)

• Maximum dry suction head: 4.5m

• Maximum wet suction head: 7m

561611

240V Oil Transfer Tank Pump

• Delivery rates of up to 70L/min

• 50Hz single phase motor

• Maximum fluid viscosity 1,550 cSt

• 1" BSP(f) inlet & outlet threads

• Suitable for pumping high viscosity oil

• Cast iron body

• Pump includes an adjustable by-pass valve

334900

240V Oil Transfer Tank Pump

• Delivery rates up to 25L/min

• AC vane type pump with sintered steel rotor & resin vanes

• Suitable for the transfer of engine, gear, diff & hydraulic oils up to 500cSt

• 3/4" BSP(f) inlet/outlet

• Continuously rated with pressures up to 85psi (6bar)

304100 as above but delivery rates of 9L/min

378110N

Samoa 205L Mobile Oil Transfer Kit

• Adjustable flow rates of up to 10L/min

• Supplied with 3:1 air operated oil pump, 15m hose reel, electronic meter & heavy duty drum trolley

• 3:1 ratio oil pump suits 205L drums

• Electronic oil meter maximum pressure of 1,000psi (69bar)

454110N

Samoa Oil Transfer Kit with Meter

• Flow rates of up to 12L/min

• 3:1 ratio pump, 3m x 1/2" ID hydraulic hose & electronic resettable meter

• Air inlet: 1/4" BSP(f)

• Fluid outlet: 1/2" BSP(f)

• Oil meter accurate to ± 0.5% 454111N also available but with on/off gun

O30080

Alemlube EL Series Digital Oil Meter

• Delivers up to 35L/min

• Pressure range of 70-725psi (5-50bar)

• 5 digit liquid crystal display

• 1/2" BSP(f) inlet connection

• Suitable for the transfer of engine, gear, hydraulic oils up to SAE130 and ATF

353120

Samoa 3:1 Ratio Oil Transfer Tank Pump

• Flow rates of up to 35L/min

• Suitable for bulk tank application

• Air inlet pressures of between 40-140psi (3-10bar)

• 1/2" BSP(f) fluid outlet

• 1/4" BSB(f) air inlet

354120 as above but suits 205L drums

363114

Samoa

• Flow rates of up to 40L/min

• Maximum working pressure of 1,450psi (100bar)

• 1/2" BSP(f) inlet port & swivel

• Ergonomic grip and trigger reduces operator fatigue

• Manual open/close nozzle operation minimises annoying oil drips & leaks

365534

Samoa Electronic Oil Meter

• Maximum flow rate of 30L/min

• Electronically meters and totalises the amount of lubricant dispensed

• Fluid inlet is a 1/2" BSP(f) swivel

• Maximum operating pressure of 1,450psi (100bar)

• Manual open/close nozzle minimises annoying oil drip and leakage

303100

240V Oil Transfer Tank Pump

• Delivery rates of up to 50L/min

• Self-priming 240V electric pump with on/off switch

• Continuous AC operation

• Sintered steel rotors with resin vanes

• Maximum working pressure of 71psi (5bar)

• 1" BSP inlet & outlet flanged connections

309010

12V Oil Transfer Tank Pump

• DC self priming gear type oil transfer pump complete with integrated by-pass valve

• Flow rates of up to 10L/min

• Operating pressures up to 70psi (5bar)

• Suitable for use with lubricants up to 600 centistokes

• Noise levels less than 65 decibels

• 3/4" BSP(f) inlet/outlet 310010 as above but 24V

TRANSFER & METERING

555030

Samoa 1" Air Operated

Diaphragm Pump

• Flow rates of up to 200L/min

• Ideal for pumping oil, waste oil and diesel

• 1" BSP(f) inlet and outlet connections

• 3/8" NPSM(f) air inlet connection

• Solids in suspension maximum size of 6mm

• Maximum dry suction lift of 5m, wet suction lift of 8m

Oil Control Valve

51008

1" Mechanical Diesel Fuel Meter

• Accurate between flow rates of 20L/min & 120L/min

• Maximum working pressure of 142psi (10bar)

• 1" BSP(f) inlet/outlet ports

• Suitable for gravity feed or pump applications

• Also suitable for use with kerosene

51007

• Suitable for the metering of diesel

• Accurate between flow rates of 20L/min to 120L/min

• Mechanical gear meter accurate to ±1.0%

• Maximum working pressure of 145psi (10bar)

• Bursting pressure of 435psi (30bar)

• 1" BSP(f) inlet/outlet ports

• 4 digit partial display with 7 digit total

407010N2

Electronic Diesel Fuel Meter

• Accurate between flow rates of 7L/min & 120L/min

• Accurate to ±1.0%

• 1" BSP inlet and outlet ports

• Maximum working pressure: 290psi (20 bar)

• Bi-directional flow as required

• Flow rate analysis function

Alemlube

Dual Plane Fuel Nozzle Inlet Swivels

• Provides a full 360° spherical rotation for free movement facilitating flexibility to refuel vehicles from virtually any direction

• Dual O-ring seals provide long service life & low (-40°C) temperature performance

512020 3/4" BSP(m) x 3/4" BSP(f)

512525 1" BSP(m) x 1" BSP(f)

5005AN2

• Rowing action capable of delivery rates of 1L per stroke or up to 40L/min

• Suitable for the transfer of diesel fuel, petrol, kerosene, unleaded petrol & low viscosity oils up to SAE30

• Lockable handle eliminates the possibility of unauthorised fuel transfer

• Suitable for fuel transfer out of 205L drums or petrol and diesel bulk tanks up to 1,000mm deep

L40049GAM

Alemlube 400L Lockable Storage & Dispensing Kit

• Dispensing kit consists of a 12V pump, 4m antistatic fuel delivery hose, 2m battery cables and automatic nozzle & electronic fuel meter

• Delivery rates of up to 49L/min

• Tank baffles aid vehicle stability

AOGM-025E

1" Electronic Flow Meter

• Flow rates from 12L/min to 120L/min

• High accuracy & repeatability direct volumetric reading

• Measuring high & low viscosity liquids

• Only two moving parts

• Electronic display options

• Low pressure drops & easy maintenance

• Accuracy at ±0.5%

• Maximum viscosity of 1000CPS

AOGM-025M

1" Mechanical Flow Meter

• Flow rates from 12L/min to 120L/min

• High accuracy & repeatability direct volumetric reading

• Measuring high & low viscosity liquids

• Only two moving parts

• Mechanical display options

• Low pressure drops & easy maintenance

• Accuracy at ±0.5%

• Maximum viscosity of 1000CPS

AOGM-040E

1-1/2" Electronic Flow Meter

• Flow rates from 25L/min to 250L/min

• High accuracy & repeatability direct volumetric reading

• Measuring high & low viscosity liquids

• Only two moving parts

• Electronic display options

• Low pressure drops & easy maintenance

• Accuracy at ±0.5%

• Maximum viscosity of 1000CPS

1" Mechanical Diesel Fuel Meter

Alemlube Refuelling Drum Pump

212000 Diesel Refuelling System

• Versatile, compact & easy to install pump, reel, filter & auto shut off nozzle kit

• Integrated dual 12V pumps deliver up to 45L/min

• Hose reel supplied complete with 15m x 3/4" ID hose 213000 as above but 24V

01A12LM

1" Inline Electronic Fuel Meter

• For use with diesel only on gravity feed or electric transfer pumps

• Flow range: 10L/min to 100L/min

• 1" BSP(f) inlet/outlet

• Maximum working pressure of 300psi (21bar)

M30

GPI Mechanical Fuel Meter

• Accurate between flow rates of 19L/min & 114L/min

• Maximum working pressure of 50psi (3.4bar)

• 1" BSP inlet/outlet ports

• Suitable for use with diesel, petrol, ULP & kerosene

• Durable corrosion resistant diecast aluminium housing

• Maximum batch total of 999.9

• Maximum cumulative total of 999,999.9

L400504017AAM

Alemlube Lockable Diesel/AdBlue® Storage & 12V Dispensing Kit

• 400L diesel fuel tank capacity with flow rates of up to 40L/min with auto nozzle

• 50L AdBlue ® tank capacity with flow rates of up to 17L/min with manual nozzle

• Lockable lid for added security

• In-built breathers

• Dimensions of: 1,150mm(W) x 800mm(D) x 860mm(H)

5060AN

Heavy Duty Hi-Flo Refuelling Drum Pump

• Low torque, high volume easy to use pump delivers up to 110L/min

• Delivery rates of 1.1 litres per rotation

• Supplied complete with 2.6m of UV & fuel resistant hose, spout, in built spout holster, 3-piece downtube, heavy duty bung adaptor

Alemlube Single Plane Fuel Nozzle Inlet Swivels

• Aluminium body with brass bushings & Viton/Buna-N seals

502020 3/4" BSP(m) x 3/4" BSP(f)

502525 1" BSP(m) x 1" BSP(f)

503232 1-1/2" BSP(m) x 1-1/2" BSP(f)

AOGM-040M

1-1/2" Mechanical Flow Meter

• Flow rates from 25L/min to 250L/min

• High accuracy & repeatability direct volumetric reading

• Measuring high & low viscosity liquids

• Only two moving parts

• Mechanical display options

• Low pressure drops & easy maintenance

• Accuracy at ±0.5%

• Maximum viscosity of 1000CPS

AOGM-050E

2" Electronic Flow Meter

• Flow rates from 30L/min to 300L/min

• High accuracy & repeatability direct volumetric reading

• Measuring high & low viscosity liquids

• Only two moving parts

• Electronic display options

• Low pressure drops & easy maintenance

• Accuracy at ±0.5%

• Maximum viscosity of 1000CPS

& OVAL GEAR METERS

AOGM-050M

2" Mechanical Flow Meter

• Flow rates from 30L/min to 300L/min

• High accuracy & repeatability direct volumetric reading

• Measuring high & low viscosity liquids

• Only two moving parts

• Mechanical display options

• Low pressure drops & easy maintenance

• Accuracy at ±0.5%

• Maximum viscosity of 1000CPS

428262

Samoa 180kg Air Operated Grease Kit

• 55:1 ratio grease pump develops up to 7,950psi (548bar)

• Integral filter eliminates the chance of pump tube contamination

• Lightweight ergonomic, cast alloy, grease control valve included

• Grease control valve has single shot or continuous flow option

• 180kg drum not included

532130

Samoa Bulk Grease Transfer Pump

• Double acting air operated 12:1 ratio transfer pump

• Flow rates of up to 40kg/min

• Maximum oil pressure of 1,215psi (84bar)

• 1/2" BSP(f) air inlet

• 3/4" BSP(f) fluid outlet

7735

Alemite Bulk Grease Transfer Pump

• 4x1/4" air motor and 10:1 ratio facilitate grease transfer rates of up to 33 kg/min

• Dynamic primer ensures continuous positive priming & eliminates air pockets

• Supplied complete with a 3" male camlock for quick pump fitment

Alemlube Grease Nipple Assortment Kits

L4674 120 piece Agricultural Grease Nipple Assortment Kit

L4675 101 piece Industrial Grease Nipple Assortment Kit

L4676 100 piece Metric Grease Nipple Assortment Kit

G10090

Alemlube EL Series Grease Nipple Assortment Kit

• Includes 90 popular grease nipples & 10 grease nipple dust covers in a convenient compartmentalised carry kit

• Manufactured in Germany in accordance with the DIN 71412 standard in steel, case hardened, zinc plated and passivated

ATAT0820-MAK

Alemlube Transport Major Grab Kit

• Automatic Greasing System Repair kit to suit trucks & trailers

• Replacement fittings, high grease pressure hose/tube to repair damaged grease lines and/or broken fittingsd sizes to suit metric & imperial: 1/8" BSP, 6mmx1mm, 8mmx1mm, 10mmx1mm

14513

4 Jaw Hydraulic Grease Gun Coupler

• Industrial quality for standard hydraulic grease nipples

• 1/8" BSP(f) thread

• 12mm spanner slot assists during coupler replacement

• Manufactured & designed for heavy duty industrial applications

14514 as above but 3 jaw 14516 as above but M10x1

KPL-24EX 24V 20kg Grease Kit

• A unique product, this 24V, 20kg grease pump kit is ideal for mining & heavy industrial applications

• Working pressure of 4,000psi (276bar)

• Dispenses up to 70-80g/min EPL-240SP also available but 240V, dispenses up to 120-190g/min

Automatic Grease Lubrication System

The ALEMLUBE ALS system is an easy to install automatic lubrication system featuring high performance, reliability & rugged design. With its high pressure output the ALEMLUBE ALS system can service grease points within a radius of up to 30m.

• Complete kit to service up to 20 grease points

7785-A5

Alemite 180kg High Volume Grease Pump

• 40:1 ratio and delivery lengths up to 50m

• Can service 3 or more hose reels

• Free delivery rate with NLGI2 at 25°C of 5kg/min

• 1/2" NPT(f) air inlet

• 1/2" NPT(f) material outlet

531710

Samoa 180kg Air Operated Grease Pump

• 70:1 ratio high performance grease pump developing grease pressures of up to 7,100psi (490bar)

• Fast double acting air motor with 4½" air piston

• Maximum flow rate of 7.5kg/min

• 1/2" BSP(f) air inlet & grease outlet

9950-D1

Alemite 180kg Air Operated Grease Pump

• 50:1 ratio double acting grease pump capable of delivery rates of up to 2kg/min

• Includes pump, cover and 3m air hose

• Can service up to three hose reels

• 1/4" NPT(f) air inlet & 3/8" NPT(f) grease outlet

• Single shot or continuous flow

ACON0820-MAK

Alemlube Construction & Agriculture

Major Grab Kit

• Automatic Greasing System Repair kit to suit construction machines

• Replacement fittings, to repair damaged or broken fittings

• Assorted thread sizes to suit metric & imperial: 1/8" BSP, 6mmx1mm, 8mmx1mm, 10mmx1mm

ATAT0820-MIK

Alemlube Transport Minor Grab Kit

• Automatic Greasing System Repair kit to suit trucks & trailers

• Replacement fittings, to repair damaged or broken fittings

• Assorted thread sizes to suit metric & imperial: 1/8" BSP, 6mmx1mm, 8mmx1mm, 10mmx1mm

ACON0820-MIK

Alemlube Construction & Agriculture

Minor Grab Kit

• Automatic Greasing System Repair kit to suit construction machines

• Replacement fittings, to repair damaged or broken fittings

• Assorted thread sizes to suit metric & imperial: 1/8" BSP, 6mmx1mm, 8mmx1mm, 10mmx1mm

Pulsarlube E Series

Single Point Grease Lubricators

• Electro-chemical operation generates inert nitrogen gas

• Grease pressure of up to 70psi (5bar)

• Frequent low volumes

E60/PL1 - 60cc filled with PL1 Grease

E120/PL1 - 120cc filled with PL1 Grease

E240/PL1 - 240cc filled with PL1 Grease

GREASING

Pulsarlube M Series Multi Point Grease Lubricators

• Long term electro-mechanical lubricators

• Operating pressure of up to 870psi (60bar)

• Large LCD screen & easy to program

• Up to 8 points of multipoint lubrication

M125/PL1 - 125cc filled with PL1 Grease

M250/PL1 - 250cc filled with PL1 Grease

M500/PL1 - 500cc filled with PL1 Grease

Alemlube Grease Gun Flexes

• Industrial quality, genuinely high pressure, high flexibility grease gun flexes

• Minimum burst pressure of 14,500psi (1,000bar)

• Polyamide hose maximises product life

14551 - 30cm in Length

14552 - 45cm in Length

14553 - 70cm in Length

SJ-UR27-YE

2.7m Under Racking Spill Container

• Capacity of 1,100L

• Positions under racking to collect & contain spills

• Easy access for the cleaning of spills

• 100% fully recyclable

• UV stable PE construction

• Compatible with most forklifts & pallet trucks

• Dimensions: 575mm (H) x 2165mm (W) x 1300mm (D)

SJ-510-001

Single IBC Spill Container

• Solid construction and practical design

• Sump capacity of 1,100L

• Compatible with most forklifts & pallet trucks

• Dimensions: 1,680mm (L) x 1,680mm (W) x 700mm (H)

• IBC not included

AA777600

Alemlube Automotive

6 Cabinet Workstation

• Create your own unique storage solution

• LED lighting helps to create the right working environment

• Two USB charging points to charge tablets, phones & scan tools

• Includes two air hose reels, one water hose reel and a garbage bin

• Overall width: 4,270Smm

361300

Samoa 4-Way Reversing Valve

• Simplifies plumbing and allows the use of just one pump

• Easily changes from filling to emptying

• Designed and manufactured in Europe

• Maximum working pressure of 217.5psi (15 bar)

• 4 x 1" BSP(f) threads

ALE-15FPH

1/2" Waste Oil Air Operated Diaphragm Pump

• Flow rates of up to 45L/min

• 1/2" BSP(f) inlet/outlet

• Rugged bolted construction eliminates leaks & simplifies reassembly

• Also suitable for the transfer of waste water, fuel, oil, some pesticides & herbicides

ALE-20BAH 3/4" Waste Oil Air Operated Diaphragm Pump

• Maximum flow rates of 100L/min

• 3/4" BSP(f) inlet/outlet

• Aluminium body and hytrel diaphragms

• Suitable for the transfer of diesel fuel, gear oil, engine oil, antifreeze and waste water

• Maximum delivery per cycle of 350mL

• Mounting hole layout of 140mm x 195mm

RAV232NL-AF

Ravaglioli Set of 4 x 5,500kg Mobile Column Lifts

• Set of four 5.5t columns

• Supplied with adjustable forks

• Large & solid base for maximum stability under load

• New wireless models now available

RAV232NL also available with adjustable forks

AA226A

Alemlube Automotive 26" Tilt Back Tyre Changer with Helper Arm

• Pneumatically operated tilting column

• Automatic pneumatic right help arm device

• Tubeless tyre inflating device

• Large 26" turntable suitable for low profile tyres

• Maximum rim width 16" (406mm)

• Maximum tyre diameter 45" (1,143mm)

• 14" - 26" internal clamping & 12" - 23" external clamping

AAWA8CCD

Alemlube Automotive 8CCD Wheel Aligner

• Infra-red transmission among heads

• Large 24" LCD display

• 30º (fast) compensation without lifting vehicle

• Data management & display program in WINDOWS 10 environment

• Databank with over 90,000 vehicle data sheets

• Can record & store 20,000 jobs

AA777300 / AA777400

Alemlube Automotive

3 and 4 Cabinet Workstations

• Improve and invest in the appearance & functionality of your workshop

• Ball bearing drawer slides in the toolbox cabinets make the tools easy to access

AA777300 Overall width: 2,100mm

AA777400 Overall width: 2,870mm

SJ-520-001

Double IBC Spill Container

• Non-skid removable deck

• Sump capacity of 1,165 litres to underside of the deck

• Dimensions: 575mm (H) x 2,260mm (W) x 1,460mm (D)

• Manufactured in the UK

• IBC’s not included

SJ-UR22-YE

2.2m Under Racking Spill Container

• Capacity of 1,100L

• Positions under racking to collect & contain spills

• 100% fully recyclable

• UV stable PE construction

• Dimensions: 500mm (H) x 2665mm (W) x 1300mm (D)

ALE-25BAH

1" Waste Oil Air Operated

Diaphragm Pump

• 1" BSP(f) inlet/outlet

• Flow rates of up to 160L/min

• Optimal stroke length maximises diaphragm life and performance with minimal downtime and maintenance costs

• Suitable for the transfer of diesel fuel, gear oil, engine oil, waste oil, brake fluid & antifreeze

555030

Samoa 1" Waste Oil Air

Diaphragm Pump

Operated

• Flow rates of up to 200L/min

• Operating pressure range from 30psi (2bar) to 120psi (8bar)

• 1" BSP(f) inlet and outlet connections

• 3/8" NPSM(f) air inlet connection

• Maximum dry suction lift of 5m, wet suction lift of 8m

41006N

Manual Waste Oil Extractor

• 6.5L capacity

• Portable, lightweight and self-contained

• Extracts waste oil from motor vehicles, motor bikes, lawn mowers, marine engines, stationary engines & all-terrain vehicles

• Also suitable for water applications

AAWA3D

Alemlube Automotive

3D Wheel Aligner

• Compact targets - no electronics & batteries

• Large 27" LCD display

• WiFi connection for automatic updates

• Data management & display program in WINDOWS 10 environment

• Four 4-point clamps 12" - 24" with universal grips & targets

• Supplied with 2 mechanical turntables for cars, brake pedal depressor & steering wheel holder

AA579

Alemlube Automotive Automatic Wheel Balancer

• Laser pointer makes wheel balancing a quicker & easier proposition

• 8 seconds measuring time

• 17" LCD high resolution display

• 9 balancing modes

• Rim width measurements 1.5" - 20"

• Rim diameter measurements 10" - 24"

• Maximum Wheel Weight 65Kg

• Balancing accuracy +/- 1g

KPH370.45

Ravaglioli 4.5t Electro-Hydraulic 2-Post Clear Floor Hoist

• Three-stage short arms and two-stage long arms provide asymmetric lifting of vans & off-road vehicles

• Maximum lifting height 4,065mm or 4,165mm

• 3 different extensions height available on request from 3,625mm to 5,000mm

CAPITAL WORKSHOP EQUIPMENT

6603A

1L Brake Cleaner Sprayer

• Large filling opening

• Safety valve at 36psi (2.5bar) with depressurisation option

• Easy tool free maintenance

• Ergonomic design

• Strong translucent bottle with level indicator

• Not suitable for use with acids

10028

Heavy Duty 20L Gear Oil Drum Pump

• Heavy duty fully serviceable drum pump delivers 170mL on the downstroke

• Height adjustable bung adaptor & two extra adaptors to suit local & international 20L drums supplied standard

• Ideal for use with engine, hydraulic, gear, diff & synthetic oils

8828N2

20L Gear Oil Drum Pump

• Capable of delivering up to 110mL per stroke

• Downtube extension & extra Rieke adaptor make the pump suitable for use with a variety of 20L drums

• Ideal pump for the transfer of engine, gear, diff & hydraulic oils in busy vehicle servicing workshops

20033

LED Pocket Work Light

• Up to 200 lumens

• Up to 5 hour top light run time

• Magnet on the back & base with the versatility of 360º rotation

• IP54 foreign objects / moisture intrusion rating

• IK07 impact resistance rating

A14512

Quick Release Grease Gun Coupler

• Works with all grease gun types: pneumatic, manual & battery

• 1/8" BSP(f) thread

• Working pressure of 10,000psi (690bar)

• 4 hardened spring steel jaws resilient under high pressure

• 90mm long A14511 as above but 1/8" NPT(f) thread

30080

Alemlube Waste Oil Drainer

• Transfers and captures waste oil from crankcases, transmissions & differentials

• Catchment bowl capacity of 20L

• Holding tank capacity of 80L

• Equipped with a pneumatic safety relief valve calibrated at 14psi (1bar)

ECRP24025

Alemlube 240V Electric Cable Reel

• The safest way to store electric cable

• Automatic spring rewind mechanism

• Ratchet stop device is easily inspected by the end user

• Supplied with 25m x 3 x 1.5mm2 wires cable & plugs

• Thermal overload protection kicks in at 56ºC ± 5ºC

• Maximum 9amps

680AN

Air Operated Grease Gun

• Develops grease pressures of up to 3,290psi (226bar)

• Pressure ratio of 40:1

• Delivers up to 182g per minute

• Maximum air pressure of up to 98psi (6bar)

• Suits 450g cartridge or bulk grease

• Flexible extension length of 50cm

AA402-240V

Alemlube Automotive 4.0t ElectroHydraulic 2-Post Clear Floor Hoist

• 240V single phase operation

• Lifting capacity of 4,000kg

• Maximum lifting height of 2,000mm

• Minimum lowered height of 110mm

• Fast lifting time of 60 seconds

• Fast lowering time of between 18 to 40 secs

• 100mm 4WD spacers included

• Standard height clearance of 3,950mm with overall height of 4,140mm

501A

Rotary Action Drum Pump

• Delivery rates of up to 18L/min or 0. 26L per rotation

• Suitable for the transfer of diesel, petrols, kerosene, lube oil & machine oil

• 2" BSP bung adaptor

• 2.2m antistatic fuel hose

001014-25

5L Oil Container - 25mm Pour Lid Kit

• Colour coding accurately identifies fluids to minimise cross contamination

• Quick fill port for safe contaminant free refills when required

• Quick changing colour coding handles & bands means no more stocking of specific coloured pour lids saving time & money

7701A

1L Multi Purpose Top Up Kit

• Ideal for topping up difficult to access oiling points in the workshop and at home

• Suitable for all oils, automatic transmission fluids, brake fluids & some hand cleaners

• Not suitable for combustible fluids

372400

Samoa Waste Oil Drainer

• Premium quality & European engineering

• Drain bowl capacity of 20L

• Unique specially molded tray can be used to hold bolts, filters & washers

• Waste fluids can be pressurised or pumped out of the 100L capacity holding tank

413080

Samoa Grease Control Valve

c/w Z-Swivel & Rigid Extension

• Maximum working pressure of 7,150psi (500bar)

• High pressure rigid outlet & 3 jaw coupler

• Single shot or continuous flow option

• 1/4" BSP(f) inlet thread

• Suitable for use with pneumatic, hydraulic

20066N2

LED Work Light with Aircon Gas Leak Detection Capabilities

• The UV light is ideal for detecting ultra violet leak detection dye used in vehicle air conditioning systems

• Up to 400 lumens

• Up to 3 hour main light run time

• Magnet on the back & base with a 180º adjustable handle

• IP54 foreign objects / moisture intrusion rating

AA40CF2P

Alemlube Automotive 4.0t Electro-

Hydraulic 2-Post Clear Floor Hoist

• 4,000kg lifting capacity

• Includes 4WD extensions

• Maximum lifting height of 1,900mm

• Standard height clearance of 3,900mm

• Fast lifting time of 60 seconds and fast descent time of 18 to 40 seconds

• Distance between columns of 2,760mm & drive through width of 2,640mm

G10010N

Alemlube EL Series Trigger Action Grease Gun

• Grease pressures of up to 4,000psi (276bar)

• Delivery rates of up to 1.15g per stroke

• Robust die cast aluminium head assembly

• Heavy duty 4 jaw coupler

• Exceptional value for money for cost conscious customers

CR30060

Alemlube EL Series

240V Electric Cable Reel - 15amp

• Supplied with 20m of 3 x 2.5mm2 cable

• Maximum power when coiled is 1,600W, when uncoiled 3,200W

CR30050 also available but 10amp & with 1.5mm2 cable and power when coiled is 1,000W, when uncoiled 2,000W

$354. 00

MAINTENANCE & FLUID MANAGEMENT

MADE EASY

• Delivery rates of up to 170g/min (high) & 113g/min (low)

• Grease pressures of up to 10,000psi (690bar)

• Built in Intelligence

• LCD with real time battery capacity, grease level & grease metering information

• Up to 35 cartridges per battery charge

G10040N

• Generates grease pressures of up to 10,000psi (690bar)

• Capable of delivering up to 80g/min

• Spare battery, recharger, 106cm long grease gun flex & plastic moulded carry case supplied standard

• Recharge time of 75 minutes (1,500 mAh battery)

660AN

• Grease pressures of up to 8,500psi (586bar)

• Delivers up to 1.1g of grease per stroke

• Twin Lock System seals the piston & eliminates the possibility of dummy lubrication

• Ever-Flow System enables the gun to be used with thick tacky greases even in the coldest conditions

• High volume / high pressure option facilitates fast and efficient greasing

• Effortless greasing

• Heavy duty grease control valve

• 4m long hose assembly

• Affordable and robust

• Maximum fluid pressure of 5,800psi (400bar)

• All types of grease up to NLGI2

• Delivers up to 600g/min

• Tested to up to 24,000kg

• Air consumption of 3.6cfm at 150psi

• Air inlet pressure from 70psi (5bar) to 150psi (10bar)

424170

• Delivery rates of up to 0.9kg/min

• 55:1 ratio air motor develops grease pressures of up to 7,950psi (548bar)

• Supplied with a 4m long hose assembly enabling quicker and easier greasing of your plant and equipment

• Will handle high density, tacky greases up to NLGI2

• Single toggle air motor operation ensures a long service life 424150 as above but supplied with a trolley

• Works with all grease gun typespneumatic, manual and battery

• Maximum working pressure of 10,000psi (690 bar)

• Easy disconnection regardless of hydraulic pressure build up

• Suitable for high pressure, heavy duty greasing applications

14510 1/8" BSP(f) 135mm long

14511 1/8" NPT(f) 90mm long

14512 1/8" BSP(f) 90mm long

Stores advertised on page one of this catalogue are independent businesses. Every effort has been made to ensure that advertised stock is available, but due to factors beyond the control of Alemlube Pty Ltd not all products advertised in this catalogue are available at all stores. Pricing for the products are special prices available through to 30th of June 2021. Regular prices vary from store to store. The catalogue pricing is calculated in good faith as the average regular price at the time of preparation. Alemlube Pty Ltd will do everything possible, within reason, to maintain stocks of advertised products but cannot be responsible for unforeseen shortfalls beyond their control.

All products are covered by a 2 year warranty (unless otherwise stated) and with the aid of our sixty five strong nationwide Authorised Agent Network, technical support for all Alemlube products featured in this catalogue will never be far away. E.&O.E. Copyright 2021. Reproduction in whole or part is prohibited without written approval. All prices shown include GST. Freight charges may be applicable and may vary from region to region.

20V Lithium-ion Cordless Grease Gun

Trigger Action Grease Gun

Alemlube EL Series 18V Lithium-ion Cordless Grease Gun

Samoa 20kg Grease Kit

G100120

Alemlube EL Series 20kg Grease Pump

14500 Series

Quick Release Grease Gun Couplers
