Illustration Courtesy: AISHI PAUL
WHEN AESTHETIC AND FUNCTIONALITY COMBINE DESIGN GETS DISCOVERED
HOSPITALITY
Illustration Courtesy: AISHI PAUL
HOSPITALITY
KEY PLAN
Area- 46’ X 45’
Color pallet- Emarald Green, golden, charcoal black, white & grey
area, bell desk, travel desk, flourist shop, gift sop, parlour room, salon
were inspired from Contemporary Style which represents youthfulness and oasis with chic details.

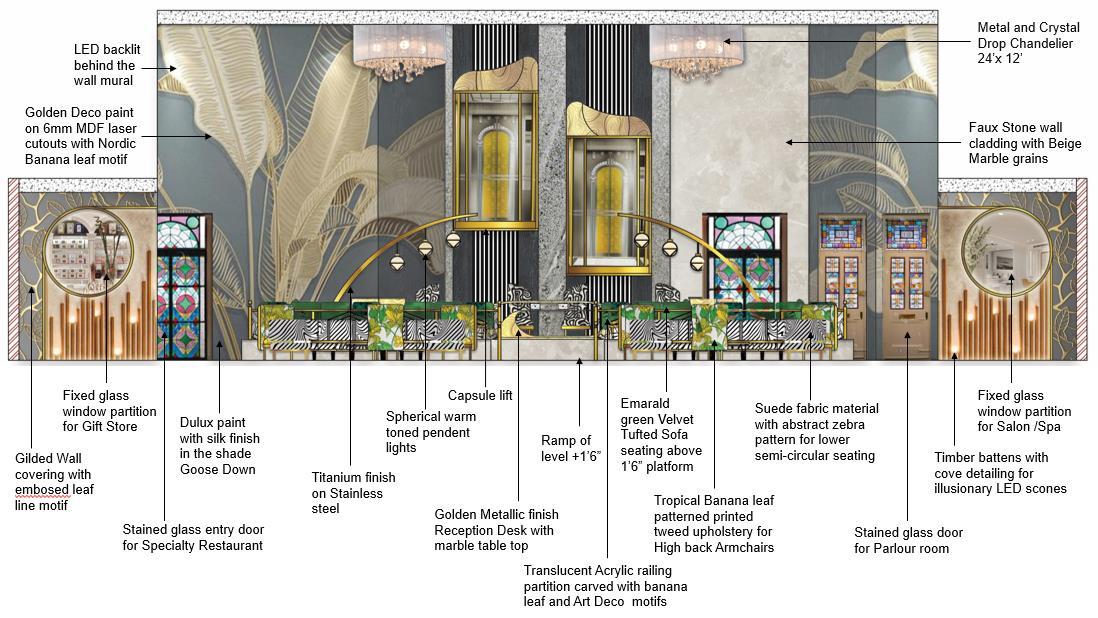

HOTELDESIGNLOBBY
In the project Hospitality Design, furniture layout of the main looby and its wall elevations were designed.
WaitingRequirementsarea,reception
TropicalThemeInspirationMaximalismAllelements
Gold is used as an accent colour and since white bringing all the colours together and creating positive space.
Bold emerald, luxurious gold and the never out of style black combination makes a very fun , chic yet sophisticated.
This combination will surely add glamour to the interiors. Though black and emerald both are dark colours, the right amount of white and grey will get the perfect balance to the space.
Color pallet Green, purple and lavender
In Hospitality project, furniture layout of the standard bedroom and its wall elevations were designed.
Area- 402 sqft
KEY PLAN
FantasyConceptand Dreamy
Inspiration- All elements were inspired from Colonial design style and further blended with Contemporary touch. This brings sophistication with a very relaxing as well as dramatic environment.

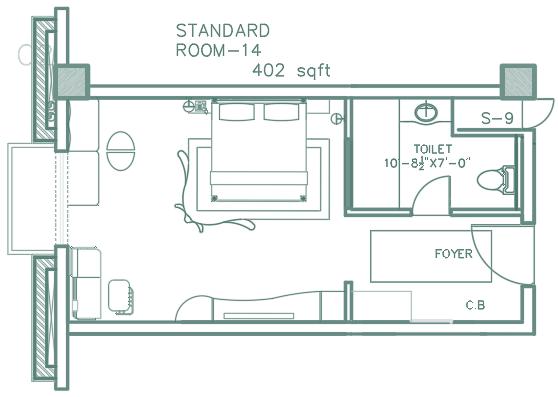

HOTELBEDROOMSTANDARD

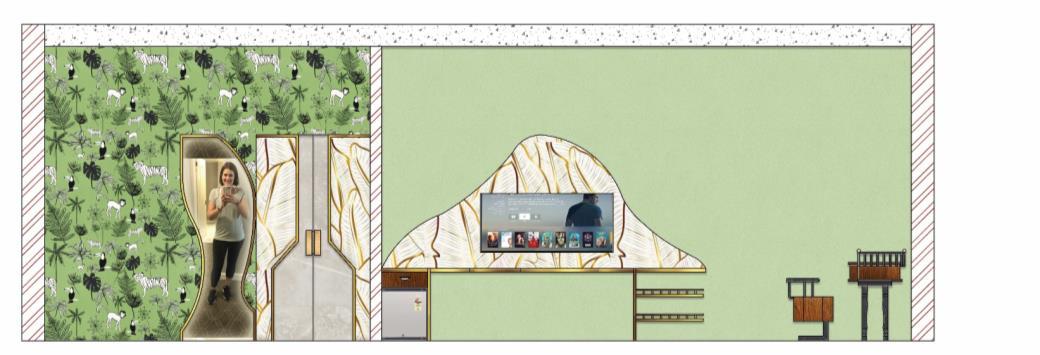

In this standard bedroom, the foyer has tropical wallpaper with plant sketches and zebra hides.
SketchConcept
A full length mirror in the foyer depicts the vital motif of Bengal’s Colonial design- (in the shaped of a fish)
Shiftingdetails.
As soon as we enter there is artwork portraying a little girl in the lavender field. This provides a relaxing vibe to the visitors.

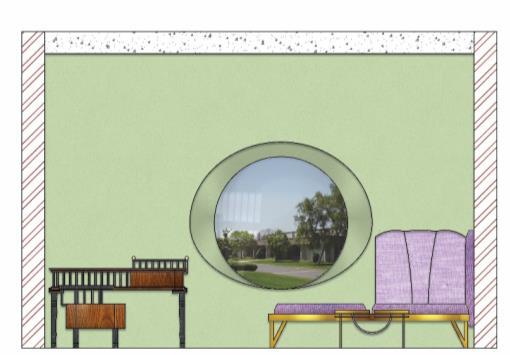

from old laws of design, there is a oval shaped window providing the outside view of the hotel and during night it draws the shade with an app.

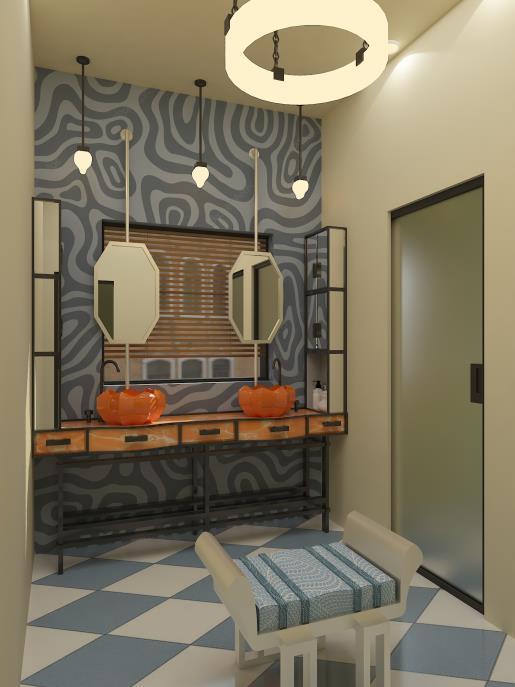

An translucent glass partition of 8mm separates the bathroom and bed region.
A working desk is also provided with railing
VISUALISATON-

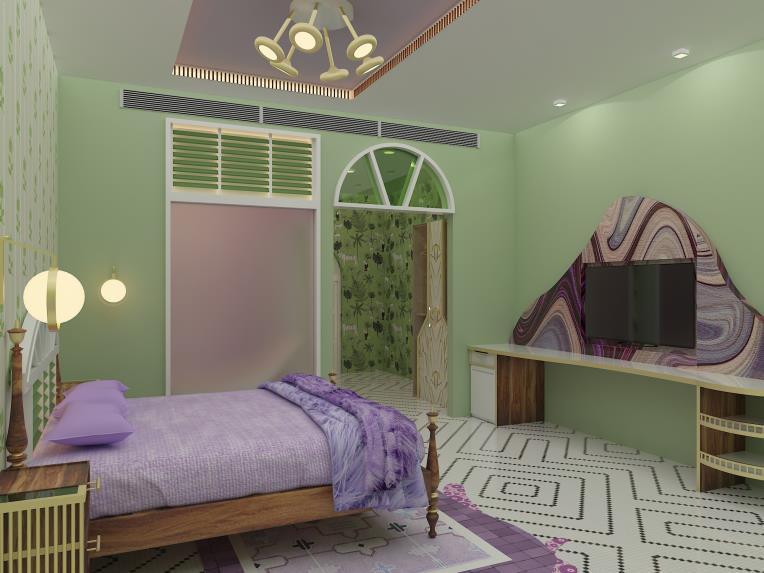

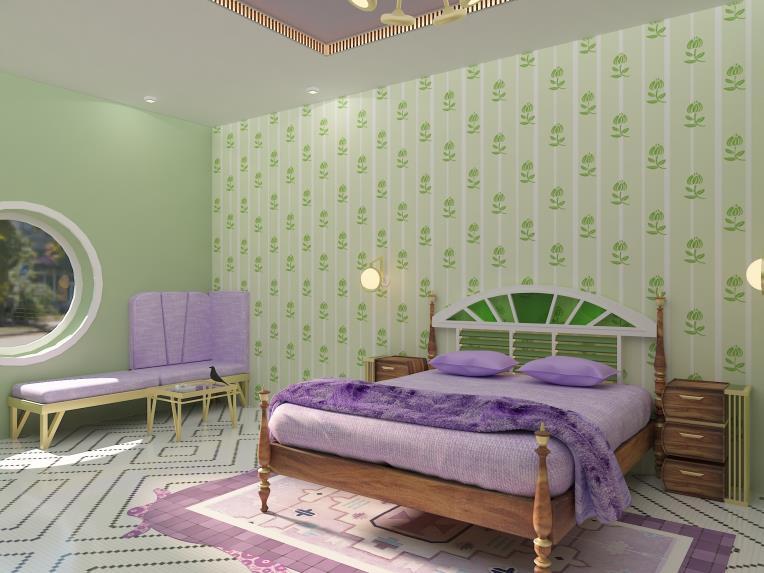

3D STANDARD BEDROOM

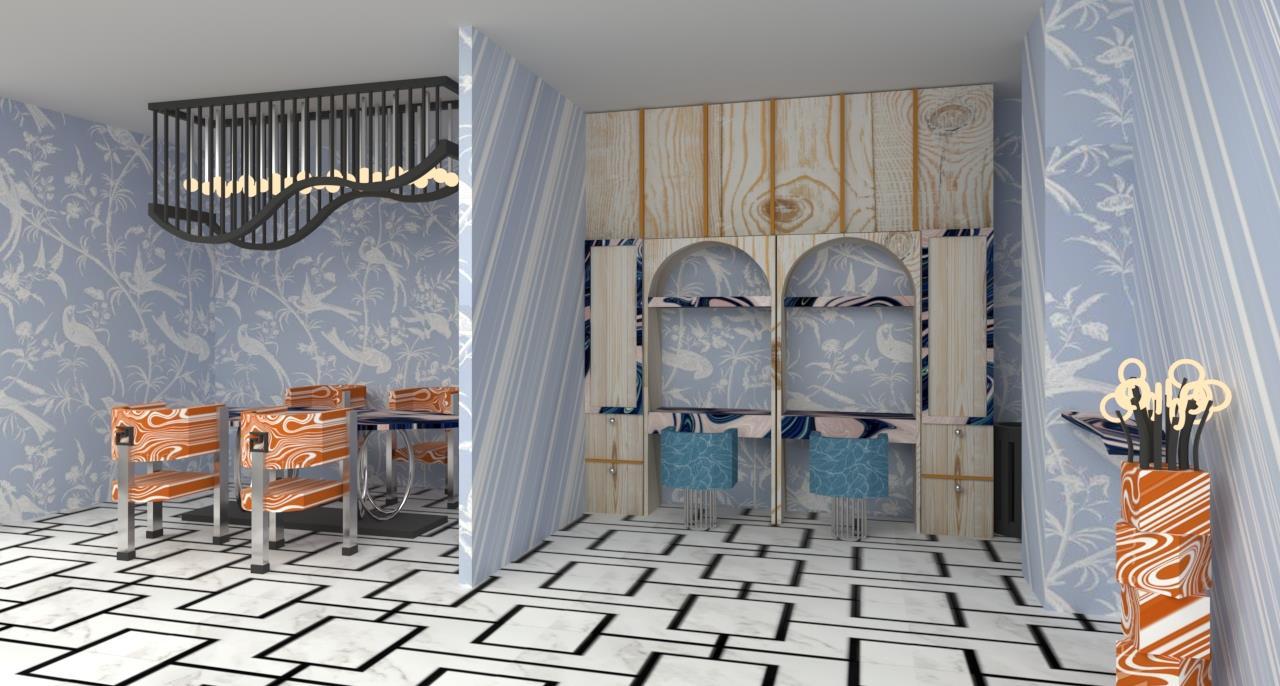

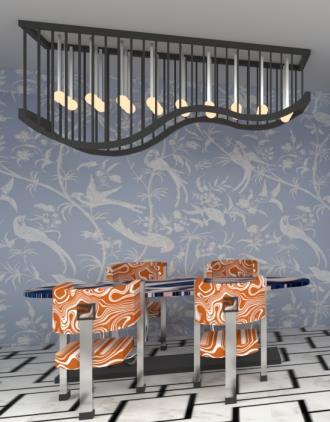

In suite room, furniture layout, wall elevations and 3D conception were designed.
Color pallet- Shades of Blue and Orange
were inspired from Colonial design style and further blended with Contemporary touch. This concept of cool and warm is still in style and perfectly balances with any neutral coloured flooring.
HOTEL SUITE DESIGNROOM
KEY PLAN
CoolConceptArea--and
Bedroom: 23’6” x 11’4” Living room: 16’6” x 13’ Washroom: 17’6” x 11’ 4”
Dining area: 12’4” x 7’8” Working area: 10’10” x 7’8”
InspirationWarm-Allelements

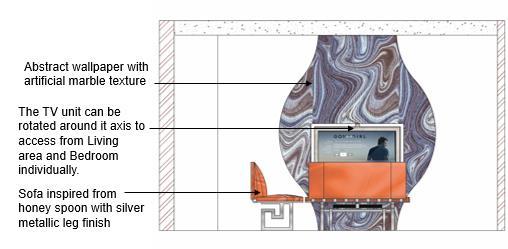

The suite room is designed with a open dining area, an intimate working space, large bedroom with circular bed, sauna and washroom with walk in closet zone, balcony facing the courtyard and open living space with rotatable TV unit against the partition wall. These all deliver a boho chic style to the interior with contemporary furniture and décor items.
Silver is used as an accent colour on every metallic details.
This complementary combination will surely add allure to the interiors. Here mostly various shades of blue and orange are incorporated, the right amount of white and white vinyl tile flooring will get the perfect balance to the space.
Color pallet Emerald green, sage and Yellow ochre for the restaurant, Powder blue and Crimson red for the family bar area.
Area- 82’ X 77’10” X 24’ (H)
KEY PLAN
FrenchTheme and Bengali Juxtaposed with power of Inspirationcolours-
The space for specialty restaurant was inspired from food habits, cuisines and Renaissance architectural further elements of Bengal. The contemporary design brings intricacy of the state’s environment.

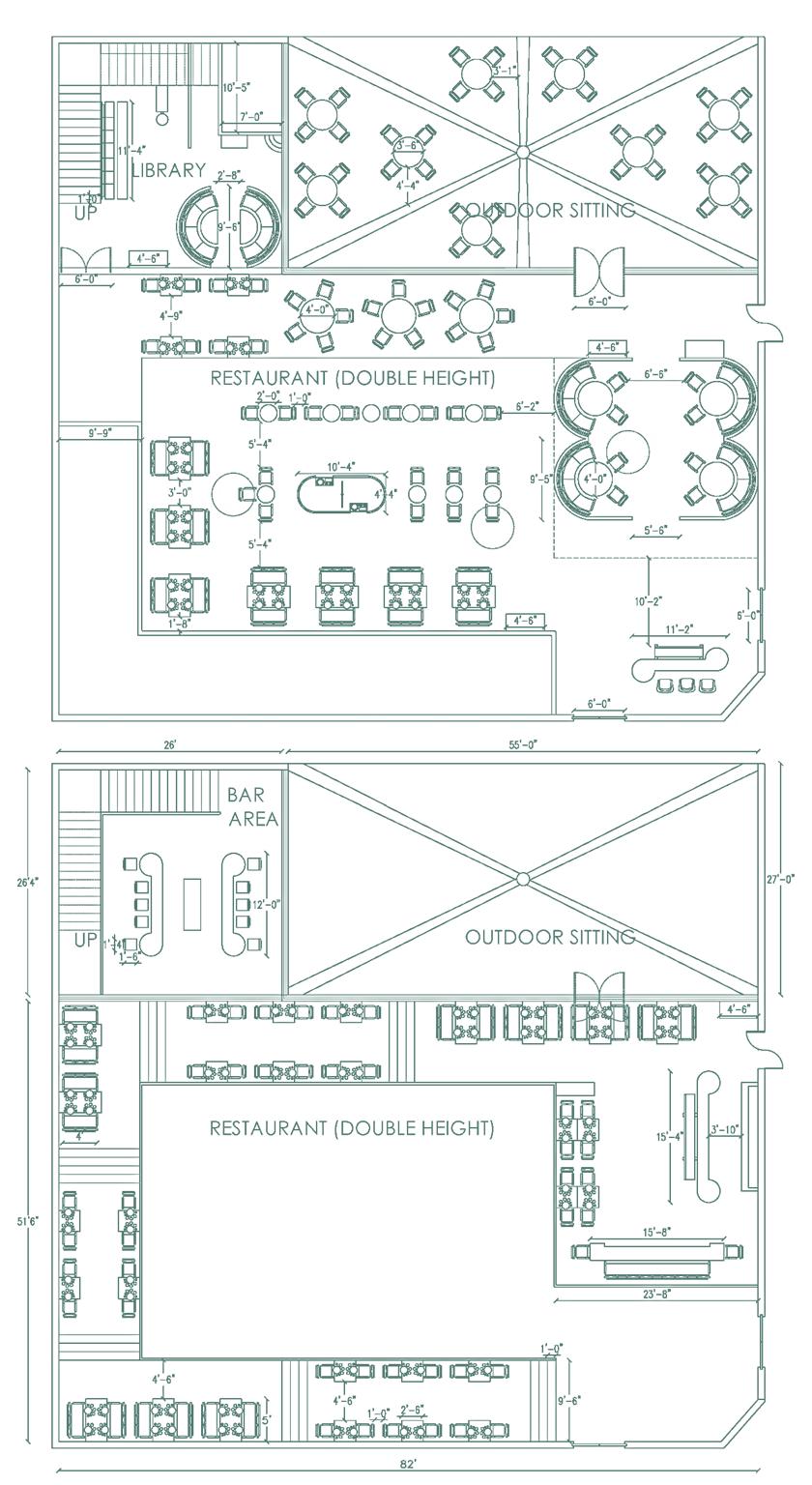

In Hospitality project, the restaurant and family bar are conceptualized with two levels- Ground and Mezzanine.
HOTEL’S SPECIALITY RESTAURANT DESIGN
Floor and Level Details

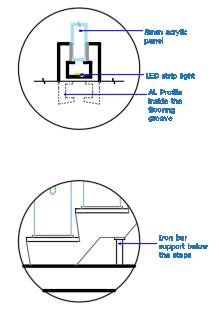

White marble cutting with black coloured Vinyl tiles in purple colour
Concept/ Inspiration Development Lily water bed
Violet
Dining Area- Designed with the violet lily (artificial) water bed which makes it lively.

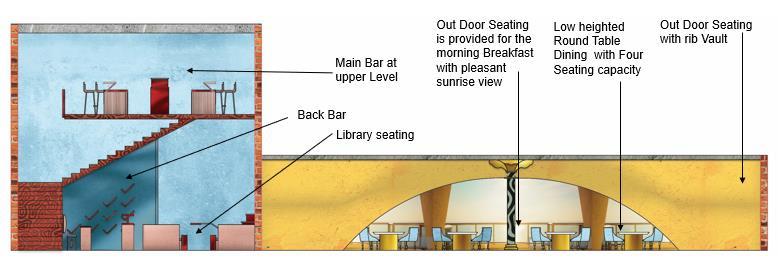

Outdoor Seating- Table with 4 seating are provided with the outdoor lawn view.
Repetitivegrouting pattern

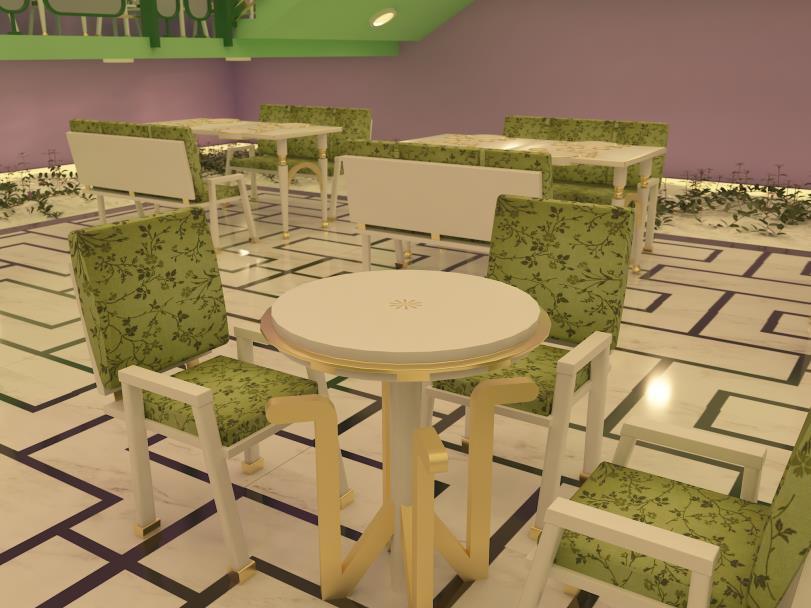

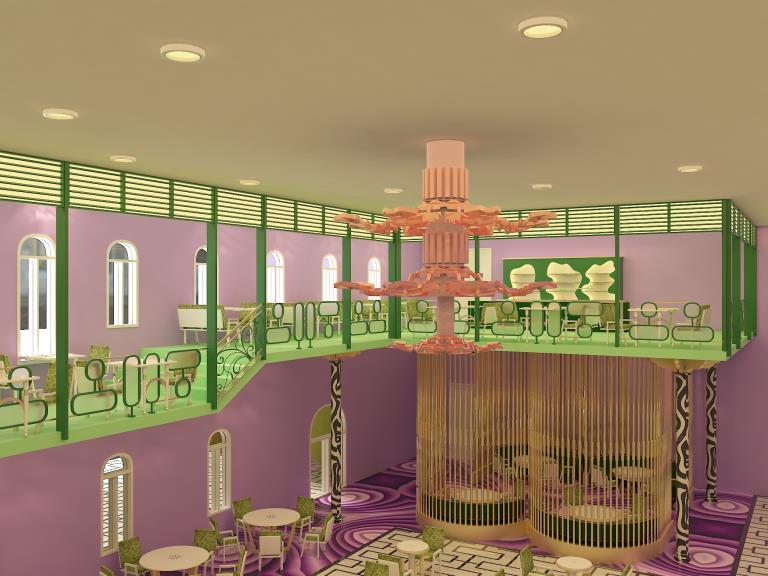

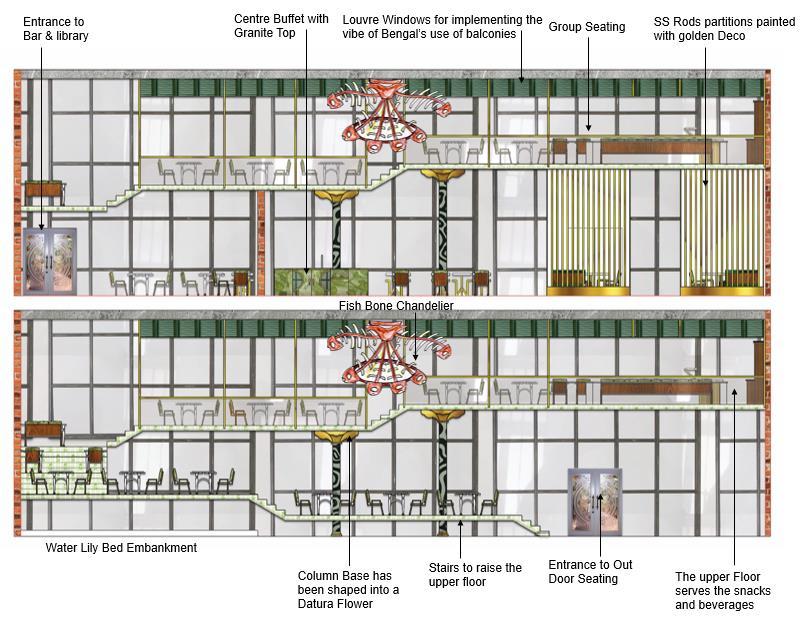

3D VISUALISATON- RESTAURANT
3D VISUALISATON- FURNITURE
3D VISUALISATON- BAR
Family Bar- Designed with combination of powder blue walls and crimson red carpet flooring to bring out the rawness
PSYCHOLOGICALKIDSCLINIC
Inspiration- All elements were inspired from 2D art, comic pop art, surrealistic art & illusionary effects
Design, the interiors has wide variety surrealistic illusionary for kids suffering from behavioral health issues.
In the project Psychological Kids ’Clinic
PSYCHOLOGICALCLINICDESIGN
Furniture 2D bordered furniture
PlanningZoningboardMood&
Color pallet- Grey, black, red, yellow, green & blue
KIDS BEHAVIORAL CLINIC- RECPTION DETAILS
’

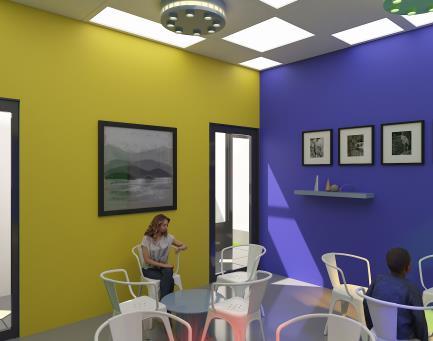

3D VISUALISATON- RECEPTION
KIDERGARTEN DETAILS

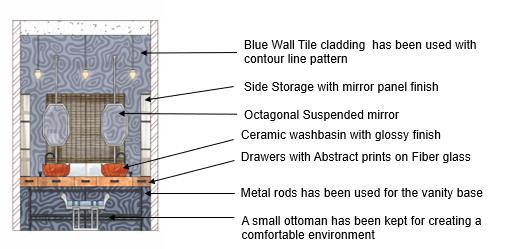

KIDS DETAILSWASHROOMKIDS’ BEHAVIORAL CLINIC- THERAPY ROOM

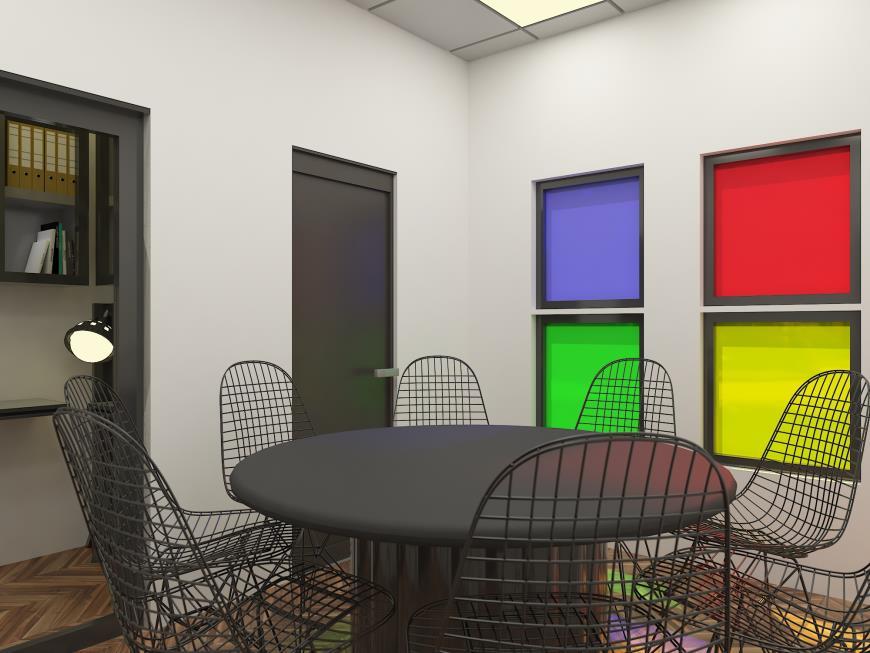

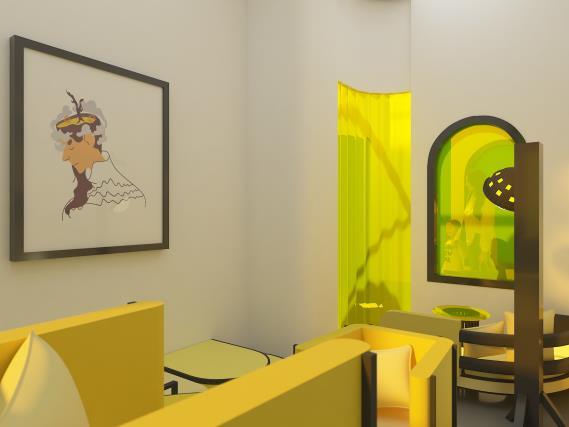

3D VISUALISATON- CLINIC ROOMS
SCHOOL
Inspiration All elements were inspired from Industrial Style which represents boldness and growth with sustaining
Mood board
Materialnature.- Sustainable materials

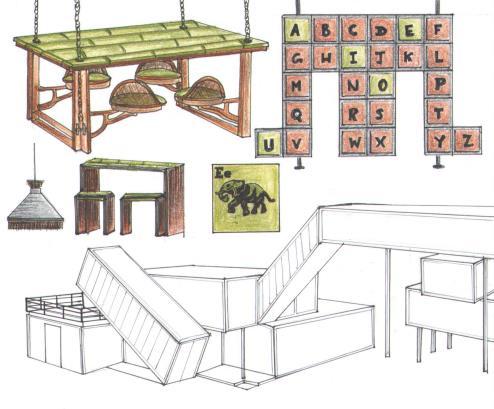

SketchesConcept
SCHOOLKINDERGARTENDESIGN
Color pallet- Grey, Terracotta, olive green & black
In the project Kindergarten School Design, five spaces were designed in the year 2020.

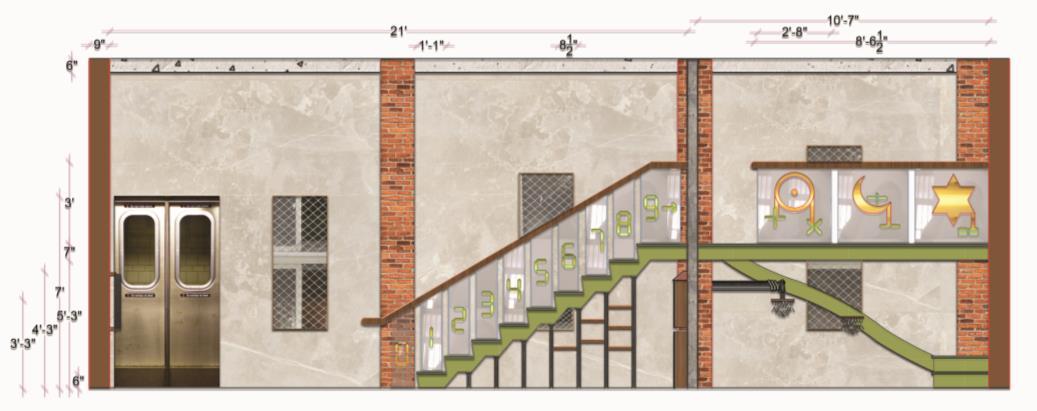

RECEPTION DESIGN DETAILS Flooring Design ElevationFrontElevationBack DesignCeiling MODEL3d ElevationSide

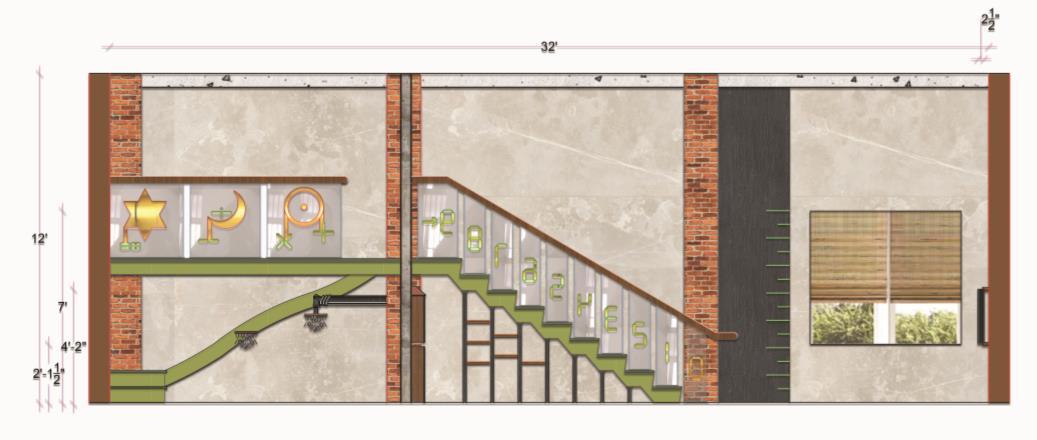

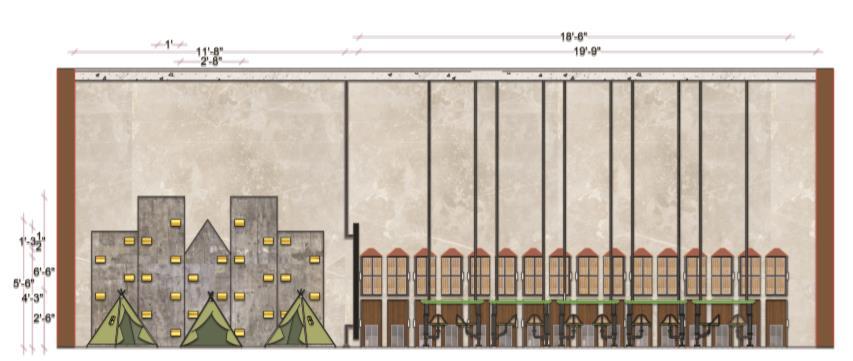

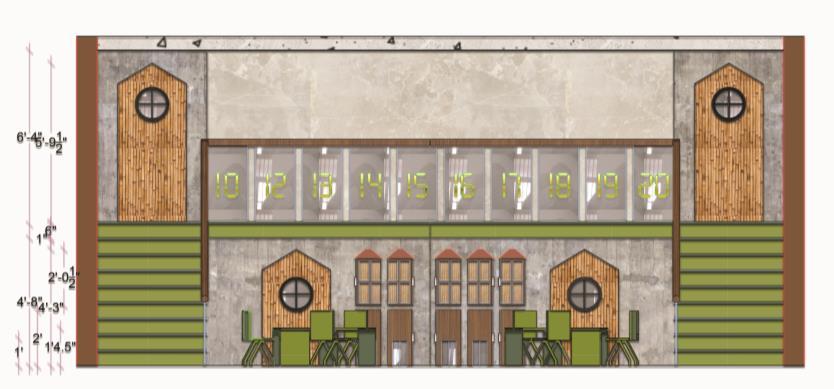

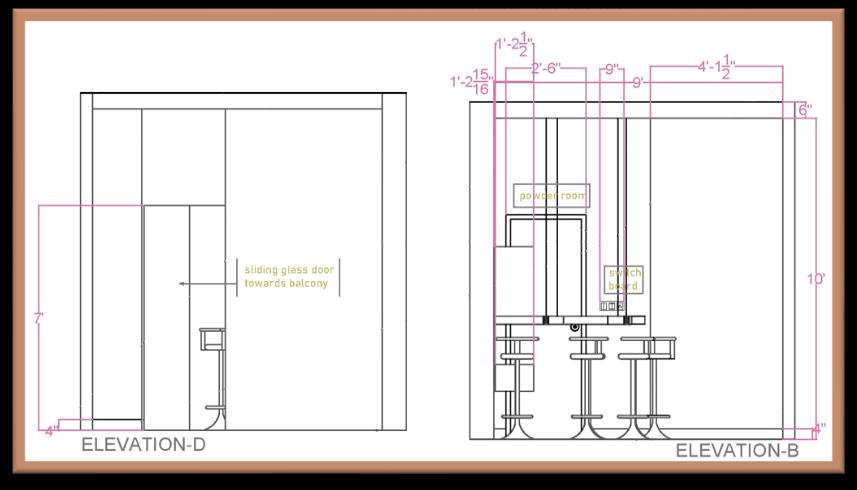

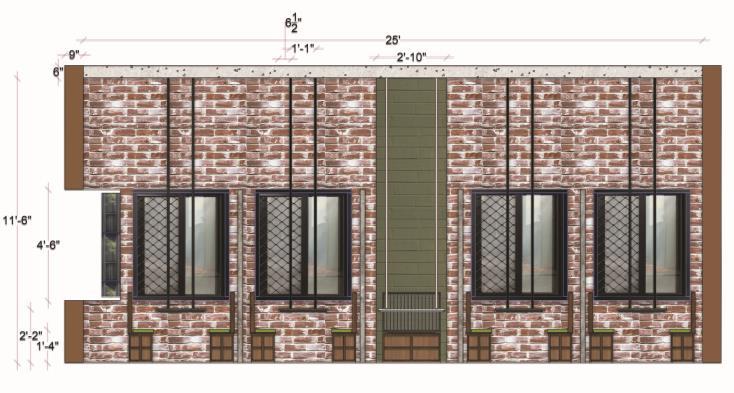

KINDERGARTEN CLASS DETAILS Wall ElevationA Wall ElevationWallElevationBDWall ElevationC DesignFlooring
ElevationB
Wall
ElevationA

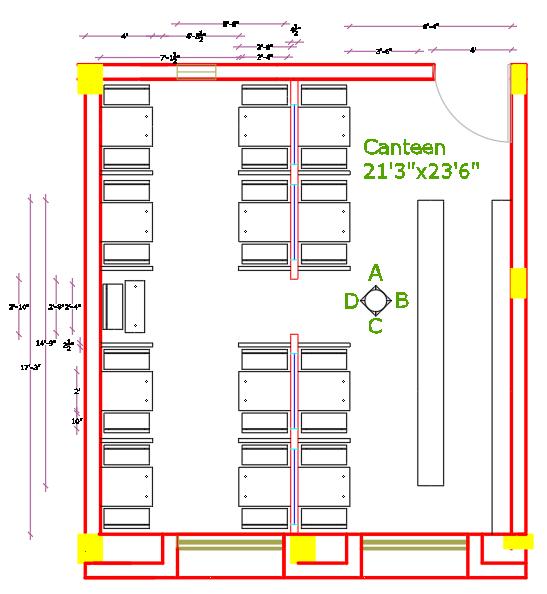

CANTEEN DETAILS
ElevationC
Wall Wall
Wall ElevationD
ElevationA Wall
Wall C Elevation

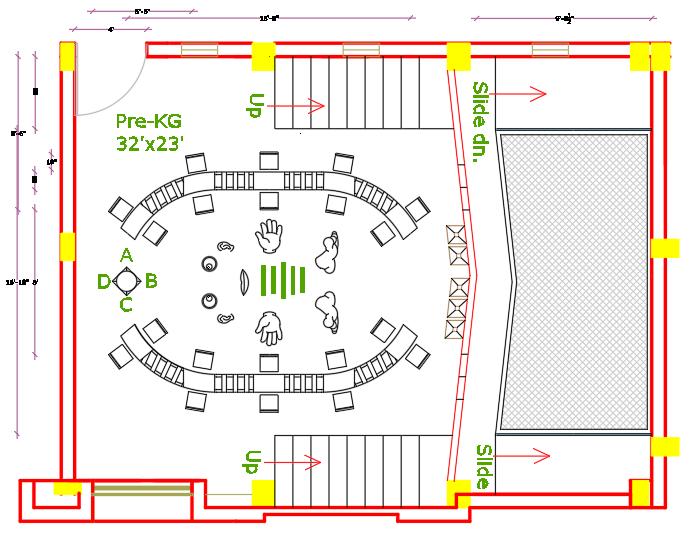

PRE-KINDERGARTEN CLASS DETAILS
Wall D Elevation
Wall ElevationB
DesignFlooring
Wall A Opened door Elevation

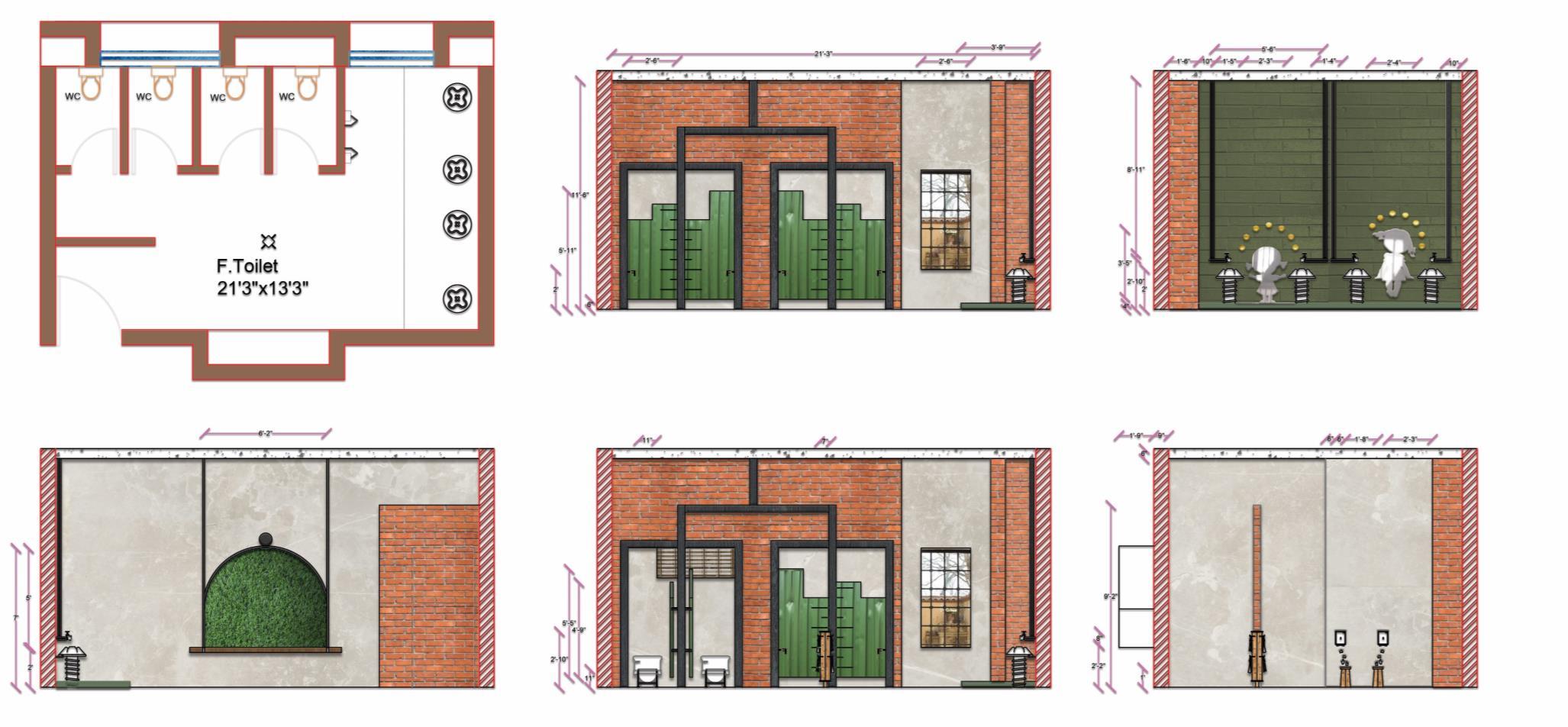

KIDERGARTEN FEMALE KIDS WASHROOM DETAILS
Wall B Elevation Wall D Elevation
Wall C Elevation
Wall A Elevation
COMMERCIAL

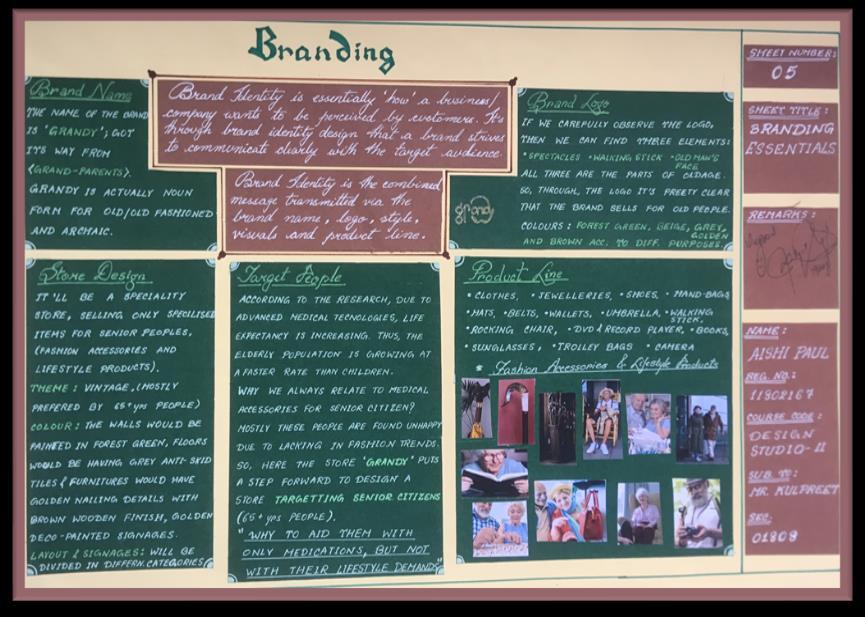

RETAILDESIGNSTORE
Target productsFashion accessories Lifestyle products
Target people Senior citizens
•
•
ThemeIrish Exterior elements Moorish interior

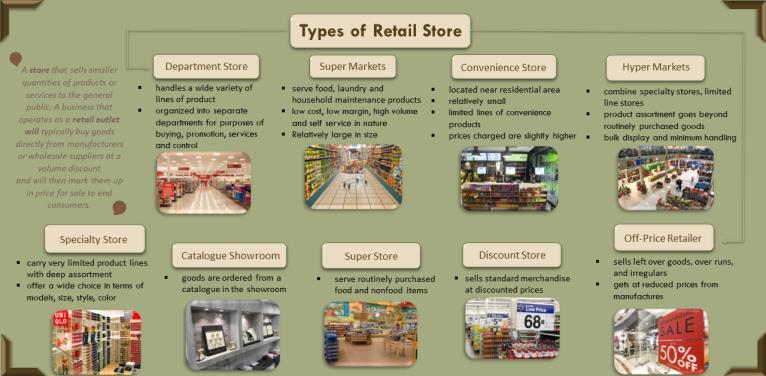

In the project Retail Store Design, a specialty retail store with free-flow layout was designed for senior citizens.
•
Colour palette Forest green, brown, grey and golden
sheetIntroductory
•
Area 46’ X 45’

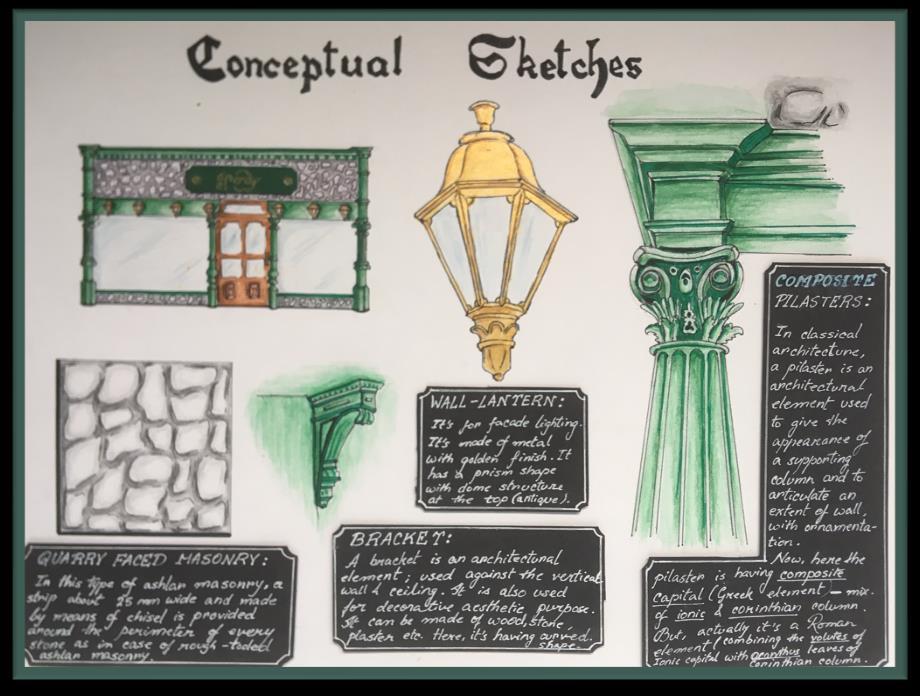

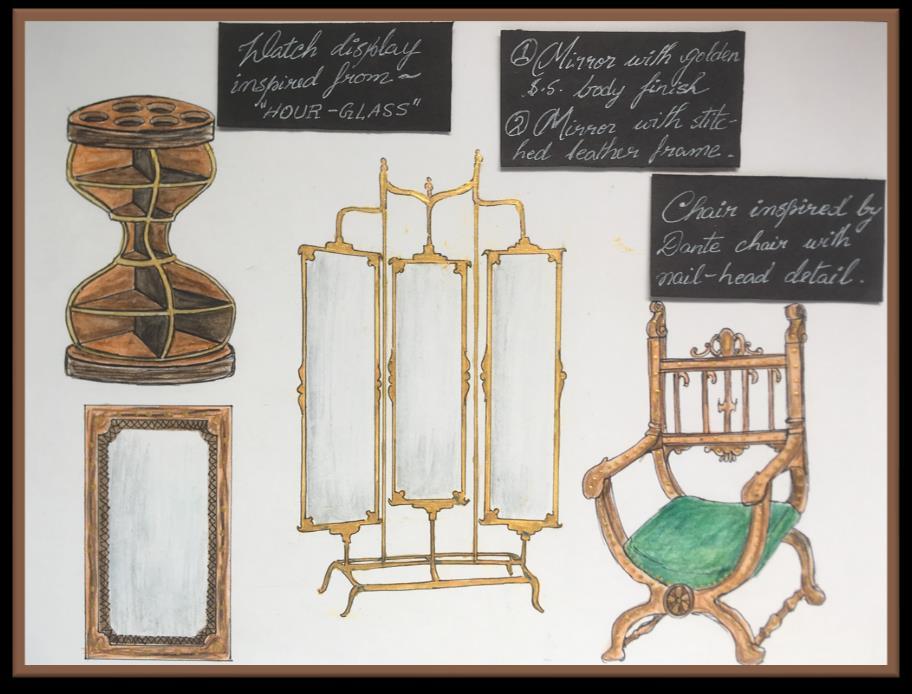

One PerspectivePoint- for interior of the retail store SketchesConcept
• At the end of the journey we can find the trial rooms, alteration zone, store room and washroom.

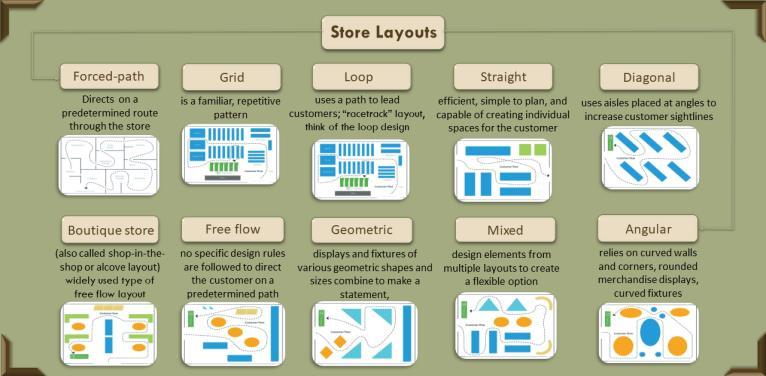

FURNITURE LAYOUT PLAN
• The check-out desk is placed at the center of the plan and separated by a partition wall behind.
• Just beside the siting zone there is product on sale display.
• Sitting area behind the west sided window display.
Entrance/Exit Access: South facing
• Behind the billing section a Cruise collection display is designed.
• Similarly, in the east, travelling accessories and recreational products displays were designed.
• On the west side we can reach the mens’ and women’s section.
Road: 40’ wide in the south; 20’ wide in the east
Total carpet area: 1780 sq. ft
Location: Jalandhar, Punjab
• Two window displays on both sides of the entrance and a baggage counter near just the door.
Tile type: anti-skid and glare-free tiles
Two Separate floorings are designed to separate the display zones and trial room, alteration counter, store room and washroom region

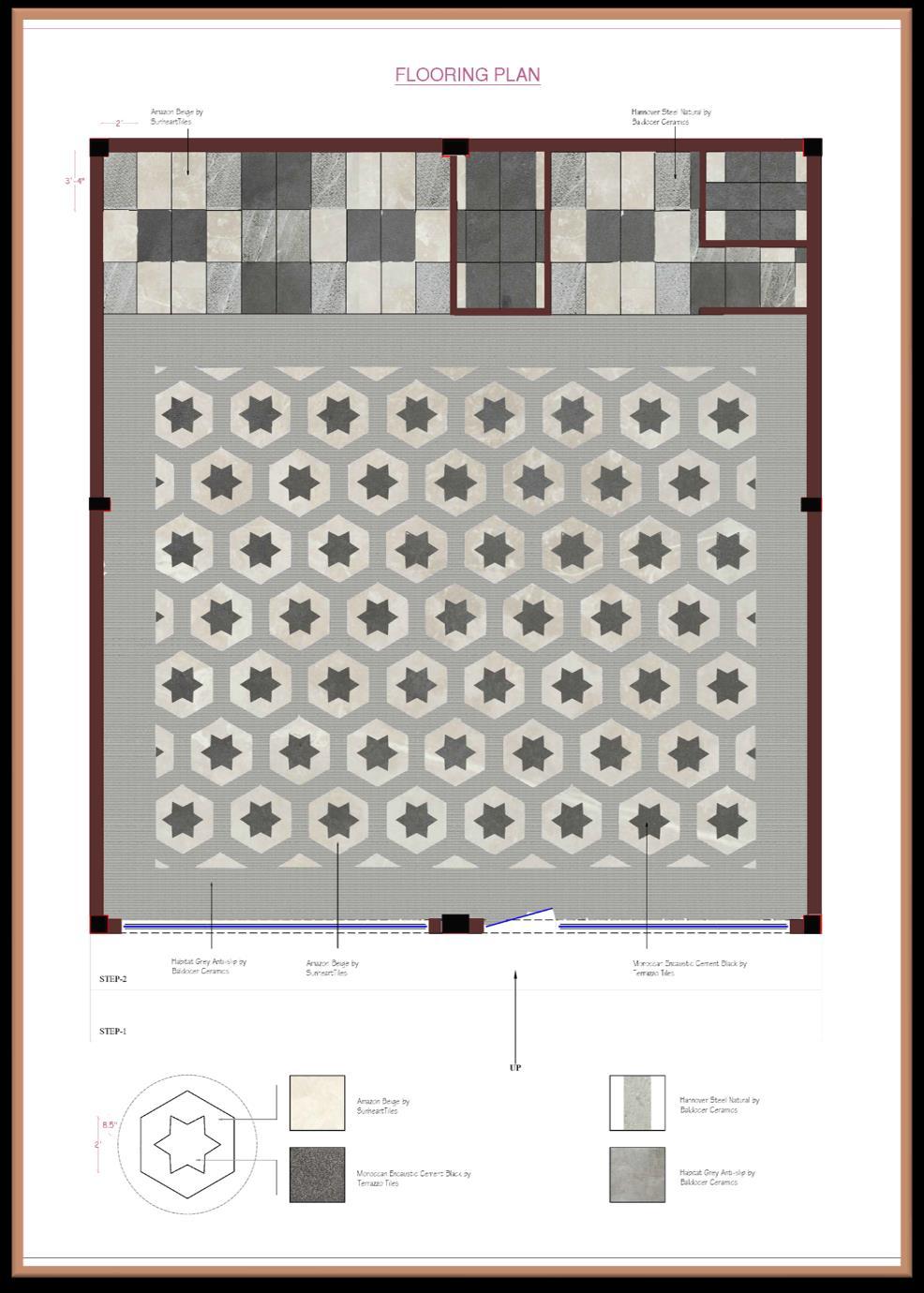

FLOORING DESIGN & PLAN
Tile shape: hexagonal, six sided star, rectangular
Tile colour: beige, steel grey, space grey
• There are clerestory windows under the ceiling.
• The sheet is enclosed within with geometric Moorish boundary.

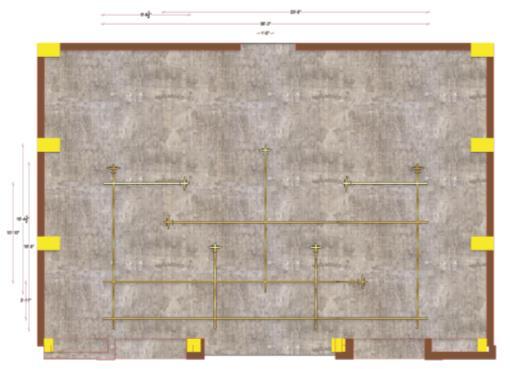

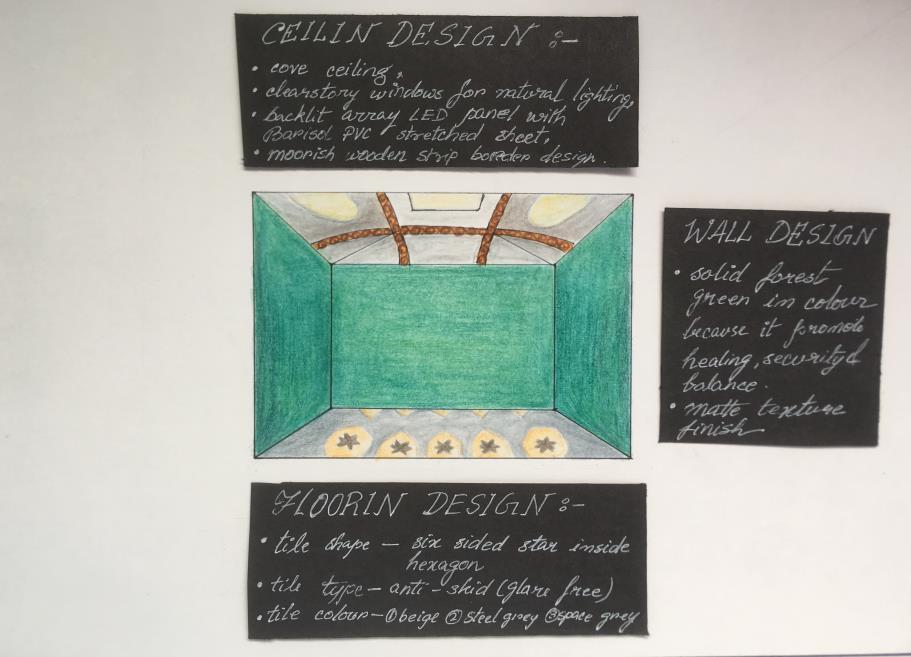

CEILING PLAN & SECTION
Ceiling height: 13 ft above display areas; 10.6 ft above the functional zone
• Barisol PVC stretched sheet ceiling with backlit array LED panel.
Ceiling type: Cove ceiling

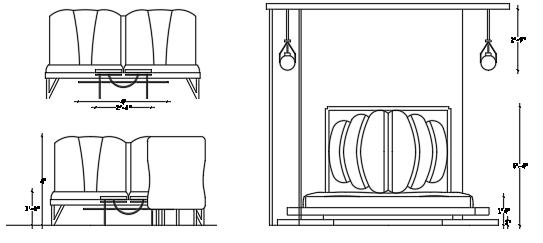

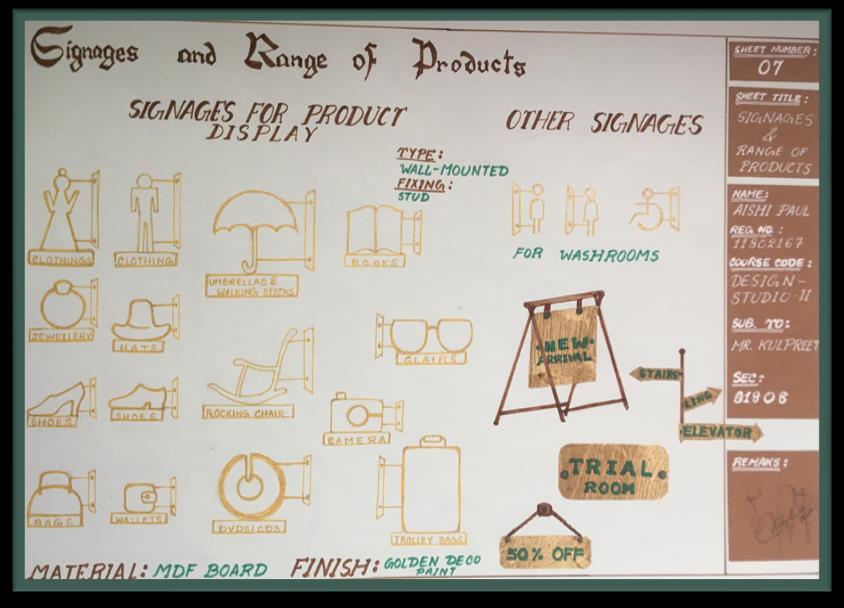

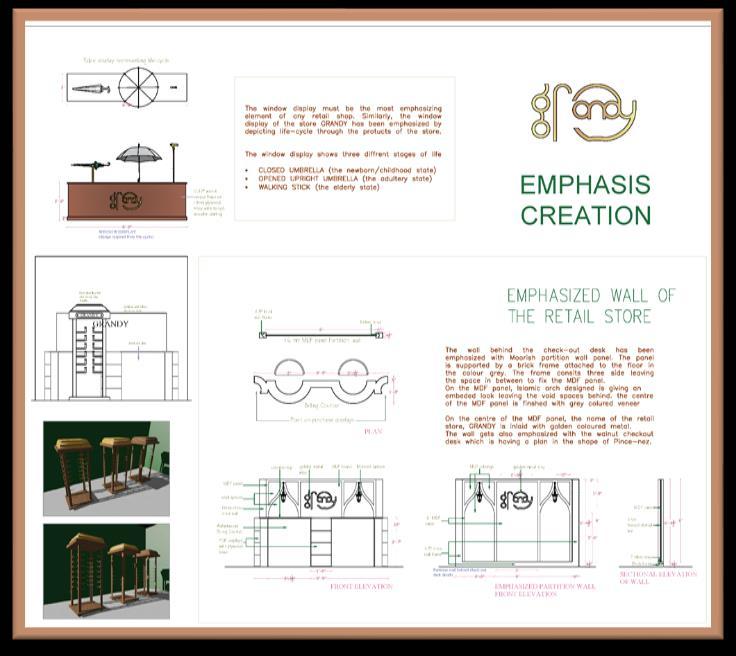

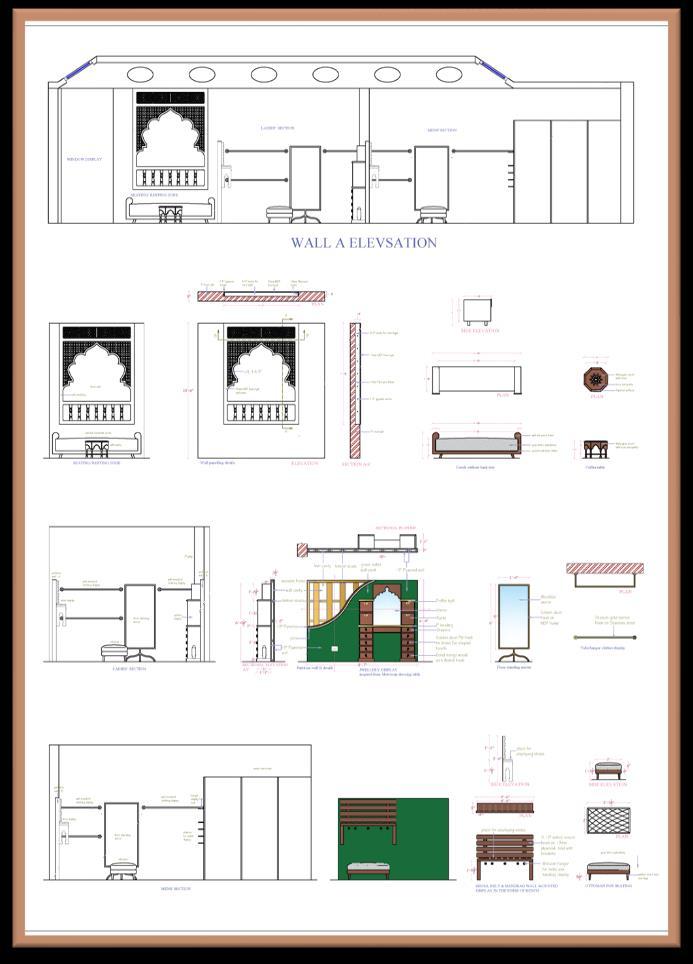

Detailed wall elevations and furniture plan, elevation and material details.
ELEVATIONS & SECTIONS

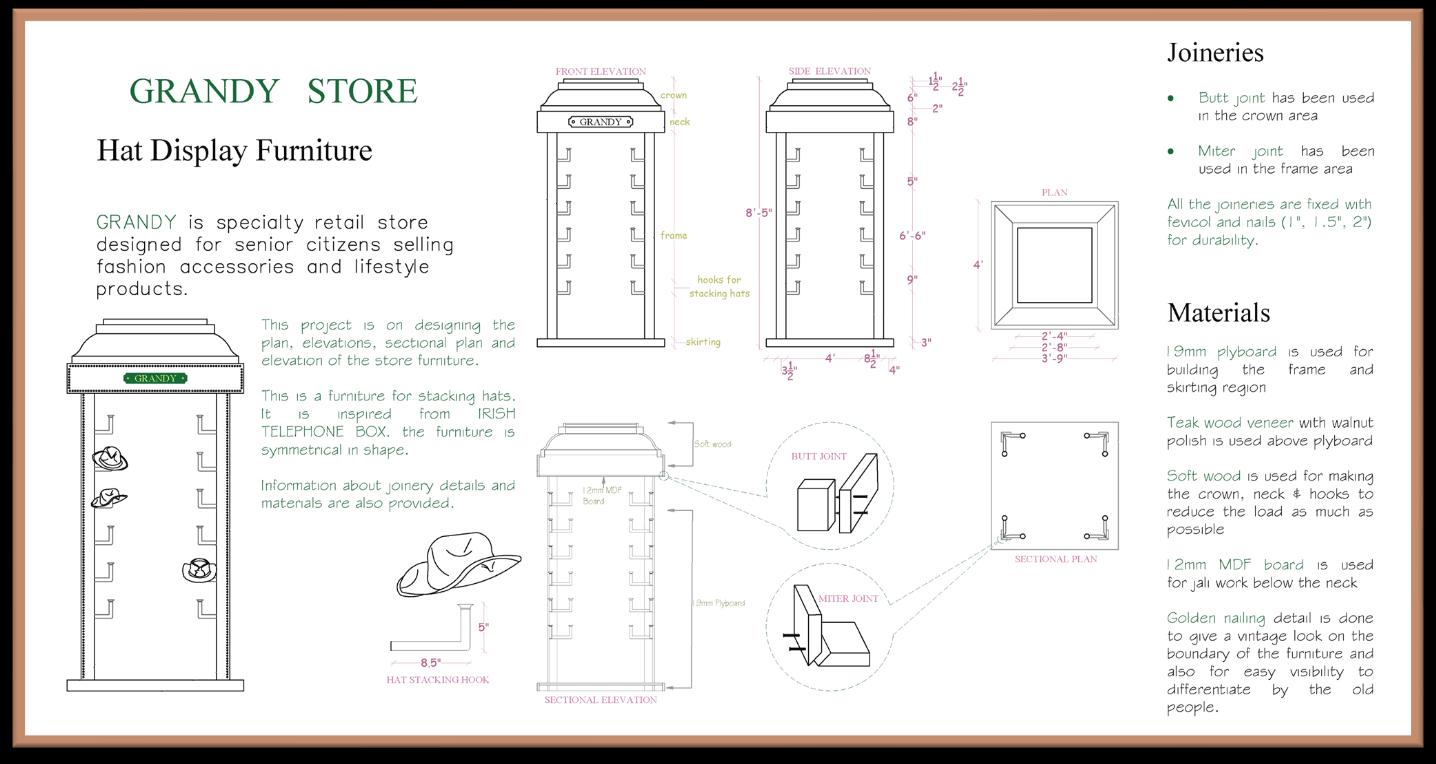

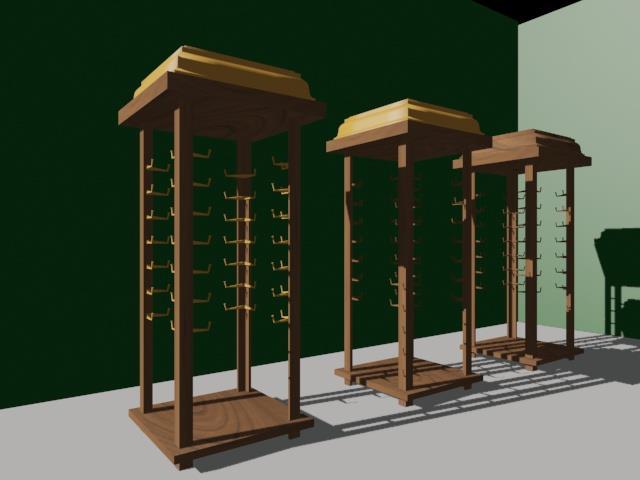

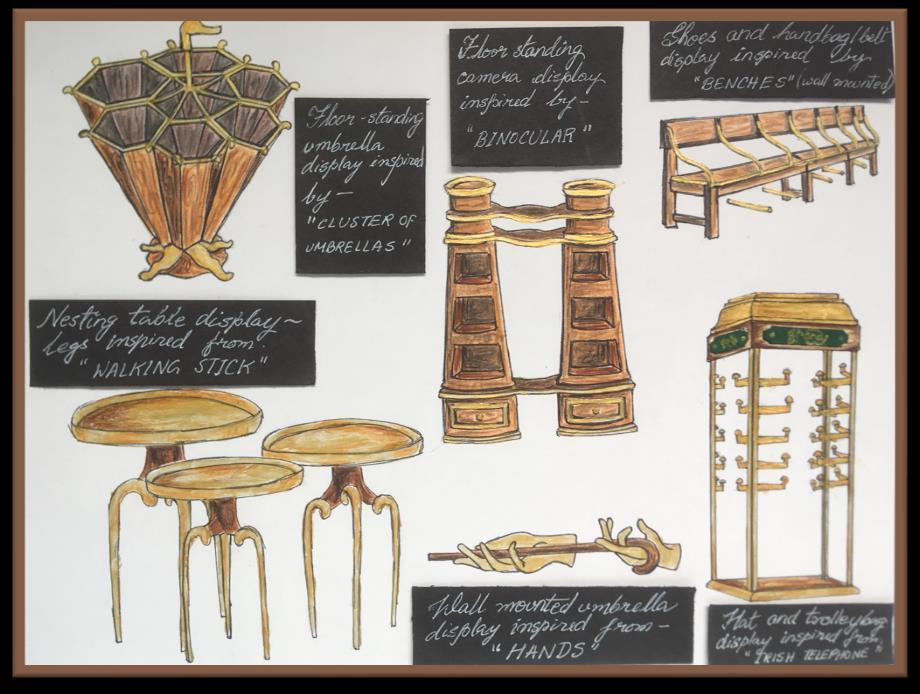

FURNITURE DESIGN

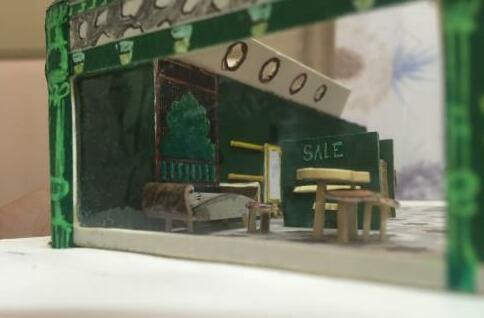

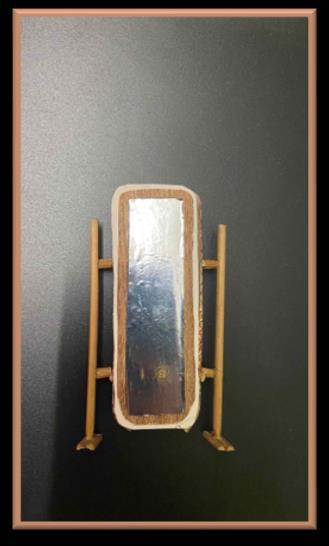

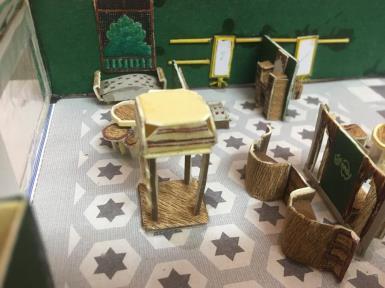

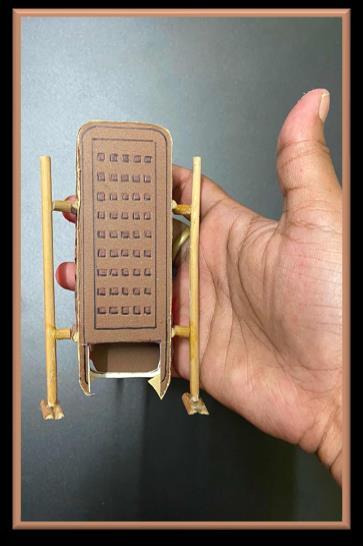

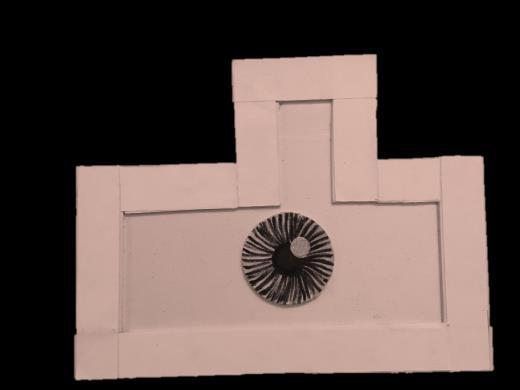

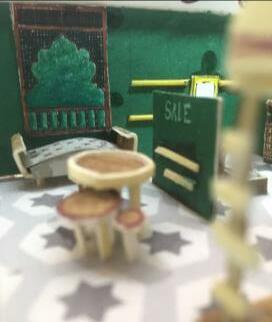

MINIATURE REDUCED SCALE 3D MODEL Façade view of the store & window displays Sitting area & sale displayproductzone Interior storythroughviewclearwindow Different perspective journey of the store. Cruise collection display & Billing counter Umbrella, Walking Stick & Book Display Hat stacking & Trolley scaleDisplaybag(reducedprototype)
RESIDENTIAL
Color pallet (light color

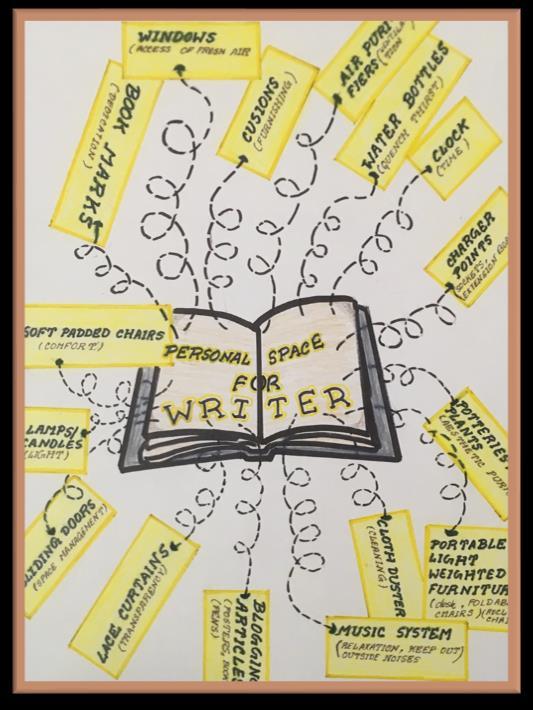

Brain storming
Inspiration All elements were inspired from feather which represents balance, hope, good luck
PERSONALDESIGNSPACE
ThemedecorativeElegantcurves
In the project Personal Space Design, a personal space was designed in an existing bed room.
Mood board

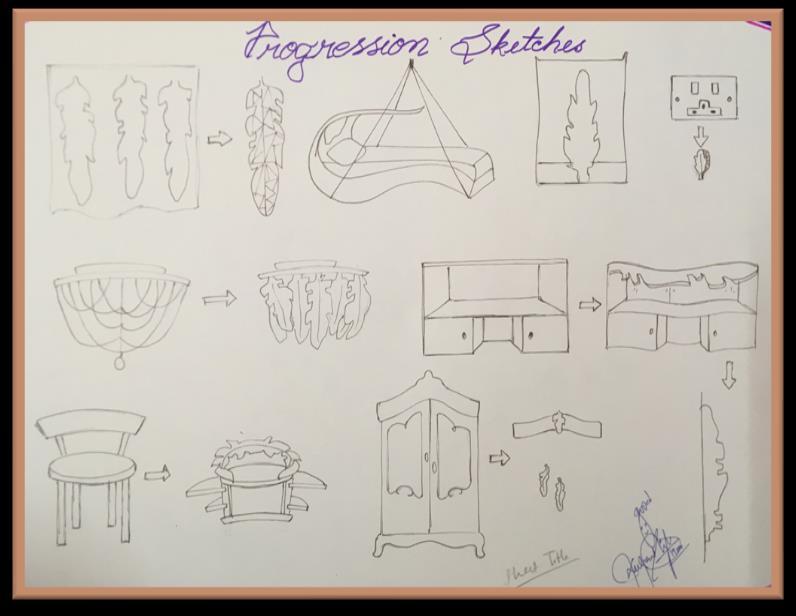

Progression
sketches Concept sketches Material board

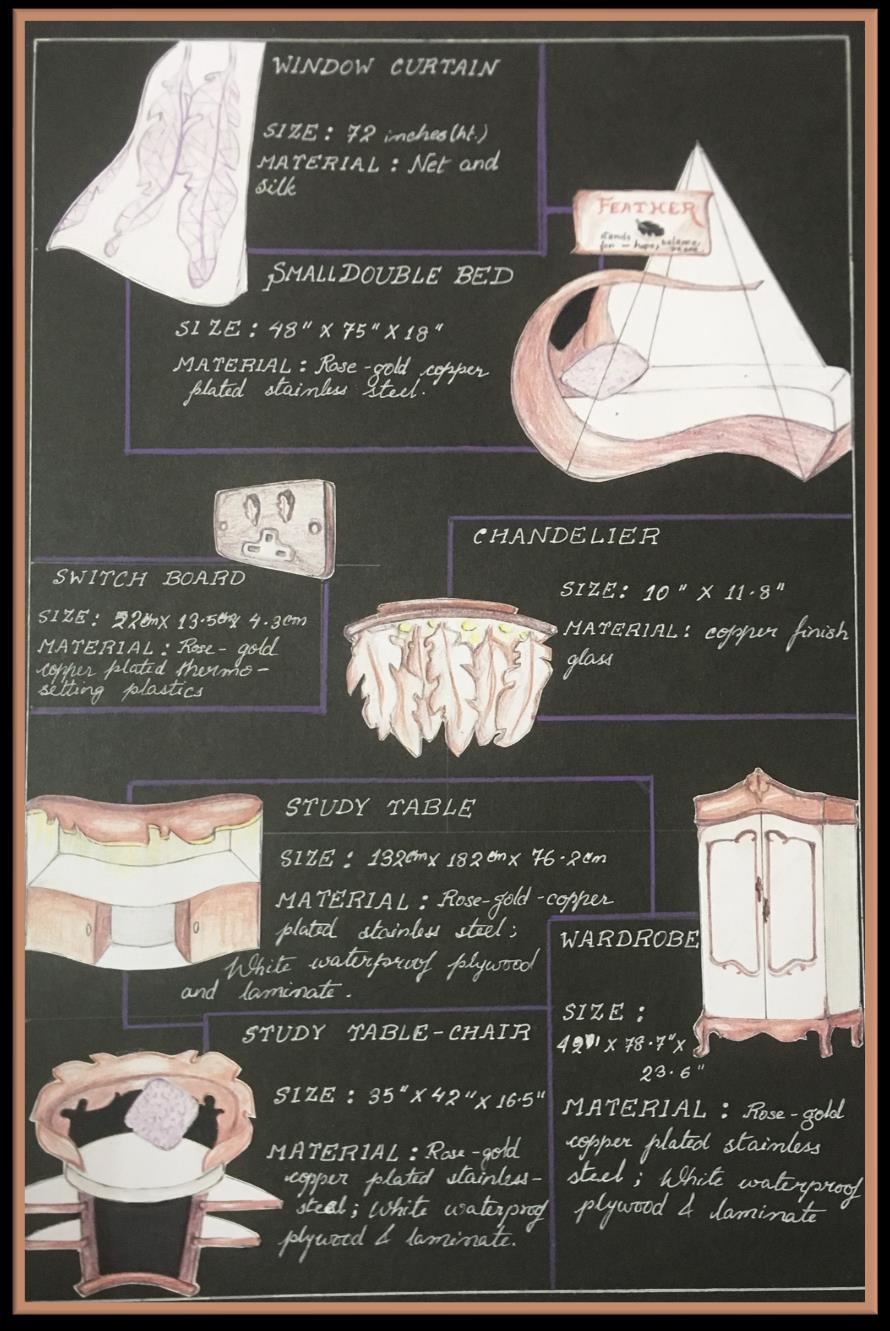

A Small personal space has been redesigned in the bay window of the bedroom. This was a space designed for a writer or who loves writing. So, that the fresh air can get into the room and he/she gets the amazing view outside and enjoying in writing.
RESIDENCE DESIGN
• Designed according to Vaastu.
• Closed kitchen
Client Rajasthani family dwelling in Jalandhar, Punjab Requirements-

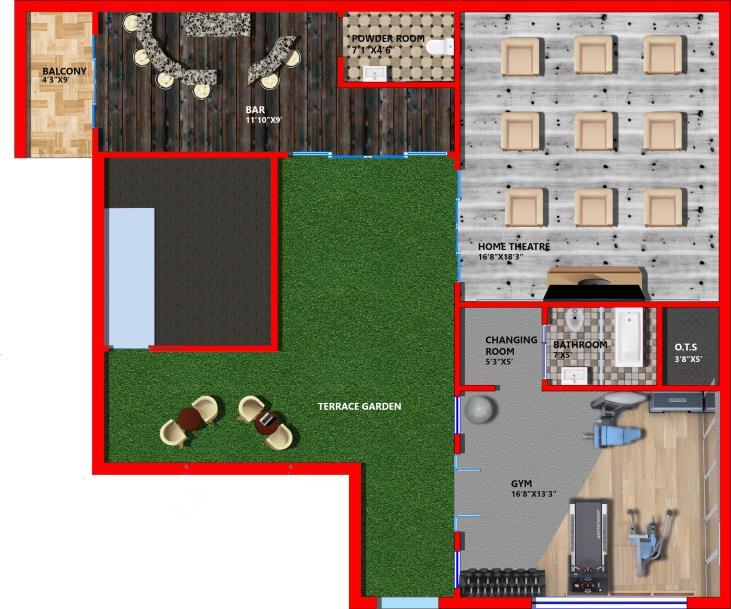

• Separate gym area, home theatre and bar; terrace garden.
Area- 46’ X 45’

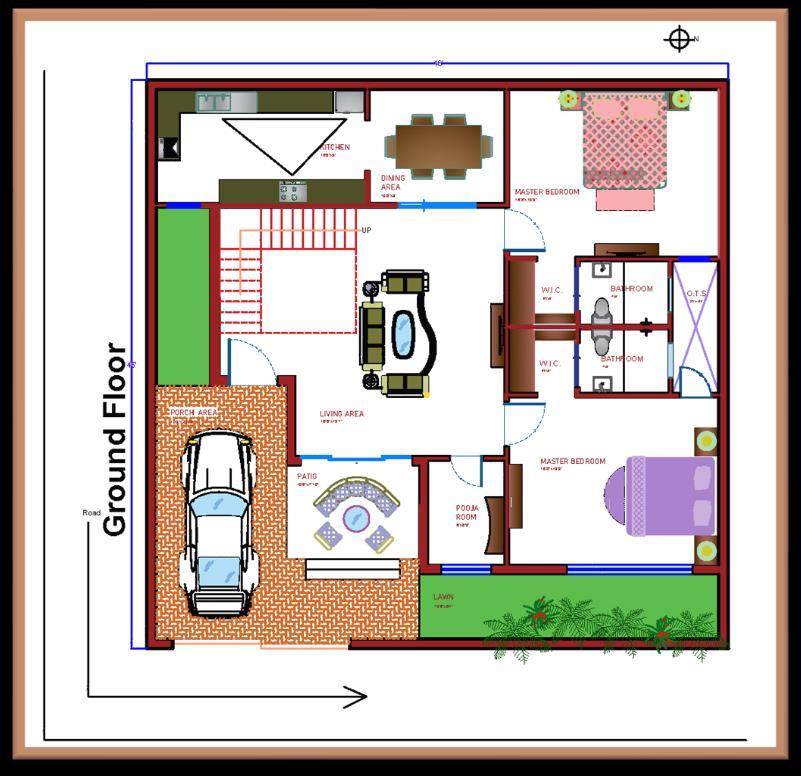

In the project Residence Design, floor plans of three storied residence and its wall elevations were designed.

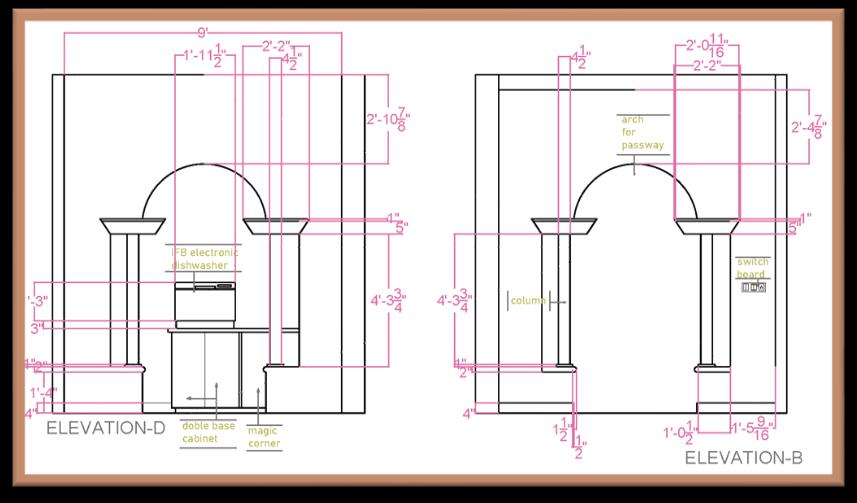

KITCHENDESIGN

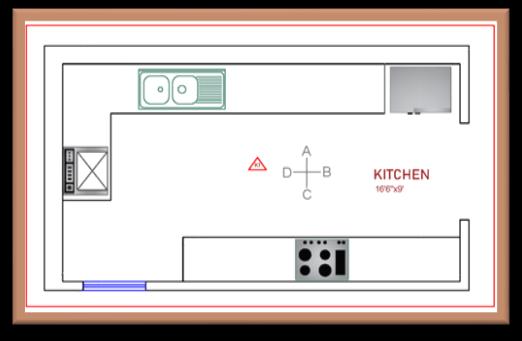

The closed kitchen is designed at the ground level. Kitchen has black Scandivian design theme with warm golden countertop slab and grey flooring.

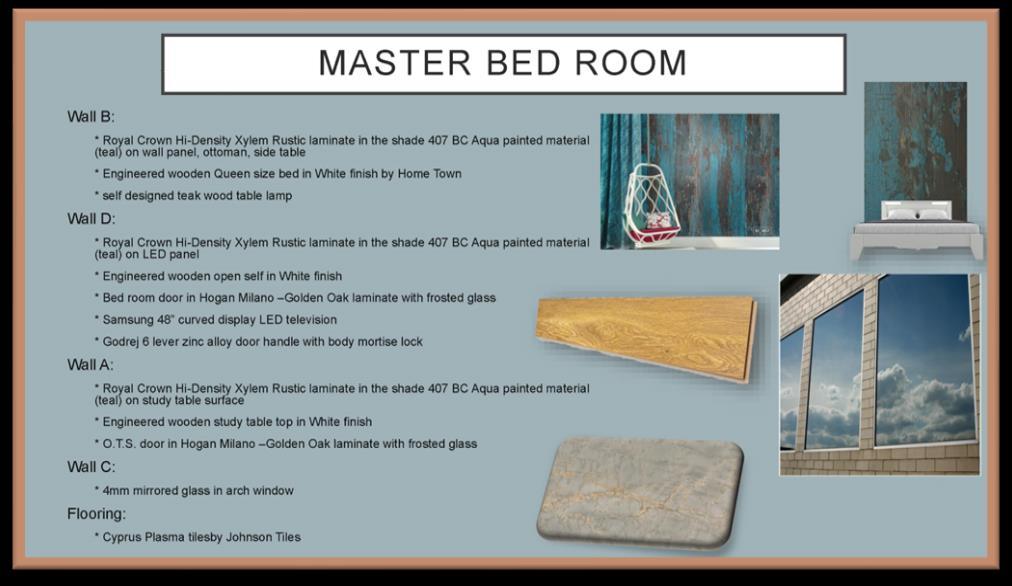

The master bedroom is designed at the ground level. Bedroom is having teal rustic look with white laminated finish on shelves and grey flooring.
MASTERDESIGNBEDROOM
The family bar is designed at the attic level. The bar has antique theme with onyx backlit counter top which attracts the eye of the viewer.

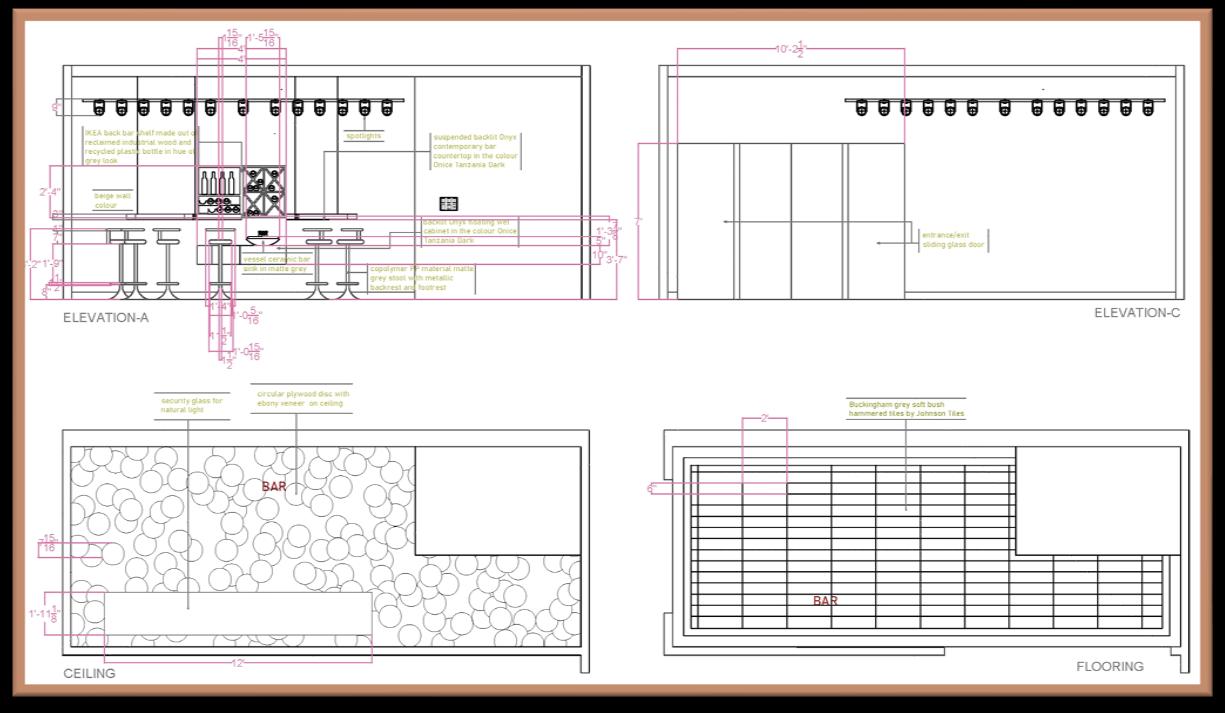

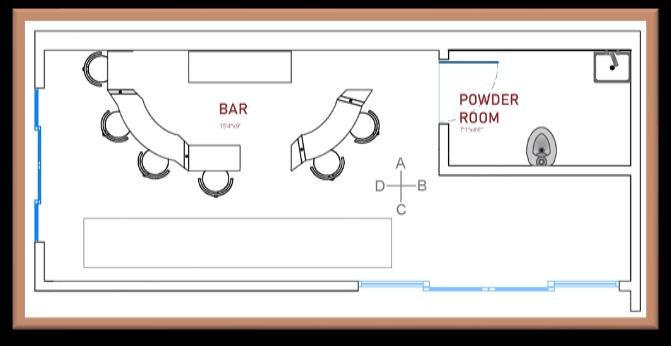

BAR DESIGN
Merino Irish Cream 21027
Fusion Mint
Brown fluted glass with black metal profile
Merino nougat bristling walnut 1160

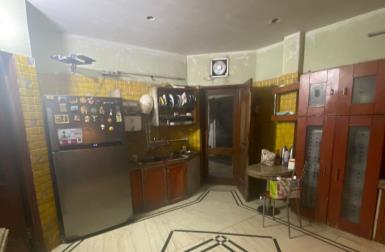

3D VISUALISATON- RENOVATION OF KITCHEN
&FURNITUREPRODUCT
Mood Board

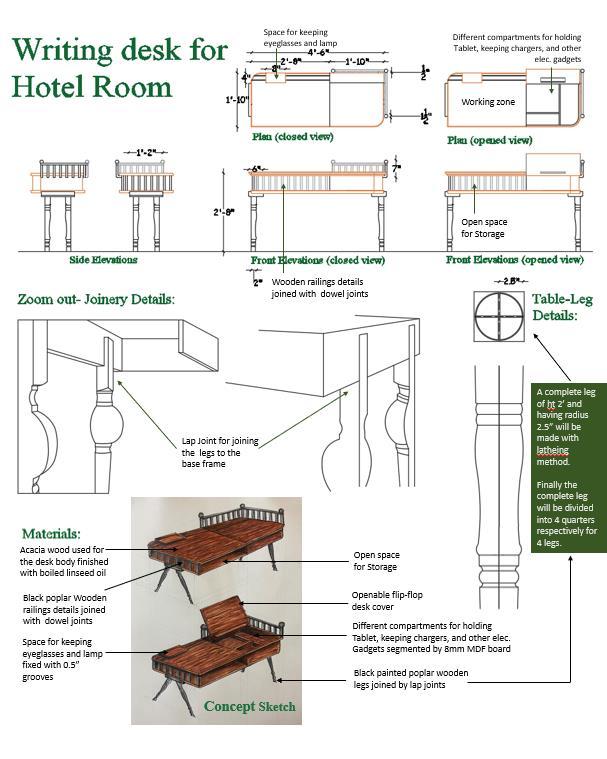

The writing table is designed with Acacia, Poplar wood and 8mm MDF.
Material Details
Ergonomics- The writing has been designed on the basis of organizational ergonomics. It prevents devices like chargers, earphones, notepads to get cluttered on the table top and also has a flip flop which hides the different compartments below it.
SketchesConceptual

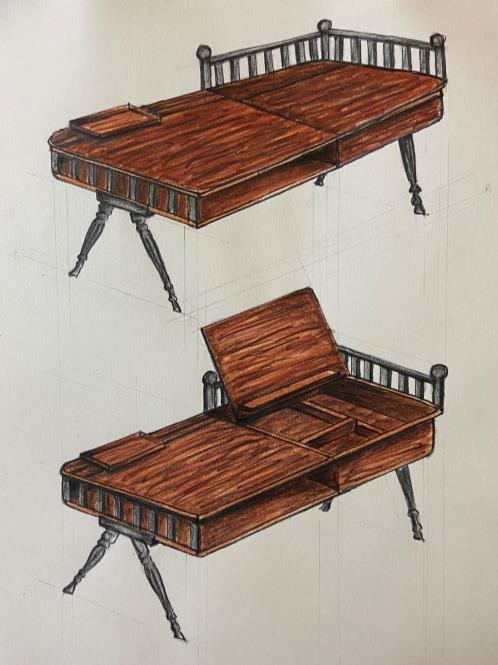

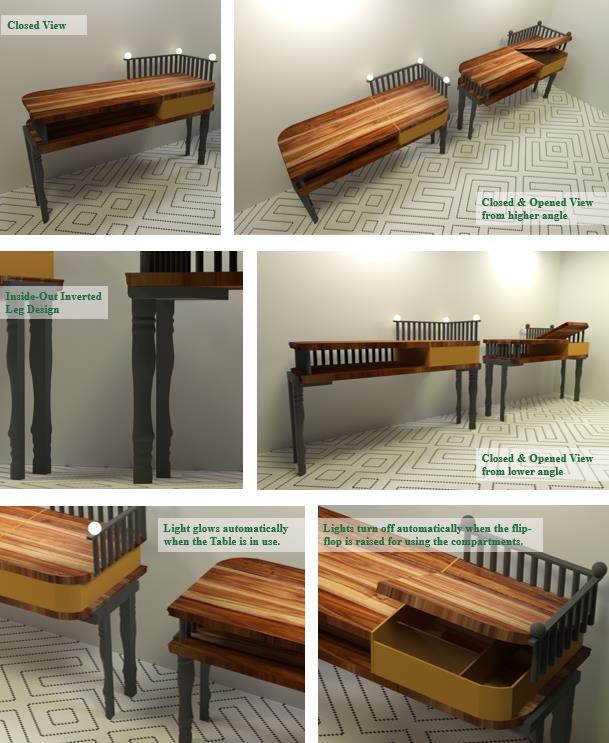

WRITING TABLE
Inspiration British colonial architectural Conceptelements- The concept of making this writing table is to provide a separate working zone in the hotel room.
The process and the techniques with joinery details for making the furniture has been shown here
Concept The concept of making this corner shoe storage provides ease in accessing shoes near the entrance.

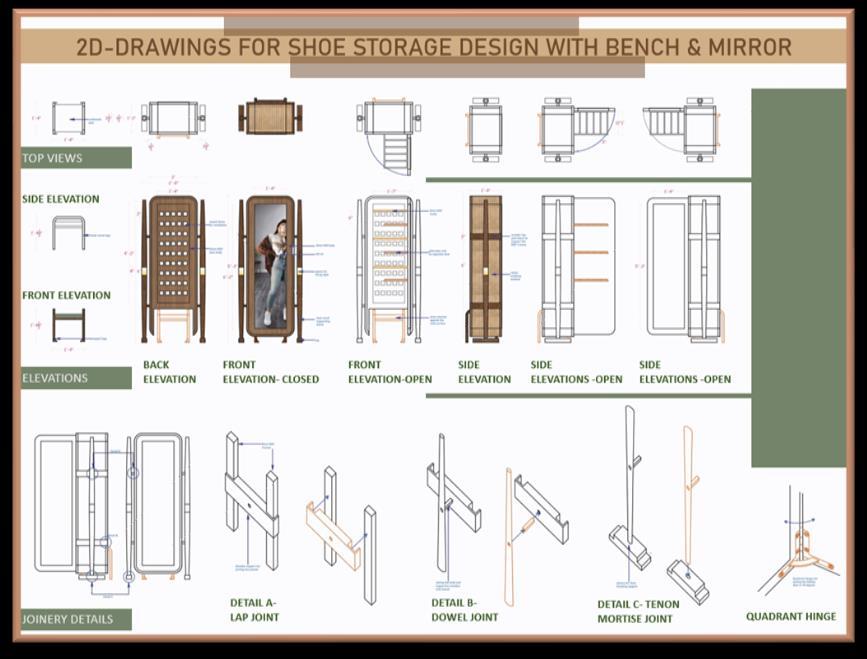

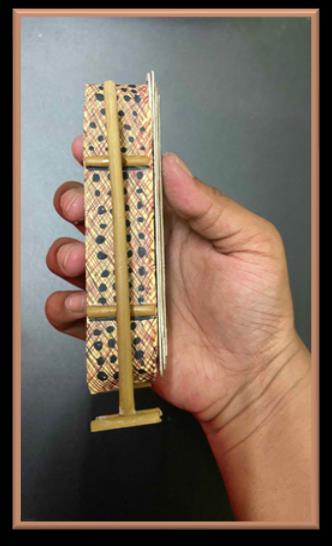

SHOE STORAGE
SketchesConceptual

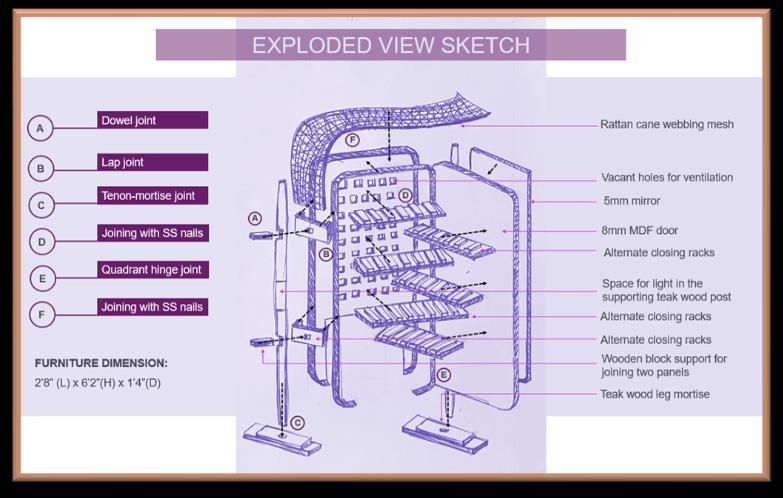

viewExploded
Ergonomics- The shoe storage has been designed on the basis of organizational ergonomics. It prevents shoes to get cluttered in the floor and also has a stackable shoe bench and mirror to visualize the overall outfit.

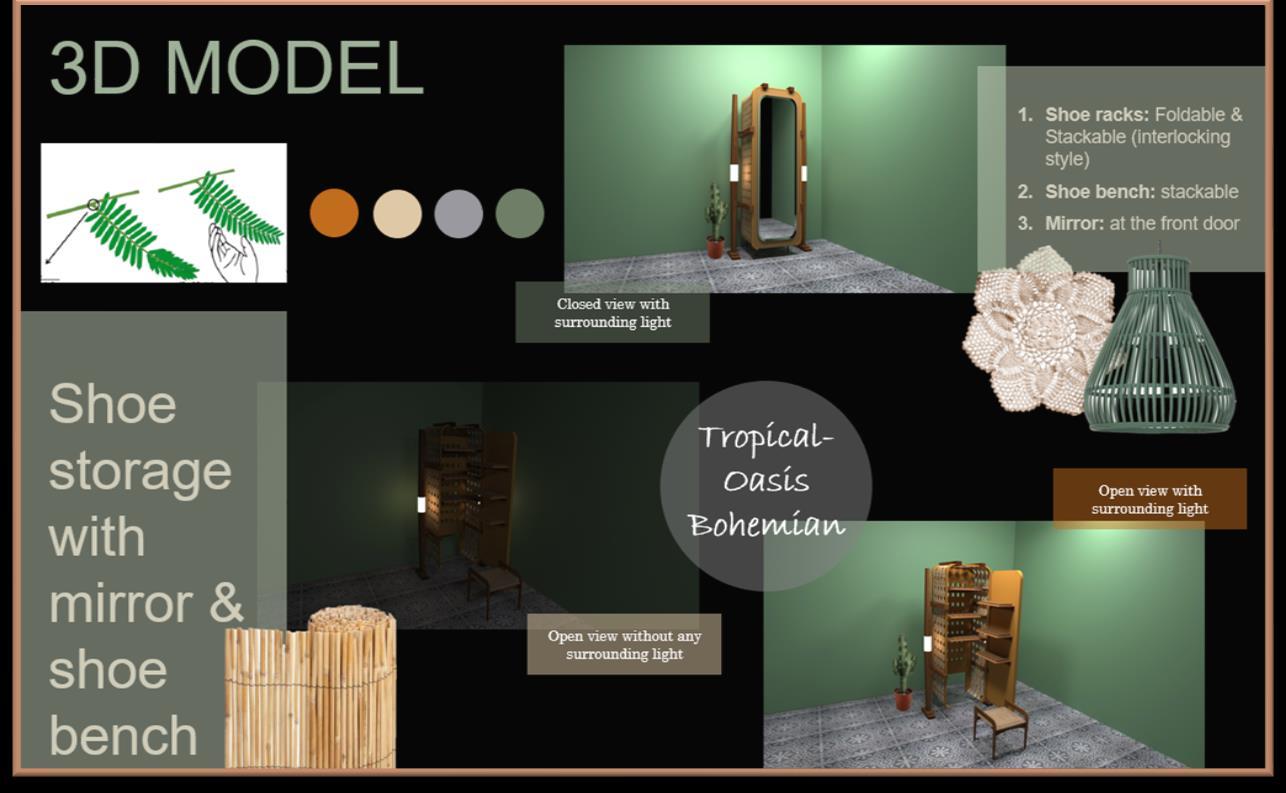

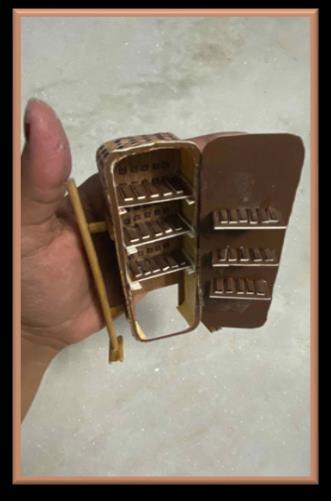

The shoe storage is designed with both foldable and stackable facilities.
Inspiration Touch me not leaf
BoardMood
The process and the techniques with joinery details for making the product has been shown here ▪ Joinery details ▪ 3d model ▪ Prototype model
Inspiration- The chair design has been inspired from ‘tortoise’ .
Dimension- The furniture occupies an area of 3 feet by 3 feet and having siting height of 1 feet from the floor.
Design Well, as it is mentioned that it got the shape inspired from tortoise. Basically, it has been designed in hexagonal geometric shape. The legs are not typically made in the animal’s form. The circular cut outs are in the shapes found on the shell of tortoise. The upholstery has traditional and tribal embroidery ‘Phulkari’ and ‘Kotpad’

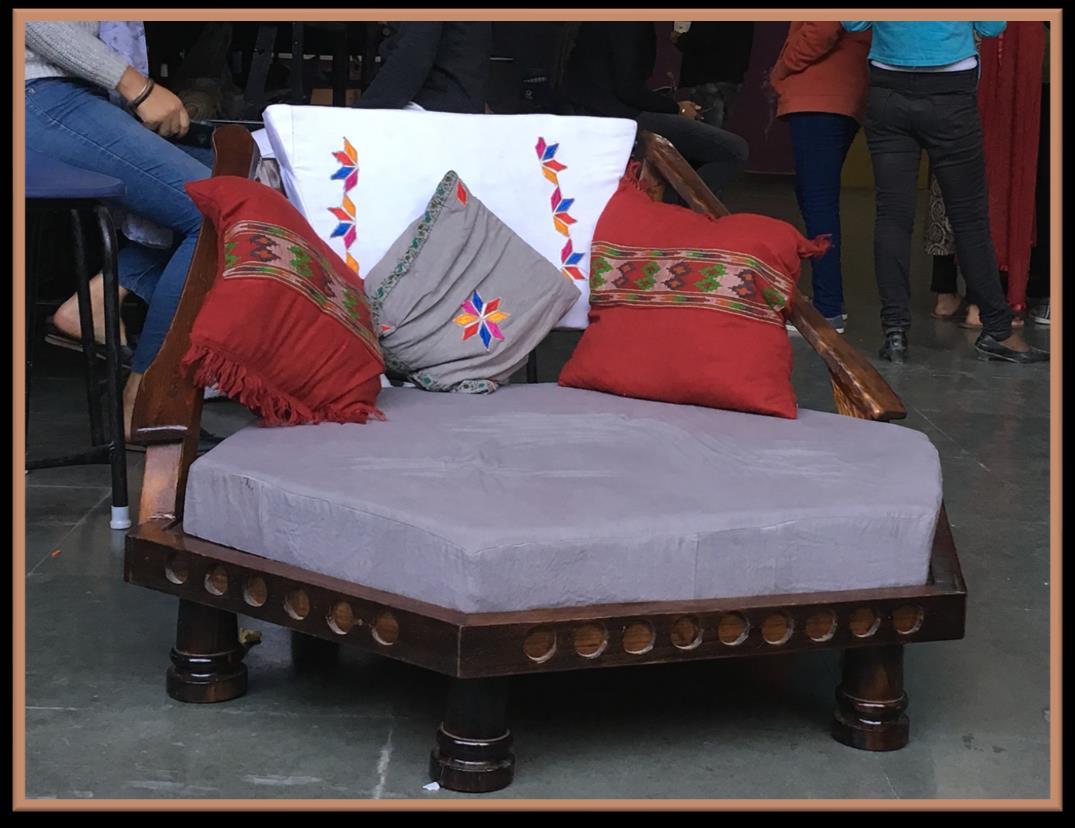

TORTUCA is the name given to this chair. The chair is particularly designed for commercial places like cafes, boutique shops and so on.
T O R T U C A
CHAIR DESIGN
Materials- Teak wood is used for the body and soft wood for arms and backrest. Cotton fabric is used for upholstery and finally walnut stainer for coating.
Procedure- Firstly wood blocks were cut and shaped for different purposes. After this grinding and smoothening were done for better finish. Joineries were made to fix the blocks with each other. The circular rim was burnt to get a rustic look. Finally, the furniture was stained and polished.
Other three members in making
Joineries and fixing details Lap joint, meter joint, tenon mortise joint and dowel joints are used to build up this furniture. Later, for extra strength different parts are adjoined with fevicol and resin.
Sarjeel Reyaz Ishita AhmadSinghShibili
Physical. The lamp shades are designed to hold the lights invertedly, so that light falls directly on the surface. It is also having compartment for holding mobile phone. The shade above the mobile space is smaller than the base for easy access in visual and hand movementsgetting the phone from there.

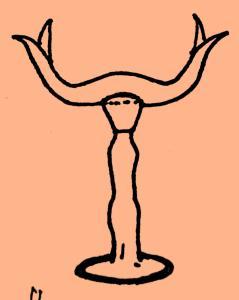

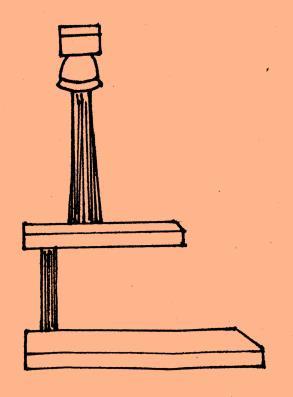

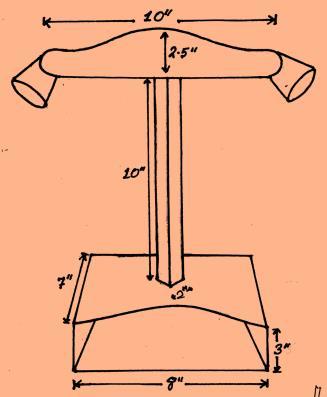

Sketches for different views
sketchesConcept
T E LL A M P
PRODUCT DESIGN

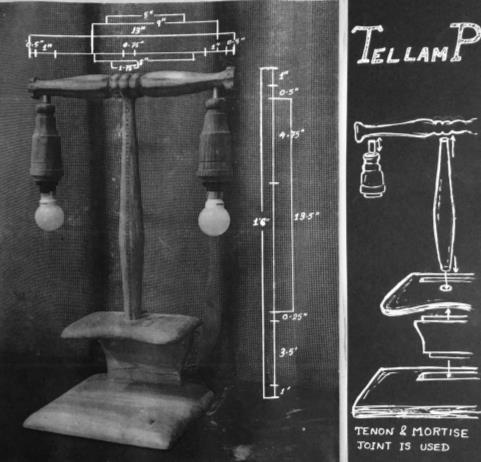

TELLAMP is a table lamp designed with antique and vintage details
Inspiration

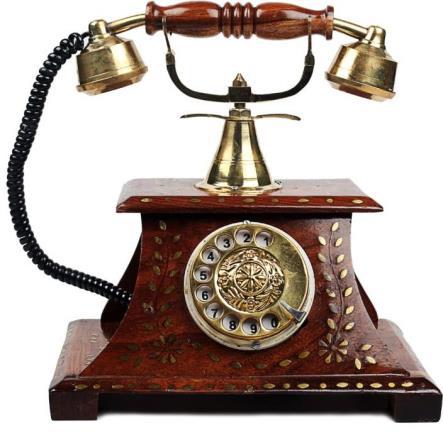

Inspiration The designed lamp has been inspired from a vintage telephone Concept- The lamp also has a concept of mobile holder by a different compartment at the Ergonomicsbase-
The process and the techniques with joinery details for making the product has been shown here ▪ Prototype model ▪ Fixing the joineries ▪ Installation of lights and wirings ▪ Concept measurementand sheet ▪ Showcase of Product T E LL A M P
Picture Courtesy: AISHI PAUL
ARCHITECTURAL

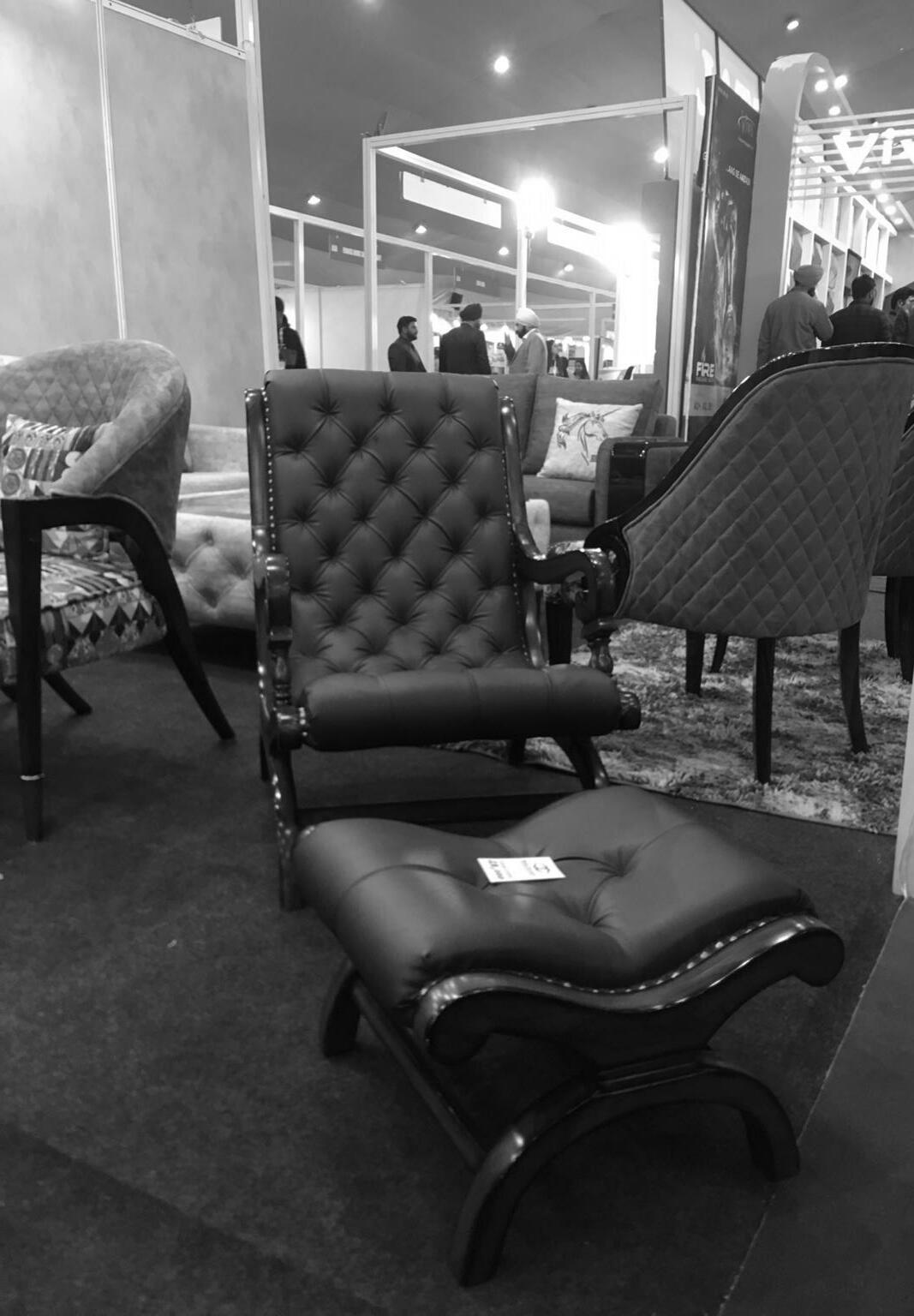

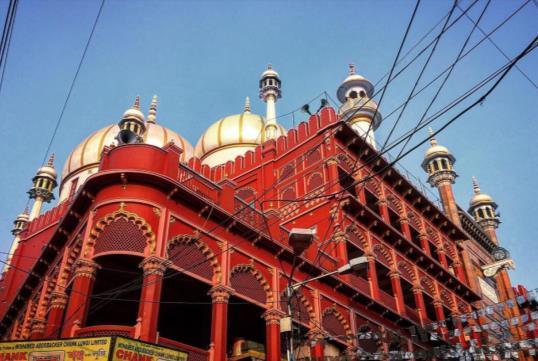

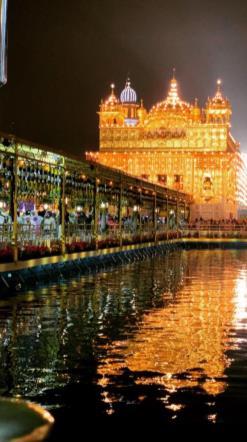

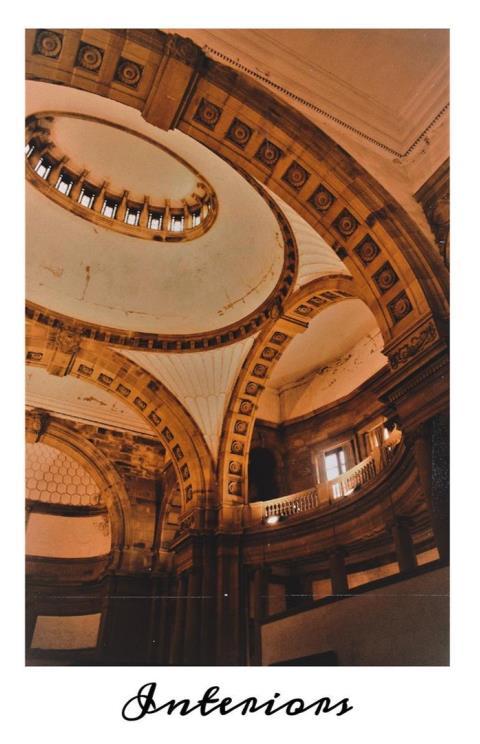

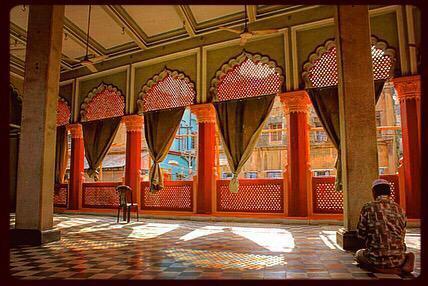

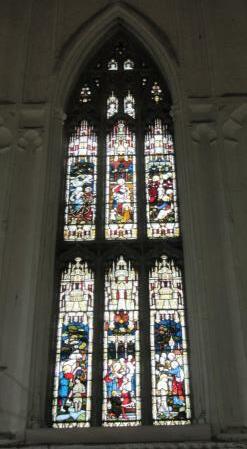

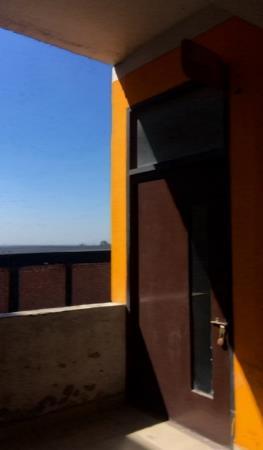

ARCHITECTURAL PHOTOGRAPHY

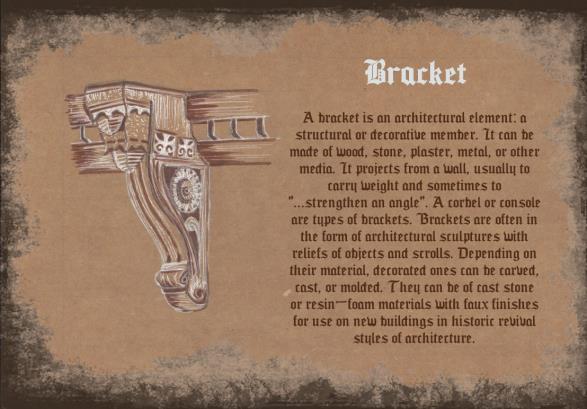

ARCHITECTURAL SKETCHES
DOCUMENTARYVIDEOS
VICTORIA MEMORIAL is a documentary based on the architecture and interior elements of Saracenic Architecture. https://www.youtube.com/watch ?v=cpRY72Eu64o
MAN OF TERRACOTTA is a documentary based upon the lifestyle of craftsmen and terracotta craftmanship of Bishnupur, West Bengal.
?v=Kv0KxAzweRQhttps://www.youtube.com/watch
VIDEO LINKS
▪ Blind sketches ▪ Charcoal sketches ▪ Portraits The
▪ Memory
SKETCHES
Explorations done highlighting hand skills in terms of sketching. sketches drawing sketches showcase the work done as a sort of interest.
These include ▪ Live
These artworks were done on the basis of basic of Design of Design
▪ Elements
ARTWORKS
▪ Principles
ILLUSTRATIONS
Softwares involved▪ Adobe Photoshop ▪ Adobe Illustrator
Illustration works have been displayed by the poster design, vector art, checks and stripes, tessellation, magazine cover, photo masking
Firstly, the logo design, visiting card design, brochure design, festive sales design, bag design. Lastly, designinginteriorofthe store and methodspromotion

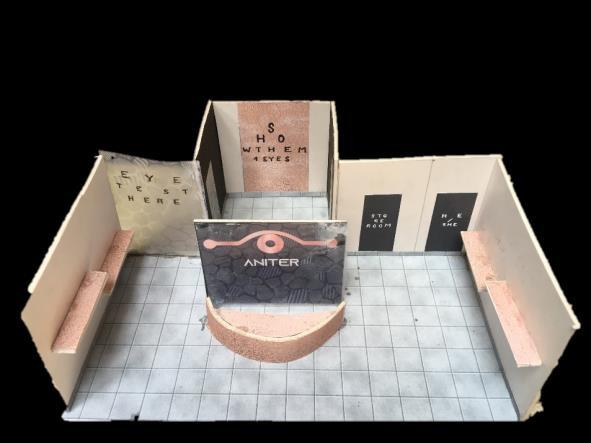

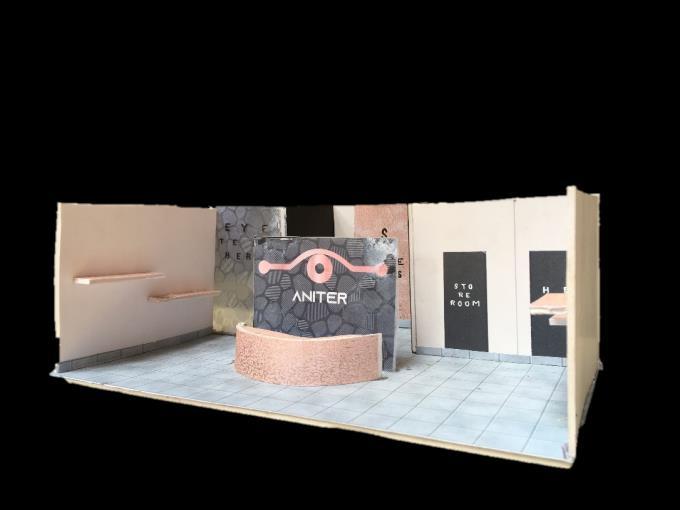

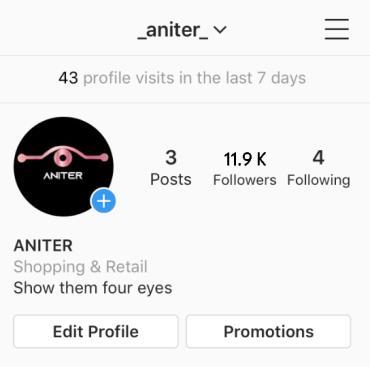

ANITER is an store designed for optical accessories.
BRAND DESIGN
It has a colour scheme of rose gold, black and white.
The project include
Picture Courtesy: AISHI PAUL
Thank you for reading, I really appreciate your time and support. Feel free to contact me for any kind of design project. and miles to go before I sleep...
So, these were some of my works from previous years. I hope you liked them, and may be we can together.work
