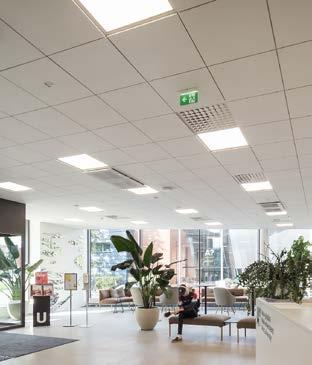

The new facilities at Aalto University in Espoo, Finland are primarily illuminated with Airam luminaires. The energy-efficient Plano Pro panels were installed in the university main entrance hall.
Airam
lighting

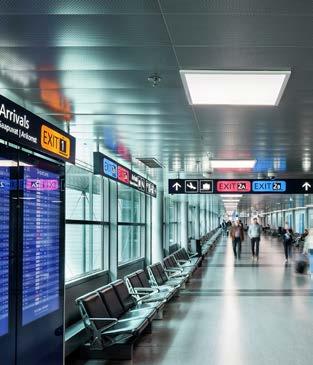

terminals at Finavia’s HelsinkiVantaa Airport as a wireless, Casambi-controlled complete solution.
New luminaires and lamps 2025
•

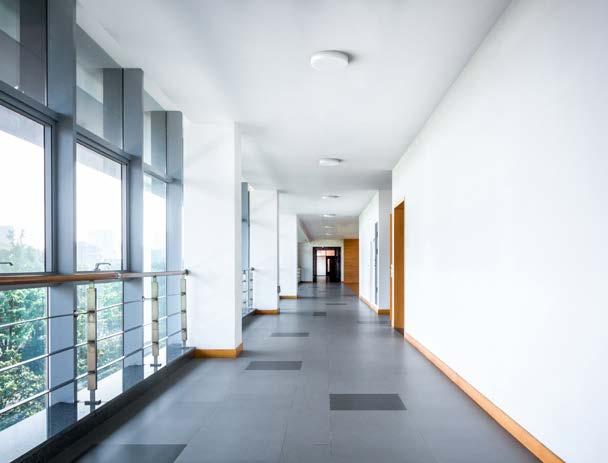

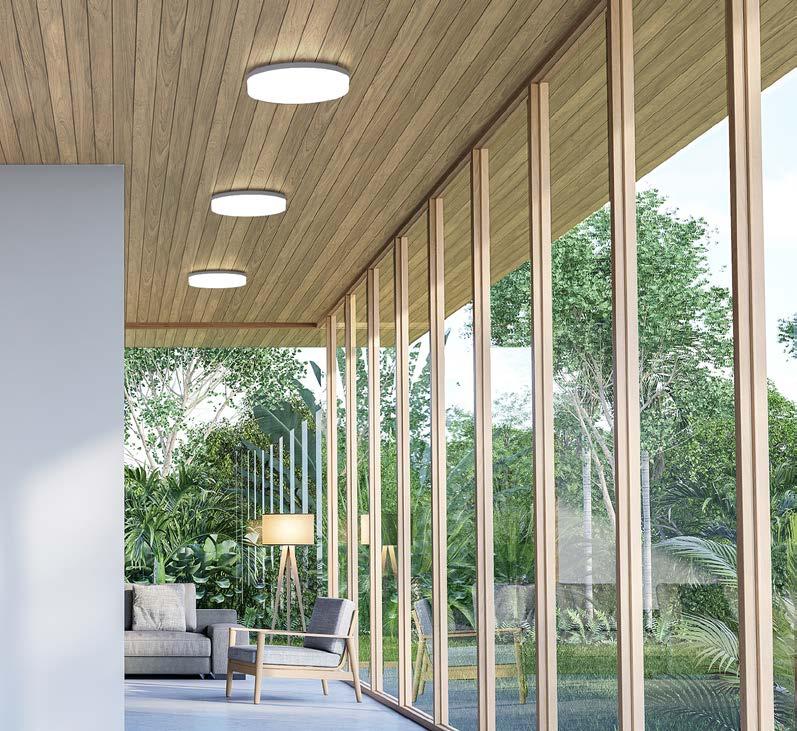

Pinea
Pinea is a universal luminaire made from renewable and recycled raw materials. Thanks to the responsible materials and top-notch energy efficiency, the product’s carbon footprint is smaller than that of a traditional equivalent luminaire. The housing is made of wood composite manufactured in Finland, which consists of cellulose fibers and biopolymer made from renewable materials. The raw materials are obtained from the side streams and residues of wood and pulp processing. The luminaire is highly energy-efficient, with 145 lm/W, and it is equipped with power switching. The housing and cover of Pinea, designed in Kerava, are pressed in Finland, and the product is manufactured at Airam’s factory in Lahti.
• Wood composite housing and diffuser made of recycled acrylic (ACO).
• White, RAL 110 96 02. Protection class II.
• Surface mounting on a wall or ceiling.
• Linking: 3 x 1,5/2,5 mm2
• Colour temperature 4000 K. CRI > 80 / Ra > 80.
• MacAdam 3 SDCM.
• IP20.
• IK05.
• Integrated LED: 6 W 840 lm / 11 W 1550 lm.
• Contains a light source of energy efficiency class A (210 lm/W).
The ambient temperature range 0 … 25 °C.
• Rated lifetime L80 100 000 h.
• In stock
Wood composite housing and diffuser made of recycled acrylic.
Compact XL
Compact XL is a versatile and high-quality downlight series that creates bright and evenly distributed light. The series is designed for public spaces, such as lobby areas and corridors, and especially for offices and educational institutions. The luminaires are designed to cause as little glare as possible, and their UGR value is less than 19. The luminaire is also suitable for renovation projects. The series offers four different sizes of luminaires, including a PIR model. The power and color temperature can be selected from several options. With three housing-colour options, you can select the models that best suit your needs. Also all RAL Classic colours for the housing are available to order. The luminaires are very energy-efficient and long-lasting, and they have a good lm/w ratio. Adaptor rings available as an accessory.
• Aluminium housing and diffuser, plastic lenses.
• White RAL 9016, black RAL 9005, grey RAL 7037.
• Protection class II.
• Recessed mounting in the ceiling.
• Linkable: on/off and Casambi 3 x 1,5/2,5 mm2, Pir 4 x 1,5/2,5 mm2 and Dali 5 x 2,5 mm2
Installation height 2–5 m.
• Fixed LED, wattage and lumen are selectable from the luminaire:
150 mm: 8 W 1150 lm, 10 W 1400 lm, 12 W 1700 lm, 14 W 1800 lm.
170 mm: 18 W 2700 lm, 20 W 3000 lm, 22 W 3300 lm, 24 W 3350 lm.
210 mm: 18 W 2650 lm, 20 W 2950 lm, 22 W 3200 lm, 24 W 3250 lm.
170 mm Pir: 6 W 1050 lm, 8 W 1100 lm, 10 W 1350 lm, 11 W 1500 lm, 12 W 1650 lm.
• Colour temperatures: 3000 K, 3500 K and 4000 K, selectable from the luminaire. CRI > 80 / Ra > 80.
• MacAdam 3 SDCM. IP20/IP54.
• IK03.
• On/off, Dali and Casambi.
Pir models work on a passive infrared sensor principle and are suitable for master/slave (M/S) installation, enabling the use of up to 3 slave luminaires.
• Ambient temperature range 0 … 25 °C.
• Rated lifetime L80 100 000 h (Ta25°C).
• Power source service life 50 000 h.
• Power source service life in DA- and CA-models 100 000 h.
By order, • In stock
Compact XL
• 4146960 A1EMB1 150 IP54 14W 3CCT WH 14 1800
• 4146961 A1EMB2 170 IP54 24W 3CCT WH 24 3350
• 4146962 A1EMB3 210 IP54 24W 3CCT WH 24 3250
Compact XL Dali
• A1EMB1-DALI 150 IP54 14W 3CCT DA2 WH 14 1800
• A1EMB2-DALI 170 IP54 24W 3CCT DA2 WH 24 3350
• A1EMB3-DALI 210 IP54 24W 3CCT DA2 WH 24 3250
Compact XL Casambi
A1EMB1-CA 150 IP54 14W 3CCT CA WH 14 1800 A1EMB2-CA 170 IP54 24W 3CCT CA WH 24 3350 A1EMB3-CA 210 IP54 24W 3CCT CA WH 24 3250
Compact XL sensor luminaires
• 4146963 A1EMB4 170 IP54 12W 3CCT PIR WH 12 1650
Compact XL
A1EMB5 150 IP54 14W 3CCT BK 14 1800 A1EMB6 170 IP54 24W 3CCT BK 24 3350 A1EMB7 210 IP54 24W 3CCT BK 24 3250
Compact XL Dali
A1EMB5-DALI 150 IP54 14W 3CCT DA2 BK 14 1800
A1EMB6-DALI 170 IP54 24W 3CCT DA2 BK 24 3350
A1EMB7-DALI 210 IP54 24W 3CCT DA2 BK 24 3250
Compact XL Casambi
A1EMB5-CA 150 IP54 14W 3CCT CA BK 14 1800
A1EMB6-CA 170 IP54 24W 3CCT CA BK 24 3350
A1EMB7-CA 210 IP54 24W 3CCT CA BK 24 3250
Compact XL
CODE W LM
A1EMG1 150 IP54 14W 3CCT GR 14 1800
A1EMG2 170 IP54 24W 3CCT GR 24 3350
A1EMG3 210 IP54 24W 3CCT GR 24 3250
Compact XL Dali
A1EMG1-DALI 150 IP54 14W 3CCT DA2 GR 14 1800
A1EMG2-DALI 170 IP54 24W 3CCT DA2 GR 24 3350
A1EMG3-DALI 210 IP54 24W 3CCT DA2 GR 24 3250
Compact XL Casambi
NO. CODE W LM
A1EMG1-CA 150 IP54 14W 3CCT CA GR 14 1800
A1EMG2-CA 170 IP54 24W 3CCT CA GR 24 3350
A1EMG3-CA 210 IP54 24W 3CCT CA GR 24 3250

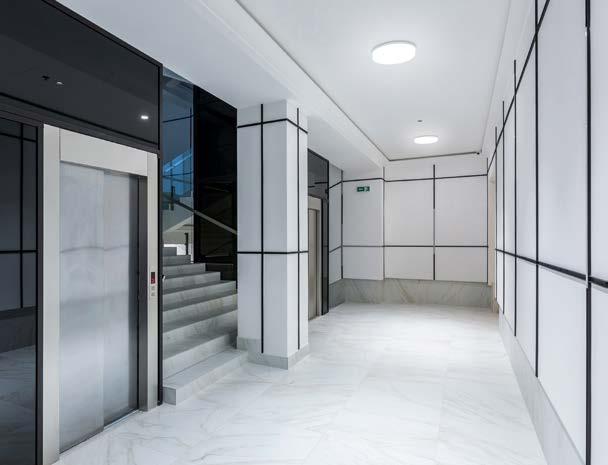

Compact XL - public space downlight
Compact XL series is a versatile solution for lighting public spaces. Wattage and lumen are selectable from the luminaire.
Compact XL Accessories
NO. CODE
• 4146716
A1EMS7 Adaptor ring 150/210 WH
• 4146976 A1EMS1 Adaptor ring 170/220 WH
• 4146977
A1EMS2 Adaptor ring 210/250 WH
A1EMS8 Adaptor ring 150/210 BK
A1EMS3 Adaptor ring 170/210 BK
A1EMS4 Adaptor ring 210/250 BK
A1EMS9 Adaptor ring 150/210 GR
A1EMS5 Adaptor ring 170/210 GR
A1EMS6 Adaptor ring 210/250 GR
Compact XL replaces 2-pin and 4-pin CFL fixtures

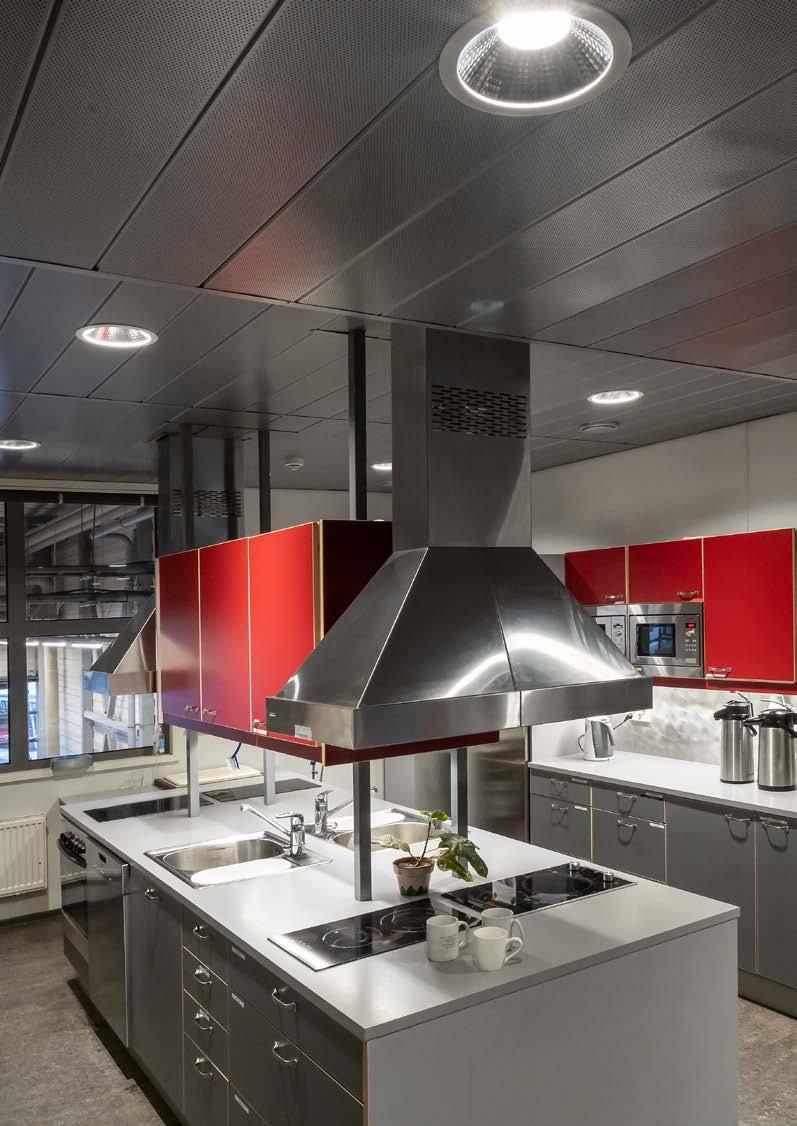

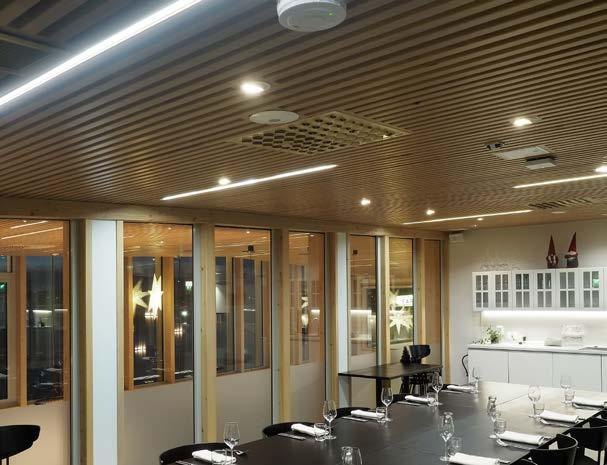

Compact XL was selected as the general lighting fixture for the kitchen at the Helsinki-Vantaa fire station. It is a versatile downlight and is particularly suitable for replacing old downlights with compact fluorescent lamps.
Direct S
Direct S is an energy-efficient and adjustable spotlight with a long lifespan. Its compact size, high-quality light, and excellent color rendering make it an excellent choice for public spaces. Applications include stores, shops, hotels and restaurants. Direct is installed on a track, making its installation easy and flexible. The luminaire has an almost invisible driver integrated directly into the track adapter. Adjusting the direction of the light beam provides options for illuminating different spaces; the luminaire is easy to move and redirect as needed.
• Aluminium housing. Reflector 36°.
• White, RAL 9010 and black, RAL 9005.
• Protection class II.
• Mounting on a Dali contact rail.
• Compatible Dali contact rails: Nordic Aluminium Global Pulse and Stucchi OneTrack.
• Installation height 3–6 m.
Colour temperatures 3000 K and 4000 K. CRI > 90 / Ra > 90.
• IP20.
• Integrated LED 15 W: 1700/1750 lm.
• MacAdam 3 SDCM.
• Accessories: reflector 20D, honeycomb anti-glare screen and two decorative rings, colour options gold and silver. Ambient temperature range 0 … 25 °C.
Direct M is an energy-efficient and adjustable spotlight with a long lifespan. Its compact size, high-quality light, and excellent color rendering make it an excellent choice for public spaces. Applications include stores, shops, hotels and restaurants. Direct is installed on a track, making its installation easy and flexible. The luminaire has an almost invisible driver integrated directly into the track adapter. The Direct M model is particularly well-suited for store lighting. Its light output and adjustability offer numerous options for illuminating store spaces; the luminaire is easy to move and redirect as needed. Adjusting the direction of the light provides options for illuminating different spaces; the luminaire is easy to move and direct as needed.
• Aluminium housing. Reflector 36°.
• White, RAL 9010 and black, RAL 9005.
• Protection class II.
• Mounting on a three-phase contact rail. Dali-2 models on a Dali contact rail.
• Compatible three-phase contact rails: Global Trac Pro, Unipro and Stucchi OneTrack.
• Compatible Dali contact rails: Nordic Aluminium Global Pulse and Stucchi OneTrack.
• Installation height 3–6 m.
• Colour temperatures 3000 K and 4000 K. CRI > 90 / Ra > 90.
• IP20.
• Integrated LED 20W: 2500/2700 lm.
• MacAdam 3 SDCM.
• Ambient temperature range 0 … 25 °C.
• Accessories: reflectors 20D and 65D, honeycomb anti-glare screen and two decorative rings, colour options gold and silver.
A1DIRN-CA IP20 3200lm 930 36D CA BK 26 3200 By order, • In stock
Direct M Accessories NO. CODE
• A1DIBE Decorative ring M GD
• A1DIBF Decorative ring M SI
• A1DIBD Honeycomb M
• A1DIBH Reflector NB M 20°
• A1DIBI Reflector WB M 65°

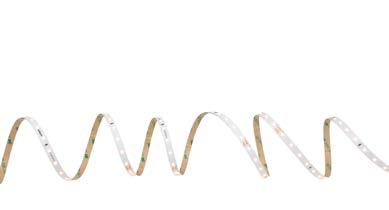

Apus 24V
Apus 24V is a high-quality and energy-efficient LED strip with excellent color rendering. The Apus strip creates a uniform line of light and offers numerous options for implementing indirect lighting. The long 15-meter model of the series allows for a continuous installation, which can be utilized in corridors and other locations requiring long installations, especially in public spaces. Applications include kitchens, living spaces, hotels, and restaurants. The series offers four different power levels with two color temperatures. By selecting the appropriate power supply, you can adjust the dimming of the LED strip as desired. It is also available with Casambi control, cut to length, and installed in a profile if necessary – customization is smoothly carried out at our factory in Lahti. The series includes accessories that make it easy to connect the strips. Both ends of the strip have a power cord, allowing you to create two ready-to-install LED strips by cutting it. The length of the power cord (3 meters) also allows the power supply to be placed in a discreet location.
• LED strip 24V, cut every 125 mm, 62,5 mm or 50 mm depending on the power.
• Protection class III.
• Length 5 m / 15 m.
• 3 m supply cable at both ends. Mounting on an aluminium profile.
• Colour temperatures 3000 K and 4000 K. CRI > 90 / Ra > 90.
• Accessories: 4147018 24V IP20 Connector 10 mm 3 m 5 pcs.
• Rated life time L70 50 000 h (Ta25°C).
• In stock
• Also available with the Casambi control system on a project-specific basis. Can also be cut to measure and installed in a profile, when necessary. Apus 24V
Norma 24V is a high-quality and energy-efficient LED strip for damp areas, with excellent color rendering. The strip creates a uniform line of light and offers numerous options for implementing indirect lighting. Applications include bathrooms and other damp areas, as well as terraces and balconies. There are two color temperature options available. By selecting the appropriate power supply, you can adjust the dimming of the LED strip as desired. It is also available with Casambi control, cut to length, and installed in a profile if necessary – customization is smoothly carried out at our factory in Lahti. The series includes accessories that make it easy to connect the strips.
• LED strip 24V, cut every 62,5 mm.
• Protection class III.
• Length 5 m.
3 m supply cable at both ends.
• Mounting on an aluminium profile.
• Colour temperatures 3000 K and 4000 K. CRI > 90 / Ra > 90.
• MacAdam 3 SDCM.
• IP20.
• 1100 lm/m 9,6 W/m.
• On/off, Push dim, Dali.
• Accessories: 4147021 Norma 24V Accessory bag.
• Ambient temperature range -25 … 25 °C. Rated life time L70 50 000 h (Ta25°C).
• Also available with the Casambi control system on a project-specific basis. Can also be cut to measure and installed in a profile, when necessary.
• In stock
4147021 Norma 24V accessory bag, includes 5 end caps with holes and 5 without holes.
Slimline Aluminum profile kit 2 m
Slimline Aluminum Profile Kit 2 m is designed for easy and versatile installation of led strips. The cleanly designed profile has a low structure and is suitable for 12 mm wide led strips. Surface installation on the ceiling, wall or, for example, on the lower surfaces of worktops. The kit also contains two ends with a hole and two closed ends and six mounting brackets, which enable two separate fixtures. Three color options.
• Suitable for use with LED strips with a maximum width of 12 mm and maximum height of 6 mm.
• The profile length is 2 m and it comes with an opal diffuser, with two end caps with the hole and two end caps without the hole and with six mounting brackets included.
• Check the compatibility table for our LED strips and profiles.
Slimline kit contains ends and mounting brackets
• In stock
Dimmable drivers 24V
New dimmable and Dali drivers are now available. The Dim IP20 version comes with a two-meter power cable and a Euro plug. DIM versions operate with leading and trailing edge control. Dali versions operate via Dali control or direct push-button control. IP67 versions can also be used outdoors.
• In stock
Dimmable drivers 24V Dim NO. CODE
• 4016042 A0TAAA CV-Driver 24V 25W IP20 DIM
• 4016043 A0TAAB CV-Driver 24V 50W IP20 DIM
• 4016044 A0TAAC CV-Driver 24V 100W IP20 DIM
• 4016045 A0TAAD CV-Driver 24V 150W IP20 DIM
• 4016048 A0TAAG CV-Driver 24V 100W IP67 DIM
• 4016049 A0TAAH CV-Driver 24V 150W IP67 DIM
DALI drivers 24V Dali NO. CODE
• 4016046 A0TAAE CV-Driver 24V 75W IP20 DA2
• 4016047 A0TAAF CV-Driver 24V 150W IP20 DA2
Compatibility of LED strips and profiles
1) Fits the profile, but profile can't be cut
2) Led-strip fits, but end cap does not fit
3) Requires a 24V power source
4) Requires casing (for outdoor use and areas with need for IP-rating)
5) Requires a 12V power source
6) IP20, suitability must be confirmed 7) Precise installation in
Compatibility of LED strips and power sources
24V 30W IP20 CA DIM
24V 60W IP20 CA DIM
A1LEAC-CA 24V 120W IP20 CA DIM
A1LEAA-CA-RGBW 24V 30W IP20 CA RGB+W
A1LEAB-CA-RGBW 24V 60W IP20 CA RGB+W
A1LEAC-CA-RGBW 24V 120W IP20 CA RGB+W
1) Fits the profile, but profile can't be cut in 45deg angle
2) Led-strip fits, but end cap does not fit
3) Requires a 24V power source
4) Requires casing (for outdoor use and areas with need for IP-rating)
5) Requires a 12V power source
6) IP20, suitability must be confirmed
7) Precise installation in middle of profile
8) Only for single channel use
9) Installation without end cap with hole

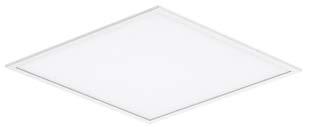

Plano Pro HE
Plano Pro HE is a highly energy-efficient and versatile modular luminaire suitable for a wide range of applications. The luminaire’s excellent colour rendering index, UGR value (<19) and IP44 class make it an ideal choice for almost any application. Thanks to its energy-efficiency, Plano Pro HE is suitable for public spaces such as corridors, lobbies and openplan offices. Because of its low UGR value, the luminaire can be used in schools, day-care centres and spaces where computers are used. The bottom part of the luminaire has an IP44 classification, making it suitable for dusty and humid spaces. A variety of accessories are available for the luminaire, including cover sheets for the round light opening and accessories for surface and recessed mounting.
• Mounting on a T-grid ceiling, recessed and surface mounting with accessories.
• Linkable: on/off and Dali-2 max 5 x 2,5 mm2, Casambi and ActiveAhead 3 x 2,5 mm2. On/off and Casambi ranges also available with 3-meter Europlug cable H03VVH2-F 2x 0.75 mm2
• Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
• MacAdam 3 SDCM.
• IP44.
• IK02.
• Power and luminous flux are selectable:
On/off: 22 W/3394 lm – 45 W / 6488 lm. (Factory setting 27 W / 4163 lm)
• Dali-2: 26 W / 4040 lm. Power and luminous flux can be customized within ranges of 14 W / 2070 lm – 33 W / 4975 lm.
• Casambi: 26 W / 4040 lm. Power and luminous flux can be customized within ranges of 22 W / 3394 lm –33 W / 4975 lm.
Helvar ActiveAhead® versions include PIR-sensor and light sensor 26 W / 4040 lm.
• Ambient temperature range 0 … 25 °C.
• Rated lifetime L80B10 100 000 h (Ta25°C).
• Power source lifespan 100 000 h.
• Accessories include three different colored surface mounting frames: white (4146973), black (A2PLKI) and gray (A2PLKJ). Also: flush mounting frame 600 x 600 (4297811), installation kit for concealed grid ceilings (4146933) and mounting
set (4146993). Also available cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30% (R500) and about 50% (R400).
PSMP
By order, • In stock
Plano Pro HE Casambi EU Plug PSMP (3 m cable)
A2PRCC-CAEU HE IP44 26W/830 PSMP CAEU WH 26 4040
A2PLKI
A2PLKJ grey
A2PLZA

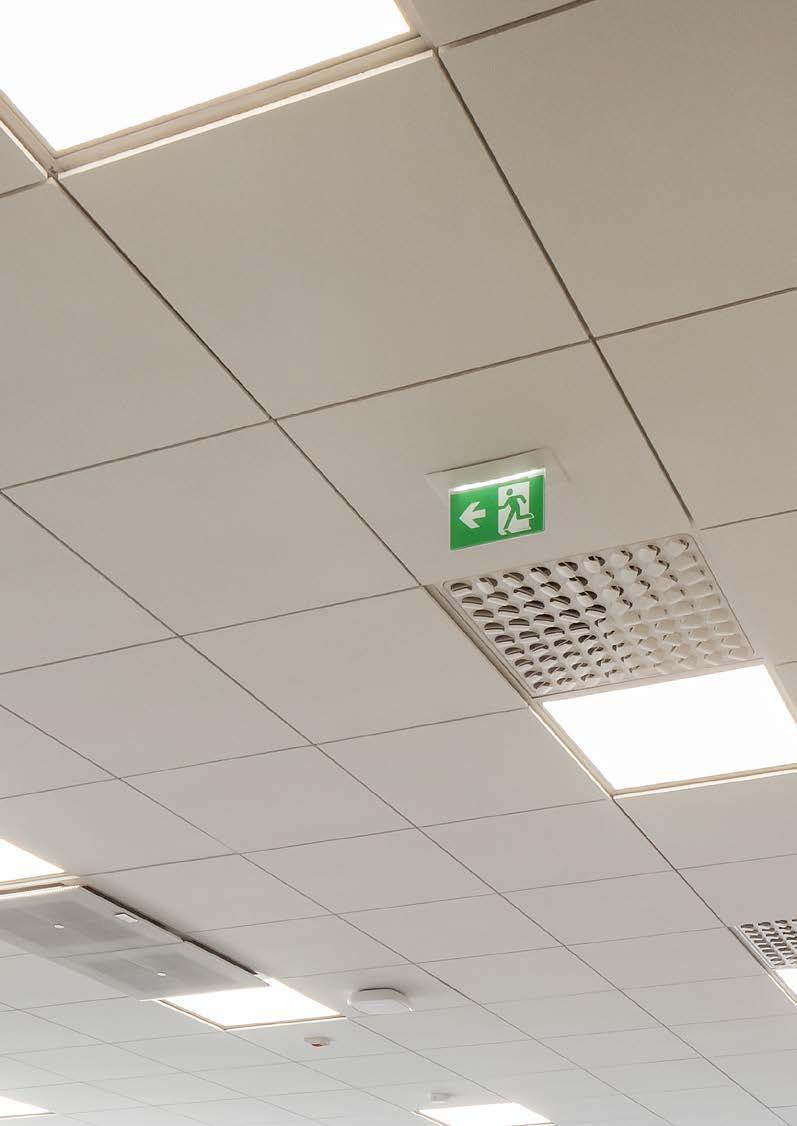

Plano Pro
Plano Pro is a new-generation, energy-efficient and versatile modular luminaire with a huge range of applications. The luminaire’s excellent colour rendering index, UGR value (<19) and IP44 class make it an ideal choice for almost any application. Thanks to its energy-efficiency, Plano Pro is suitable for public spaces such as corridors, lobbies and openplan offices. Because of its low UGR value, the luminaire can be used in schools, day-care centres and spaces where computers are used. The bottom part of the luminaire has an IP44 classification, making it suitable for dusty and humid spaces. A variety of installation accessories are available for the luminaire, including cover sheets for the round light opening and accessories for surface and recessed mounting. The luminaire is also available as a Tunable White version.
• Mounting on a T-grid ceiling, recessed and surface mounting with accessories.
• Linkable: on/off and Dali-2 max 5 x 2,5 mm2, Casambi and ActiveAhead 3 x 2,5 mm2, Dim 3 x 1,5 mm2
• Colour temperatures 3000K, 4000 K and Tunable White 2700–6000 K. CRI > 90 / Ra > 90.
• MacAdam 3 SDCM.
• IP44. ActiveAhead-models IP20. IK02.
• On/off: 27 W 3500 lm / 35 W 4500 lm.
• Dim: 31 W 4000 lm.
• Dali-2, Casambi and ActiveAhead: 27 W 3500 lm / 35 W 4500 lm / 45 W 5800 lm.
• Dali DT8 35 W 4300 lm.
• Casambi TW 35 W 4300 lm.
• On/off, Dim (trailing-edge dimming), Dali-2 with direct pushbutton control 230V and CLO functions, Casambi (Bluetooth mesh), ActiveAhead (self-learning wireless lighting control solution) and TW with Dali DT8- or Casambi-control.
• On/off and Casambi ranges also available with 3-meter Europlug cable H03VVH2-F 2 x 0.75 mm2
• Use with Dali-2-certified control devices is recommended. Maximum number of led drivers to be connected to one switch is 60 pcs. The length of the cable between the switch and the luminaire is max. 10 meters.
• Ambient temperature range 0 … 25 °C.
• Rated lifetime L70B50 100 000 h (Ta25°C).
• Rated lifetime L80B10 100 000 h (Ta25°C).
Rated lifetime L90B10 80 000 h (Ta25°C).
• Power source lifespan 100 000 h.
• Accessories include three different colored surface mounting frames: white (4146973), black (A2PLKI) and gray (A2PLKJ). Also: flush mounting frame 600 x 600 (4297811), installation kit for concealed grid ceilings (4146933) and mounting set (4146993). Also available cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30% (R500) and about 50% (R400).
• DIM = phase-cut dimming, TW = Tunable White.
• Cut-to-measure cables and a variety of quick-connector cable sets can be ordered on a project-specific basis.
Plata Pro MP is a long-lasting and energy-efficient modular luminaire with an excellent price-quality ratio. The light output can be adjusted via the power source switch, making it a versatile and flexible solution. Suitable applications include public spaces such as offices, classrooms, corridors, and lobbies. The luminaire is particularly well-suited for installations where it can be recessed into ceiling systems. Control options include on/off, Dali-2, and Casambi. The luminaire has a long lifespan of 100,000 hours and an energy efficiency of up to 125 lm/W.
• Mounting on a T-grid ceiling. Recessed mounting with accessories.
• Linkable on/off and Dali-2 max 5 x 2,5 mm2, Casambi 3 x 2,5 mm2
• Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
• MacAdam 3 SDCM.
• IP20.
• On/off: 19 W / 2400 lm – 37 W / 4600 lm. Luminous flux is selectable from the luminaire.
Dali: 12 W / 1500 lm – 40 W / 5000 lm. Luminous flux is selectable from the luminaire.
• Casambi: 34 W / 4300 lm.
• On/off, Dali-2, (direct pushbutton control 230V) and Casambi (Bluetooth mesh).
• Use with Dali-2-certified control devices is recommended.
• Maximum number of luminaires to be connected to one switch is 20 pcs. The length of the cable between the switch and the luminaire is 10 meters maximum.
• Ambient temperature range 0 ... 25 °C.
• Rated lifetime L70 100,000 h (Ta25°C).
• Rated lifetime L80 60,000 h (Ta25°C).
• Power source lifespan 100,000 h.
• Accessories include a surface mounting frame (4289994), concealed grid brackets PLK15 (4209537) and mounting set (4146993). The luminaires are also compatible with Plano surface mounting frames, which are available in three colours: white (4146973), black (A2PLKI) and grey (A2PLKJ). Also available: ceiling mounting frame 600 x 600 (4297811) and cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30 % (R500) and about 50 % (R400).
• Cut-to-measure cables and a variety of quick-connector cable sets can be ordered on a project-specific basis.
Versatile Plata Pro MP
Long-lasting and energy-efficient modular luminaire with an excellent price-quality ratio. The light output can be adjusted via the power source switch, making it a versatile and flexible solution.
By order, • In stock
Plata Pro MP
Plata
Plata Pro MP Casambi
Plata Pro MP EU-Plug ACMP (3 m cable)
A1PLAD-EU MP 37W/830 ACMP EU 37 4600
Plata Pro MP Casambi EU-Plug ACMP (3 m cable) NO. CODE W LM
A1PLAF-CAEU MP 34W/830 ACMP CAEU 34 4300
A2PLKI
Plata Pro OP
Plata Pro OP is a long-lasting and energy-efficient modular luminaire with an excellent price-quality ratio. The light output can be adjusted via the power source switch, making it a versatile and flexible solution. Suitable applications include public spaces such as offices, classrooms, corridors, and lobbies. The luminaire is particularly well-suited for installations where it can be recessed into ceiling systems. Control options include on/off, Dali-2, and Casambi. The luminaire has a long lifespan of 100,000 hours and an energy efficiency of up to 125 lm/W.

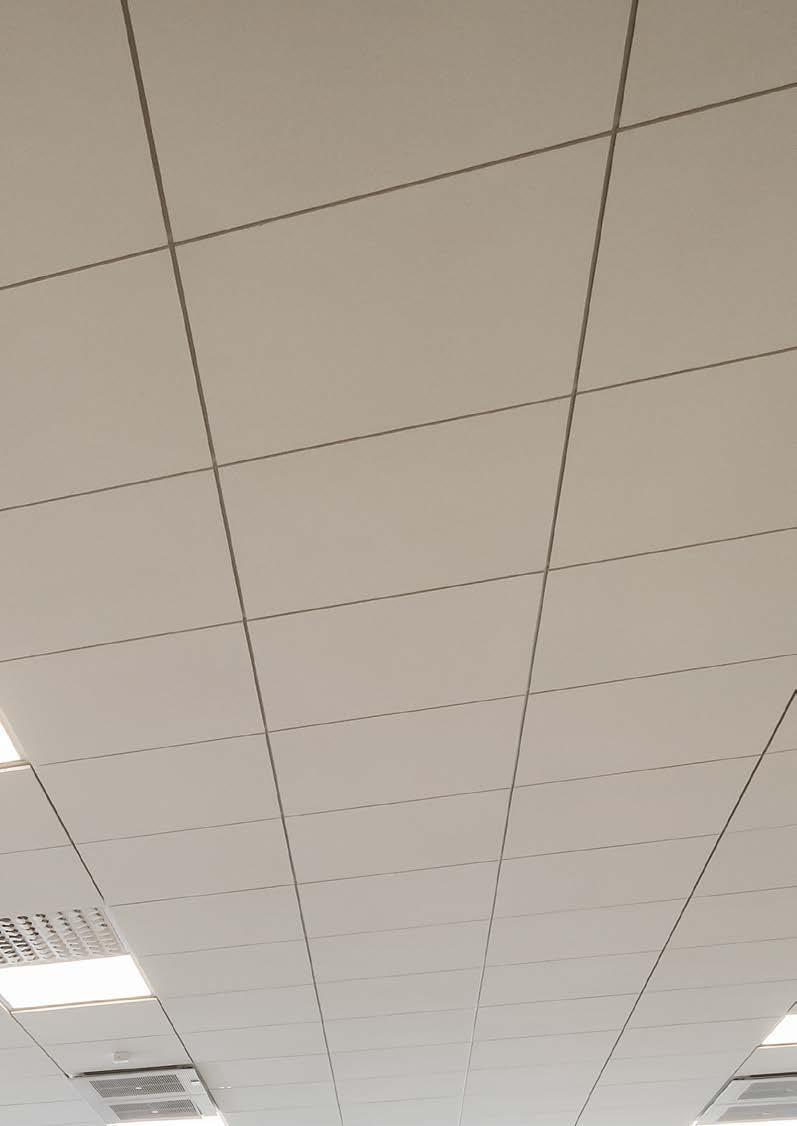

• Mounting on a T-grid ceiling. Recessed mounting with accessories.
• Linkable on/off and Dali-2 max 5 x 2,5 mm2, Casambi 3 x 2,5 mm2. On/off and Casambi ranges also available with 3-meter Europlug cable H03VVH2-F 2x 0.75 mm2
• Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
• IP20.
• On/off: 19 W / 2400 lm – 37 W / 4600 lm. Luminous flux is selectable from the luminaire.
• Dali: 12 W / 1500 lm – 40 W / 5000 lm. Luminous flux is selectable from the luminaire.
• Casambi: 34 W / 4300 lm.
• On/off, Dali-2, (direct pushbutton control 230V) and Casambi (Bluetooth mesh).
• Use with Dali-2-certified control devices is recommended.
• Maximum number of luminaires to be connected to one switch is 20 pcs. The length of the cable between the switch and the luminaire is 10 meters maximum.
• Ambient temperature range 0 ... 25 °C.
Rated lifetime L70 100,000 h (Ta25°C).
• Rated lifetime L80 60,000 h (Ta25°C).
• Power source lifespan 100,000 h.
Accessories include a surface mounting frame (4289994), concealed grid brackets PLK15 (4209537) and mounting set (4146993). The luminaires are also compatible with Plano surface mounting frames, which are available in three colours: white (4146973), black (A2PLKI) and grey (A2PLKJ). Also available: ceiling mounting frame 600 x 600 (4297811) and cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30 % (R500) and about 50 % (R400).
Cut-to-measure cables and a variety of quick-connector cable sets can be ordered on a project-specific basis.
Plata
Plata
Plata
PLATA ON/OFF
Plata & Plata Pro replacement
You can check the replacement models for the outgoing Plata series from the new Plata Pro series in the attached tables.
PLATA DALI
Outgoing Replacement Power switch
PSMP 4000K PLATA PRO MP W LM
4146639 Plata IP20 26W/840 PSMP
4146641 Plata IP20 33W/840 PSMP WH
4146815 Plata IP20 40W/840 PSMP WH
4146643 Plata IP20 45W/840 PSMP WH
4146645 Plata IP20 57W/840 PSMP WH
PSMP 3000K
4146638 Plata IP20 26W/830 PSMP WH
4146640 Plata IP20 33W/830 PSMP WH
4146814 Plata IP20 40W/830 PSMP WH
4146642 Plata IP20 45W/830 PSMP WH
4146644 Plata IP20 57W/830 PSMP WH
PSO 4000K
4146631 Plata IP20 26W/840 PSO WH
4146633 Plata IP20 33W/840 PSO WH
4146813 Plata IP20 40W/840 PSO WH
4146635 Plata IP20 45W/840 PSO WH
4146637 Plata IP20 57W/840 PSO WH
PSO 3000K
4146630 Plata IP20 26W/830 PSO WH
4146632 Plata IP20 33W/830 PSO WH
4146812 Plata IP20 40W/830 PSO WH
4146634 Plata IP20 45W/830 PSO WH
4146636 Plata IP20 57W/830 PSO WH
PSMP 4000K
4146655 Plata IP20 27W/840 DA2 PSMP WH
4146657 Plata IP20 34W/840 DA2 PSMP WH
4146808 Plata IP20 41W/840 DA2 PSMP WH
4146659 Plata IP20 46W/840 DA2 PSMP WH
4146661 Plata IP20 54W/840 DA2 PSMP WH
PSMP 3000K
4146654 Plata IP20 27W/830 DA2 PSMP WH
4146656 Plata IP20 34W/830 DA2 PSMP WH
4146807 Plata IP20 41W/830 DA2 PSMP WH
4146658 Plata IP20 46W/830 DA2 PSMP WH
4146660 Plata IP20 54W/830 DA2 PSMP WH
4146647 Plata IP20 27W/840 DA2 PSO WH
4146649 Plata IP20 34W/840 DA2 PSO WH
4146806 Plata IP20 41W/840 DA2 PSO WH
4146651 Plata IP20 46W/840 DA2 PSO WH
4146653 Plata IP20 54W/840 DA2 PSO WH
4146646 Plata IP20 27W/830 DA2 PSO WH
4146648 Plata IP20 34W/830 DA2 PSO WH
4146805 Plata IP20 41W/830 DA2 PSO WH
4146650 Plata IP20 46W/830 DA2 PSO WH
4146652 Plata IP20 54W/830 DA2 PSO WH
PLATA CASAMBI
Outgoing Replacement
PSMP 4000K PLATA PRO MP
A1UPAL-CA Plata IP20 33W/840 CA PSMP WH
A1UPAN-CA Plata IP20 45W/840 CA PSMP WH
A1UPAJ-CA Plata IP20 26W/840 CA PSMP WH > 4146980 34W/840 ACMP CA 7027998
A1UPAP-CA Plata IP20 53W/840 CA PSMP WH
PSMP 3000K PLATA PRO MP
A1UPAK-CA Plata IP20 33W/830 CA PSMP WH
A1UPAI-CA Plata IP20 26W/830 CA PSMP WH > 4147028 34W/830 ACMP CA
A1UPAM-CA Plata IP20 45W/830 CA PSMP WH
A1UPAO-CA Plata IP20 53W/830 CA PSMP WH
PSO 4000K PLATA PRO OP
A1UPAD-CA Plata IP20 33W/840 CA PSO WH
A1UPAB-CA Plata IP20 26W/840 CA PSO WH > 4147033 34W/840 ACO CA
A1UPAF-CA Plata IP20 45W/840 CA PSO WH
A1UPAH-CA Plata IP20 53W/840 CA PSO WH
PSO 3000K PLATA PRO OP
A1UPAC-CA Plata IP20 33W/830 CA PSO WH
A1UPAA-CA Plata IP20 26W/830 CA PSO WH > 4147034 34W/830 ACO CA
A1UPAE-CA Plata IP20 45W/830 CA PSO WH
A1UPAG-CA Plata IP20 53W/830 CA PSO WH
Optimus MP
Optimus MP is an excellent choice when you need a versatile and energy-efficient industrial luminaire. The luminaire has a low profile and a microprism diffuser that provides even light. The luminaire comes with a satin film that reduces glare and provides even light. You can increase the light output by removing the film. Optimus MP is suitable for industrial spaces, commercial buildings, warehouses, parking garages, carports, hallways and damp areas. The series has three different lengths and the power can be changed between four different options. The luminaire has an excellent lumen/watt ratio and lifespan.
• Housing made of steel and micro-prismatic diffuser of acrylic (ACMP).
• White.
• Protection class I.
• Surface mounting, suspension mounting with accessories.
• Throughwired 5 x 2,5 mm2: On/off, Radar M/S, Dali, Casambi (Bluetooth mesh) and ActiveAhead (G2 sensor).
• Radar M/S 1200 mm can be chained with a maximum of seven slave luminaires.
• Radar M/S 1500 mm can be chained with a maximum of five slave luminaires.
• PIR M/S can be chained with a maximum of nine slave luminaires.
Power of on/off, Radar and Pir models adjustable from the luminaire:
600 mm: 11 W / 1400 lm, 13 W / 1700 lm, 16 W / 2000 lm, 20 W / 2600 lm.
1200 mm: 23 W / 3200 lm, 29 W / 4000 lm, 35 W / 4900 lm, 40 W / 5600 lm.
1500 mm: 26 W / 3600 lm, 33 W / 4600 lm, 40 W / 5600 lm, 47 W / 6600 lm.
Power of Dali models adjustable from the luminaire:
600 mm: 11 W / 1430 lm, 20 W / 2600 lm.
1200 mm: 23 W / 3200 lm, 40 W / 5600 lm.
1500 mm: 26 W / 3600 lm, 47 W / 6600 lm.
By removing the satin film from the luminaire, the luminous flux increases by approximately 14 %.
• Mounting height 2–6 m.
• CCT changeable from luminaire 3000 – 4000 K. CRI > 80 / Ra > 80.
• IP44.
• IK07. MacAdam 3 SDCM.
PIR M/S can be chained with a maximum of nine slave luminaires.
• On/off, Dali-2 with direct push button control (230V), Casambi, and ActiveAhead.
• The maximum number of luminaires used in direct push button control in one group is 20 pcs.
New additions to Airam’s professional lamp selection
The lamps provide a full 360-degree light distribution.
Opal lamps replace the old SMD models. Check the replacements in the table below.
The Airam Pro LED full-glass filament lamp series is expanding with new products. The selection is now more versatile than ever, offering a wide range of bulb shapes and lumen options. All models are dimmable. Thanks to the full 360-degree light distribution, the lamp also emits light toward the base. The opal cover ensures glare-free illumination.
• Very long lifetime, 25 000 h.
• Switches on instantly, even in freezing conditions.
• Colour temperatures 3000 K and 4000 K.
• Good colour rendering CRI > 80.
• Continuous even spectrum, no colour alterations.
• No ultraviolet or infrared radiation.
• No mercury.
• All models can be dimmed with LED dimmers.
The Pro LED series tubes has been expanded with new T5 models. Two lengths are available: 1200 mm and 1500 mm. Both models feature a color temperature of 4000 K.
• Tube cover made of plastic.
• Operating voltage: 230 V (AC).
• Very long lifetime, 50 000 hours.
• Instant start-up and full brightness even in cold conditions.
• Better light quality than fluorescent tubes.
• Flicker-free start-up.
• Uniform continuous spectrum, no color distortions.
