Have a delightful everyday!

Export export@airam.fi

Mika Linden

Export Manager

+358 500 205 478 mika.linden@airam.fi

Kalle Kärki

Account Manager

+358 40 635 2175 kalle.karki@airam.fi

Airam Electric Oy Ab

Sementtitehtaankatu 6, 04260 Kerava / P.O. Box 175, 04201 Kerava, Finland

+358 (0)20 754 5617 |info@airam.fi www.airam.fi/en

Customer service

+358 (0)20 754 5617 asiakaspalvelu@airam.fi

Table of contents

Pendant

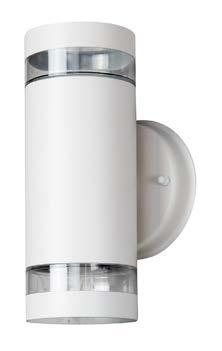

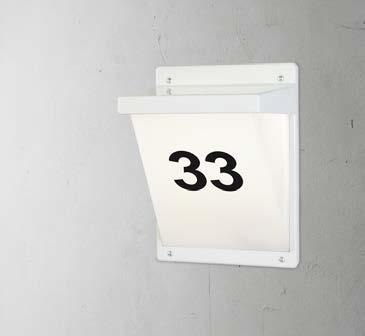

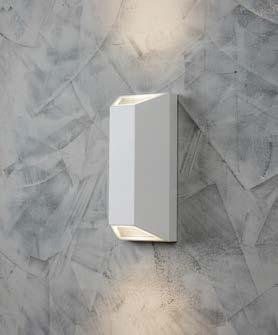

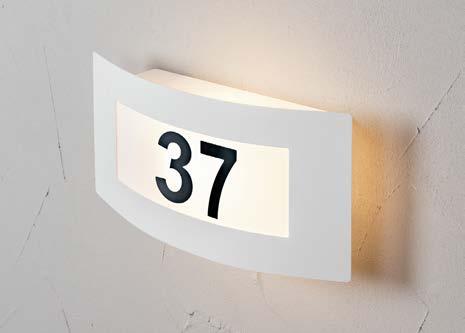

Exterior wall lights, number lights

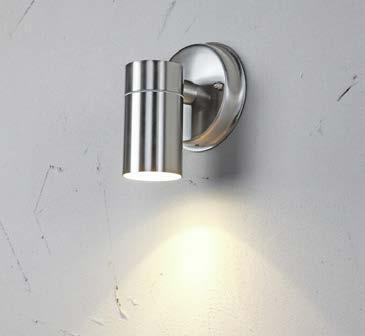

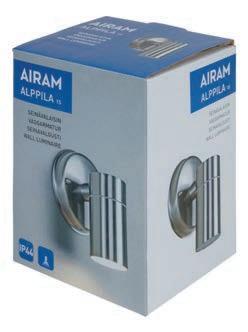

Alppila

Alppila Tilt

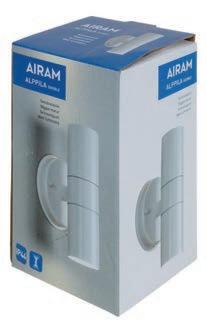

Alppila Double

Alppila Double XL

Alppila Double XL-W

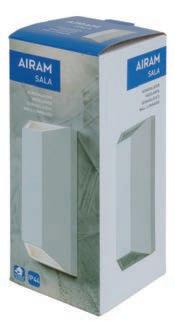

Sala Double

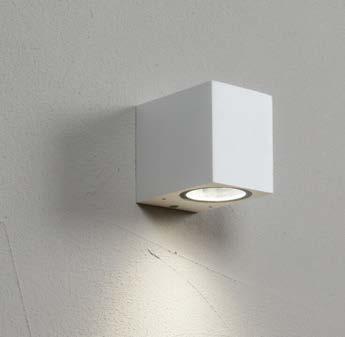

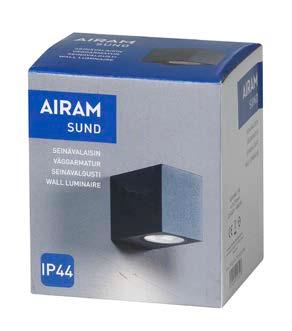

Sund

Sund Double

Nora

Näsby Double

Haaga

Vino

Arvika

Käpylä

Park

Up

Bollards and column luminaires

Kallio

Käpylä Bollard

Park Bollard

Kartano Bollard

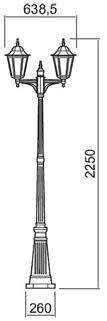

Kartano Pole

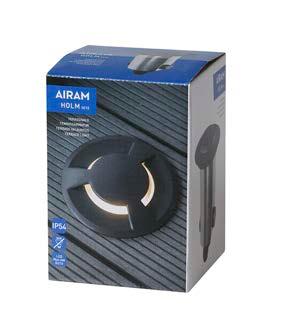

Holm 3Eye

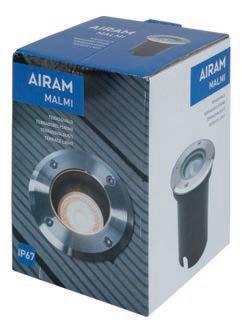

Malmi

Continuous courtyard lighting series

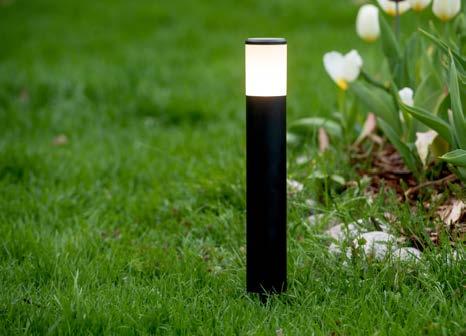

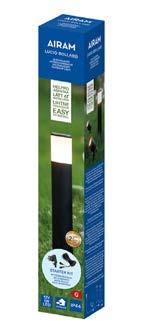

Lucio bollard lamp

Lucio bollard light set

Lucio Down bollard light fitting

Lucio Down bollard whale set

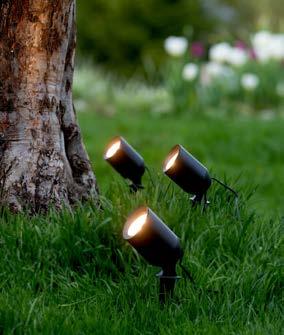

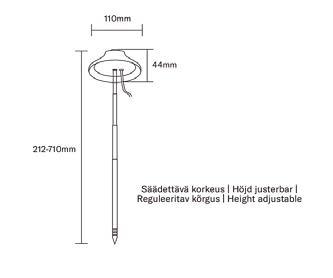

Lucio Spot spotlight

Lucio Spot spotlight inset

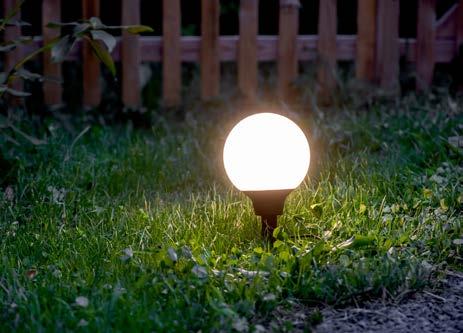

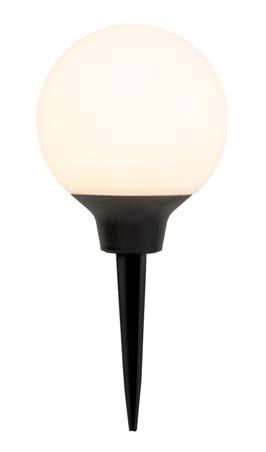

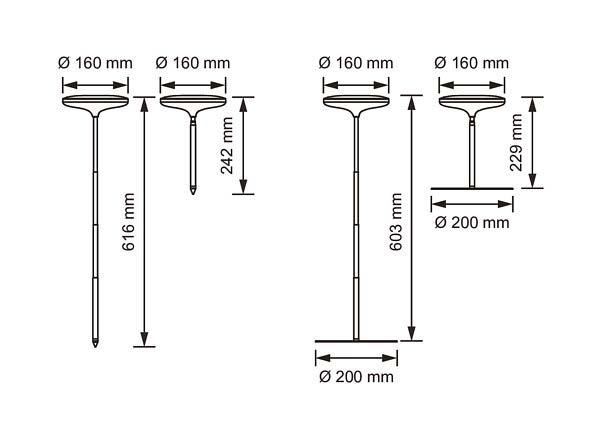

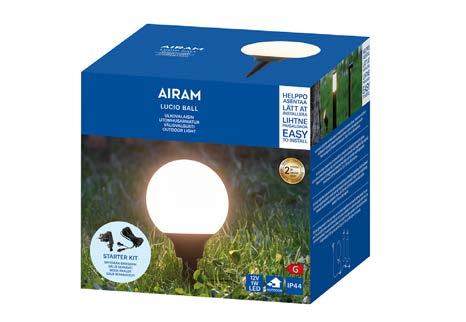

Lucio Ball decorative lamp

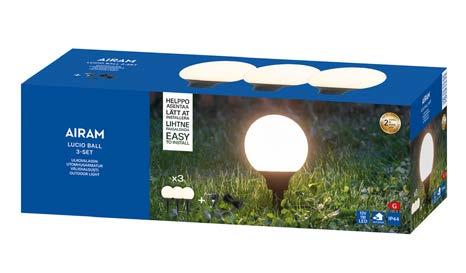

Lucio Ball decorative lamp set

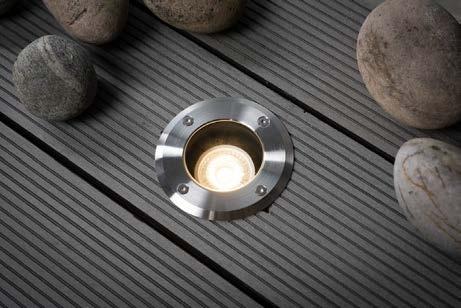

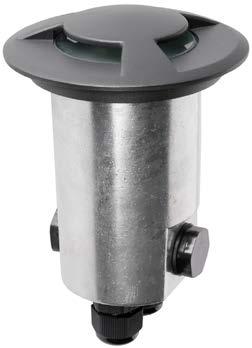

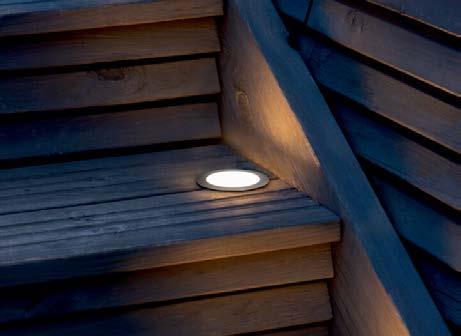

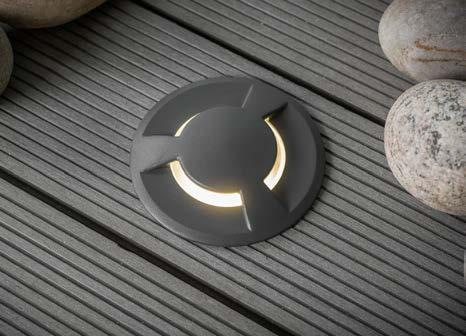

Lucio Deck patio light

Lucio Deck patio light set

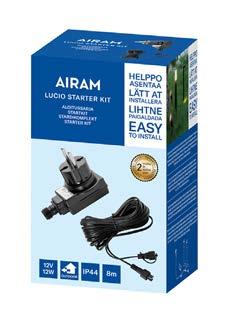

Lucio starter kit

Lucio extension cable 5 m

Lucio dealer

Lucio dimmer switch

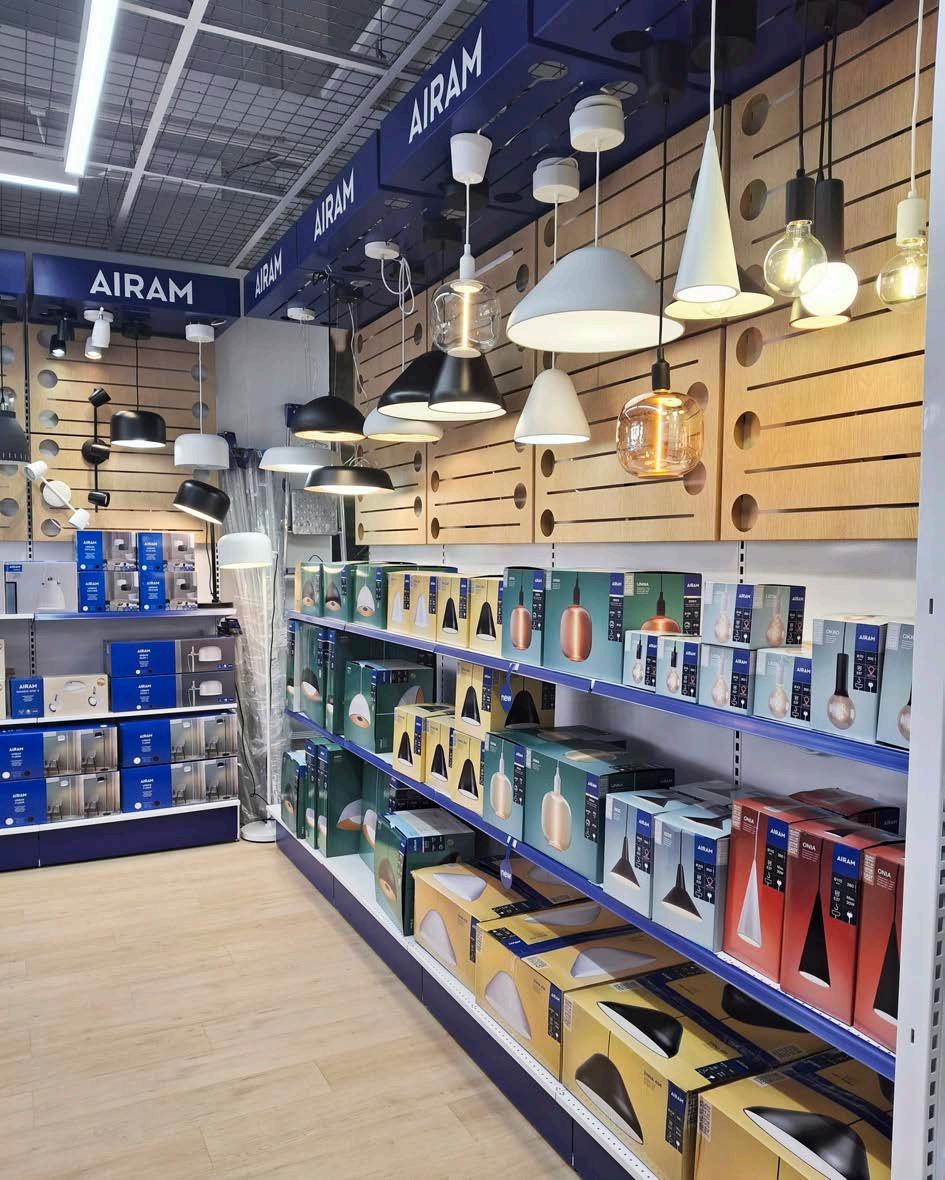

Airam's stunning dream shelf for lighting highlights a brand that is appreciated by Finns in a distinctive way in the store!

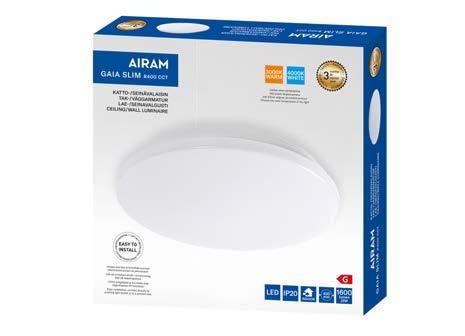

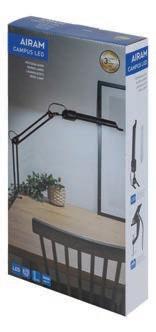

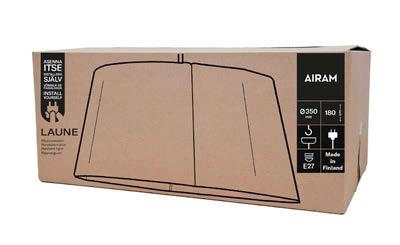

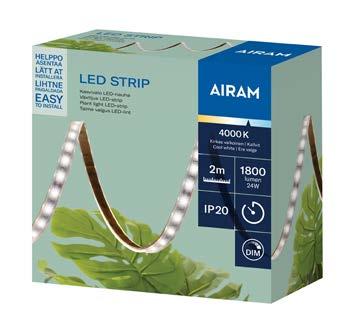

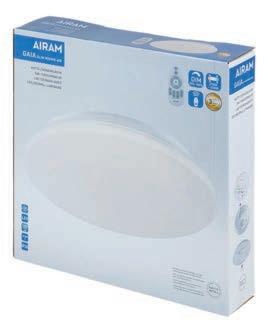

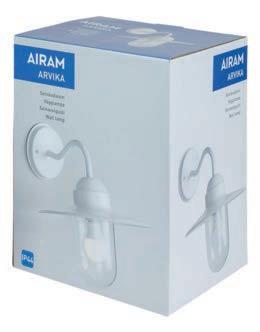

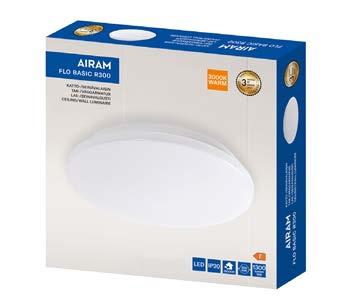

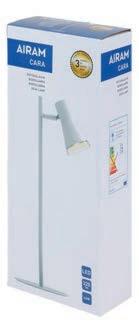

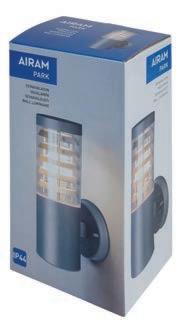

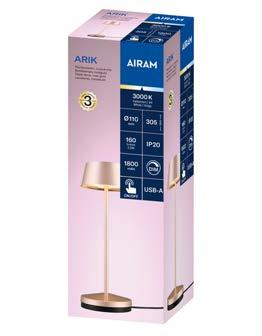

Our new luminaire packaging brings products to the fore. The front of the packaging clearly shows the most relevant product information and whether you can easily install the luminaire yourself! Other product information can be found on the back of the packaging.

Interested in an impressive lighting installation? Contact our sales team!

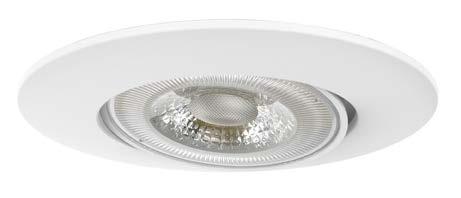

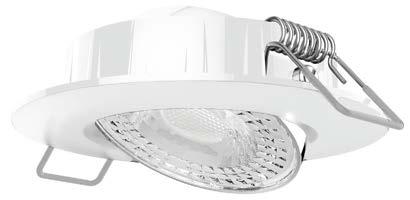

Cosmo Tilt Downlight

Choose the COS- MO DIM triac dimmable LED downlight when you need narrow and directional beam. The Cosmo beam can be oriented +/-28°. The luminaire's aluminium body with its bright reflector and anti-glare protection makes it a clean, bright and efficient LED light. With a low body height of only 26 mm, Cosmo can be used as a general or task light in dry indoor areas of the home.

• Plastic body (PC), aluminium frame, plastic cup.

• White and chrome.

• Flush ceiling mounting, max. installation height. 3 m.

• Colour temperature 3000K. CRI> 80 / Ra> 80.

• Enclosure class IP20/IP20.

• Fixed led 5,8W 480 lm.

• Opening angle 36°.

• Light directional +/- 28°.

• Triacdimmable.

• Operating ambient temperature -5 °C ... 25 °C.

• Service life L70B50 25 000 h.

Cosmo Tilt IP20 6W/830 DIM WH NO: 4107168

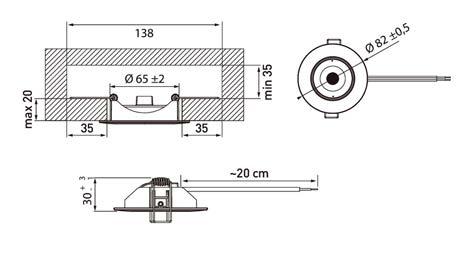

Skye Fix Downlight

The low-profile Skye Fix is suitable for general and task lighting. The IP44 models are suitable for damp areas in the home. Three luminaires per package. Available in a choice of either soft or softdas 3000 K or bright 4000 K white.

• Polycarbonate body and dome. 20 cm cable.

• White, chrome, nickel or black.

• Opening angle 36°.

• Protection class II.

• Flush mounting in the ceiling. Connection and chaining in a separate box.

• Installation height max. 4 m.

• Colour temperatures 3000K and 4000 K. CRI> 80 / Ra> 80.

• MacAdam 6 SDCM.

• IP20/IP44.

• IK03.

• Fixed led 5W / 450 lm.

• On/Off

• Operating ambient temperature -0 ... 25 °C.

• Service life L70 25 000 h (Ta25°C).

Skye Fix IP44 5W/840 PCC WH 3SET NO: 4146537
6435200273307
Skye Fix IP44 5W/830 PCC WH 3SET NO: 4146538

Skye Tilt Downlight

The low-profile Skye Tilt is suitable for general and task lighting. The IP20 models are for dry interior spaces in the home. You can adjust the beam angle to +/-28° if required. Three luminaires per package. Available in either pure 3000 K or bright 4000 K white.

• Polycarbonate body and dome. 20 cm cable.

• White, chrome or nickel

• Opening angle 36°.

• Protection class II.

• Flush mounting in the ceiling. Connection and chaining in a separate box.

• Installation height max. 4 m.

• Colour temperatures 3000K and 4000 K. CRI> 80 / Ra> 80.

• MacAdam 6 SDCM.

• IP20/IP20.

• IK03.

• Fixed led 5W / 450 lm.

• On/Off

• Operating ambient temperature -0 ... 25 °C.

• Service life L70 25 000 h (Ta25°C).

5 / 30

Skye Tilt IP20 5W/840 PCC WH 3-SET NO: 4146529
6435200273222
Skye Tilt IP20 5W/830 PCC WH 3-SET NO: 4146530
6435200273239 5 / 30

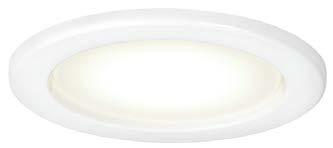

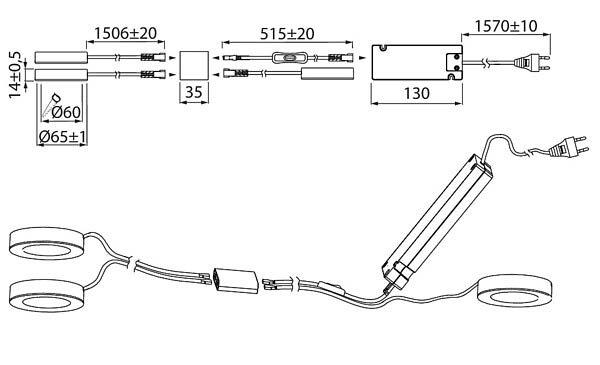

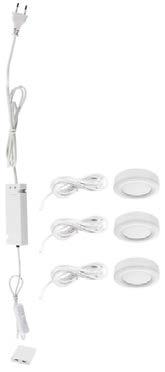

Auri Downlight

Pure white light illuminated by Airam AURI led downlights are very easy to install yourself. The package contains three LED lights with plastic frames, a safe 24V LED transformer and connection and installation accessories for both surface and flush mounting. For flush mounting, remove the luminaire decorative ring with cable grommets. The 1.5 m transformer connection cable has a Euro plug, the intermediate cables are 1 m long. They can be used as a spotlight on an open shelf or between or inside a display case and a cabinet.

• Plastic body and opal plastic cup.

• White or silver.

• Choice of surface or recessed installation in ceiling/furniture, plug connection, 1500 mm cable with transformer (24V DC). For surface mounting, cable grommets are provided.

• Colour temperature 3000K. CRI> 80 / Ra> 80.

• Enclosure class IP20/IP20.

• Fixed led 9W 450 lm (3X 3W 150 lm).

• Opening angle 110°.

• Operating ambient temperature -5 °C ... 25 °C.

• Service life L70B50 25 000 h.

• The ready-to-install package includes three luminaires and installation accessories.

AURI 3-SET 3W/830 110D VA NO: 4126289

6435200194213

AURI 3-SET 3W/830 110D HO NO: 4126290

4 / 8 4 / 8

6435200252685

Planex Downlight

Planex is a downlight with low heat dissipation and a lightweight, low-profile design. It is suitable for installation in ceiling structures and furniture. It is easy to install and easy to chain. Available as a lamp or as an interchangeable frame model. For the light source, you can choose the option that best suits your needs.

• Polycarbonate body.

• White.

• Protection class II.

• Flush mounting.

• Suitable for chaining up to. 3 x 2,5 mmZ, spring connectors.

• MacAdam 6 SDCM.

• IP23.

• Led GX53 5 W/480 lm. Light source ordered separately for the body model.

• On/off. Triac dimmable lamp available separately.

• Operating ambient temperature 0 ... 25 °C.

• Service life L70 15 000 h (Ta25°C).

• Lamprecommendations:4713758PROLEDGX53,4713759PRO LED GX53 DIM, 4713760 PRO LED GX53 DIM.

/ 60

Planex IP23 GX53 LED 5W/830 WH NO: 4107124
6435200177353
Planex Runko IP23 GX53 max 6W WH NO: 4107114
6435200157102
/ 60

Flex Multi Downlight

The Flex Multi dimmable panel luminaire is suitable for dry areas in residential or public buildings. on the premises. Light surface or semi-surface installation. The colour temperature of the luminaire is selected from three options before installation: 3000 K, 4000 K or 6500 K. The Flex Multi series has the advantage of a particularly low-profile design and adjustable spring fastening that allows the luminaire to fit into almost any pre-designed recess (55-250 mm), depending on the size of the product. The adjustability of the opening, combined with the low profile body construction, makes the luminaire an excellent choice for renovation projects. Available in three different sizes and wattages, as well as a PIR model.

• Polycarbonate body and cup, white.

• Flush or surface mounting.

• The luminaire has a fixed connecting cable 2 x 0,75 mmZ.

• Colour temperatures 3000 K, 4000 K and 6500K, adjustable from the luminaire before installation.

• IP20/IP20.

• Led fixed 9 W / 500 lm, 12 W / 1000 lm, 16 W / 1500 lm.

• PIR model 12W / 1000 lm.

• Dimmable.

• Leading edge control.

• Operating ambient temperature 0 ... 25 °C.

• Service life L70 30 000 h (Ta25°C).

• Power supply lifetime 30 000 h.

9610519

6435200289445 Flex

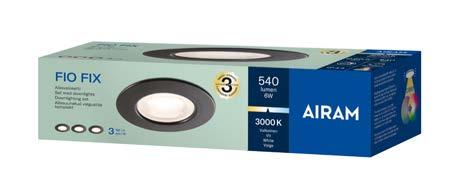

Fio Fix

Downlight kit, CRI90

High quality downlight set for general lighting in both dry and domestic interiors, home class IP44. The high CRI90 colour rendering index provides light that enhances the natural and realistic colours of objects and the environment. The kit contains three luminaires. Available in black and white with both 3000 K and 4000 K light colour temperatures.

• For dry and damp indoor areas of the home.

• Enclosure class IP44.

• Material metal and plastic, colour white or black.

• Flush mounting in the ceiling.

• Set of 3.

• Led fixed 6 W, 3000 K or 4000 K.

• Lighting angle 40°.

• CRI90

• Dimmable.

• Warranty 3 years.

3-SET

3-SET

3-SET

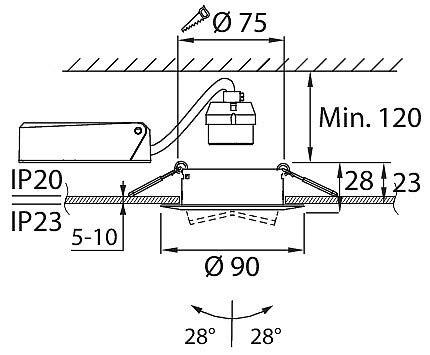

Lucca Downlight

Choose the compact Airam LUCCA II under-light when you need a directional GU10 aluminium body with a choice of light output, light colour temperature and narrow or wide beam. The flushmounted, low-profile body is easy to install in the ceiling or wall. LUCCA II is suitable for general lighting of a wide range of dry indoor spaces. The light can be directed +/-28°.

• Aluminium frame.

• Colour white.

• Flush ceiling mounting, junction box included. Spring connectors 3 x 2,5 mmZ, chainable. Installation height max. 4 m.

• Enclosure class IP20/IP23.

• PAR16 led bulb max. 8W GU10, not included.

• Light directional +/- 28°.

• Triacdimmable.

• Operating ambient temperature -5 °C ... 35 °C.

Lucca IP23 GU10 WH NO: 4222782

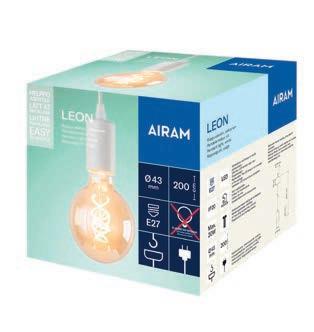

Leon

Lighting fixture cord

A minimalist and elegant textile lamp cord with a minimalist design. atmospheric lighting by hanging single large Globe lamp on the cord. For a striking overall effect, create a group of several LED filament lamps. Try SmartHome LEDs and easily change the lighting mood!

• Plastic and metal body, textile cord.

• Colour white or black.

• For indoor use.

• Cable length 2 m.

• Lamp holder Ø 43 mm.

• Suitable for E27 bulb, bulb not included.

/ 20

LEON PENDANT CORD 2M E27 BLACK NO: 9610622
6435200309815
LEON PENDANT CORD 2M E27 WHITE NO: 9610623
6435200309822

Okko

Lighting fixture cord

Stylish black textile luminaire with a black textile luminaire base. to easily create atmospheric lighting by hanging a single large Globe lamp, for example, on a wire. A spectacular ensemble synalso consists of a group of several large LED filament lamps. Try SmartHome lights and easily change the lighting mood!

• Plastic and metal body, textile cord.

• Colour black.

• For indoor use.

• Cable length 2 m.

• Lamp holder Ø 70 mm.

• Suitable for E27 bulb, bulb not included.

OKKO HANGING CORD 2M E27 BLACK NO: 9610624

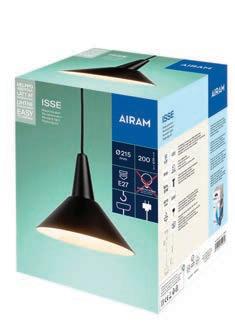

Isse Pendant light

The pretty Isse pendant light fits over a small table or in a group of several lamps to illuminate a kitchen island, for example. The cone-shaped shade delimits the beam so that you can also use it as a stylish plant light with a plant lamp. The package does not include the bulb, so choose the E27 LED from our wide range of bulbs to suit your needs and preferences. Try SmartHome LEDs and easily your lighting mood!

• Plastic and metal body, textile cord.

• Colour black.

• For indoor use.

• Cable length 2 m.

• Shade Ø 215 mm.

• Suitable for E27 bulb, bulb not included.

5 / 20

ISSE PENDANT LAMP E27 BLACK NO: 9610625
6435200309846

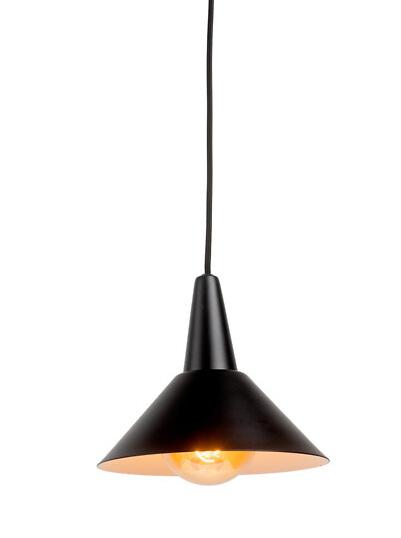

Onia Pendant light

Elegant and giving a look to many interior stylesthe Onia pendant lamp is suitable for small table or a group of several lamps to illuminate, for example, a kitchen island. The inside of the shade has a ringshaped surface pattern that creates an atmospheric light effect. The package does not include a bulb, choose an E27 LED from our wide range. Try SmartHome LEDs and easily change the lighting mood!

• Metal body, textile cord.

• Colour white or black.

• For indoor use.

• Cable length 1.5 m.

• ShadeØ115mm.

• Suitable for E27 bulb, bulb not included. We recommend using a normal standard (A60) LED bulb.

ONIA PENDANT LAMP E27 WHITE NO: 9610626
6435200309853
ONIA PENDANT LAMP E27 BLACK NO: 9610627
6435200309860

Sansa Ceiling Pendant light

The trendy Sansa decorative lamps have a design and broken colours that are perfect for Scandinavian interiors. Light up your dining room, kitchen, bedroom or study with Sansa pendant lights. Elegantly match the shade with a light, frosted metal shade and ceiling cup. For added installation convenience, a light plug and a quick-release ceiling cup are included. E27 bulb sold separately.

• Metal body and cup.

• Two colours: white-silver and black-silver.

• Lamp max. 40 W E27, not included.

• Surface mounting on a ceiling socket,

• the package includes a lighting plug and a ceiling cup.

• Suspension cable 1580 mm.

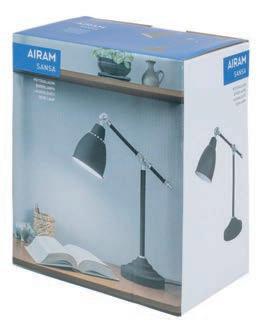

Sansa Desk s. 59
SANSA HANGING LIGHT. E27 VA-HO NO: 4118754
6435200226525
SANSA HANGUVAL. E27 MU-HO NO: 4126225
6435200238207

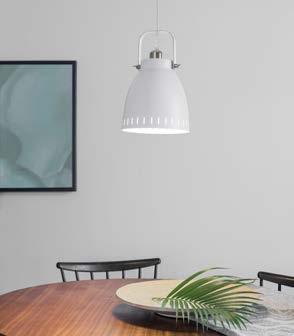

Loft Pendant light

The industrial-style Loft pendant luminaire is ideal for the dining room, kitchen, living room and bedroom. By choosing the height of the shade, you decide how much of the space you want to illuminate. The frosted metal pin of the shade and the ceiling cup is available in white or black-grey. The textile fabric cord is fitted with a plug for the luminaire. Try different bulbs and LED bulbs, E27 bulb sold separately.

• Steel body and cup.

• White or black with white interior, also available in white with silver interior and black with gold interior.

• Lamp max. 60 W E27, not included.

• Surface mounting on a ceiling socket,

• the package includes a lighting plug and a ceiling cup.

• Suspension cable 1.5 m or 2 m depending on the model.

LOFT35 PENDANT. E27 VA NO: 9783080
6435200235985
LOFT35 PENDANT. E27 MU NO: 9783081
6435200236005
LOFT35 PENDANT E27 MU/KU NO: 9610683 6435200316431
LOFT35 PENDANT E27 VA/HO NO: 9610684

Urban Ceiling

Pendant

luminaires

Stylish ceiling lamp, suitable for Scandinavian interior design. Metallic dome and shade, with a teak cord. Two colour options: white, black. Choose the E27 bulb you want from the wide range of Airam LEDs! We particularly recommend Airam SmartHome lamps, which you can adjust in a variety of ways with the SmartHome app. Take a look at the other products in the Urban range and create a coherent lighting scheme for your home.

• Surface mounting on a ceiling socket.

• The luminaire is equipped with a plug and a suspension hook.

• Enclosure class IP20.

• E27 220-240 V 50/60 Hz

• 1 x Max 9 W led bulb E27 (not ).

• Shade Ø 250 mm.

• Textile cord 1,8 m.

• Colour options: white, black.

6435200300706

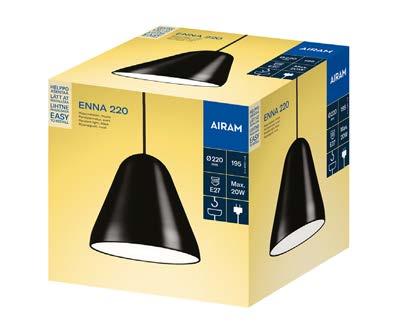

Enna 220 Pendant light

The Enna round pendant lamp is suitable for a wide range of interiors. The lower part of the picture is The diffuser makes the light distribution soft and sensual. The package does not include the bulb, choose an E27 LED from our wide range. Try SmartHome LEDs and easily change your lighting mood! Also check out the larger Enna 434 from the same range.

• Metal dome, plastic diffuser, textile cord.

• For indoor use.

• Cable length 1.5 m.

• Shade Ø 220 mm, height 190 mm.

• Suitable for E27 bulb, max. bulb height. 130 mm. Lamp not included.

220

220

220

6435200309907

220 PENDANT LAMP E27

ENNA 220 PENDANT LAMP E27 BLACK NO: 9610628
6435200309877
ENNA
PENDANT LAMP E27 WHITE NO: 9610629
6435200309884
ENNA
PENDANT LAMP E27 STEEL NO: 9610630
6435200309891
ENNA
PENDANT LAMP E27 BRASS NO: 9610631
ENNA
GREEN NO: 9610640

Enna 434

Pendant light

The Enna pendant lamp with its fair size and rounded lines is suitable for a wide range of interiors and as a dining table lamp. The diffuser underneath makes the light distribution soft and atmospheric. The package does not include the bulb, choose an E27 LED from our wide range. Try SmartHome LEDs and change your lighting mood! Also check out the smaller Enna 220 from the same range.

• Metal dome, plastic diffuser, textile cord.

• For indoor use.

• Cable length 1.5 m.

• Shade Ø 434 mm, height 190 mm.

• Suitable for E27 bulb, max. bulb height. 130 mm. Lamp not included.

ENNA 434 PENDANT LAMP E27 BLACK NO: 9610632
6435200309914
ENNA 434 PENDANT LAMP E27 WHITE NO: 9610633
6435200309921
ENNA 434 PENDANT LAMP E27 STEEL NO: 9610634
6435200309938
ENNA 434 PENDANT LAMP E27 BRASS NO: 9610635
6435200309945
ENNA 434 PENDANT LAMP E27 GREEN NO: 9610641
6435200016126

Eleda Ceiling

Decorative lamps with golden private sections

Classic and timeless pendant lights with gold details. Three body colour options: black matt finish with white interior, glossy beige finish with white interior, gold matt finish with white interior. The luminaire has an E27 lamp holder, so you can choose the lamp of your choice. We recommend Airam SmartHome series lamps that you can adjust and time as you wish with a phone app. Or check out the 3-Step-DIM lamps, which you can dim with a simple light switch!

• For indoor use.

• Steel body and cup. Gold-tone details. Dome Ø 350 mm.

• Colour options: black and white, beige and white, golden and white.

• Lamp max. 60 W E27, not included.

• Surface mounting on a ceiling socket,

• the package includes a lighting plug and a ceiling cup.

• Suspension cord 2000 mm, textile.

6435200316479 - / 4 - / 4 - / 4

ELEDA 350 PENDANT. MATTE MU E27 NO: 9610685
6435200316455
ELEDA 350 RIIPPUVAL. KIILT.BE E27 NO: 9610686
6435200316462
ELEDA 350 PENDANT. MATTE KU E27 NO: 9610687

Anoom Ceiling

Decorative lamps with wooden details

Classic and timeless pendant lights with wooden single points, dome diameter 38 cm. Available in three different body colours: black matt finish with white interior, beige matt finish with beige interior, green matt finish with white interior. The luminaire has an E27 lamp holder, so you can choose the lamp of your choice. We recommend the Airam SmartHome range of lamps, which you can adjust and time as you wish using your phone. Or check out the 3-Step-DIM lamps, which you can dim it with a simple light switch!

• For indoor use.

• Steel body and cup, Ø 38 cm. Wooden details, certified wood material.

• Colour options: black and white, beige, green and white.

• Lampmax.11WledE27,notincluded.

• Surface-mounted in a ceiling socket, supplied with a plug and a ceiling cap.

• Suspension cord 2000 mm, textile.

6435200316493

6435200316509 - / 4 - / 4 - / 4

ANOOM HANGING LIGHT. 38 E27 MU NO: 9610688
6435200316486
ANOOM HANGUVAL. 38 E27 BE NO: 9610689
Anoom desk s. 61 Anoom Floor s. 78
ANOOM HANGUVAL. 38 E27 GN NO: 9610690

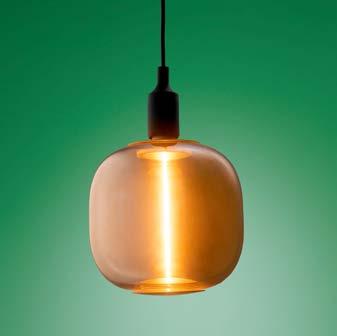

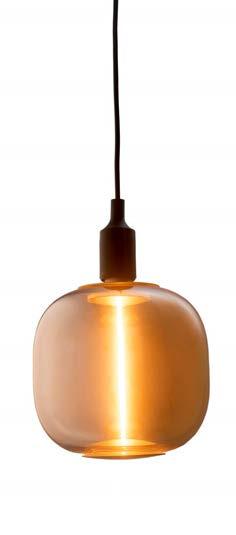

Unna Pendant light

A stylish and stunning interior lamp with an E27 Unna bulb attached to the textile base. Available either with a bright Unna lamp and a lighted textile cord or with an amber shade. with lamp and black textile cord. Inside the Unna lamp is a beautiful vertical LED shining a soft, warm white light from the top to the bottom of the lampshade. Width 191 mm, height 220 mm. Metal ceiling cup, light socket included.

• For indoor use.

• Colour bright white or amber-black.

• Led E27 Unna bulb, 4 W.

• Clear Unna lamp (9610649): 250 lm 2700 K, warm white.

• Amber Unna lamp (9610648): 180 lm 2000 K, warm white.

• Lifetime of about 15 000 h.

• Triac-himmennys.

• Material metal and glass.

• Diameter (width) 191 mm, height 220 mm.

• Textile cord, 150 cm.

UNNA LED PENDANT LAMP E27 BLACK NO: 9610648
6435200016287
UNNA LED PENDANT LAMP E27 BRIGHT NO: 9610649
6435200016300

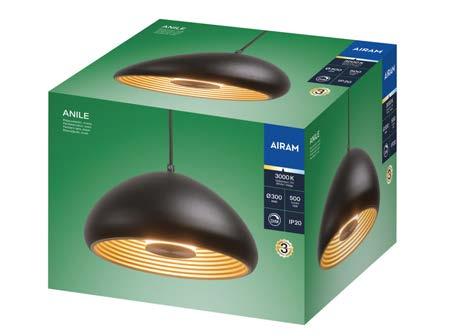

Anile

Led pendant light

A gorgeous soft-lined pendant lamp to complete your interior! The inside of the shade is equipped with a... nis champagne shade and a ring-like surface pattern that creates an atmospheric light show in the surroundings. The Ani- le is beautiful as a dining table lamp or in a living room. The lamp has a fixed LED which can be dimmed with an LED dimmer. Two different colour options.

• Material metal, cord with textile surface.

• Colour white champagne or black champagne.

• For indoor use.

• Led solid 15 W.

• White champagne 800 lm.

• Black champagne 500 lm.

• CRI80

• Opening angle 125°

• Triac.

• Shade Ø 300 mm.

• Total height of the luminaire 1575 mm.

ANILE LED PENDANT LIGHT MU-SHAMP NO: 9610636
6435200309952
ANILE LED PENDANT LIGHT WHITE-SHAMP NO: 9610637

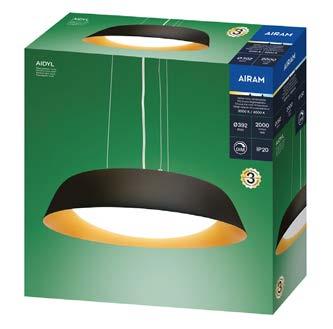

Aidyl Led pendant light

A striking pendant light will add character and style to your home. It features a high luminous solid LED, which can be dimmed with an LED dimmer. The light shade is adjustable from 3000 to 4000 K. Two different colour options, both with metallic shimmering interior.

• Material metal and plastic.

• Colour white champagne or black champagne.

• For indoor use.

• Led solid 18 W, 2000 - 2200 lm, 3000 / 4000 K.

• CRI80

• Opening angle 120°

• Triac.

• Shade Ø 392 mm.

• Total height of the luminaire 1600 mm.

AIDYL LED PENDANT LIGHT BLACK/SHAM NO: 9610638
6435200309976
AIDYL LED PENDANT LIGHT WHITE/SHAMP NO: 9610639
6435200309983 - / 4 - / 4

Airam Laune 350 Ceiling

The Airam Laune pendant lamp is a stunning interior lamp made of metal in Airam's Lah- den factory. The diameter of the globe is 350 mm. Three colour options: white, anthracite and yellow. The fabric cord and the metal ceiling cup complete the look of the luminaire. The luminaire is easy to install yourself.

• Steel body and cup.

• Colour options: white, anthracite or yellow.

• Lamp max. 60 W E27, not included.

• Easy self-installation: surface-mounting in a ceiling socket box, packed with a socket plug and ceiling cap.

• Textile suspension cord 2000 mm.

• We recommend Airam SmartHome or 3-Step-DIM -Floods.

Laune Desk s 75.

LAUNE 350 PENDANT. E27 WHITE NO: 9610713

6435200319029 (-) (/) (-)

LAUNE 350 HANGUVAL. E27 ANT NO: 9610714

6435200319036 (-) (/) (-)

LAUNE 350 PENDANT. E27 YELLOW NO: 9610715

6435200319043 (-) (/) (-)

The packaging image is indicative.

Airam Laune 560 ceiling

Pendant luminaires

The Airam Laune pendant lamp is a stunning interior lamp made of metal in Airam's Lah- den factory. The diameter of the globe is 560 mm. Three colour options: white, anthracite and yellow. The fabric cord and the metal ceiling cup complete the look of the luminaire. The luminaire is easy to install yourself.

• Steel body and cup.

• Colour options: white, anthracite or yellow.

• Lamp max. 60 W E27, not included.

• Easy self-installation: surface-mounting in a ceiling socket box, packed with a socket plug and ceiling cap.

• Textile suspension cord 2000 mm.

• We recommend Airam SmartHome or 3-Step-DIM -Floods.

The packaging image is indicative.
LAUNE 560 PENDANT LIGHT. E27 WHITE NO: 9610716
6435200319050
LAUNE 560 pendant. E27 ANT NO: 9610717
6435200319067
Laune Desk s 75.
LAUNE 560 PENDANT. E27 YELLOW NO: 9610718
6435200319074

Flo Basic

Plafondit

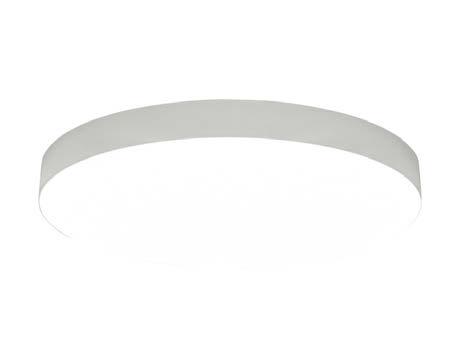

Flo Basic ceilings are suitable for general lighting in the interior of the home. Plafond diameter 300 mm.

Available in two different options: white (3000 K) or bright white (4000 K) light colour temperature mode. Flo Basic is an affordable basic plafond that meets the general lighting needs of the home.

Eurovignettes suitable for campaigns are available. The stand contains 80 Flo Basic luminaires.

• On the ceiling/wall surface or in a wall/ceiling box. Not on top of a light socket.

• For indoor use.

• Enclosure class IP20.

• Fixed LED, 15W 1300 lm.

• Light colour mode 3000 K or 4000 K.

• Round shape, diameter 300 mm.

• Energy class F.

Flo Basic 300 IP20 15W/830 1300lm NO: 9610581

6435200301208

Rio Plafonds

Choose Airam Rio for your home interior general lighting -plafonds, where the luminaire body and dome need to withstand cold, heat and humidity. Suitable for use at 0 ... 25 °C, Rio can be installed in a wall or ceiling box, e.g. in the bathroom, utility room, garage or carport. Made of polycarbonate, the IP44 splash-proof luminaires have the best IK10 protection rating against mechanical shocks. The pure white LED light provides even illumination. The radar-linked model provides microwave radar detection range, time setting and dimmer switch operation.

• Plastic (PC) body, opal plastic (PC) cup.

• White, RAL 9016.

• Surface mounting on wall or ceiling (directly on the wall box), spring connectors 3 x 2,5 mmZ, suitable for through-wiring.

• Colour temperature 3000K or 4000K. CRI> 80 / Ra> 80.

• Enclosure class IP44.

• Impact resistance IK10.

• Fixed LED 12W 1000LM or 20W 1600LM.

• Radar model with microwave radar motion detector, adjustable detection range 25 %-100 % (detection angle 150˚ wall mounting, 360˚ ceiling mounting), time setting min. 5 sec, max. 30 min and dimmer switch 2-50 lux.

• Operating ambient temperature 0 ... 25 °C.

• The L70B50 has a useful life of 35 000 h.

• Round shape, two sizes and power.

Rio
6435200193445
Rio
6435200194237
Rio
6435200193452
6435200193469

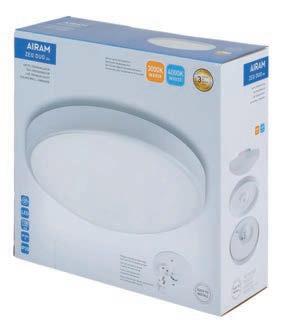

Zeo Duo

Plafonds

For dry interior lighting in the home, the Zeo Duo circular plafond is installed in a ceiling light socket. You easily connect it with the pre-fitted plug and fix it to the ceiling with a hook without tools. You can conveniently select the light colour temperature 3000K or 4000K with the switch before installation. The light is even and comes on instantly. The polycarbonate body and cover are protected against mechanical shocks with the best IK10 class.

• Plastic (PC) body, opal plastic (PC) cup.

• White, RAL 9016.

• Surface-mounted in a ceiling socket, with 2 x 0,75 mmZ plug and quick-release fastener.

• Colour temperature is selected at the luminaire, CCT 3000K/4000K. CRI > 80 / Ra> 80.

• Enclosure class IP20.

• Impact resistance IK10.

• Fixed AC LED, 12W 850 lm and 18W 1100 lm.

• Operating ambient temperature 0 ... 25 °C.

• Service life L70B50 35 000 h (Ta25°).

• Installation accessories are included in the product.

• Round shape, two sizes and power.

Zeo Duo 280 IP20 12W 830/840 PCO WH NO: 4126280
6435200249098
Zeo Duo 350 IP20 18W 830/840 PCO WH NO: 4126281
6435200249104
- / 5 - / 5

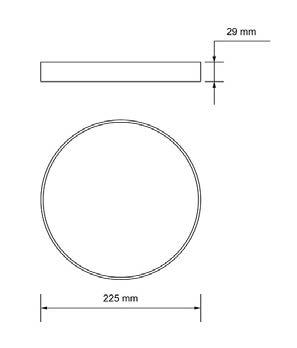

Aias

Ceiling light, colour temperature selectable

An elegant ceiling light suitable for general lighting in the dry interior of the home. The colour temperature of the light can be set by a switch on the bottom of the luminaire. The selection is made before the luminaire is installed. The colour temperature options are: warm white 2700 K, cool white 4000 K and cool white 6000 K. The luminaire is very low, only 29 mm. The body has a very thin, almost rounded edge, which gives the luminaire an edged look. and a modern look. Two different size options.

• For dry indoor use in the home, IP20.

• Material metal and plastic, colour white.

• Body height 29 mm.

• Led solid 17 W 2000 lm (Ø 225 mm)

• Led solid 22 W 2500 lm (Ø 280 mm)

• Light colour temperature 2700 K - 4000 K - 6000 K, selectable with a switch (on the bottom of the luminaire) before installation.

• Surface mounting with screws to the ceiling surface.

• Warranty 3 years.

4 / 12 3 / 6

Aias 225 17W 2000lm IP20 CCT NO: 9610681
6435200316417
Aias 280 22W 2500lm IP20 CCT NO: 9610682
6435200316424

Aella 3CCT plafonds, CRI90

Plafond for efficient general lighting. It can be surface-mounted in dry interior areas of the home. Excellent colour rendering, CRI90. The light shade can be changed step by step with a standard light switch! The colour temperature is changed by clicking the light switch again within 3 seconds after the light comes on. Light colour temperature options: warm white 2700 K, white 3000 K, cool white 4000 K. The lamp has a memory function: when the light is switched off completely, the light setting is retained. Available in different sizes of round plafonds with white or black edging.

• For the dry interior of the home.

• Enclosure class IP20.

• Material metal and plastic, colour white or black.

• Surface mounting on the ceiling or wall.

• Plafondit:

• Ø 170 or Ø 225 mm black or white, Ø 300 mm white. Body height 32 mm.

• Led solid 12 W 1200 lm (Ø 170 mm), white rim.

• Led solid 12 W 1080 lm (Ø 170 mm), black rim.

• Led solid 15 W 1500 lm (Ø 225 mm), white rim.

• Led solid 15 W 1350 lm (Ø 225 mm), black rim.

• Led solid 18 W 1800 lm (Ø 300 mm), white trim.

• Light colour temperature 2700 K - 3000 K - 4000 K, variable stepwise with a light switch (3CCT).

• High colour rendering performance, CRI90.

• Surface mounting with screws to the ceiling surface.

• Junction box included, chainable.

• Warranty 3 years.

Aella 170 3CCT 12W IP20 VA NO: 9610671
6435200316318
Aella 170 3CCT 12W IP20 MU NO: 9610672
6435200316325
Aella 225 3CCT 15W IP20 VA NO: 9610673
6435200316332
Aella 225 3CCT 15W IP20 MU NO: 9610674
6435200316349
Aella 300 3CCT 18W IP20 VA NO: 9610675
6435200316356

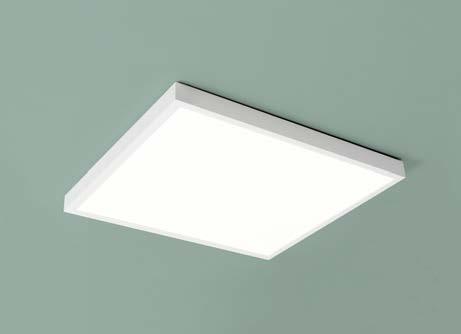

Arke

3CCT panel luminaire, CRI90

Panel luminaires for efficient general lighting. The luminaire can be surface mounted in dry interior spaces of the home. Excellent colour rendering, CRI90. The light shade can be changed step by step from a standard light switch! The colour temperature is changed by clicking the light switch again within 3 seconds after the light comes on. Light colour temperature options: warm white 2700 K, white 3000 K, cool white 4000 K. The luminaire has a memory function: when the luminaire is switched off completely, the last light setting is retained. Available in various sizes of square panel lamps with white or black trim.

• For the dry interior of the home.

• Enclosure class IP20.

• Material metal and plastic, colour white or black.

• Surface mounting on the ceiling or wall.

• Panel lights:

• 170 x 170 or 225 x 225 mm black or white, 300 x 300 mm white. Frame height 32 mm.

• Led solid 12 W 1200 lm (170 x 170 mm), white border.

• Led solid 12 W 1080 lm (170 x 170 mm), black border.

• Led solid 15 W 1500 lm (225 x 225 mm), white border.

• Led solid 15 W 1350 lm (225 x 225 mm), black border.

• Led solid 18 W 1800 lm (300 x 300 mm), white border.

• Light colour temperature 2700 K - 3000 K - 4000 K, variable stepwise with a light switch (3CCT).

• High colour rendering performance, CRI90.

• Surface mounting with screws to the ceiling surface.

• Junction box included, chainable.

• Warranty 3 years.

• Sale lot of 5 pieces.

Arke 170 3CCT 12W IP20

9610676

6435200316363

Arke 170 3CCT 12W IP20 MU NO: 9610677

6435200316370

Arke 225 3CCT 15W IP20 VA NO: 9610678

6435200316387

Arke 225 3CCT 15W IP20 MU NO: 9610679

6435200316394

Arke 300 3CCT 18W IP20 VA NO: 9610680

6435200316400

Alos 3000 K

Plafonds

High-quality ceiling luminaire for general lighting in dry interior spaces of the home, enclosure class IP20. The high CRI90 colour rendering index provides light that enhances the natural colours of objects and the environment and enhances their realism. The luminous intensity of the light can be adjusted in three steps using a standard light switch, no separate dimmer is required. 3-step dim: 100% > 50% > 10% light output. Stylish low-profile body design, accentuated by the light reflected from the mounting surface behind the luminaire. Available in two different sizes in black or white. 3000 K ceilings complete the Alos product family.

• For the dry interior of the home.

• Enclosure class IP20.

• Material metal and plastic, colour white or black.

• Surface mounting on the ceiling or wall, or installation in a roof box.

• Ø 240 or Ø 290 mm.

• Led fixed 15 W 1300 lm (Ø 240) or 18 W 1500 ml (Ø 290), 3000 K

• CRI90

• Dimmable in steps: 100%> 50%> 10%. Dimming by light switch, does not require a separate dimmer.

15W/930 STEP DIM WH NO: 9610667

240 IP20 15W/930 STEP DIM BK NO: 9610668

6435200316288

290 IP20 18W/930 STEP DIM WH NO: 9610669

6435200316295

Alos 290 IP20 18W/930 STEP DIM BK NO: 9610670

6435200316301

Alos 240 IP20
6435200316271
Alos
Alos

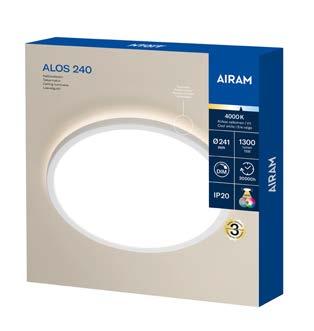

Alos 4000 K

Ceiling light, CRI90

High-quality ceiling luminaire for general lighting in dry interior spaces of the home, enclosure class IP20. The high CRI90 colour rendering index provides light that enhances the natural colours of objects and the environment and enhances their realism. The luminous intensity of the light can be adjusted in three steps using a standard light switch, no separate dimmer is required. 3-step dim: 100% > 50% > 10% light output. Stylish low-profile body design, accentuated by the light reflected from the mounting surface behind the luminaire. Available in two different sizes in black or white.

• For the dry interior of the home.

• Enclosure class IP20.

• Material metal and plastic, colour white or black.

• Surface mounting on the ceiling or wall.

• Ø 240 or Ø 290 mm.

• Led fixed 15 W 1300 lm (Ø 240) or 18 W 1500 ml (Ø 290), 4000 K

• CRI90

• Dimmable in steps: 100%> 50%> 10%. Dimming by light switch, does not require a separate dimmer.

• Warranty 3 years.

6435200307873

Alos 240 IP20 15W/940 STEP DIM WH NO: 9610614
6435200307842
Alos 240 IP20 15W/940 STEP DIM BK NO: 9610615
6435200307859
Alos 290 IP20 18W/940 STEP DIM WH NO: 9610616
6435200307866
Alos 290 IP20 18W/940 STEP DIM BK NO: 9610617

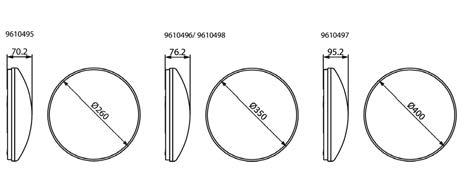

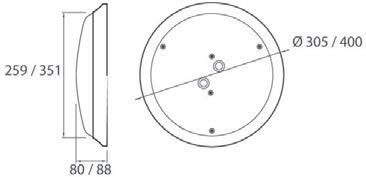

Fenix Duo Plafonds

The splash-proof Fenix Duo LED is suitable for general lighting in dry and humid indoor areas of the home. Provides uniform light, with variable light colour temperature (CCT 3000 K / 4000 K). Sturdy, low-profile body, surface-mountable. Long life. Three sizes the range, plus RA model with radar sensor.

• Plastic (PC) body, opal plastic (PC) cup.

• White, RAL 9016.

• Surface mounting on wall or ceiling (directly on the junction box), screw connection 3 x 2,5 mmZ, suitable for throughwiring.

• Light colour temperature CCT 3000 K / 4000 K.

• Colour rendering index 80-89 (CRI≥80).

• Enclosure class IP44.

• Impact resistance IK10.

• Fixed LED 8W 750 lm, 12W 1100 lm or 18W 1900 lm. RA model 12W 1100 lm.

• Operating ambient temperature -0...25 °C.

• Life/service life L70B50 35000H.

• Round shape, three sizes and wattages (260 mm, 8 W / 350 mm, 12 W / 400 mm, 18 W), also with radar sensor (350 mm, 12 W).

Duo 260 IP44 9W 830/840 NO: 9610495

Duo 350 IP44 12W 830/840 NO: 9610496

6435200284488

Fenix Duo 400 IP44 18W 830/840 NO: 9610497

6435200284495

Fenix Duo 350 IP44 12W 830/840 RA NO: 9610498

6435200284501

Fenix
6435200284471
Fenix

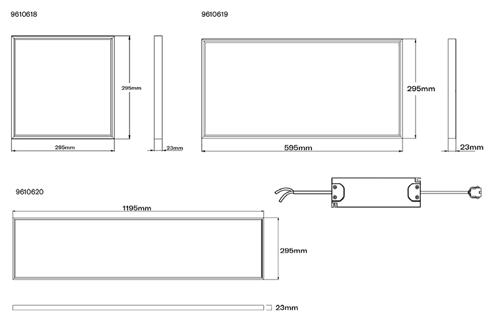

Avira

Panel lamp

Avira is a versatile panel luminaire for general lighting in the home or office. The family includes three different sizes: the square Avira S (295 x 295 mm), the rectangular Avira M (295 x 595 mm) and the tall Avira L (295 x 1195 mm). The luminaire can be dimmed using the supplied remote control, and the colour temperature of the light can be adjusted in steps of 2700 K / 4000 K / 6500 K. Easy surface installation! power supply has a cable to which the wires from the ceiling are connected

• For the dry interior of the home.

• Enclosure class IP20.

• Three different sizes: the Avira S, Avira M and Avira L.

• Surface-mounted, with hanging kit as an accessory.

• Led fixed:

• Avira S: 13 W 1000 lm.

• Avira M: 23 W 1800 lm.

• Avira L: 42 W 3200 lm.

• Remote control for dimming and gradual adjustment of light colour temperature.

• Warranty 3 years.

Avira S IP20 13W CCT DIM REMOTE WH NO: 9610618

6435200307880

Avira M IP20 23W CCT DIM REMOTE WH NO: 9610619

6435200307897

Avira L IP20 42W CCT DIM REMOTE WH NO: 9610620

6435200307903

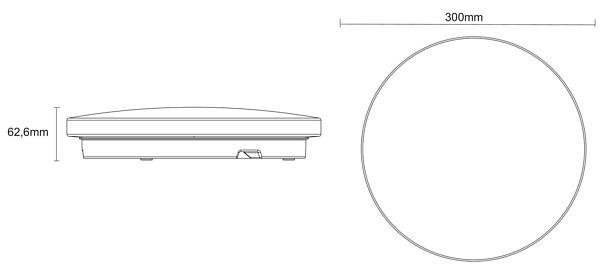

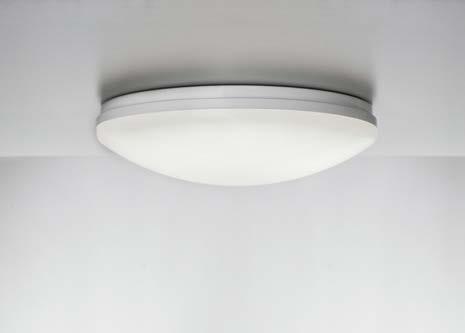

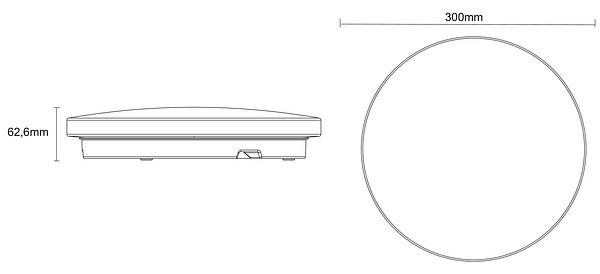

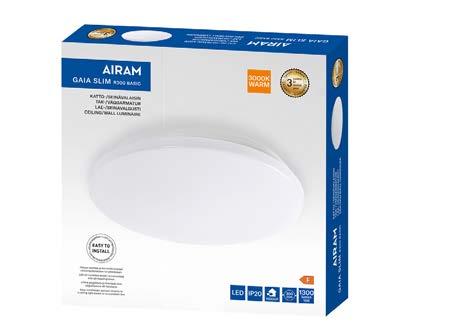

Gaia Slim R300 Basic Plafonds

A modern plafond suitable for general lighting in the interior of the home. Light colour temperature white (3000 K). Easy to install in a standard socket and in a jewel case with the installation kit supplied with the luminaire. Plafonds is a good choice for hallways, living rooms, bedrooms or kitchens. This Gaia Slim model operates from a light switch. The product does not have a remote control.

• Body in polycarbonate and cup in opalized acrylic (ACO).

• White, RAL 9016.

• Protection class II.

• Surface mounting on a ceiling socket or wall and ceiling junction box.

• The luminaire is equipped with a plug and a suspension hook. Spring connectors 3 x 2,5 mmZ.

• For indoor use.

• Enclosure class IP20.

• Fixed LED, 15W 850 lm.

• Spectrum 3000 K.

• Round shape, diameter 300 mm.

• Energy class F

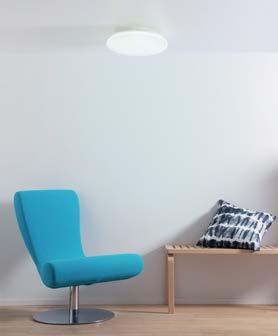

Gaia Slim R

A modern plafond with adjustable light colour temperature between warm white and cool white (2700 K - 6500 K). Easy to install directly on the socket and on the shelf with the installation kit supplied with the luminaire. Plafon- di is a good choice for any interior of the home, hallway, living room, bedroom or kitchen.

• Polycarbonate body and opal acrylic cup (ACO)

• White, RAL 9016.

• Protection class II.

• Surface mounting on a ceiling socket or wall and ceiling junction box.

• The luminaire is equipped with a plug and a suspension hook. Spring connectors 3 x 2,5 mmZ.

• The light colour temperature is selected continuously with the remote control, CCT 2700-6500K. CRI> 80 / Ra> 80.

• Enclosure class IP20.

• Fixed LED, 22W 1600 lm.

• MacAdam 6 SDCM.

• Also available in Zigbee models.

• The dimming from 10% to 100% is selected continuously with the remote control.

• Operating ambient temperature 0 ... 25 °C.

• Service life L70 30 000 h (Ta25°).

• Installation accessories are included in the product.

• Remote control for up to four lamps, memory function. 2 x AAA 1.5V batteries not included.

• Round shape, two sizes Ø 400 mm and Ø 580 mm.

Gaia 3-Step-DIM + CCT

Plafonds

A stylish and modern plafond for general lighting in the home, which can be dimmed from the staircase - just like a normal light switch! Dimming: 1300 lm800 lm - 400 lm. The light shade can be selected from the lamp body before installation. Switching conditions: 2700 K (warm white) - 3000 K (white)4000 K (cool white). Memory function, remembers the previous light setting after 5 sec. Luminaire Ø 300 mm, height 57 mm.

• IP20, for dry indoor use in the home.

• 15 W

• CRI80

• Material white plastic (PP, PMMA).

• Suitable for through-wiring.

• Easy installation with luminaire collar and spigot, option for box mounting.

• Service life approx. 25000 h.

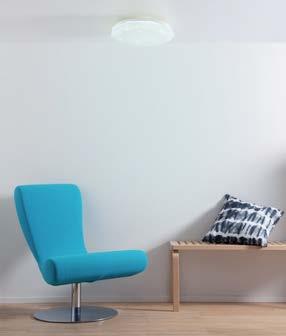

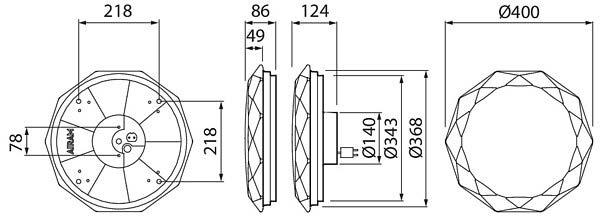

Gaia Starlight

Elegant diamond-shaped Airam Gaia Starlight -plafond star effect sparkles like a diamond. Choose Gaia Starlight when you want to create a special atmosphere, for example in the children's room and bedroom.

The colour of the Led light is infinitely adjustable from cosy warm (2700K) to daylight bright (6500K) with an easy-to-use remote control that also functions as a dimmer. You can easily install Gaia on a ceiling socket without tools using the ready-made lamp plug and suspension hook, or alternatively with a screw fixing on a jewellery box. Gaia Starlight is suitable for general lighting in the interior of the home. The opal-white acrylic dome provides uniform illumination. See also the trendy Gaia Slim and Gaia Smart models.

• Body in polycarbonate and cup in opalized acrylic (ACO).

• White, RAL 9016.

• Protection class II

• Surface mounting on a ceiling socket or wall and ceiling junction box.

• The luminaire is equipped with a plug and a suspension hook.

• In addition, it is possible to install without a lighting plug. Spring connectors 3 x 2,5 mmZ

• The light colour temperature is selected continuously with the remote control, CCT 2700-6500K. CRI> 80 / Ra> 80.

• Enclosure class IP20.

• Fixed led, 22W 1600 lm.

• MacAdam 6 SDCM.

• Dimming 10-100% is selected continuously with the remote control.

• Operating ambient temperature 0 ... 25 °C.

• Service life L70 30 000 h (Ta25°).

• Installation accessories are included in the product.

• Remote control for up to four lamps, memory function. 2 x AAA 1.5V batteries not included.

• Round diamond prismatic shape, Ø 400 mm.

- / 6

Gaia Starlight 400 22W/827-865 NO: 4245337
6435200258625

Gaia Slim R400 Plafonds

A modern plafond with adjustable light colour temperature before installation. Spectrum between white / off-white (3000 K / 4000 K). Easy to install directly on the socket and distribution box with the installation kit supplied with the luminaire. Plafond is a good choice for all for the interior of your home, hallway, living room, bedroom or kitchen. This Gaia Slim model operates from a light switch. The product does not have a remote control.

• Polycarbonate body and opal acrylic cup (ACO)

• White, RAL 9016.

• Protection class II.

• Surface mounting on a ceiling socket or wall and ceiling junction box.

• The luminaire is equipped with a plug and a suspension hook. Spring connectors 3 x 2,5 mmZ.

• For indoor use.

• Enclosure class IP20.

• Fixed LED, 22W 1600 lm.

• Spectrum 3000 K / 4000 K.

• Round shape, diameter 400 mm.

• Energy class G

Gaia Slim R400 22W/830/840 1600lm NO: 9610555

Scandic Spot S Spotlight

The Scandic Spot S has two shades, for which you can choose the GU10 LED bulbs you want from Airam's wide range of lamp options. The stylish spotlight is perfect for scandi- nary interiors. Two options the body colour: white or black. You can focus the spotlights separately by turning the lamp cap. The luminaire is easy to install either directly on the ceiling or in a mounting box. The Scandic luminaire family also includes the Scandic Spot L luminaire.

• For indoor use.

• 230 V.

• Material metal and plastic, colour white or black.

• Led max. 2 x 9 W GU10, lamps not included.

• Size: height 16,5 cm, width 40 cm, depth 12,5 cm.

Scandic Spot S 2XGU10 BK NO: 9610575
6435200300867
Scandic Spot S 2XGU10 WH NO: 9610576 6435200300874

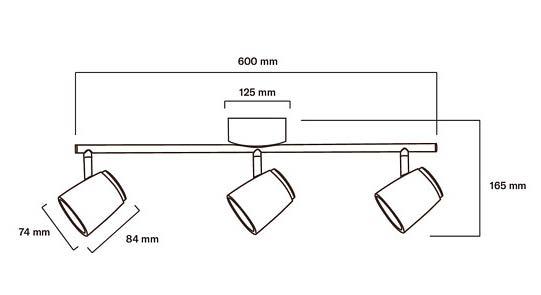

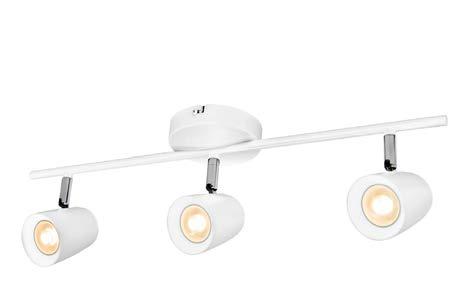

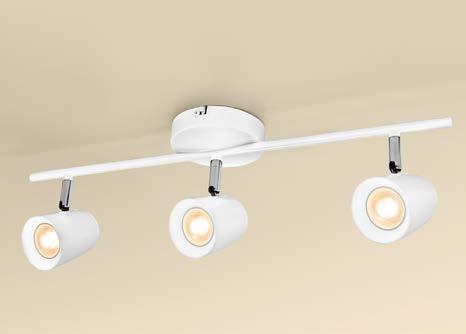

Scandic Spot L Spotlight

Scandic Spot L has three shades, where you can choose the GU10 LED bulbs you want from Airam's wide range of lamps!

The elegant spotlight is perfect for Scandinavian interior design. Available in white or black. You can align the spotlights separately by turning the lamp. The luminaire is easy to install either on the ceiling or on a mounting box. The Scandic luminaire family also includes the Scandic Spot S luminaire.

• For indoor use.

• 230 V.

• Material metal and plastic, colour white or black.

• Led max. 3 x 9 W GU10, lamps not included.

• Size: height 16,5 cm, width 60 cm, depth 12,5 cm.

- / 4 - / 4

Scandic Spot L 3XGU10 WH NO: 9610578
6435200300898
Scandic Spot L 3XGU10 BK NO: 9610577
6435200300881

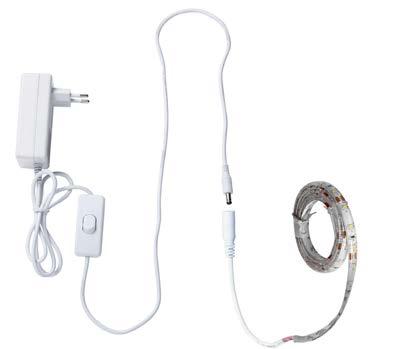

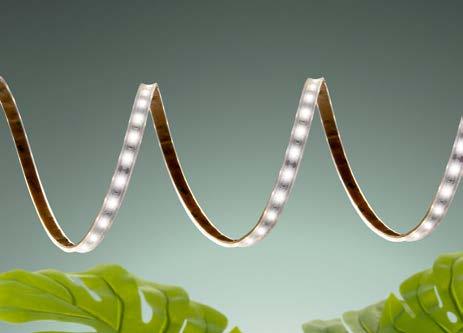

Led Strip 24V

Led ribbon

With the Led strip you can create stylish accents and indirect lighting. Attach the led strip to the ha directly onto a clean surface with the 3M sticker on the back of the tape. The slim and low-profile nau- ha is easy to install in small and narrow spaces, such as under a shelf or cabinet, in a display case, as a door frame or even as a TV backlight! For the ultimate finish, use an aluminium profile for the installation. The LED strip can be shortened every 100 mm according to different instructions. The range of LED strips with both white light colour (3000 K) and bright white light colour (4000 K). Led 24 V 4,8 W/m. Available in different lengths. Help-po and ready for plug & play installation. Plug-in transformer, on/off switch on the cord. For indoor use.

• For indoor use.

• IP20.

• Led 24 V 4,8W/m

• Light colour temperatures of 3000 K and 4000 K.

• Lengths: 1 m, 2 m, 3 m or 5 m. Tape width 8 mm.

• Operating ambient temperature +5 ... 25°.

• Service life L70 15 000 h.

3000 K / 1 m

LED Strip 24V IP20 4,8W/m 830 1m NO: 9610482

6435200282682

3000 K / 2 m

LED Strip 24V IP20 4,8W/m 830 2m NO: 9610483

6435200282699

3000 K / 3 m

LED Strip 24V IP20 4,8W/m 830 3m NO: 9610484

6435200282705

3000 K / 5 m

LED Strip 24V IP20 4,8W/m 830 5m NO: 9610485

6435200282712

4000 K / 2 m

LED Strip 24V IP20 4,8W/m 840 2m NO: 9610486

6435200282729 6 / 24 6 / 24 6 / 24 6 / 24 6 / 24

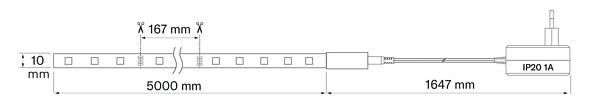

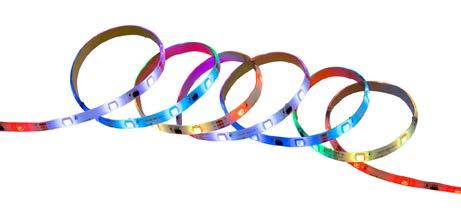

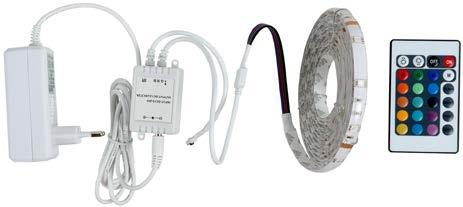

Led Strip RGB 24V

Led ribbon

With RGB LED strip you can bring different shades of light into your home. Change the colour of the light and the mood of your home with the included remote control. Create stylish accents and indirect lighting, change the colour of the light to suit your theme or mood! The Led strip shines in only one colour at a time, no rainbow effect. The LED strip can be attached to any clean surface with the included 3M sticker. For a more finished look, use aluminium profiles. The thin and low profile strip is easy to install in small and narrow spaces, such as under a shelf or cabinet, in a display case, as a door frame or even as a backlight for a TV! The LED strip can be shortened according to the instructions every 125 mm. Two different lengths of 2 and 5 metres. Easy and ready to plug & play -installation. Plug transformer. Remote control included.

• For indoor use.

• IP20.

• LedRGB24V7.2W/m.

• Lengths 2 m or 5 m, can be shortened every 125 mm.

• Tape width 5 mm.

• Transformer IP20, led strip IP54.

• Operating ambient temperature +5 ... 25°.

• Lifetime L70 15 000 h.

LED Strip Power 24V IP20 RGB 2m NO: 9610493
6435200282798
LED Strip Power 24V IP20 RGB 5m NO: 9610494
6435200282804
/ 24
/ 24

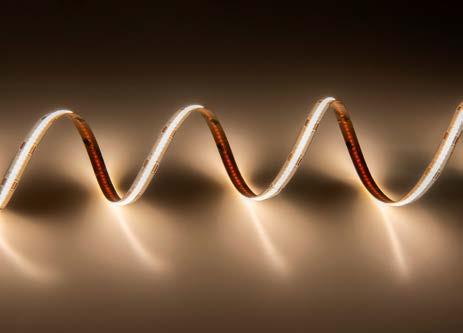

COB Led Strip

Dotless led ribbon

COB LED strips provide uniform light. SoThe LED strips do not show the typical LED paths, so they are less dazzling. The range includes three different LED strips, each available in two different lengths (2 m and 3 m): the three-step adjustable CCT strips (3000 K - 4500 K - 6500 K), the white light (3000 K) LED strips and the cool white light (4000 K) LED strips.

brilliant led strips. The remote control gives you manual control of various lighting functions, such as dimming. 3000 K and 4000 K strips also have a flashing function.

• For indoor use, for dry indoor areas of the home.

• Lengths of 2 m and 3 m.

• Led fixed 3000 K or 4000 K, RA80, 320 led/m, 900 lm/m 12 W/m.

• Service life 15 000 h.

• Stepless dimming function.

• DC 24 V.

• Intermediate switch on wire, wire length 1,5 m.

• Comes with remote control.

6435200313416
COB LED Strip 24V IP20
6435200313423
COB
6435200313430
COB

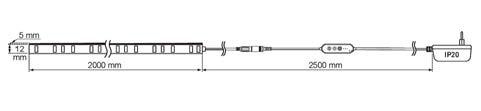

COB Led Strip CCT

Dotless led ribbon

COB led CCT strips shine a uniform light. They do not show the typical LED glare of LED strips, so they are less glaring. The CCT strip's light colour can be adjusted in three steps: 3000 K - 4500 K - 6500 K. The different light functions and dimming can be conveniently controlled by remote control. The CCTled strip is available in two different lengths (2 m and 3 m).

• For indoor use, for dry indoor areas of the home.

• Lengths of 2 m and 3 m.

• Led solid 3CCT 3000 K - 4500 K - 6500 K, RA90, 576 led/m, 900 lm/m. 12 W

• Service life 15 000 h.

• Stepless dimming function.

• DC 24 V.

• Intermediate switch on wire, wire length 1,5 m.

• Comes with remote control.

COB

Led Strip Pixel RGB

Led ribbon with remote control

RGB LED ribbon light, where you can adjust the colour and intensity of the light with a remote control. A stunning colour-light effect (Dreamcolor), with changing colour tones. gliding beautifully! Available in two different lengths. Control the lights conveniently with the remote control.

• For indoor use.

• IP20.

• Led RGB, colour changes beautifully and glides.

• Power3.3W/m.

• Length 2 m or 5 m. The LED strip can be cut to the desired length at 167 mm intervals.

• Remote control.

LED Strip Pixel RGB IP20 2m NO: 9610551
6435200293152
LED Strip Pixel RGB IP20 5m NO: 9610543
6435200293169
/ 24
/ 24

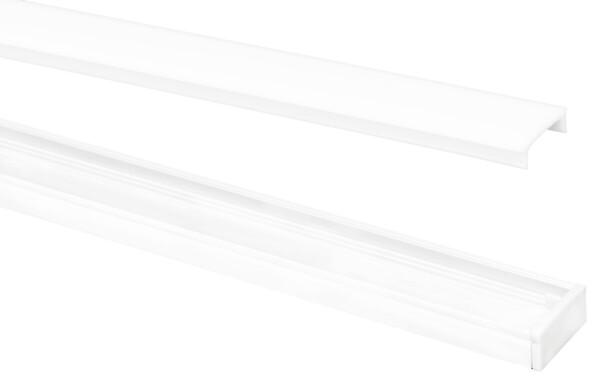

Basic aluminium profiles

Aluminium profile

Surface-mountable aluminium profiles facilitate the installation of LED strips. The aluminium profiles give the lighting a finished and neat look and protect the LED strip from dust and dirt. The opal-white polycarbonate plastic dome reduces glare from the LED's pinpoint light. Aluminium profiles are suitable for LED strips up to 10 mm wide.

Two different models: the basic low model Basic and the corner model Corner. Includes end caps and brackets.

• Material: aluminium body, polycarbonate plastic dome.

• Lengths from 1 to 2 m.

• Fasteners included: 2 1 m profile, 4 for 2 m profile.

6435200206473 10 / 100 10 / 100

BASIC ALUMINIUM PROFILE VA 1M NO: 4116410
6435200206459
BASIC ALUMINIUM PROFILE VA 2M NO: 4116411

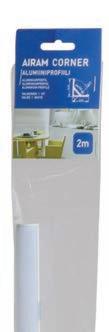

Corner aluminium profiles

Aluminium profile

Surface-mountable aluminium profiles facilitate the installation of LED strips. The aluminium profiles give the lighting a finished and neat look and protect the LED strip from dust and dirt. The opal-white polycarbonate plastic dome reduces glare from the LED's pinpoint light. Aluminium profiles are suitable for LED strips up to 10 mm wide.

Two different models: the basic low model Basic and the corner model Corner. Includes end caps and brackets.

• Material: aluminium body, polycarbonate plastic dome.

• Lengths from 1 to 2 m.

• Fasteners included: 2 1 m profile, 4 for 2 m profile.

10 / 100 10 / 100

CORNER ALUMINIUM PROFILE VA 1M NO: 4116412
6435200206497
CORNER ALUMINIUM PROFILE VA 2M NO: 4116413
6435200206510

Venla

Table lamp

The traditional Venla school lamp is also a good choice as a working light for the office or home office. The two-piece articulated arm and swivelling shade provide versatile adjustment possibilities. Reduce glare and improve working ergonomics by directing the spotlight where you need it. Attachment to the edge of the desk frees up working space on the desk. Strong and durable metal frame.

• Metal frame.

• Lamp max. 40 W E27, not included.

• Screw-on footrest.

• Plug connection cable 1700 mm, on/off switch on the cable.

3 / 6 3 / 6

VENLA TABLE LAMP E27 VA NO: 9610328
6435200151964
VENLA TABLE LAMP E27 MU NO: 9610327
6435200151988

Sansa Desk Table lamp

The trendy table lamp combines classic and modern style. The lamp body has a calm, frosted matte finish. A silver-coloured metallic accent in the functional details enlivens and supports the finished design. In addition to the table lamp, the Sansa range also includes a wall lamp and a ceiling lamp. Create a stylistically harmonious interior by combining the same series of lamps in a room.

• Metal frame.

• Available in black and white.

• Lamp max. 40 W E27, not included.

• Plug socket. Cable length 1500 mm, on/off switch on the cable.

- / 4 - / 4

SANSA TABLE LIGHT E27 VA-HO NO: 4118748
6435200226402
Sansa Ceiling s. 18
SANSA TABLE LIGHT E27 MU-HO NO: 4126221
6435200238122

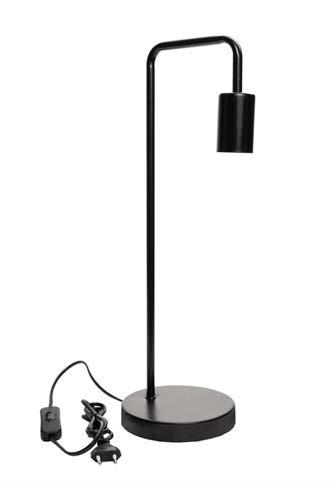

Nita

Table lamp

The clean and clean-lined Nita table lamp fits the minimalist interior design style. Beautiful Decor lamps look particularly stunning when the light source is not obscured. Choose a beautiful LED bulb to suit your interior, whether it's a round dome, a standard dome or a nostalgic Edison bulb. The shape and colour of the lamp cap will make a big difference to the look of the luminaire.

• Metal frame.

• Black.

• Lamp max. 40 W E27, not included.

• Plug socket, 1500 mm cable, on/off switch on the cable.

NITA TABLE LAMP E27 MU

Anoom desk

Table lamps with wooden details

Pretty table lamp with wooden details. Diameter of the globe 12 cm, height of the lamp 34 cm. Available two different body colours: black and beige. The lamps have an E27 bulb holder, the P45 wooden bulb is best suited for this lamp. Choose the right lamp from Airam's wide range of LEDs. We recommend the Airam SmartHome range of lamps, which you can adjust and time as you wish using your phone keypad. Or check out the 3-Step-DIM lamps, which you can dim with a simple light switch!

• For indoor use.

• Steel body and cup, cup Ø 12 cm, height 34 cm. Wooden details, certified wood material.

• Colour options: black or beige.

• Lamp max. 7 W led P45 E27, not included.

• On/off switch on stand, adjustable arm.

• Cable 1800 mm, black.

ANOOM TABLE LIGHT E27 MU/ WOOD NO: 9610691
6435200316516
Anoom Ceiling s. 25
Anoom Floor s. 78
ANOOM TABLEVAL. E27 BE/ WOOD NO: 9610692
6435200316523

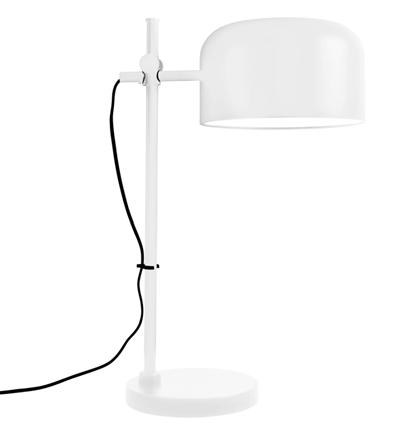

Urban Desk S

Table lamp

A table lamp with a modern look for a Scandinavian interior! Metal frame. Two colour options: white and black. Choose from the Airam LED range for this table lamp with P45 dome and E27 bulb. We particularly recommend Airam SmartHome lamps, which you can adjust in many ways with the SmartHome app. The light is switched on and off by pulling the cord switch. Check out the other great products in the Urban range and create a coherent lighting scheme for your home!

• Enclosure class IP20.

• E27 220-240 V 50/60 Hz

• 1 x Max 9 W led bulb with P45 dome and E27 base (not ).

• Shade Ø 200 mm, luminaire height 360 mm.

• Textile power cord 1,8 m.

• Colour options: white, black.

6435200300744

Urban Desk L

Table lamp

A stunning and large table lamp, perfect for Scandinavian interior design. Metal frame. Height of the shade can be adjusted, also the angle of the shade is adjustable. Two colour options: white or black. Choose the colour you want for your luminaire.

si E27 bulb from the versatile Airam led range. We especially recommend Airam SmartHome lamps, which you can adjust in multiple ways with the SmartHome app. See also the other great products in the Urban range and create a coherent lighting scheme for your home!

• Enclosure class IP20.

• E27 220-240 V 50/60 Hz

• 1 x Max 9 W led bulb E27 (not ).

• Shade Ø 250 mm, luminaire height 592 mm.

• Textile power cord 1,8 m.

• Colour options: white, black.

Urban
6435200300782

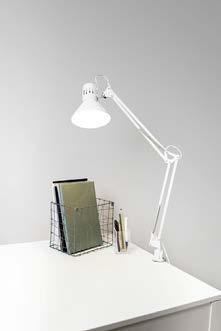

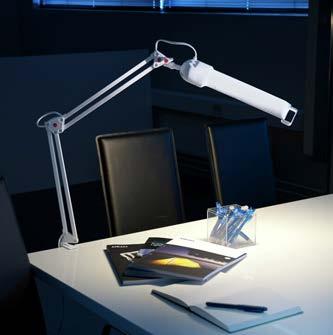

Campus Led

Table lamp

The classic articulated desk lamp is a good choice for an office, home office or school pupil's work light. The luminaire has an ergonomic design: the lamp body is movable and the angle and angle of illumination can be adjusted to suit your needs. -adjusting the position is easy. With an articulated light beam and shade, you can reduce glare and improve working ergonomics by directing light where you need it. Mount the lamp securely to the edge of the table top with the screw-on table clamp. The light source is a replaceable LED bulb.

• Metal/plastic frame.

• White or black.

• Led bulb G23 7,2 W 670 lm 3000 K included. Led bulb max. 7,2 W G23. Lamp part led G23 7,2 W 670 lm 3000 K (No. 4713825) or 4000 K (No 4713827).

• Screw-on footrest.

• Plug socket, cable 1550 mm, on/off switch in the pattern.

CAMPUS LED IP20 G23 7.2W VA NO: 4107178
6435200266958
CAMPUS LED IP20 G23 7.2W MU NO: 4107179
6435200267696

Cara Desk

Table lamp

A graceful table lamp brings a modern look to your interior. The Cara has a narrow beam that you can direct where you want. Fixed LED lamp with white light colour temperature, 3000 K. The direction of the light can be adjusted by turning the light switch. ti from the sunshade. Create a coherent lighting scheme for your home and check out the other lamps in the Cara range!

• Led fixed

• 4.5 W 320 lm, 3000 K.

• For indoor use, IP20.

• 1.6 m cable, on/off switch.

• Service life 25 000 h

• Warranty 3 years.

Cara clip s. 66
Cara Wall s. 76
CARA TABLE LAMP 4,5W/830 320LM
6435200271891

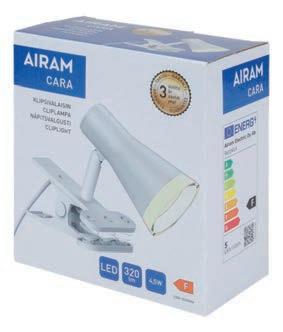

Cara clip

Clip-on light fitting

The Cara clip-on lamp is easy to attach to a shelf, bed headboard or table. Its lightweight appearance creates a narrow beam of light for reading, working or crafting. Fixed led light with white light colour temperature, 3000 K. The direction of the light can be adjusted by turning the shade. Create a coherent lighting scheme in your home and check out the other lamps in the Cara range!

• Led fixed

• 4.5 W 320 lm, 3000 K.

• For indoor use, IP20.

• 1.8 m cable, on/off switch.

• Clip fastening

• Service life 25 000 h

• Warranty 3 years.

Cara Desk s. 65
Cara Wall s. 76
CARA WITH CLIP. 4,5W/830 320LM

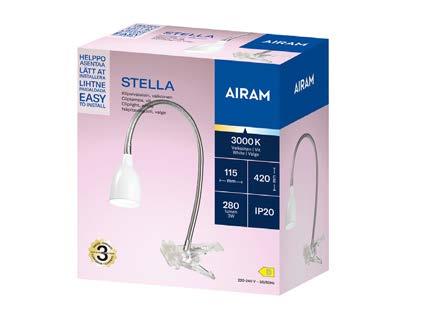

Stella clip Spotlight

With the Stella spotlight, you can replace a table or wall lamp permanently or temporarily by attaching it to the edge of a table or shelf with a clip. The solution frees up working space on the desk and it is also easy to change the position of the spotlight as required. The integrated LED light source of the chip and the reduced luminaire provides 280 lm of light output. The flexible metal arm makes it easy to direct the light freely. The Stella range also includes a table and wall lamp.

• Metal/plastic frame.

• Black and white.

• Fixed led 3 W, 280 lm, 3000 K.

• Wall mounting.

• Euro plug, cable 1500 mm.

Stella Clip IP20 3W/830 280lm WH NO: 9610502
6435200285195
Stella Clip IP20 3W/830 280lm BK NO: 9610503
6435200285201

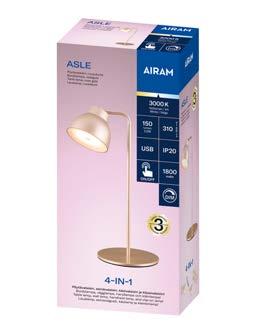

Asle

Versatile 4-in-1 luminaire

A compact and handy rechargeable lamp with multiple functions! This single light source can be transformed into a table lamp, wall lamp, hand lamp or clip-on lamp - all of which can be used as a light source.

ki the necessary parts can be found in the package. Move the dome to the appropriate stand according to your needs. Attachment of a sturdy magnetic suction cup.

with a pin. The light source is rechargeable, USB-A/USB-C -Charging cable included, transformer not included. The light shines white, 3000 K. Available in black, white or rose gold.

• For indoor use.

• Material plastic and metal.

• Magnetic suction cup attachment for different types of stands according to the type of use (table lamp, wall lamp, hand lamp, clip-on lamp).

• Colour options: black, white or rose gold.

• Light bulb: Ø 9 cm, height 7 cm. Table lamp base height 31 cm.

• Led solid SMD 150 lm, 2.5 W, 3000 K.

• Continuously dimmable.

• On/off button on the luminaire housing.

• USB-A/USB-C charging cable, included, length 1 m. Transformer not included.

On/Off, dimming

150LM USB-C MU NO: 9610695

/ 8

150LM USB-C VA NO: 9610696

/ 8

150LM USB-C RG NO: 9610697

6435200316578

/ 8

ASLE DESK LAMP 4-IN-1
6435200316554
ASLE DESK LAMP 4-IN-1
6435200316561
ASLE DESK LAMP 4-IN-1

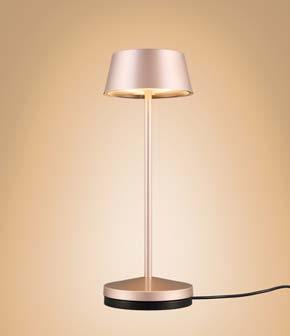

Arik

Rechargeable table lamp

Rechargeable compact and easy to use table lamp. Create atmospheric light in the interior of your home. Shines a white light (3000 K) that can be infinitely varied by pressing and holding on/off. off-napista. Three different body colours available: black, white and rose gold. USB-C charging port on the base, charging cable included but transformer not included. Size with charging stand: Ø 11 cm, height 30.5 cm.

• For indoor use.

• Steel body and cup.

• Colour options: black, white or rose gold.

• Led solid 160 lm, 3.3 W, 3000 K.

• 1500 mAh.

• Continuously dimmable.

• On/off button at the top of the luminaire.

• USB-C charging cable, included. Transformer not included.

ARIK SURFACE. 160LM 3000K 1500mAh MU NO: 9610698
6435200316585
ARIK POP. 160LM 3000K 1500mAh VA NO: 9610699
6435200316592
ARIK PÖYTAV. 160LM 3000K 1500mAh RG NO: 9610700
6435200316608

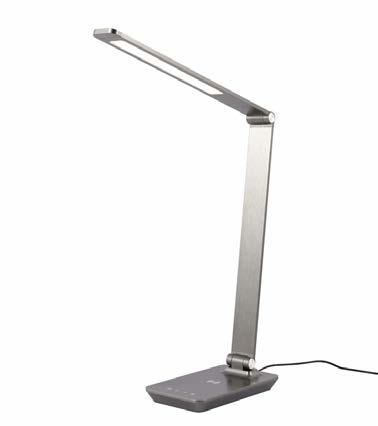

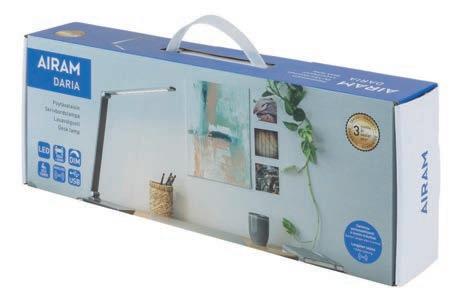

Daria

Table lamp

A modern table lamp with a modern design. Suitable for desks in home offices. The versatile functions also support more demanding office use. A large number of LEDs, a lot of light. The luminaire's features can be adjusted with a toggle switch: on/off, 3-step dimming and light colour temperature. adjustment. An energy-saving timer that automatically switches the light off after four hours. Wireless charging on the lamp base, plus a USB port for charging a mobile device. High-quality colour rendering.

• Aluminium body, ABS dome.

• Colour metal, anthracite.

• IP20

• Colour temperature control 3-step: CCT 3000 - 4000 - 6000 K

• 3-step dimming.

• Led 48 pcs (24+ 24 pcs) 10 W

• Luminous efficacy 575 lm.

• Ra>95

• 220-240/50 Hz

• USB charging port 5 V 1 A and toggle switch.

• Mains cable 1,8 m.

• Operating temperature -5...+40 °C

Daria Desk 10W 575lm WC NO: 9610478

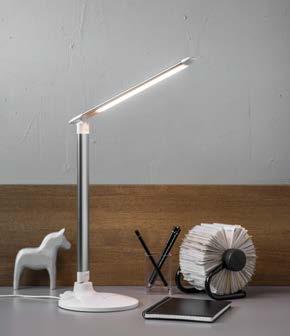

Gina Table lamp

The compact Gina table lamp is a handy choice for the... on your desk or bedside table. The Led light can be dimmed with a 5-position touch switch. The light colour can be selected from warm white 2700 K, bright white 4500 K, or an effective daylight colour of 6000 K. The Gina desk lamp is a multifunctional light: it has a USB port charging a mobile phone or other small electronic device. It's easy to adjust the lighting angle and angle incidence. Use the power switch on the base.

• ABS plastic/aluminium frame. Protection in opal plastic.

• White/silver.

• Protection class III.

• Fixed led 14 W, 800 lm.

• 3-step colour temperature switching 2700/4500/6000 K.

• 5-step dimming with touch switch

• IP20.

• Plug transformer, cable 1500 mm.

• USB5V-500mA.

• Useful life L70 30 000 h. Gina 14W 827/845/860 800lm WH-SI

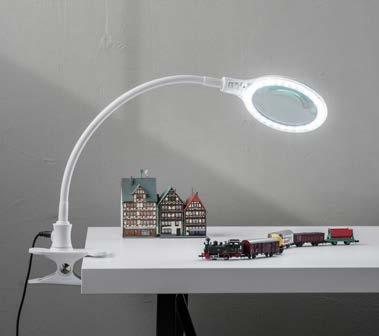

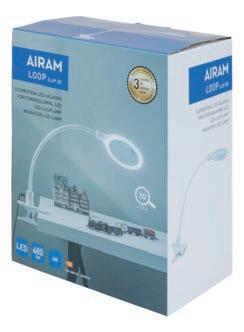

Loop Clip 3D

Magnifying glass lamp

The magnifying LED light is an excellent tool for precision work at home, at work and in hobbies. It features a wide 3D glass lens with 1.75x magnification. A handy bendable arm helps you direct the light exactly where you want it. The clip-on mounting makes it easy to change the position of the lamp. It also frees up working space on the desk. The power switch is located on the lamp body.

• Metal and silicone frame.

• White.

• Lamp type solid led 6 W, 480 lm, 6500 K.

• Power socket 20 V with transformer, cable 1500 mm.

Loop Clip 3D 6W/865 480lm WH NO: 9610509
6435200285645 - / 4

Loop XL 3D

Magnifying glass lamp

The magnifying LED light is an excellent tool for precision work and hobbies. Its powerful 5" 3D glass lens has a magnification power of 1.75x. Attach the lamp to a sturdy by means of a table clamp that screws onto the edge of the table or level. With the closeable cover pressed on, the luminaire can also be used as a standard task light. The power switch is located on the body of the luminaire.

• Metal and plastic frame.

• White or black.

• Lamp type solid led 8 W, 650 lm, 6500 K.

• Plug socket, cable 1500 mm.

- / 4 - / 4

Loop XL 3D 8W/865 650lm WH NO: 9610508
6435200285638
Loop XL 3D 8W/865 650lm BK NO: 9610666
6435200316264

Trina

Table light

A neatly positioned, beam-like desktop light above the screen of a computer or laptop. The light won't glare or reflect, but is focused just right down on your keyboard and work surface, improving your visibility of what's important. The cool white light keeps you refreshed! The light is adjustable in steps: bright (3000 K), cool white (4000 K), cool white (6500 K). The brightness of the light can also be adjusted in 3 steps (100% - 40%10%). Memory function: when the lamp is switched off, it will light up the next time with the same light setting. Excellent colour rendering, CRI >95! USB-A charging port on the base, so you can charge your phone or other mobile device, for example.

• For indoor use.

• Material metal, white.

• Width of the light bar 45 cm, height of the table light 39 cm.

• Led solid 600 lm, 10 W, 3CCT 3000 K - 4000 K - 6500 K.

• Dimmable in steps (100% - 40% - 10% light output).

• CRI>95.

• USB-A charging port 5 V 1 A.

• Cable length 1800 mm.

TRINA TABLE LIGHT 45 600LM WHITE. NO: 9610701

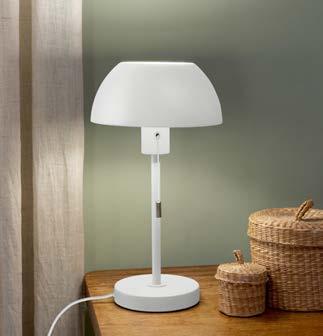

Airam Laune desk

Table lamps

The Airam Laune table lamp design follows the modern style of the Laune pendant lamp series - with these lamps you can create a stunning and coherent interior lighting for your home! This striking luminaire is available in three colours: white, dark pearl grey and a striking shade of yellow. The table lamp has a metal body and the E27 lamp holder allows you to choose the LED bulb of your choice. We recommend Airam SmartHo- me or 3-Step-DIM lamps, both of which can be adjusted to the desired mood of your home.

The Laune table lamp is also elegant on the floor. It fills dark corners of the home or adds a touch of class next to large pieces of furniture. Laune lamps are in Finland, at the Airam factory in Lahti.

la. The luminaires have both the Key Flag of Finnish Work and the Design from Finland label.

• Material aluminium

• Connection cable with intermediate switch, length approx. 2 m.

• Lamp holder E27.

• Colours white, anthracite and yellow

• Laune luminaires available in autumn 2025!

The packaging image is indicative.
LAUNE TABLE LIGHT E27 WHITE NO: 9610722
6435200319111 (-) (/) (-)
LAUNE TABLE LIGHT E27 ANT NO: 9610723
6435200319128 (-) (/) (-)
Laune 350 s. 30 Laune 560 s. 31
LAUNE TABLE LIGHT E27 YELLOW NO: 9610724
6435200319135 (-) (/) (-)

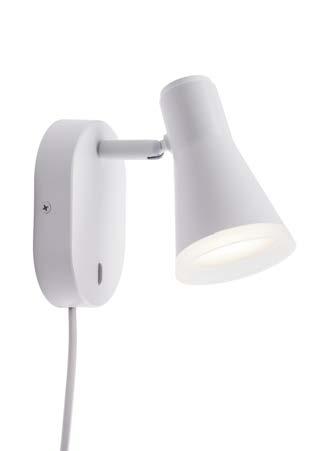

Cara Wall Wall lamp

The stylish and timeless Cara wall lamp creates a narrow spotlight that is perfect for reading. Fixed led light with white light colour temperature, 3000 K. The direction of the light can be adjusted by turning the shade. Create a coherent lighting scheme in your home and check out the other lamps in the Cara range!

• Led fixed

• 4.5 W 320 lm, 3000 K.

• For indoor use, IP20.

• Cable1,8m.

• Screw fixing to the wall.

• Touch button, on/off.

• Service life 25 000 h

• Warranty 3 years.

6435200271976 - / 24

Cara Desk s. 65 Cara clip s. 66
CARA WALL LIGHT 4,5W/830
320LM VA NO: 9610415

Anoom Floor

Foot lamps with wooden details

Foot lamp with wooden details. Diameter 12 cm, height 155 cm. Available in two different body colours: black and beige. The luminaire is equipped with an E27 bulb holder, the P45 hollow bulb is best suited for this luminaire. Choose the right lamp from Airam's wide range of LEDs. We recommend the Airam SmartHome range of lamps, which you can adjust and time as you wish using a phone app. Or check out the 3-Step-DIM lamps, which you can dim with a simple light switch!

• For indoor use, IP20.

• Steel frame and cup, cup Ø 12 cm, height 155 cm. Wooden details, certified wood material.

• Colour options: black or beige.

• Lamp max. 7 W led P45 E27, not included.

• Partially adjustable stem.

• On/off switch on the wire

• Cable 1800 mm, black.

- / 4 - / 4

ANOOM FLOOR LIGHT. E27 MU/ WOOD NO: 9610693
6435200316530
Anoom Ceiling s. 25 Anoom desk s. 61
ANOOM FLUSH-MOUNTED. E27 BE/WOOD NO: 9610694
6435200316547

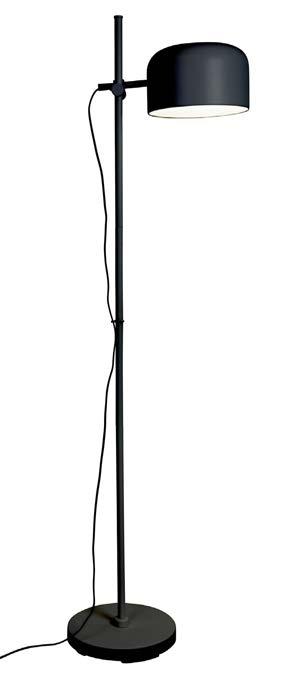

Urban Floor Floor lamp

The stunning and large Urban floor lamp is suitable for a Scandi style interior. The lamp has a metal body. The height of the shade is adjustable, also the angle of the shade is adjustable. Available in white and black. Choose your preferred E27 bulb from the wide range of Airam LEDs. We recommend the special Airam SmartHome lamps, which you can adjust in a variety of ways using the SmartHome app. Check out the other great products in the Urban range and create a coherent lighting scheme for your home!

• Enclosure class IP20.

• E27 220-240 V 50/60 Hz

• 1 x Max 9 W led bulb E27 (not ).

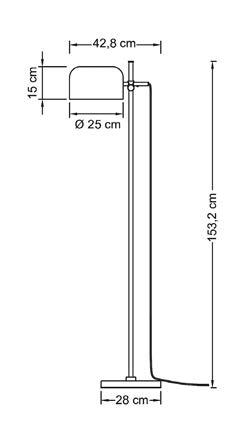

• Shade Ø 250 mm, luminaire height 153,2 cm.

• Textile power cord 1,8 m.

• Colour options: white, black.

Urban
6435200300829

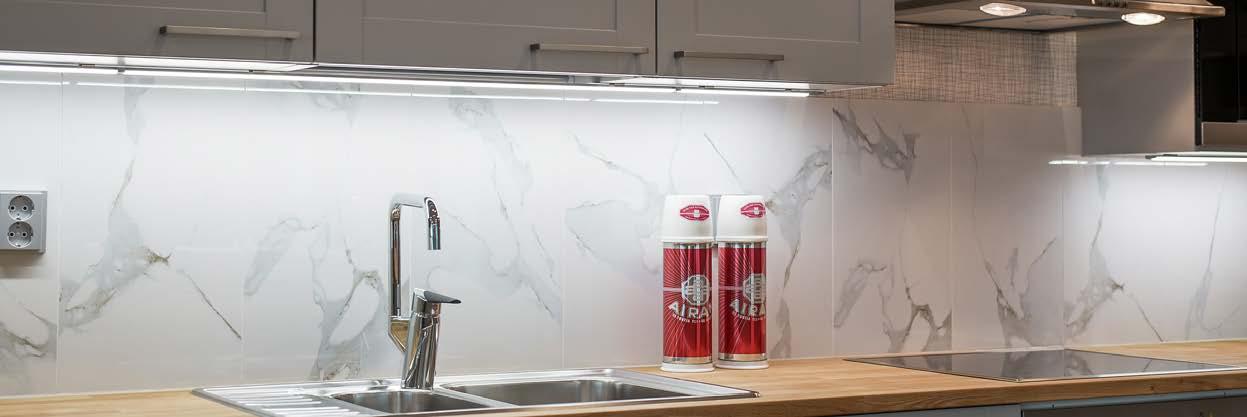

Linear Workstation lamp

Convertible LED profile set. Assemble a set of different parts to suit your needs. Available in different lengths and 2 different colour temperatures. The parts are sold separately. Connect the profiles together or combine them with the fittings. and intermediate wires. Up to 5 m of light with 80 W LED conversion! Suitable e.g. under cupboards. Drip-proof. Unique design allows for uninterrupted light even at joints. Use the supplied mounting brackets to mount the Linear unit at a 45° angle or directly on the surface. Choice of on/off pressure switch, motion sensor switch or dimmer switch. 24V transformers 40W or 80W.

• Aluminium body and opalized polycarbonate cup.

• Body colour grey.

• Protection class III.

• Light flux options:

• LED 2.5 W 200 lm.

• LED 5 W 450 lm.

• LED 9 W 850 lm.

• LED 15 W 830 1300 lm / LED 15 W 840 1400 lm.

• Colour temperatures 3000 K and 4000 K.

• IP21

• Maximum lengths of linear profiles for DC 24V led transformers:

• 40 W: max 2.3 m 35 W.

• 60 W: max 3.6 m 55 W.

• 80 W: max 5 m 75 W.

• Operating ambient temperature 0 ... 25 °C.

• L70 useful life 40000 h.

Linear

6435200230607
6435200286321

Linear accessories

Accessories

Convertible LED profile set. Configure different sections of the a package to suit your needs. The unique design allows uninterrupted light even at the joints. The parts are sold separately.

Linear Input connecting cable 500mm NO: 4118768

6435200227386

Linear Pressure switch connection 500mm NO: 4118769

6435200227409

Linear Sensor switch junction 500mm NO: 4118770

6435200227423

Linear DIM switch connecting cable 500mm NO: 4118771

6435200227447

Linear Intermediate 250mm NO: 4118772

Linear Jakolitin 1-4 NO: 4118774

6435200227508

Linear extension cable 1000mm NO: 4118775

/

/ 50

Linear Angle connector left NO: 4118778

6435200227584

6435200227461

Linear intermediate cable 1000mm NO: 4118773

6435200227485

Linear Right angle connector NO: 4118779

6435200227607

/

Linear X-connector 1W/830 85lm NO: 4146680

6435200227522
6435200287809

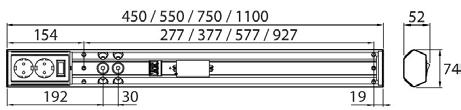

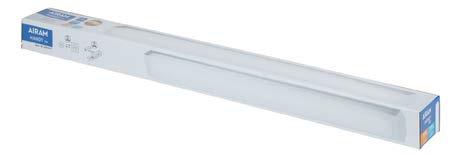

Handy

Workstation lamp

The popular Airam Handy range of task lights is designed for general lighting in the kitchen and on worktops in the utility room. Before installation, the colour temperature of the luminaire is selected from 3000 K or 4000 K. Handy is available four lengths and wattages. You can surface-mount Handy straight or at a 45° angle. The range also includes luminaires with two-piece grounded socket and on/ off switch, which allows you to control them on a luminaire-by-luminaire basis.

• Aluminium body, polycarbonate cup.

• White, RAL 9016.

• Protection class I.

• Surface mounted, through-hole and chained 4 x 2,5 mmZ (socket-type luminaires) or 3 x 2,5 mmZ (socket-type luminaires).

• Power, luminous flux and length options:

• Led 5 W 500 lm / 450 mm

• Led 8 W 800 lm / 550 mm

• Led 11 W 1200 lm / 750 mm.

• Led 14 W 1500 lm / 1100 mm.

• The luminaire colour temperature option 3000 K or 4000 K is selected inside the luminaire before installation. CRI> 80 / Ra > 80.

• Luminaires with a socket can be easily switched and are suitable for both right and left-hand installation.

• IP21

• Operating ambient temperature +5 ... 25 °C.

• The L70B50 has a useful life of 60 000 h.

• Drip guards available as an option.

• DSO= two-piece socket.

11W

4107103

14W 830/840

4107112

Handy 450 IP21 5W 830/840 DSO WH NO: 4107100
6435200258069
Handy 550 IP21 8W 830/840 DSO WH NO: 4107101
6435200258090
Handy 750 IP21
830/840 DSO WH NO:
6435200258120
Handy 1100 IP21
DSO WH NO:
6435200258151

Handy accessories

Handy 450 IP21 5W 830/840 WH NO: 4126293

Handy 550 IP21 8W 830/840 WH NO: 4126294

450 drip guard NO: A1HATS

6435200253446
Handy
6435200296412
6435200253477
Handy
6435200296429
Handy
Handy
Handy
6435200253538
Handy

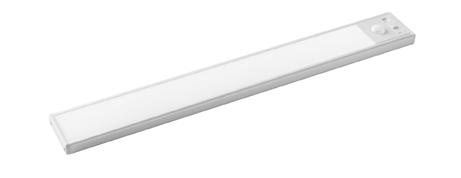

CabiLite

Rechargeable light

Use the USB-C port to charge the multi-purpose CabiLite light. The lamp features motion detection and a wide range of functions, including light brightness control and separate night and daylight settings. You can change the colour temperature and brightness of the light using the button next to the charging port. A short press changes the colour temperature of the light in steps, a long press dims the light continuously. Lightweight and low-profile, the light is easy to mount on a cabinet, shelf or wall - wherever you need a tactile motion sensor light! Includes a mounting plate to which the light is attached with a magnet. Available in two lengths: 30 cm and 40 cm.

• For indoor use, for dry indoor areas of the home.

• Led fixed 3CCT 2700 K - 4000 K - 6500 K, not replaceable,

• 30 cm: 1500 mAH 200 lm 2.3 W

• 40 cm: 2200 mAH 300 lm 4 W

• Service life 25 000 h

• Stepless dimming function (0% - 100%).

• Light opening angle 180°.

• Size: width 39 mm, height 10 mm, length 30 cm or 40 cm.

• USB-C charging port. Includes USB-A/USB-C charging cable, length 40 cm.

CABILITE 30CM 3CCT 200LM

RECHARGEABLE NO: 9471198

6435200313386

CABILITE 40CM 3CCT 300LM RECHARGEABLE NO: 9471199

6435200313393

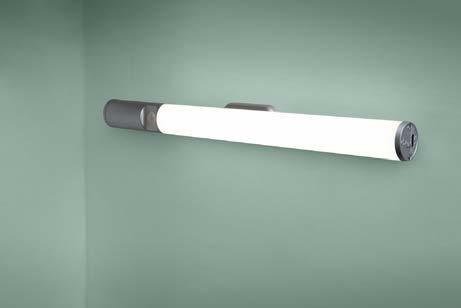

CabiRound

Rechargeable light

CabiRound, the cylindrical rechargeable cabinet light, is versatile and can even be used temporarily as a hand lamp! It has a motion sensor and a wide range of functions, such as brightness control and separate night and day settings. You can change the colour temperature and brightness of the light using the button on the charging port. A short press switches the colour temperature of the light is dimmed in steps, and when pressed and held, the light dims continuously. Includes a fixing plate to which the lamp is attached with a magnet.

• For indoor use, for dry indoor areas of the home.

• Led solid 3CCT 2700 K - 4000 K - 6500 K, non-replaceable, 2200 mAH 210 lm 4 W

• Service life 25 000 h

• Stepless dimming function (0% - 100%).

• Light opening angle 180°.

• Size: length 40 cm, Ø 26 mm.

• USB-C charging port. Includes USB-A/USB-C charging cable, length 40 cm.

CABIROUND 40CM 3CCT 210LM RECHARGEABLE NO: 9471201

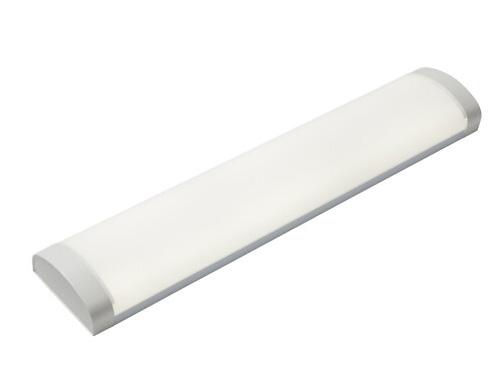

Basic Led

General luminaire

The low profile Basic Led is suitable for all interior spaces in the home. An efficient and good general luminaire, it switches on instantly and gives a uniform white light, 4000 K. Fixed LED. For example, install in a utility room, wardrobe or storage room. Choice of two lengths and wattages.

• Powder coated steel body, opal polycarbonate cup.

• White, RAL 9016.

• Protection class I.

• Surface mounting on the ceiling.

• Chainable 3 x 2,5 mmZ.

• Colour temperature 4000 K. CRI> 80 / Ra> 80.

• MacAdam 6 SDCM.

• Enclosure class IP20.

• Fixed led 18W 2000 lm, 28W 3000 lm.

• Operating ambient temperature 0 ... 25 °C.

• Service life L70 35 000 h (Ta25°).

6435200238917

Faro X

General luminaire

Faro X is a high quality general luminaire for interior spaces in homes, such as basements, warehouses and garages. The luminaire is IP65-rated: fully dustproof and waterproof and protected from water jets from all directions. Smooth and efficient LED light, instant on, colour temperature 4000 K. Fixed LED. Easy to install with the metal mounting brackets supplied. Surface mounting on ceiling, 3 x 1,5 mmZ. Through-wired, easy to chain. Three different lengths. Faro X is not suitable for agricultural or industrial use.

• Polycarbonate body and cup.

• Protection class I.

• Surface mounting 3 x 1,5 mmZ, chainable.

• IP65.

• Colour temperature 4000 K.

• CRI> 80 / Ra> 80.

• 600 mm 24W 2650 lm.

• 1200 mm 48W 5800 lm.

• 1500 mm 56W 6600 lm.

• MacAdam 6 SDCM.

• Installation height 2-4 m.

• Operating ambient temperature -0 ... 25 °C.

• Lifetime L70 40 000 h (Ta25°C).

Faro X 600 IP65 24W/840 PCO GR NO: 4146706
6435200289384
Faro X 1200 IP65 48W/840 PCO GR NO: 4146707
6435200289407
Faro X 1500 IP65 56W/840 PCO GR NO: 4146708
6435200289421

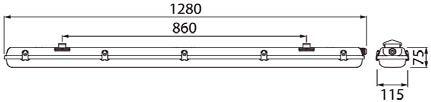

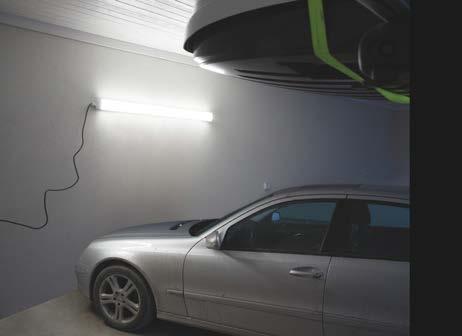

Generic

General luminaire

Generic is an IP65-rated dustproof and waterproof general luminaire with replaceable light sources. The luminaire is suitable for indoor use in dry and wet areas of the home, such as garages and storage rooms. The luminaire is easy to mount on the wall or ceiling with the metal mounting brackets supplied. The luminaire can also be suspended on a wire. The luminaire can be through- wired. Flat and the powerful LED light comes on instantly. Comes with powerful T8 LED tubes, colour temperature 4000 K. Three different lengths. Each length has two a power option. Frame made of durable ABS plastic.

• ABS plastic body, PC polycarbonate plastic cup, stainless steel fasteners.

• Grey, RAL7004.

• Protection class I.

• Ceiling, wall or pendant mounting, chainable 3 x 2,5 mmZ. Not including suspension cables.

• Installation height 2,5-6 m.

• LED T8 G13 1 x 9W/900 lm, 2 x 9W/1800 lm.

• LEDT8G131x17.5W/1800lm,2x17.5W/3600lm.

• LED T8 G13 1 x 22W/2400 lm, 2 x 22W/4800 lm.

• MacAdam 6 SDCM.

• Colour temperature 4000 K. CRI> 80 / Ra> 80.

• IP65.

• IK07.

• Operating ambient temperature -0 ... 40 °C.

• Lifetime L70 25000 h (Ta25°C).

• Note! The luminaire is not resistant to solvent washing or ammonia vapour and is therefore not suitable for livestock housing or industrial use.

IP65 2X9W/840 PCC GR NO: 4310692

- / 10

IP65 2X17,5W/840 PCC GR NO: 4310693

6435200270559

/ 8

IP65 2X22W/840 PCC GR NO: 4310694

6435200270566

Generic
6435200270542
Generic
Generic

Generic Lux

General luminaire

Generic Lux completes the Generic family of lighting . The through-wiring Lux model has the advantage of being particularly easy and quick to string. The Generic Lux is IP65 dustproof and waterproof, and has a high level of protection. vis general luminaire with replaceable light sources. The luminaire is suitable for indoor use in dry and damp areas of the home, such as garages and storage rooms. The luminaire is easy to mount on the wall or roof with the metal mounting brackets supplied. The luminaire can also be suspended by wire rope. The steady and efficient LED light comes on instantly. Supplied with highly energy-efficient T8 LED tubes, colour temperature 4000 K. Two different lengths. Body made of durable ABS plastic.

• ABS plastic body, PC polycarbonate plastic cup, stainless steel fasteners.

• Grey, RAL7004.

• Protection class I.

• Ceiling, wall or pendant installation, through-wired 3 x 2,5 mmZ. Not including suspension cables.

• Installation height 2,5-8 m.

• LED T8 G13 2 x 17.5W/5400 lm.

• LED T8 G13 2 x 22W/7200 lm.

• MacAdam 6 SDCM.

• Colour temperature 4000 K. CRI> 80 / Ra> 80.

• IP65.

• IK07.

• Operating ambient temperature -0 ... 25 °C.

• Lifetime L70 25000 h (Ta25°C).

• Note! The luminaire is not resistant to solvent washing or ammonia vapour and is therefore not suitable for livestock housing or industrial use.

Generic Lux IP65 2X17.5W/840 PCC GR NO: 4310695
6435200272072
Generic Lux IP65 2X22W/840 PCC GR NO: 4310696
6435200272089

Tube

General luminaire

Multi-purpose LED general purpose luminaire for lighting dry and damp areas of the home, such as storage rooms and garages. Also suitable as an additional light for a workplace. for construction or renovation. Tube II is dustproof and waterproof, enclosure class IP65. 1.5 m H05RB-F plug-in cable supplied with the luminaire. Best impact resistance, IK10. Available in three different lengths and wattages. Fixed bright white LED, 4000 K. Easy surface mounting on ceiling or wall with included metal fasteners. Tube II is not suitable for agricultural or industrial use.

• Body and dome made of PC polycarbonate plastic.

• White, RAL 9016.

• Lighting options:

• Tube II 600 IP65 14W/ 840 1400 lm.

• Tube II 1200 IP65 28W/ 840 2800 lm.

• Tube II 1500 IP65 35W/ 840 3500 lm.

• Colour temperature 4000 K. CRI> 80 / Ra> 80.

• Enclosure class IP65.

• Impact resistance IK10.

• Operating ambient temperature -10 ... 45°.

• Useful life L70 35 000 h.

6435200238993

TUBE II 600 IP65 14W/840 1400LM NO: 4126232
6435200238955
TUBE II 1200 IP65 28W/840 2800LM NO: 4126233
6435200238979
TUBE II 1500 IP65 35W/840 3500LM NO: 4126234

Saunaled Sq

Sauna lamp

Saunaled Sq (square) is a stylish sauna luminaire with a fixed AC-led. The wooden shade is made in Finland from high quality Finnish tar steel. The lamp is dimmable, so you can adjust the light level to suit the situation. Dust and waterproof, the luminaire can be surface and flush mounted on the wall. We recommend surface treatment of the wooden parts with a wood preservative before use. You can also individually tint the wooden parts to match the interior of your sauna. The product bears the Design from Finland label.

• Aluminium body, plastic cup (PC), untreated tar board frame.

• Colour untreated tarred alder or black butch.

• Surface and flush mounting.

• Screw connectors 3 x 2,5 mmZ.

• Installation height max. 1 m.

• Colour temperature 2700 K.

• Colour rendering index 80-89. CRI> 80 / Ra> 80.

• Enclosure class IP65.

• Fixed AC LED 8 W 500 lm.

• Dimmable.

• Operating ambient temperature 5 ... 60 °C.

• Service life L70B50 15 000 h.

• It is recommended to treat the wooden frame with a wood preservative.

• TRL=tarredalder

Saunaled Sq 260 8W/827 PCO TRL NO: 4126226
6435200238832
Saunaled Sq 260 8W/827 PCO BK NO: 9610590 6435200304025

Saunaled H

Sauna lamp

Saunaled H (horizontal) is a stylish sauna luminaire with integral AC-led. The wooden shade is made in Finland from high quality domestic tar steel. The luminaire is dimmable, so you can adjust the amount of light to suit the situation. Dustand the waterproof luminaire can be surface and flush mounted on the wall. We recommend surface treatment of the wooden parts with a wood preservative before use. You can also tint the wooden parts individually to match the interior of your sauna. The product bears the Design from Finland label.

• Aluminium body, plastic cup (PC), untreated tar board frame.

• Colour untreated tarred alder or black butch.

• Surface and flush mounting.

• Screw connectors 3 x 2,5 mmZ.

• Installation height max. 1 m.

• Colour temperature 2700 K.

• Colour rendering index 80-89. CRI> 80 / Ra> 80.

• Enclosure class IP65.

• Fixed AC LED 8 W 500 lm.

• Dimmable.

• Operating ambient temperature 5 ... 60 °C.

• Service life L70B50 15 000 h.

• It is recommended to treat the wooden frame with a wood preservative.

• TRL=tarredalder

Saunaled H 320 8W/827 PCO TRL NO: 4126227
6435200238856
Saunaled H 320 8W/827 PCO BK NO: 9610587
6435200303998

Saunaled Vert

Sauna light

Saunaled Vert (vertical) is a stylish sauna luminaire with a fixed AC-led. The wooden shade is made in Finland from high quality domestic tar steel. The luminaire is dimmable, so you can adjust the light level to suit the situation. Dust and waterproof, the luminaire can be surface and flush mounted on walls. Saunaled Vert can also be installed in a corner. We recommend surface treatment of the wooden parts with a wood preservative before use. You can also tint the wooden parts individually to match the interior of your sauna. The product carries the Design from Finland label.

• Aluminium body, plastic cup (PC), untreated tar board frame.

• Colour untreated tarred alder.

• Surface and flush mounting.

• Screw connectors 3 x 2,5 mmZ.

• Installation height max. 1 m.

• Colour temperature 2700 K.

• Colour rendering index 80-89. CRI> 80 / Ra> 80.

• Enclosure class IP65.

• Fixed AC LED 8 W 500 lm.

• Dimmable.

• Operating ambient temperature 5 ... 60 °C.

• Service life L70B50 15 000 h.

• It is recommended to treat the wooden frame with a wood preservative.

• TRL=tarredalder

Saunaled Vert 180 8W/827 PCO TRL NO: 4126228

Fiora Plant lamp

Give houseplants extra light during the hours of darkness or whenever they don't get enough sunlight from the Place the Fiora plant light freely on the ceiling of the room. Installation is easy: just plug the Euro plug into the socket and hang it from the ceiling above the plants. The 3500 kelvin light of the LED lamp is pleasantly white and the high-gloss reflector of the lamp diffuses it evenly. Airam's LED plant bulb has a beam that is to the exact wavelengths needed by the plant.

• Polycarbonate body.

• White RAL 9016 and black RAL 9005.

• Led garden light 9,5 W E27 3500 K, included in the package.

• Colour rendering index 80-89.

• Ceiling mounted socket, ceiling cup.

• Euro plug socket, cable 5000 mm, on/off switch on body.

• Operating ambient temperature 0 ... 25 °C.

• Lamp recommendation: airam plant lamp 4711773 PAR30 E27.

Fiora IP20 E27 9.5W/835 30D WH NO: 4118787
6435200228246
Fiora IP20 E27 9.5W/835 30D BK NO: 4146705
6435200284518 4 / 8 4 / 8

Iris Plant lamp

Pretty and graceful in design, the plant lamp is like jewellery. This plant light provides not only the essential extra light for plants, but also a spice up your interior. Available in two beautiful shades! The height of the stem is adjustable. The stem is inserted directly into the pot. The luminous intensity can be adjusted in steps, and the product also has a timer. Operates via USB connection. USB-A power adapter not included.

• For indoor use.

• IP20.

• Material metal and plastic.

• Colour white or yellow.

• Arm adjustability 100 - 600 mm.

• Led garden light, fixed 5 W.

• Spectrum 3500 K.

• 240 lm.

• Lighting angle 120°.

• Timer: 3-position, 8/12/16 hours.

• Dimmer: 5-step.

• Life expectancy approx. 25 000 h.

• USB-A interface.

• Voltage AC 220 - 240 V.

• Cable length 1.7 m.

Plant light Iris 5W/835 240lm WHITE NO: 9610533
6435200292629
Plant light Iris 5W/835 240lm KELT NO: 9610534
6435200292643 - / 6 - / 6

Verso

Plant light

Ideal LED plant light for germination or for herbs. The parts come separately in a small package. Easy to assemble: connect the metal feet to both ends of the light bar and the footrests to keep the light firmly level. Place the plants under the light. The product has a built-in timer. The light stays on for 16 hours and off for 8 hours. The LED light does not kill the plants and consumes very little energy.

• For indoor use, not for room lighting.

• IP20

• Led solid 4000 K 650 lm 14 W

• CRI95

• Service life 25 000 h

• Operating temperature -20 °C ... +40 °C.

• 220-240 V~ 50/60 Hz

• Size: width 53,6 cm, height 31,5 cm, depth 18 cm.

• Black cord, 1.5 m. Controller on cord.

Plant lamp Verso 14W/840

Lily Plant lamp

A stylish and timeless plant light for your table or table top. The height of the lamp is adjustable. The lamp has a built-in automatic timer, which keeps the light on for 16 hours and off for 8 hours. The wooden arm of the lamp is fixed to the on a round tray on which you can place a flower pot. The material of the globe and the tray is plastic.

• For indoor use.

• IP20.

• Material wood and plastic.

• Colour wood and white.

• Led garden light, solid 9 W.

• Spectrum 4000 K.

• 550 lm.

• Built-in automatic timer.

• Life expectancy approx. 25 000 h.

• Voltage AC 220 - 240 V.

6435200292582 - / 6

Plant light Lily 9W/940 550lm NO: 9610531

Rose Plant lamp

The dark winter in the North can be bad for houseplants. Make it easier for your greenery by attaching a handy little plant light to the pot! The height of the lamp stem is adjustable. The stem can also be pushed into the soil or attached to the edge of the pot with a clip. The light intensity can be adjusted in steps and the product also has a timer. Operates via USB connection. USB-A power adapter not included.

• For indoor use.

• IP20.

• Material metal and plastic.

• Colour white.

• Arm adjustability 308 - 793 mm.

• Led garden light, solid 10 W.

• Spectrum 3500 K.

• 290 lm.

• Lighting angle 120°.

• Timer: 3-position, 8/12/16 hours.

• Dimmer: 5-step.

• Life expectancy approx. 25 000 h.

• USB-A interface.

• Cable length 1.7 m.

• Power adapter required, not included: 5 V 2 A, total 10 W.

Tulip Plant lamp

Plant light with two arms and light sources. Attach to the table top with a handy clip. Thanks to the flexible arms, the light can be weatherand targeted in different directions. Provides a bright, bright light of 4000 K. The lamp has a 3position timer (8/12/16 hours) and can be mounted on a 30 - 35 mm thick table top.

• For indoor use.

• IP20.

• Material metal and plastic.

• Colour white.

• Led garden light, fixed 16 W.

• Spectrum 4000 K.

• 780 lm.

• Voltage AC 220 - 240 V.

• Timer: 3-position, 8/12/16 hours.

• Includes transformer.

Plant light Tulip 16W/940 780lm NO: 9610539
6435200292742 6 / 24

Ivy Plant light

A beautifully shaped, lightweight planter that gives plants the reddish light they need. The light can be used either with the foot level or by pushing the metal stem directly into the soil in the pot. The arm is telescopic and can be adjusted between 22 and 61 cm. The light can be adjusted in 5 steps and timed in 3 steps.

• For indoor use, not for room lighting.

• IP20

• Led solid 3500 K 650 lm 14 W

• Service life 25 000 h

• 5-step dimming: 100% - 80% - 60% - 40% - 20%.

• 3-step timing: 8 h/ 12 h/ 16 h.

• Operating temperature -20 °C ... +40 °C.

• 220-240 V~ 50/60 Hz

• Height min. 22,9 cm, max. 60,3 cm.

• White cable, 2.8 m. Controller on cable.

Plant light Ivy 14W/835 650lm NO: 9610538

Daisy Plant lamp

Plant light herbs, seedlings and small houseplants. The package includes eight small pots for planting seeds, plus two growing boxes. A self-watering container for easy checking of the amount of dew.

Photospectre creates red light, an important growth-promoting light for plants. The lamp has an automatic timer: the light stays on for 16 hours and then goes off for 8 hours.

• For indoor use.

• IP20.

• Material stainless steel and plastic.

• Colour white.

• Plant height 200 - 460 mm.

• Includes 8 small pots and 2 growing boxes.

• Led garden light, fixed 20 W.

• Spectrum 3500 K - 4000 K, also reddish

• 1350 lm.

• Lighting angle 120°.

• Automatic timer: 16 h on / 8 h off.

• Lifetime approx. 25 000 h.

• Voltage AC 220 - 240 V.

• On/off switch on the power cord.

• Includes transformer.

Plant light Daisy 20W/835 1350lm NO: 9610541

Palm Plant light

Palm is a floor lamp version of the plant light. A great and long-lasting option when you have larger or more green plants in one clump! Three light arms that can be individually angled in the desired direction. The height of the lamp is adjustable 131 - 220 cm. The light can be dimmed in 5 steps and timed in 3 steps. All light arms are adjusted to the same settings, the lights cannot be adjusted separately.

• For indoor use, not for room lighting.

• IP20

• Led solid 4000 K 1130 lm 24 W

• CRI95

• Service life 25 000 h

• 5-step dimming: 100% - 80% - 60% - 40% - 20%.

• 3-step timing: 8 h/ 12 h/ 16 h.

• Operating temperature -20 °C ... +40 °C.

• 220-240 V~ 50/60 Hz

• Height min. 131 cm, max. 220 cm.

• Black cable, 2.5 m. Controller on cable.

Plant light Palm 24W/840 1130lm NO: 9610647
6435200016195

Herby Plant lamp

Ensure the well-being of herbs by providing them with the blue and red light they need specifically for photosynthesis, without UV radiation. Plant light helps the plant to grow taller and stronger. During dark periods, it is advisable to provide at least eight hours of extra light a day. Herby led is designed for herbs, seedlings or small houseplants. The herb lamp can hold three ø 8-9 cm pots of herbs. At the touch of an on/off switch, the plant lamp can be converted from a plant light to a 4000 K lamp. The Herby is intended for growing plants in their own pots. Place larger plants in pots at the bottom of the container. When the seeds are sown, place the small planting pots on the perforated plate. Line the small pot with newspaper to prevent the soil from running to the bottom of the container. Alternatively, you can also try peat baskets. You don't have to put soil and water in the Herby's tray, but if you want to keep the watering water in the tray, you can use a peat mound. drips into the container from the pots, the excess water can be easily swept out of the bottom and the container washed.

• Polycarbonate body.

• Colour white.

• Fixed led plant light 10 W. Plant light spectrum or 4000 K 650 lm.

• Burning life 25 000 h

• Mains power adapter, 1800 mm cord, on/off switch in the luminaire's pattern.

Herby Plant 10W/840 650lm NO: 9610506

Plant LED Strip

Plant light

A LED strip suitable for plant lighting, which takes into account the light characteristics required by green plants in the home. The LED strip is easy to attach, for example in a corner of a room, to provide light for a large houseplant. The strip can be attached to the underside of a shelf, for example, to illuminate plants placed on a lower shelf. The Led strip has a timer. You can the light to stay on for 8, 12 or 16 hours. The light can also be dimmed in steps. The length of the LED strip is 2 m. The strip can be installed using the 2-sided tape supplied or using separate brackets.

• For plant lighting, not suitable for room lighting. For indoor use only.

• Transformer IP20.

• Material metal and plastic (PVC).

• Length 2 m, width 10 mm.

• Led solid, 24 W.

• Spectrum 4000 K, cold white.

• Timer: 3-position, 8/12/16 hours.

• Dimmer: 5-step.

• Life expectancy approx. 25 000 h.

• Black cable 2,7 m. Controller on cable.

• 2-sided adhesive tape and 6 pcs of fasteners included.

4 / 24

PLANT LIGHT LED STRIP LIGHT RIBBON 2M NO: 9610650
6435200016430

Alppila

Wall lamp

The classic design of Alppila wall lights stands the test of time. The Alppila range is designed for public spaces and terraces, but the chrome design language also makes them suitable for indoor use, for example in bathrooms or staircases. Alppila provides light in one direction. Choose a lamp with a GU10 bulb.

• Stainless steel body, tempered glass.

• Brushed steel.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• LedbulbPAR16GU10,max.7W,notincluded.

• Enclosure class IP44.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

Alppila IP44 GU10 RST NO: 4107269 6435200147561

Alppila Tilt

Wall lamp

Alppila Tilt is a directional luminaire that allows you to direct light to highlight details. AlppiThe classic design of the la collection will stand the test of time. The range is designed for facades and terraces. You can accentuate the façade and illuminate the walkways of wall fronts. Siro's design language also makes it suitable for indoor use.

• Stainless steel body, tempered glass.

• Brushed steel.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• LedbulbPAR16GU10,max.7W,notincluded.

• Enclosure class IP44.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

Alppila Tilt IP44 GU10 RST NO: 4107268

Alppila Double

Wall lamp

The classic design of Alppila Double wall lights will stand the test of time. The Alppila Double range is designed for facades and terraces, but thanks to their chiselled design, they are also suitable for interior use, for example in the bathroom. Alp- pila Double provides light in two directions. Choose from 2 x GU10 lamps.

• Stainless steel body, tempered glass.

• Brushed steel; white, RAL 9010 and anthracite, RAL 7016.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• LedbulbPAR16GU10,max.7W,notincluded.

• Enclosure class IP44.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

- / 6 - / 6 - / 6

Alppila Double IP44 2XGU10 WH NO: 4116167
6435200193506
Alppila Double IP44 2XGU10 ANT NO: 4116166
6435200193490
Alppila Double IP44 2XGU10 RST NO: 4107271
6435200147585

Alppila Double XL

Wall lamp

Alppila Double XL wall luminaires are suitable for lighting the façade and terrace of even the smallest house.

With upward and downward spotlights, you can accentuate the building facade and highlight the lighting.

or wall frames' passageways. Impressive steel frame and glass glare shield. The colour temperature, wattage and beam angle of the spotlight have a significant influence on the lighting performance and atmosphere.

• Stainless steel, tempered glass.

• White, RAL 9010 and anthracite, RAL 7016.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• LedbulbPAR16GU10,max.7W,notincluded.

• Enclosure class IP44.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

Alppila Double XL IP44 2XGU10 WH NO: 4508465
6435200196163
Alppila Double XL IP44 2XGU10 ANT NO: 4508466
6435200196187

Alppila Double XL-W

Wall lamp

Alppila luminaires are made of stainless steel and are suitable for outdoor use, e.g. for wall lighting. They are also suitable for indoor use, such as bathrooms. XL-W models have light-transmitting accent rings on the body.

• Stainless steel, tempered glass.

• White, RAL 9010 and anthracite, RAL 7016.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• LedbulbPAR16GU10,max.7W,notincluded.

• IP44.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

6435200212658 - / 12 - / 12

Alppila Double XL-W IP44 2XGU10 WH NO: 4510238
6435200212634
Alppila Double XL-W IP44 2XGU10 ANT NO: 4510239

Sala Double Wall lamp

The Sala Double is a narrow-row, bi-directional wall light suitable for both indoor and outdoor use. Illuminate the entrance in style with the placplace a luminaire on a doorway or along a to a patio or terrace. Indoors, you can use the Sala Doub- le to create a spa atmosphere in the bathroom. Choose a light source with GU10. target lamps. The colour temperature, wattage and beam angle of a lamp have a major influence on the lighting's efficiency and mood.

• Aluminium body, clear glass cup (GLC).

• White and grey.

• Protection class I.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• Lamp max. 2 x 7W GU10, not included.

• Enclosure class IP44.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

Sala Double IP44 2XGU10 GLC WH NO: 4116046
6435200180636
Sala Double IP44 2XGU10 GLC GR NO: 4116047 6435200180650

3 x 2 5

Sund Wall lamp

The graceful Sund wall light illuminates downwards. The compact size of Sund makes it suitable for many indoor and outdoor spaces. Choose a GU10 bulb with your preferred colour temperature, wattage and beam. With narrowangle bulbs, you can create interesting light patterns.

• Aluminium body, tempered glass cup.

• White and anthracite.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• Enclosure class IP44.

• Led bulb max. 7W GU10, not included.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

/ 16

/ 16

Sund IP44 GU10 GLC WH NO: 4118740
6435200226129
Sund IP44 GU10 GLC ANT NO: 4118745
6435200226228

Sund Double Wall lamp

Sund Double is a graceful wall light that illuminates upwards and downwards. The compact size of Sund makes it suitable for any space, indoors or outdoors. Choose a GU10 bulb with the desired colour temperature, wattage and beam. With narrow spotlights, you can create effective vertical lines in your space and enhance the architecture of your house.

• Aluminium body, tempered glass cup.

• White and anthracite.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• Enclosure class IP44.

• Led bulb max. 2 x 7W GU10, not included.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

Sund Double IP44 2XGU10 GLC
6435200226167
Sund Double IP44 2XGU10

Nora

The Nora wall light provides soft light both upwards and downwards. The timelessly classic design conceals carefree, fixed LEDs. Siro Nora is suitable for interior and exterior lighting, even in damp areas. Install the luminaire in an entrance or hallway as an accent light to create a cosy and inviting atmosphere. In the bathroom wall, Nora accentuates the texture of the wall surface and adds a pleasant spa atmosphere.

• Aluminium body, opalized polycarbonate (PCO) cup.

• White and brown.

• Protection class I.

• Surface mounting on the wall.

• Screw connectors 3 x 1,5 mmZ, one cable gland, not chainable.

• Colour temperature 3000 K. CRI> 80 / Ra> 80.

• Enclosure class IP54.

• Fixed led 7W 280 lm.

• Operating ambient temperature -20 ... 25 °C.

• Service life L70 30 000 h (Ta25°C).

Nora IP54 7W PCO WH NO: 4116048

Näsby Double

Wall lamp

The compact Näsby Double led wall light is suitable for many architectural styles. Its spotlights illuminate both upwards and downwards, allowing you to highlight facade wall surfaces and structures in the dark. The luminaire is also suitable for interior use, e.g. in stairwells, lobbies and hallways. You can easily change the look by adjusting the width of the spotlights. The luminaire's manually adjustable beam limiters open from 0° to 80°. Light colour temperatures 3000K or 4000 K.

• Aluminium frame.

• Colour anthracite.

• Surface mounting on the wall.

• Spring connector, chainable 3 x 2,5 mmZ, with bushings in four directions.

• Colour temperatures 3000 K and 4000 K. CRI> 80 / Ra> 80.

• IP54.

• Fixed led 14W / 860 lm.

• Operating ambient temperature -20 ... 25 °C.

• Service life L70 30 000 h (Ta25°C).

- / 8 - / 8

Näsby Double IP54 14W/830 ANT NO: 4508601
6435200255105
Näsby Double IP54 14W/840 ANT NO: 4508603
6435200255143

Haaga

Wall lamp

Surface-mounted Haaga wall luminaire toserves both as a general light and as a number indicator for a property. The luminaire blends perfectly into the wall of the house thanks to its linear design. Attach the house number to the luminaire with the included with numerical labels (3 x 0-9). It is the responsibility of the property owner to ensure that address of the house is visible on the street in the dark. I recommend we use an E27 LED bulb as the light source.

• Polycarbonate body and stainless steel frame. Dome in opalized polycarbonate (PCO).

• White and steel.

• Protection class II.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• Enclosure class IP44.

• LedA60E27,max.11W,notincluded.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

Haaga IP44 E27 PCO WH NO: 4107292
6435200157775
Haaga IP44 E27 PCO RST NO: 4107293 6435200157799

Vino Wall lamp

The house number is clearly visible from the generously sized general and number lights. The oblique luminaire

It has the best impact resistance class IK10, making it ideal for signposting on the walls of houses along streets. The UV-protected body of the luminaire will not fade in sunlight. The package includes black letter and number labels (A-J / 2 x 09). We recommend using an E27 E60 bulb with A60 bulbs as light source.

• Polycarbonate body and cup.

• White RAL 9016 and black RAL 9005.

• Protection class II.

• Surface mounting on the wall.

• Chainable 3 x 2,5 mmZ, spring connector.

• IP65.

• IK10.

• Led bulb max. A60 11W E27, not included.

• Operating ambient temperature -20 ... 25 °C.

Vino IP65 IK10 E27 PCO WH NO: 4116420
6435200207524
Vino IP65 IK10
PCO
NO: 4116421

Arvika

Wall lamp

The traditional Arvika wall lamp's sleek steel tube shape and large bubble glass dome evoke nostalgia and the atmosphere of old garden pies. The Arvika is ideal for illuminating the facades of buildings and for lighting entrances and passageways in courtyards. It can be combined with the Kartano range of column and wall luminaires.

miin. The lamp is clearly visible from inside the Arvika lamp, so you can make a significant difference to the quality of the lamp. the mood and luminous intensity of the lighting.

• Steel body, clear bubble glass cup.

• White and black.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• Lamp max. 60W E27, not included.

• Enclosure class IP44.

• Operating ambient temperature -20 ... 35 °C according to lamp recommendations.

ARVIKA IP44 E27 MAX 60W VA NO: 4107297
6435200157874
ARVIKA IP44 E27 MAX 60W
NO: 4107298

Käpylä

Wall lamp

The classically timeless Käpylä wall lights are for the Nordic courtyard. Choose from three colour options to suit your house. A glass dome smoothes the lamp and allows light to shine unobstructed both up and down between the steel slats of the body. The choice of lamp can have a significant impact on your sense of well-being and light output. Build a coherent whole together with the Käpylä bollard luminaires.

• Steel frame, clear glass.

• Body colours: steel; white, RAL9010 and black, RAL9011.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• LedbulbE27max.11W,notincluded.

• Enclosure class IP44.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

• Lamp recommendations: airam frost led frost lamps.

3 x 2 5 - / 4 - / 4 - / 4

6435200128164

Käpylä Bollard s. 129
Käpylä IP44 E27 WH NO: 4107299
6435200157911
Käpylä IP44 E27 BK NO: 4107606
6435200157959
Käpylä IP44 E27 RST NO: 4107082

Park Wall lamp

The clean and elegant Park courtyard light series is ideal for a modern Nordic townhouse environment. Steel louvres inside the shade prevent glare and add vibrancy to the simplistic design. Build a cohesive, stylish courtyard lighting scheme with Park bollard luminaires. With the choice of lamp, you can make a big difference to the atmosphere and light output.

• Steel body, polycarbonate cup.

• Brushed steel and grey.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• Led lamp max. 10.5W A60 E27, not included.

• Enclosure class IP44.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

Park IP44 E27 PCC GR NO: 4116103
6435200188045
Park Bollard s. 130
Park IP44 E27 PCC RST NO: 4546530
6435200284600

Kartano Up

Wall lamp

The Kartano Up wall lights fit into the traditional small house style. The old-fashioned lantern shape gives the lighting an atmosphere that will stand the test of time. They feature a porcelain lamp holder and faceted glass. In the Up model, light sources are directed upwards. Our popular Kartano range creates a cohesive lighting ensemble. Choose the wall lights that best suit style of your house and complement your lighting with Kartano bollards and column lights.

• Aluminium body, faceted glass, porcelain lamp holder.

• White and black.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• Led lamp max. 11W A60 E27, not included.

• Enclosure class IP44.

• Operating ambient temperature -20 ... 35 °C according to lamp recommendations.

• Lamp recommendations: airam frost led frost lamps.

Kartano Up IP44 E27 GLC WH NO: 4107169
6435200205773
Cartano Bollard s. 131
Kartano Pole s. 132
Kartano Pole Twin s. 133
Kartano Up IP44 E27 GLC BK NO: 4107173
6435200205797
/ 6
/ 6

Kartano Down

Wall lamp

The Manor Down wall lights fit into the traditional small house style. The old-fashioned lantern shape gives the lighting an atmosphere that will stand the test of time. They feature a porcelain lamp holder and faceted glass. In the Down model, the light source is directed downwards. The popular Kartano range forms a coherent lighting system. Choose the wall lights that best suit the style of your house and complete your lighting with the bollards and column lights in the range.

• Aluminium body, faceted glass, porcelain lamp holder.

• White and black.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• Led lamp max. 11W A60 E27, not included.

• Enclosure class IP44.

• Operating ambient temperature -20 ... 35 °C according to lamp recommendations.

• Lamp recommendations: airam frost led frost lamps.

Kartano Down IP44 E27 GLC WH NO: 4107174
6435200205810
Kartano Bollard s. 131 Kartano Pole s. 132 Kartano Pole Twin s. 133
Kartano Down IP44 E27 GLC BK NO: 4107175
6435200205834

Kartano Trumpet

Wall lamp

The Manor Trumpet wall light is a pared-down version of the old-fashioned lantern lamp. The shape of the lamp is clearly visible from inside the dome, so the lamp you can make a significant difference to the mood and intensity of the lighting. The popular Kartano range provides a coherent whole for your garden lighting. The classic trumpet lamp design and materials stand the test of time. Complete your lighting with the Trumpet range of column luminaires.

• Aluminium body, polycarbonate cup.

• White and black.

• Surface mounting on the wall.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• Led lamp max. 11W A60 E27, not included.

• Enclosure class IP44.

• Operating ambient temperature -20 ... 35 °C according to lamp recommendations.

• Lamp recommendations: airam frost led frost lamps.

Kartano Trumpet Pole s. 134
Kartano Trumpet IP44 E27 PCC WH NO: 4116403
6435200206039
Kartano Trumpet IP44 E27 PCC BK NO: 4116404
6435200206015 3 / 6
/ 6

Kallio Pole lamp

The Kallio bollard is ideal for illuminating courtyard walkways and seating areas. The rugged Kallio bollard lamp has a splash-proof stainless steel body Choose from two body colour and finish options: grey stone finish or powder-coated matt anthracite grey. The tempered glass dome scatters light rays with great precision. Install together with the concrete base and ground fixture (4107058), or choose the ground fixture (4107058). ki (4107104), which you can sink directly into the ground.

• Steel frame, clear glass.

• Anthracite, RAL 7016 and grey stone coating.

• Terminating installation 3 x 2,5 mmZ.

• Lamp recommendation led P45 dome, E27 or Airam Tubular series 7,5 W E27. Not included. IP44.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

Kallio IP44 E27 GLC GR H900 NO: 4107274
6435200147646
Kallio IP44 E27 GLC ANT H900 NO: 4116122

3 x 2 5

Käpylä Bollard

Pole lamp

The classic Käpylä lamps are suitable for many houses and gardens to illuminate the pathways in the yard.

and plantations. A beautiful glass dome protects the lamp and directs the light both up and down through the steel slats in the body. Choose the Käpylä screen lamps for your house to give your yard a harmonious size. Install together with a concrete base and ground support (4107058), or choose a ground support (4107058).

ki (4107104), which you can sink directly into the ground.

• Colour:

• 450 mm: steel.

• 1100 mm: steel, white RAL 9010 and black RAL 9011.

• Screw connectors 3 x 2,5 mmZ, one cable gland, not chainable.

• Led bulb E27 max. 11 W, not included.

• IP44.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

• Lamp recommendations: airam frost led frost lamps.

Bollard IP44 E27 RST H450 NO: 4107070

6435200133724

Käpylä Bollard IP44 E27 RST H1100 NO: 4107086

6435200128188

Käpylä Bollard IP44 E27 WH H1100 NO: 4107605

6435200157935

Käpylä wall lamp s. 123

Käpylä Bollard IP44 E27 BK H1100 NO: 4107608

6435200157973

Käpylä

Park Bollard

Pole lamp

The clear-cut Park bollard luminaires are ideal for gardens and courtyard walkways. The steel louvres inside the luminaire prevent glare and bring life to the simple design language. For a well-balanced look, combine with Park wall luminaires. The choice of lamp allows you to influence the atmosphere and light output. Install together with a concrete base and ground support (4107058), or choose the ground support (4107104), which you can embed directly into the ground.

• Steel body, polycarbonate cup.

• Brushed steel and grey.

• Chainable 3 x 2,5 mmZ.

• Led lamp max. 10,5 W A60 E27, not included.

• IP44.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

Park wall s. 124
Park Bollard IP44
PCC GR H920 NO: 4116104
6435200188069
Park Bollard

Kartano Bollard

Pillar luminaire

The design of the Manor Bollard series is reminiscent of old lamps and lanterns. The classic design and materials stand the test of time. The atmosphere is underpinned by quality materials - porcelain lamp holder and faceted glass. With the popular Kartano lamps, you can create a cohesive ensemble. Choose the bollards and columns that best suit your garden and complete your lighting with the Kartano range of wall lights.

• Aluminium body, faceted glass, porcelain lamp holder.

• White and black.

• End fitting 3 x 2,5 mmZ, screw connector.

• Installation on a concrete base 60 mm embedded in the ground (with accessory 4146704).

• Led lamp max. 11 W A60 E27, not included.

• IP44.

• Operating ambient temperature -20 ... 35 °C according to lamp recommendations.

• Lamp recommendations: airam frost led frost lamps.

- /- / -

Kartano Bollard IP44 E27 GLC WH NO: 4107197
6435200205896
Kartano Up wall light s. 125
Kartano Down wall light s. 126
Kartano Bollard IP44 E27 GLC BK NO: 4107198
6435200205919

Kartano Pole

Pillar luminaire

The Manor Pole series lanterns create an oldfashioned atmosphere. With a classic design language and materials in keeping with the spirit of old times, porcelain lamp holder and facetted glass will stand the test of time. Choose from bollards and columns to match the look of your house and garden and complete your lighting with Kartano wall lights.

• Aluminium body, faceted glass, porcelain lamp holder.

• White and black.

• Terminating installation 3 x 2,5 mmZ.

• Installation on a concrete base 60 mm embedded in the ground (with accessory 4146704).

• Led lamp max. 11 W A60 E27, not included.

• IP44.

• Operating ambient temperature -20 ... 35 °C according to lamp recommendations.

• Lamp recommendations: airam frost led frost lamps.

The packaging image is indicative.
Kartano Pole IP44 E27 GLC WH NO: 4107199
6435200205933
Kartano Up wall light s. 125
Kartano Down wall light s. 126
Kartano Pole IP44 E27 GLC BK NO: 4116400
6435200205957

Kartano Pole Twin

Pillar luminaire

With the Manor Pole Twin range of lantern dome lights, you can create a vintage look in your garden. The classic design language, porcelain lamp holder and faceted glass stand the test of time and add to the classic atmosphere. Choose from bollards and columns choose the models that best suit your garden and complete the look with the wall lights in the series.

• Aluminium body, faceted glass, porcelain lamp holder.

• White and black.

• Terminating installation 3 x 2,5 mmZ.

• Installation on a concrete base 60 mm embedded in the ground (with accessory 4146704).

• Led lamp max. 11 W A60 E27, not included.

• IP44.

• Operating ambient temperature -20 ... 35 °C according to lamp recommendations.

• Lamp recommendations: airam frost led frost lamps.

Kartano Pole Twin IP44 2XE27 GLC WH NO: 4116401
6435200205995
Kartano Up wall light s. 125
Kartano Down wall light s. 126
Kartano Pole Twin IP44 2XE27 GLC BK NO: 4116402
6435200205971

Kartano Trumpet Pole

Pillar luminaire

The Manor Trumpet Pole is a more modern version of the old-fashioned lantern lamp. The shape of the lamp is clearly visible from inside the dome, so you can make a significant difference to the mood and power of your lighting. Build a harmonious ensemble with Trumpet wall lights.

• Aluminium body, polycarbonate cup.

• White and black.

• End fitting 3 x 2,5 mmZ, screw connector.

• Installation on a concrete base 60 mm embedded in the ground (with accessory 4146704).

• Led lamp max. 11W A60 E27, not included.

• IP44.

• Operating ambient temperature -20 ... 35 °C according to lamp recommendations.

• Lamp recommendations: airam frost led frost lamps.

Kartano Trumpet wall light s. 127
Kartano Trumpet Pole IP44 2XE27 WH NO: 4116405
6435200206077
Kartano Trumpet Pole IP44 2XE27 BK NO: 4116406
6435200206053

Installation accessories

Installation accessories

Pole and bollard luminaires are available with an optional ground support or ground support. The ground support fixture is intended to be used in conjunction with a concrete base to support the luminaire. The ground support is dug into the ground and the luminaire is fixed to it.

• Land aid P:

• Käpylä, Kallio, Park, Kartano Bollard

• Length 400 mm, stainless steel.

• The MTS-2N is an earth-moving system:

• Kartano, DM4 Stelo, Greta Mini and Big, Ares, Olympos.

• Length 300 mm, ø 60 mm, stainless steel.

• Earthmover MTS-2P:

• Käpylä, Kallio, Park, Flen

• Length 300 mm, ø 60 mm, stainless steel.

Support MTS-2P NO: 4107058

Ground support MTS-2N NO: 4146704

6435200281395

Ground Support Round NO: 4107104
6435200188540
Ground
6435200133748

Holm Patio light

The Holm recessed terrace luminaire is suitable for outdoor use on the terraces of homes or at the entrance. With Holm luminaires you can also create spectacular accents indoors. The luminaire is resistant to walking on it. Dustproof and splashproof body. Choose a GU10 bulb with the colour temperature and beam of your choice.

• Aluminium body, stainless steel decorative ring. Matt glass domes.

• Chainable 3 x 2,5 mmZ.

• Enclosure class IP65.

• IK03.

• LedbulbPAR16GU10,max.7W,notincluded.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

Holm IP65 GU10 GLFR RST NO: 4510237
6435200209023

Holm 3Eye

Patio light

Holm Eye is a side-lighting, recessed steel luminaire suitable for outdoor use on terraces or at the entrance to a home. With Holm Eye you can also create spectacular accents indoors. The luminaire is resistant to walking on its head. Dustproof and splashproof body. Choose a GU10 bulb with your preferred colour temperature and beam.

• Aluminium body, stainless steel decorative ring. Matt glass domes.

• Aluminium light curtain.

• Chainable 3 x 2,5 mmZ.

• Enclosure class IP65.

• IK03.

• LedbulbPAR16GU10,max.7W,notincluded.

• Operating ambient temperature -20 ... 25 °C according to lamp recommendations.

Holm 3Eye IP65 GU10 GLFR ANT NO: 4510253

Malmi

Patio light

Malmi is suitable for domestic use for lighting terraces, entrance ways and interiors. Flush-mounted, not suitable for recessed installation. The luminaire is resistant to walking on its head. Dustproof and splashproof body. Choose a GU10 bulb with your preferred colour temperature, wattage and beam. Light source not included. The luminaire is not chainable.

• Stainless steel/plastic body and decorative ring. Clear glass dome.

• Enclosure class IP67

• Replaceable light source

• Operating ambient temperature -20...+35°C according to lamp recommendations

MALMI IP67 GU10 MAX 35W RST NO: 4507304

Lucio bollard lamp

Part of an extendable yard light series

Lucio bollard lamp as a single item. White light, 3000 K, shines from the back of the matte shade. The Lucio range allows you to create a stunning and versatile lighting solution for your yard. The luminaire is easy to install with the supplied ground spade. Sold individually, the Lucio series luminaire packages do not include a transformer or supply cable, which must be purchased separately. The luminaire can be connected to the supply cable at the desired point using a different connector! The maximum length of the connected wires is 40 m, e.g. 12 1 W bollard luminaires can be connected behind one transformer (12 W).

• For outdoor use.

• IP44

• Bollard size: 5,7 x 5,7 x 34,8 cm

• Maple syrup is included.

• Led solid 12 V 1 W 90 lm 3000 K

• Connecting cable for the luminaire, 50 cm.

• The package does not include a transformer.

Place the product at the desired point on the feeder cable.

2. Fasten the fitting in place
12V DC
1.
Lucio Bollard 1W/830 BK NO: 9610602
6435200305008 4 / 24

Lucio bollard luminaire set

Starter set for an extendable series of courtyard lights

Lucio bollard luminaire sold as a set of three. The set includes a transformer (12 W) and an 8 m supply cable. Lucio luminaireIt's easy to create a coherent lighting scheme in your yard. Particularly easy to connect, allowing the luminaires to be attached to any point on the supply cable. In addition to the starter kit, you can complete the set with individual Lucio luminaires. With a maximum length of 40 m of interconnected wires, you can connect e.g. a single transformer (12 W) behind a Lucio Luciano. 12 pcs 1 W bollard lamps. Including ground pins.

• For outdoor use.

• IP44

• Size of one bollard: 5,7 x 5,7 x 34,8 cm

• Maple syrup is included.

• Led solid 12 V 1 W 90 lm 3000 K

• Connecting wires for luminaires, 50 cm.

• Transformer (12 W) and 8 m supply cable, included.

Place the product at the desired point on the feeder cable.

2 Fasten the fitting in place
12V DC
Lucio Bollard 1W/830 BK 3-SET NO: 9610592
6435200304049

Lucio Down bollard light fitting

Part of an extendable series of yard lights

Lucio Down bollard lamp as a single item. The bollard directs its beam downwards, white light, 3000 K. Body colour black. With the Lucio range you can create a stunning and versatile lighting solution for your yard. luminaire is easy to install with the supplied ground spade. Sold individually, the Lucio series does not include a transformer or supply cable, which must be purchased separately. The luminaire can be connected to the supply cable at the desired point using a special connector! The maximum length of the connected wires is 40 m, one transformer (12 W) can be connected behind e.g. 8 pcs. 1,5 W bollard luminaires.

• For outdoor use.

• IP44

• Size:11x5,7x34,8cm

• Maple syrup is included.

• Led solid 12 V 1,5 W 150 lm 3000 K

• Connecting cable for the luminaire, 50 cm.

• The package does not include a transformer. 1.

Place the product at the desired point on the feeder cable. 2

4 / 12

Fasten the fitting in place
12V DC
Lucio Bollard Down 1,5W/830 BK NO: 9610603
6435200305015

Lucio Down bollard whale set

Starter set for an extendable series of courtyard lights

Lucio Down bollard luminaire sold as a set of three. The bollard directs its beam downwards and shines white light at 3000 K. The body is black. The Lucio range allows you to create a stunning and versatile lighting solution for your yard. The luminaires are easy to install with the supplied ground pegs. The luminaires can be connected to the supply cable at the desired point using a particularly handy connector! With a length of 40 m, one transformer (12 W) can be used to connect e.g. 8 1.5 W bollard luminaires.

• For outdoor use.

• IP44

• Size:11x5,7x34,8cm

• Maple syrup is included.

• Led solid 12 V 1,5 W 150 lm 3000 K

• Connecting wires for luminaires, 50 cm.

• Transformer (12 W) and 8 m supply cable, included.

Place the product at the desired point on the feeder cable.

2 Fasten the fitting in place
Lucio Bollard Down 1,5W/830 BK 3SET NO: 9610594

Lucio Spot spotlight

Part of an extendable yard light series

The stylish Lucio Spot spotlight highlights your desired spots in the garden and yard. The spotlight is sold individually packaged, so the transformer (12 W) and other accessories must be purchased separately. The Lucio garden light range includes a versatile selection of different easy-to-install luminaires! The luminaire can be connected to the supply cable at the desired point using a special connector! The maximum length of the connected wires is 40 m, behind one transformer (12 W) you can connect e.g. 8 pcs. 1,5 W bollard luminaires.

• For outdoor use.

• IP44

• Size: 5,7 x 5,7 x 9 cm

• Maple syrup is included.

• Led solid 12 V 1,5 W 150 lm 3000 K

• Connecting cable for luminaire, 50 cm.

• The package does not include a transformer.

Place the product at the desired point on the feeder cable.

2 Fasten the fitting in place 12V DC
Lucio Spot 1,5W/830 BK NO: 9610604

Lucio Spot spotlight inset

Starter set for an extendable series of courtyard lights

With a set of three spotlights, you can highlight the areas you want in your garden and yard in a variety of ways. Complete the starter set with other luminaires from the Lucio range. The easy-to-install luminaires can be connected to the supply cable at the desired point using a special connector! The maximum length of the connected wires is 40 m, so you can connect e.g. 8 1,5 W pol- lar luminaires behind one transformer (12 W). The earthing plugs are included in the package.

• For outdoor use.

• IP44

• Size: 5,7 x 5,7 x 9 cm

• Maple syrup is included.

• Led solid 12 V 1,5 W 150 lm 3000 K

• Connecting wires for luminaires, 50 cm.

• Transformer (12 W) and 8 m supply cable, included.

Place the product at the desired point on the feeder cable.

Fasten the fitting in place
12V DC
Lucio Spot 1,5W/830 BK 3-SET NO: 9610596

Lucio Ball decorative lamp

Part of an extendable series of yard lights

Lucio Ball is a decorative and expressive light for your garden and yard. The individually packaged luminaire comes with a transformer (12 W) and other accessories.

must be purchased separately. The Lucio range includes a wide variety of easy-to-install luminaires! The luminaire can be connected to the supply cable at the desired point using a special connector! The maximum length of the connected wires is 40 m, behind one transformer (12 W) you can connect e.g. 12 1 W luminaires.

• For outdoor use.

• IP44

• Size:13,5x13,5x16,5cm

• Maple syrup is included.

• Led solid 12 V 1 W 90 lm 3000 K

• Connecting cable for the luminaire, 50 cm.

• The package does not include a transformer.

Place the product at the desired point on the feeder cable.

Fasten the fitting in place
12V DC
Lucio Ball 1W/830 NO: 9610605

Lucio Ball decorative lamp set

Starter set for an extendable series of courtyard lights

Lucio Ball is a decorative and expressive light for your garden and yard. The package contains three we provide a decorative lamp, a transformer (12 W) and a supply cable. The Lucio garden light series includes a wide range of different easy-to-install luminaires. You can complete the starter kit with individual luminaires. The luminaires can be connected to the supply cable at the desired point using a special connection box. The maximum length of the connected wires is 40 m, e.g. 12 1 W luminaires can be connected behind one transformer (12 W). Includes earthing clips.

• For outdoor use.

• IP44

• Size:13,5x13,5x16,5cm

• Maple syrup is included.

• Led solid 12 V 1 W 90 lm 3000 K

• Connecting wires for luminaires, 50 cm.

• Transformer (12 W) and 8 m supply cable, included.

Place the product at the desired point on the feeder cable.

2. Fasten the fitting in place
12V DC
1.
Lucio Ball 1W/830 3-SET NO: 9610597

Lucio Deck patio light

Part of an extendable yard light series

The Lucio Deck patio light reflects atmospheric white light into the surroundings. For individually packaged luminaires, the transformer and other accessories must be purchased separately. With the versatile Lucio patio light set, you can easily illuminate your garden and arboretum! With individual luminaires, you can complete your chosen starter set or put together a lighting system all your own. The luminaires can be connected to the supply cable at the desired point using a special connection cap. The maximum length of the connected wires is 40 m, and 24 0.5 W luminaires can be connected behind one transformer (12 W), for example. Includes earth spike.

• For outdoor use.

• IP44

• Size: Ø 8 x 2,5 cm

• Maple syrup is included.

• Led solid 12 V 0,5 W 48 lm 3000 K

• Connecting cable for the luminaire, 50 cm.

• The package does not include a transformer.

Place the product at the desired point on the feeder cable.

Fasten the fitting in place
12V DC
Lucio Deck 80 0,5W/830 NO: 9610606
6435200305046

Lucio Deck patio light set

Starter set for an extendable series of courtyard lights

The Lucio Deck patio light set of three lights casts an atmospheric white light around the patio. to work. With the versatile Lucio range of patio lights, you can light up your yard and garden with ease and versatility!

Complete the starter set with individually sold lamps to create a unique and stunning lighting ensemble. The luminaires can be connected to the feeder cable at the desired point using a special connection box. The maximum length of the connected cables is 40 m, so that 24 0.5 W luminaires can be connected behind one transformer (12 W), for example. Includes earthing clips.

• For outdoor use.

• IP44

• Size: Ø 8 x 2,5 cm

• Maple syrup is included.

• Led solid 12 V 0,5 W 48 lm 3000 K

• Connecting wires for luminaires, 50 cm.

• Transformer (12 W) and 8 m supply cable, included.

Place the product at the desired point on the feeder cable.

2. Fasten the fitting in place
Lucio Deck 80 0,5W/830 3-SET NO: 9610599

Lucio starter kit

Accessories for the extendable patio light series

Each Lucio luminaire needs a transformer and a supply cable. In the case of set packs, this kit is included in the package, while individual luminaires require an optional starter kit. The maximum number of lamps that can be connected behind a single transformer is. 40 metres of cable, which can be connected to the 12 watt Lucio luminaires (e.g. 12 1 W or 8 1.5 W luminaires) to create a stunning lighting scheme for your garden!

• Compatible with the Lucio range of products.

• For outdoor use.

• Feed cable 8 m.

• 12V/12Wtransformer.

Lucio extension cable 5 m

Accessories for the extendable patio light series

A five-metre extension cable for the Lucio range of garden lawnmowers. The cable has both male and female connectors. The extension cord allows you to extend the luminaires further apart and create a stylish lighting scheme. Extension leads can be connected to a maximum of. Up to 40 metres. With the Lucio range of patio lights you can create a stunning lighting scheme!

• Compatible with the Lucio range of courtyard lights and transformer.

• For outdoor use.

• Cable length 5 m.

• Male and female connector.

Lucio starter kit IP44 12W NO: 9610607
6435200305053
Lucio extension cable 5m NO: 9610600
6435200304124

Lucio dealer

Accessories for the extendable patio light series

The Lucio courtyard light splitter allows you to branch the supply cable to run in three different directions.

Extension leads can be connected behind one transformer up to a maximum of. 40 metres. With the Lucio range of patio lights, you can create a stunning lighting scheme!

• Compatible with the Lucio range of products.

• For outdoor use.

• Division: 1+ 3 (one in, three out).

Lucio dimmer switch

Accessories for the extendable patio light series

A dimmer switch suitable for the Lucio courtyard lighting kit. Add the dimmer switch to the rear of the transformer supplied with the Lucio lighting kit. The lights in your garden will automatically turn on dusk and turn off again at dawn. One dimmer switch controls one group of lights at a time. With the Lucio patio light set, you can create an atmospheric lighting effect with ease!

• Compatible with the Lucio range of courtyard lights and transformer.

• For outdoor use.

• Size: 8,4 x 4,9 x 2,6 cm

• Cable 1 m , built-in female connector.

• Maks.12W.

Lucio dealer NO: 9610608
6435200305060
Lucio dimmer switch NO: 9610601
6435200304131

Airflood

Floodlight

The modern, compact Airflood LED floodlight is designed for safe and practical lighting of courtyards, warehouses, walkways and parking areas. The edgeless design allows the luminaire to sit elegantly on the facades of a wide range of buildings and the front panel provides pleasantly even light over its entire surface. All luminaires have an adjustable lighting angle. You can choose either a black or white model. The throwers have a plug socket and a rubber cable. The range also includes PIR models with motion sensor.

• Die-cast aluminium body, polycarbonate cup.

• White, RAL9010 and black, RAL9011.

• Protection class I.

• Wall installation.

• Plug socket and rubber cable 0,8 m.

• Installation height 2-4 m.

• Colour temperature 4000K, CRI> 80 / Ra> 80.

• IP44.

• IK08.

• Fixed led: 10W / 800 lm, 20W / 1600 lm, 30W / 2400 lm, 50W / 4000 lm.

• Operating ambient temperature -20 ... 35 °C.

• Lifetime L70 25 000 h.

Airflood IP44 10W/840 800lm BK NO: 4547200

6435200277930

Airflood IP44 20W/840 1600lm BK NO: 4547201

6435200277947

Airflood IP44 30W/840 2400lm BK NO: 4547202

6435200277954

Airflood PIR IP44 10W/840 800lm BK NO: 4547214

6435200278661

Airflood PIR IP44 20W/840 1600lm BK NO: 4547215

6435200278678

Airflood PIR IP44 30W/840 2400lm BK NO: 4547216

6435200278685

Airflood PIR IP44 50W/840 4000lm BK NO: 4547217

6435200278692

Airflood PIR IP44 20W/840 1600lm WH NO: 4547218

6435200280534

Airflood PIR IP44 30W/840 2400lm WH NO: 4547219

6435200280541

Responsibility at Airam

We want to mitigate

climate change

Every year, we calculate the carbon footprint of our organisation. We have calculated the carbon footprint for example products from our different product groups.

Our emissions target is a Science Based Target -initiative, which aims to reduce emissions in line with the 1.5°C target of the Paris climate agreement.

We are building our sustainability expertise

We actively train our staff on sustainability issues such as environmental legislation, environmental aspects of packaging materials and competition law.

We comply with laws and standards

We comply with the regulations that govern our industry and our products, such as REACH and the RoHS Directive, which guide the safe use of chemicals for the environment and humans.

We have required our suppliers to ensure that our products do not contain conflict minerals from highrisk areas.

Our management system is certified

Our management system covers quality, environmental, health and safety management. The system is ISO 9001, ISO 14001 and ISO 45001 certified.

We are preparing for the forthcoming EU Sustainability Reporting Directive (CSRD) and building due diligence processes to manage human rights and environmental risks in our value chain.

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
