CAAB Projects

VARIOUS PROJECTS UNDER CIVIL AVIATION AUTHORITY OF BANGLADESH INCLUDING PROJECTS UNDER CAAB MASTERPLAN DEVELOPMENT.

BN Projects

MIXED PROJECTS SANCTIONED BY BANGLADESH NAVY AND MES AUTHORITY.

Masjid Architecture

SEVERAL MASJID PROJETS, INCLUDING MASJID DESIGNED FOR CAAB & BANGLADESH NAVY.

Commercial Projects

COMMERCIAL BUILDING PROJECTS MIXED WITH RESIDENTIAL DEVELOPMENTS.

Residential Projects

RESIDENTIAL BUNGALOW AND HIGHRISE PROJECTS FOR INDIVIDUAL CLIENTS AND DEVELOPERS COMPANIES.

Masterplan Projects

AGRO RESORTS AND MASTERPLAN PROJECTS FOR CAAB AND SUPER STAR GROUP.

Landscape Projects

FEW LANDSCAPE PROJECTS FOR BCIC, VURENDRA UNIVERSITY AND BANGLADESH NAVY.

Interior Works

INTERIOR PROJECT PROPOSALS FOR PRIVATE CLIENTS AND GOVERNMENT PROJECTS INCLUDING CAAB AND BANGLADESH NAVY.

TABLE OF CONTENTS

01 02 03 04 05 06 07 08

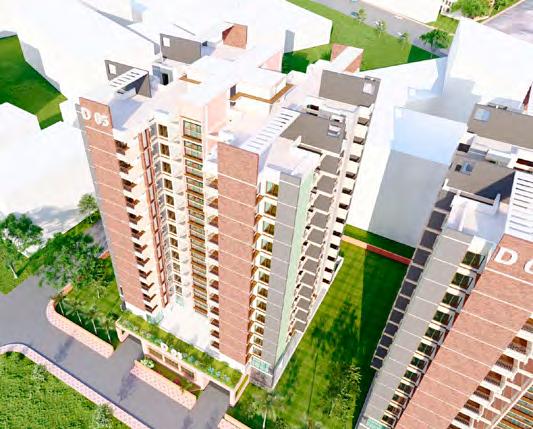

CAAB PROJECTS 1A CIVIL AVIATION SCHOOL & COLLEGE, KURMITOLA. 1B IRSHAL COLONY SUB-STATION, KURMITOLA 1D CAAB RESIDENTIAL AREA ENTRY BRIDGE, KAWLA. 1E CAAB R/A PARALLEL CENTRAL ROAD WAY, KAWLA. 1F CAAB RESIDENTIAL HIGHRISE (TYPE D), KAWLA.

NAVY PROJECTS 2A BNS OFFICERS’ CLUB, SHAHEEN BAGH, DHAKA. 2B BNF WOMENS’ CLUB, NAVY HEADQUARTER, BANANI. 2C LALASHARAI FOLLOWERS’ QUARTER, DHAKA CANTONMENT.

MASJID ARCHITECTURE 3A CAAB CARGO MASJID, KURMITOLA, DHAKA. 3B MASJID AL MAGFIRAH, CAAB RA, KAWLA. 3C NAVY HQ MASJID, BANANI. 3D JAMIYA ARABIA MADRASA MASJID, BIKRAMPUR.

COMMERCIAL PROJECTS 4A STAR SHOPPING COMPLEX + OFFICE TOWER, DHAKA. 4A STAR SHOPPING COMPLEX + RESIDENTIAL, DHAKA. 4B SONO LAB HOSPITAL, MEHERPUR 4D FIVE FILLING STATION & RNR, SELANGOR, MALAYSIA.

PAGE-01 PAGE-03 PAGE-09 PAGE-13 PAGE-19 PAGE-25

PAGE-29 PAGE-31 PAGE-37 PAGE-43

PAGE-47 PAGE-49 PAGE-55 PAGE-61 PAGE-69

PAGE-73 PAGE-75 PAGE-83 PAGE-87 PAGE-91

RESIDENTIAL PROJECTS

PAGE-95

5A JANNAH RESIDENCE, AFTABNAGAR, DHAKA. 5B STAR SKY VIEW, BASHUBDHARA RIVERVIEW. 5E SAIMON GHOROA GARDEN, BASHUNDHARA R/A. 5G HOLIDAY HOME BUNGALOW, PURBACHOL 5H ALAM RESIDENCE, DHAKA

PAGE-97 PAGE-101 PAGE-107 PAGE-111 PAGE-115

MASTERPLAN PROJECTS

PAGE-119

6A CAAB R/A MASTERPLAN, KAWLA, KURMITOLA. 6B SSG AGRO CITY, Moulovi Bazar, Sylhet.

6C KUSHIARA AGRO RESORT, BONDOR, NARAYANGANJ.

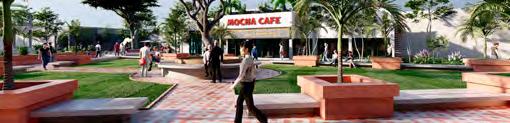

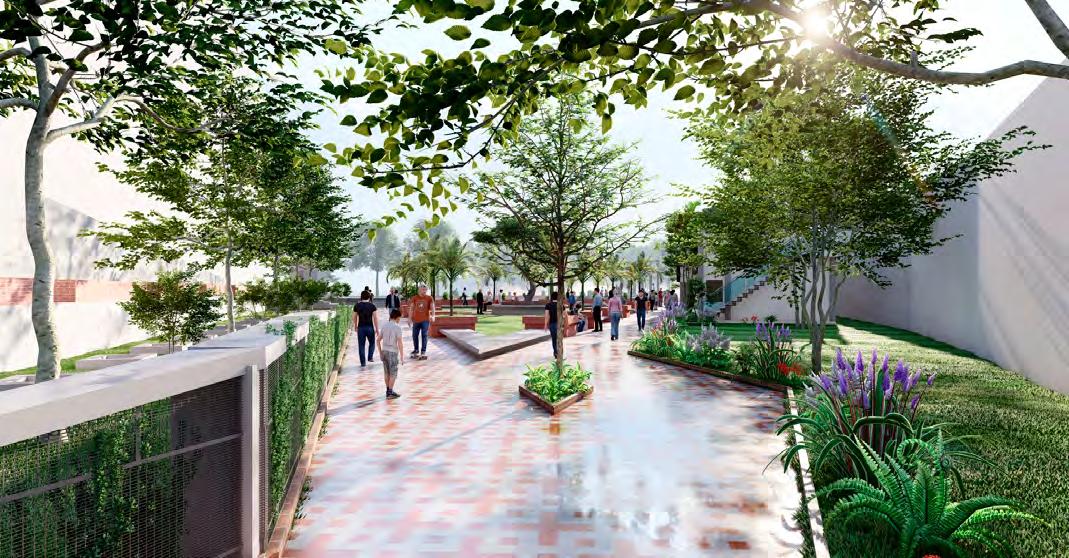

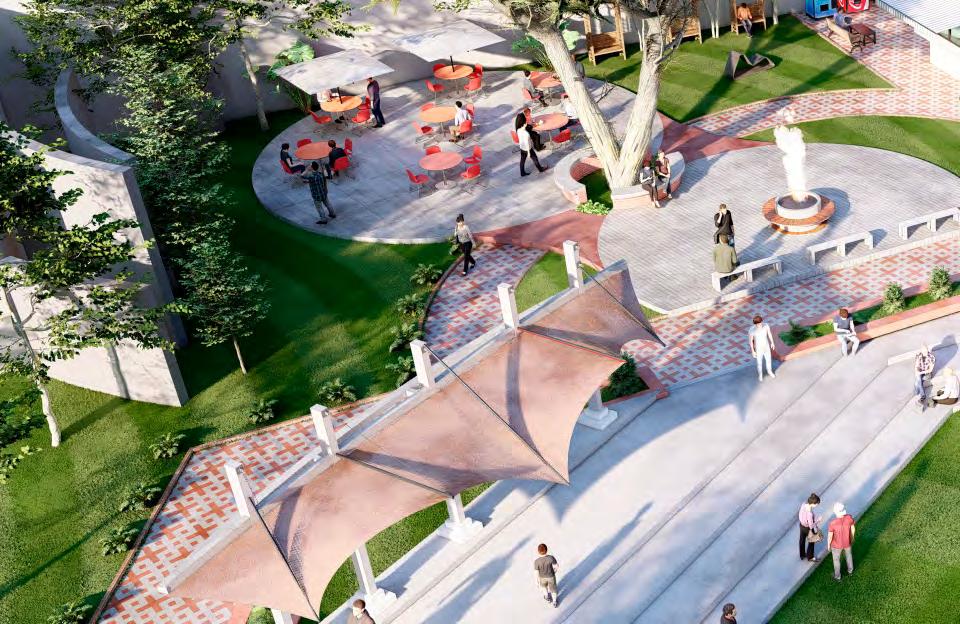

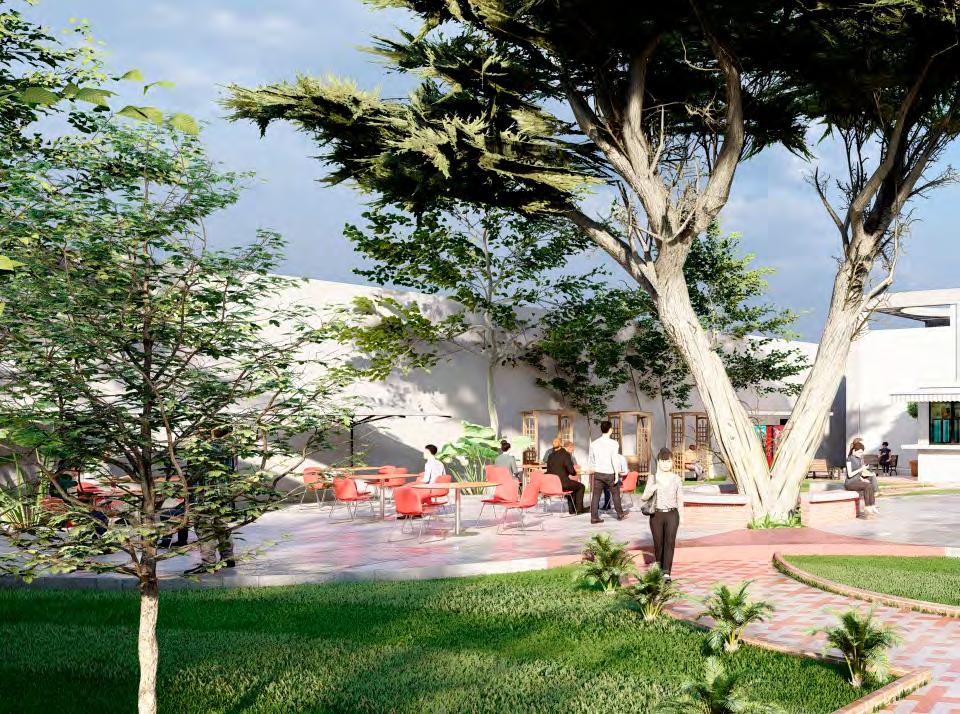

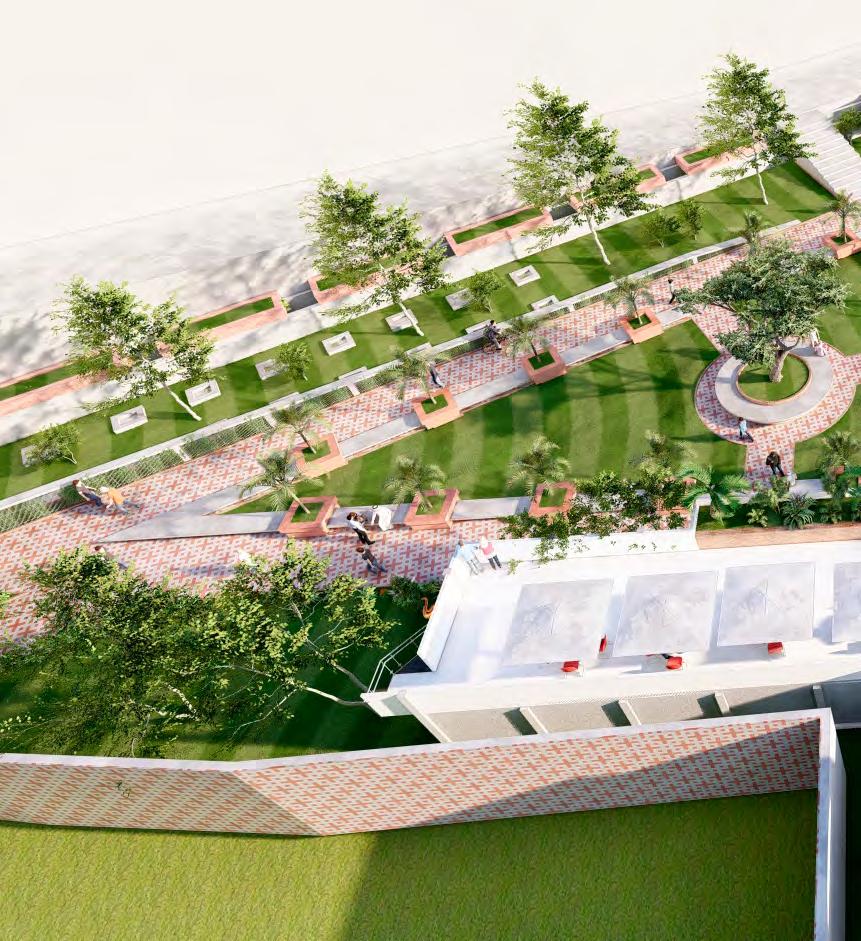

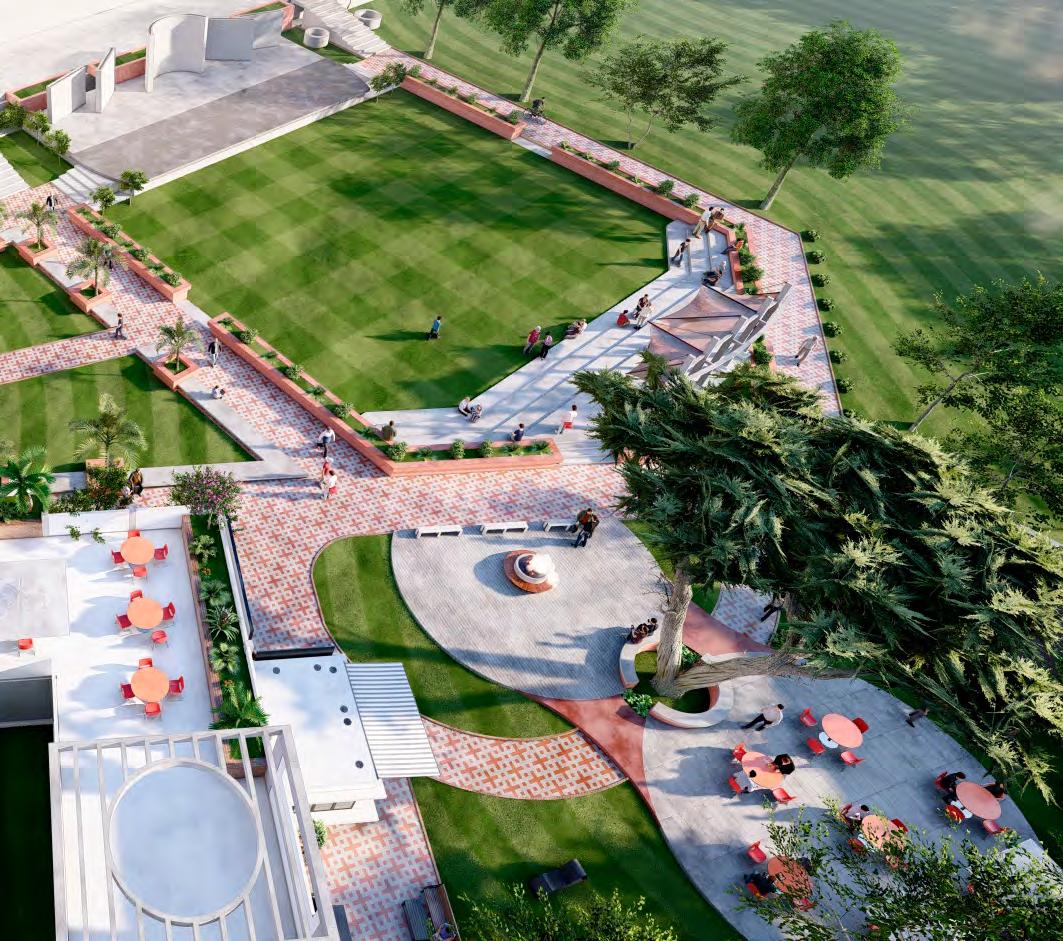

LANDSCAPE PROJECTS 7A VURENDRA UNIVERSITY CAFETERIA GARDEN, RAJSHAHI. 7B RENNOVATING BCIC BUILDING LANDSCAPE, DHAKA.

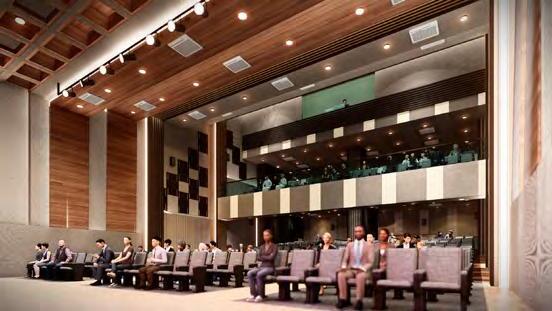

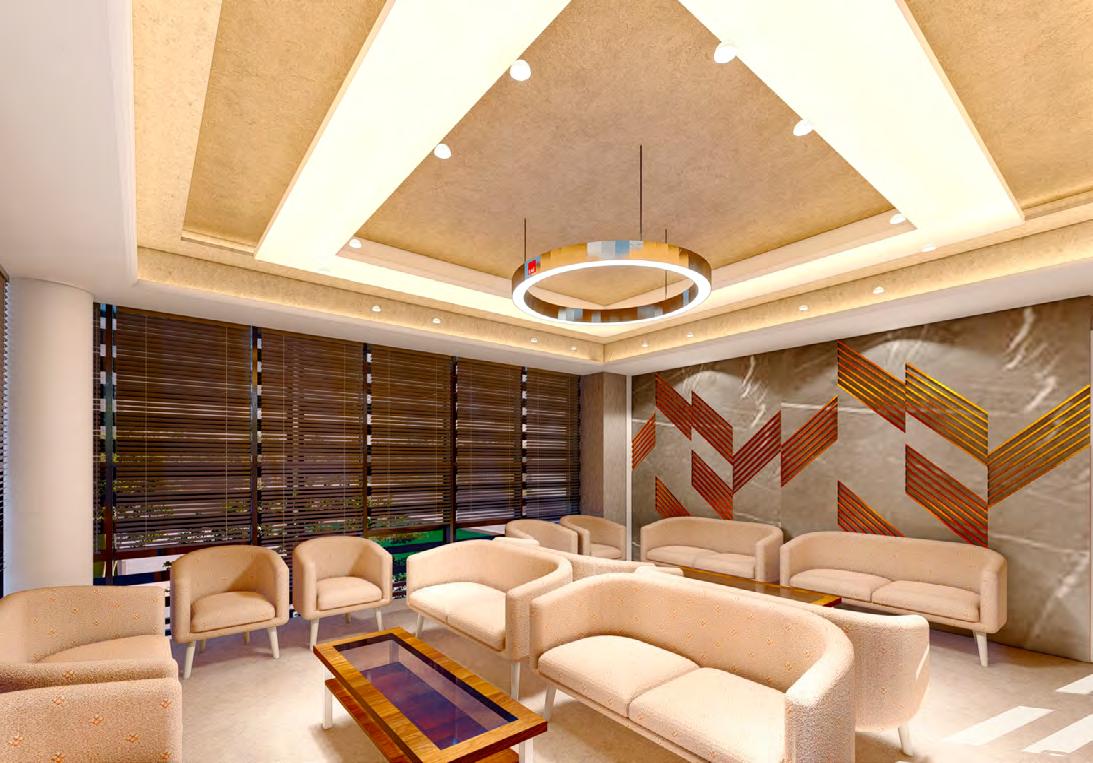

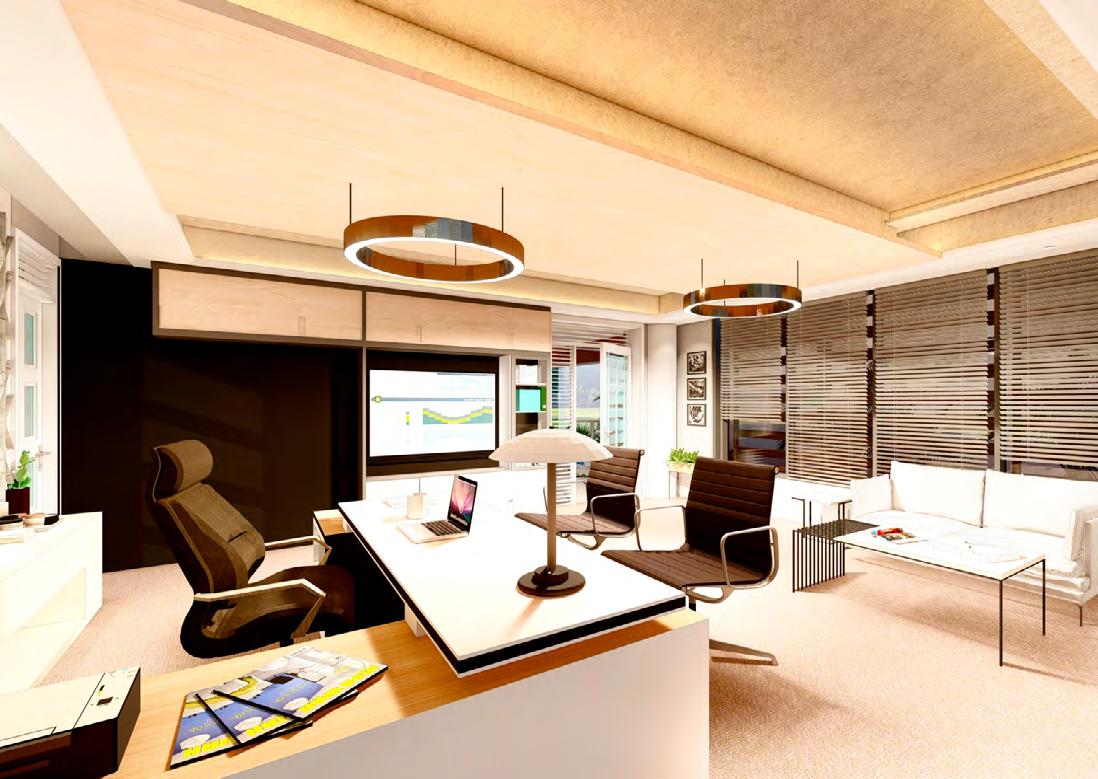

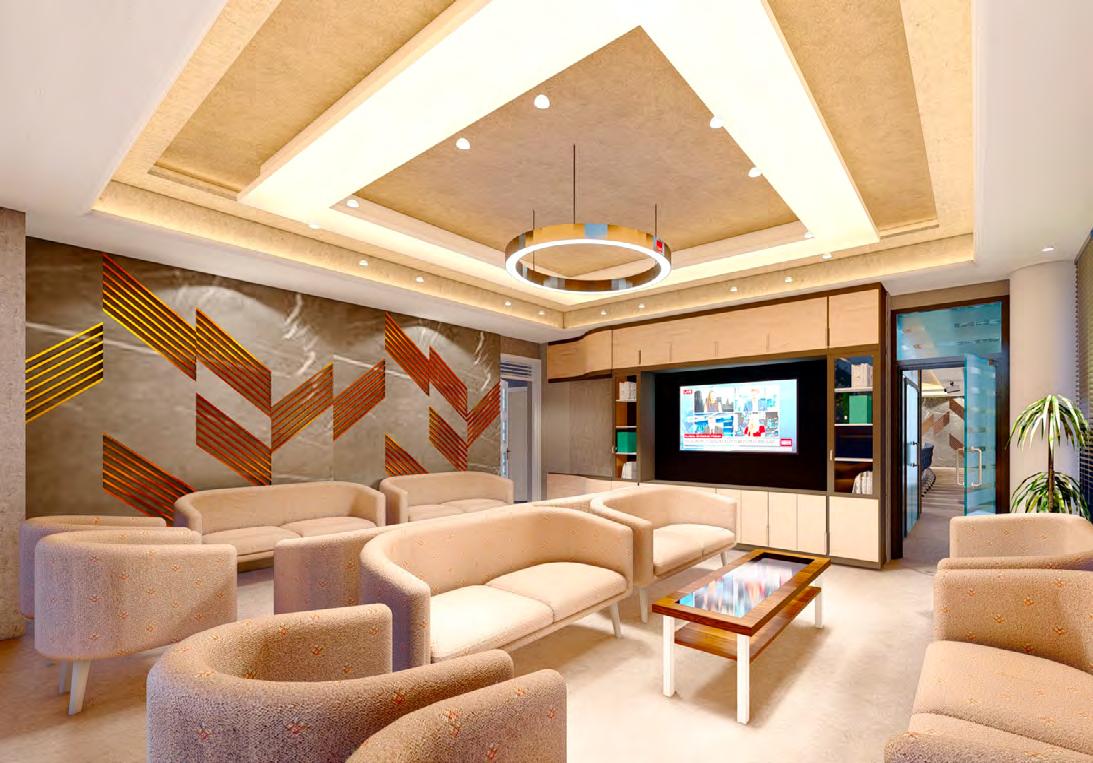

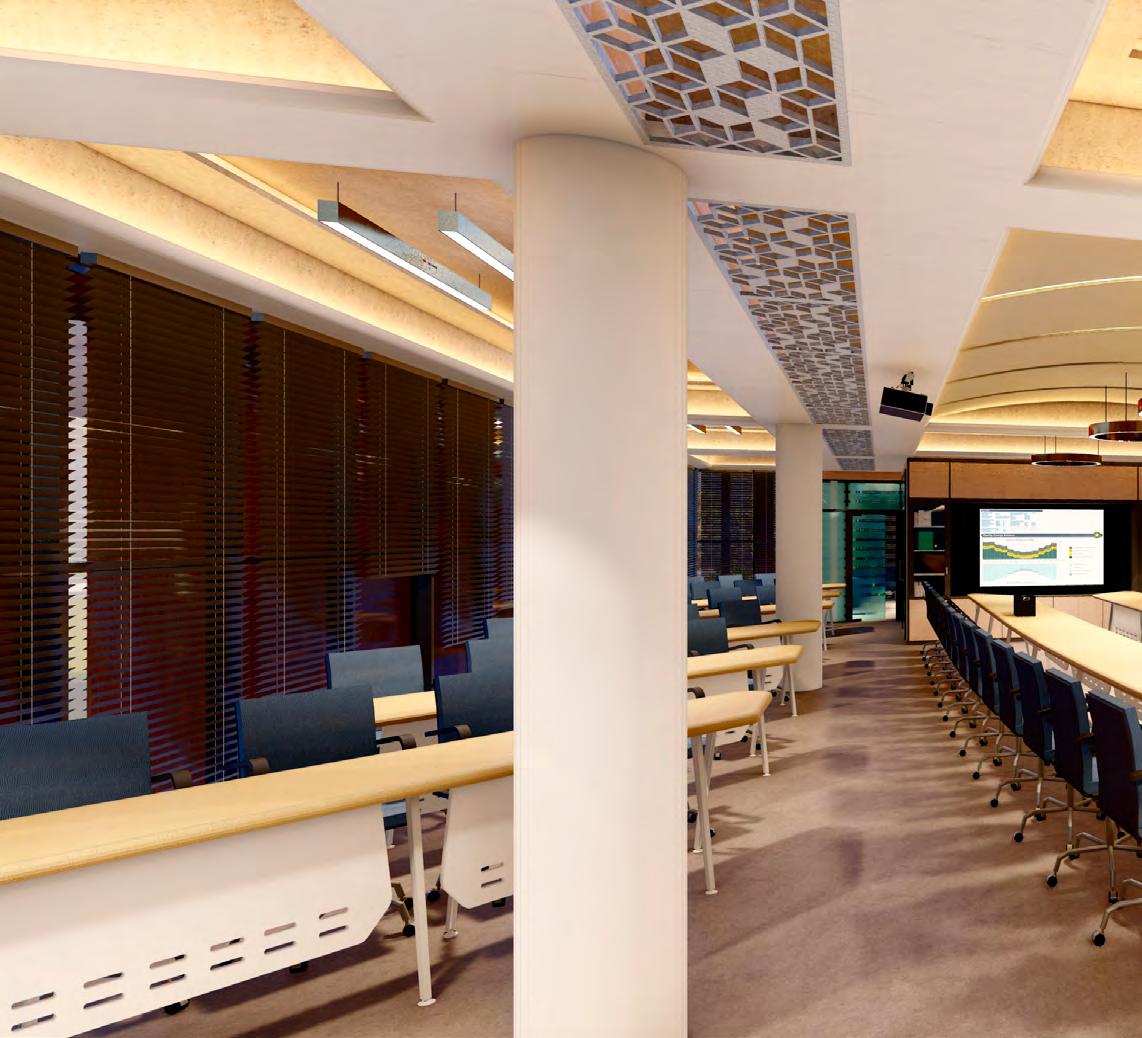

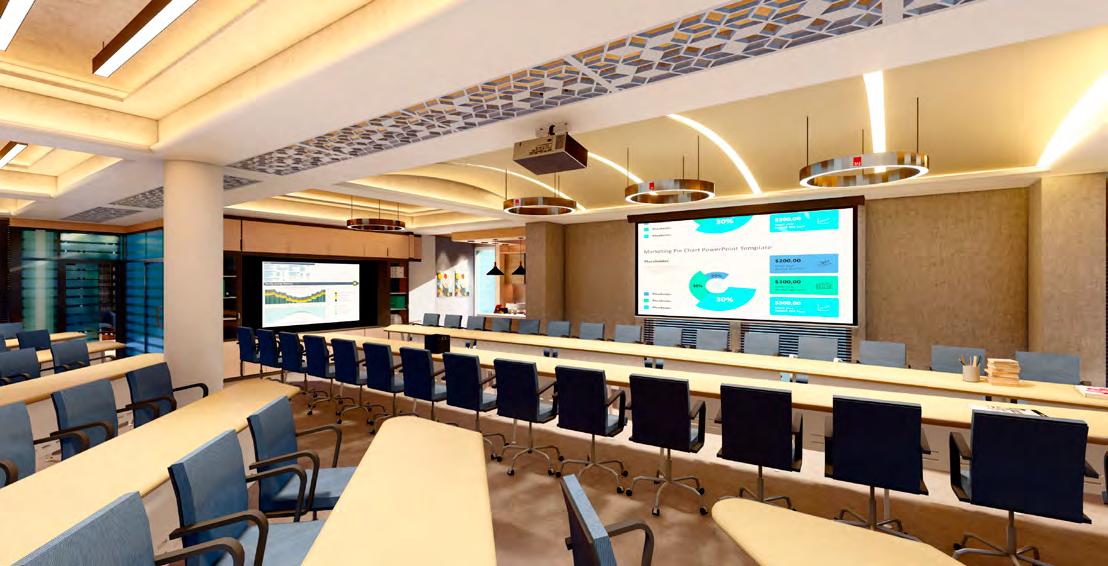

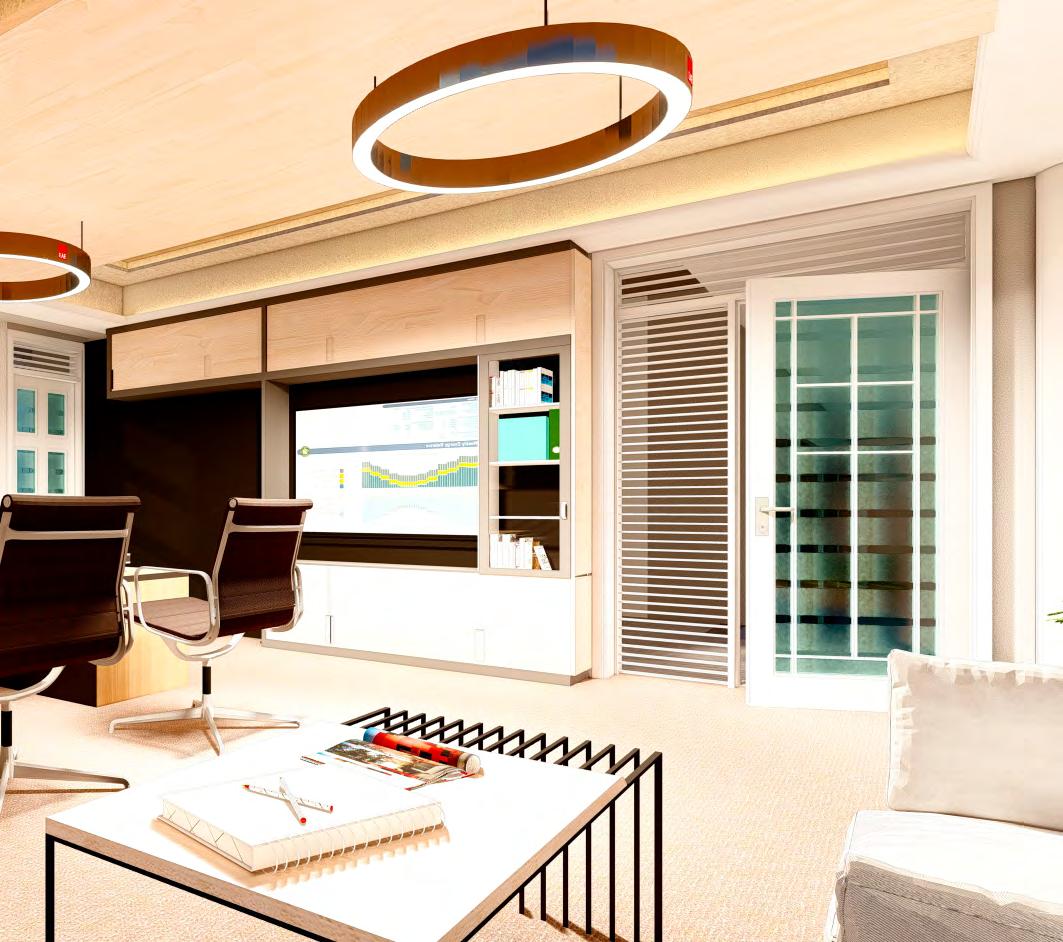

INTERIOR PROJECTS 8A VURENDRA UNIVERSITY ADMINISTRATIVE ZONE, RAJSHAHI 8B BNF WOMENS’ CLUB, NAVY HQ, BANANI. 8C BNS OFFICERS’ CLUB, SHAHEEN BAGH, DHAKA. 8D CAAB DAY-CARE CENTRE, CAAB HQ, KURMITOLA.

PAGE-121 PAGE-127 PAGE-133

PAGE-137 PAGE-139 PAGE-145

PAGE-151 PAGE-153 PAGE-161 PAGE-175 PAGE-181

f

Built Area: 1,19,896 sqft

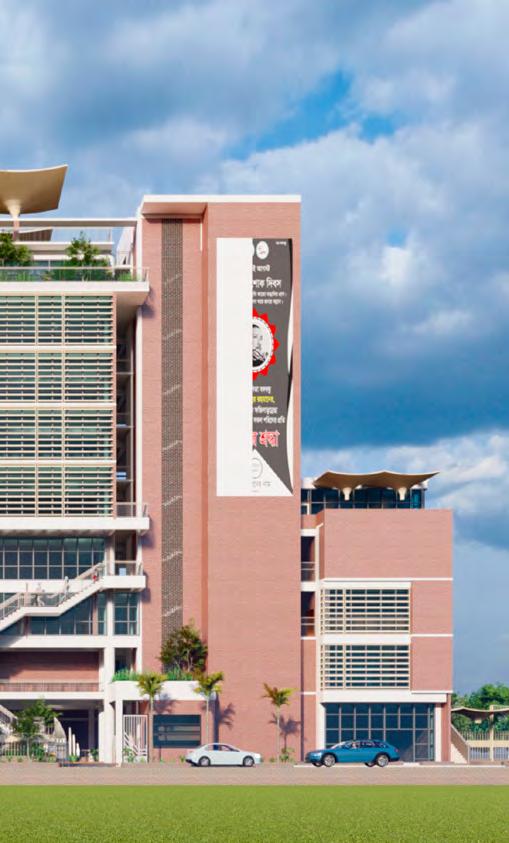

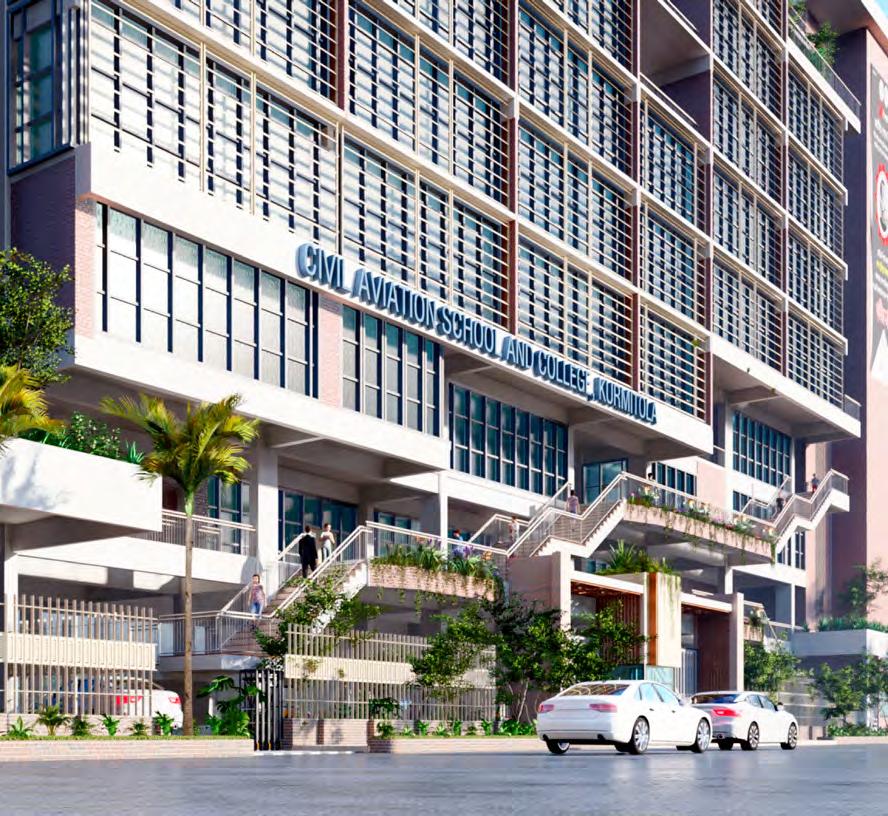

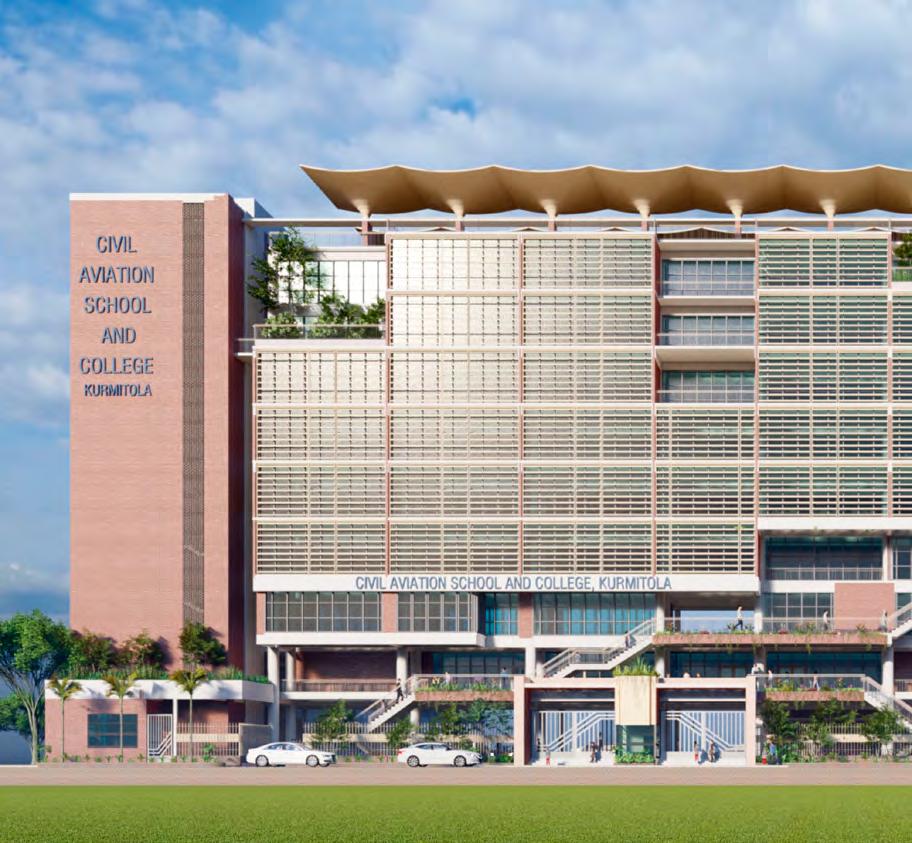

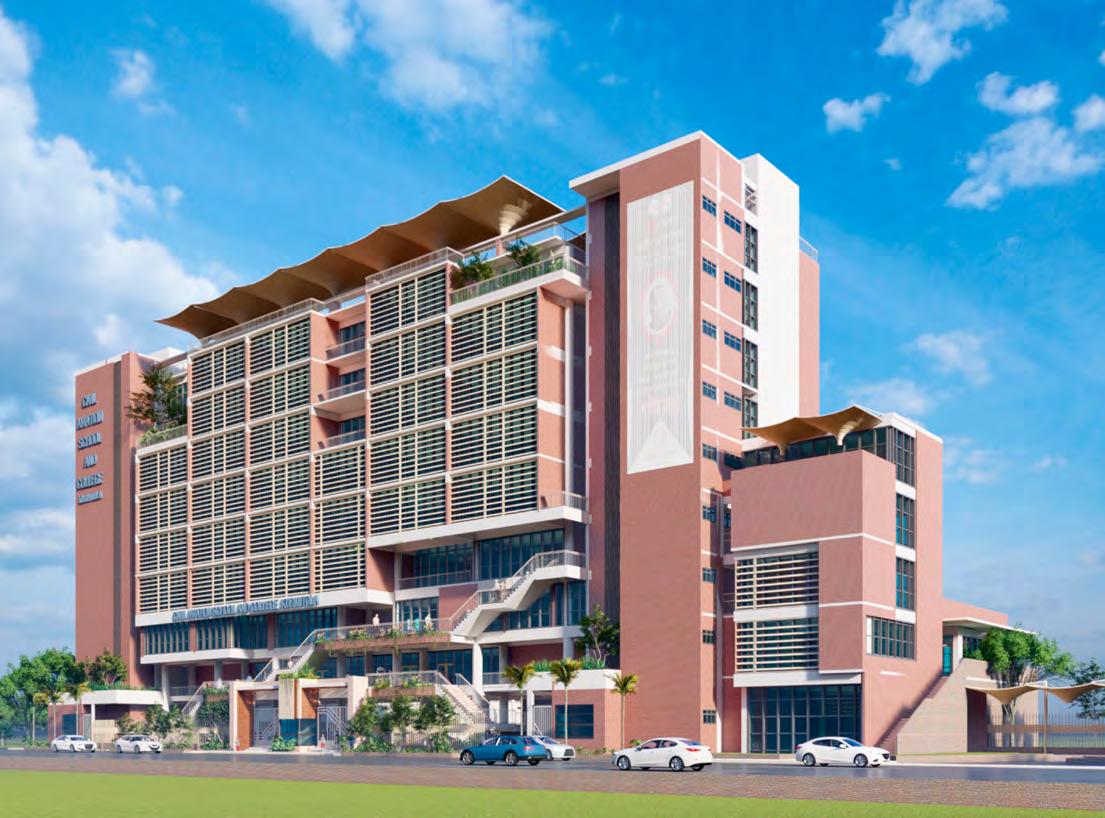

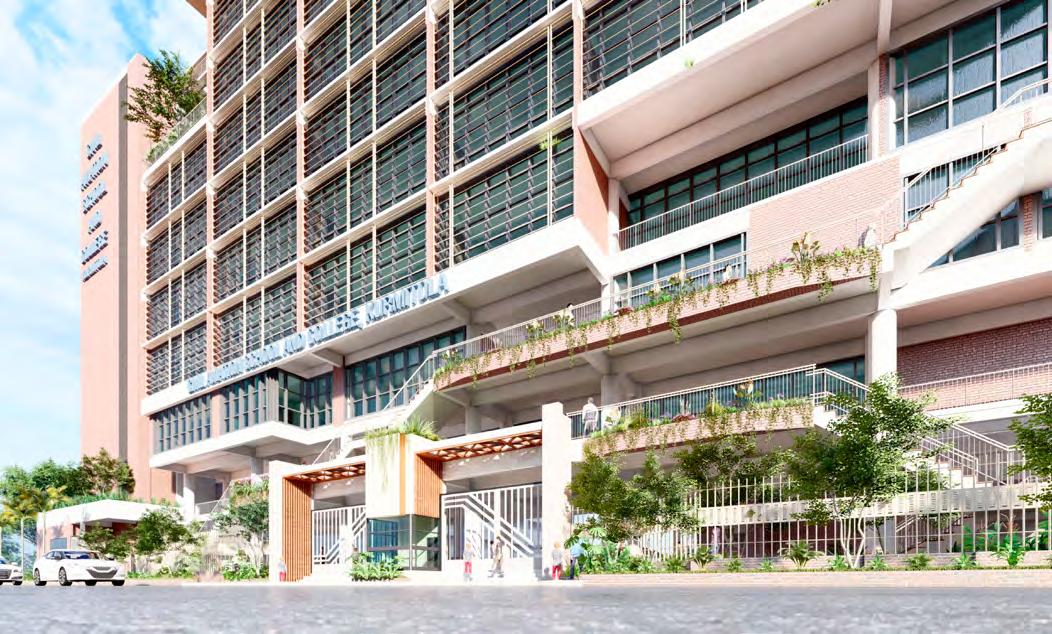

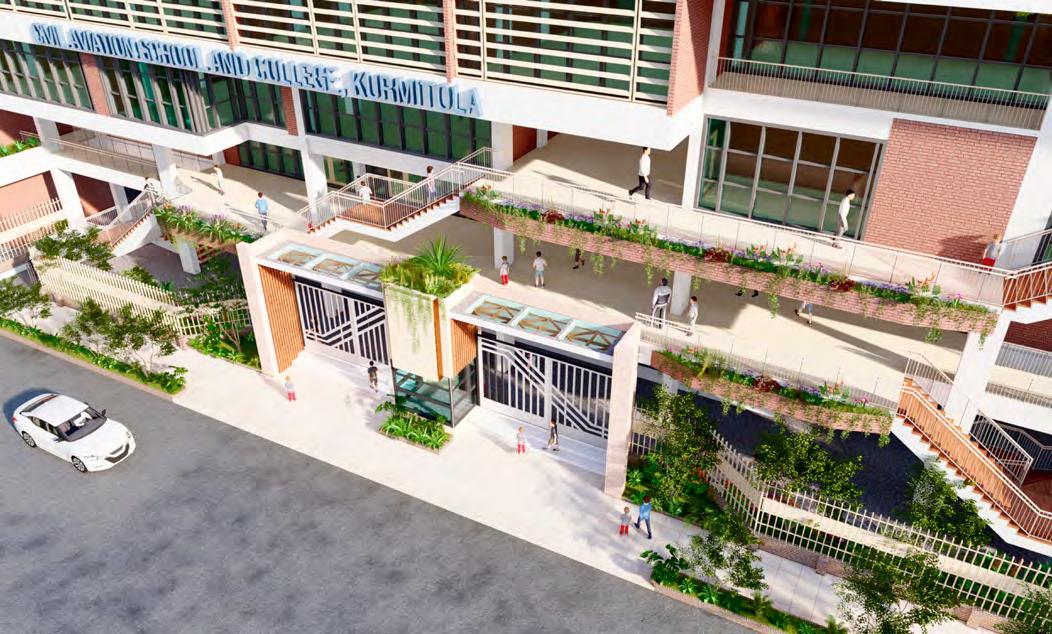

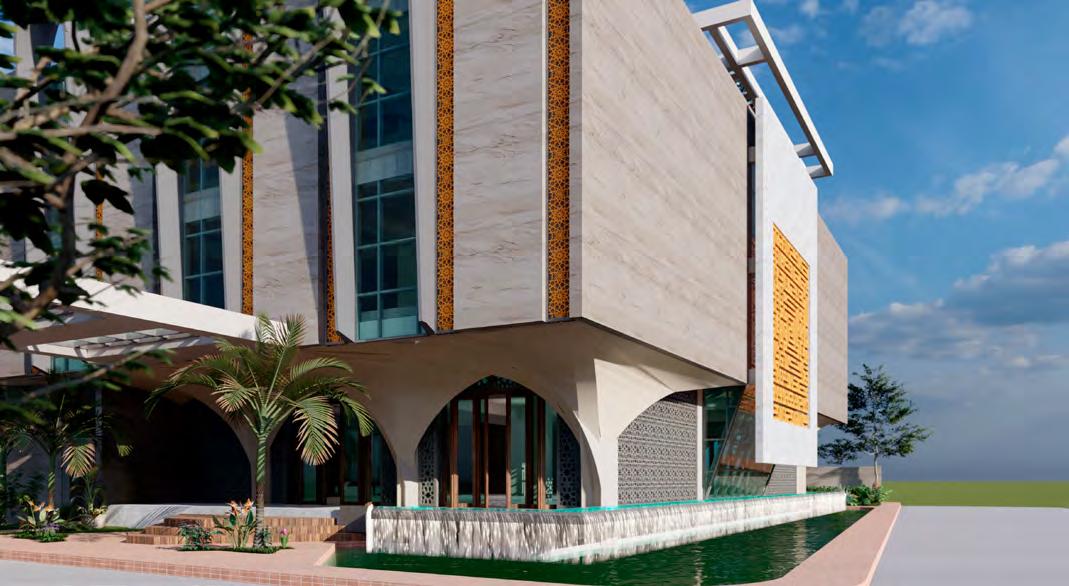

CIVIL AVIATION SCHOOL & COLLEGE, KURMITOLA.

Building Height: 98 feet (G+7)

PAGE-03

1A

Location: Kawla, Dhaka.

-click above or scan the QR Code

to watch 3D animation at youtube-

Site Area: 42 Katha

-click above or scan the QR Code

Project brief

to watch 3D animation at youtube-

Project Type: Institutional Building Client: Civil Aviation Authority of Bangladesh (CAAB) Responsibilities: Plan proposal, 3D works, Rendering, and Working Drawing.

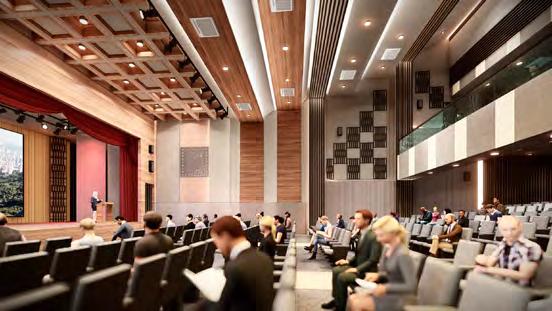

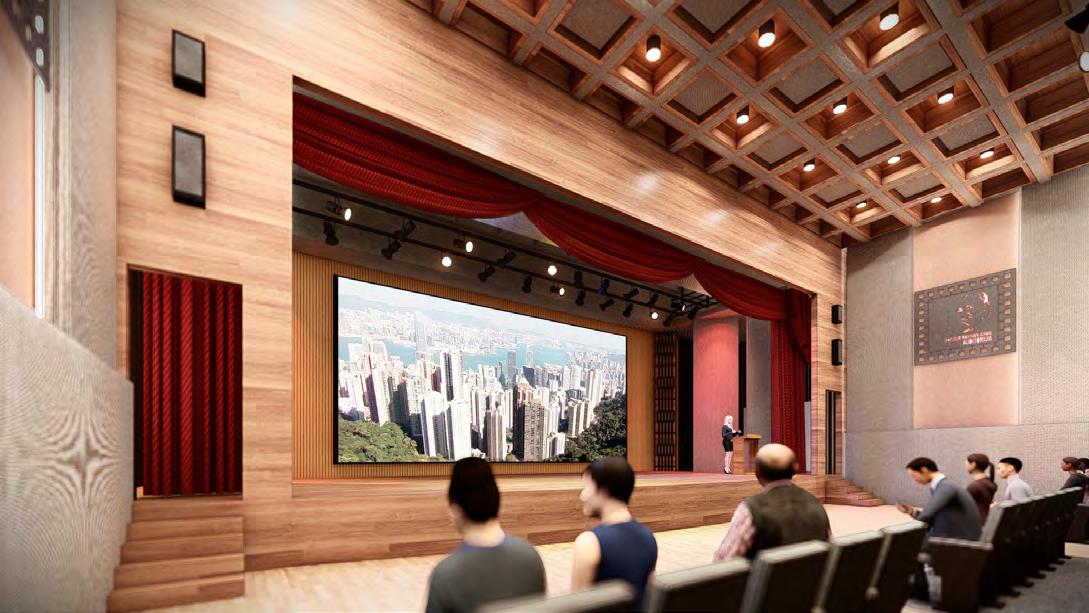

Projects Description: The project proposal was assigned to me during the initial stages, encompassing tasks such as plan creation, circulation design, access pathways, and 3D modeling. The project was meticulously prepared under the guidance of the Principal Architect. The project involves an eightstory building extension to the existing school. It includes 27 new classrooms, an administration floor, six teachers’ rooms, various student facilities, and an auditorium. The building is envisioned as an iconic architectural structure, representing the new face of the school, which is located in the visual radius of the recently inaugurated Terminal 3 Airport..

:

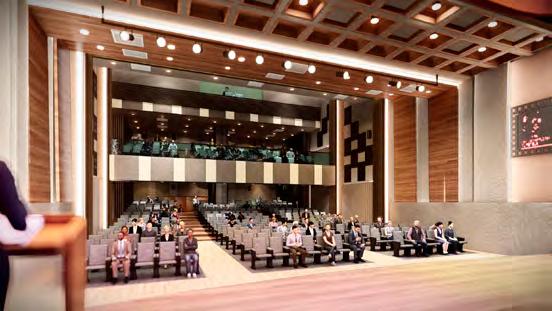

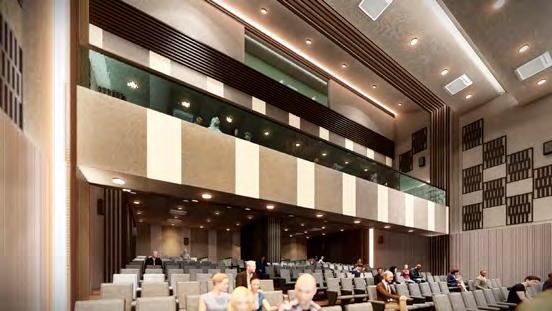

Proposed CAAB School & College

AT A GLANCE

BASIC INFORMATION

SPACE DESCRIPTRION Ground Floor Area

Eight (Ground +7)

Number of Stairs

2 Nos. 4 Nos.

Number of Elevators

Built Area : 20,653 sft Floor Height : 13'10"

CONTRACTOR : DRAWING TITLE :

BUILT AREA

FLOOR HEIGHT

Ground Floor Area

20,653 sft

13'10"

1st Floor Area

14190 sft

10'10"

1st Floor Area

2nd Floor Area

14245 sft

10'10"

3rd Floor Area

11630 sft

10'10"

Built Area : 14190 sft Floor Height : 10'10"

4th Floor Area

11670 sft

10'10"

5th Floor Area

12640 sft

10'10"

6th Floor Area

2nd Floor Area

11470 sft

10'10"

7th Floor Area

11870 sft

10'10"

Built Area : 14245 sft Floor Height : 10'10"

Roof Floor Area

11530 sft

8'2"

Total Built Area

1,19,896 sft

97'8"

Parking Ground

4 nos Bus Parking Car Parking 17 nos..

3rd Floor Area Built Area : 11630 sft Floor Height : 4th Floor Area Built Area : 11670 sft Floor Height : 10'10"

ARCHITECT TEAM

CHECKED BY

5th Floor Area Built Area : 12640 sft Floor Height : 10'10" 6th Floor Area Built Area : 11470 sft Floor Height : 10'10" 7th Floor Area

Entry Control Point Guard Room CCTV Room ATM Male Parents Waiting Room Female Parents Waiting Room Outdoor Cafe Indoor Student Dining, Kitchen & Kiosk Bank Space Multipurpose Hall Conference Room Book Distribution Room Medic Room Game Room Principals Office Vice Principal's Office Headmaster's Office Assist. Headmaster Office Adjutants Office Accounts Office Examination Control Room Conference Room Female Prayer Room Female Student Common Area Female Toilet Staff Toilet Area Open Terrace Activity Space Class Room Divisional Teachers Assembly Male Toilet Area Female Toilet Area Class Room Divisional Teachers Assembly Male Prayer Room Male Toilet Area Female Toilet Area Class Room Divisional Teachers Assembly Male Toilet Area Female Toilet Area Store Room Class Room Divisional Teachers Assembly Male Toilet Area Female Toilet Area Store Room

APPROVED BY: CHECKED BY: CHECKED BY:

Built Area : 11870 sft Floor Height : 10'10"

Auditorium Audit. Support Room Class Room Staff Toilet Area Store Room

Roof Floor Area Built Area : 11530 sft Floor Height : 8'2"

Room A Room B Motor Room

Quantity (NOS)

4 3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 6 1 1 1 5 1 1 1 1 5 1 1 1 1 6 1 1 1 1 1 1 3 2 1 1 1 2

Total Built Area : 1,19,896 sft

REVIEWED BY:

Total Height : 97'8"

APPROVED BY:

PAGE-04

IMPLEMENTING AUTHORITY:

Number of floors

PAGE-07

PAGE-08

f

Project brief Site Area: 10 Katha Built Area: 10,815 sqft Building Height: 42 feet (G+1) Location: Irshal Colony, Kawla, Dhaka.

Project Type: Service Building

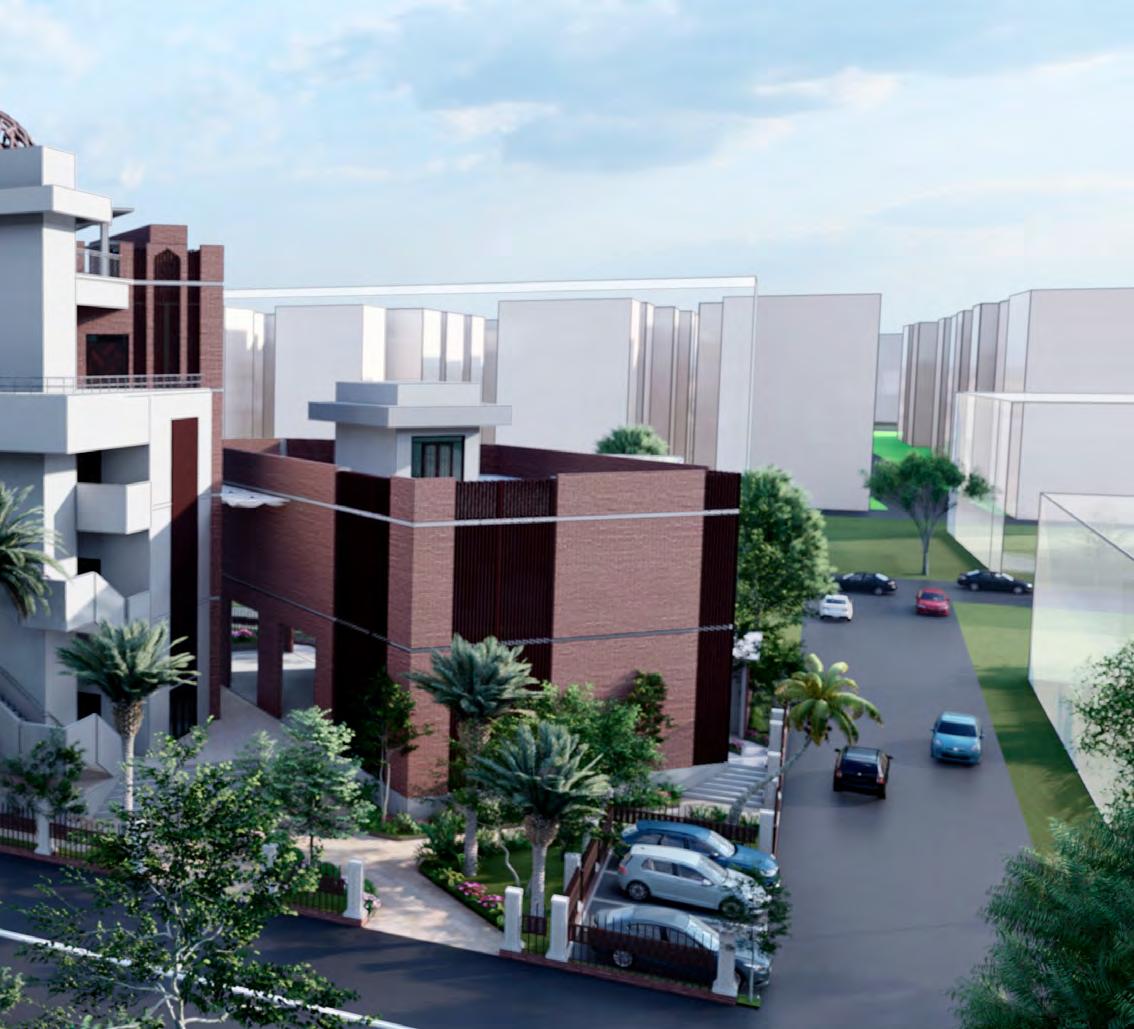

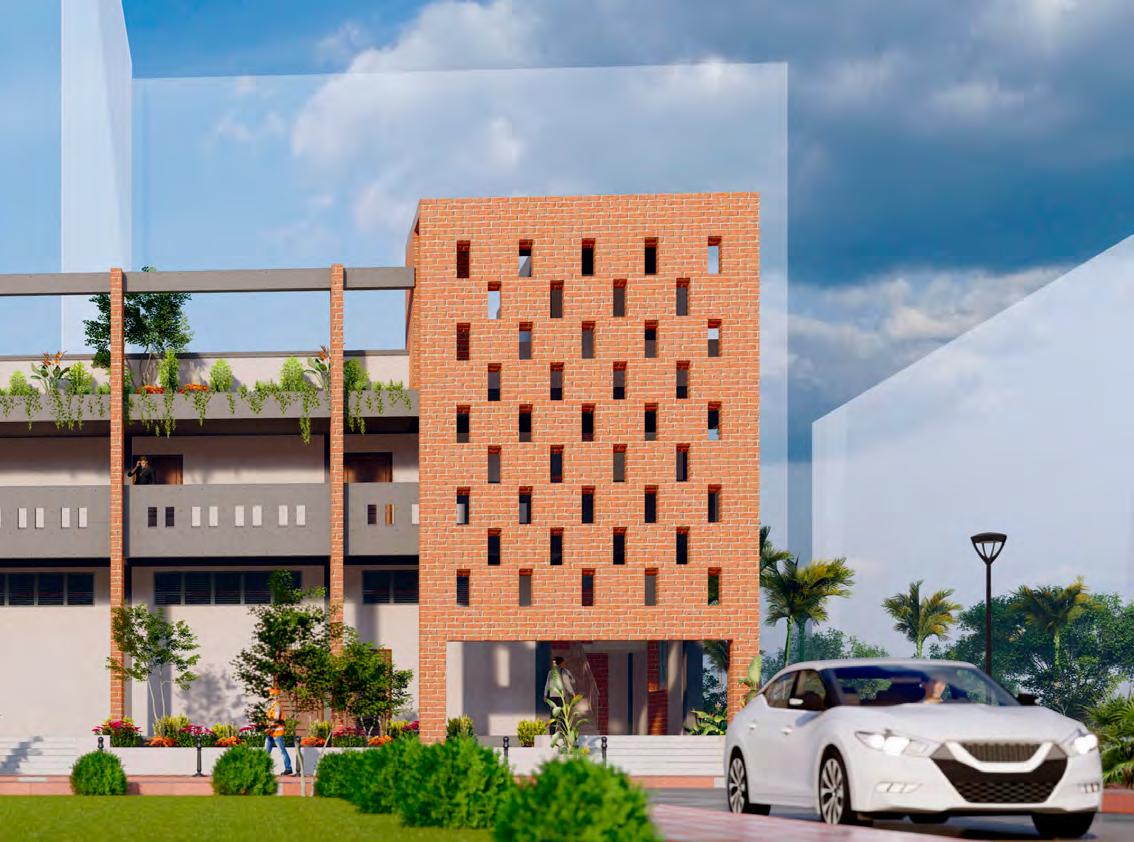

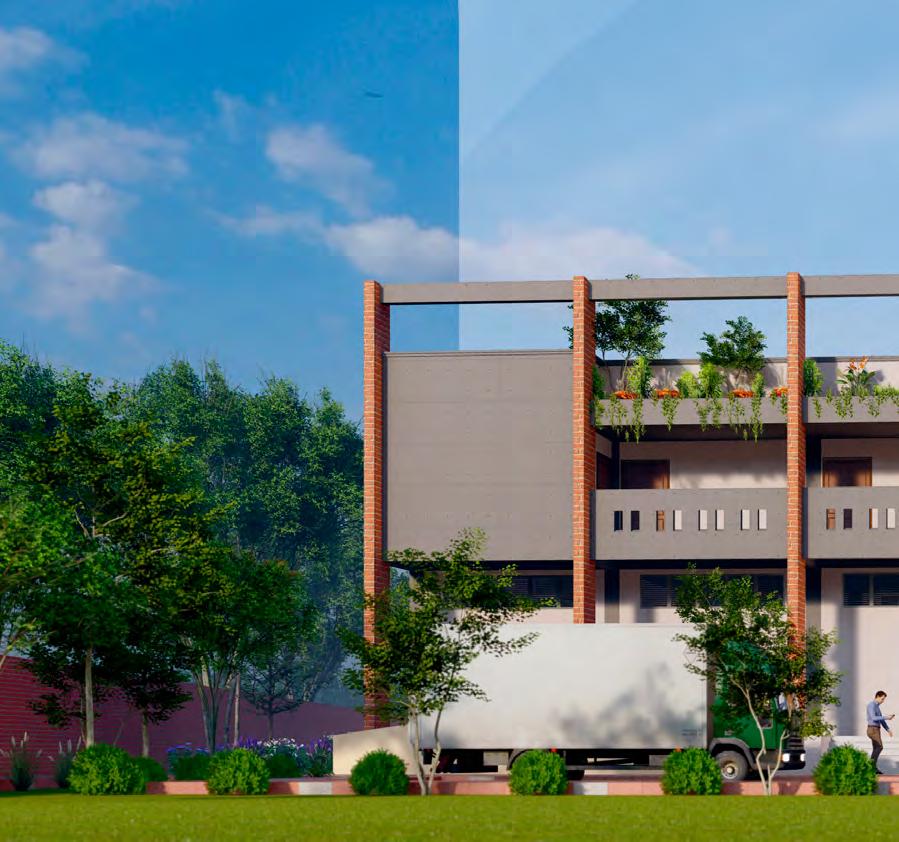

IRSHAL COLONY SUB-STATION, KURMITOLA

Client: Civil Aviation Authority of Bangladesh (CAAB)

PAGE-09

1B

Responsibilities: Floor plan development, working drawing, 3D modeling and rendering.

Projects Description: Situated adjacent to the new Answar Barrack compound in Irhal Colony, the twostory DESCO substation has been meticulously planned. The initial floor layout adheres to the standard requirements of a DESCO substation, while also incorporating subtle architectural enhancements that beautifully complement its additional functionality on the first floor. The project was supervised by the principal architect of the iNArch Team.

PAGE-10

f

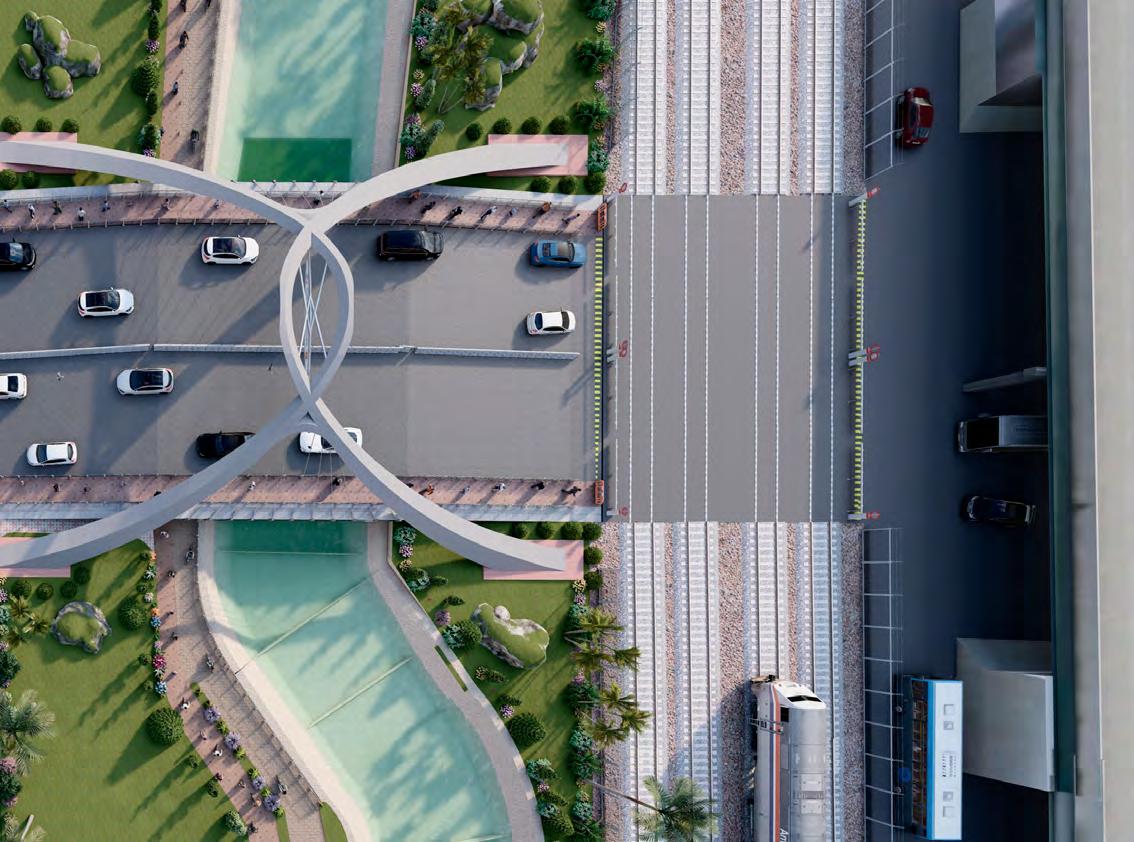

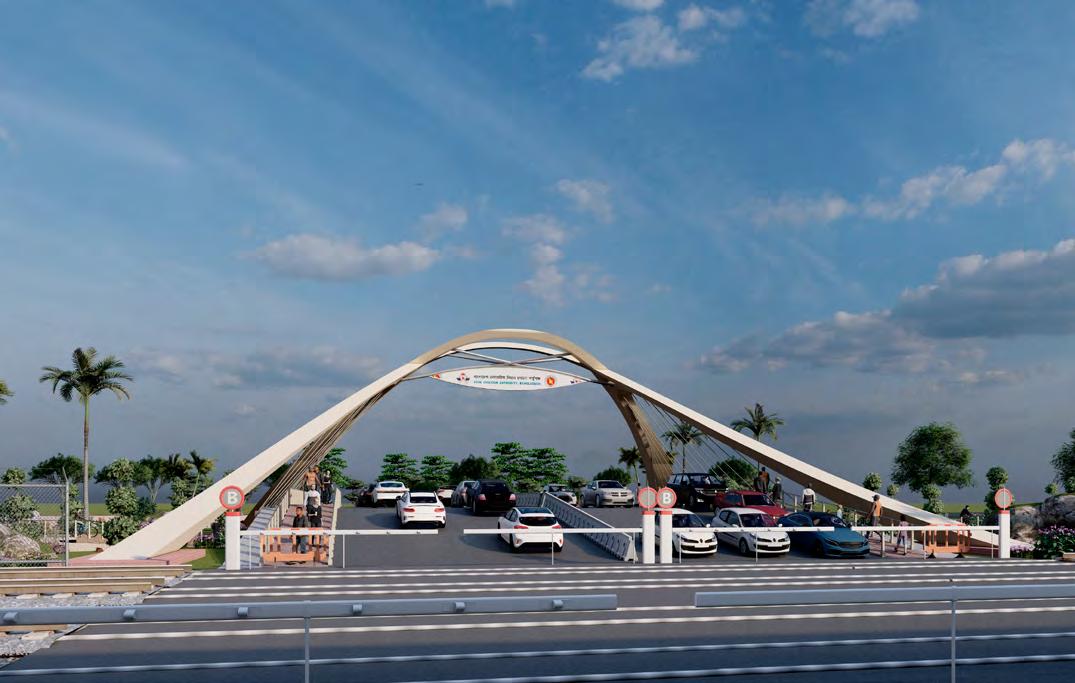

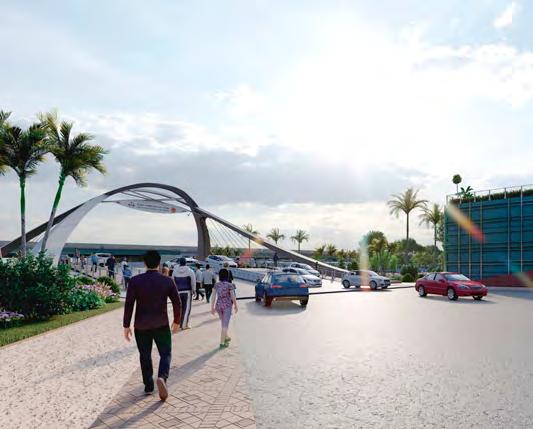

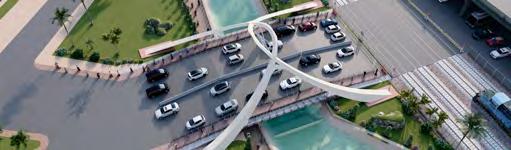

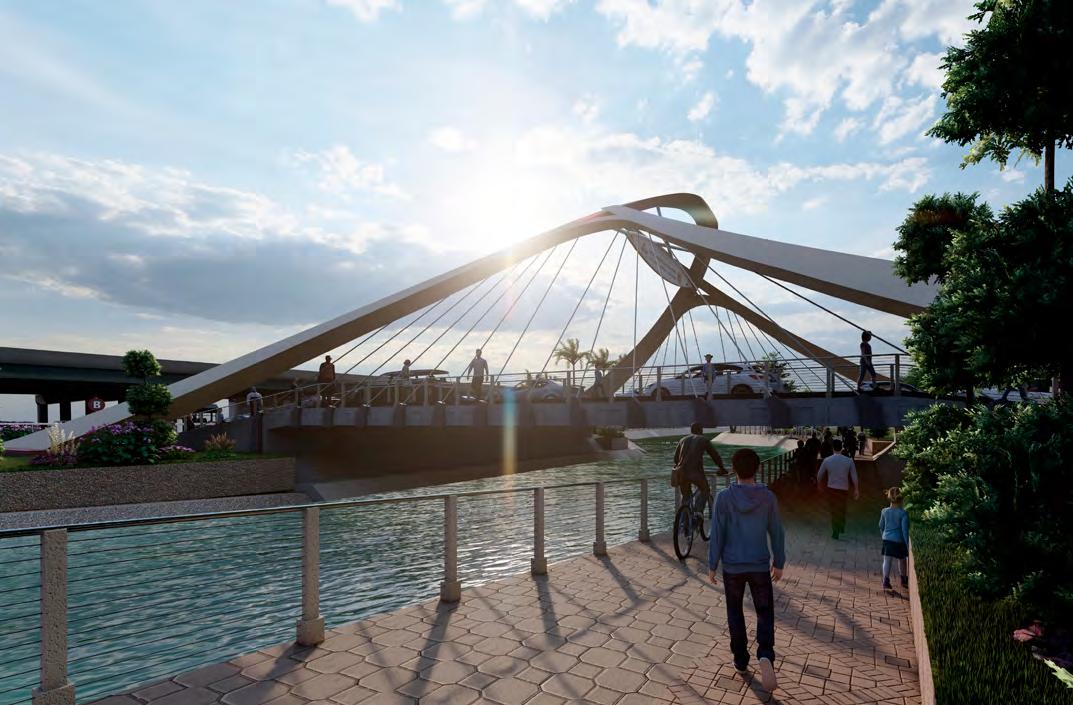

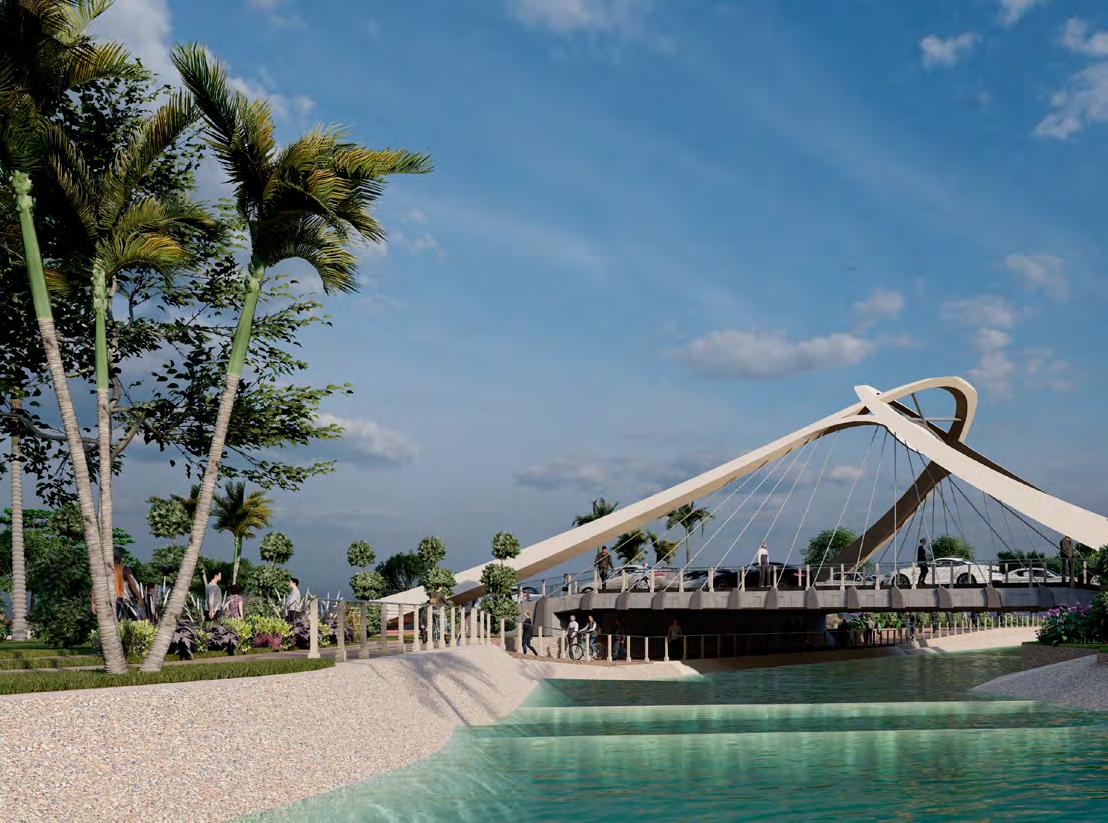

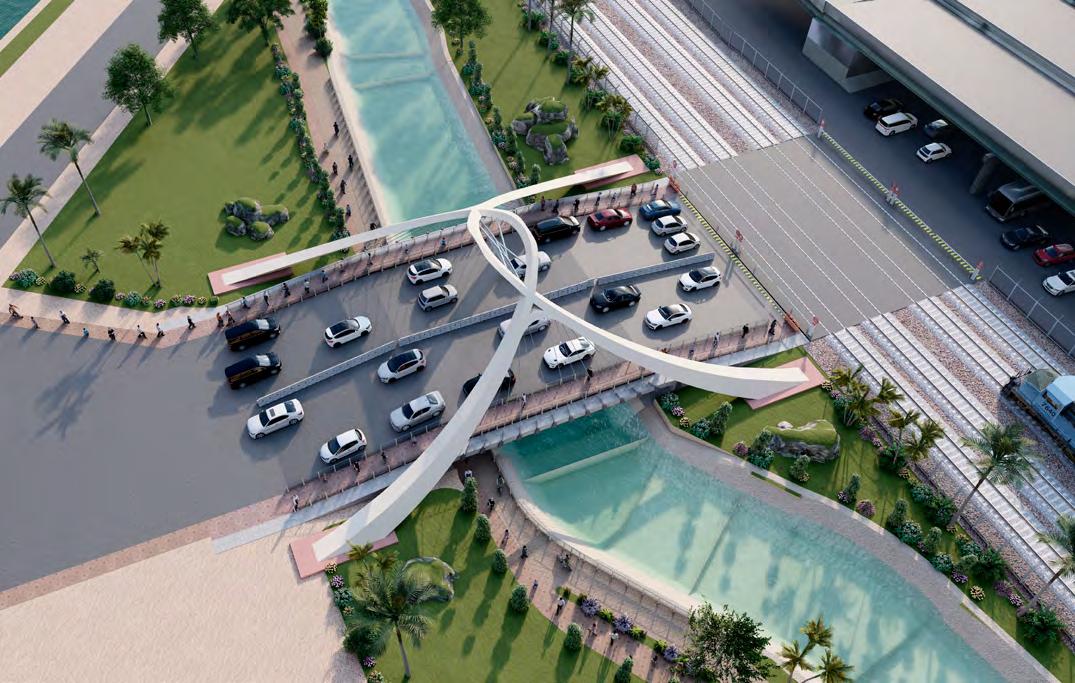

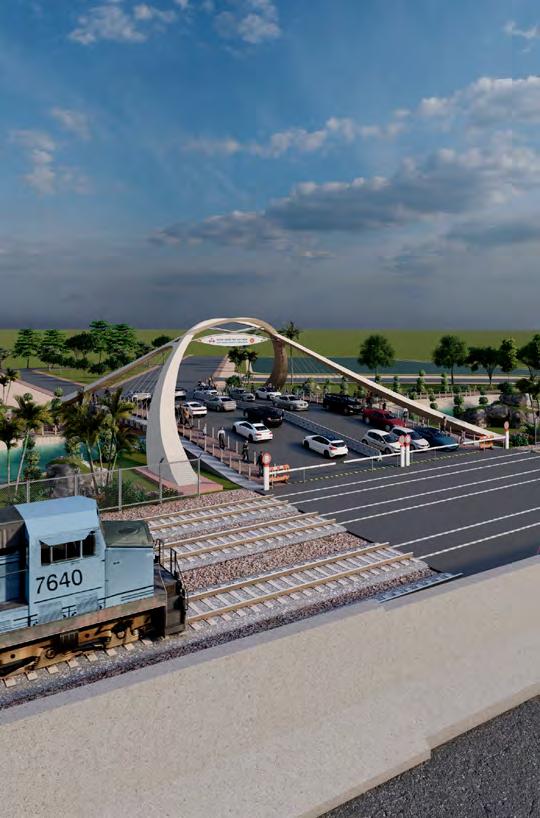

CAAB RESIDENTIAL AREA ENTRY BRIDGE, KAWLA. PAGE-13

1D

Location: Kawla, Dhaka.

-click above or scan the QR Code

to watch 3D animation at youtube-

Site Area: n/a

-click above or scan the QR Code

Project brief

to watch 3D animation at youtube-

Project Type: Infrastructure Client: Civil Aviation Authority of Bangladesh (CAAB) Responsibilities: Prepare CAD, Working drawing, sections, 3D modeling and rendering.

Projects Description: The primary entryway consists of a bridge-gate spanning the canal, connecting the newly developed CAAB Residential area. This bridge-gate is thoughtfully designed, featuring a dedicated pedestrian walkway, which includes an underpass with an interlocking cycling track, as well as a scenic jogging track along the lakeside.

PAGE-14

PAGE-17

PAGE-18

f

Built Area: 4,16,250 sqft Building Height: 150 feet (B+G+12) Location: Shaheen Bagh, Mohakhali, Dhaka.

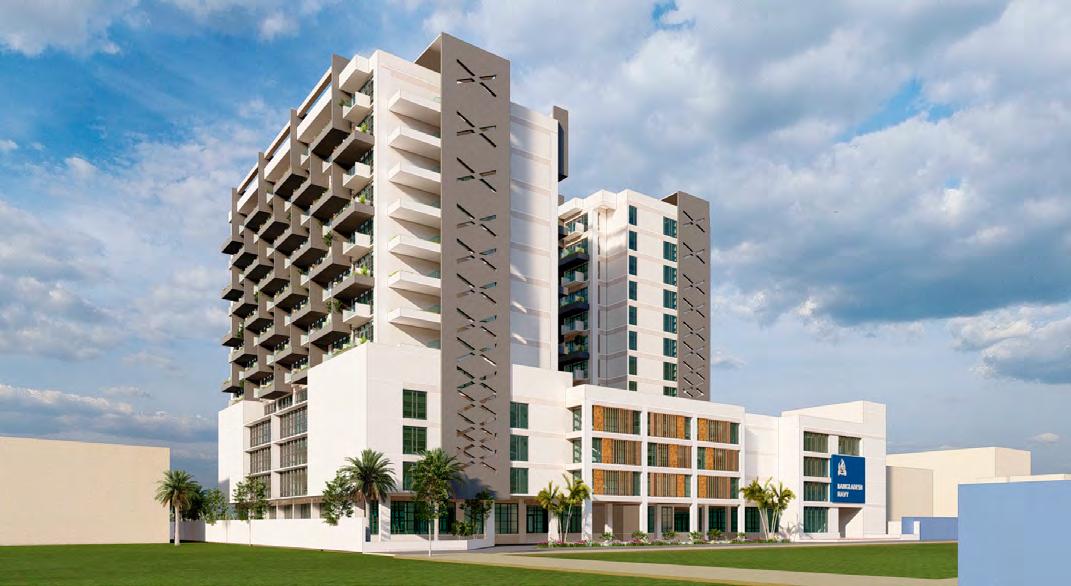

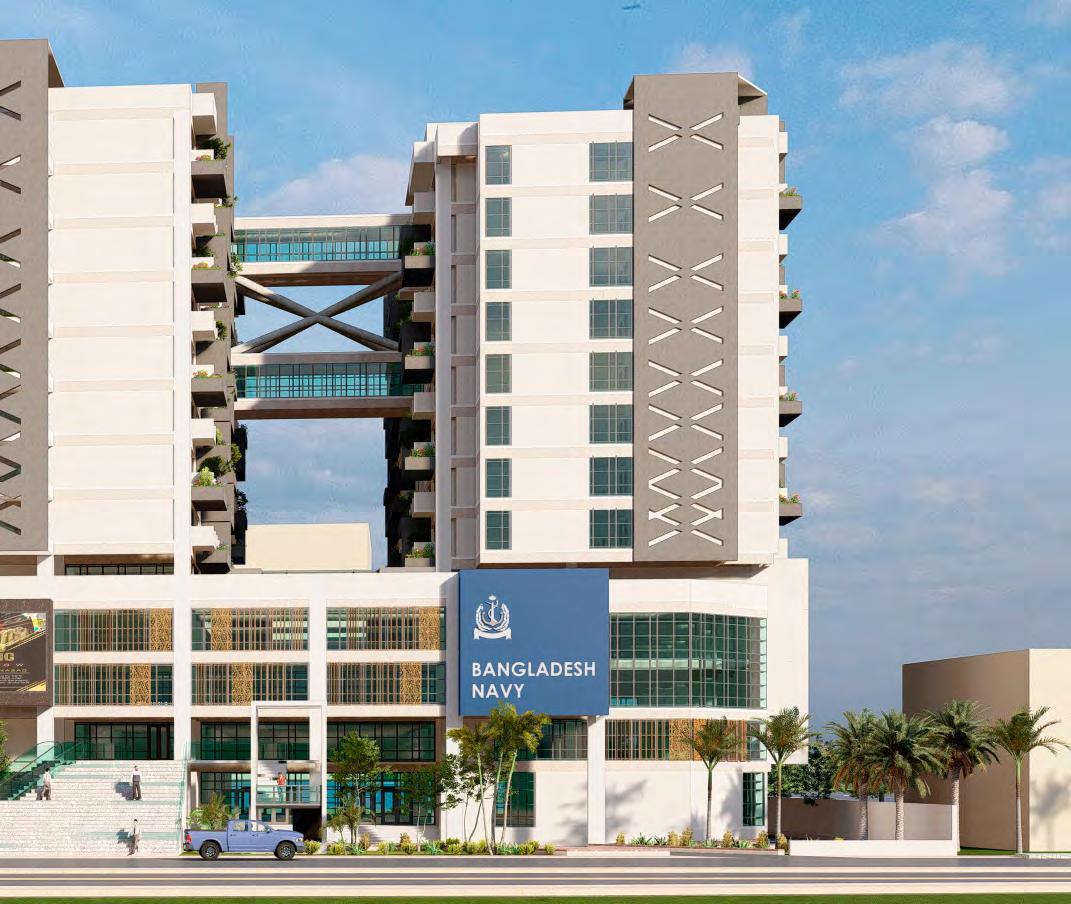

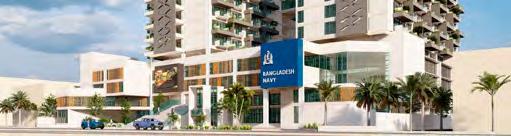

BNS OFFICERS’ CLUB, SHAHEEN BAGH, DHAKA.

Project Type: Commercial Building

PAGE-31

2A

-click above or scan the QR Code

to watch 3D animation at youtube-

Site Area: 90 Katha

-click above or scan the QR Code

Project brief

to watch 3D animation at youtube-

Client: Bangladesh Navy.

Responsibilities: 3D works, Rendering, and Animation Supervision.

Projects Description: The Bangladesh Navy commissioned this project to create an officers’ club that offers hotel-like accommodation, a convention hall, commercial spaces, and restaurants. The design features a basement parking area, five stories of commercial floors, and an eight-story residential twin tower. A distinctive aspect of the design is the vertical green pavilion, which aims to become a new landmark structure. The proposal presented here represents the preliminary design stage, where floor plans and architectural working drawings was prepared in collaboration with the iNArch Team.

PAGE-32

f

Built Area: 11,850 sqft

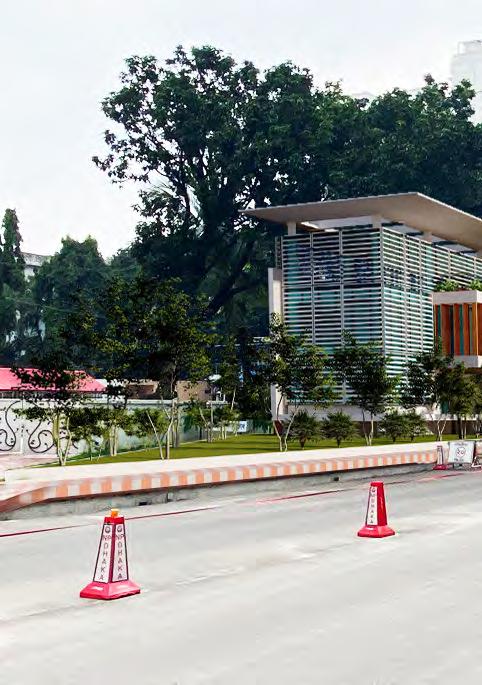

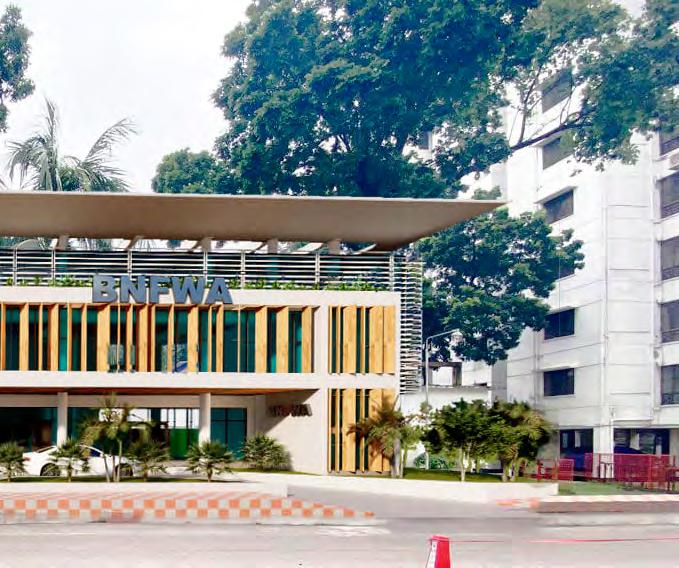

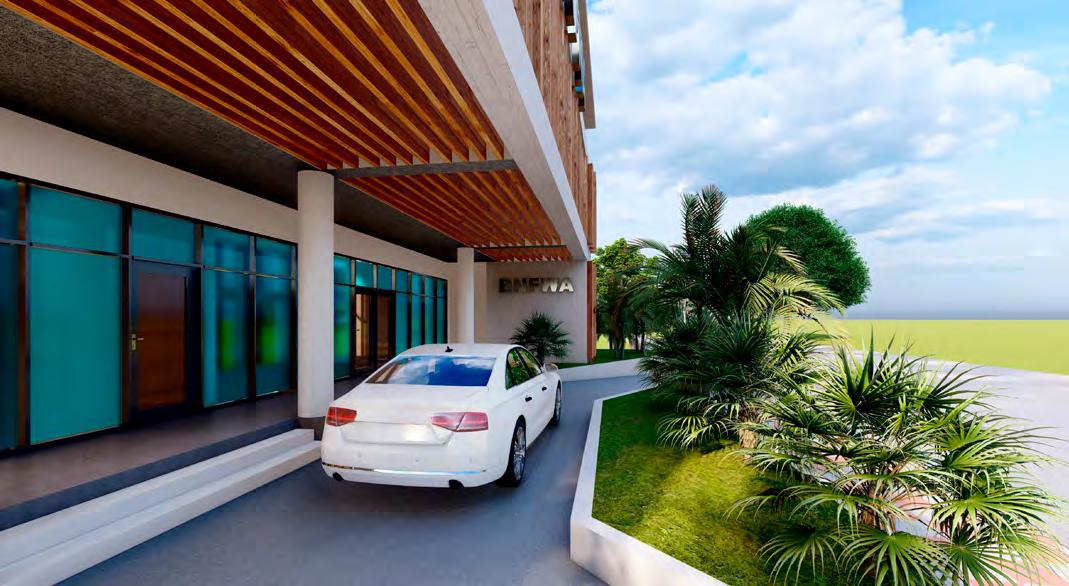

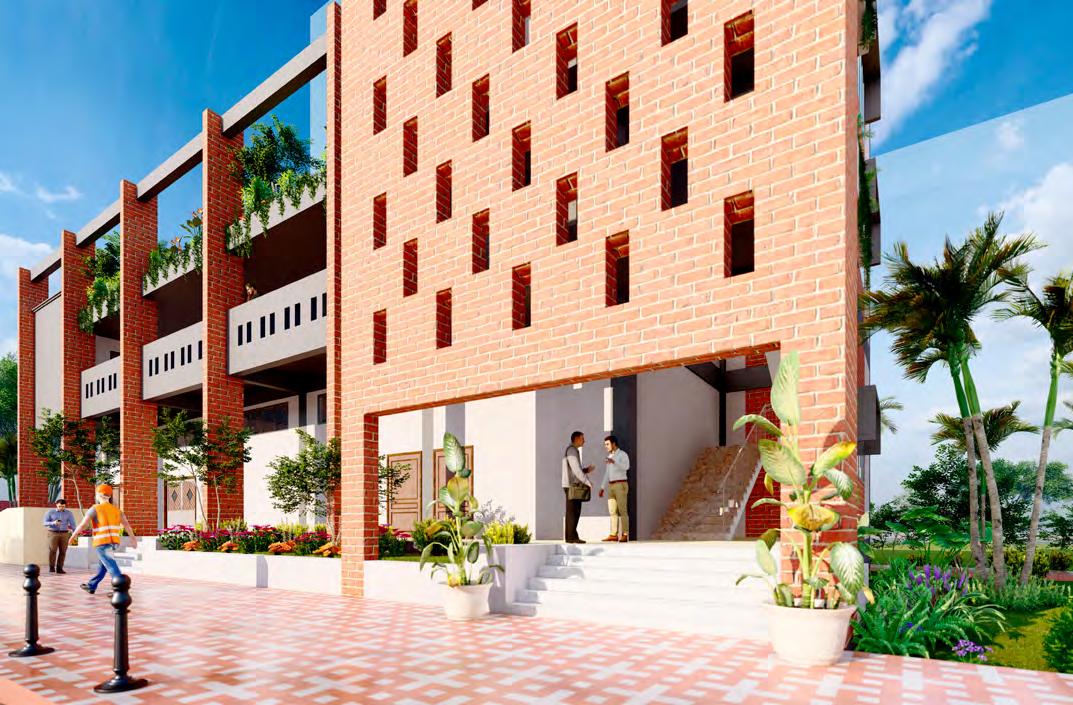

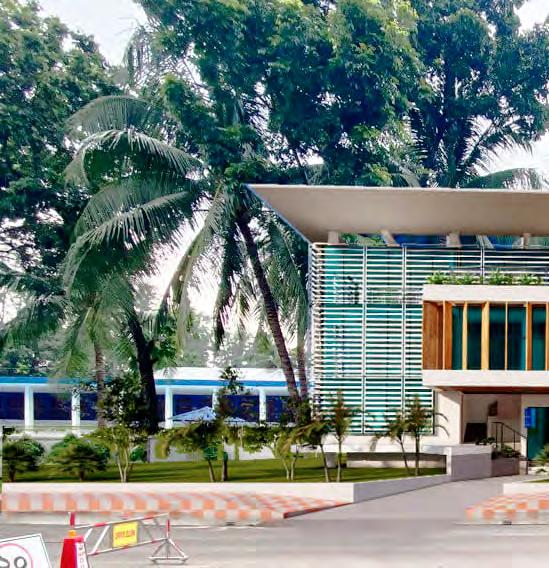

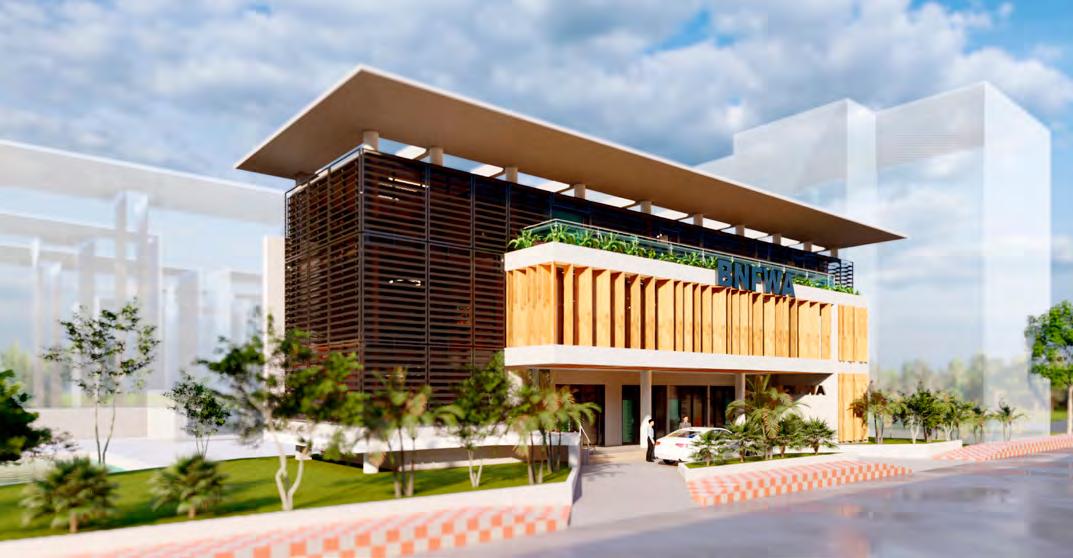

BNF WOMENS’ CLUB, NAVY HEADQUARTER, BANANI.

Building Height: 39 feet (G+2)

PAGE-37

2B

Location: BN HQ, Banani, Dhaka.

Project Type: Office Building

-click above or scan the QR Code

to watch 3D animation at youtube-

Site Area: 8.5 Katha

-click above or scan the QR Code

Project brief

to watch 3D animation at youtube-

Client: Bangladesh Navy.

Responsibilities: Floor plan detailing, working drawing, 3D modeling and rendering Projects Description: The Bangladesh Navy commissioned this project to create a Ladies’ club that accommodates the president’s office, advisors’ offices, meeting rooms, and a multipurpose hall. The project details and 3D work were supervised by the principal architect of the iNArch team. The threestory building is situated in the heart of the Bangladesh Navy Headquarters, adjacent to the swimming pool. The roof structure, shading devices, and louvers give the facade a distinctive architectural character.

PAGE-38

PAGE-41

PAGE-42

f

Project brief Site Area: 29 Katha Built Area: 47,700 sqft Building Height: 109 feet (G+3+Minaret) Capacity: 3000 people Location: HSIA, Kurmitola, Dhaka.

Project Type: Institutional Building Client: Civil Aviation Authority of Bangladesh (CAAB)

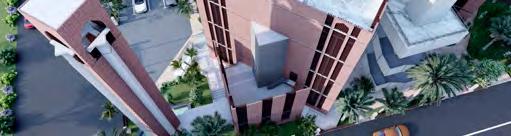

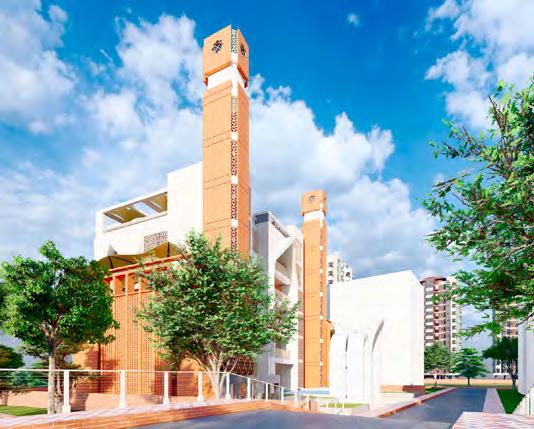

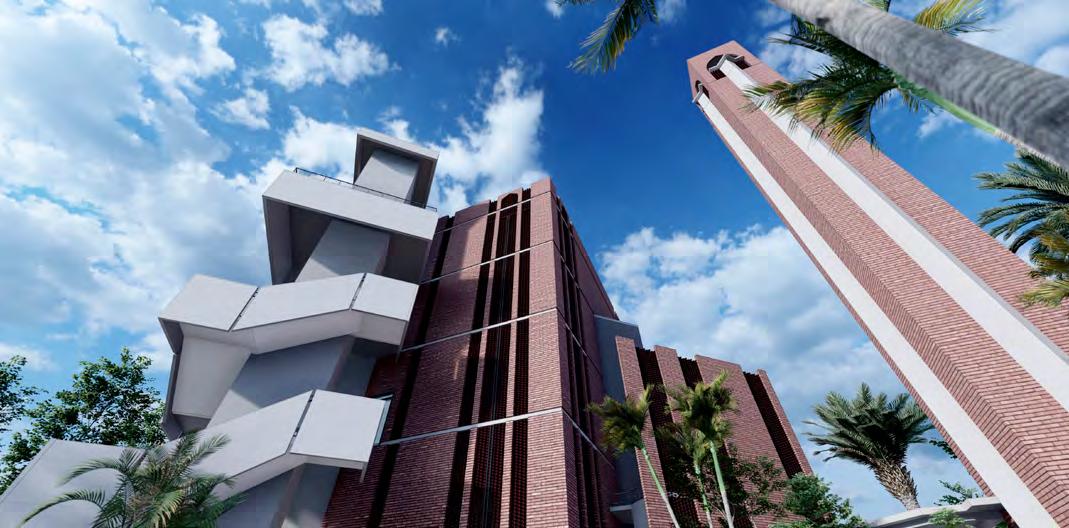

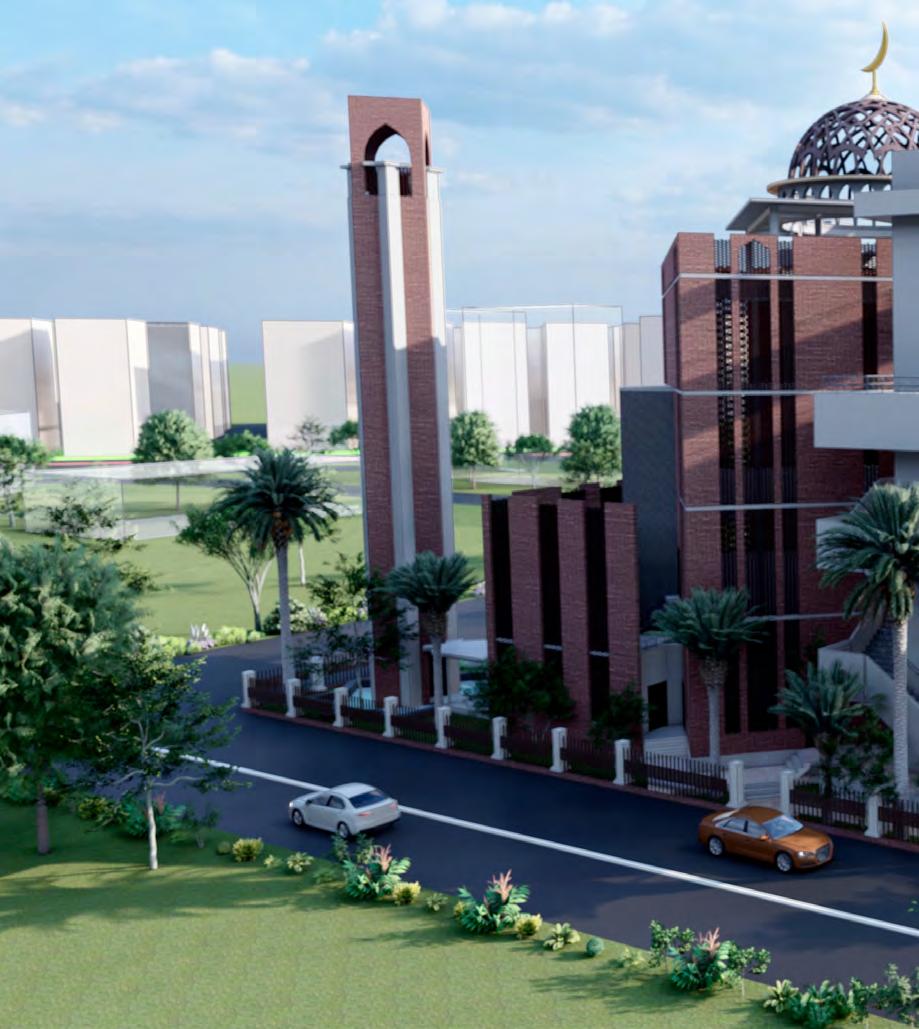

CAAB CARGO MASJID, KURMITOLA, DHAKA.

Responsibilities: Floor plans, Presentation Drawings, Working Drawings, 3D Modeling & Rendering.

PAGE-49

3A

Projects Description: The proposed design draws inspiration from Bangladesh’s brick architecture style and incorporates geometric arrangements reminiscent of the National Parliament of Bangladesh. The fourstory masjid structure can comfortably accommodate 3000 to 4000 people, considering spill-over areas.

The design features a dome adorned with Islamic geometric patterns within a skeletal structure. Delicately planned floor layouts consider site constraints, offering a welcoming entrance, spacious accessways, and level spaces with green open gardens. The prominent minaret, gracefully curved staircases, and brick openings contribute to the uniqueness of its architectural form.

PAGE-50

f

Client: Civil Aviation Authority of Bangladesh (CAAB)

-click above or scan the QR Code

to watch 3D animation at youtube-

Site Area: 50 Katha Built Area: 82,200 sqft Building Height: 114 feet (G+3+Minaret) Capacity: 5500 people Location: CAAB R/A, Kawla, Dhaka.

Project Type: Institutional Building

-click above or scan the QR Code

Project brief

to watch 3D animation at youtube-

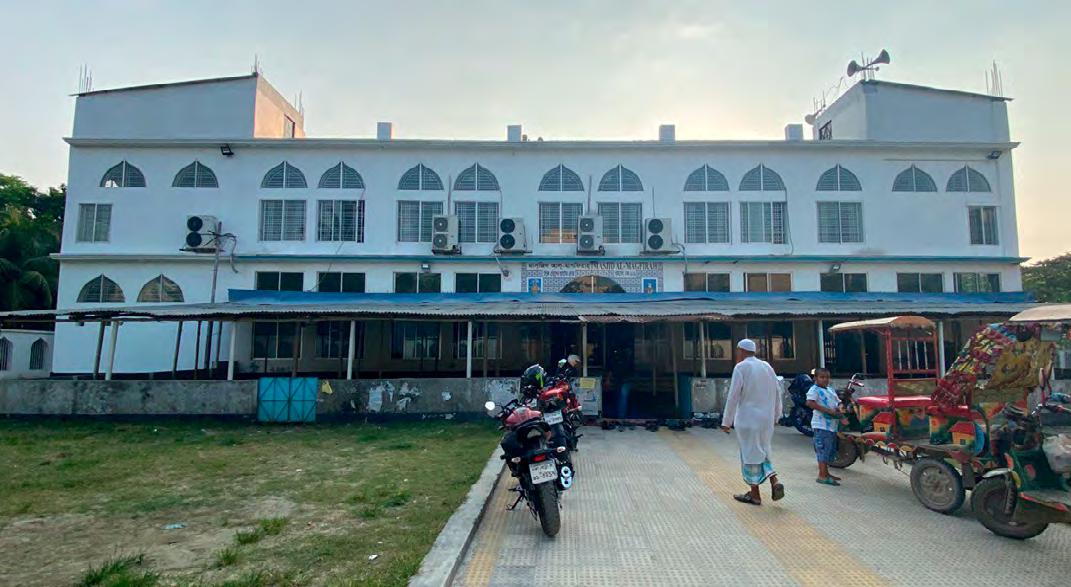

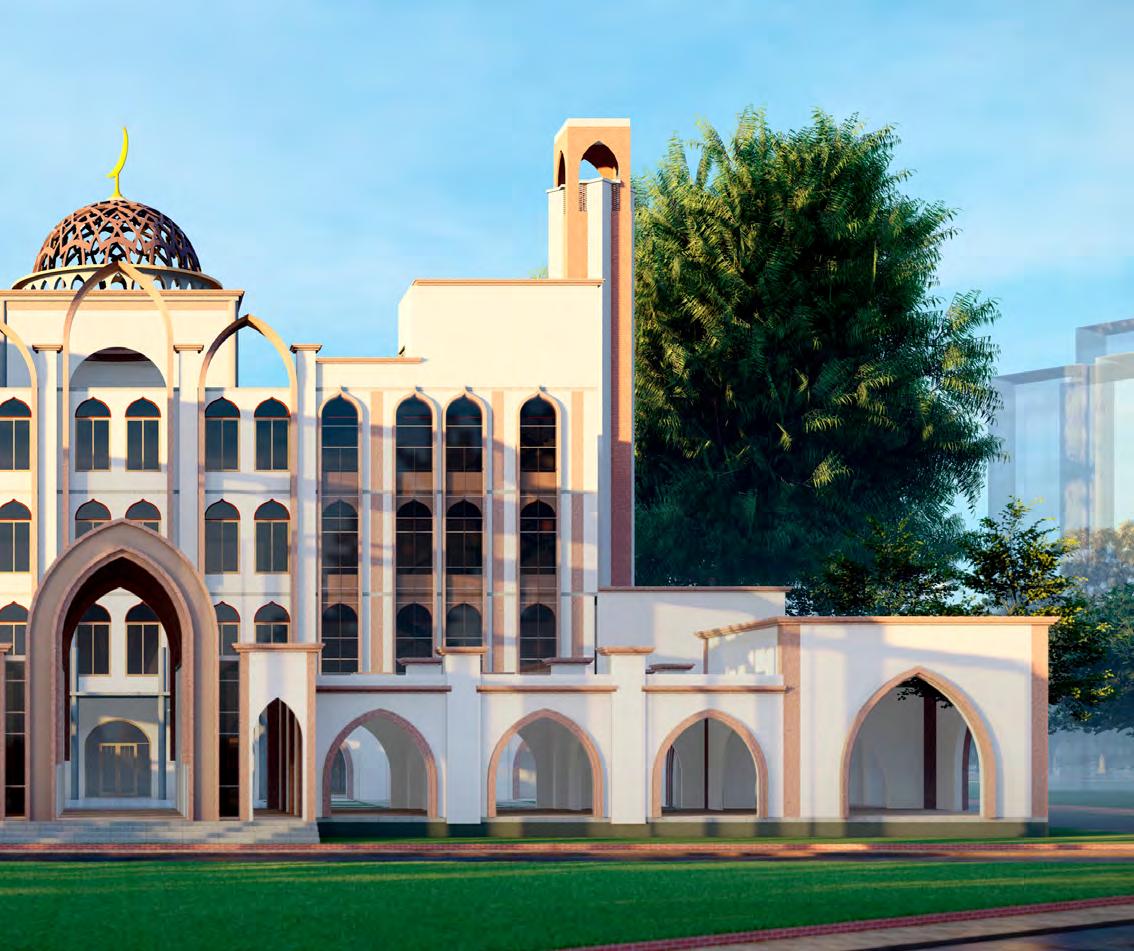

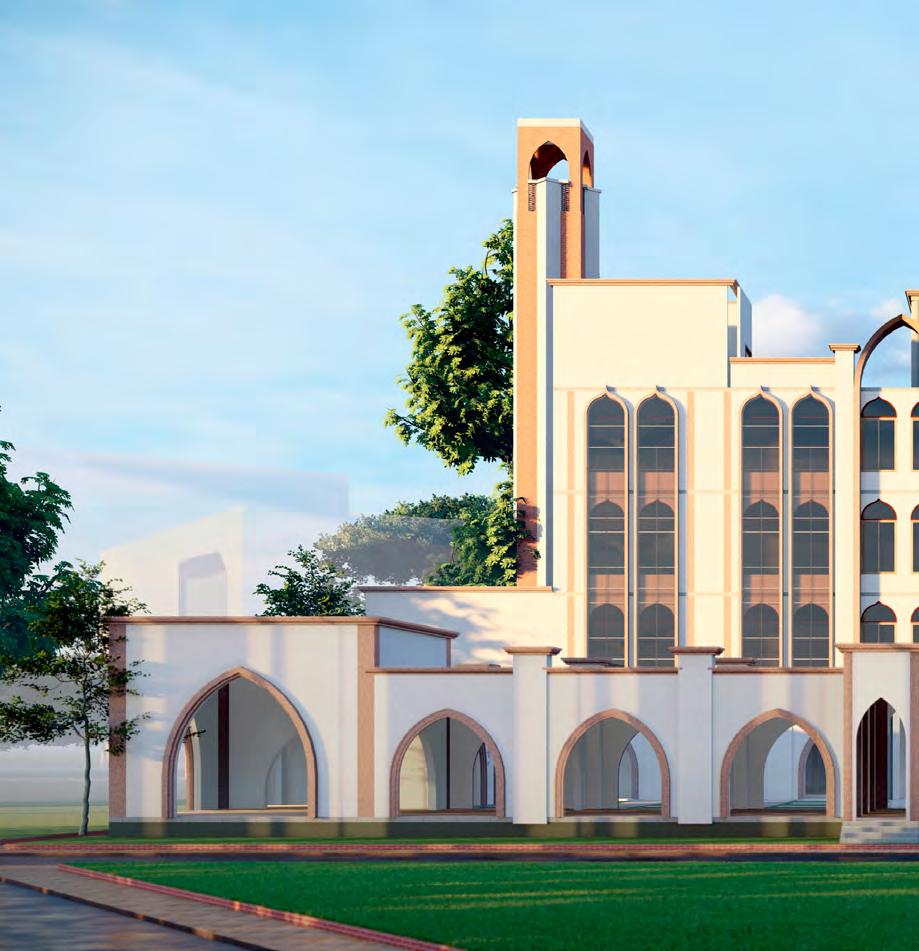

MASJID AL MAGFIRAH, CAAB RA, KAWLA.

Responsibilities: Floor plans, Presentation Drawings, Working Drawings, 3D Modeling & Rendering.

PAGE-55

3B

Projects Description: The project is commisioned to remodel and extend the existing two-story Masjid Structure. Inspired by Mughal mosque architecture, the design incorporates large arches, an open courtyard, and surrounding pavilions. The redesigned four-story masjid accommodates 5500 to 6500 worshippers, considering spill-over areas. A modern touch is introduced through a unique skeletal dome adorned with geometric patterns. Two minarets, a grand central archway entrance, an additional northern structure, and carefully planned elevation features enhance the existing unbalanced structure into the symmetrical design.

PAGE-56

f

Client: Bangladesh Navy

-click above or scan the QR Code

to watch 3D animation at youtube-

Site Area: 25 Katha Built Area: 37,000 sqft Building Height: 87 feet (G+2+Minaret) Capacity: 1500 people Location: Navy HQ, Banani, Dhaka.

Project Type: Institutional Building

-click above or scan the QR Code

Project brief

to watch 3D animation at youtube-

Responsibilities: Floor plans, Presentation Drawings, Working Drawings, 3D Modeling & Rendering.

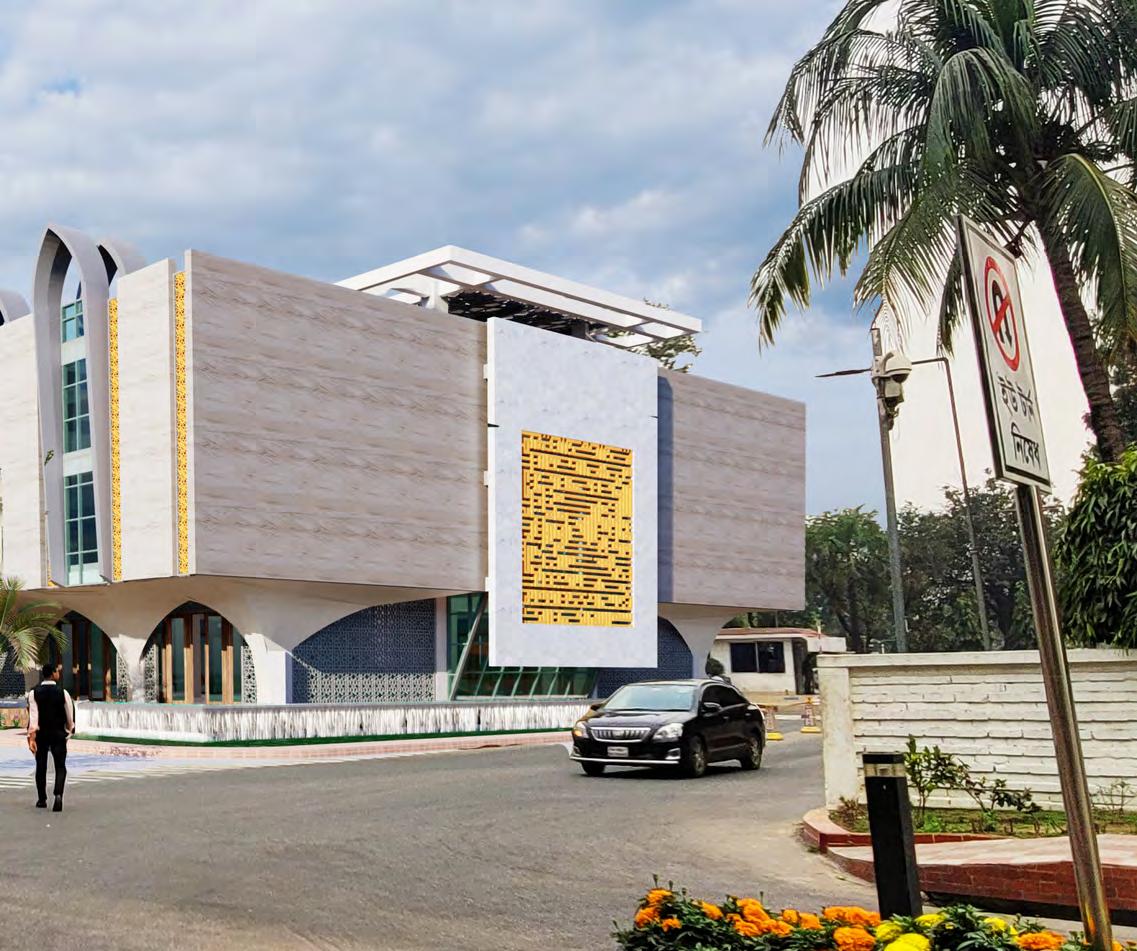

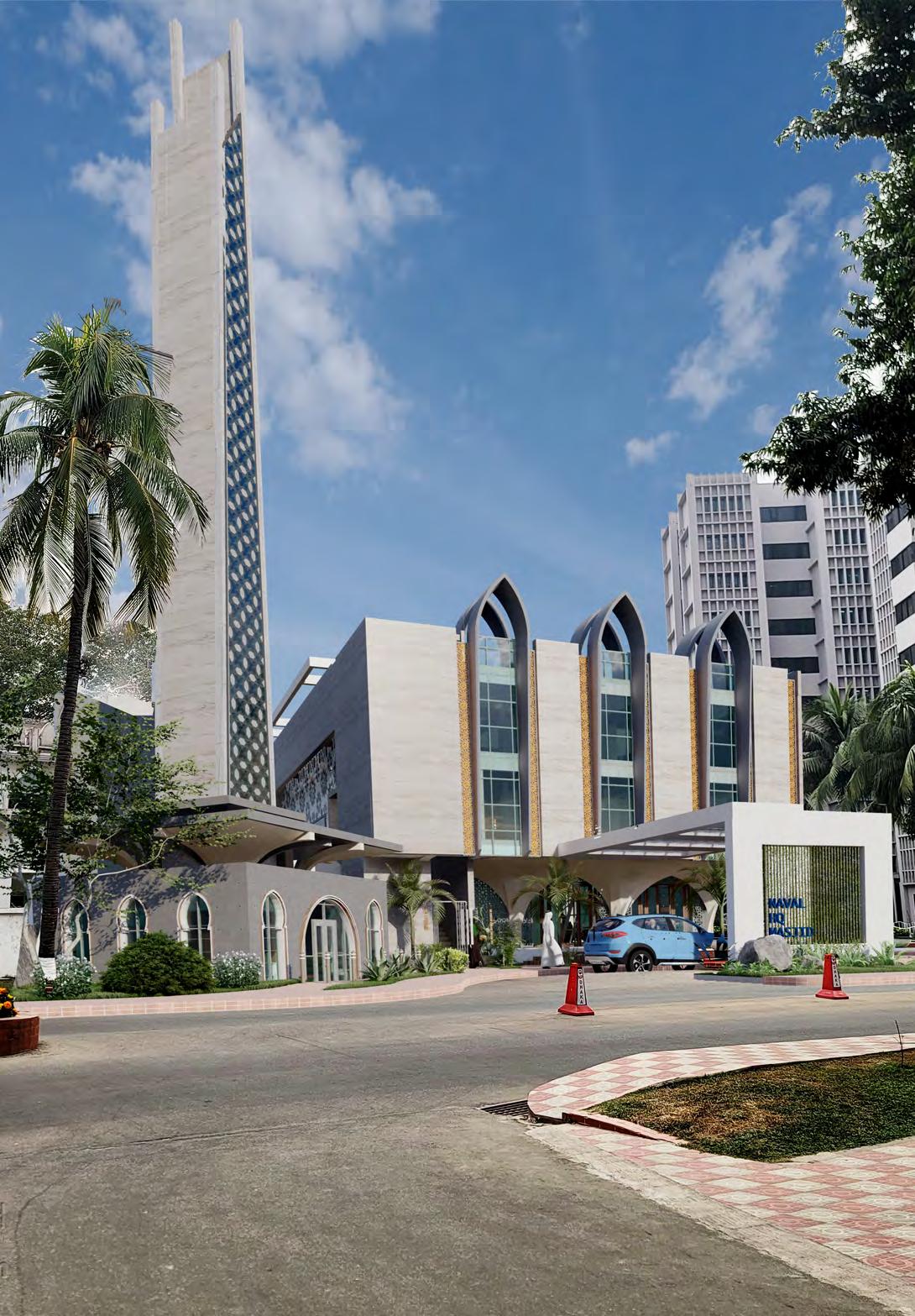

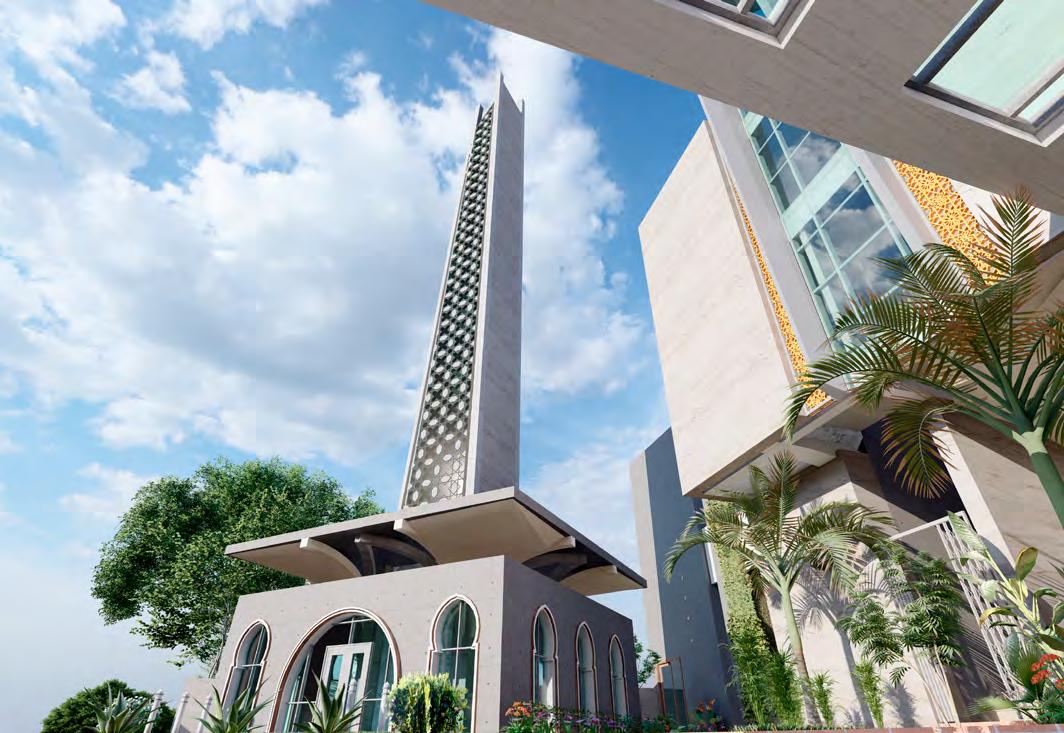

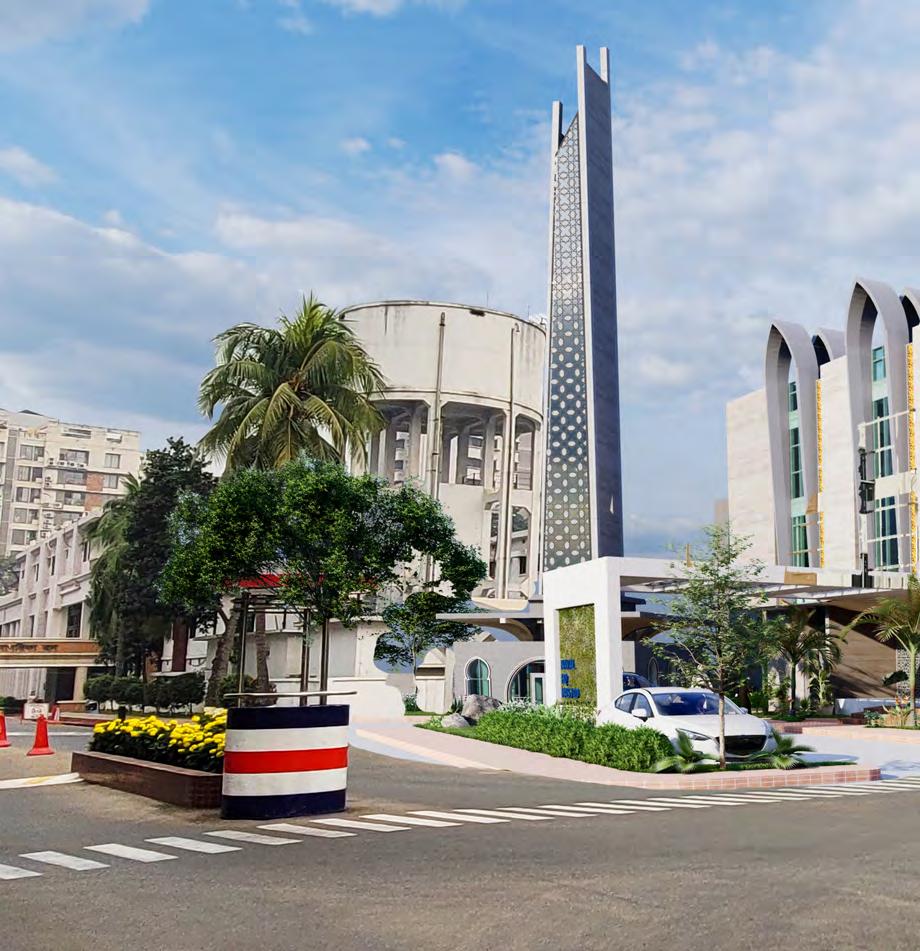

NAVY HQ MASJID, BANANI.

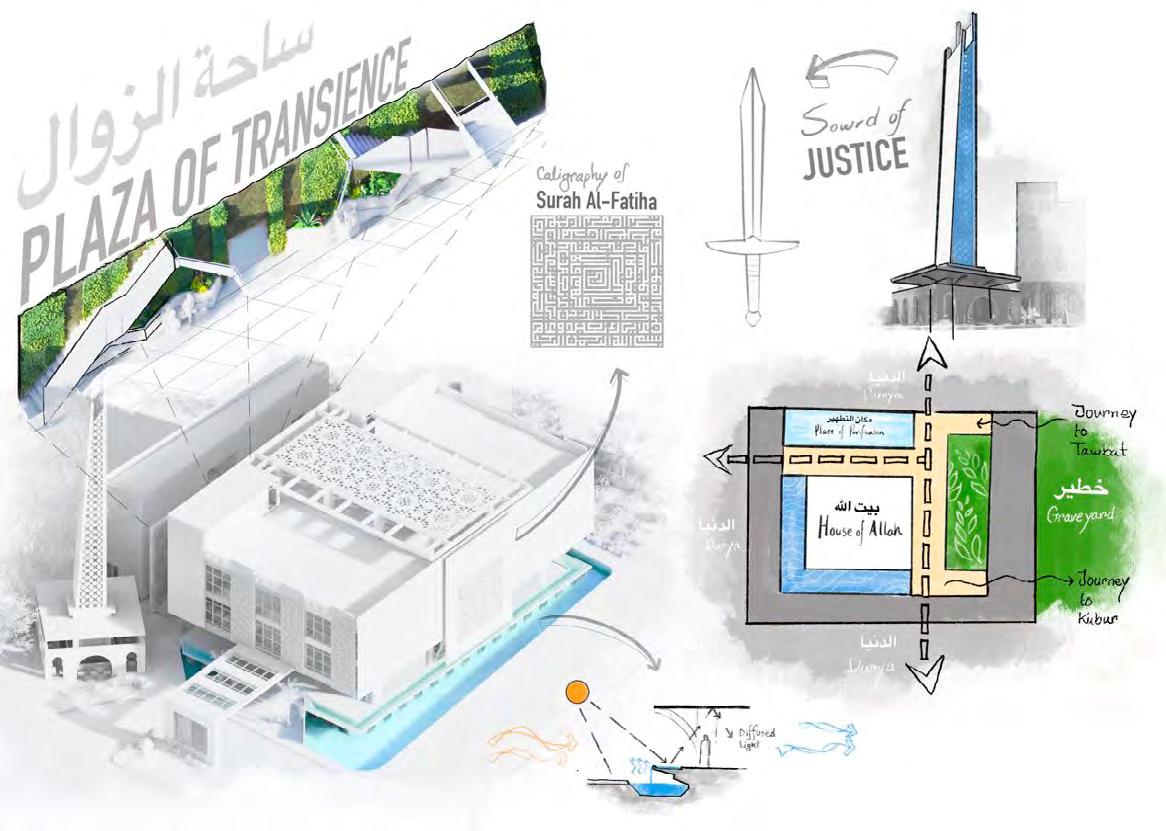

Projects Description: The commissioned project aims to reconstruct the Bangladesh Navy Headquarters (HQ) masjid, infusing it with contemporary Islamic architecture while symbolizing the force of the sea.

The masjid’s design metaphorically resembles a floating vessel, mirroring the Navy’s connection to the sea. The minaret, rising elegantly from the masjid, embodies strength and authority. Its shape subtly echoes that of a sword—an emblem of the Navy’s might and purpose. The proposed three-story masjid accommodates 1500 to 2000 worshippers, allowing for overflow during peak times. The proposed masjid seamlessly blends traditional elements—such as arches, geometric-patterned mashrabias, and a khufi stamp as the mehrah—with innovative features, including an integrated combination of green spaces and thoughtful circulation pathways.

PAGE-61

3C

PAGE-62

PAGE-63

PAGE-66

f

Project brief Site Area: 16 Katha Location: Bashundhara Riverview, Dhaka.

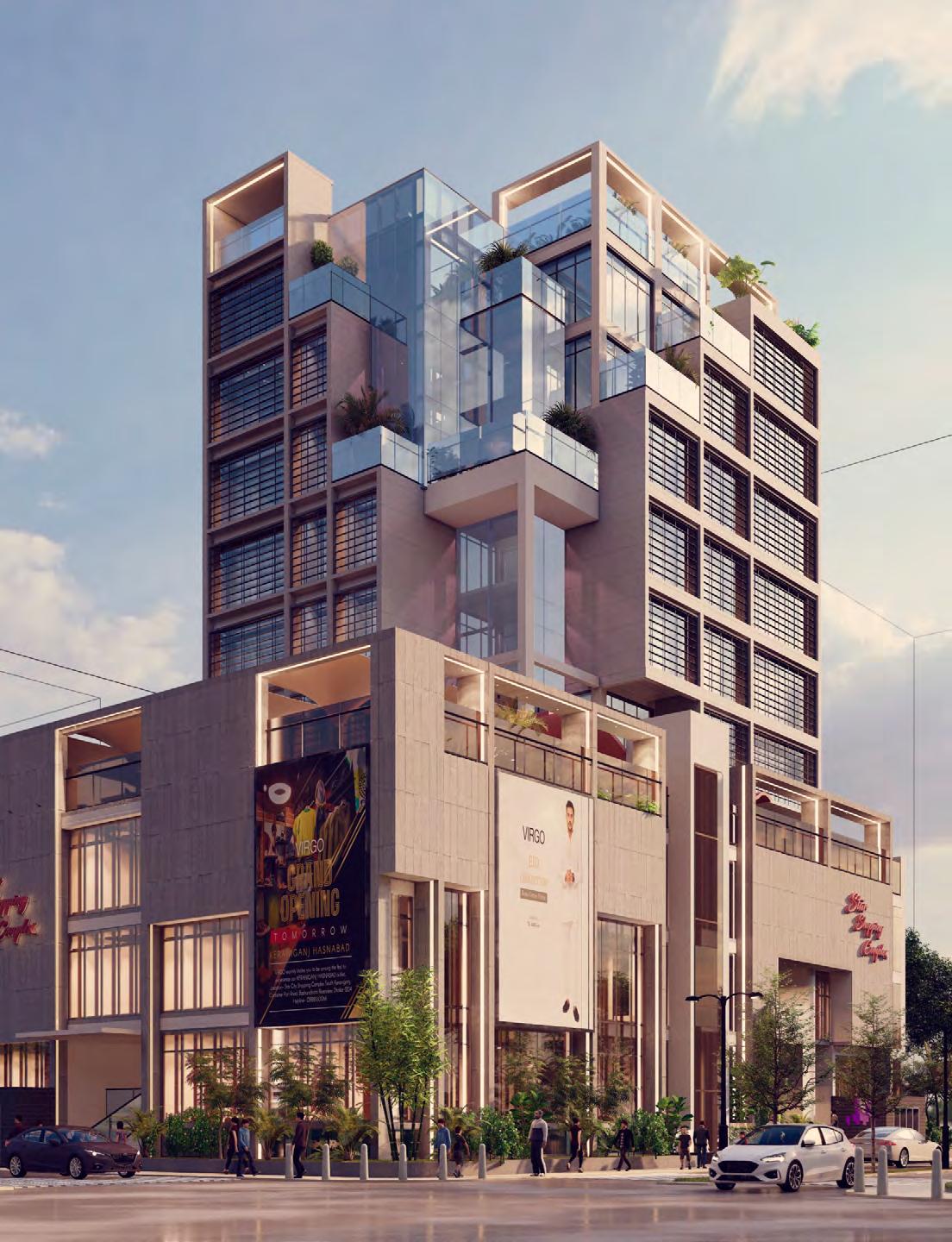

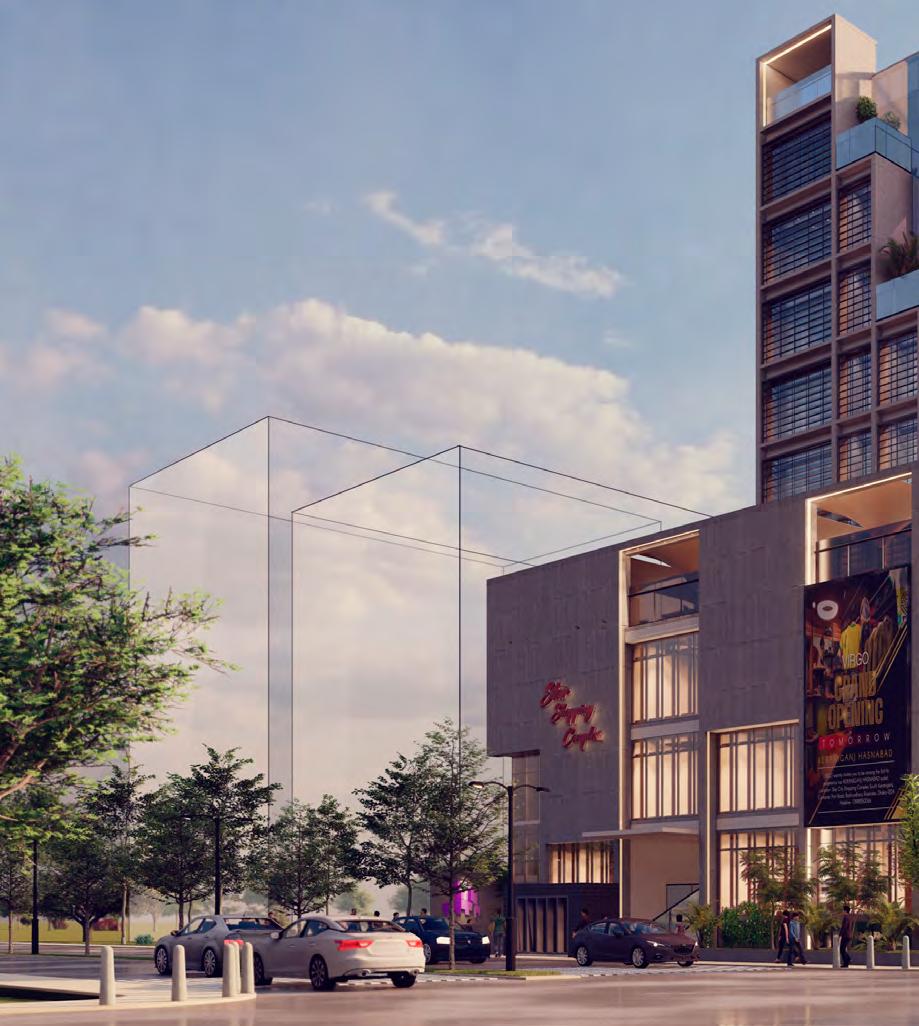

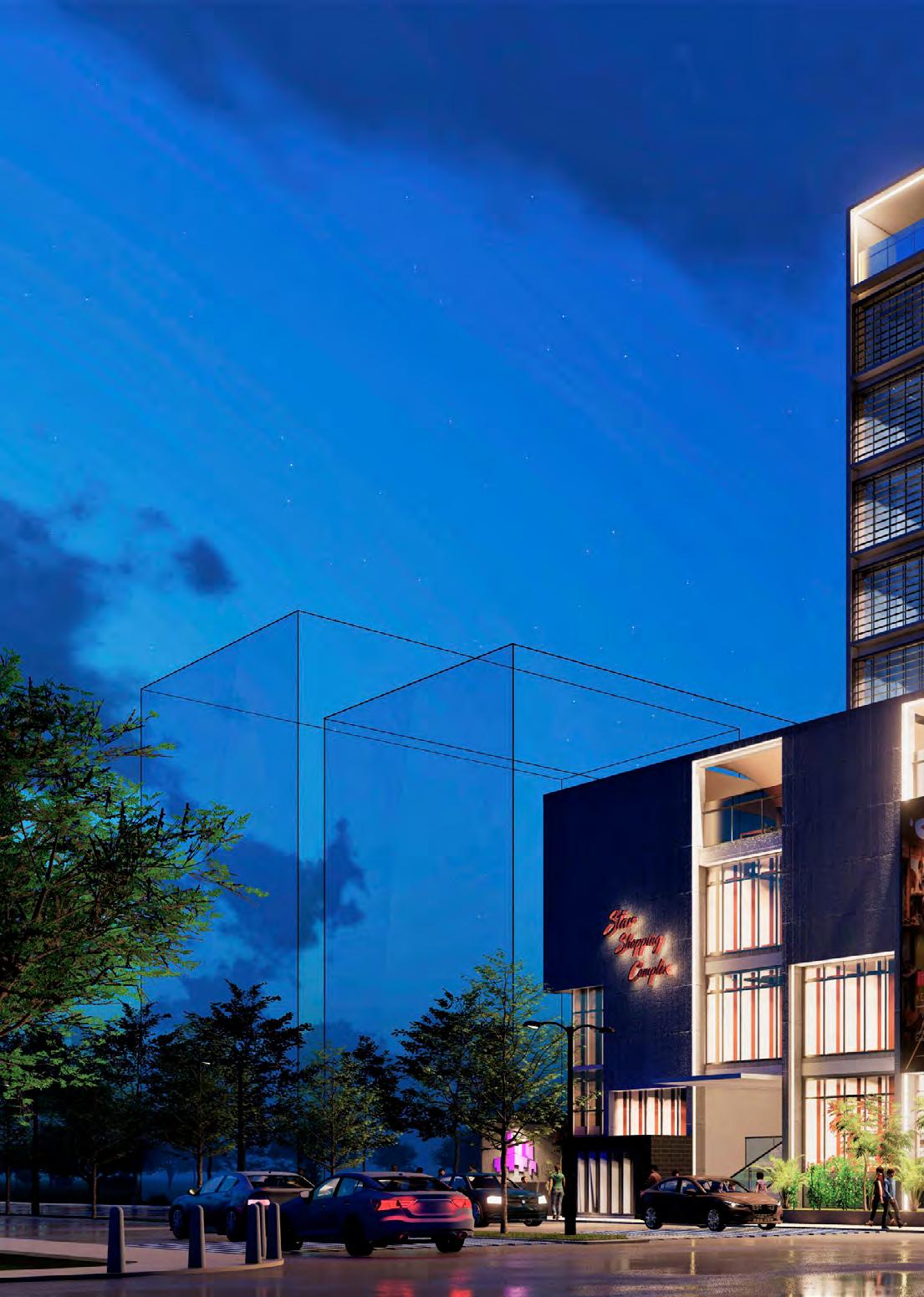

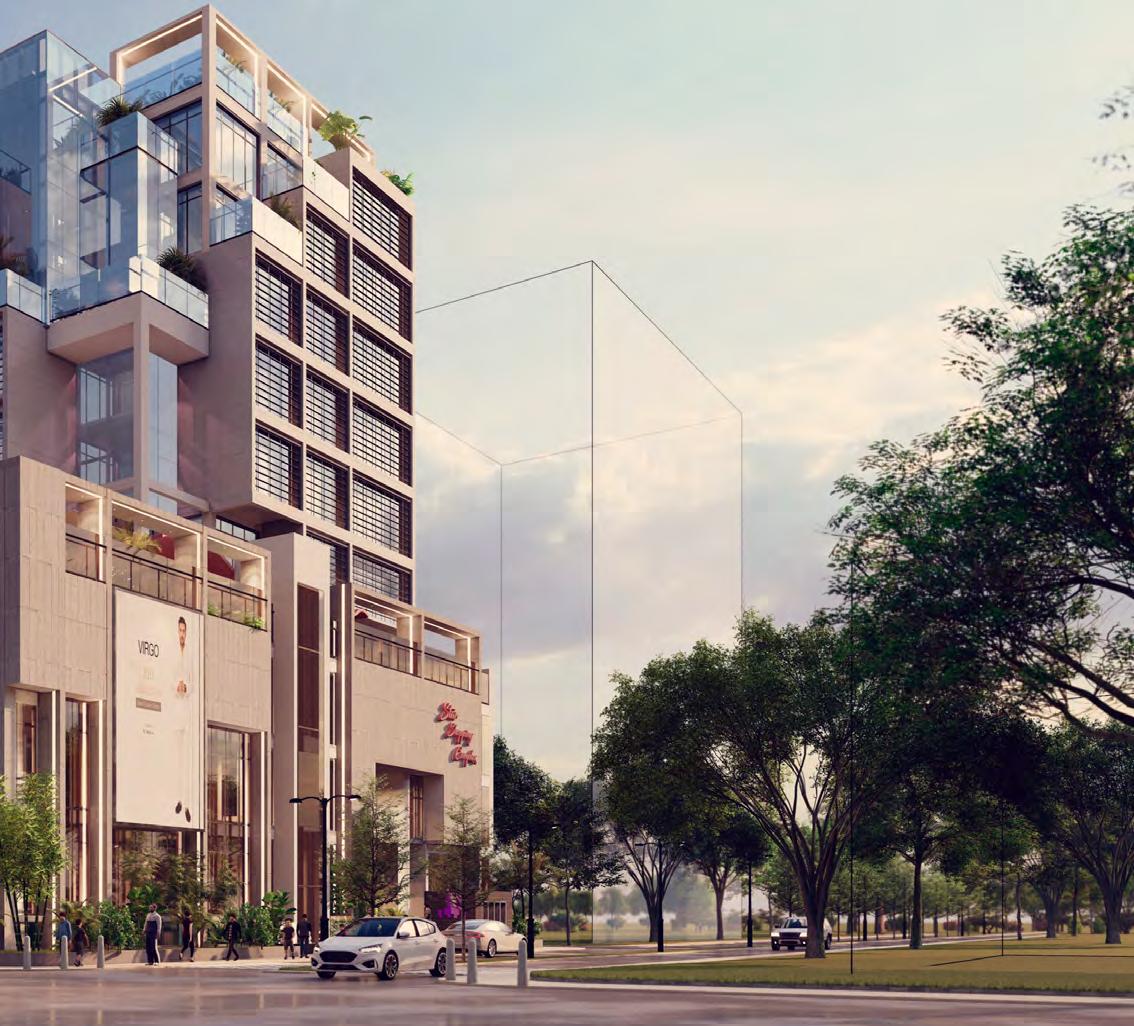

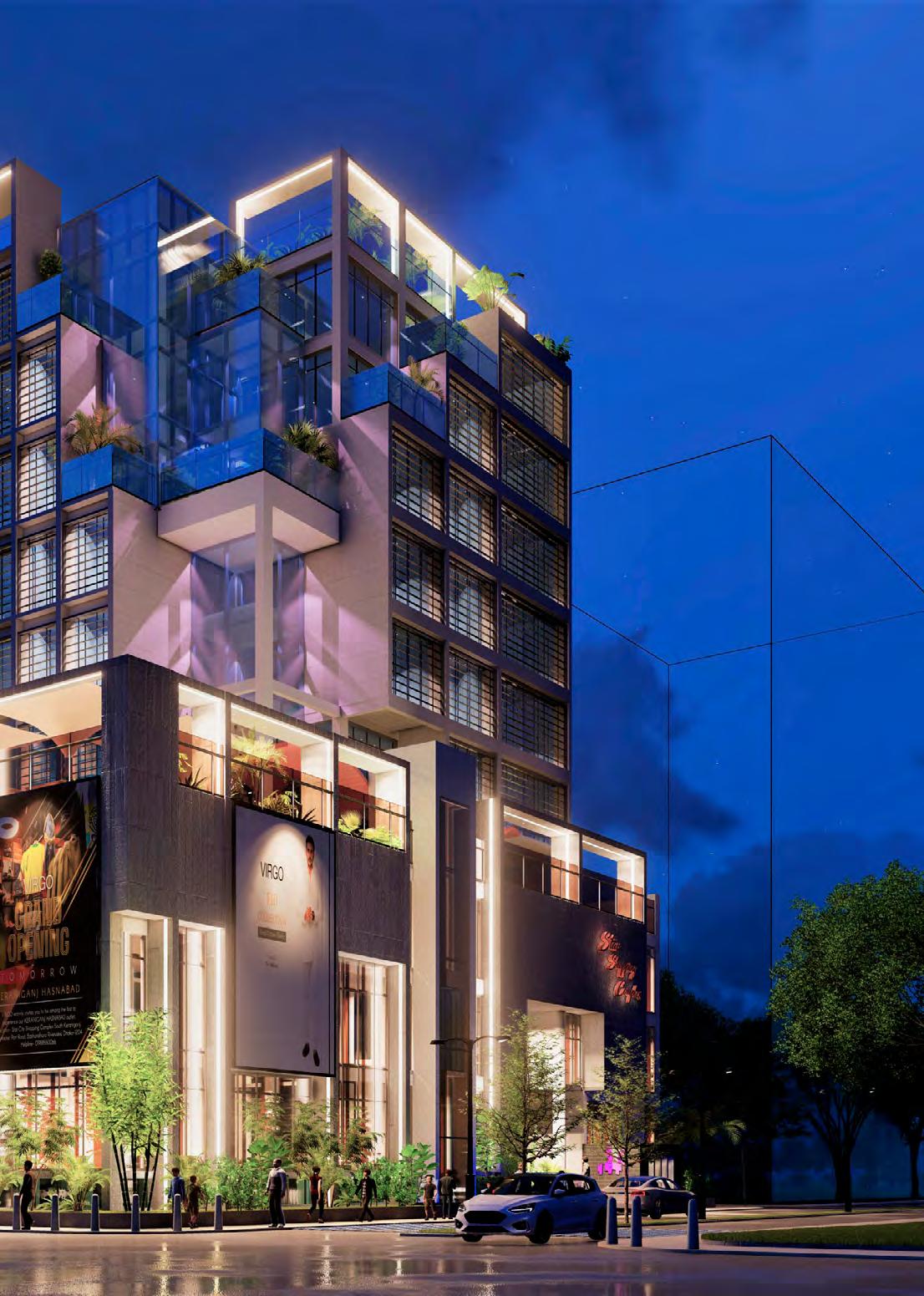

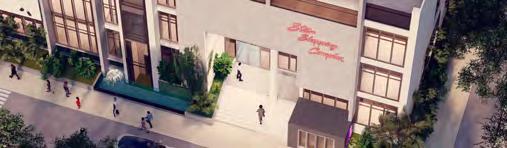

STAR SHOPPING COMPLEX + OFFICE TOWER, DHAKA.

Project Type: Mix Commercial & Office Building.

PAGE-75

4A

Total Number of Car Parking: 30 Total Number of Office: 18 (3 units per floor) Office Unit Size: 1200-1400 sqft Commercial Space: 45750 sqft (LG + UG + Podium Level 1, 2, & 3) Total Number of shop-lots: 404 + Lower Ground Super-store Building Height: 119 feet (LG + UG + 10) Client: Star Unity Development Ltd. Responsibilities: Floor plans, 3D modeling, Rendering, and Broucher.

Projects Description: The proposed 12-story mixed-use commercial building stands prominently on an exclusive corner lot in the Bashundhara Riverview area. The Star Shopping Complex, a new landmark, features five stories of commercial space, including a rooftop restaurant on the fifth floor. Above the commercial section, six stories of rentable office space provide ample room for businesses. The luxurious appearance of the complex is enhanced by its staggered floor layout, creating gradual green garden pockets. Lighting strips accentuate its design features, while an advertising screen adds a modern touch. The balanced combination of glass and concrete, along with horizontal shading devices on the office floors, contributes to the overall elegance of the structure. The design is overseen by the principal architect of the iNArch team.

OPTION - A

PAGE-76

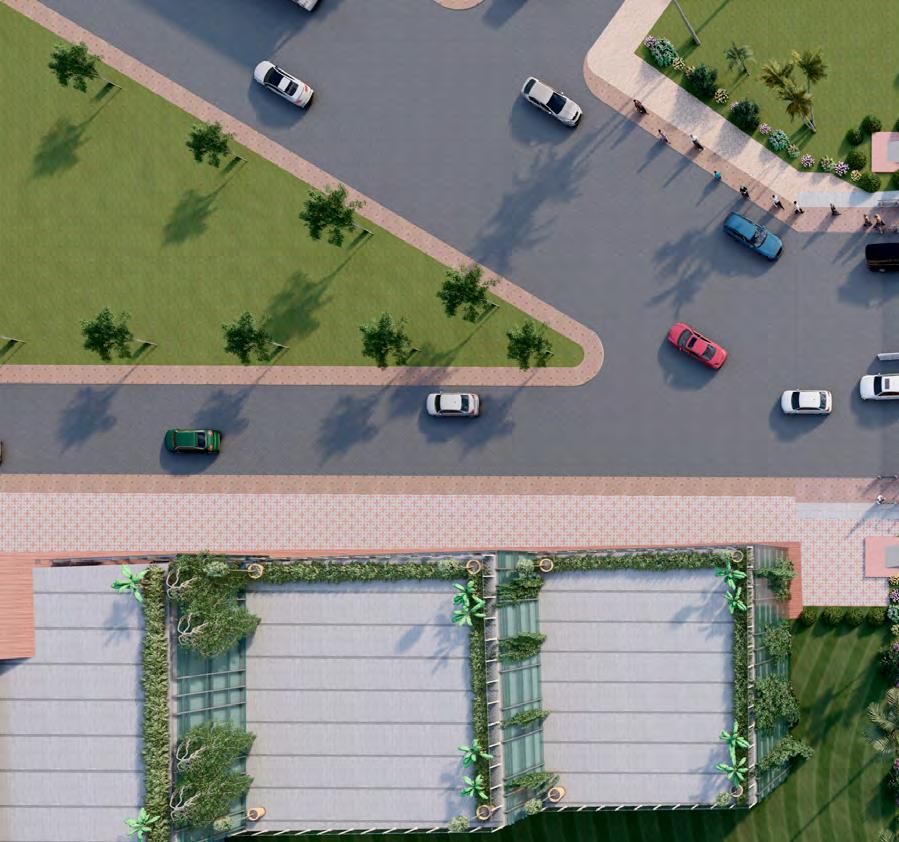

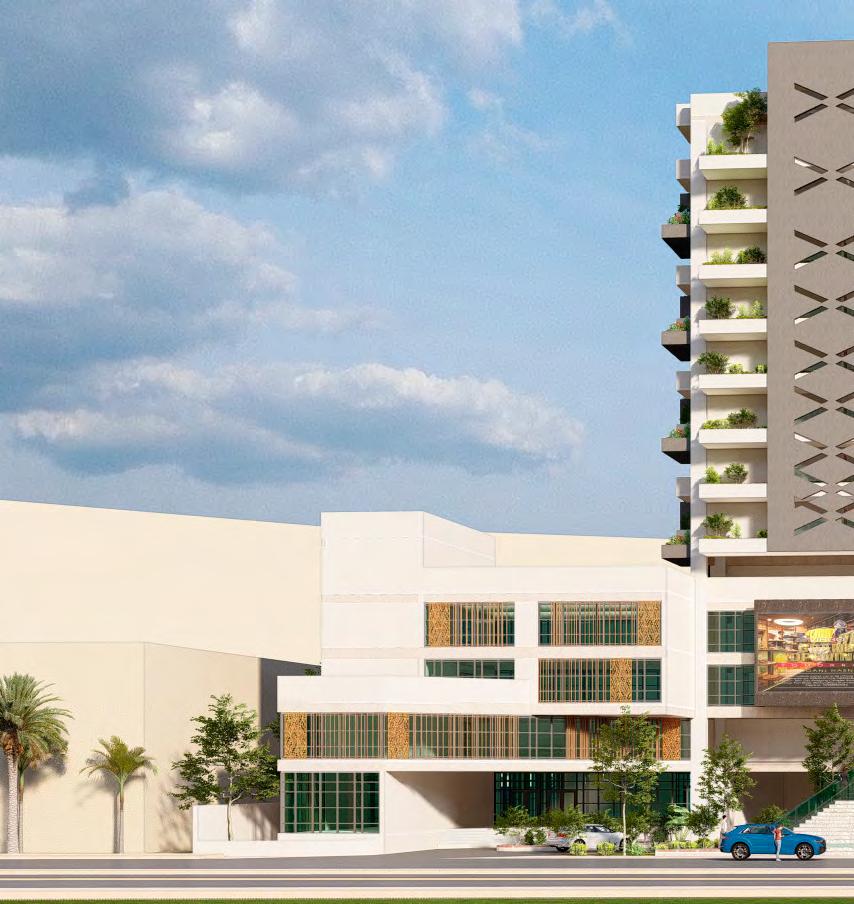

STAR SHOPPING COMPLEX + OFFICE TOWER, BASHUNDHARA RIVERVIEW, DHAKA.

PAGE-81

PAGE-82

f

Project brief Site Area: 5 Katha Location: Meherpur, Bangladesh.

Project Type: Mix Commercial & Hospital Building.

Total Number of Car Parking: 5 Built Area: 25,600 sqft Facilities Spaces: Laboratory & room for CT-scan, MRI, X-Ray, ECHO, ECG, ETT, USG, emergency hall, pharmacy, Pathology lab, Operation Theater, 14x doctors’ chambers, 25x patient beds, 4x VIP patients’ cabin, and administrative spaces.

Building Height: 93 feet (B + G + 6) Client: Jagadish Proshad & Sampa Devi.

Responsibilities: Floor plans, 3D modeling, & Rendering.

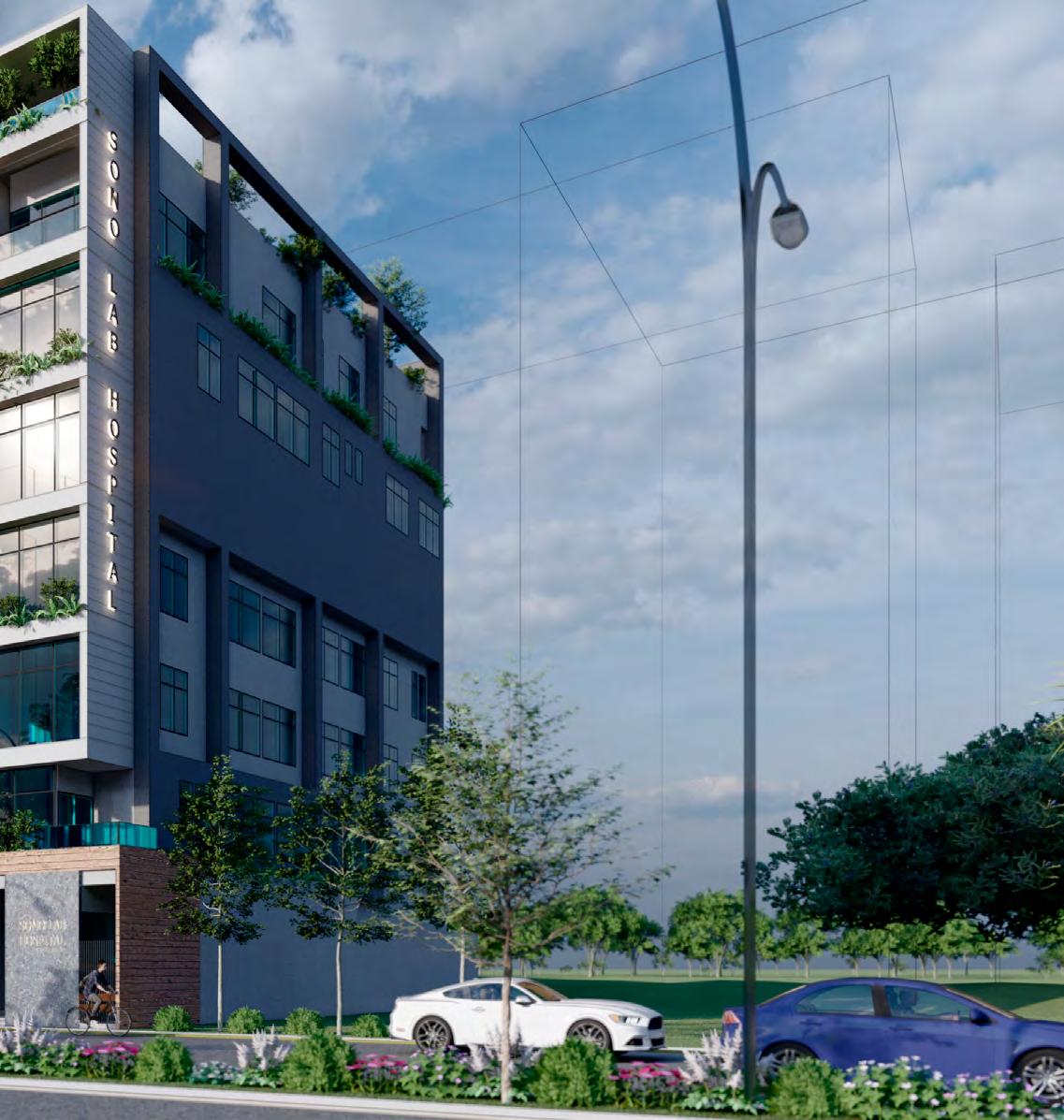

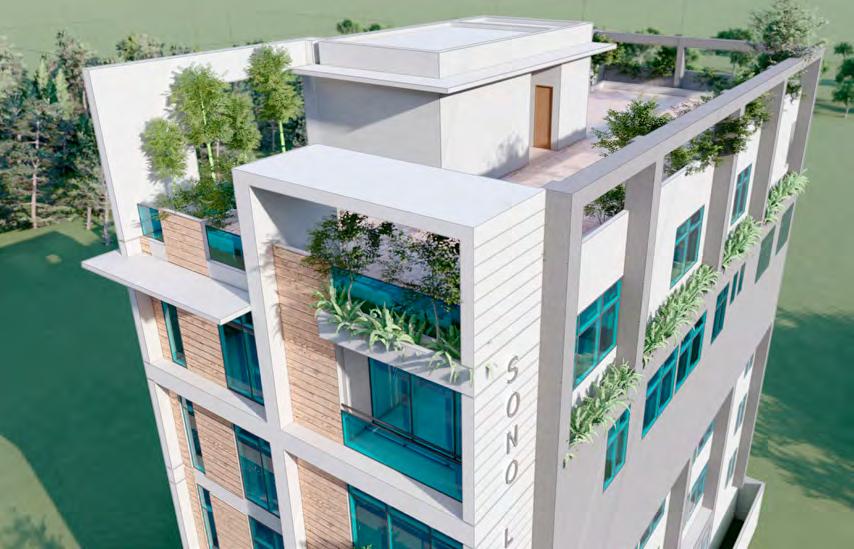

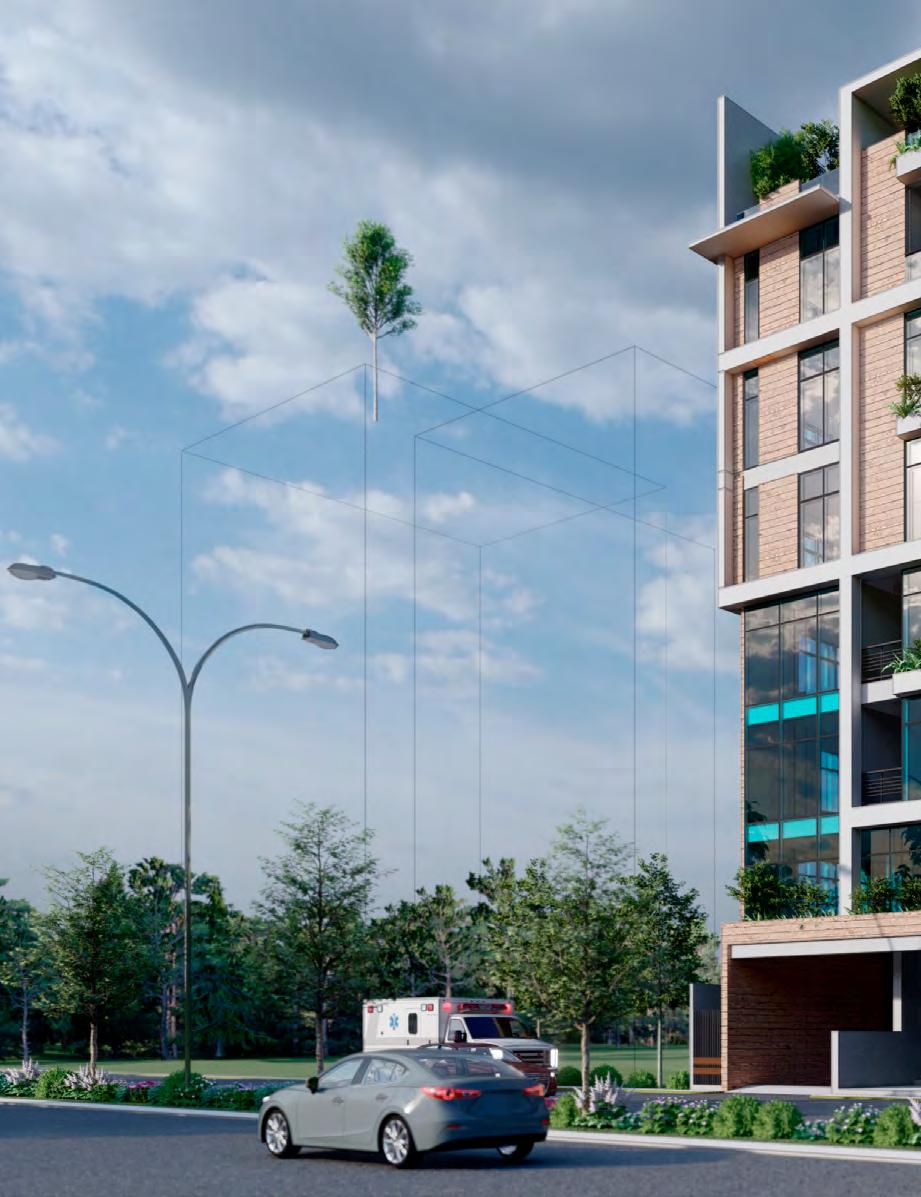

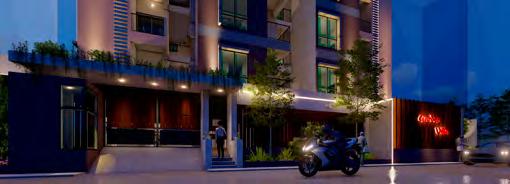

SONO LAB HOSPITAL, MEHERPUR

Projects Description: Situated on a 5-katha plot of land in Meherpur, the proposed 6-story hospital building boasts a carefully crafted design that exudes a luxurious commercial aesthetic. The layout takes into account the strategic placement of laboratories, patient wards, and doctors’ chambers. The facade, choreographed with a mix of exposed concrete, brick walls, and curtain glass panels, radiates prestige. The project received meticulous supervision from the principal architect of the iNArch team.

PAGE-87

4B

PAGE-88

f

Location: Irshal Colony, Kurmitola, Kawla, Dhaka.

Project Type: Masterplan

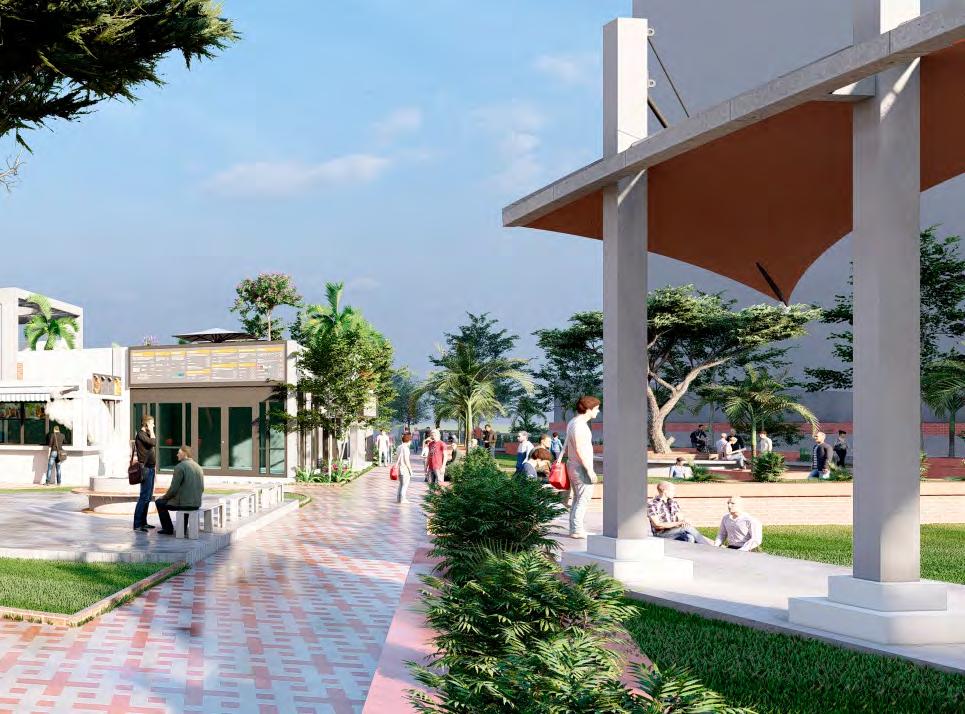

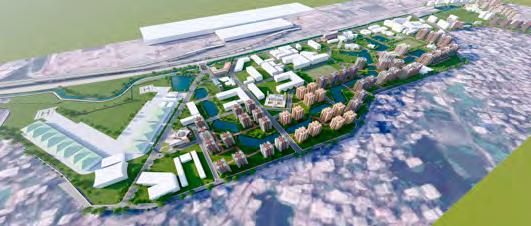

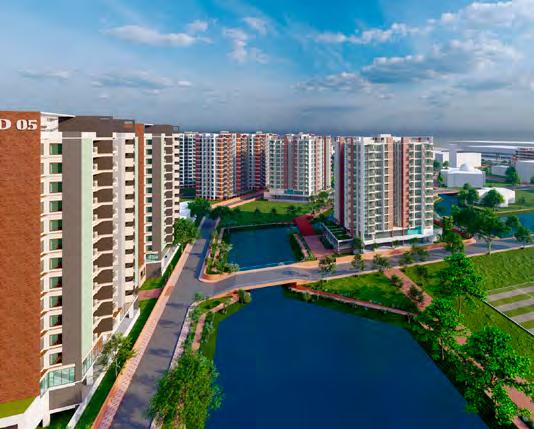

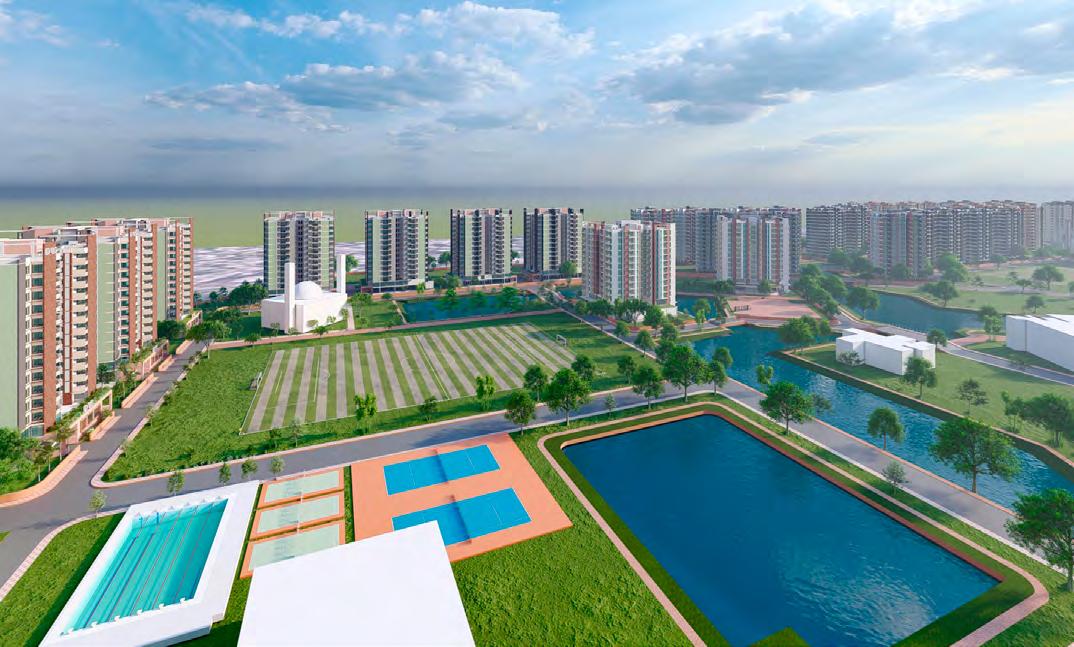

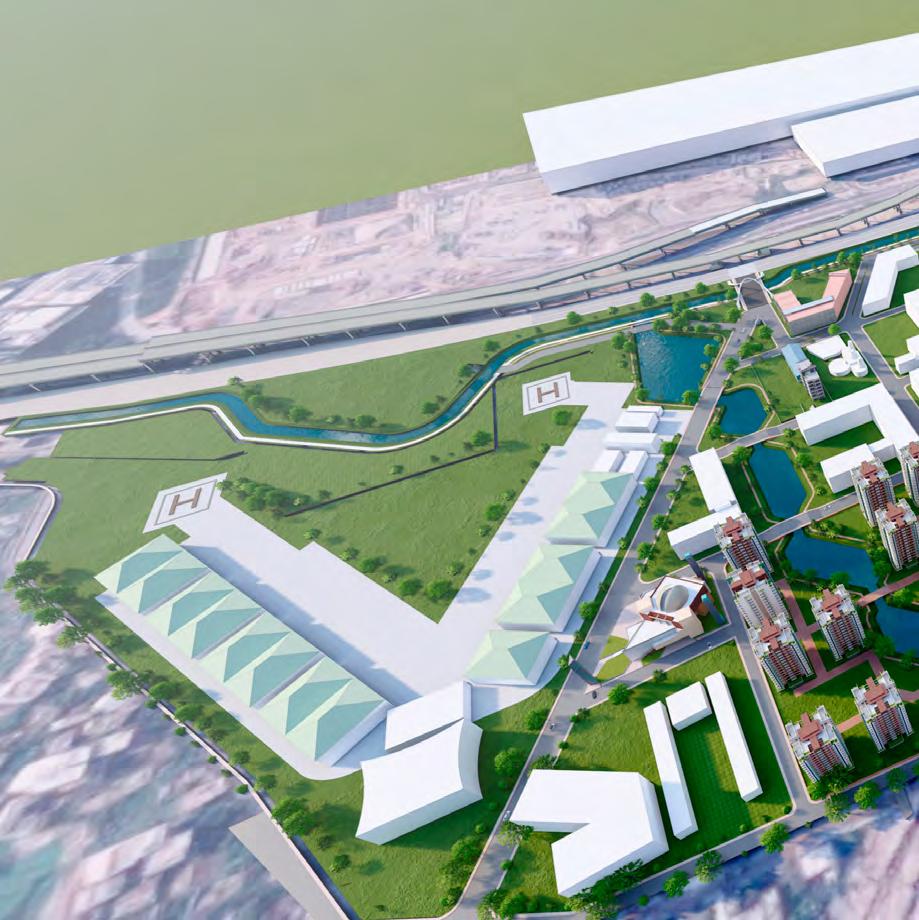

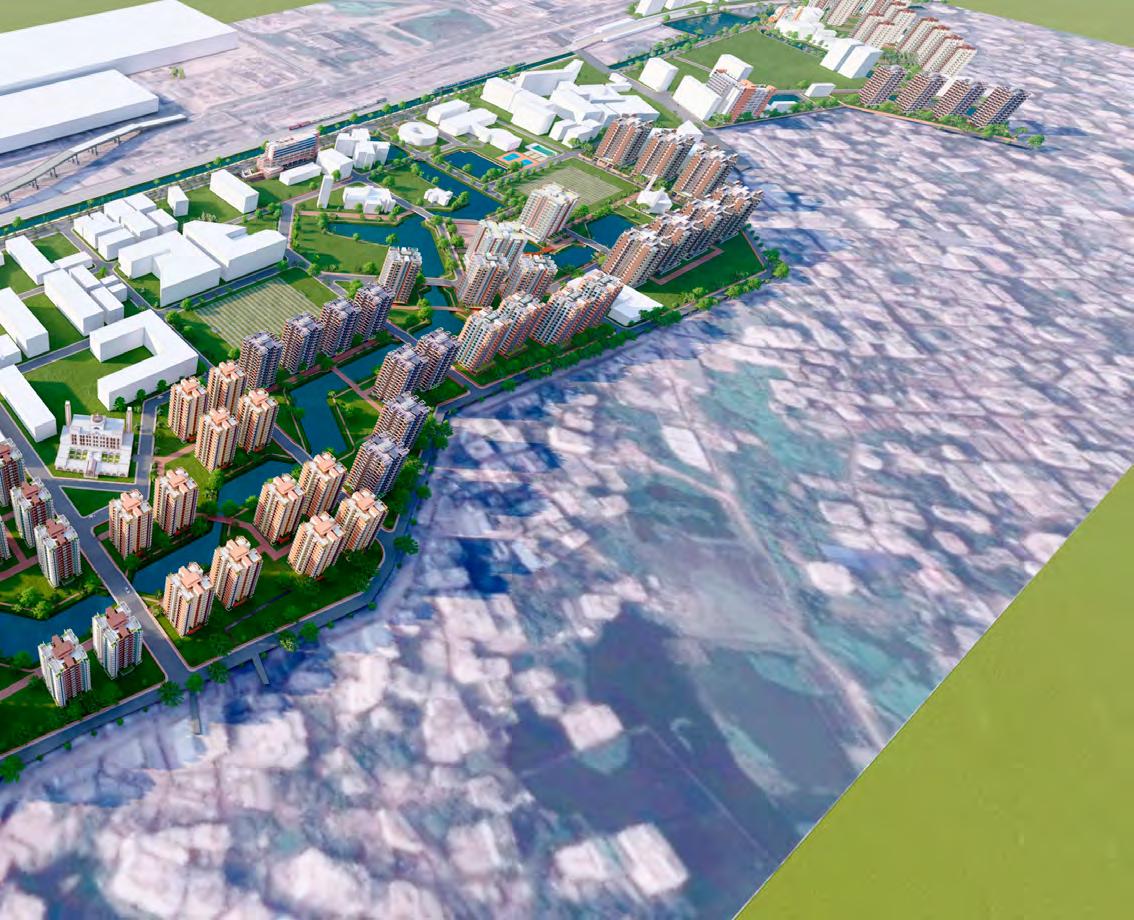

CAAB R/A MASTERPLAN, KAWLA, KURMITOLA.

Client: Civil Aviation Authority of Bangladesh (CAAB)

PAGE-121

6A

-click above or scan the QR Code

to watch 3D animation at youtube-

Site Area: 221 Acre

-click above or scan the QR Code

Project brief

to watch 3D animation at youtube-

My Responsibilities: Design coordination, working drawing, access way details, vehicular circulation planning, detail projects (School, Masjid, Residential complex, bridge, etc.), presentation, 3D modeling, Rendering, and video animation.

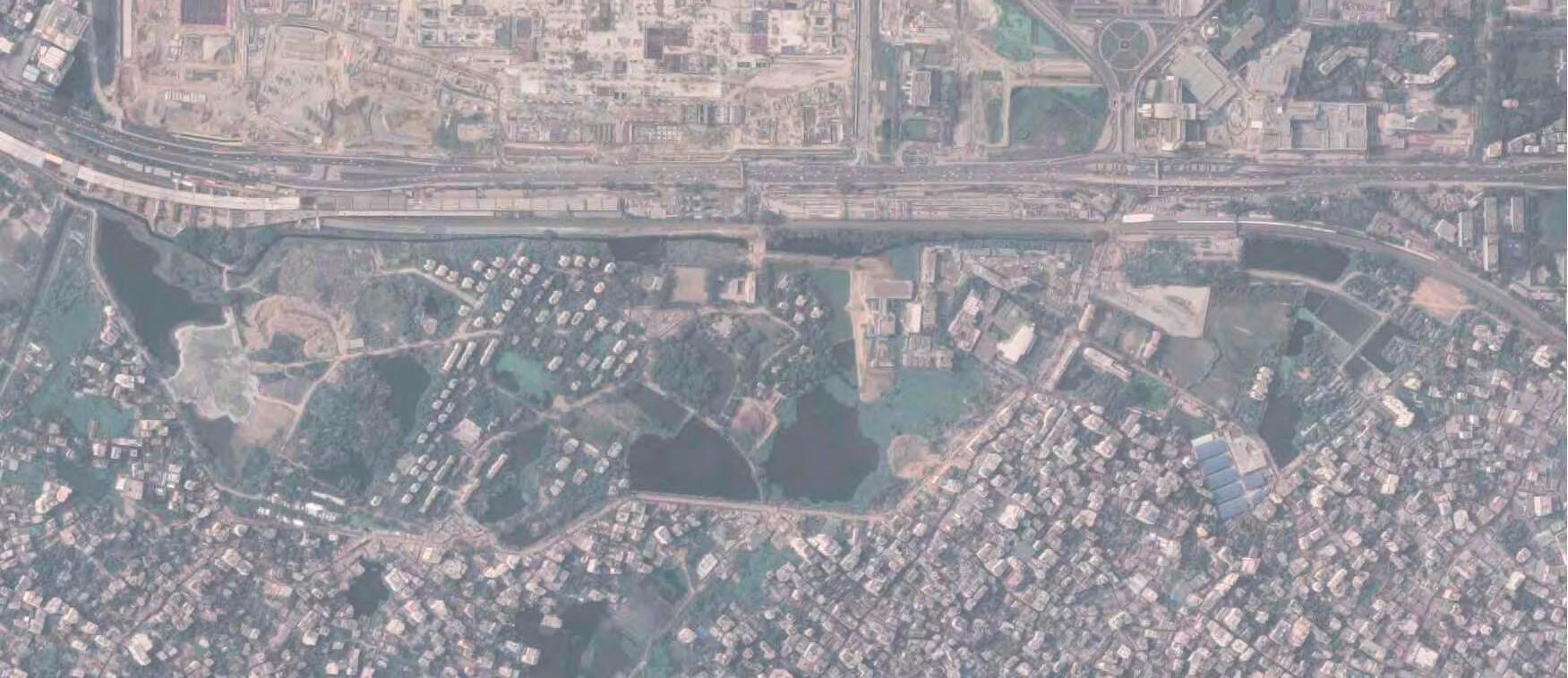

Projects Description: The masterplan project covers nearly 221 acres of land along the DhakaMymenshingh highway, strategically situated opposite Shahjalal International Airport. It encompasses several key elements, including the allocation of the first heliport site and the redevelopment of the CAAB colony into a carefully zoned CAAB residential area. Notably, the masterplan incorporates a well-designed canal to redirect existing water collection areas. The primary vehicular access route runs parallel to the highway, connecting the new CAAB Residential Area. This access way features pedestrian walkways, a cycling track, and an approximately seven-kilometer-long lakeside jogging track encircling the canal.

The masterplan project is a collaborative effort by the iNArch architect team under the supervision of the principal architect.
