Ambrosia A High Tech Lamb & Kid Feeder
The Ambrosia lamb feeder is a high tech machine made in Agromasters .The core of the machine is the 7 inch touch screen .
The Ambosia’s software was designed with main emphasis in the optimum users experience , ease of operation, efficiency & reliabity.

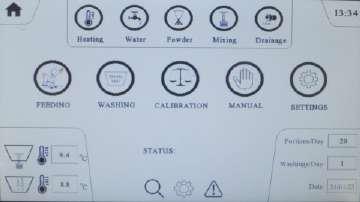

The Ambrosia operating system is split into 4 different screens : Main menu , Calibration , Manual , Settings . On each screen different parameters can be set according to users preferences and requirements.

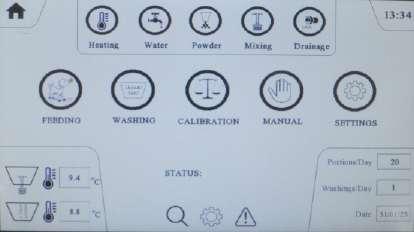

On the top of the Main menu (2) there are 5 different indications ( Heating , Water , Powder , Mixing , Drainage ). Whenever one of these operation are being carried out , a green indication is lighting up.

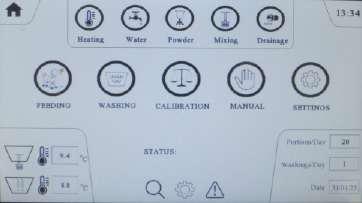

On the middle of the screen (4) there are 5 different circled buttons:
Feeding. By pressing this button , feeding process is initiated. Washing. By pressing this button , washing process is initiated, according to parameters were set on settings menu. Calibation, Manual & Settings. By pressing one of these buttons , user is redirected in different screens respectively.
On the bottom & left of main menu (5,6) is displayed the temperature in the milk container and water tank respectively
On the bottom & right of main menu (8,9,10) is displayed the number of portions prepared per day (8) , Number of washing processes (9) that had been carried and the current date (10).

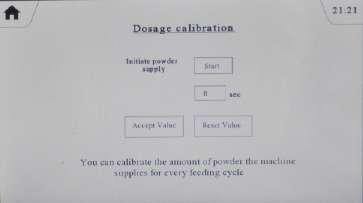

Calibration
Before first time operation , dairy farmer have to calibrate the amount of powder that machine extracts for every milk portion .
The quantity of water that machine extracts for each milk portion is standard .
A plastic measuring cup should be placed underneath feeding supply to collect powder.
By pressing start button powder supply will be activated and counting process (in seconds ) will be initiated. Then press stop button in order to end powder supply . If the quantity of powder is the one you desire then press accept value if not press reset
Settings & Manual
agromasters agromasters agromasters

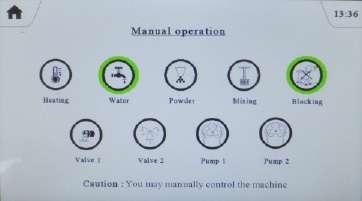

On manual menu on the right, user by pressing each button can activate each of 9 important operations the machine.

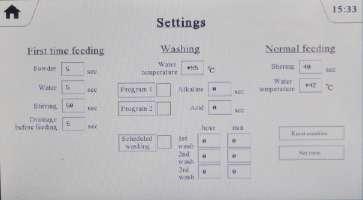

On settings menu on the left , user can set parameters like :
First time feeding settings (Powder, water, stirring & drainage) in sec
Normal feeding settings (Water temperature , stirring time) in sec
Washing settings (washing temperature , Program 1 or 2 or both or scheduled washing )
User can choose between program 1 or 2 or both & insert the time that peristaltic pump 1 & 2 will be rotating to absorb alkaline & acid respectively .
Moreover there is the option of scheduled washing , where user can simply insert the time (hour & minute) that wishes to initiate washing process. 3 in total washings can be scheduled during the day.
So if washing is set at 15:00 and is 15:00, while Ambrosia feeder is in feeding mode, feeding will stop immediately and washing will be initiated .
