PLASTIC ROTATIONAL MOLDING

Carousel 1600 Rotational Molding Machine

A four-arm fixed carousel machine is used by AgBoss for high-volume production runs of medium-sized products.

Each arm is 90 deg apart and is controlled by a turret in the centre. Because they are fastened to the turret, all four arms revolve in the machine; one is in the heating station, the other in the cooling station, and the third and fourth are at the workload station.

A key process asset of the static arm carousel device is the ability to operate several molds of diverse sizes and material needs. Different materials can be run on each unit, and molds can be quickly changed without affecting production times.

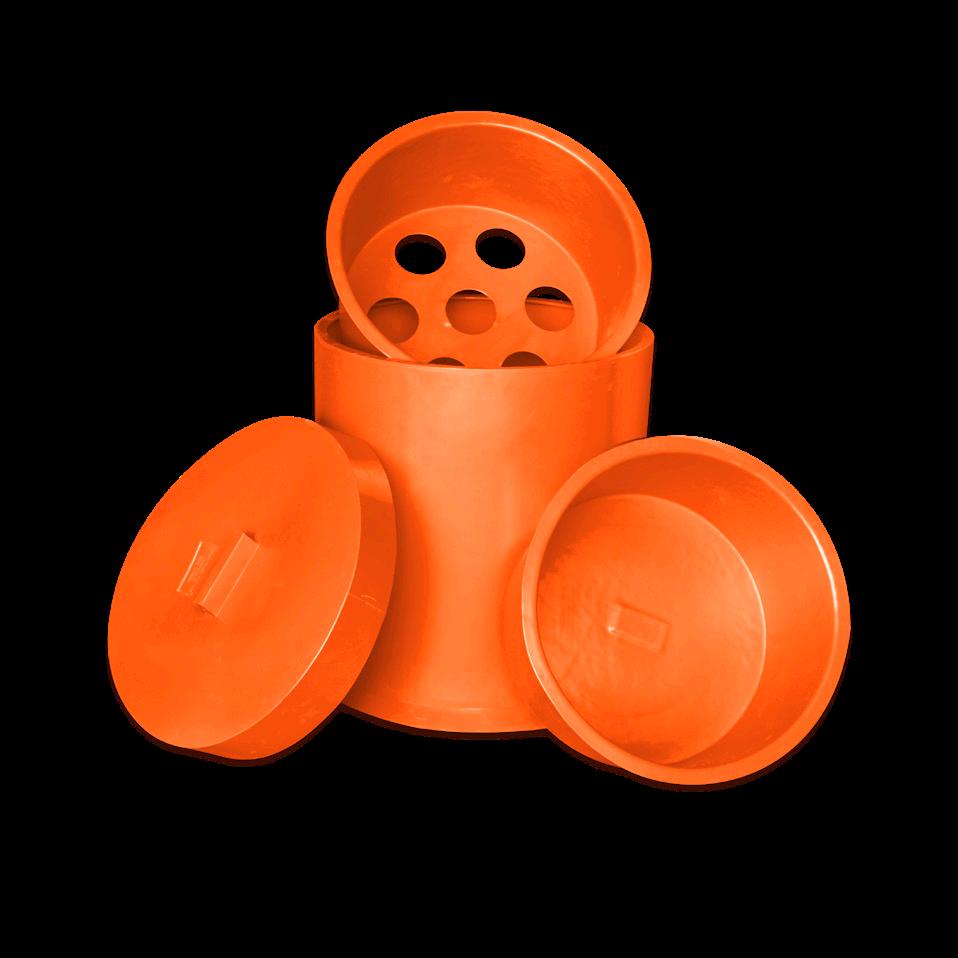

Graphics, logos and text can be molded into the product in any combination of colours. Being permanently embedded in the polymer, they will not deteriorate with age and cannot be removed chemically.

At AgBoss our Rotational Molding machines use a wide array of materials including: n PE & XPE - Polyethylene n PA - Nylon

Carousel 1600

■ Three stations: heating, cooling & disassembly

■ Max Load: Straight arm: 300kg

■ Max Load: L arm: 200kg

■ Oven Dimension: 1600

■ Oven Type: Hot air convection

■ Oven Temperature: 400ºC/752ºF

■ Negative Pressure cooling fan: 2 sets at station, 1.1kw

■ Fan Volume: 2*3300m3/h

■ Water spray nozzles (air assist, air+water): 2 nozzles/ fan/station n PP – Polypropylene n PA6 & PA12
