"Agriculture
Romafa Meter Housings for John Deere

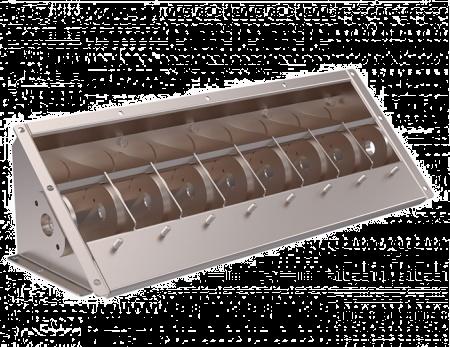

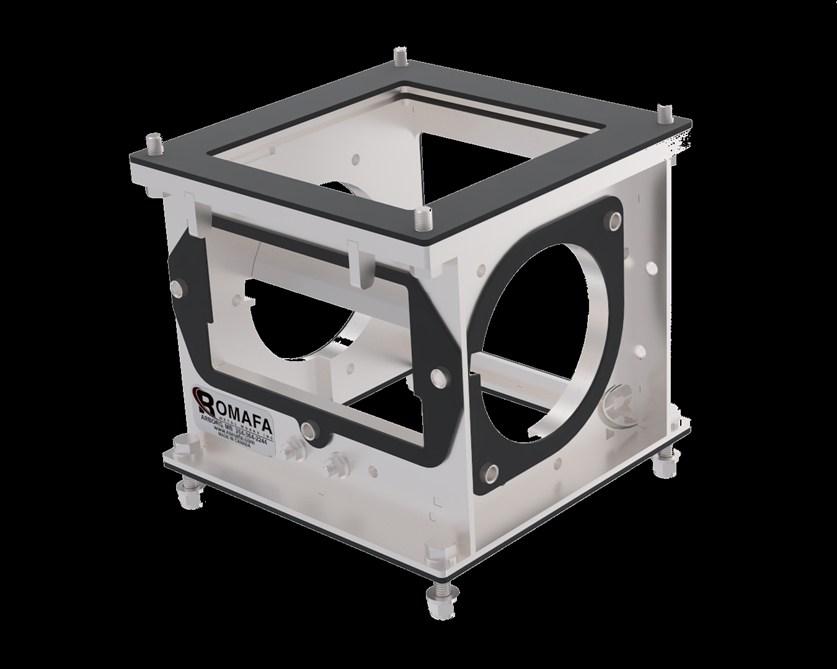

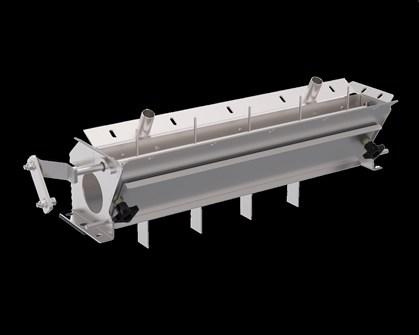

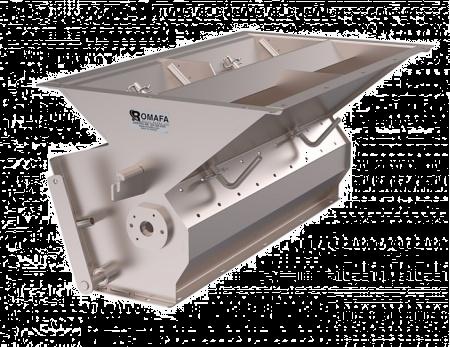

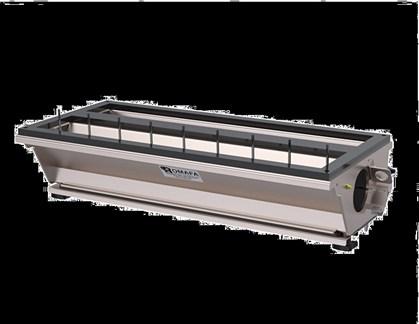

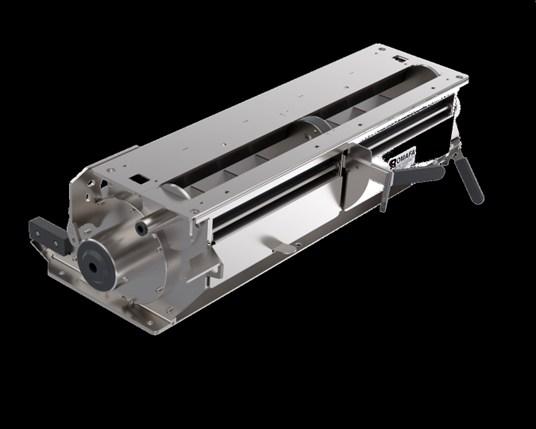

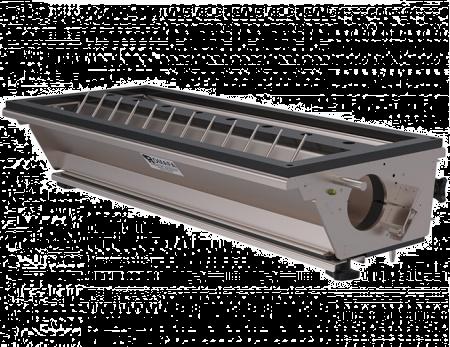

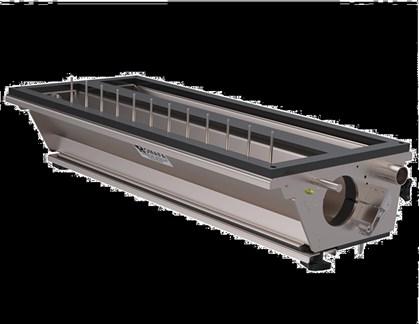

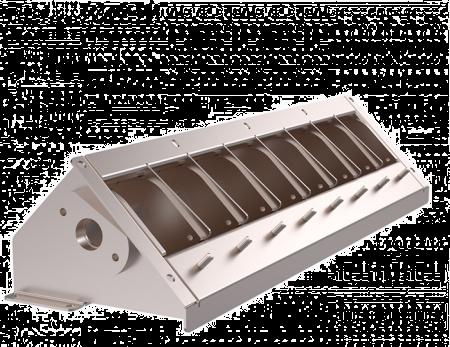

Meter Housing, Standard
Part # JAS0001A
Regular meter housing for JD 1900, 1910, C650, & C850 carts
Compatible Models: 1900, 1910, C650, C850
Meter Housing, Section Control
Part # JAS0006A
For JD 1910, C650, & C850 carts with OEM Section Control
Compatible Models: 1910, C650, C850

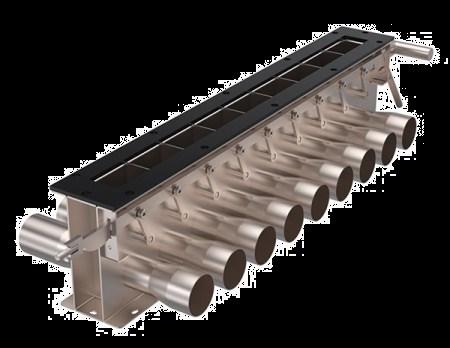

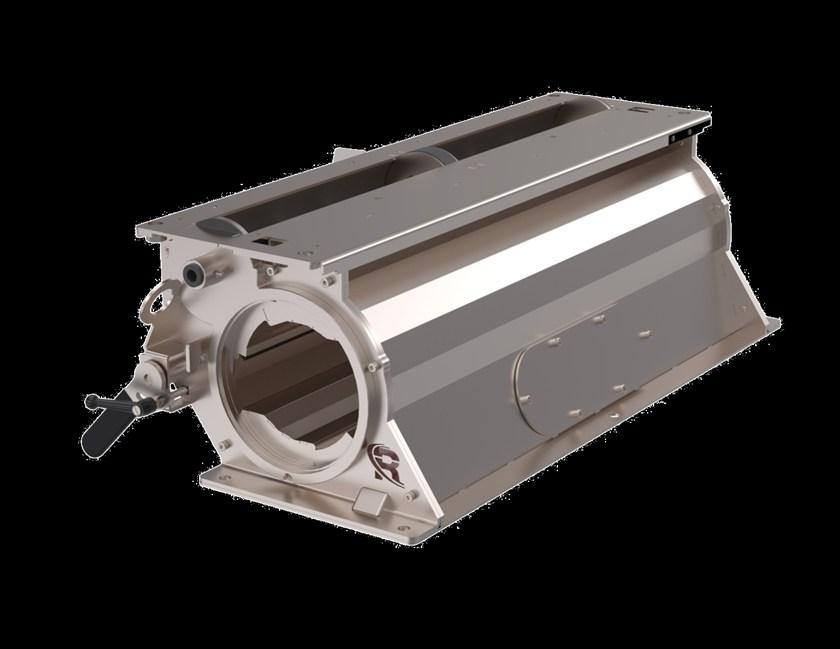

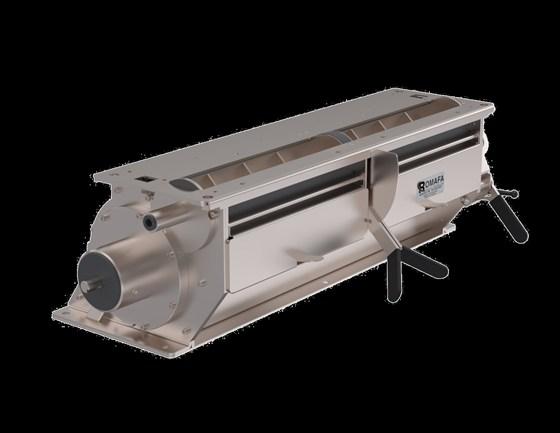

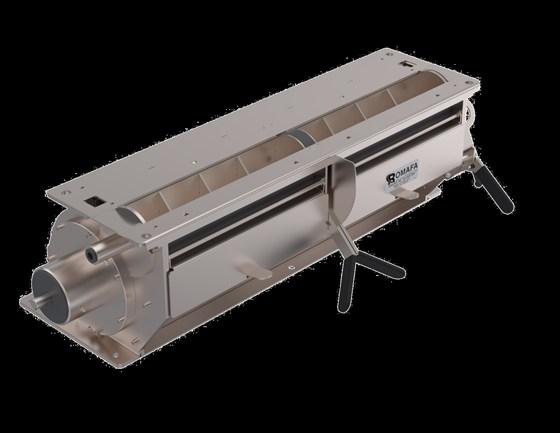

Meter Housing, Individual Shut-Off
Part # JAS0168A
Meter Housing with individual run shutoff gates.
Use this meter housing to upgrade your cart with the Romafa automatic section control system.
Compatible Models: 1900, 1910, C650, C850
Romafa meter housings are made of corrosion resistant stainless steel and come with rigid stainless steel half width disconnects.
Please note: when installing this on a C650 or C850 cart, you need different 1/2 width disconnect handles. Handles needed are JAS4712A & JAS4713A.
Parts for John Deere
Romafa Section Control for John Deere
Upgrade your 1900 or 1910 air cart with GPS section control!
Romafa Section Control System
Romafa Section Control Box Part # JAS4751A
Tank Kit (One kit per run required) Part # JAS4785A
Monitor Kit Part # JAS4786K

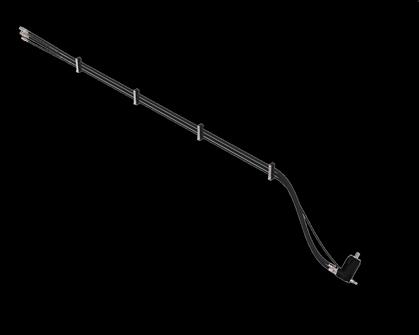

Romafa Section Control Wiring Harnesses
JD liquid rate controller to Romafa’s control box Part # JAS4831K
Raven rate controller to Romafa’s control box Part # JAS0332P

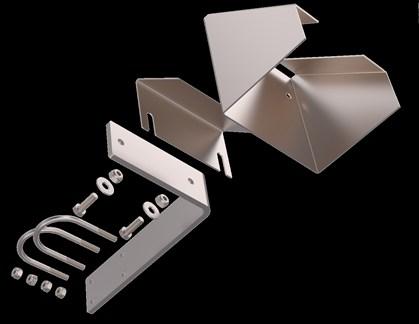

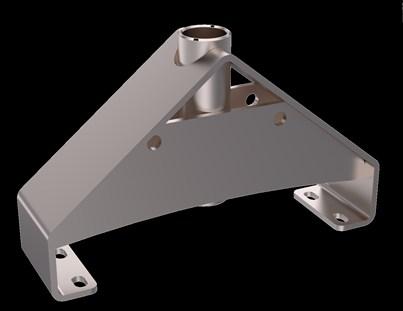

Romafa Section Control Clutch Bracket Kit
This clutch bracket is only required for ground drive carts.
Part # JAS4719K

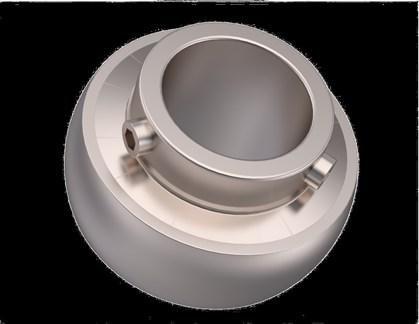

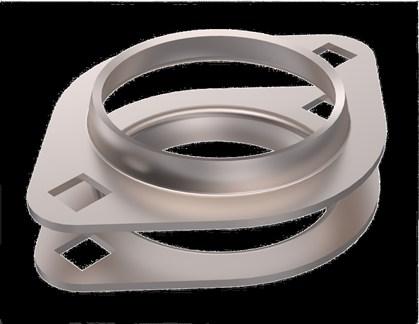

This all-stainless steel kit includes the bracket, bearing flange, & hardware
• One kit per tank required on ground drive carts
You will need...
• Romafa meter housing with individual run shut-off gates (JAS0168A)
• The Romafa Section Control System is controlled by a JD liquid rate controller (JD part # PF81019), a Raven rate control module, or the Monitor Kit.
• 30 amp power is needed at the cart.
Hydraulic Motor Mounting Kit
Part # JAS0007W
Meter Housing Components
Bracket for mounting hydraulic motor to side of meter housing for PVC end.
Compatible Models: 1900, 1910, C650, C850

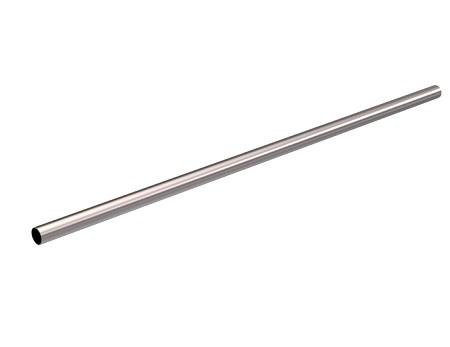

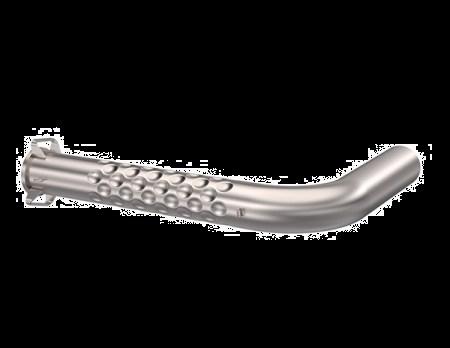

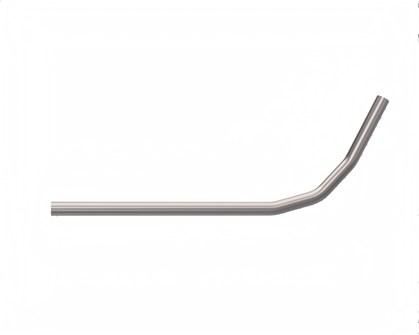

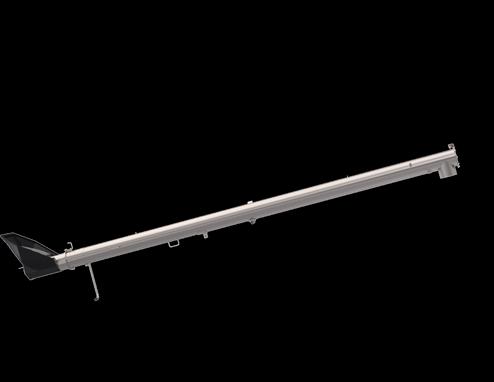

Agitator Shaft
Part # JAS0255P
Compatible Models: 1900, 1910, C650, C850

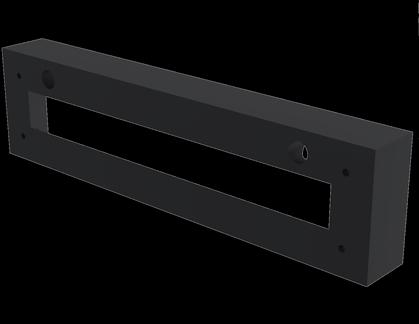

Center Section Seal Block
Part # JAS0273P
Foam filler block for center section, 8 run meter housings.
Compatible Models: 1900, 1910, C650, C850
Section Seal Block
Part # JAS0087P
OEM # A63479
Foam filler block for run reduction.
Compatible Models: 1900, 1910, C650, C850
Hydraulic Motor Mounting Kit
Part # JAS4782K
Bracket for mounting hydraulic motor to the side of meter housing for stainless steel end.
Compatible Models: 1900, 1910, C650, C850

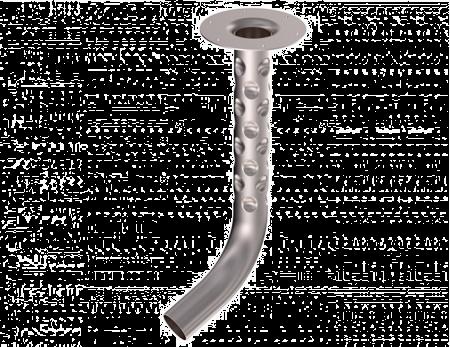

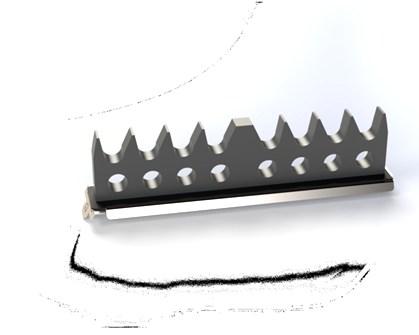

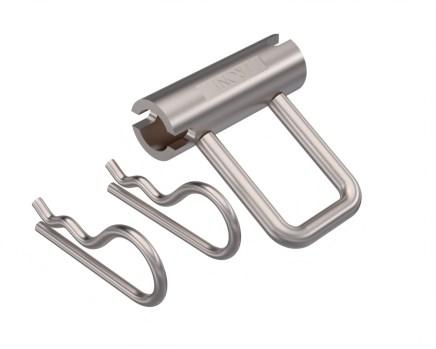

Agitator with R Pins
Part # JAS4795K
OEM # 62799
Compatible Models: 1900, 1910, C650, C850

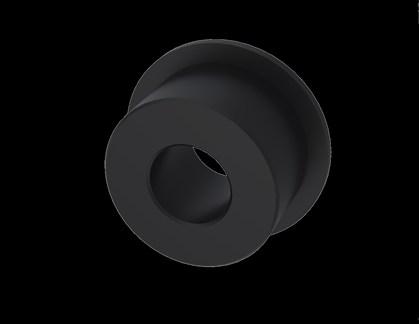

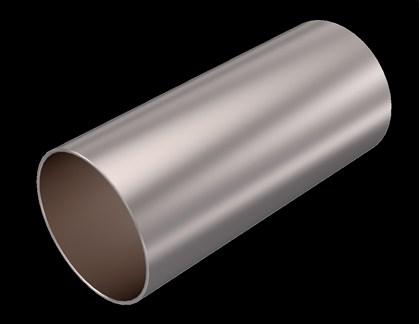

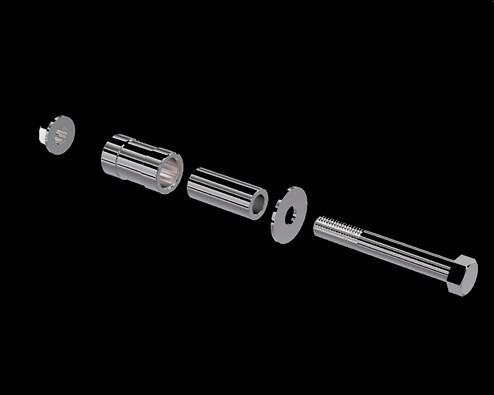

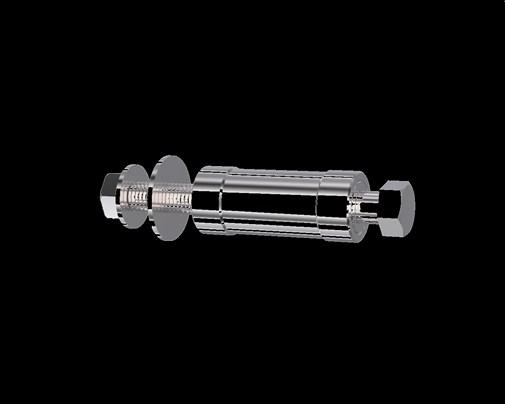

Drive Bushing
Part # JAS0038P
OEM# A92922
This bushing fits Romafa meter housing only.
Compatible Models: 1900, 1910, C650, C850
Section Seal Block
Part # JAS0272P
Foam filler block for run reduction after meter installation.
Compatible Models: 1900, 1910, C650, C850
Parts for John Deere
Meter Housing Components & Seals

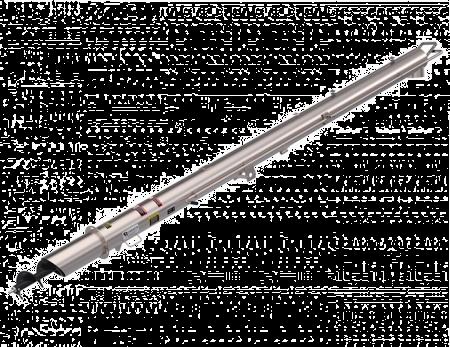

Meter Roll Shaft 7/8” Hex with Flat Sided Drive End
Part # JAS0407P
O E M # A94100
Compatible Models: 1900, 1910, C650, C850C650, C850
1/2 width Disconnect Kit
Part # JAS4730K
Rigid stainless steel 1/2 width disconnect kit designed for OEM meter housings.
Compatible Models: 1900, 1910, C650, C850
Foam Seal, Chute Weldment
Part # T00023P
OEM # A70517
Compatible Models: 1900, 1910, C650, C850
Seal
Part # JAS0149P
OEM # A70821
Housing to Manifold
Single Shoot 2 are required
Double Shoot 1 is required
Compatible Models: 1900, 1910

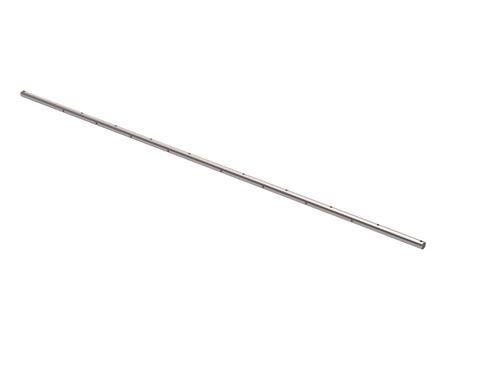

Meter Roll Shaft 7/8" Hex
Part # JAS0084P
OEM # A57211
Compatible Models: 1900, 1910, C650, C850

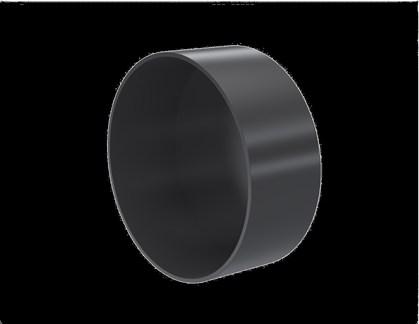

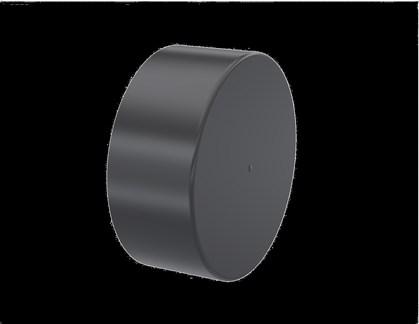

Meter Housing Plug Cap
Part # JAS4827A
Plug cap for your Romafa meter housings when the meter rolls are removed.
Compatible Models: 1900, 1910, C650, C850

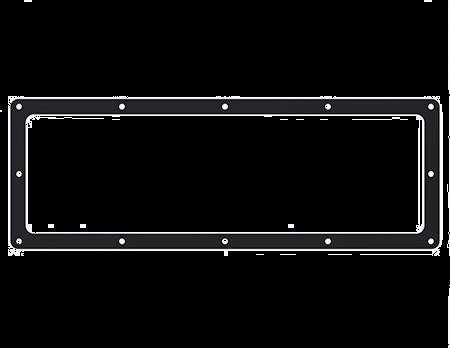

Top Meter Housing Seal 1"
Part # JAS0148P
OEM # A70600
Seal that goes on top of the meter housing
Compatible Models: 1900, 1910, C650, C850
Seal, Double Shoot Manifold
Part # JAS0169P
OEM # A64856
Seal between double shoot switch and manifold bracket.
Compatible Models: 1900, 1910
Parts
Ladder Bracket
Part # JAS0922W
OEM # AA47638, AA85578
Chute weldment bracket
Compatible Models: 1900, 1910

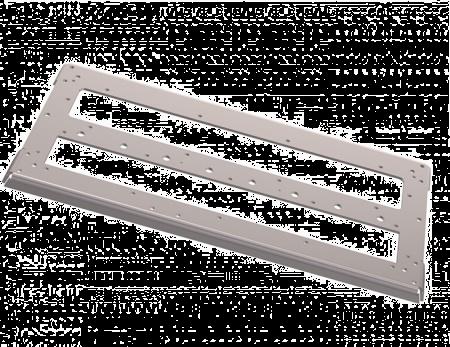

Meter Mount Plate
Part # JAS0919W
OEM # AA50064
Compatible Models: 1900, 1910, C650, C850

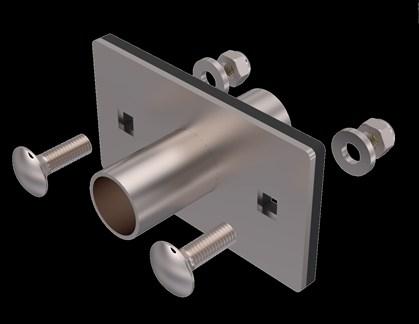

Tank Pressurizing Port
Kit
Part # JAS4708A
OEM # AA51675
Compatible Models: 1900, 1910
Components Above Meter Housing
Ladder Bracket
Part # JAS0923W
OEM # AA78276, AA85582
Chute weldment bracket, middle tank on 550 bushel cart
Compatible Models: 1910

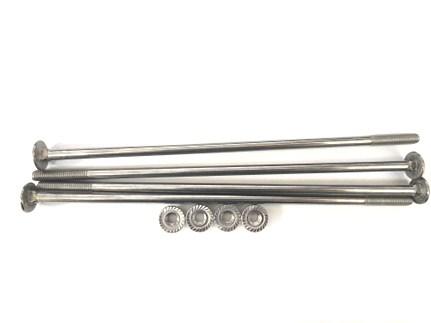

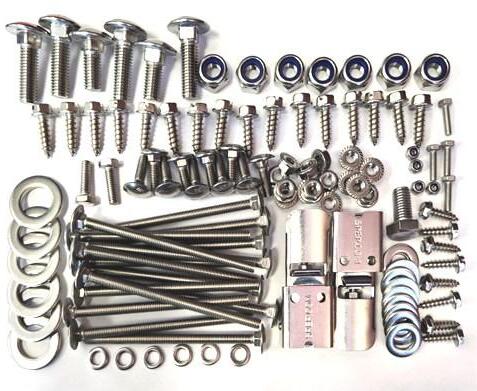

Upper Hardware Kit
Part # JASKITUPPR1
One kit per tank.
Stainless steel hardware needed for top of meter and above
Compatible Models: 1900, 1910, C650, C850
Ladder Extension Kit
Part # JAS0060K
This kit is needed if you are replacing ladder bracket AA48072 with JAS0922W on your cart.
Compatible Models: 1900
Those too lazy to plow in the right season will have no food at the harvest. – Proverbs 20:4
Top Ladder / Lid Mount Kit
Part # JAS0164K
Includes stainless steel hardware.
Compatible Models: 1900, 1910
Sensor Mount & Cover Kit, Middle
Part # JAS0165K
Includes stainless steel hardware.
Compatible Models: 1900, 1910
SN #_ 680100

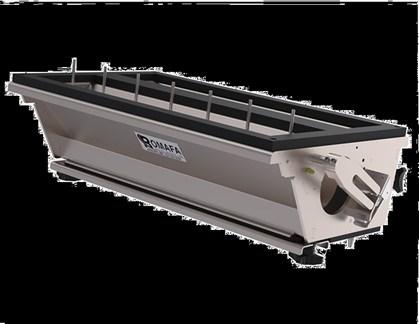

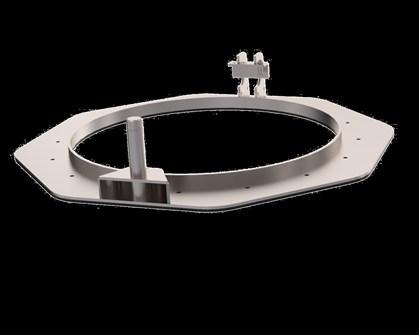

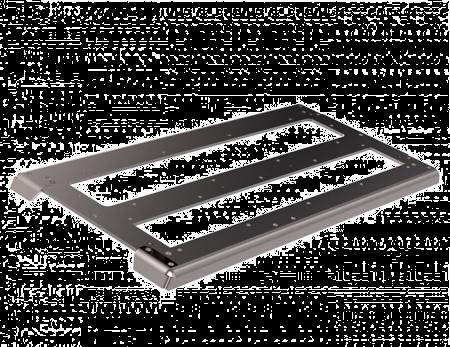

Lid Frame Assembly
Part # JAS4765A
OEM # AA46233
Compatible Models: 1900
Components Above Meter Housing

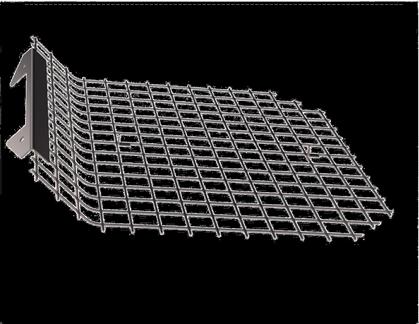

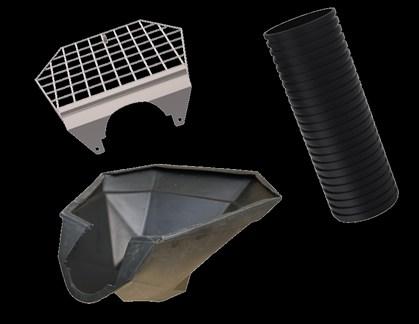

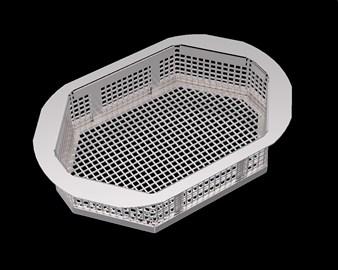

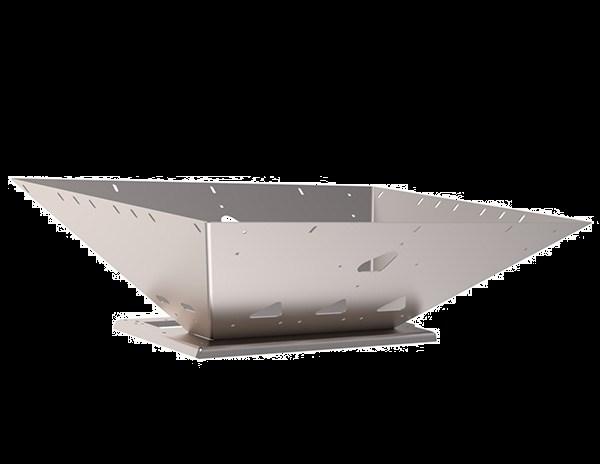

Tank Lid Screen
Part # JAS4813A
Screen the product as it goes into the tank. Comes with a built in fold down canola bag cutter.
Compatible Models: 1900, 1910
Sensor Mount & Cover Kit, Bottom
Part # JAS0176K
Includes stainless steel hardware.
Compatible Models: 1900, 1910
Sensor Mount & Cover Kit, Top
Part # JAS0177K
(Mid on middle tank)
Includes stainless steel hardware.
Compatible Models: 1900, 1910
Lid Frame Assembly
Part # JAS4799A
OEM # AA47464/A66364
Compatible Models: 1900 SN # 680101____ and 1910
Parts for John Deere

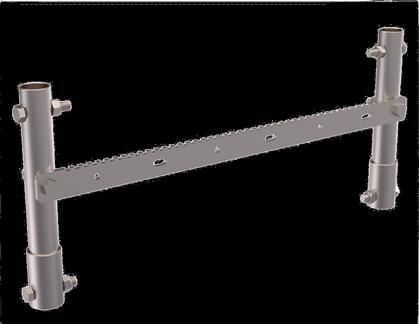

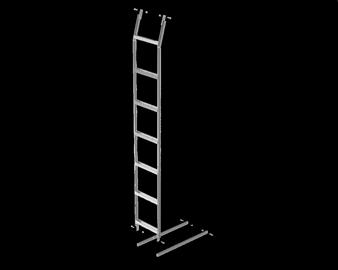

Tank Ladder
JAS4026W
O E M # AA50082
195 & 250 Bushel Rear Tank, 270/340 Bushel Front Tank (120 BU Tank)
Compatible Models: 1900, 1910ompatible Models:
Tank Ladder
JAS4040W
O E M # AA50085
340 Bushel, center tank
Components Above Meter Housing
Tank Ladder
JAS4025W
OEM # AA50081
270/340 Bushel Rear Tank (150 Bushel Tank)
Compatible Models: 1900, 1910ompatible Models: 1900, 1910
Compatible Models: 1900, 1910ompatib: 1900. 1910
Tank Ladder
Part # JAS0161W
OEM # AA50083
For the center 80 bushel tank on 430 bushel carts
Compatible Models: 1900, 1910
Tank Ladder
Part # JAS4015W
OEM # AA50084
For the 75 bushel tank on 195 & 250 bushel carts
Compatible Models: 1900, 1910
Tank Ladder
Part # JAS0163W
OEM # AA50079
For 200 bushel tank on 350, 430 & 550 bushel carts
Compatible Models: 1900, 1910
Tank Ladder
Part # JAS0162W
OEM # AA50080
For front 150 bushel tank on 350 & 430 bushel carts
Compatible Models: 1900, 1910
Parts for John Deere

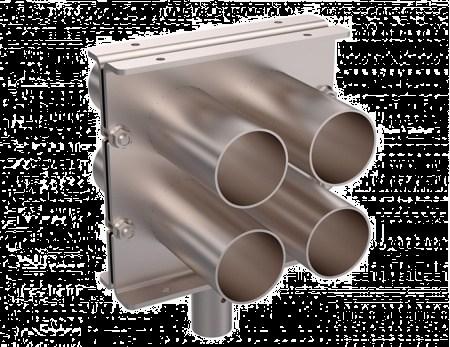

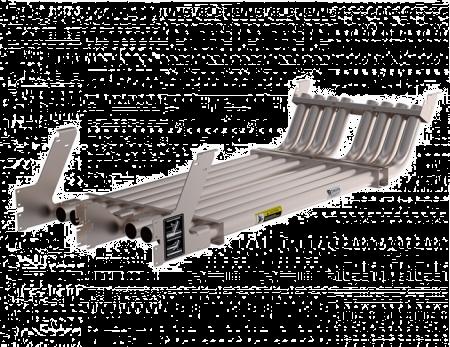

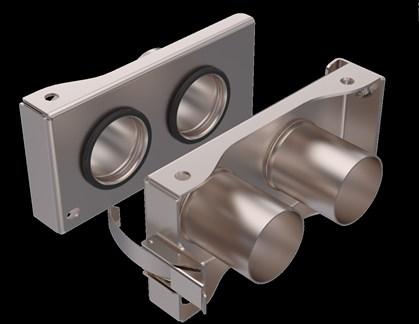

Double Shoot Manifold Assembly Kit, TBT
Part # JAS4742K
Compatible Models: C650 & C850 SN 780101-

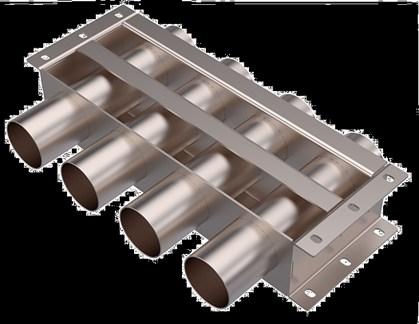

Double Shoot
Manifold

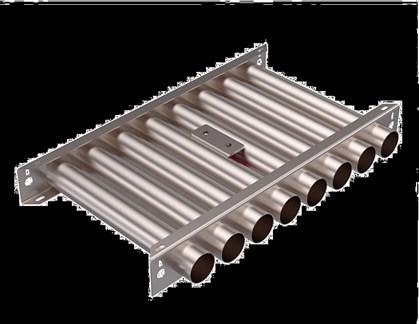

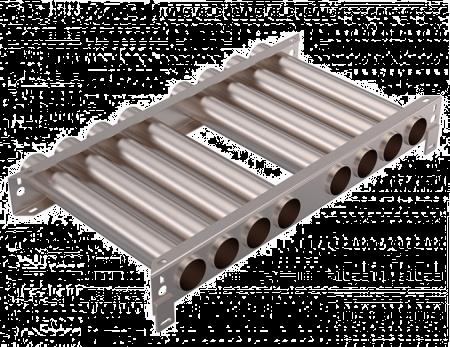

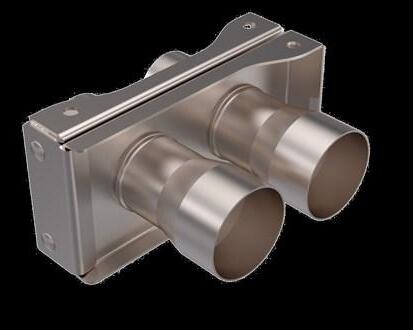

Body, Venturi Style, TBH
2.5” Part # JAS4771A
3” Part # JAS4760A
For tow behind carts, 2.5” & 3” tubes
Compatible Models: 1900, 1910, C650, C850
Manifold Body Insert, Top Shoot Venturi Style
2.5” Part # JAS4777A
3” Part # JAS4758A For Romafa Manifold Assembly
Compatible Models: 1900, 1910
Components Below Meter Housing

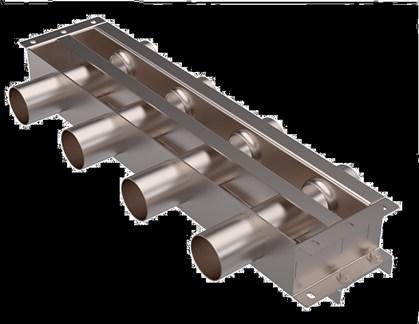

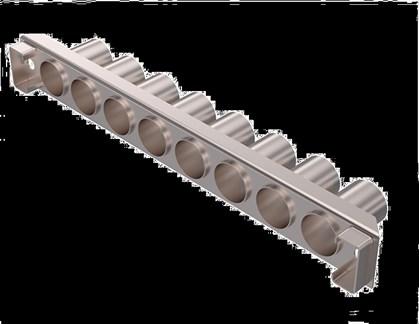

Single Shoot Manifold
Assembly
Part # JAS4732A For TBH / TBT carts, 2.5” tubes
Includes all the components for below meter housing in one convenient package.
Compatible Models: 1900, 1910

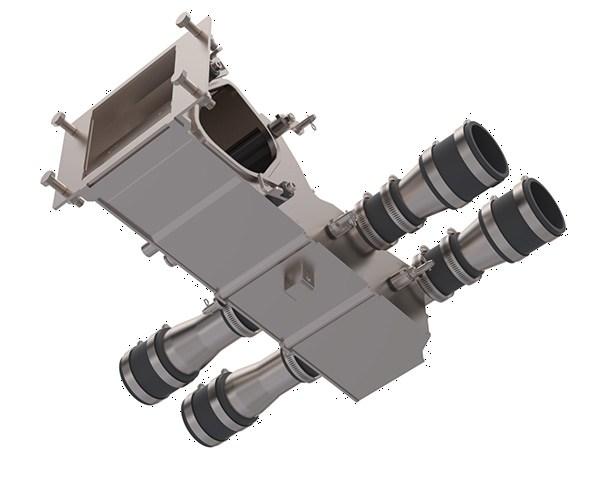

Double Shoot Manifold Assembly Kit, TBH
Part # JAS4745K
Compatible Models: C850 SN _____-780100

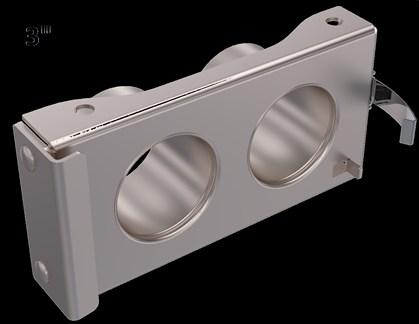

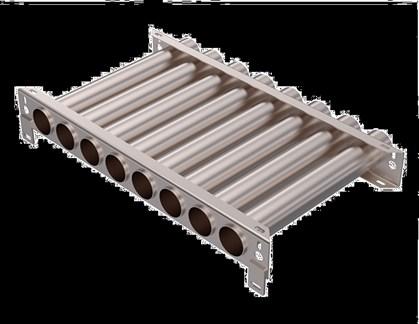

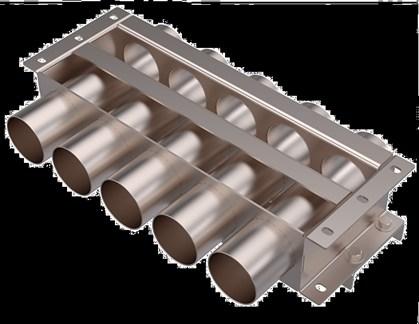

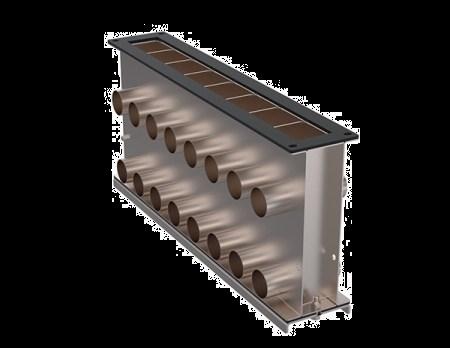

Double Shoot Manifold Body, Venturi Style, TBT
2.5” Part # JAS4778A
3” Part # JAS4757A
For tow between carts, 2.5” & 3” tubes
Compatible Models: 1900, 1910, C650, C850
Manifold Body Insert, Bottom Shoot, Venturi Style
2.5” Part # JAS4772A
3” Part # JAS4754A For Romafa Manifold Assembly
Compatible Models: 1900, 1910

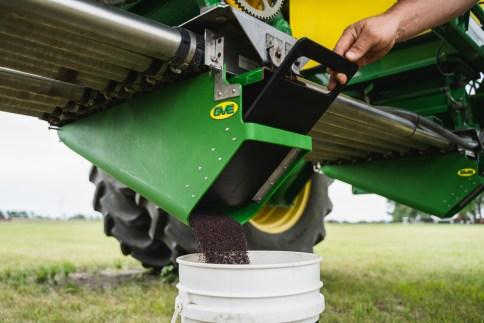

Calibration Bag Kit
Part # JAS4829K
Components Below Meter Housing
C-Series style sliding bag holder attaches below the Romafa manifold on any air cart. Includes the slides, bag holder & hardware. Hook the bag over the holder and slide it in and out.
Compatible Models: 1900, 1910, C650, C850

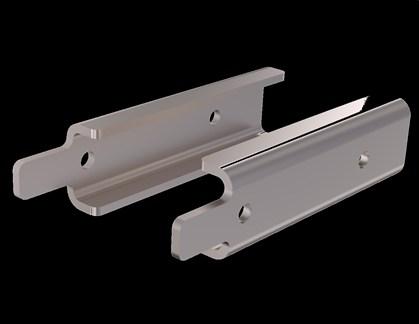

Double Shoot Manifold Bracket
Part # JAS0901
OEM # AA71722
Use bottom cover JAS0910P with this bracket.
Compatible Models: 1900, 1910
Single Shoot Manifold Bracket
Part # JAS0053P
OEM # A69442
For 1910 cart, tow behind only.
Use bottom cover JAS0057P with this bracket.
Compatible Models: 1910
Single Shoot Manifold Bracket
Part # JAS0043P
OEM # A62025
Use bottom cover JAS0118P with this bracket.
Compatible Models: 1900
Parts for John Deere

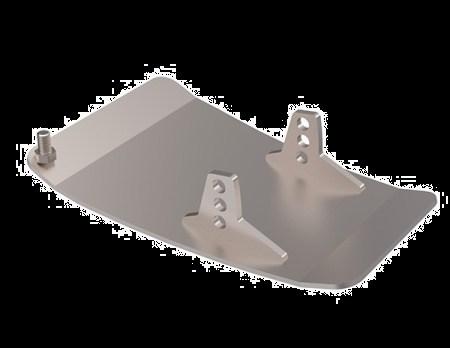

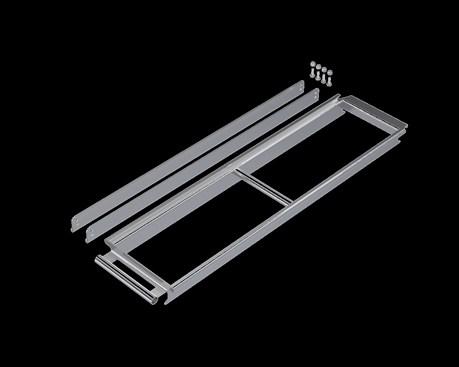

Calibration Bag Slide Kit
Part # JAS4829K
Slide for C-Series style sliding bag holder, attaches below the Romafa manifold on any air cart. Use this slide kit if you already have the bag holder on your C-series cart. Includes the slides & hardware.
Compatible Models: C650, C850
Double Shoot Manifold Bracket
Part # JAS0066P
OEM # AA60888, AA60889
Use bottom cover JAS0057P with this bracket.
Compatible Models: 1900, 1910
Single Shoot Manifold Bracket
Part # JAS0128P
OEM # A88060
Use bottom cover JAS0910P with this bracket.
Compatible Models: 1910

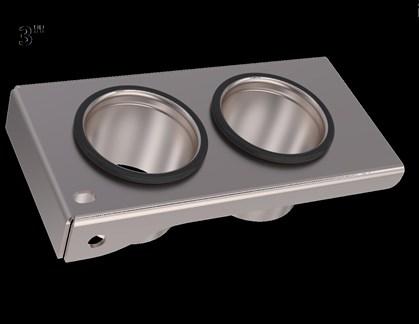

Double Shoot Manifold Bracket, 3"
Part # JAS0187P
OEM # AA83284
430 bu. TBT, 430 - 550 bu. TBH with 3" tubes. Use bottom cover JAS0186P with this bracket.
Compatible Models: 1910
JAS0901
Components Below Meter Housing

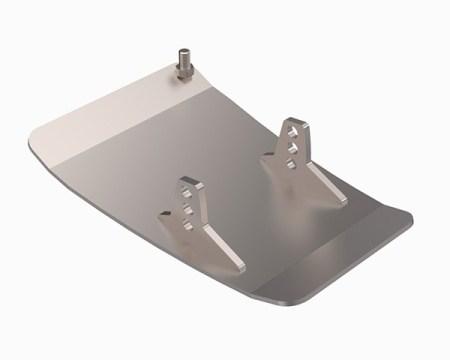

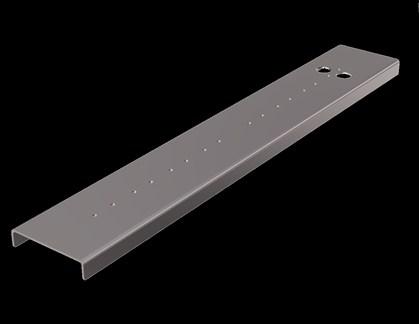

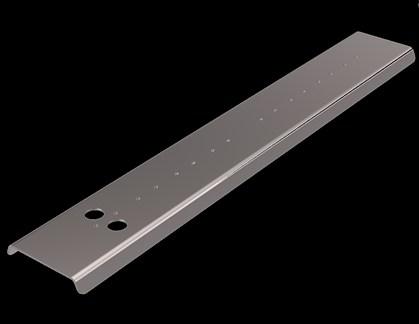

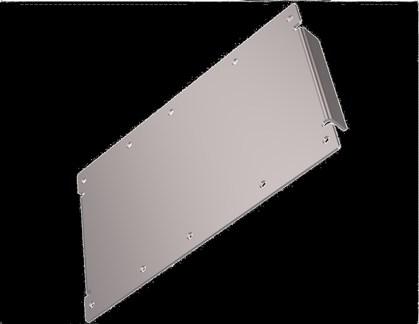

Bottom Cover Plate
Part # JAS0910
OEM # A88237
Use with manifold bracket
Compatible Models: 1900, 1910
Bottom Cover Plate
Part # JAS0057P
OEM # A69443
Use with manifold bracket
JAS0053P & JAS0066P
Compatible Models: 1900
Double Shoot Manifold Cover
Part # JAS0122P, JAS0121P, JAS0054P, JAS0124P, JAS0125P, JAS0904, JAS0188P
OEM # AA48753 - AA48758, AA84236
Compatible Models: 1900, 1910: 1900, 1910

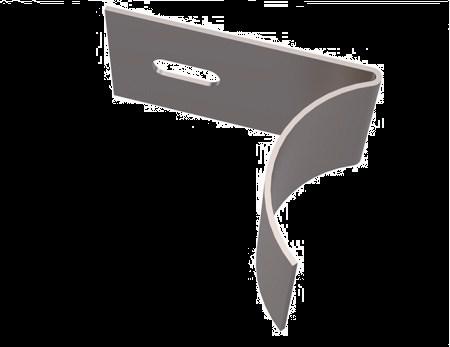

Bracket, Manifold
Retainer
Part # JAS0292P
OEM # A118371
For carts with 3” tubes
Compatible Models: 1910 (SN 785101-___), C650, C850 (SN 780101-___)
Bottom Cover Plate
Part # JAS0118P
OEM # AA52645
For 1900 single shoot / double shoot carts
Use with manifold bracket JAS0043P
Compatible Models: 1900
3" tubes.
Bottom Cover Plate, 3"
Part # JAS0186P
OEM # A98748
430 bu. TBT, 430 - 550 bu. TBH w
Use with manifold bracket JAS0187P
Compatible Models: 1910
Single Shoot Manifold Spacer / Cover
Part # JAS0123P, JAS0044P, JAS0126P, JAS0127P, JAS0120P, JAS0904
OEM # A63063 A63067, JAS0904
Covers for 3, 4, 5, 6, 7, and 8 run setups
Compatible Models: 1900, 1910patible Models:
Bracket, Manifold
Retainer
Part # JAS0293P
OEM # A100493
For carts with 3” tubes
Compatible Models: 1910 (SN ___-785100)
Bracket Slide Stop L/H
Part # JAS0902A
OEM # AA50030
With locking pin
Compatible Models: 1900, 1910

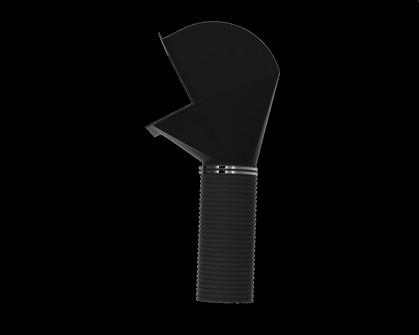

Handle, Double Shoot Switch
Part # JAS0167P
OEM # AA50642
Components Below Meter Housing
Bracket Slide Stop R/H
Part # JAS0911
OEM # A64920
Compatible Models: 1900, 1910
Bracket,
Bag Tab
Part # JAS0903
OEM # A69543
Comes in a set of two pieces, one for each end of the switch.
Compatible Models: 1900, 1910
Collection Pan Mount
Part # JAS0045P
OEM # A63068
3 - 7 run setup
Compatible Models: 1900, 1910

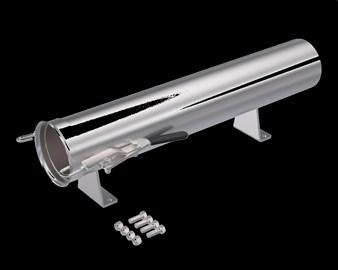

Calibration Chute
Part # JAS0588P
If using the Romafa manifold body, you will need mounting kit JAS4776K
Compatible Models: 1900, 1910
Compatible Models: 1900, 1910, C650, C850
Manifold Plate Bracket
Part # JAS0116P
OEM # A72276
Compatible Models: 1900

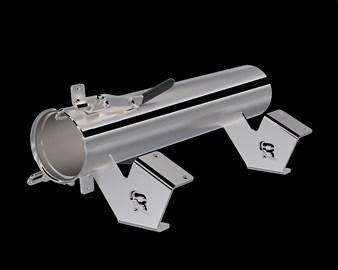

Mounting Kit, Calibration
Chute
Part # JAS4776K
Mounting kit for mounting the calibration chute under the Romafa manifold assembly.
Compatible Models: 1900, 1910
Parts for John Deere
Components Below Meter Housing

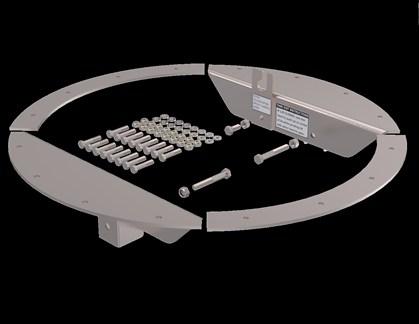

Lower Hardware Kit, Single Shoot
Part # JASKITLOWR1
Stainless steel hardware for bottom of meter and below
Compatible Models: 1900, 1910
Manifold Bolts, Double Shoot
Part # JASKITDSBOLT
Compatible Models: 1900, 1910
Lower Hardware Kit, Double Shoot
Part # JASKITLOWR2
Stainless steel hardware for bottom of meter and below
Compatible Models: 1900, 1910
Manifold Bolts, Double Shoot, 3"
Part # JAS4702K
For carts with 3" tubes
Compatible Models: 1910, C650, C850

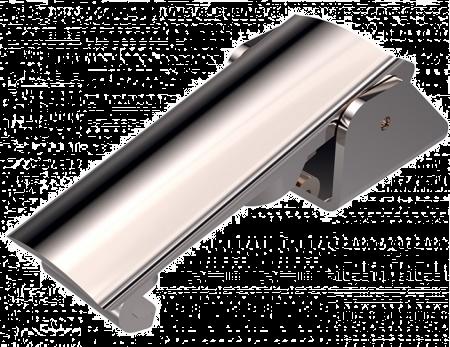

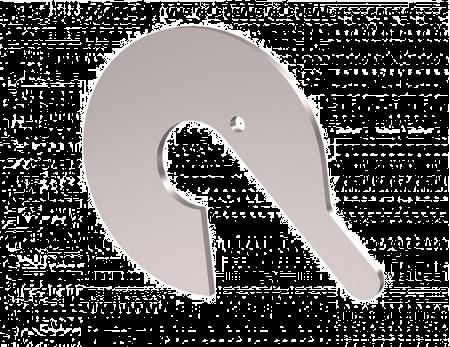

Stainless Steel Latch
Part # T00063P
These latches are included with the lower hardware kits.
Compatible Models: 1900, 1910, C650, C850

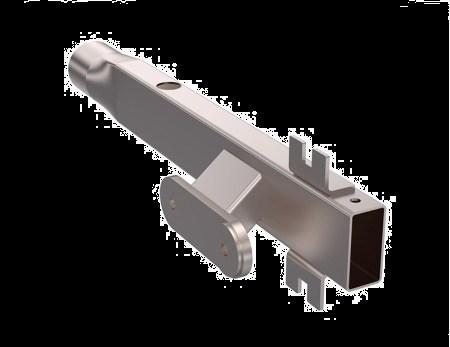

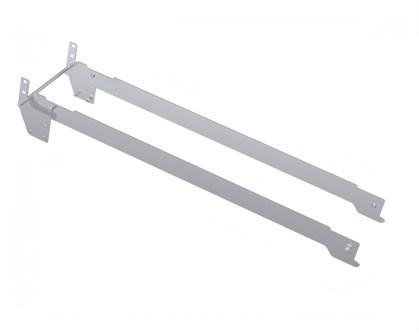

Tray Holder
Part # JAS0346
OEM # AA53363

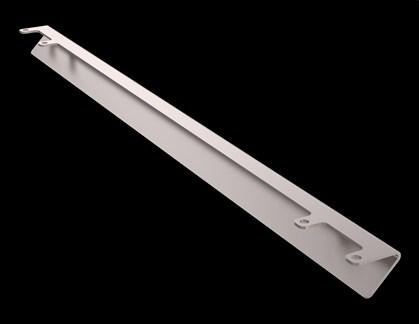

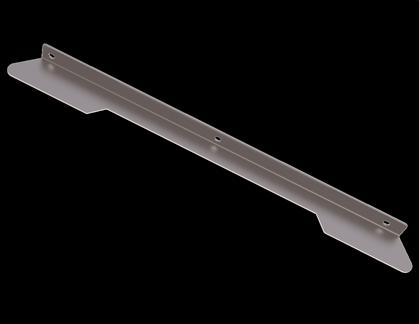

Catch Pan Rail
Compatible Models: 1900
Double Shoot Manifold Valve Assembly
Part # JAS4779A
Valve assembly for pressurizing the tanks directly, rather than through the OEM manifold.
Compatible Models: 1900, 1910
3” Caps
Part # MH0023
Pipe End Caps—
2.5” & 3”
For capping unused 2.5” runs 2.5” Caps
Part # MH0018
Part #
Seed Delivery

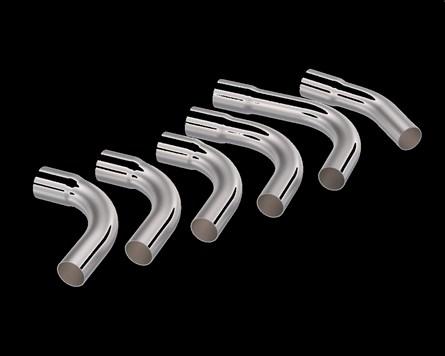

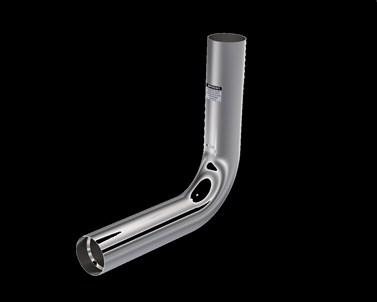

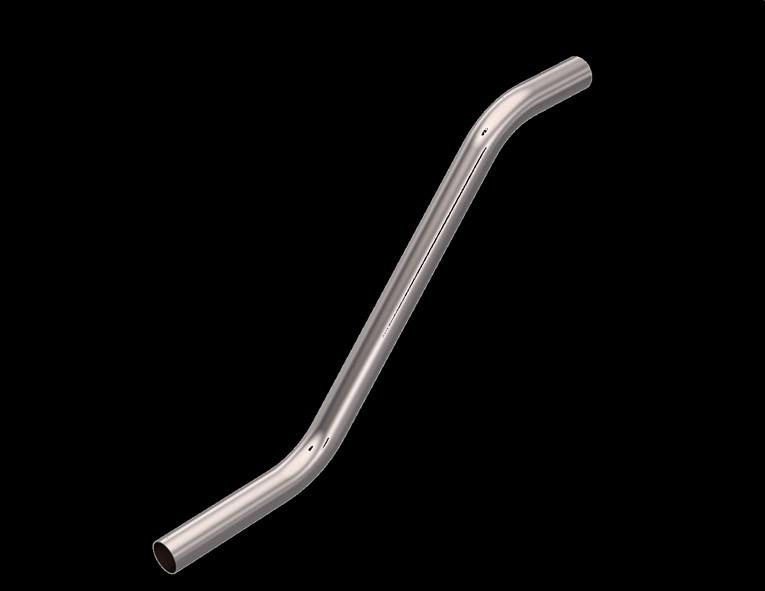

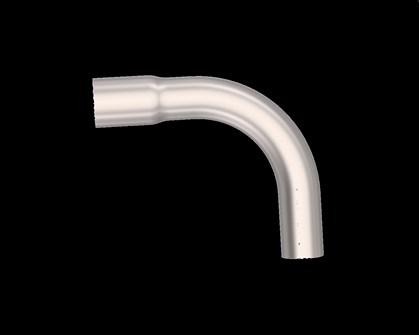

Stainless Steel Formed Seed Delivery Tubes
OEM #
Parts for John Deere
Compatible Models: 1900, 1910
Description
JAS1080 A64943 Formed tube, 195 & 250 bushel, TBT, double shoot, upper
JAS1082 A64944 Formed tube, 195 & 250 bushel, TBT, double shoot, lower
JAS0259P A63188 Formed tube, 195 & 250 bushel, TBT, single shoot
JAS0154P A63082 Formed tube, 195 & 250 bushel, TBH, single shoot
JAS0161P A65140 Formed tube, 195 & 250 bushel, TBH, double shoot, upper
JAS0155P A65141 Formed tube, 195 & 250 bushel, TBH, double shoot, lower
JAS0051P A65344 Formed tube, 270 bushel, TBT, double shoot, upper
JAS0052P A65656 Formed tube, 270 bushel, TBT double shoot, lower
JAS0117P A63192 & A60259 Formed tube, 270 & 340 bushel, TBH, single shoot
JAS1081 A63186 & A59204 Formed tube, 270 & 340 bushel, TBT, single shoot
JAS0131P A65347 Formed tube, 270 & 340 bushel, TBH, double shoot, upper
JAS1002 A65657 Formed tube, 270 & 340 bushel, TBH, double shoot, lower
JAS1001 A63190 Formed tube, 350 & 430 bushel, TBH, SS (430 bu hyd. drive, sn ___-770100)
JAS0913 A65348 Formed tube, 350 & 430 bushel, TBH, DS, upper (430bu sn ___-770100)
JAS0914 A65658 Formed tube, 350 & 430 bushel, TBH, DS, lower (430 bu sn ___-770100)
JAS0129P A88196 Formed tube, 350 & 430 bushel, TBT, DS, upper (430 bu sn ___-770100)
JAS0130P A88197 Formed tube, 350 & 430 bushel, TBT, DS, lower (430 bu sn ___-770100)
JAS0145P A88195 Formed tube, 350 & 430 bushel, TBT, SS (430 bu hyd. drive, sn ___-770100)
JAS0384P A99606 Formed tube, 350 & 430 Bushel TBT, SS(SN 770101 - ___)
JAS1074 A92245 Formed tube, 550 bushel, TBH, SS/DS, upper (JD SN __-770100)
JAS1075 A92243 Formed tube, 550 bushel, TBH, double shoot, lower (JD SN __-770100)
JAS1076 A99546 Formed tube, 550 bushel, TBH, double shoot, upper (JD SN 770101-__ )
JAS1077 A99547 Formed tube, 550 bushel, TBH, double shoot, lower (JD SN 770101-__ )
Seed Delivery
Stainless Steel Formed Seed Delivery Tubes
Compatible Models: 1900, 1910
Part
JAS0466P A99607 Formed Tube 350 & 430 TBT Double Shoot Upper (SN 770101- ___)
JAS0464P A99608 Formed Tube 350 & 430 TBT Double Shoot Lower (SN 770101- ___)
JAS0392P A99528 & A104745 3” Formed Tube 430 BU, TBT Double Shoot Lower, Outside 3 on each side
JAS0391P A99527 & A104744 3” Formed Tube 430 TBT Double Shoot Upper
JAS0574P A99540 & A14746 3” Formed Tube 430 BU, TBT, Double Shoot Bottom Center Two Pipes
JAS0559P A99379 & A104739 3” Formed Tube 430 BU, TBH Double Shoot Bottom
JAS0557P A99378 & A104738 3” Formed Tube 430 BU, TBH Double Shoot Top
JAS0555P A104743 Formed Tube 550 TBH Double Shoot Lower (SN 770101- ___)
JAS0556P A104742 Formed Tube 550 TBH Double Shoot Upper (SN 770101- ___)
JAS0558P A99258 Formed Tube 550 TBH Double Shoot Lower (SN ___-770101)
JAS0560P A99257 Formed Tube 550 TBH Double Shoot Upper (SN ___-770101)
"My grandfather used to say that once in your life you need a doctor, a lawyer, a policeman, and a preacher. But every day, three times a day, you need a farmer."
- Brenda Schoepp
JAS0914
JAS1080
JAS1074
Part #
Seed Delivery

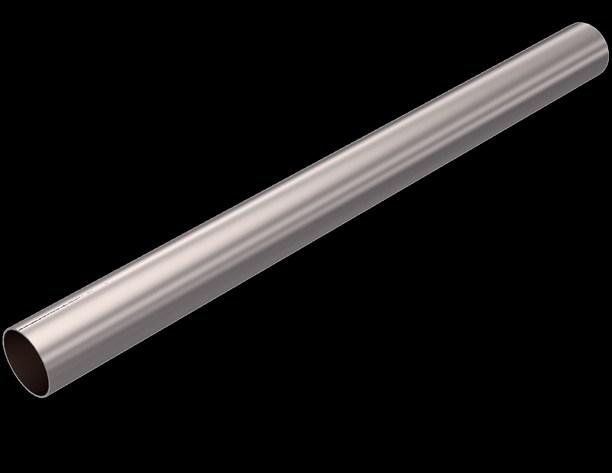

Stainless Steel Straight Seed Delivery Tubes
JAS0164P A99256 3" straight tube, 550 Bu, double shoot, upper, 42.028"
JAS0165P A99255 3" straight tube, 550 Bu, single shoot / double shoot lower, 42.972"
JAS0067P A59345 Straight tube, single shoot / double shoot lower, 2-tank, 48.58"
JAS0078P A59346 Straight tube, double shoot upper, 2-tank, 47.638"
JAS0916 A59348 Straight tube, 250, 340 & 430 Bu, double shoot upper, 3-tank, 28.937"
JAS0917 A59347 Straight tube, 250, 340 & 430 Bu, single & double shoot lower, 3-tank, 29.88"
JAS0217P A86913
Straight tube, liquid option, 340 & 430 bushel TBH, 430 bushel TBT, double shoot upper, 69.291"
JAS0218P A86914 Straight tube, liquid option, 340 & 430 bushel TBH, 430 bushel TBT, single & double shoot lower, 70.276"
JAS1078 A92238 Straight tube, 550 bushel, double shoot upper, 42.028"
JAS1079 A92241 Straight tube, 550 bushel, single & double shoot lower, 42.972"
JAS0393P A104737 & A99377 Straight Tube 3", 430 BU, TBT & TBH, Double Shoot Upper (SN 770101-_)
JAS0394P A104736 & A99376 Straight Tube 3", 430 BU, TBT & TBH, Double Shoot Lower (SN 770101-__)
Stainless Steel Straight Seed Delivery Tubes for Toolbars
JAS0285P A107966 Straight Tube, 3" Dia x 72" for 1870 tool bar.
JAS0270P A64928 Straight tube, 72"
JAS0067P A59345 Straight tube, 48.58" for tool bars 1690, 1820, 1860, 1890, 1895, N530F, N540F, N543F
JAS0067
JAS0917
Stainless Steel
Distributor Wear Cap
Part # JAS0210P
Fits into JD cover AA73954
Compatible Models: 1830, 1835, 1840, 1870, 1890, 1895, 730LL, N530F, N540F, N543F, N560F, P540, P556, P576, P576, 1910
Part # JAS0012W
OEM # AA57195
5 1/2" Tube with 1" outlet
Compatible Models: 1900, 1910
Short Tube w/ Straight Outlet
Seed Delivery
Short Tube w/ Angle Outlet
Part # JAS0011W
OEM # AA54440
5 1/2" Tube with 1" outlet
Compatible Models: 1900, 1910

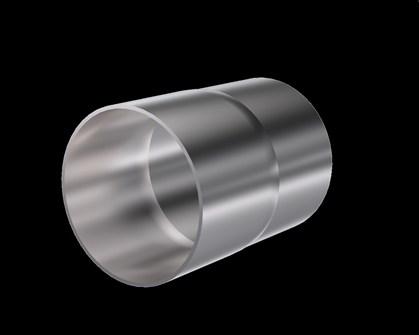

Short Tube
Part # JAS0069P
OEM # A72998 5 1/2" Tube
Compatible Models: 1910

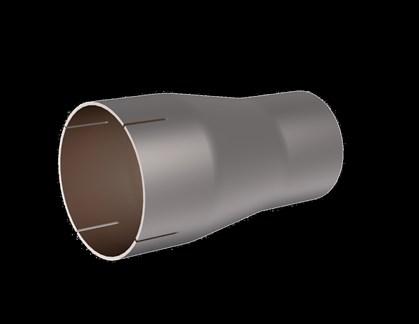

3" Air Flow Coupler Tube
Part # JAS0561P
OEM # A98673
Air flow step coupler tube 3" x 3.93L"
Compatible Models: 1910, C650, C850

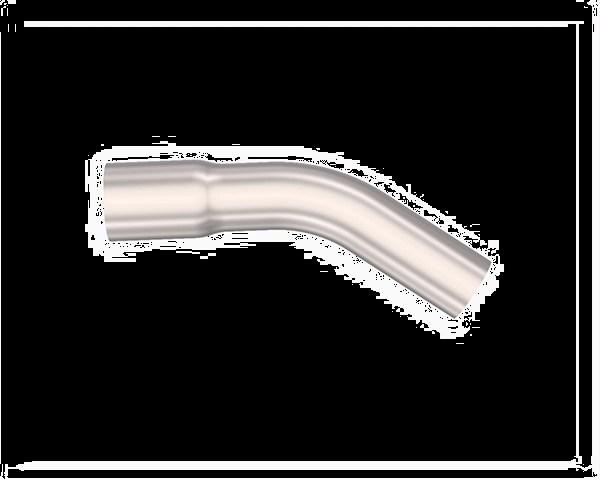

Short Elbow
Part # JAS0238P
OEM # A65825
Quick Connect Hose Mounting
Compatible Models: Drills - 1820, 1840, 1860, 1890, Carts - 1900, 1910

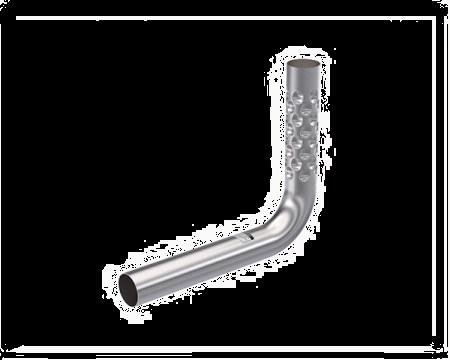

Secondary Tower
Part # JAS0915
OEM # AA76331
Dimpled riser tube (new style)
Compatible Models: 1830, 1835, 1840, 1870, 1890, 1895, 730 LL, N530F, N540F, N543F, N560F, P540, P556, P576, 1900, 1910

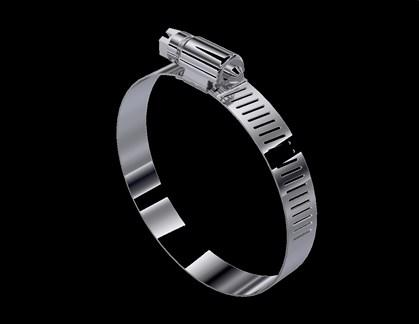

Hose Clamp
3/4”1 1/2”
Part # SCH-100
Made of stainless steel:
Parts for John Deere
2.5" - 3"
Part # T00081P
Made of stainless steel
Seed Delivery
T-Bolt Hose Clamp
Parts for John Deere

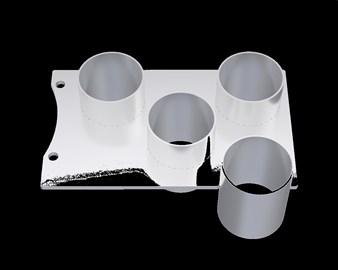

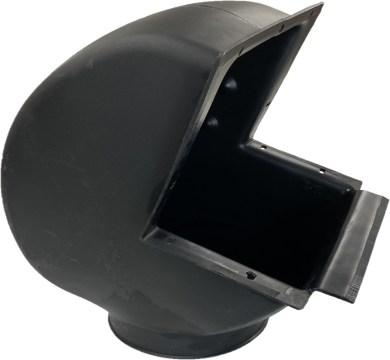

Double Shoot Air Plenum
Part # JAS0010W
OEM # AA48322
Compatible Models: 1900, 1910
3"
- 3.5" T-
Bolt Hose Clamp
Part # T00188P
Made of stainless steel

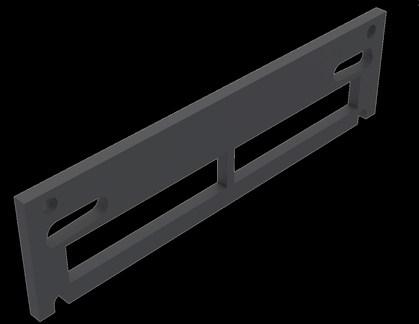

Seal, Double Shoot Air Plenum
Part # JAS0406P
OEM # A61152
Compatible Models: 1900, 1910

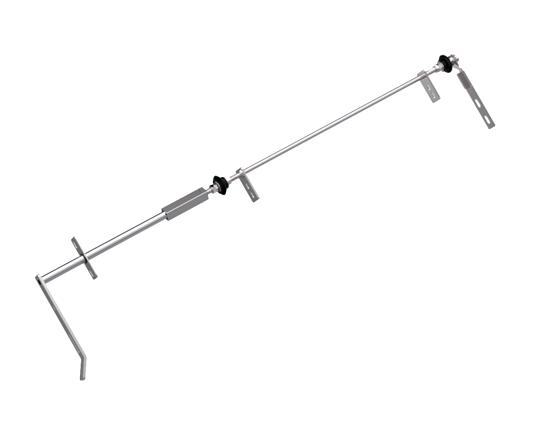

Plenum Deflector Adjustment Assembly
Part # JAS4823K
OEM # A109119, A109214, A80176
Compatible Models: 1900, 1910

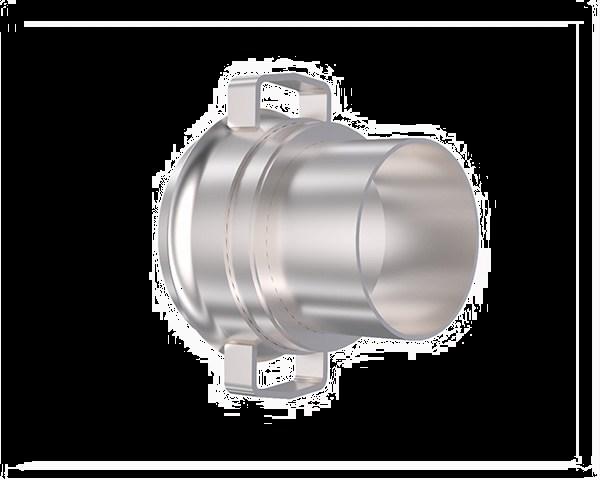

2 Port Coupler, Reversible, Drill Side
Part # JAS0929A
Latch side, for 2 1/2" tubes
Compatible Models: 1690, 1820, 1830, 1835, 1840, 1860, 1870, 1890, 1895, 2510S, 730 LL, N530F, N540F, N543F, P540, P556, 1900, 1910
reversible coupler
2 Port Coupling Kit, Reversible
Part # JAS0930A
OEM # A88237
Includes both sides of the 2 1/2"
Compatible Models: 1690, 1820, 1830, 1835, 1840, 1860, 1870, 1890, 1895, 2510S,730 LL, N530F, N540F, N543F, P540, P556, 1900, 1910
2 Port Coupler, Reversible, Cart Side
Part # JAS0928A
For 2 1/2" tubes
Compatible Models: 1690, 1820, 1830, 1835, 1840, 1860, 1870, 1890, 1895, 2510S, 730 LL, N530F, N540F, N543F, P540, P556, 1900, 1910
coupler
2 Port Coupling Kit
Part # JAS0020A
Seed Delivery
OEM # A82371 & AA67121
Includes both sides of the 2 1/2"
Compatible Models: 1690, 1820, 1830, 1835, 1840, 1860, 1870, 1890, 1895, 2510S,730 LL, N530F, N540F, N543F, P540, P556, 1900, 1910
2 Port Coupler, Drill Side
Part # JAS0020W
OEM # A82371
For 2 1/2" tubes
Compatible Models: 1690, 1820, 1830, 1835, 1840, 1860, 1870, 1890, 1895, 2510S,730 LL, N530F, N540F, N543F, P540, P556, 1900, 1910
2 Port 3" Coupling Kit
Part # JAS0936A
OEM # AA87296, A102339
Includes both sides of the 3" coupler
Compatible Models: 1830, 1870, 1890, 1895, N540F, N543F, N560F, P556, P576
For 3" tubes
2 Port 3" Coupler, Cart Side
Part # JAS0934W
OEM # A102339
Compatible Models: 1830, 1870, 1890, 1895, N540F, N543F, N560F, P556, P576
2 Port Coupler, Cart Side
Part # JAS0021W
OEM # AA67121
For 2 1/2" tubes
Compatible Models: 1690, 1820, 1830, 1835, 1840, 1860, 1870, 1890, 1895, 2510S,730 LL, N530F, N540F, N543F, P540, P556, 1900, 1910
2 Port 3" Coupling Kit, Reversible
Part # JAS0924A
Includes both sides of the 3"
reversible coupler
Compatible Models: 1830, 1870, 1890, 1895, N540F, N543F, N560F, P556, P576
For 3" tubes
2 Port 3" Coupler, Drill Side
Part # JAS0935W
OEM # AA87296
Compatible Models: 1830, 1870, 1890, 1895, N540F, N543F, N560F, P556, P576
2 Port Coupling Assembly
Kit 3” to 2-1/2” Reducer
Part # JAS4764A
For 3" and 2 1/2” tubes
Compatible Models: 1910
We are continually adding more conveyors to our product list— contact us to discuss how we can help you with your cart.

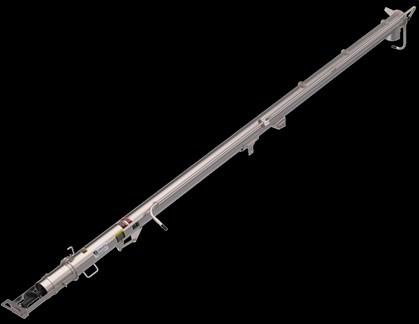

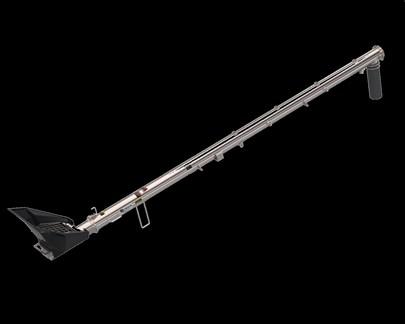

12” Tube Conveyor
Part # JAS6761A
Stainless steel conveyor body, scraper bracket, covers, bearings, bottom handle, motor mount plate & belt.
Compatible Models: C650
Hydraulic Kit for 12" Tube Conveyor
Part # JAS6773A
Hydraulic motor, hydraulic lines, fittings and clamps needed for JAS6761A.
Spout Kit for 12” Tube Conveyor
Part # AA102475
Includes spout, flex hose, and clamps for a 12" tube conveyor.

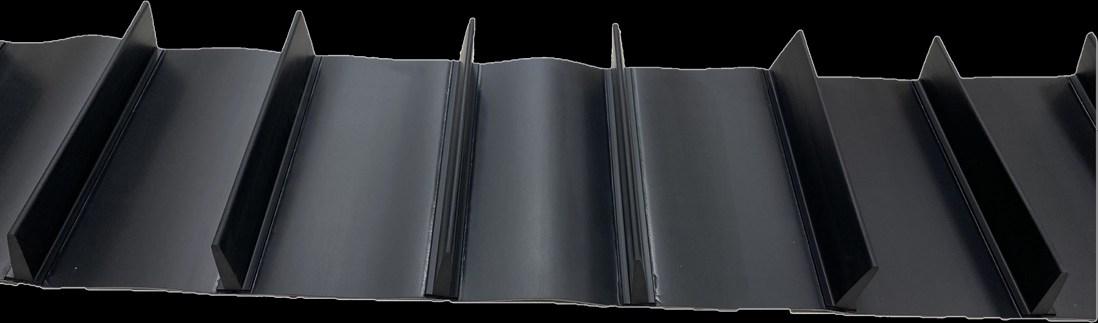

Tube Conveyor Belt
Part # JAS6240P
OEM # AA57798
Cleated conveyor belt for JAS6761A.
Parts for John Deere
Conveyor Housing, Short
Part # JAS5100A
Conveyors
OEM # AA57798, AA55555
Stainless steel conveyor
housing kit for 195, 250, 270, & 340 bushel carts.
Compatible Models: 1900, 1910
Hydraulic Kit, Short Conveyor
Part # JAS5791K
The hydraulic kit components: Hydraulic motor, Hydraulic valve, hoses
Compatible Models: 1900, 1910

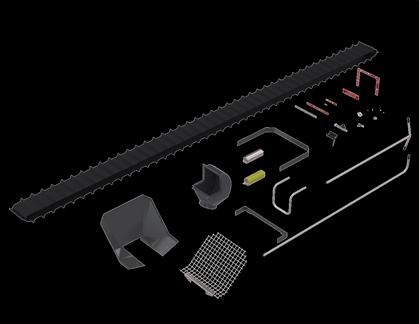

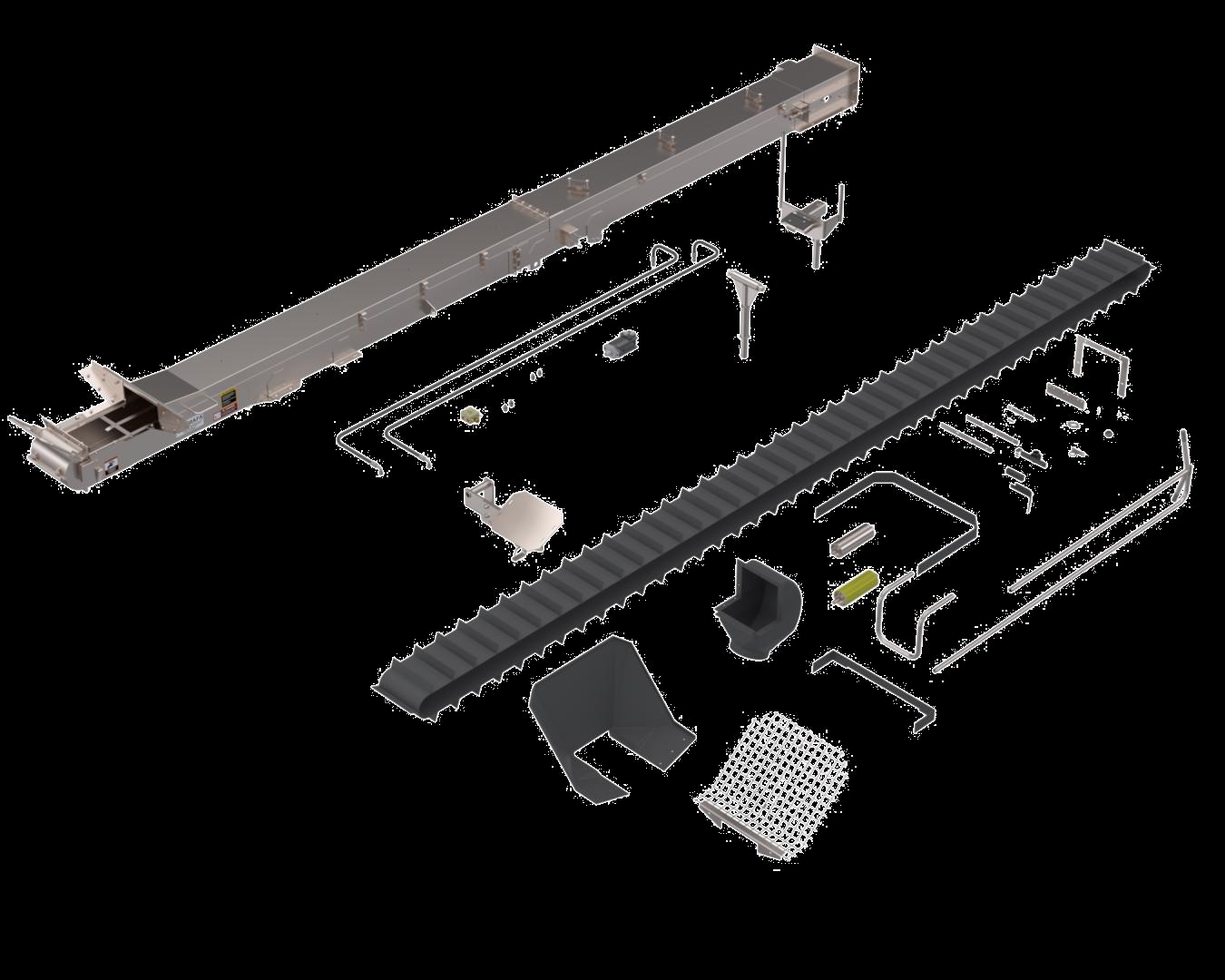

Parts Kit, Long Conveyor
Part # JAS5788K
Parts kit for a complete conveyor (excl. the hydraulics)
Compatible Models: 1900, 1910

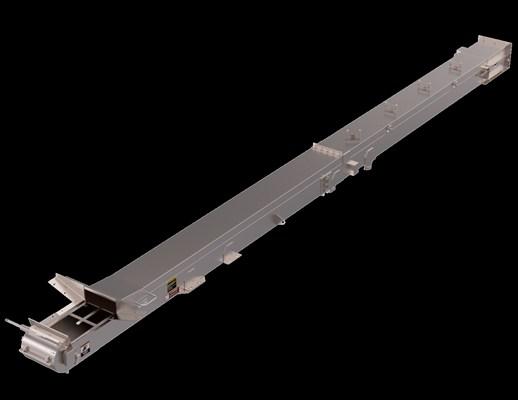

Conveyor Housing, Long
Part # JAS5000A
OEM # AA54917, AA72953
Stainless steel conveyor housing kit for 350, 430, & 550 bushel carts.
Compatible Models: 1900, 1910
Hydraulic Kit, Long Conveyor
Part # JAS5789K
The hydraulic kit components: Hydraulic motor, hydraulic valve, hoses
Compatible Models: 1900, 1910
Parts Kit, Short Conveyor
Part # JAS5790K
Parts kit for a complete conveyor (excl. the hydraulics).
Compatible Models: 1900, 1910

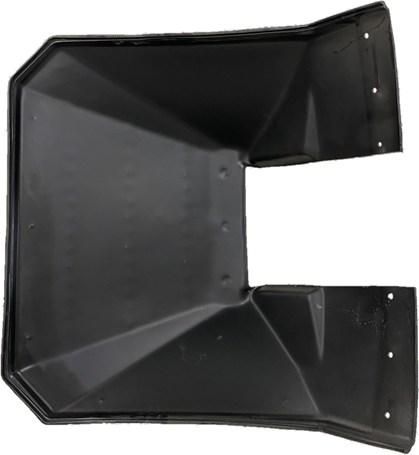

Conveyor Feeder Hopper
Part # JAS6000A
Hopper extension to reach under trucks with belly dump.
Compatible Models: JAS5100A, JAS5000A, OEM JD
Conveyors

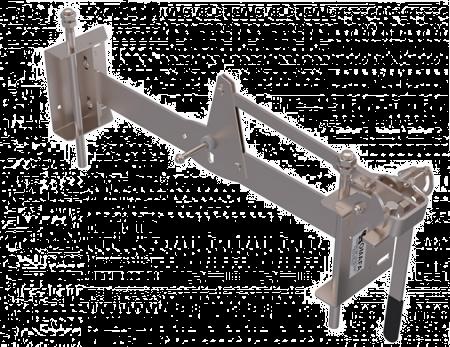

Hydraulic Lift Assist
Part # JAS5800A
Heavy Duty Conveyor Arm with Lift Assist
Compatible Models: 1900, 1910
Parts
Part # JAS5273P
OEM # AA58783
Conveyor Parts
Conveyor Belt, Short
Conveyor belt for 195, 250, 270, & 340 bushel carts
Compatible Models: 1900, 1910
Parts for John Deere
Conveyor Belt, Long
Part # JAS5180P
OEM # AA58782
Conveyor belt for 350, 430, & 550 bushel carts
Compatible Models: 1900, 1910

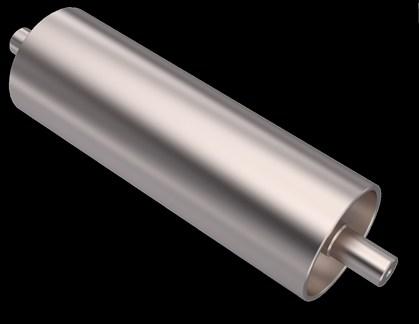

Conveyor Bottom Roller
Part # JAS5062W
OEM # AA54920
All-stainless steel lower conveyor roller.
Compatible Models: 1900, 1910

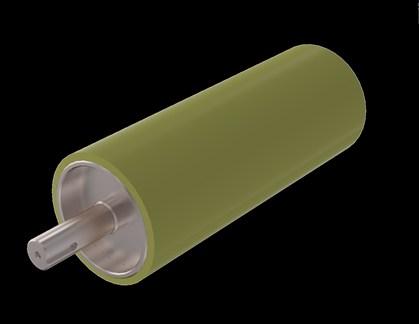

Conveyor Rubberized Drive Roller
Part # JAS5063W
OEM # AA57010
Rubberized stainless steel drive roller for conveyors.
Compatible Models: 1900, 1910
Stainless Steel Bearing Housing
Part # JAS5127K
Pressed 2-bolt flange for SUC205-16 bearings.
Compatible Models: 1900, 1910
Conveyor Hydraulic Motor
Part # T00142P
OEM # AA73606
Compatible Models: 1900, 1910

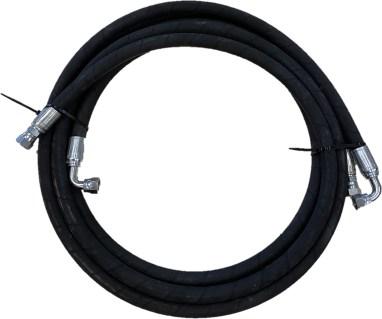

Hydraulic Line Package
Part # HYDH-001
O E M # AA76277 & AA76278
Use for 350, 430, & 550 Bushel
Compatible Models: 1900, 1910
Hydraulic Line Package
Part # HYDH-003
O E M # AA76365 & AA76366
Use for 195, 250, 270, & 340 Bushel
Compatible Models:
Hopper
Part # JAS5274P
O E M # A74772
Compatible Models: 1900, 1910
Compatible Models: 1900, 1910

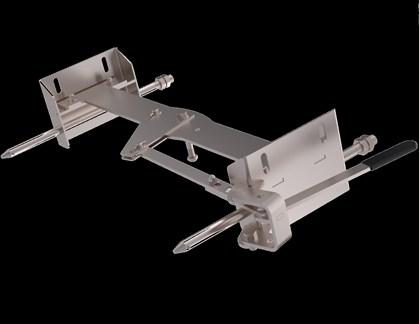

Block Clamps
Part # JAS5163P
OEM # A88996
Compatible Models: 1900, 1910
Conveyor Spout
Part # JAS5275P
OEM # A77122
Compatible Models: 1900, 1910
Upper Handle, Long
Part # JAS5763A
O E M # AA65335
Hydraulic Lever for 350, 430, & 550 Bushel
Compatible Models: 1900, 1910
Conveyor Parts
Course Screen
Part # JAS5527W
OEM # AA57626
16 GA SS 1.5” Squares
Compatible Models: 1900, 1910
Fine Screen
Part # JAS5443P
OEM # A74772
16 GA SS 3/4” Squares
Compatible Models: 1900, 1910
conveyors
Bottom Handle
Part # JAS5779A
OEM # AA56585
Hydraulic T - Lever for 21’ and 23’
Compatible Models: 1900, 1910
Top Handle
Part # JAS5147P
O E M # A78040
Compatible Models: 1900, 1910mpatible Models:
Part # JAS5807
Conveyor Parts
Upper Handle, Short
Needed to empty tanks with feeder conveyor.
Compatible Models: 1900, 1910
Compatible Models:
1” Stainless Steel Bearing
Part # SUC205-16
Self aligning bearing made of stainless steel.
Compatible Models: 1900, 1910
Parts for John Deere
Hydraulic Valve
Part # JAS5185P O E M # AA55047
Stainless Steel Fine Screen
Part # JAS6067P
For the feeder conveyor. Fits on JAS6000A
Compatible Models: 1900, 1910
Belt Scrapper
Part # JAS5165P
Coupling Kit for Conveyor / Hyd. Motor
Part # JAS5754K
Compatible Models: 1900, 1910
Hopper Conveyor Belt
Part # T00079A
Pin for Conveyor Belt
Part # JAS5453P
Stainless steel pin for the 12” wide conveyor belt.
8" 21' Auger Housing Kit w/ Poly Flighting
Part # JAS5101A
OEM # AA53599
Compatible Models: 1900, 1910
Augers
8" 23' Auger Housing Kit w/ Poly Flighting
Part # JAS5803A
OEM # AA53600, AA58521
Stainless steel auger housing kit for 195, 250, 270, & 340 bushel carts.
Stainless steel auger housing kit for 350 and 430 bushel carts.
Compatible Models: 1900, 1910
8" 23' Auger Housing Kit w/ Poly Flighting
Part # JAS5796A
OEM # AA46780, AA47183
Stainless steel auger housing kit for earlier model 350 and 430 bushel carts.
10" 21' Complete Auger w/ Poly Flighting
Part # JAS5758A
Upgrade your 8" auger to this complete 10" auger for 250, 270, & 340 bushel carts.
Compatible Models: 1900, 1910
Compatible Models: 1900
10" 23' Auger Housing Kit w/ Poly Flighting
Part # JAS6752A
OEM # AA71522, AA101956
Stainless steel auger housing kit for 350, 430, & 550 bushel carts.
Compatible Models: 1910
Plant your seed in the morning and keep busy all afternoon, for you don’t know if profit will come from one activity or another or maybe both. – Ecclesiastes 11:6
Parts for John Deere
10" 23’ Auger Hopper and Spout Kit
Part # JAS5794K
This kit upgrades a 10” auger to a complete auger (Excl. the hydraulics)
Compatible Models: 1910

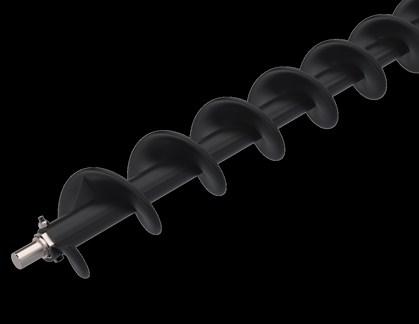

Poly Flighting Kit, 8" 21' Auger
Part # JAS5782A
OEM # AA46567 / AA46566
Cupped poly flighting is long lasting, faster, but gentler on the product.
Compatible Models: 1900, 1910
10" 23' Auger Hydraulic Kit
Part # JAS5795K
Components of the kit: Hydraulic motor, hydraulic valve, hydraulic hoses, rubber hose clamp blocks
Compatible Models: 1910
8" 21' Auger Hydraulic Kit
Part # JAS5793K
Components of the kit: Hydraulic motor, hydraulic valve & hydraulic hoses
Compatible Models: 1900, 1910
8" Auger Hopper and Spout Kit
Part # JAS5792K
This kit upgrades a 8” auger
housing kit to a complete auger (excl the hydraulics)
Compatible Models: 1900, 1910
Poly Flighting Kit, 8”
23’ Auger
Part # JAS5797A
Cupped poly flighting is long lasting, faster, but gentler on the product.
Compatible Models: 1900, 1910
Co
8" 23' Auger Hydraulic Kit
Part # JAS5804K
Components of the kit: Hydraulic motor, hydraulic valve & hydraulic hoses
Compatible Models: 1900, 1910
Parts for John Deere
Seed Tube, Expanded End
Part # JAS4740K
OEM # A72825
Drill Parts
Seed Tube, Angled L/H Expanded End
Part # 4738K
OEM # A81407
Compatible Models: 1690, 1890, 1895, 1990, N530, N530C, N530F, N536, N536C, N540, N540C, N540F, N542, N542C, N543F, N550, N560, N560F
O E M # A81406
Seed Tube, R/H Expanded End
Part # JAS4739K
Compatible Models: 1690, 1890, 1895, 1990, N530, N530C, N530F, N536, N536C, N540, N540C, N540F, N542, N542C, N543F, N550, N560, N560F

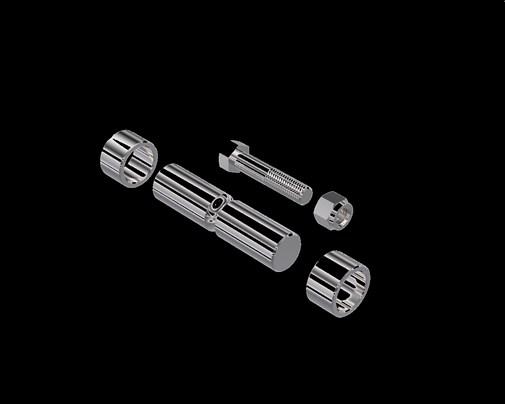

Closing Wheel Pivot
Bushing Kit
,Part # JAS4816K1890, 1895, 1990, O E M # N280648, N219547
Bushing, cylindrical alloy bushing, bolt, washer and nut.
Compatible Models: 1560, 1565, 1590, 1690, 1850, 1860, 1890, 1895, 1990, 750, 750A
Compatible Models: 1690, 1890, 1895, 1990, N530, N530C,N530F, N536, N536C, N540, N540C,N540F, N542, N542C, N543F, N550, N560, N560F
Packer Arm
Bushing Kit
Part # JAS4815K
O E M # N284086, N219547
Includes bushing, cylindrical alloy bushing, bolt, washer and nut.
Compatible Models: 1560, 1565, 1590, 1690, 1835, 1860, 1890, 1895, 1990, 750A
Opening Arm Bushing Kit
Part # JAS4824K
O E M # N282536, N283636
Groove pin, 2 cylindrical alloy bushings, 5/8" bolt and lock nut.
Compatible Models: 1560, 1565, 1590, 1690, 1820, 1830, 1835, 1860, 1890, 1895, 1990, 2510H, 750A, H540F, H550F, H560F, N530, N530C, N530F, N536, N536C, N540, N540C, N540F, N542, N542C, N543F, N550, N560, N560F
Parts
Round Distributor Heads, 1” Outlets
Part # R425, - R1225
4—12 Ports
The tapered rubber caps are recommended when applying less than 260 lbs of product per acre.
Flat Rubber Cap
Part # RFLC1
For round Romafa distributor heads.
Romafa Parts
2 1/2” Stainless Steel
Heavy Duty U Clamp
Part # R25CLAMP
Reducer
Part # R1051
Reduces OD from 3” to 2-1/2”
Parts for Various Seeder Types
Round Distributor Heads, 1 1/4” Outlets
Part # R432 - R1232
4—12 Ports
The tapered rubber caps are recommended when applying less than 260 lbs of product per acre.

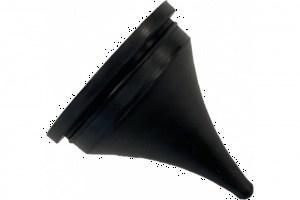

Tapered Rubber Cap
Part # RTARC1
For round Romafa distributor heads
Single Port Coupler
Part # JAS4706A
Use this any place you need to couple a single line. Or install in the line just below the riser tubes for easier cleanout access.
Rear Manifold
Flexi-Coil 1110 & 1610, John Deere 777
Assemblies, 3 - 5 Runs
Part # FLC-0015A FLC-0018A
OEM # GD-144, GD-146, GD-229
Compatible Models: Flexi-coil 1110, John Deere 777
Front Manifold
Assemblies, 3 - 5 Runs
Part # FLC-0019A FLC0021A
OEM# GD-145, GD-147, GD-232
Compatible Models: Flexi-coil 1110, John Deere 777
Manifold Bypass, 3 - 5
Runs
Part # FLC-0002W FLC-0004W
OEM # GD-148, GD-149, GD-233
Compatible Models: Flexi-coil 1110, John Deere 777
Front Manifold
Assemblies, 4 - 8 Runs
Part # FLC-0009A FLC-0012A
OEM # GD-545, GD-547, GD-549, GD-644
Compatible Models: Flexi-coil 1610, John Deere 777
FC Meter Housing
Part # JAS2806A
OEM # GD-510
Compatible Models: Flexi-coil 1600, 1610, 1615; John Deere 777 Parts
Rear Manifold
Assemblies, 4 - 8 Runs
Part # FLC-0004A, FLC-0006—FLC0008A
OEM # GD-643, GD-544, GD-546, GD-548
Compatible Models: Flexi-coil 1610, John Deere 777
Manifold Bypass 4 - 6
Runs
Part # FLC-0013W —FLC-0015W
OEM # GD-640 GD-642
Compatible Models: Flexi-coil 1610, John Deere 777
Flexi-Coil 1330, 1720, & 2320, John Deere 787
Meter Housing, 6 run
Part # JAS1100A For Flexi-coil 1330 & JD 787 carts
Compatible Models: 1330, John Deere 787
Top Channel Bracket
Part # JAS1112W
OEM# GH-743
Compatible Models: Flexi-coil 1330, John Deere 787
Meter Housing, 8 Run
Part # JAS0980A
OEM # GH-128A & GH-661A
Compatible Models: Flexi-coil , 1720, 2320, John Deere 787
Top Channel Weldment
Part # JAS1018W
OEM# GH-209
Tube assembly to meter interface.
Compatible Models: Flexi-coil 1720, 2320, John Deere 787
Parts for John Deere
Parts for Flexi-Coil
Center Tube Manifold
Part # JAS1111W
OEM# GH-717
Compatible Models: Flexi-coil 1330, John Deere787
Manifold Outlet Channel
Part # JAS1113W
OEM # GH744
Compatible Models: Flexi-coil 1330, John Deere 787
Front Manifold Weldment
Part # JAS1015W
OEM # GH-242
Tube Weldment to Intermediate Manifold Interface
Compatible Models: Flexi-coil 1720, 2320, John Deere 787
Tube Weldment
Part # JAS1021W
OEM# GH-172
Compatible Models: Flexi-coil - 1720, 2320, John Deere 787
Parts for John Deere
Flexi-Coil 1330, 1720, & 2320, John Deere 787
Intermediate Manifold, Lower
Part # JAS0947W
OEM# GH-165
Compatible Models: Flexi-coil 1720, 2320, John Deere 787
Intermediate Manifold Bracket
Part # JAS1046A
Compatible Models: Flexi-coil 1720, 2320, John Deere 787
Double Shoot Manifold
Weldment
Part # JAS2300W
Converts cart to fixed double shoot only. This part, along with JAS1296 replaces the OEM plastic single / double shoot switch.
Tank By-pass Tube
Part # JAS1296
Convert cart to fixed double shoot.
Compatible Models: Flexi-Coil 1330, 1720, & 2320, John Deere 787
Intermediate Manifold, Upper
Part # JAS0948W
OEM# GH-169
Compatible Models: Flexi-coil 1720, 2320, John Deere 787
For 3-point hitch
Intermediate
Manifold, Bolt-on
Part # JAS2276W
OEM # RC-410
Compatible Models: Flexi-coil 1720, 2320, John Deere 787

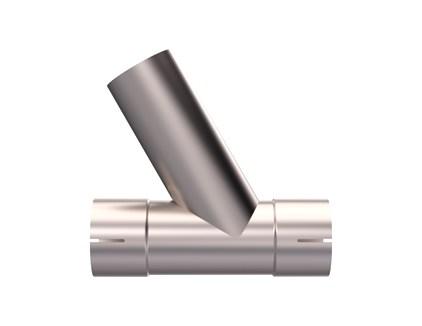

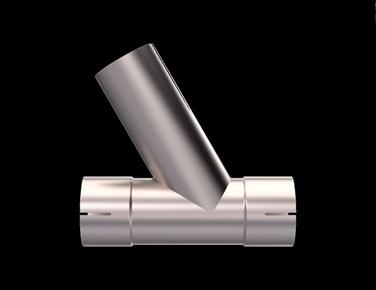

Transition Y Tube
Part # JAS1052W
Converts cart to single shoot only. This part replaces the OEM plastic single / double shoot switch.
Compatible Models: Flexi-coil 1330, 1720, 1740, 2320, 2340, 2640, John Deere 787
Meter Housing Seals
Top
Part # JAS1089
For meter housing JAS0980A
Bottom,
Housing Half
Part # JAS1090
Bottom, Jaw Half
Part # JAS1181
Compatible Models: Flexi-coil 1720, 2320, John Deere 787
Part # JAS2753K
OEM # GI-343
Flexi –Coil / CNH 40 Series
Meter Mounting Plate Kit
For meter housing JAS2771A.
For 1st serial number range.
Compatible Models: Flexi-coil - 2640, 2340, 1740 and 3rd tanks 3234 & 3174 on 40 series carts
New Holland - SC180, SC230
Case IH - 2230, ADX2180, ADX2230
Center Manifold
Part # JAS2765A
OEM # GI-360 1st serial number range
Compatible Models: Flexi-coil - 3234, 3174, 2640, 2340, 1740
New Holland - SC180, SC230
Case IH - 2230, ADX2180, ADX2230
Meter Housing w/ Side
Pressurizing Ports
Part # JAS2771A
OEM # GI-925A, GI-925A2, GI-926A, GI-926A2 1st serial number range
Compatible Models: Flexi-coil - 2640, 2340, 1740 and 3rd tanks 3234 & 3174 on 40 series carts
New Holland - SC180, SC230
Case IH - 2230, ADX2180, ADX2230

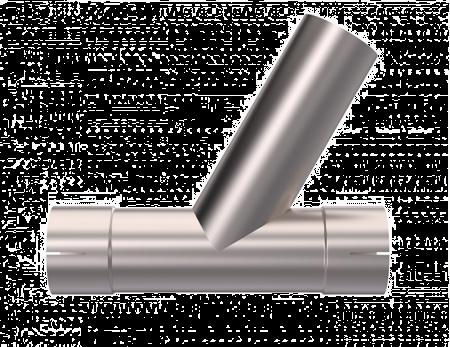

Transition Y Tube
Part # JAS1052W
Converts cart to single shoot only. This replaces the OEM plastic single/double shoot switch.
Compatible Models: Flexi-coil 1330, 1720, 1740, 2320, 2340, 2640, JD 787

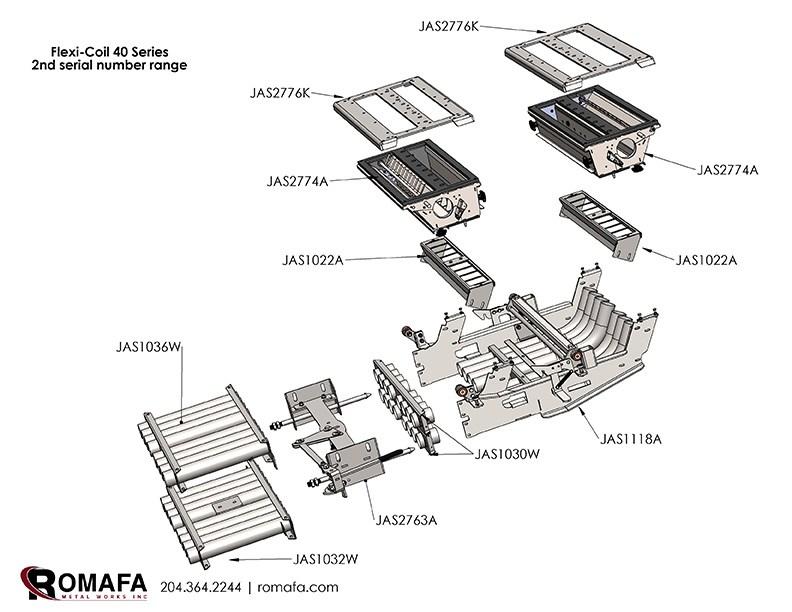

Meter Mounting Plate Kit
Part # JAS2776A
OEM # GI-456
For meter housing JAS2774A 2nd serial number range.
Compatible Models: Flexi-coil - 2640, 2340, 1740 and 3rd tanks 3234 & 3174 on 40 series carts
New Holland - SC180, SC230, SC260
Case IH - 2230, ADX2180, ADX2230, ADX3260
Center Manifold
Part # JAS1118A
OEM # GI-950 or 87693083
Elbow tubes are included in this kit. Rubber couplers are not included. 2nd serial number range
Compatible Models: Flexi-coil - 2640, 2340, 1740 and 3rd tanks 3234 & 3174 on 40 series carts
New Holland - SC180, SC230, SC260 Case IH– ADX21080, ADX2230, ADX3260
Meter Housing with Center Pressurizing Ports
Part # JAS2774A
OEM # GR-115A, GR-115A2, GR-116A, GR-116A2
2nd serial number range
Compatible Models: Flexi-coil - 2640, 2340, 1740 and 3rd tanks 3234 & 3174 on 40 series carts
New Holland - SC180, SC230, SC260
Transition Manifold Mount
Part # JAS1022A OEM # GL-442
Compatible Models: Flexi-coil - 4350, 3850, 3450, 3350, 2850, 2640, 2340, 1740 and 3rd tanks 3234 & 3174on 40 series carts. New Holland - P1030, P1040, P1050, P1060, P1070,SC180, SC230, SC260, SC380, SC430. Case IH -3430, 3580, 2230, 2280, 2330, 3380, ADX2180, ADX2230, ADX3360, ADX3380, ADX3430, ADX2180, ADX2230, ADX3260, ADX3360, ADX3380, ADX3430
Part # JAS1030W
OEM # GL-443
Flexi-Coil / CNH 40 Series

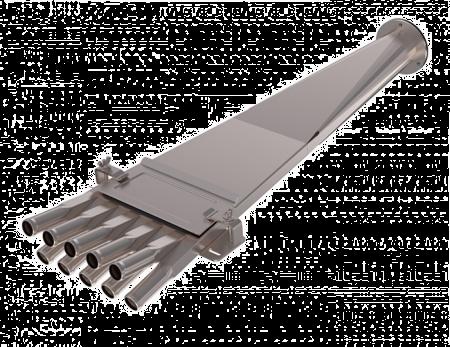

Manifold Outlet
Compatible Models: Flexi-coil4350, 3850, 3450, 3350, 2850, 2640, 2340, 1740 and 3rd tanks 3234 & 3174 on 40 series carts
New Holland - P1030, P1040, P1050, P1060, P1070, SC180, SC230, SC260, SC380, SC430
Case IH - 3430, 3580, 2230, 2280, 2330, 3380, ADX2180, ADX2230, ADX3260, ADX3360, ADX3380, ADX3430
Intermediate Manifold, Upper
Part # JAS1036W OEM # GL-448
Double / Triple Manifold
Compatible Models: Flexi-coil - 3850, 4350, 1740, 3450, 2340, 2640, 2850, 3350, 2340 and 3rd tanks 3234 & 3174 on 40 series carts, New Holland - P1030, P1040, P1050, P1060, P1070, SC180, SC230, SC260, SC380, SC430, Case IH - 3430, 3580, 2230, 2280, 2330, 3380, ADX2180, ADX2230, ADX3260, ADX3360, ADX3380, ADX3430
Intermediate Manifold Bracket
Part # JAS2770A
For 3 point hitch. Works with intermediate manifold JAS2256W
Compatible Models: Flexi-coil - 1740, 2340, 2640
New Holland - SC180, SC230, SC260
Case IH - ADX2180, ADX2230, ADX3260

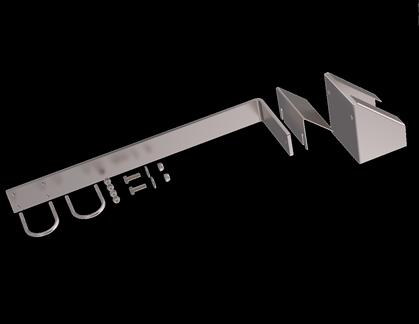

Drain Chute
Part # JAS2783K
OEM # GI-948, GI-346, GI-347
This kit replaces hangers GI-946 & GI-947 and pan GI-948
Compatible Models: Flexi-coil - 1740, 2340, 2640 and 3rd tanks 3174 & 3234 on 40 series carts
New Holland - SC180, SC230, SC260
Case IH - 2230, ADX2180, ADX2230, ADX3260
Intermediate Manifold, Lower
Part # JAS1032W
OEM # GL-447
Compatible Models: Flexi-coil - 3850, 4350, 3450, 2850, 3350 New Holland - P1030, P1040, P1050, P1060, P1070, SC380, SC430 Case IH - 3430, 3580, 2280, 2330, 3380, ADX3360, ADX3380, ADX3430
Intermediate Manifold Bracket
Part # JAS2763
Compatible Models: Flexi-coil - 2640, 2340, 1740
New Holland - SC180, SC230, SC260
Case IH - 2230, ADX2180, ADX2230, ADX3260
Intermediate Manifold
Part # JAS2256W
OEM # GI-216
For 3 point hitch. Goes with intermediate manifold bracket.
Compatible Models: Flexi-coil - 1740, 2340, 2640
New Holland - SC180, SC230, SC260
Case IH - ADX2180, ADX2230, ADX3260
Center Manifold
Replacement Elbow
Part # JAS1171
OEM # GI-951
Use with JAS1118A or GI-950
Compatible Models: Flexi-coil 2640, 2340, 1740
New Holland– SC180, SC230, SC260
Case IH ADX2180, ADX2230, ADX3260
Flexi-Coil /
Part # FAS0931A
OEM # GL-400A

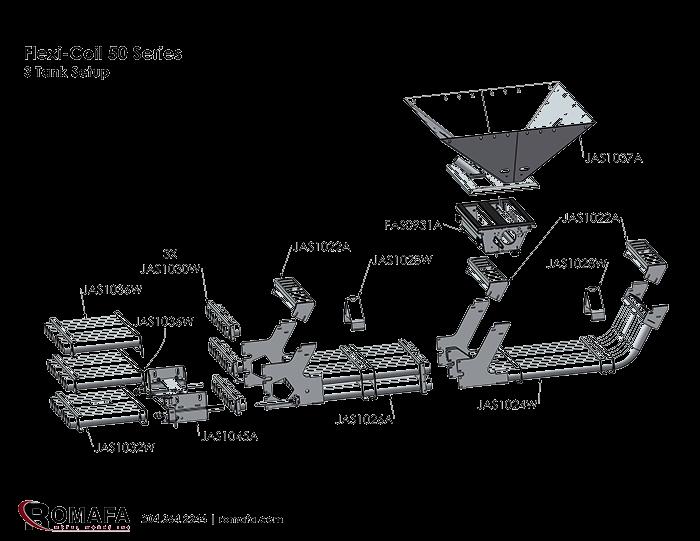

Flexi-Coil / CNH 50 Series
50 Series Meter Housing
Made of corrosion resistant stainless steel.
Compatible Models: Flexi-coil - 4350, 3850, 3450, 3350, 2850
New Holland - P1030, P1040, P1050, P1060, SC380, SC430
Case IH - 3430, 2280, 2330, 3380, ADX3360, ADX3380, ADX3430
Transition Manifold Mount
Part # JAS1022A
OEM # GL-442
Compatible Models: Flexi-coil - 4350, 3850, 3450, 3350, 2850, 2640, 2340, 1740 and 3rd tanks 3234 & 3174on 40 series carts. New Holland - P1030, P1040, P1050, P1060,P1070, SC180, SC230, SC260, SC380, SC430. Case IH -3430, 3580, 2230, 2280, 2330, 3380, ADX2180, ADX2230, ADX3360, ADX3380, ADX3430
Triple Shoot-Center–Manifold
Part # JAS1026A
OEM # GL-441
Compatible Models: Flexi-coil3850, 4350, 3450
New Holland - P1050, P1060, P1070, SC380, SC430
Case IH - 3430, 3580, 3380, ADX3360, ADX3380,
Poly Tank Cradle
Part # JAS2853A
OEM # GL-606
Includes stainless steel hardware and seal kit.
Individual Run Air Plenum Design
Compatible Models: 3450 (03/97 - 01/02 1st serial number range,3850 BSN Y9S015001 (06/03 - 06/08)
4350 BSN Y9S015001 (07/03 - 06/08)
Manifold—Center 2 Tank
Part # JAS1020A
OEM # 87616668
For two tank cart only with hydraulic lift.
Compatible Models: Flexi-coil - 2850, 3350
New Holland - P1030, 1040
Case IH - 2280, 2330
Double Shoot Manifold, Short
Part # JAS1024
OEM # GL-440
Compatible Models: Flexi-coil - 3850, 4350, 3450
New Holland - P1050, P1060, SC380, SC430
Case IH - 3430, 3380, ADX3360, ADX3380, ADX3430
Double Shoot Manifold, Long
Part # JAS2282W
OEM # 84204279
Compatible Models: New Holland - P1070
Case IH - 3580
Poly Tank Cradle
Part # JAS1037A
Includes stainless steel hardware and seal kit.
OEM: GL-990FR
Compatible Models: Flexi-coil - 3450, 2850, 3350, 3850, 4350, P1030, P1040, P1050, P1060, 2280, 2330, 3380, 3430, ADX3360, ADX3380, ADX3430
Part # JAS1045A
Flexi-Coil / CNH 50 Series
Intermediate Manifold Bracket, 50 Series
Center Manifold Carrier
Part # JAS1028W
OEM # GL-444
Compatible Models: Flexi-coil - 3850, 4350, 3450, 2850, 3350 New Holland - P1030, P1040, P1050, P1060, P1070, SC380, SC430 Case IH - 3430, 3580, 2330, 3380, ADX3360, ADX3380, ADX3430
Shaft
Part # JAS1361
Stainless steel hex shaft for rebuilding your meter roll.
Compatible Models: 50 Series
Air Plenum Rebuild Kit
Part # JAS2852K
Includes right & left air plenums with vanes, brackets, seals, hold down straps & hardware.
Compatible Models: 50 Series using tank cradle JAS1037A.
Part # JAS1448 Air Plenum to Tank Cradle
Compatible Models: Flexi-coil - 4350, 3850, 3450, 3350, 2850 New Holland - P1030, P1040, P1050, P1060, P1070, SC380, SC430 Case IH - 3430, 3580, 2280, 2330, 3380, ADX3360, ADX3380, ADX3430
Air Damper Drive Assembly
Part # JAS2804A
Compatible Models: 50 Series using tank cradle JAS1037A.
50 Series Meter Housing Seals
Part # JAS2812K
Seal
Part # JAS1087
Bottom Seal, Jaw Half
Part # JAS1191
Bottom Seal, Housing Half
Part # JAS1088
Flexi-Coil / CNH 50 Series
Are you using your cart in a fixed shoot setup?
Get rid of the plastic switches with our stainless steel fixed conversion setups for either fixed single or double shoot.
Parts listed on next page
Part # JAS2279W
Flexi-Coil / CNH 50 Series
Manifold, 3rd Tank, Double Shoot

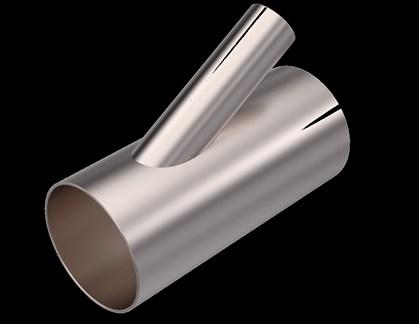

Transition Y Tube, Third Tank
Part # JAS1047W
Use to convert 3 tank cart to fixed double shoot
Compatible Models: Flexi-coil - 3850, 4350, 3450
New Holland - P1050, P1060, P1070, SC380, SC430
Case IH - 3430, 3580, 3380, ADX3360, ADX3380,
Elbow Tube, Second Tank, Top
Part # JAS2287W
Use to convert 2 or 3 tank cart fixed double shoot
Compatible Models: Flexi-coil - 2850, 3350, 3850, 4350, 3450 New Holland - P1030, P1040, P1050, P1060, P1070, SC380, SC430 Case IH - 2280, 2330, 3430, 3580, 3380, ADX3360, ADX3380, ADX3430
Transition Y Tube, Third Tank Double Shoot
Part # JAS2272W
Use to convert 3 tank cart to fixed double shoot
Compatible Models: Flexi-coil - 3850, 4350, 3450
New Holland - P1050, P1060, P1070, SC380, SC430
Case IH - 3430, 3580, 3380, ADX3360, ADX3380, ADX3430

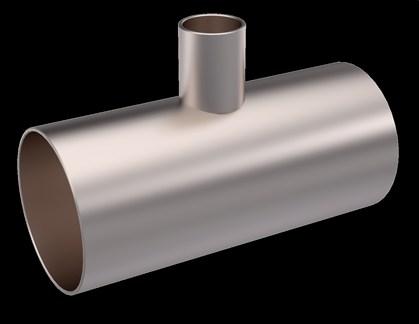

By-pass Tube, Third Tank, Bottom
Part # JAS1295
Use this by-pass tube when converting your triple shoot cart to fixed double shoot.
Compatible Models: Flexi-coil - 3850, 4350, 3450
New Holland - P1050, P1060, P1070, SC380, SC430
Case IH - 3430, 3580, 3380, ADX3360, ADX3380, ADX3430

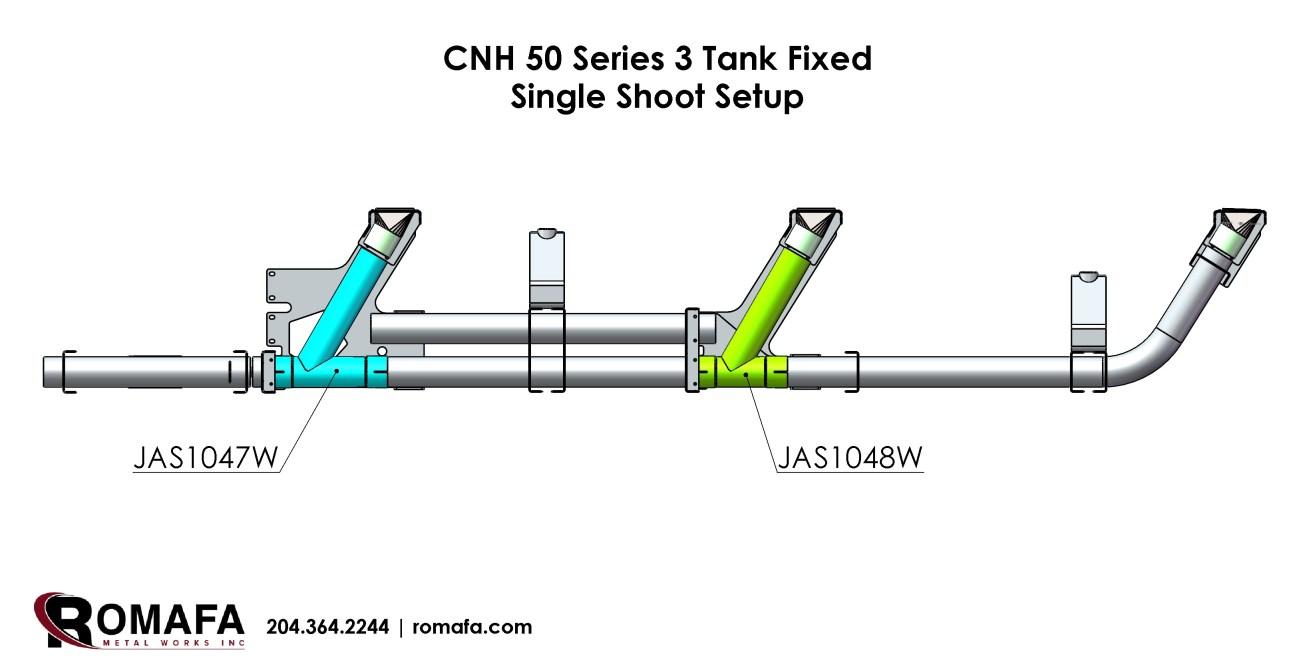

Use to convert 3 tank cart to fixed single shoot.
Compatible Models: Flexi-coil - 3850, 4350, 3450
New Holland - P1050, P1060, P1070, SC380, SC430
Case IH - 3430, 3580, 3380, ADX3360, ADX3380, ADX3430
By-pass Tube, Second Tank, Bottom
Part # JAS1296
Use to convert 2 or 3 tank cart to fixed double shoot
Compatible Models: Flexi-coil - 2850, 3350, 3850, 4350, 3450 New Holland - P1030, P1040, P1050, P1060, P1070, SC380, SC430
Case IH - 2280, 2330, 3430, 3580, 3380, ADX3360, AADX3380, ADX3380, ADX3430
Transition Y Tube, Second Tank
Part # JAS1048W
Use to convert 2 or 3 tank cart to fixed single or double shoot
Compatible Models: Flexi-coil - 2850, 3350, 3850, 4350, 3450 New Holland - P1030, P1040, P1050, P1060, P1070, SC380, SC430 Case IH - 2280, 2330, 3430, 3580, 3380, ADX3360, ADX3380, ADX3430
"I would rather be on my farm than be emperor of the world."
- George Washington
Flexi-Coil / CNH 60 Series
10” Tube Conveyor
JAS2831A
Meter Module
Part # JAS2846A
OEM # 51428558
Romafa meter housings are made of corrosion resistant stainless steel. Includes 4 long and short coupling tubes, mounting hardware and SS clamps.
Compatible Models: Flexi-coil - 3560, 4460, 4660, 5560, 5860, 7660, 9560
Case IH - 2355, 3445, 3555, 3725, 3915, 4465, 4585, 4765, 4955
New Holland - P2350, P3440, P4460, P3550, P4580, P4760, P4950
Stainless Tube Conveyors
Stainless steel tube conveyor housing, rollers, conveyor belt, bearings, flanges, course and fine screen & hopper
JAS2839K Hydraulic Kit includes hydraulic motor, valve, fittings, and hoses
JAS2840K Spout Kit Includes the unloading spout, down spout & clamps
Flexi-coil - 4460, 4660
Case IH - 3445, 3555, 4465, 4585
New Holland - P3550, P4580
Compatibility
12” Tube Conveyor
JAS2821A
JAS2838K
JAS2837K
Flexi-coil - 5560, 5860, 6560, 7660
Case IH - 3725, 3915, 4765, 4955
New Holland - P4760, P4950
5 Port Coupler Kit
Part # JAS1044A
2.5” Tubes. Includes both sides of the 5 port coupler. The drill side and cart side can be purchased individually.
Compatible Models: All series
3 Port Coupler Kit
Part # JAS1041A
OEM # GD-672A, GD673
2.5” Tubes. Includes both sides of the 3 port coupler. The drill side and cart side can be purchased individually.
Compatible Models: All Series
Riser Tube with Flange
Part # FAS0001W
OEM # GP-103
Compatible Models: All Series
Splitter Tube, 1 1/2” Outlets
Part # JAS2267W 2 1/2” inlet, two 1 1/2” outlet
Compatible Models: All Series
4 Port Coupler Kit
Part # JAS1049A
2.5” Tubes. Includes both sides of the 4 port coupler.
The drill side and cart side can be purchased individually.
Compatible Models: All series
3 Port Coupler Cover
Part # JAS1143
For the drill side.
Compatible models: All Series
Riser Tube without Flange
Part # JAS1182
Compatible Models: All Series
Splitter Tube, 1 3/4” Outlets
Part # JAS9000W 2 1/2” inlet, two 1 3/4” outlets
Compatible Models: All Series
Part # JAS2268W
2.5” inlet, two 2” outlets
Compatible Models: All series
Flexi-Coil All Series
Splitter Tube, 2” Outlets
Splitter Tube
Part # JAS2324W
2.5” inlet to three 2” outlets
Compatible Models: All Series
Seed Tubes
Seed Tube, Right Hand
Part # JAS2289W
OEM # BH-167
Compatible Models: FC Openers, 8000AD, 8000TB, 9000PL, 9000TB, 8100
Seed Tube, Air Hoe
Drill 71.25” Long
Part # JAS1358
Seed tube 71.25" long, 118° bend with a radius of 17.5".
Compatible Models: Flexi-coil - 5500 Air Hoe
Drill; Case IH - 700 Flex Hoe Drill; New HollandP2060 Air Hoe Drill
Seed Tube, Air Hoe
Drill 219.7” Long
Part # JAS1360A
Seed tube 219.7” long, 95° bend. Includes the male coupler
Compatible Models: Flexi-coil - 5500 Air Hoe
Drill; Case IH - 700 Flex Hoe Drill; New HollandP2060 Air Hoe Drill
Seed Tube, Left Hand
Part # JAS2290W
OEM # BH-157
Compatible Models: FC Openers, 8000AD, 8000TB, 9000PL, 9000TB, 8100
Seed Tube, Air Hoe
Drill 112.75”
Long
Part # JAS1359
Seed tube 112.75" long, 117° bend with a 16.5" radius.
Compatible Models: Flexi-coil - 5500 Air Hoe
Drill; Case IH - 700 Flex Hoe Drill; New HollandP2060 Air Hoe Drill
Part # JAS2751A
Augers & Conveyors
8” Auger Assembly with Poly Flighting
Complete auger assembly, including the stainless steel tube, brackets, & hardware: poly flighting, hopper and spout for 20 Series Carts.
Compatible Models: Flexi-coil 1720, 2320
10” Auger Housing Kit with Poly Flighting
Part # JAS2760A
OEM # 87502443 & 84523912
Compatible Models: Flexi-coil - 3850, 4350, 3450, 2850, 3350 New Holland - P1030, P1040, P1050, P1060, P1070, SC380, SC430 Case IH - 3430, 3580, 2280, 2330, 3380, ADX3360, ADX3380, ADX3430
Kit, Conversion
Part # JAS2848A
Auger to Conveyor for P1070 or 3580
Kit, Conversion
Part # JAS2847A
Auger to Conveyor - 50 Series Carts - All except P1070 or 3580
7” Part # JAS2758A
8” Part # JAS2764A
Auger Parts
7” and 8” Poly Flighting
For 20 series augers. Cupped poly flighting is long lasting, gentler on the products while moving it faster.
Compatible Models: Flexi-coil 1720, 2320
Nesting Adapter
Part # JAS2777K
Use nesting adapter when upgrading to an 8” auger. It will enable you to properly secure your auger for transport.
Compatible Models: Flexi-coil 1720, 2320
Hydraulic Kit, 10” Auger
Part # JAS2785K
NOTE! For 3rd Serial Number Range. Components of the kit: Hydraulic motor, Hydraulic valve, Hydraulic hoses. Compatible Models: Flexi-coil - 3850, 4350, 3450, 2850, 3350 New Holland - P1030, P1040, P1050, P1060, P1070, SC380, SC430 Case IH - 3430, 3580, 2280, 2330, 3380, ADX3360, ADX3380, ADX3430
10” Poly Flighting
Part # JAS2754
OEM # 84523912 & G654
For 50 series augers.
Hopper & Spout Kit, 10” Auger
Part # JAS2784K
Kit components: Hopper, Stainless steel course screen, spout, stainless steel spout clamps
Compatible Models: Flexi-coil - 3850, 4350, 3450, 2850, 3350 New Holland - P1030, P1040, P1050, P1060, P1070, SC380, SC430 Case IH - 3430, 3580, 2280, 2330, 3380, ADX3360, ADX3380, ADX3430
"Even if a farmer intends to loaf, he gets up in time to get an early start." - Edgar Watson Howe
Stainless Steel Meter
Housing, 6 Run
Part # 9-0031-0A
OEM # N19490
Includes stainless steel mounting hardware and seals.
Compatible Models: 6000 Series
Collector Box Manifold, 6 Run
Part # 9-0024-0W
OEM # N19080
Includes stainless steel mounting hardware and seals.
Compatible Models: 6000 Series
Manifold Cover, 6 Run
Part # 9-0023-0A
OEM # N19289
Includes stainless steel mounting hardware and seals,
Compatible Models: 6000 Series
Parts for Morris
Stainless Steel Meter
Housing,
8 Run
Part # 9-0032-0A
OEM # N19686
Includes stainless steel mounting hardware and seals.
Compatible models: 6000 Series
Manifold, 8 Run
Part 9-0002-0W
OEM # N45125
Includes stainless steel mounting hardware and seals.
Compatible Models: 6000 Series, 7000 Series
Manifold Cover, 8 Run
Part # 9-0044-0A
OEM # N19693
Includes stainless steel mounting hardware and seals.
Compatible Models: 6000 Series, 7000 Series
As long as the earth endures, seedtime and harvest, cold and heat, summer and winter, day and night will never cease. – Genesis 8:22
1/4” Shim
Part # 9-0040-0
Compatible Models: 6000 Series
Part # 9-0042-0
OEM # N19407
Compatible Models: 6000 Series
Calibrator, 3”
Part # 9-0041-0
OEM # N19070
Compatible Models: 6000 Series
6000 Series
Section Shut-off Plate
1/8” Shim
Part # 9-0167-0
Compatible Models: 6000 Series
Morris 6000 Metering Shaft
Part # 9-0379-0
OEM # N19024
Compatible Models: 6000 Series
Tube Bracket, Dual Shoot
Part # 9-3029-0W
OEM # N21765
Compatible Models: TBH double shoot
6130 (41 - 60 runs) & 6240 (51 - 80 runs)
"Farming is a profession of hope." - Brett Brian
Meter Box, 8 Run
Part # 9-0001-1W
OEM # N28928
7000 Series
Includes stainless steel mounting hardware and seals.
Compatible models: 7000 Series
Manifold Cover, 8 Run
Part # 9-0044-0A
OEM # N19693
Includes stainless steel mounting hardware and seals.
Compatible Models: 6000 Series, 7000 Series
Calibrator, 2 1/2”
Part # 9-0170-0
OEM # N27090
For #10 wheel
Compatible Models: 7000 Series
Manifold, 8 Run
Part 9-0002-0W
OEM # N45125
Includes stainless steel mounting hardware and seals.
Compatible Models: 6000 Series, 7000 Series
Clean-Out Cover
Part # 9-4051-0A
OEM # N27080
Models 7130, 7180, 7240, 7300
Prior to June 2007
Compatible Models: 6000 Series, 7000 Series
Calibrator, 2 1/4”
Part # 9-0169-0
OEM # N27089 For #9 wheel
Compatible Models: 7000 Series
Calibrator, 2”
Part # 9-0172-0
OEM # N27088
For #8 wheel
Compatible Models: 7000 Series
Calibrator, 1 3/4”
Part 9-0173-0
OEM # N27087 For #7 wheel
Compatible Models: 7000 Series
Part # 9-0098-0A
OEM # N21452
Compatible Models: 7000 Series
1/4” Shim
Part # 9-0004-0
OEM # N27099
7000 Series
Cleanout Cover, 2 Outlet
Stainless Steel Meter Shaft
Part # 9-0225-0
OEM # N19687
Compatible Models: 7000 Series
1/8” Shim
Part # 9-0008-0
Compatible Models: 6000 Series, 7000 Series
Compatible Models: 7000 Series
Section Shut-off Plate
Part # 9-0012-0
OEM # N27605
Compatible Models: 7000 Series
"Life on a farm is a school of patience; you can't hurry the crops or make an ox in two days."
- Henri Alain
Part # 9-0055-0A
OEM # N37131
8000 Series
Meter Housing, 8000 Series
Comes with clamping bracket & shut-off gates. Includes stainless steel mounting hardware and seals.
Compatible Models: 8000 Series
9 Run Manifold
Part # 9-0067-0W
OEM # N47040
Includes stainless steel mounting hardware and seals.
Compatible Models: 8000 Series
Meter Parts Kit, 8000
Series
Part # 9-4047-0K
Includes stainless steel hardware, bearings, flanges and hinged gate.
Compatible Models: 8000 Series
9 Run Double Shoot
Collector Body
Part # 9-0069-0A
OEM # N37700/N36285
Includes stainless steel mounting hardware and seals.
Compatible Models: 8000 Series
Collector Spacer
Part 9-0068-0W
OEM # N37865
TBT Only. Includes stainless steel mounting hardware and seals.
Compatible Models: 8000 Series
9 Run Bottom Cover
Part # 9-0045-0A
OEM # N37932
Includes stainless steel mounting hardware and seals.
Compatible models: 8000 Series
Cleanout Door
Part # 9-0059-0W
OEM # N42135
Compatible Models: 8000 Series
Part # 9-0063-0A
OEM # N40671
8000XL & 9000 Series
9 Run Meter Housing, 8000 XL & 9000 Series
Part # 9-4043-0K
Parts Kit, 9 Run Meter
Housing,
8000 XL & 9000 Series
Comes with clamping bracket & shut-off gates. Includes stainless steel mounting hardware and seals.
Compatible Models: 8000 XL Series, 9000 Series
Collector, Dual Shoot
Part # 9-4004-0A
OEM # NN37700, N44135
Includes stainless steel mounting hardware and seals.
Compatible Models: 8000 XL & 9000 Series
10 Run Meter Housing, 9000 Series
Part # 9-4025-0A
OEM # N51871
Includes stainless steel mounting hardware and seals.
Compatible Models: 9000 Series
Collector, 10 Wide Dual Shoot
Part # 9-4036-0A
OEM # N51740
Includes stainless steel mounting hardware and seals.
Compatible Models: 9000 Series
OEM # N40671
Includes stainless steel hardware, bearings, flanges and hinged gate.
Compatible Models: 8000 XL Series, 9000 Series
Collector, Single Shoot
Part # 9-4002-0A
OEM # N51503
Includes stainless steel mounting hardware and seals.
Compatible Models: 8000XL & 9000 Series
Parts Kit, 10 Run Meter
Housing,
9000 Series
Part # 9-4034-0K
OEM # N51871
Includes stainless steel hardware, bearings, flanges and hinged gate.
Compatible Models: 9000 Series
Collector, 10 Wide Single Shoot
Part # 9-4038-0A
OEM # N51750
Includes stainless steel mounting hardware and seals.
Compatible Models: 9000 Series
Part # 9-4050-0A
OEM # N53072
9000 Series
10 Wide Cover Latch
For the double shoot collector body on 9000 series carts, fits OEM.
Compatible Models: 9000 Series
Inner Tank Ladder
Part # 9-4054-0K
Includes stainless steel mounting hardware.
Compatible Models: 91000 Cart
Tank Lid Screen
Part # 9-3059-0W
OEM # N42190
Compatible Models: 9000 Series
Seed Delivery
Coupling Kit, 4 Hose
Part # 9-0073-0A
OEM # N28811, N27719
Compatible Models: All Series
Dimpled Tube
Part # 9-0097-0W
OEM # N15135
Compatible Models: All Series
Flat Distributors
7 - 11 Outlet– 1” Outlets
Part # 9-0087-0A- 9-0091-0A
OEM # N31187, N31188, N31189, N31190, N42274
Seal included
Compatible Models: All Series
Flat Distributors– 1” Outlets
Part # 9-4010-0A - 9-4014-A
OEM # N542254, N42255, N42256, N42257, N48927
Romafa’s redesign distributors are longer than OEM for more even seed distribution, also larger internal openings, helping to prevent plugging.
Compatible models: All Series
2 1/2” End Cap
Part # MH0018
For capping 2.5” runs.
Part # 9-3074-0W
OEM # N40703
2 run manifold
Compatible Models: Maxim 3 Toolbars
Seed Delivery
Hose Connector / Mount
Flat Distributors– 11/8” Outlets
Part # 9-4010-0A 9-4019-0A
OEM # N542254, N42255, N42256, N42257, N48927
Compatible Models: All Series
Tank Pressurization Port
Part # 9-3007-0W
Compatible Models: Air carts
Be sure you know the conditions of your flocks, give careful attention to your herds; for riches do not endure forever, and a crown is not secure for all generations. – Proverbs 27:23-24
Seed Delivery
Stainless Steel Straight Seed Delivery Tubes
9-0187-0 N31537 Seed Delivery Straight Tube - 57" 7252
9-0189-0 N31539 Seed Delivery Straight Tube - 87" 7252 TBT
9-0188-0 N28825 Seed Delivery Straight Tube - 31.125" 7000 Series DS TBT, 8370 TBT
9-0154-0 N44574, N62401 Seed Delivery Straight Tube 63 1/4" 8 Series XL, 8435, 8630, 8650, 9445
9-0155-0 N45190, N62418 Seed Delivery Straight Tube 23" 8 Series XL, 8650, 9650
9-0156-0 N45185 Seed Delivery Straight Tube 39 1/2" 8 Series XL
9-0219-0 N62412 Seed Delivery Straight Tube 42 3/4" 9550, 9650
9-0260-0 N37806 Seed Delivery Straight Tube 58 ½” 8336, 8425, 8370
9-0271-0 N62411, N49613 Seed Delivery Straight Tube 34" 9450, 9535
9-0272-0 N62419, N49612 Seed Delivery Straight Tube 17" 9535
9-0309-0 N45180 Seed Delivery Straight Tube 75.5" 8630
9-0584-0 N32498 Straight seed deliver tube, 71" long. C2 Contour Air Drill
9
Seed Delivery
Stainless Steel Formed Seed Delivery Tubes
9-0182-0 N27045 Seed Delivery Formed Tube - 43 3/4" 7130 SS TBH; 7180 & 7252 SS
9-
9-
-
9
9
-
9-0160-0 N37794 Seed Delivery Formed Tube 8370 & 8370XL
9-
9
9-0141-0 N36283 Seed Delivery Formed Tube 8240, 8300, 8336, 8425, 8240XL, 8300XL, 8336XL & 8425XL; 8370
9-0157-0 N42531 Seed Delivery Formed Tube 8 Series XL
9-0140-0 N36283 Seed Delivery Formed Tube 8336, 8425, 8336XL & 8425XL
9
9
9-0382-0 N62415 Seed delivery Formed tube - 109" long 9650 TBH, 2016 and newer
9-0383-0 N29128 Seed delivery Formed tube - 37" long 9240s & 9300s TBH & TBH
10” Tube Conveyor
Part # 9-4052-0A
Includes stainless steel hardware, coarse screen, fine screen, belts, hydraulic lines, hydraulic motor, hydraulic fittings, and hopper cover.
Compatible Models: 8650XL
We are continually adding to our line of tube conveyors—contact us to discuss how we can help you.
Spout Kit, 10” Tube Conveyor
Part # JAS2840K
Morris Auger 10”
Part # 9-4005-0A
Morris Tube, Flighting, Hopper and all SS Hardware
Compatible Models: 8435, 8630,8650
Morris Auger 7”
Part # 9-4024-0A
7" x 20' auger includes stainless steel tube, bearings, covers, brackets and hardware, poly flighting, hopper and spout.
Compatible Models: 7240, 7300
Hydraulic Kit for 10”
Morris Auger
Part # 9-4009-0K
Components of the Kit: Hydraulic Motor, Hydraulic Valve, Directional Handle
Compatible Models: 8435, 8630, 8650
Hydraulic Kit, 7”
Morris
Auger
Part # 9-4032-0A
Components of the Kit: hydraulic motor, valve, fittings, hoses, clamps, and hardware.
Compatible Models: 7240, 7300
Skid Plate L/H
Part # MD2501W
OEM # 172133
This does not include the Poly Skid Plate.
MacDon Parts
Skid Plate R/H
Part # MD2502W
This does not include the Poly Skid Plate.
Compatible Models: All FD/D Series Draper Headers (Excludes FD2 and D2 Series Headers) Case 2142/2152/2162, NH 82C/83C86C, JD 400D Series .
Shoe Weldment L/H
Part # MD2503W
OEM # 313875
Direct Replacement for the Poly Skid Plate.
Compatible Models: All FD/D Series Draper Headers (Excludes FD2 and D2 Series Headers). Case 2142/2152/2162 , NH 82C/83C86C , JD 400D Series
Shoe Weldment R/H
Part # MD2504W
OEM # 313873
Direct Replacement for the Poly Skid Plate.
Compatible models: All FD/D Series Draper Headers (Excludes FD2 and D2 Series Headers), Case 2142/2152/2162, NH 82C/83C86C, JD 400D Series
Part # MD0009P
OEM # 220446
Compatible Models: Fits CA25 (2015 and Prior) Serial # ______285420
Compatible Models: All FD/D Series Draper Headers (Excludes FD2 and D2 Series Headers). Case 2142/2152/2162, NH 82C/83C86CJD, 400D Series
Skid Plate, Center
Part # MD2505W
OEM # 313871
Direct Replacement for the Poly Skid Plate.
Compatible models: All FD/D Series Draper Headers (Excludes FD2 and D2 Series Headers), Case 2142/2152/2162, NH 82C/83C86C, JD 400D Series
Pan
Part # MD0010P
OEM # 245675
Compatible Models: Fits CA25 Serial # 28542______
Skid Shoe
Part # MD0001P
OEM # 151551
Transition Pan Skid Plate
Compatible Models: All FD/D Series Draper Headers (Excludes FD2 and D2 Series Headers), Case 2142/2152/2162, NH 82C/83C86C, JD 400D Series
Part # BRG0005W
OEM # 6506-15
Bourgault Parts
6” Primary Elbow, Dimpled
6” Primary Elbow, Smooth
Part # BRG1002A
OEM # 6504-55
100 Series Air Seeder Kit
Compatible Models: 3310, 3710, 5710, 5720, 5725, 5730, 5810, 6200, 6220, 6800, 8800, 8810, 8825, 8830, 8910, 9200, 9400, 9504, 9800 and FH Units.
6” Quick Coupler
Part # BRG1016A
OEM # 6540-18
Compatible Models: 3310, 3320, 3330, 3335, 3710, 5710, 5720, 5725, 5730, 5810, 6200, 6220, 6800, 8800, 8810, 8825, 8830, 9200, 9400, 9405, 9800 & FH Units.
6" Transfer Tube, Double Shoot Conversion
Part # BRG1018A
OEM # 6540-22
Compatible Models: 3310, 3710, 5710, 5720, 5725, 5730, & 5810.
5" Hose to 6" Pipe Coupler
Part # BRG1004A
OEM # 6540-53
Compatible Models: 5710, 5720, 5725, 5730, 5810, 6200, 6220, 6800 & 8910.
Compatible Models: 5710, 5720, 5725, 5730, 6200, 6220, 6800, 8800, 8810, 8825, 8830, 9200, 9400, 9405, 9800.
6” Secondary Elbow, Dimpled
Part # BRG0064P
OEM # 6506-21
200 Series Air Seeder Kit
Compatible Models: 3320, 3710, 5710, 5720, 5725, 5730, 6200, 6220, 6800, 8800, 8810, 8825, 8830, 9200, 9400, 9405, 9800 and FH Units
6" Transition Tube Assembly
Part # BRG1017A
OEM # 6540-17
Compatible Models: 3310, 3710, 5710, 5720, 5725, 5730, & 5810.
Part # BRG1014A
OEM # 6540-11
Bourgault Parts
5" Transition Tube Assembly
Transition Tube Double Shoot Conversion
Part # BRG1015A
OEM # 6540-25
Compatible Models: 3310, 5710, 5720, 5725, 5730, 5810, 6200, 6220, 6800, 8800, 8810, 8825, 8830, 9200, 9400, 9405, 9800, and FH Units
5” 90 Elbow
Part # BRG1011A
OEM# 6504-80
Compatible Models: 3310, 5710, 5720, 5725, 5730, 5810, 6200, 6220, 6800, 8800, 8810, 8825, 8830, 9200, 9400, 9405, 9800, FH Units, 2115 A/C, 4710/4730, 5810AHD, 8910, CD848 K Series, CD872 K Series, HD872 K Series, HD848 K Series.
Elbow Kit, Double Shoot
Addition 6 Hole Primary
Part # BRG1007K
OEM # 6506-99, 6506-61
Elbow package for double shoot units on 25' - 40' 5710's; 28' - 40' 8810's; and all 9400's. Compatibility - TBHD units with 100 series Air Seeder Kit; TBHD & LDG units with 200 series Air Seeder Kit. You will need one of this kit (BRG1007K) and one of the single shoot kit (BRG1003K) to replace the elbows on both towers.
Elbow Kit, Double Shoot 6
Hole Addition Primary
Part # BRG1008K
OEM # 6506-69
Elbow package for double shoot TBHD units on 70' - 74' 5710's with the 200 series air seeder kit. You will need one of this kit (BRG1008K) and one of the single shoot kit (BRG1003K) to replace the elbows on both towers.
Compatible Models: 3310, 5710, 5720, 5725, 5810, 6200, 6220, 6800, 8800, 8810, 8825, 8830, 9200, 9400, 9405, 9800, and FH Units.
Elbow Kit 6 Hole Primary Manifold
Part # BRG1003K
OEM # 6505-98, 6506-60
Elbow package for a 6 hole primary manifold, single shoot for all sizes / models. Compatible with TBHD and LDG carts.
Compatible Models: 3310, 3710, 5710, 5720, 5725, 5730, 5810, 6200, 6220, 6800, 8800, 8810, 8825, 8830, 9200, 9400, 9405, 9800 and FH Units.
Elbow Kit, Double Shoot
6 Hole Addition Primary
Part # BRG1006K
OEM # 6506-97, 6506-64
Elbow package for double shoot TBHD units on 47' - 64' 5710's; 60' 8810's; and all 3310's with either the 100 or 200 series air seeder kit. You will need one of this kit (BRG1006K) and one of the single shoot kit (BRG1003K) to replace the elbows on both towers.
Elbow 2.5” x 35 Primary
Head Short
Part # BRG0040P
OEM # 6505-72
Compatible models: 3310, 3320, 3330, 3335, 3710, 5710, 5720, 5725, 5730, 5810, 6200, 6220, 6800, 8800, 8810, 8825, 8830, 8910, 9200, 9400, 9405, 9800, CD848 K series, CD872 K series and FH Units
Bourgault Parts
10” Tube Conveyor for Bourgault
10" stainless steel tube conveyor; included - stainless steel tube, coarse screen, fine screen & hardware; belt, molded spout, down spout, hydraulic lines, hydraulic motor, hydraulic fittings and hopper cover. This tube conveyor is for the 6700ST cart, SN 40770AS01 - 41081AS12.
We are continually adding to our line of tube conveyors. Contact us to discuss your needs and how we can help you.
8800, 8810, 8825, 8830, 8910, 9200, 9400, 9405, 9800, CD848 K series, CD872 K series and FH Units
Elbow, 2.5 x 90°
Degree
Primary Head Short
Part # BRG0044P
OEM # 6505-74
Compatible Models: 3310, 3320, 3330, 3335, 3710, 5710, 5720, 5725, 5730, 5810, 6200, 6220, 6800, 8800, 8810, 8825, 8830, 8910, 9200, 9400, 9405, 9800, CD848 K series, CD872 K series and FH Units
Elbow,
2.5"
x 90° Primary Head Long
Part # BRG0043P
OEM # 6505-75
Compatible Models: 3310, 3320, 3330, 3335, 3710, 5710, 5720, 5725, 5730, 5810, 6200, 6220, 6800, 8800, 8810, 8825, 8830, 8910, 9200, 9400, 9405, 9800, CD848 K series, CD872 K series and FH Units
Part # BRG1019A
Parts for Bourgault
Part # EZ0010A
OEM # EZA75860
Parts For Ezee-On - Versatile
Double Shoot Manifold Assembly
Single Shoot Manifold Assembly
Part # EZ0012A
OEM # 88714515
Compatible Models: Versatile - AC315, AC400, AC600 & Ezee-On - 3215, 3315, 4280, 4400 carts.
Compatible Models: Versatile - AC315, AC400, AC600 & Ezee-On 3215, 3315, 4280, 4400 carts.
Part for Horsch
Horsch Meter Box
Part # H20100A
OEM # 1503301
Parts for Horsch
Romafa Horsch Meter Housing is made of corrosion resistant stainless steel. This meter box comes with a shut-off gate right above the roller, seals and stainless steel hardware. Compatible Models: Horsch meter housing to year 2017 350-500.
Parts for Väderstad
10” Tube Conveyor, Flip Over Hopper
Part # VD5017A
OEM # 315957
Parts for Väderstad
For the Seed Hawk C. Includes stainless tube, rollers, bearings, & hardware, belts, hydraulic lines, molded spout & down spout hose. Hydraulic motors are a separate kit (VD5043K). We also have a manual hydraulic kit (VD5031K) available. Compatible Models: 400 TBH 2011, 500 TBH/TBT 2011-2015, 600 TBH/TBT 20112015, 800 TBH 2011-2015
10” Tube Conveyor, Fixed Hopper
Part # VD5032A
OEM # 327250
For the Seed Hawk B. Includes the stainless conveyor, rollers, bearings, & hardware; belts, hydraulic lines, molded spout, down spout hose. Hydraulic motor (T00284P) is separate. We also have a manual hydraulic kit (VD5040K) available.
Compatible Models: 800 ICON 2016-2019, 980 ICON 2016-2019, 660 ICON 2016-2022.
At ROMAFA
to be treated.
✓ It is our goal to provide you with high quality OEM compatible parts for John Deere, CNH (Flexi-coil), Morris, MacDon, Bourgault, & Ezee On at competitive pricing.
✓ Our products are manufactured using durable high quality 304 stainless steel which is long lasting and corrosion resistant, reducing required maintenance.
✓ Welds are pacified to retain stainless corrosion resistance.
✓ We do our best to make sure that each customer is satisfied. Our philosophy is simple: Accept and respond quickly to the needs of our customers.
✓ We offer full 2 year warranty on stainless steel parts and dealer installed labor.
Romafa Metal Works was started in 2012 when Ronald Kornelsen left his job as a designer and embraced the venture of starting a small family business at his home, 8 miles north of Arborg, Manitoba. It started off with doing welding, machining and repair work for the local agricultural community. Ronald, who has a history of designing and prototype work in the metal industry, offered his skills and services of this nature to the needs and ideas of his customers. Marcela, Ronald’s wife, along with their children, stood together with Ronald to make this transition and business startup a success. The name ROMAFA, which comes from using the first two letters of Ronald & Marcela & Family, is a reflection of the value Ronald places on family and relationships. The Kornelsen family is a busy family; in addition to running the family business, they are always ready to reach out and minister to many other needs and opportunities, both in the local community and further abroad. God has abundantly blessed them in their lives.
