The integrated solutions for modern agricultural attached machinery
AGRO POINT HUBS
The integrated solutions for modern agricultural attached machinery
The demand of today’s agricultural market is a permanent increase in productivity and respect for the environment.
Agricultural equipment should satisfy a very rigid and demandable conditions of farmers: longer, harder and faster operating with minimal work stops.
In order to satisfy a modern tendency in agricultural equipment development, FKL has developed the AGRO POINT product line. In combination with the disc this bearing hub is designed for work in various agricultural applications.
As the climate changes, the soil gets drier and there is more dust which penetrates easily the bearing interior compared to the wetter soil. Keeping dust out of the bearing and ensuring machine reliability in extreme working conditions is our main task.
FKL AGRO POINT HUBS with a specially designed labyrinth seal and optimized internal bearing design ensure this and significantly prolong the bearing life.

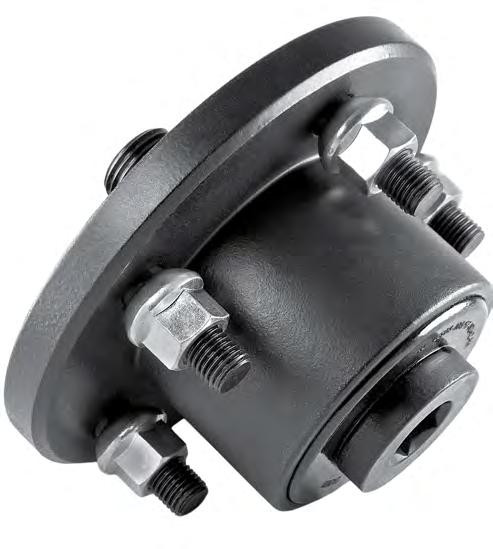

FKL offers a wide range of hubs for modern agricultural machinery. Each hub model has a certain load rating and basic dimensions, but the mounting dimensions can be adjusted to the customer’s request.

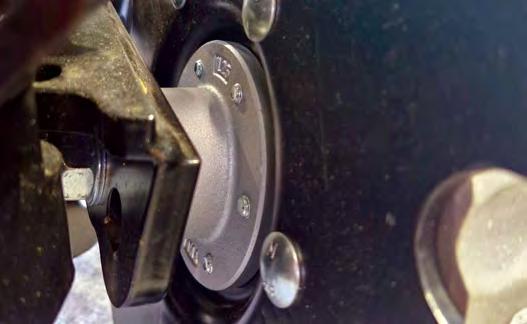

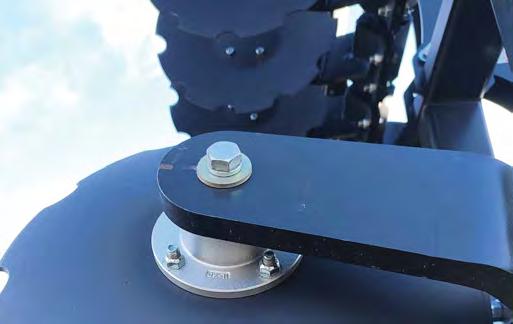

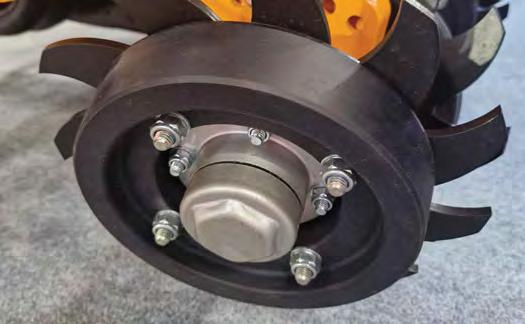

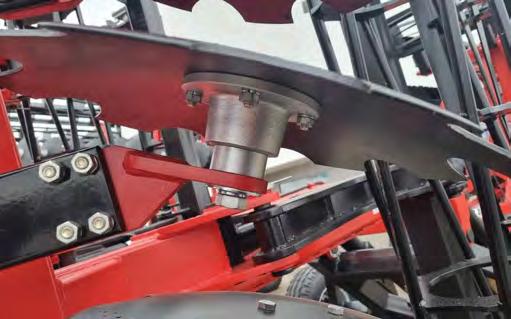

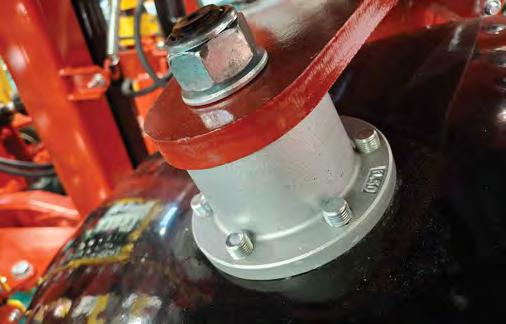

The AGRO POINT product line is designed as a long-lasting integrated solution that does not require maintenance or service and is very easy to replace after its lifetime.

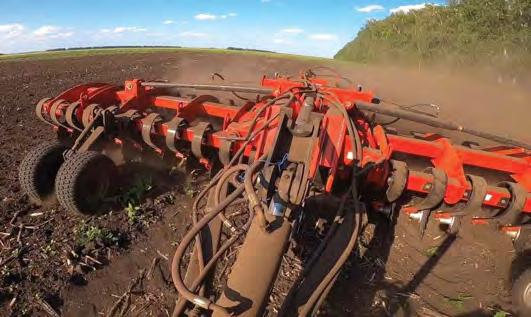

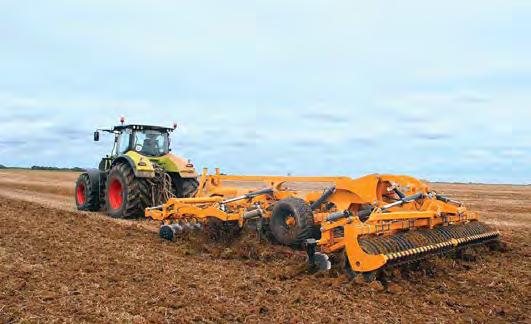

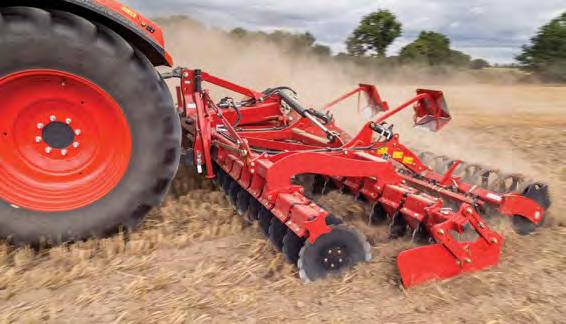

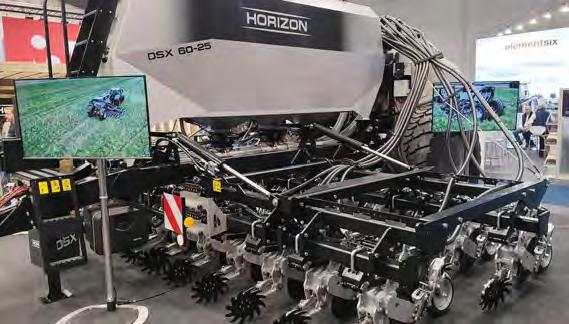

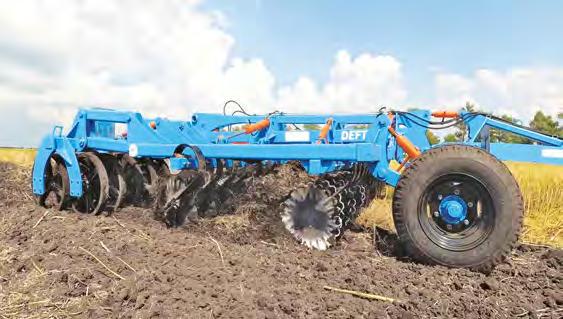

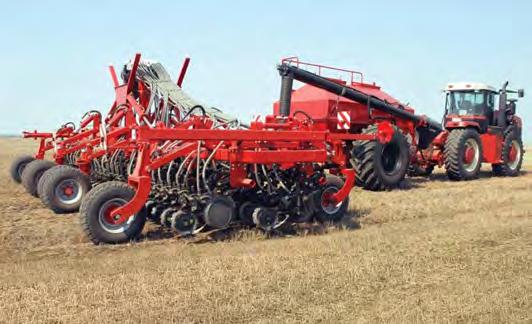

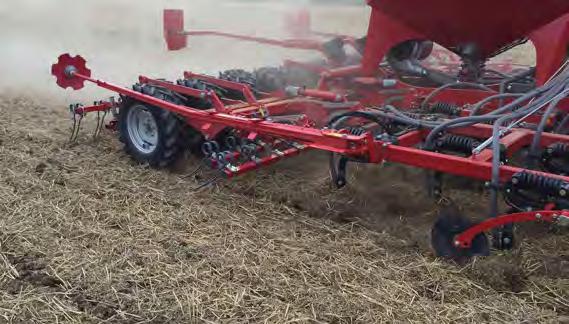

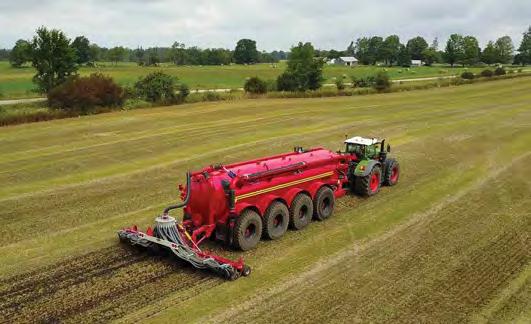

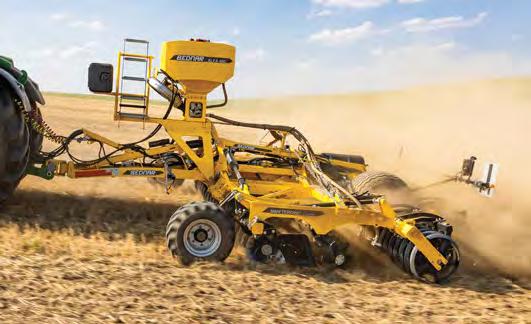

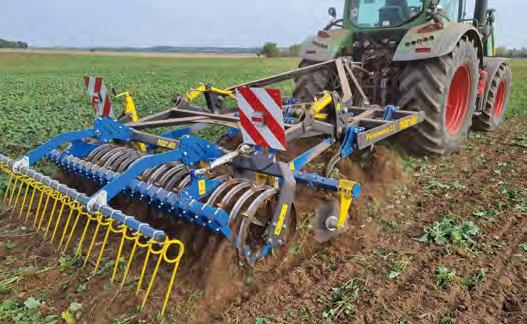

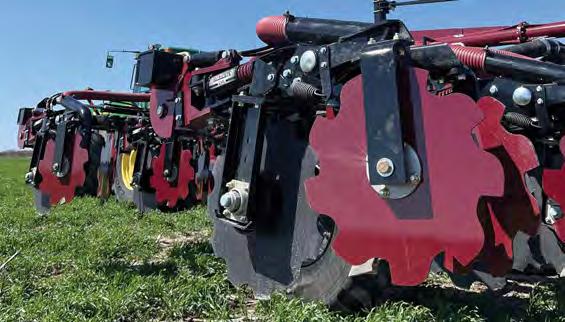

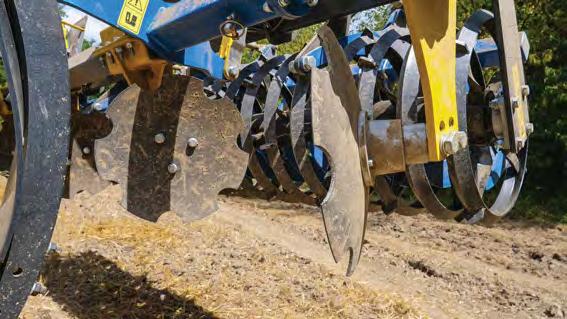

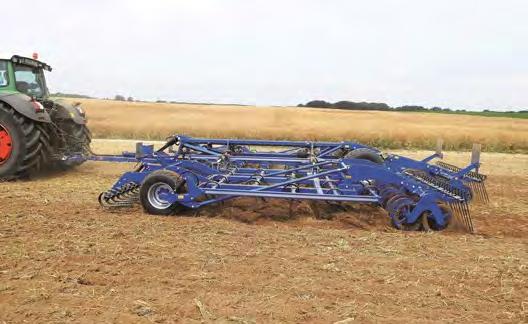

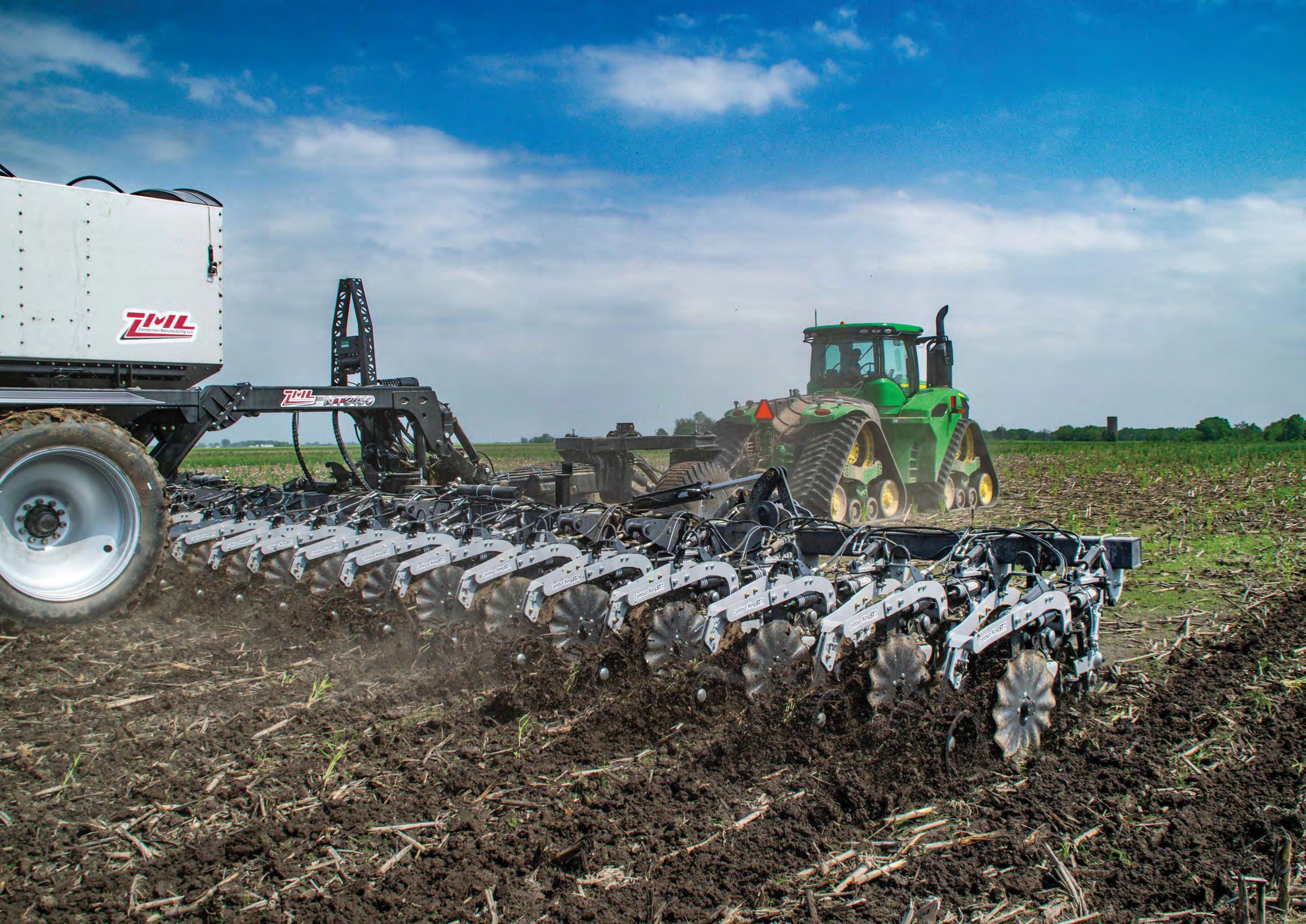

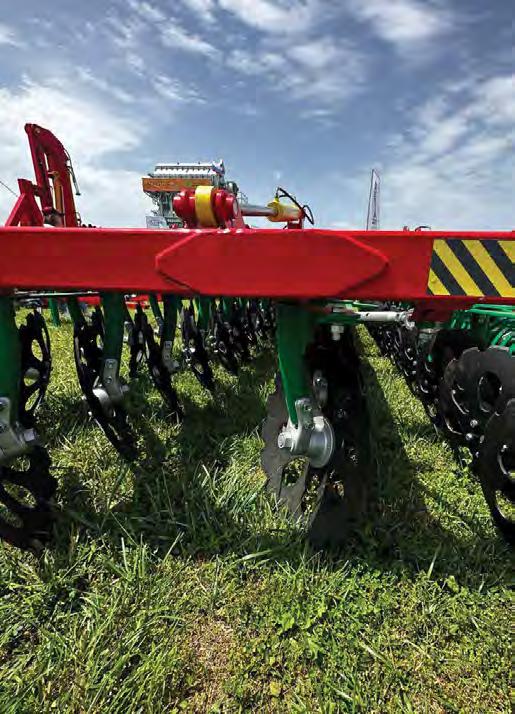

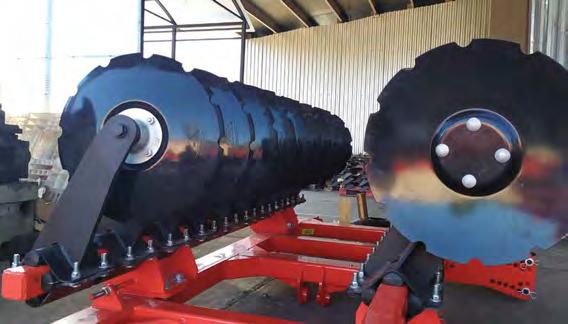

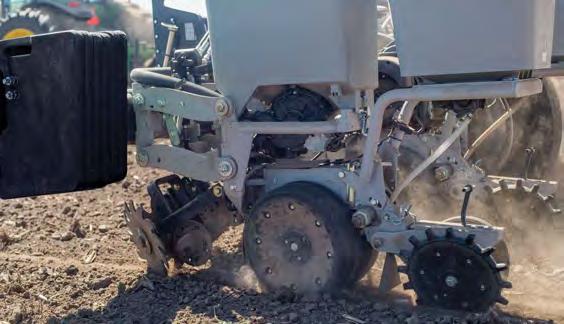

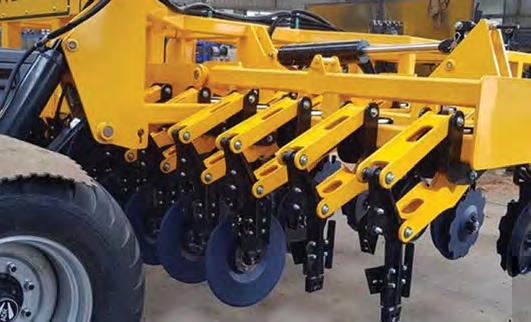

Seeding Machine, Plough, Manure Handling Machine and Disc Harrow

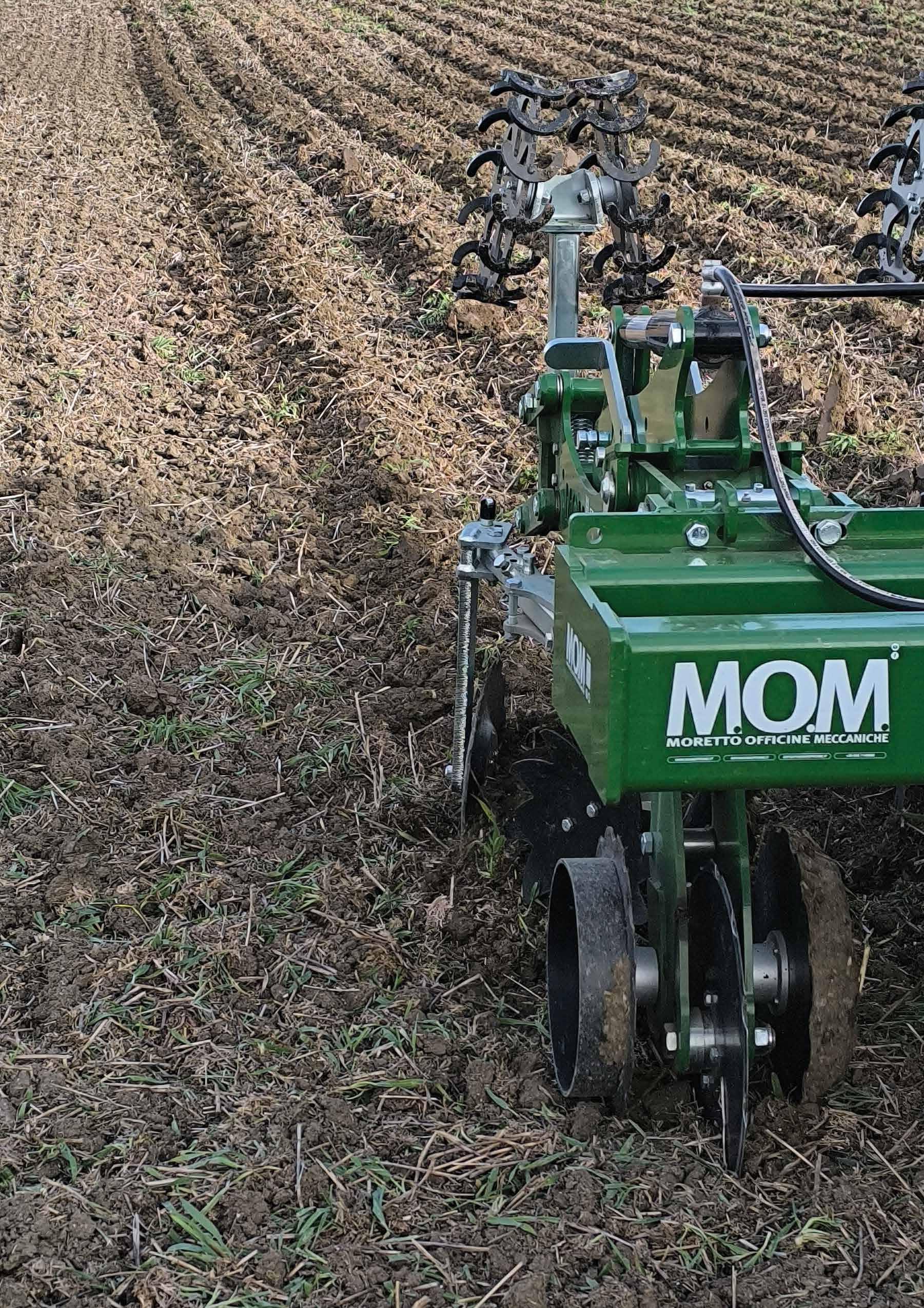

Seeding Machine, Manure Handling Machine, Bed Maker, Disc Harrow and Hemp Machines
Seeding Machine and Manure Handling Machine
Seeding Machine and Plough
Machine and Trailed Track System
Seeding Machine, Manure Handling Machine, Bed Maker, Disc Harrow and Hemp Machines

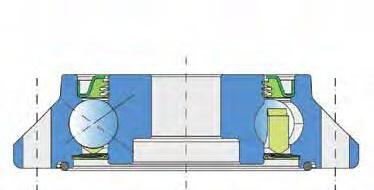

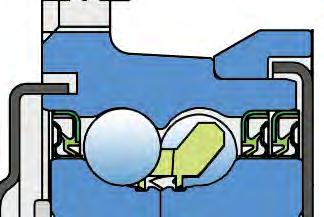

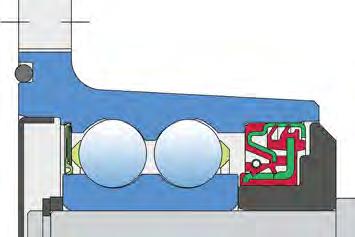

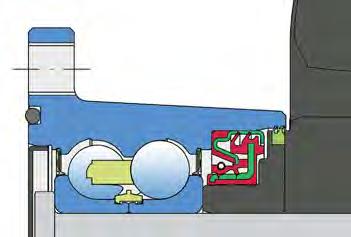

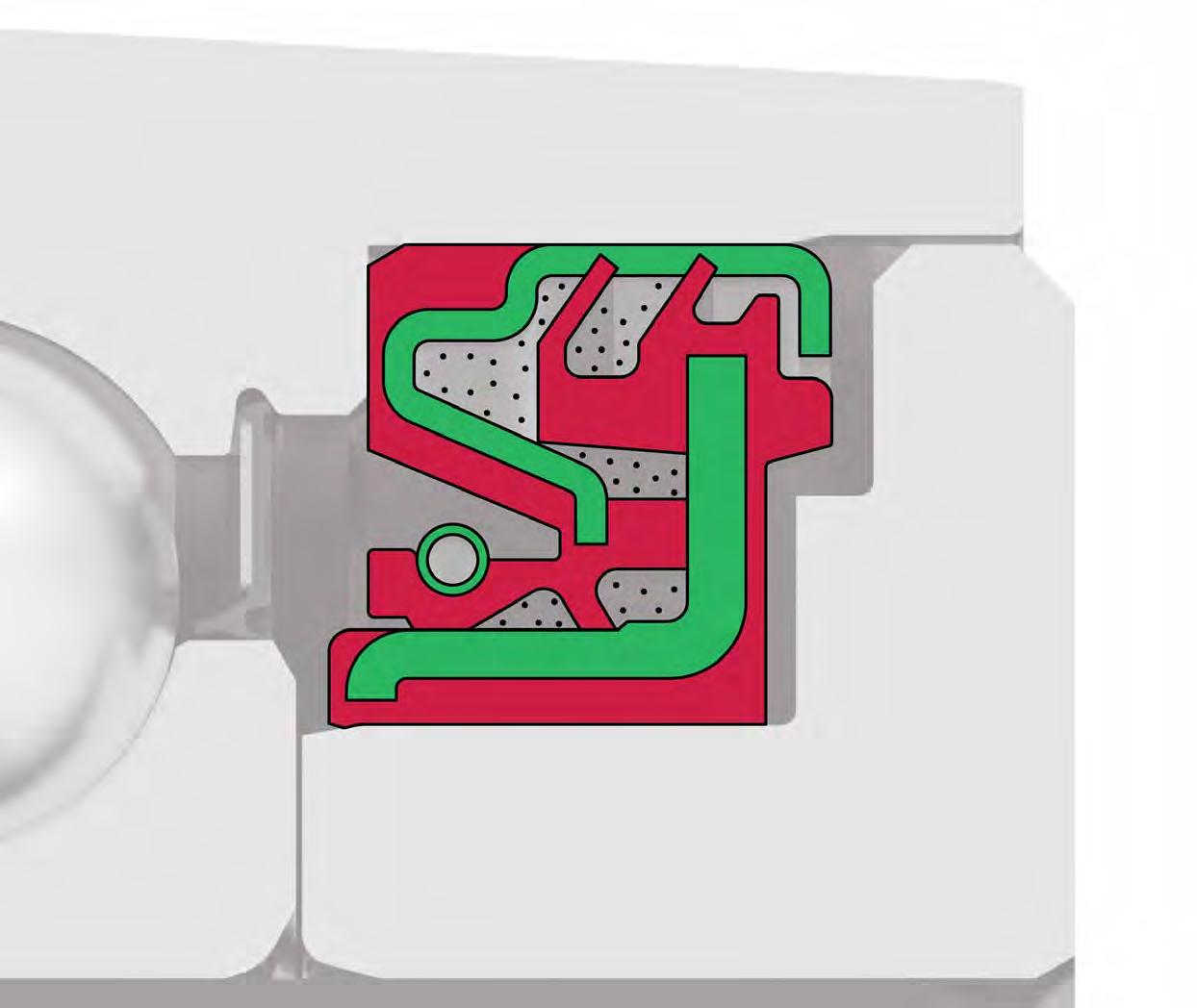

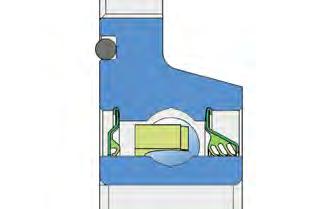

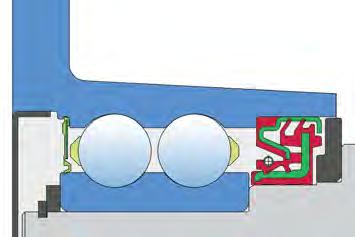

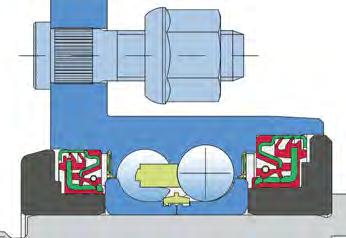

Dirtblock Seal
DESCRIPTION DESIGN

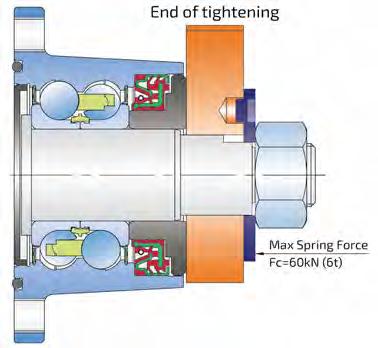

FKL Dirtblock Seal is high-durability solution created for heavy-duty applications in harsh environmental and operating conditions. It is ideal for use where grease must be held in contact with rotary shaft and bearing assemblies, while at the same time sealing against external contaminants is required.
The labyrinth design effectively prevents mud penetration and dissipates the heat produced during operation. Design of hydrodynamic aid increases the pumping rate and reduces temperature rise and rubber wear.

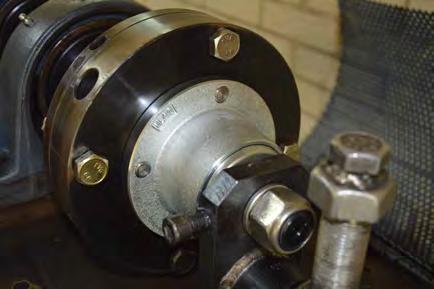

HUB Testing
FKL’s engineering-design team utilizes various tests of AGRO POINT HUBS in order to validate their performance before field testings.
Types of Testing:
-Service Life (picture 1.);
-Mud Slurry (picture 2.);
-Dust Chamber (picture 3.);
-Salt Chamber (picture 4.); -Water Chamber (picture 5.).
Testing validation of:
-Calculated bearing service time (working hours and hectares);
-Efficiency of anticorrosive protection;
-Sealing effectiveness; -Inner design;
-Durability;
-The efficiency of complete solution.

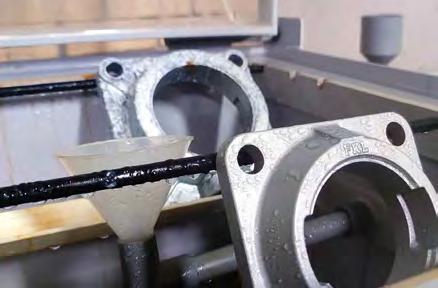

4.Salt Chamber Test
5.Water Chamber Test
1. Service Life Test

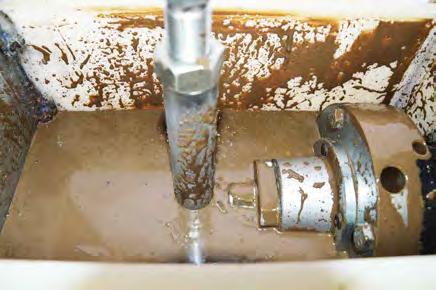

2.Mud Slurry Test
3.Dust Chamber Test
FKL AGRO POINT designation system consists of Hub type identification, connection to the disc and connection to the machine.
Type and Size
Prefixes and suffixes can be added to the basic designation of the Hubs.
Connection to the disc
Connection to the machine
Additional designation for mounting
Mounting
No mark - Without nut and washer
1 - Self locking nut+elastic washer
2 - Self locking nut+regular washer
3 - Regular nut+elastic washer
4 - Regular nut+locking washer
mark or 0 – gray paint
M - metric thread size
B - bore of the bearing
Number of holes on the flange
T - Threaded
H - Without thread
00 - Without holes
Pitch circle diameter (mm)
Size

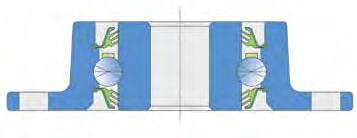

Integrated Bearing

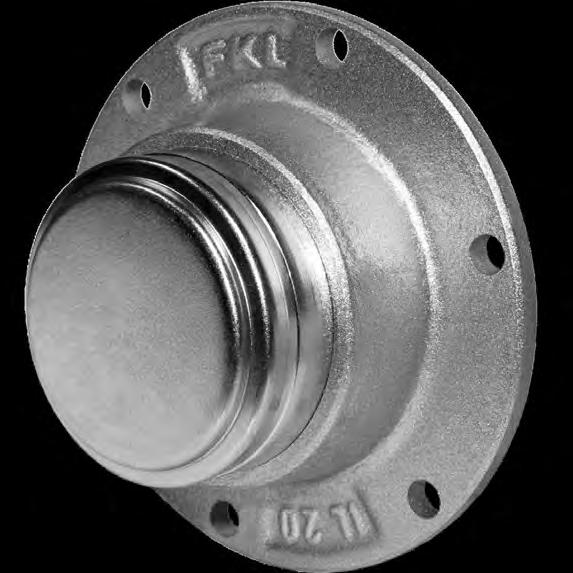

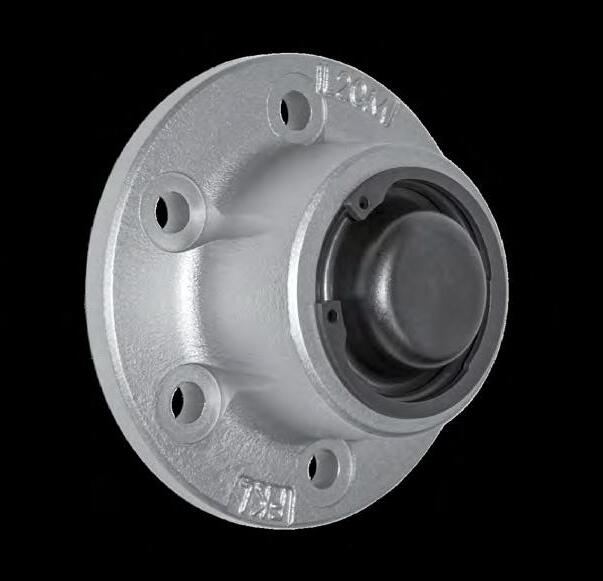

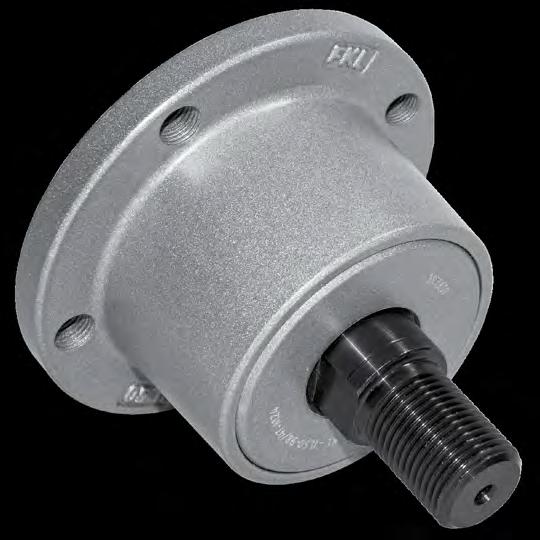

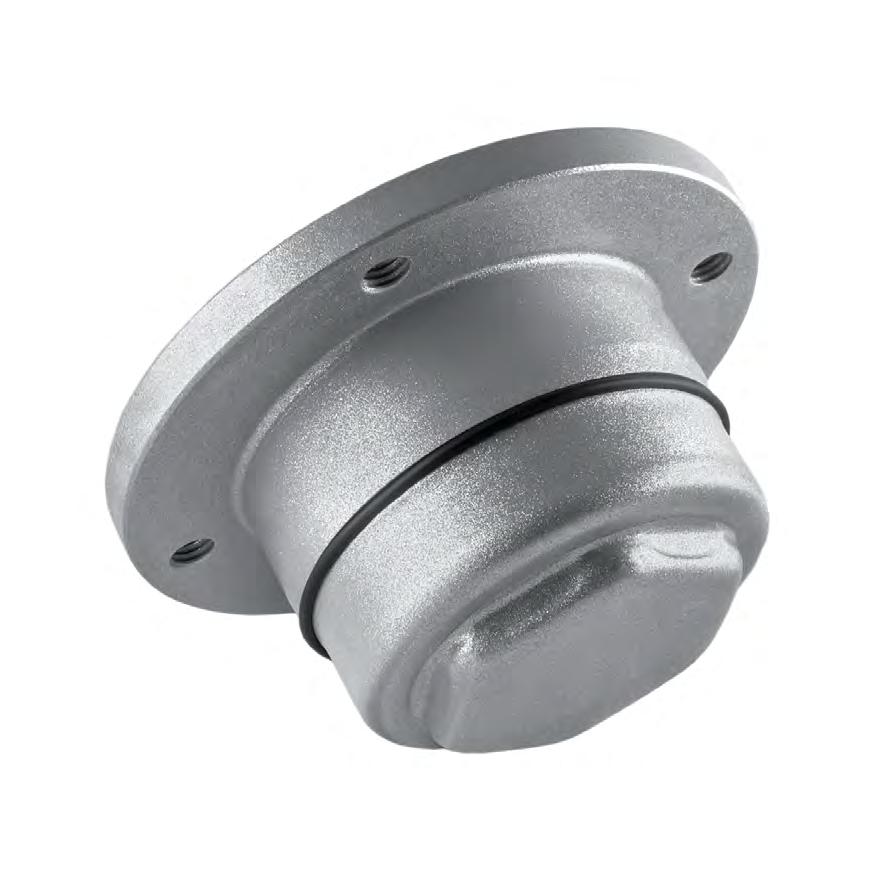

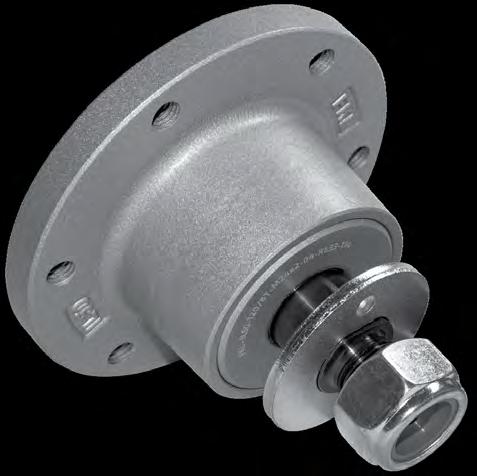

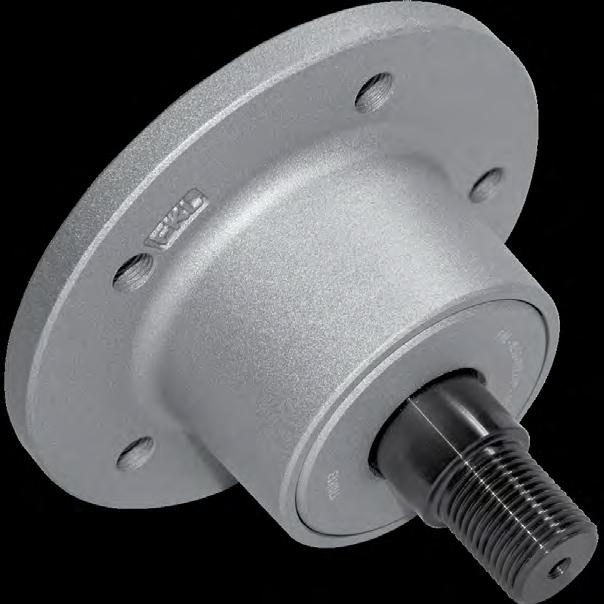

AGRO POINT IL20

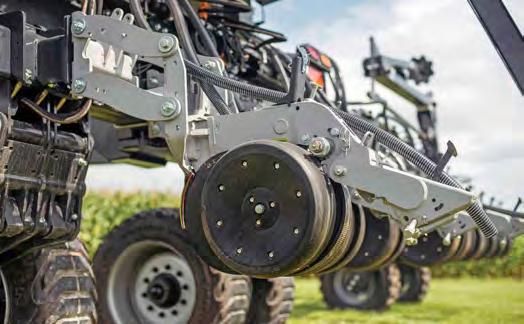

THE BEARING SOLUTION FOR SEEDING MACHINES, INTEGRATED FLANGE
PRODUCT DESCRIPTION
AGRO POINT IL20 offers improved hub solution to support producers of seeders. Optimized internal hub design, four-point contact ball bearing, with integrated flange gives the possibility for higher loads, faster and more reliable operating of seeding machines.
ADVANTAGES
-Extended product reliability.
-Forged flange increases the rigidity of the hub and prevents deformation at mounting and operating.
-Longer hub’s lifetime due to powerful sealing and higher load rating for 12% comparing to version with double row angular contact ball bearing in metal sheet housing PL-7520.
-Maintenance-free design helps reduce operating costs
-Corrosion protected flange surface.
-Hermetically pressed metal protective cap prevents penetration of dust and humidity.
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5 ÷ 20 km/h; -Temperature range: -20 ÷ +50°C; -Disc diameter: from 300 to 400 mm.
MOUNTING INSTRUCTIONS
-Rivets 6 mm or 1/4”;
-Self locking class 8 hex nuts with helical spring washer; -Required tools: Torque wrench with hexagon socket: size 24 (M16), Torque 130 Nm; size 30 (M20), Torque 200 Nm.

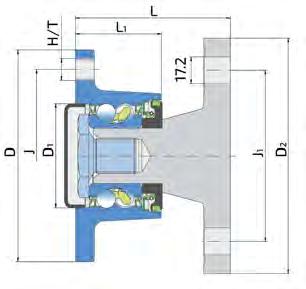

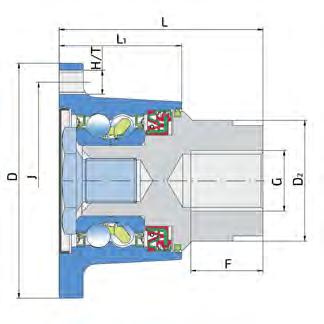

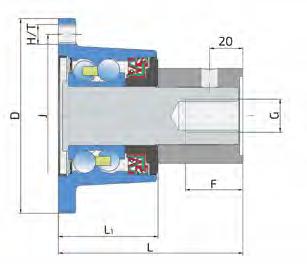

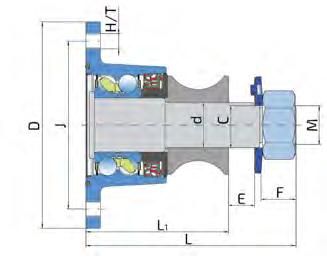

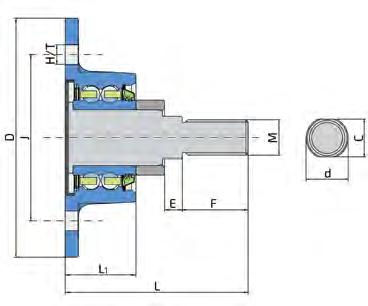

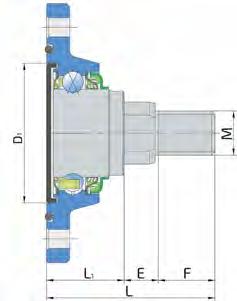

AGRO POINT IL20
THE BEARING SOLUTION FOR SEEDING MACHINES, INTEGRATED FLANGE

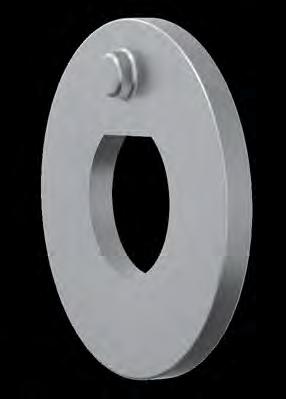

Figure 5 typeisalsoavailable withspeciallockingwasher
IL20-70/6H-74/2T-B16 70896x5.4--16.053-18.66918---0.438
IL20-70/6T-B12
IL20/305-70/6T-B16 *
IL20-71/6T-B16 71816xM8--16.03-25.5-22.5--0.512
IL20-73/6H-B16 73.5946x6.4--16-40.72427--0.751
IL20-74/6H-B20 74946x9--20-37.72418--0.481
IL20-75/6H-B16 75946x6.4--16-37.72418--0.501
IL20-75/6H-B17 75946x6.4--17-37.72418--0.501
IL20-75/6T-B17 75946xM8--17-37.72418--0.501
IL20-75/6H-B17+GK ** 75946x6.4--17-37.72418--0.751
IL20-75/6H-B20 75946x6.4--20-37.72418--0.501
IL20-76.2/6H-B16-24.608 76.2966x9.52--16.129-24.60821---0.502
IL20-79/6H-B16 79.4946x8.1--16-24-24--0.502
IL20-80/5H-M16 80945x8.52018.5-M1660.525.5-13.521.50.666
IL20-80/6H-B16 801086x16--16-44.231.518--0.701
IL20-80/6H-M16 80946x8.52018.5-M1660.525.5-13.521.50.596
IL20-80/6T-M16x2 80946xM8x1.252018.5-M16x271.638-12.421.20.736
IL20-82/5T-B16 821085xM8--16.2-24-24--0.642
IL20-85/6H-B20 85956x6.4--20-37.72418--0.481
IL20-92/5H-M16-R 921085x6.4---M16x1.5-R51.724--140.675
IL20-92/5H-M16-L 921085x6.4---M16x1.5-L51.724--140.675
* C= 34.5 kN; Co=21.8 kN ** Complete Set
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).

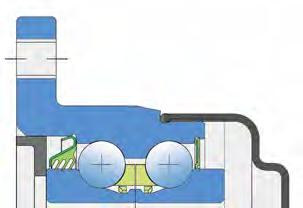

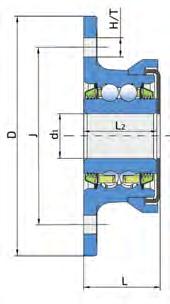

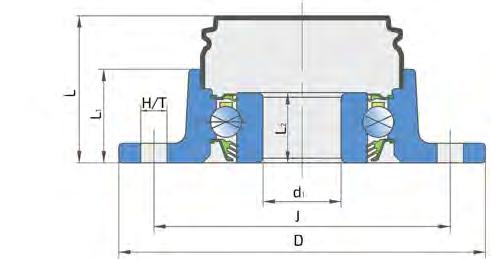

Figure 2 Figure 3 Figure 4

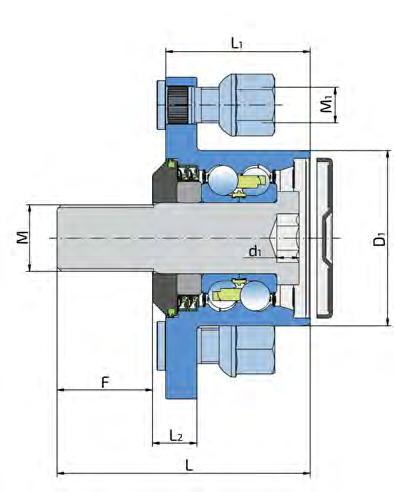

Figure 5 Figure 6 Figure 7
Figure 8

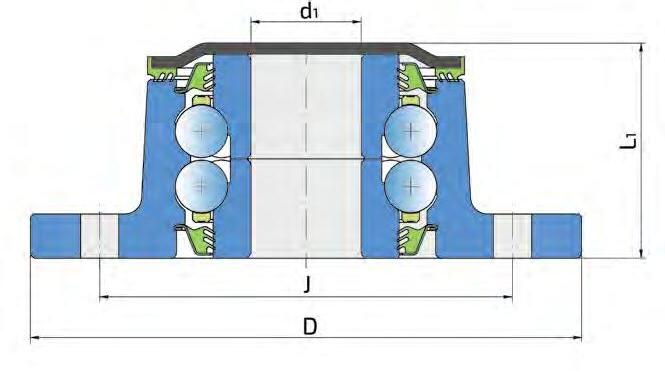

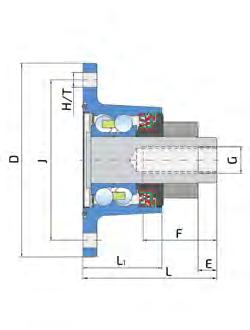

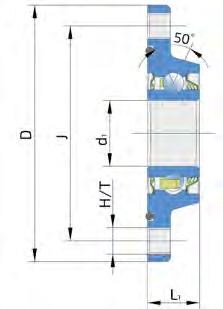

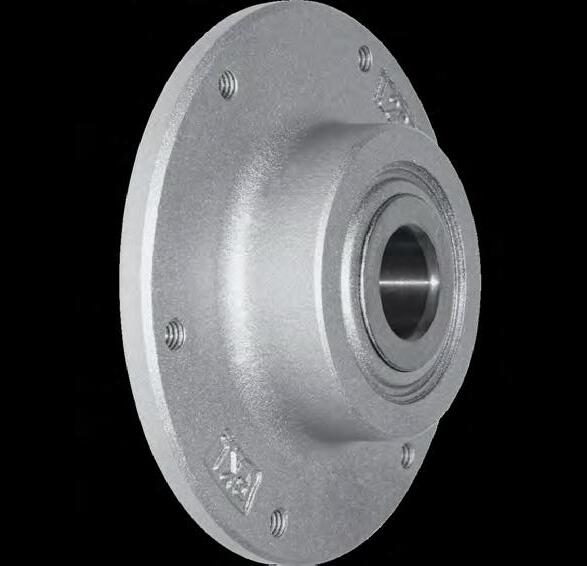

AGRO POINT IL20S
THE BEARING SOLUTION FOR SEEDING MACHINES, INTEGRATED FLANGE
PRODUCT DESCRIPTION
AGRO POINT IL20S is high-performance solution which is predominantly applied on seed drill disc openers.
Optimized internal bearing design (double-row angular contact ball bearing) with integrated flange provides a multiple service life of this bearing, higher loads, faster and more reliable operating of machines.
ADVANTAGES
-Extended product reliability.
-Forged flange increases the rigidity of the hub and prevents deformation at mounting and operating.
-Maintenance-free design helps reduce operating costs
-Corrosion protected flange surface.

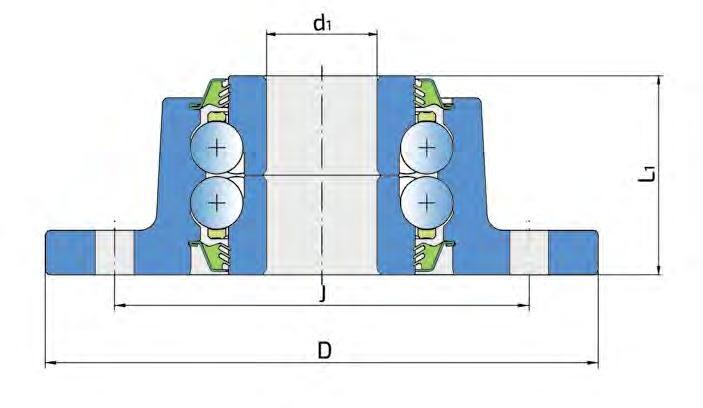

AGRO POINT IL20S
THE BEARING SOLUTION FOR SEEDING MACHINES, INTEGRATED FLANGE
IL20S-79.4/6H-B16-2T 79.41006x8.1-16--303030--0.732
IL20S-80/6H-B20
IL20S-96/6T-B20
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5 ÷ 20 km/h;
-Temperature range: -20 ÷ +50°C; -Disc diameter: from 300 to 400 mm.
MOUNTING INSTRUCTIONS
-Bolt M8x1, class 8 with helical spring washer; -Required tools: Torque wrench with hexagon socket: size 24 (M16), Torque 175 Nm.
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).
Figure 2
AGRO POINT IL25
THE BEARING SOLUTION FOR HARSH SEEDING CONDITIONS, INTEGRATED FLANGE
PRODUCT DESCRIPTION

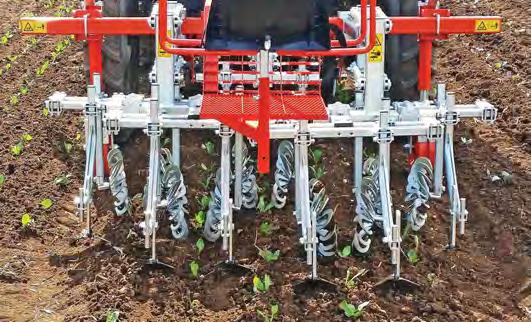

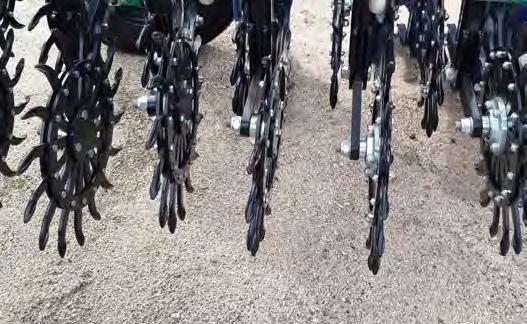

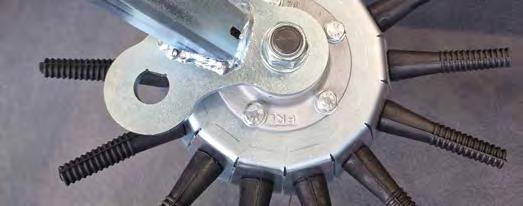

AGRO POINT IL25 is FKL‘s high-performance solution for finger weeders, no-till and strip-till seeders, coulter disc blades for seeders and marker disc blade for ploughs. The hub is greased and sealed for the lifetime of the bearing.
Optimized internal bearing design (double-row angular contact ball bearing) with integrated flange and double 3-lip sealing provides a multiple service life of this bearing, higher loads, faster and more reliable operating of machines.
ADVANTAGES
-Longer hub‘s lifetime due to powerful sealing solution.
-Forged flange provides rigidity of the hub and prevents deformation at mounting and operating.
-Maintenance-free design helps reduce operating costs.
-Corrosion protected flange.
-Easy mounting and replacement.
MOUNTING INSTRUCTIONS
-A bigger load rating for 45% and 10% than IL20 and IL30 hub ranges have, respectively.
RECOMMENDED WORKING CONDITIONS
-Bolt M8x1, class 8 with helical spring washer; -Required tools: Torque wrench with hexagon socket: size 24 (M16), Torque 175 Nm. -Tractor speed: 5 ÷ 20 km/h;
-Temperature range: -20 ÷ +50°C; -Disc diameter: from 300 to 400 mm.
Note: IL 25 is recommended for applications with an angle of attack between 6-12°.

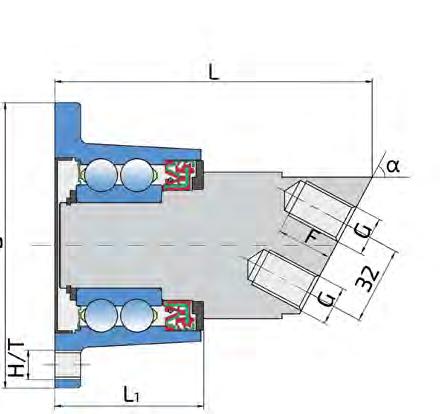

AGRO POINT IL25
IL25-75/6H-B20-T
IL25-80/5H-M16-T 801005x8.52018.5-M16733813.521.50.992
IL25-80/6T-M16-T
IL25-85/4T-B20-T 851004xM8--20--39--0.784
IL25-85/4T-M16-T
IL25-100/6T-M14x1.5-T
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).
AGRO POINT IL30
THE BEARING SOLUTION FOR HARSH SEEDING CONDITIONS AND COULTER DISCS OF PLOUGHS, INTEGRATED FLANGE
PRODUCT DESCRIPTION
AGRO POINT IL30 is reinforced version of IL20 for heavy duty seeding machines working in harsh conditions and coulter discs for ploughs as well.
It is recommended for use in NO-TILL FARMING technology, for direct seeding machines. That demand higher loads and working in harsh seeding conditions.
No-till farming implies way of growing crops without disturbing the soil through tillage.
Optimized internal hub design, four-point contact ball bearing with integrated flange, gives the possibility for higher loads, faster and more reliable operating of seeders.
ADVANTAGES
-Extended product reliability.
-Longer hub’s life span due to powerful sealing and increased load rating for 30% comparing to IL20.
-Maintenance-free design helps reduce operating costs.
RECOMMENDED WORKING CONDITIONS
AGRO POINT IL30
THE BEARING SOLUTION FOR HARSH SEEDING CONDITIONS AND COULTER DISCS OF PLOUGHS, INTEGRATED FLANGE
IL30-95/6H-M20
IL30-98/4T-B30
MOUNTING INSTRUCTIONS
-Corrosion protected flange surface. -Bolt M12x1.25 mounting torque: 100 Nm; -Nut tightening torque: 300 Nm; -Self locking class 8 hex nuts (M22 and M24) with helical spring washer; -Required tools: Torque wrench with hexagon socket: size 19 (Bolts M12x1.25); size 32 (Nut M22); size 36 (Nut M24).
-Tractor speed: 5 ÷ 20 km/h; -Temperature range: -20 ÷ +50°C; -Disc diameter: from 350 to 450 mm.
ADDITIONAL OPTIONS
-The standard seal design could be improved by triple-lip sealing on both sides or 6-lip sealing on the opposite disc side.
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).
-Aftermarket kit is also available optionally: Agro Point bearing, bolts, special locking spring washer, nut.
AGRO POINT IL35
THE BEARING SOLUTION FOR HARSH SEEDING CONDITIONS AND COULTER DISCS OF PLOUGHS, INTEGRATED FLANGE
PRODUCT DESCRIPTION
AGRO POINT IL35 is reinforced version of IL25 for finger weeders, no-till and strip-till seeders, coulter disc blades for seeders. The hub is greased and sealed for the lifetime of the bearing.
Optimized internal bearing design (double-row angular contact ball bearing) with integrated flange and combination of 3-lip sealing and RS seal with threaded metal cap provides a multiple service life of this bearing, higher loads, faster and more reliable operating of machines.
ADVANTAGES
-Extended product reliability.
-Longer hub‘s lifetime due to powerful sealing solution.
-Forged flange provides rigidity of the hub and prevents deformation at mounting and operating.
-Maintenance-free design helps reduce operating costs.
-Corrosion protected flange.
-Easy mounting and replacement.
MOUNTING INSTRUCTIONS
AGRO POINT IL35
THE BEARING SOLUTION FOR HARSH SEEDING CONDITIONS AND COULTER DISCS OF PLOUGHS, INTEGRATED FLANGE
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5 ÷ 20 km/h;
-A bigger load rating for 17% than IL25 has respectively. -Bolt M8x1.25 mounting torque: 100 Nm; -Nut tightening torque: 300 Nm; -Self locking class 8 hex nuts (M22 and M24) with helical spring washer; -Required tools: Torque wrench with hexagon socket: size 30 (Nut M20); size 32 (Nut M22).
-Temperature range: -20 ÷ +50°C; -Disc diameter: from 350 to 500 mm.
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).

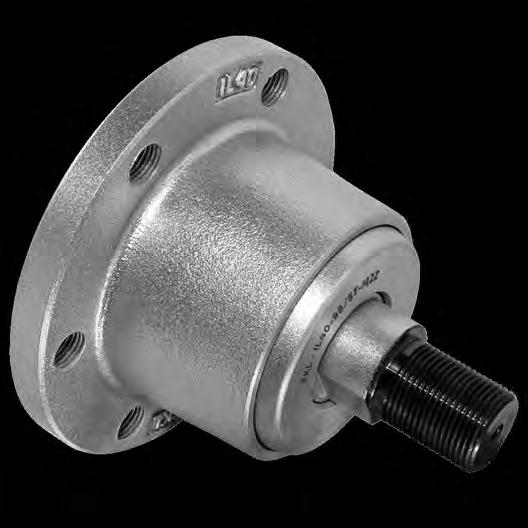

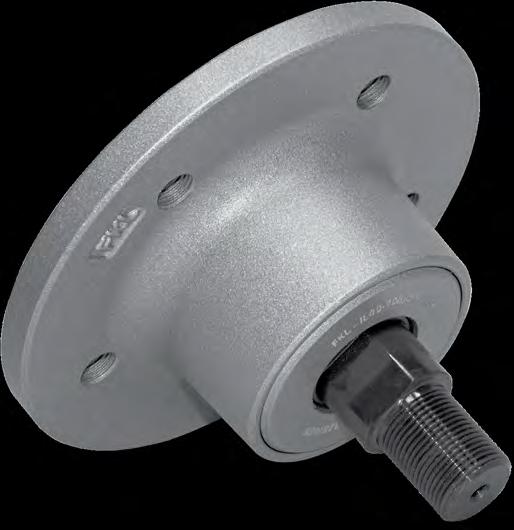

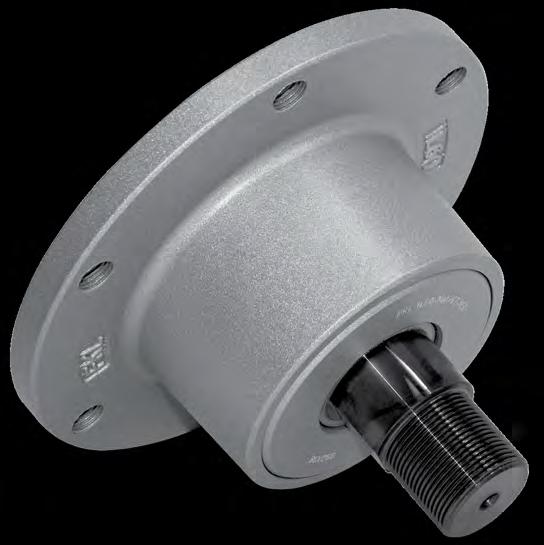

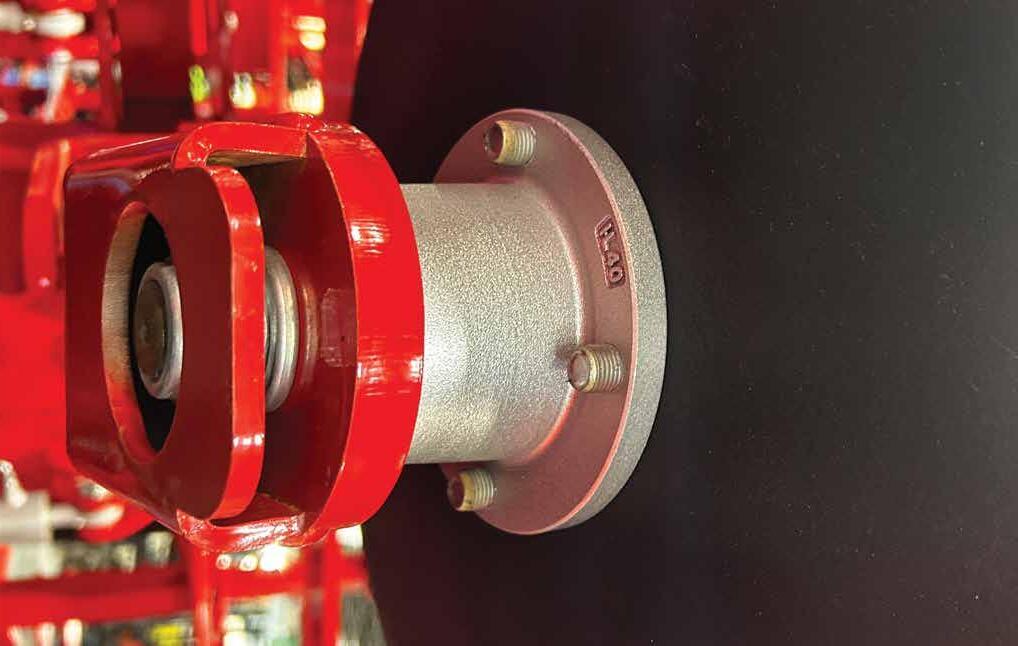

AGRO POINT IL40
INTEGRATED FLANGE, MAINTENANCE FREE BEARING
PRODUCT DESCRIPTION

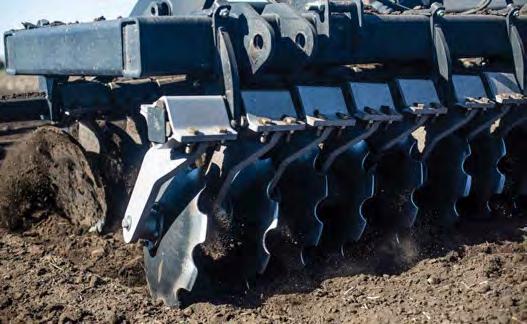

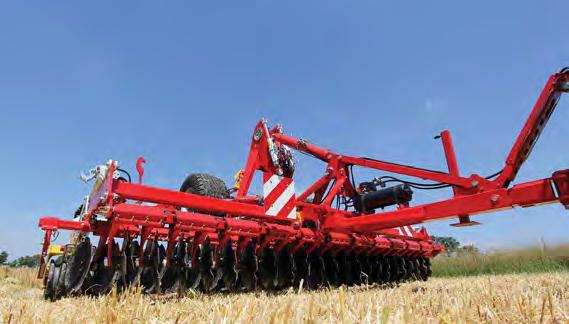

AGRO POINT IL40 is FKL‘s high performance solution for disc harrows, greased and sealed for the lifetime of the hub.
Optimized internal hub design, double row angular contact ball bearing, with integrated flange and Dirtblock sealing option provide extended service life and significantly improved contamination exclusion than the conventional solutions have.
ADVANTAGES
-Longer hub‘s lifetime due to powerful Dirtblock sealing.
-Higher impact resistance from flange side of the hub due to the thicker forged cover.
-Maintenance-free design helps reduce operating costs.
-Corrosion protected flange surface. -Easy mounting and replacement.
MOUNTING INSTRUCTIONS
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5-20 km/h; -Temperature range: -20 to +50 C; -Disc diameter: from 400 to 560 mm.
Note: for discs from 500 to 560 mm elastic suspension is mandatory.
-Bolt M12x1.25 mounting torque: 100 Nm.
-Nut tightening torque: 300 Nm.
-Self locking class 8 hex nuts (M22 and M24) with helical spring washer.
-Required tools: Torque wrench hexagon socket: size 19 (Bolts M12x1.25); size 32 (Nut M22); size 36 (Nut M24).

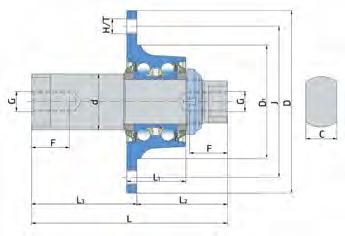

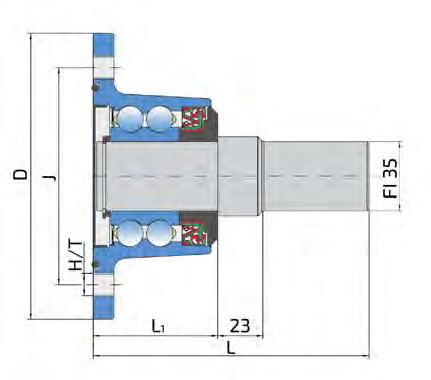

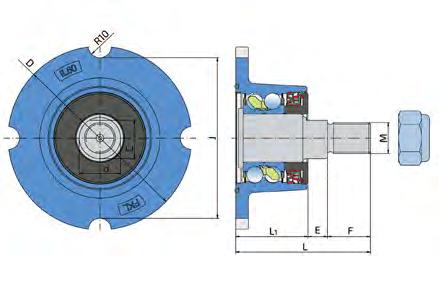

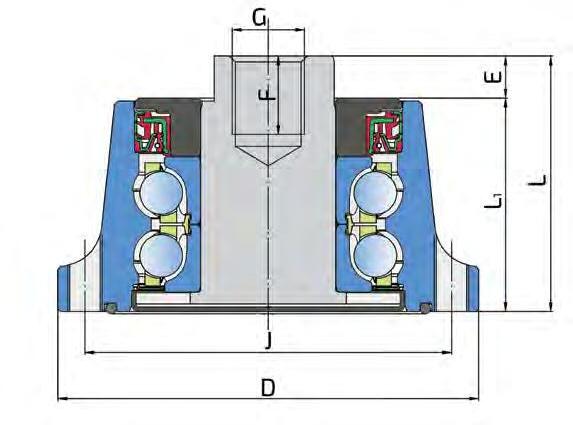

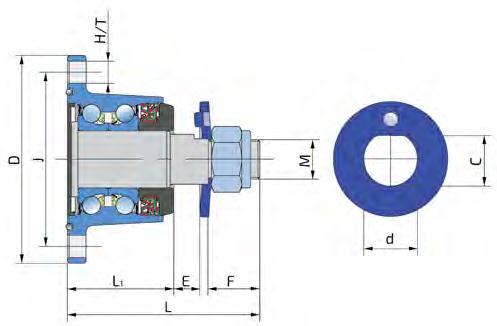

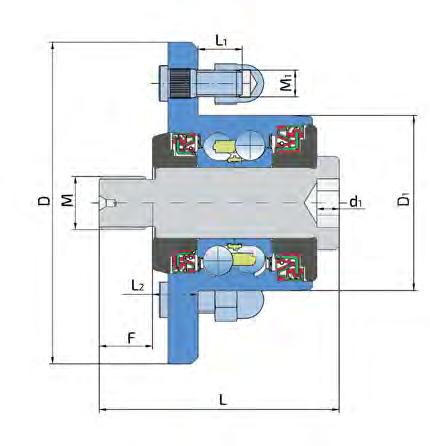

AGRO POINT IL40
INTEGRATED FLANGE, MAINTENANCE FREE BEARING
IL40-98/4T-M22 981174xM12x1.2527.9525.4M22x1.5-1026017252.162
IL40-98/4T-M22-X 981174xM12x1.2527.9525.4M22x1.5-1026015272.102
IL40-98/5T-M22
IL40-98/6T-M22
IL40-98/4T-M24
IL40-98/5T-M24
IL40-98/6T-M24
981175xM12x1.2527.9525.4M22x1.5-1026017252.162
981176xM12x1.2527.9525.4M22x1.5-1026017252.162
981174xM12x1.253027.5M24x2-1066017292.162
981175xM12x1.253027.5M24x2-1066017292.202
981176xM12x1.253027.5M24x2-1066017292.202
IL40-100/6T-M20x1.5 1001176xM103431-M20x1.5695514262.001
+ Sheet metal shield + RS seal/ RS seal + Dirtblock seal + Forged cover plate
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).
-Aftermarket kit is also available optionally: Agro Point bearing, bolts, special locking spring washer, nut.

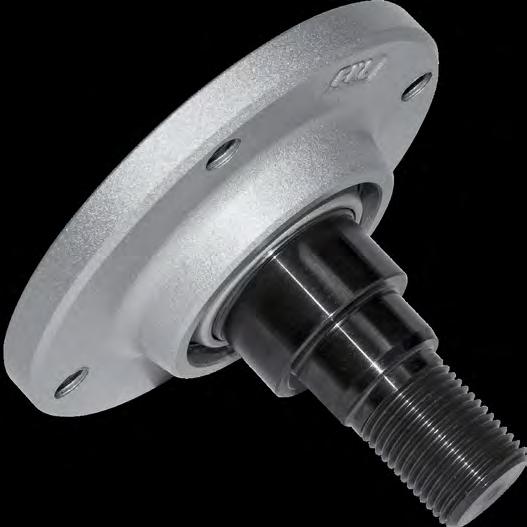

AGRO POINT IL40M
INTEGRATED FLANGE, MAINTENANCE FREE BEARING
PRODUCT DESCRIPTION
AGRO POINT IL40M is modified solution of IL40 hub for disc harrows, greased and sealed for the lifetime of the hub.
Bigger and stronger integrated flange, optimized internal hub design, double row angular contact ball bearing, with integrated flange and Dirtblock sealing option provide extended service life and significantly improved contamination exclusion than the conventional solutions have.
ADVANTAGES
-Longer hub‘s lifetime due to powerful Dirtblock sealing.
-Higher impact resistance and more robust solution than IL40 type.
-Maintenance-free design helps reduce operating costs.
-Corrosion protected flange surface. -Easy mounting and replacement.
MOUNTING INSTRUCTIONS
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5-20 km/h;
-Temperature range: -20 to +50 C; -Disc diameter: from 500 to 610 mm.
Note: for discs from 560 to 610 mm elastic suspension is mandatory.
-Bolt M12x1.25 mounting torque: 100 Nm; -Nut tightening torque: 300 Nm; -Self locking class 8 hex nuts (M22 and M24) with helical spring washer; -Required tools: Torque wrench hexagon socket: size 19 (Bolts M12x1.25); size 32 (Nut M22); size 36 (Nut M24).
AGRO POINT IL40M
INTEGRATED FLANGE, MAINTENANCE FREE BEARING
IL40-108/5T-M22x1.5
IL40-110/4H-M24x1.5 1101454x132422.5M24x1.51297420352.81
IL40-110/4H-M30x2 1101454x1334.932.4M30x21347620383.20
IL40-110/6H-M22x1.5 1101456x10.52825.4M22x1.51106017332.62
IL40-112/5T-M24x2 1121455xM12x1.53028M24x21015521252.48
IL40-115/5H-M22x1.5 1151455x132825.5M22x1.51015518282.48
IL40-120/4H-M22x1.5 1201454x112825.4M22x1.51106017332.79
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).
-Aftermarket kit is also available optionally: Agro Point bearing, bolts, speciallocking spring washer, nut.
RS
+ Sheet metal shield + RS
+ Dirtblock seal + Forged cover plate

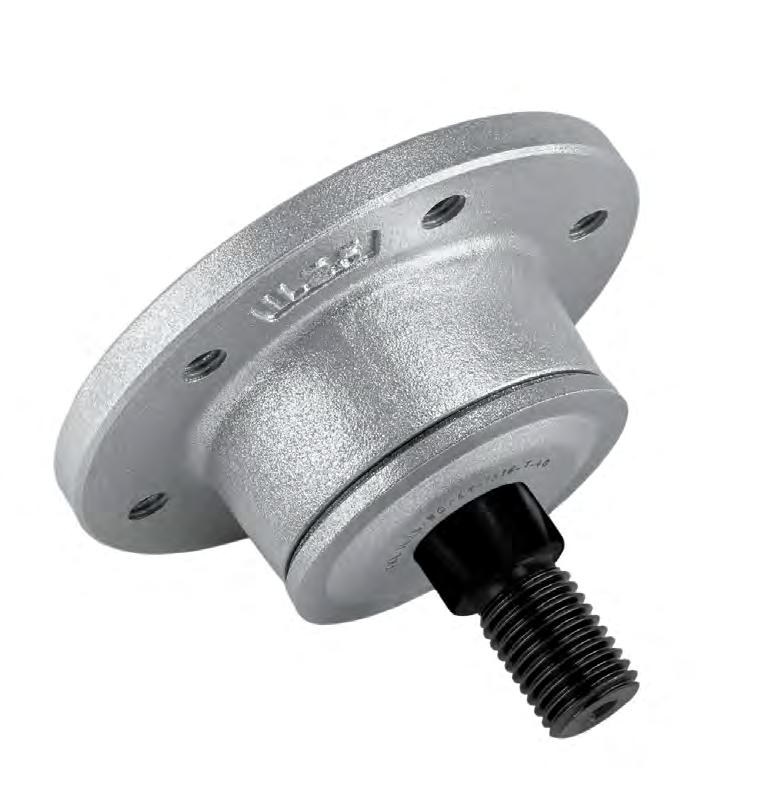

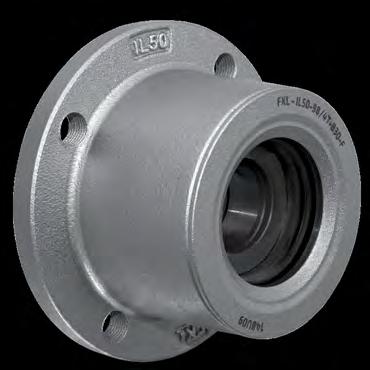

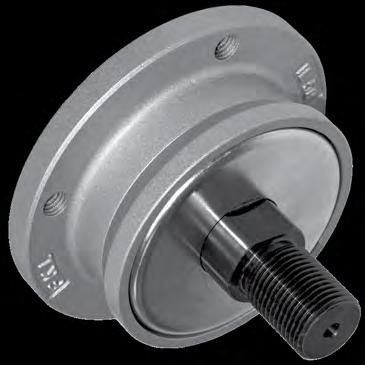

AGRO POINT IL50
INTEGRATED FLANGE, MAINTENANCE-FREE BEARING FOR INDEPENDENT DISCS
PRODUCT DESCRIPTION

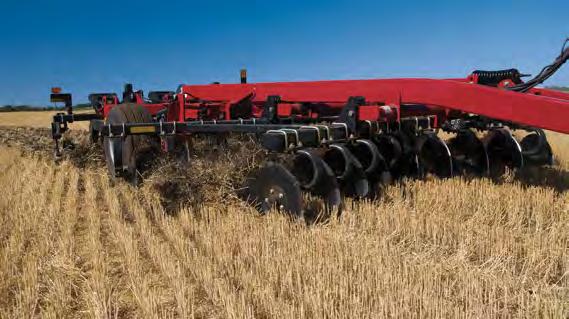

AGRO POINT IL50 is FKL’s high performance solution for disc harrows. The hubs are greased and sealed for the lifetime of the hub.
Optimized internal hub design, double row angular contact ball bearing, with integrated flange and Dirtblock sealing option provide extended service life and significantly improved contamination exclusion than the conventional solutions have.
ADVANTAGES
-Longer hub’s life span due to the powerful Dirtblock sealing and 30% higher load rating comparing to IL40 and other competitive hubs from the same range.
-Maintenance-free design helps reduce operating costs.
-Corrosion protected flange surface. -Easy mounting and replacement.
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5 ÷ 20 km/h; -Temperature range: -20 ÷ +50°C; -Disc diameter: from 560 to 710 mm.

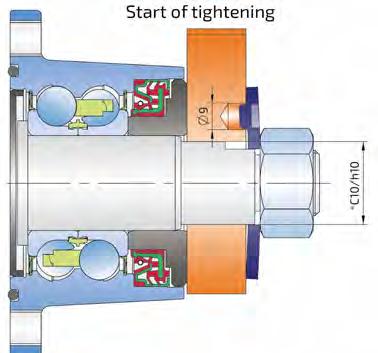

MOUNTING INSTRUCTIONS
-Bolt M12x1.25 mounting torque: 100 Nm.
-Nut tightening torque: 300 Nm.
-Self locking class 8 hex nuts (M22 and M24) with helical spring washer.
-Required tools: Torque wrench hexagon socket: size 19 (Bolts M12x1.25); size 32 (Nut M22); size 36 (Nut M24).
AGRO POINT IL50
INTEGRATED FLANGE, MAINTENANCE-FREE BEARING FOR INDEPENDENT DISCS
IL50-98/4T-M20x1.5 981174xM12x1.253025M20x1.5120.16030.123.52.571
IL50-98/4T-M22
IL50-98/4T-M22x1.5-117 981174xM12x1.2527.9525.4M22x1.51176017272.551
IL50-98/4T-M22-122-02 981174xM12x1.2527.9525.4M22x1.51228017253.151
IL50-98/5T-M22 981175xM12x1.2527.9525.4M22x1.51026017252.501
IL50-98/5Tx1.5-M22 981175xM12x1.2527.9525.4M22x1.51026017252.501
IL50-98/6T-M22 981176xM12x1.2527.9525.4M22x1.51026017252.511
IL50-98/6T-M22-113 981176xM12x1.2527.9525.4M22x1.51136028252.541
IL50-98/4T-M24 981174xM12x1.253027.5M24x21066017292.551
IL50-98/5T-M24 981175xM12x1.253027.5M24x21066017292.551
IL50-98/6T-M24 981176xM12x1.253027.5M24x21066017292.511
IL50-100/4T-1” 1001174xM103027.951”SAE14h1256036292.671
IL50-100/4T-M24x2 1001174xM103027.95M24x21256032332.661
IL50-100/5T-M22-122 1001175xM12x1.252823M22x1.51228012.529.52.871a
IL50-100/6T-M24.R 1001176xM10x1.253027M24x1.5-R97.56015.5222.511
IL50-100/6T-M24.L 1001176xM10x1.253027M24x1.5-L97.56015.5222.511
IL50-103/5T-M22 1031195xM12x1.2527.9525.4M22x1.51026017252.511
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes). -Aftermarket kit is also available optionally: Agro Point bearing, bolts, special locking spring washer, nut.

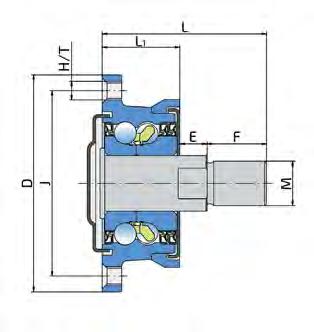

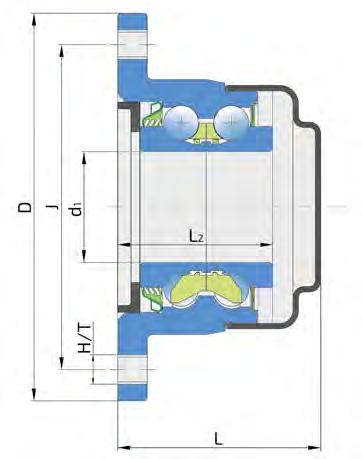

Figure
Figure 1a

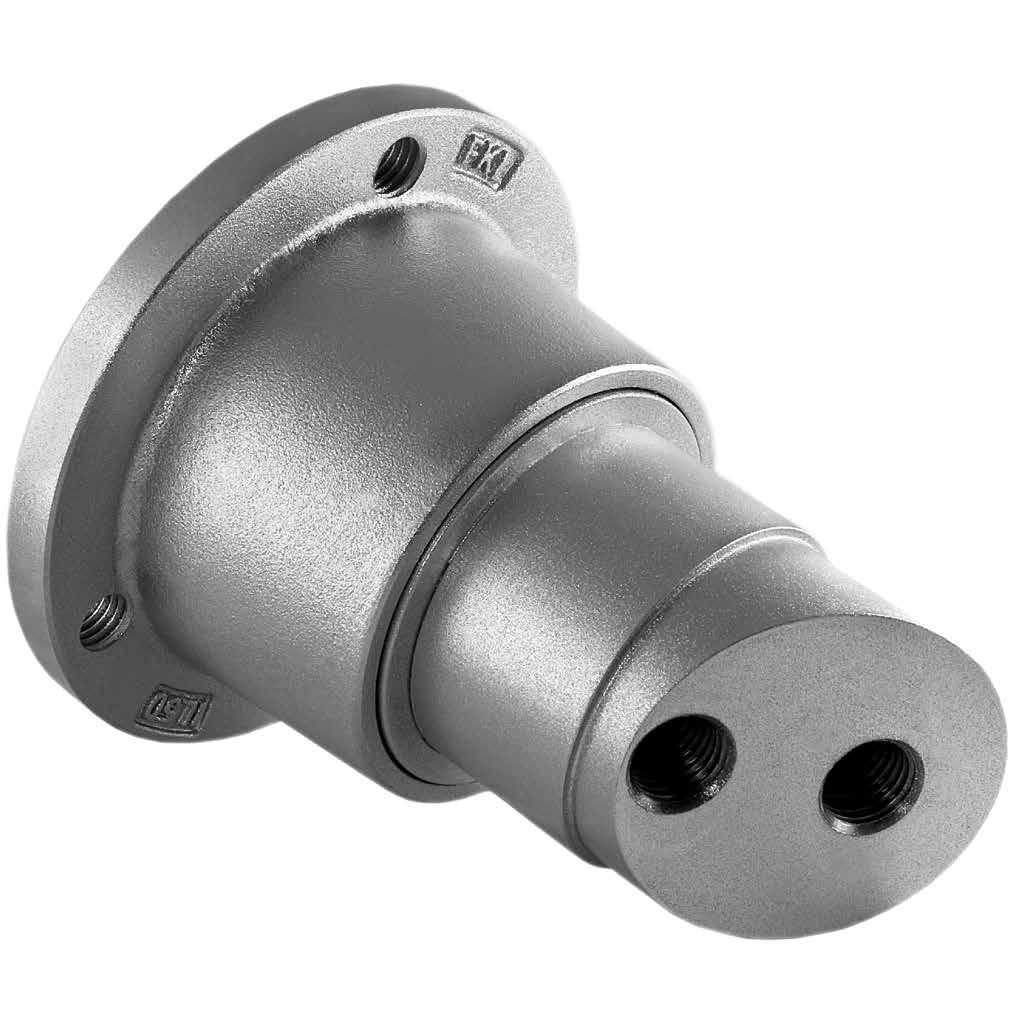

AGRO POINT IL50S
INTEGRATED FLANGE, MAINTENANCE-FREE BEARING FOR INDEPENDENT DISCS
PRODUCT DESCRIPTION
AGRO POINT IL50S is FKL’s high performance solution for disc harrows. The hubs are greased and sealed for the lifetime of the hub.
Optimized internal hub design, double row angular contact ball bearing, with integrated flange and Dirtblock sealing option provide extended service life and significantly improved contamination exclusion than the conventional solutions have.
ADVANTAGES
-Longer hub’s life span due to the powerful Dirtblock sealing and 15% higher load rating comparing to other competitive hubs from the same range.
-Maintenance-free design helps reduce operating costs.
-Corrosion protected flange surface. -Easy mounting and replacement.
AGRO POINT IL50S
INTEGRATED FLANGE, MAINTENANCE-FREE BEARING FOR INDEPENDENT DISCS
IL50S-110/4T-D35 1101454xM12x1.25-14063--3.322
IL50S-110/4T-2xM16-40 1101454xM12x1.25M16x2145.46124573.971
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5 ÷ 20 km/h; -Temperature range: -20 ÷ +50°C; -Disc diameter: from 560 to 610 mm.
MOUNTING INSTRUCTIONS
-Bolt M12x1.25 mounting torque: 100 Nm.
-Bolt M16 mounting torque: 175 Nm.
-Required tools: Torque wrench hexagon socket: size 19 (Bolts M12x1.25).
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).
-Aftermarket kit is also available optionally: Agro Point bearing, bolts, special locking spring washer, nut.
Sheet metal shield + RS seal/ Dirtblock seal + Forged cover plate
AGRO POINT IL50M
INTEGRATED FLANGE, MAINTENANCE-FREE BEARING FOR INDEPENDENT DISCS
PRODUCT DESCRIPTION
AGRO POINT IL50M is modified solution of IL50 for disc harrows. The hubs are greased and sealed for the lifetime of the hub.
Bigger and more robust flange, optimized internal hub design, double row angular contact ball bearing, with integrated flange and Dirtblock sealing option provide extended service life and significantly improved contamination exclusion than the conventional solutions have.
ADVANTAGES
-Longer hub’s life span due to the powerful Dirtblock sealing and 30% higher load rating comparing to IL40M and other competitive hubs from the same range.
-Maintenance-free design helps reduce operating costs.
-Corrosion protected flange surface. -Easy mounting and replacement.
MOUNTING INSTRUCTIONS
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5 ÷ 20 km/h; -Temperature range: -20 ÷ +50°C; -Disc diameter: from 630 to 710 mm.
-Bolt M12x1.25 mounting torque: 100 Nm.
-Nut tightening torque: 300 Nm.
-Self locking class 8 hex nuts (M22 and M24) with helical spring washer.
-Required tools: Torque wrench hexagon socket: size 19 (Bolts M12x1.25); size 32 (Nut M22); size 36 (Nut M24).
AGRO POINT IL50M
INTEGRATED FLANGE, MAINTENANCE-FREE BEARING FOR INDEPENDENT DISCS
IL50-105/4H-M24x1.5-RH 1051454x12.33027M24x1.5-RH-97.56015.5223.102
IL50-108/5T-M22x1.5-94.5 1081405xM12x1.252825.5M22x1.5-94.552.513292.642c
IL50-112/5T-M24x2 1121455xM12x1.253028M24x2-1066020263.022b
IL50-112/6Tx1.5-M24x2 1121456xM12x1.53028M24x2-1066018282.992b
IL50-112/5Tx1.5-M24x2 1121455xM12x1.253028M24x2-1066018282.992b
IL50-115/5H-M22 1151455x1327.9525.4M22x1.5-1026017252.952
IL50-115/4H-M30x2 1151454x12.53026.9M30x2-1276025423.382a
IL50-120/6H-M24x1.5 1201456x133027M24x1.5-97.56015.5222.962
IL50-120/6H-M24x1.5-103 1201456x133129M24x1.5-1036017262.992
IL50-122/6T-M20x1.5 1221456xM12x1.2531.829-M20x1.5756015262.991
IL50-127/4H-3/4-16UNF 1271454x13.531.829-3/4”–16UNF71.56011.538.12.821
O-Ring + Sheet metal shield + RS seal/ RS seal + Dirtblock seal + Forged cover plate
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes). -Aftermarket kit is also available optionally: Agro Point bearing, bolts, special locking spring washer, nut.

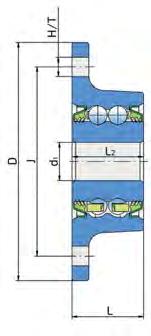

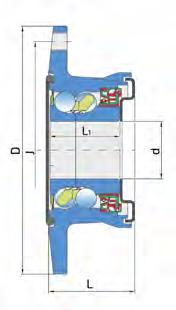

Figure 1
Figure 2
Figure 2a
Figure 2b
Double-lip seal
Figure 2c

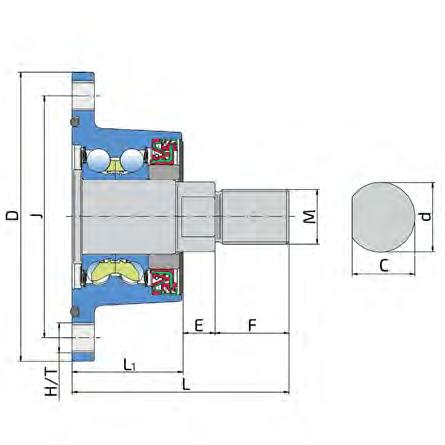

AGRO POINT IL50A
INTEGRATED FLANGE, MAINTENANCE-FREE BEARING FOR INDEPENDENT DISCS
PRODUCT DESCRIPTION
AGRO POINT IL50A is modified solution of IL50, designed for disc harrows. The hub is greased and sealed for the lifetime of the hub.
Optimized internal hub design, double row angular contact ball bearing with integrated flange and Dirtblock sealing option provide extended service life and significantly improved contamination exclusion than the conventional solutions.
The IL50A allows the D-shaped cross section on the shaft to be up to 35 mm, which enables the threaded hole in the shafts to be 3/4“ or M20.
ADVANTAGES
-Longer hub’s life span due to the owerful Dirtblock sealing and 30% higher load rating comparing to other competitive hubs from the same range.
-Maintenance-free design helps reduce operating costs.
-Corrosion protected flange surface. -Easy mounting and replacement.
MOUNTING INSTRUCTIONS
-Bolt M12x1.25 mounting torque: 100 Nm.
-Nut tightening torque: 300 Nm.
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5 ÷ 20 km/h;
-Temperature range: -20 ÷ +50°C;
-Disc diameter: from 660 to 710 mm.
-Self locking class 8 hex nuts (M22 and M24) with helical spring washer.
-Required tools: Torque wrench hexagon socket: size 19 (Bolts M12x1.25); size 32 (Nut M22); size 36 (Nut M24).
AGRO POINT IL50A
INTEGRATED FLANGE, MAINTENANCE-FREE BEARING FOR INDEPENDENT DISCS
IL50A-98/3T-M20-10.2 * 981173xM12---M2011160-323.192
IL50A-98/3T-M20-R5 * 981173xM123532.5-M206760-42.52.343
IL50A-115/4T-M30x1.5 1151454xM12x1.253330M30x1.5-1157612273.274
IL50A-120/4H-M24 1201454x113428-M241006014553.171
IL50A-120/4H-M24-95 1201454x113428-M2495609503.151
IL50A-120/4H-M20 * 1201454x113431-M201006014553.231a
IL50A-122/6H-M24x2-R616 * 1221456x123532.5M24x2-107.763.21826.53.015
IL50A-122/6T-M20x1.5 1221526xM123431-M20x1.573.56013.5402.836
*Replacement for IL50S
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).
-Aftermarket kit is also available optionally: Agro Point bearing, M12x1.25, special locking spring washer, nut.
Figure 1
Fig. 1a
Figure 2
Figure 3
Figure 6
Figure 4
Figure 5

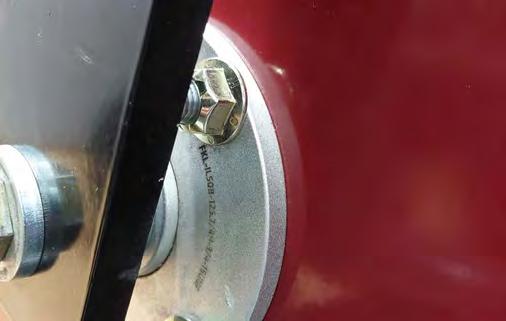

AGRO POINT IL50B
INTEGRATED FLANGE, MAINTENANCE-FREE BEARING FOR INDEPENDENT DISCS
PRODUCT DESCRIPTION
AGRO POINT IL50B is modified solution of IL50, designed for disc harrows. The hubs are greased and sealed for the lifetime of the hub.
Optimized internal hub design, double row angular contact ball bearing with integrated flange and Dirtblock sealing option provide extended service life and significantly improved contamination exclusion than the conventional solutions.
The IL50B implies mounting of the disc on the hub from hub body side i.e. on the opposite side of the usual one.
ADVANTAGES
-Longer hub’s life span due to the owerful Dirtblock sealing and 30% higher load rating comparing to other competitive hubs from the same range.
-Maintenance-free design helps reduce operating costs.
-Corrosion protected flange surface.
-Easy mounting and replacement.
MOUNTING INSTRUCTIONS
-Bolt M12x1.25 mounting torque: 100 Nm.
-Nut tightening torque: 300 Nm.
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5 ÷ 20 km/h; -Temperature range: -20 ÷ +50°C; -Disc diameter: from 660 to 710 mm.
-Self locking class 8 hex nuts (M22 and M24) with helical spring washer.
-Required tools: Torque wrench hexagon socket: size 19 (Bolts M12x1.25); size 32 (Nut M22); size 36 (Nut M24).
AGRO POINT IL50B
INTEGRATED FLANGE, MAINTENANCE-FREE BEARING FOR INDEPENDENT DISCS
IL50B-108/5T-M24x2-DIN1587-LH 1081457910M24x2-LH5xM12x1.51082020.5243.991
IL50B-120/5T-M30x2 1201457910M30x25xM16x1.51146520434.162
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).
-Aftermarket kit is also available optionally: Agro Point bearing, bolts, special locking spring washer, nut.

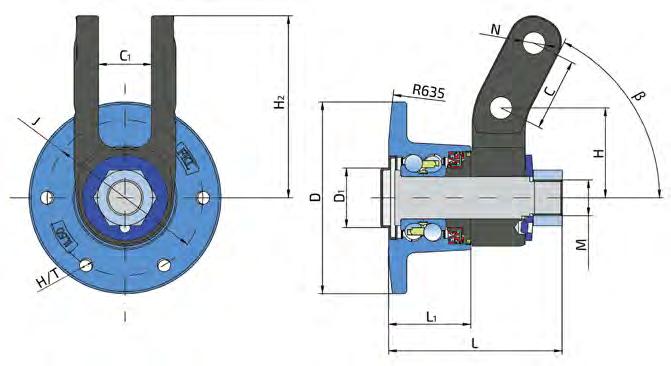

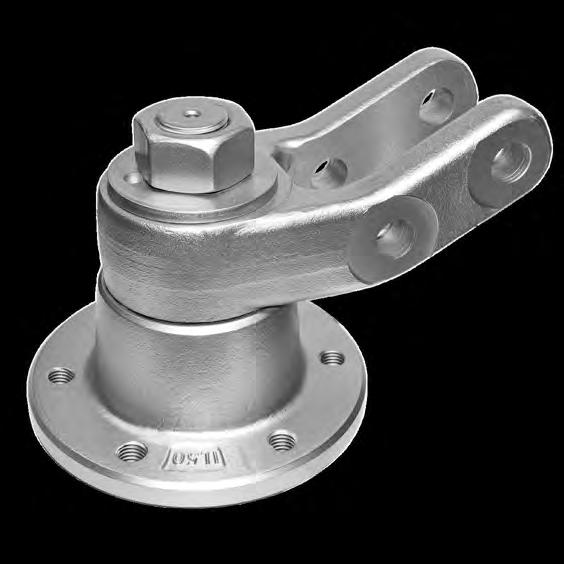

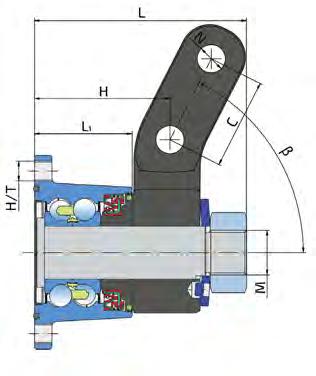

AGRO POINT IL50 WITH SOLID FORGED HOLDER
MAINTENANCE-FREE BEARING WITH INTEGRATED FLANGE FOR HARSH TILLAGE
PRODUCT DESCRIPTION
AGRO POINT IL50 WITH SOLID FORGED HOLDER is the new FKL hub with a powerful holder for the disc arm of BDM machine types.
The radius of the holder is designed to make the hub more streamlined by the soil and eliminate the effect of the soil being pressed into the hub. The cross-sectional area of the two adapter brackets in places of tension сoncentration is 705.75 mm2. This allows to solve the problem of adapter unbending and breaking even under severe overload conditions. An additional double lip seal is installed in front of the cassette seal, which prevents soil from directly entering the cassette seal and significantly increases the service life of the hub.
ADVANTAGES
-Maintenance-free design helps reduce operating costs.
-Longer hub‘s lifetime due to powerful sealing solution.
-100% control of axial clearance in production -100 % nut tightening torque control at assembly
-Precisely made forged holder provides higher strength and reliable hub mounting compared to the welded one
-The holder provides perfect protection of the hub instead of standard cover plate -Easy mounting and replacement.
AGRO POINT IL50 WITH SOLID FORGED HOLDER
MAINTENANCE-FREE BEARING WITH INTEGRATED FLANGE FOR HARSH TILLAGE
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5 ÷ 20 km/h; -Temperature range: -20 ÷ +50°C; -Disc diameter: over 710 mm.
MOUNTING INSTRUCTIONS
-Bolt M12x1.75 mounting torque: 100 Nm. -Nut tightening torque: 400 Nm -Hub is mounted on the holder of machine with M16 screws with tightening torque 175-210 (max) Nm
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).

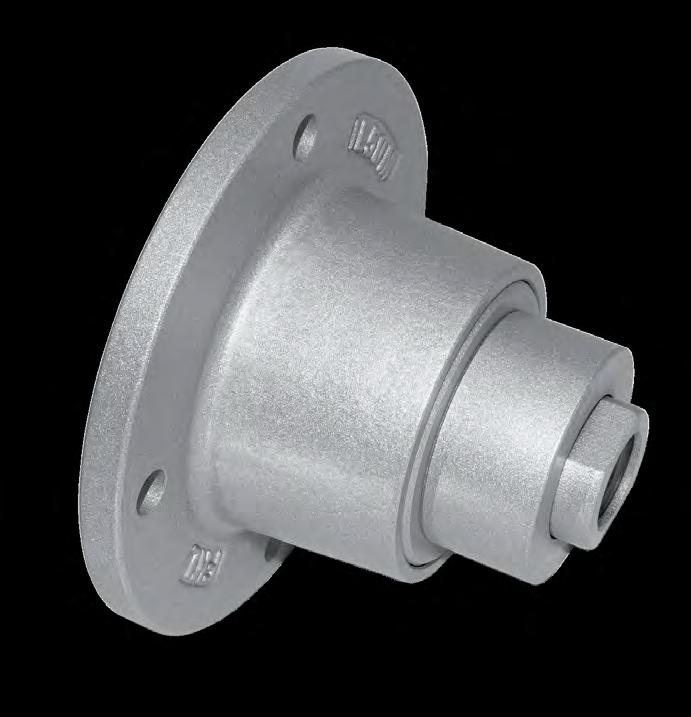

AGRO POINT IL60
MAINTENANCE-FREE BEARING WITH INTEGRATED FLANGE FOR HARSH TILLAGE
PRODUCT DESCRIPTION
AGRO POINT IL60 is designed as a heavy duty option of standard size IL50 for harsh tillage and larger disc diameter.
Combination of larger components and reliable Dirtblock seal provides the hub operating at higher loads and tillage speeds as well.
AGRO POINT IL60 with integrated flange is greased and sealed for the lifetime and with Dirtblock sealing option provide extended service life and significantly improved contamination exclusion than the conventional solutions have.
ADVANTAGES
-26% higher load rating comparing to standard hub size IL50.
-31% larger shaft diameter comparing to standard hub size IL50.
-Maintenance-free design helps reduce operating costs.
-Corrosion protected flange surface. - Easy mounting and replacement.
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5 ÷ 20 km/h; -Temperature range: -20 ÷ +50°C; -Disc diameter: over 710 mm.
MOUNTING INSTRUCTIONS
-Bolt M12x1.25 mounting torque: 100 Nm.
-Nut tightening torque: 400 Nm.
-Self locking class 8 hex nuts (M24 and M27) with helical spring washer.
-Required tools: Torque wrench with hexagon socket: size 19 (Bolts M12x1,25); size 36 (Nut M24); size 41 (Nut M27).
AGRO POINT IL60
MAINTENANCE-FREE BEARING WITH INTEGRATED FLANGE FOR HARSH TILLAGE
IL60-120/4H-M20* 120160-4x113431-M20968214144.351
IL60-122/6H-M24 122160-6x123532.5M24x2-106.56316.5274.202
IL60-120/4x12.5H-M20* 120160-4x12.53431-M2096821457.54.381
IL60-130/6T-M20x1.5 130160-6xM12x1.2534.931-M20x1.5826319403.721
IL60-130/6T-M24 130160-6xM12x1.253028M24x2-117.56324.533.54.102
IL60-130/6T-M27 130160-6xM12x1.253633.5M27x2-117.5632133.54.402
IL60-130/6T-M27x2-122.5 130160-6xM12x1.253633.5M27x2-122.5632534.54.452
IL60-130/6T-M30-03 130160-6xM12x1.254037M30x1.5-1246332294.402
IL60-130/6T-M30-112-03 130160-6xM12x1.254037M30x1.5-1126320294.402
IL60-133/4H-3/4-16UNF 133.35160-4x13.53134.9-3/4”-16UNF786315404.101
IL60-140/5T-M27 140160-5xM12x1.253633.5M27x2-117.5632133.54.402
IL60-140/5H-M30 140160-5x133532.5M30x1.5-110.56319.5264.302
IL60-140/6T-M27 140160-6xM12x1.253633.5M27x2-117.5632133.54.402
IL60-140/6T-M30 140160-6xM12x1.53532.5M30x1.5-110.56324.822.73.9712
IL60-150/6T-M24x2 150178-6xM12x1.253028M24x2-1216320.537.54.571
IL60-150/6T-M30 150178-6xM12x1.253532.5M30x2-126.56323.5404.572
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).
-Aftermarket kit is also available optionally: Agro Point bearing, bolts, special locking spring washer, nut.
Figure 1 Figure 2
Figure 2a
AGRO POINT IL70
MAINTENANCE-FREE BEARING WITH INTEGRATED FLANGE FOR HARSH TILLAGE
PRODUCT DESCRIPTION
AGRO POINT IL70 is designed as a heavy duty option of standard size IL60 for harsh tillage and larger disc diameter.
Combination of larger components and reliable Dirtblock seal provides the hub operating at higher loads and tillage speeds as well.
AGRO POINT IL70 with integrated flange is greased and sealed for the lifetime and with Dirtblock sealing option provide extended service life and significantly improved contamination exclusion than the conventional solutions have.
ADVANTAGES
- 42% higher load rating comparing to standard hub size IL60.
-7% larger shaft diameter.
-Maintenance-free design helps reduce operating costs.
-Corrosion protected flange surface.
- Easy mounting and replacement.
RECOMMENDED WORKING CONDITIONS
-Tractor speed: 5 ÷ 20 km/h;
-Temperature range: -20 ÷ +50°C; -Disc diameter: over 710 mm.
AGRO POINT IL70
MAINTENANCE-FREE BEARING WITH INTEGRATED FLANGE FOR HARSH TILLAGE
MOUNTING INSTRUCTIONS
-Nut tightening torque: 400 Nm.
-Self locking class 8 hex nuts (M30 and M33) with helical spring washer.
-Required tools: Torque wrench with hexagon socket: size 46 (Nut M30); size 50 (Nut M33).
12214044406xM12-M24x2857114264.803
IL70-170/4H-M24 17021245324x13-M241257118758.131
IL70-170/6H-M33x2 17021240376x18M30x2-1257119357.552
IL70-180/6H-M33x2 18021240376x15M30x2-1377131327.962
IL70-195/6H-M36x1.5-RH 19523540366x12M36x1.5-RH-1377210257.434
IL70-195/6H-M36x1.5-LH 19523540366x12M36x1.5-LH-1377210257.434
ADDITIONAL OPTIONS
-Design flexibility: different hole pattern is available (J parameter, type and number of holes).
- Aftermarket kit is also available optionally: Agro Point bearing, special locking spring washer, nut.
MAINTENANCE-FREE BEARING WITH INTEGRATED FLANGE FOR HARSH TILLAGE
PRODUCT DESCRIPTION
FKL Agro Point Hubs with Special Design are the result of targeted engineering development based on specific customer requirements. Designed to withstand extreme mechanical loads, contamination, and harsh field conditions, these hubs incorporate advanced sealing systems and optimized internal design. By addressing critical failure points observed in agricultural machinery, they offer superior operational reliability, extended service intervals, and reduced downtime, directly contributing to improved machine efficiency and field performance.
FKL HUBS WITH SPECIAL DESIGN
MAINTENANCE-FREE BEARING WITH INTEGRATED FLANGE FOR HARSH TILLAGE
IL40-120/6T-2xM16 120145906xM12x1.25442x22--M16x1.5155.5477283.5-30-3.081
IL50-98/4T-M30x2-164 98145-4xM12x1.2545-60M30x2-164103--1843-4.372
IL60-106/5T-2xM20 106127665xM12----2xM20106.566---27-4.4111
IL50-125/6T-M30x2-164 1251456xM12x1.2545-60M30x2-164103--1836-4.792a
IL60-115/6T-M20 115135-6xM84239.5-M39x1.5-16748--1526-4.213
IL60-115/8T-M39-M20 115135-8xM10x1.54239.5-M39x1.5-15747.9--1526-4.074
IL60-125/6T-2xM20 125145666xM122xM20106.566-27-4.8011
IL60-127/4H-04 127160-4x134132.5-M27x2-129.568.5--2528-4.615
IL60-140/5H-04 140176-5x133532.5-M27x2-14979.5--37.528-5.216
IL60-140-R10-M27+M27x2 140160--36-33.5M27x2-117.563--1737.5-4.158
IL60-145/4H-M27x2-RH-40 145180-4x17----M27x2-7H-R10876.5---30-5.487
IL60-145/4H-M27x2-LH-40 145180-4x17----M27x2-7H-L10876.5---30-5.487
IL60-163/6H-M30 163181-6x12.536-30.5M30x1.512984--2025-5.429
IL60C-150/6T-D95-RH 150195956xM16---M30x1.5-RH-1681372016--4x16.59.7410
IL60C-150/6T-D95-LH 150195956xM16---M30x1.5-LH-1681372016--4x16.59.7410
Figure 2a
Figure 1
2
3
Figure 4
Figure 9
Figure 6
Figure 10
Figure 11
Figure 5
Figure 8
C=
Figure 7

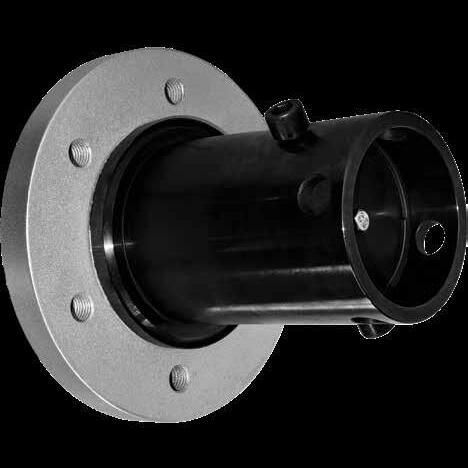

FKL HUBS WITHOUT SHAFT
MAINTENANCE-FREE BEARING WITH INTEGRATED FLANGE FOR HARSH TILLAGE
IL50-98/4T-B30-F 98117-4xM12x1.253045-61-1.871
IL50-98/4T-B30-J 98117-4xM12x1.2530--60-1.962
IL50-98/6T-B30-J 98117-6xM12x1.2530--60-1.952
IL50A-98/4T-B35-J 98117-4xM12x1.2535--60-1.773
IL50A-115/6T-B35 115140876xM12x1.2535-7463-2.894
IL50V-104/4T-B30 104145-4xM12x1.2530--41.8392.105
IL60-140/5T-B37 * 140160-5xM12x1.2537-53.445-3.416
IL60-140/6H-B35 140162-6x10.5354588.517363.867
*Adaptable IL60 for disc angle change
AGRO POINT IL50V
MAINTENANCE-FREE BEARING WITH INTEGRATED FLANGE FOR HARSH TILLAGE
IL50V-100/4T-M24x2 100117--4xM103027.5M24x2-88.541.814.7322.172
IL50V-100/6T-M20x1.5 100-119-59.26xM10---M20x1.5110.561-303.431
IL50V-110/5T-109/2H 11010913566.21505xM14x1.5----98.854.8--3.963
Figure 6 Figure 7
Figure 3 Figure 4 Figure 5

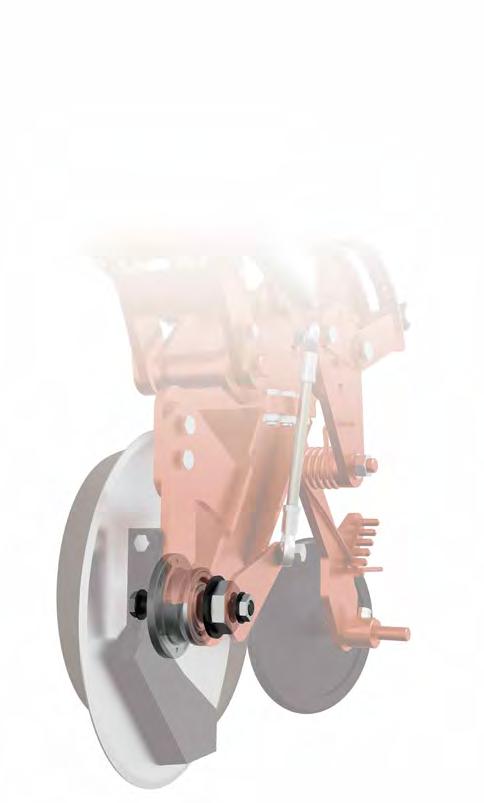

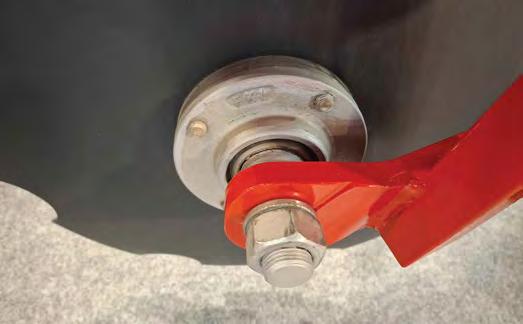

HUBS WITH LOCKING SPRING WASHER
PRODUCT DESCRIPTION
FKL Hubs for seeding and tillage equipment are designed to operate in the most difficult working conditions. The hubs are lubricated for life, sealed and protected against corrosion and therefore does not require any additional maintenance. A complex sealing system protects the hub from penetration of water and all other contaminants at all weather conditions as well as during its entire lifetime.
The special FKL spring washer prevents the shaft turning at the nut tightening and due to its spring properties provides 6 tons of axial clamping force.
MOUNTING INSTRUCTIONS
-The user must maintain the flatness of the disc arm plate within 0.2 mm on both sides. Variation of thickness must be in tolerance according to standards.
-Nuts for mounting the hub to the machine frame and the disc connection bolts must be tightened with an appropriate torque.
FKL HUBS WITH LOCKING SPRING WASHER
EFFICIENCY OF SPECIAL TIGHTENING
IL20-75/4H-M20x1.5-T-44 75944x8.525-23M20x1.56126-1520--0.771
IL20-75/6T-M20x1.5-T-44 75946xM625-23M20x1.56126-1520--0.771
IL30-85/4H-M22-04 851174x8.328-25.4M22x1.58140-1225--1.53
IL35-88/4T-04 881054x8x1.25-3024.7M22x1.51085517.8813.5--1.754
IL40-98/4T-M24x2-44 981174xM12x1.2530-27.5M24x210660-1031--2.385
IL40-98/5H-M22-04 981175x12.527.95-25.4M22x1.5108.560-1629--2.365
IL50-98/4T-M22x1.5-44 981174xM12x1.2527.95-25.4M22x1.510760-1928--2.725
IL50-98/6T-M24x2-04 981176xM12x1.7532-29.6M24x211160-2027--2.835
IL50-104/5T-04 1041455xM12x1.527.95-25.4M22x1.510760-1076015273.185
IL50-120/4T-M24x2-04 1201454xM10x1.530-27.8M24x211160-2027--3.305
IL50-120/6T-M24x2-04-R633 1201456xM12x1.7530-27.8M24x2129.263.2-3527-6333.615
IL50-120/6T-M24x2-04-R633-114 1201456xM12x1.7530-27.8M24x2114.263.2-2027-6333.535
IL50-120/6T-M24x2-04-R635-149 1201456xM12x1.7530-27.8M24x2149.263.2-5627635-3.575
IL60-130/6T-M30-04 1301606xM12x1.535-32.5M30x1.5162110-2027.01--5.542
IL60-130/6T-M27-44 1301606xM12x1.2535-32.5M27x212063-2525.7--4.325
IL60-140/5H-M30-44 1401605x1335-32.5M30x1.5110.563-1628--4.295
IL60-150/6T-M33-04 1501806xM12x1.2540-37M33x2116.563-2030--4.945
RECOMMENDATION
* Recommended Shaft and Hole tolerances according to ISO standard are C10/h10.
For basic sizes: 28÷40
C10=+0.194/+0.11
h10=0/-0.084
ADVANTAGES
-No “D” shape hole required - only two drilled holes: one hole to fit the shaft diameter and another hole with 9 mm diameter for the washer fitting.
Recommended tightening torque for the bolts:
Recommended tightening torque for nuts for the mounting to the machine frame:
-Machining the Disc Arm with a simple tool. -Provides sufficient axial force for proper hub operation throughout its lifetime.
-Proper hub installation extends signifi-cantly its lifetime.
Figure 1
Figure 5
Figure 4
Figure 2
Figure 3
Providing the Best Solutions
