BAS-6101A (2U)
• Single AMD EPYC 9005/9004 Processor
• 24x DDR5 RDIMM Slots
• 4x FHFL PCIe5.0 x16 Slots (or Dual Width)
• 2x FHHL PCIe5.0 x16, 2x HHHL PCIe5.0 x8, 1x OCP 3.0 PCIe5.0 x16 Slot
• 6x 2.5” Drive Bays, 2x M.2 Slots
• 438mm x 600mm x 88mm
SCB-1946C (2U)
• Dual AMD EPYC 9005/9004 Processors
• 16x DDR5 RDIMM Slots
• 2x Dual Width FHFL PCIe5.0 x16 Slots
• 4x PCIe5.0 x8 Expansion Module Bays
• 2x 2.5” Drive Bays, 2x M.2, 1x mSATA Slots
• 440mm x 600mm x 88mm
SCB-1953C (2U)
• Single Intel Xeon 6 Processor
• 8x DDR5 RDIMM Slots
• 2x Dual Width FHFL PCIe 5.0 x16 Slots
• 4x PCIe5.0 x8 Expansion Module Bays
• 2x 2.5” Drive Bays, 2x M.2 Slots
• 440mm x 600mm x 88mm

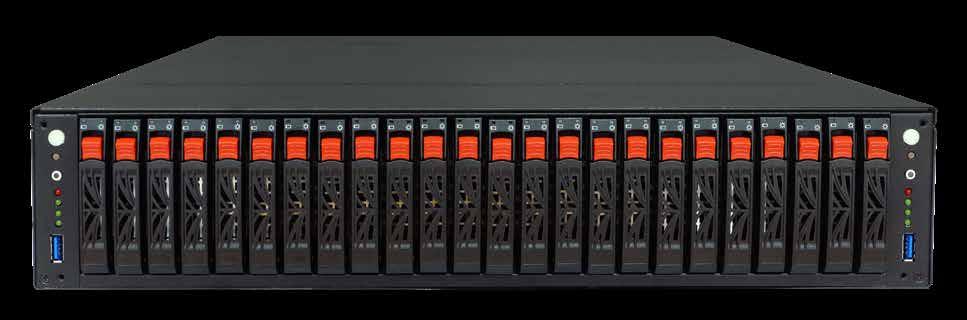

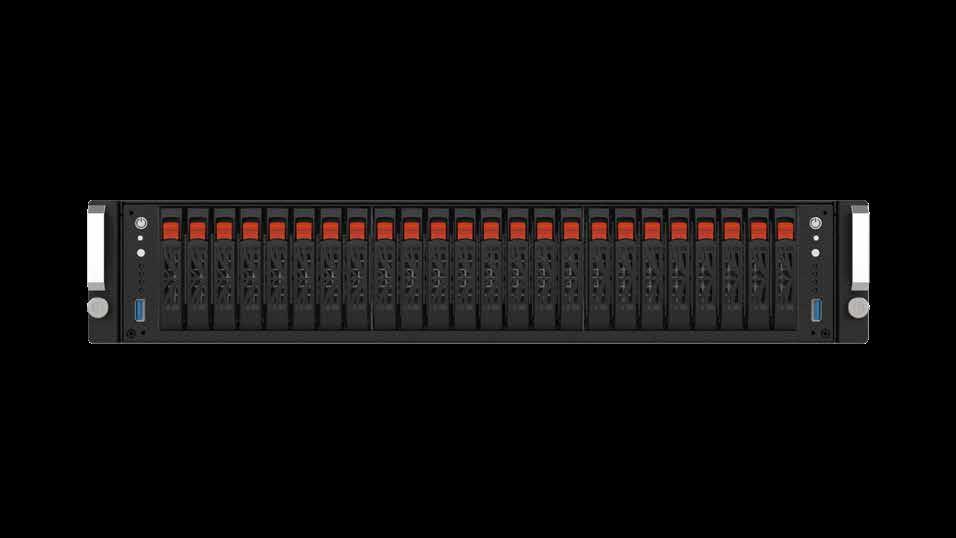

MIS-5131A-2U2 (2U2N)
• 2U-2Node, Per Node Spec:
- Single Intel Xeon 6 Processor
- 8x DDR5 RDIMM Slots
- 2x FHHL PCIe5.0 x16 Slots (or 1x Dual-Width)
- 1x HHHL PCIe5.0 x16 Slot
• 24x Dual-port NVMe Drive Bays
• 440mm x 750mm x 88mm
SCB-1947A with 8x RS118 (2U)
• Single AMD EPYC 8004 Processor
• 12x DDR5 RDIMM Slots
• 16x E1.S Drive Bays (or 8x PCIe5.0 Expansion Module Bays)
• 2x 2.5” Drive Bays, 2x M.2, 1x mSATA Slots
• 438mm x 548mm x 88mm

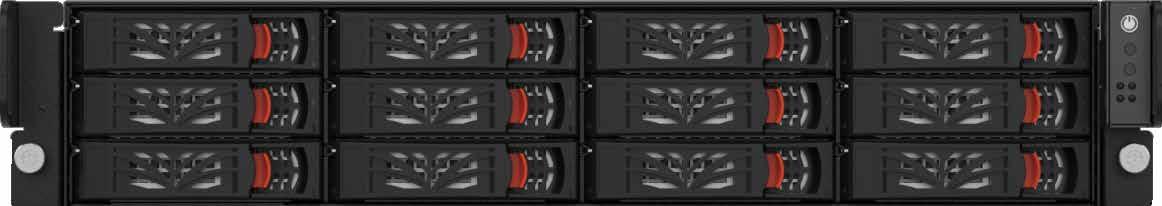

BAS-6101B (2U)
• Single AMD EPYC 9005/9004 Processor
• 24x DDR5 RDIMM Slots
• 4x FHFL PCIe5.0 x16 Slots (or Dual Width)
• 2x FHHL PCIe5.0 x16, 2x HHHL PCIe5.0 x8, 1x OCP 3.0 PCIe5.0 x16 Slot
• 12x 3.5”, 2x 2.5” Drive Bays, 2x M.2 Slots
• 438mm x 690mm x 88mm
NVMe HA Server
NVMe Server
Storage Server
BIS-5231-2U (2U)
• Dual Intel Xeon 6 Processors
• 16x DDR5 RDIMM Slots
• 4x FHFL PCIe5.0 x16 + 2x FHHL PCIe5.0 x16 + 2x LP PCIe5.0 x8 slots
• 1x OCP3.0 PCIe5.0 x16 Slot
• 12x 3.5”/U.2 Drive Bays
• 4x 10G RJ45
• 440mm x 670mm x 88mm

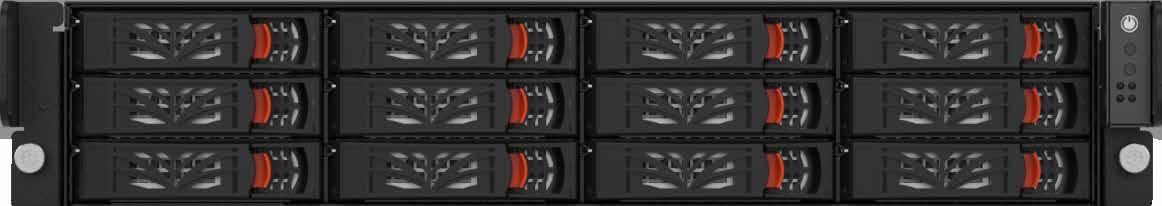

BIS-5132-2U (2U)
• Single Intel Xeon 6 Processor
• 8x DDR5 RDIMM Slots
• 6x FHHL PCIe x16 (4x PCIe5.0, 2x PCIe4.0), 2x HHHL PCIe5.0 x8
• 2x 10G RJ45
• 12x 3.5”, 2x 2.5” Drive Bays
• 440mm x 670mm x 88mm

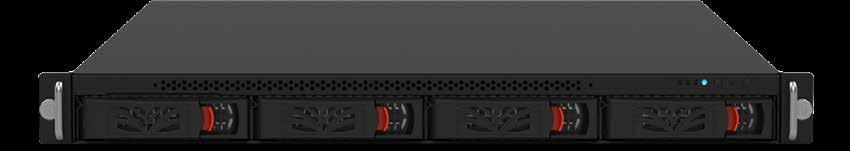

BIS-5132-1U (1U)
Network Appliance
• Single Intel Xeon 6 Processor
• 8x DDR5 RDIMM Slots
• 4x 3.5” Drive Bays, 2x FHHL PCIe5.0 x16, 1x LP PCIe5.0 x8
• 438mm x 700mm x 44mm
SCB-1945 (1U)
• Single AMD EPYC 8004 Processor
• 12x DDR5 RDIMM Slots
• 4x PCIe5.0 x8 Expansion Module Bays
• 3x SATA, 2x M.2, 1x miniPCIe
• 438mm x 548mm x 44mm
SCB-1836 (1U)
• Single 14th Gen Intel Core Processor and Intel Core (BTL-S) Processor
• 4x DDR5 UDIMM Slots
• 2x PCIe5.0 x8, 2x PCIe4.0 x8 Expansion Module Bays
• 3x SATA, 1x mSATA Slots
• 400mm x 510mm x 44mm
SCB-1742 (1U)
• Single AMD AM5 Ryzen 9000/7000 or AMD EPYC 4005 Processor
• 4x DDR5 UDIMM Slots
• 4x 2.5G RJ45, 6x 1G RJ45 (optional 2x SFP)
• 2x PCIe4.0 Expansion x8 Module Bays
• 2x 2.5” Drive Bays, 1x M.2 Slot
• 440mm x 450mm x 44mm

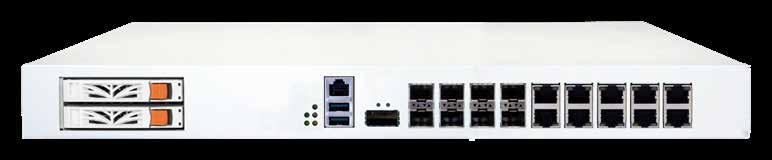

SCB-1749 (1U)
• Single Intel Atom P6000 processor SoC (Grand Ridge)
• 2x DDR5 UDIMM Slots
• 1x 100G, 8x 25G, 4x 10G, 4x 2.5G, 2x 1G
• 1x PCIe4.0 Expansion x8 Module Bay
• 2x 2.5” Drive Bays, 1x M.2 slot
• 438mm x 400mm x 44mm
AEWIN Technologies, a member of designed networking platforms and servers. With 20+ years of experience, we has extensive knowledge in building performant and reliable systems.
We offer flexible/modular design and speedy customization services to help ISV customers time-to-market and save engineering cost. Committed to meeting ISVs’ stringent requirements and being a long-term trusted partner.
