2024 AEWIN AI-Powered Security catalog

AEWIN Technologies, a member of Qisda Business Group, provides smartly designed networking platforms for customers of any scale. With 20+ years of experience building high performance network forwarding platforms, AEWIN has extensive knowledge in building secure and reliable systems trusted by some of the top Network Security experts as the foundation of their network solutions. We offer products featuring the full range of Intel and AMD processors for wide range of applications. AEWIN can be your hardware partner with flexible design and customization options to meet your stringent requirements.

●

●

●

●

Edge Computing Server

SCB-1932C

* Support AEWIN proprietary network expansion module.

**FH3/4L supports around 267mm length

2U Edge Computing Server

Dual 3rd Gen Intel Xeon Scalable Processors (Ice Lake-SP), up to 80 cores

16x DDR4 RDIMM memory, up to 3200 MHz

2x Dual Width FH3/4L** PCIe Gen4 slots, 4x PCIe Gen4 Expansion Module bays*

2x RJ45 1GbE ports

2x 2.5” SATA, 2x M.2 M Key, 1x mSATA

2x CRPS(Commodity Dependent)

440mm (W) x 600mm (D) x 88m (H)

2U Edge Computing Server

Dual 5th/4th Gen Intel Xeon Scalable Processors (Emerald Rapids-SP/Sapphire Rapids-SP), up to 128 cores

16x DDR5 RDIMM memory, up to 5600 MHz

2x Dual Width FHFL PCIe Gen5 x16 slots, 4x PCIe Gen5 Expansion Module bays*

2x RJ45 1GbE ports

2x 2.5”SATA, 2x M.2 M Key, 1x mSATA

2x CRPS(Commodity Dependent)

440mm (W) x 600mm (D) x 88m (H)

Edge Computing Server

SCB-1946C

2U Edge Computing Server

CPU Memory Expansion Slot Ethernet

Storage Power Dimension

Dual AMD EPYC 9004/97x4 Series Processors (Genoa/Bergamo), up to 256 cores

16x DDR5 RDIMM memory, up to 4800MHz

2x Dual Width FHFL PCIe Gen5 x16 slots, 4x PCIe Gen5 Expansion Module bays*

2x RJ45 1GbE ports

2x 2.5”SATA, 2x M.2 M Key, 1x mSATA

2x CRPS(Commodity Dependent)

440mm (W) x 600mm (D) x 88m (H)

* Support AEWIN proprietary network expansion module.

SCB-1947C CPU Memory Expansion Slot Ethernet Storage Power Dimension

2U Edge Computing Server

Single AMD EPYC 8004 Series Processor (Siena), up to 64 cores

12x DDR5 RDIMM 4800MHz

2x Dual Width FHFL PCIe Gen5 x16 slots, 4x PCIe Gen5 Expansion Module bays*

2x RJ45 1GbE ports

2x 2.5”SATA, 2x M.2 M Key, 1x mSATA

2x CRPS(Commodity Dependent)

440mm (W) x 600mm (D) x 88m (H)

BAS-6101A

CPU Memory Expansion Slot

Single AMD EPYC 9004 Series Processor (Genoa/Bergamo), up to 128 cores

24x DDR5 RDIMM, up to 4800MHz

4x FHFL PCIe Gen5 slots or 2x Dual Width FHFL PCIe Gen5 slots, 2x FHHL PCIe Gen5 slots, 2x HHHL PCIe Gen4 slots, 1x OCP3.0 Gen5 slot

Ethernet Storage Power Dimension

1x RJ45 1GbE ports

6x 2.5"SATA/NVMe, 2x M.2 M Key

2x CRPS(Commodity Dependent)

440mm (W) x 600mm (D) x 88m (H)

General Purpose(Storage) Server

BAS-6101B

CPU Memory Expansion Slot

Ethernet Storage Power Dimension

Single AMD EPYC 9004 Series Processor (Genoa/Bergamo), up to 128 cores

24x DDR5 RDIMM, up to 4800MHz

4x FHFL PCIe Gen5 slots, 2x FHHL PCIe Gen5 slots, 2x HHHL PCIe Gen4 slots, 1x OCP3.0 Gen5 slot

1x RJ45 1GbE ports

12x 3.5" SATA, 2x 2.5" SATA, 1x M.2 M Key

2x CRPS(Commodity Dependent)

440mm (W) x 750mm (D) x 88m (H)

General Purpose(Storage) Server

BIS-5222A-2U CPU Memory Expansion Slot

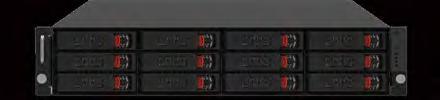

2U General Purpose(Storage) Server

Dual 3rd Gen Intel Xeon Scalable Processors (Ice Lake-SP), up to 80 cores

16x DDR4 RDIMM/LRDIMM memory, up to 3200 MHz

5x HHHL PCIe Gen4 slots

1x 1GbE IPMI RJ45, 2x 10GbE RJ45

12x 3.5'' SATA, 1x M.2 M Key

2x CRPS(Commodity Dependent)

440mm (W) x 640mm (D) x 88m (H)

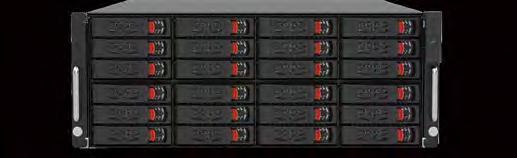

4U General Purpose(Storage) Server

Dual 3rd Gen Intel Xeon Scalable Processors (Ice Lake-SP), up to 80 cores

16x DDR4 RDIMM/LRDIMM memory, up to 3200 MHz

5x FHFL PCIe Gen4 slots

1x 1GbE IPMI RJ45, 2x 10GbE RJ45

24x 3.5'' SATA, 1x M.2 M Key

2x CRPS(Commodity Dependent)

440mm (W) x 640mm (D) x 176m (H)

General Purpose(Storage) Server

BIS-5121A-1U

Ethernet Storage Power Dimension

1U General Purpose(Storage) Server

Single 3rd Gen Intel Xeon Scalable Processors (Ice Lake-SP), up to 40 cores

8x DDR4 RDIMM/LRDIMM memory, up to 3200 MHz

1x FHFL PCIe Gen4 slot

1x 1GbE IPMI RJ45, 2x 10GbE RJ45

4x 3.5'' SATA, 1x M.2 M Key

1x PSU(Commodity Dependent)

440mm (W) x 640mm (D) x 44mm (H)

BIS-5121A-2U

2U General Purpose(Storage) Server

Single 3rd Gen Intel Xeon Scalable Processors (Ice Lake-SP), up to 40 cores

8x DDR4 RDIMM/LRDIMM memory, up to 3200 MHz

3x HHHL PCIe Gen4 slots

1x 1GbE IPMI RJ45, 2x 10GbE RJ45

12x 3.5'' SATA, 1x M.2 M Key

2x CRPS(Commodity Dependent)

440mm (W) x 640mm (D) x 88mm (H)

Network Appliance

SCB-1941

* Support AEWIN proprietary network expansion module.

2U Performance Network Appliance

Single 5th/4th Gen Intel Xeon Scalable Processor (Emerald Rapids-SP/Sapphire Rapids-SP), up to 64 cores

8x DDR4 RDIMM memory, up to 5600 MHz

8x PCIe Gen5 Expansion Module bays*

2x RJ45 1GbE ports

2x 2.5”SATA, 2x M.2 M Key

2x CRPS(Commodity Dependent)

440mm (W) x 600mm (D) x 88m (H)

1U Performance Network Appliance

Single 5th/4th Gen Intel Xeon Scalable Processor (Emerald Rapids-SP/Sapphire Rapids-SP), up to 64 cores

8x DDR4 RDIMM memory, up to 5600 MHz

4x PCIe Gen5 Expansion Module bays*

2x RJ45 1GbE ports

1x 2.5”SATA, 2x M.2 M Key

2x CRPS(Commodity Dependent)

440mm (W) x 600mm (D) x 44m (H)

Network Appliance

SCB-1945

1U Performanace Network Appliance

CPU Memory Expansion Slot

Ethernet

Storage Power Dimension

Single AMD EPYC 8004 Series Processor (Siena), up to 64 cores

12x DDR5 RDIMM memory, up to 4800MHz

4x PCIe Gen5 for Expansion Module bays*

2x RJ45 1GbE ports

2x 2.5” SATA, 1x mSATA, 1x M.2 M Key Slim Redundant

438mm (W) x 548mm (D) x 44mm (H)

SCB-1742

* Support AEWIN proprietary network expansion module.

CPU Memory Expansion Ethernet Storage Power Dimension

1U Mainstream Network Appliance

Single AMD AM5 Embedded Ryzen 7000 Series Processor, up to 16 cores

4x DDR5 UDIMM memory, up to 5200MHz

2x PCIe Gen4 Expansion Module bays*

10x 1GbE RJ45 ports or 8x 1GbE RJ45 ports + 2x 1GbE SFP ports

2x 2.5" SATA, 1x M.2 M Key Slim Redundant

440mm (W) x 450mm (D) x 44m (H)

Network Appliance

SCB-1741

Ethernet Storage Power Dimension

1U Mainstream Network Appliance

Single 12th/13th Gen Intel Core Processor (Alder Lake-S/Raptor Lake-S), up to 8 cores

4x DDR4 UDIMM memory, up to 3200MHz

2x PCIe Gen3 Expansion Module bays*

2x RJ45 1GbE or 2x 1GbE SFP, 8x 1GbE RJ45

2x 2.5” SATA, 1x mSATA, 1x M.2 M Key

Slim Redundant

440mm (W) x 450mm (D) x 44m (H)

* Support AEWIN proprietary network expansion module.

SCB-7911 CPU Memory Expansion Slot

1U Value Network Appliance

Single Intel Celereon/Pentium/Atom Processor (Alder Lake-N), up to 8 cores

1x DDR4 SO-DIMM memory, up to 3200 MHz

1x PCIe Gen4 Expansion Module bays*

5x 1GbE RJ45 ports, 1x 1GbE SFP port

1x 2.5" SATA, 1x mSATA, 1x eMMC 5.1

Single 60W

440mm (W) x 270mm (D) x 44m (H)

Network Appliance

SCB-6915

Desktop Entry Network Appliances

CPU Memory Expansion

Ethernet Storage Power Dimension

Single Intel Celereon/Pentium/Atom Processor (Alder Lake-N), up to 8 cores

1x DDR4 SO-DIMM memory, up to 3200 MHz

5x 1GbE RJ45 ports (optional 2.5GbE support), 1x 1GbE SFP ports

1x 2.5" SATA, 1x mSATA, 1x eMMC 5.1

DC 12V External Adapter

232mm (W) x 152mm (D) x 44mm (H)

SCB-6012

Industrial DIN-Rail Firewall

CPU Memory Expansion Ethernet Storage Power Dimension

Single Intel Atom E3900 Processor (Apollo Lake), up to 4 cores

1x DDR3L SO-DIMM memory, up to 1866 MHz

2x 1GbE RJ45 ports, 1x 1GbE SFP ports or 5x 1GbE RJ45 ports, 2x 1GbE SFP ports

1x 2.5" SATA, 1x mSATA, 1x mPCIe, 1x SIM, 1x eMMC

DC 12 ~ 36V Adaptor

130mm (L) x 150mm (W) x 100mm (H)

AEWIN Network Expansion Module

1G1GbE RJ45

R619 2x 1G, 1x Intel I350-AM2, with bypass

R406 4x 1G, 1x Intel I350-AM4, with bypass

R385 8x 1G, 2x Intel I350-AM4, with bypass

R602 8x 1G, 2x Intel I350-AM4, Pericom switch, with bypass

NCG802 8x 1G, 2x Intel i350-AM4, Broadcom switch, with bypass

1GbE SFP

R405 4x1G, 1x Intel I350-AM4

R514 4x 1G, 1x Intel I350-AM4, with bypass

R384 8x 1G, 2x Intel I350-AM4

R599 8x 1G, 2x Intel I350-AM4, Pericom switch

NFG802 8x 1G, 2x Intel i350-AM4, Broadcom switch

10G

10GbE RJ45

NCT202 2x 10G, 1x Intel X710-AT2, with bypass

NCT401 4x 10G, Intel XL710-BM1 + Intel X557-AT4, with bypass

10GbE SFP+

R516 2x 10G, 1x Intel X710-BM2, with bypass

R386 4x 10G, 1x Intel XL710-BM1

R519 4x 10G, 1x Intel XL710-BM1, with bypass

NFT801 8x 10G, 1x Intel E810-CAM2

NFT203 2x 10G, 1x Broadcom BCM57412

Fiber & Copper

Mixed

1G&10G

Mixed

R434 4x 1G RJ45 + 4x 1G SFP, 2x Intel I350-AM4, with copper bypass

R600 4x 1G RJ45 + 4x 1G SFP, 2x Intel I350AM4, Pericom switch, with copper bypass

NMG801, 4x 1G RJ45 + 4x 1G SFP, 2x Intel I350-AM4, ASMedia switch, with copper bypass

NMG802 4x 1G RJ45 + 4x 1G SFP, 2x Intel I350-AM4, Broadcom switch, with copper bypass

NMG601, 4x 1G RJ45 + 2x 1G SFP, 4x Intel I226-LM + 2x Intel I210-IS, ASMedia switch

R617 2x 1GbE RJ45 + 2x 1GbE SFP, 1x Intel I350-AM4, with copper bypass

NMGT01 4x 1G SFP + 10G SFP+, 1x Intel I350-AM4 + 1x Intel X710-BM2, Broadcom switch

25G

25GbE SFP28

R509 2x 25G, 1x Intel XXV710-AM2

R672 4x 25G, 1x Intel E810-CAM1

40G

40GbE QSFP+

NFQ201 2x 40G, 1x Intel XL710-BM2, with bypass

100G

100GbE QSFP28

R671A 2x 100G, 1x Intel E810-CAM2

R671B 1x 100G, 1x Intel E810-CAM1

PoE+

NCG201 2x 1G with PoE+, 1x Intel I350-AM2

NCG401 4x 1G with PoE+, 1x Intel I350-AM4

AEWIN Functional Module

Security

TPM R592 R594 TPM 2.0 Module TPM 2.0 Module

LPC pin header SPI pin header

TPCM R666TPCM Module OCP2.0

TSB

OT004Trusted Secure Boot Module TSB connector

OT006BTrusted Secure Boot Module TSB v2 connector

PFR OT006A Intel Platform Firmware Resiliency Module TSB v2 connector

IPMI R492IPMI Card

OT016IPMI Card with eSPI_1.8V support

RAID R587 R623

Storage

PCIe

Conv Kit

Aspeed AST2500

Aspeed AST2500

SAS/SATA RAID 8 ports

SAS/SATA RAID 16 ports

Expansion Bay with 1x PCIe x8 slot to 2x U.2 NVMeExpansion Module BP010A

Expansion Bay with 1x MCIO 8i to 2x U.2 NVMeExpansion Module BP020

Expansion to standard PCIe slotSupport to PCIe Gen4

Conversion Kit RS059

1x PCIe x8 Golden Finger to 1x PCIe x8 slot - Support to PCIe Gen3

Expansion Kit

Expansion Kit RS080 RS024 + RS025

Expansion to standard PCIe slotSupport to PCIe Gen5

Standard PCIe Card by AEWIN

Network Interface Card

NCG405

NCT203

NFT207

NFT404

NFD201

2x 10G RJ45

X710-AT2 2x 10G SFP

4x 10G SFP

2x 25G SFP28

Intel XL710-BM1

QAT(Crypto Acceleration) Card

Description Model Form FactorChipset Description Model Form FactorChipset

OT001

OT002

OT008

OT017

OT018

OT019

OT020

QAT Expansion Module with 4x 10G SFP+ PCIe x8 HHHLIntel C626

QAT Expansion Module with 4x 10G SFP+ PCIe x8 HHHLIntel C627

QAT Expansion Module with 4x 10G SFP+ PCIe x16 HHHLIntel C627

QAT Expansion Module with 1x 100G QSFP28 & 4x 10G SFP+ PCIe x16 FHHLIntel C627, Intel E810-CAM1

QAT Expansion Module with 4x 10G OCP 3.0 SFF Intel C627, Intel X557-AT4

QAT Expansion Module with 4x 10G PCIe x16 HHHLIntel C627, Intel X557-AT4

QAT Expansion Module with 100G QSFP28, 2x 10G SFP+, and 2x 10GPCIe x16 FHHLIntel C627, Intel E810-CAM1, Intel X557-AT2
