The SS pipe weight chart is essential for piping system which is utilize for industrial applications. It easy to conveys the pipe sizes with the weight. It is considered as quick accessible document for engineers who works regularly with it or also for those who are planning to buy the pipe for their application purpose, and also for those who are buying it for the first time
Designation of Dia
This weight chart will determine you to select the appropriate size of steel pipe for your application purpose. This will give an overall details of pipe weight per unit length with regards to diameter and wall thickness. By this below information, you can choose the pipe which can meet the designing need for you purpose at the same time considering load-bearing efficiency and installation.
SS 304 sch 40 pipe is extensively used for piping due to corrosion resistance and strength. It has a particular wall thickness which is combined with outer diameter in order to get the weight of pipe. It is significant for engineers for cost evaluation and budget. It even gives the idea of how structural strength for any applications and will help you to make decisions properly
While choosing AISI 304 round pipe for any of your project, it is vital to find precise measurements and weights, in order to get precise fit and designing strength. It is essential for any application regardless of chemical, pharmaceutical, construction, water treatment plants or any other industrial applications.
In order to calculate the weight of any stainless steel pipe grade the below given formula can be used, regardless of any thickness and length.
WeightPerMeter:
Wt. Per Meter = OD (mm) - WT(mm) X WT (mm) X 0.0248
WeightPerFeet:
Wt. Per Feet = 0.D. (mm) - WT (mm) X WT X 0.00756

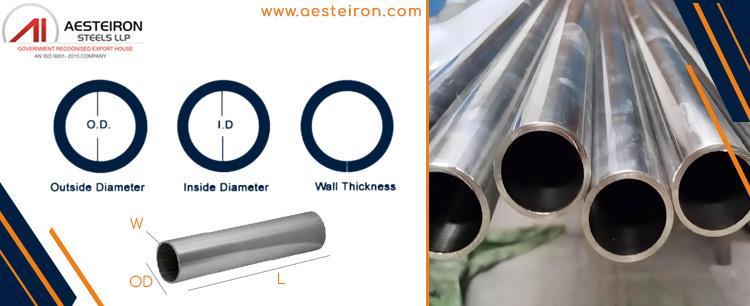

OD: Outside Diameter
WT: Wall Thickness
Schedule 10 stainless steel pipe which is popular type in various industries. Its properties such as corrosion resistance, durability and strength makes it an exceptional choice for range of applications. Regardless of industries, it is even a remarkable choice when it comes to the requirement of high-quality and cost-effectiveness solution for plumbing
