Omni Utility Raceway

The Ultimate Facility Integrated Process Utility Raceway.

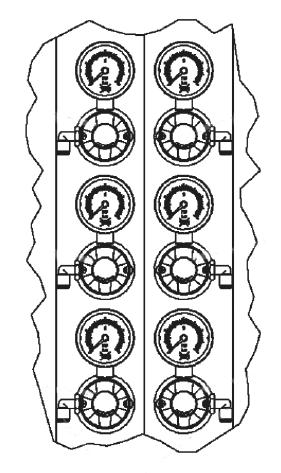

AES Omni™ integrates up to six gas supplies into the vertical posts of the AES modular cleanroom system.

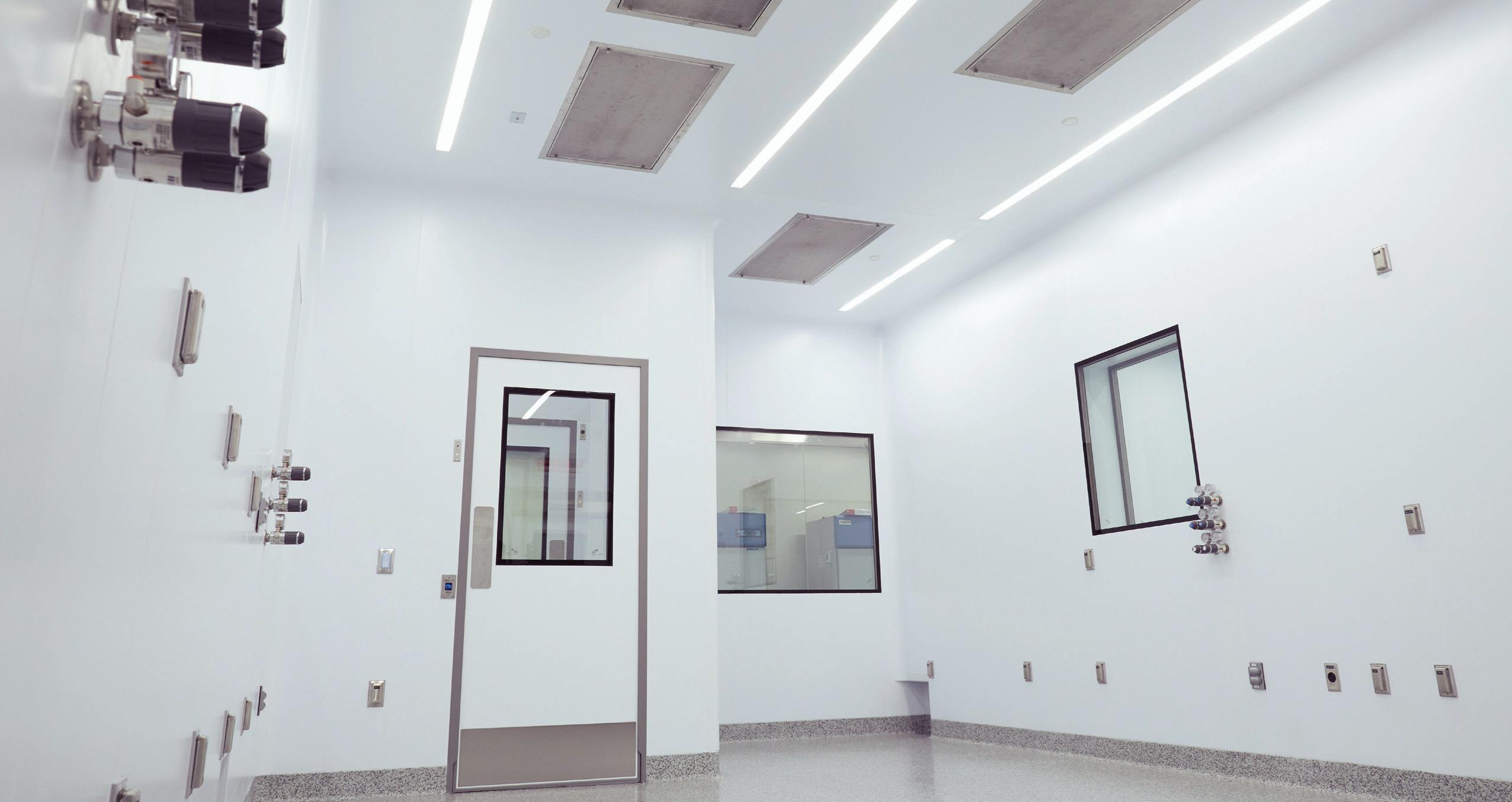

Cleaner Installation – The AES OMNI™ is simply the cleanest approach to gas utility piping in the industry. Piping is completed integrated into the vertical wall posts, with terminations above the AES walkable ceiling.

Lower Installation Cost – Pre-manufactured piping within wall posts substantially reduces the cost of gas utility integration and field piping.

High Quality Materials and High Purity – Piping within the AES OMNI™ Raceway is High Purity 316 Stainless steel, fully welded. All components are fully factory leak tested to UHP standards.

Applications – The AES OMNI™ may be used with non-hazardous or inert gases such as CA, N2, O2, CO2, Ar, Ne, He, N2O, with flow rates up to 100 slpm.

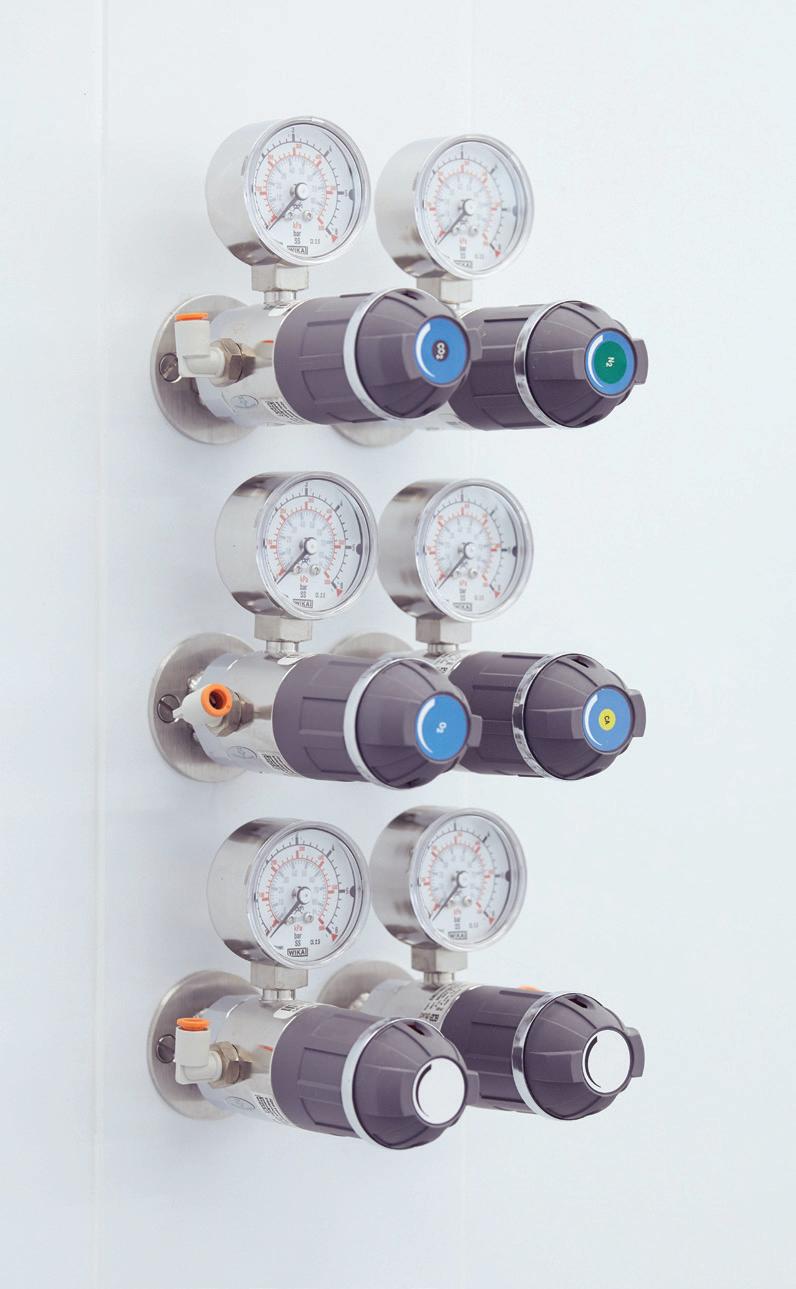

Integrated Utility Raceway

Technical Data:

n Inlet Pressure 40 bar (580 psig)

n Outlet Pressure 0.2-1.5 bar (2.9-58 psig)

n Material Stainless steel 316L (1.4404) specially cleaned and electro-polished

n Seat: FKM and FFKM Seals: PCTFE

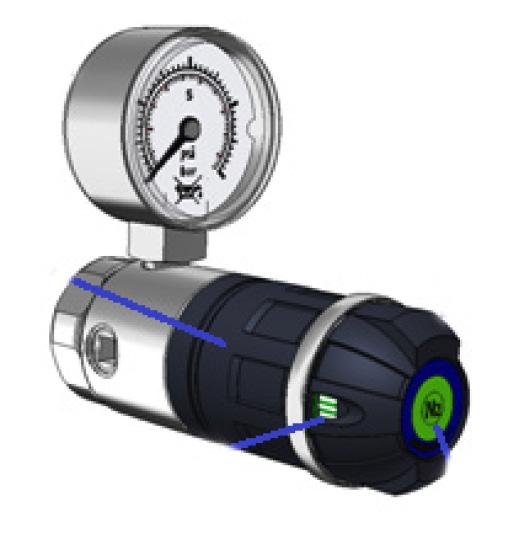

n Low-maintenance, easy-to-service, pressure regulating unit, with particle-filter in stainless steel and 50 μm mesh at inlet

n Diaphragm: Hastelloy

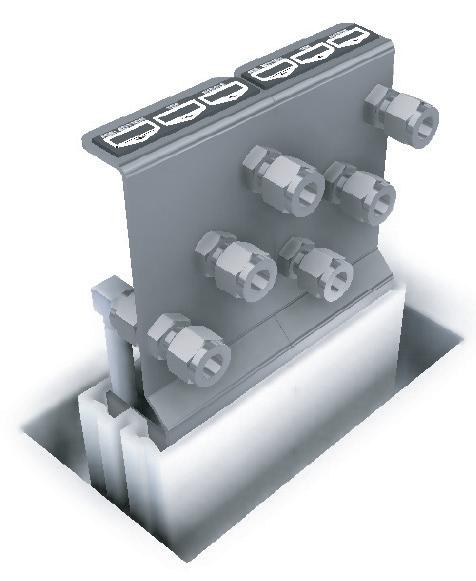

FITTINGS ABOVE CEILING

This information should be used in conjunction with the associated technical data, specifications and related documents to establish the total requirements for the unit. The information in this document is subject to change without notice. AES assumes no responsibility for any errors that may inadvertently appear in this document. 04/23
