The Ultimate Integrated Electrical Utility Raceway.

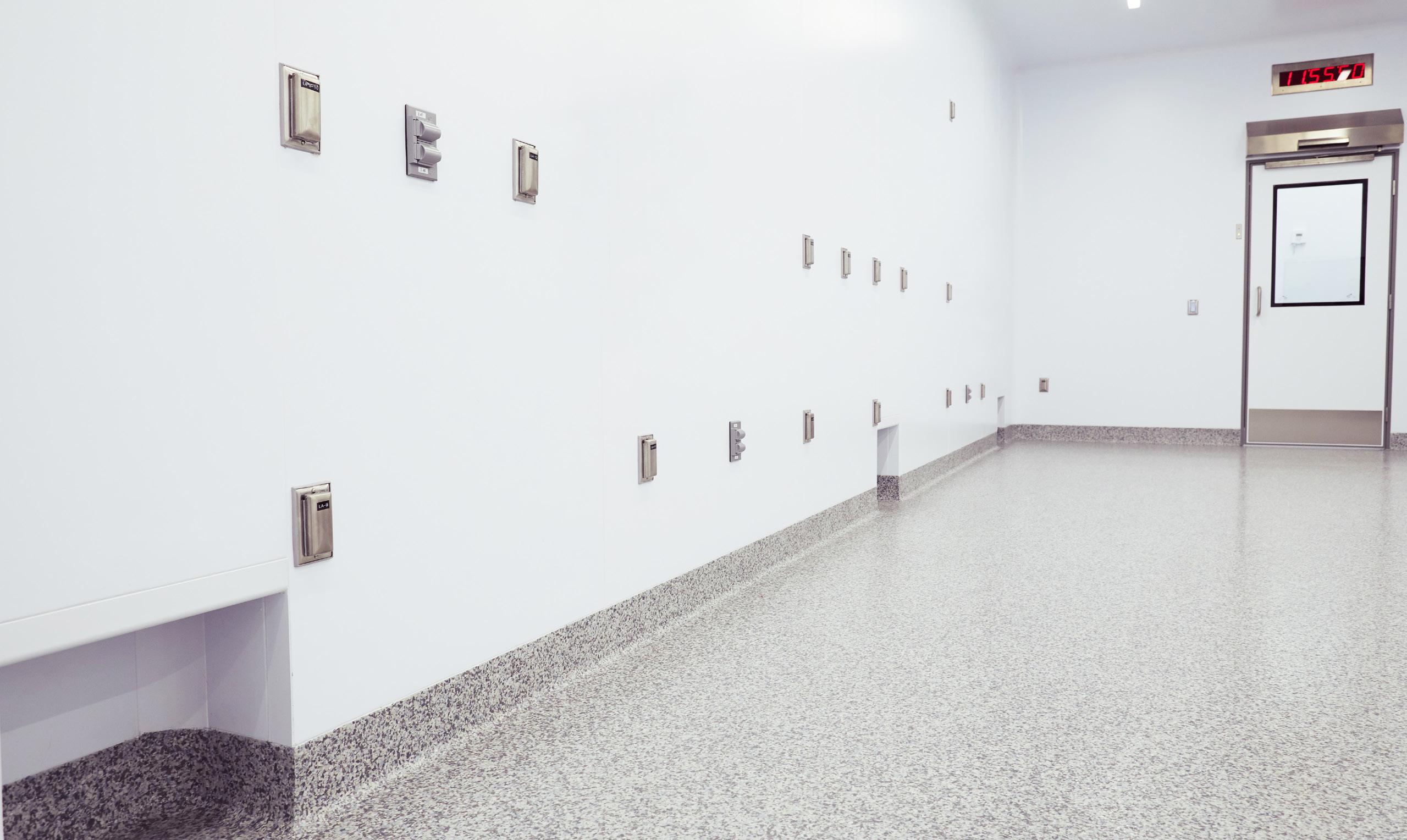

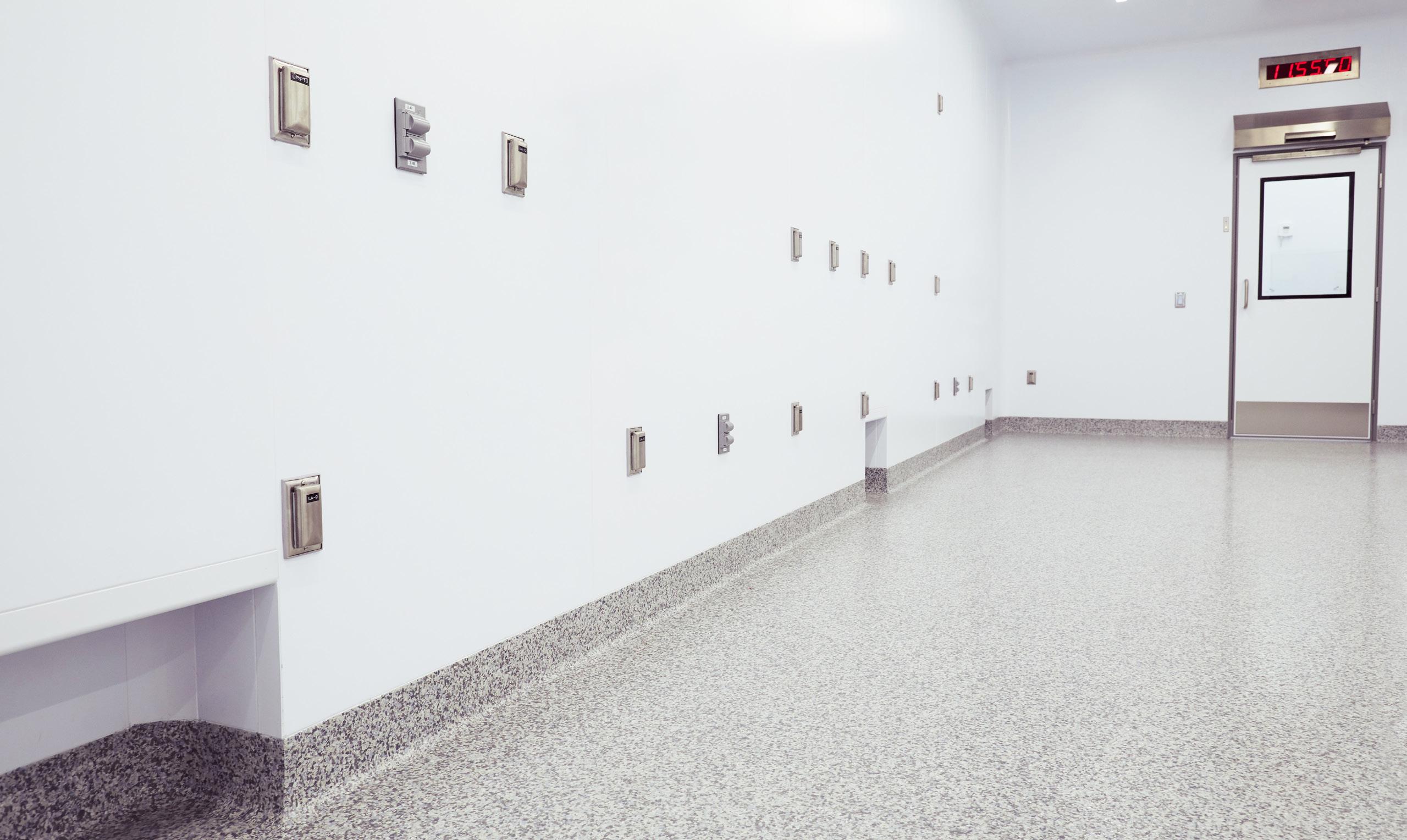

AES Omni™ Electrical Utility Raceway integrates up to six power and data receptacles into the vertical posts of the AES modular cleanroom system.
Cleaner Installation – The AES OMNI is simply the cleanest approach to electrical utility access in the industry. Shipped with wiring completely integrated into the verticalwall posts, with terminations above the AES walkable ceiling.
Lower Installation Cost, Faster Construction –Pre-manufactured wiring within AES composite wall posts substantially reduces the cost and time to provide electrical utility integration.
How & where you need it – Select your optimal data, power, circuiting, and optimal outlet heights (including near ceiling to eliminate low cords).
Applications – The AES OMNI can provide up to twelve power (125/208/250V, 20, 30A) and data connections (Ethernet).
Integrated Electrical Raceway Toll-Free: 888-AES-CLEAN | sales@aesclean.com | aesclean.com
Integrated Electrical Raceway
Quantities shown are based upon 4” x 1-1/2” junction box fill capacity as outlined in NFPA 70.
n Side by side UL-listed enclosed multi-outlet raceway.
n Dust-tight stainless steel gasketed cover plates.
n Separate code compliant channels for up to 300V power or low voltage wiring & devices.
New Model/Options:
n Receptacles/ports: + Power – Standard or twist-lock receptacles + Locations + Color
LED Driver Access:
I. First channel: (2) 125V 5-20R (circuit 1)+ (1) 250V L6-30R (circuit 2). Second channel: (1) CAT 6 Ethernet, 4 drops.
II. First channel: (1) 125V 5-20R (circuit 1)+ (1) 125V 5-20R (circuit 2) + (1) 250V L6-30R (circuit 3). Second channel: (1) CAT 6 Ethernet, 2 drops +: (1) CAT 6 Ethernet, 2 drops.
III. First channel: (1) 125V 5-20R (circuit1) + (1) 125V 5-20R (circuit 2). Second channel: (1) 125V 5-20R (circuit3) + (1) 125V 5-20R (circuit4).
Quantities shown are based on 60% of 3/4” EMT fill per NFPA 70. Quantities shown dependent on ethernet cabling, shielding, conductor sizing, & cable manufacturer parameters.
NEMA configurations shown are based on compatibility with stainless steel dust tight covers only. Additional configurations available. Consult factory for all available options.
Many other options available – see tables, or discuss with your AES representative.
This information should be used in conjunction with the associated technical data, specifications and related documents to establish the total requirements for the unit. The information in this document is subject to change without notice. AES assumes no responsibility for any errors that may inadvertently appear in this document. 04/23
Toll-Free: 888-AES-CLEAN | sales@aesclean.com | aesclean.com
23.04.M.AES
Clean Room Construction Since 1986 422 Stump Road montgomeryville pennsylvania 18936-9630 phone 215.393.6810 facsimile 215.393.6811 ISSUE REVISION SHEET TITLE: AES-11 Project Name
POWER CONDUCTOR – MAXIMUM FILL THHN/THWN COPPER WIRE SIZE OUTER DIAMETER AREA QUANTITY in mm in² mm² 12 AWG 0.13 3.30 0.01 8.56 9 10 AWG 0.16 4.17 0.02 13.63 8 8 AWG 0.22 5.49 0.04 23.64 7 6 AWG 0.25 6.45 0.05 32.69 4
COMMUNICATIONS CABLING – MAXIMUM FILL 4PR FTP, 26 AWG STRANDED BARE COPPER CABLE TYPE OUTER DIAMETER AREA QUANTITY in mm in² mm² CAT 8 0.34 8.64 0.09 58.58 3 CAT7 0.34 8.64 0.09 58.58 3 CAT 6a 0.34 8.89 0.10 62.07 3 CAT 6E 0.24 6.10 0.05 29.19 7 CAT 6e 0.22 5.49 0.04 23.64 8 CAT6 0.24 6.15 0.05 29.67 6
RECEPTACLE CONFIGURATIONS AVAILABLE NEMA VOLTAGE AMP POLE, WIRE 5-20R 125V 1 20A 2P, 3W L6-20R 250V 1 20A 2P, 3W L6-30R 250V 1 30A 2P, 3W L14-20R 125/250V 1 20A 3P, 4W L15-20R 250V 3 20A 3P, 4W L21-20R 120/208V 3 20A 4P, 5W L21-30R 120/208V 3 30A 4P, 5W
