High Efficiency Structural LED Light
The Ultimate Integrated LED Cleanroom Light.

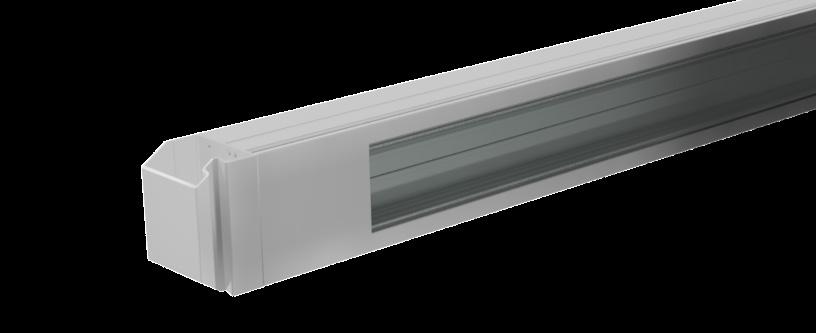

AES offers Litebeam™ , a state-of-the art structural linear LED lighting system designed for flush integration into our 75mm walkable ceiling system.

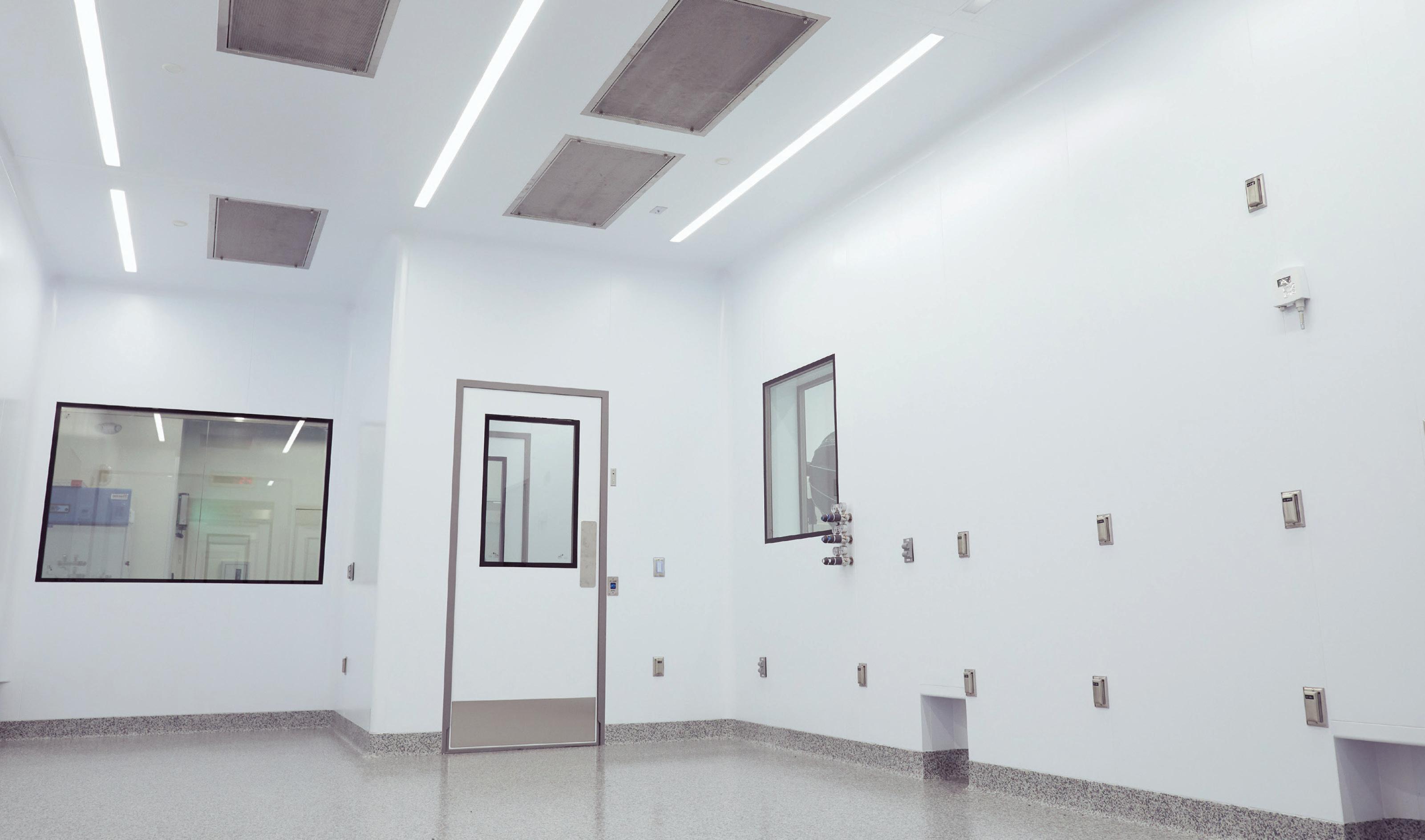

Bright, Uniform Light – Linear LED arrays deliver uniform light to enhance productivity.
Energy Efficient – Low power and heat reduces facility energy consumption.

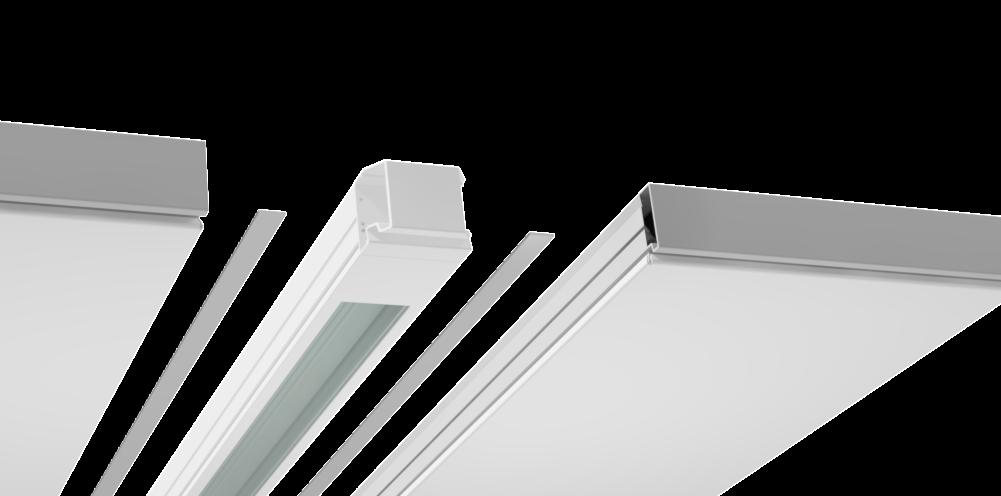

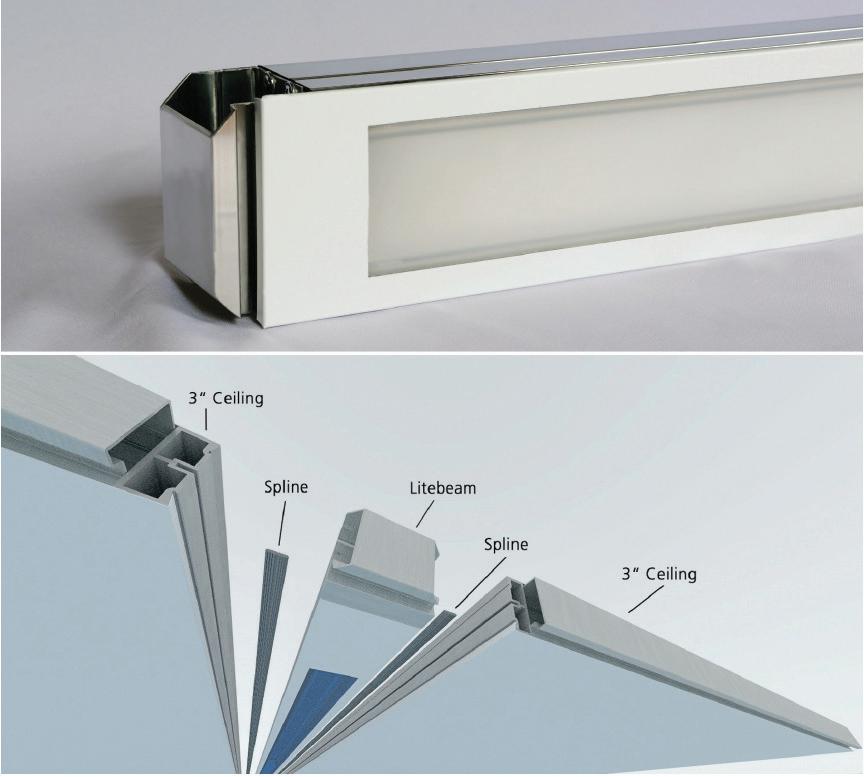

Stronger – Litebeam fixtures are integrated structural elements enhancing the walkable ceiling.
Safer – Flush top ceiling profile, and eliminates cut openings during construction traditional fixtures require.
Narrow Profile – Easier installation, more area and options for HEPA locations.
Long life – AES Litebeam fixtures are U.L. listed and IP65 rated for cleanroom use.
Sealed System – IP 65 rating against dust and water jets.
Toll-Free: 888-AES-CLEAN | sales@aesclean.com | aesclean.com litebeam Structural LED Light
High Efficiency Structural LED Light lite
Technical Data:
Low Operating Costs: High efficiency – 190 lm/W
Low Operating Temperatures: Proprietary design and high efficiency components (drivers 94%) deliver excellent thermal management
Continuous Dimming Available.
Long Life: Built in the USA. Five-year full system replacement warranty. Drivers MTBF > 140,000 hours
Light Output: Lumens: 3108 (4’), 4884 (6’), 6216 (8’), 7992 (10’)
Wattage: 28-44 per driver
Voltage: 120 / 277 VAC 50 / 60 Hz
Drivers: Constant current. 32-40 Vdc, < 600 mA. PF=0.996, THD <6%
Color Rendering Index (CRI): >82
Color Temperature: 4,000K
Lens/Diffuser material: Polycarbonate
Service: Top and room-side driver access models available
New Model/Options:
Dual Illumination: Now available!
n Amber/White dual illumination mode for light-sensitive products
Emergency Battery Backup:
n Model-EB
LED Driver Access:
n Above ceiling
n Room-side access available –
Model-RSA – Now available!
Protected by one or more of the following US Patents: 10,113,724; 10,151,462; 11,555,589; Pending.
This information should be used in conjunction with the associated technical data, specifications and related documents to establish the total requirements for the unit. The information in this document is subject to change without notice. AES assumes no responsibility for any errors that may inadvertently appear in this document. 04/23
