Shelf
Pill
The Pill Basin is the perfect designer finish for the modern bathroom. With sleek rounded edges and ultra fine concrete walls, this contemporary concrete sink is the showpiece to elevate your space.
PLAN VIEW SPECIFICATIONS
MATERIAL UHP Concrete
25
SECTION VIEW
46 364mm 564mm 580mm 564mm
380mm 159mm 159mm
Wall Hung Brackets
90mm
46 46

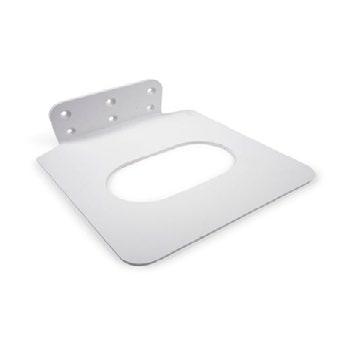

WALL HUNG BRACKET
8mm aluminium
AVAILABLE COLOURS
115mm
L342mm x W310mm x H92mm (L13.4in x W12.2in x H3.6in)
THICKNESS
Wall Hang Bracket: 8mm (0.3in)
L Bracket: 3mm (0.1in)
WEIGHT
Wall Hang Bracket: 2kg (4.41lbs)
L Bracket: <250g (0.5lbs)
INSTALLATION
Timber Wall: tiny.cc/udkhlz
Masonry Wall: tiny.cc/0gkhlz
Basin to be mounted after tiling
FINISH Matte / Low Sheen
WEIGHT 12kg (26.5lbs)
DIMENSIONS L580mm x W380mm x H115mm (L22.8in x W15in x H4.3in)
BOWL CAPACITY 12.7L (3.35gal)
TAP HOLE N/A
OVERFLOW
AVAILABLE N/A
WASTE RQD 32mm or 40mm Standard (not provided by Nood)
WARRANTY 24 months
WASTE HOLE SIZE 46mm (1.8in)
WALL THICKNESS 8mm
OPTIONS Surface Mount / Wall Hung / Stand
WALL HANG RQD Mount before tiling - to timber frame or masonry wall.
All dimensions are estimate. We suggest waiting until receiving Nood basins before cutting holes in cabinetry items. Colours of concrete may vary slightly.
SUGGESTED TAP / FAUCET POSITION & LENGTH
WALL HUNG BASIN
Wall
Wall
SURFACE MOUNTED BASIN
Wall
INSTALL HEIGHT
Floor 100mm (4in) Basin 755mm (29.75in)
870mm (34.25in)
