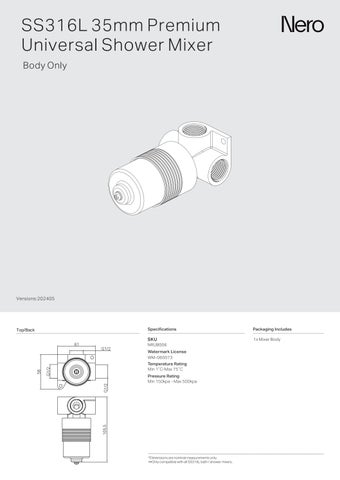

SS316L 35mm Premium Universal Shower Mixer
Versions:202405
Installation Instruction
For Body Only
GENERAL INSTRUCTIONS:
- Th s product must be nstalled by a licensed plumber. Ensure that your plumbing insta lation conforms to the Australian/New Zea and Standard AS/NZS 3500
- All pipework must be thorough y flushed pr or to the nstallat on of the m xer. In-line fi ters must be fitted on both hot and cold supplies to prevent foreign particles from damaging the ceramic cartridge
- All outlets used primar y for personal hyg ene must de iver water at a safe temperature in accordance with reg onal regulations (2) (1)
T
Tile
1. Secure the mixer body (1) to the nogging, ensuring an installation depth of 51-68mm from the nogging to the ceram c tile
Note Do not remove the plast c sleeve (2) from the mixer body
2. Connect the co d and hot water supply lines and perform a leak test
3. Drill a φ50mm ho e in the plasterboard for mixer body nstal at on, and then position the p asterboard as shown in the above image
4. Mark the plast c sleeve (2) 4-7mm from the ceramic tile surface to the body and waterproof the gap between the plasterboard and body
5. Remove the se f-tapping screw, washer, and plastic s eeve, then cut the sleeve at the marked point
6. Reattach the self-tapping screw washer, and plastic s eeve
Installation Instruction For Trim Kits Only
Ceramic Tile Plasterboard Ceramic Tile
Sleeve Do Waterproof Treatment
Self-Tapp ng Screw Recommend 51-68mm Recommend 51-68mm Dress ng Ring
1. Dri a φ50mm ho e in the ceram c tile then pos tion it as shown in the above diagram
2. Undo the se f-tapping screw, washer, p astic s eeve
Cartr dge Be
3 Insert the O ring to the cartridge bell groove, and slide the dress ng r ng onto cartr dge
4 App y waterproof treatment to the area in the diagram above
5. Tighten the dressing ring on the cartr dge bell.
7 Waterproof the gap between the plasterboard and body
6. S ide the backplate onto the wal
7. Pos tion the handle, t ghten it with a grub screw using an Allen key, and cap the grub screw hole
MAINTENANCE AND CARE:
- Regularly check the mixer and connect ons for signs of wear or leaks
- C ean the tap with mild soapy water to ma ntain ts appearance, avo ding harsh chemica s and abras ve mater a s that may damage the fin sh
FINAL INSPECTION:
- Ensure the tap operates smoothly and that there are no leaks at the connections
- C ean the area and the newly installed tap with a soft cloth to remove any installation residues
Ceramic
