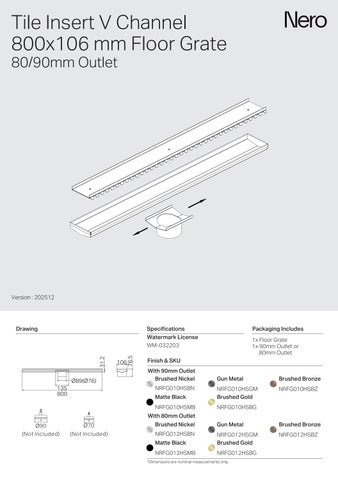

INSTALLATION INSTRUCTIONS
GENERAL INFORMATION
- This product must be installed by a licensed plumber. Ensure that your plumbing installation complies with the Australian/New Zealand Standard AS/NZS 3500.
- Do not pour concrete around floor grate. Use timber formwork and install the grate only after concrete has been fully cured.
- Apply a waterproof membrane compliant with AS 3740 between the substrate and finished tile surface before laying tiles.
IMPORTANT NOTES FOR INSTALLATION
• Confirm a puddle flange has been correctly installed and is compatible with the outlet pipe.
• Reserve sufficient installation space around the outlet.
• Ensure all parts are clean and free from debris, adhesive or sealant.
• Use UV- and weather-resistant sealants for all external sealing.
INSTALLATION STEPS
Puddle Flange
Drill A Hole With Hole Saw
V-Channel Panel
Floor Grate Base
01. Confirm a puddle flange has been correctly installed and is compatible with the outlet pipe.
02. Drill a hole in the V-Channel Panel using a hole saw, aligned to the drainage point.
Tile Thickness Should Be 10 MM Or Less
Fill With Adhesive Depth
V-Channel Panel
Floor Grate Base
Fill The Gap With Sealant To Prevent The Panel From Leakage.
Puddle Flange
03. Install all the parts as shown in the diagram. NOTE: Seal around the contact area with sanitary-grade silicone.
Puddle Flange
04.Lay the floor tiles and ensure the tiles have an appropriate slope toward the floor grate to make the water flow efficiently into the grate.
NOTE: The thickness of the tile should not exceed 10mm
Final Placement and Cleaning Clean up and check for leaks.
MAINTENANCE AND CARE
- Clean the grate with a soft cloth or non-abrasive brush.
- Avoid sharp or metallic tools when clearing blockages.
- If clogging occurs, use a plunger or soft drain snake.
- Do not use harsh chemical cleaners which may damage the finish or membrane.
Concrete
