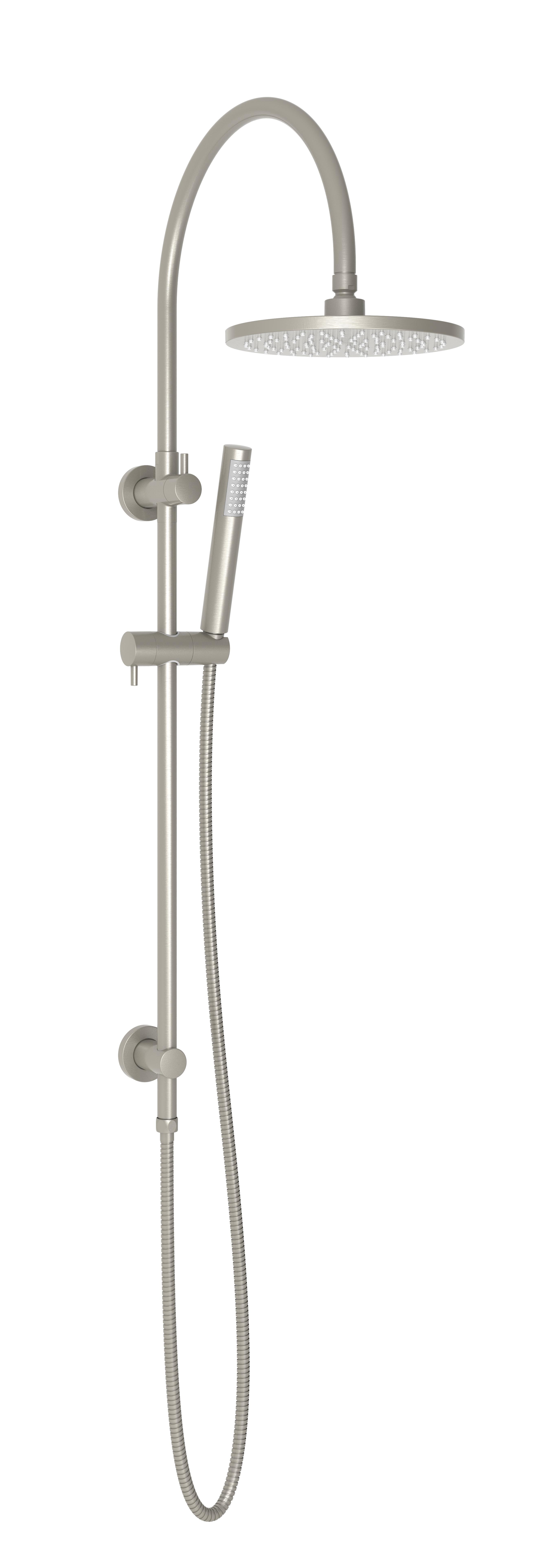

SOUL GOOSENECK SHOWER
TYPE: SIZE: VERSION: SHOWER 1034H x 515D x 220W 03 NOTES: DATE: 05/10/2023 ALL DIMENSIONS ARE NOMINAL AND SUBJECT TO CHANGE. DO NOT DRILL OR ROUGH IN UNTIL YOU HAVE RECEIVED AND MEASURED YOUR PRODUCT. DO NOT MEASURE FROM DRAWING. ALL DIMENSIONS ARE IN MILLIMETRES. PRODUCT: NOT RECOMMENDED FOR GRAVITY FED WATER SYSTEMS OR WATER TANKS. WORKING PRESSURE: 350 – 500KPA (INCLUDING COLD AND HOT WATER PRESSURE) MAXIMUM PRESSURE: 73PSI / 500KPA TEMPERATURE RATING: 5°C - 65°C (MUST NOT EXCEED 70°C) INSTALLATION SHOULD COMPLY WITH AUSTRALIAN STANDARD AS/NZS 3500 OR RELEVANT LOCAL AUTHORITY REQUIREMENTS. WATER SUPPLY REQUIREMENTS: JTAPSRTSETSOUCP JTAPSRTSETSOUWH JTAPSRTSETSOUBK JTAPSRTSETSOUNK JTAPSRTSETSOUBB JTAPSRTSETSOUBCO CHROME MATTE WHITE MATTE BLACK BRUSHED NICKEL BRUSHED BRASS BRUSHED COPPER
LENGTH 1500 Ø20 1034 658 Ø32 54 114 Ø220 Ø220 350 Ø32 Ø32 Ø60 Ø60 55 105 5 Ø60 248 G 1/2” TOP INLET
