CONSCIOUS RANGE

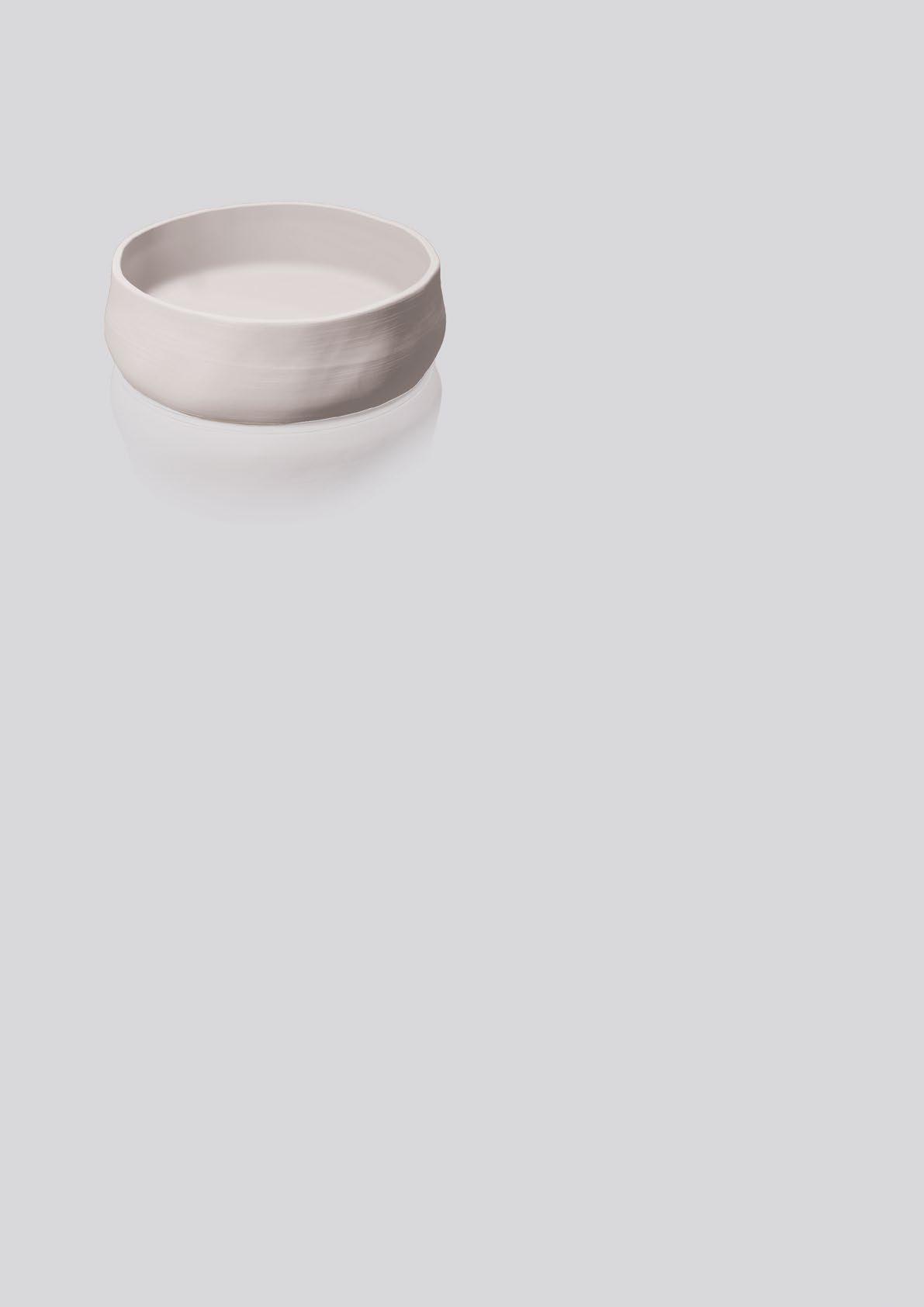

Mill
Hand molded, organic and soft. Welcome to the perfect imperfect.
SPECIFICATIONS STANDARD COLOUR RANGE SECTION VIEW
MATERIAL UHP concrete
FINISH Matte / Low sheen. Finish is organic, muted, has tonal variation in colour and finish.
WEIGHT 8.1kg (17.86lbs)
DIMENSIONS 380Dmm x 110Hmm (15Din x 4.33Hin)
BOWL CAPACITY 8.9L (2.4gal)
TAP HOLE N/A
OVERFLOW AVAILABLE N/A
WASTE RQD 40 or 42mm waste Standard (1.65in) Waste not supplied by Nood Co.
WARRANTY 24 months
WASTE HOLE SIZE 50mm (1.96in)
WALL THICKNESS 8mm (0.31)
OPTIONS Surface mount / Wall Hung
WALL MOUNT Basins are organic shaped in nature and may not sit perfectly against wall ORIENTATION Surface or wall mount
WALL HUNG BRACKET
0 90mm (3.54in)
DIMENSIONS
L365mm x W300mm x H90mm (L14.3in x W11.8in x H3.5in)
THICKNESS Wall Hang Bracket: 8mm (0.3in)
L Bracket: 3mm (0.1in)
WEIGHT Wall Hang Bracket: 1.76kg (3.88lbs)
L Bracket: <250g (0.5lbs)
INSTALLATION Timber Wall: tiny.cc/udkhlz
Masonry Wall: tiny.cc/0gkhlz
8mm aluminium bracket (powdercoated white) included with fixings for timber/masonry wall. Please ensure mounted before tiling.powdercoated. Bracket, fixings, adhesive provided with each wall hung basin purchased.
SUGGESTED TAP / FAUCET POSITION & LENGTH
Wall Wall
150mm (5.9in)
Waste 200mm (7.8in)
200mm (7.8in)
Waste 250mm (9.8in)
Typical 50mm offset from wall
600mm Vanity
900mm Vanity
260mm
1200mm Vanity
410mm
110mm
1500mm Vanity
1800mm Vanity
2100mm Vanity
335mm
INSTALL HEIGHT
100mm (3.9in)
870mm (34.25in)
760mm (29.9in)
560mm
260mm
VANITY LAYOUTS
