K-90011T/K-77674T-PD MICA
BEFOREYOUBEGIN
Observealllocalplumbingandbuildingcodes. Inspectthewasteandsupplytubing,replaceifnecessary. Priortoinstallation,unpackthenewlavatoryandcarefully inspectitfordamage.Returnthelavatorytoitsprotective cartonuntilyouarereadytoinstallit. Forreplacementinstallations,makesuretheexisting cutoutisthesameorsmallersizeasthenewlavatory. Usethetemplatesuppliedwiththelavatorytomark correctsizecutout. KohlerlavatoryismadeaccordingtoAmericanNational StandardthatitcanmatchtheAmericanlavatoryfittings. Anyotherlavatoryfittingsmaynotfitforkohlerlavatory. Fixturedimensionsarenominalandconformtotolerances establishedbyASMEStandards(A112.19.2-2013). TheproductcomplieswithGB6952-2015.
TOOLSANDMATERIALS (NotSupplied) Template(supplied) SafetyGlasses Pencil Scissors TapeMeasure PuttyKnife Plumbersputty Hacksaw KeyholeSaworSaberSaw Drill(13mmor1/2dia.drillbitorlarger) AdjustableWrench Pipewrench TubingCutter
ASME(A112.19.22013) GB6952-2015
Removethelavatory.Installthefaucetand drainaccordingtothemanufacturers instructions.
Applysealanttothebottominstallationarea.
Carefullypositionthelavatoryinthecutout,and pressdownfirmly.
CAUTION:Riskofpersonalinjuryor productdamage.
Largelavatoriesarevery heavy.Gethelpliftingthelavatoryinto place.
Immediatelywipeawayanyexcesssealant, andfillanyvoidsasneeded. Verifythatthelavatoryhasnotmovedoutof position. Allowthesealanttocureforatleast30minutes beforeproceeding. Connectthefaucetsupplylines. Connectthedrainassembly. Openthefaucetvalves,andcheckforleakage. Cleanupwithanon-abrasivecleaner.
Note1: Note2: Note3:
Makesurehorizontalandverticaldimensionsmatch dimensionslabeledonthetemplate. Itisprohibitedtouseepoxyresinasthesealant. Faucetneedstobetightlyconnectedwithinletand outletsupplies.Otherwise,itmayleadtoleakage.
IMPORTANTCONSUMER INFORMATION(CAREAND CLEANING)
Tokeepyourlavatorylookingnew,makesureyourinseit outthoroughlyaftereachuse.DONOTUSEABRASIVES onthisproduct,astheywillscratchandruinthesurface. Stubbornstains,paint,ortarcanberemovedwith turpentineorpaintthinner. Donotusetheproductinthewaterbelow0C. Pleasedonotusehardmaterials(likescouringpad)to cleanproductsurface,especiallytheproductlogo.
FORARTISTEDITION
PRODUCTS
Kohlerreservestherighttochangemarkeddimensionswithoutpriornotice.
INSTALLNEWLAVATORY
Cutthetemplateonthecutoutlinewith scissors. Positionthetemplateonthecountertopto determinelavatoryinstallationposition.Make sureenoughspacebetweenthelavatory, faucetandbacksplash.
Note:Pleasetakefaucetdimensionintoaccount.If thelavatoryinstallationpositionistooclosetothe wall,thedrainliftrodmightexperiencedifficultyin fixingandusing.
Tracethetemplatewithapencil(B)tomapthe outerrimofthelavatoryontothecountertop.

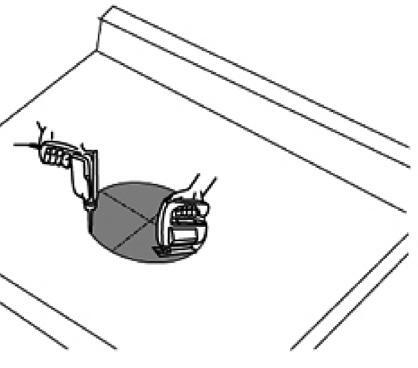

Drilla13mmholeontheinsideofthecutout opening. Cuttheopeninginthecountertopalongthe insideedgeofthepencilline. Drillthefaucetinstallationholeaccordingto faucetandcountertopdimension. Note:Thefaucetinstallationholeshallbeprecisely drilled,otherwise,itmayaffectfaucetperformance inthefutureuse. Temporailypositionthelavatoryintheopening, andadjusttofit.
CAUTION:Riskofpersonalinjuryor productdamage.
Largelavatoriesarevery heavy.Gethelpliftingthelavatoryinto place.
1287342-T01-B
IMPORTANT! Thesurfaceofyourdecoratedproductcanbe easilyscratched.Donotusebristlebrushes,abrasive spongesorabrasivecleaners. Keepthebasincleananddrybywipingwithasoftcloth afteruse. Gold,platinumandrosegoldusedondecorativeproducts arelikefinejewelry;useonlywarmwatertoclean.Dry withasoftcloth. Alwaystestyourcleaningsolutiononaninconspicuous areabeforeapplyingtoawidespreadsurface. Donotallowcleanerstosoakonsurfaces.
