Product

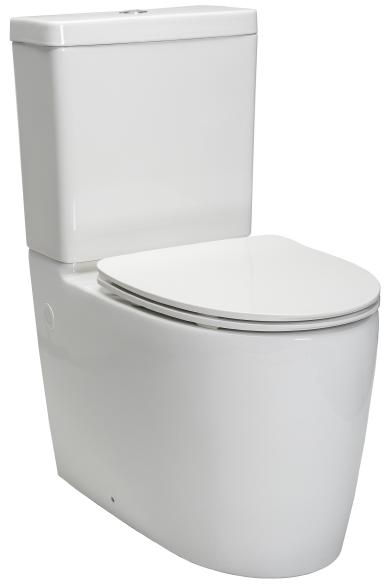

• Grande back to wall toilet suite with wrap over seat
• Grande back to wall toilet suite with slim seat
• Grande back to wall toilet suite with elite seat
Included Components
• Grande toilet pan.
• Grande toilet cister n 4.5/3L.
Kohler Code
76078A-0
24928A-0
24929A-0
• Grande quiet Close, wrap over,elite or slim VQR (vertical quick release) toilet seat.
• Vario pan connector.
• Offset pan collar (20mm).
• Fill valve for top left rear entry
• Fill valve for pan side entry (supplied with pan).
• Top left rear entry water supply hose.
• 2 x caps for pan side entry holes.
• 1 x hose ring for pan side entry hole.
• Floor fixing kit.
* Elite Seat option:
• 1 Pack of mixed scents: Fresh Laundry, Avocado SPA and Garden Waterfall.
• Night light and fragrance unit, powered with 2 x AAA Batteries. The batteries are not supplied.
Features
• Dual flush (4.5/3L).
• Water entry: Top left rear entry or right/left pan side entry
• Rimless pan design.
• Vitreous china.
• Optional Slim or Elite seat.
Vario pan connector S-trap installation
*Note:
• Standard S-trap set out: 90mm - 160mm (with vario pan connector 12503A-NA & 20mm offset pan collar 100794 - supplied).
• Set outs between 170-290mm are achievable with the Long Adjustable Vario Connector 77837A-NA (not supplied).
Installation Notes:
• Water supply pressure range: 20 psi (137 kPa) - 72 psi (500 kPa).
• Can be installed as a P-trap using a straight connector (not supplied) or as an S-trap using the vario connector & or pan offset collar (supplied).
• Top left rear entry water supply hose is supplied. Pan side entry water supply hose must be purchased separately if required.
• Supplied hose ring is only required with a pan side entry setup.

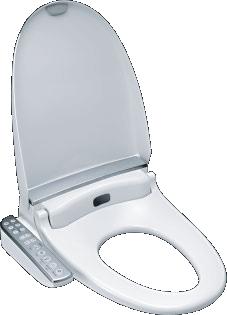

Englefield Electronic Bidet Seat ™
A modern bidet seat that can be fitted to a variety of Englefield and other toilets Designed to deliver the finest in hygiene, safety and comfort for the whole family
*Notes:
● Must be installed with RCD electrical protection
Colour/Finish
Material
Included Components
• Electronic bidet
• Ionic water filter
• Non-return valve
• Installation instructions
• Quick start user guide
• Low-medium hazard backflow prevention device
Features & Benefits
• Quiet-Close, Quick-Release and heated seat
• Posterior and feminine cleansing with warm water
• Auto self-cleaning stainless steel nozzle for personal hygiene
• 2-level power saving modes
• Sitting sensor enables cleansing functions only when seated
• 6-level adjustment nozzle position
• Reduce unhygienic dampness with dry air
• Includes check valve, T-connector, water inlet hose, seat fixing kit, water filter and electronic bidet seat
● Must be installed to a water supply pressure between 220-500kPa
● The Englefield Electronic Bidet Seat must be installed in accordance with AS/NZS 3500.1, which will require the installation of a high hazard backflow prevention device (not supplied), if not already installed on site. Please consult with your registered Plumber or Hydraulic Consultant.
Note: Maximum user weight 120kg
