BY A J BURGERHOFF
| DESIGN
• CONCEPT AND FORM GUIDANCE

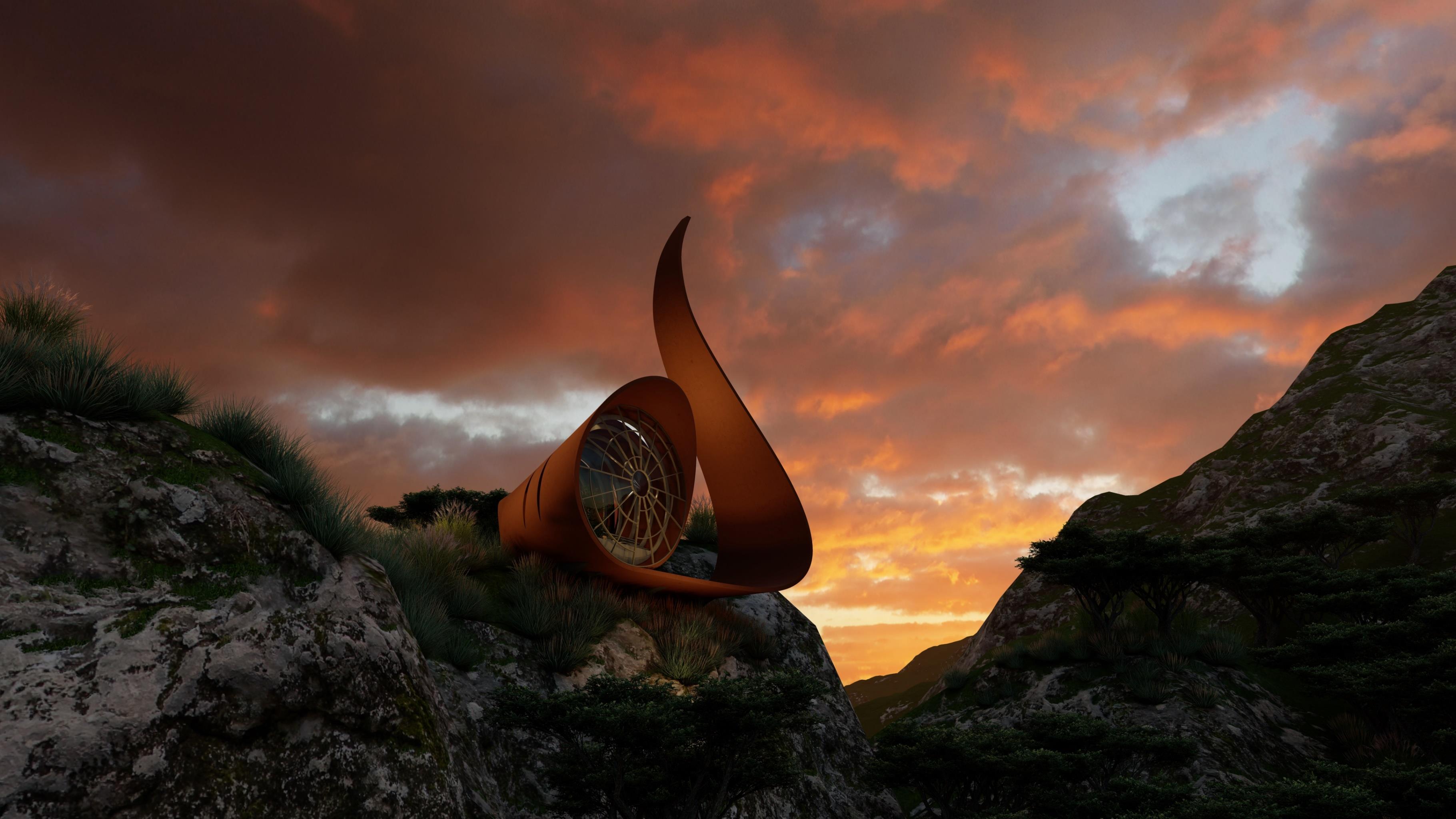

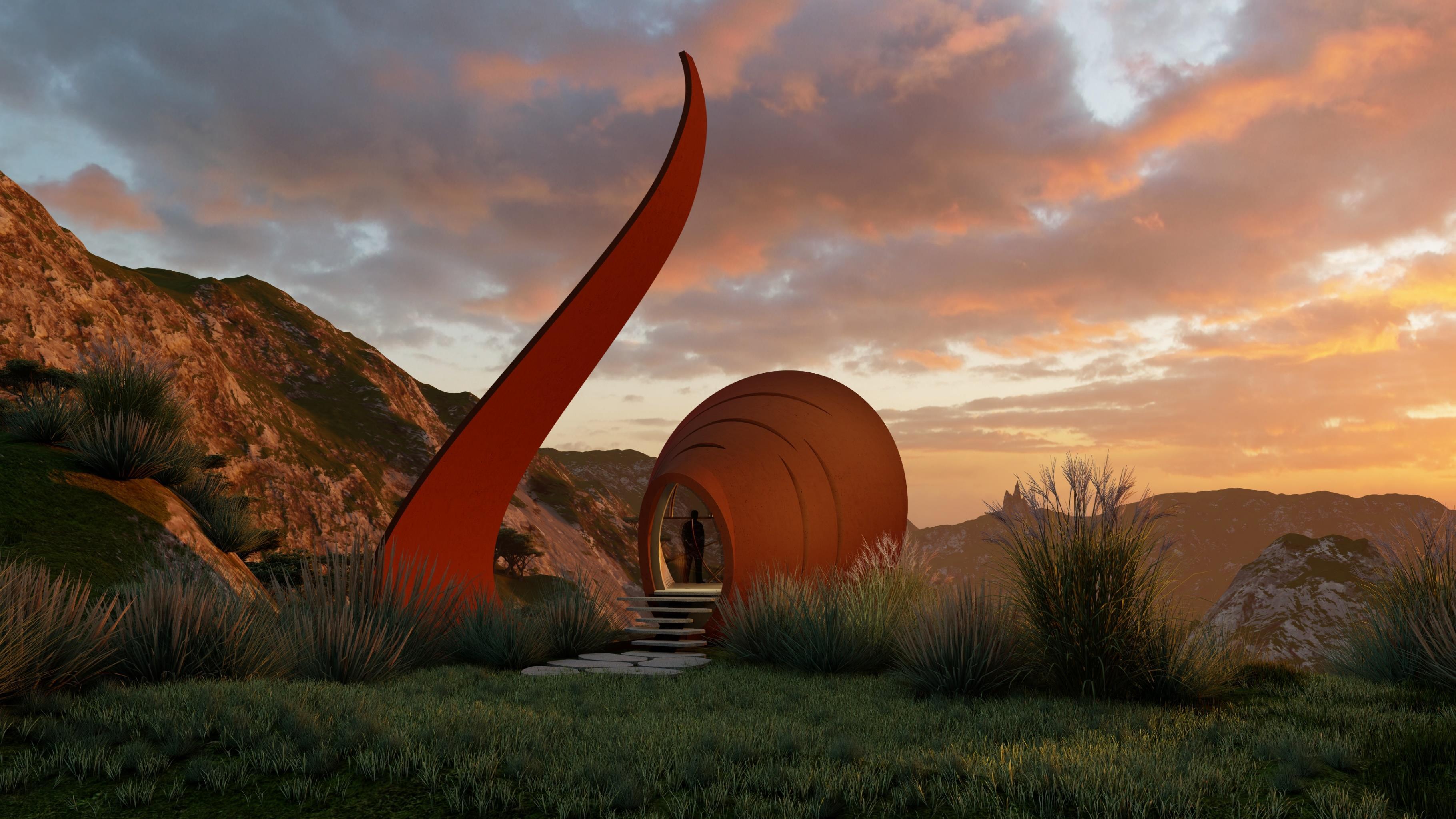

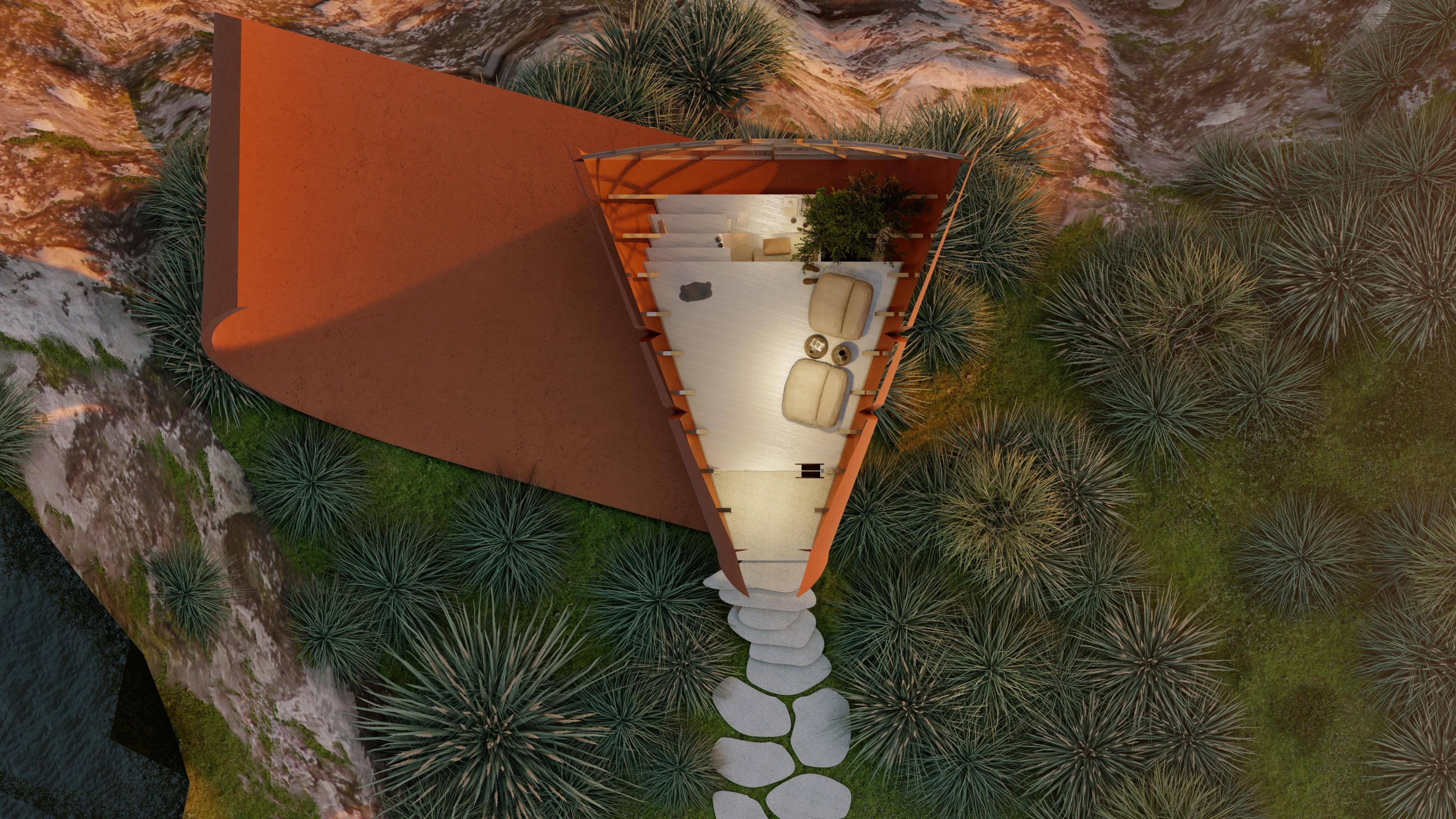

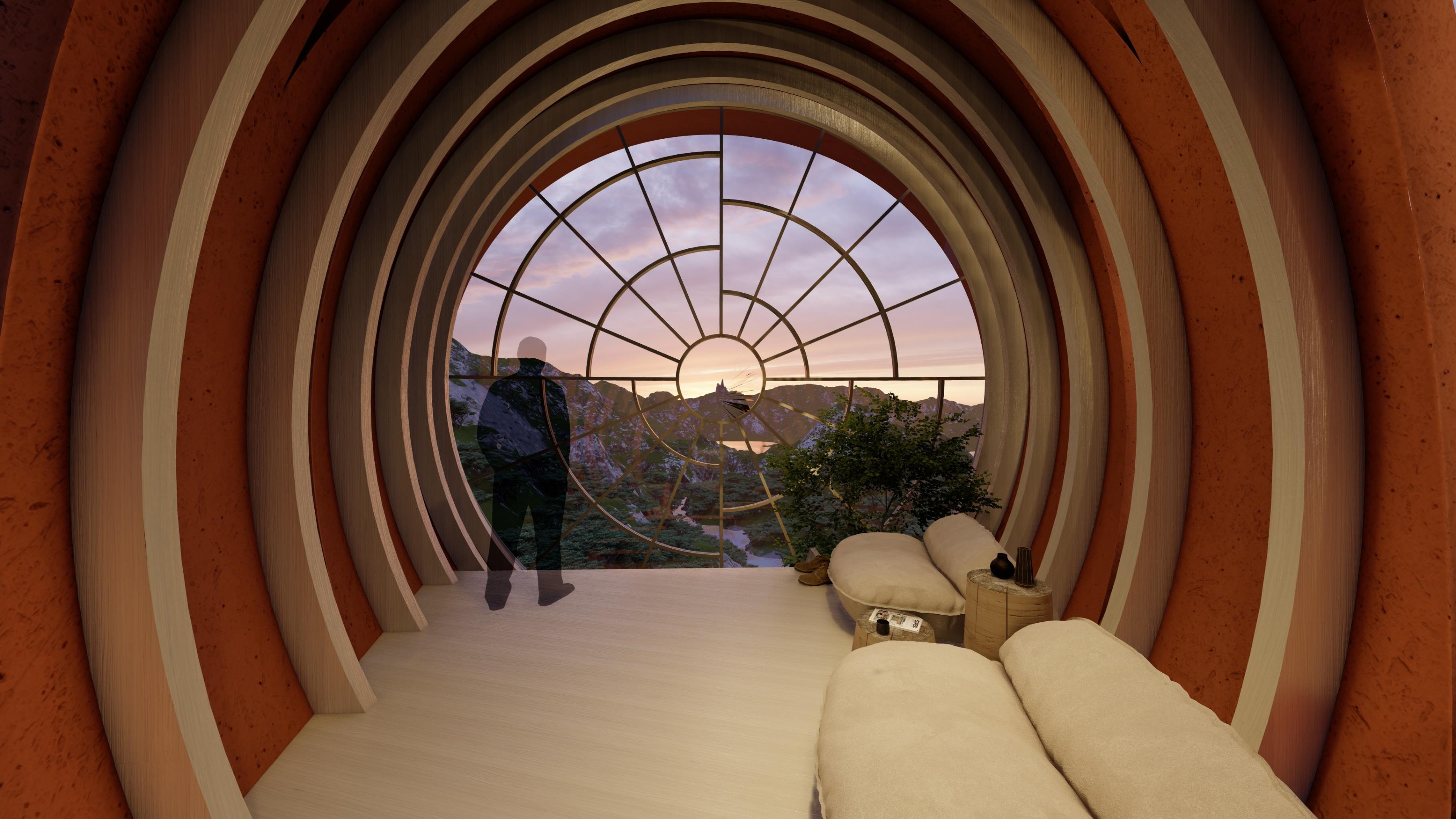

• RENDERS
• PLANS
• SECTION 2 | CONSTRUCTION
• AXONOMETRIC VIEW OF THE GENERAL ASSEMBLY

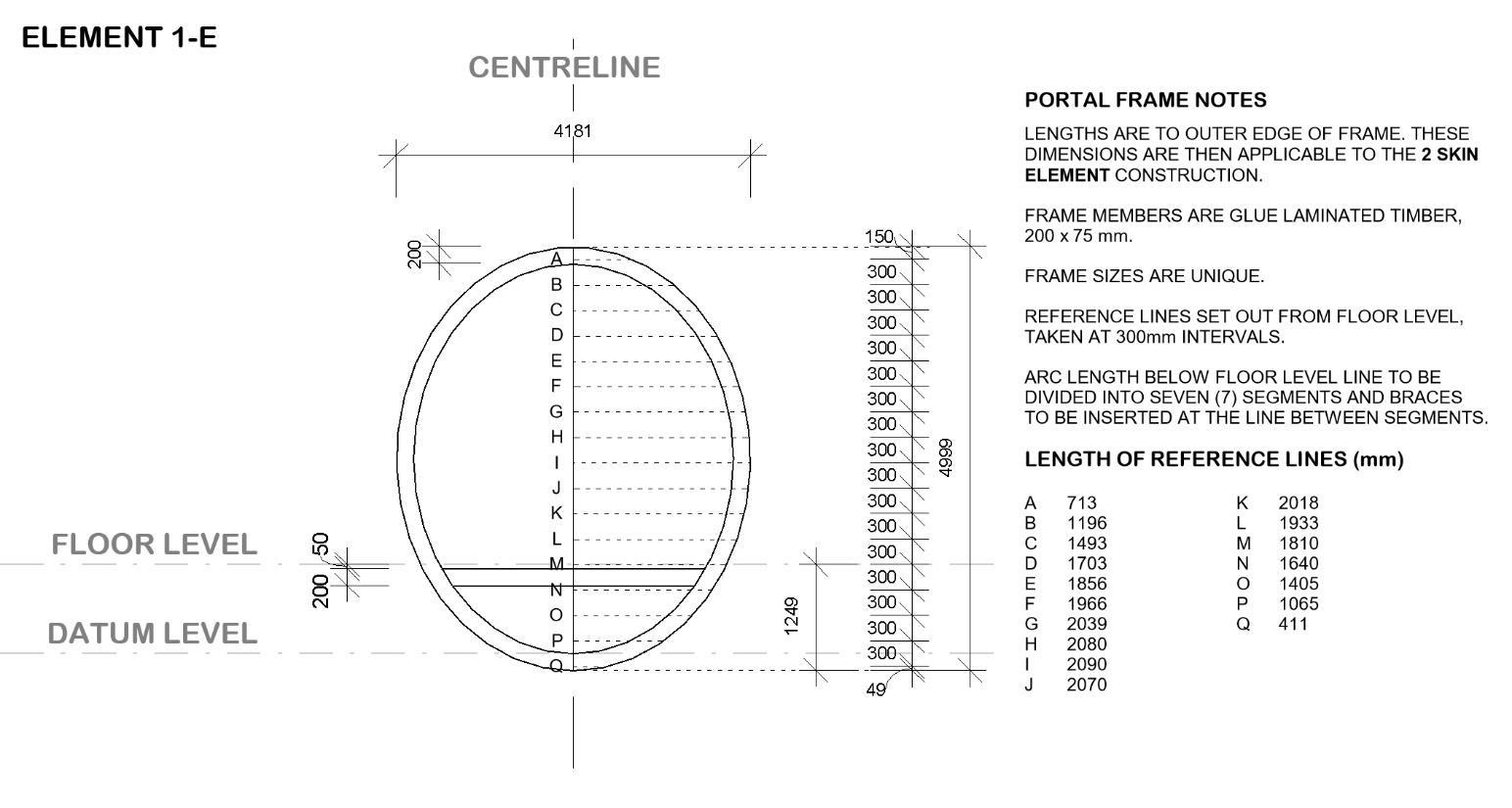

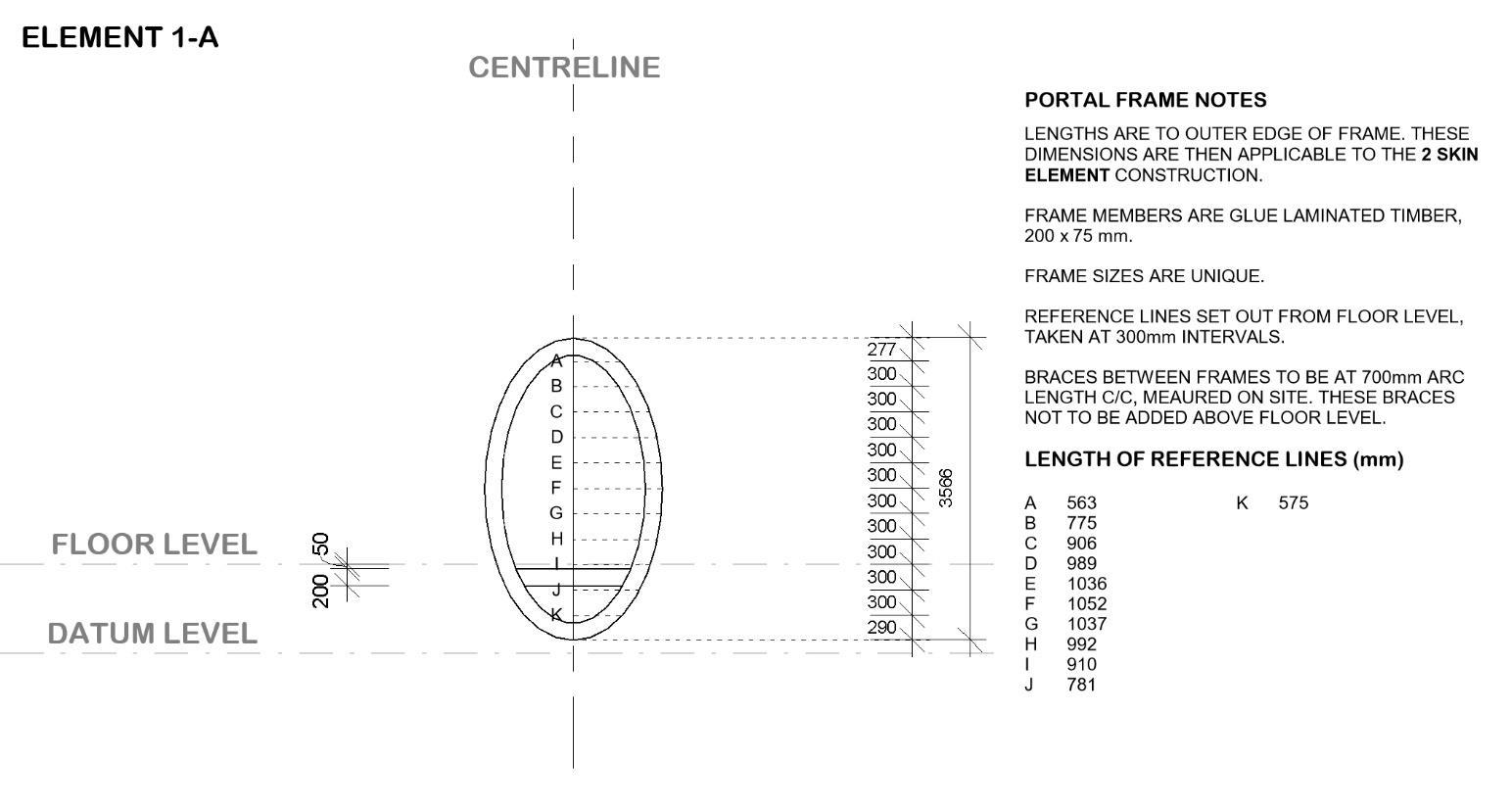

• ELEMENTAL PACK 1

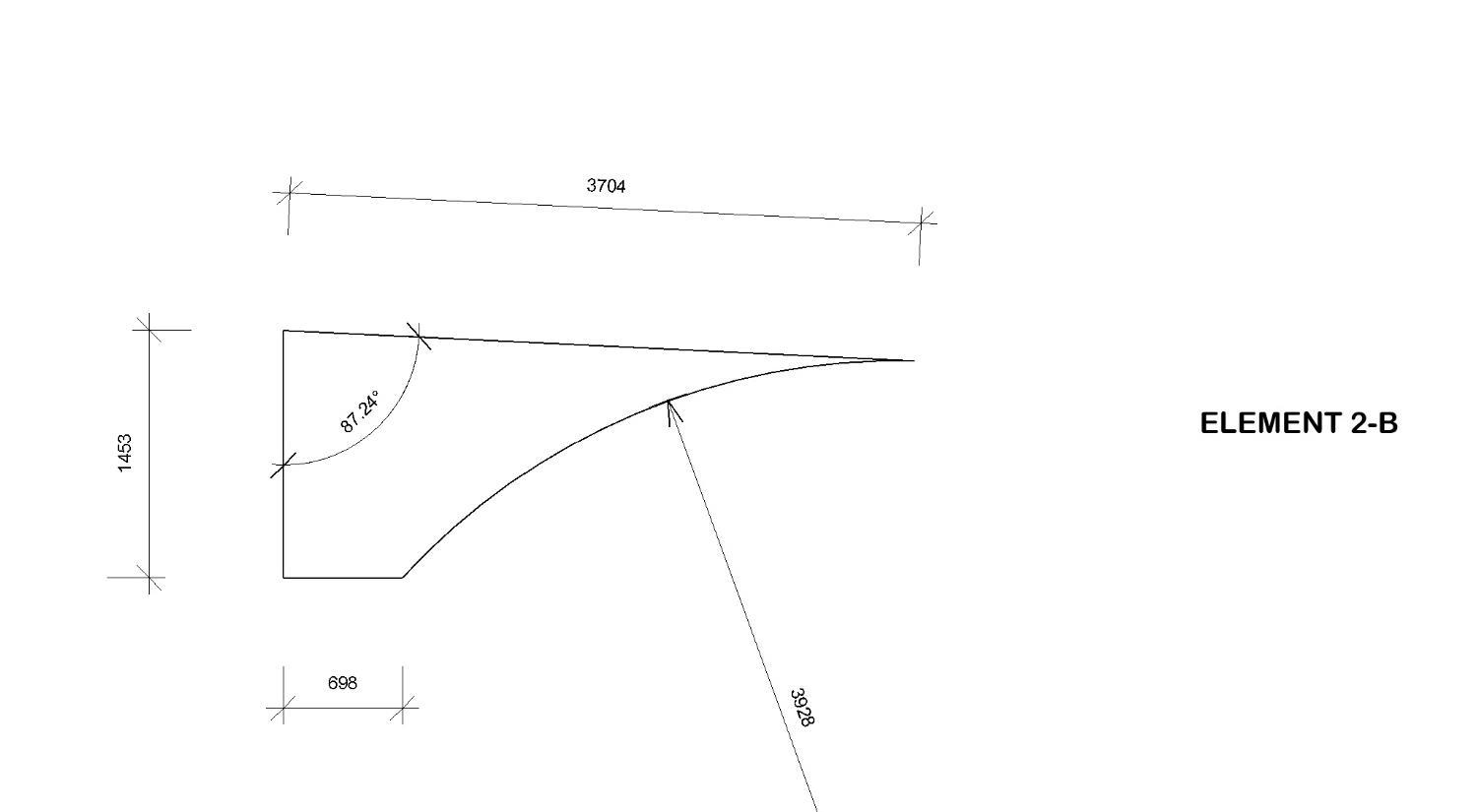

• ELEMENTAL PACK 2
• ELEMENTAL PACK 3
• ELEMENTAL PACK 4
• ELEMENTAL PACK 5
• ELEMENTAL PACK 6

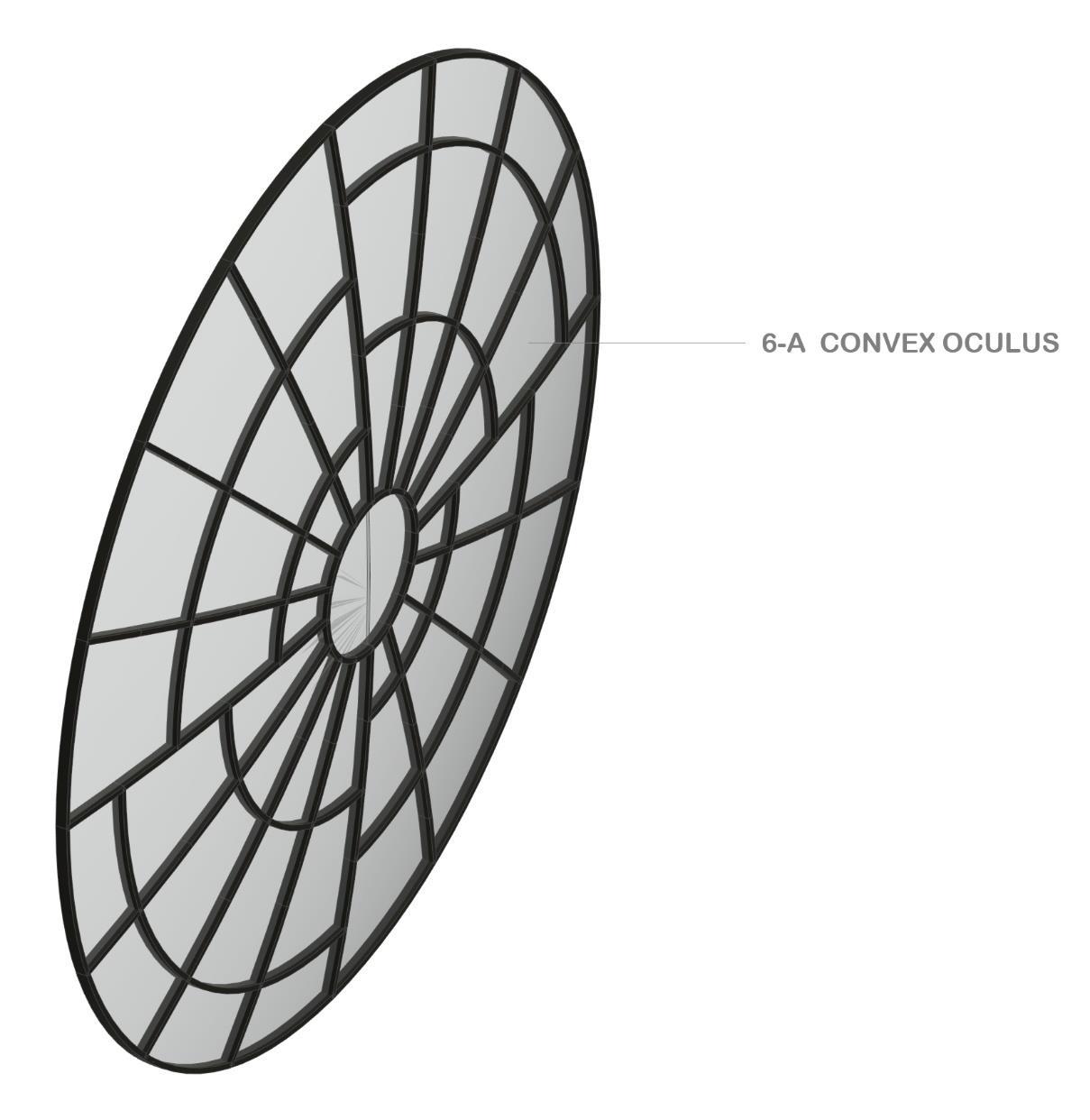

• ELEMENTAL PACK 7

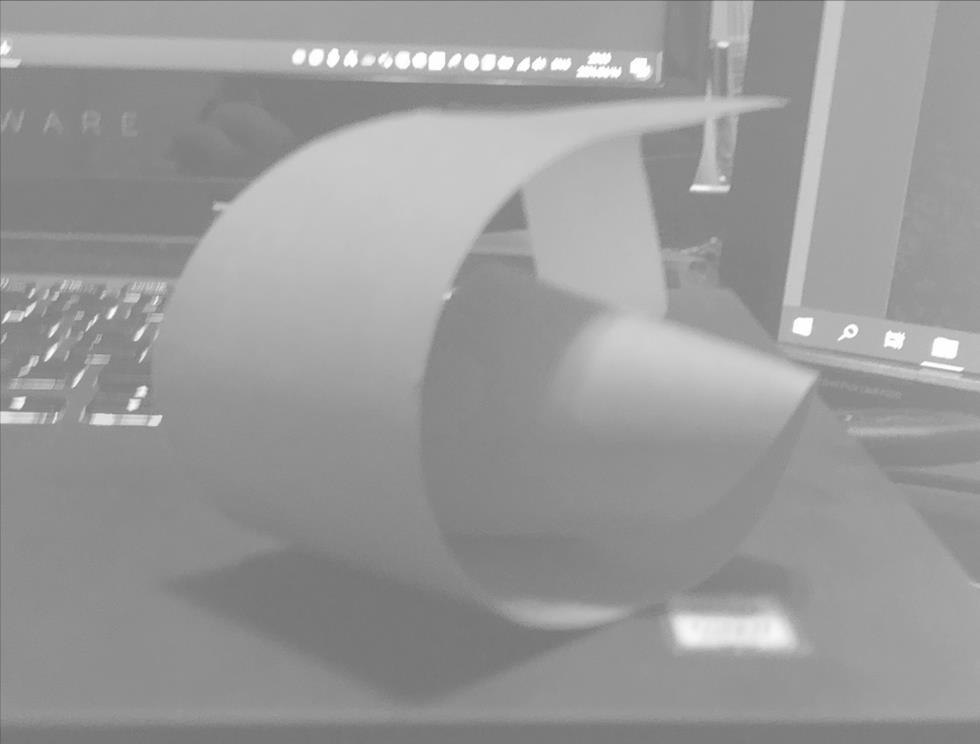

CONCEPT & DESIGN DRIVERS

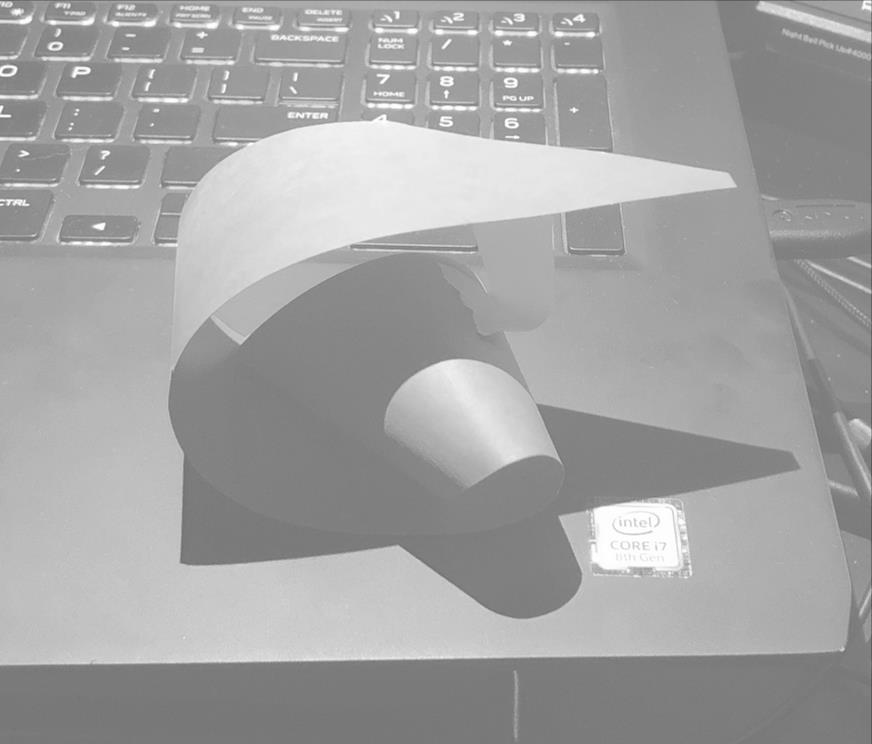

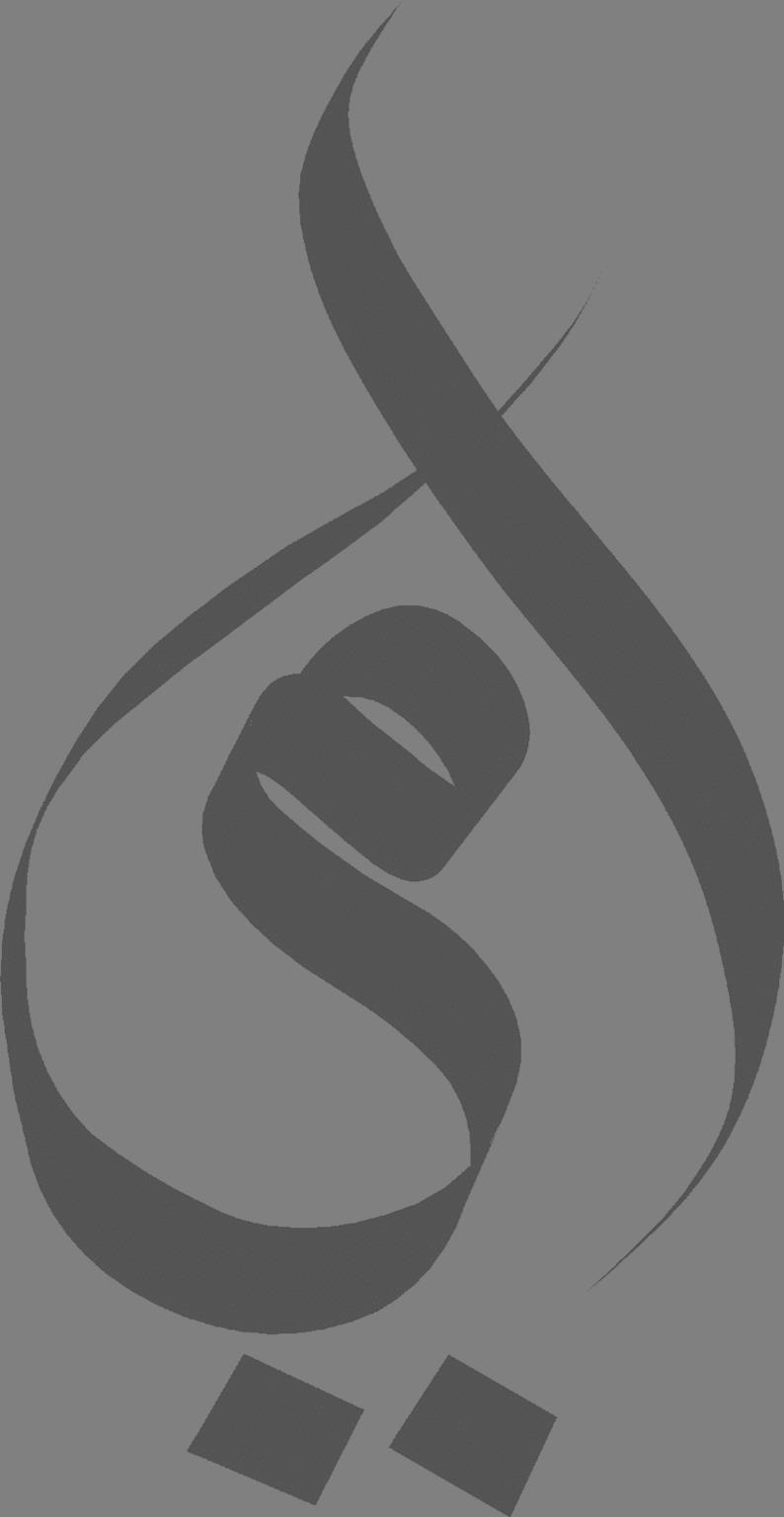

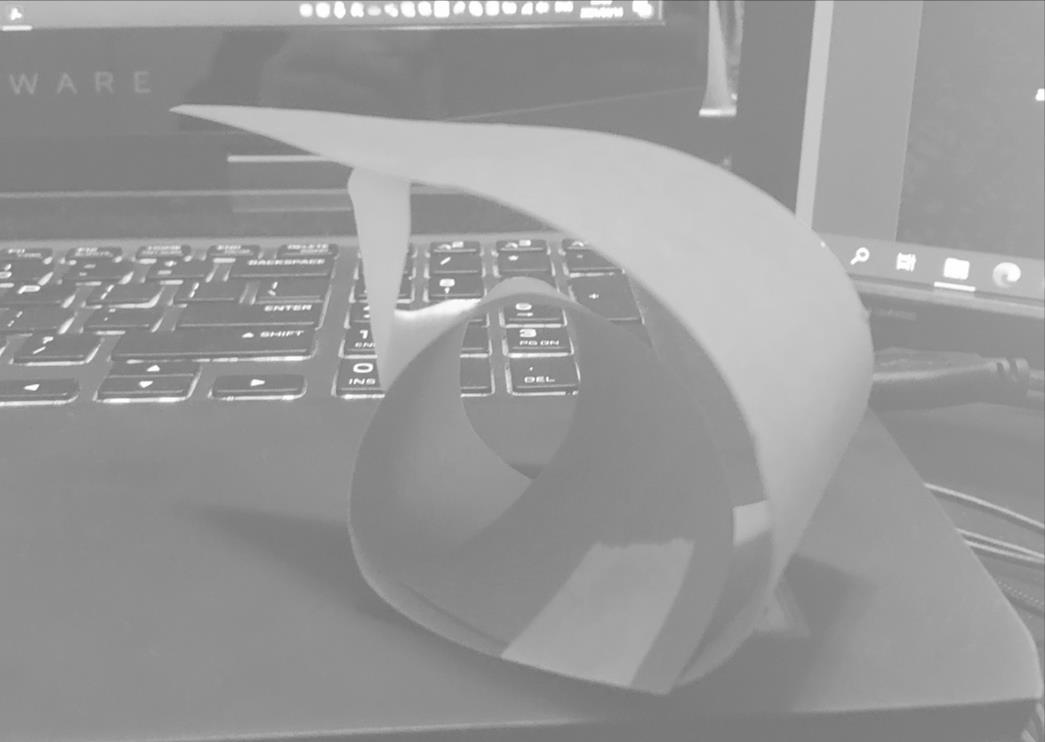

‘mother’

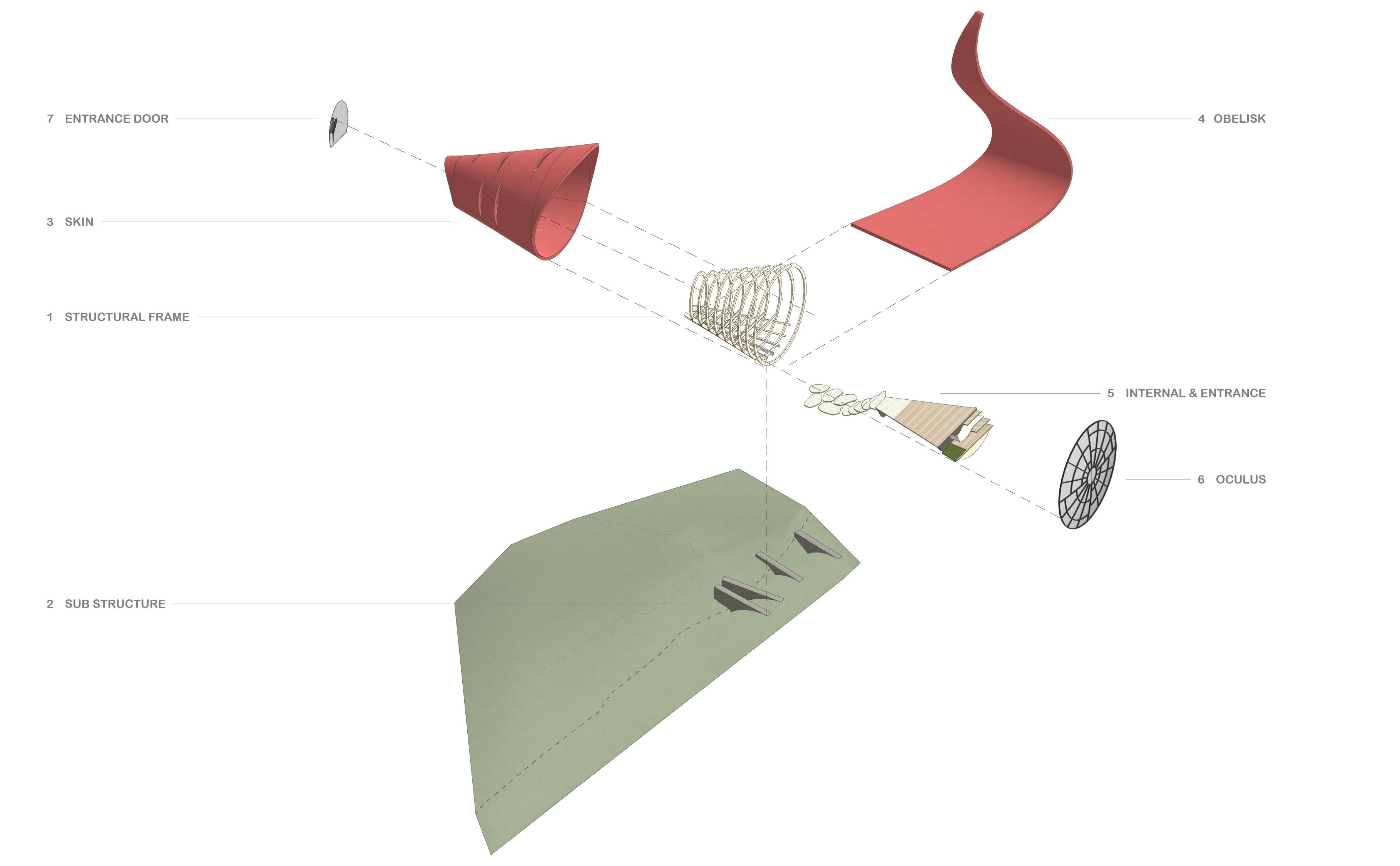

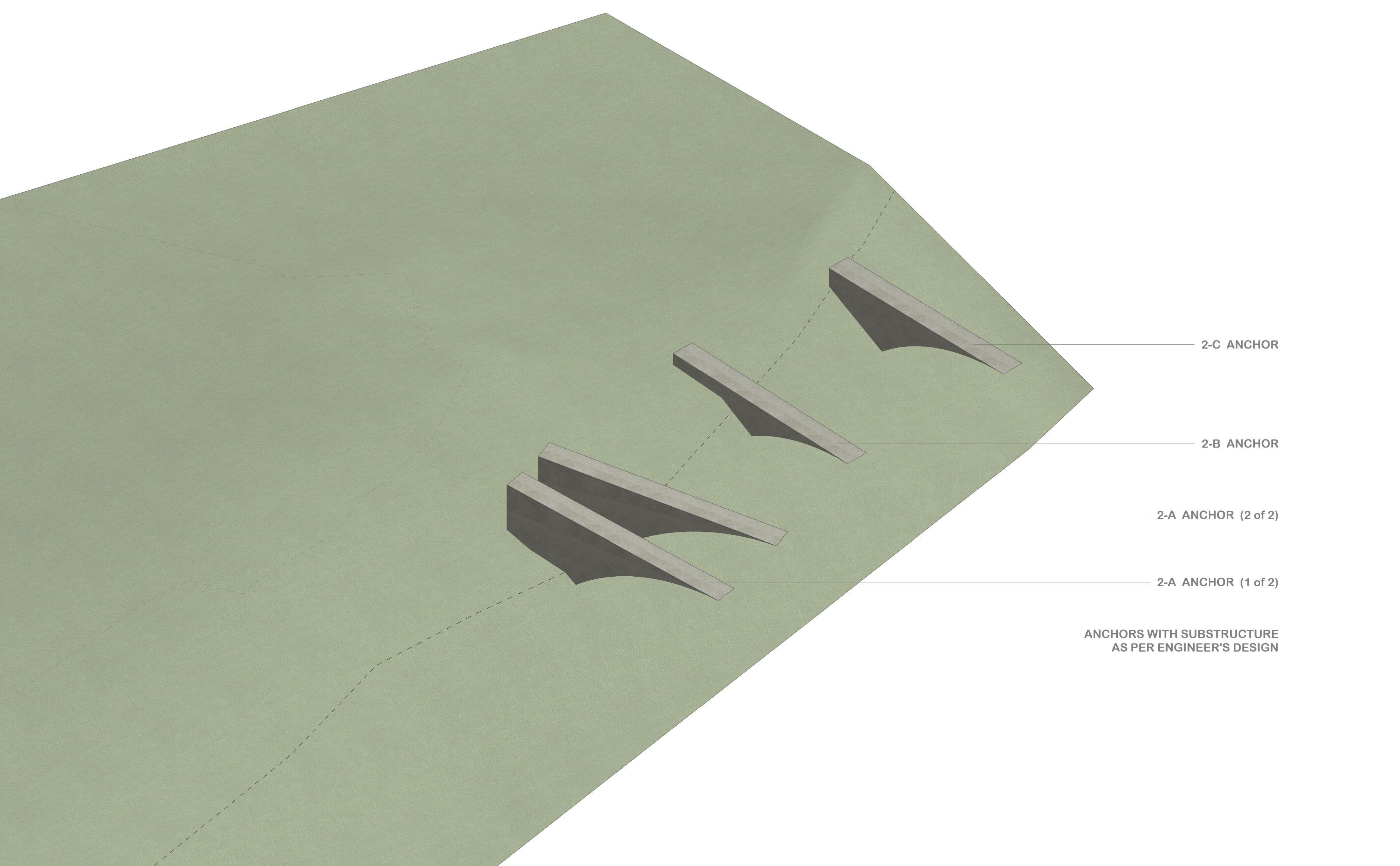

AXONOMETRIC VIEW OF THE ELEMENTAL ASSEMBLY
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS.

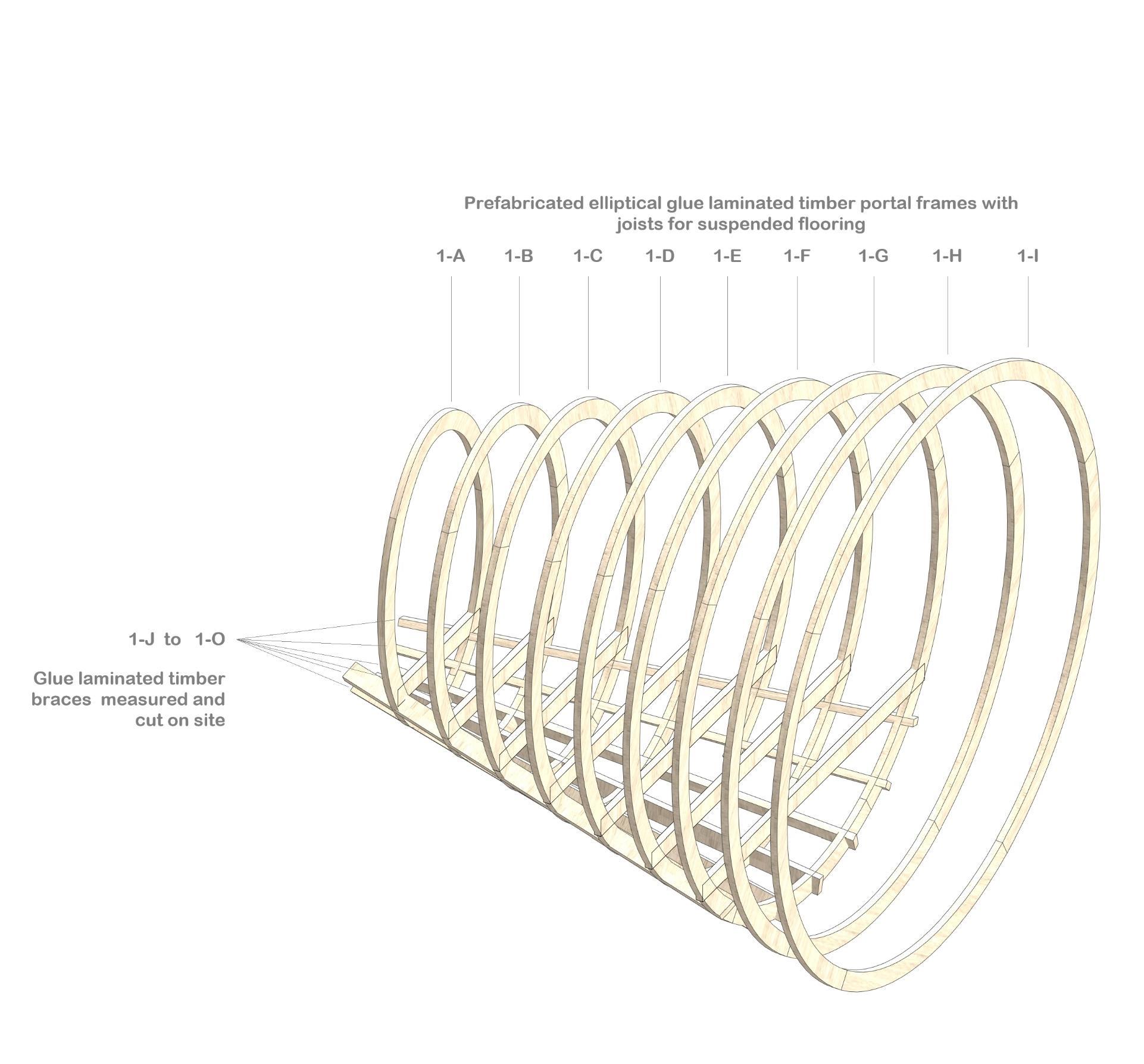

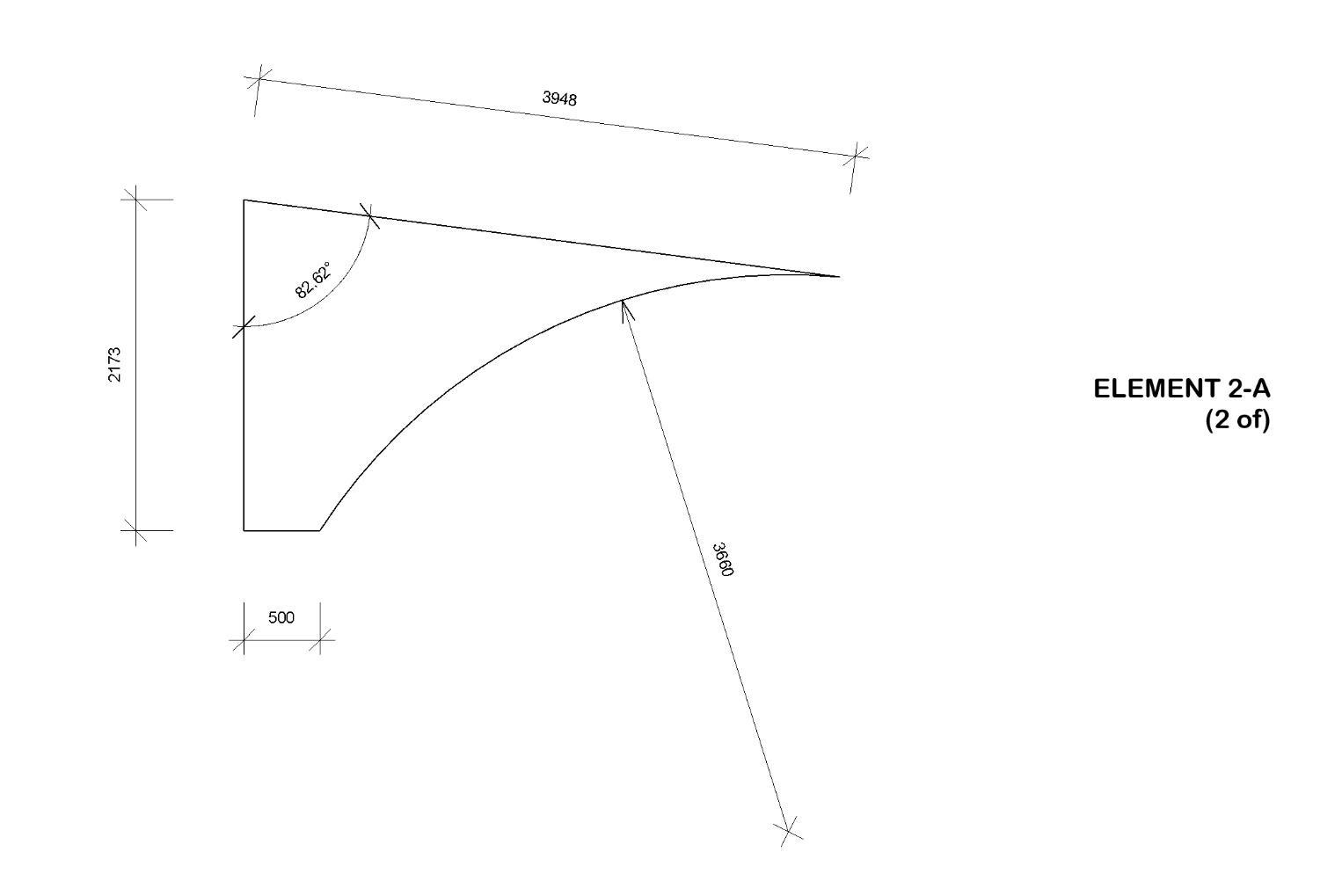

ASSEMBLY AXONOMETRIC VIEW / COMPONENT PACKS 1-A to 1-C
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS.

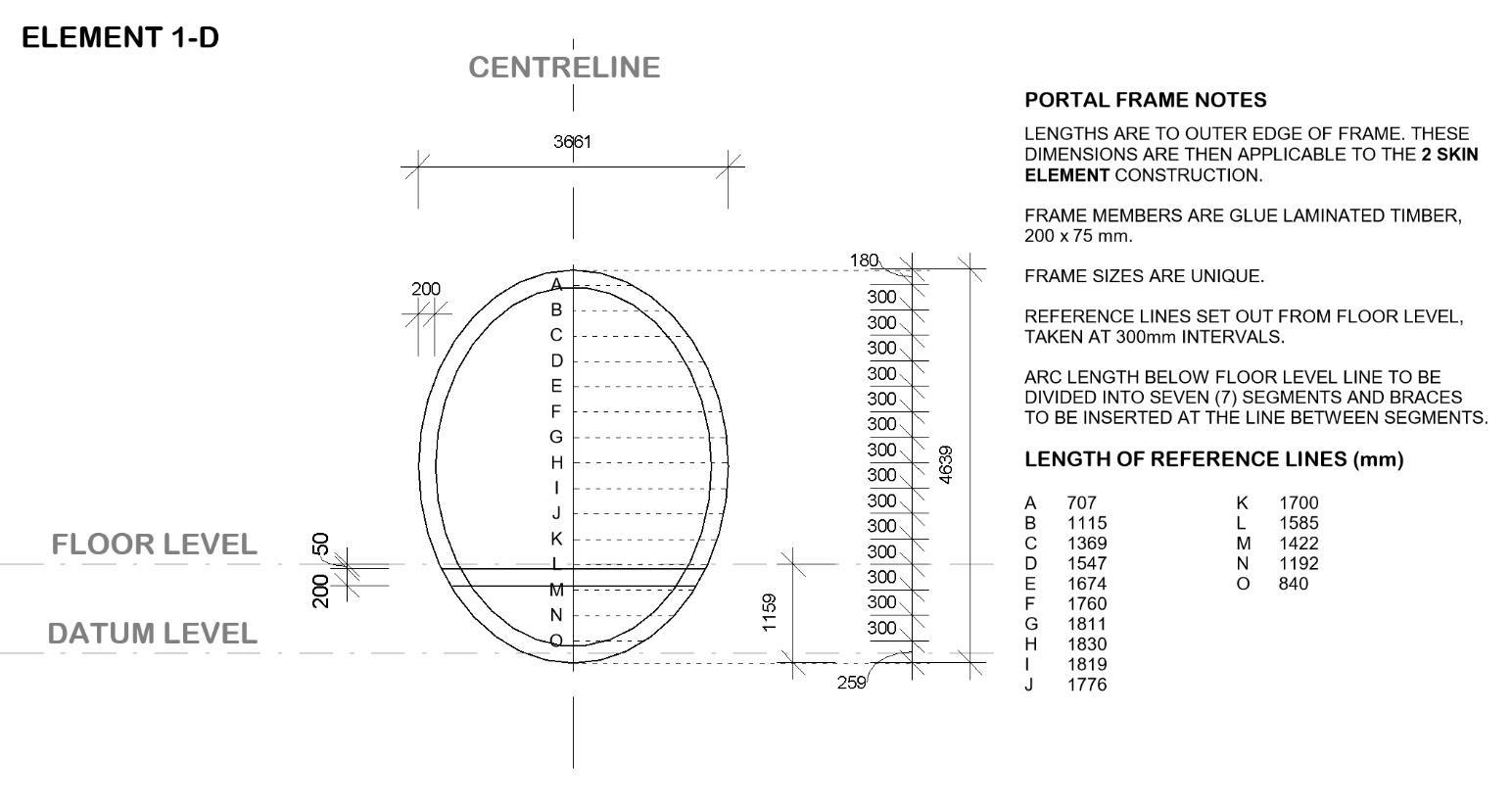

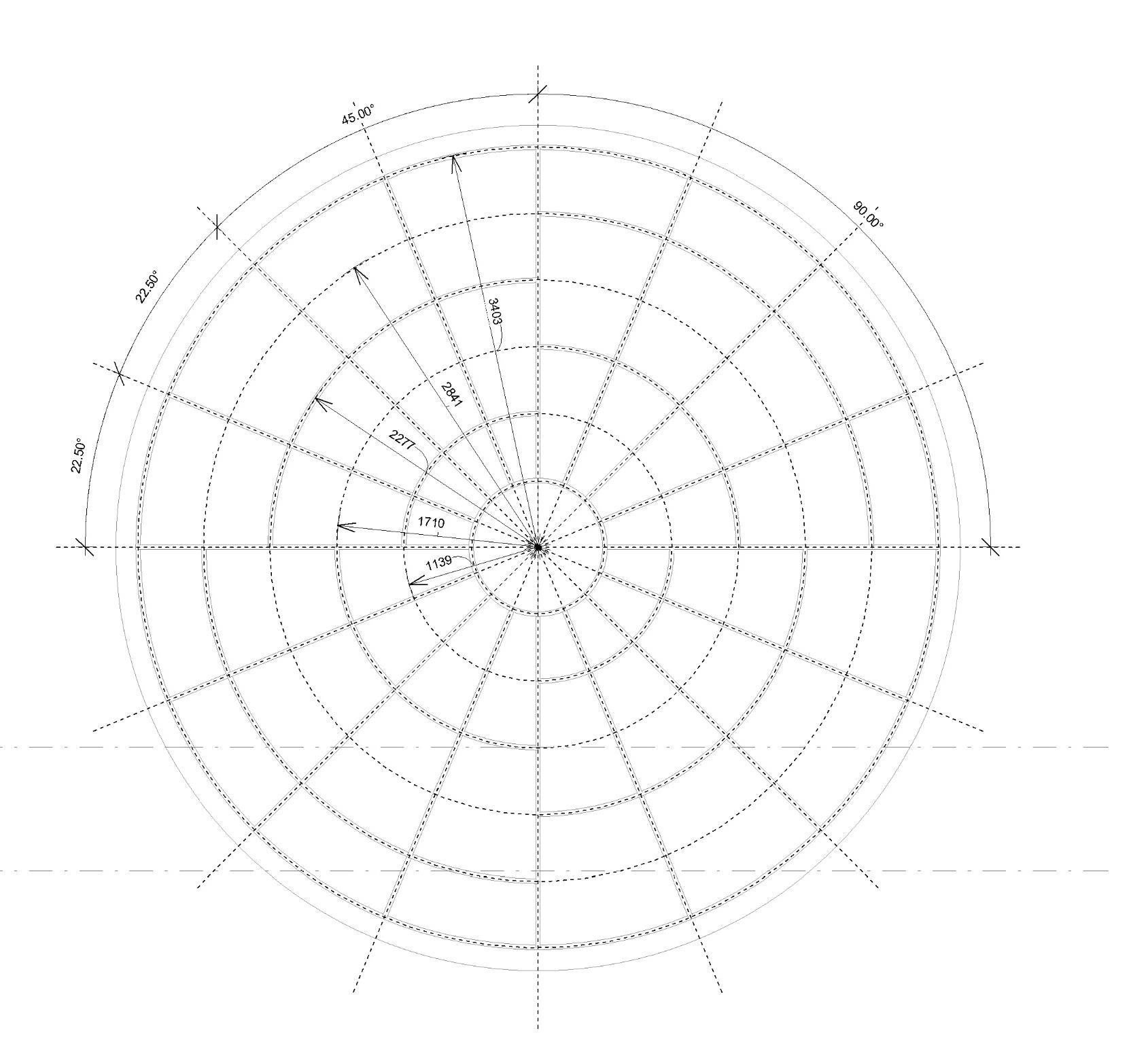

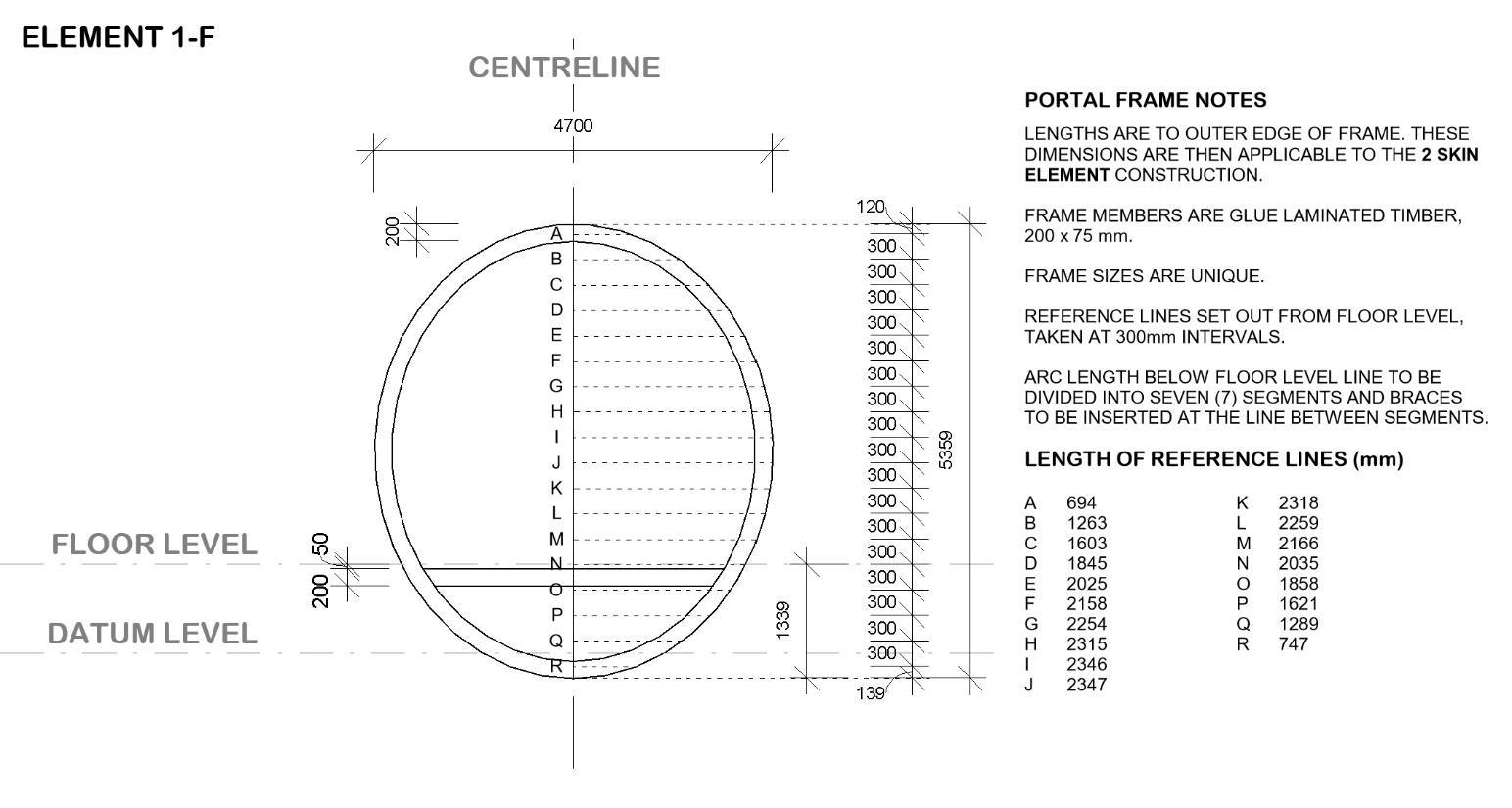

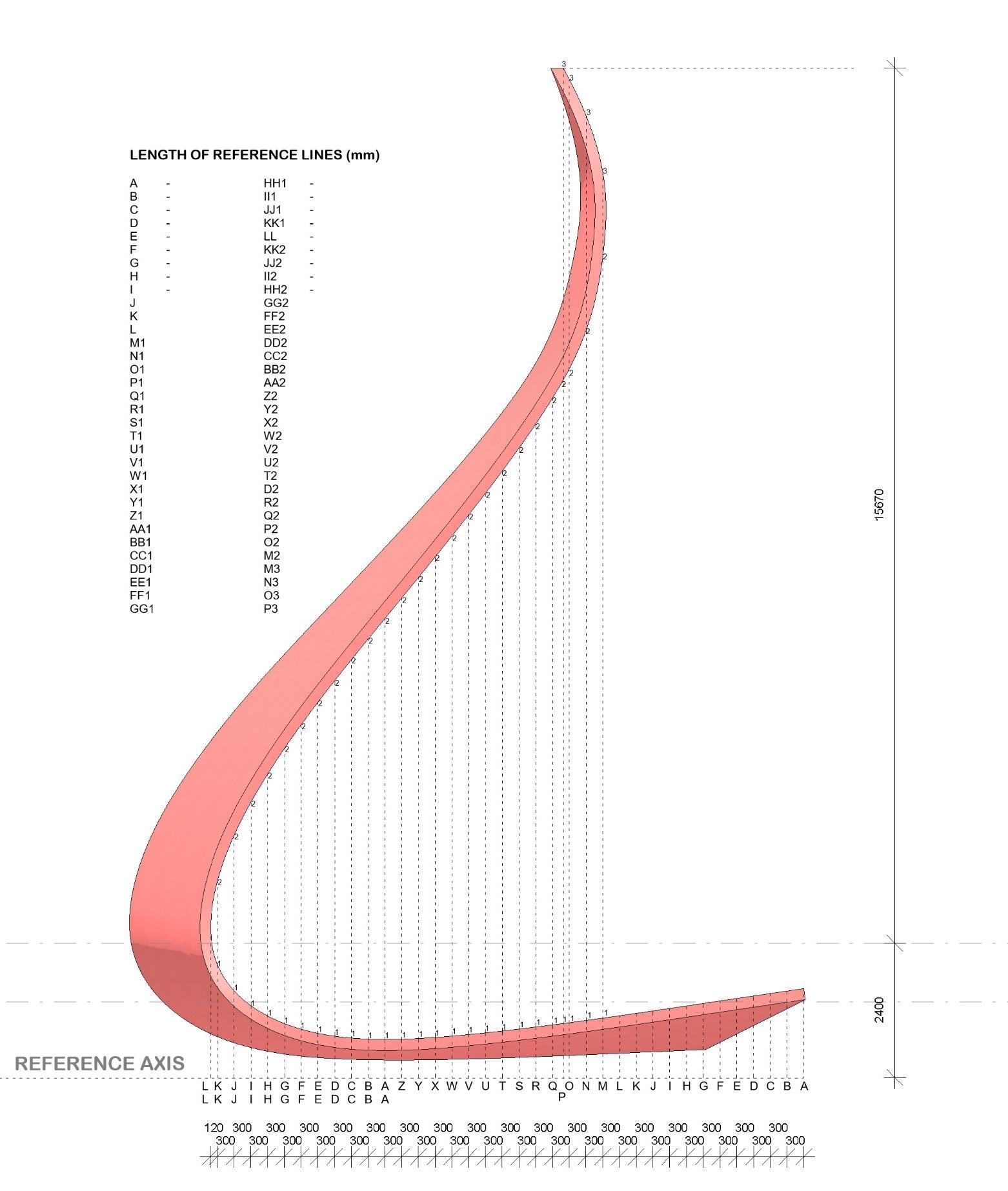

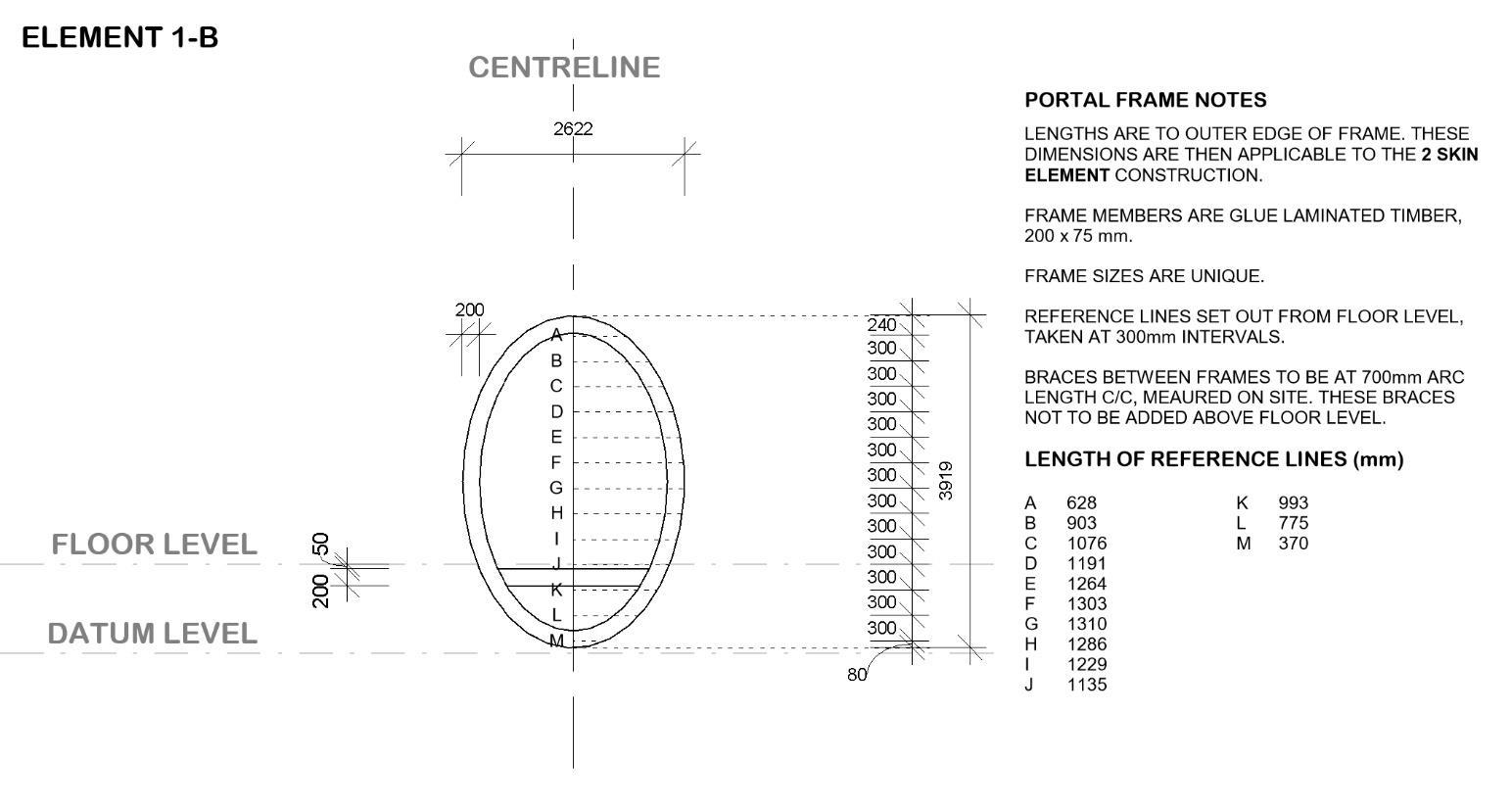

OUT PLAN VIEW / COMPONENT PACKS 1-D to 1-F
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS.

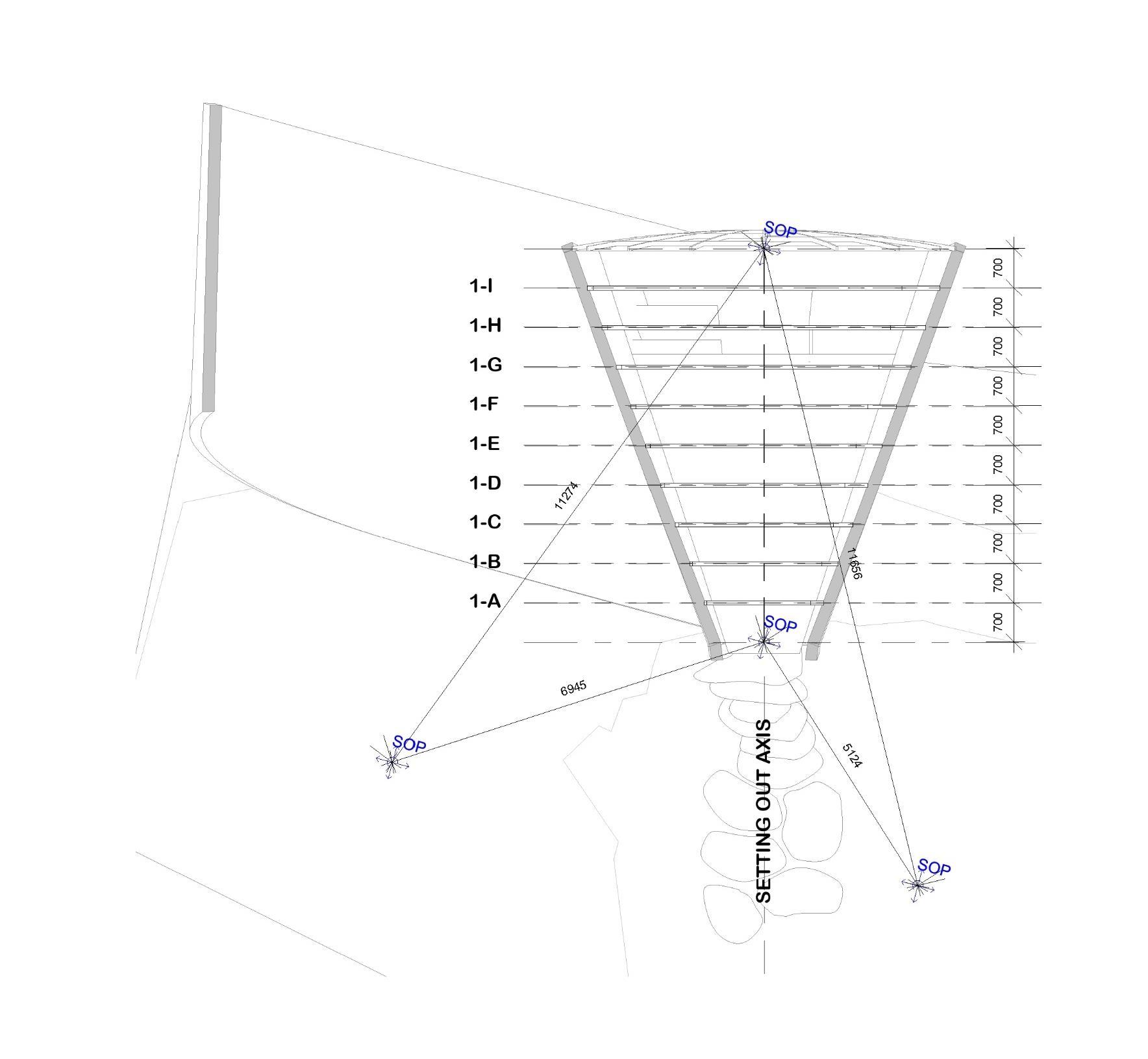

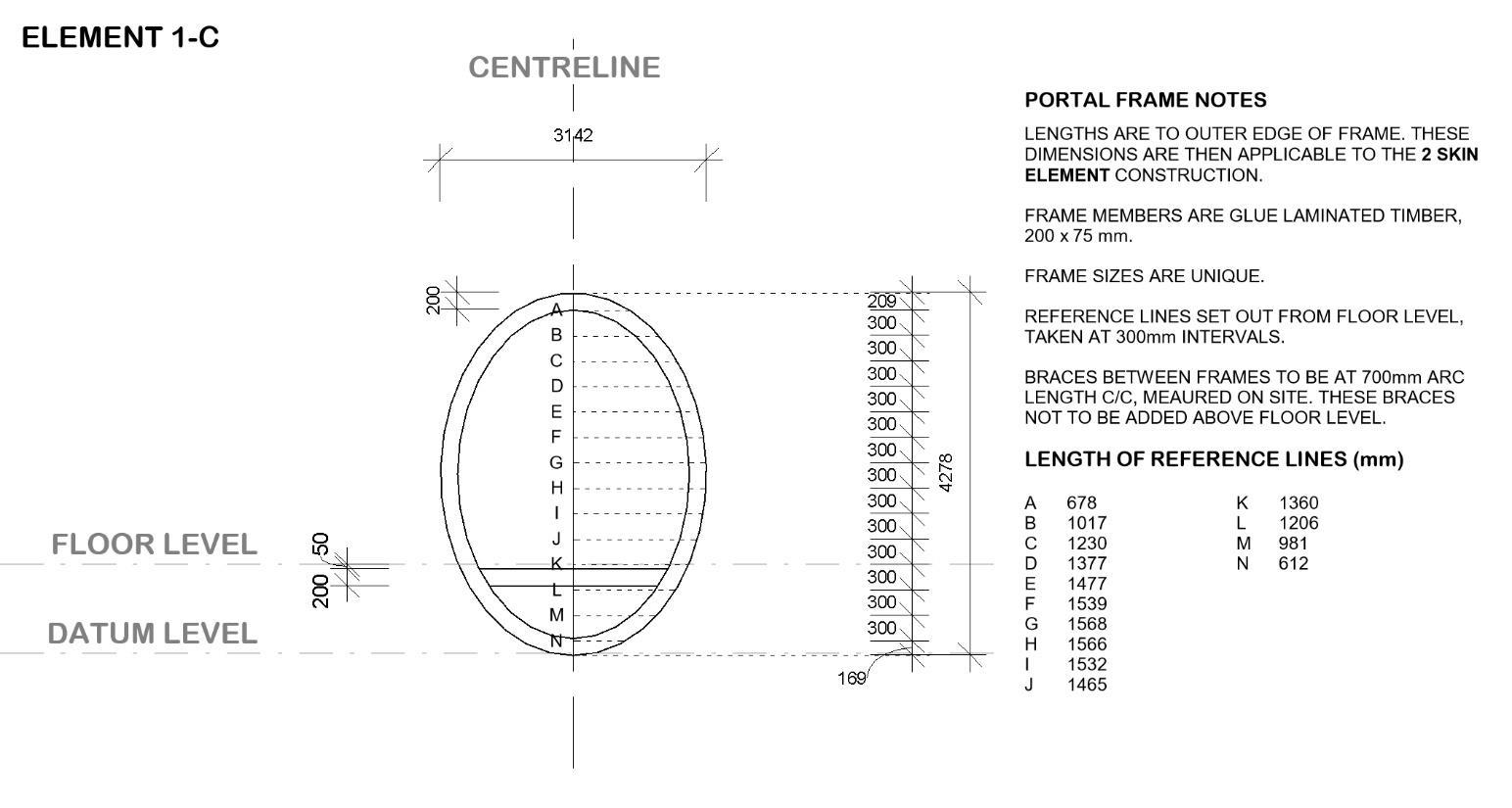

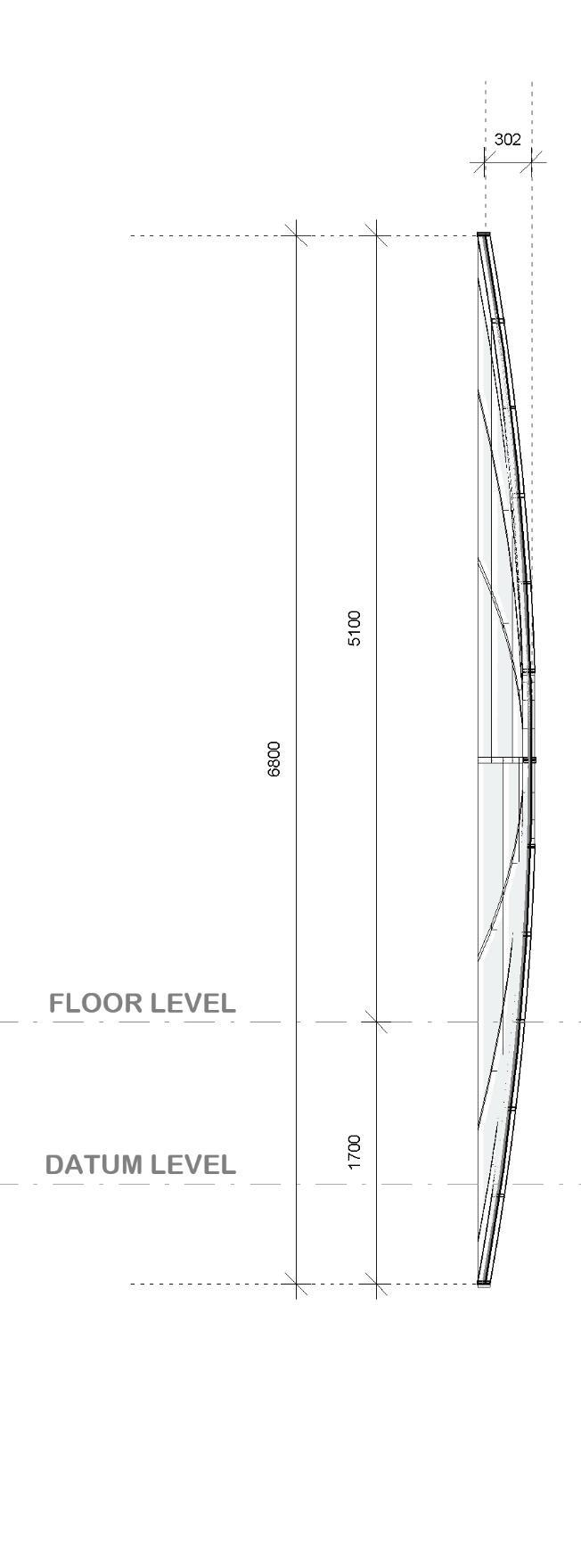

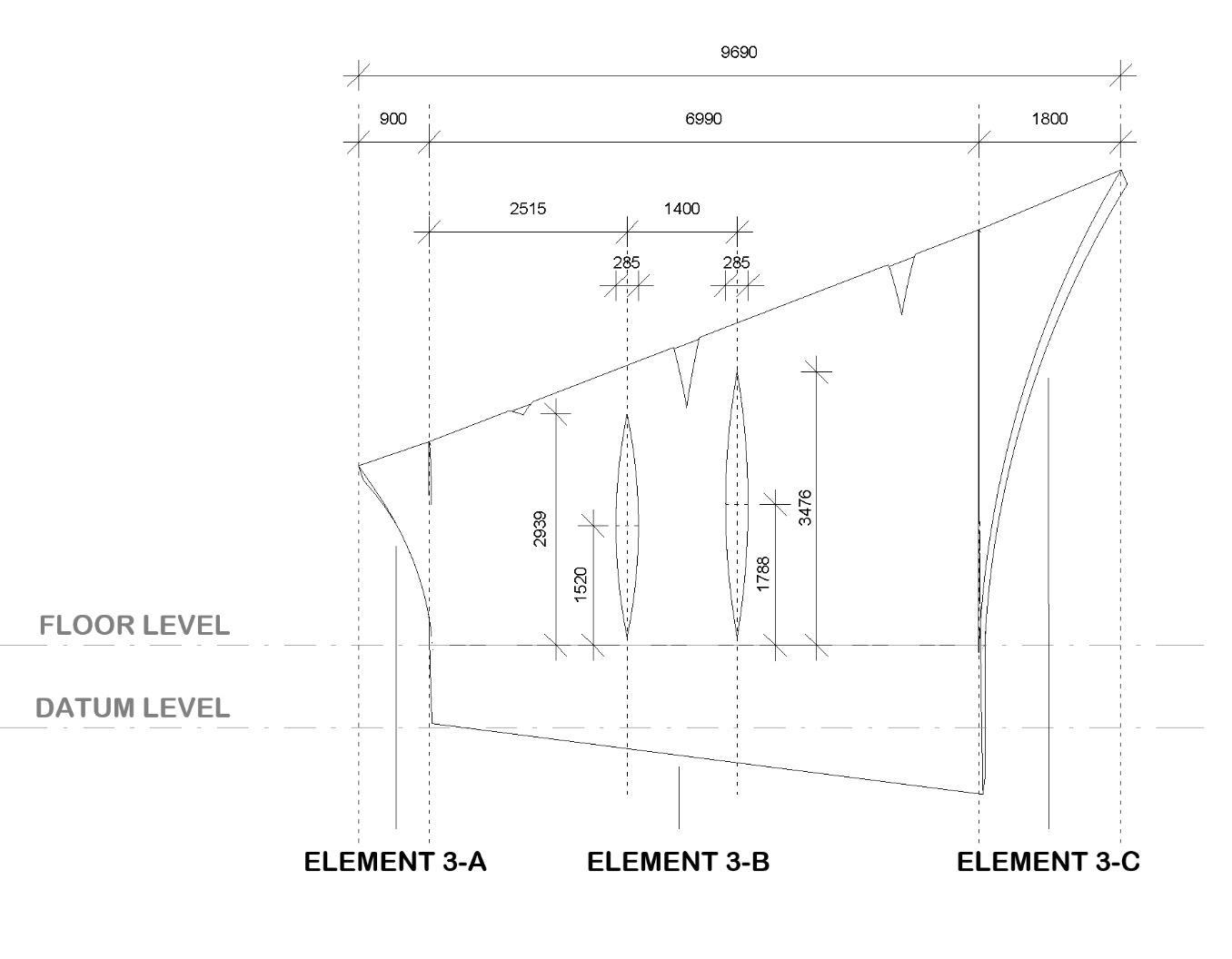

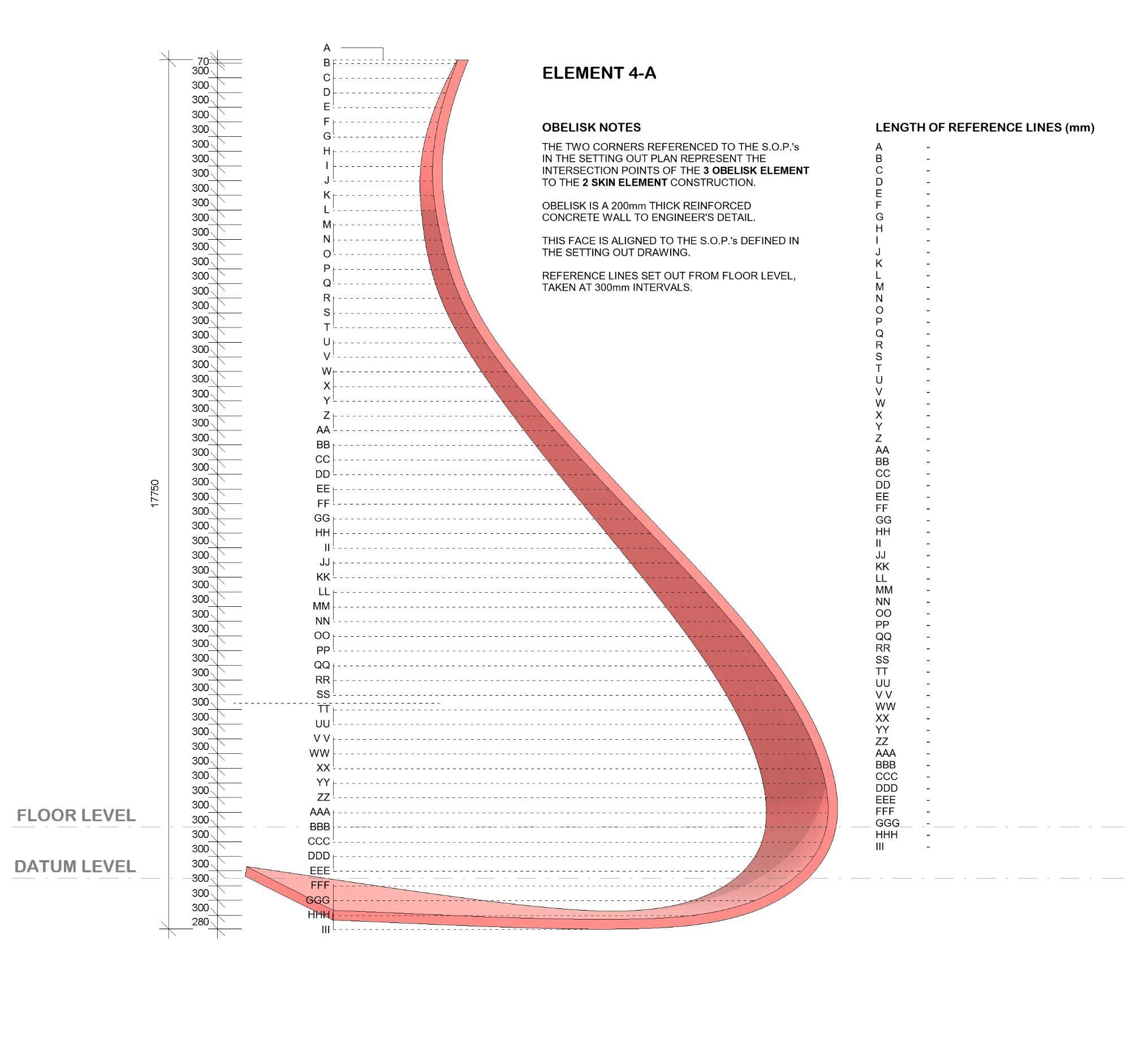

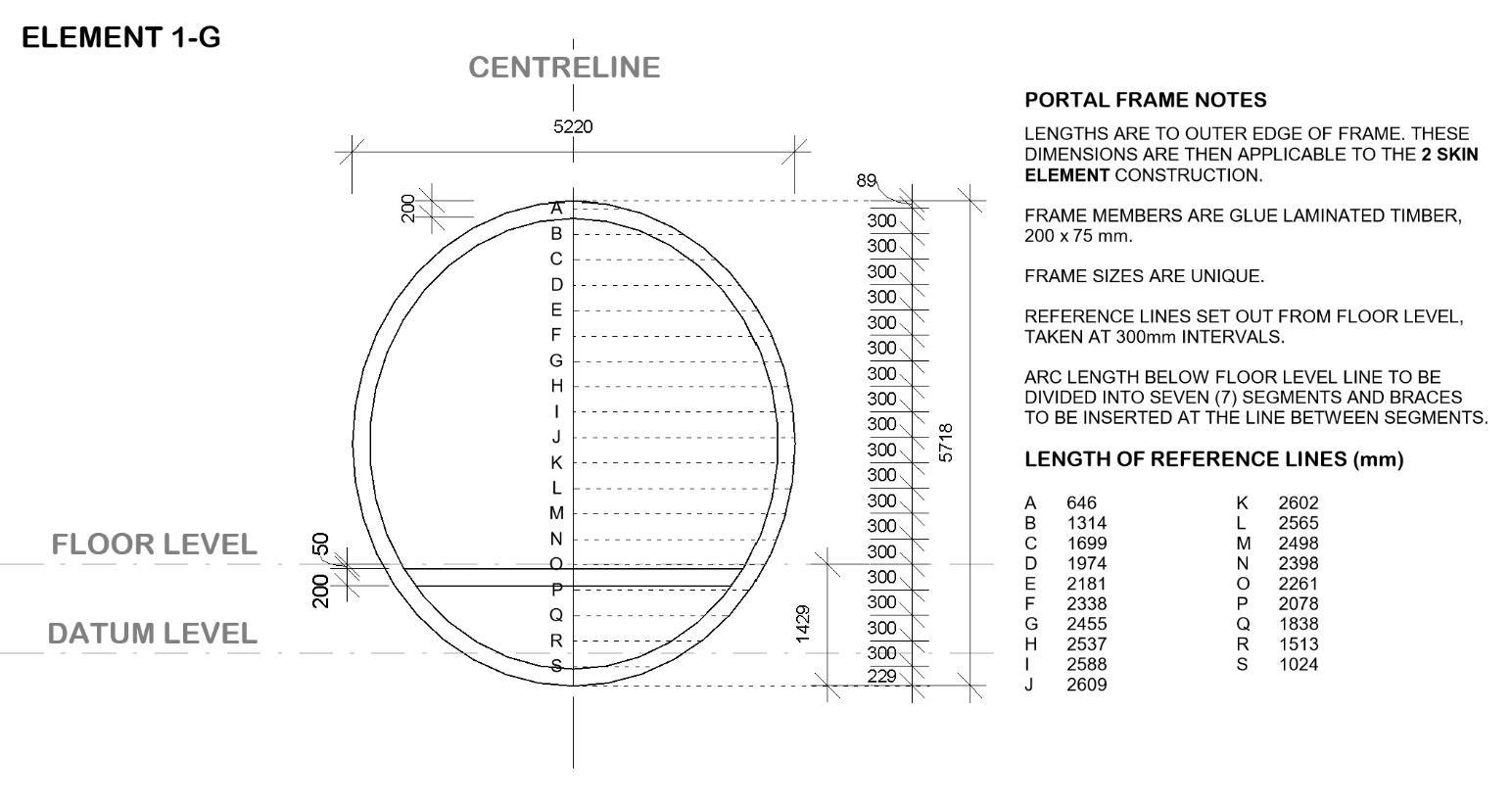

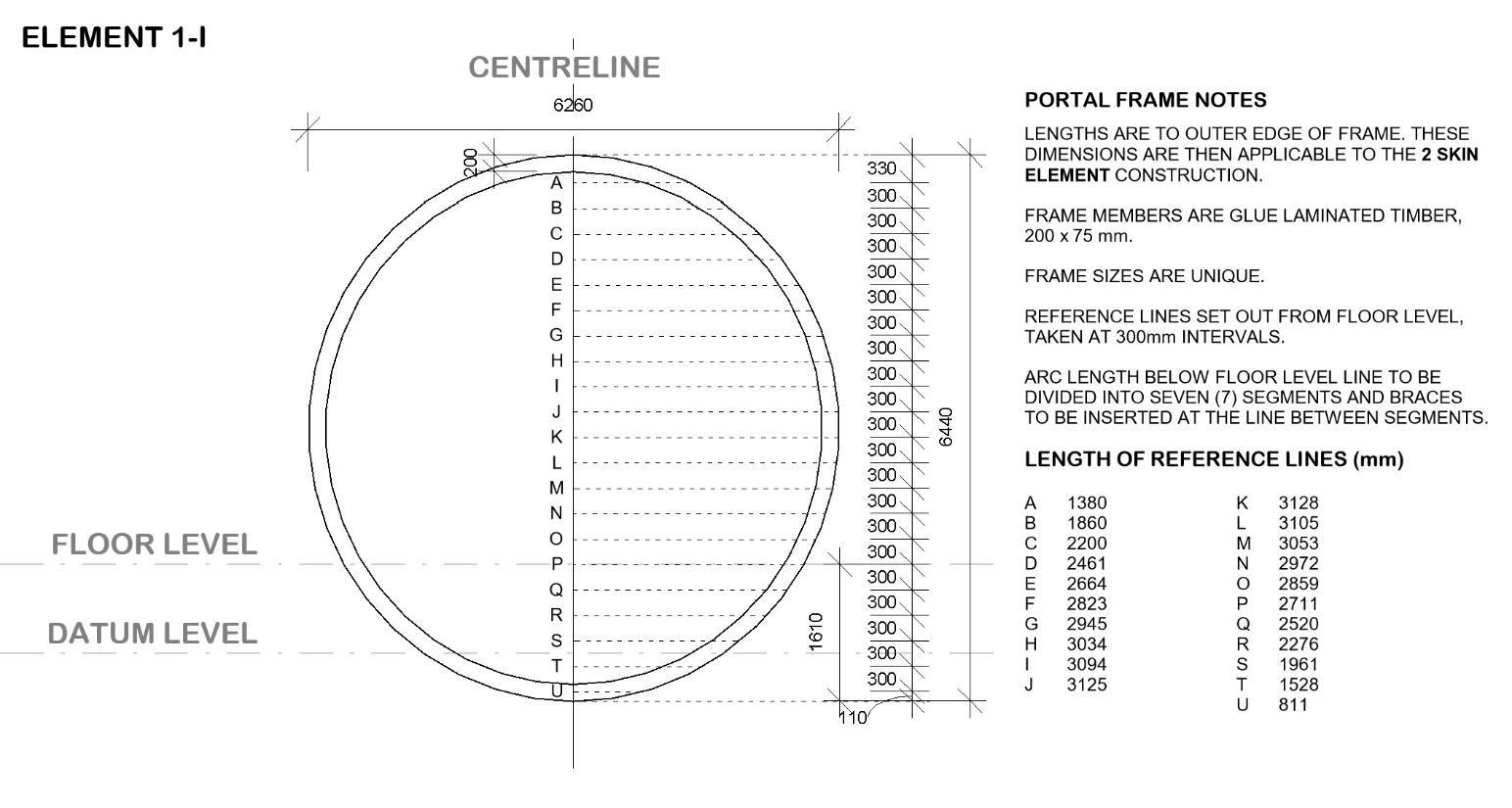

SETTING OUT SECTION VIEW / COMPONENT PACKS 1-G to 1-I

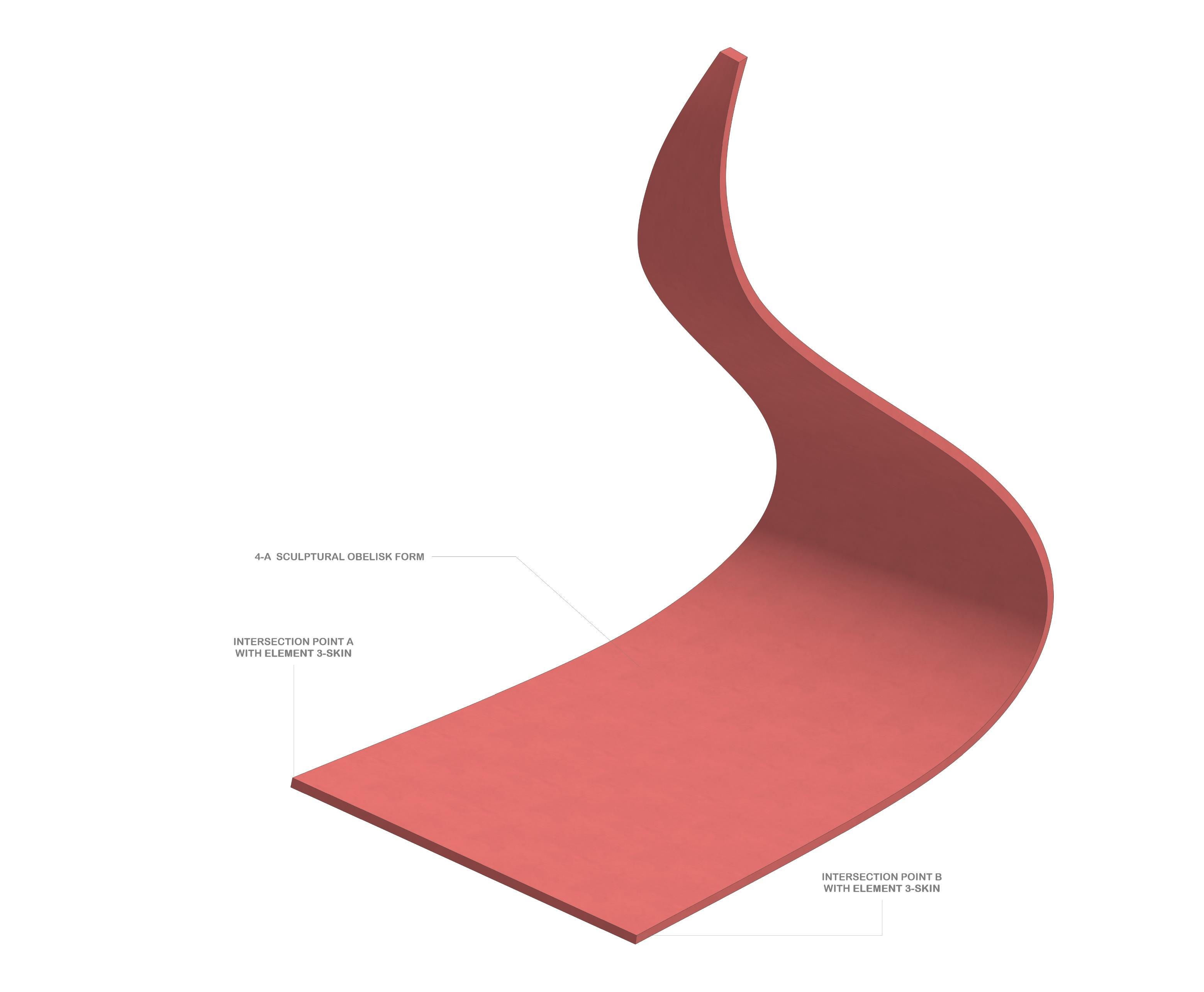

AXONOMETRIC VIEW
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS.
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS.

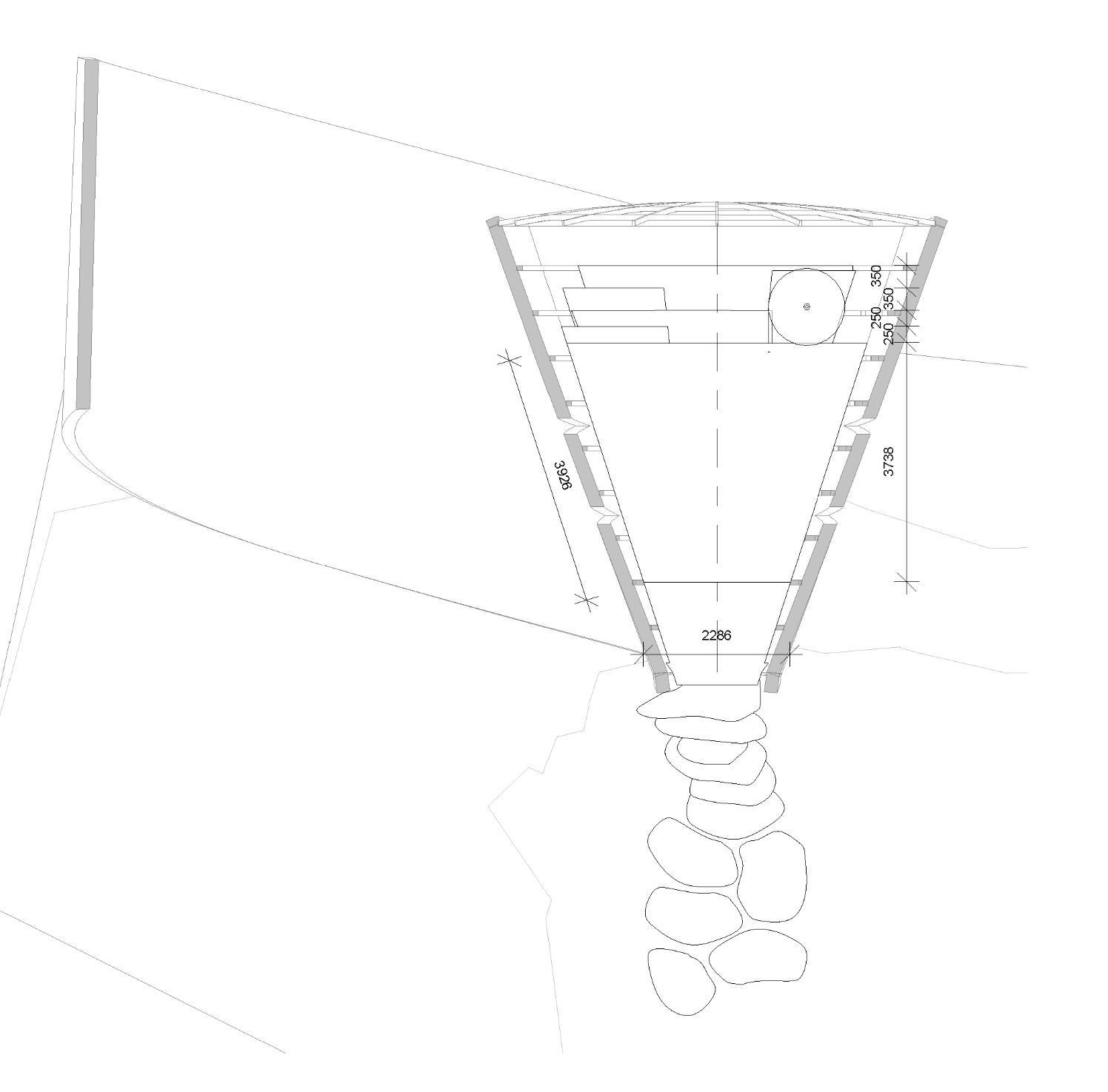

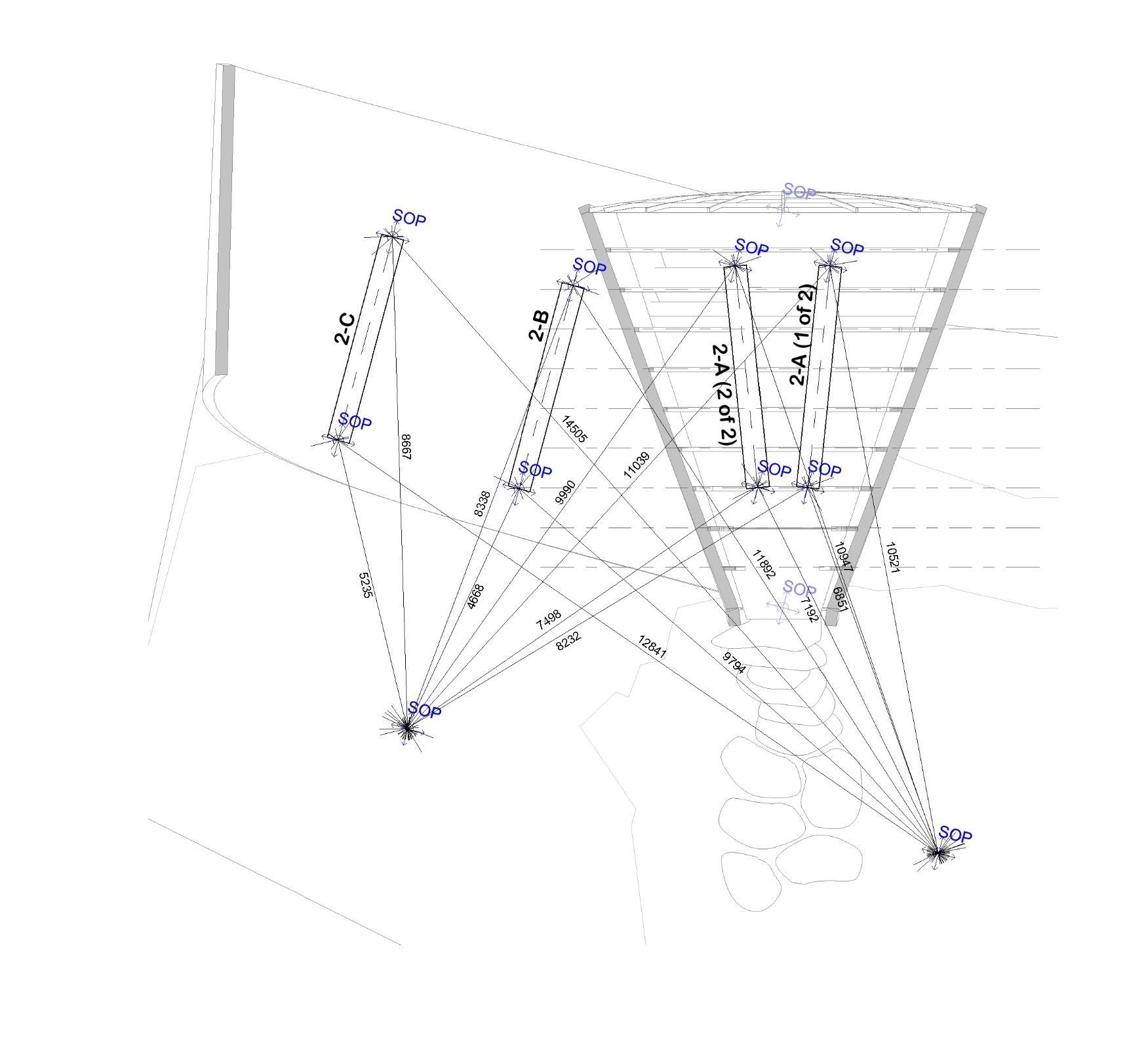

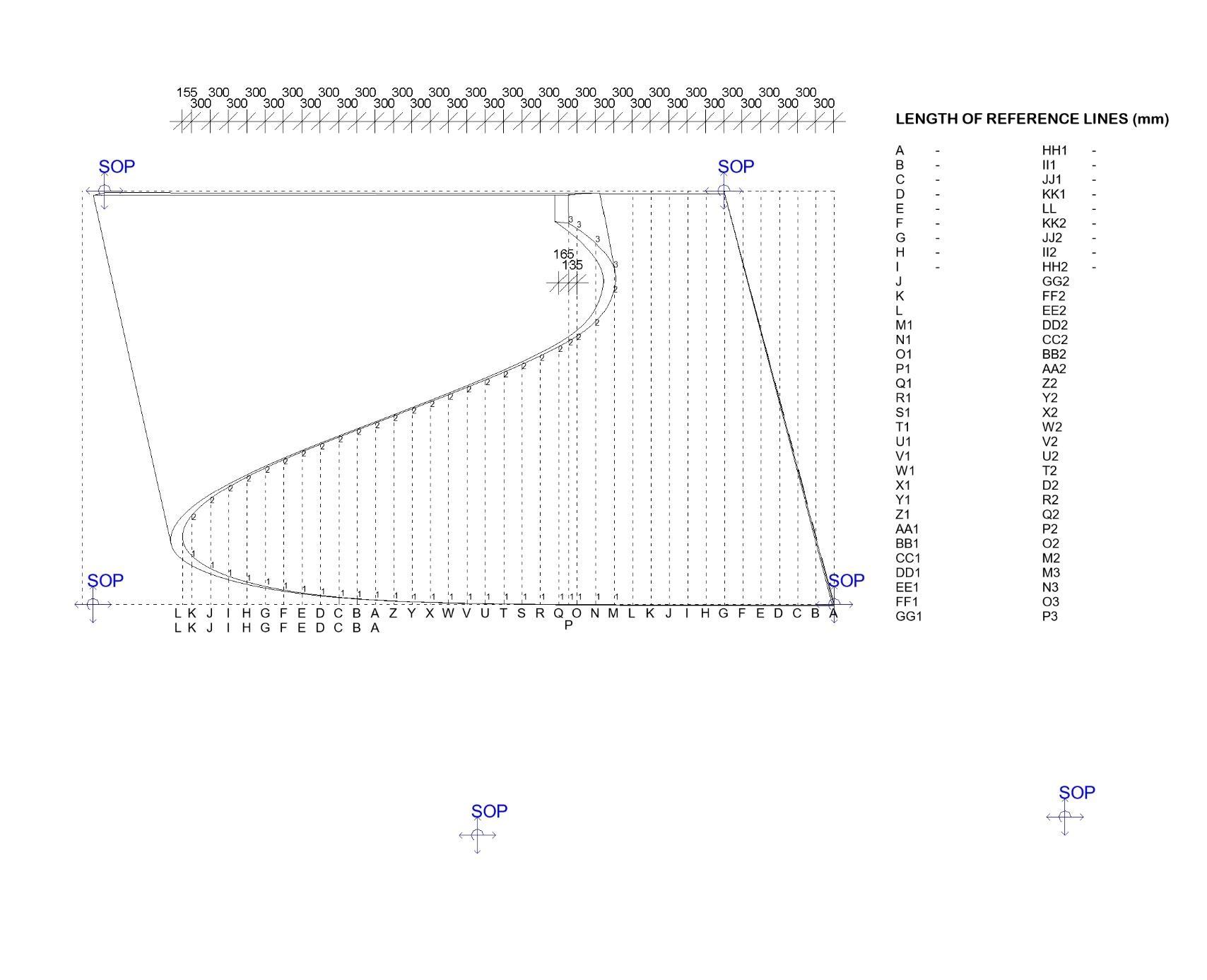

SETTING OUT PLAN VIEW / COMPONENT ASSEMBLY
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS.

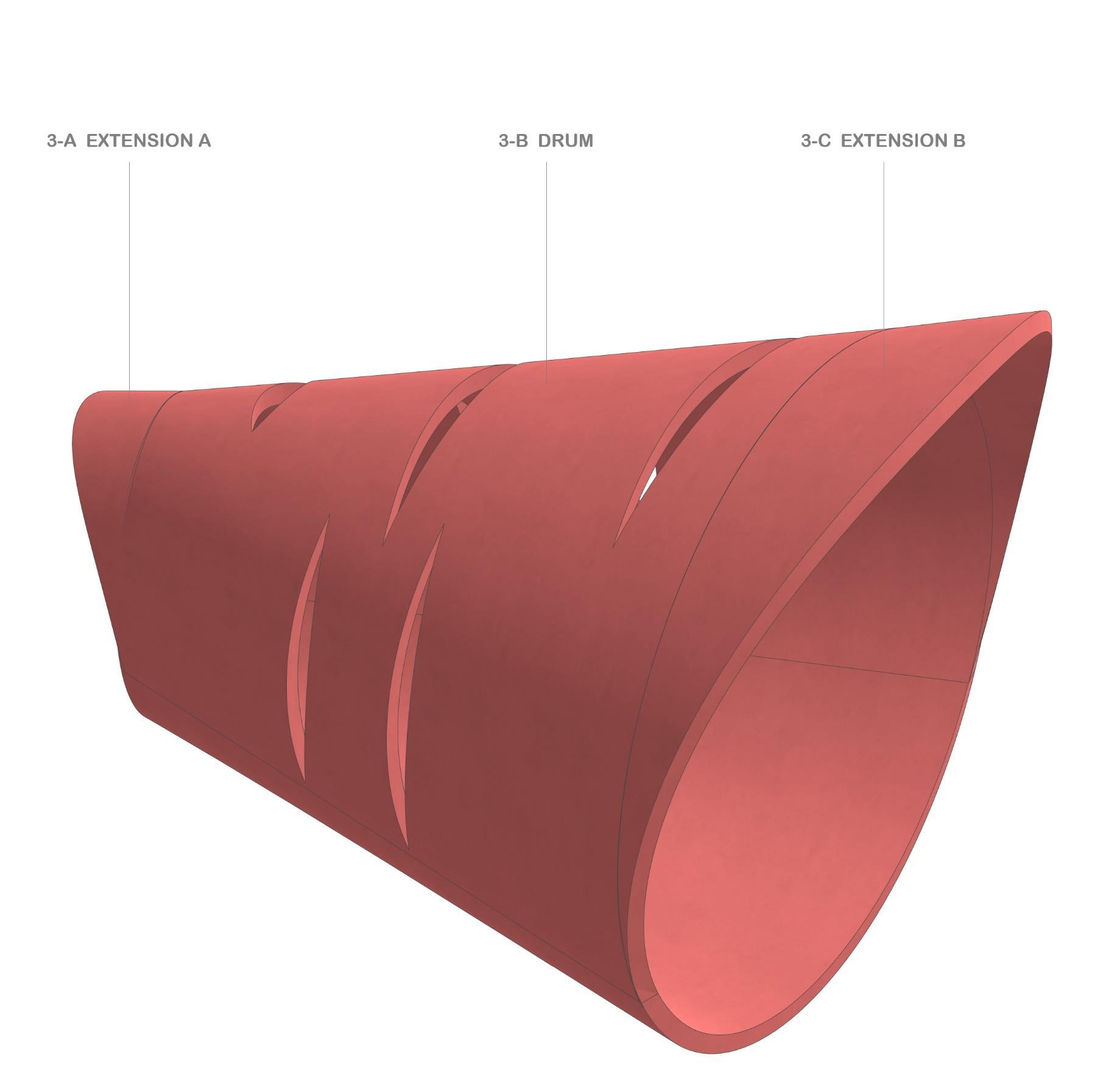

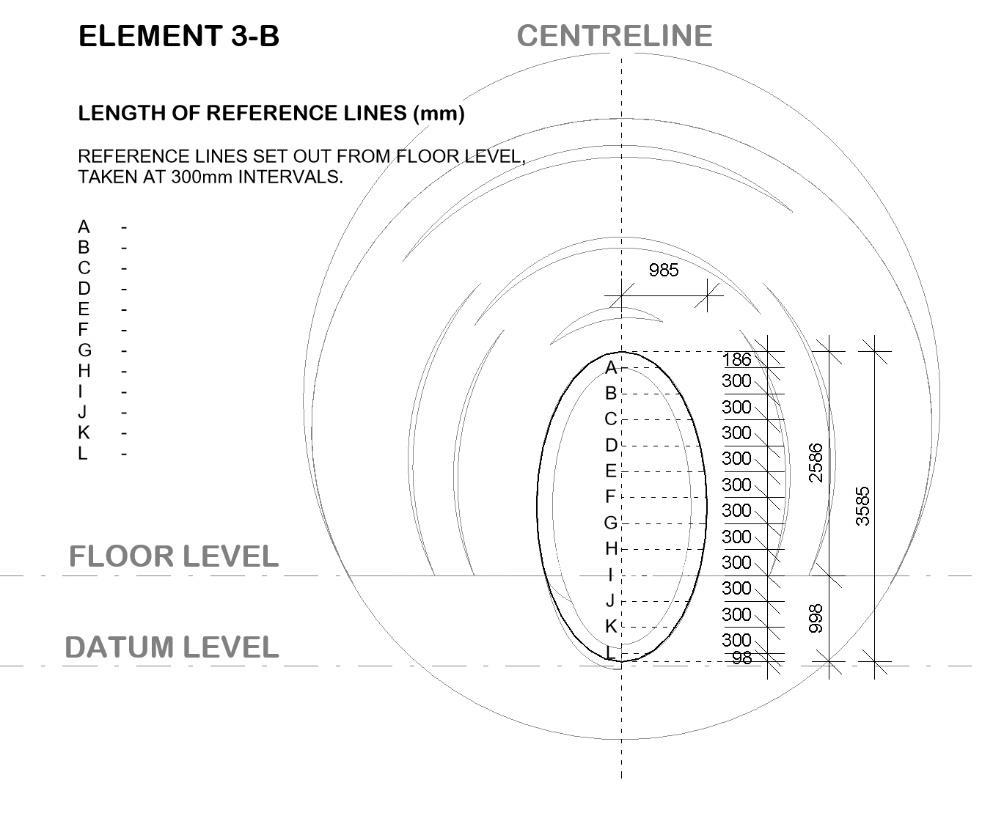

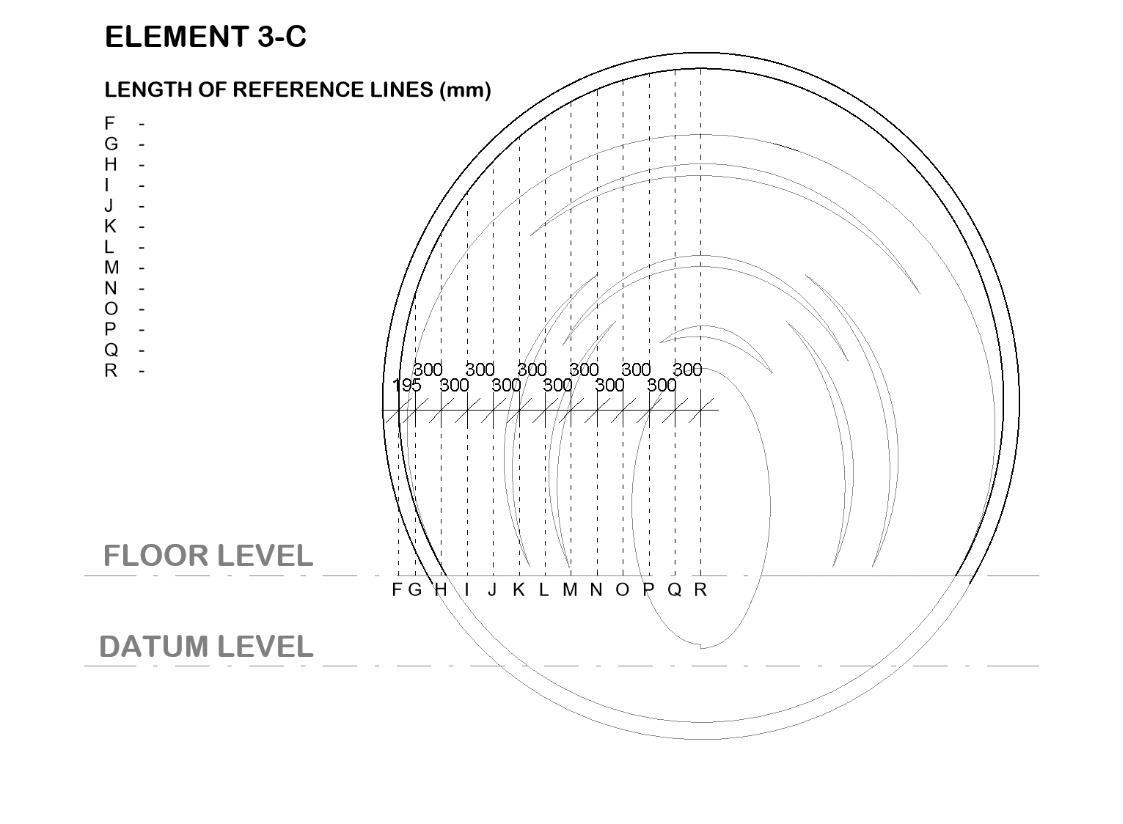

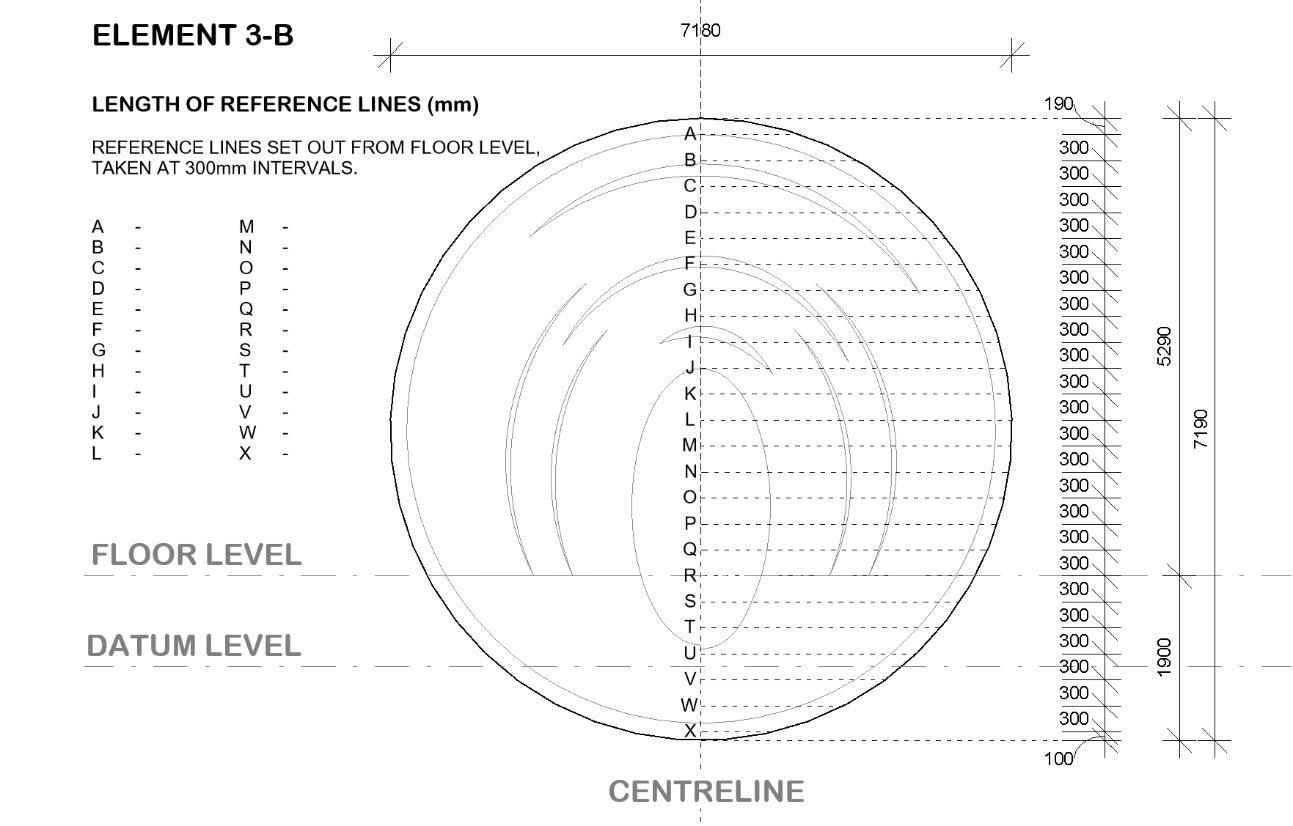

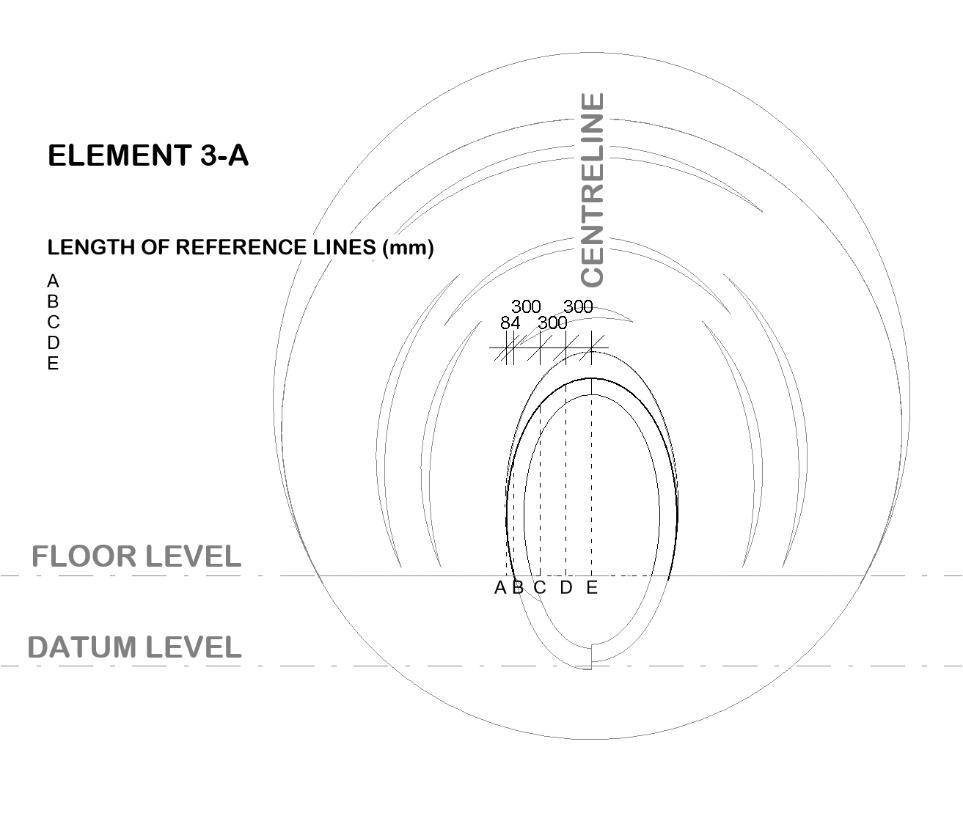

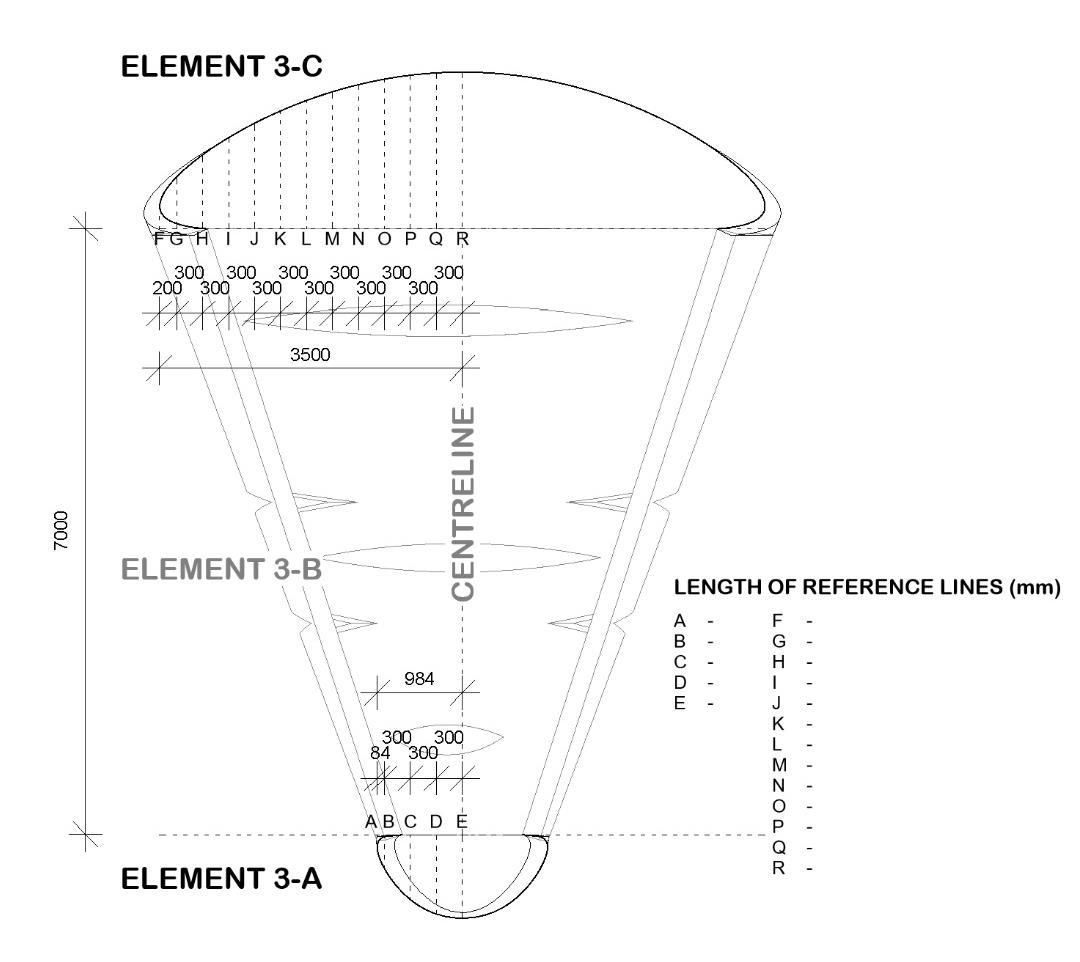

SET OUT THE POSITION OF 3-B DRUM, AND SET OUT 3-A EXTENSION A & 3-B EXTENSION B FROM 3-B DRUM.

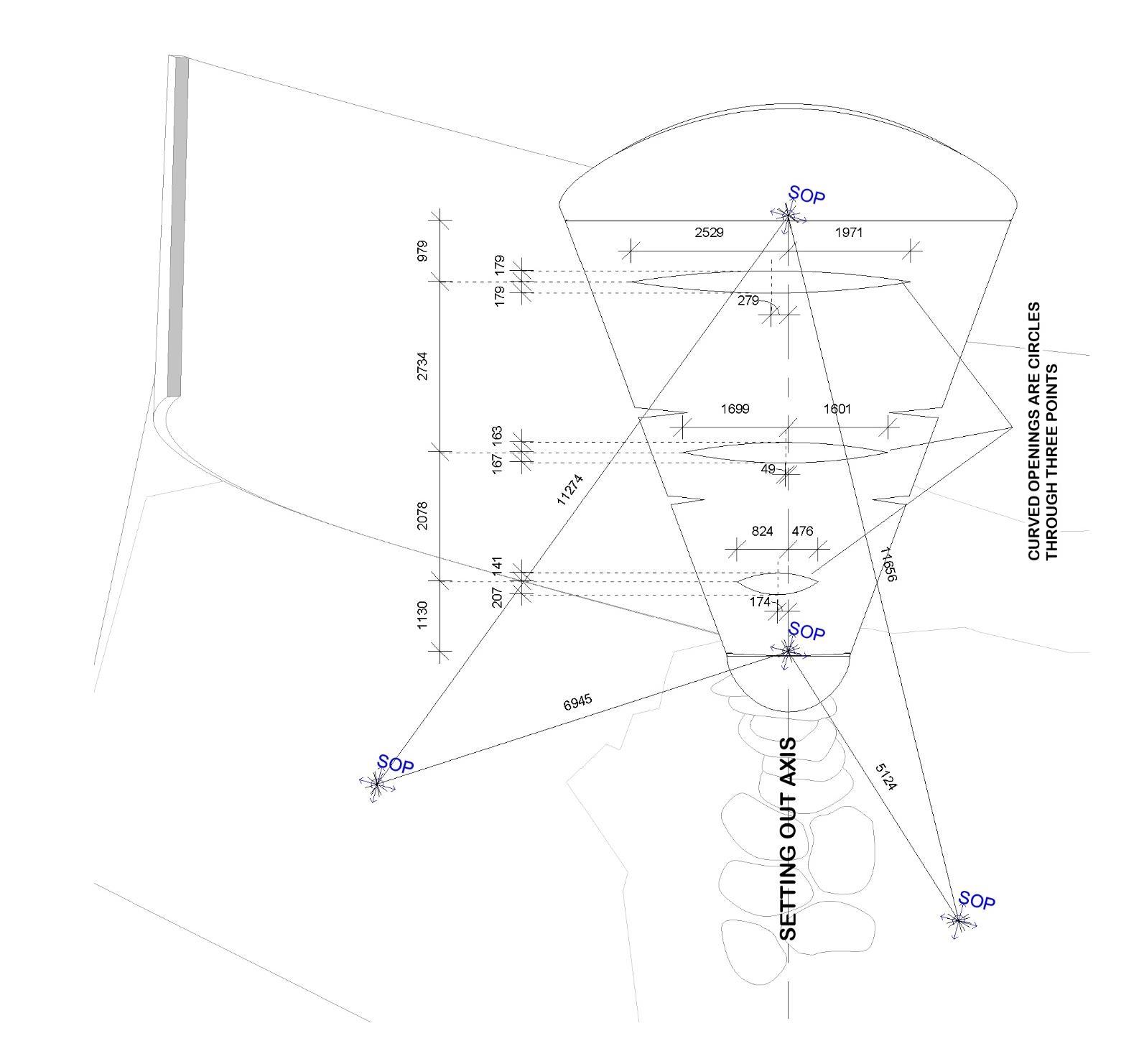

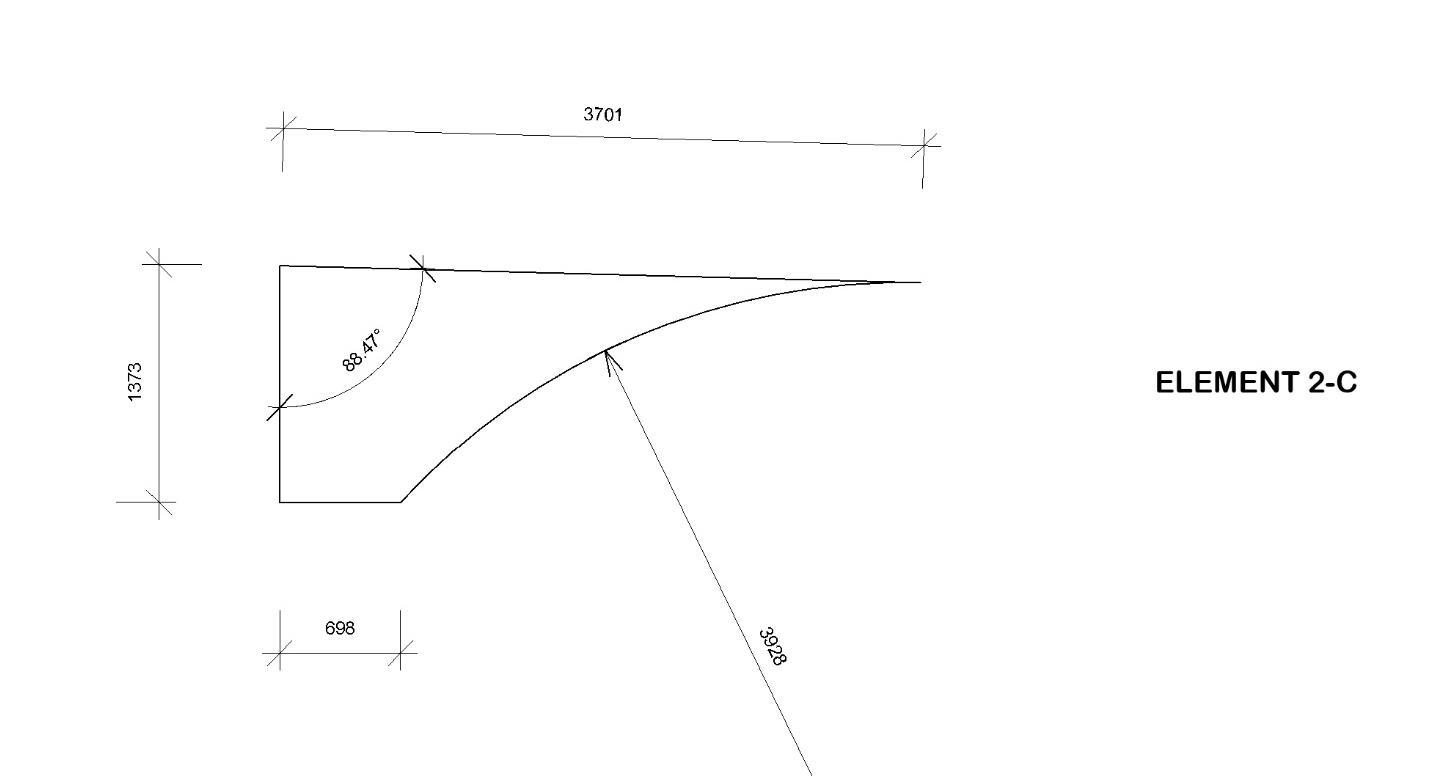

ASSEMBLY AXONOMETRIC VIEW / SETTING OUT PLAN VIEW
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS. SET OUT THE POSITION OF 3-B DRUM, AND SET OUT 3-A

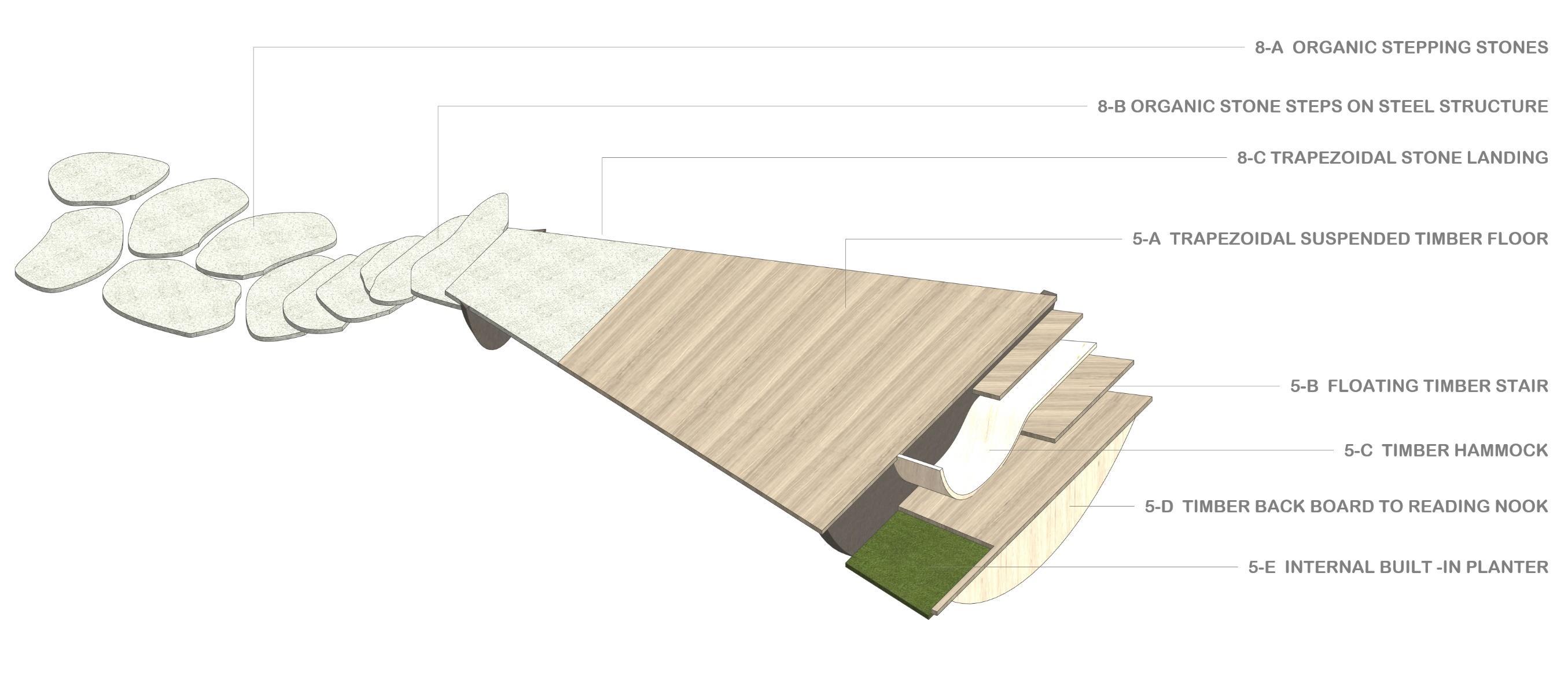

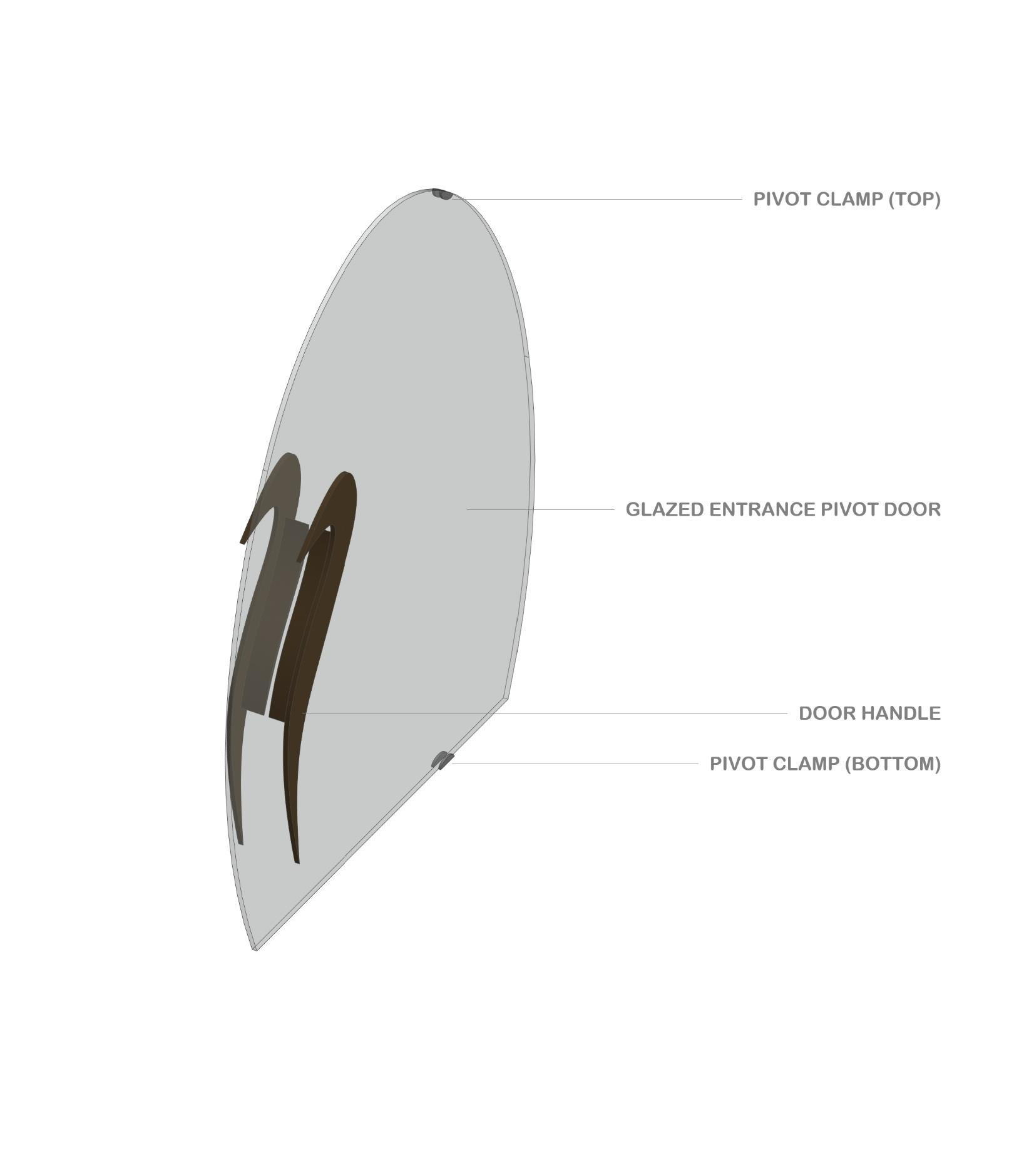

COMPONENT ASSEMBLY
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS.
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS.
COMPONENT ASSEMBLY
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS. COMPONENT ASSEMBLY
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS.

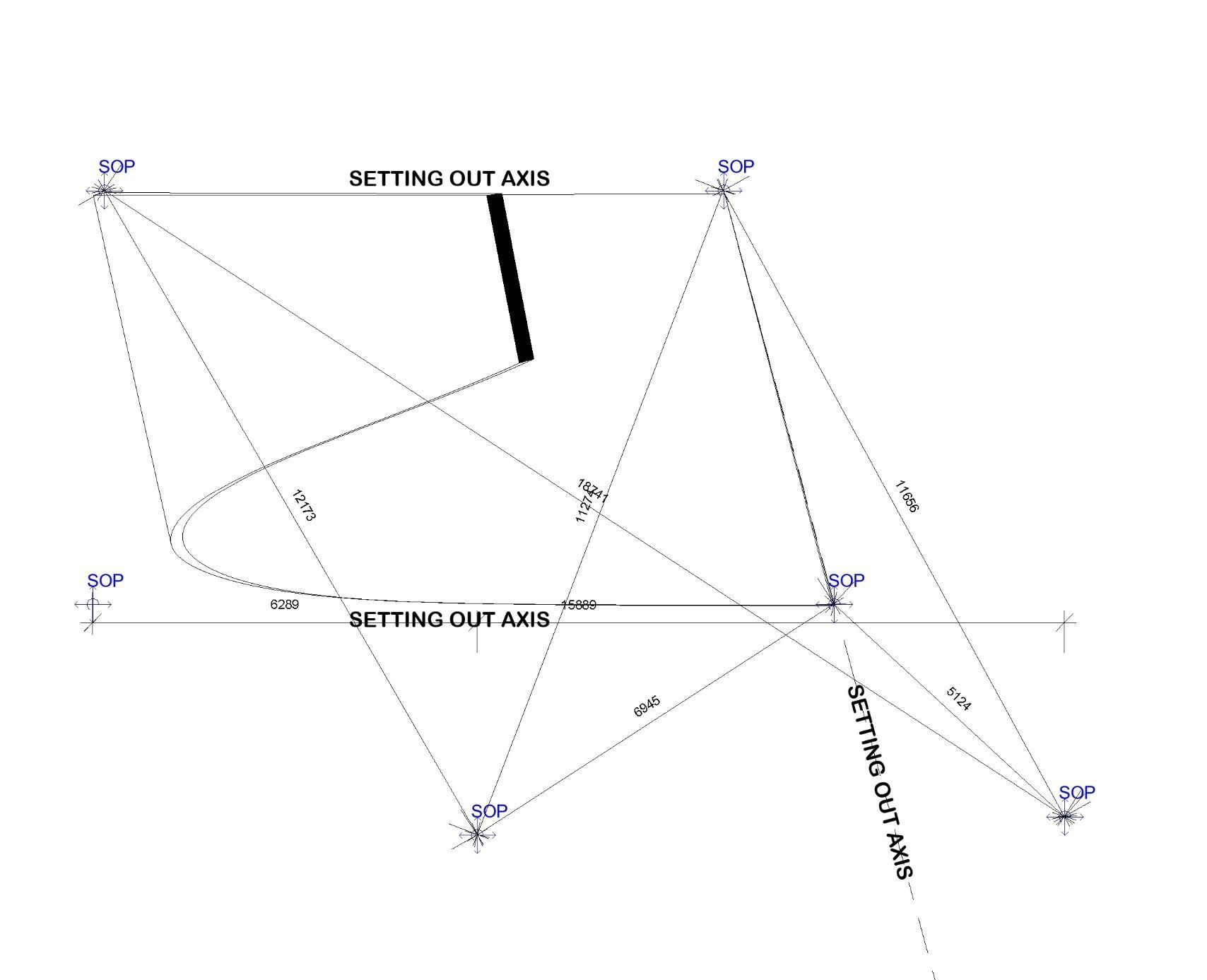

ASSEMBLY AXONOMETRIC VIEW / SETTING OUT PLAN VIEW
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS.
COMPONENT ASSEMBLY
THE ELEMENTAL PACK WILL BE SET OUT FROM TWO SURVEYORS POINTS LOCATED ON THE SITE, EXTERNAL TO THE BUILDING. THESE POINTS ARE THEN USED TO GENERATE A SETTING OUT AXIS. THE SETTING OUT AXIS ORGANISES THE RATIONAL SETTING OUT OF THE ELEMENT AND IT’S VARIOUS COMPONENTS.
COMPONENT ASSEMBLY
