PORT SAID URBAN INTERVENTION DURING THIS PROJECT,THE MANY PROBLEMS OF THE CITY WERE TACKLED ON DIFFERENT SCALES SPECIALLY THE EMIRATY DISTRICT TO COME UP WITH AN ADCQUATE MASTER PLAN TO IMRPOVE THE QUALITY OF LIFE OF THE CITY.


SITE ANALYSIS

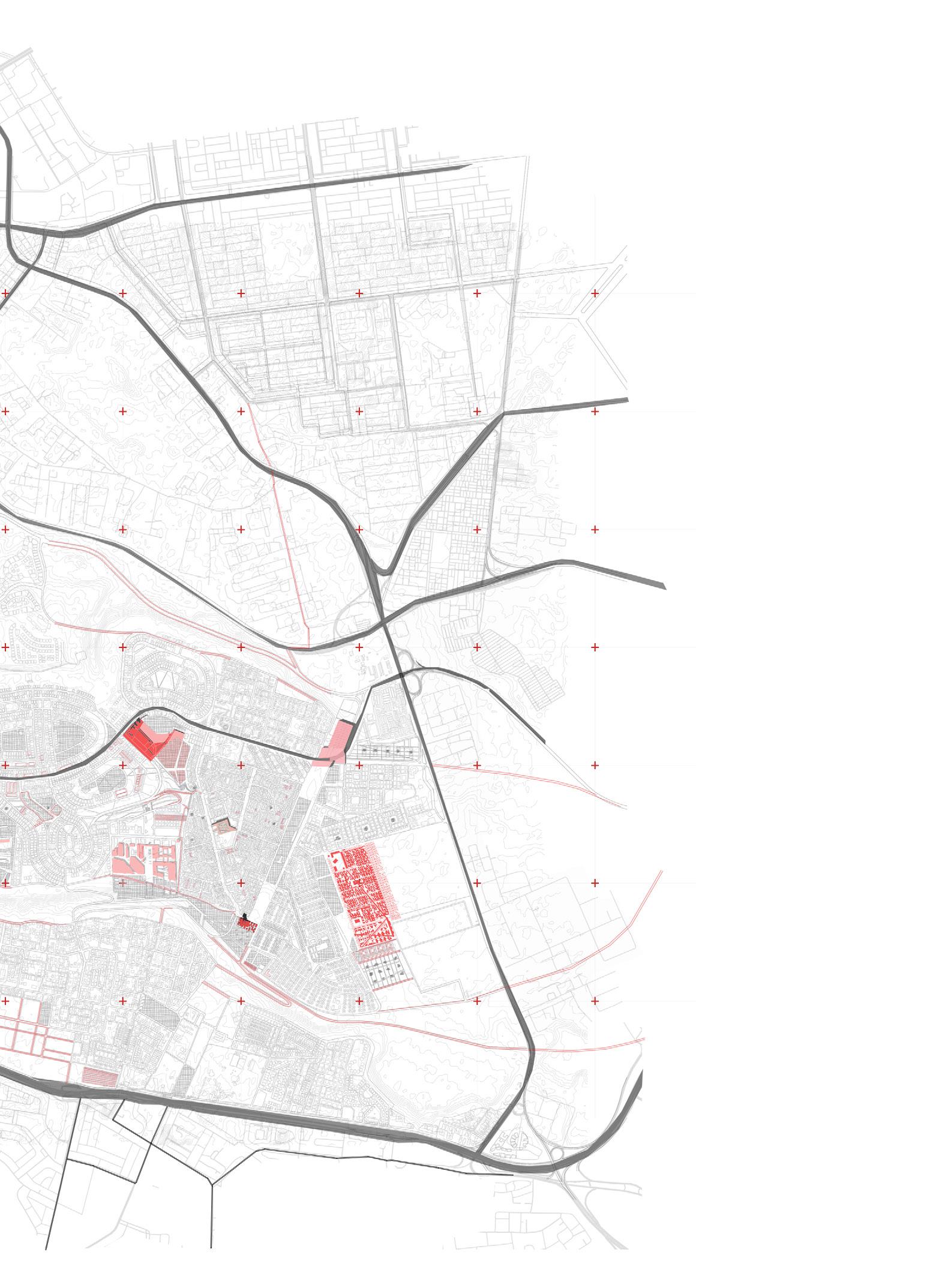

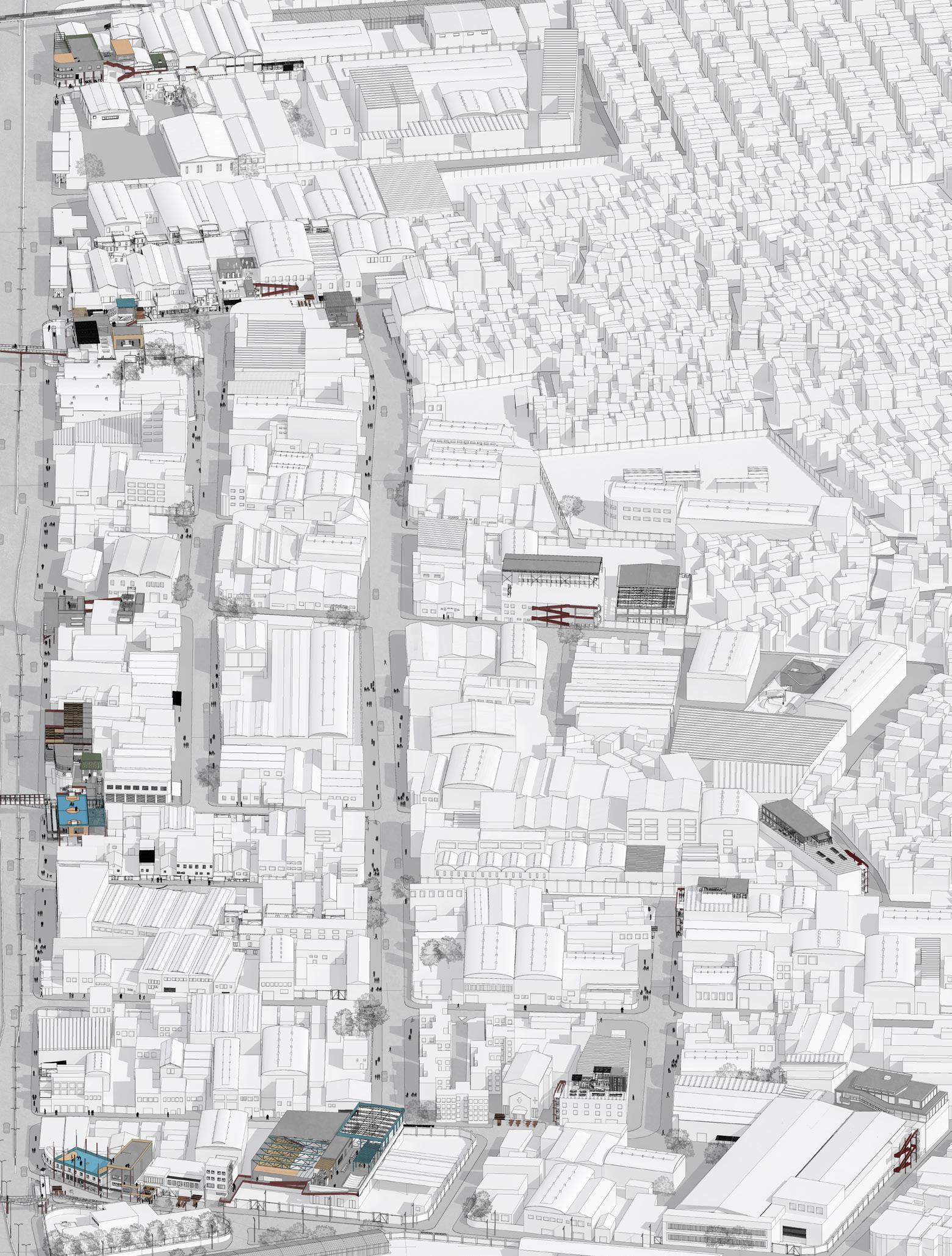

AL-HAY AL EMARATI LOCATION IN THE CONTEXT

THE THREAT OF THE INDUSTRIAL AREA NEXT TO THE NEIGHBOURHOOD AND THE LACK OF DENSITY AND CONNECTIONS.

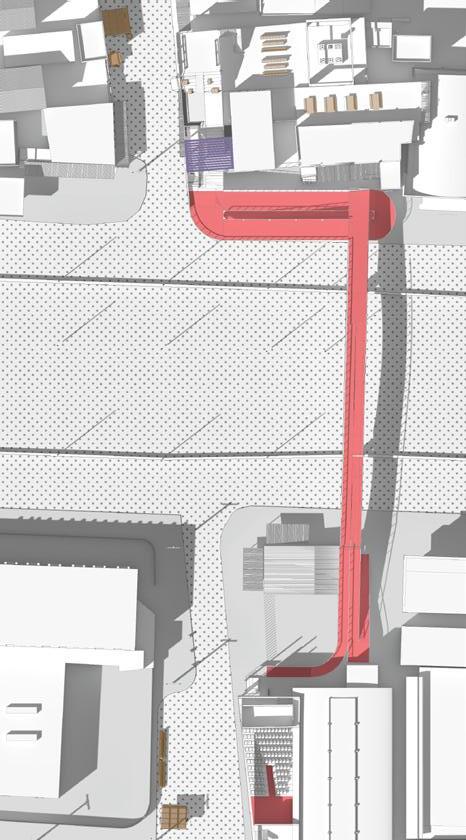

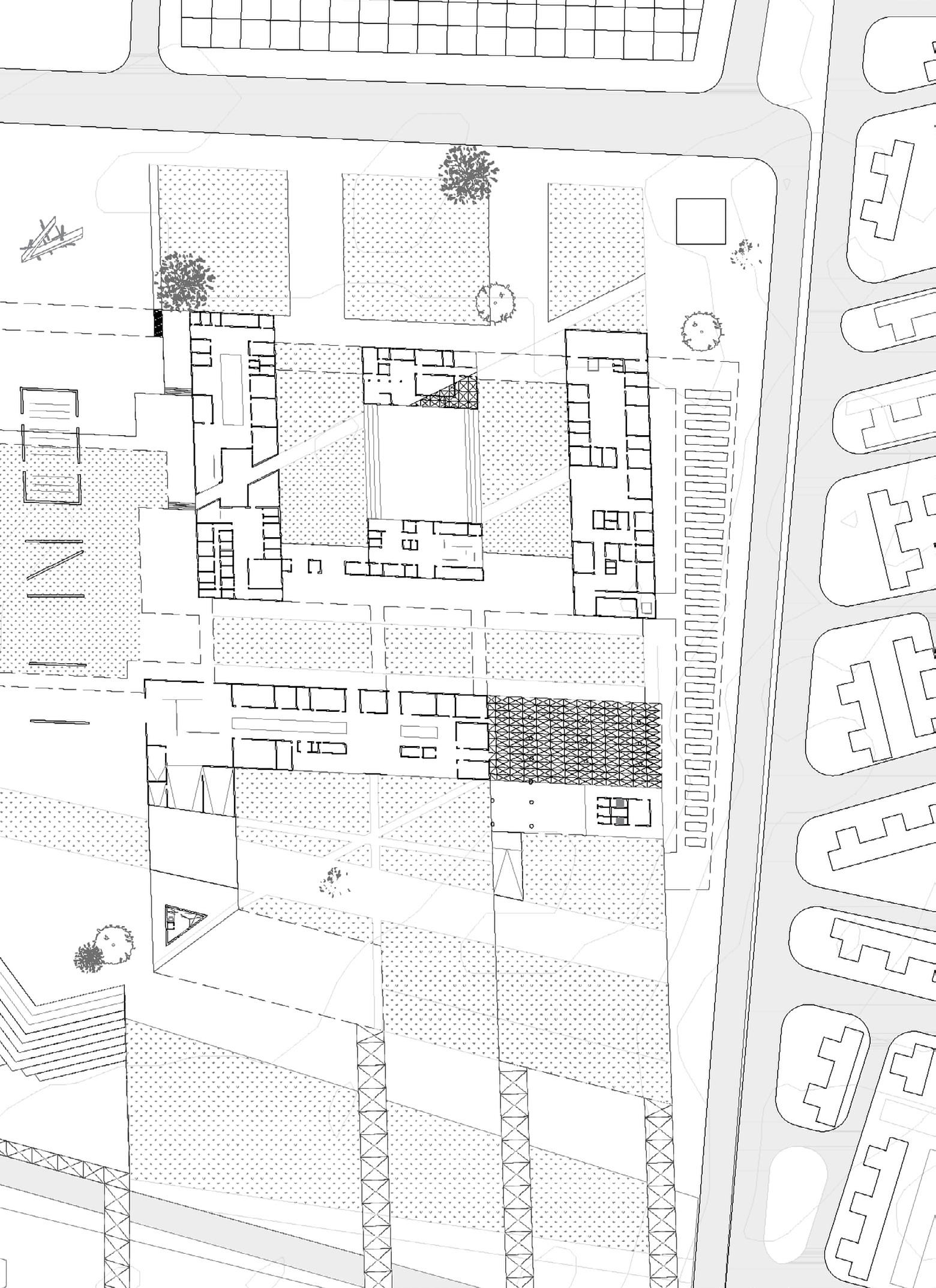

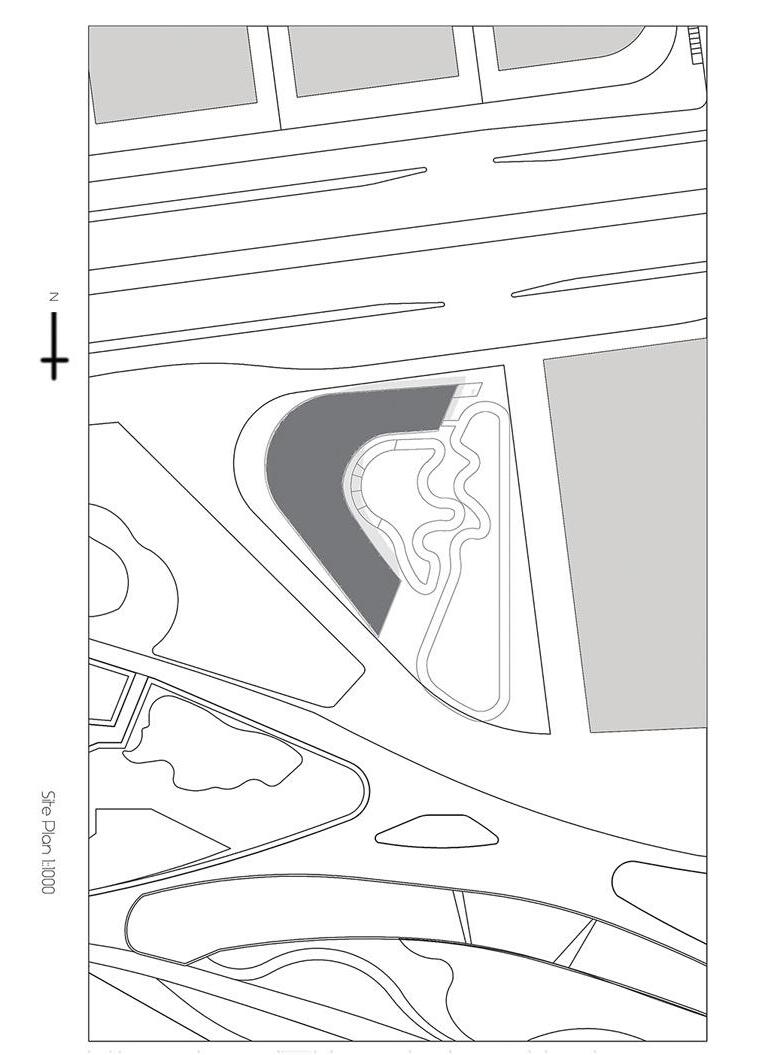

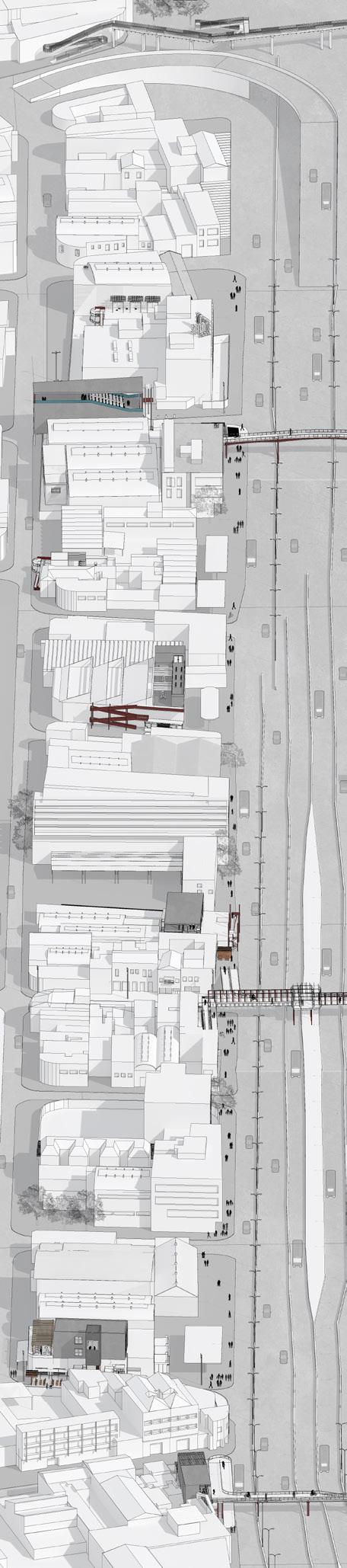

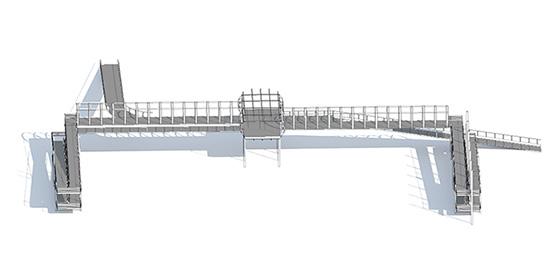

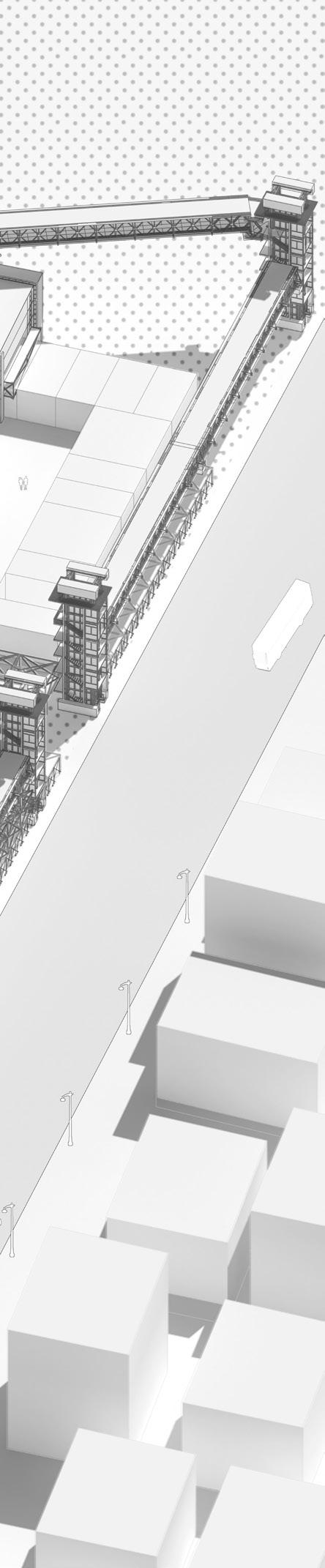

SITE PLAN LACK OF LANDMARKS AND PEDESTRIAN CONNECTION TO THE OTHER SIDE.


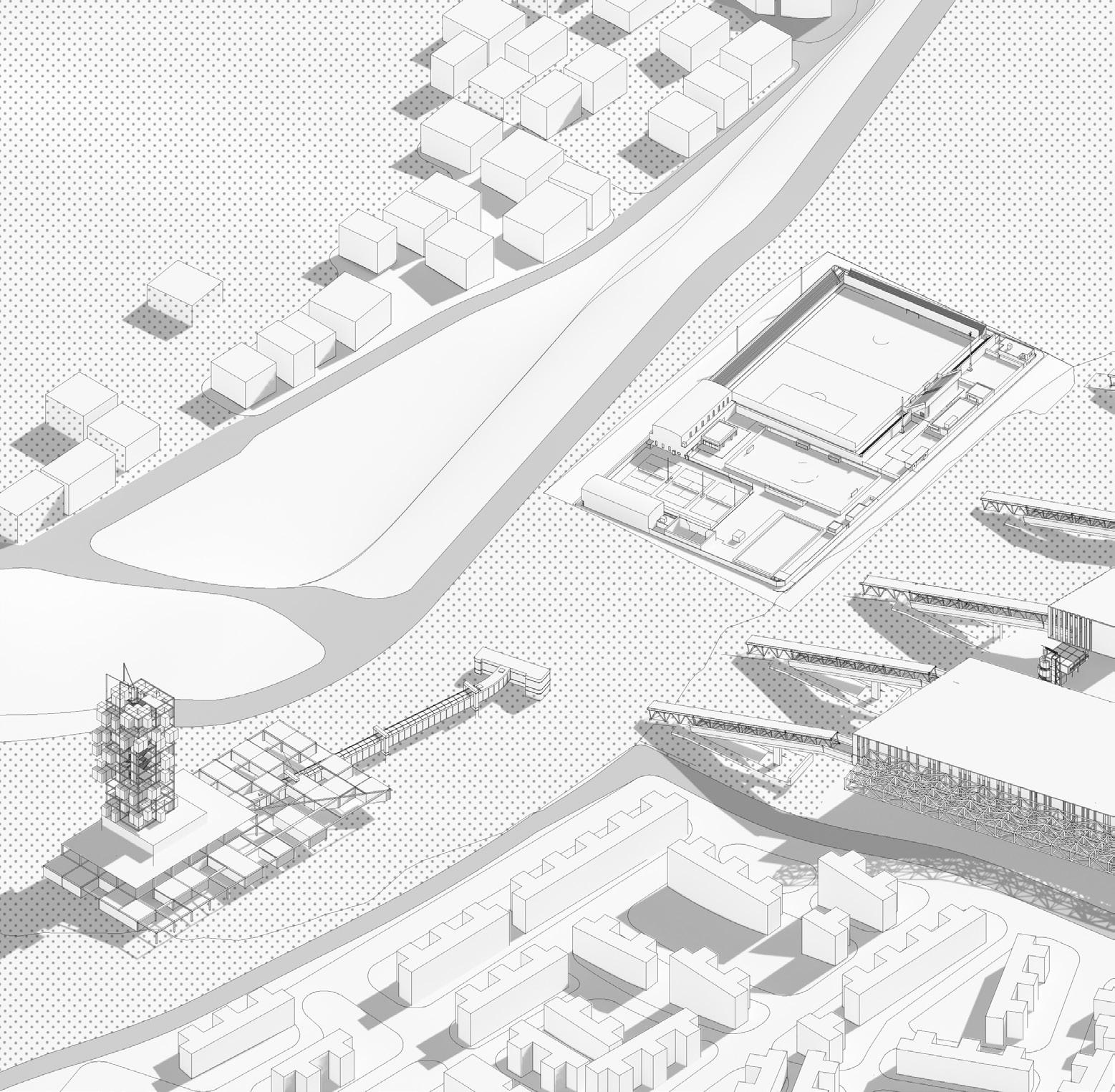

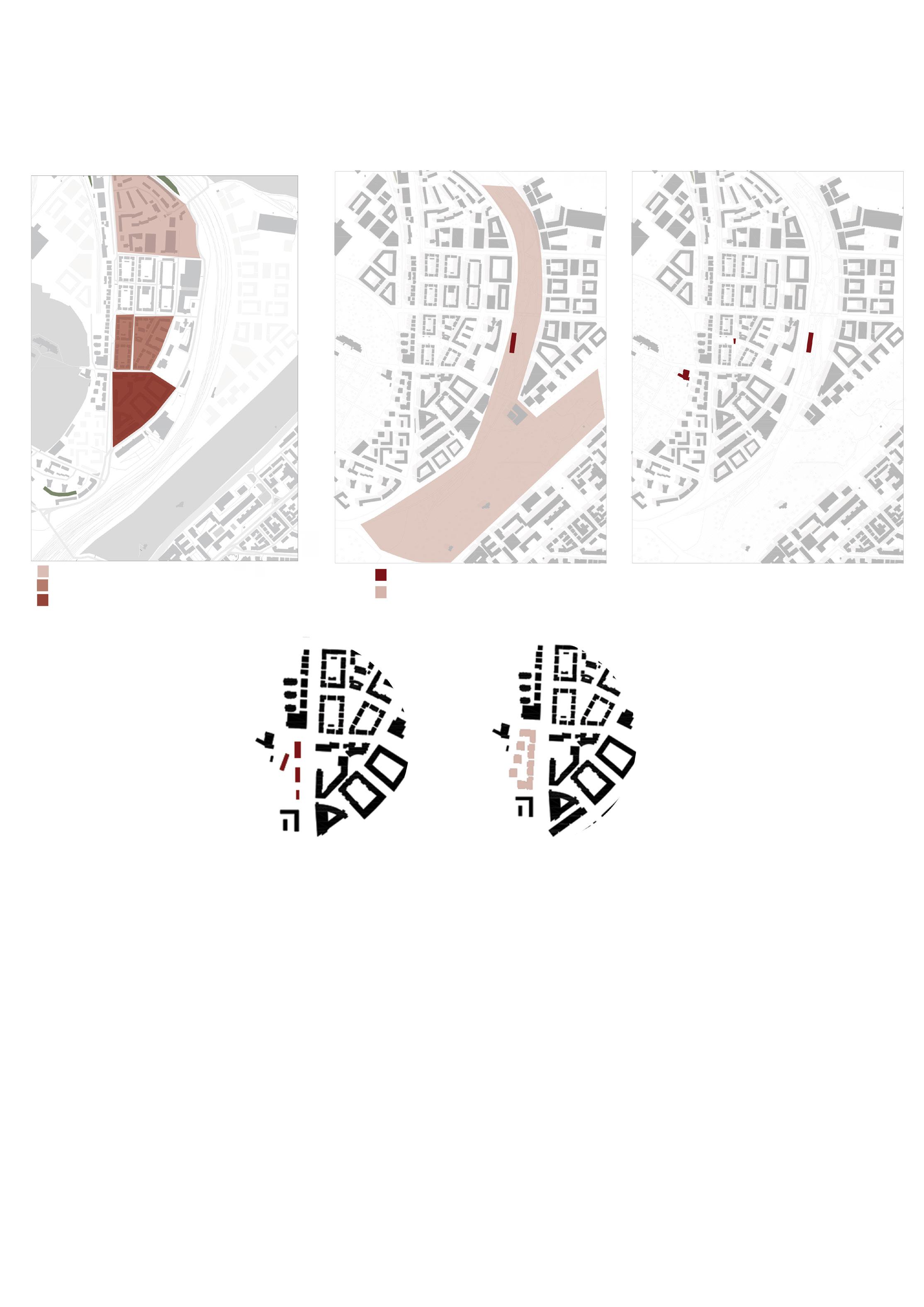

RE-OPENING THE CANAL TO THE MANZALA LAKE

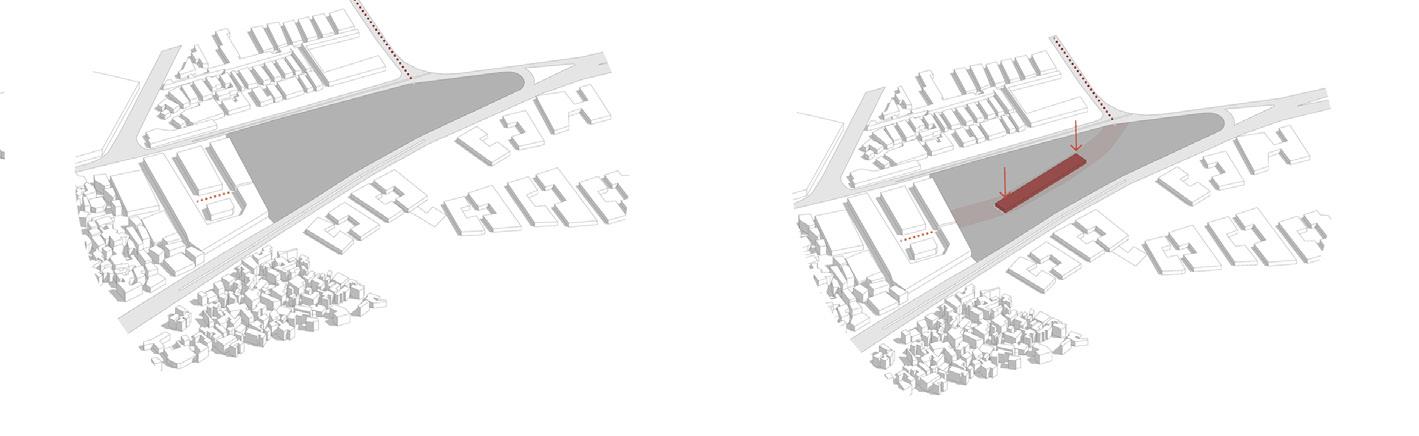

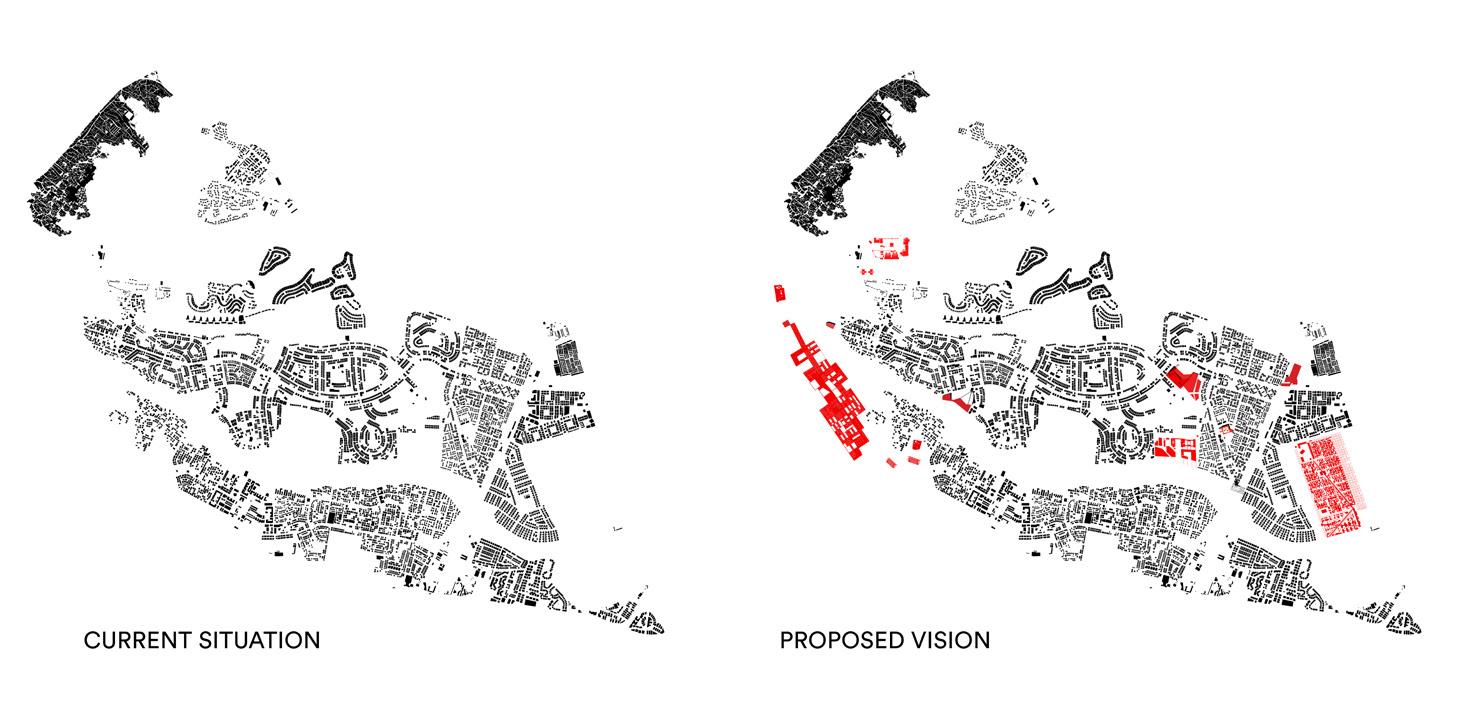

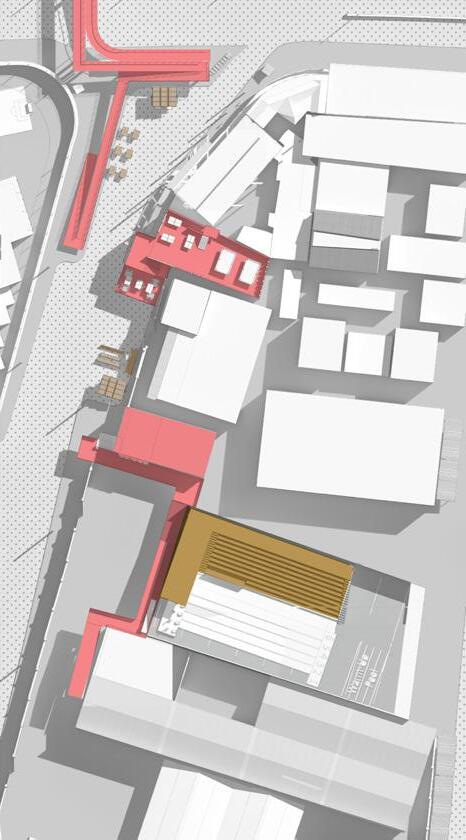

SETTING NEW AXIS LEADING TO LANDMARKS AND TO CREATE NEW PLOTS TO INCREASE THE DENSITY

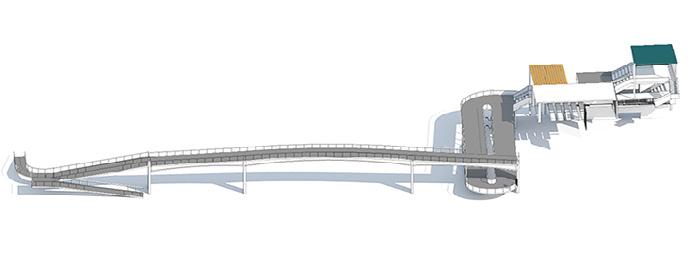

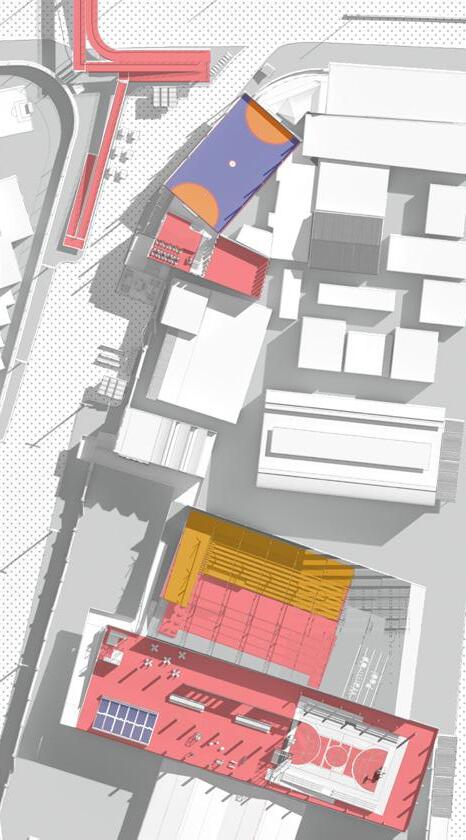

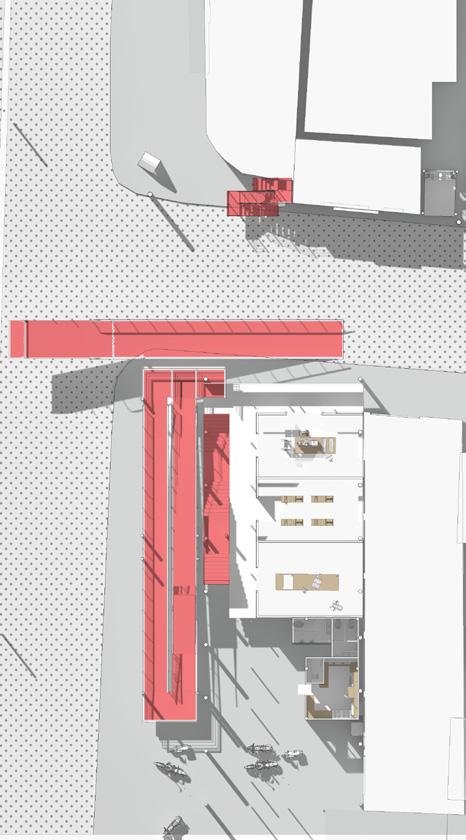

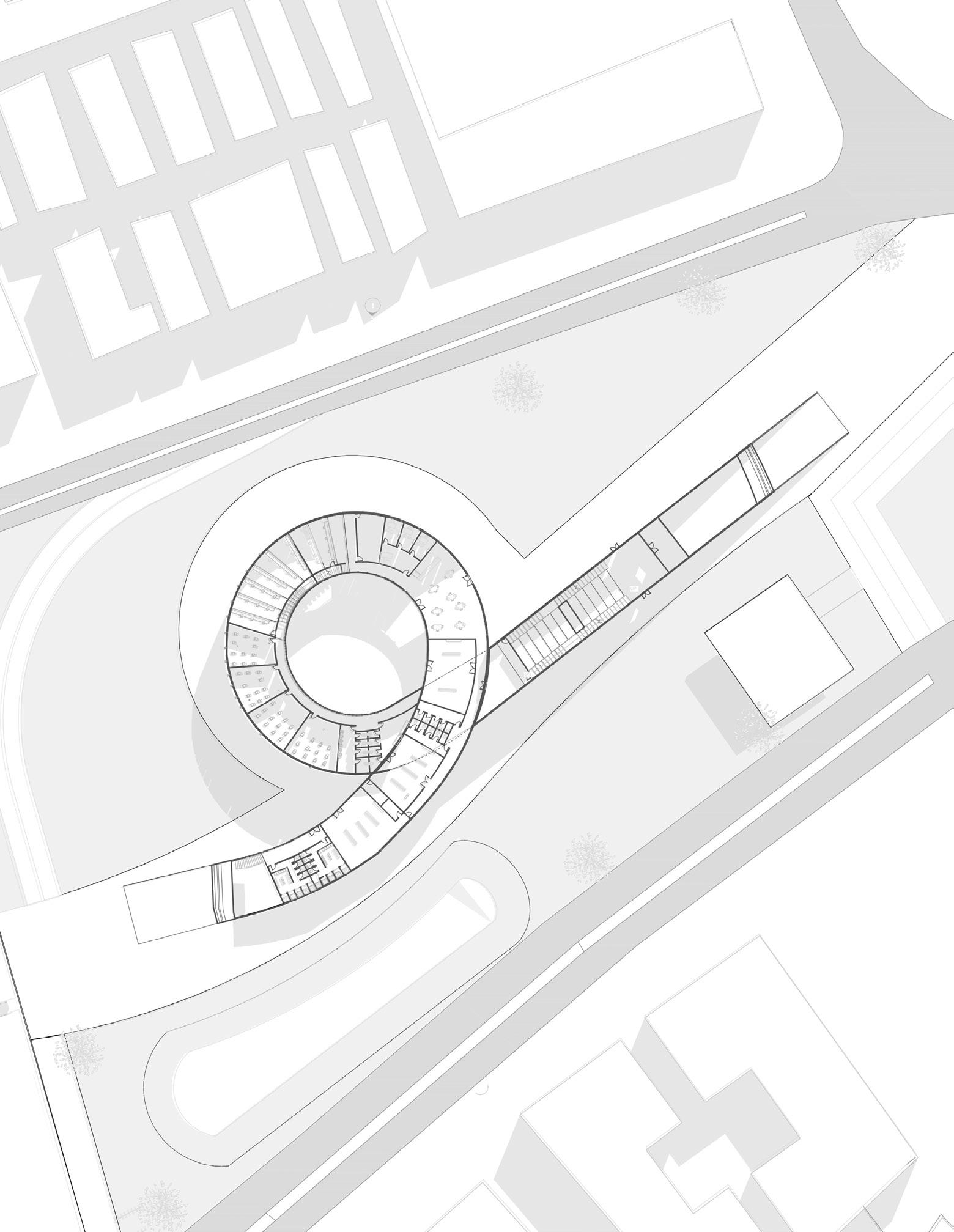

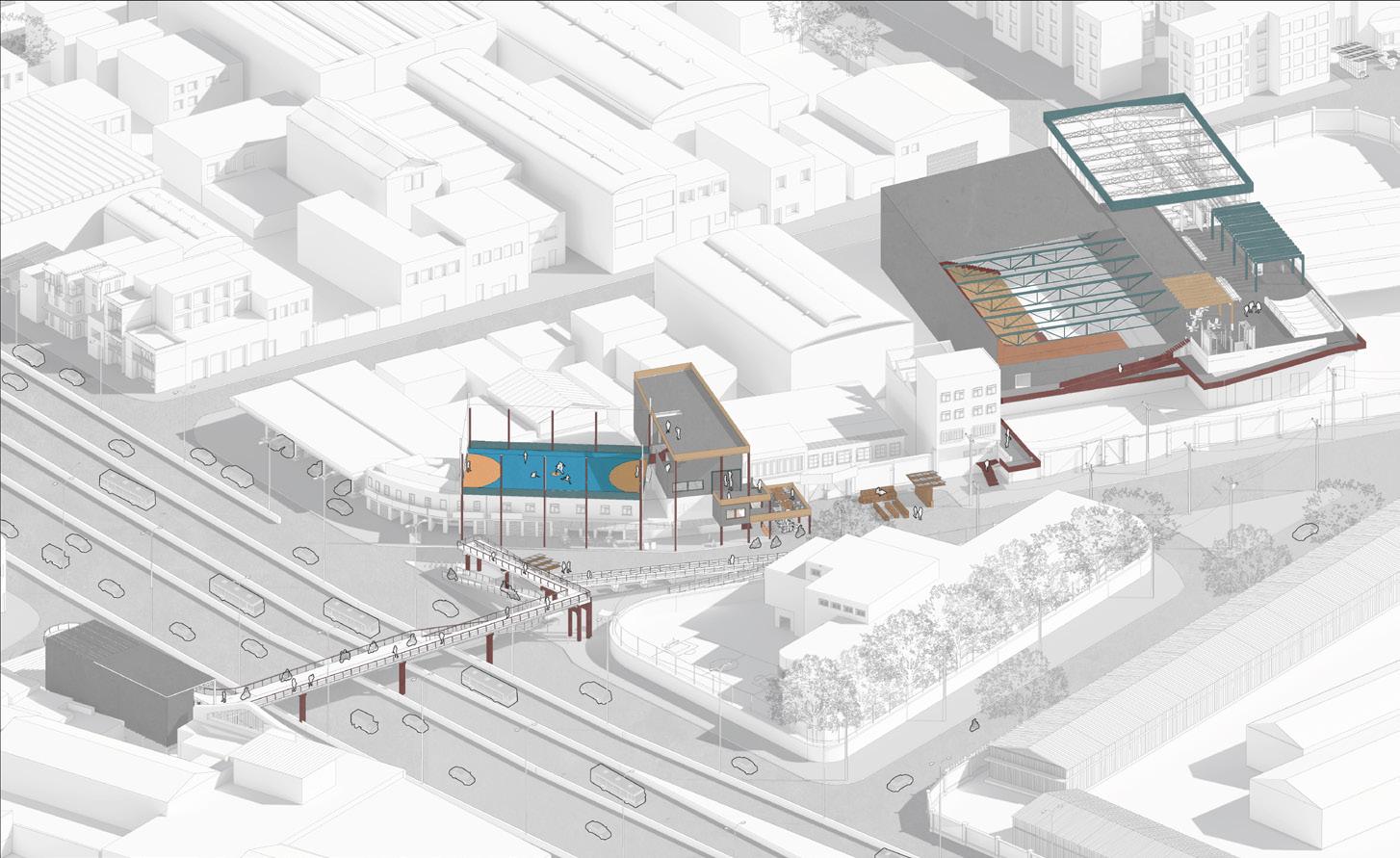

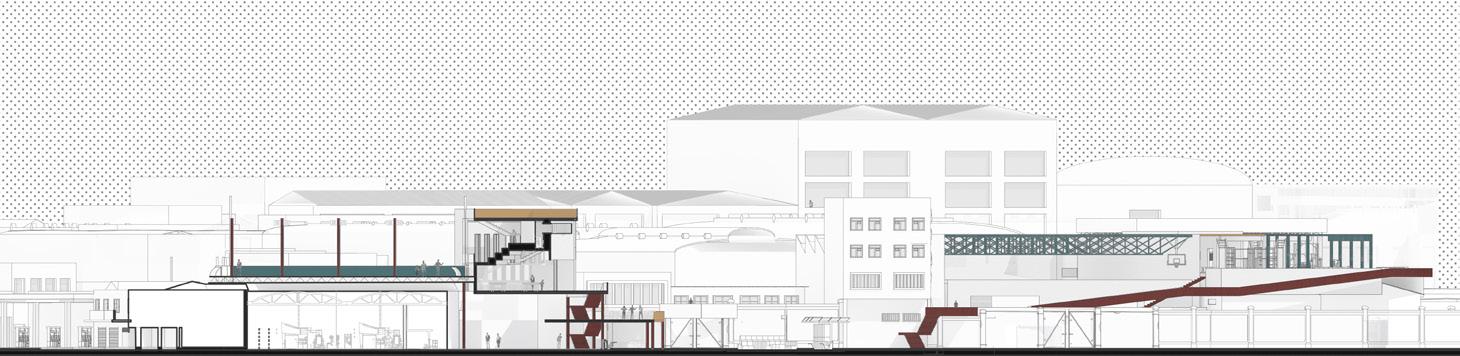

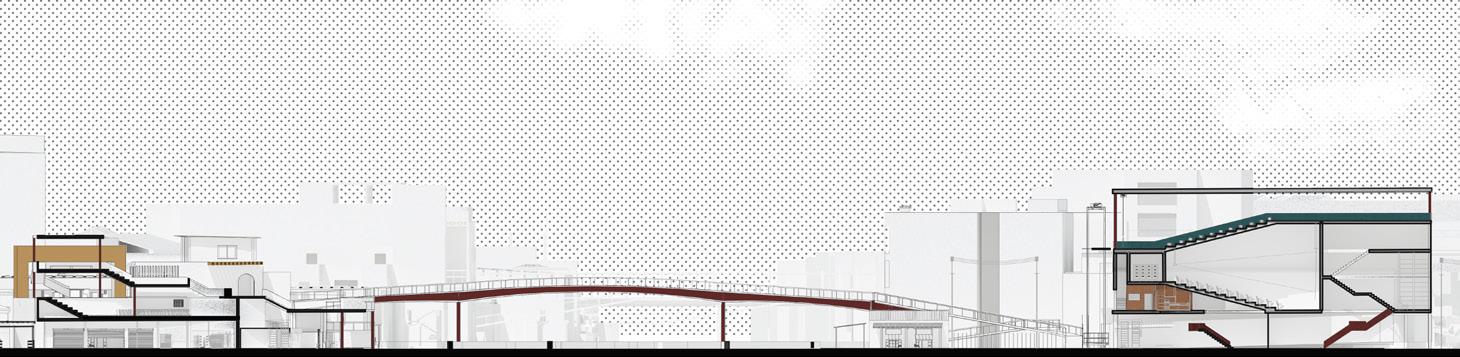

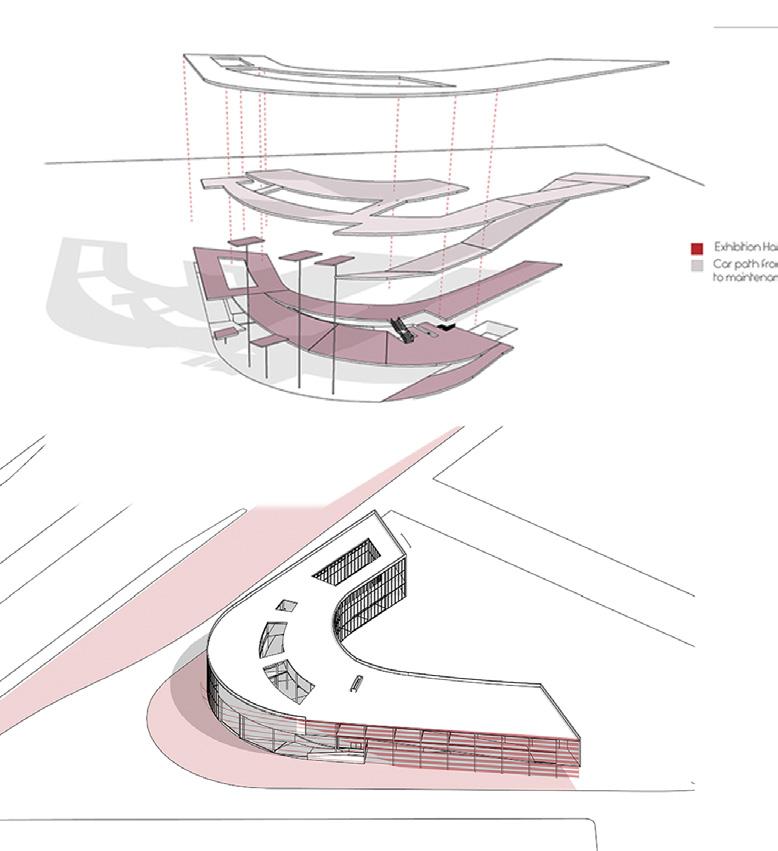

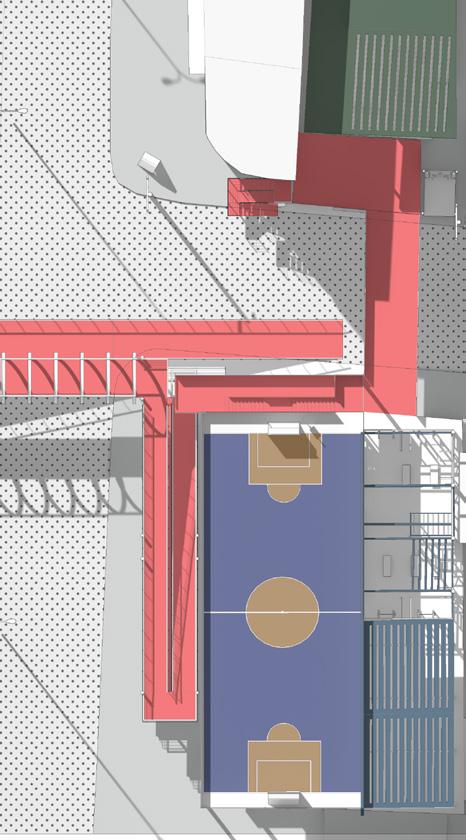

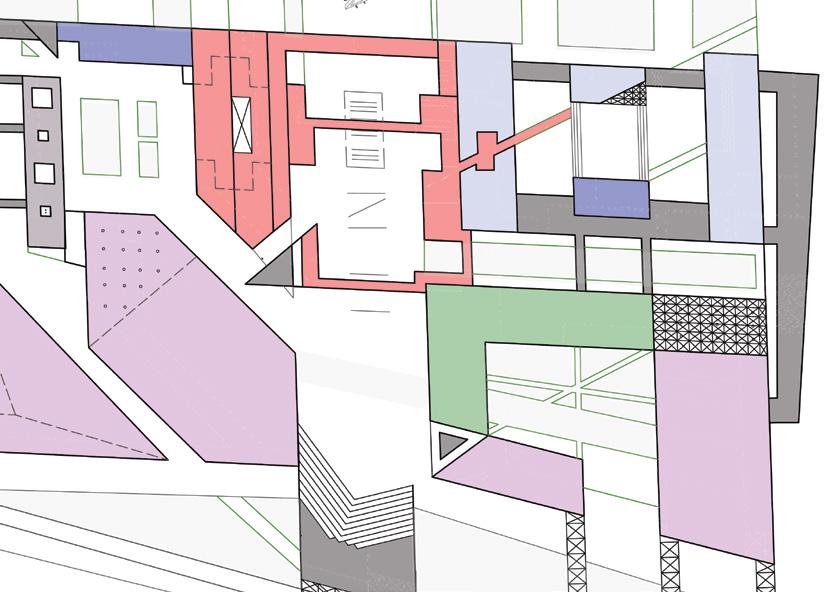

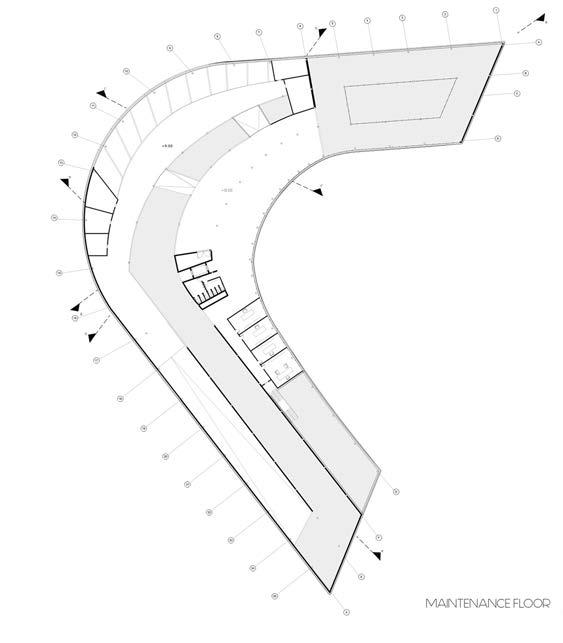

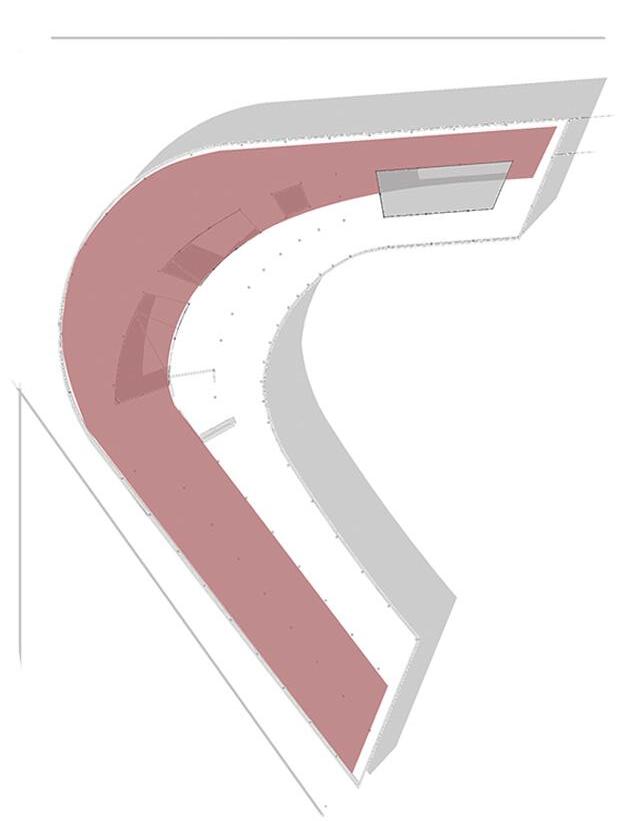

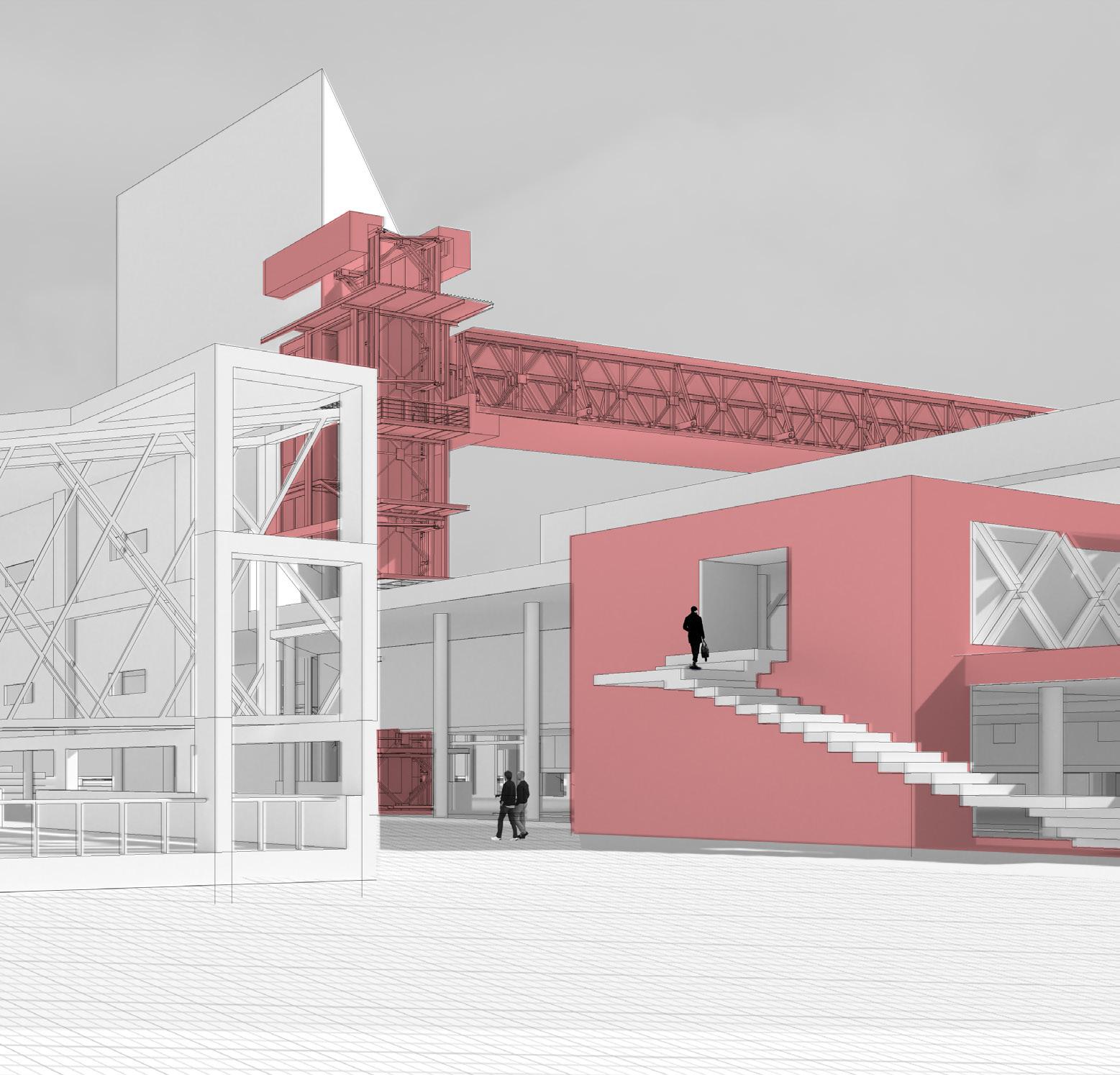

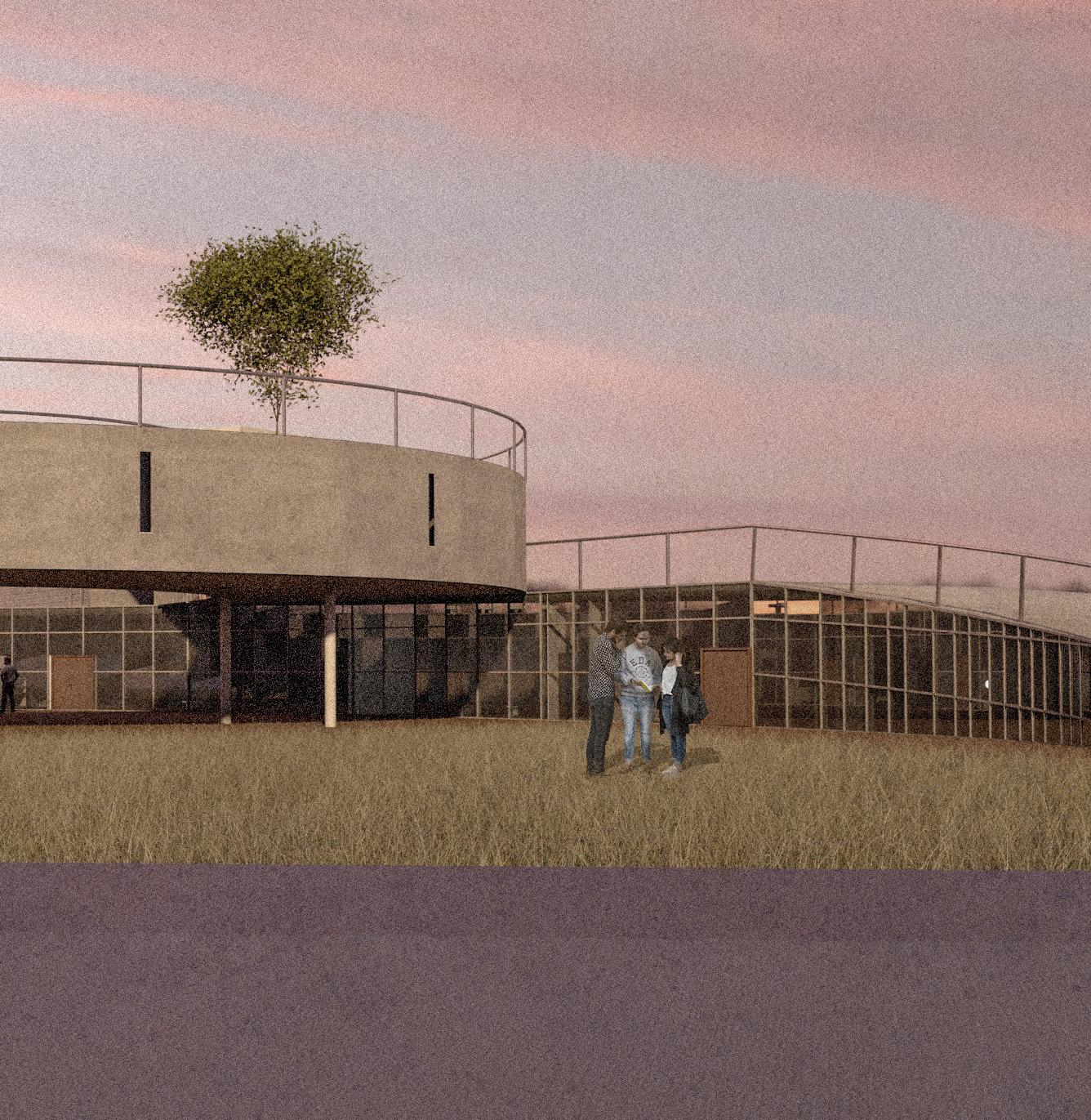

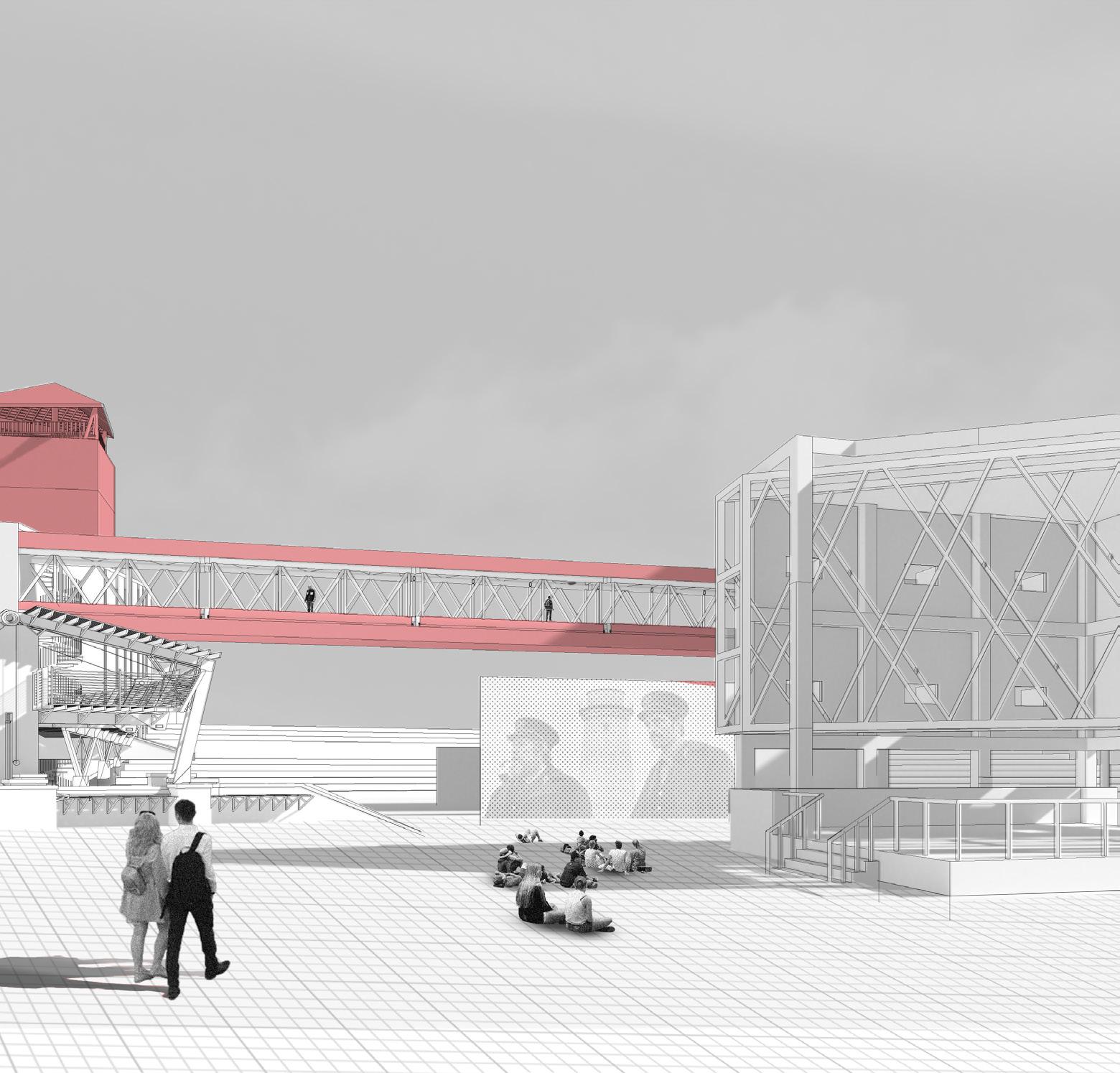

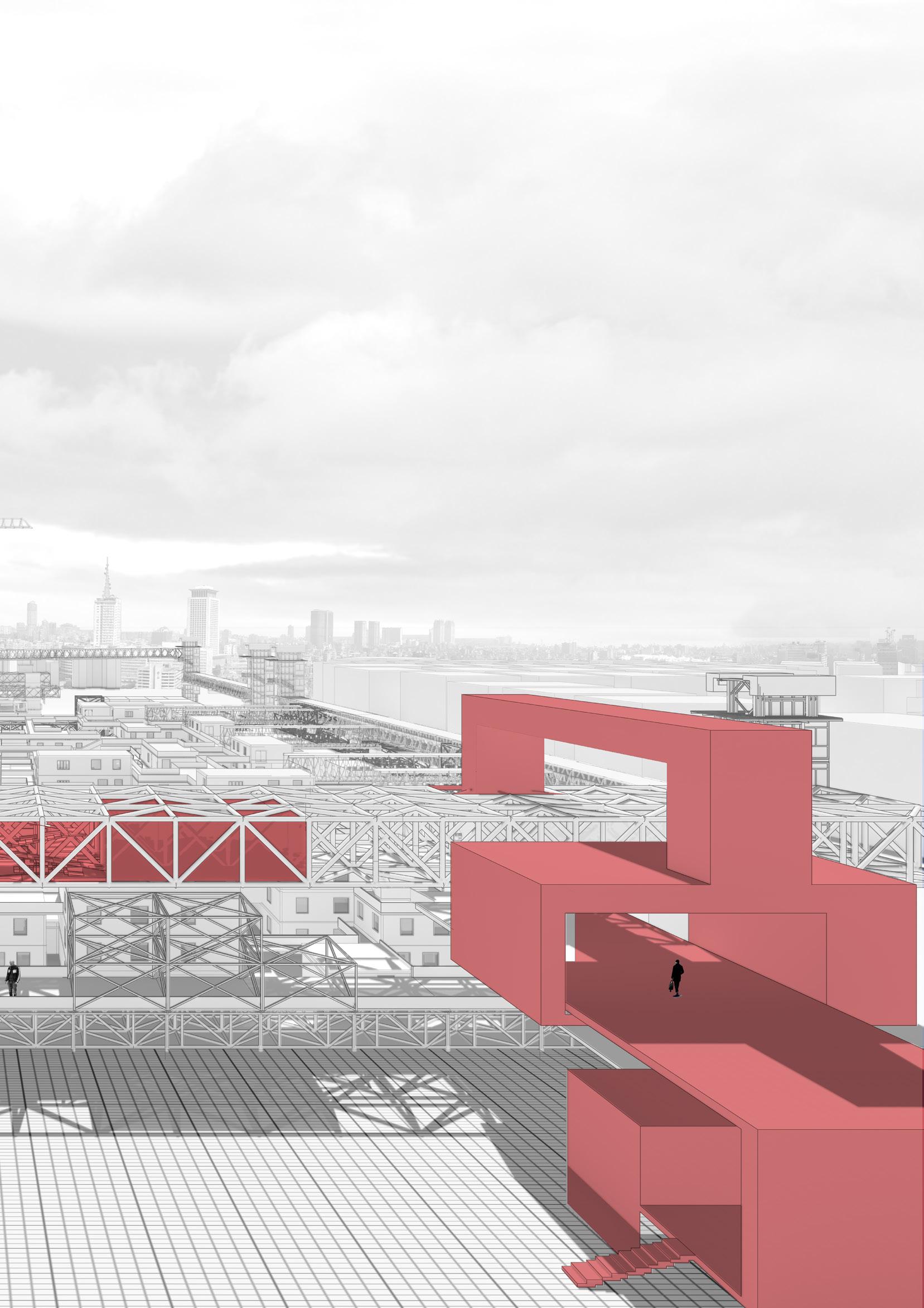

PLAN OF THE MARKET,HARBOUR AND THE ROWING CLUB. CREATING A STEPPED PROMENADE THAT STARTS FROM THE HARBOUR OR THE URBAN STEPS TO THE MARKET AND THE REST OF THE CITY

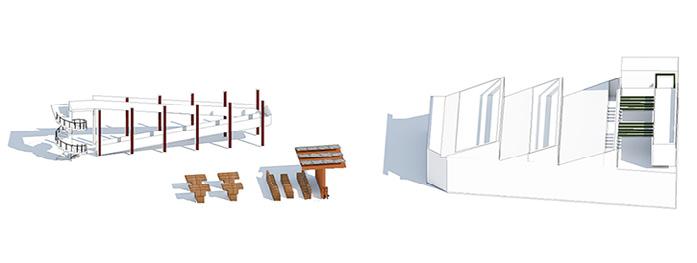

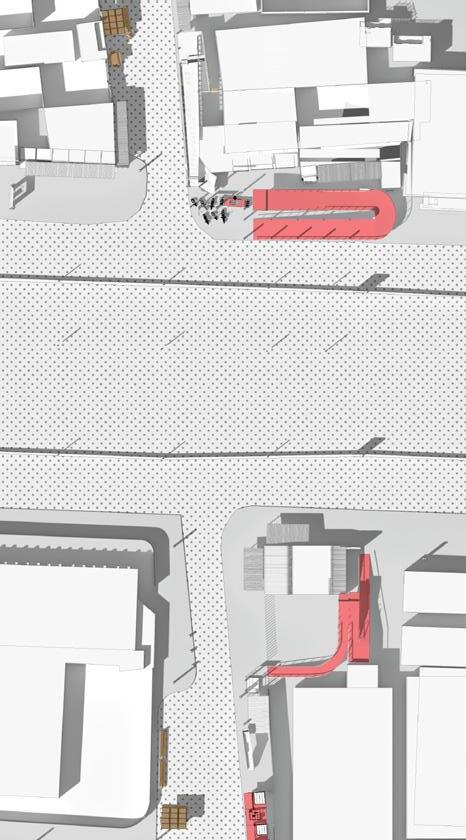

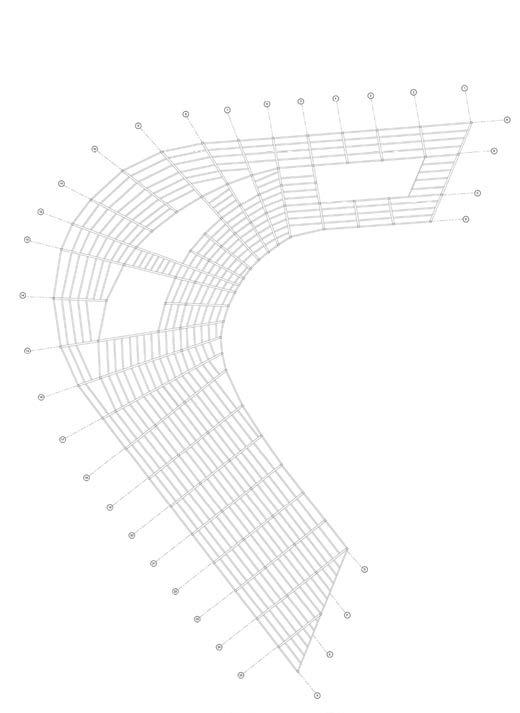

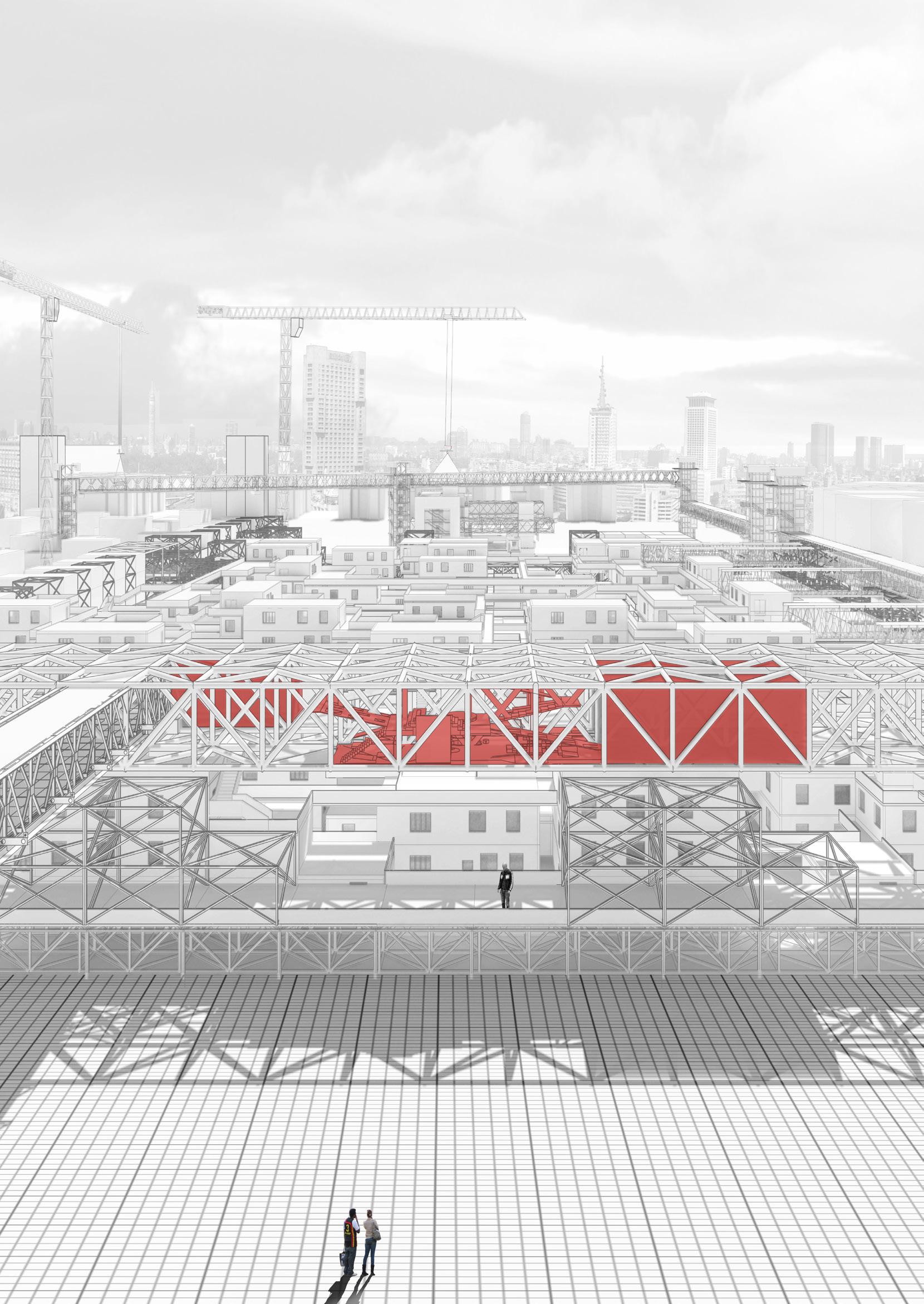

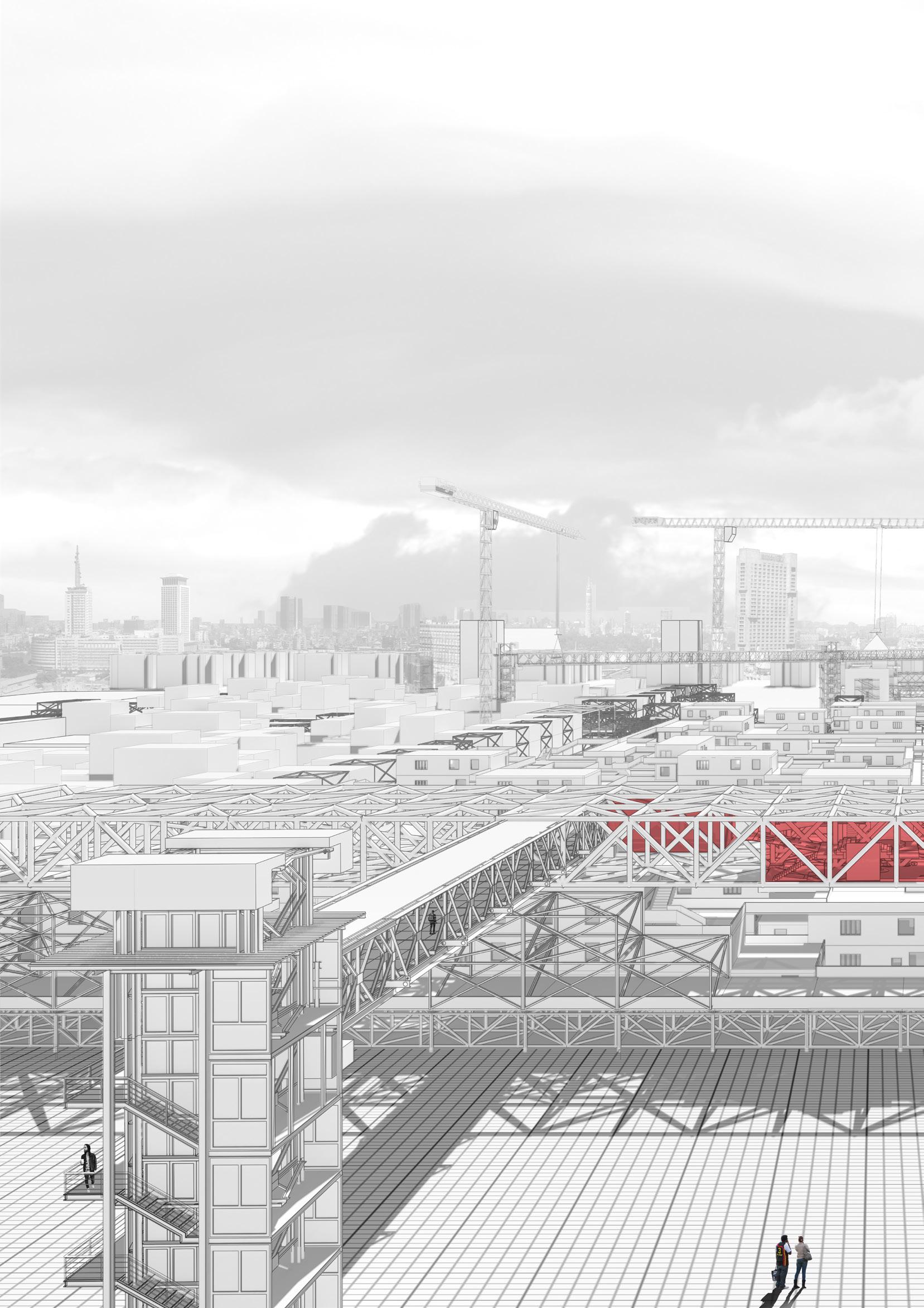

THE IDEA OF THE FLEXIBLE SOUQ IS THAT THE STRUCTURE FORMS A MODULE THAT CAN ACCOMODATE DIFFERENT NEEDS OF THE MERCHANTS AND TENANTS.

THE IDEA OF THE FLEXIBLE SOUQ IS THAT THE STRUCTURE FORMS A MODULE THAT CAN ACCOMODATE DIFFERENT NEEDS OF THE MERCHANTS AND TENANTS.


DAILY ACTIVITIES AND INTERACTIONS OF DIFFERENT QALYOUB RESIDENTS

AHMED/ TEENAGER.STUDENT

OM ASHRAF/ A WIDOWED MOTHER/60’S/LOW CLASS

ASHRAF/ MALE/50’S/WORKING CLASS


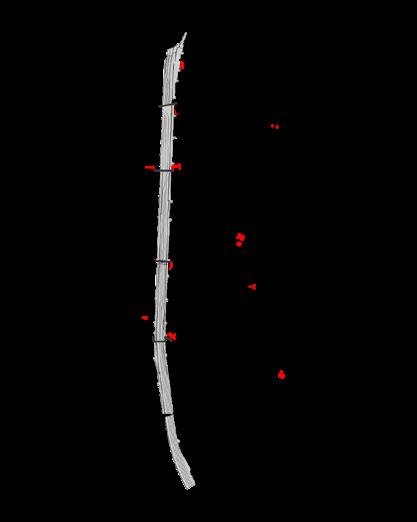

RING ROAD AGRICULTURAL ROAD

CATEGORY A/B CATEGORY C/D

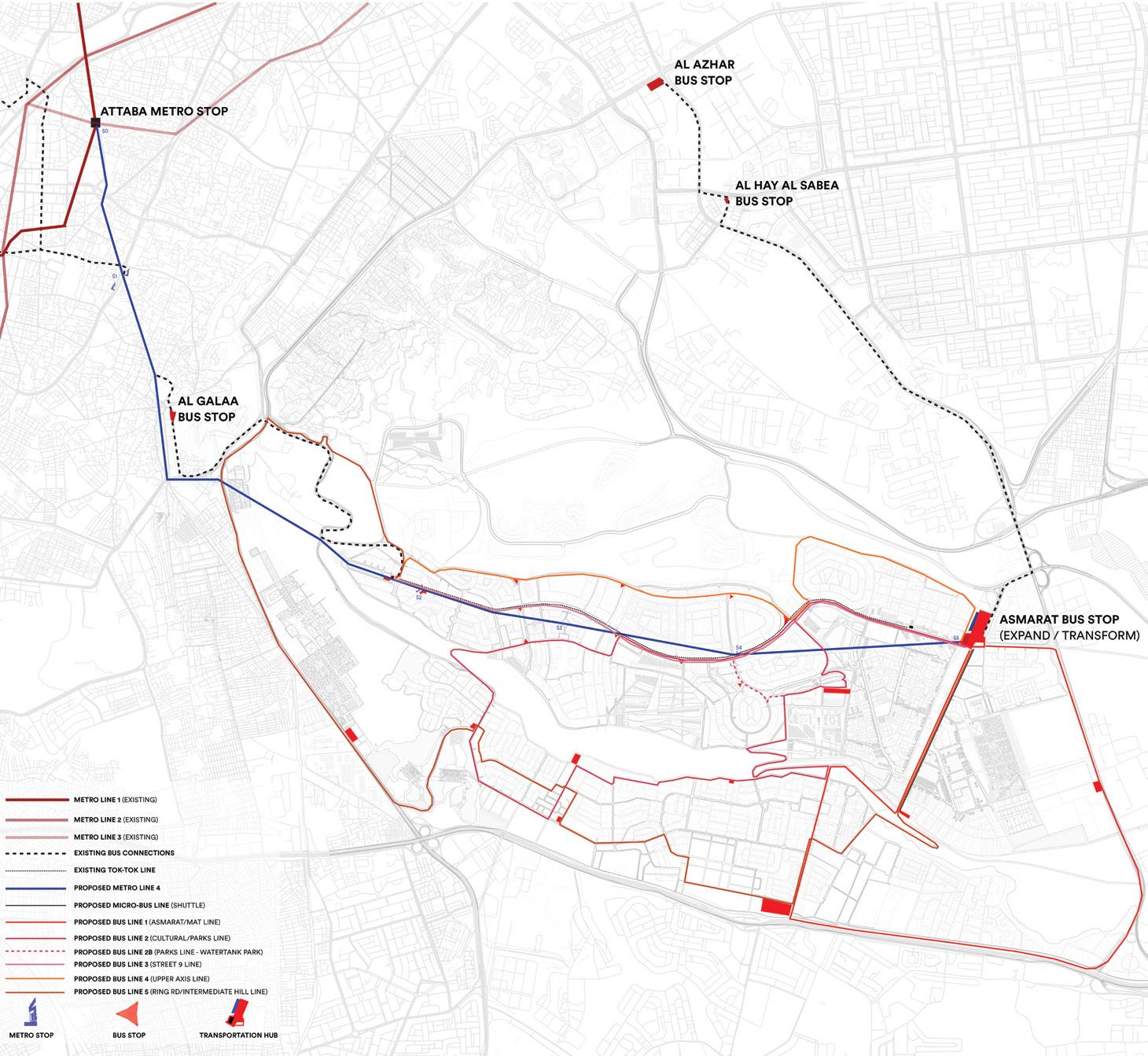

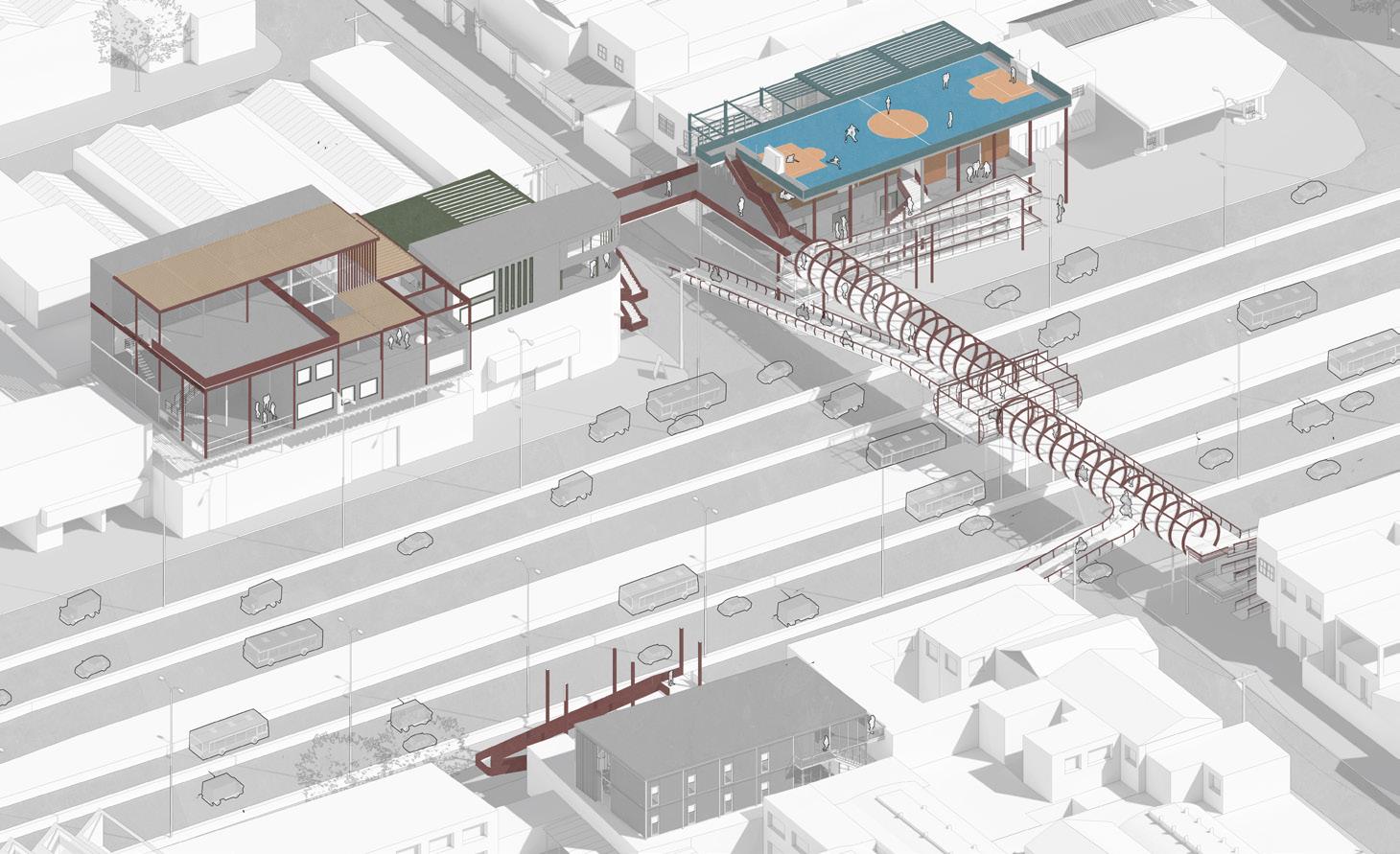

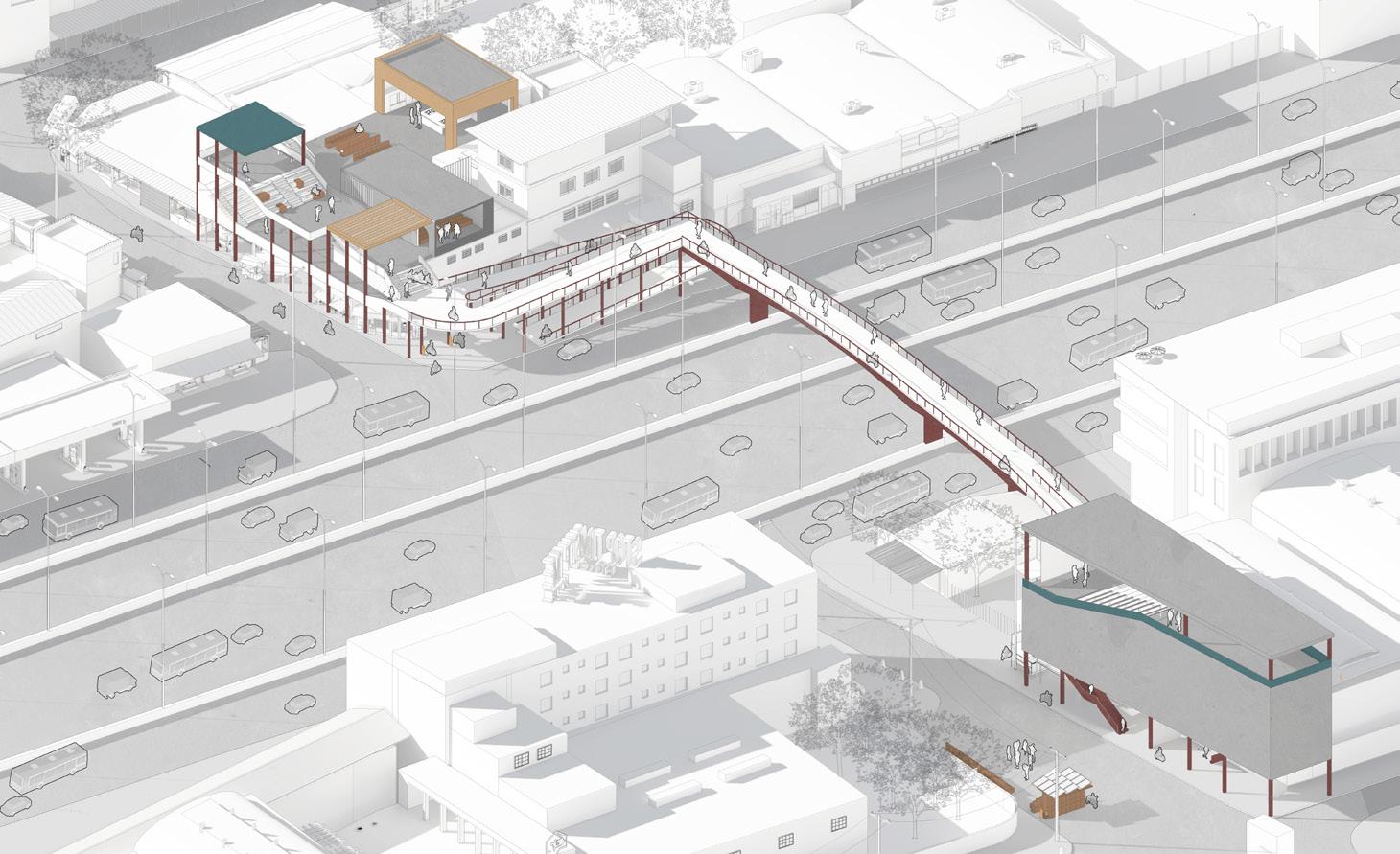

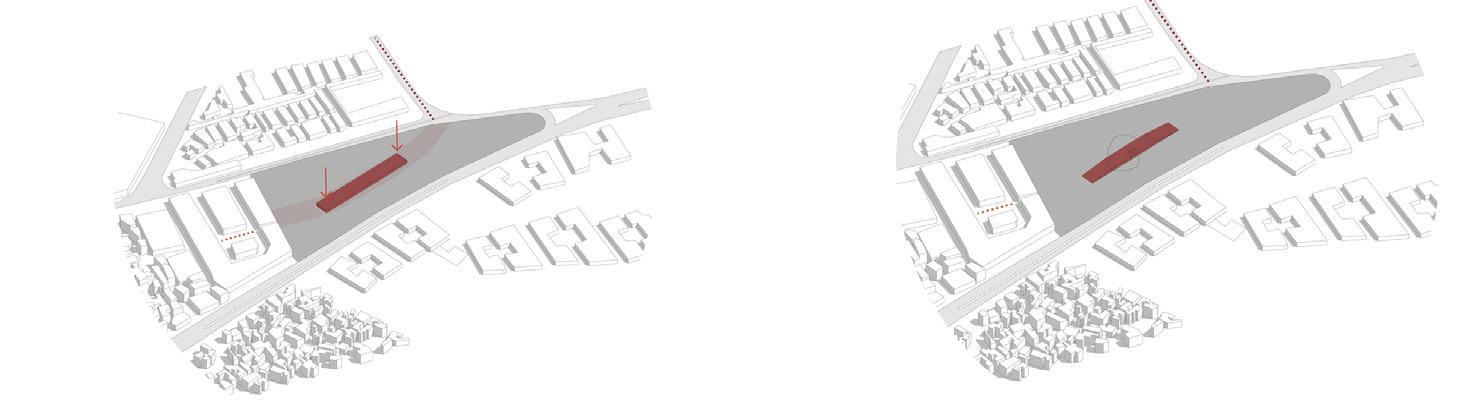

CONNECTION BETWEEN MAIN STREETS AND THE HIGHWAY

DISTRIBUTION OF COMMERCIAL FUNCTIONS

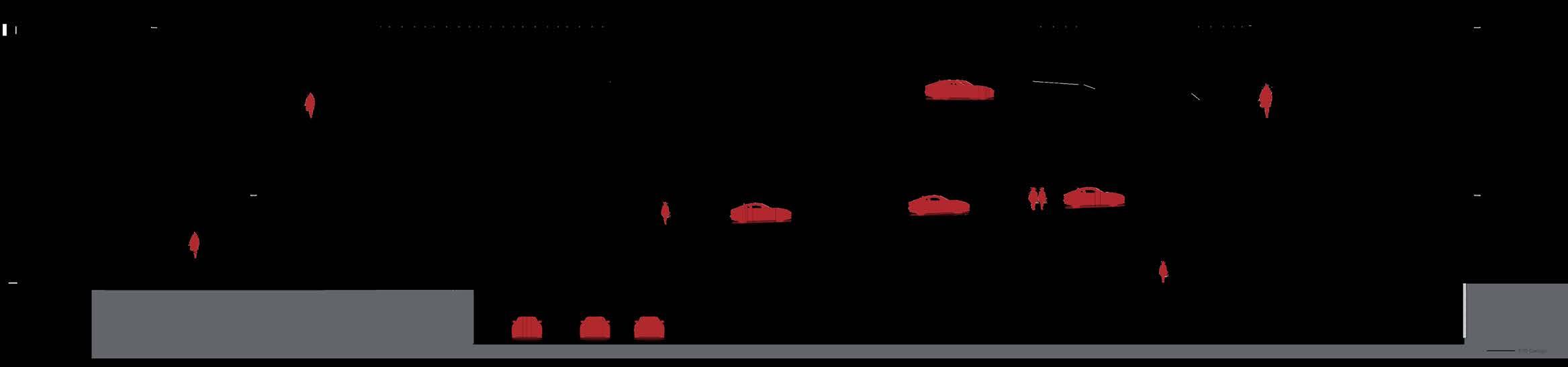

PAVEMENT

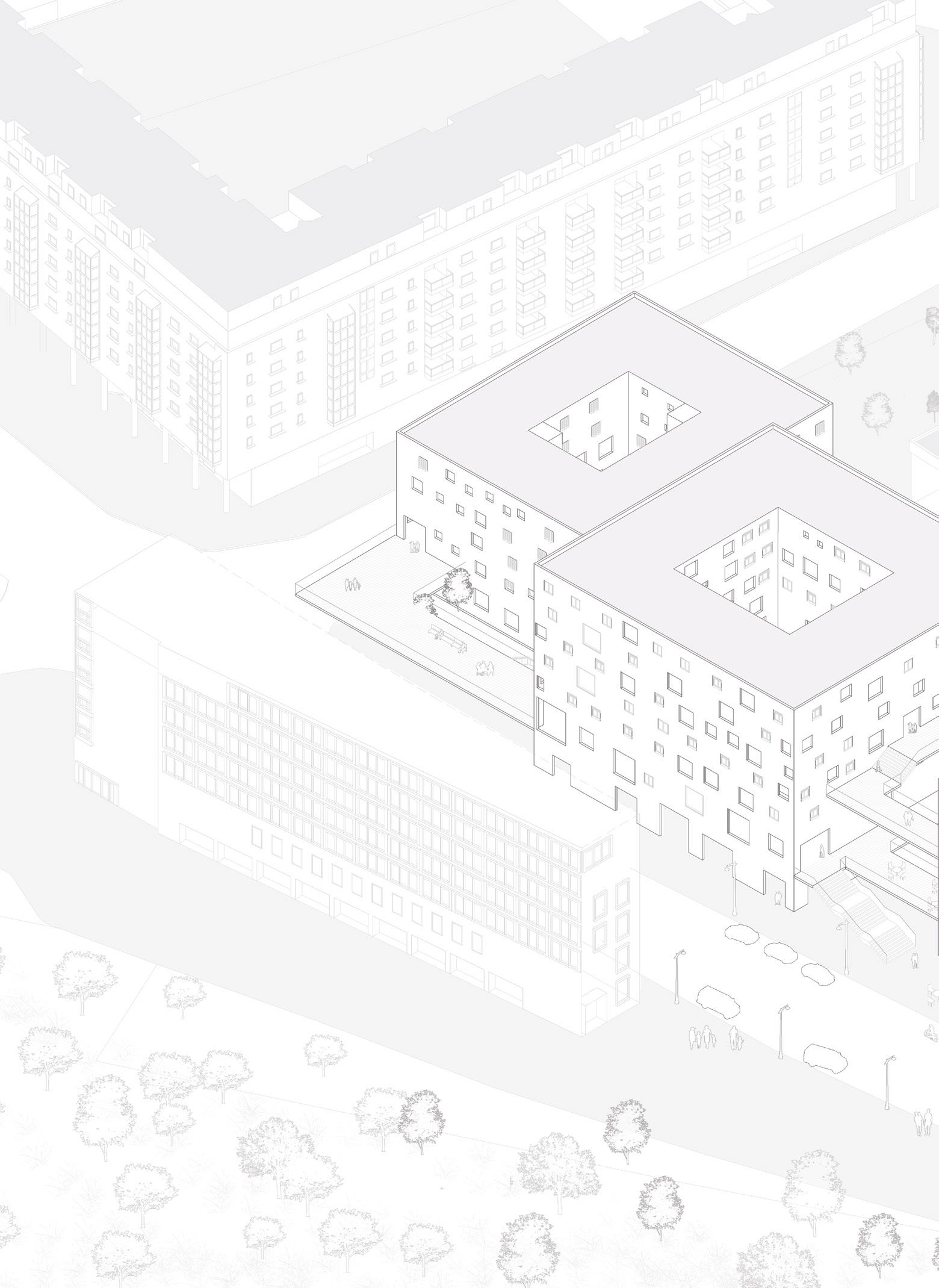

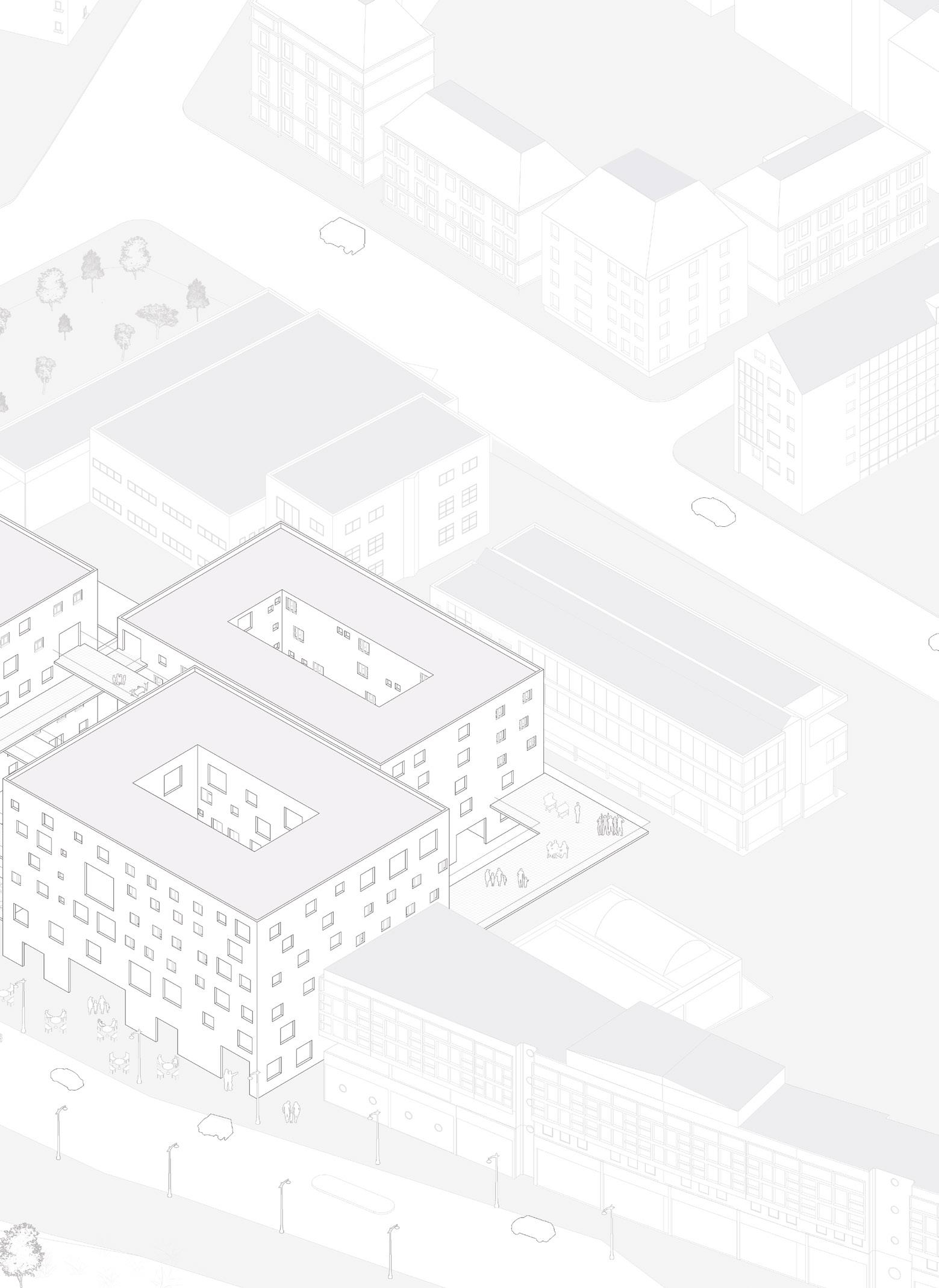

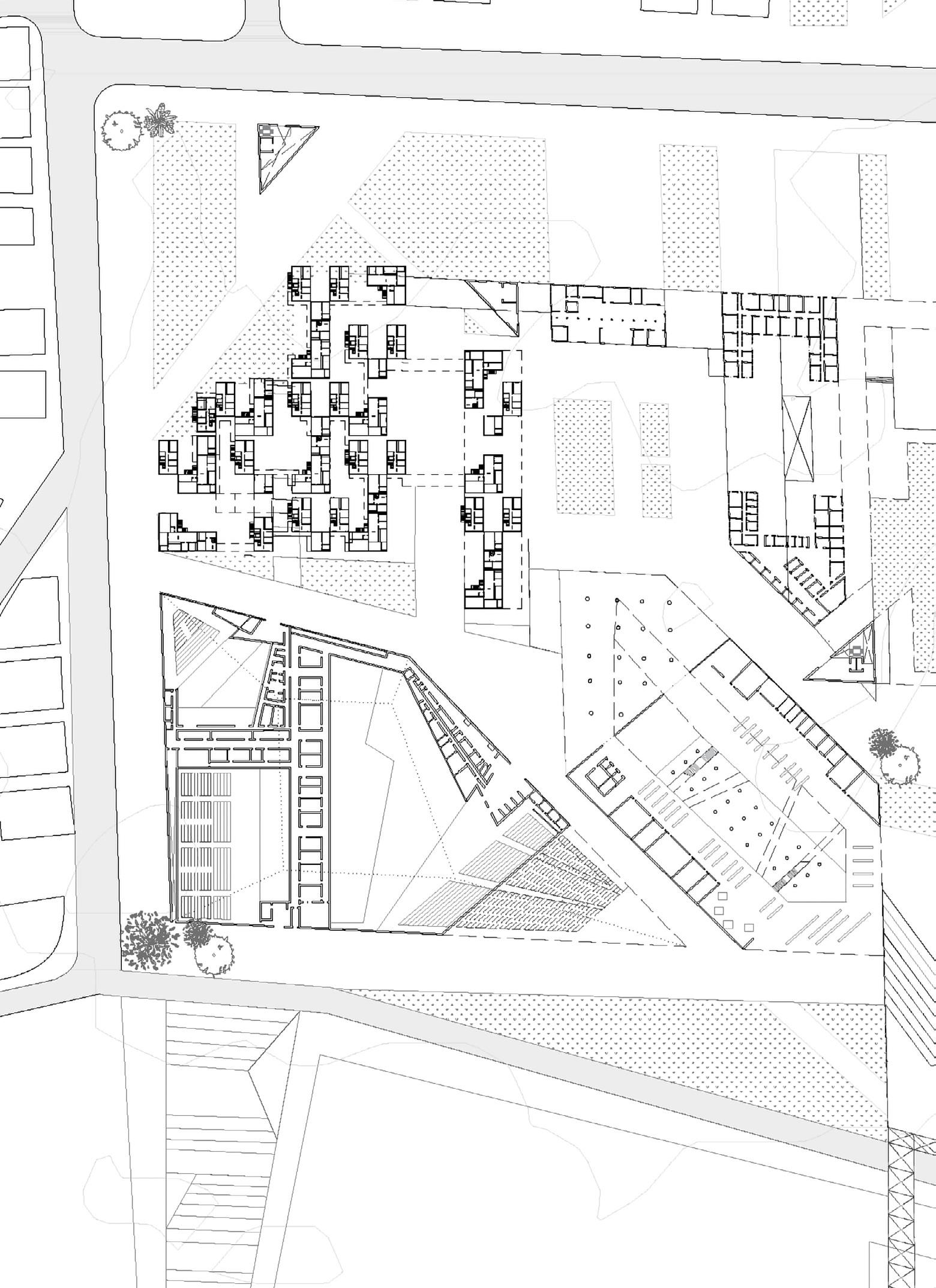

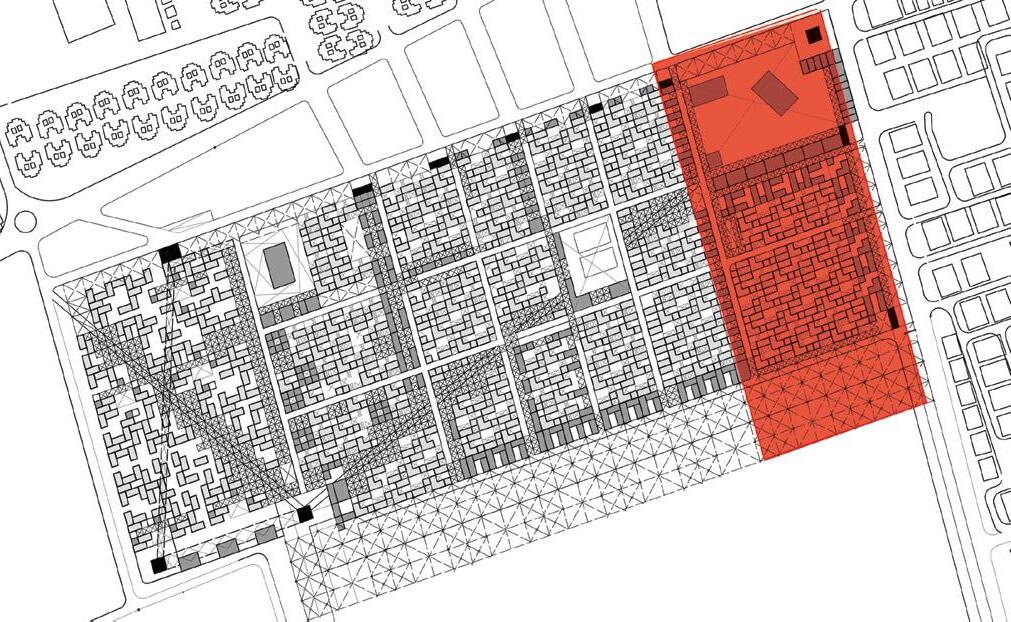

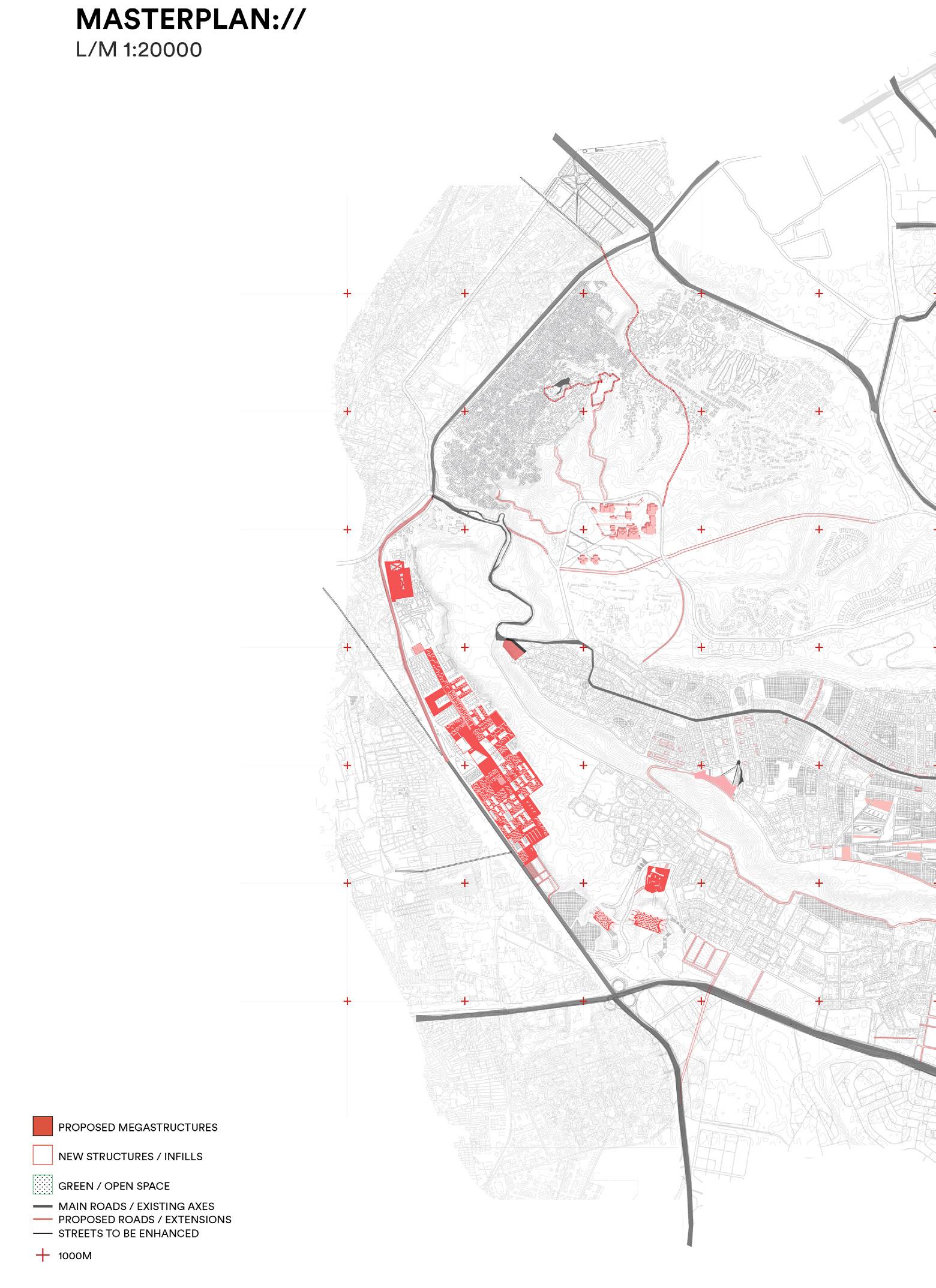

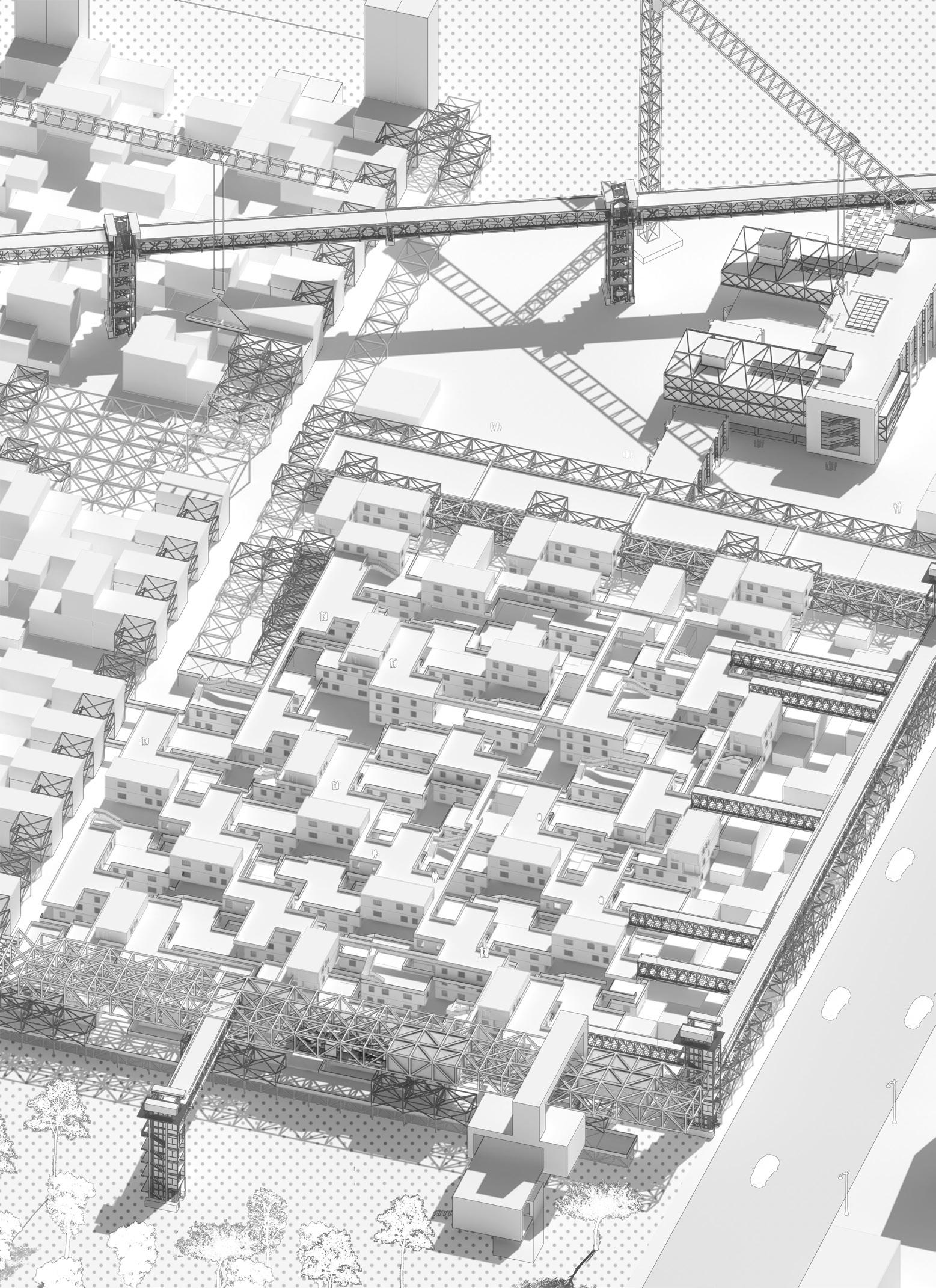

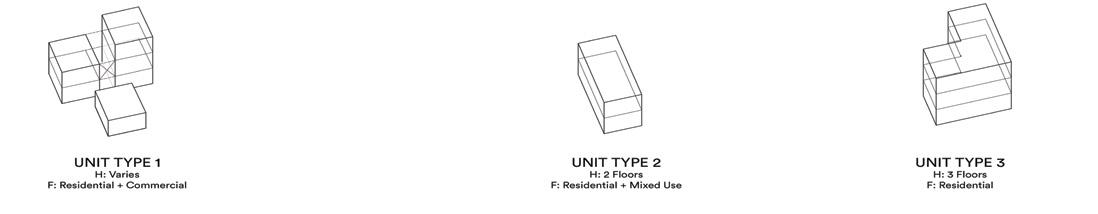

PROPOSED NEIGHBOURHOOD LAYOUT


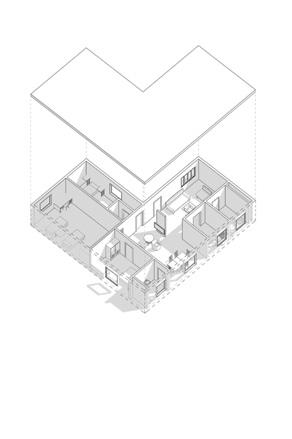

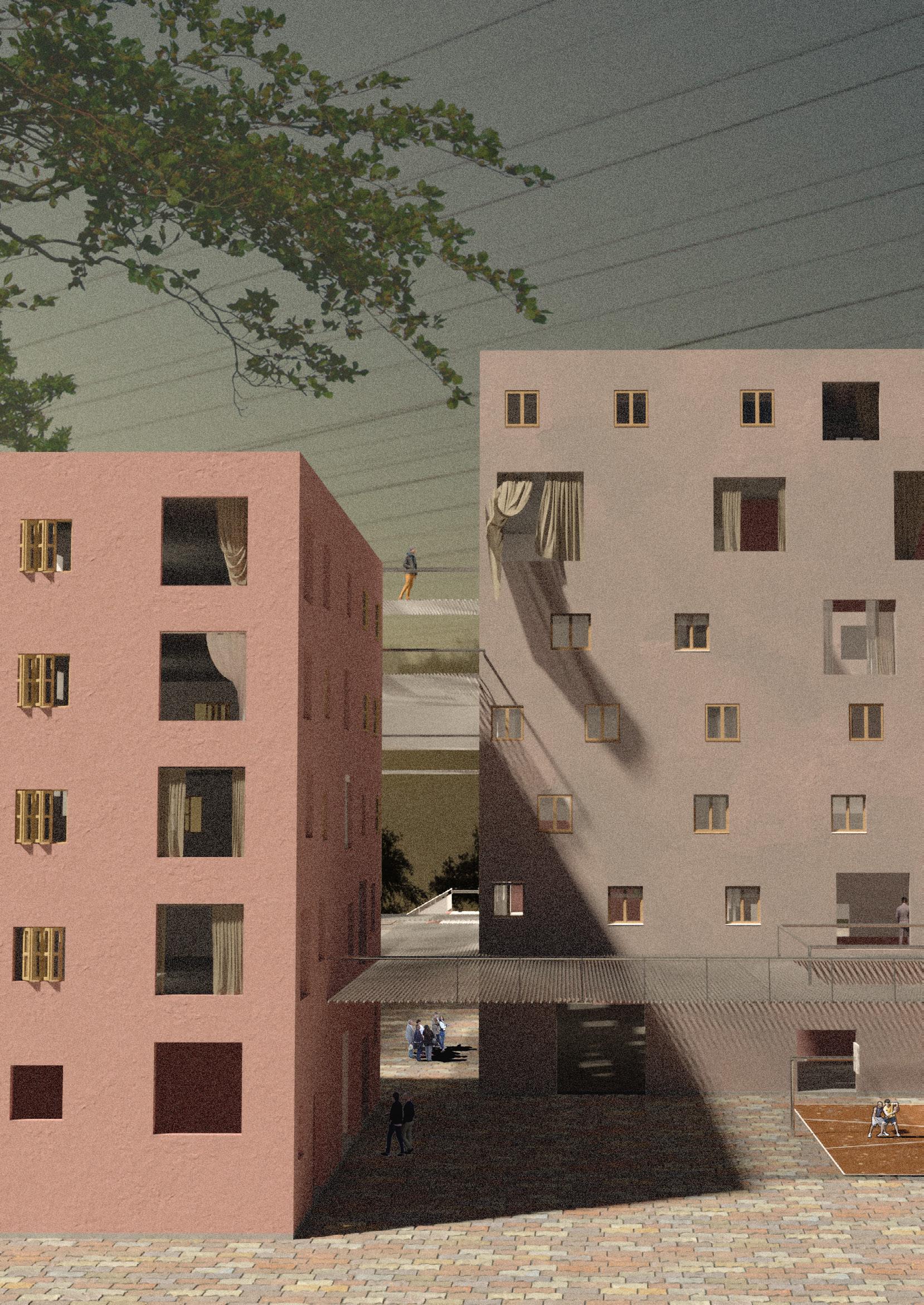

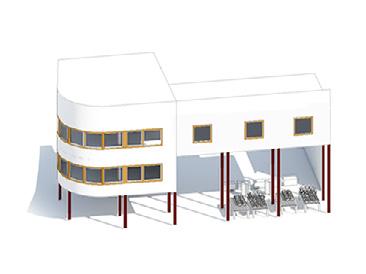

PROTOTYPE 1

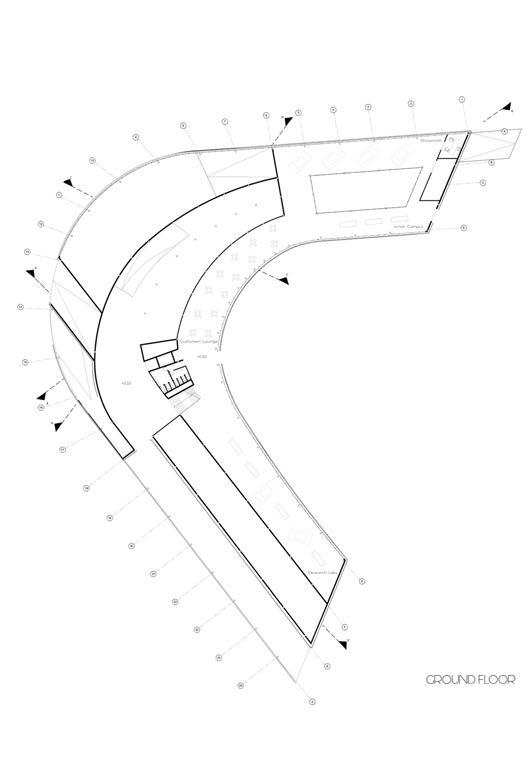

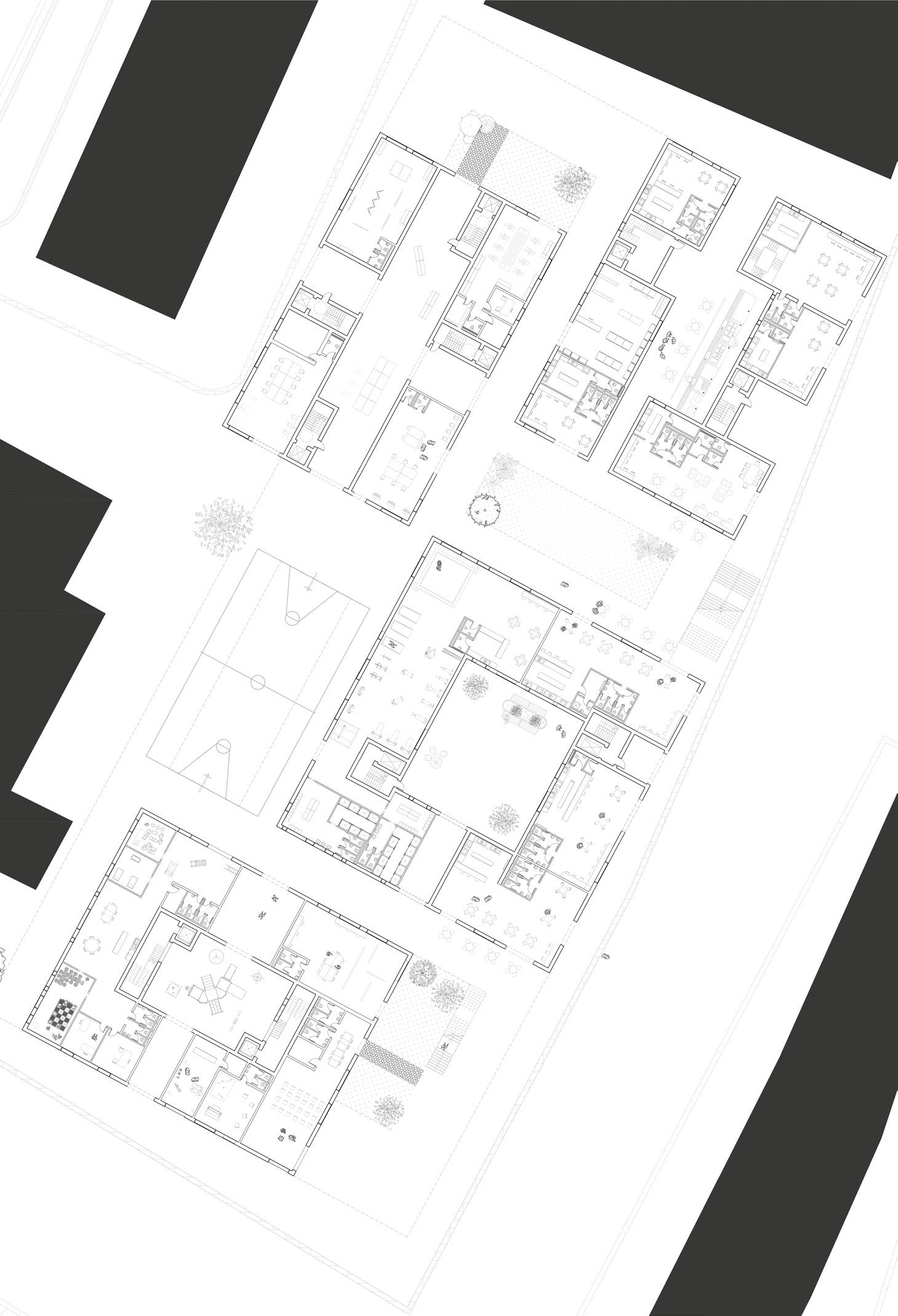

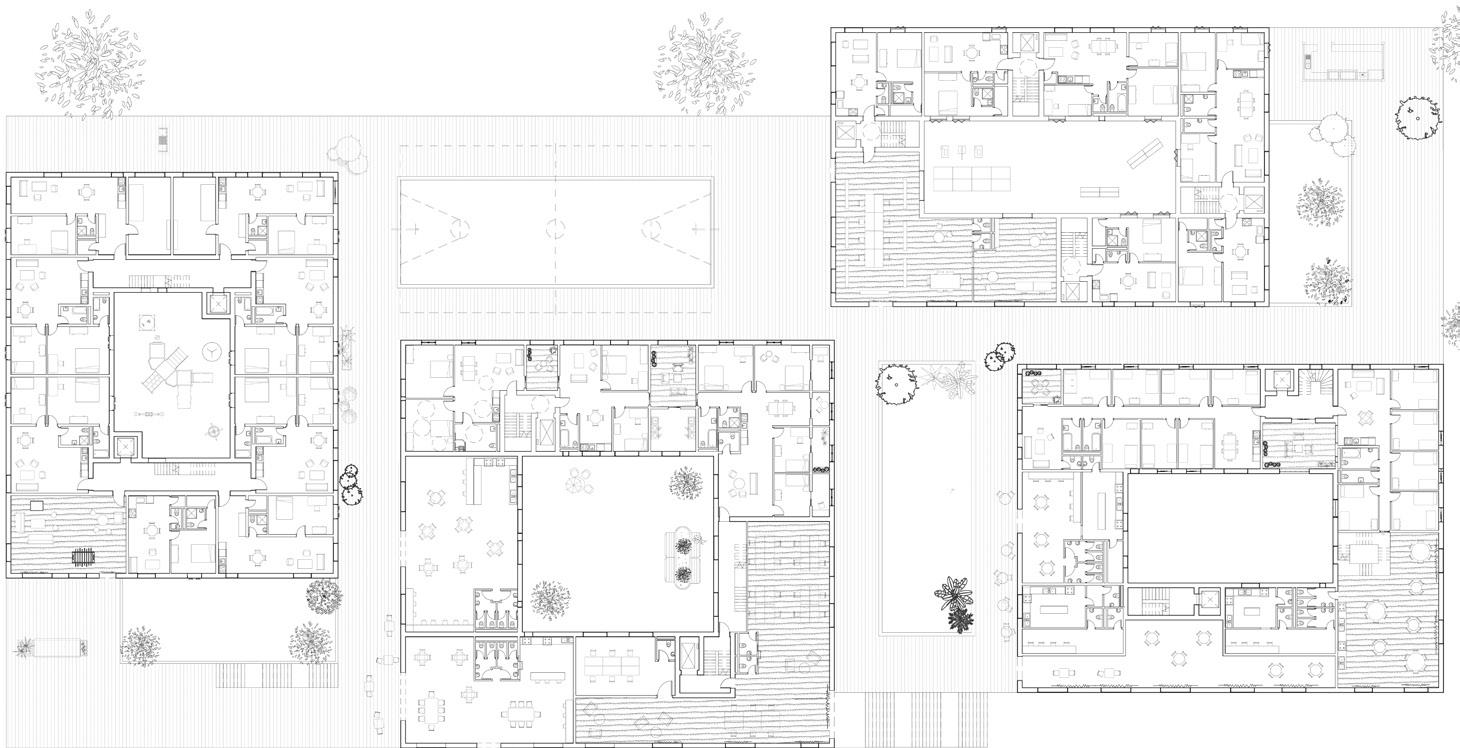

GROUND FLOOR PLAN

SECOND/THIRD FLOOR PLAN

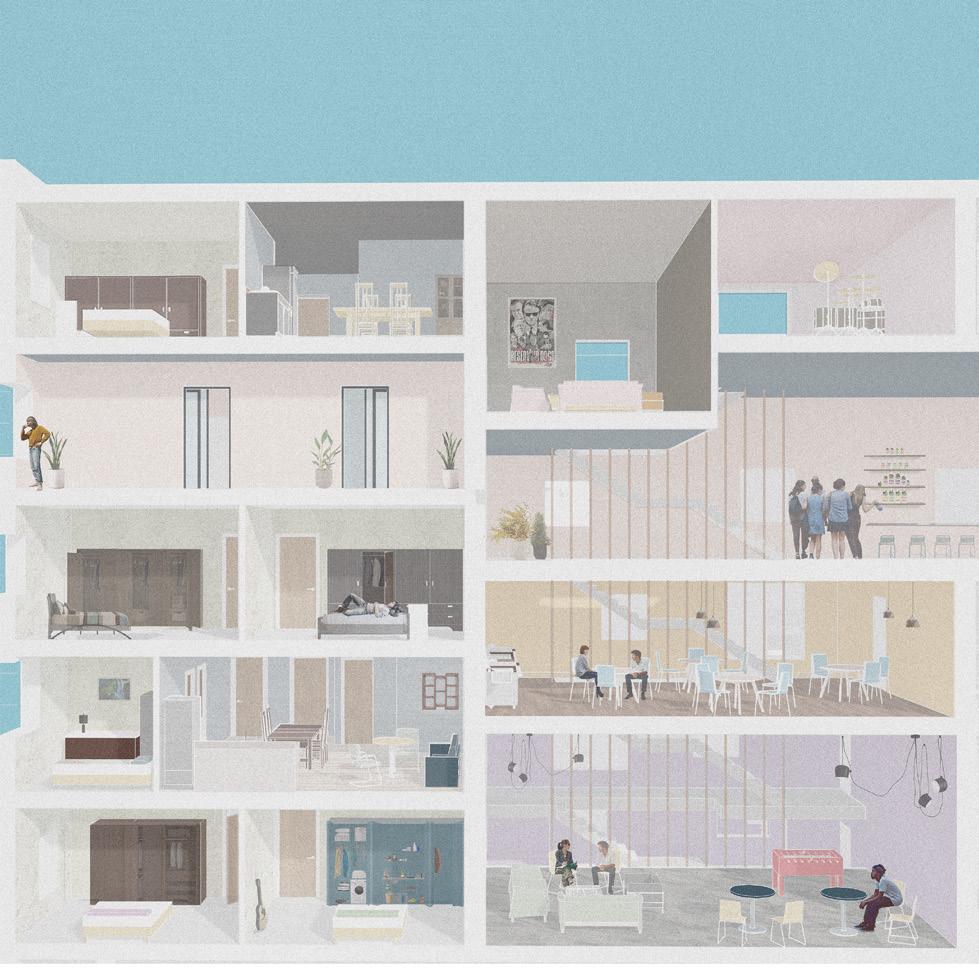

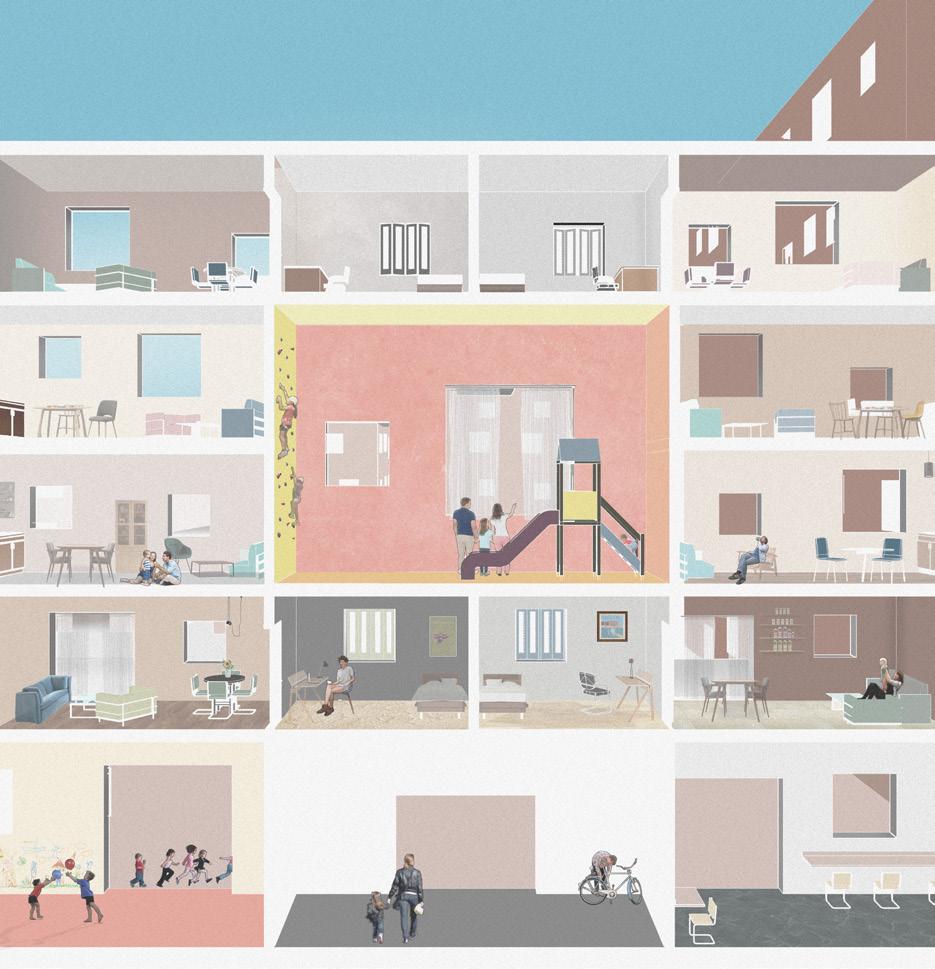

TARGETED USERS FOR EACH FLOOR THIRD FLOOR PLAN

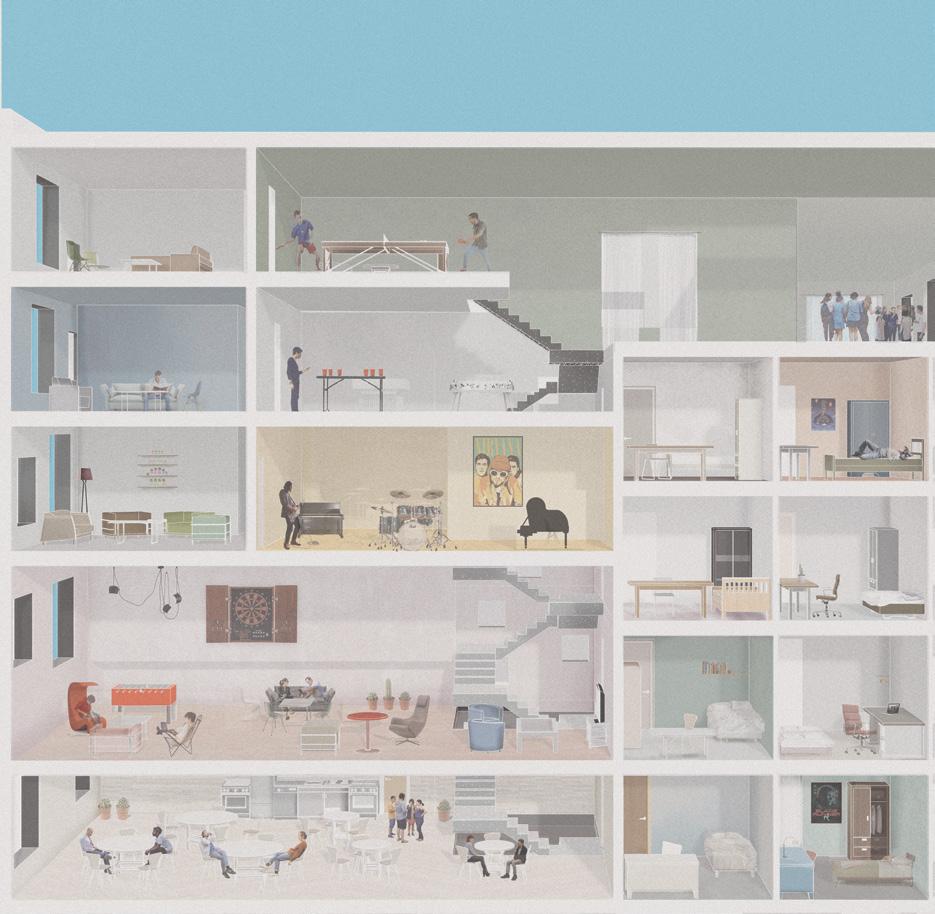

SECTION 3

FOURTH FLOOR PLAN

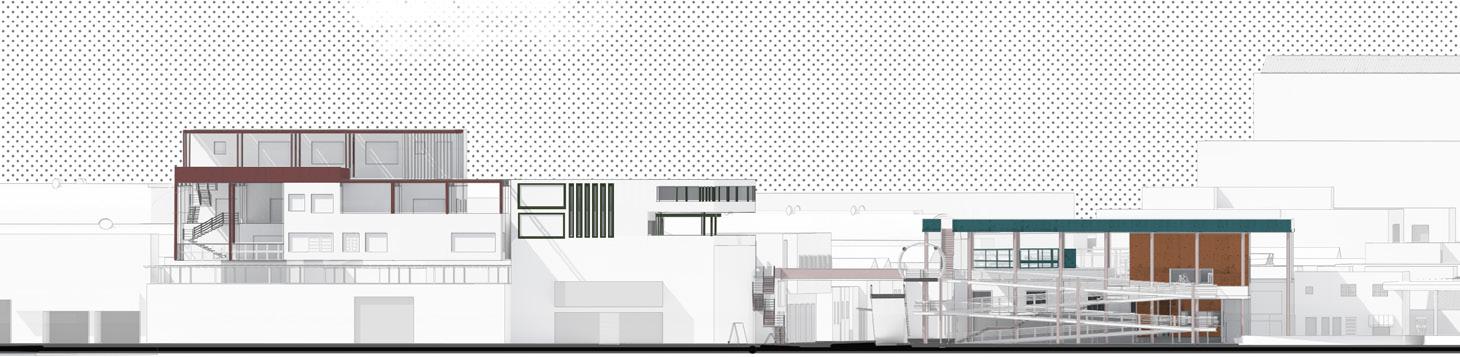

NORTH ELEVATION

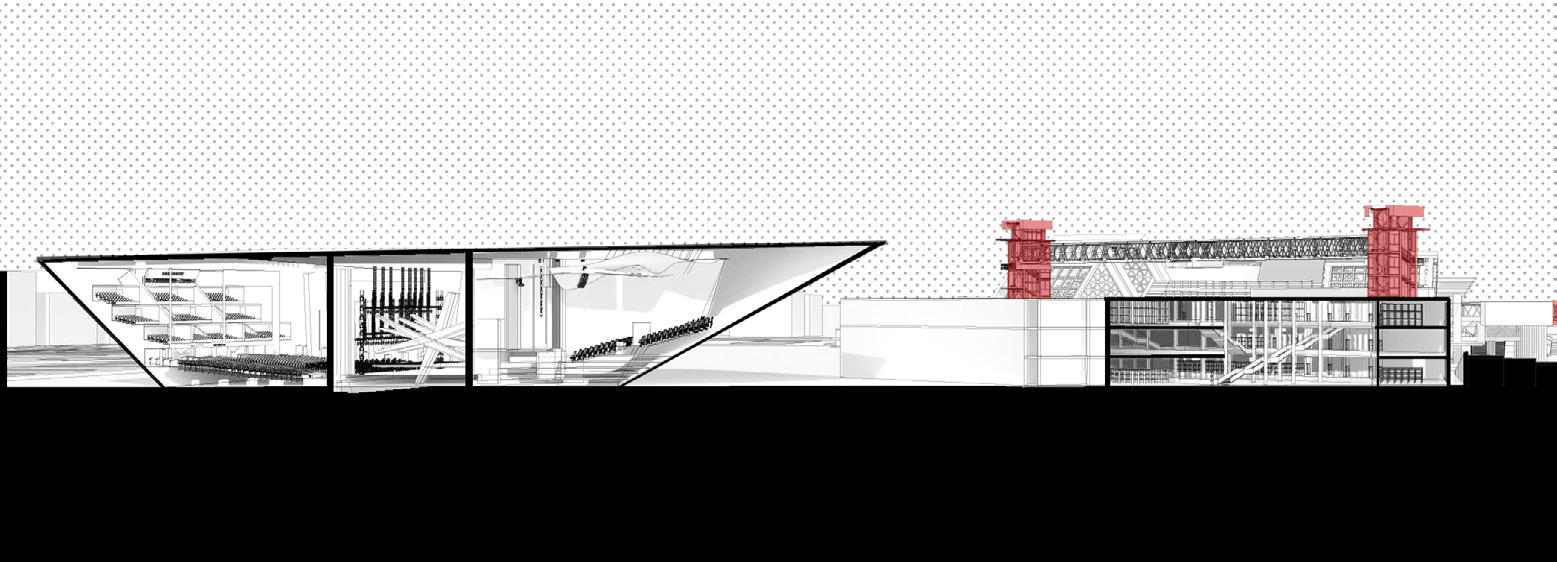

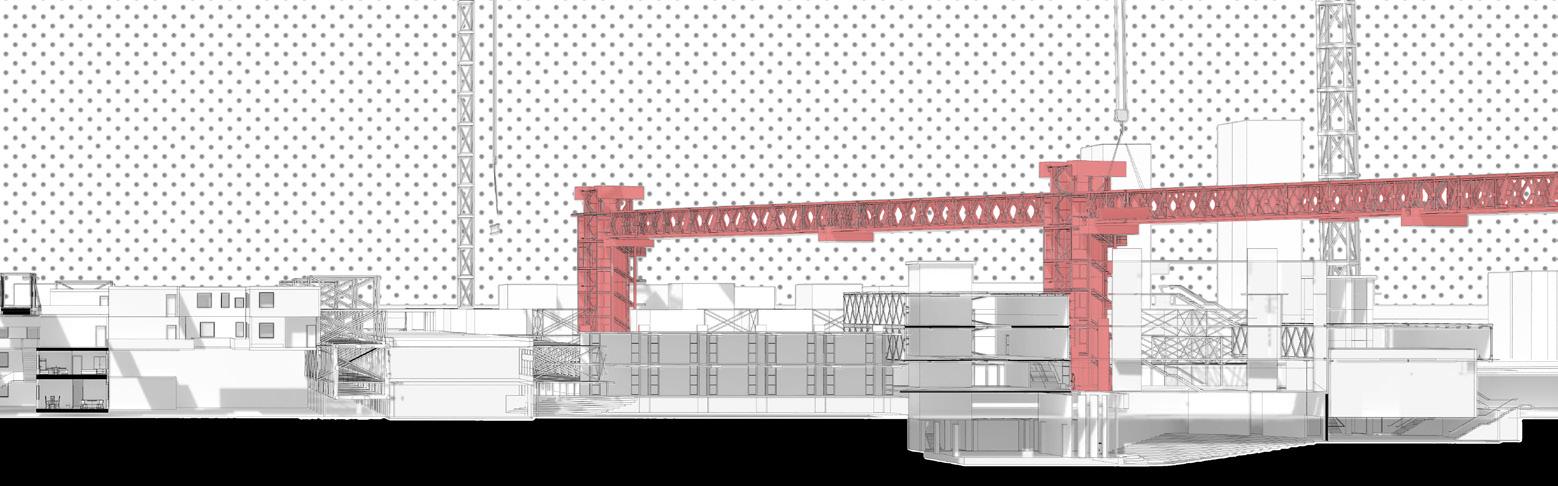

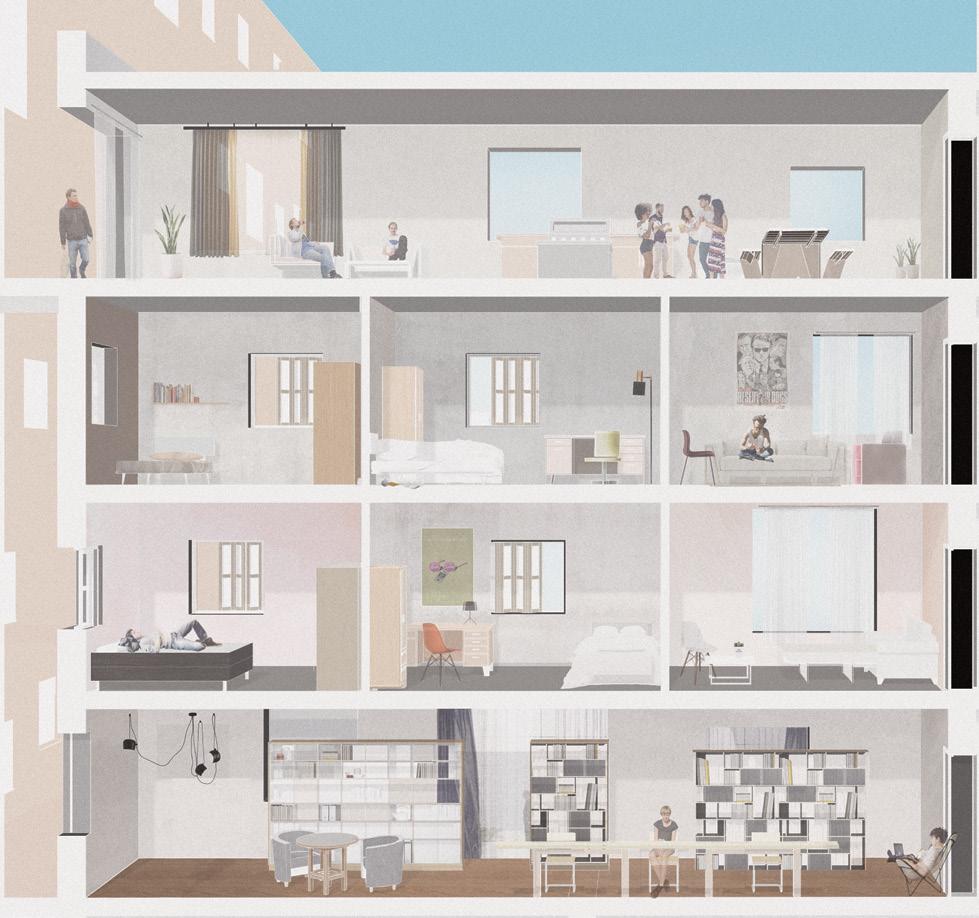

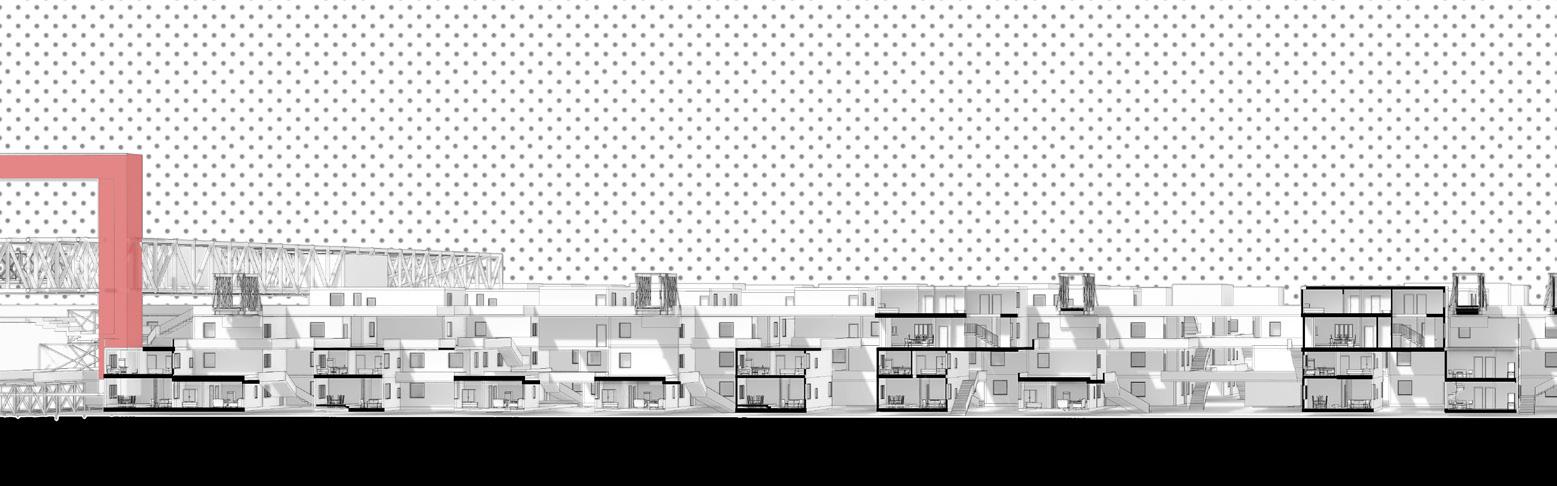

SECTION 2

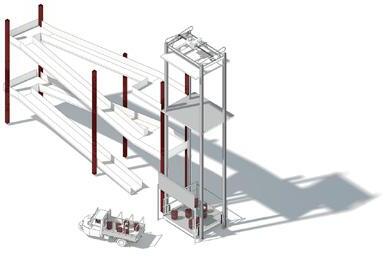

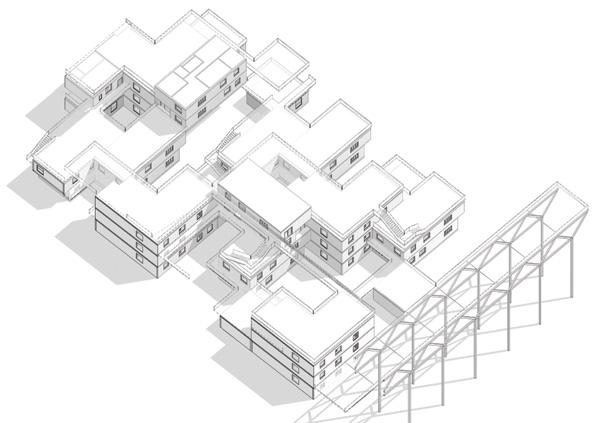

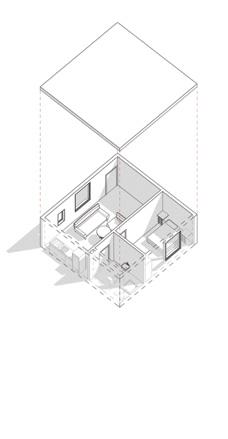

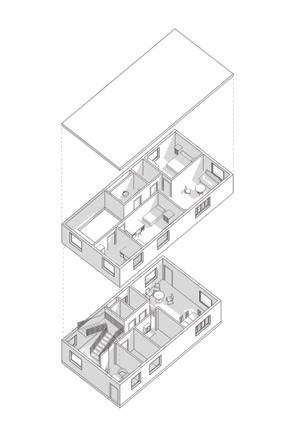

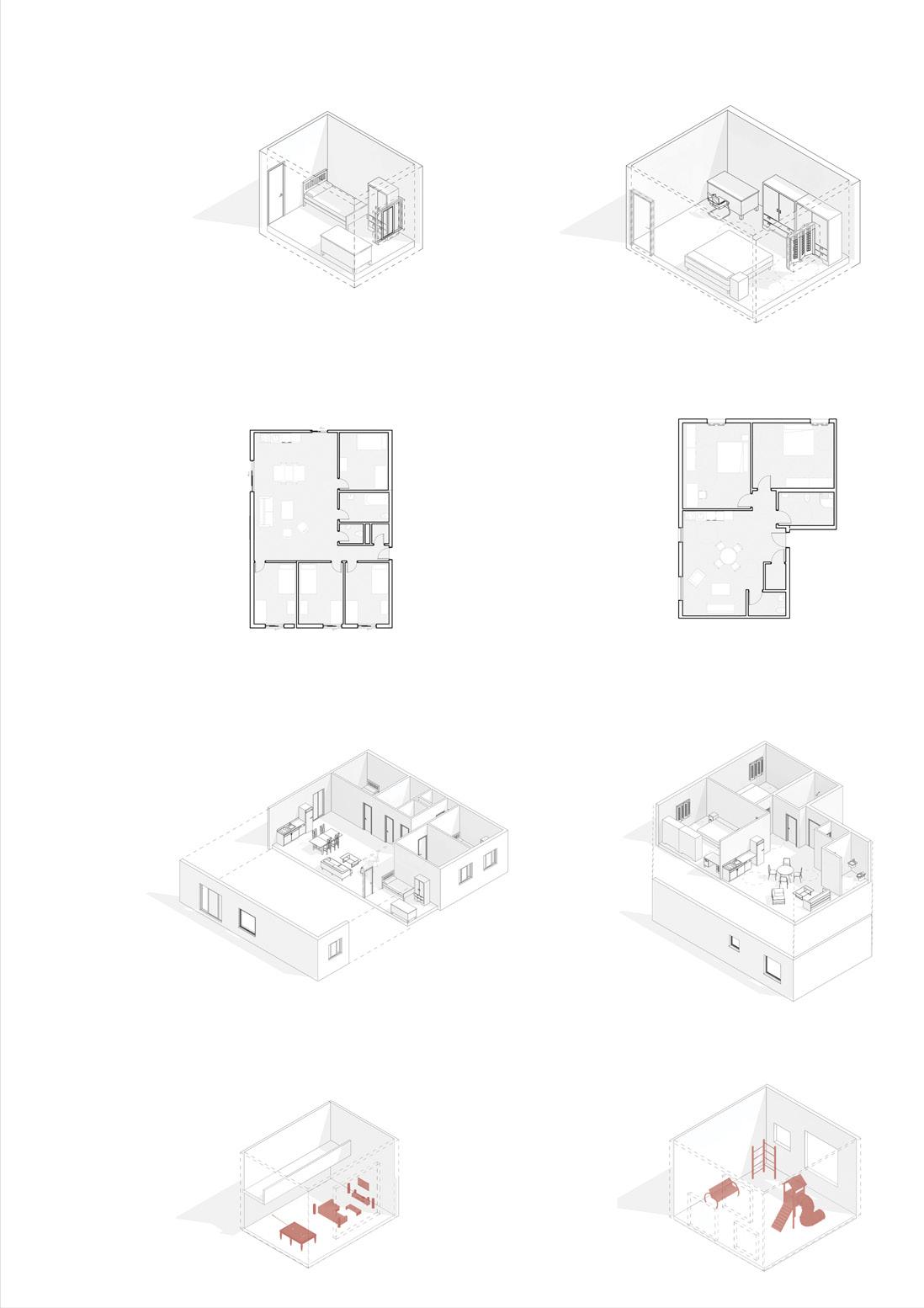

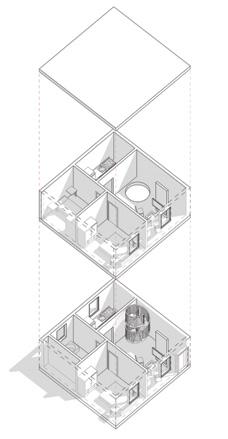

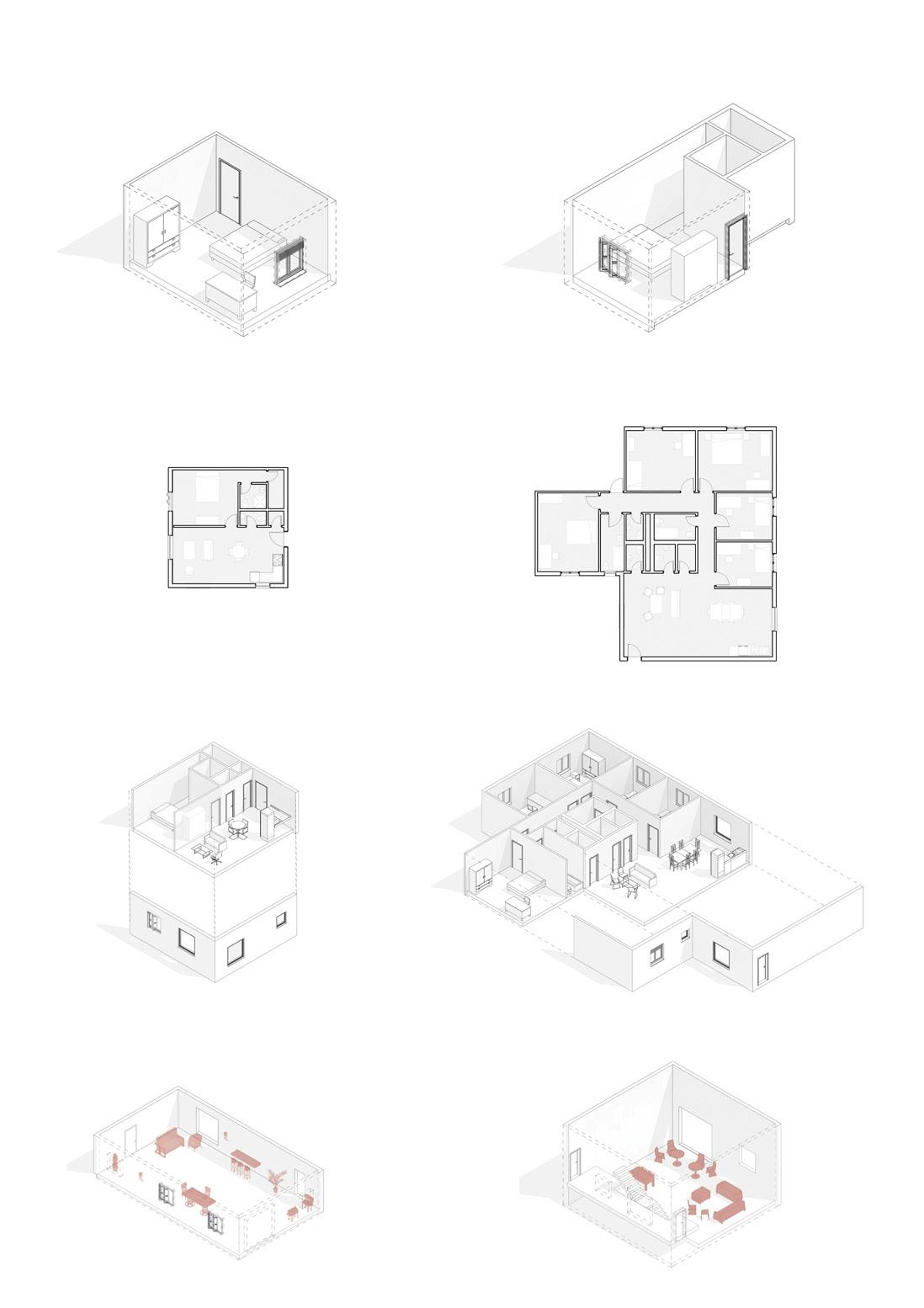

INCREMENTAL STRATEGY


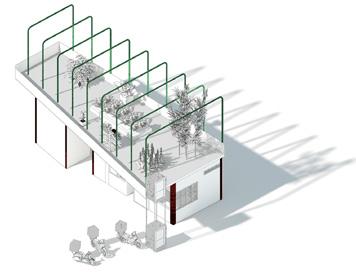

PROTOTYPE 2

GROUND FLOOR PLAN

SECOND FLOOR PLAN

SECTION 3

FIRST FLOOR PLAN

THIRD/FOURTH FLOOR PLAN

SOUTH ELEVATION

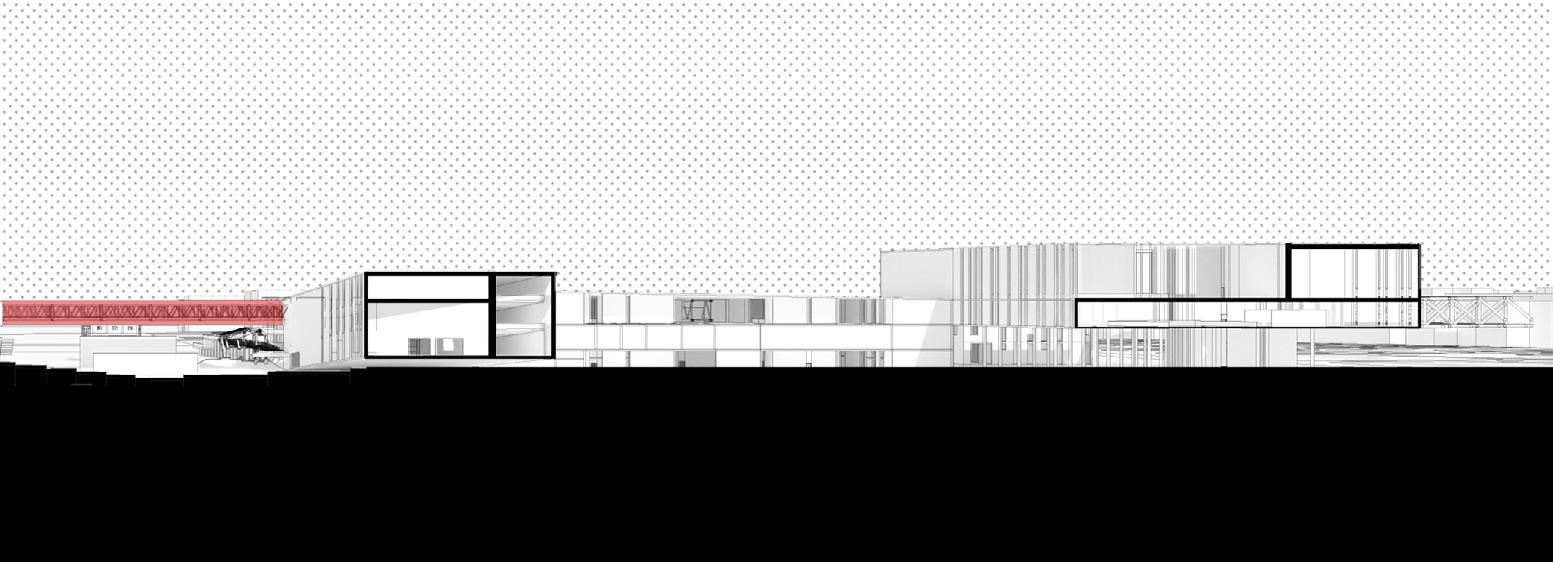

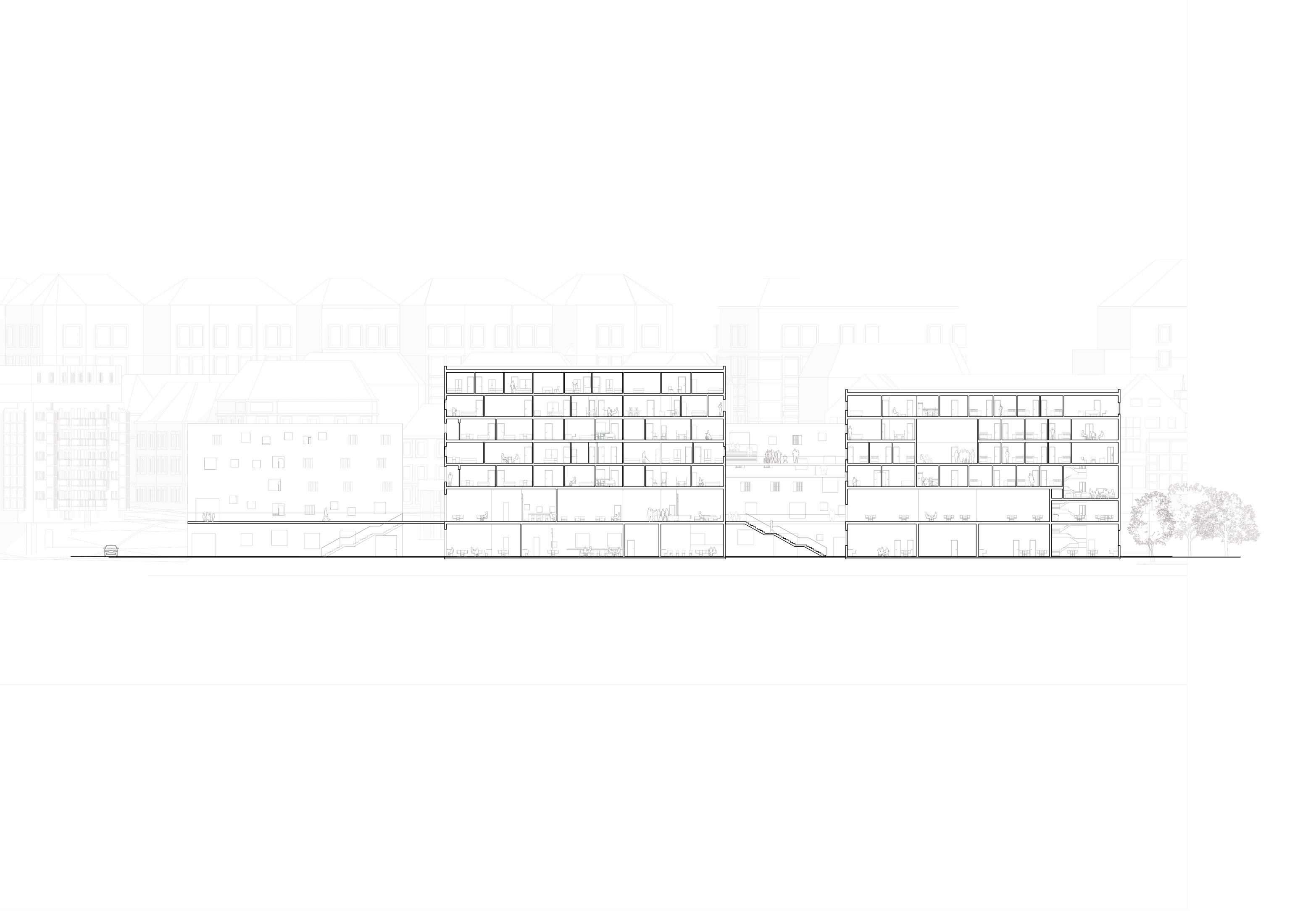

SECTION


PROTOTYPE 3

GROUND FLOOR PLAN

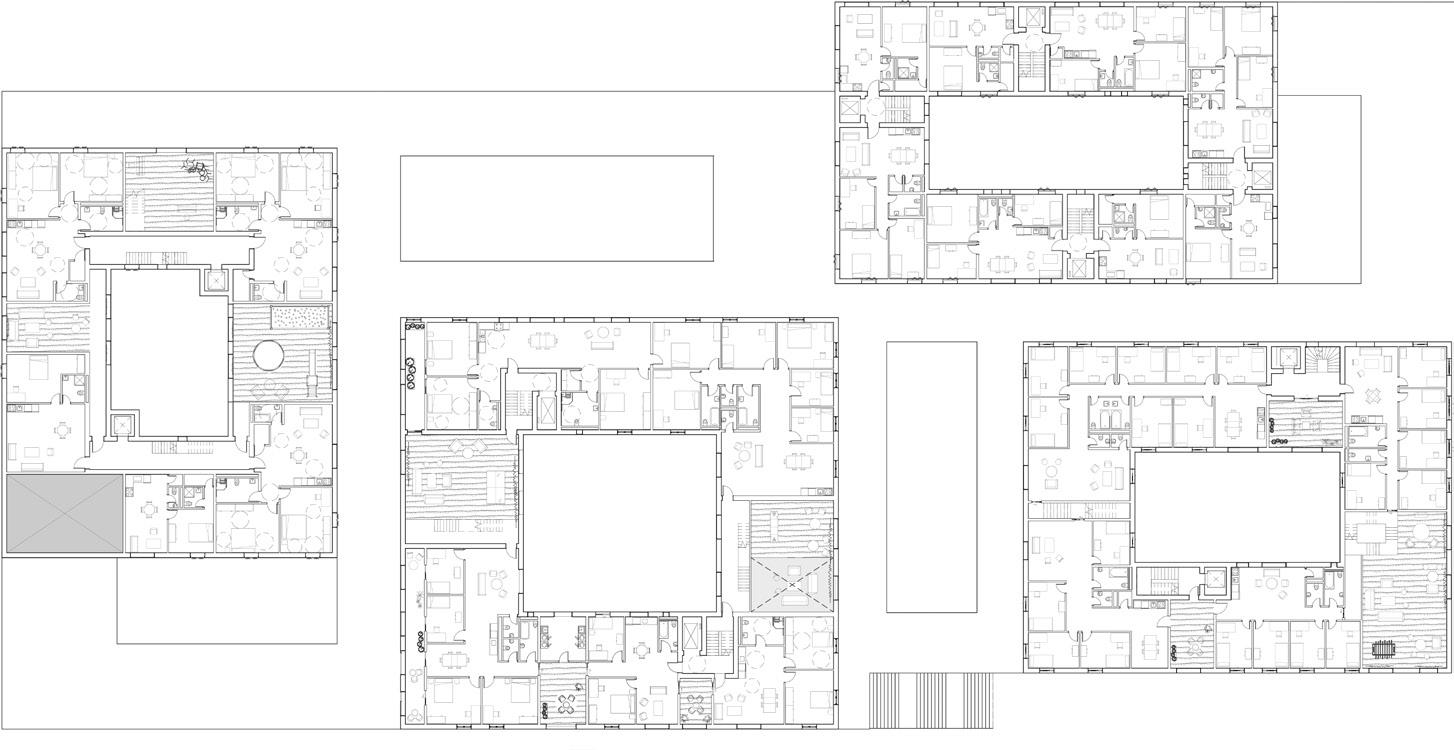

TYPICAL FLOOR PLAN

SOUTH ELEVATION

NORTH ELEVATION
