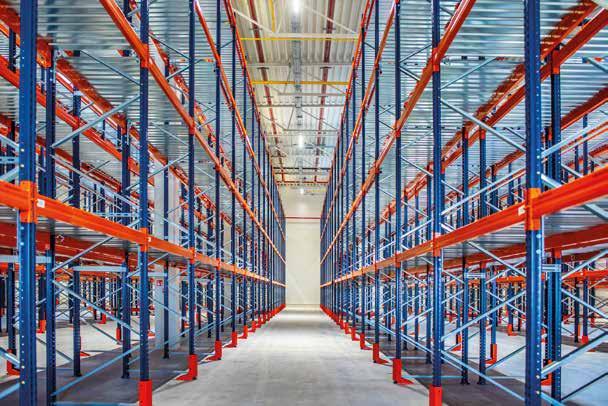

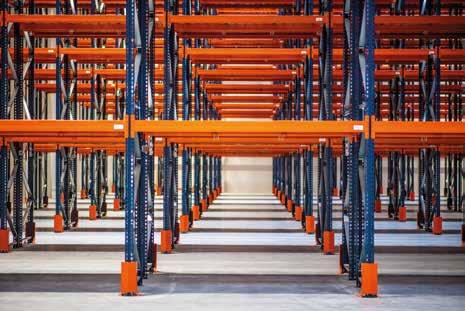

THE RACK SYSTEM
by adecon_
used in the warehouse is equipped with Each pallet space has an individual sprinkler, further supported by sprinklers hung from the ceiling of the provides continuous thermal imaging monitoring of all stored goods (in addition to standard CCTV surveillance Thermal imaging will detect in time for the object to be safely removed from the warehouse and for sprinklers not to be activated. It helps undamaged goods located in an adjacent area from being flooded).
Each rack is reinforced and separated with a metal cover, which provides additional protection for the goods in case of fire. This ensures that the potential fire will not immediately spread to subsequent batches. At the same time should sprinklers be needed, water will only accumulate on one rack
Advertisement
The facility is built in accordance with the FM Global and BREEAM standards
Unique temperature control system - permanent thermal imaging installation with 24-hour monitoring
1. 2. 3. 4. 5. 6.
Available 5196 EPAL in racks:
4088 EPAL protected by sprinkler system, as required for storage of Li-Ion batteries with the highest fire load parameters.
In addition, half of the hall (3500m2) - the floor alone with the possibility of separating about 1200 EPAL with sprinkler protection overhead.
The rack system meets the requirements of the latest PN-EN 15512:2020 standard.
Storage in row racks5 levels, 4 of which are protected by sprinklers.
The fifth level is for neutral cargo.
7. 8. 9.
The racks are equipped with sprinklers of type K240 in accordance with FM Global and NFPA standards, ensuring the pressure in the system at 2.4 bar.
Storage area of 7020 m2including 3500m2 with rack system. The whole area of 7020 m2 can be easily adjusted and equipped with rack system.
Video system, hall monitoring, security, office/hall entrance registration system.
10. 11. 12.
Additional protection in the form of a container located outside the building, into which a pallet of batteries that irregularities were detected can be brought. It is equipped with a tank with a salt solution to flood the container to stop the combustion processes taking place.
13 ramps, 1 flat additionally. For better capacity and short unloading time.
Very good location, intersections of A8/S8/A4 (Bielany Wroclawskie, Poland).
Storage 7020 m2 area of
