ADAS Hightex Portfolio

2023

PORTFOLIO

Our Offices

Pakistan

USA

Malaysia

Singapore

Indonesia

ADAS Hightex Sdn. Bhd.

Kuala Lumpur Office

No. 7, Jalan Astaka U8/84, Bukit Jelutong Industrial Park, Seksyen U8, 40150 Shah Alam, Malaysia

Multimedia Engineering Pte. Ltd.

Johor Office

Penang Office

Singapore Head Office

T (+60) 11 1081 6630

T (+60) 16 4216 219

Lot 7055 Jalan Seelong Jaya 2 81400 Senai, Johor, Malaysia

T (+60) 16 4216 219

No. 17 & 19, Lorong Perda Timur 6, Bandar Perda, Bukit Mertajam, 14000 Penang, Malaysia

© 2023 ADAS Hightex Sdn. Bhd. All rights reserved.

50 Bukit Batok Street 23 #05-15 Midview Building, Singapore, 659578

T (+65) 6765 6288

35 Years

of Design & Engineering

650+ Projects

across 17 countries

Over 95,000m2 built in the past 3 years

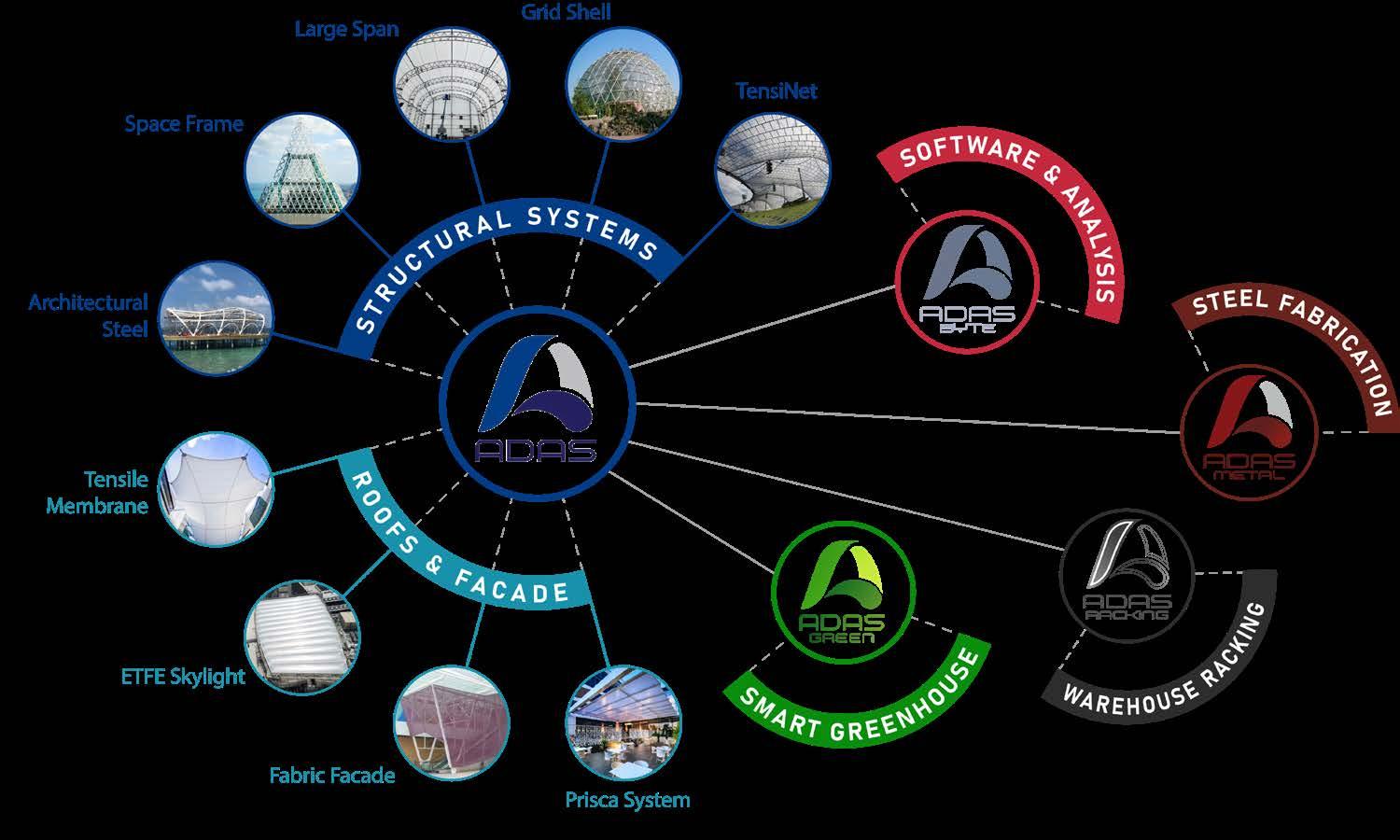

Our Solutions

© 2023 ADAS Hightex Sdn. Bhd. All rights reserved.

ADAS® Products

1.

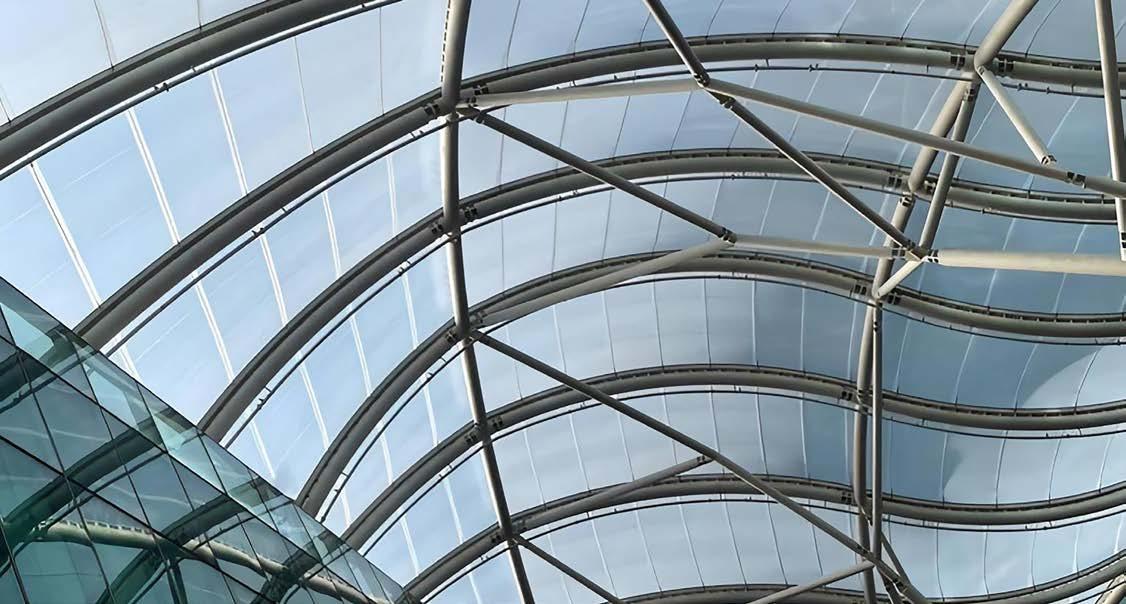

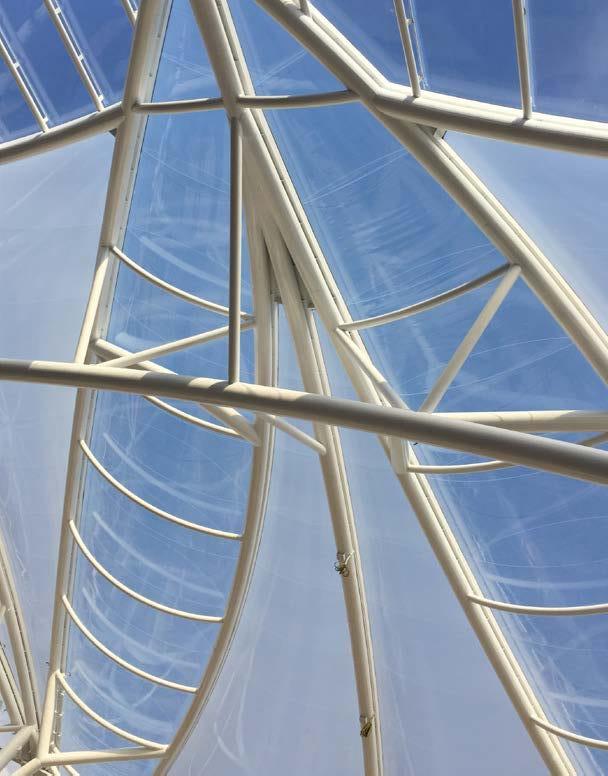

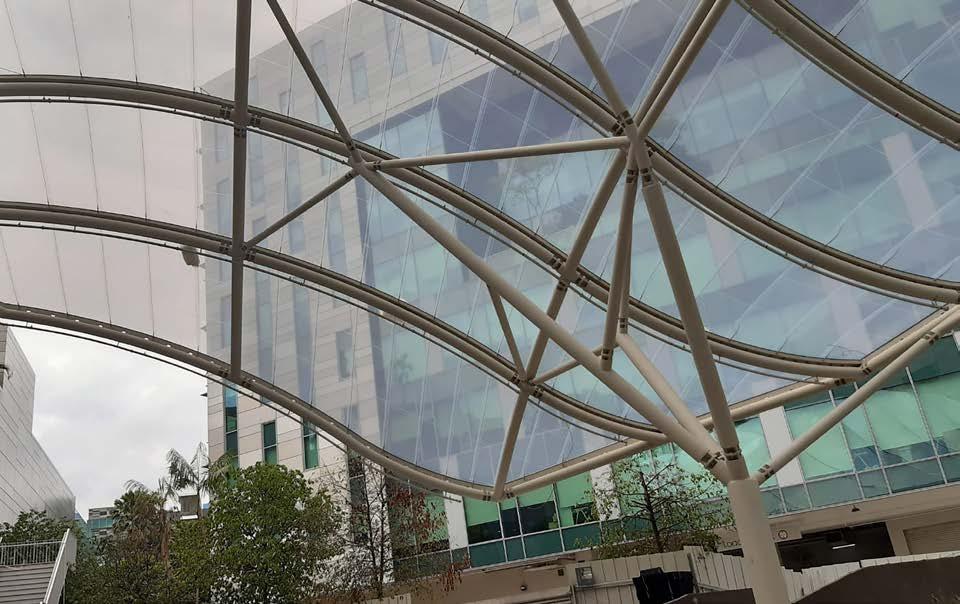

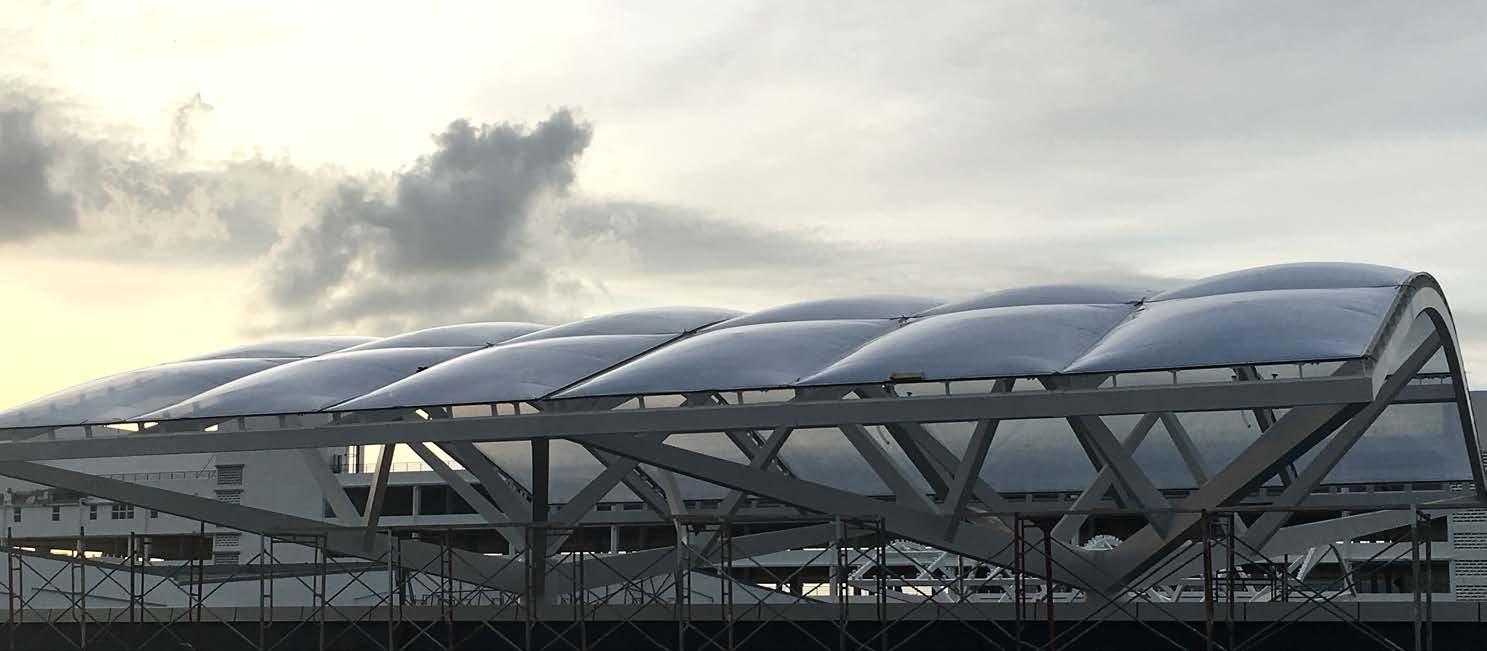

A D A S® ETFE SKYLIGHT

ETFE Skylights are a lightweight alternative to glass roofs and facades that can be in single layer or cushion form, which are pressurized with air to provide structural stability and insulation.

ETFE film can be custom printed with various patterns to provide effective insulation and shading.

2.

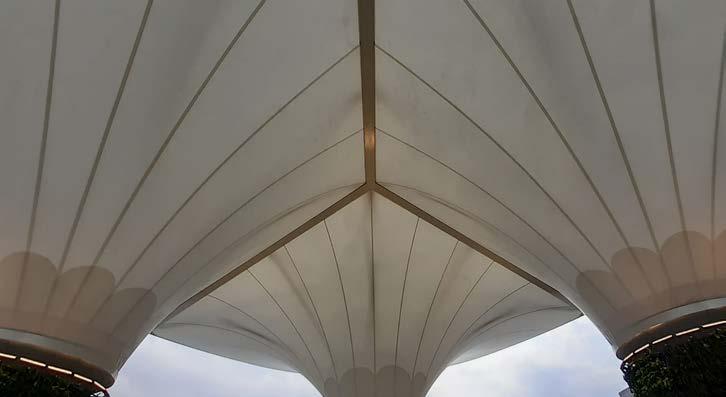

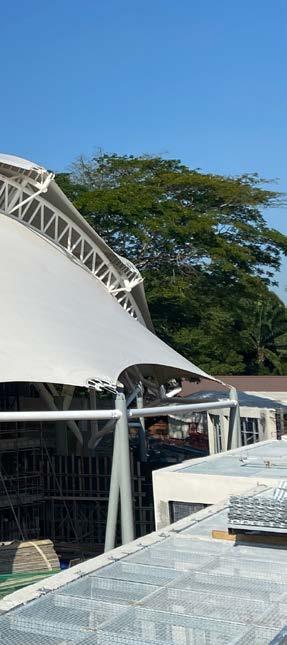

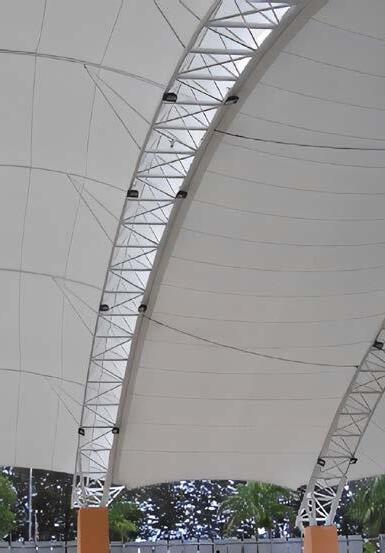

A D A S® TENSILE MEMBRANE

With a wide range of lowmaintenance, durable fabrics, the possibilities offered by tensile membranes are very wide.

We can offer our clients many solutions for one single project to suit their budget and aesthetic requirements.

3.3.

A D A S® FA B R I C

4.

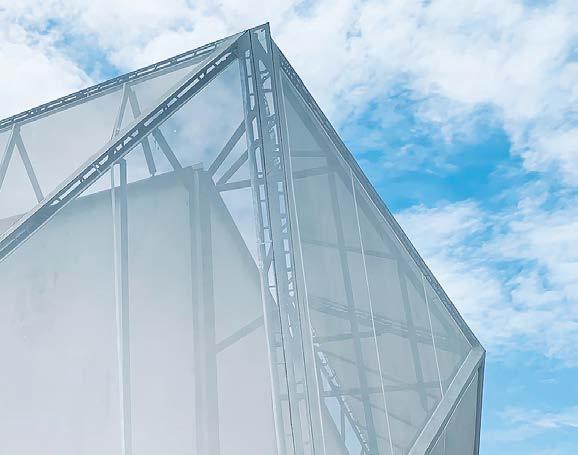

FA C A D E

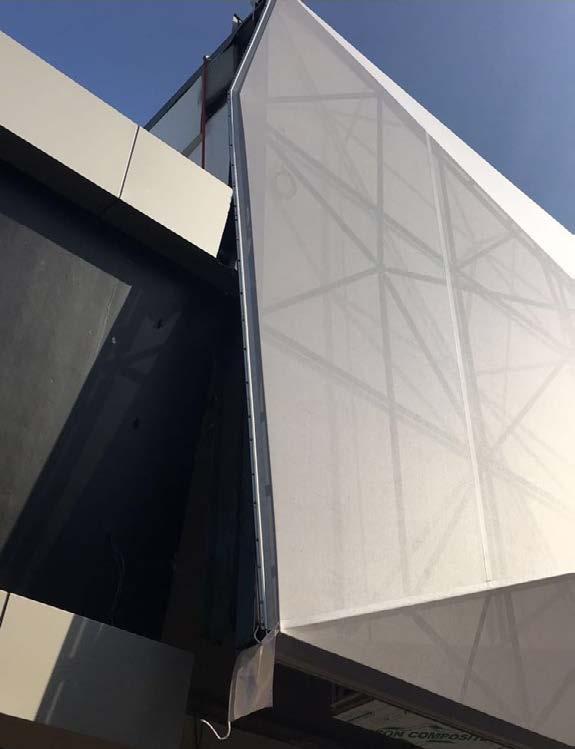

Fabric Facade is an alternative to metal facades, which lack the flexibility for freeform shapes.

Lightweight and economical, the fabric properties maintain exterior visibility while providing glare and heat protection. It also creates opportunities to play with lighting and colours on the facade.

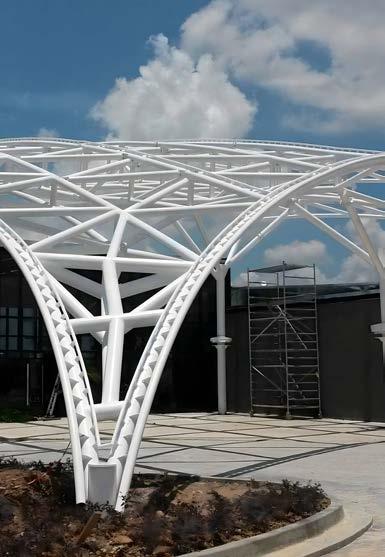

A D A S® A RCH I T ECT U R A L ST EEL

We custom design, engineer, and fabricate our own structural steel for each project. This allows us to achieve freeform shapes and also eases the installation process with proprietary connection details.

5.

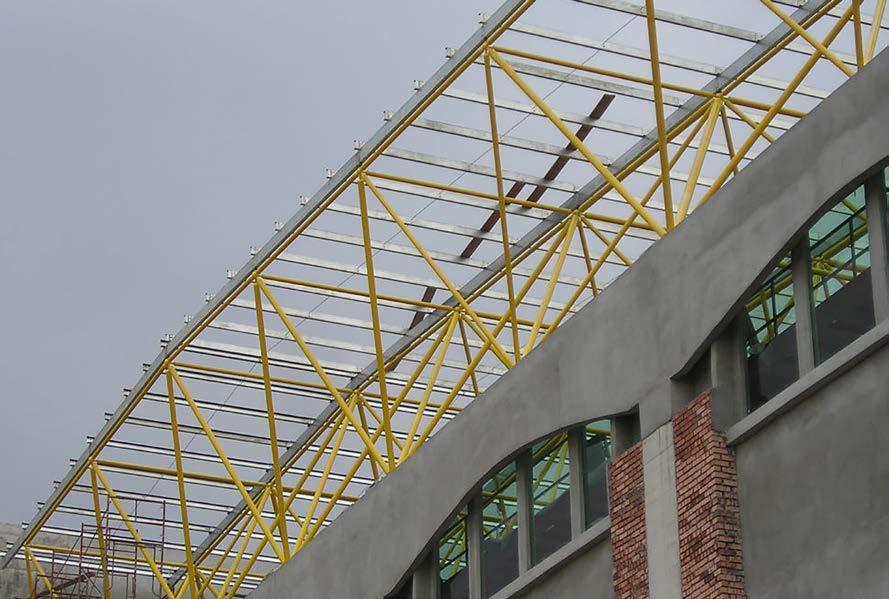

A D A S® S PA C E F R A M E

Spaceframe structural systems provide an aesthetic, costeffective, lightweight solution to large-span structures. Our own proprietary engineering design software, combined with our modern manufacturing facility enables us to undertake spaceframe structures of any form and magnitude.

1.

Sport Stadiums

2.

Theme Parks © 2023 ADAS Hightex Sdn. Bhd. All rights reserved.

3.

Retail Centers

Table of

Contents

4.

Academic Facilities

5.

Transport Hubs © 2023 ADAS Hightex Sdn. Bhd. All rights reserved.

6.

Hotels & Residential

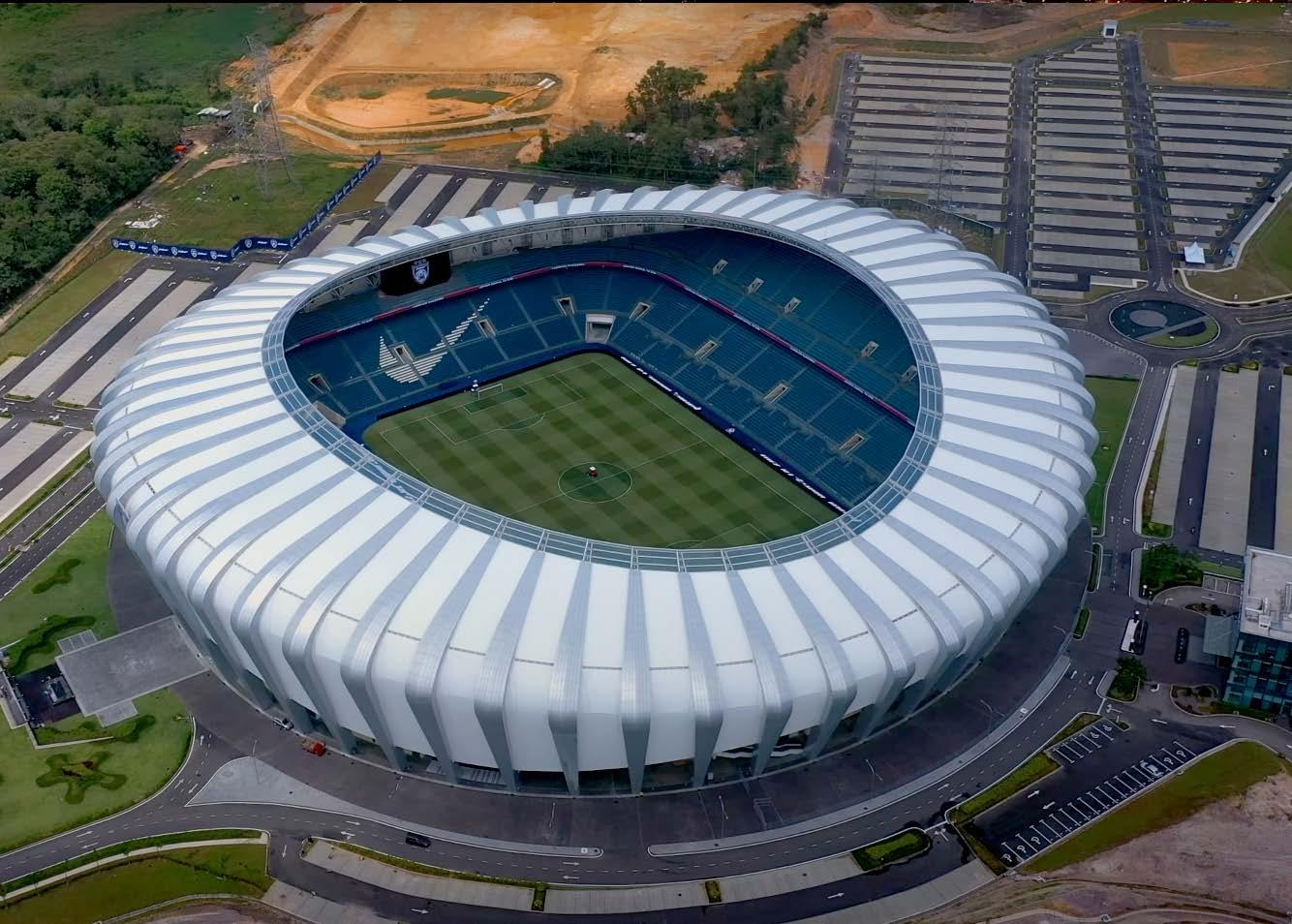

ADAS® PTFE & ETFE

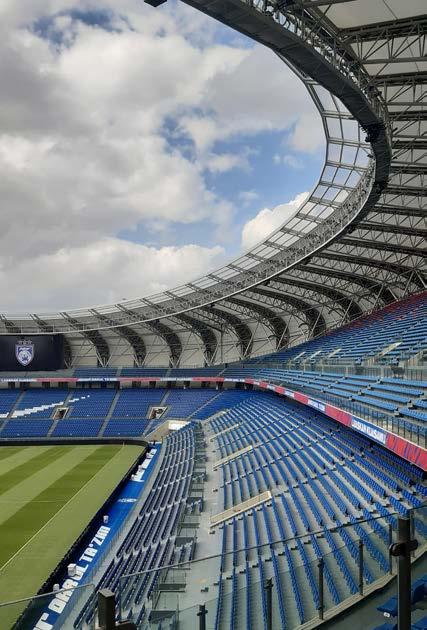

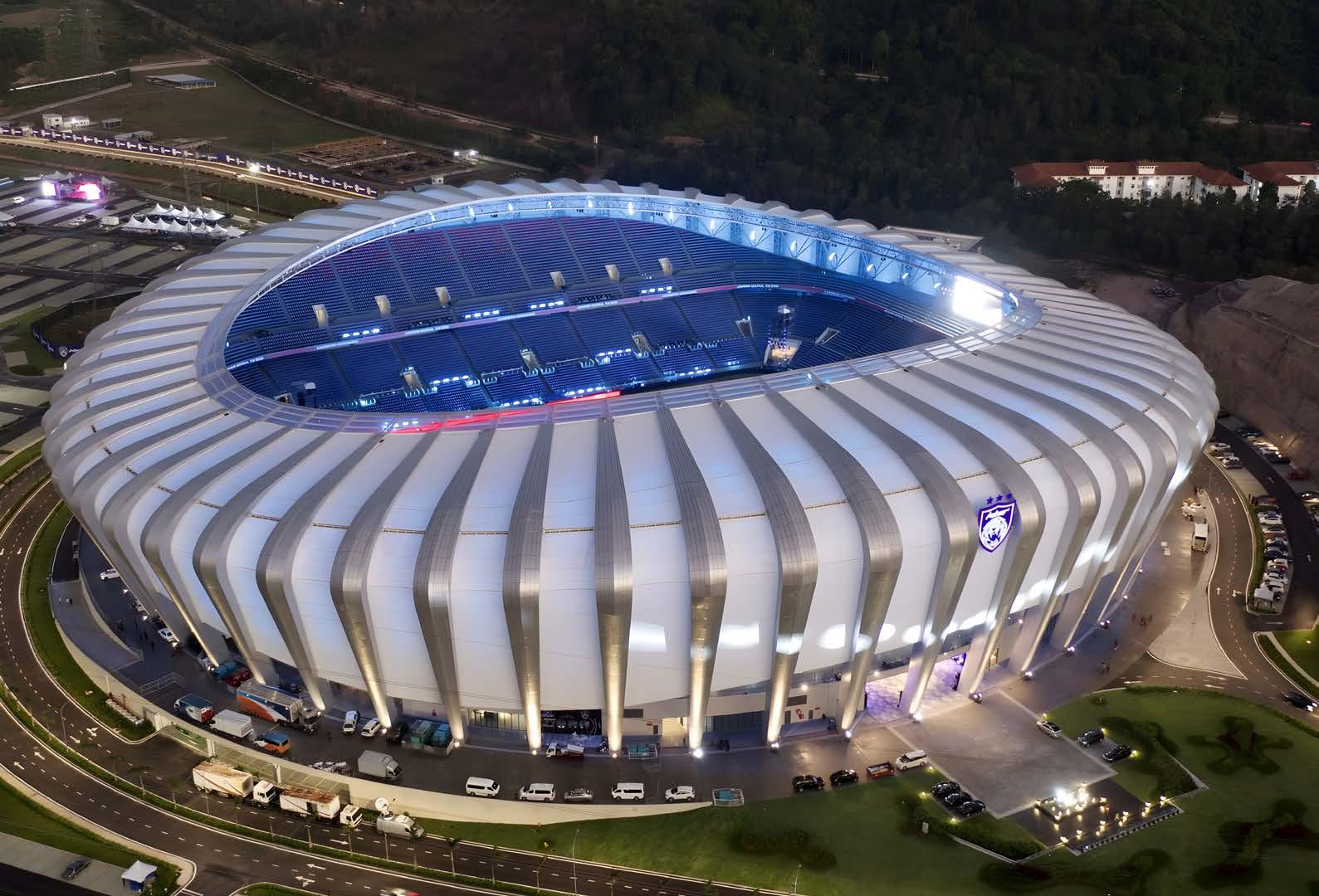

Sultan Ibrahim Stadium

Johor Bahru, Malaysia

Year: 2019 Scope: Design, Fabrication, Supply, Installation Area: 36,000m2 Material: ETFE & PTFE FGT-800

The Sultan Ibrahim Stadium is a state-of-theart sporting venue with a capacity of 40,000 spectators, located in Johor Bahru, Malaysia.

The design is based on the shape of a banana leaf, and is clad in ADAS® trademark ETFE and PTFE tensile membrane that results in a spacious lightweight structure.

Stadium of the Year 2020

ADAS® TENSILE MEMBRANE

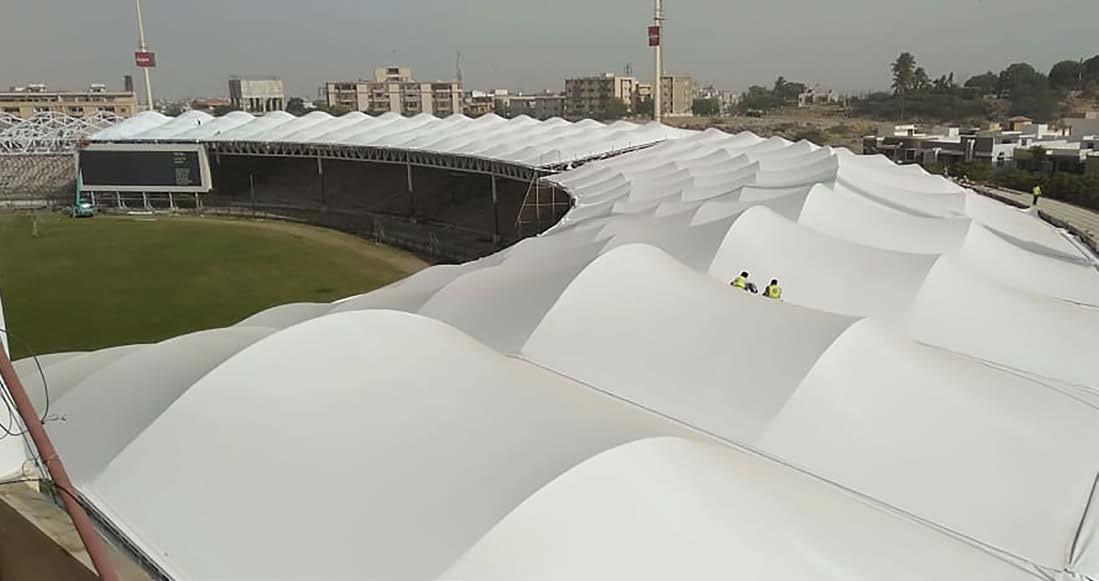

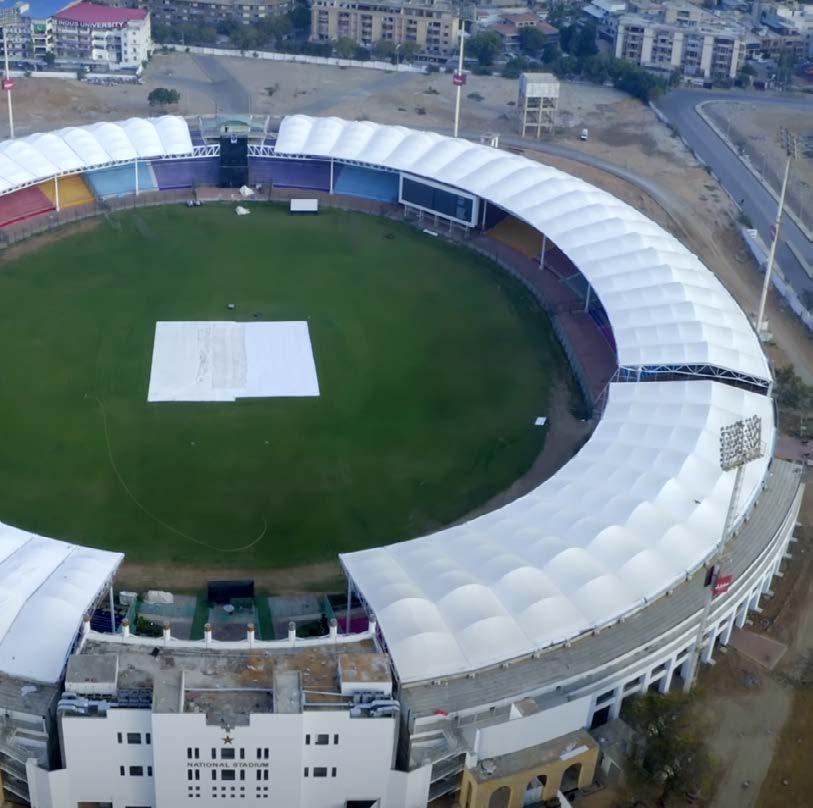

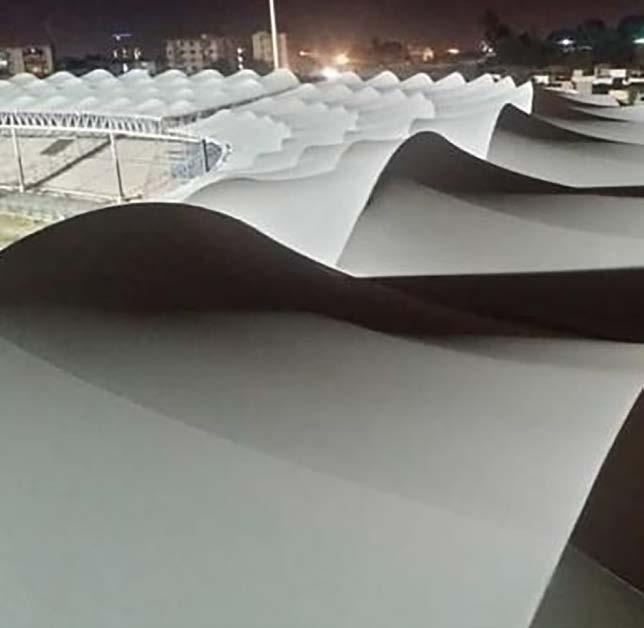

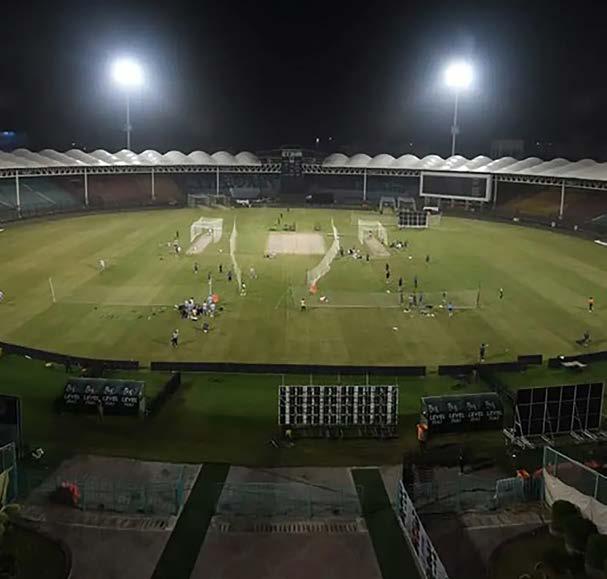

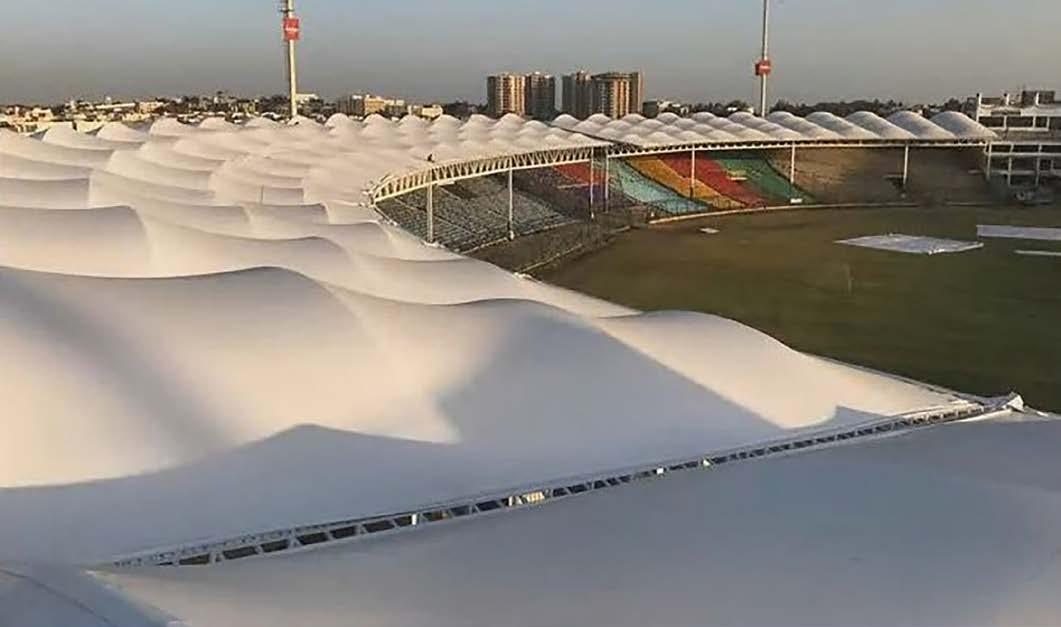

Karachi National Cricket Stadium

Karachi, Pakistan

Year: 2018 Scope: Design, Fabrication, Supply, Installation Area: 40,000m2 Material: PVDF-coated PVC Fabric

We were awarded the task of designing, engineering, fabricating, and installing the ADAS® Tensile Membrane roof for the newly renovated National Cricket Stadium in Karachi, Pakistan. The lightweight tensile fabric used was PVDF-coated PVC Fabric, which was able to reduce the structural steel required. The total coverage area was 40,000m2, or around 430,000 ft2.

Pakistan’s iconic venue for cricket

ADAS® SPACE FRAME

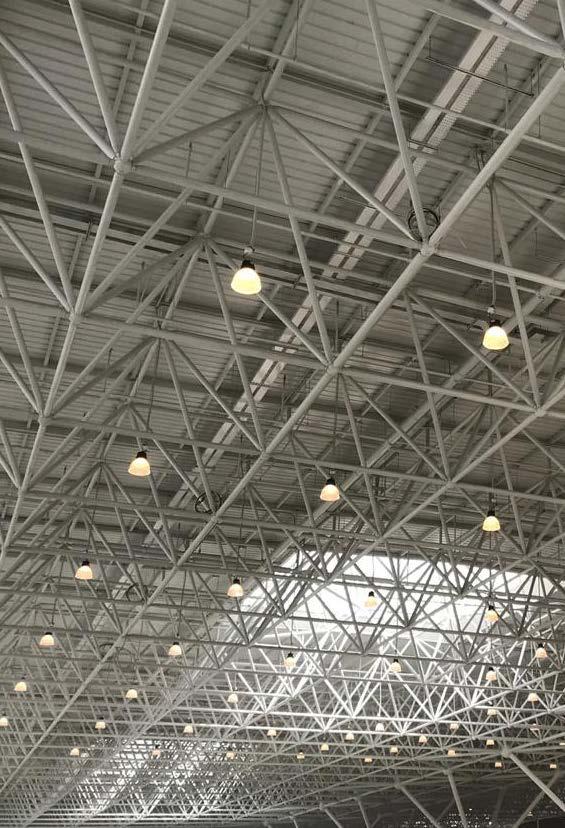

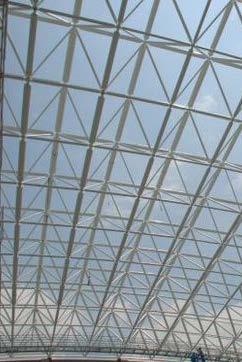

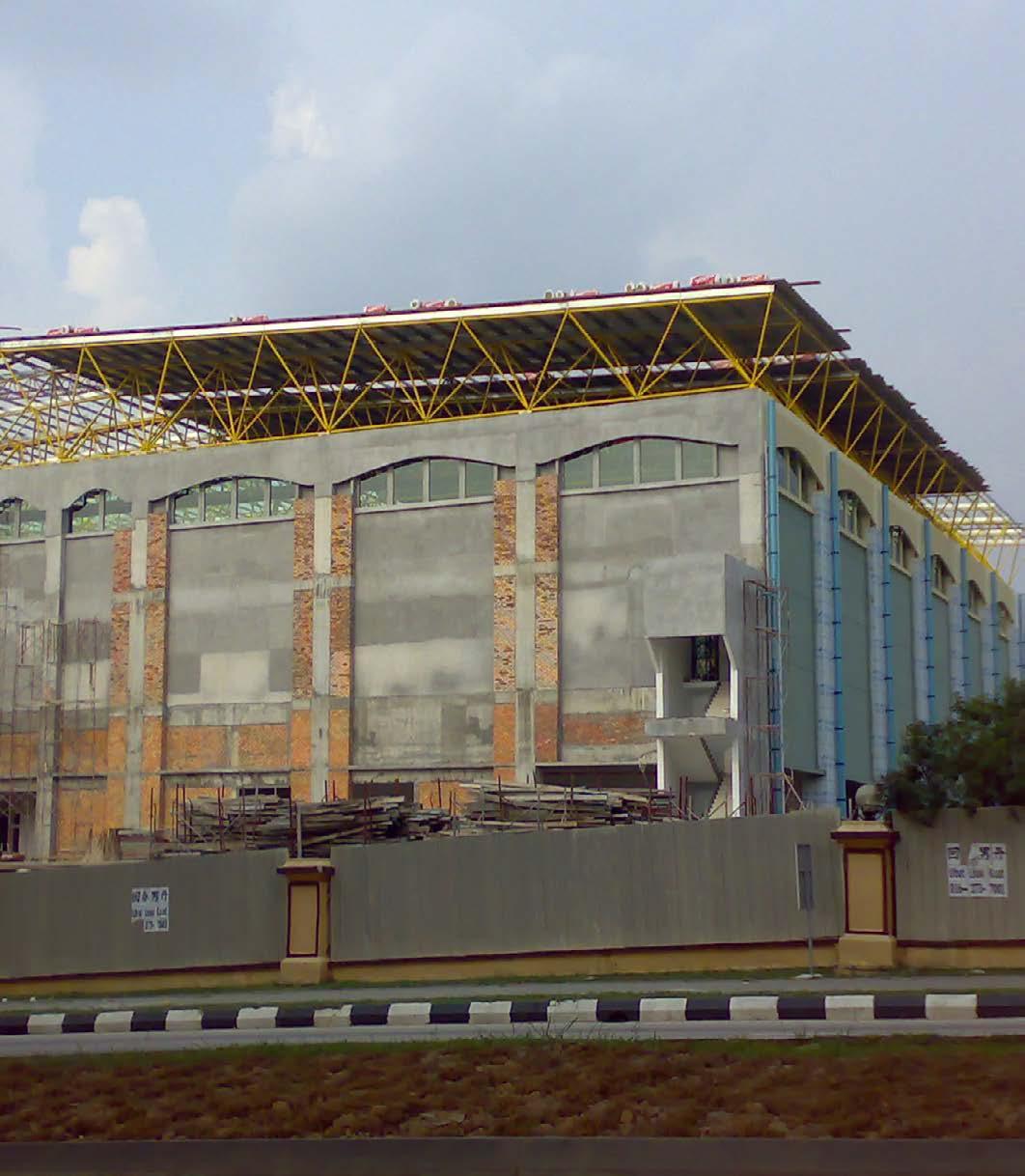

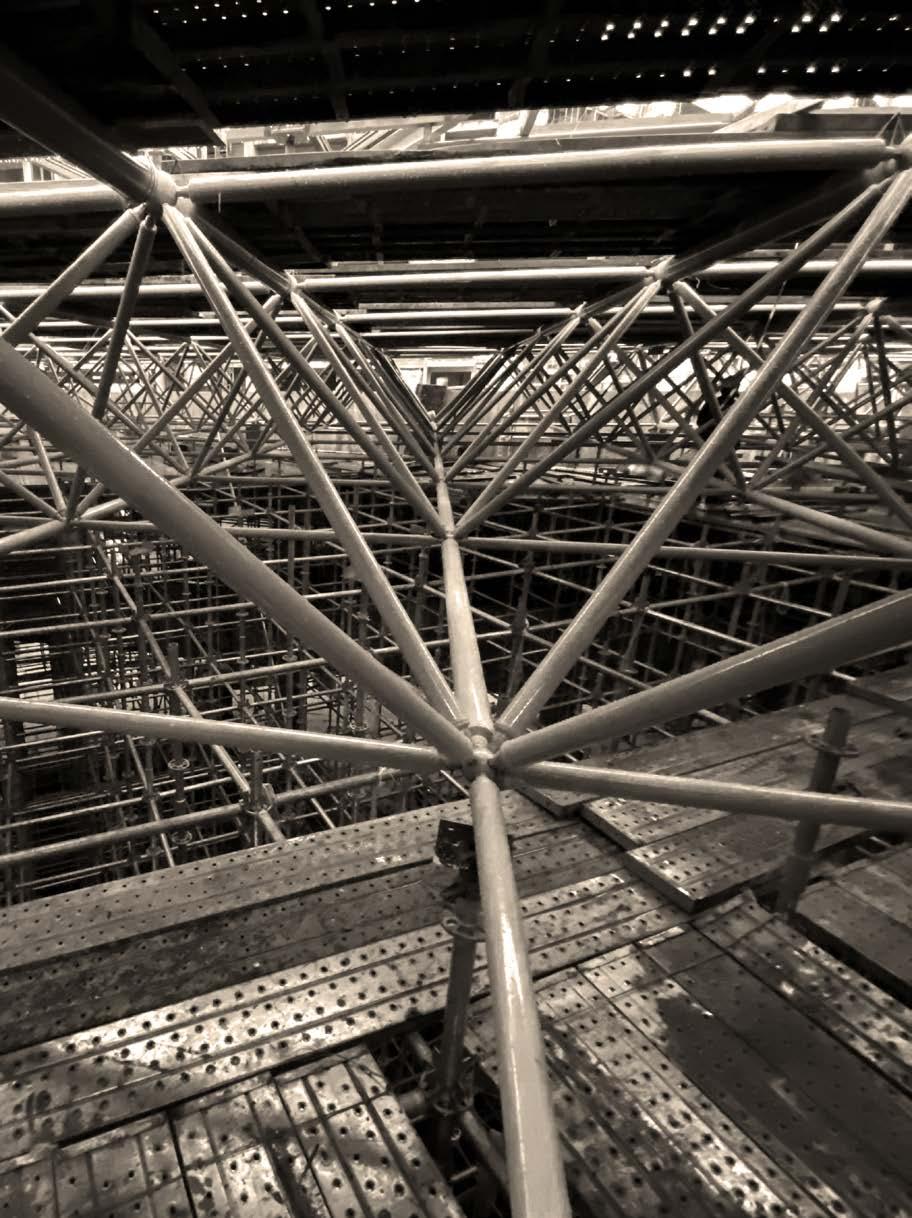

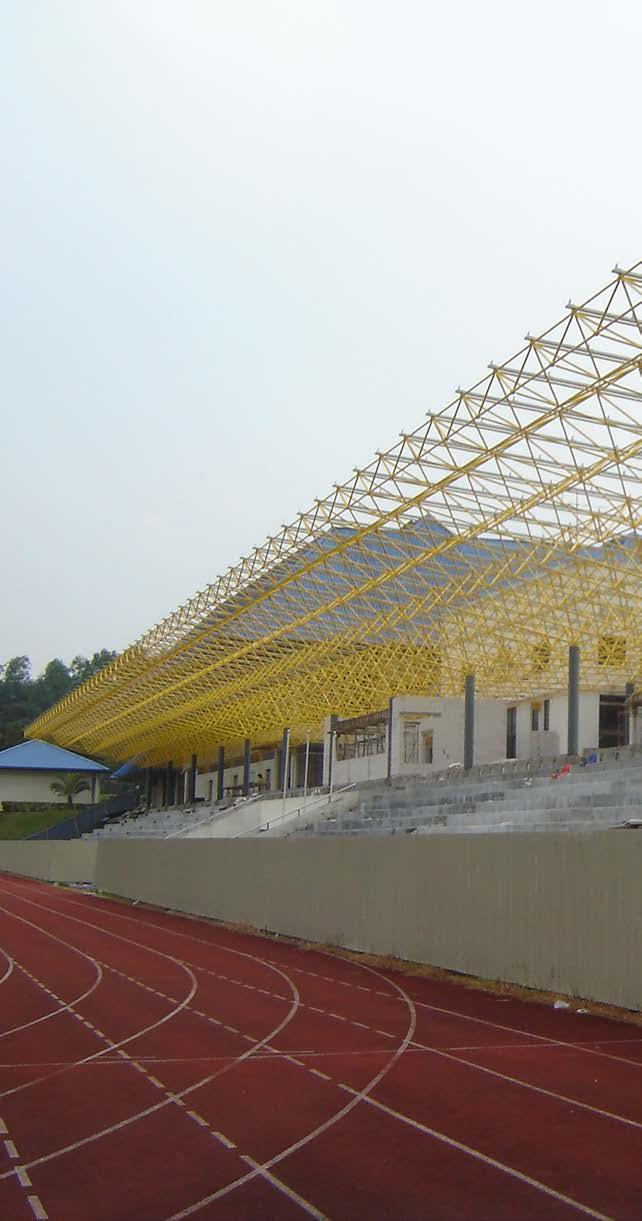

Bukit Jalil Stadium Spaceframe

Bukit Jalil, Kuala Lumpur

Year: 2007 Scope: Design, Fabrication, Supply, Installation Material: Mild Steel Area: 11,700m2

To maintain clear views and optimise the use of space, the grandstand and the indoor stadium required wide-span roofs without any internal supports. As requested by the client, we designed a spaceframe system in the shape of a square-pitched roof to match the aesthetic of the overall stadium complex.

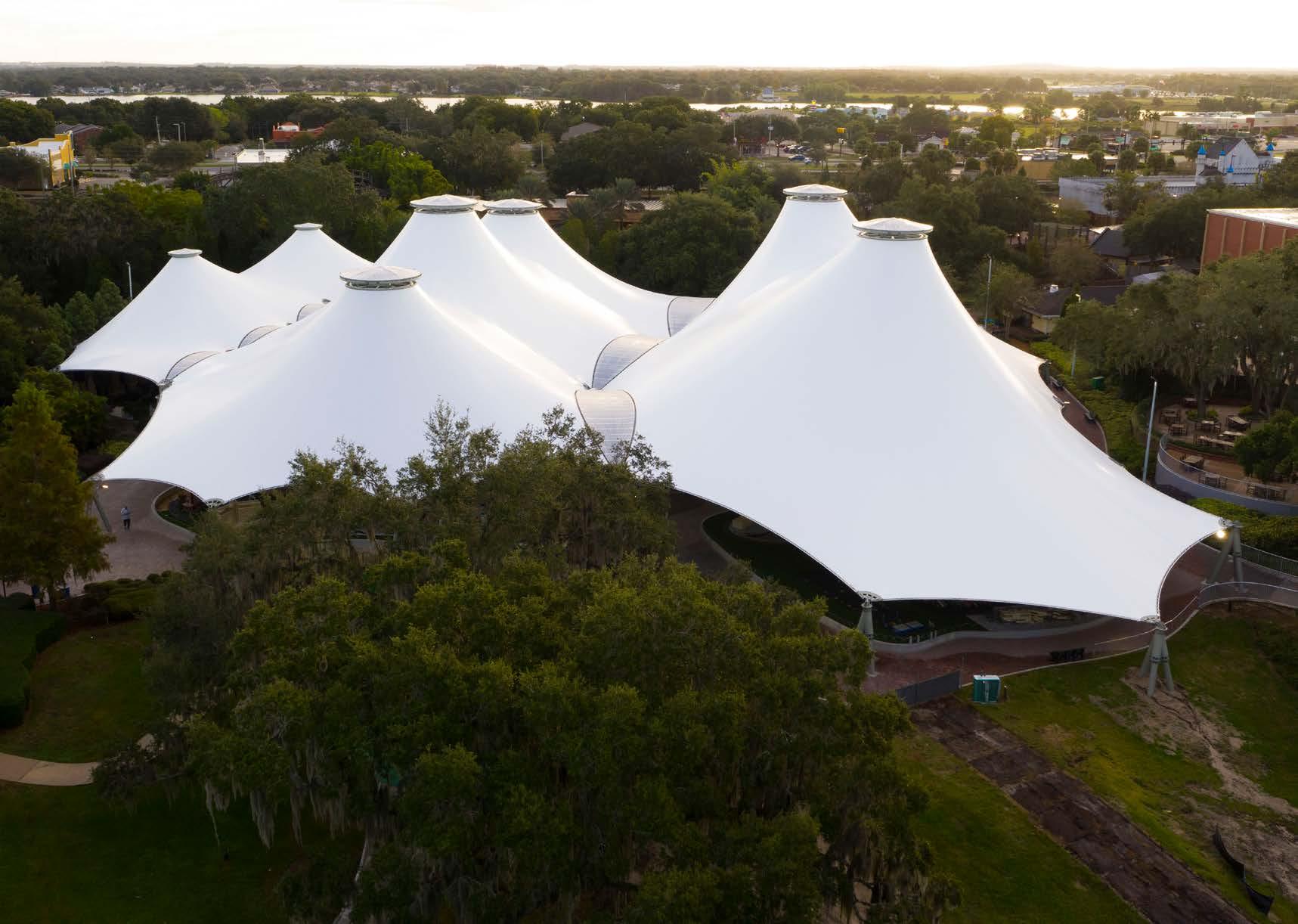

ADAS® ETFE & TENSILE MEMBRANE

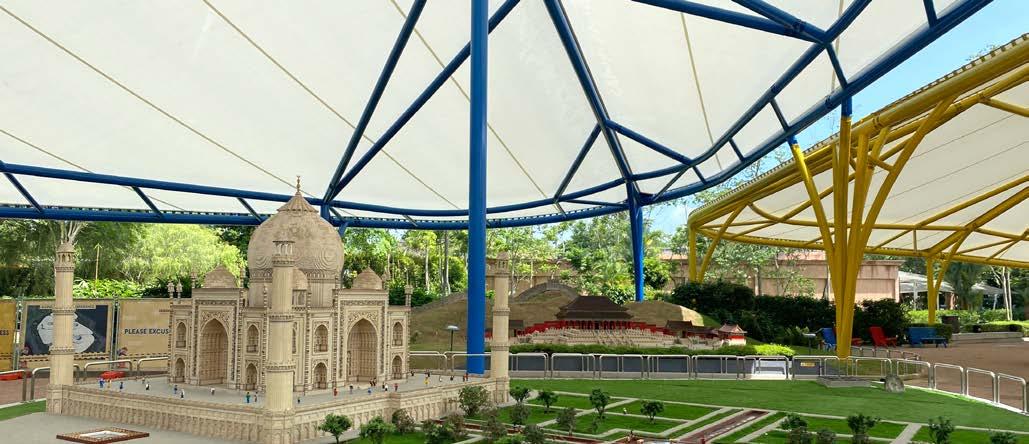

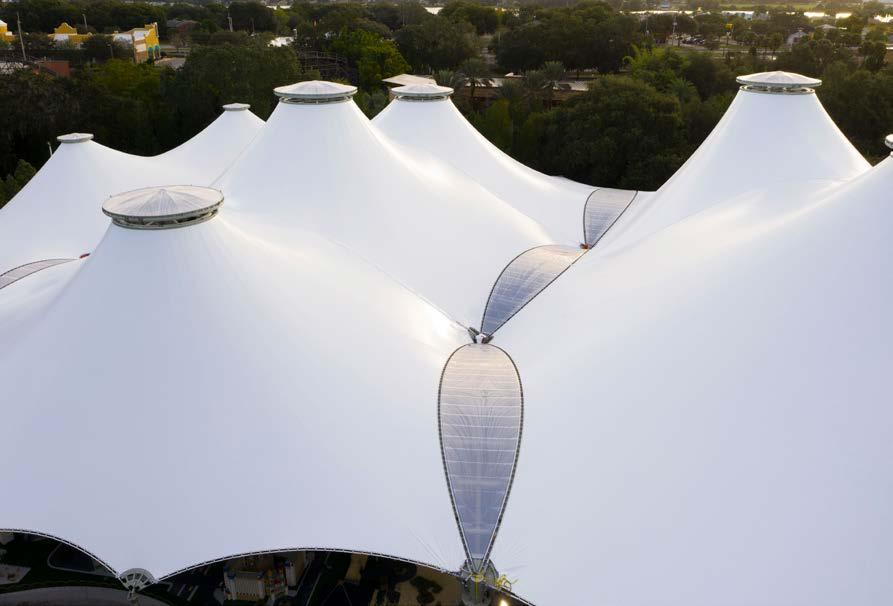

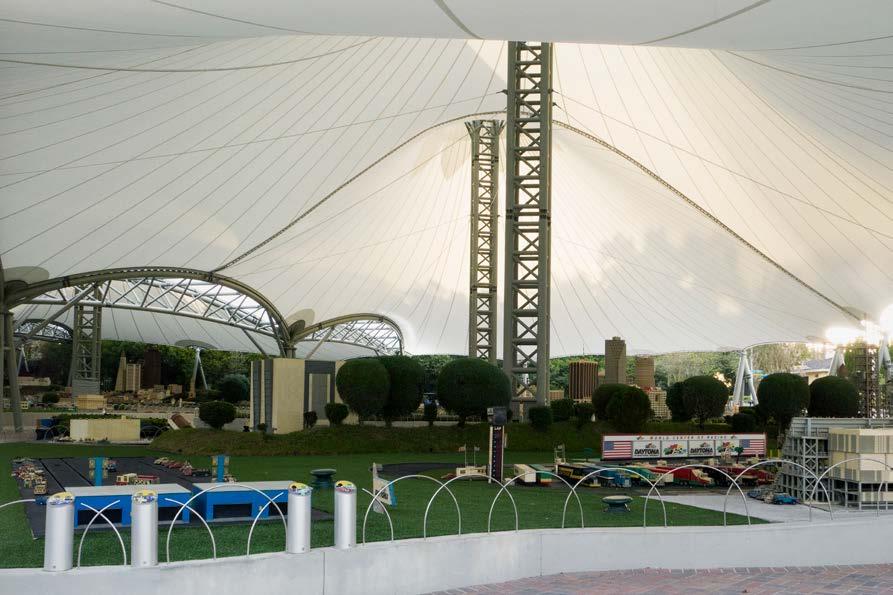

LEGOLAND Florida Canopy

Florida, Miami

Year: 2021 Scope: Design, Fabrication, Supply, Installation Area: 6,400m2 Material: Single-layer ETFE & PVDF Coated PVC The canopy is a combination of both the ADAS® Tensile Membrane and ADAS® ETFE Skylight to provide weather protection for visitors to explore “Miniland” America from coast to coast with comfort and convenience.

Miniland USA

ADAS® PTFE & ETFE

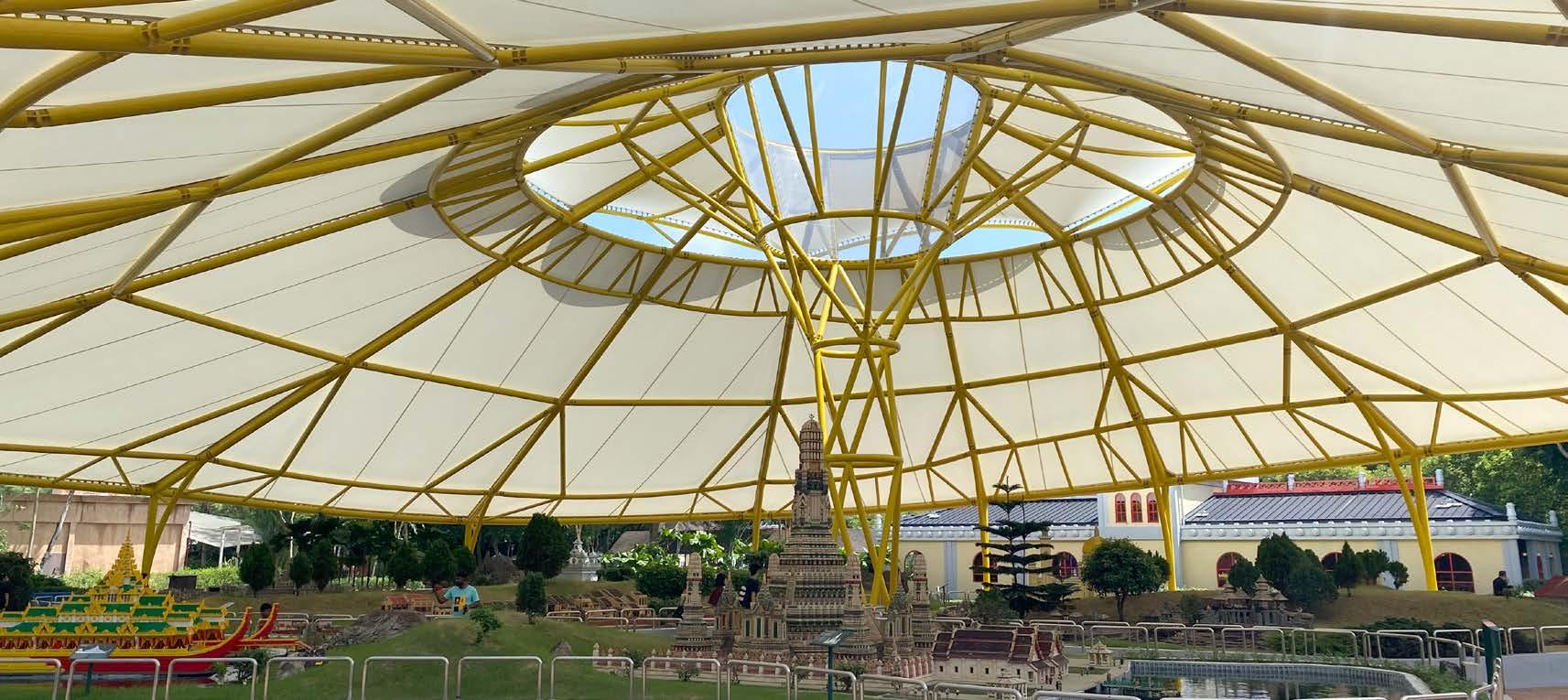

LEGOLAND Malaysia Canopy

Johor, Malaysia

Year: 2023 Scope: Design, Fabrication, Supply, Installation Area: 9,800m2 Material: Material: ETFE & PTFE FGT-800 Located at the heart of LEGOLAND Malaysia, this 9800m2 canopy provides shade for the LEGO models representing a miniature version of Asia’s iconic landmarks. While a majority of the canopy is composed of ADAS® Tensile Membrane to provide shading from the sun, the flower canopies are topped with ADAS® ETFE Skylight to bring light into the canopy interiors.

Miniland Asia

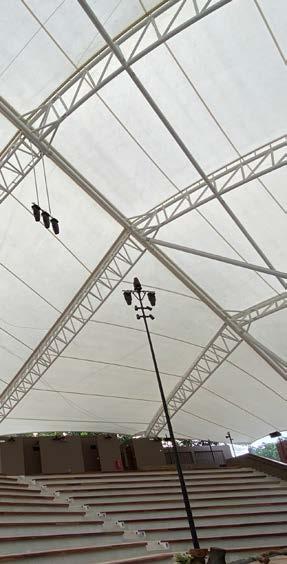

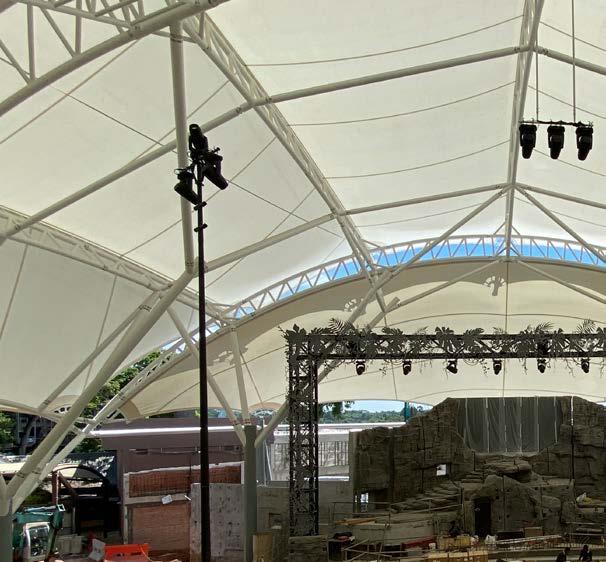

ADAS® TENSILE MEMBRANE

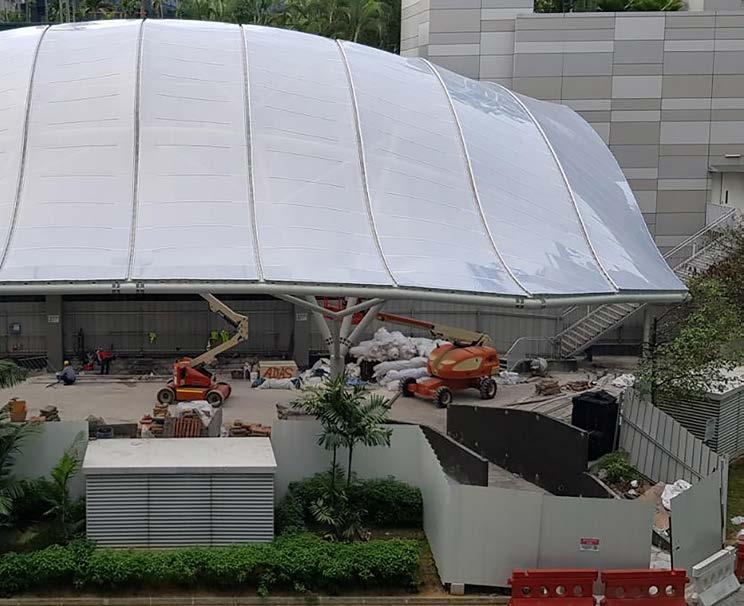

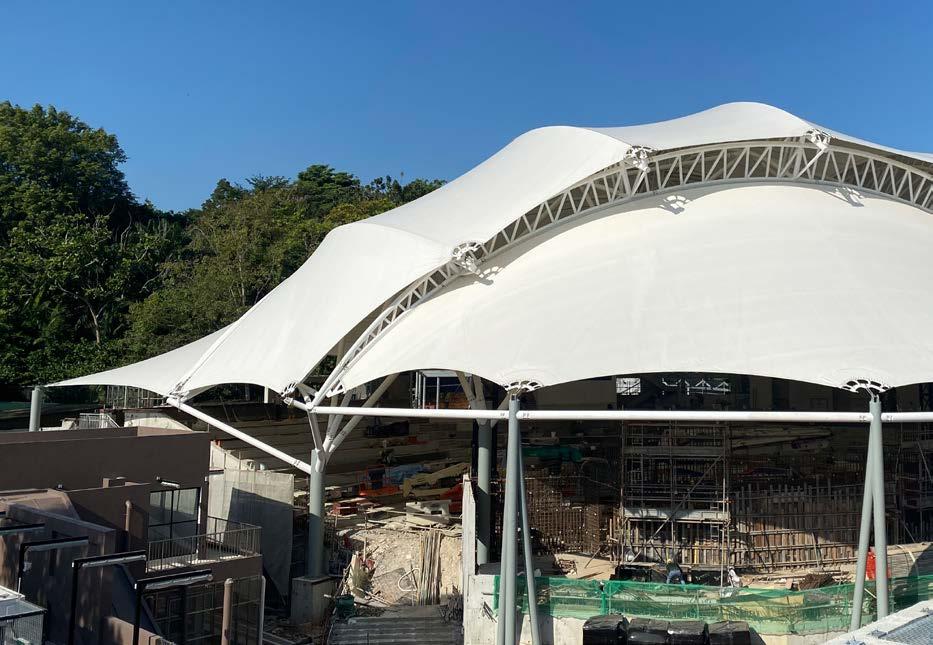

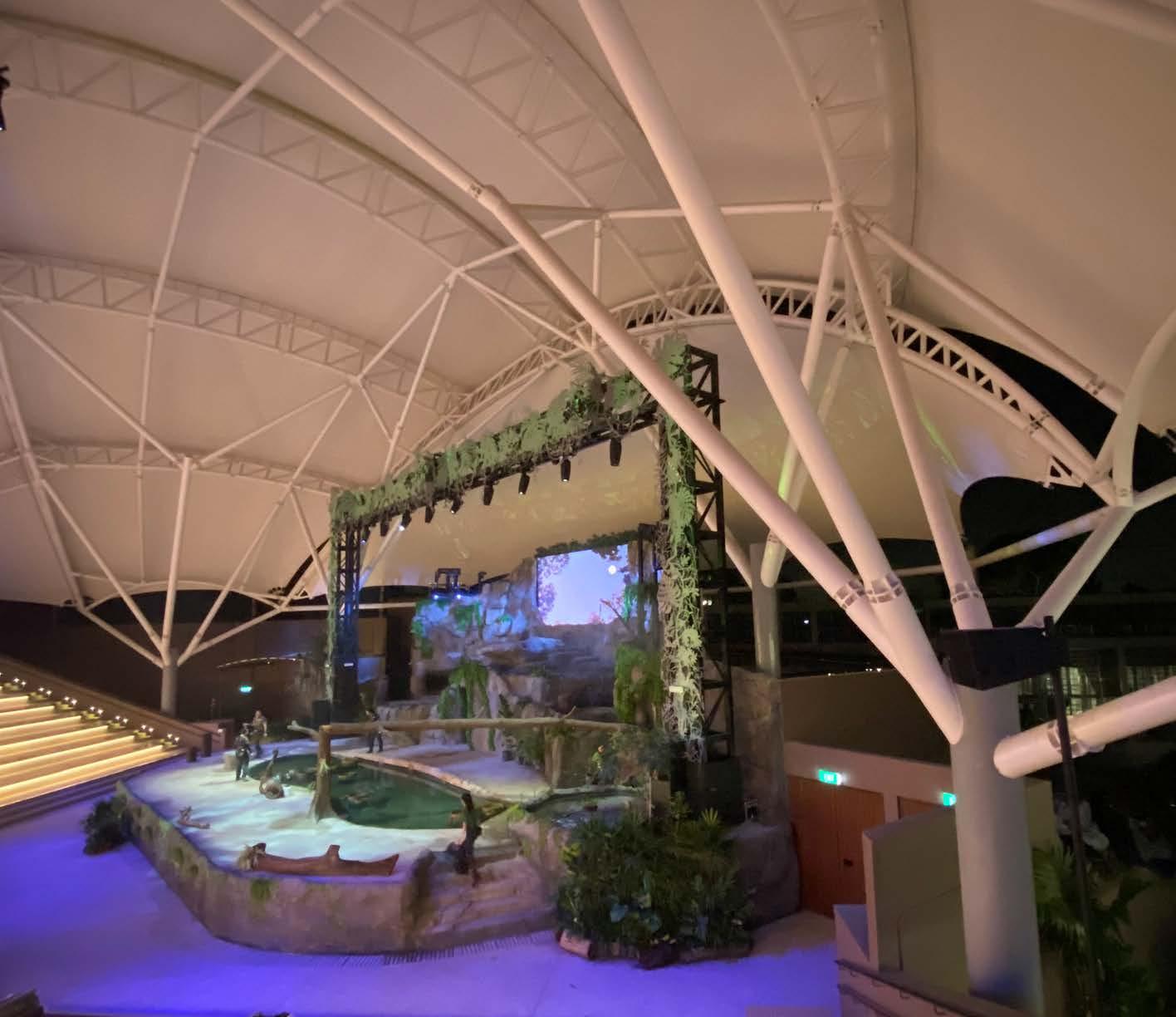

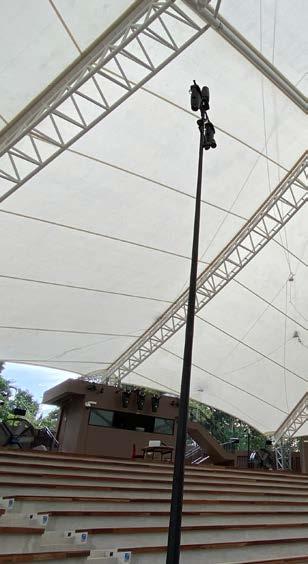

Night Safari Amphitheatre Singapore, Singapore

Year: 2023 Scope: Design, Fabrication, Supply, Installation Area: 2,400m2 Material: PTFE FGT-800 We were appointed to design, fabricate, supply, and install the brand-new amphitheatre that houses the also newly refreshed Creatures of the Night show at the Night Safari Zoo. This new structure allows the audience to enjoy the show despite the weather conditions.

Creatures of the Night

ADAS® TENSILE MEMBRANE

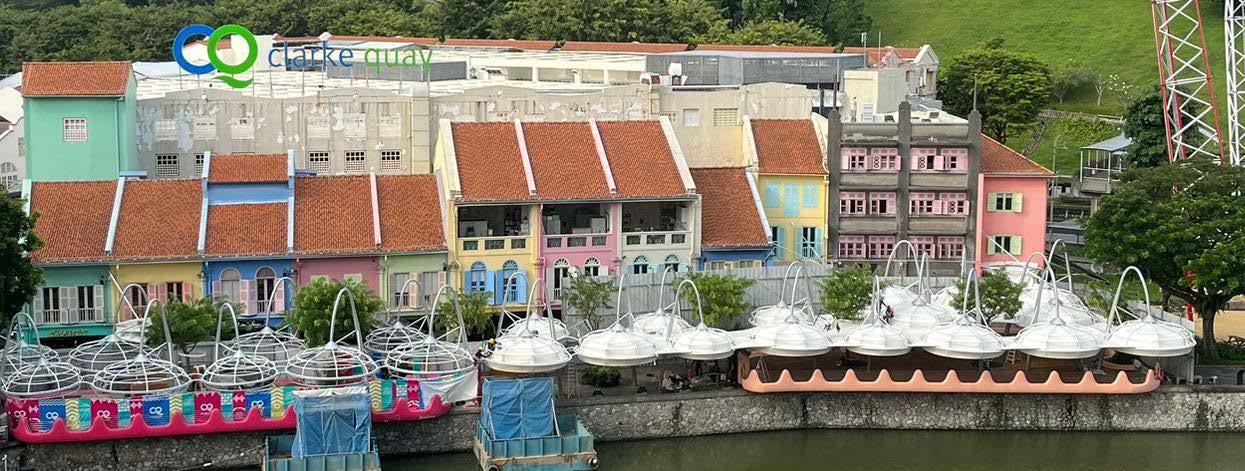

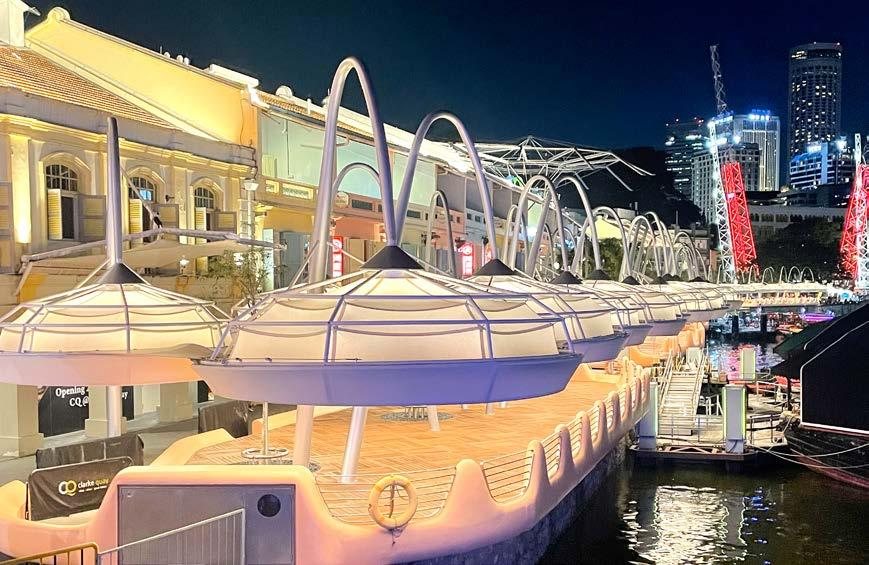

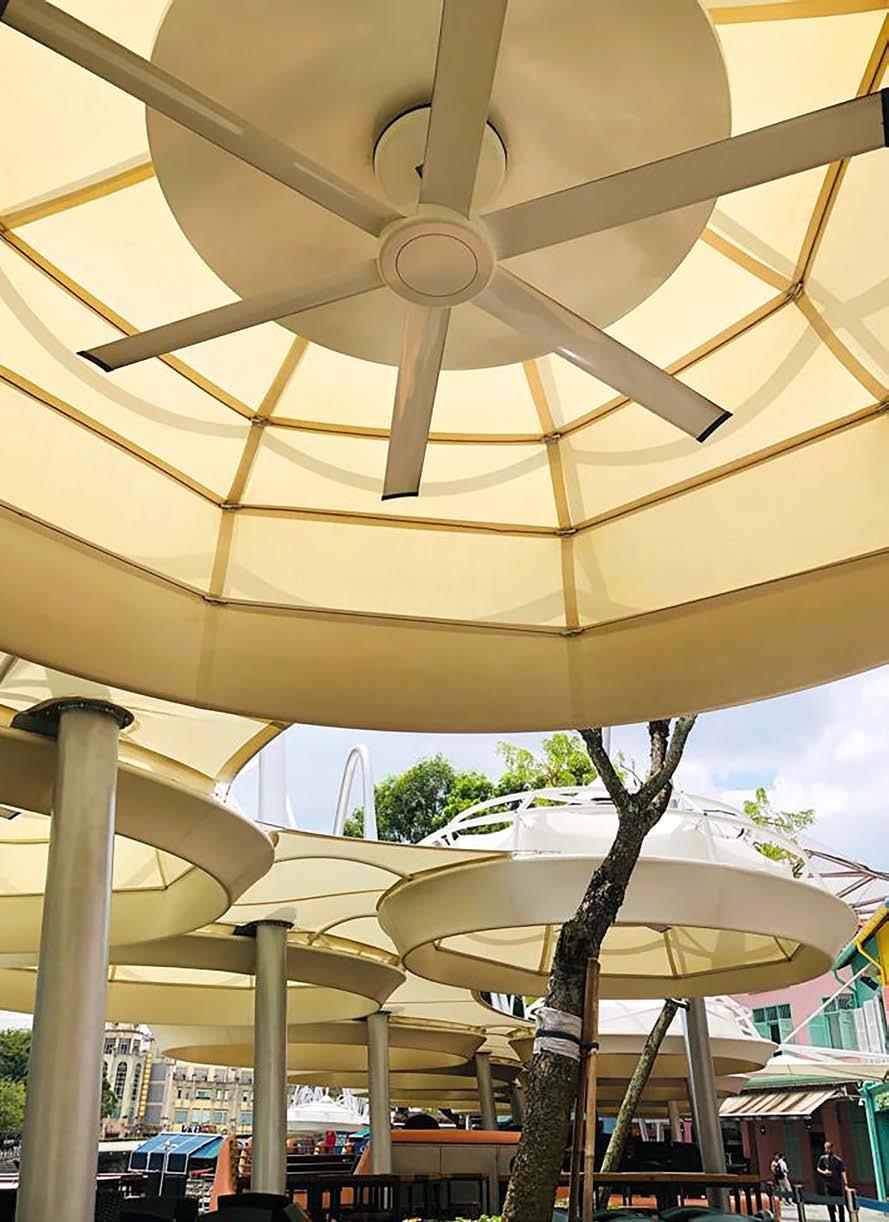

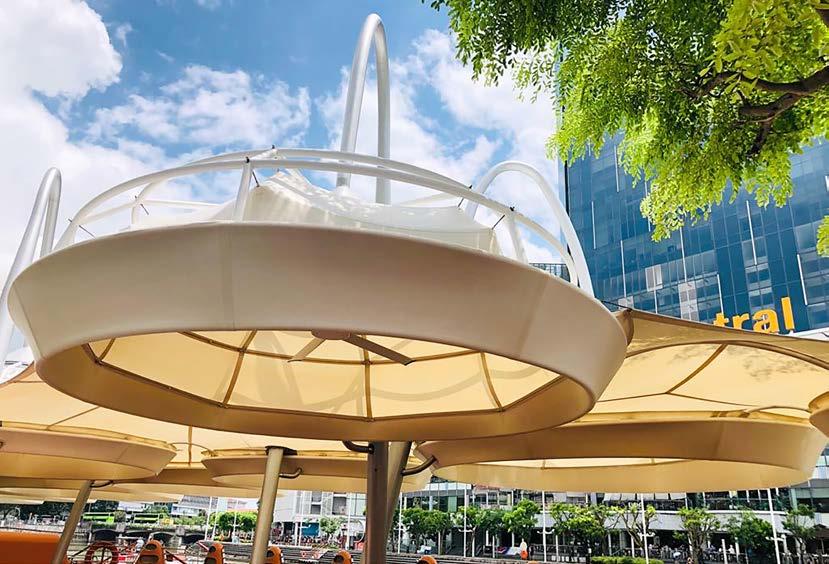

Clarke Quay Bluebell Replacement Singapore, Singapore

Year: Ongoing Scope: Design, Fabrication, Supply, Installation Area: 3,200m2 Material: PTFE FGT-800

Our team was tasked with one-to-one replacement of the tensile membrane of the bluebell canopies and revamping the existing steel structure. In addition to the replacement works, our experienced technical team also developed additional improvements to the existing design for better performance and durability.

Revamping

& Refreshing

ADAS® FABRIC SHADE

Toppen Ikano Active Zone Fabric Shade

Johor Bahru, Malaysia

Year: 2019 Scope: Design, Fabrication, Supply, Installation Area: 1,130m2 Material: TF-400 PVDF Coated PVC Mesh Fabric & Shadow FR-900 PVC Fabric

Located on Level 3 of the Toppen Shopping Centre, the Active Zone is an excellent space for fun physical activities.

Our fabric shades are able to provide shelter from the sun, reducing heat and glare so that visitors can enjoy outdoor activities with comfort.

Active Zone

ADAS® TENSILE MEMBRANE

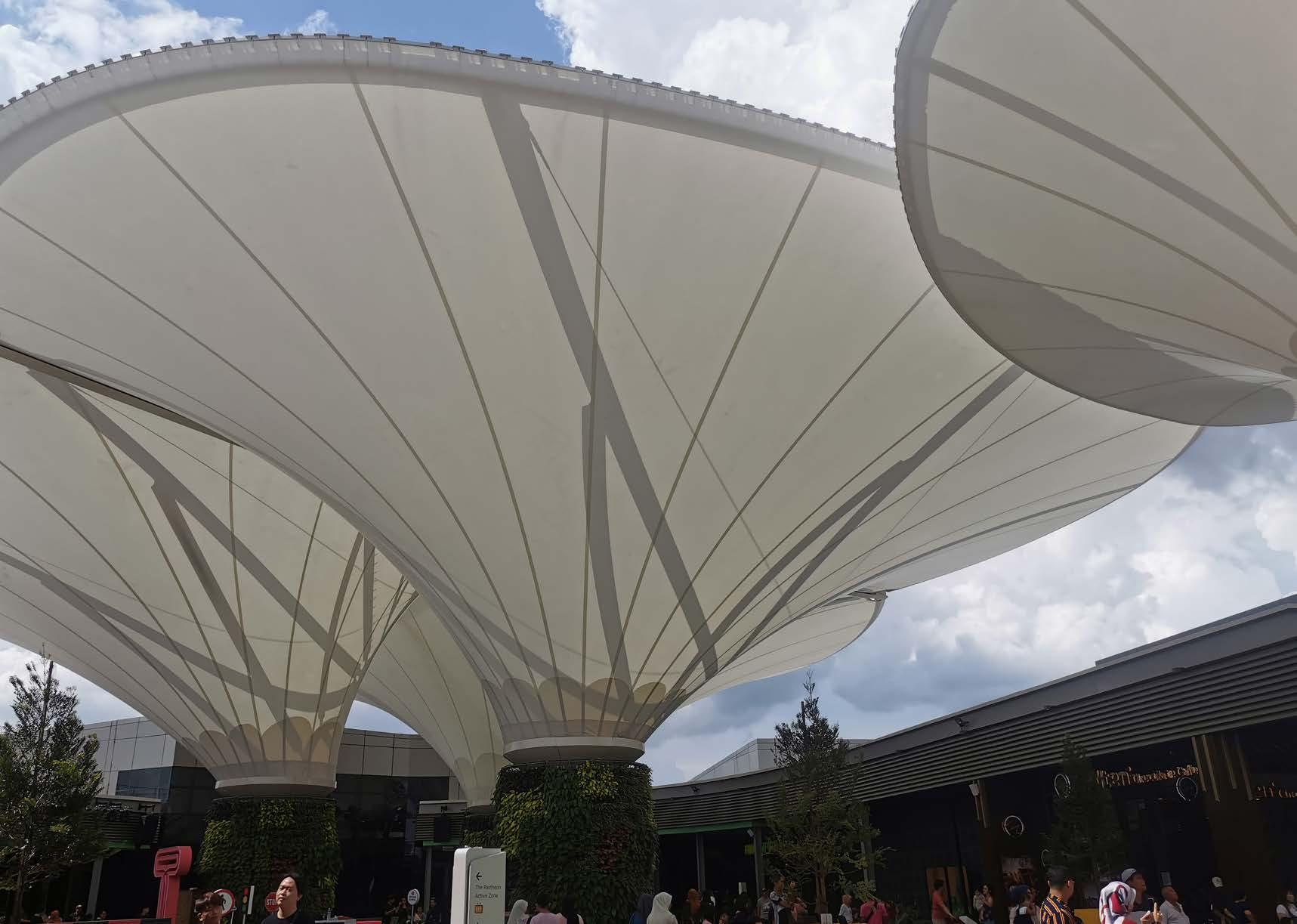

Toppen Ikea Ikano Canopy

Johor Bahru, Malaysia

Year: 2018 Scope: Design, Fabrication, Supply, Installation Area: 3,500m2 Material: PTFE FGT-800 The Toppen Shopping Centre is a one-stop destination for shopping and lifestyle in Johor Bahru, Malaysia. It is owned and run by the Swedish furniture giant (Ikea) who named the mall ‘Toppen’, meaning ‘Best’ in Swedish.

Our ADAS® PTFE Tensile Membrane canopies bring life and dynamism to this open-concept mall that has space for 300 other tenants anchored by IKEA Tebrau.

Vertical Greenery

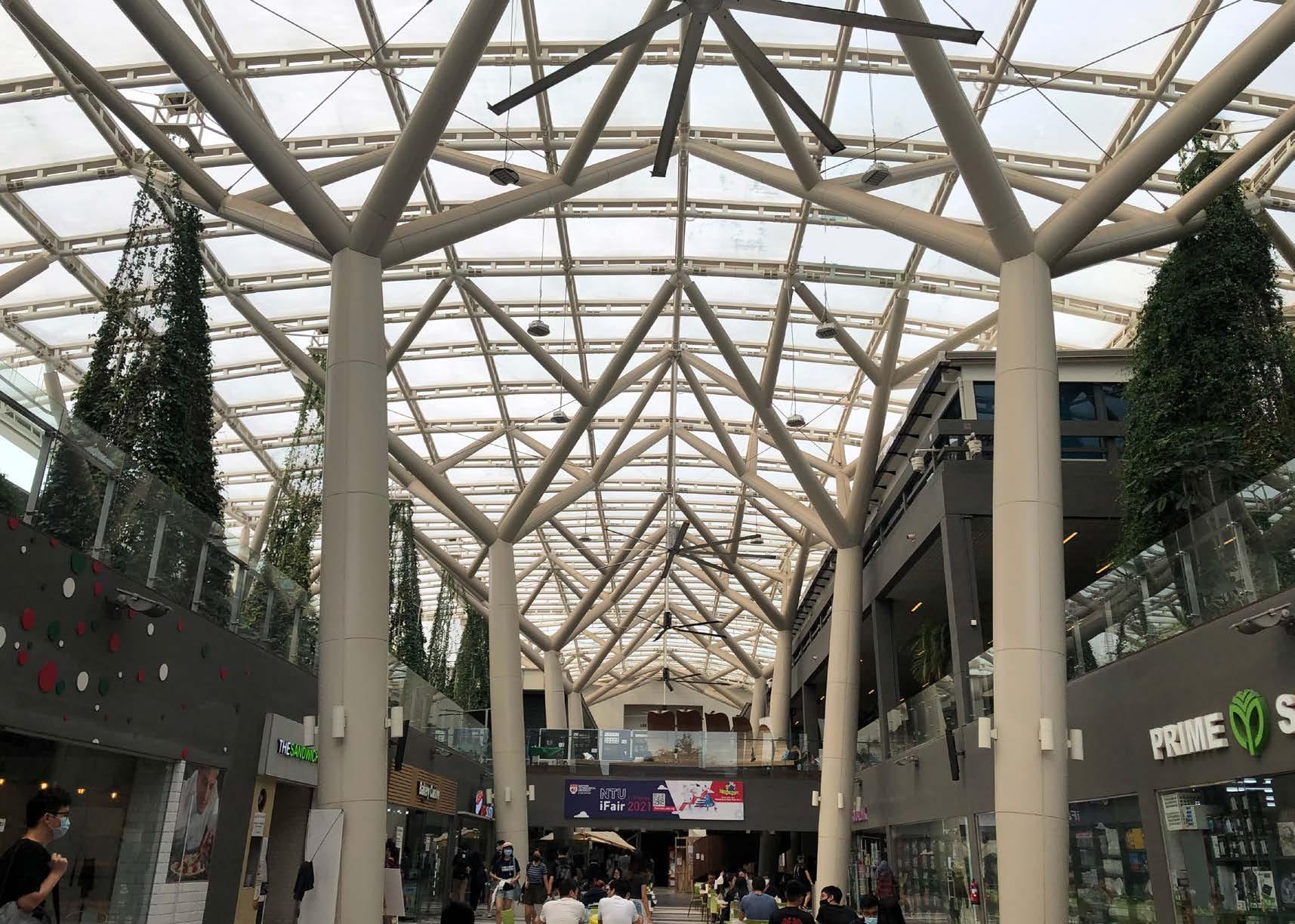

ADAS® ETFE CUSHION

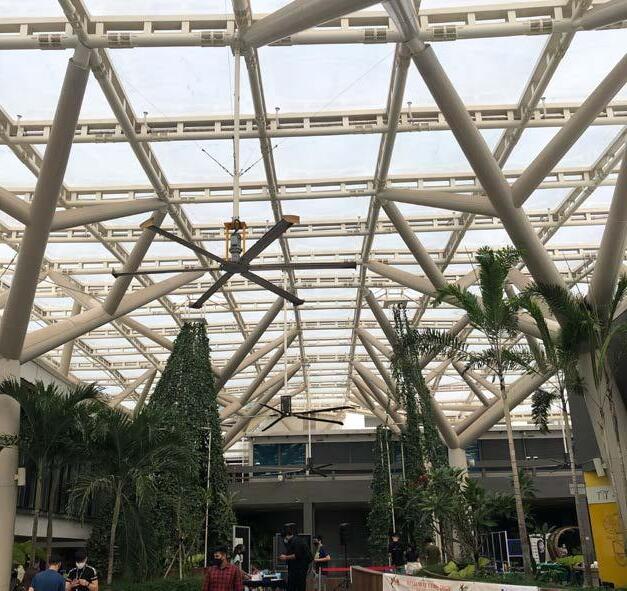

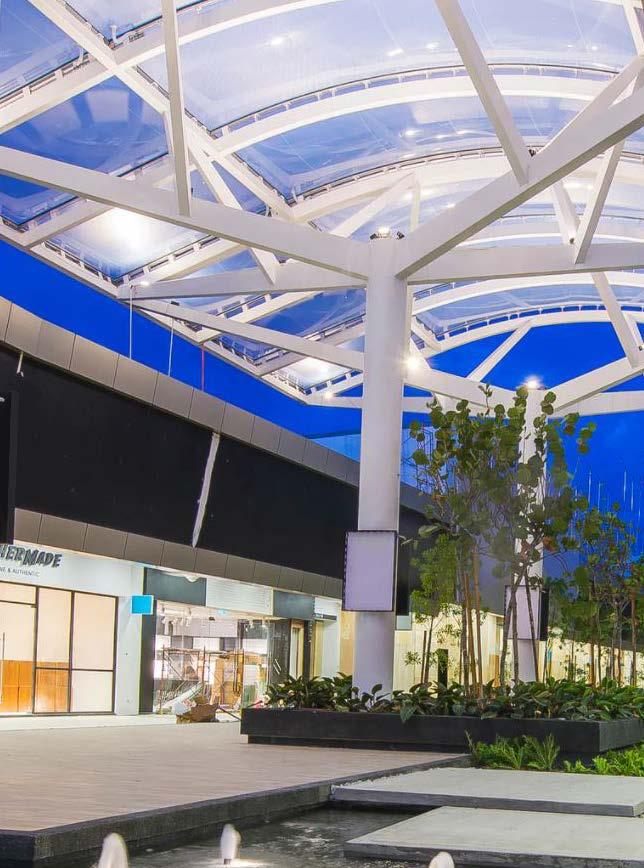

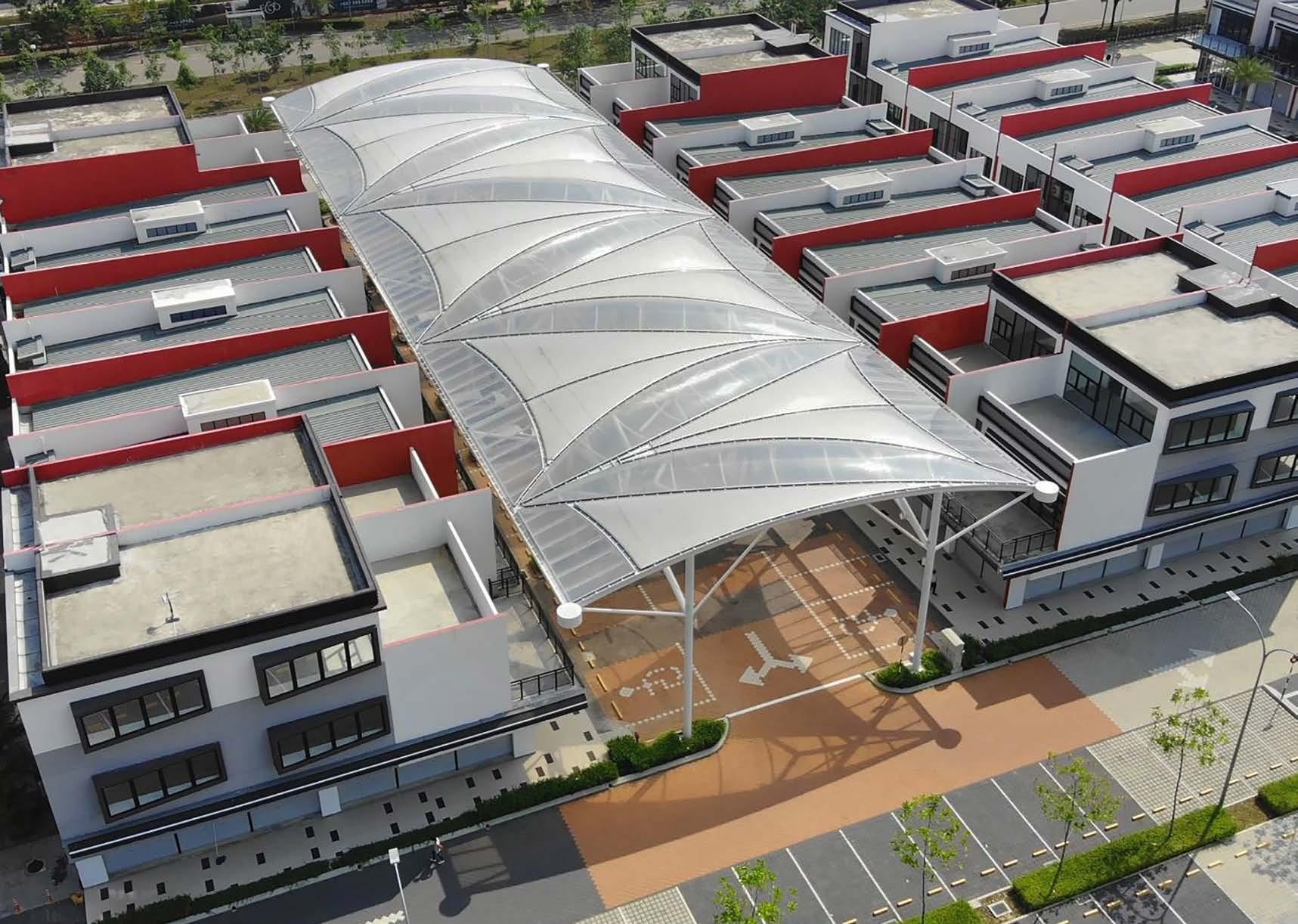

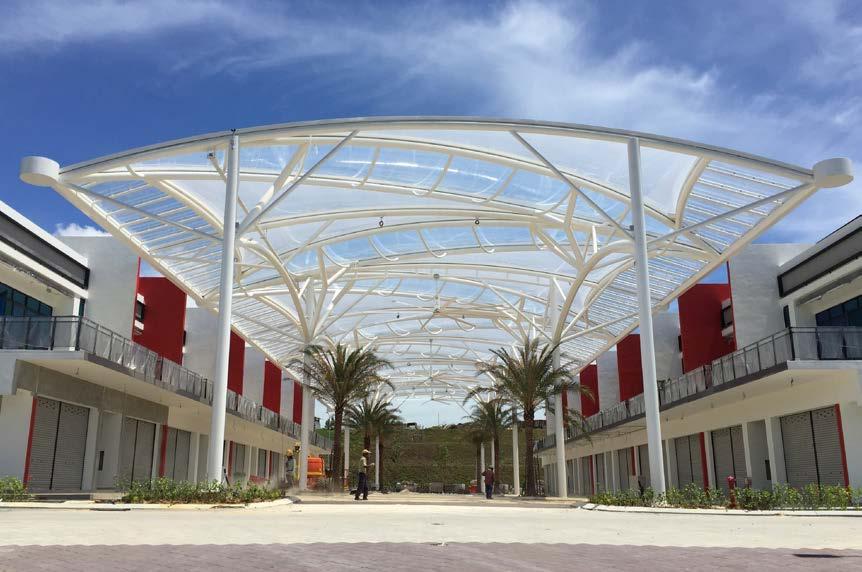

M3 Sunway Emerald Boulevard Canopy

Johor, Malaysia

Year: 2018 Scope: Design, Fabrication, Supply, Installation Area: 3,170m2 Material: Double-layer ETFE air cushion; Single-layer ETFE Designed to encompass a shopping boulevard for Sunway Iskandar, the transparent canopy at the M3 Main Boulevard consists of ETFE Single Layer and Double Layer Cushions held up by a dynamic structural support system.

This hybrid of single-layer and double-layer ETFE membranes produces an alternating shadow effect due to their different light transmission properties.

Shopping Boulevard

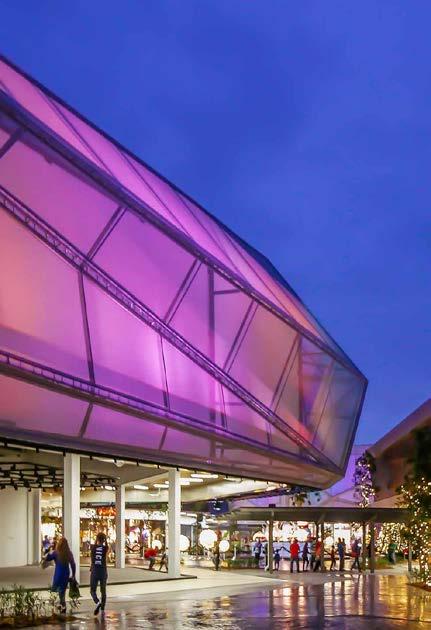

ADAS® FABRIC FACADE

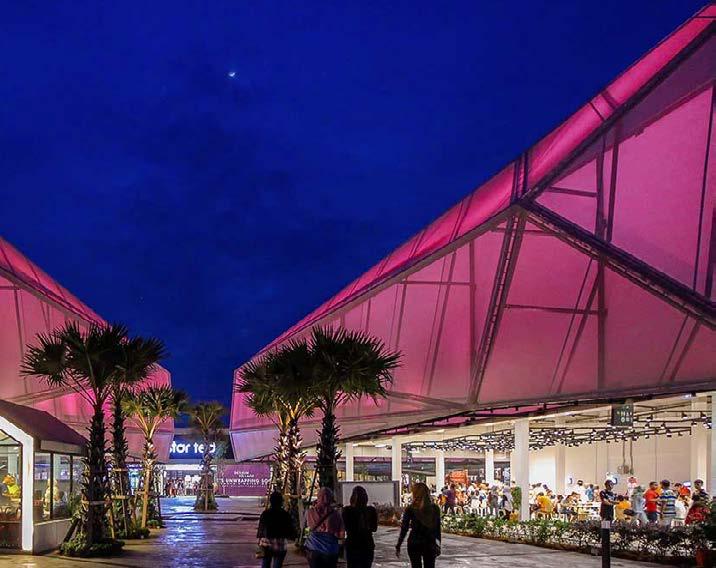

Design Village Penang Facade

Penang, Malaysia

Year: 2016 Scope: Design, Fabrication, Supply, Installation Area: 13,000m2 Material: Fabric Facade The Design Village itself is in a natural, singlestorey, naturally-ventilated park that features cool, well-sheltered verandah walkways and connectors, nestled within a lush tropical garden setting. The architectural approach is one that is contemporary, stylistically international, and nonthematic. Yet references are made to Georgetown City’s historical urban scale, visual texture, and architectural tapestry in the physical composition of the Design Village—to give it a character emblematic of its locale.

Award Winning Outlet Mall

ADAS® ETFE CUSHION

Design Village Penang Canopy

Penang, Malaysia

Year: 2016 Scope: Design, Fabrication, Supply, Installation Area: 25,000m2 - 100,000m2 Material: Double-layer ETFE air cushion As the Design Village Penang consists of a series of buildings that form an open-air retail complex, this series of ETFE canopies create spaces that are sheltered from the rain but still allow plenty of sunlight. The use of double-layer cushion systems allows fewer intermediate supporting members as compared to a glass structure, and the tinted blue ETFE film and silver dot printing effectively cuts the heat transmission of the canopy.

Silver Dot Prints

ADAS® TENSILE MEMBRANE

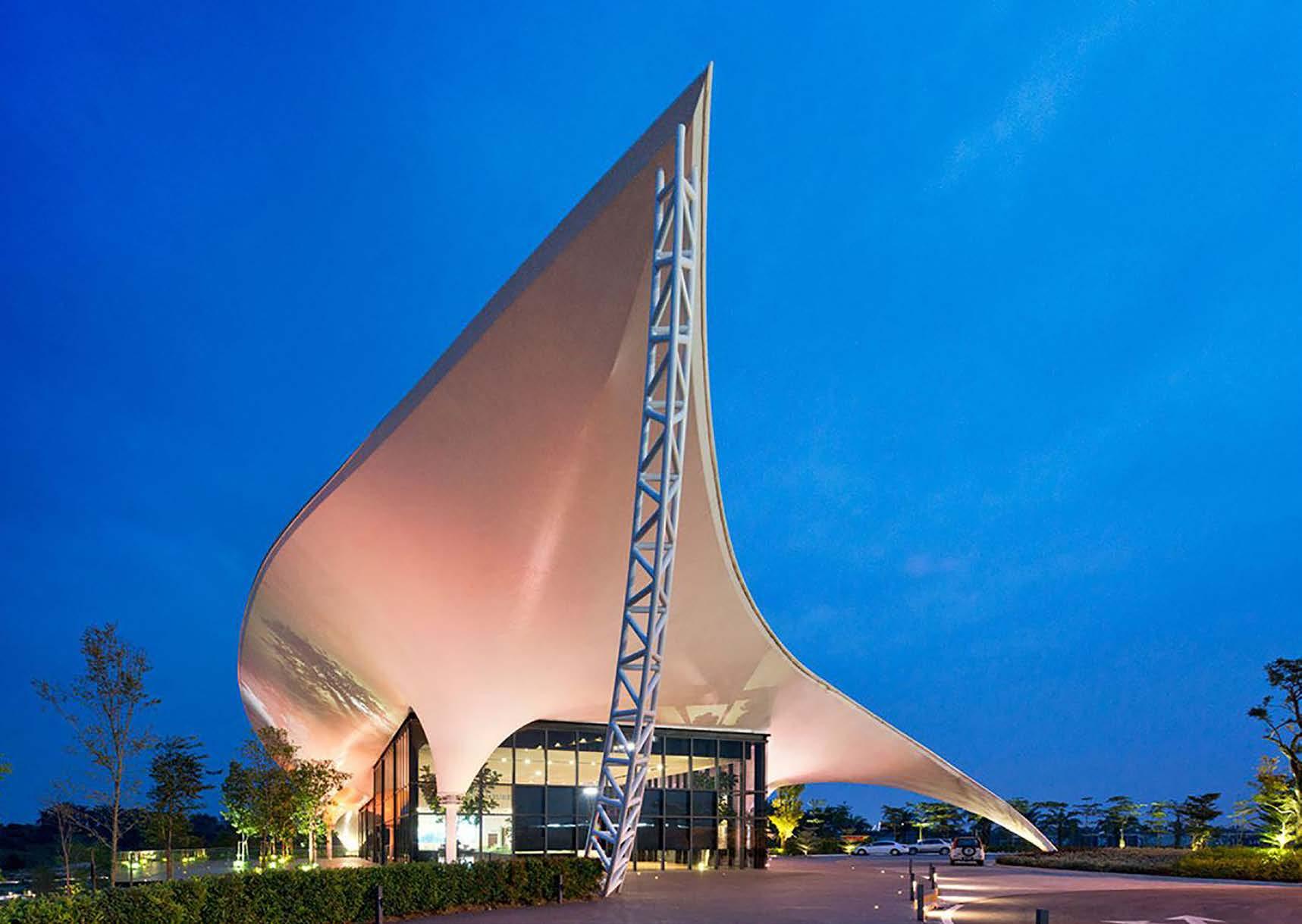

Sunway Iskandar Events Gallery (M1) Canopy

Johor, Malaysia

Year: 2014 Scope: Design, Fabrication, Supply, Installation Area: 3,000m2 (Top), 3,000m2 (Bottom) Material: TiO2-coated PVC fabric The Sunway Iskandar Events Gallery sits on the banks of Emerald Lake, serving as a node within a network of ecoparks, green pockets, water bodies, and green corridors. The distinct form of the roof canopy is envisioned as one elegant swoop, clad in TiO2-coated PVC fabric. The choice of material allows the building to emit a warm, soft glow in the evenings, and also reduces the need for heavy structural support, cleaning, and maintenance.

The Elegant Swoop

ADAS® ETFE SINGLE LAYER

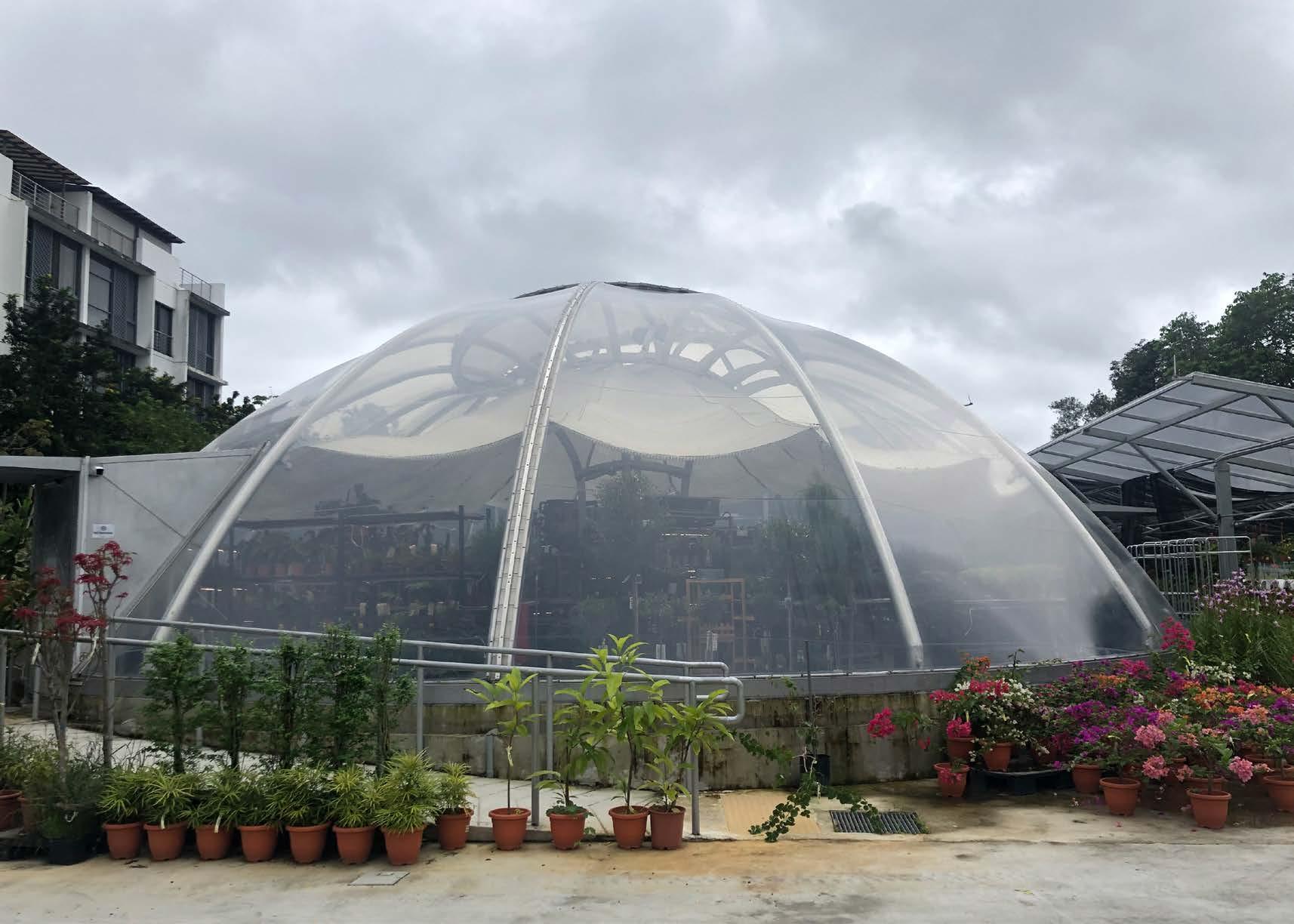

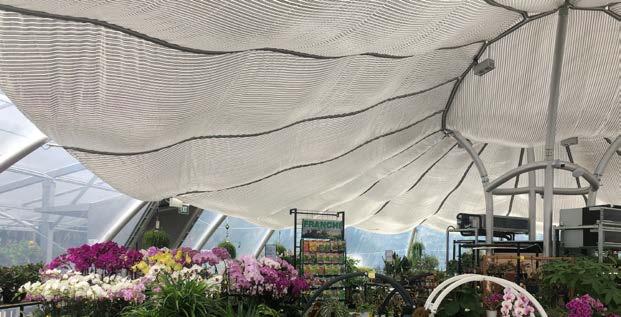

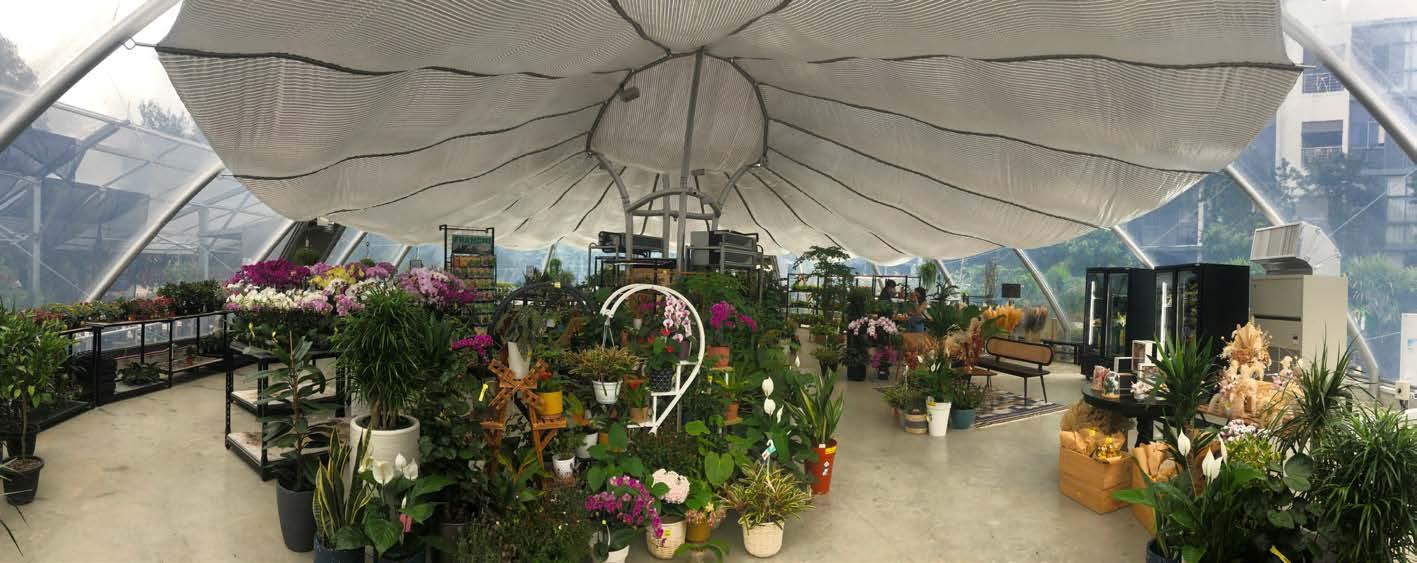

Far East Flora Greenhouse

Singapore, Singapore

Year: 2021 Scope: Design, Fabrication, Supply, Installation Area: 600m2 Material: Single Layer Clear and White ETFE film

An iconic structure that houses a retail showroom for a floral shop. By using ETFE film, we were able to create a greenhouse experience for the visitors while they do their shopping. The free-form dome shape was formed by curved architectural steel as the main supporting component to the flexible ETFE membrane. The steel structure was further minimised through value engineering and the extremely light weight of the film. The interface between the membrane and structural steel is seamlessly integrated using proprietary detailing and aluminium fixtures that not only provide sufficient tensioning for a smooth, glass-like surface but also maintain air and water-tightness.

Flower Dome

ADAS® ETFE CUSHION

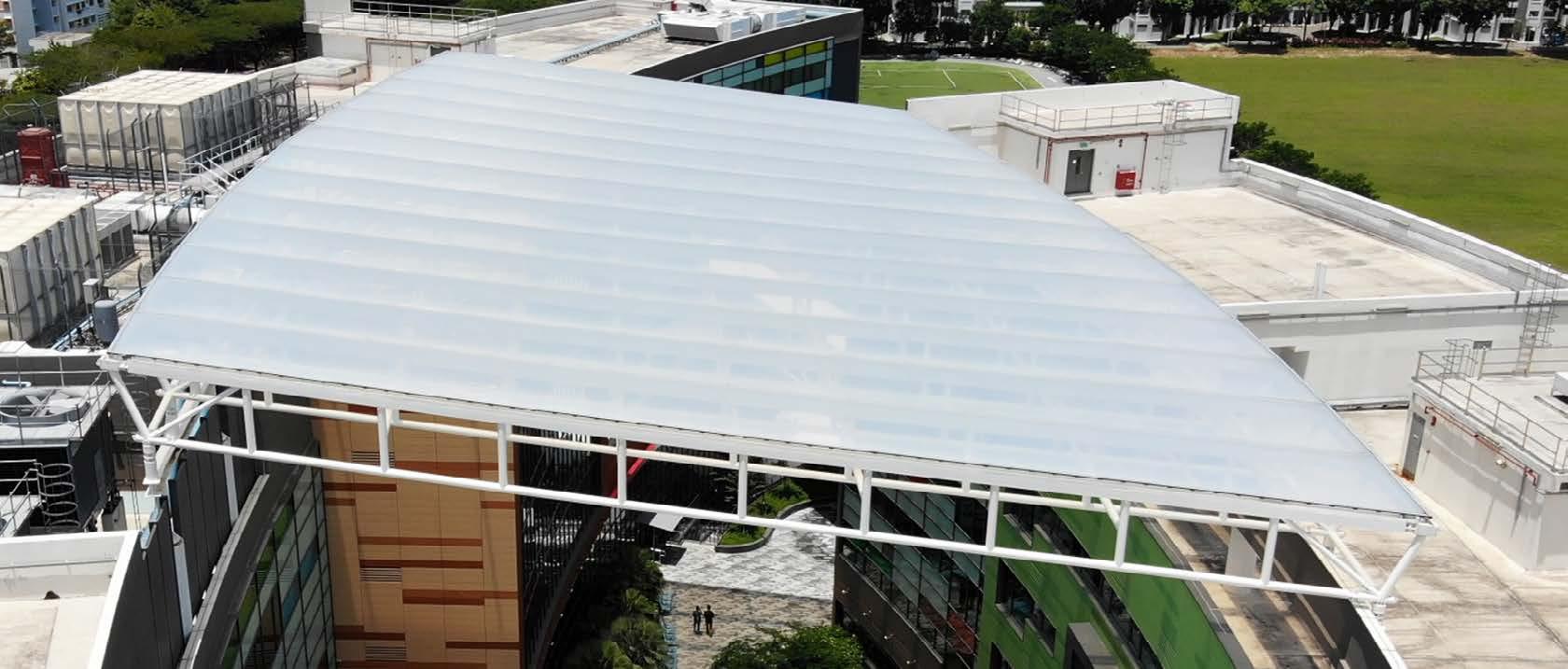

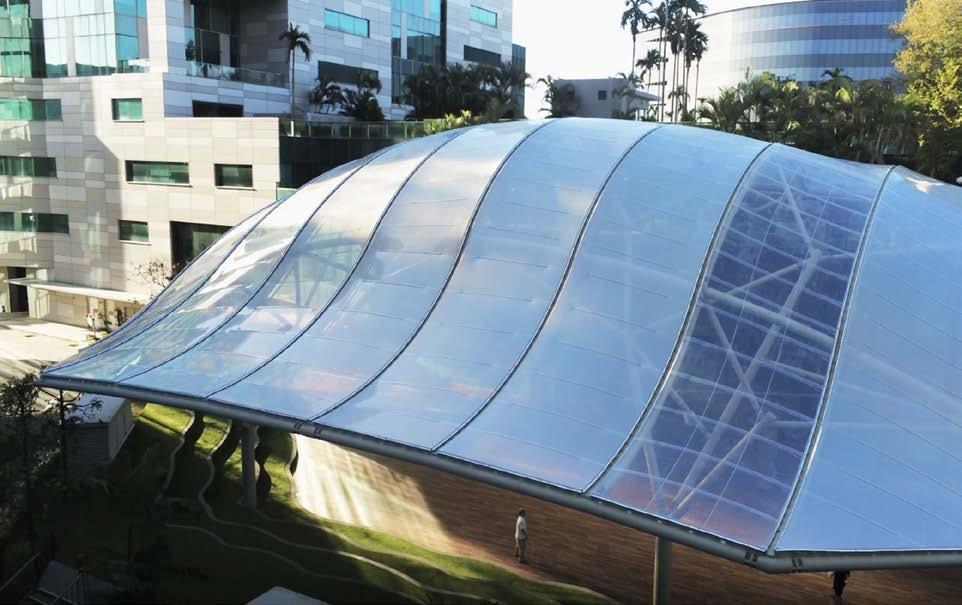

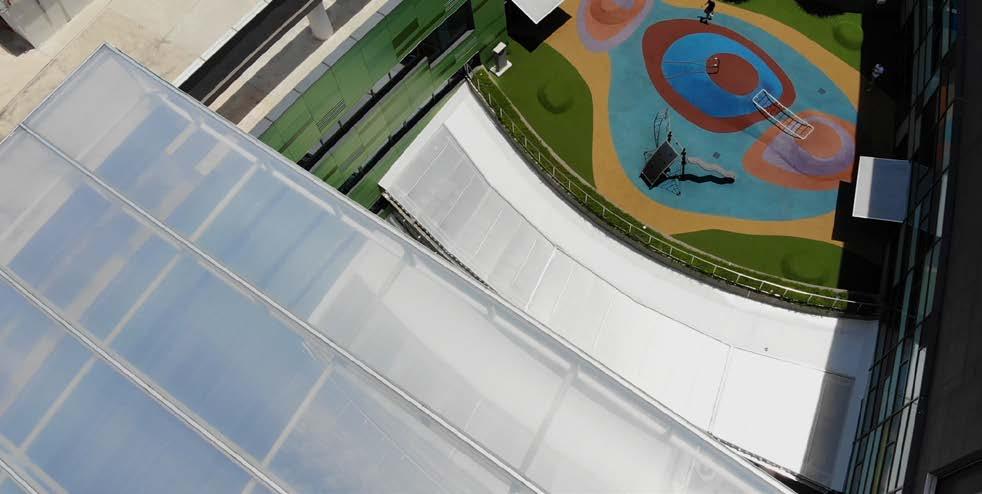

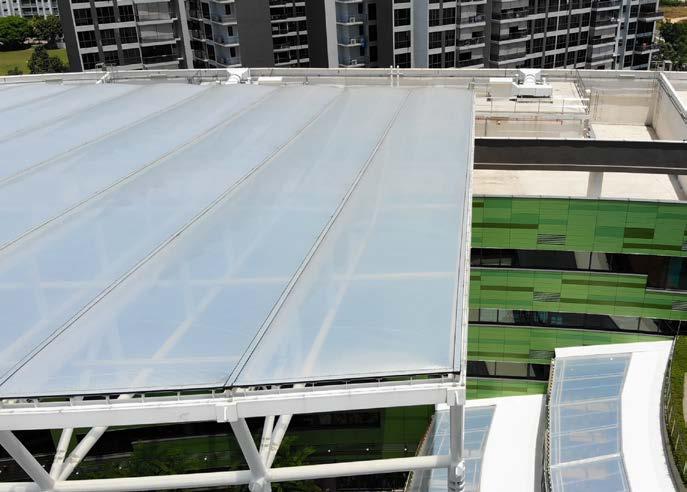

Global Indian Intl. School Roof

Singapore, Singapore

Year: 2018 Scope: Design, Fabrication, Supply, Installation Area: 6,400m2 Material: Double-layer ETFE air cushion Thoughtfully designed as a ‘nest’ by leading architects from USA, Australia, and Japan, the architecture emulates a nurturing environment and pedagogy for an enhanced learning experience for every student. This roof structure nests on the roof level of two opposing buildings and spans across it which results in the lightweight structure protecting the central space from the external environmental elements while letting in abundant natural light.

Nest Canopy

ADAS® ETFE CUSHION

NTU North Spine Canopy

Singapore, Singapore

Year: 2015 Scope: Design, Fabrication, Supply, Installation Area: 10,000m2 Material: Double-layer ETFE air cushion The new two-storey lifestyle hub at Nanyang Technological University (NTU) North Spine is sheltered by an ADAS® double-layer ETFE air cushion, allowing natural light to penetrate onto the decks below while ensuring protection from the rain. The tree-like design of the steel support structures further injects character into the space, which is envisioned as a bustling centre of student life, hosting both institutional and retail activities.

Lifestyle Hub

ADAS® SPACE FRAME

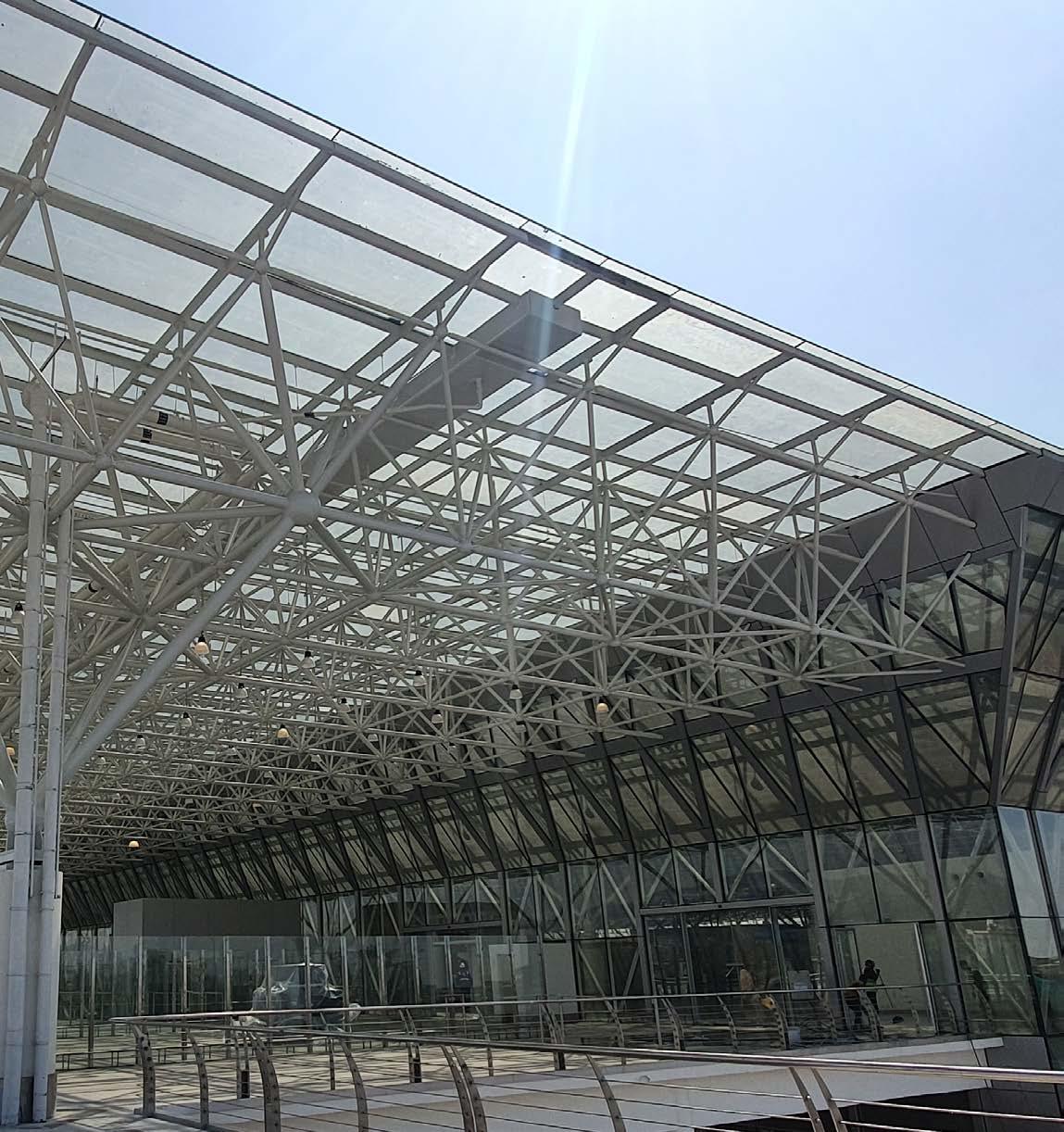

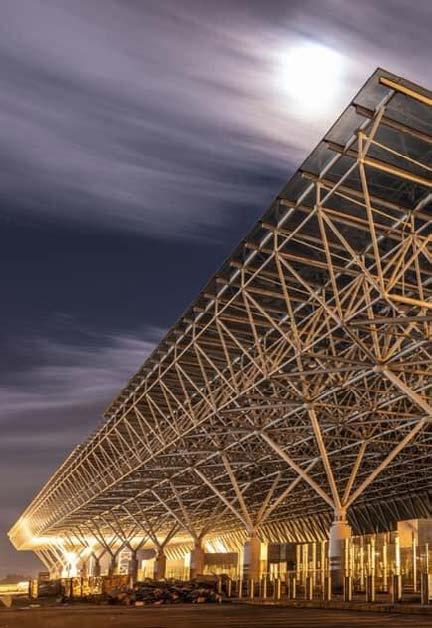

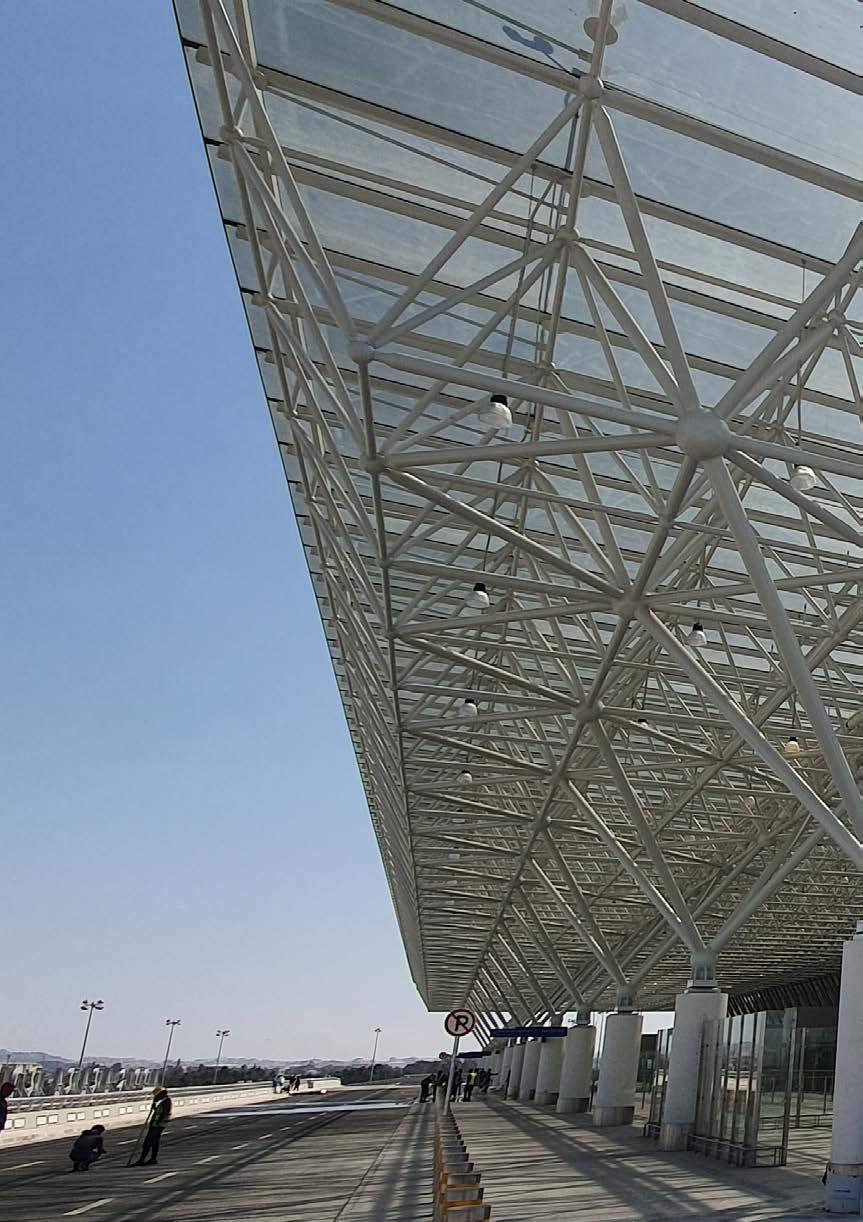

Addis Ababa Bole Intl. Airport

Roof

Addis Ababa, Ethiopia

Year: 2019 Scope: Design & Engineering Area: 20,000m2 Material: Spaceframe

Addis Ababa Bole International Airport is an international airport in Addis Ababa, Ethiopia. It is in the Bole district, 6 km (3.7 mi) southeast of the city centre and 65 km (40 mi) north of Bishoftu. For this project, we were in charge of the design and engineering of the spaceframe structure for the airport expansion by using our proprietary analysis software, Windas.

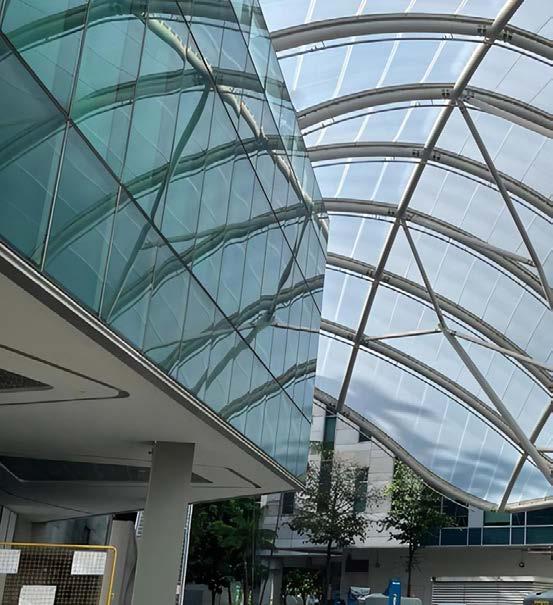

ADAS® ETFE SINGLE LAYER

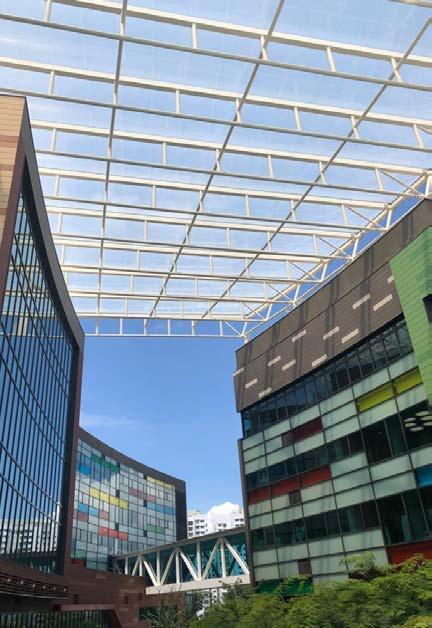

Ascendas Plaza 8 Canopy

Singapore, Singapore

Year: 2019 Scope: Design, Fabrication, Supply, Installation Area: 800m2 Material: Single-layer ETFE

Located at Changi Business Park, the 800m2 canopy at Ascendas Plaza 8 has a sleek form that shades a spacious, naturally lit plaza below. The use of single-layer ETFE is able to create a form that is not limited by the rigid and bulky constraints of glass panels.

ADAS® SPACE FRAME

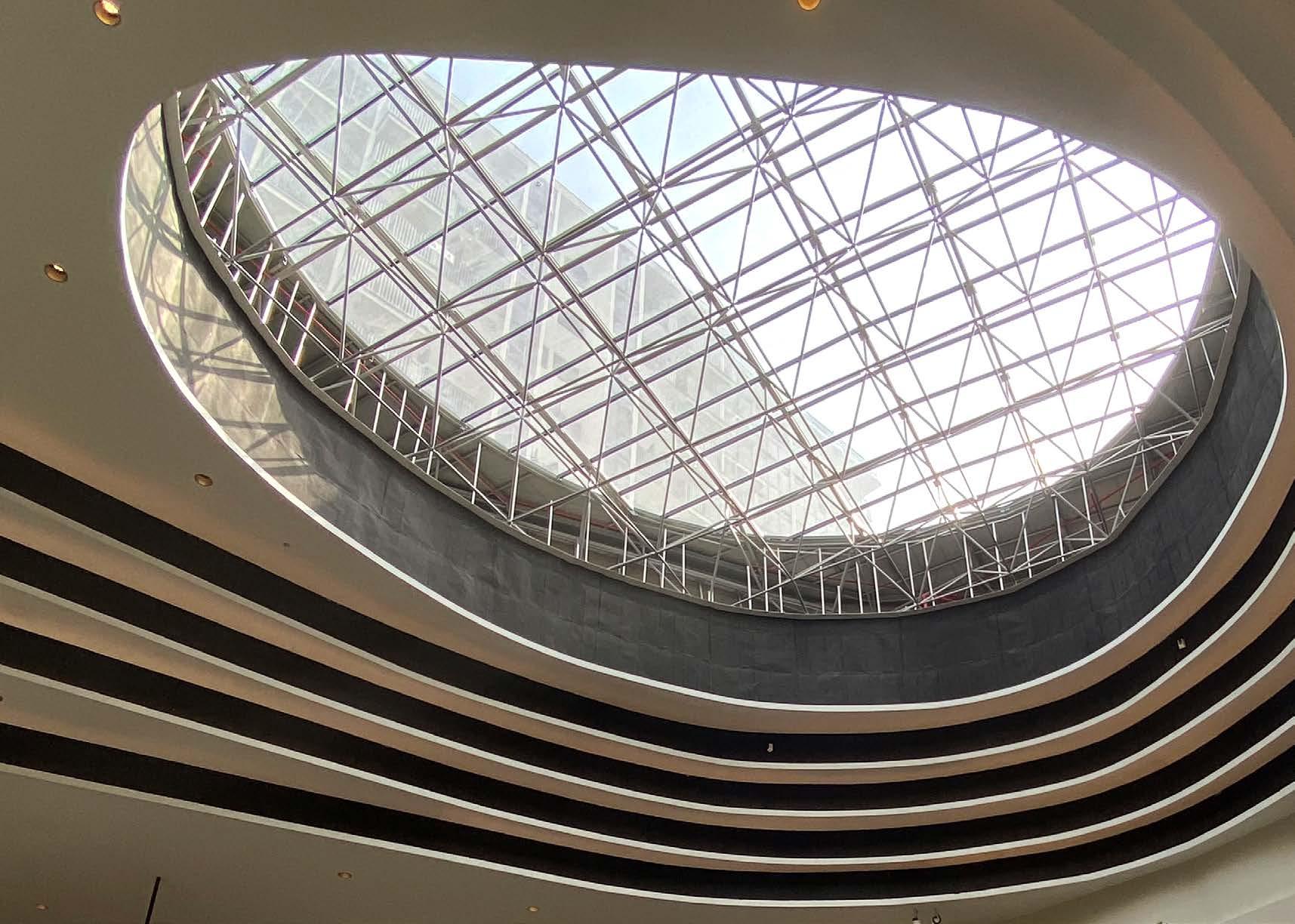

Sengkang Grand Residences

Skylight

Singapore, Singapore Year: 2022 Scope: Design, Fabrication, Supply, Installation Material: Spaceframe

We took on the design, fabrication, supply and installation of the spaceframe skylight at the Sengkang Grand Residences, which is a mixeduse commercial and residential development that comprises of a 3-storey podium and 9 blocks of 8-10 storey residential apartments.

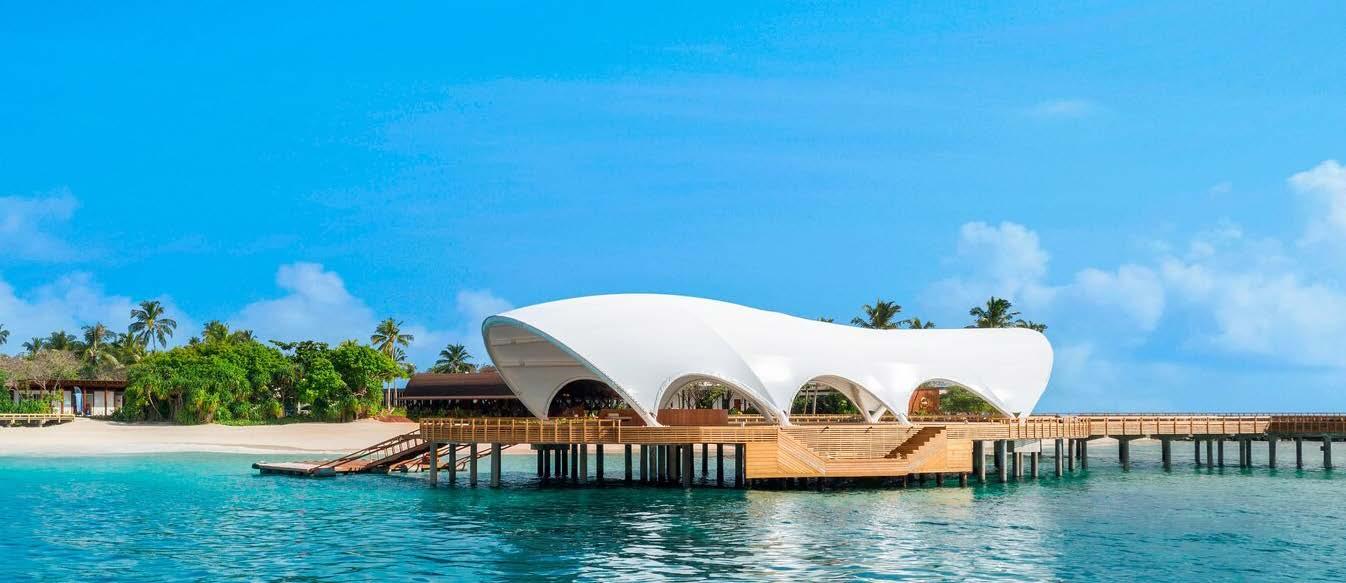

ADAS® TENSILE MEMBRANE

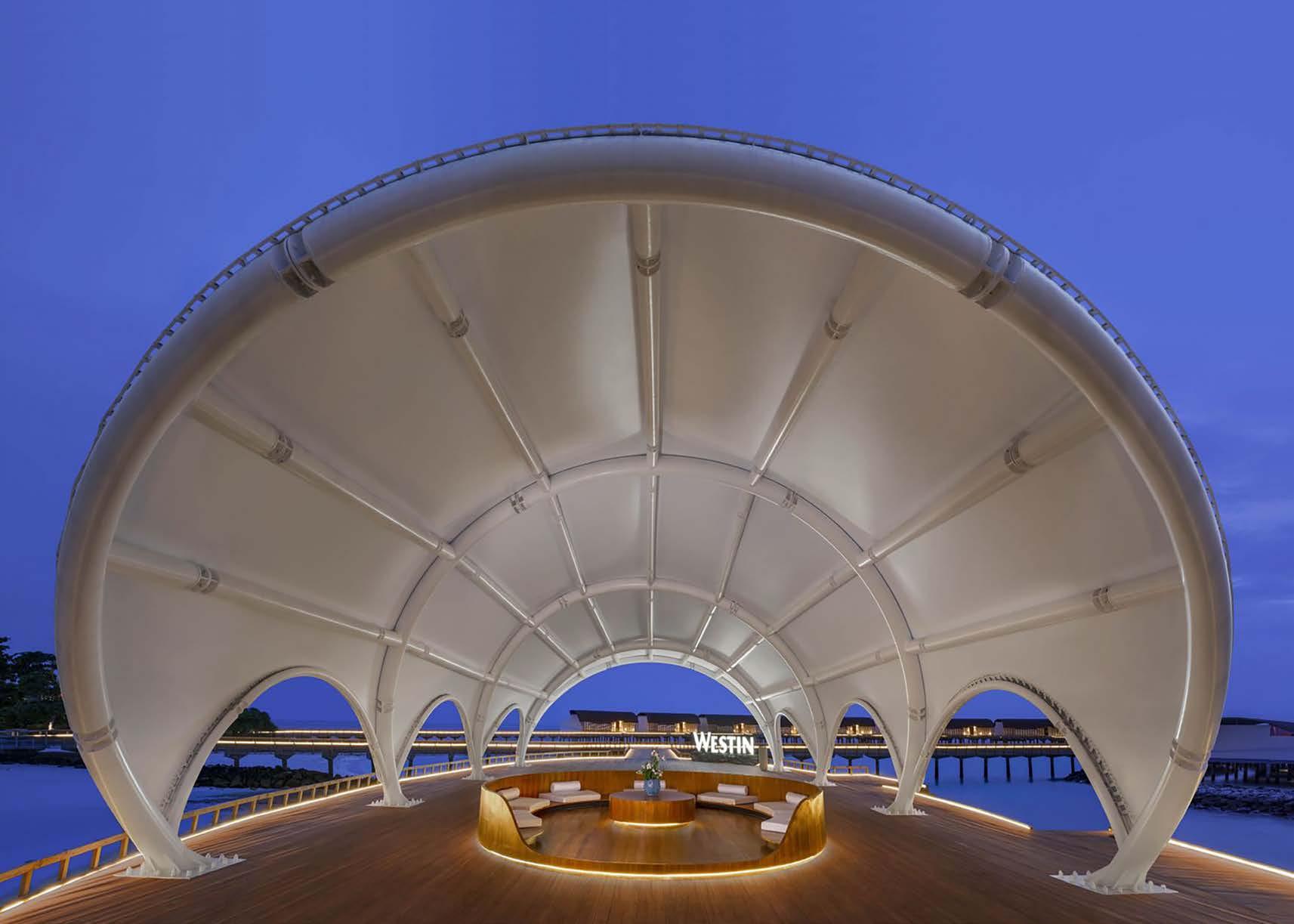

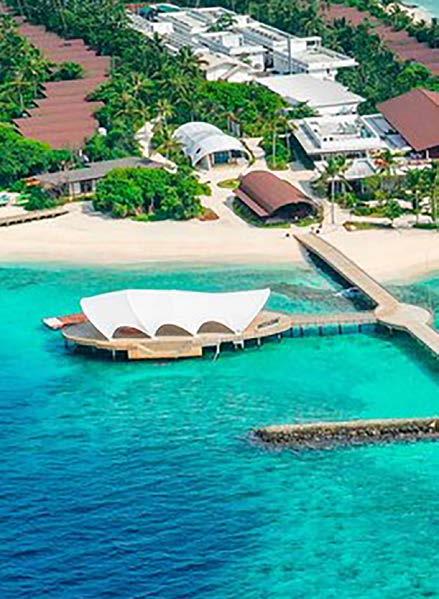

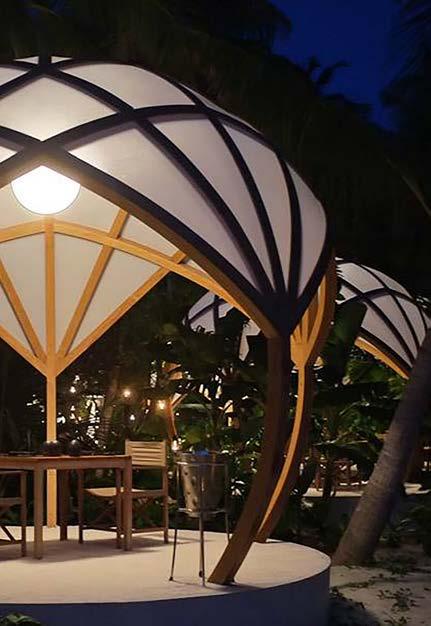

Miriandhoo Resort Canopy

Miriandhoo Island, Maldives

Year: 2017 Scope: Design and Build Area: 800m2 Material: PVDF-coated PVC fabric

Taking inspiration from the shape of a clamshell, this canopy is designed based on a barrel vault structure. Even though the structure is fully constructed of steel, the fluid form produced by the architectural steel gives the structure a very lightweight feeling and makes it appear to be floating with the wind.

Arrival Jetty

ADAS® FABRIC FACADE

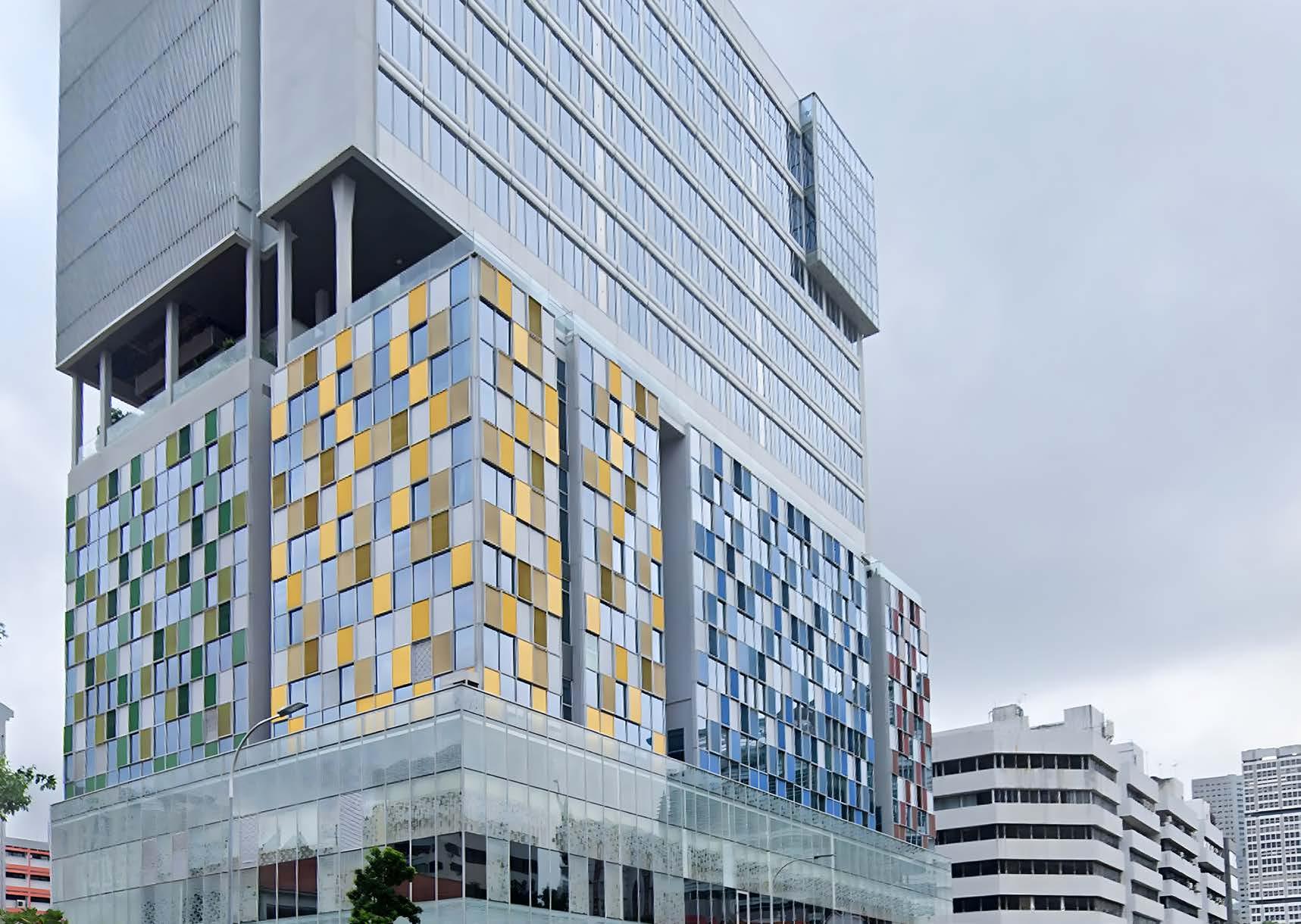

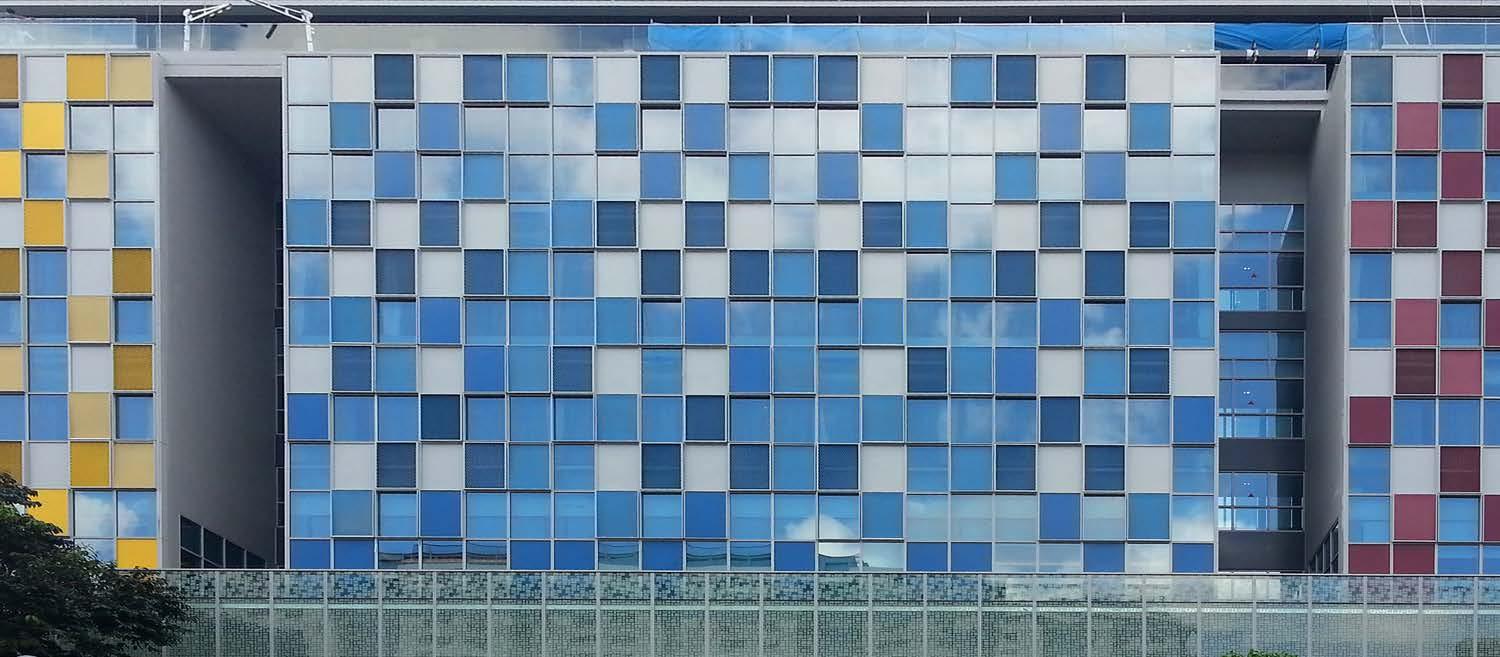

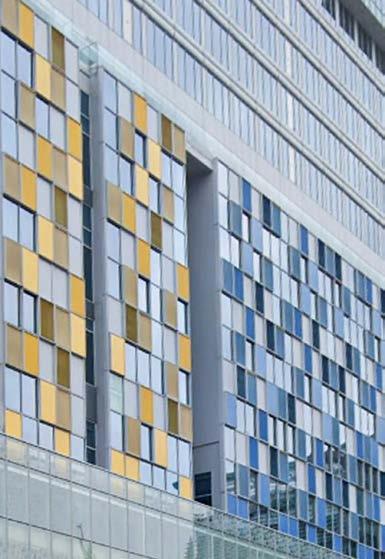

Mercure Hotel Facade

Singapore, Singapore

Year: 2015 Scope: Design, and Installation Area: 1,200m2 Material: Mesh PTFE-coated glass fibre fabric Located in the vibrant heart of Bugis, Singapore, this contemporary 4-star hotel is designed to reflect the fun and colorful charm of the neighbourhood. Thus, the colorful fabric facade was introduced to break away from the rigid glass facade of the 15-storey hotel.

Vibrant Modern Colorful Charm

www.me.com.sg

ADAS® is a registered trademark of Multimedia Engineering Pte. Ltd. © 2023 ADAS Hightex Sdn. Bhd. All rights reserved.
