Junction Boxes 2022

Junction Boxes IP56 PVC Box (Grey & Transparent Lids)......................................................... 2 IP44 PVC Box & Metal Back Plates................................................................. 3 GRP Meter Boxes............................................................................................ 4 & 5

June 2020

PVC Boxes IP56 PVC Box • UV Stabilised Finish • IP56 Box with smooth walls and grey screw on lids • Smaller sizes with stainless steel screws • Larger sizes with plastic screws

Part No AD05 AD15 AD25 AD35 AD45 AD55 AD65 AD85

Description 130 x 80 x 60 PVC Box stainless steel screws 100 x 100 x 50 PVC Box stainless steel screws 150 x 110 x 70 PVC Box stainless steel screws 190 x 140 x 70 PVC Box stainless steel screws 240 x 190 x 90 PVC Box plastic screws 300 x 220 x 120 PVC Box plastic screws 380 x 300 x 120 PVC Box plastic screws 460 x 380 x 130 PVC Box plastic screws

Box Qty 100 100 60 30 20 10 10 5

IP56 Clear Lid Box

Part No AD25T AD35T AD45T AD55T AD65T AD85T

2

01291 431777

Description 150 x 110 x 70 PVC Clear Lid Box stainless steel screws 190 x 140 x 70 PVC Clear Lid Box stainless steel screws 240 x 190 x 90 PVC Clear Lid Box plastic screws 300 x 220 x 120 PVC Clear Lid Box plastic screws 380 x 300 x 120 PVC Clear Lid Box plastic screws 460 X 380 X 130 PVC Clear Lid Box plastic screws

sales@castlec.co.uk

Box Qty 60 30 20 10 10 10

www.castlec.co.uk

Junction Boxes

PVC Boxes IP56 Extra Deep Box

Part No AD25D AD35D AD55D

Description 155 X 115 x 100 PVC Box stainless steel screws 215 X 150 x 110 PVC Box stainless steel screws 310 X 230 x 145 PVC Box plastic screws

Box Qty 50 30 12

IP44 Box Stepped Glands Press On Lids

Part No AD1 AD2 AD3

Description 65 X 35 Round PVC Box 80 x 40 Round PVC Box 80 x 80 x 40 PVC Box

Box Qty 250 200 200

Metal Back Plates

Part No BP25 BP35 BP45 BP55 BP65

01291 431777

Description 150 X 110 Metal Base Plate 190 X 140 Metal Base Plate 240 X 190 Metal Base Plate 300 X 220 Metal Base Plate 380 X 300 Metal Base Plate

sales@castlec.co.uk

www.castlec.co.uk

3

GRP Meter Boxes Recessed Electrical Meter Box • Electrical Meter Box Flush (BS8567-2012) • Fire retardent to BS476 Part 7 1997 Class 2 • Recessed built into wall • Supplied with meter board and key • Minimum Wall Cut Out : 535mm x 365mm

Part No EB0011

Description Recessed GRP Meter Box

W 409mm

H 595mm

D 210mm

Surface Electrical Meter Box • Electrical Meter Box Surface (BS8567-2012) • Fire retardent to BS476 Part 7 1997 Class 2 • For surface mounting • Supplied with meter board and key

Part No EB0012

4

Description Surface GRP Meter Box

01291 431777

W 410mm

sales@castlec.co.uk

H 596mm

D 220mm

www.castlec.co.uk

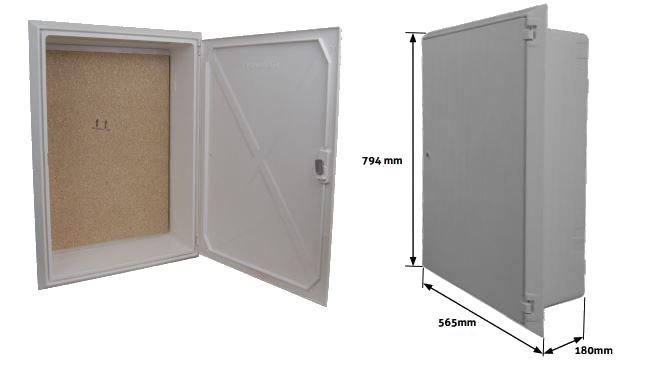

3 Phase Recessed Electrical Meter Box • Electrical 3 Phase Meter Box Flush (BS8567-2012) • Fire retardent to BS476 Part 7 1997 Class 2 • Recessed built into wall • Supplied with meter board and key • Minimum Wall Cut Out : 715mm x 485mm

Part No EB0013

Description Recessed GRP Meter Box

W 565mm

H 794mm

Junction Boxes

GRP Meter Boxes

D 180mm

3 Phase Surface Electrical Meter Box • Electrical 3 PhaseMeter Box Flush (BS8567-2012) • Fire retardent to BS476 Part 7 1997 Class 2 • For Surface Mounting • Supplied with meter board and key

Part No EB0032

Description Surface GRP Meter

W 565mm

H 794mm

D 190mm

Hockey Sticks

Part No EC1001 EC1002

Description Black uPVC For use within cavity wall 1200mm long 38mm diameter White uPVC For external wall use 1450mm long 38mm diameter

Accessories Part No ED0008 GC0002 EK0006 EK0004

01291 431777

Description Spare Door 549mm x 383mm Replacement Key Yellow Spare Latch Kit Spare Pin Hinge Kit

sales@castlec.co.uk

www.castlec.co.uk

5
