Castlec 2025 Catalogue

Page 1


Introduction

Welcome to our new Castlec catalogue, 2025 edition, where we launch our eagerly anticipated new range of metal consumer units.

These new consumer units are a fully enclosed metal construction with a unique flush drop down metal lid. With raised key holes and a spacious, easily accessible wiring area, we believe these are our most user friendly range of consumer units yet.

We are constantly adding to our ranges and in this new catalogue we introduce a range of Bi-directional RCBOs, Single Module T2 SPDs, IP65 EV & Mini Garage Units, improved MCBs, ARC Devices and more to our Circuit Protection collection.

Our IP66 Outdoor Range now includes a twin RCD Socket and we also have a brand new range of Castlec tubular heaters and wire guards.

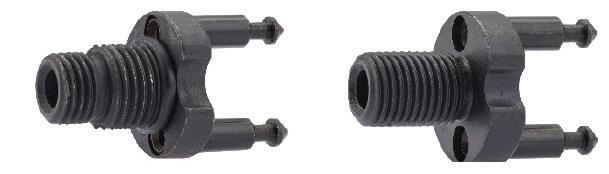

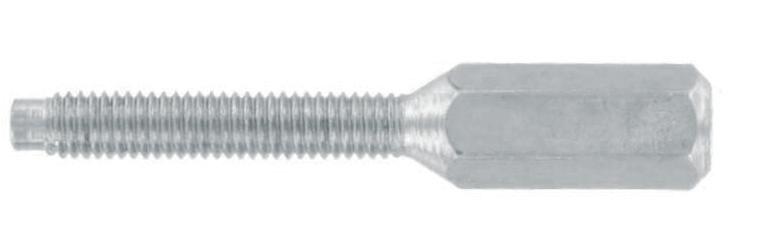

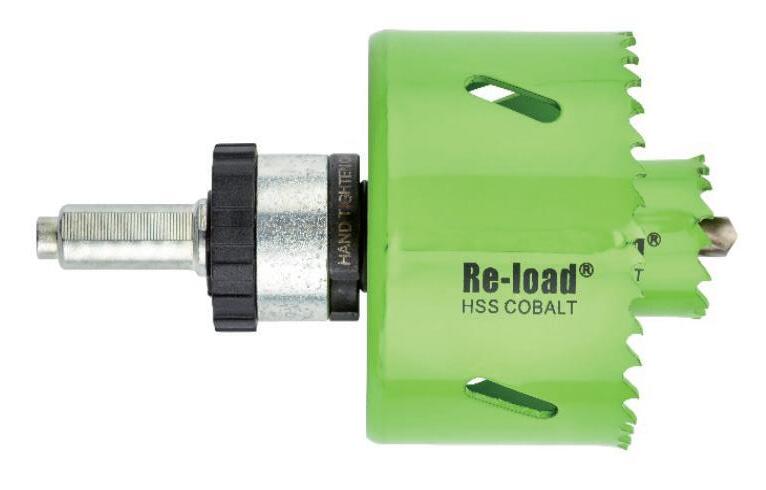

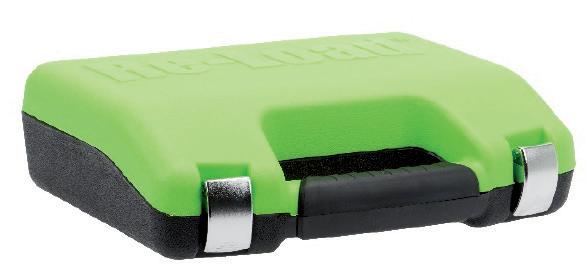

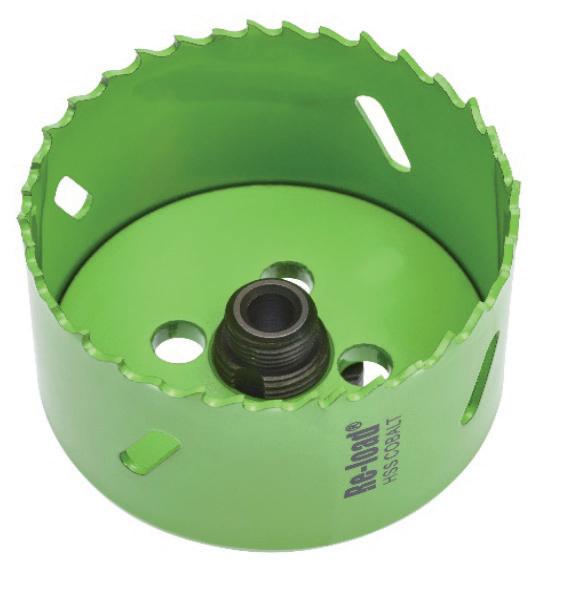

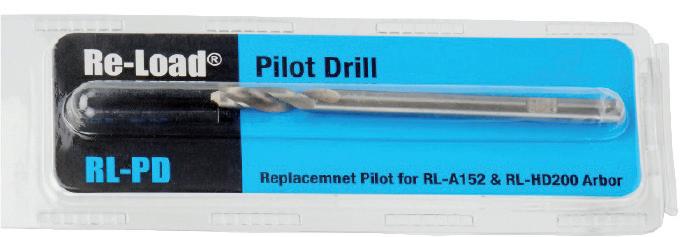

Within our Reload Quick Change Holesaw range we now stock the replacement Cobalt Bi-metal holesaws as a seperate item to compliment our range of Electrician’s & Plumbers Kits, Quick Change Arbors and Boss Packs.

All of our products are tested to the applicable standards and come with the appropriate certification. Where possible we provide a free next day delivery on all orders £150 or over received by 1pm. Orders below £150 are subject to £8.50 carriage charge.

We are proud of the relationships within the Electrical Wholesale industry that we have built up in the

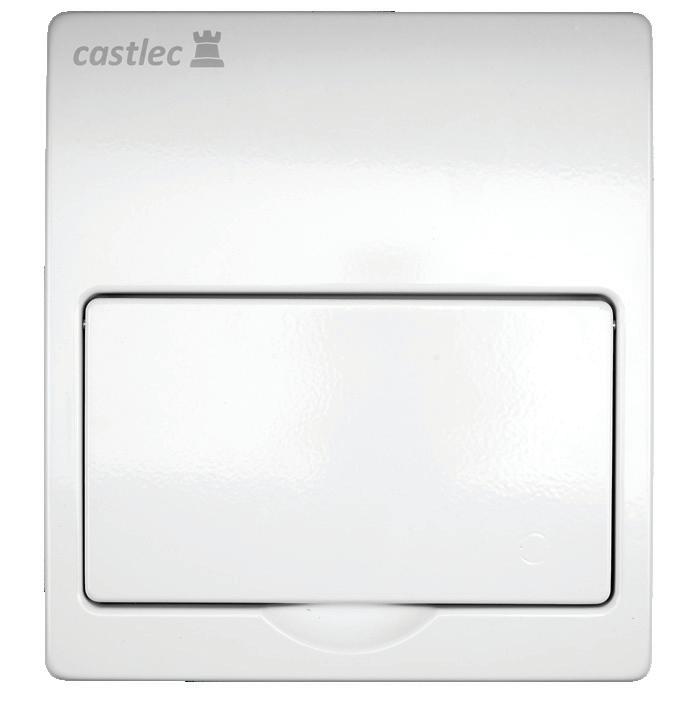

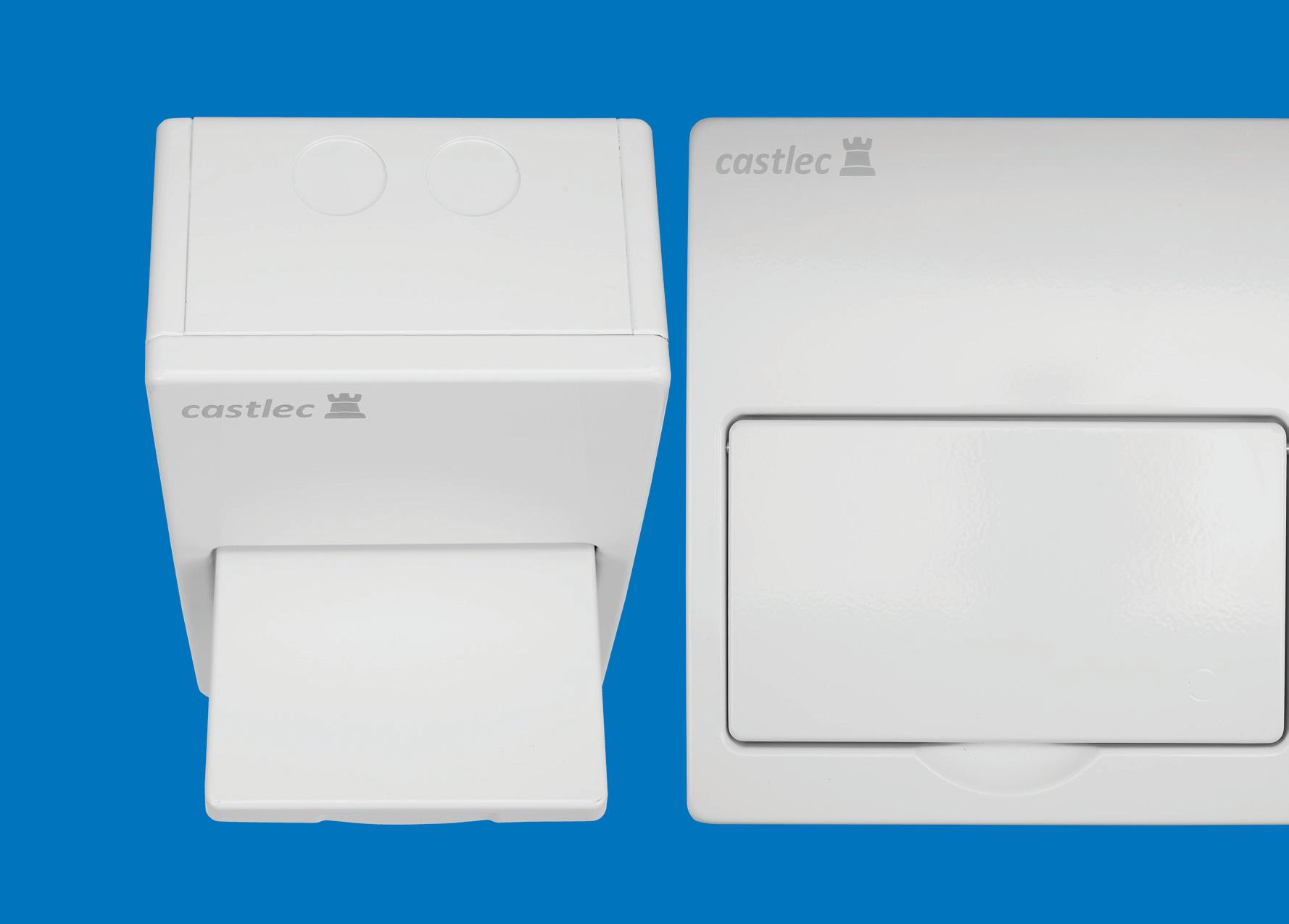

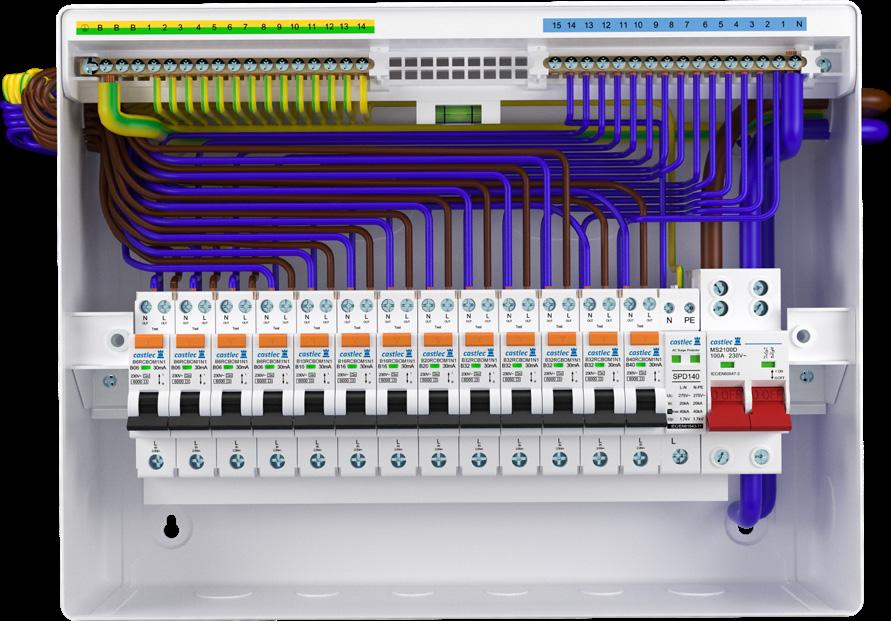

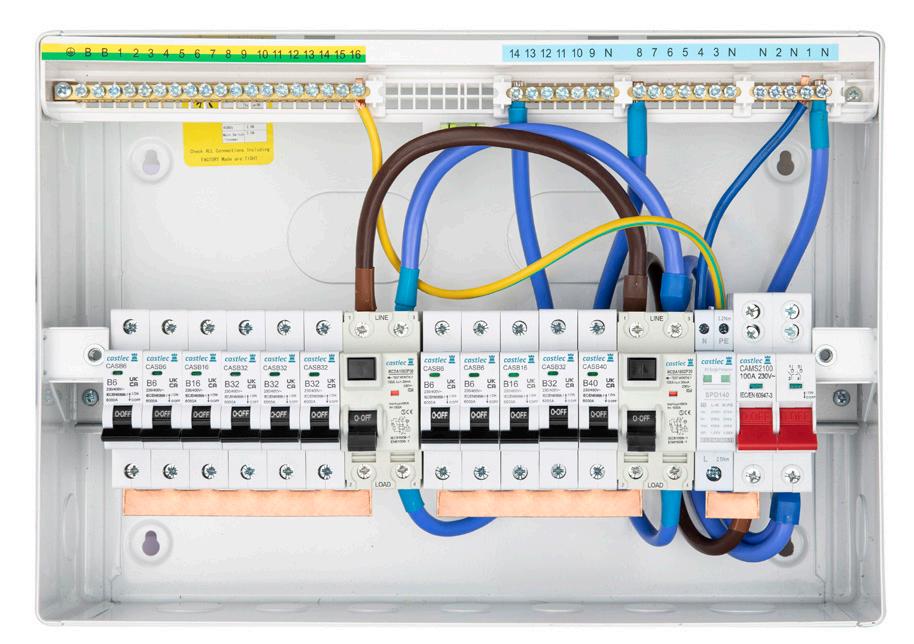

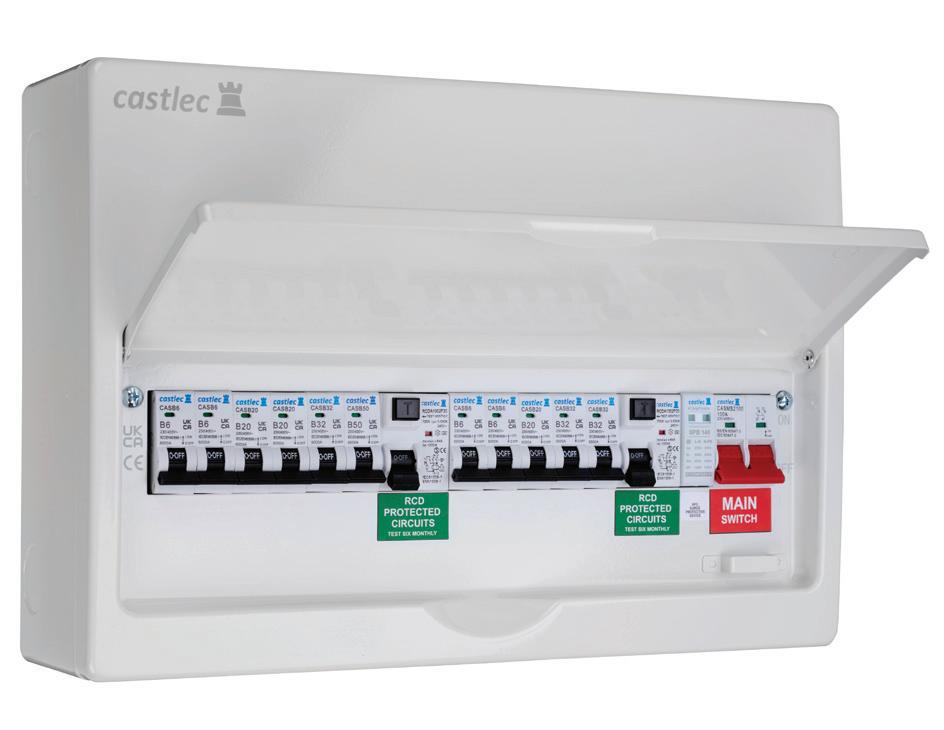

The Next Generation of Castlec Metal Consumer Units are here!

The new range of boards have a fully enclosed metal construction with a unique flush drop down metal lid. With raised key holes and a spacious, easily accessible wiring area, we believe these are our most user friendly range of consumer units yet.

Also we have a new range of Bi-directional RCBOs 1P+N, Single Module T2 SPDs (with live located at the bottom for ease of install) , IP65 EV & Mini Garage Units and several other new items to our catalogue.

• Fully enclosed metal construction body with drop down metal lid, strengthened construction

• Multiple knockouts, top & bottom plus larger rear slots

• Raised Key holes for secure easy installation

• Bi-directional RCBOs available as standard

• Dual Terminals Main Switch

• Spirit Level

• Raised Din Rail improves cable routing

• Flush Lid

• Spacious & easily accessible wiring area

Unique flush drop down lid

Lid installation buckle, to hold lid open during installation.

T2 Surge Protection Device

Our new surge protection devices are now single module and can be connected directly on the busbar without the need for additional MCB*- leaving more ways for household circuits.

*If the incoming supply is protected by, equal to or no less than a 125A fuse no MCB is required*

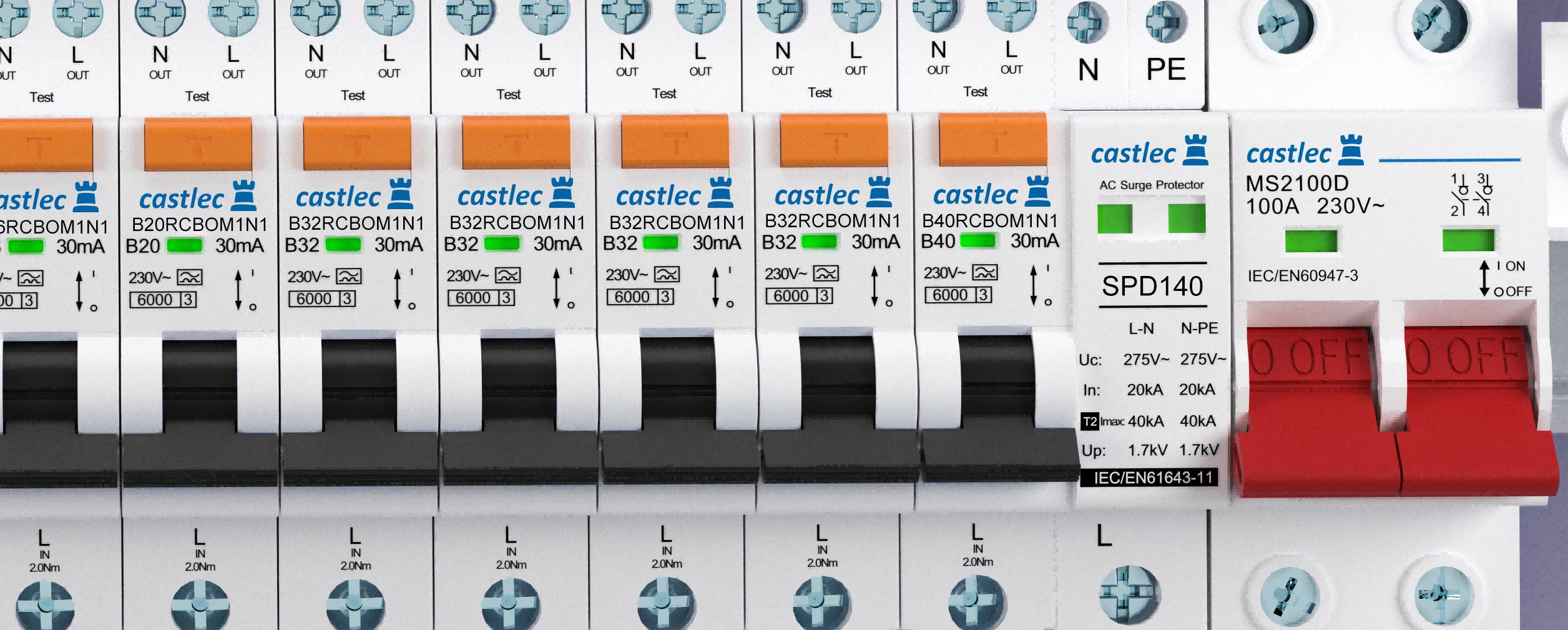

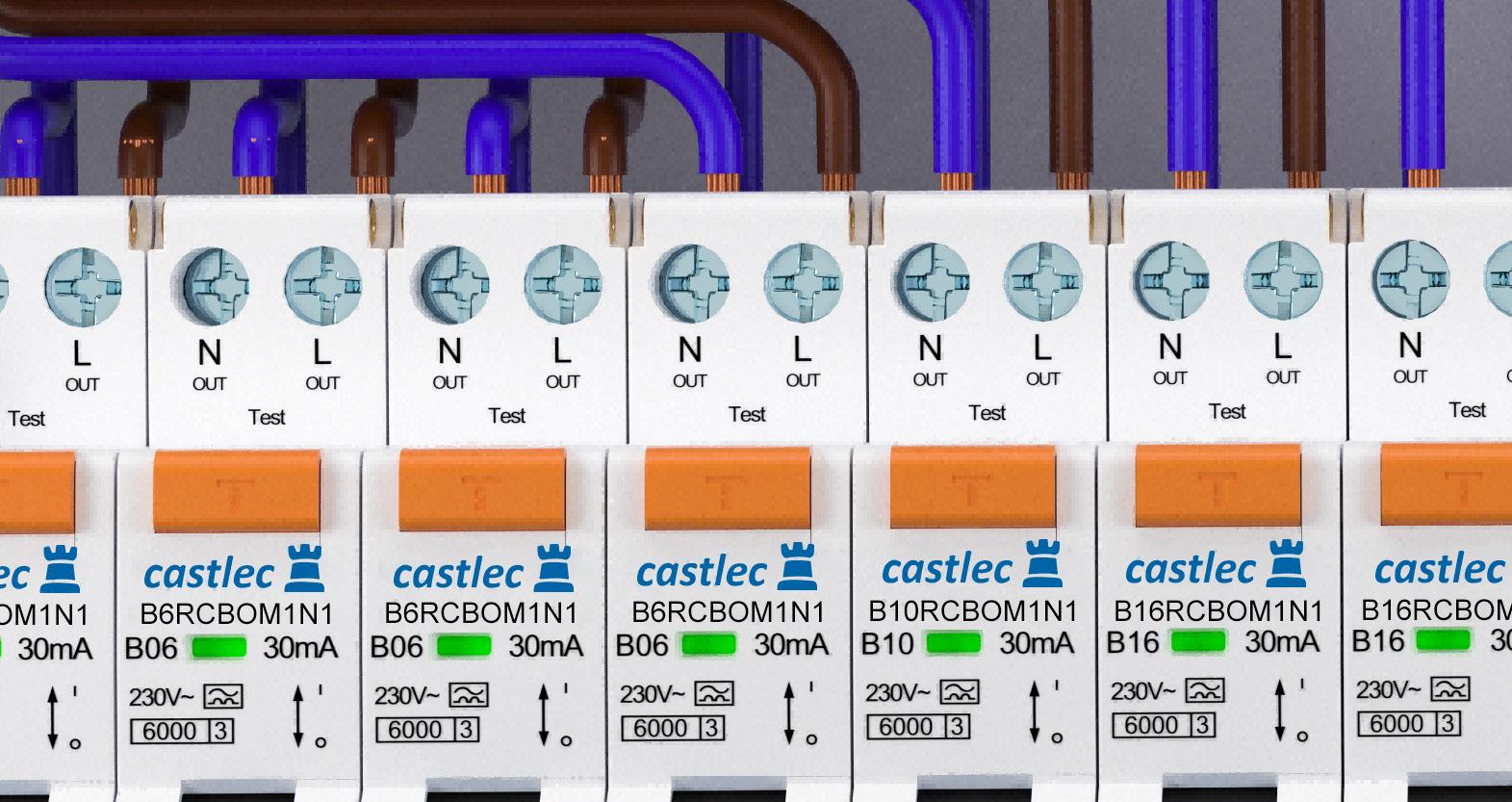

Bi-directional RCBOs

Bi-directional Mini RCBOs with switched LINE and NEUTRAL. With the growth of renewable energy systems such as EV Chargers and solar installations where power can be fed back into the grid, there is an increasing need for bidirectional current flow. Our Bidirectional RCBOs can detect faults regardless of the current direction, providing enhanced safety for these installations.

Raised Key Hole Fully enclosed Metal construction for greater strength

• Fitted with 100A Dual Terminal Main Switch

• Single Module T2 SPD *see page 14 for information on SPD devices

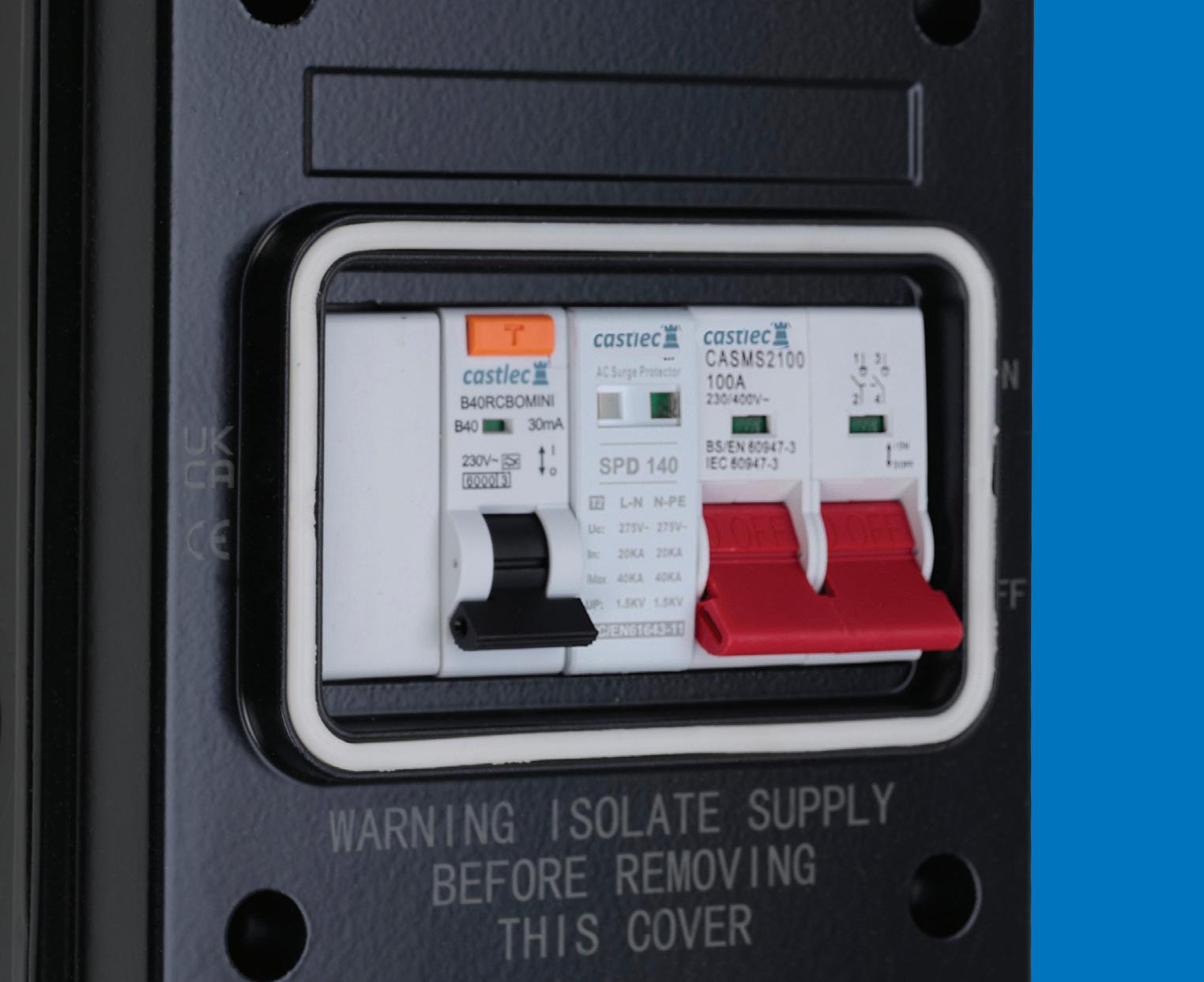

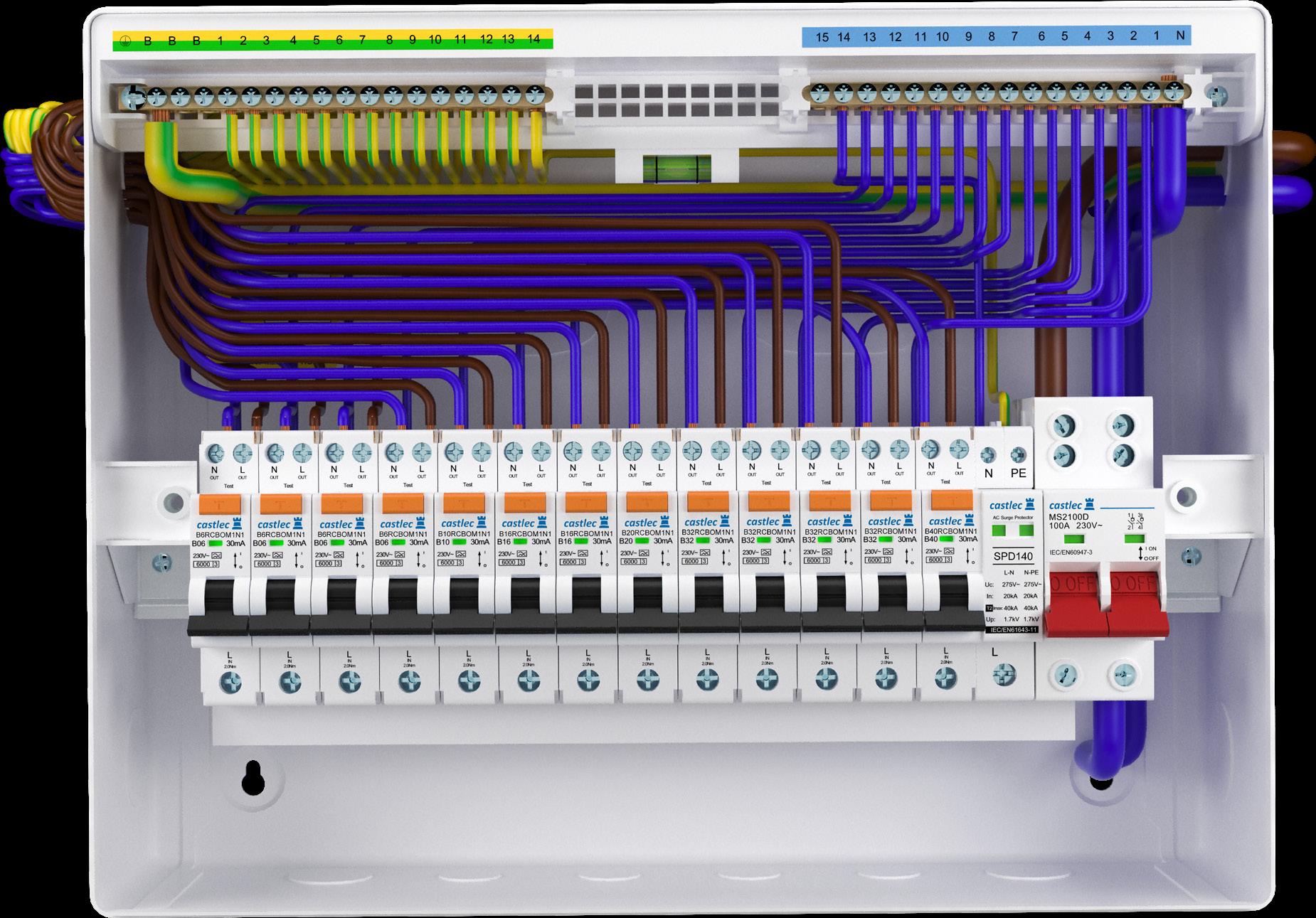

DUAL RCD T2 SURGE PROTECTION BOARDS

100A Main Switch SPD Board Dual Type A RCD SPD Board

• Fitted with 100A Dual Terminal Main Switch • 2 X 100A 30mA Type A RCD’s

• Single Module T2 SPD *see page 14 for information on SPD devices • Flexible connection allows for various configurations

• New Improved Design

• Fully Enclosed Metal Construction

• Spirit Level Fitted

• Raised key holes for secure installation

• Raised din rail improves cable routing

• Spacious & easily accessible wiring area

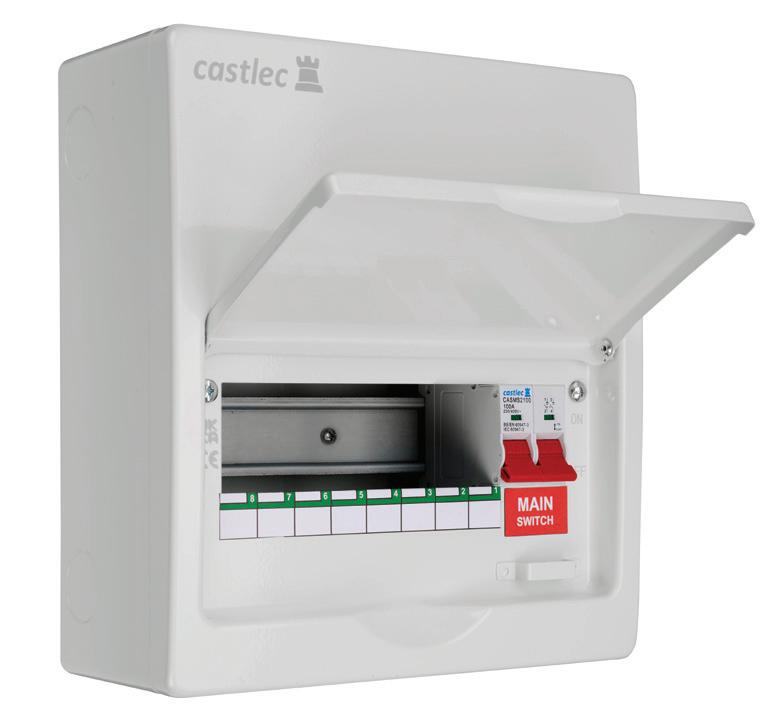

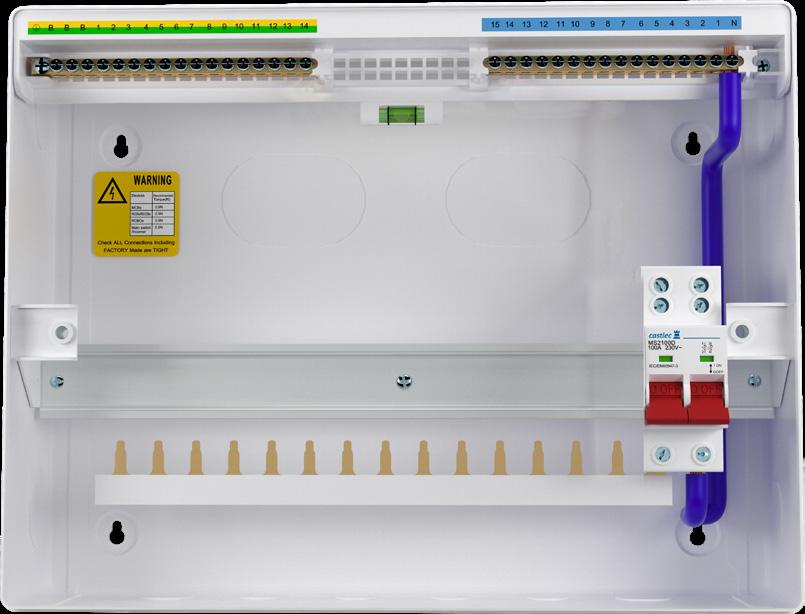

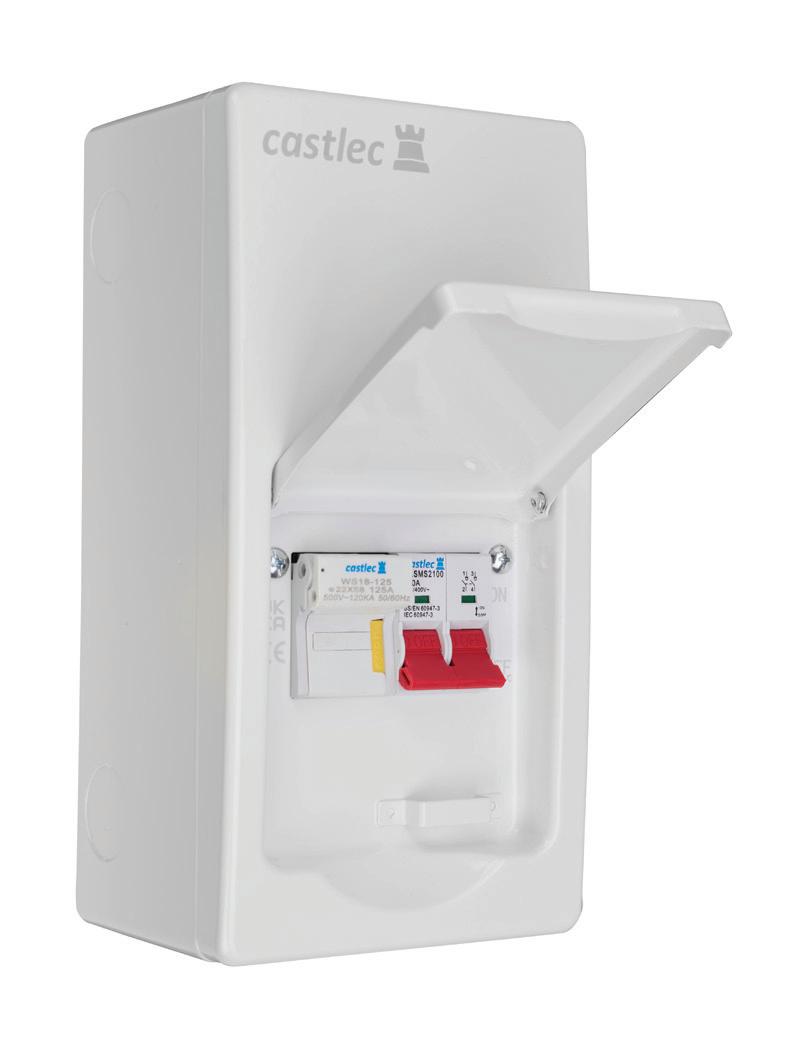

MAIN SWITCH BOARDS

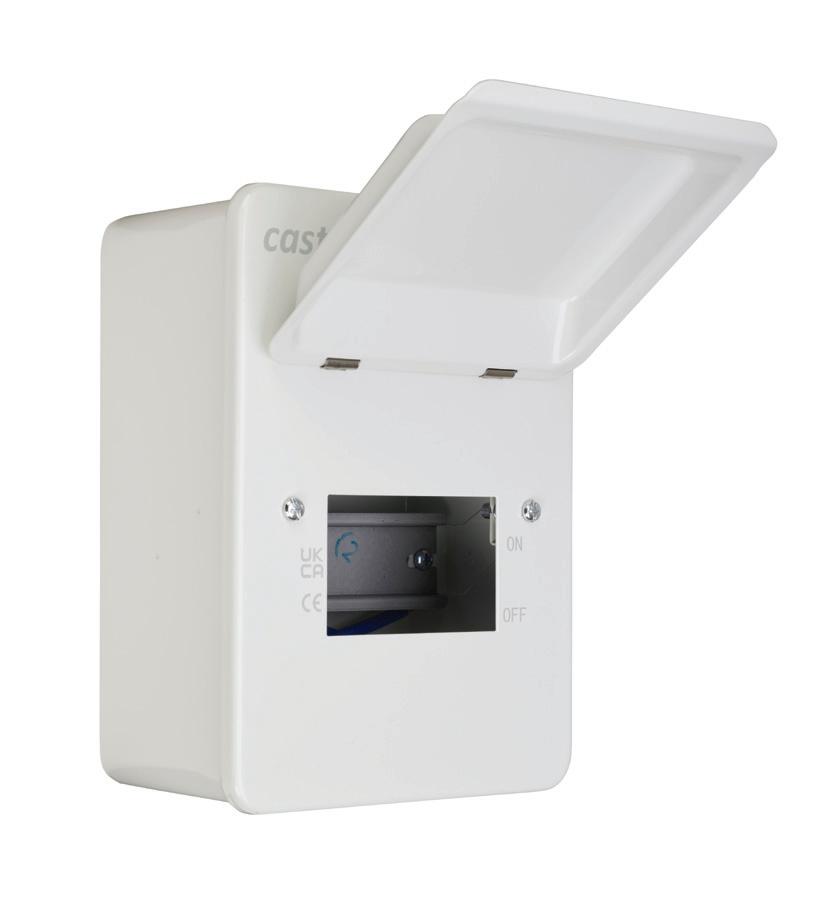

100A Main Switch Board

TYPE A RCD BOARDS

80A Type A RCD Boards

• UK - CA Certified

• BS EN61439-3

• Multiple knockouts: Top & Bottom 25mm & 32mm, Sides 32mm

• Glossy White Finish to RAL 9001

• Flush Lid

• Lockable Lids

• Fitted with Dual Terminal 100A Main Switch •

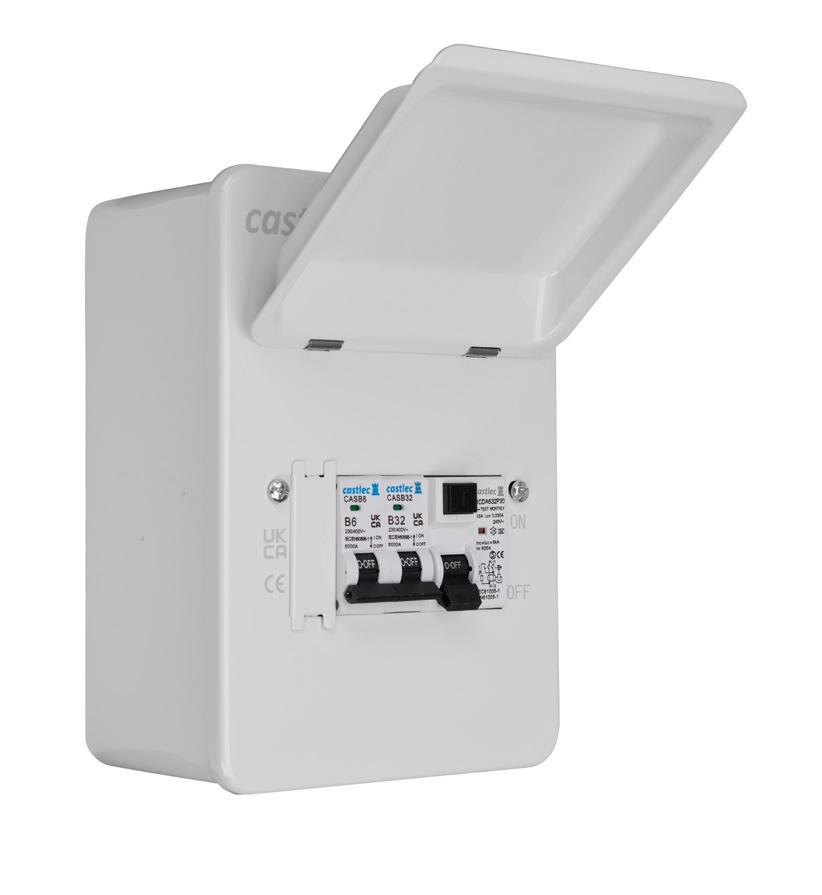

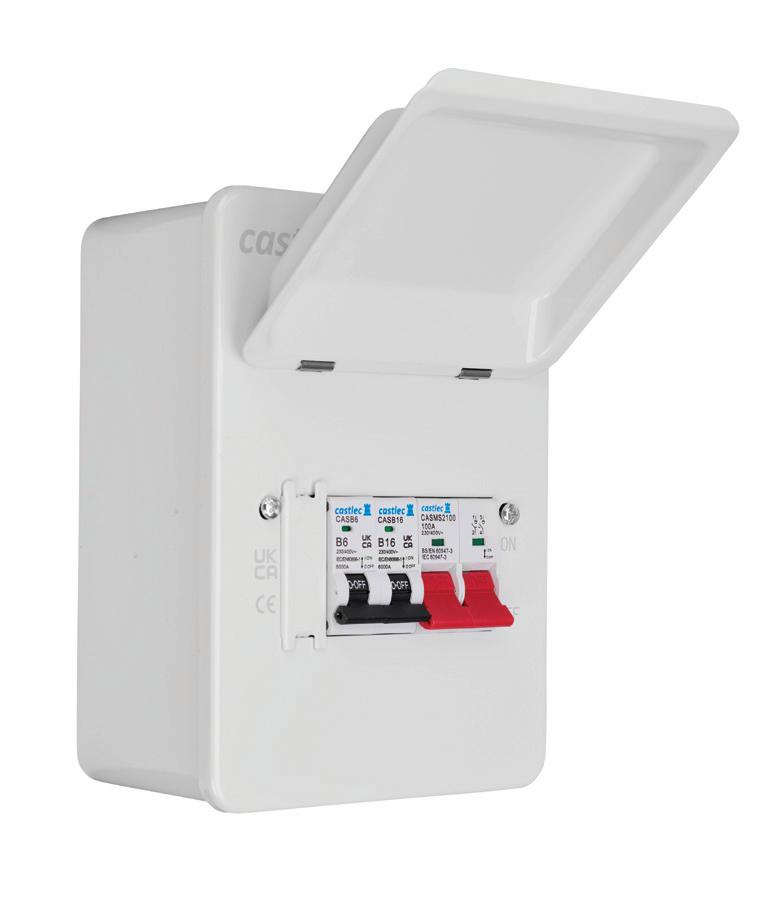

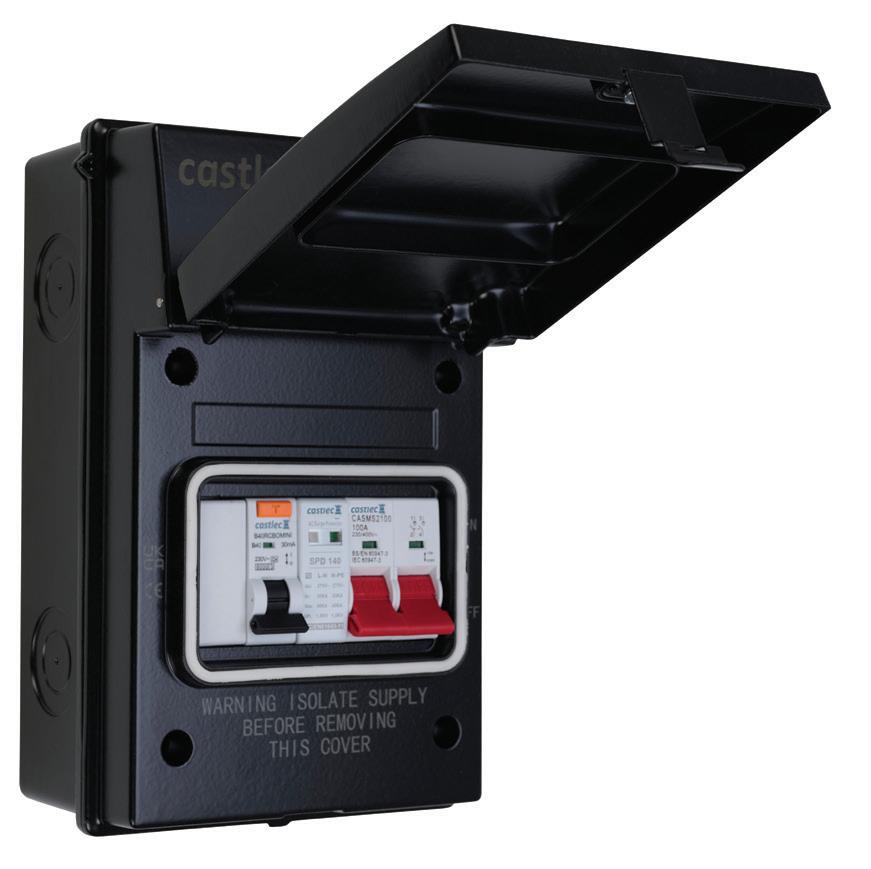

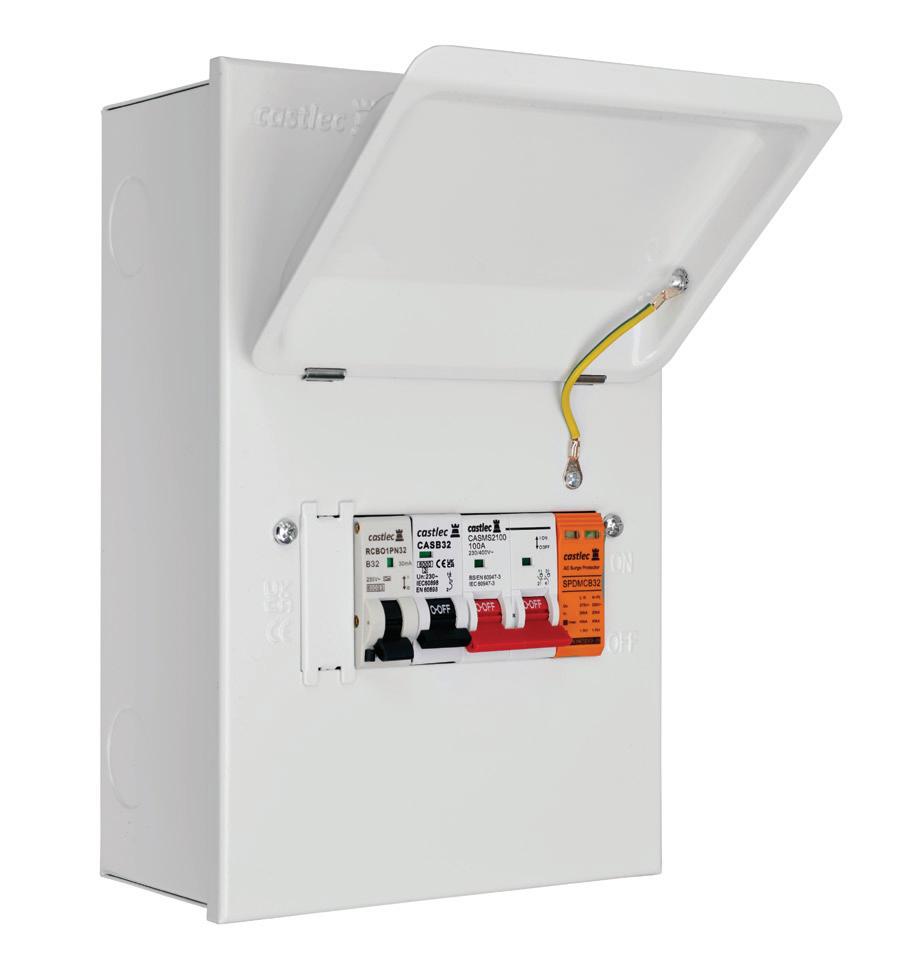

EV AND GARAGE DISTRIBUTION

GARAGE UNITS

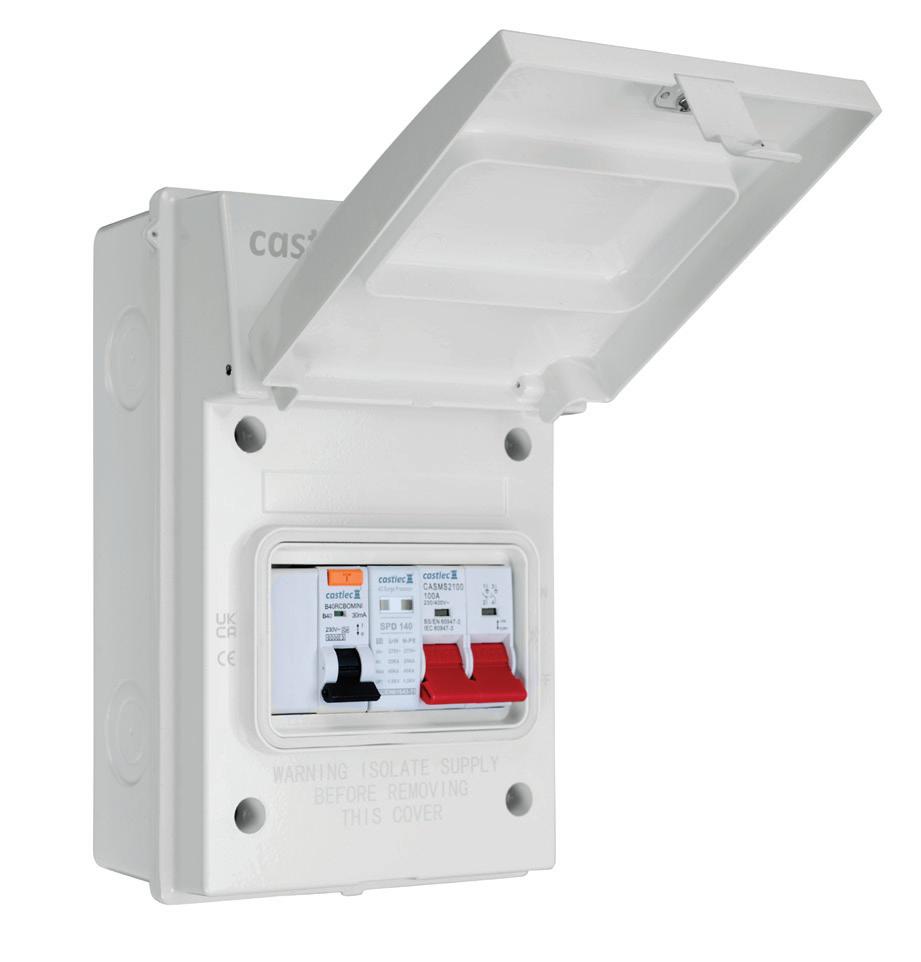

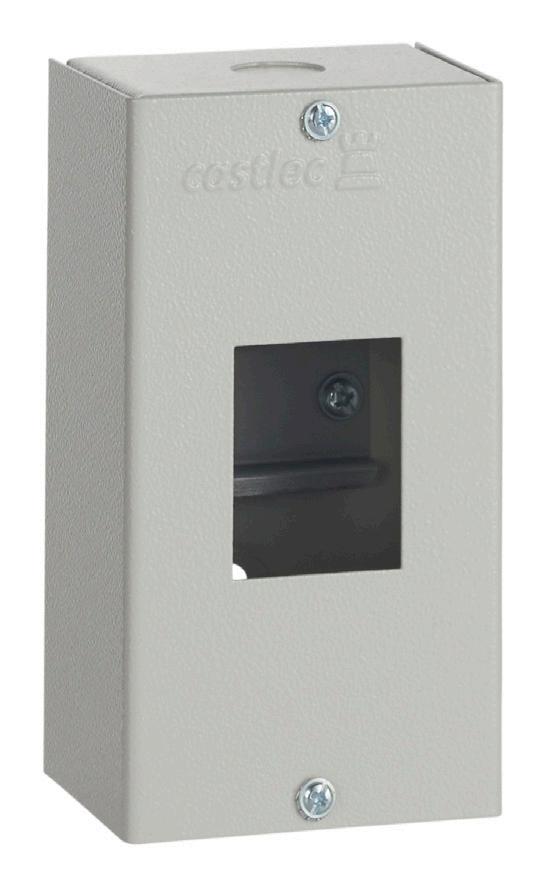

IP40 Metal Garage Units

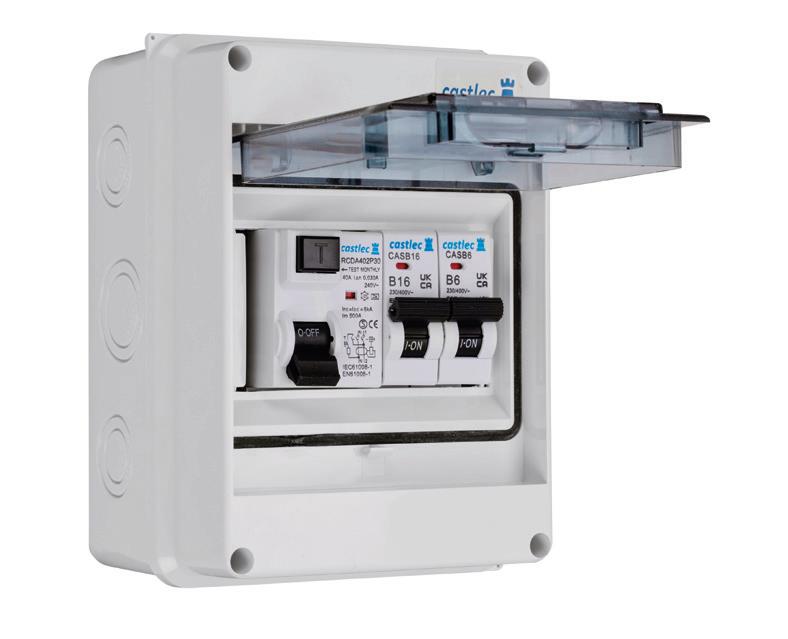

IP65 Plastic Garage Units

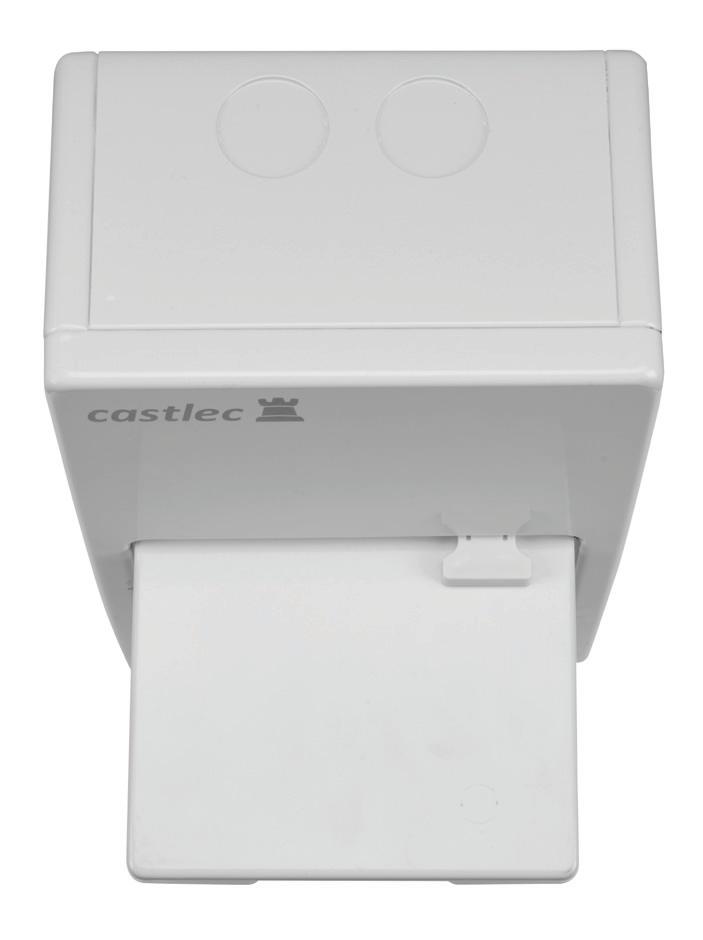

MODULAR ENCLOSURES

• Supplied complete with Neutral Cable, Busbar, Neutral & Earth Terminal Bar, Din Rail

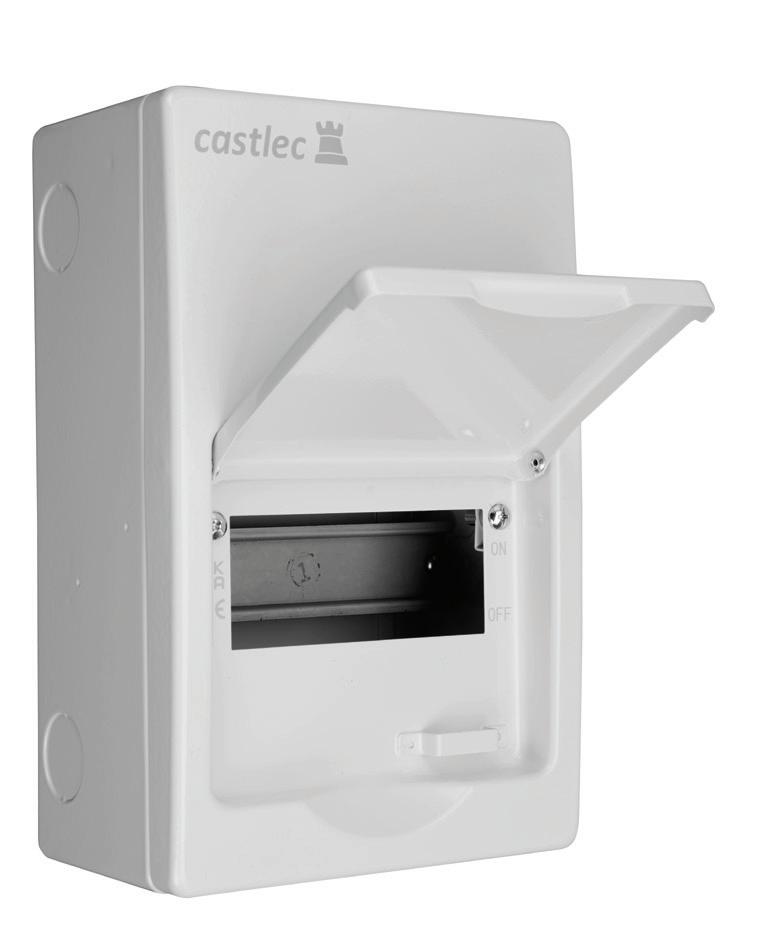

PLASTIC MODULAR ENCLOSURES

• Earth & Neutral bars fitted. 25mm Top & Bottom knockouts

• Earth & Neutral bars fitted. 20/25mm dual Knockouts top, bottom and sides.

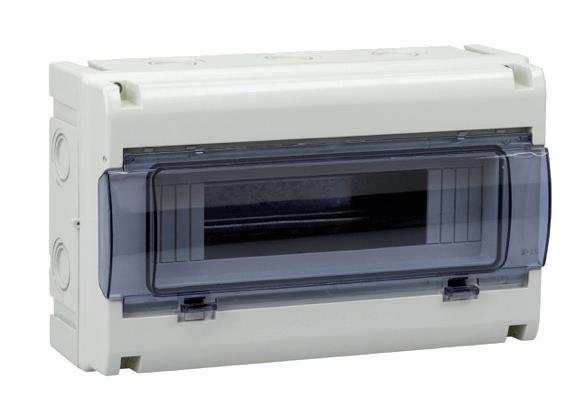

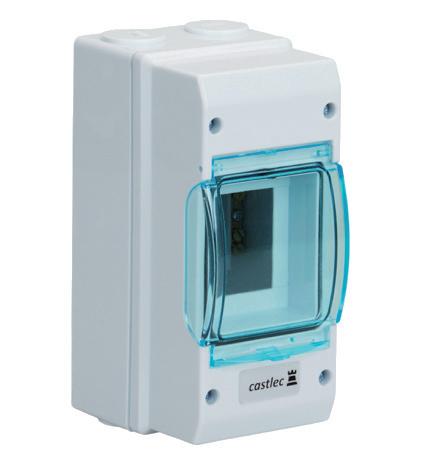

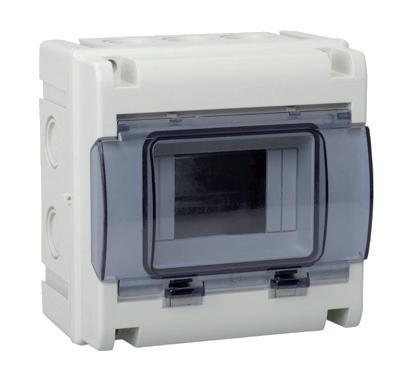

IP65 Din Rail Enclosures

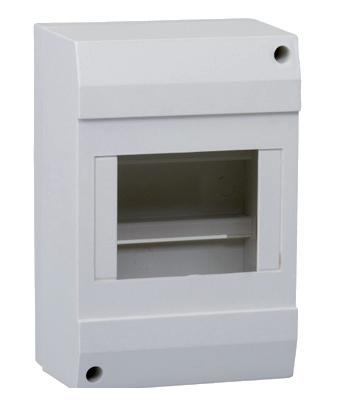

IP20 Din Rail Enclosures

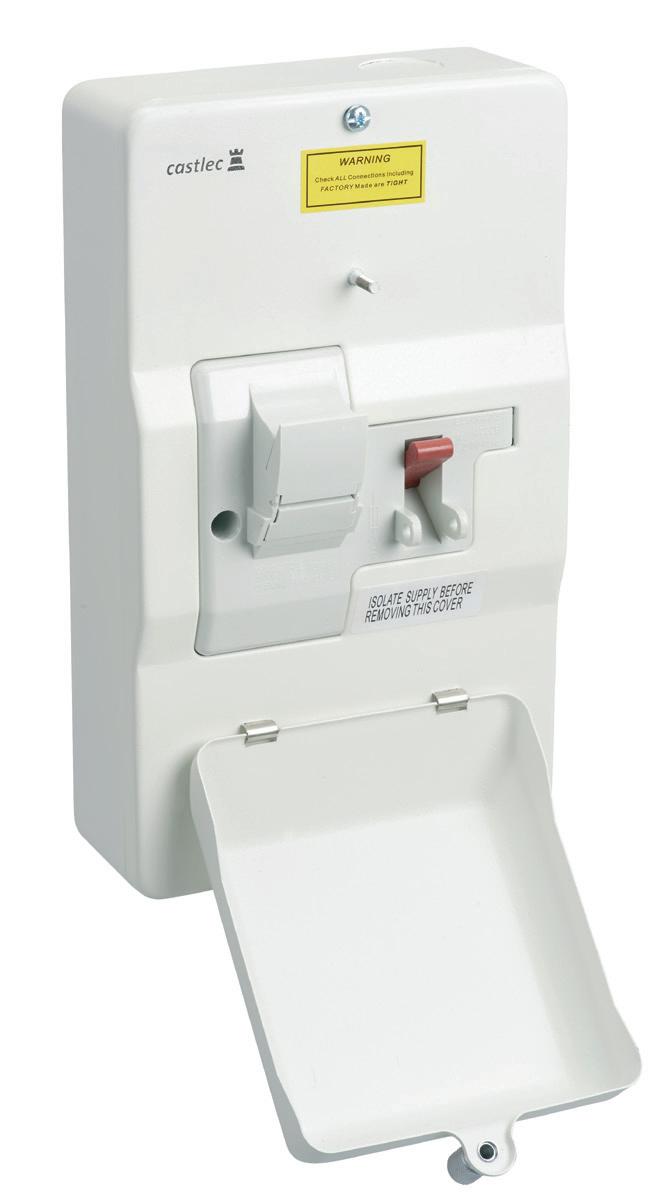

MAIN FUSED SWITCHES

ADMFB100N

• AC Rating : AC21

• Max 100A (63A,80A & 100A fuses included)

• Spirit Level

• BS EN61439-3

• Max cable 35mm

MAD100FMIS

AC Rating : AC22 Max 100A c/w 100A fuse Fuse holder to BSEN60947-3 Max cable 35mm

ADMDB100N AC21 100A METAL FUSED MAIN SWITCH 63, 80 & 100A Fuse included 8

MAD100FMIS AC22 100A METAL MAIN SWITCH FUSE (c/w 100A Fuse)

Fused Main Switch

100A AC21

Supplied with 80A & 100A Fuses

• Supplied with cable shoud

• Max Cable Capacity 35mm

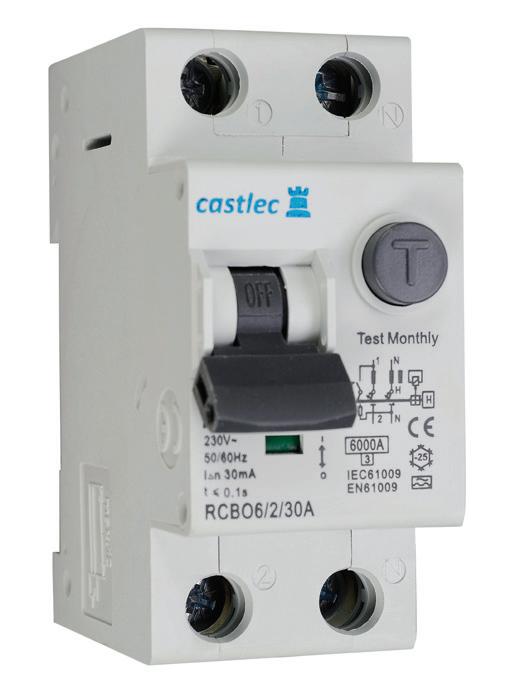

RCBO’S

With the growth of renewable energy systems such as EV Chargers and solar installations where power can be fed back into the grid, there is an increasing need for bidirectional current flow. Our Bidirectional RCBOs can detect faults regardless of the current direction, providing enhanced safety for these installations.

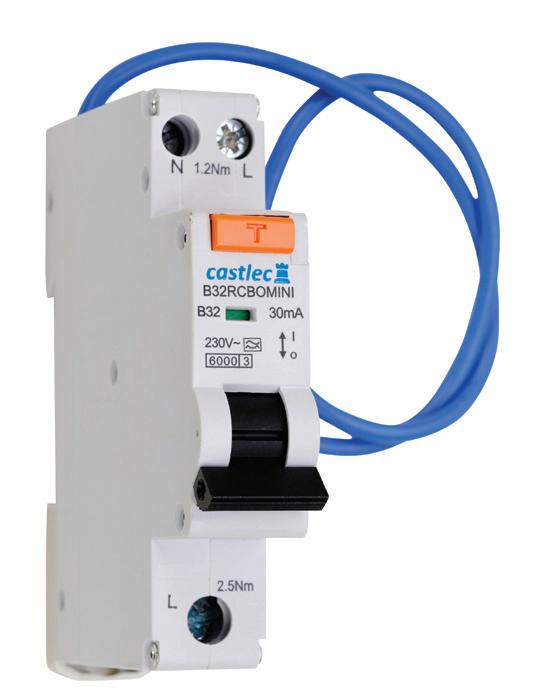

Single Module TYPE A Bi-directional RCBOs (1P+N Switched)

• BSEN61009-1 • TYPE A • BREAKING CAPACITY: 6kA

• Single Module • Bi-directional

6 Amp

B6RCBOMINI 10 Amp

16 Amp

20 Amp

32 Amp

40 Amp

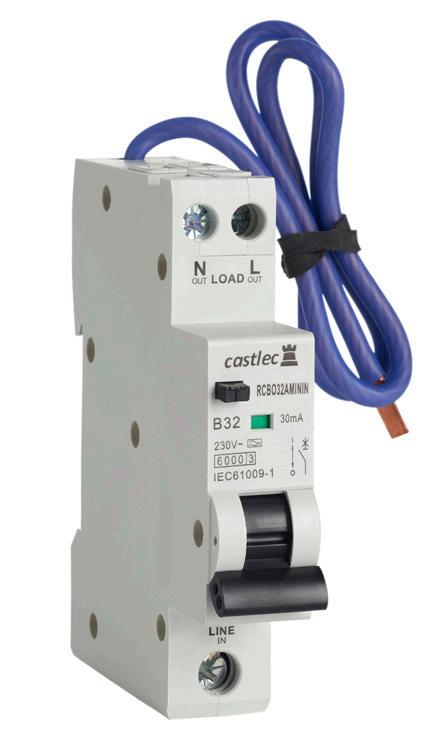

Single Module TYPE A RCBOs

Pole RCBOs

B10RCBOMINI

B16RCBOMINI

B20RCBOMINI

B32RCBOMINI

B40RCBOMINI

• BSEN61009-1 • TYPE A

• BREAKING CAPACITY: 6kA • Single Module

RCBO6AMININ

10 Amp

16 Amp

20 Amp

32 Amp

40 Amp

RCBO10AMININ

RCBO16AMININ

RCBO20AMININ

RCBO32AMININ

RCBO40AMININ

• BSEN61009-1 • TYPE A

• BREAKING CAPACITY: 6kA • Two Module

RCBOTCA6MINI

RCBOTCA10MINI

RCBOTCA16MINI

RCBOTCA20MINI

RCBOTCA32MINI

RCBOTCA40MINI

RCBO20/2/30

Double

SURGE PROTECTION

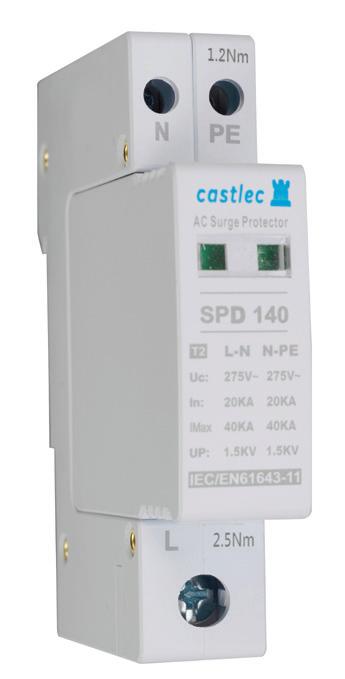

TYPE 2 Surge Protection Devices

18th Edition BS6761 stipulates that Surge Protection Devices are required unless a risk assessment is performed and determines otherwise.

PART NO

Our new surge protection devices are now single module and can be connected directly on the busbar without the need for additional MCB*- leaving more ways for household circuits. *If the incoming supply is protected by, equal to or no less than a 125A fuse no MCB is required*

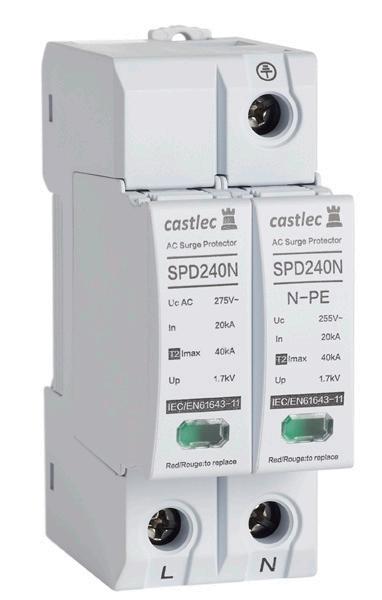

SPD240N SPD T2 2 Module c/w cables

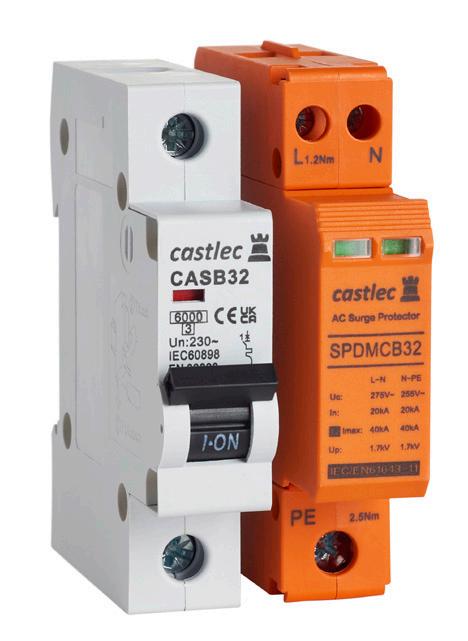

SPDMCB32 SPD T2 Single Module , plus 32A MCB & cables

ARC FAULT DETECTION DEVICE

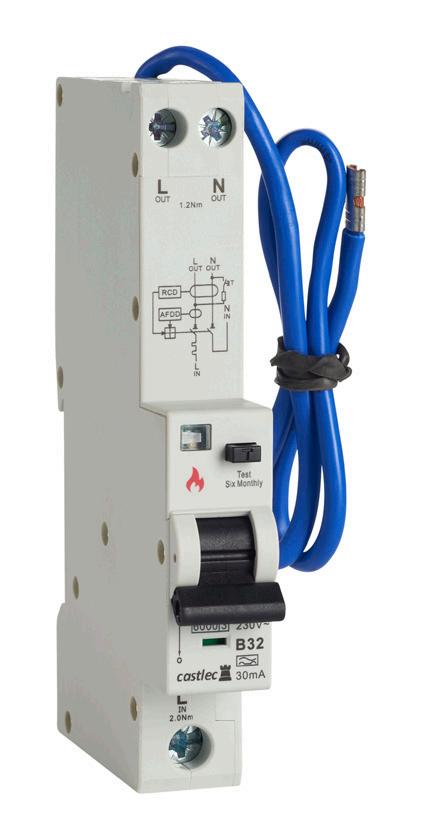

AFDD with RCBO

The latest Edition to the Wiring Regulations BS7671:2018+A2@2022 mandates AFDDs for a select amount of installation types:

• Higher Risk Residential Buildings (HRRB) • Houses in Multiple Occupation (HMO)

• Purpose-Built Student Accommodation (PBSA) • Care homes

For all other premises, the use of AFDDs is recommended for single-phase AC final circuits supplying socket-outlets not exceeding 32A.

PART NO

AFDR6 6A Single Module AFDD with RCBO

AFDR10 10A Single Module AFDD with RCBO

AFDR16 16A Single Module AFDD with RCBO

AFDR20 20A Single Module AFDD with RCBO

AFDR32 32A Single Module AFDD with RCBO

AFDR40 40A Single Module AFDD with RCBO

• LED Fault Indication

• Type A

• Short Circuit Rating 6ka

• 1P+N Switched

• BS EN62606 & IEC 61009

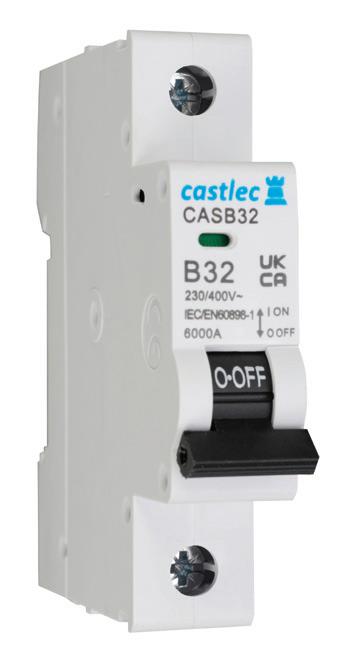

B Curve & C Curve MCBs

32 Amp CASB32 CAS32CMCB 12

Amp CASB40

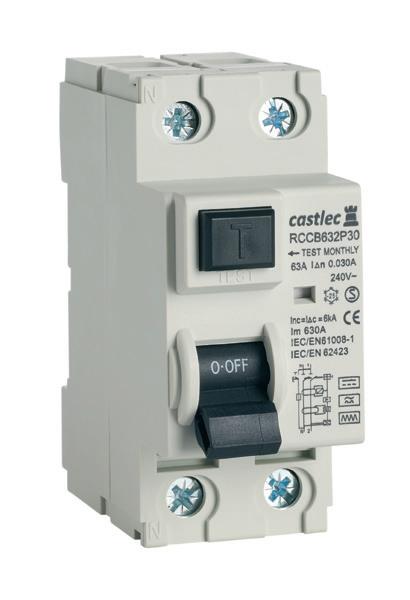

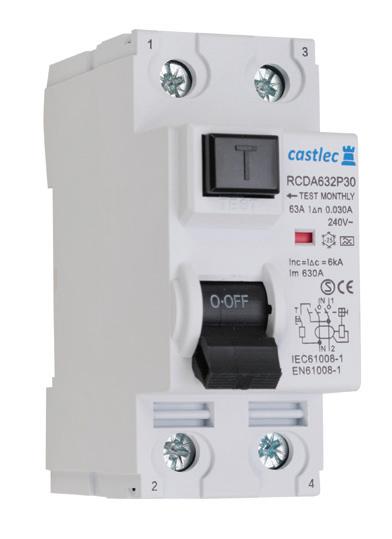

TYPE A & TYPE B RCDS

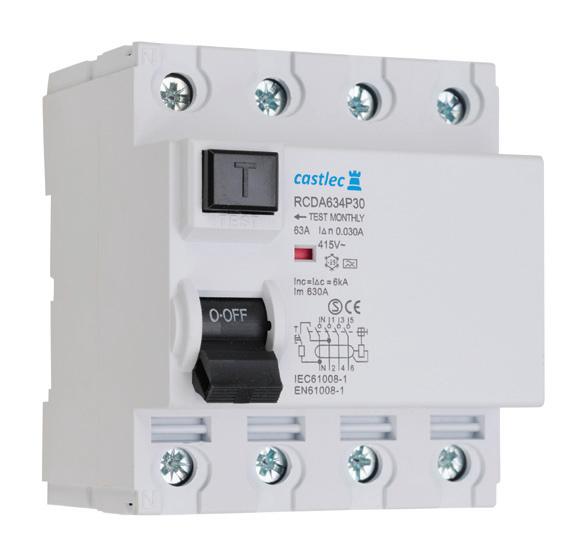

TYPE A RCDs

• Breaking Capacity 6kA

• Type A used to detect AC & DC Pulsating Components

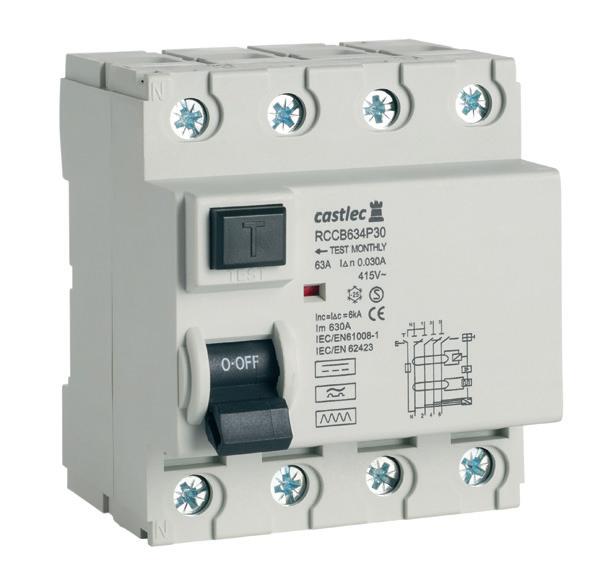

TYPE B RCDs

Type B residual current circuit breakers (RCCBs) provide total protection for all known residual current faults.They are particularly suited to applications such as:

• Electric vehicle charging, where smooth DC fault current >6mA exists

• Small scale electricity generating systems such as solar PV and wind generators

• Inverters for variable speed control

• Uninterruptible power supplies (UPS), and battery chargers

• Three phase rectified supplies

• UK-CA BS EN60898-1

• Breaking Capacity 6kA

• Recommended Tightening Torque: 2.0nM

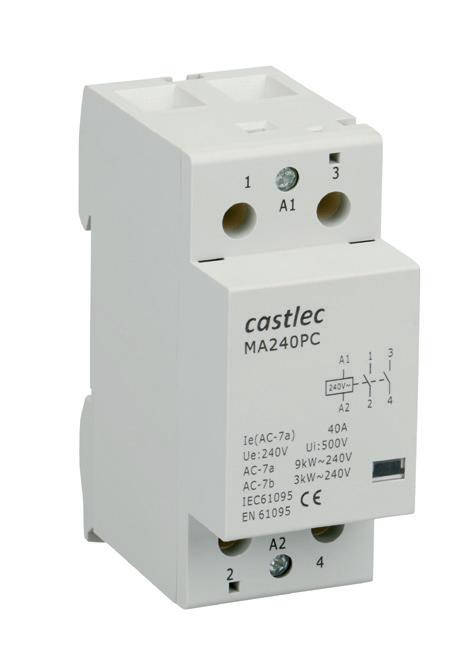

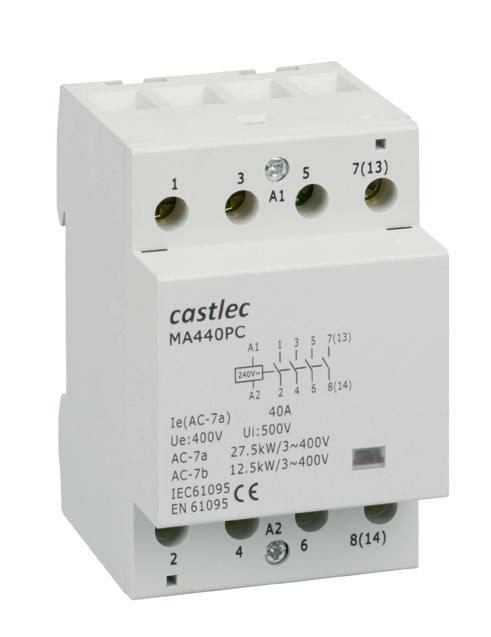

CONTACTORS & AUXILLIARY ITEMS

BSEN61558-2

MA220PC 20A AC Contactor 2P N/0 1

MA425PC 25A AC Contactor 4P N/0 2

MA240PC 40A AC Contactor 2P N/0 2

MA440PC 40A AC Contactor 4P N/0 3

MA263PC 63A AC Contactor 2P N/0 2

MA463PC

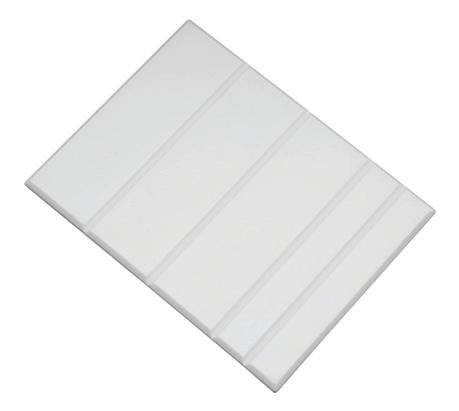

Plastic and Metal Blanks

ADCUBL Plastic Blank (Strip of 5)

Metal Blank (Individual) MCBBLANK MCB MODULE BLANK PBC45-70 PLASTIC BLANKING COVER

MCB Padlock

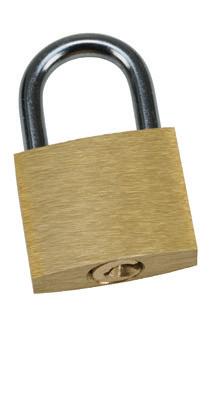

Consumer Unit Padlock

ACCESSORIES & RCD SOCKETS

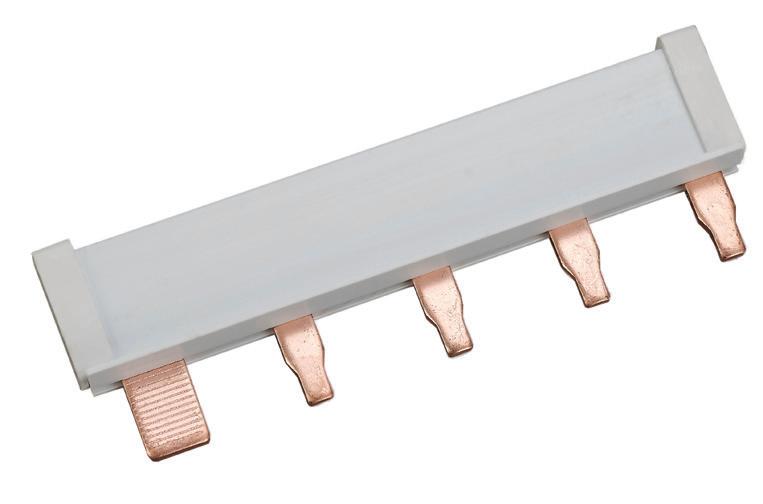

Busbar & Cables

BUS4 4 WAY BUSBAR

BUS4MG 4 WAY BUSBAR FOR GARAGE UNIT

BUS6 6 WAY BUSBAR

BUS8 8 WAY BUSBAR

BUS10 10 WAY BUSBAR

BUS12 12 WAY BUSBAR

BUS14 14 WAY BUSBAR

BUS16 16 WAY BUSBAR

BUS18 18 WAY BUSBAR

BUS22 22 WAY BUSBAR

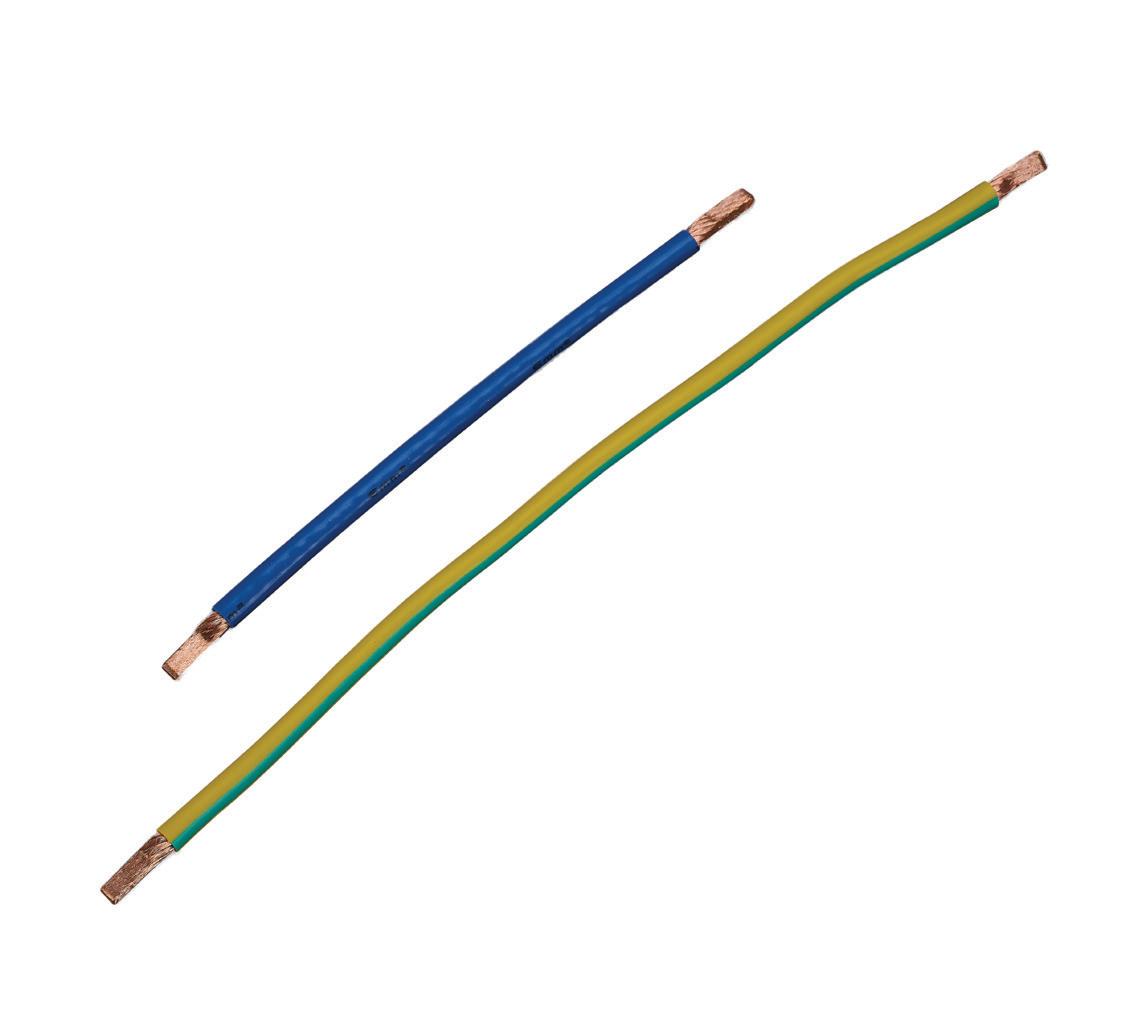

CABLE4-8 4 - 8 WAY Blue & G/Y CABLES

CABLE10-12 10 - 12 WAY Blue & G/Y CABLES

CABLE14-16 14 - 16 WAY Blue & G/Y CABLES

CABLE18-22 18 - 22 WAY Blue & G/Y CABLES

Surface Mounting Frames

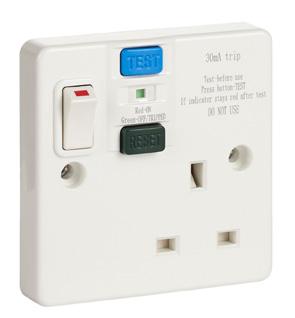

RCD Sockets - TYPE A

• Passive/ Latching • RCD Contact Break: Double Pole

• Maximum Operating Current: 13A • Complies with BS1363

• Rated Trip Current 30mA • Cable Capacity: 3 x 2.5mm

• Operating Voltage: AC220-240V / 50Hz • Trip Speed: 40ms

ADRCDSP1A

ADRCDSM2A

ADRCDSPURA

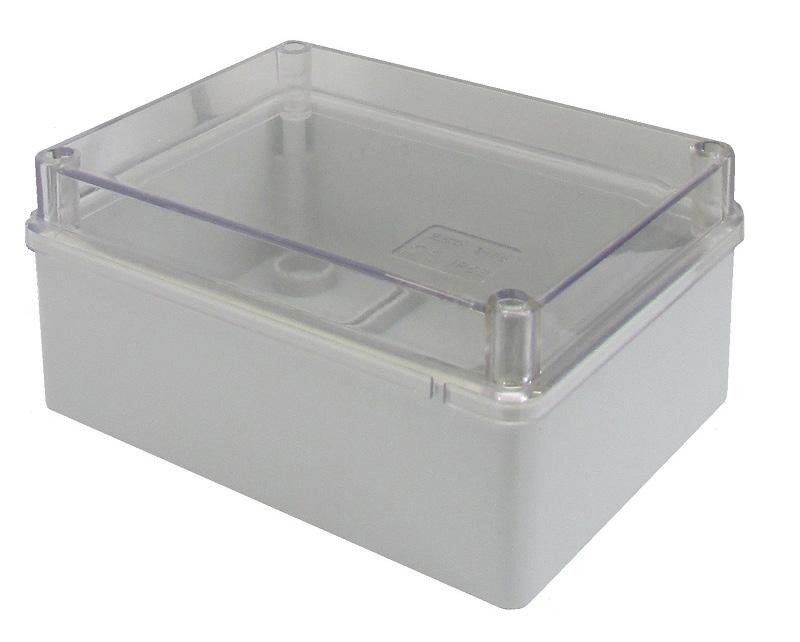

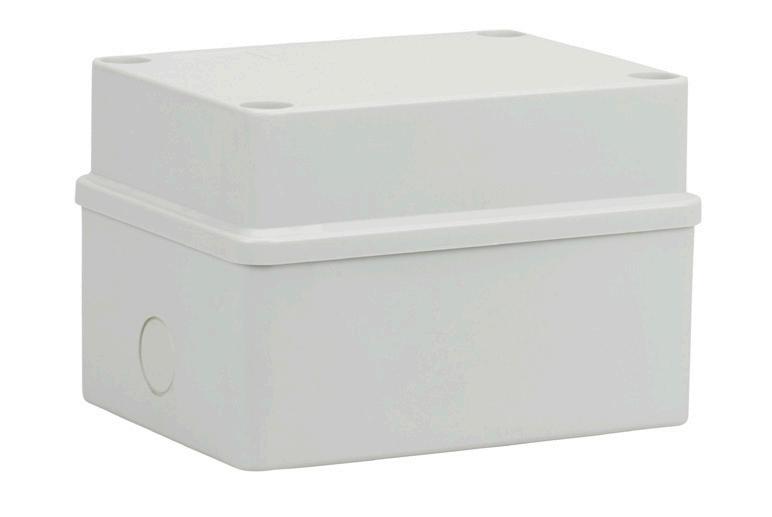

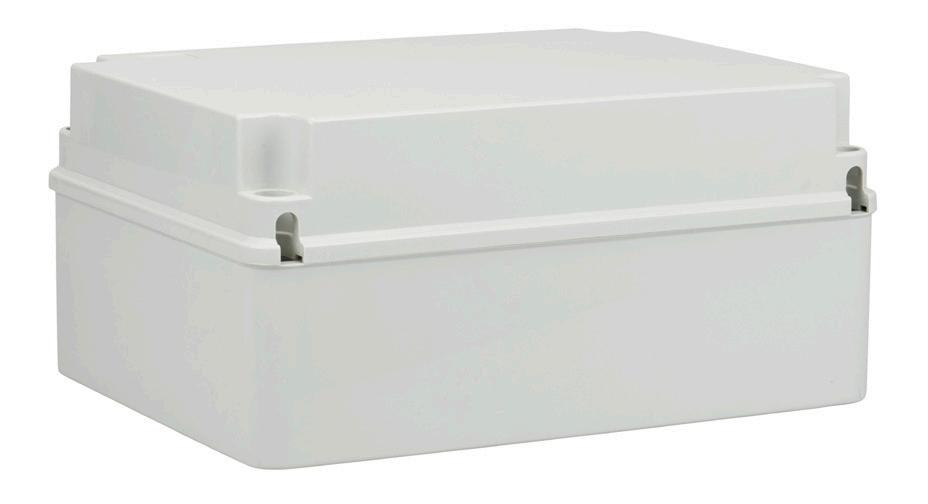

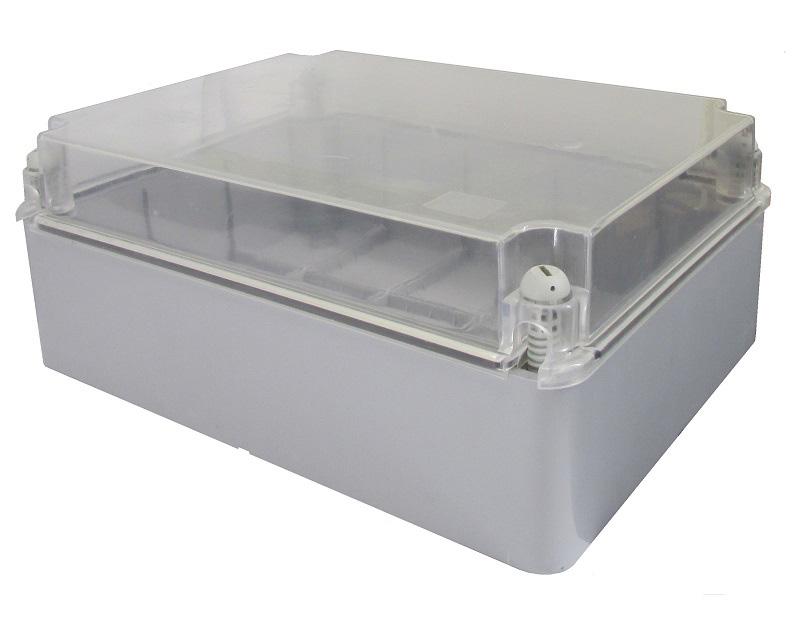

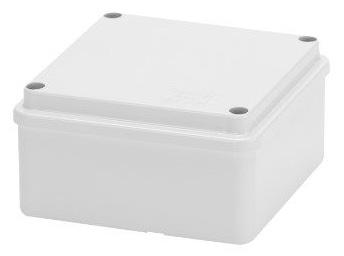

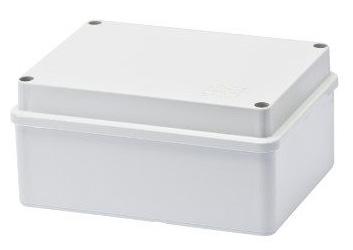

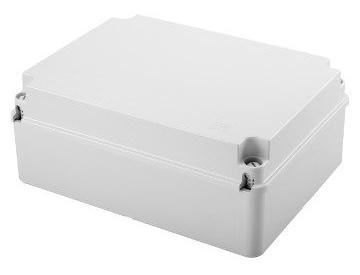

• ABS Material UV Resistant

• IP56 Box with smooth walls and grey screw on lids

• Standard Tested to EN 60670

• Flame Retardant Tested by UL 94 to V-0 Grade

AD25T
AD55T

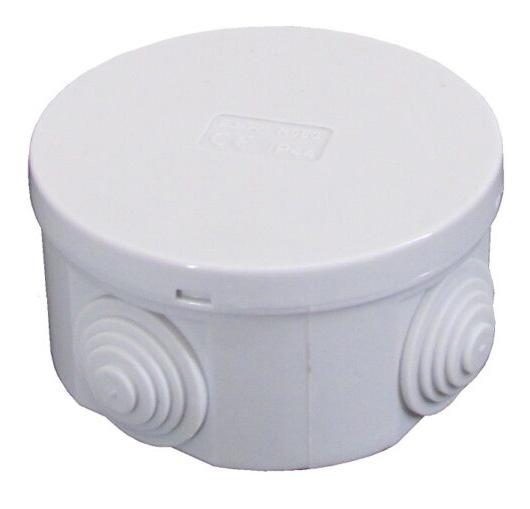

IP44 Box Stepped Glands Press On Lids

Metal Base Plate
AD25D
AD2
AD55D
AD3

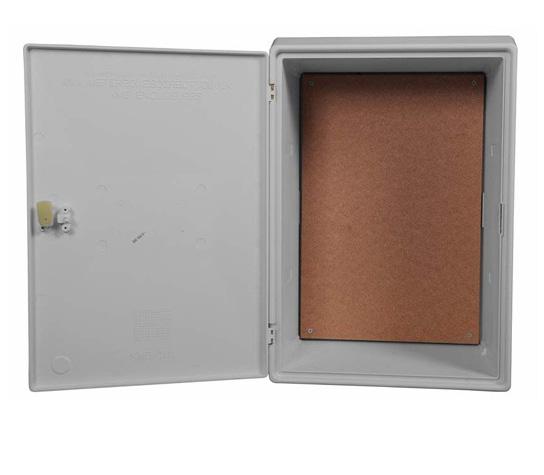

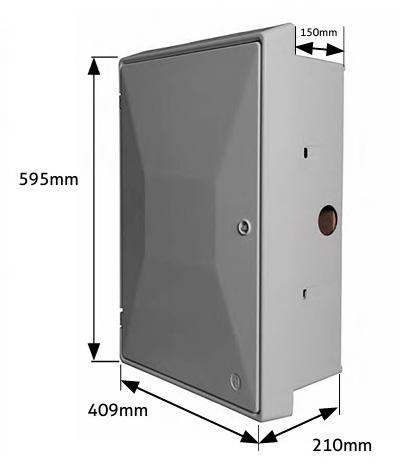

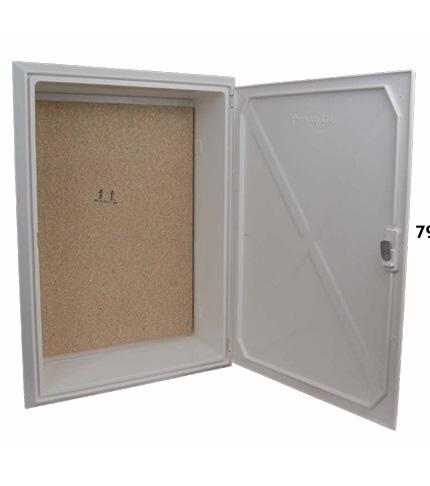

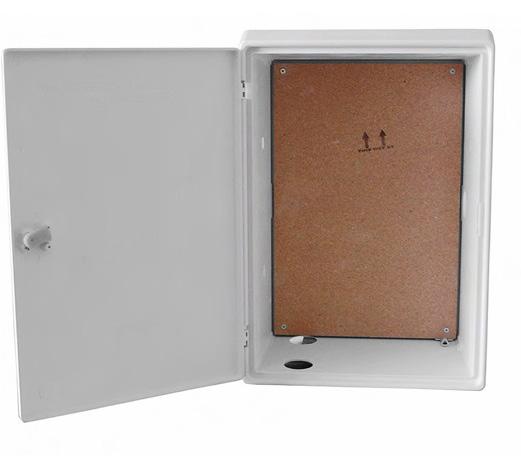

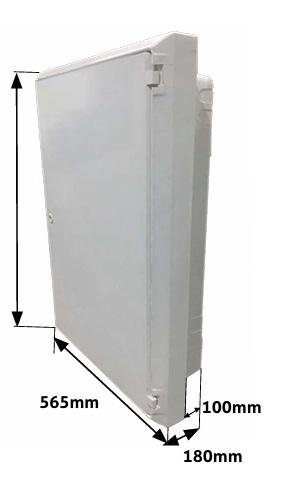

GRP METER BOXES

Specifications:

• Compliant to British Standard BS 8567:2012

• Fire retardant to BS 476, Part. 7, 1997, Class 2

• Complies to ESI standard 12-3 April, 1986

• Constructed from GRP – Glass Reinforced Plastic

• Suitable for all meters including prepay and smart

• Will not corrode, weather resistant

• Easily cleaned and can be painted

• Cable entry and meter tail positions are predrilled and supplied with in-fill cap,cable entry position via hockey stick (not supplied)

• Complete with timber backboard, hinges, lock and key

• Hinges on left

• Minimum Wall Cut Out : 535mm x 365mm

Specifications:

• Compliant to British Standard BS 8567:2012

• Fire retardant to BS 476, Part. 7, 1997, Class 2

• Complies to ESI standard 12-3 April, 1986

• Constructed from GRP – Glass Reinforced Plastic

• Suitable for all meters including prepay and smart

• Will not corrode, weather resistant

• Easily cleaned and can be painted

• Cable entry position via hockey stick (not supplied)

• Complete with timber backboard, hinges, lock and key

• Hinges on left

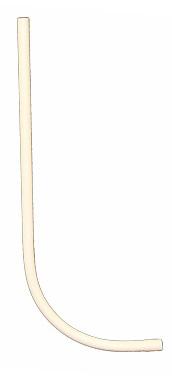

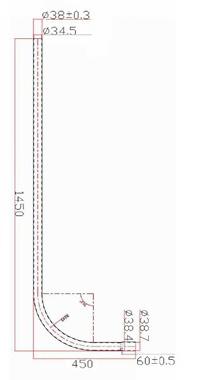

Specifications:

• Material: UPVC

• Colour: White

• 38mm diameter

• Dimensions : 1450mm high x 450mm long

Specifications:

• Material: UPVC

• Colour: White

• 44mm diameter (OD) - 39mm Internal Diameter

• Dimensions : 1600mm high x 610mm long

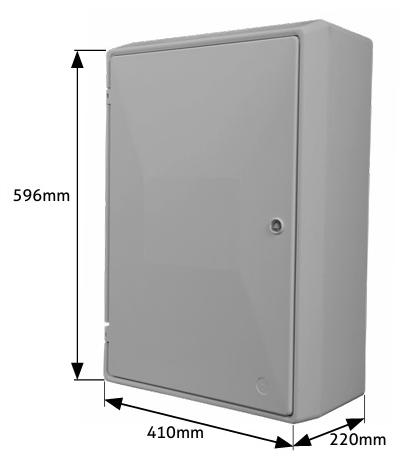

GRP METER BOXES

Specifications:

• Compliant to British Standard BS 8567:2012

• Constructed from GRP – Glass Reinforced Plastic

• Fire retardant to BS 476, Part. 7, 1997, Class 2

• Complies to ESI standard 12-3 April, 1986

• Suitable for all meters including prepay and smart

• Will not corrode, weather resistant

• Easily cleaned and can be painted

• Multiple cable knock out positions

• Complete with timber backboard, hinges, lock and key

• Hinges on right

• Minimum Wall Cut OUt : 715mm x 485mm

• Internal dimensions at rear : 688mm x 465mm

Specifications:

• Compliant to British Standard BS 8567: 2012 & Fire retardant to BS 476, Part. 7, 1997, Class 2.

• Complies to ESI standard 12-3 April, 1986.

• Constructed from Glass Reinforced Plastic.

• Does not require cavity in wall.

• Suitable for all meters including prepay and smart.

• Will not corrode, weather-resistant, it’s Easy to clean and can be painted.

• Complete with timber backboard, hinges, lock and key (Hinges on the right.)

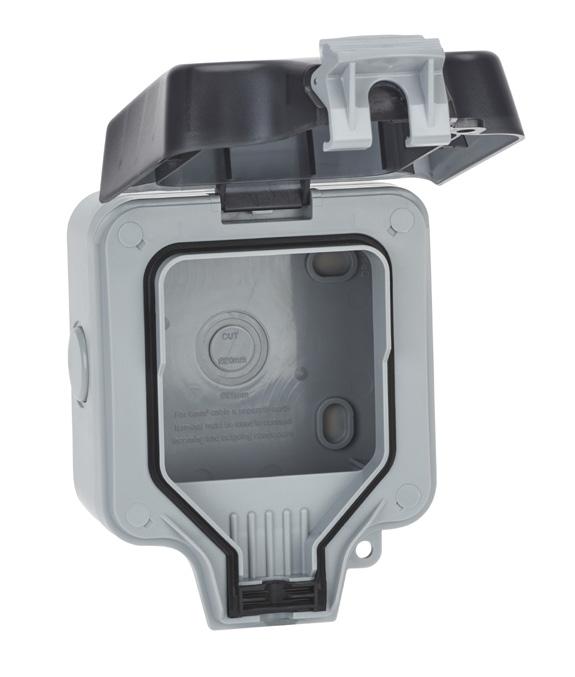

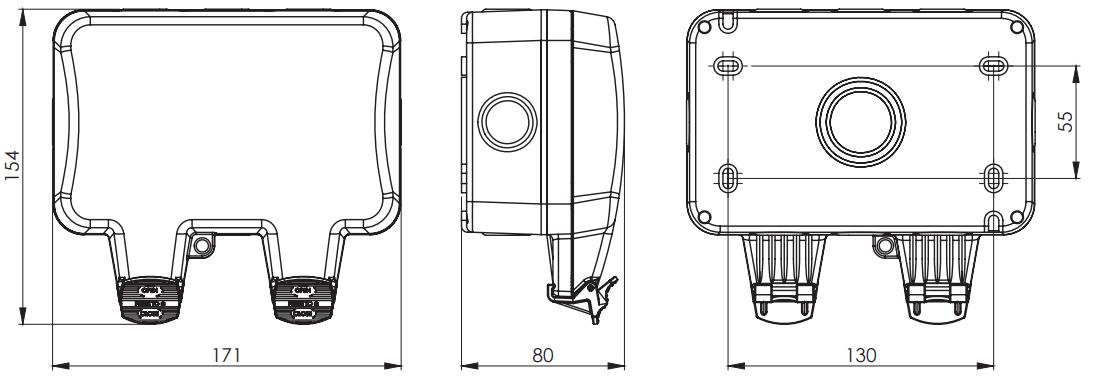

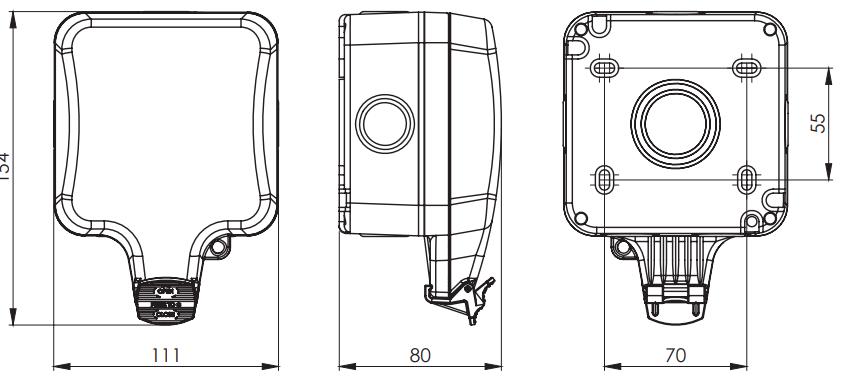

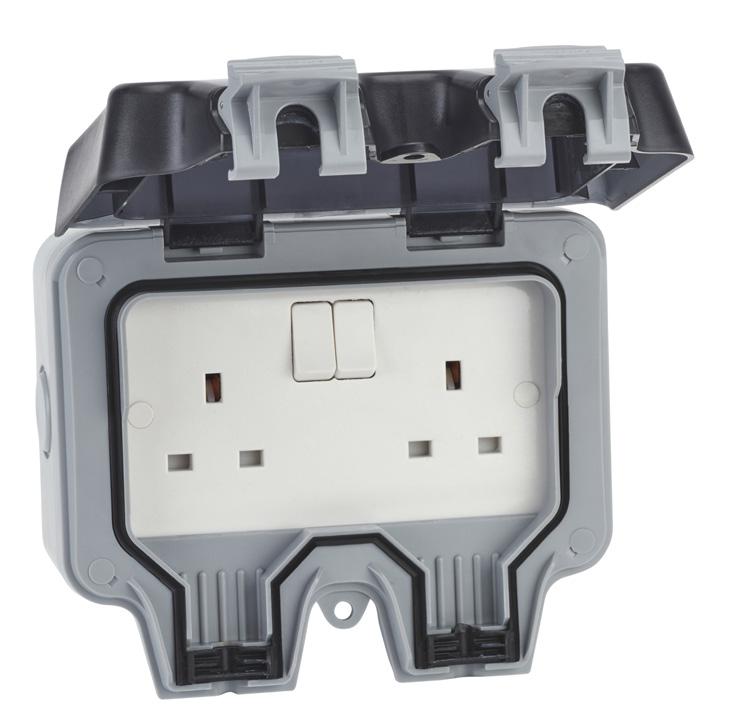

• IP66 Rated • Lockable • Robust polycarbonate housing

• 13Amp Single & Twin Sockets Compliant to BS1363-2

• Multiple Knockouts and 1 Rear cut out

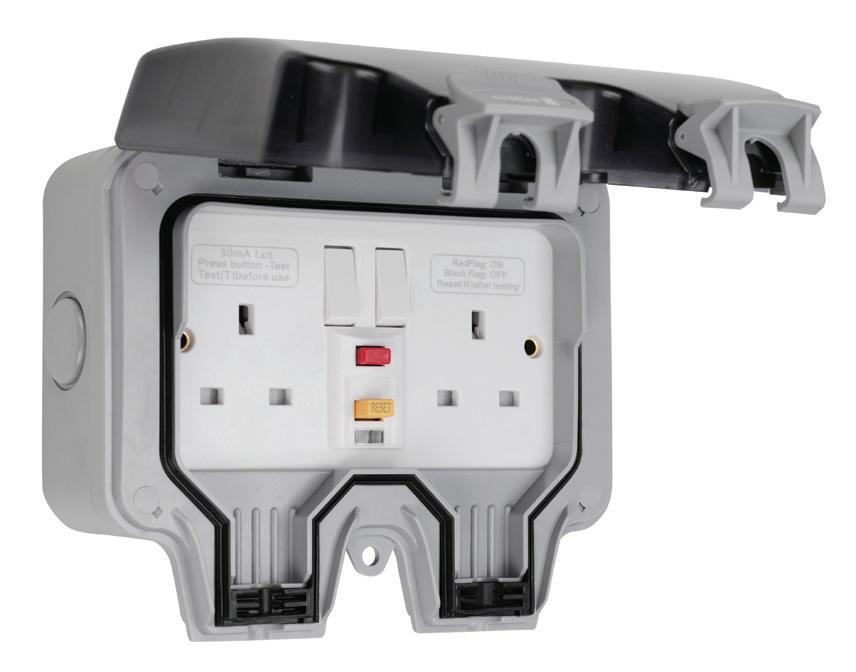

• IP66 Rated • Type A RCD Sockets • Robust polycarbonate housing

• Lockable • Multiple Knockouts and 1 Rear cut out

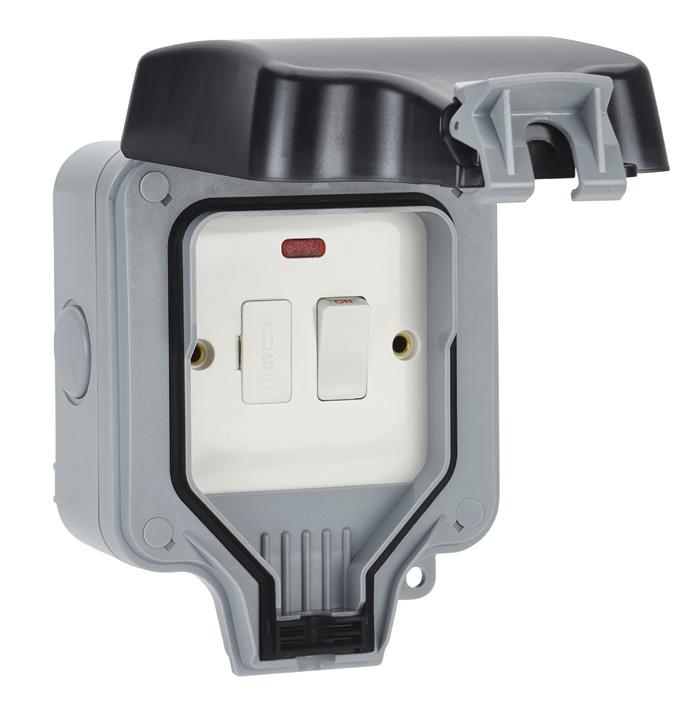

• IP66 Rated • Spur Compliant to BS1363-4 • Lockable

• Multiple Knockouts and 1 Rear cut out • Robust polycarbonate housing

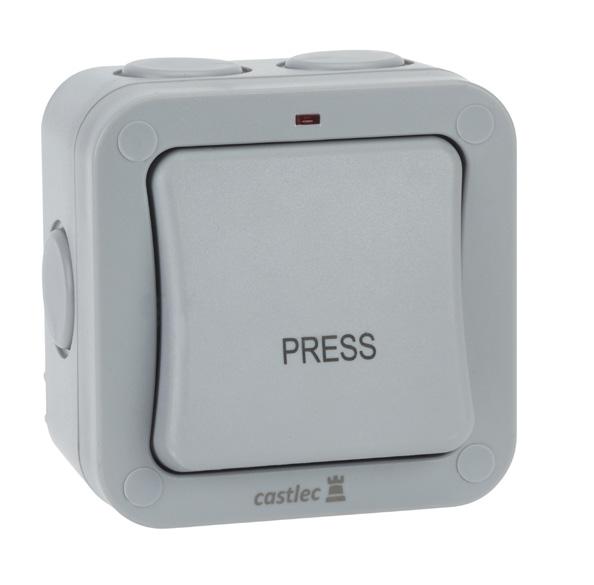

IP66 OUTDOOR RANGE

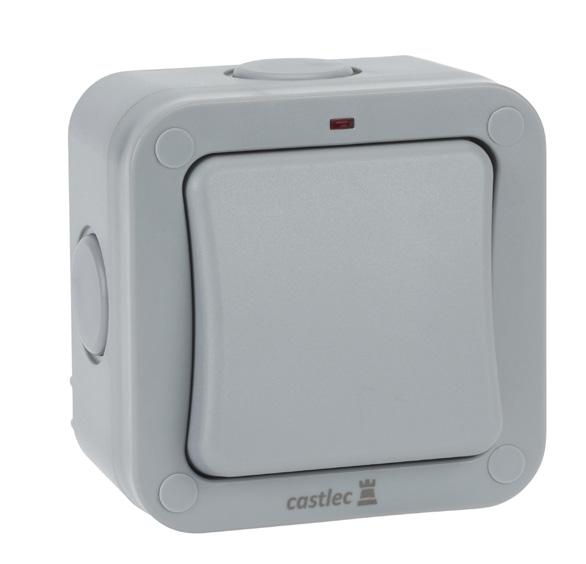

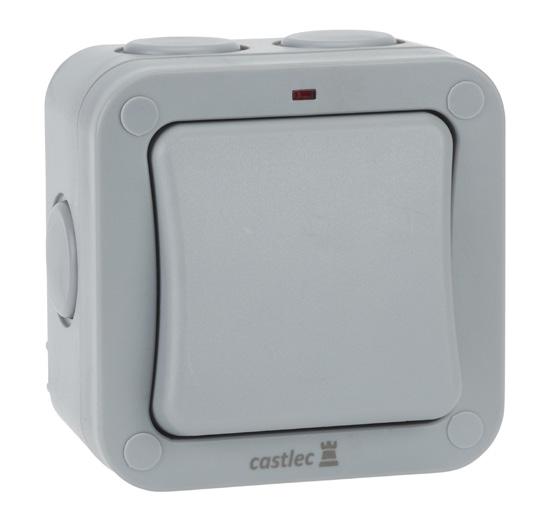

ADWP1S IP66 Outdoor 20 Amp 1 Gang 2 Way Switch Neon 50

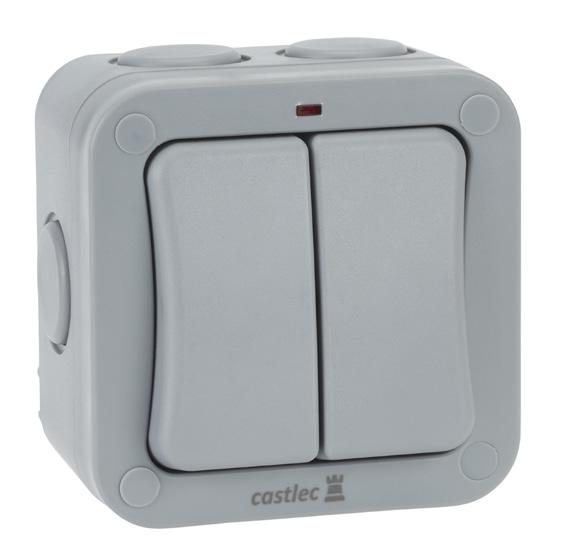

ADWP2S IP66 Outdoor 20 Amp 2 Gang 2 Way Switch Neon 50

• IP66 Rated

• Switches Compliant to BS EN60669-1

• Knockouts Top, Bottom, Sides and 1 Rear cut out

• Switches with power indicator

• Robust and impact resistant

• IP66 Rated

• Switches Compliant to BS EN60669-1

• Knockouts Top, Bottom, Sides and 1 Rear cut out

• Switches with power indicator

• Robust and impact resistant

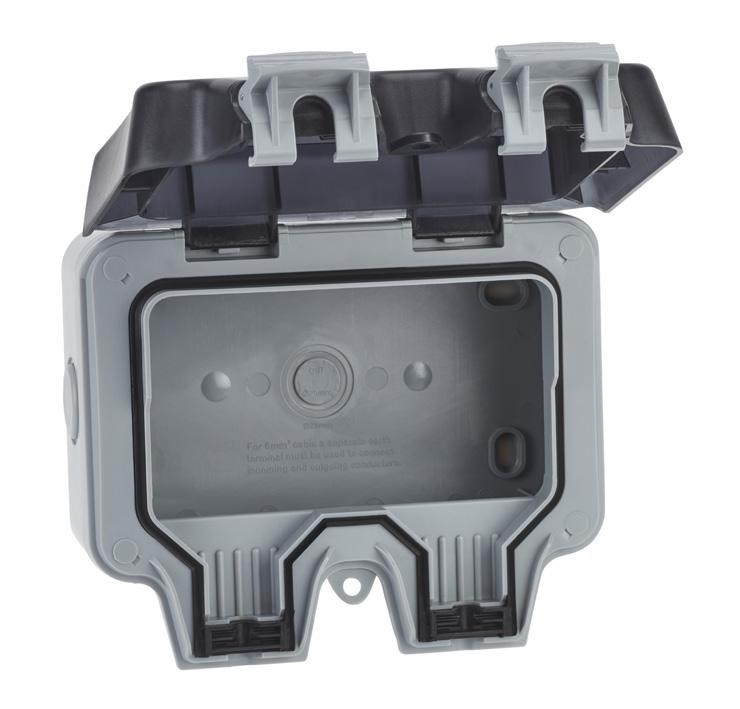

• IP66 Rated

• Multiple Knockouts and 1 Rear cut out

• Robust polycarbonate housing

• Lockable

• Provides ability to self configure to suit application

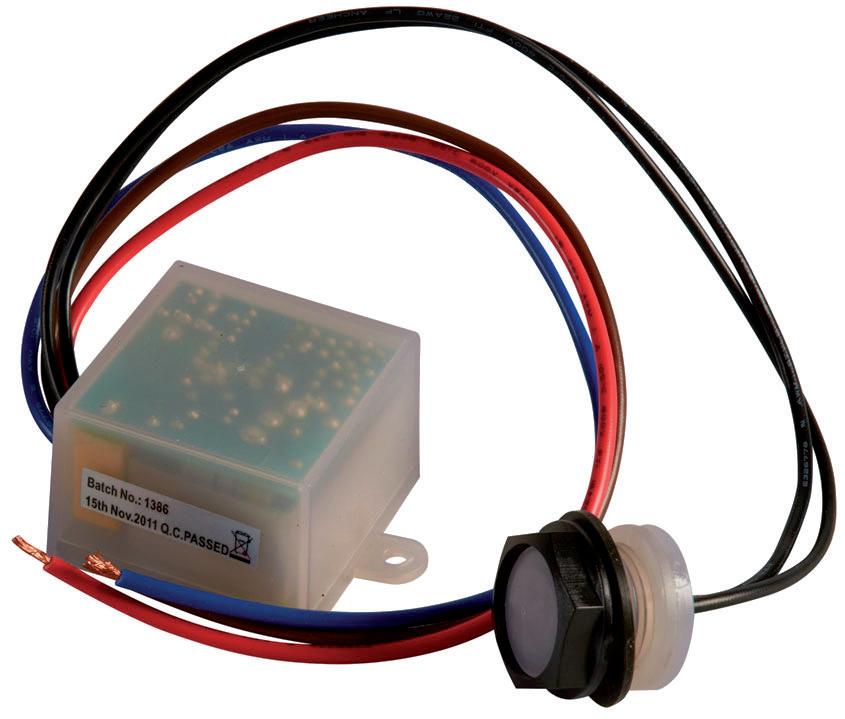

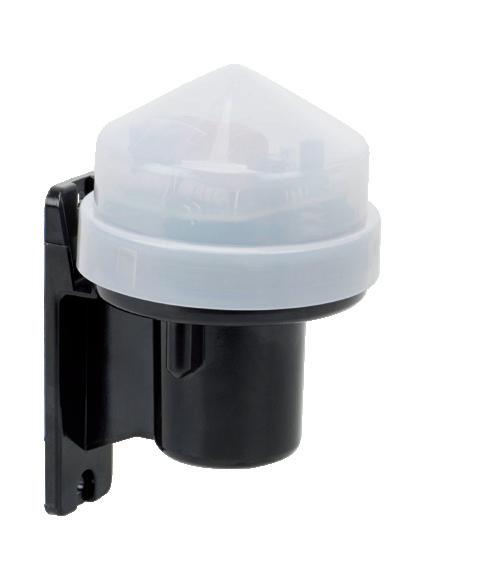

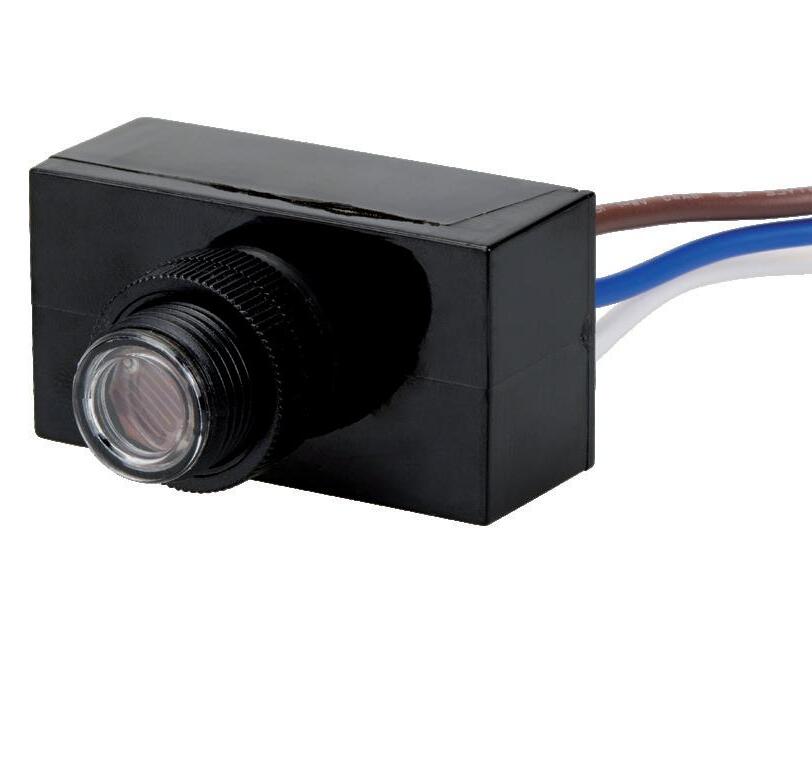

PHOTOCELL SENSORS

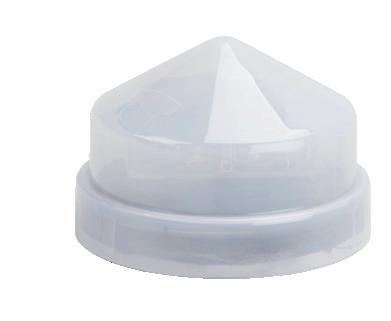

Photocell Kits & Heads

• Electronic Relay Load Switch Voltage: 240V

• Power Frequency: 50-60Hz

• Light Level: ON<20LUX-OFF<80LUX

• Operating Temp:-20 °C to +80 °C

• Approved to: EN 60 669-1-2001/2004

• IP Rating: IP65

• Voltage: 240V

• Power Frequency: 50-60Hz

• Light Level: ON<20LUX-OFF<80LUX

• Operating Temp:-40 °C to +70 °C

• Approved to: EN 60 669-1-2001/2004

• IP Rating: IP65

• Maximum Load: 5A

• Power Consumption: 1.5VA

• Lead Length: 260mm

• Photocell Thread: 20mm

• Voltage: 240V

• Power Frequency: 50-60Hz

• Light Level: ON<20LUX-OFF<80LUX

• Operating Temp:-40 °C to +70 °C

• Approved to: EN 60 669-1-2001/2004

• IP Rating: IP65

• Maximum Load: 5A

• Power Consumption: 1.5VA

• Lead Length: 280mm

• Photocell Thread : 16mm

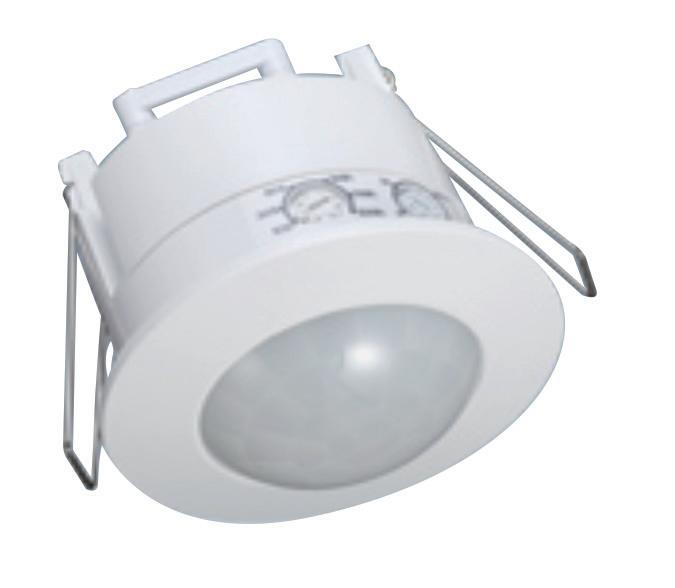

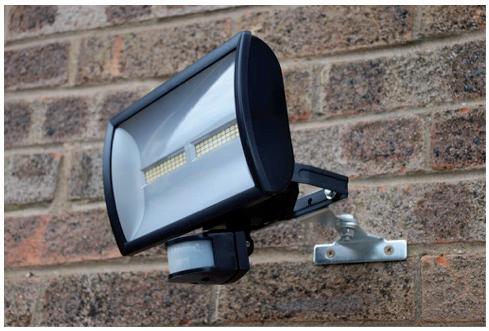

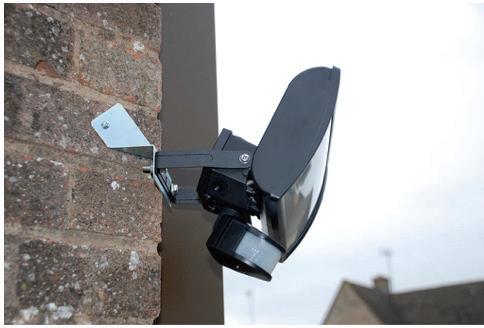

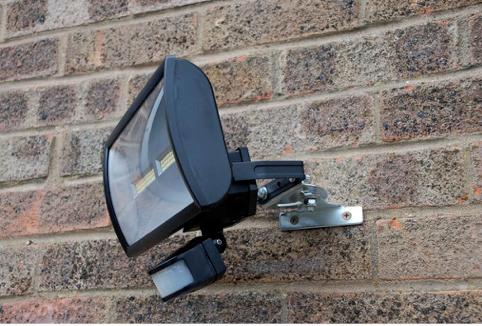

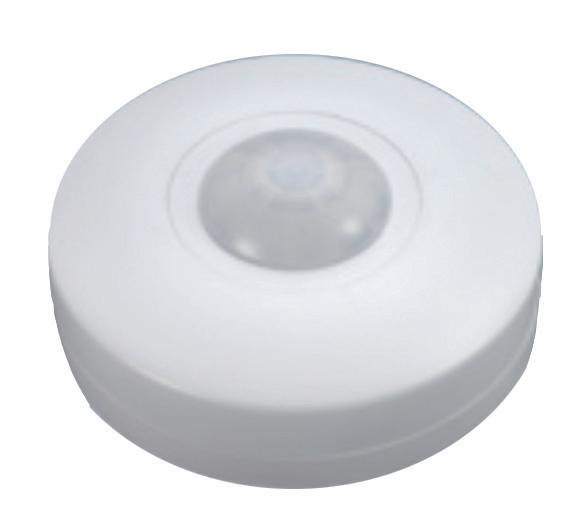

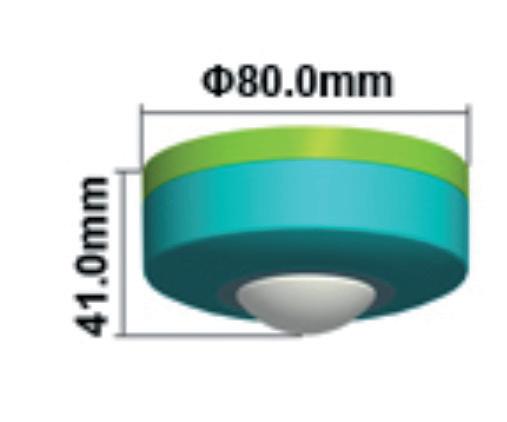

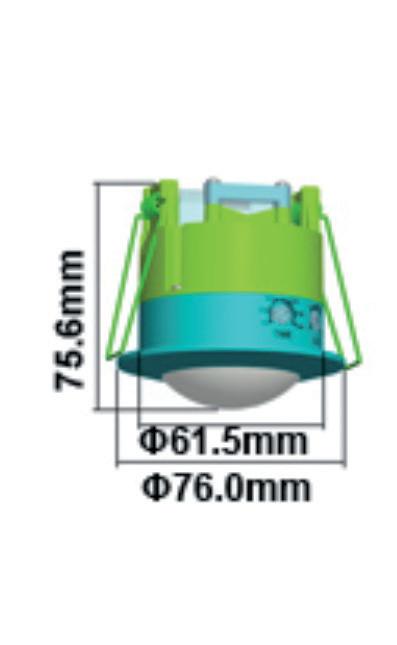

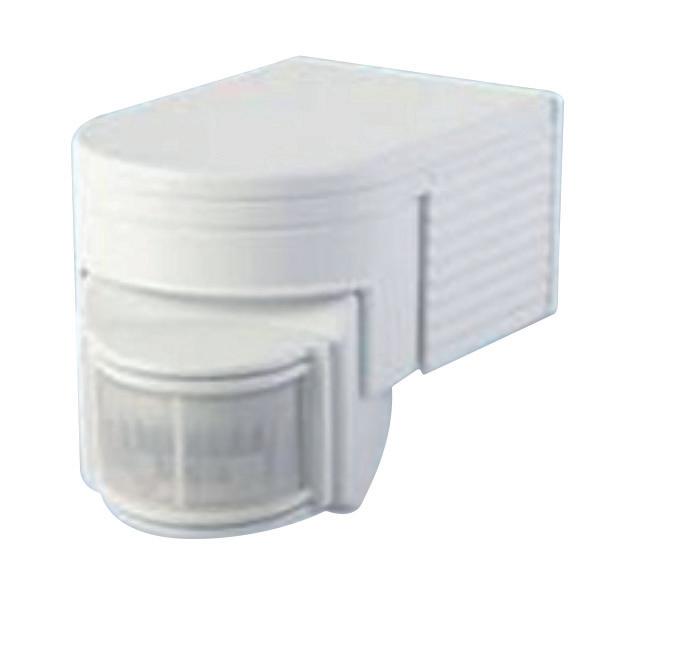

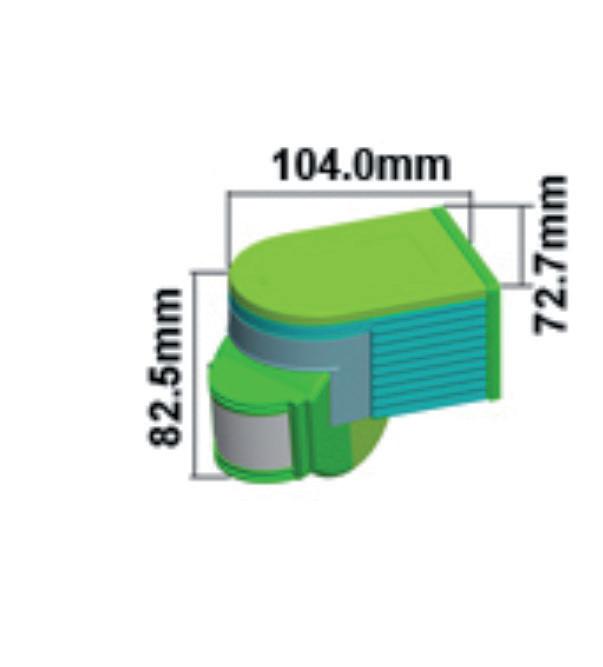

PASSIVE INFRARED MOTION SENSORS

Detection Range: 180°

Detection Distance: 12m (ideal height of 2m)

Ingress Protection: IP44

Power Source: 220-240v AC

Rated Load: Fluorescent 1200W LED 300W

Detection Range: 360°

Detection Distance: 6m (adjustable)

Installation Height: 1.5-3.5m

Power Source: 220-240v AC

Rated Load: Fluorescent 1200W LED 300W

Detection Range: 360°

Detection Distance: 6m (adjustable)

Installation Height: 2-2.4m

Power Source: 220-240v AC

Rated Load: Fluorescent 1200W LED 300W

TRAILING SOCKETS, PLUG TOPS & LINK BOXES

Trailing Sockets

AD1GRB

AD2GRW 2 Gang 13 Amp Trailing Socket Rubber White 5

AD2GRB

AD4GW

Link Boxes
13 Amp Plug Tops

TUBULAR HEATERS AND GUARDS

Standard Tubular Heaters

• Wall Mounted tubular heaters - ideal for use in greenhouses, garages, sheds, built-in wardrobes and conservatories

• Helps prevent dampness, mould, mildew, condensation and freezing

• Standard and Built-in adjustable Thermostats available (5° min to 40° max)

• Instant Start

• Internal cut-out to prevent overheating

1FT 60W

ADTUB2 2FT 120W 612mm

ADTUB3 3FT 180W 959mm

ADTUB4 4FT 240W 1221mm

ADTUB5 5FT 300W 1519mm

ADTUB6 6FT 360W 1823mm

Tubular Heaters with Thermostat

• Wall fixings included

• Cable length 1M

• Pressed Wire Guard available in White

• IP44 Rated

• Conforms to BS EN60335

ADTUB1TH 1FT 60W Thermostat 308mm

ADTUB2TH 2FT 120W Thermostat 612mm

ADTUB3TH 3FT 180W Thermostat 959mm

ADTUB4TH 4FT 240W Thermostat 1221mm

ADTUB5TH 5FT 300W Thermostat 1519mm

ADTUB6TH 6FT 360W Thermostat 1823mm

Tubular Heater Wire Guards

ADTWG1 1FT White Guard 325mm

ADTWG2 2FT White Guard 630mm

ADTWG3 3FT White Guard 920mm

ADTWG4 4FT White Guard 1230mm

ADTWG5 5FT White Guard 1540mm

ADTWG6 6FT White Guard 1840mm

RELOAD HOLESAW QUICK CHANGE & TWO UP SYSTEM

Electrican’s / Plumbers’s Holesaw Kit

Electrican’s Holesaw Kit

• Contains Cobalt Steel Holesaw sizes: 20mm, 25mm, 32mm, 38mm, 51mm, 64mm

• 1 x RL-A152 Arbor • 8 x Bosses • Heavy Duty Case

Plumbers’s Holesaw Kit

• Contains Cobalt Steel Holesaw sizes: 19mm, 22mm, 29mm, 38mm, 44mm, 57mm

• 1 x RL-A152 Arbor • 6 x Bosses • Heavy Duty Case

• Dual thread boss

• Attach larger holesaw first

• Arbor simply snaps into place

• Simply twist black collar

• Arbor safely releases

• Slide out arbor

• Using dual thread insert smaller holesaw Use smaller holesaw as guide to enlarge hole

• Will enlarge holes from 14mm to 200mm

• Bosses will fit any brand of holesaw

Arbor safely releases
Twist black collar
Dual thread boss
Quick Change
Two - Up Hole Enlarging

• Change saws in seconds. No threads, no hassle - saws simply snap fit

• After drilling, saws can be quick released for fast plug removal

• Compact design • Blister Packed

• Pack Contains 3 x Boss to suit 14-30mm saws and 2 x Boss to suit 32-200mm saws

• Two-Up allows one saw to nest inside another to provide hole enlargement

• Compatible with all brands of holesaw • Blister Packed

RLHS20 20MM COBALT BI-Metal hole saws

RLHS25 25MM COBALT BI-Metal hole saws

RLHS32 32MM COBALT BI-Metal hole saws

RLHS38 38MM COBALT BI-Metal hole saws

RLHS51 51MM COBALT BI-Metal hole saws

RLHS64 64MM COBALT BI-Metal hole saws

• Replacement pilot drill for RL-A152

STAINLESS STEEL CABLE TIES &

Stainless Steel Cable Ties & Fire Clips

FIRE CLIPS

• Compatible with cables up to 7.9 mm in width and 0.3 mm in depth

• Adjustable tension mechanism

• Automatic cut-off function once required tension achieved

• Fire rated clips to suit 25mm trunking

Stainless Steel Tie Bases
Stainless Steel Cable Tie Gun
Fire Clip 25mm

FIRE SAFE SADDLES & CABLE CLIPS

Fire Safe Metal Spacer Bar Saddles

• Metal Spacer Bar Saddles 20mm & 25mm • Black or White

Twin & Earth Clips

Round Cable Clips

Grey

BRASS & NICKEL PLATED SCREWS

M3.5 Nickel Plated CSK Machine Screws M4 Brass Nuts & Washers
M3.5 Extension Stud

HEATSHRINK PACKS & TRADE WIPES

Heatshrink Minipacks

Multi Purpose Trade Wipes

• UL, VW & CSA Approved

• Heatshrink 2:1

• High quality general purpose

• Flame retardent heat shrink tubing

• Each pack contains 4 colours (Grey, Blue, Black, Brown) x3 lengths 250mm.

MP1 1.0mm 4 colours (Grey, Blue, Black, Brown) x 3 lengths 250mm

MP1.5 1.5mm 4 colours (Grey, Blue, Black, Brown) x 3 lengths 250mm

MP2.5 2.5mm 4 colours (Grey, Blue, Black, Brown) x 3 lengths 250mm

MP3 3.0mm 4 colours (Grey, Blue, Black, Brown) x 3 lengths 250mm

MP5 5.0mm 4 colours (Grey, Blue, Black, Brown) x 3 lengths 250mm

MP6 6.0mm 4 colours (Grey, Blue, Black, Brown) x 3 lengths 250mm

MP10 10mm 4 colours (Grey, Blue, Black, Brown) x 3 lengths 250mm

MP13 13mm 4 colours (Grey, Blue, Black, Brown) x 3 lengths 250mm

MP20 20mm 4 colours (Grey, Blue, Black, Brown) x 3 lengths 250mm

MP25 25mm 4 colours (Grey, Blue, Black, Brown) x 3 lengths 250mm

MP40 40mm 4 colours (Grey, Blue, Black, Brown) x 3 lengths 250mm

For use on hands, surface and tools. Lemon scented. Can remove : Paint Adhesives Oil Grease Silicone PU Foam and more Contains aloe vera & vitamin E Resistant to MRSA, Salmonella, Listeria & Ecoli

MPTW Tub 80 Wipes. Wipe dimension 300 x 200mm 12 tubs

TV AMPLIFIERS

Aerial Distribution c/w 4G Filter & IR Bypass

ADCD02H 2 WAY AMPLIFIER COAX OUTLETS 20

ADCD04H 4 WAY AMPLIFIER COAX OUTLETS 20

ADCD06H 6 WAY AMPLIFIER COAX OUTLETS 20

ADCD08H 8 WAY AMPLIFIER COAX OUTLETS 20

ADCD04HF 4 WAY AMPLIFIER F CONNECTORS 20

ADCD06HF 6 WAY AMPLIFIER F CONNECTORS 20

ADCD08HF 8 WAY AMPLIFIER F CONNECTORS 20

• Boosts digital and analogue TV signals in weaker areas

• Digital Bypass

• Designed to EN60065

• Frequency Range : VHF 47-230MHz UHF 470-790MHz

• Rated Power : 9.5W

• Gain 9dB per split

• Indoor Aerial

• Compatible with SD, HD, 3D & 4K TV

• Complete with 2m cable

Indoor Set Top TV Aerial

AERIALS

• LTE and 4G compatible

• F Connector for easy connection and installation

• Retail Packed

• Indoor and Outdoor Use

• Compatible with SD, HD, 3D & 4K TV

COAX CONNECTORS AND LEADS

Coax Plugs & Connectors

Coax Fly Leads

• Male to male coax fly leads

BP4004KIT
BP4011
BP4014
BP4081
BP4013
BP4005

SATELLITE CONNECTORS AND LEADS

Satellite Connectors

Satellite Fly Leads

• F Male to F male satellite fly leads
BP4037
BP4036
BP4038
BP4048
BP4065

SATELLITE CONNECTORS AND LEADS

Brackets

Masts

• Aluminium cranked mast

• Facia Bracket

• 10m Coaxial Cable

• Coax plug

• Cable Clips

• Raw Plugs, Bolts, nuts & screws

MXR0016
MXR0008
MXR0015

HDMI LEADS & CAT6 PATCH LEADS

• Gold Plated

• Support 3D 4K

• Full HD, Ultra HD, 1080P

• Support HDR

• UTP CAT6

• 4 Pair

• Stranded

• Flush moulded boot

• Snagless boot

• Strain relief

• 1Gbps

FLOODLIGHT BRACKETS

Wall Mounted Floodlight Brackets

PART NO DESCRIPTION

ADKRP1 Swivel bracket to carry 1 x 10W LED, 150W or 500W Floodlight Wall mounted, zinc finish, supplied with fixings

PART NO DESCRIPTION

ADKRP1SM Swivel bracket to carry 1 x 10W LED, 150W or 500W Floodlight (closer angle to the wall). Wall mounted, zinc finish, supplied with fixings

PART NO DESCRIPTION

ADKRP2 Twin Swivel bracket to carry 2 x 10W LED, 150W or 500W Floodlights. Wall mounted, zinc finish, supplied with fixings

PART NO DESCRIPTION

ADKRP3 Swivel bracket to carry up to 1 x 100W LED or 70-400W SON Floodlight. Wall mounted, black powder coated, supplied with fixings

PART NO DESCRIPTION

ADKRP3A Corner adaption bracket to enable KRP3 to be mounted on a corner. Black powder coated, supplied with fixings

FLOODLIGHT BRACKETS

Floodlight Brackets

PART NO DESCRIPTION

ADKRP5 Corner bracket to carry 1 x 10W/20W LED, 100W bulkhead 150W, 500W Floodlight or PIR sensor. Corner mounted, zinc finish, supplied with fixings

PART NO DESCRIPTION

ADKRP4U Scaffold pole bracket to carry 1 x 10/20W LED, 150W/500W Floodlight, Bulkhead Pole mounted, zinc finish, supplied with fixings.

PART NO DESCRIPTION

ADKRP11HD 70-90mm Pole mounted bracket suitable to carry one LED floodlight ( Max weight 11kg) Can be used to fit 2 x floodlights on a scaffold pole (mount a KRP6-2 onto ADKRP11-HD)

PART NO DESCRIPTION

ADKRP6-2 Twin bar for use with ADKRP11HD to carry 2 floodlights.

PART NO DESCRIPTION

ADKRP14 Sign light bracket on 45cm spigot to carry 1 x 10/30W LED Floodlight. Wall Mounted, black powder coated, supplied with fixings.

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
