The Meridian - Entitlement Package by Adam Ohashi

THE MERIDIAN THIRD PLANNING DEPARTMENT SUBMITTAL

VICINITY MAP:

PROJECT DATA SUMMARY:

PROJECT TEAM:

SHEET INDEX:

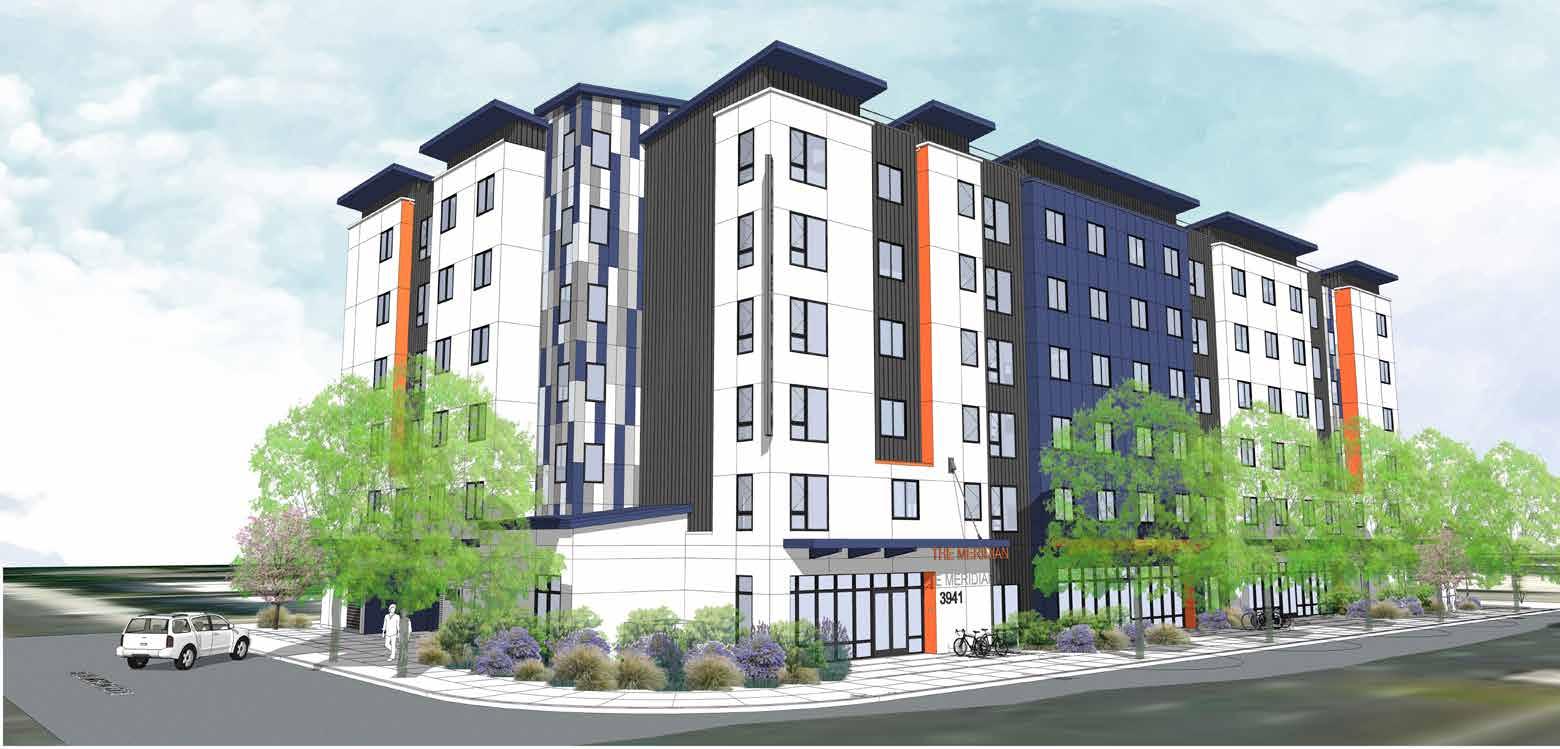

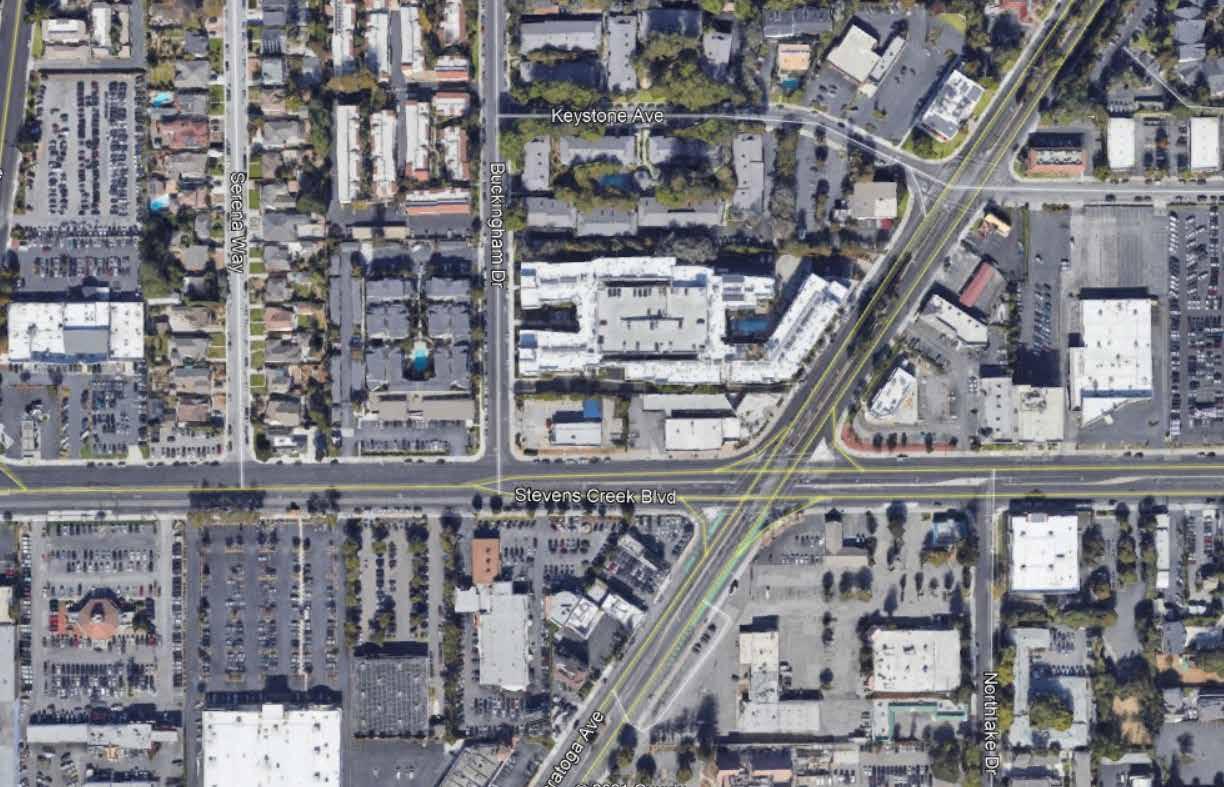

PROJECT LOCATION

PROJECT NARRATIVE:

The Meridian is a 59-unit, all electric affordable housing development located at the corner of Stevens Creek Boulevard and Buckingham Drive in Santa Clara. This large family housing development has a mix of one, two, three, and four-bedroom units wrapped around a central podium courtyard. The multi-purpose community room spills out onto the podium courtyard where play areas will be provided for residents consistent with CDLAC and TCAC requirements. The building is six stories, with five stories of residential units located over ground floor garage parking and residential amenity space. The ground floor is designed to have a strong storefront presence along Stevens Creek Boulevard. It will be activated by residential lobby, mail, office areas, and secured bike storage.

The project utilizes a density bonus and satisfies the Transit Adjacency requirement under AB1763 which allows for four concessions, and a height increase of 33’ or 3 stories, and no limit on density and discretionary waivers allowed by the city. Based on the current proposal, the project complies with the Very High Density Mixed Use (VHDMU) Regulations and seeks only one incentive, concession, or waiver as the city sees fit to waive the commercial parking component for this affordable project. The applicant reserves the right to apply the remaining concessions in the future if desired.

STEVENS CREEK | SANTA CLARA, CA

3941

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE A1.1 TITLE SHEET ARCHITECTURAL: A1.1 TITLE SHEET A1.2 FIRE ACCESS DIAGRAM A1.3 TRASH DIAGRAMS A2.1 GROUND FLOOR PLAN A2.2 SECOND FLOOR PLAN A2.3 THIRD FLOOR PLAN A2.4 FOURTH FLOOR PLAN A2.5 FIFTH FLOOR PLAN A2.6 SIXTH FLOOR PLAN A2.7 ROOF PLAN A2.8 TYPICAL UNIT PLANS - 1BD A2.9 TYPICAL UNIT PLANS - 2BD A2.10 TYPICAL UNIT PLANS - 3BD + 4BD A3.1 BUILDING ELEVATIONS A3.2 BUILDING ELEVATIONS A3.3 BUILDING ELEVATIONS A3.4 BUILDING ELEVATIONS A3.5 BUILDING SECTIONS A3.6 BUILDING SECTIONS A3.7 BUILDING SECTIONS A4.1 BUILDING PERSPECTIVE A4.2 COLORS + MATERIALS A4.3 CODE COMPLIANCE - ALLOWABLE AREA CALCULATIONS

DEVELOPER: CRP Affordable Housing & Community Development 455 Morena Blvd. Suite #107 San Diego, CA 92117 Tel: (619) 487-4790 Contact: Steven Blanden sblanden@crpafforable.com ARCHITECT: Dahlin Group 5865 Owens Drive Pleasanton, CA 94588 Tel: (925) 251-7200 Contact: Lauri Moffet-Fehlberg lfehlberg@dahlingroup.com LANDSCAPE ARCHITECT: vanderToolen Associates 855 Bordeaux Way, Suite 240 Napa, CA 94588 Tel: (707) 224-2299 Contact: Mary Carden mary@vandertoolen.com CIVIL ENGINEER: BKF Engineers 4670 Willow Road, Suite 250 Pleasanton, CA 94588 Tel: (925) 396-7700 Contact: Brock Roby broby@bkf.com

PROJECT DATA SUMMARY PROJECT NAME: LOCATION: PROJECT NUMBER: CLIENT: APN: GP DESIGNATION: ZONING/DEVELOPMENT STANDARDS: HEIGHT: CONSTRUCTION TYPE: OCCUPANCY TYPE: ACREAGE: Acres 0.58 TOTAL: 0.58 Percentage BUILDING COVERAGE: 72% TOTAL: RESIDENTIAL: COMMON AMENITY: CIRCULATION: UTILITY: COMMERCIAL/OFFICE: PARKING: TOTAL: GROUND LEVEL: COMMON AMENITY: CIRCULATION: UTILITY: COMMERCIAL/OFFICE: PARKING: TOTAL: PODIUM LEVEL: RESIDENTIAL: COMMON AMENITY: CIRCULATION: UTILITY: TOTAL: PODIUM LEVEL: OUTDOOR COURTYARD* THIRD LEVEL: RESIDENTIAL: COMMON AMENITY: CIRCULATION: UTILITY: TOTAL: FOURTH LEVEL: RESIDENTIAL: COMMON AMENITY: CIRCULATION: UTILITY: TOTAL: FITH LEVEL: RESIDENTIAL: COMMON AMENITY: CIRCULATION: UTILITY: TOTAL: SIXTH LEVEL: RESIDENTIAL: COMMON AMENITY: CIRCULATION: UTILITY: TOTAL: UNIT MIX UNIT 1A (531 GROSS SF): UNIT 1B (587 GROSS SF): UNIT 1C (608 GROSS SF): UNIT 2A (800 GROSS SF): UNIT 2B (821 GROSS SF): UNIT 2C (842 GROSS SF): UNIT 3A (1077 GROSS SF): UNIT 3B (1100 GROSS SF): UNIT 4A (1295 GROSS SF): UNIT 4B (1315 GROSS SF): TOTAL: Ratio# of units Total 1-BD: 1 10 10 2-BD: 1.5 20 30 3-BD: 1.5 24 36 4-BD 1.5 5 8 TOTAL: Ratio# of units Total ALL UNITS: 0.5 59 30 TOTAL: RESIDENTIAL STANDARD STALLS: RESIDENTIAL COMPACT STALLS: ACCESSIBLE STALLS: TOTAL: CLASS SECURED PARKING CLASS II SHORT TERM TOTAL: No maximum height per zoning section 18.22.250 2,630 2,630 BIKE PARKING PROVIDED (SPACES) 12.13.2021 14,068 11,114 484 GROSS BUILDING AREAS PER FLOOR (SF) 88,087 2,183 10,141 1,140 8 ± 36 ± 28 2,150 320 13,490 Square Feet 1 59 PARKING REQUIRED (SPACES) PER MUNICIPAL CODE FOR VHDMU PARKING PROVIDED (SPACES) PERSUANT TO AB1763 WITHIN 1/2 MILE OF A MAJOR TRANSIT STOP 84 4 11,114 32* 4 1 1 2 484 2,150 604 5 22 4,494 *NOT INCLUDED IN GROSS AREA TOTALS BY FLOOR OR BY BUILDING 10 9 320 320 14,068 1,572 484 11,114 PARKING REQUIRED (SPACES) PERSUANT TO AB1763 WITHIN 1/2 MILE OF A MAJOR TRANSIT STOP 30 *ADDITIONAL 2 STALLS ABOVE MINIMUM REQUIREMENT WILL BE PROVIDED AS FEASIBLE. THEY ARE PROPOSED AT THE OWNER'S DISCRETION AS BUILDING PERMIT DRAWINGS ARE DEVELOPED 11,114 26 3,857 3,469 11,939 484 2,150 320 18,325 781 1,734 1,585 11,595 14,068 3 3 R2 3941 Stevens Creek Santa Clara, CA 1648.001 CRP Affordable GROSS BUILDING AREA TOTALS (SF) GROSS SITE AREAS (SF) 18,325 Square Feet 25,300 GENERAL Very High Density Mixed Use (5) Stories Type IIIA Over (1) Story IA 54,597 294-39-010 Community Mixed Use 18,325 25,300 14,068 11,595 NORTH

CIVIL: C0.0 COVER SHEET C1.0 EXISTING CONDITIONS C2.0 CIVIL SITE PLAN C3.0 GRADING & DRAINAGE PLAN C4.0 COMPOSITE UTILITY PLAN C5.0 STORMWATER MANAGEMENT PLAN C5.1 STORMWATER DETAILS LANDSCAPE: L-0.0 COVER SHEET L-1.1 GENERAL CONSTRUCTION NOTES L-2.1 TREE PLAN L-3.1 CONSTRUCTION CALLOUT PLAN 1F L-3.2 CONSTRUCTION LAYOUT PLAN 1F L-3.3 CONSTRUCTION CALLOUT & LAYOUT PLAN 2F L-4.1 SHRUB PLAN L-5.1 SHRUB IRRIGATION PLAN 1F L-5.2 TREE IRRIGATION PLAN 1F L-5.3 SHRUB & TREE IRRIGATION PLAN 2F L-6.1 CONSTRUCTION DETAILS L-6.2 CONSTRUCTION DETAILS L-7.1 PLANTING DETAILS L-8.1 IRRIGATION DETAILS L-8.2 IRRIGATION DETAILS L-8.3 IRRIGATION DETAILS

TRASH ACCESS ROUTE

EXISTING HYDRANT ON ADJACENT PROPERTY

ADJACENT PROPERTY DRIVE AISLE

150’-0” HYDRANT RADIUS

± 44’-0” HOSE GAP

CAN USE ADJACENT PROPERTY DRIVE AISLE TO ADDRESS GAP

LEGEND:

TRASH ROOM

150’-0” HOSE PULL DISTANCE

PROPERTY LINE

FIRE ACCESS ROUTE

TRASH ACCESS ROUTE

TRASH PICK-UP STOP WATER SOURCE

150’-0” HOSE RADIUS TRASH STAGING AREA

KNOX BOX

FIRE PUMP ROOM

EXISTING HYDRANT

STEVENS CREEK BOULEVARD

3941 STEVENS CREEK | SANTA CLARA, CA

CRP AFFORDABLE

HYDRANT

FREE-STANDING FDC LOCATION

PROPSED STREET TREES TO NOT EXCEED HEIGHT LIMIT OF 30’-0” FOR FIRE APPARATUS ACCESS

van evcs evcs PL PL PL PL van evcs KB KB COMPACT COMPACT COMPACT

5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE NORTH A1.2 FIRE & TRASH ACCESS DIAGRAM BUCKINGHAM DRIVE

3/32” = 1’-0”

SCALE:

MPOE ERRCS

22’-0” BUILDING SETBACK FOR FIRE APPARATUS

NEW

20’-0” BUILDING SETBACK FOR FIRE APPARATUS NEW

5’ WALKING PATH FOR FIRE ACCESS

LEGEND:

TRASH STAGING AREA

GARBAGE:

RESIDENTIAL:

NO LESS THAN 32 GALLONS/WEEK/UNIT ~ 32 GAL x 59 UNITS = 1,888 GAL/WEEK OR 9.34 CUBIC YARDS/WEEK

OFFICE/COMMERCIAL:

3 CUBIC YARDS REQIURED FOR LESS THAN 20,000 SQUARE FOOT SPACE

TOTAL TRASH GENERATED = 12.32 CUBIC YARDS/WEEK

(2) 4-YARD BINS PROVIDED AT TRASH ROOM

TRASH PICK-UP WILL NEED TO BE (2) TIMES PER WEEK.

RECYCLING:

RESIDENTIAL:

NO LESS THAN 64 GALLONS/WEEK/UNIT ~ 64 GAL x 59 UNITS = 3,776 GAL/WEEK OR 18.7 CUBIC YARDS/WEEK

OFFICE/COMMERCIAL:

(1) 96 GALLON CONTAINER FOR MIXED RECYCLING

(1) 96 GALLON TOTE AND (2) 4-YARD BINS PROVIDED AT TRASH ROOM

RECYCLING PICK-UP WILL NEED TO BE (3) TIMES PER WEEK.

ORGANICS:

RESIDENTIAL:

PROVIDE 96-GALLON BINS FOR RESIDENT USE.

OFFICE/COMMERCIAL:

REQUIRED IF USE GENERATES OVER TWO (2) YARDS OF SOLID WASTE PER WEEK (GARBAGE AND RECYCLING)

(2) 96-GALLON BINS PROVIDED AT TRASH ROOM

ORGANICS PICK-UP CAN BE (1) TIME PER WEEK

3941 STEVENS CREEK | SANTA CLARA, CA

ENLARGED GROUND FLOOR TRASH ROOM

C C TRASH ROOM SPARE 4-YARD GARBAGE SPARE 4-YARD RECYCLING COMPACT G R 4-YARD RECYCLING 4-YARD GARBAGE 16'-10" 22'-2" CB JAN. 24" pantry G C R TRASH ROOM 10'-4" dable\001_Stevens Creek\Arch\Plot\_SD\1648001_Building Plans.dwg, 12/21/2021 11:49:07 AM, AutoCAD PDF (General Documentation).pc3 C C TRASH ROOM SPARE 4-YARD GARBAGE SPARE 4-YARD RECYCLING COMPACT G R 4-YARD RECYCLING 4-YARD GARBAGE 16'-10" 22'-2" CB JAN. 24" pantry G C R TRASH ROOM 16'-7 1/2" 10'-4"

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE NORTH A1.3 TRASH DIAGRAMS

1/4” = 1’-0”

ENLARGED TRASH ROOMS ABOVE (FLOORS 2 TO 6)

2 SCALE:

3941 STEVENS CREEK | SANTA CLARA, CA

van evcs evcs C C 26'-11 3/4" 18'-0" TYP. 18'-0" TYP. 5'-0" 7'-0" PL PL PL PL COMMERCIAL BIKE ROOM MECHANICAL E.E. LOBBY ELEC. TRASH ROOM PARKING (32 STALLS PROVIDED) STEVENS CREEK BOULEVARD BUCKINGHAM DRIVE +/- 2499 NET SF INSIDE OF WALL BOMA STANDARDS WILL PUT THE SQUARE FOOTAGE OVER THE REQUIRED 2530 SQ FT @ 1% FAR 199'-0" 25'-4" 3'-0" 25'-4" 3'-0" 25'-4" 3'-0" 25'-4" 3'-0" 25'-4" 11'-2" 6'-6" 12'-0" 6'-6" 30'-2 1/2" 9'-4" 27'-5" 3'-0" 12'-0" 6'-6" 98'-9" MAIL FIRE PUMP van 24'-2" FACE OF CURB PROPERTY LINE PUE 10'-3 1/2" OFFICE OFFICE ERRCS MPOE (± 28 BIKES) evcs E.E. SPARE 4-YARD GARBAGE SPARE 4-YARD RECYCLING 9'-0" TYP. 12'-0" 5'-6" 6'-0" 12'-0" 9'-0" 6'-4" KB KB COMPACT COMPACT COMPACT G R 8'-0" 8'-0" 8'-0" 4-YARD RECYCLING 4-YARD GARBAGE

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE A2.1 NORTH GROUND FLOOR PLAN SCALE: 1/8” = 1’-0”

3941 STEVENS CREEK | SANTA CLARA, CA

CB 24" pantry 18" 16" HPWH 18" pantry HPWH HPWH 18" pantry HPWH 18" pantry IDF JAN. UNIT 3A UNIT 3A UNIT 3B UNIT 3B MAINT. UNIT 1C UNIT 1A COMMUNITY ROOM UNIT 2C UNIT 2C UNIT 2A UNIT 2B STOR. 24" pantry 24" pantry pantry 18" pantry 18" 16" HPWH UNIT 4B 55'-11 1/2" 87'-1 1/2" 55'-11 1/2" 199'-0" 25'-0" 6'-5" 24'-6 1/2" 25'-0" 5'-11 1/2" 25'-0" 55'-4" 9'-10" 26'-6 1/2" 91'-8 1/2" 6'-0" 9'-10 1/2" 37'-11 1/2" 11'-8" 43'-4" 11'-8" 73'-6" 5'-0" 199'-0" 88'-5 1/2" 10'-3 1/2" 98'-9" G C PROPERTY LINE AWNING FLEX ROOM R.R. R.R. R TRASH ROOM

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE A2.2 NORTH SECOND FLOOR PLAN ONE BEDROOM TWO BEDROOM THREE BEDROOM FOUR BEDROOM SECOND FLOOR UNIT MIX 2 UNITS 4 UNITS 4 UNITS 1 UNITS TOTAL 11 UNITS SCALE: 1/8” = 1’-0”

3941 STEVENS CREEK | SANTA CLARA, CA

24" pantry pantry 60" 18" 16" HPWH 18" pantry refrig 15" HPWH 24" pantry HPWH 18" pantry HPWH 18" pantry JAN. UNIT 3A UNIT 3A UNIT 3A UNIT 3A UNIT 3A UNIT 4A TEEN ROOM UNIT 1B UNIT 1A UNIT 2C UNIT 2C UNIT 2A UNIT 2A 24" pantry pantry 60" HPWH pantry pantry IDF LAUNDRY D W D D W W CB G C R TRASH ROOM

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE A2.3 NORTH THIRD FLOOR PLAN SCALE: 1/8” = 1’-0” ONE BEDROOM TWO BEDROOM THREE BEDROOM FOUR BEDROOM THIRD FLOOR UNIT MIX 2 UNITS 4 UNITS 5 UNITS 1 UNITS TOTAL 12 UNITS

3941

24" pantry pantry 60" 18" 16" HPWH 18" pantry refrig 15" HPWH 24" pantry HPWH 18" pantry HPWH 18" pantry JAN. UNIT 3A UNIT 3A UNIT 3A UNIT 3A UNIT 3A UNIT 4A UNIT 1B UNIT 1A UNIT 2C UNIT 2C UNIT 2A UNIT 2A 24" pantry pantry 60" HPWH pantry pantry FLEX SPACE IDF FLEX SPACE CB G C R TRASH ROOM

STEVENS CREEK

CLARA, CA CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE A2.4 NORTH FOURTH FLOOR PLAN SCALE: 1/8” = 1’-0” ONE BEDROOM TWO BEDROOM THREE BEDROOM FOUR BEDROOM FOURTH FLOOR UNIT MIX 2 UNITS 4 UNITS 5 UNITS 1 UNITS TOTAL 12 UNITS

| SANTA

3941 STEVENS CREEK | SANTA CLARA, CA

JAN. 24" pantry pantry 60" 18" 16" HPWH 18" pantry refrig 15" HPWH 24" pantry HPWH 18" pantry HPWH 18" pantry UNIT 3A UNIT 3A UNIT 3A UNIT 3A UNIT 3A UNIT 4A UNIT 1B UNIT 1A UNIT 2C UNIT 2C UNIT 2A UNIT 2A 24" pantry pantry 60" HPWH pantry pantry FLEX SPACE IDF LAUNDRY D W D D W W CB G C R TRASH ROOM

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE A2.5 NORTH FIFTH FLOOR PLAN SCALE: 1/8” = 1’-0” ONE BEDROOM TWO BEDROOM THREE BEDROOM FOUR BEDROOM FIFTH FLOOR UNIT MIX 2 UNITS 4 UNITS 5 UNITS 1 UNITS TOTAL 12 UNITS

3941

24" pantry pantry 60" refrig 18" HPWH 18" pantry 15" HPWH 24" pantry HPWH 18" pantry HPWH 18" pantry JAN. UNIT 3A UNIT 3A UNIT 3A UNIT 3A UNIT 3A UNIT 2C UNIT 2C UNIT 2A UNIT 2A UNIT 4A UNIT 1B UNIT 1A 24" pantry 18" HPWH 24" pantry pantry FLEX SPACE IDF FLEX SPACE CB G C R TRASH ROOM

STEVENS CREEK

CLARA, CA CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE A2.6 NORTH SIXTH FLOOR PLAN SCALE: 1/8” = 1’-0” ONE BEDROOM TWO BEDROOM THREE BEDROOM FOUR BEDROOM SIXTH FLOOR UNIT MIX 2 UNITS 4 UNITS 5 UNITS 1 UNITS TOTAL 12 UNITS

| SANTA

KEYNOTE LEGEND:

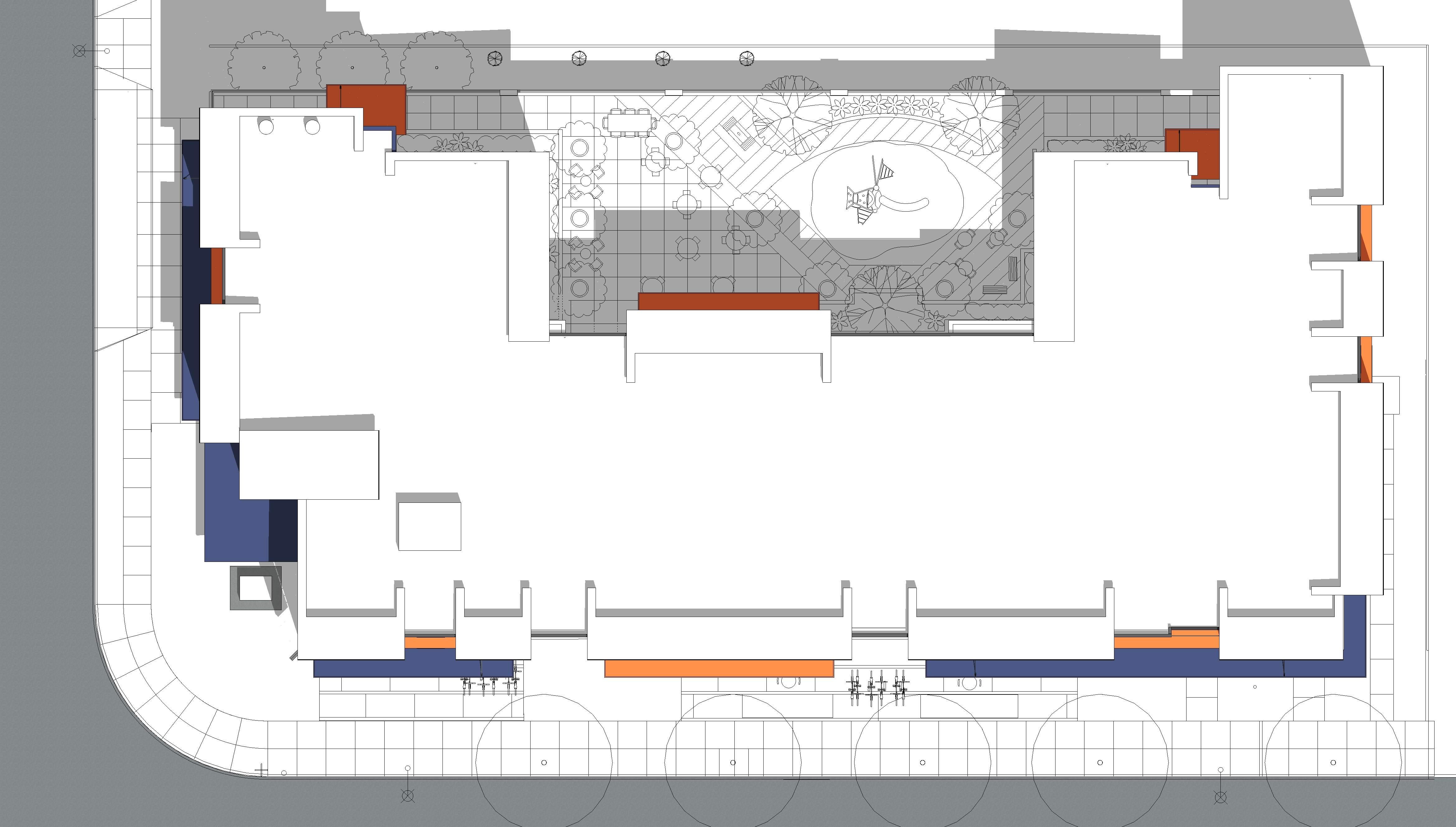

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE NORTH A2.7 ROOF PLAN

3941 STEVENS CREEK | SANTA CLARA, CA

BUCKINGHAM DRIVE

STEVENS CREEK BOULEVARD 1. TRANSFORMER AT GRADE 2. FLAT ROOF - SLOPE 1/2” PER FOOT MINIMUM TO DRAIN 3. PARAPET WALL WITH METAL CAP, TYP. 4. TRASH VENT EXHAUST 5. ELEVATOR RUN-OUT 6. STAIR TOWER WITH ROOF ACCESS 7. GROUND FLOOR AWNING, TYP. 8. REFER TO SHEET L-2 FOR OUTDOOR COMMUNITY SPACE

SCALE: 1/8” = 1’-0” 4 3 7 8 6 5 2 1

UNIT 1A

GROSS AREA: +/- 531 SQ. FT.

UNIT 1B

GROSS AREA: +/- 587 SQ. FT.

AREA: +/- 539 SQ. FT.

3941 STEVENS CREEK | SANTA CLARA, CA

UNIT 1C

GROSS AREA: +/- 608 SQ. FT. NET AREA: +/- 560 SQ. FT.

SQUARE FOOTAGE CALCULATIONS:

UNIT GROSS SQFTMEASURED TO THE OUTSIDE FACE OF PERIMETER STUDS.

UNIT NET SQFTMEASURED TO THE INSIDE FACE OF STUDS. CHASES EXCLUDED.

*NOTE: OPENINGS MAY VARY. REFER TO BUILDING PLANS FOR MORE INFORMATION.

TYPICAL UNIT PLANS

- 1BD

18" pantry 15 cu refrig 28x29.5 15" HPWH

NET

FT. 22'-3" 11'-4 1/2" 10'-10 1/2" 25'-0" 1'-11 1/2" 23'-0 1/2"

AREA: +/- 490 SQ.

NET

27'-3 1/4" 16'-4 1/4" 10'-11" 26'-7 1/4" 1'-7 1/4" 8'-3 1/2" 1'-11 1/4" 14'-9 1/4" refrig

27'-3 1/4" 26'-7 1/4" 1'-7 1/4" 8'-3 1/2" 16'-8 1/2" 15 cu refrig 28x29.5 BATH BEDROOM LIVING KITCHEN KITCHEN BEDROOM LIVING BATH KITCHEN BEDROOM LIVING BATH

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE A2.8

SCALE: 1/4” = 1’-0”

SQUARE FOOTAGE CALCULATIONS:

UNIT GROSS SQFTMEASURED TO THE OUTSIDE FACE OF PERIMETER STUDS.

UNIT NET SQFTMEASURED TO THE INSIDE FACE OF STUDS. CHASES EXCLUDED.

*NOTE: OPENINGS MAY VARY. REFER TO BUILDING PLANS FOR MORE INFORMATION.

UNIT 2A

GROSS AREA: +/- 800 SQ. FT.

NET AREA: +/- 750 SQ. FT.

UNIT 2B

GROSS AREA: +/- 821 SQ. FT.

NET AREA: +/- 770 SQ. FT.

UNIT 2C

GROSS AREA: +/- 842 SQ. FT.

NET AREA: +/- 786 SQ. FT.

3941 STEVENS CREEK | SANTA CLARA, CA

TYPICAL UNIT PLANS - 2BD

18" pantry 60" refrig 28x29.5 18" 16" HPWH HPWH 18" pantry 60" refrig 28x29.5

23'-0 1/2" 1'-11 1/2" 25'-0" 33'-0" 22'-6 1/2" 10'-5 1/2" 35'-7 1/2" 28'-0" 7'-7 1/2" 18'-6 1/2" 6'-4 3/4" 24'-11 1/4"

25'-0" 33'-0" 18" pantry 60" refrig 28x29.5 18" 16" HPWH BEDROOM 1 BEDROOM 2 LIVING KITCHEN KITCHEN BATH BEDROOM 1 BEDROOM 2 LIVING KITCHEN BATH BEDROOM 1 BEDROOM 2 LIVING BATH

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE A2.9

SCALE: 1/4” = 1’-0”

GROSS AREA: +/- 1077 SQ. FT.

UNIT 4A

GROSS AREA: +/- 1295 SQ. FT. NET AREA: +/- 1207 SQ. FT.

3941 STEVENS CREEK | SANTA CLARA, CA

SQUARE FOOTAGE CALCULATIONS:

UNIT GROSS SQFTMEASURED TO THE OUTSIDE FACE OF PERIMETER STUDS.

UNIT NET SQFTMEASURED TO THE INSIDE FACE OF STUDS. CHASES EXCLUDED.

*NOTE: OPENINGS MAY VARY. REFER TO BUILDING PLANS FOR MORE INFORMATION.

UNIT 3B

GROSS AREA: +/- 1100 SQ. FT.

+/- 1028 SQ.

UNIT 4B

GROSS AREA: +/- 1315 SQ. FT. NET AREA: +/- 1228 SQ. FT.

TYPICAL UNIT PLANS - 3BD + 4BD

refrig 24" pantry

UNIT 3A

10'-8 1/2" 11'-8" 21'-7 1/2" 25'-0"

NET AREA: +/- 1004 SQ. FT. 44'-0"

25'-0" 23'-0 1/2" 1'-11 1/2" 5'-0" 54'-8" 10'-3 1/2" 34'-1" 10'-3 1/2"

25'-0" 5'-0" 54'-8" 44'-4 1/2" 10'-3 1/2"

AREA:

44'-0" 25'-0" 24" pantry KITCHEN BATH 2 BEDROOM 3 BEDROOM 2 BEDROOM 1 BATH 1 LIVING KITCHEN BATH 2 BEDROOM 3 BEDROOM 2 BEDROOM 1 BATH 1 LIVING KITCHEN LIVING BEDROOM 1 BEDROOM 2 BEDROOM 3 BEDROOM 4 BATH 2 BATH 1 KITCHEN LIVING BEDROOM 1 BEDROOM 2 BEDROOM 3 BEDROOM 4 BATH 2 BATH 1

NET

FT.

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE A2.10

SCALE: 1/4” = 1’-0”

3941 STEVENS CREEK | SANTA CLARA, CA

ELEVATION KEYNOTES:

1. PARAPET W/ METAL CAP

2. VERTICAL PANEL SIDING, T.B.D.

3. PAINTED STUCCO W/ CONTROL LINES, TYP.

4. FIBER CEMENT PANEL SIDING

5. BOX RIB METAL SIDING

6. PAINTED METAL AWNINGS

7. SIGNAGE

8. VINYL WINDOWS, TYP.

9. STOREFRONT WINDOWS

10. GUARDRAIL

11. METAL ROLL-UP DOOR

12. METAL GRATE

13. METAL GARAGE GATE

14. BUILDING ADDRESS SIGNAGE

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE NORTH A3.1 BUILDING ELEVATIONS 10 4 8 2 1 2 3 9 ± 7 2 '6 " F R O M F F T O T O P A R A P E T 5 6 ± 7 6 '6 " F R O M F F T O T O S T A I R R O O F 14 7

SCALE: 1/8” = 1’-0” A D C KEYPLAN: B

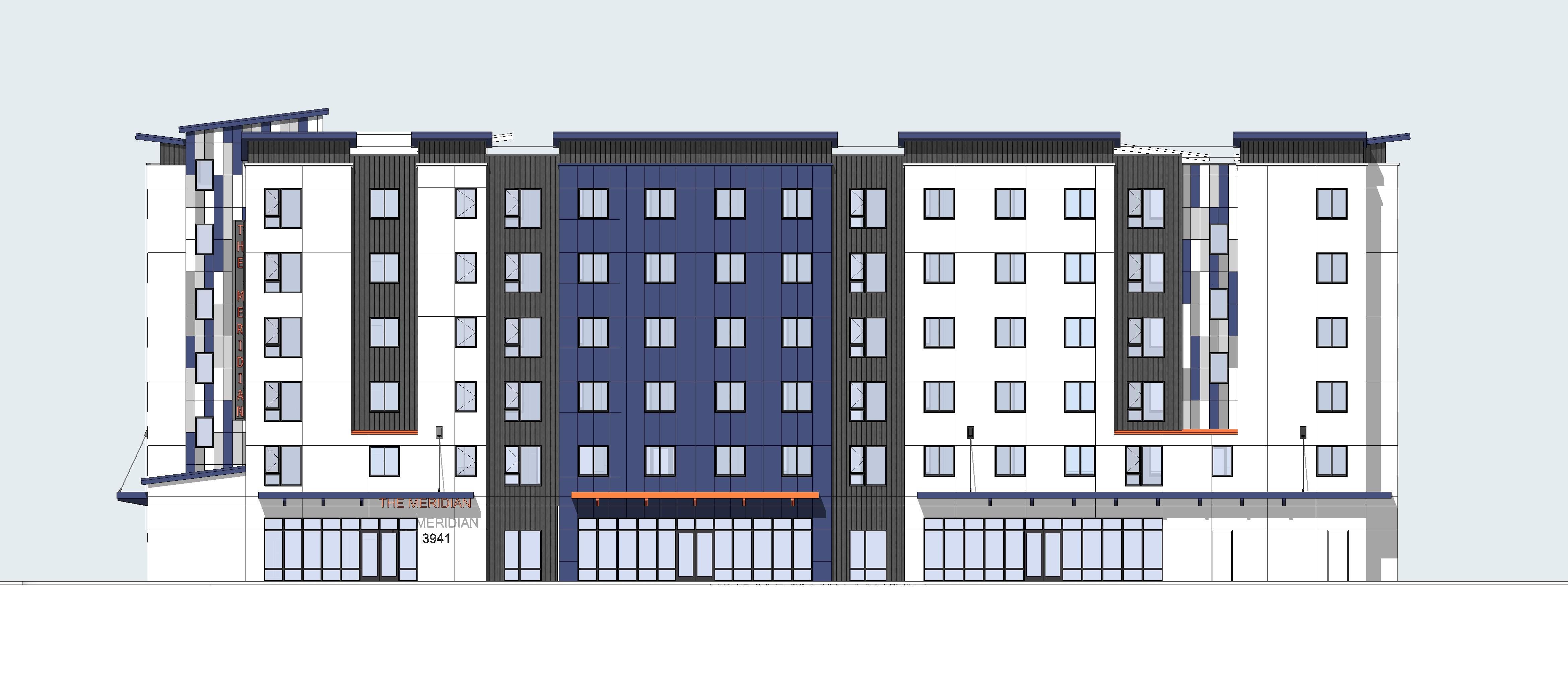

SOUTH ELEVATION (STEVENS CREEK BOULEVARD)

1. PARAPET W/ METAL CAP

2. VERTICAL PANEL SIDING, T.B.D.

3. PAINTED STUCCO W/ CONTROL LINES, TYP.

4. FIBER CEMENT PANEL SIDING

5. BOX RIB METAL SIDING

6. PAINTED METAL AWNINGS

7. SIGNAGE

8. VINYL WINDOWS, TYP.

9. STOREFRONT WINDOWS

10. GUARDRAIL

11. METAL ROLL-UP DOOR

12. METAL GRATE

13. METAL GARAGE GATE

14. BUILDING ADDRESS SIGNAGE

3941 STEVENS CREEK | SANTA CLARA, CA

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE NORTH A3.2 BUILDING ELEVATIONS 1 3 10 6 12 5 8 ± 7 2 '6 " F R O M F F T O T O P A R A P E T ± 7 66 F R O M F F T O T O S T A I R R O O F

1/8” = 1’-0”

SCALE:

A D C KEYPLAN: B

ELEVATION B

ELEVATION KEYNOTES:

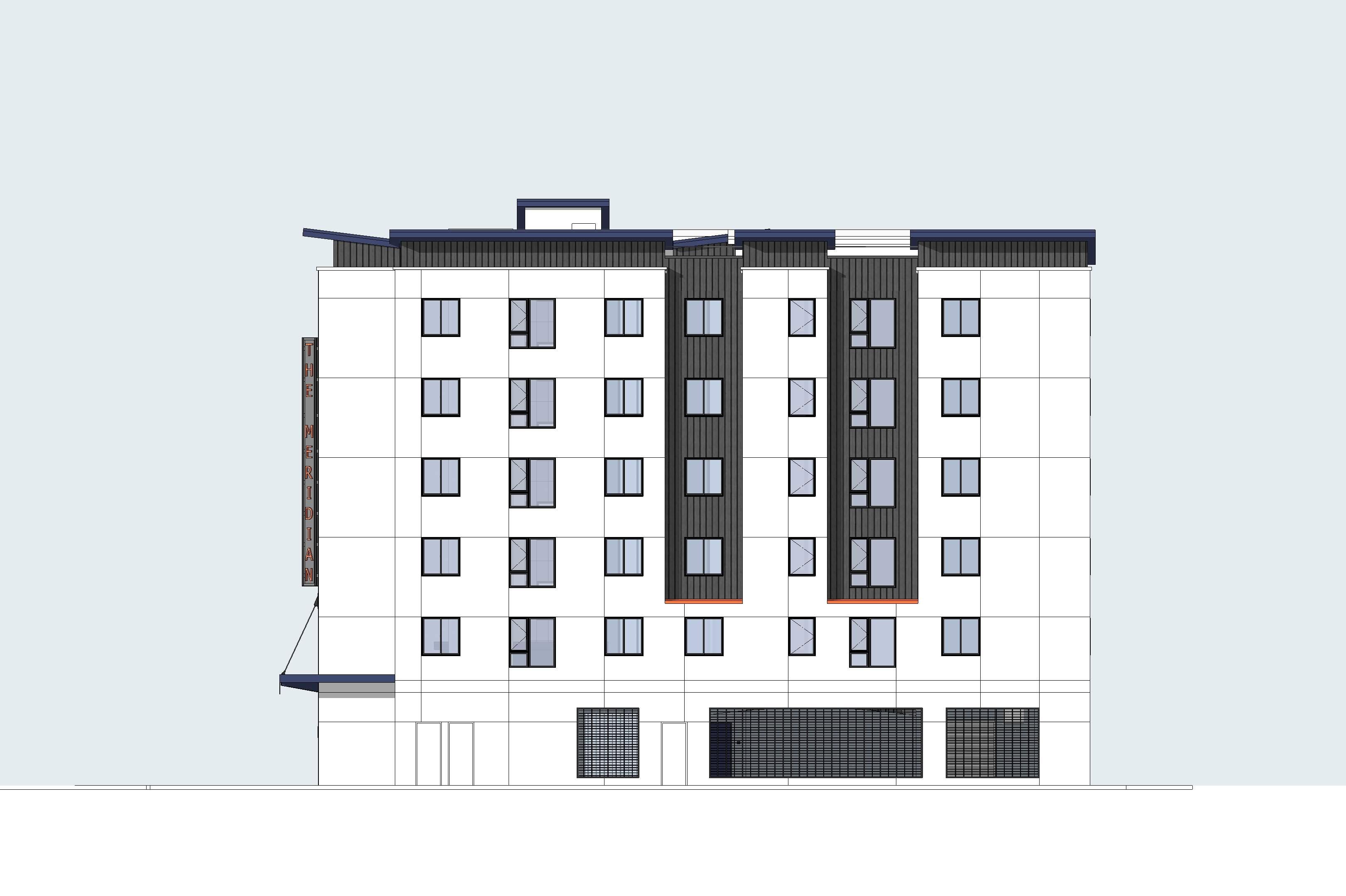

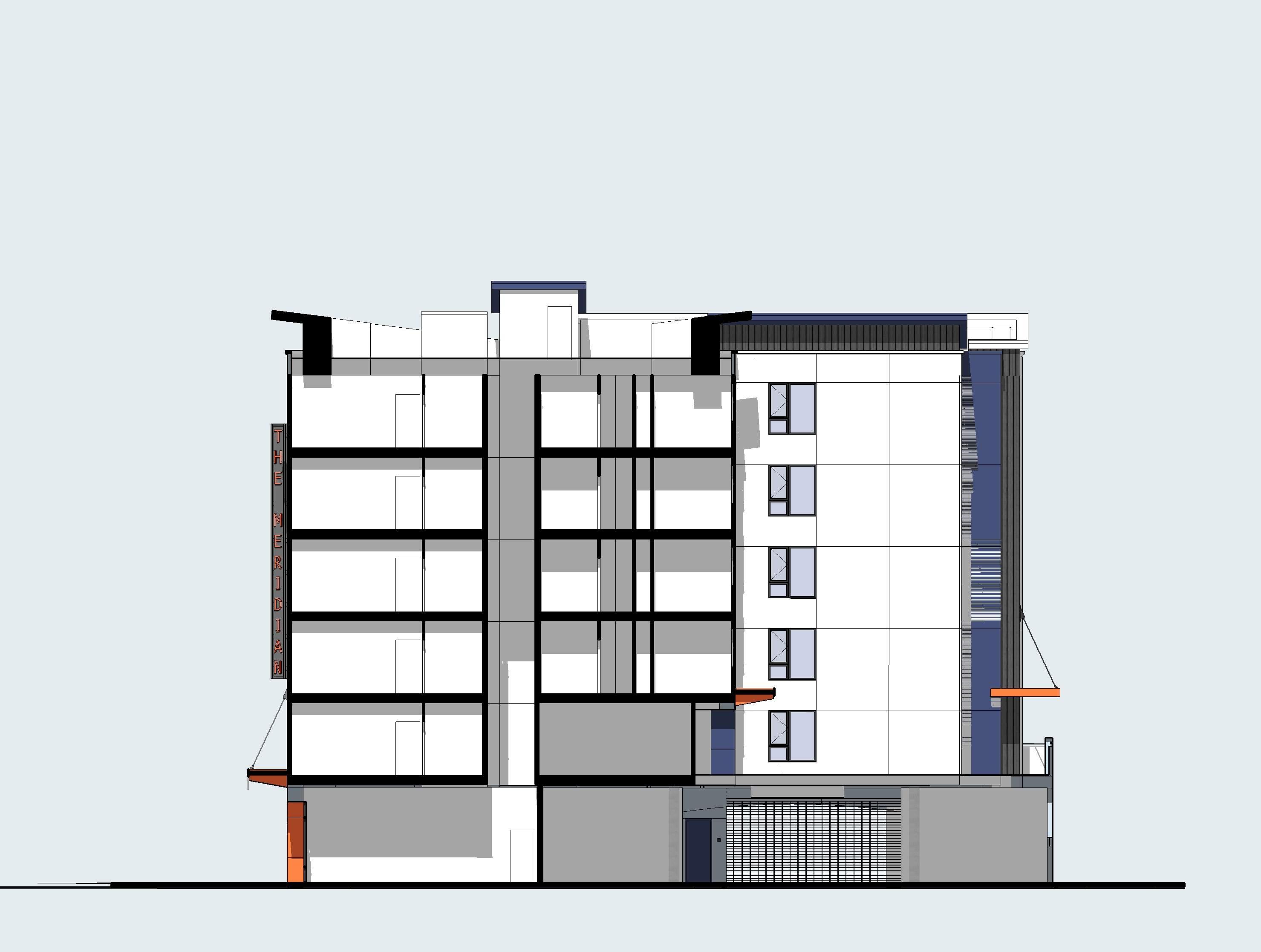

EAST

3941 STEVENS CREEK | SANTA CLARA, CA

ELEVATION KEYNOTES:

1. PARAPET W/ METAL CAP

2. VERTICAL PANEL SIDING, T.B.D.

3. PAINTED STUCCO W/ CONTROL LINES, TYP.

4. FIBER CEMENT PANEL SIDING

5. BOX RIB METAL SIDING

6. PAINTED METAL AWNINGS

7. SIGNAGE

8. VINYL WINDOWS, TYP.

9. STOREFRONT WINDOWS

10. GUARDRAIL

11. METAL ROLL-UP DOOR

12. METAL GRATE

13. METAL GARAGE GATE

14. BUILDING ADDRESS SIGNAGE

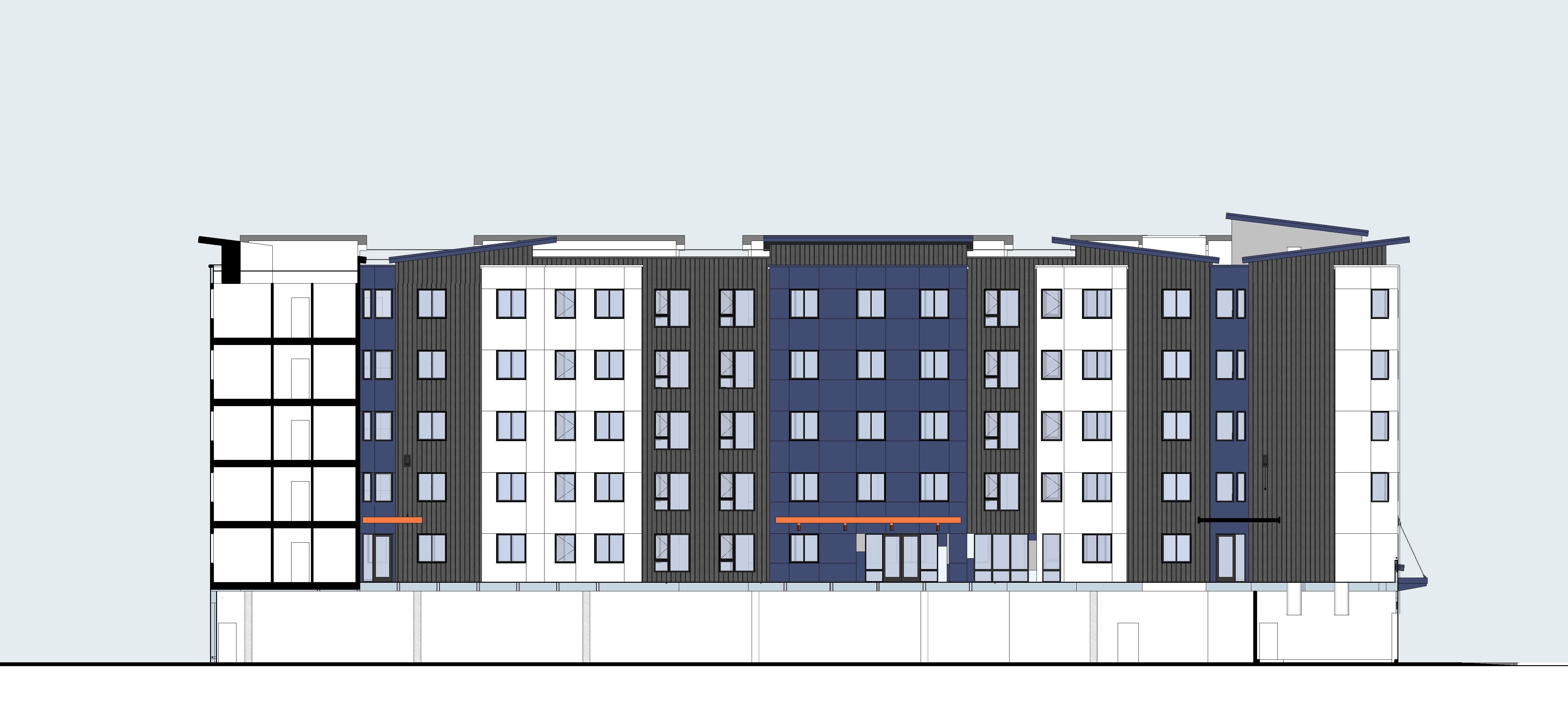

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE NORTH A3.3 BUILDING ELEVATIONS 1 5 4 8 3 12 10 ± 7 2 '6 " F R O M F F T O T O P A R A P E T 10 ± 7 6 '6 " F R O M F F T O T O S T A I R R O O F 6 SCALE: 1/8” = 1’-0” A D C KEYPLAN: B NORTH ELEVATION C

ELEVATION KEYNOTES:

1. PARAPET W/ METAL CAP

2. VERTICAL PANEL SIDING, T.B.D.

3. PAINTED STUCCO W/ CONTROL LINES, TYP.

4. FIBER CEMENT PANEL SIDING

5. BOX RIB METAL SIDING

6. PAINTED METAL AWNINGS

7. SIGNAGE

8. VINYL WINDOWS, TYP.

9. STOREFRONT WINDOWS

10. GUARDRAIL

11. METAL ROLL-UP DOOR

12. METAL GRATE

13. METAL GARAGE GATE

14. BUILDING ADDRESS SIGNAGE

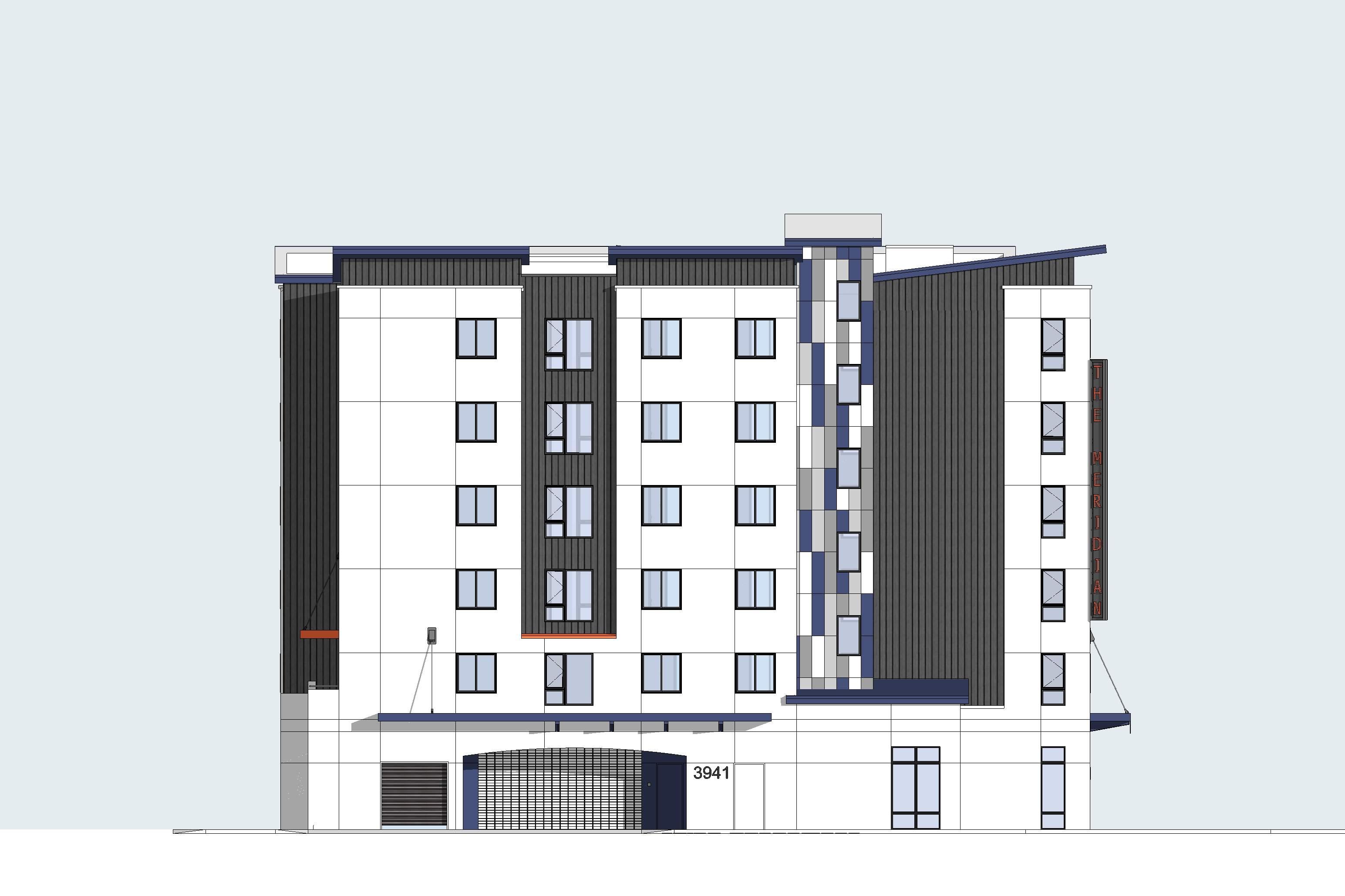

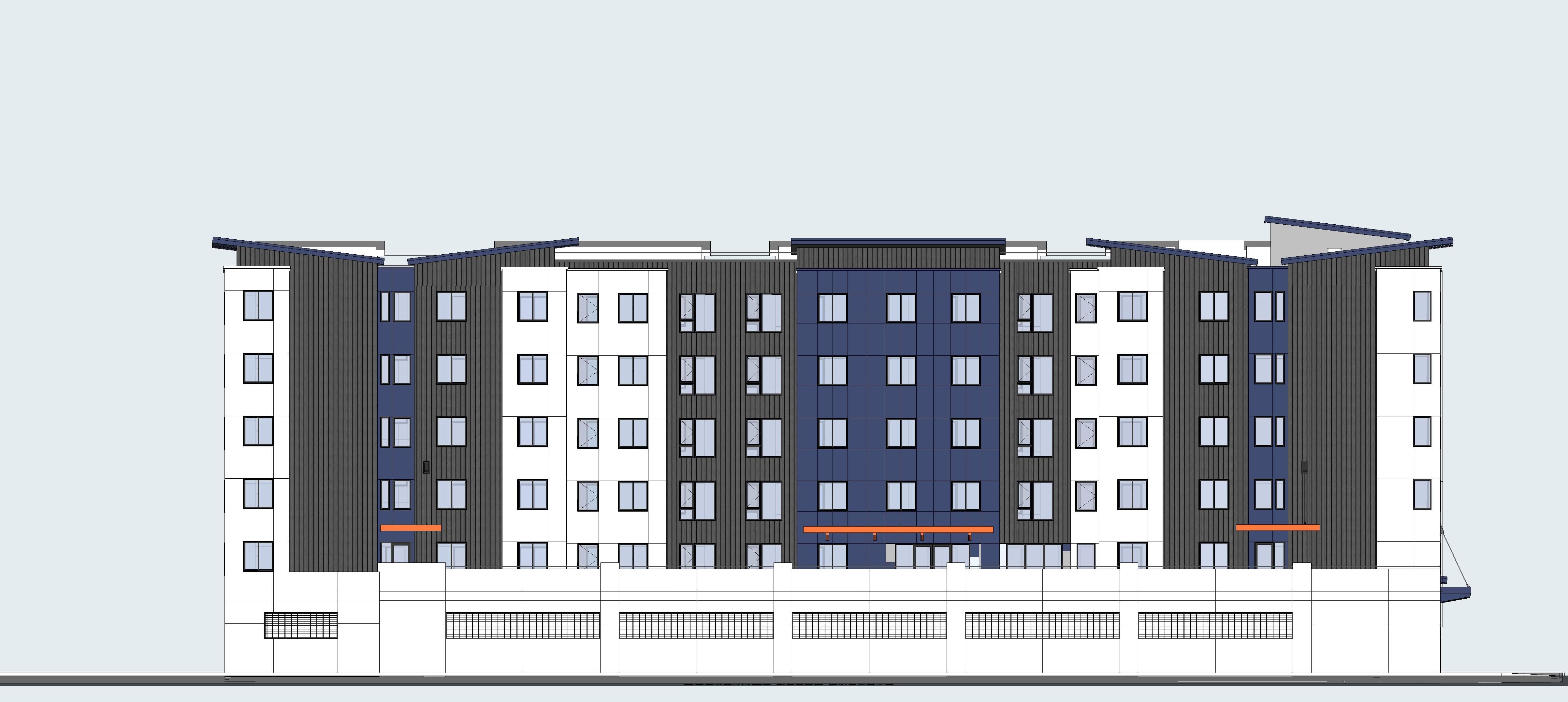

WEST ELEVATION (BUCKINGHAM DRIVE)

3941 STEVENS CREEK | SANTA CLARA, CA

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE NORTH A3.4 BUILDING ELEVATIONS 1 10 6 11 13 2 5 8 7 2 '6 " F R O M F F T O T O P A R A P E T ± 7 6 '6 " F R O M F F T O T O S T A I R R O O F 14

1/8” = 1’-0” A D C KEYPLAN: B

SCALE:

3941 STEVENS CREEK | SANTA CLARA, CA

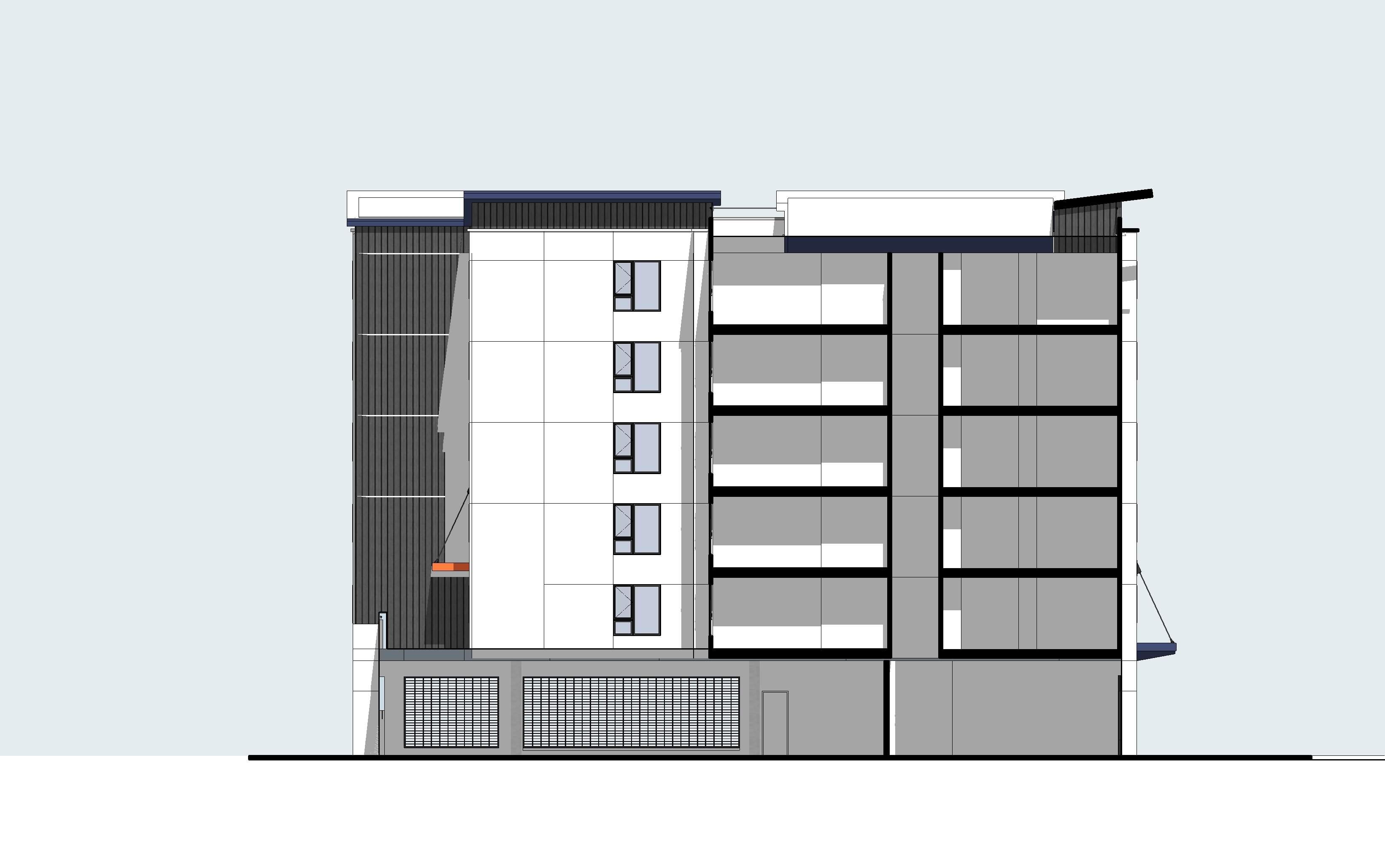

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE NORTH A3.5 BUILDING SECTION 9 '1 " ± 7 26 F R O M F F T O T O P A R A P E T TRASH 9 '1 " 1 2 '0 " 9 '1 " 9 '1 " 9 '1 " ± 7 6 '6 " F R O M F F T O T O S T A I R R O O F GARAGE SCALE: 1/8” = 1’-0” KEYPLAN: E E G G F F COURTYARD SECTION F-F F

3941 STEVENS CREEK | SANTA CLARA, CA

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE NORTH A3.6 KEYPLAN: E E G G F F ± 7 2 '6 " F R O M F F T O T O P A R A P E T 1 2 '0 " 9 '1 " 9 '1 " 9 '1 " 9 '1 " 9 '1 " COMMERCIAL GARAGE SCALE: 1/8” = 1’-0” BUILDING SECTION COURTYARD SECTION E-E E

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE NORTH A3.7 ± 7 2 '6 " F R O M F F T O T O P A R A P E T 1 2 '0 " 9 '1 " 9 '1 " 9 '1 " 9 '1 " 9 '1 " ± 7 66 F R O M F F T O T O S T A I R R O O F GARAGE COMMERCIAL SCALE: 1/8” = 1’-0” BUILDING SECTION KEYPLAN: E E G G F F COURTYARD SECTION G-G G

3941 STEVENS CREEK | SANTA CLARA, CA

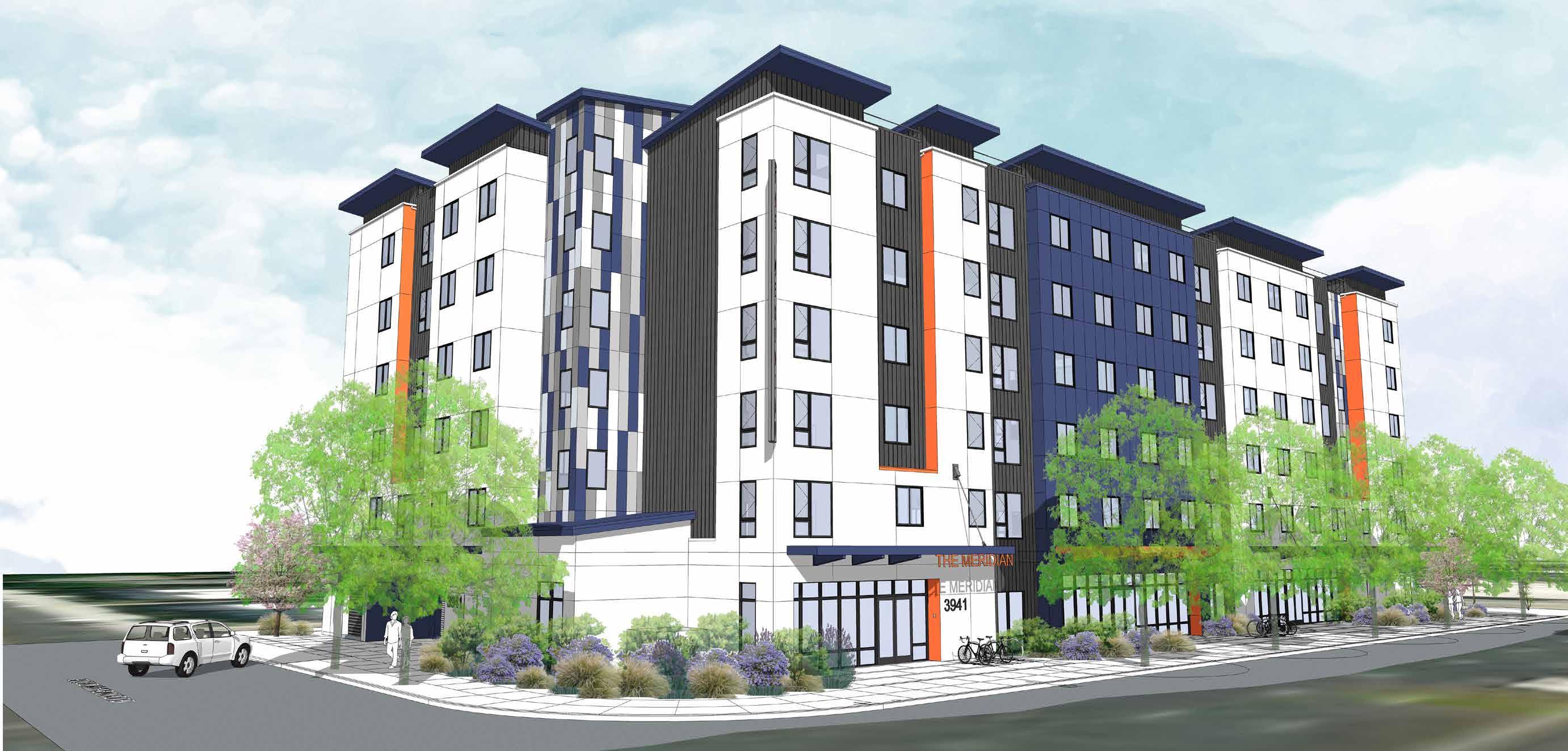

3941 STEVENS CREEK | SANTA CLARA, CA CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE NORTH A4.1 BUILDING PERSPECTIVE KEYPLAN: SCALE: N.T.S.

COLOR + MATERIALS

COLOR 1

EXTERIOR WALL MATERIAL - PANEL + ACCENT

COLOR 2

2 COLOR 3

EXTERIOR WALL MATERIAL - PANEL

Westchester Gray SW 2849 by Sherwin Williams

EXTERIOR WALL MATERIAL - PANEL

Gray Clouds SW 7658 by Sherwin Williams

COLOR 4

EXTERIOR WALL MATERIAL - STUCCO

Extra White SW 7006 by Sherwin Williams

COLOR 5

EXTERIOR WALL MATERIAL - PANEL

Icy SW 6534 by Sherwin Williams

COLOR 6

EXTERIOR WALL MATERIAL - STUCCO

Emberglow SW 6627 by Sherwin Williams

NOTE: Color Samples may vary from their true color with different printers and computer monitors. COLORS

7 + + + SCALE:

3941 STEVENS CREEK | SANTA CLARA, CA

CRP AFFORDABLE

N.T.S.

5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE A4.2

MATERIALS

Salty Dog SW 9177 by Sherwin Williams 1 2 3 5 1 4 7 1 6

COLOR 7

EXTERIOR WALL MATERIAL - BOX RIB SIDING, T.B.D.

3941 STEVENS CREEK | SANTA CLARA, CA

CRP AFFORDABLE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 1648.001 02.02.2022 JOB NO. DATE NORTH A4.3 CODE COMPLIANCE - ALLOWABLE AREA CALCULATIONS UP UP W/D DN UP DN UP DN UP DN UP DN UP DN UP DN UP DN UP DN UP DN 433 SF BUILDING I.U. 2,826 SF BUILDING R2,708 SF BUILDING A M 956 SF BUILDING A -2 11,858 SF BUILDING S6,067 SF BUILDING C -2 8,158 SF BUILDING B R-2 00.00 5,974 SF BUILDING C R8,111 SF BUILDING B R-2 00.00 5,974 SF BUILDING C R8,111 SF BUILDING B R00.00 5,974 SF BUILDING C -2 8,111 SF BUILDING B R00.00 5,974 SF BUILDING C -2 8,111 SF BUILDING B R00.00 ALLOWABLE AREA LEGEND: BUILDING A BUILDING B BUILDING C 148 16 SCALE: 1/16" = 1'-0" 32 PROJECT NORTH JOB NO. DRAWN CHECK SHEET SEAL SIGNATURE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 G101 1648.001 AD/AO CA/KF CODE COMPLIANCE ALLOWABLE AREA CALCULATIONS THE MERIDIAN 3941 STEVENS CREEK SANTA CLARA, CA FIRST BUILDING DEPARTMENT SUBMITTAL SET 10.25.21 1/16" = 1'-0" 1 GROUND FLOOR 1/16" = 1'-0" 2 2ND FLOOR 1/16" = 1'-0" 3 3RD FLOOR 1/16" = 1'-0" 4 4TH FLOOR 1/16" = 1'-0" 5 5TH FLOOR 1/16" = 1'-0" 6 6TH FLOOR Type IIIA Construction - BUILDING B MULTISTORY SINGLE OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. Type Actual Area AtNSFrontagePerimeterWIf Allowable Area A/a= Total < 1 BUILDING B 2ND FLOOR T.O.SLAB R-28,158 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,158 SF 0.34 T.O.S.F. 3RD FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 4TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 5TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 6TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 Total Building Area 40,606 SF 1.69 BUILDINGA/a=COMPLIES BUILDING B1.69<2Yes Complies 2ND FLOOR T.O.SLAB <1Yes T.O.S.F. 3RD FLOOR <1Yes T.O.S.F. 4TH FLOOR <1Yes T.O.S.F. 5TH FLOOR <1Yes T.O.S.F. 6TH FLOOR <1Yes Type IIIA Construction BUILDING C MULTISTORY SINGLE OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. Type Actual Area AtNSFrontagePerimeterWIf Allowable Area A/a= Total < 1 BUILDING C 2ND FLOOR T.O.SLAB R-26,068 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 6,068 SF 0.25 T.O.S.F. 3RD FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 T.O.S.F. 4TH FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 T.O.S.F. 5TH FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 T.O.S.F. 6TH FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 Total Building Area 29,964 SF 1.25 BUILDINGA/a=COMPLIES BUILDING C1.25<2Yes Complies 2ND FLOOR T.O.SLAB <1Yes T.O.S.F. 3RD FLOOR <1Yes T.O.S.F. 4TH FLOOR <1Yes T.O.S.F. 5TH FLOOR <1Yes T.O.S.F. 6TH FLOOR <1Yes Type IA Construction BUILDING A MULTISTORY MIXED OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. TypeActual AreaAllowable Area I.U. I.U. 434 SFUNLIMITED M M 2,709 SFUNLIMITED R-2 R-2 3,784 SFUNLIMITED S-2 S-2 11,859 SFUNLIMITED Total Building Area 18,786 SF Complies GROUND FLOOR <UNLIMITEDYes BUILDING COMPLIES BUILDING A<UNLIMITEDYes REVISIONS KEYNOTE LEGEND 00.00IMAGINARY LINE BETWEEN BUILDINGS OR PROPERTY LINE OR CENTERLINE OF STREET OR PUBLIC WAY, SCD & SITE PLAN A1 SERIES DN UP 5,974 SF BUILDING C R-2 8,111 SF BUILDING B R1 2 / 1 6 / 2 0 2 1 1 1 : 2 7 : 2 0 A M 1/16" = 1'-0" 4

Type IIIA MULTISTORY S ALLOWA Occ. Type Actual Area AtNS BUILDING B 2ND FLOOR T.O.SLAB R-28,158 SF24,000 SF24,000 S 8,158 SF T.O.S.F. 3RD FLOOR R-28,112 SF24,000 SF24,000 S 8,112 SF T.O.S.F. 4TH FLOOR R-28,112 SF24,000 SF24,000 S 8,112 SF T.O.S.F. 5TH FLOOR R-28,112 SF24,000 SF24,000 S 8,112 SF T.O.S.F. 6TH FLOOR R-28,112 SF24,000 SF24,000 S 8,112 SF Total Building Area 40,606 SF Type IA Construction - BUILDING A MULTISTORY MIXED OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. TypeActual AreaAllowable Area I.U. I.U. 434 SFUNLIMITED M M 2,709 SFUNLIMITED R-2 R-2 3,784 SFUNLIMITED S-2 S-2 11,859 SFUNLIMITED Total Building Area 18,786 SF Complies GROUND FLOOR <UNLIMITEDYes BUILDING COMPLIES BUILDING A<UNLIMITEDYes UP DN UP DN UP 433 SF BUILDING A I.U. 2,826 SF BUILDING A R5,974 SF BUILDING C R8,111 SF BUILDING B R00.00 1 2 / 1 6 / 2 0 2 1 1 1 : 2 7 : 2 0 A M 1/16" = 1'-0" 1 GROUND FLOOR 1/16" = 1'-0" 2 2ND FLOOR 1/16" = 1'-0" 4 4TH FLOOR 1/16" = 1'-0" 5 5TH FLOOR Type IIIA Construction BUILDING B MULTISTORY SINGLE OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. Type Actual Area AtNSFrontagePerimeterWIf Allowable Area A/a= Total < 1 BUILDING B 2ND FLOOR T.O.SLAB R-28,158 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,158 SF 0.34 T.O.S.F. 3RD FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 4TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 5TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 6TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 Total Building Area 40,606 SF 1.69 BUILDINGA/a=COMPLIES BUILDING B1.69<2Yes Complies 2ND FLOOR T.O.SLAB <1Yes T.O.S.F. 3RD FLOOR <1Yes T.O.S.F. 4TH FLOOR <1Yes T.O.S.F. 5TH FLOOR <1Yes T.O.S.F. 6TH FLOOR <1Yes Type IA Construction - BUILDING A MULTISTORY MIXED OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. TypeActual AreaAllowable Area I.U. I.U. 434 SFUNLIMITED M M 2,709 SFUNLIMITED R-2 R-2 3,784 SFUNLIMITED S-2 S-2 11,859 SFUNLIMITED Total Building Area 18,786 SF Complies GROUND FLOOR <UNLIMITEDYes BUILDING COMPLIES BUILDING A<UNLIMITEDYes UP UP W/D DN UP DN UP DN UP DN UP DN UP DN UP 433 SF BUILDING A I.U. 2,826 SF BUILDING A R2,708 SF BUILDING A M 956 SF BUILDING A R-2 11,858 SF BUILDING A -2 6,067 SF BUILDING C R8,158 SF BUILDING B R5,974 SF BUILDING C R-2 8,111 SF BUILDING B R00.00 5,974 SF BUILDING C R-2 8,111 SF BUILDING B R14 SCALE: 1 1 2 / 1 6 / 2 0 2 1 1 1 : 2 7 : 2 0 A M 1/16" = 1'-0" 1 GROUND FLOOR 1/16" = 1'-0" 2 2ND FLOOR 1/16" = 1'-0" 4 4TH FLOOR 1/16" = 1'-0" 5 5TH FLOOR Type IIIA Construction - BUILDING B MULTISTORY SINGLE OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. Type Actual Area AtNSFrontagePerimeterWIf Allowable Area A/a= Total < 1 BUILDING B 2ND FLOOR T.O.SLAB R-28,158 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,158 SF 0.34 T.O.S.F. 3RD FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 4TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 5TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 6TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 Total Building Area 40,606 SF 1.69 BUILDINGA/a=COMPLIES BUILDING B1.69<2Yes Complies 2ND FLOOR T.O.SLAB <1Yes T.O.S.F. 3RD FLOOR <1Yes T.O.S.F. 4TH FLOOR <1Yes T.O.S.F. 5TH FLOOR <1Yes T.O.S.F. 6TH FLOOR <1Yes Type IIIA Construction BUILDING C MULTISTORY SINGLE OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. Type Actual Area AtNSFrontagePerimeterWIf Allowable Area A/a= Total < 1 BUILDING C 2ND FLOOR T.O.SLAB R-26,068 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 6,068 SF 0.25 T.O.S.F. 3RD FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 T.O.S.F. 4TH FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 T.O.S.F. 5TH FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 T.O.S.F. 6TH FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 Total Building Area 29,964 SF 1.25 BUILDINGA/a=COMPLIES BUILDING C1.25<2Yes Complies 2ND FLOOR T.O.SLAB <1Yes T.O.S.F. 3RD FLOOR <1Yes T.O.S.F. 4TH FLOOR <1Yes T.O.S.F. 5TH FLOOR <1Yes T.O.S.F. 6TH FLOOR <1Yes Type IA Construction - BUILDING A MULTISTORY MIXED OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. TypeActual AreaAllowable Area I.U. I.U. 434 SFUNLIMITED M M 2,709 SFUNLIMITED R-2 R-2 3,784 SFUNLIMITED S-2 S-2 11,859 SFUNLIMITED Total Building Area 18,786 SF Complies GROUND FLOOR <UNLIMITEDYes BUILDING COMPLIES BUILDING A<UNLIMITEDYes N.T.S. UP UP W/D DN UP DN UP DN UP DN UP DN UP DN UP DN UP DN UP DN UP DN 433 SF BUILDING A I.U. 2,826 SF BUILDING A -2 2,708 SF BUILDING A M 956 SF BUILDING A R11,858 SF BUILDING A -2 6,067 SF BUILDING C R8,158 SF BUILDING R00.00 5,974 SF BUILDING C -2 8,111 SF BUILDING R00.00 5,974 SF BUILDING R8,111 SF BUILDING R00.00 5,974 SF BUILDING C R-2 8,111 SF BUILDING R00.00 5,974 SF BUILDING C R-2 8,111 SF BUILDING R00.00 ALLOWABLE AREA LEGEND: BUILDING A BUILDING B BUILDING C 148 16 SCALE: 1/16" 1'-0" 32 PROJECT NORTH JOB NO. DRAWN CHECK SHEET SEAL SIGNATURE 5865 Owens Drive Pleasanton, CA 94588 925-251-7200 G101 1648.001 AD/AO CA/KF CODE COMPLIANCE ALLOWABLE AREA CALCULATIONS THE MERIDIAN 3941 STEVENS CREEK SANTA CLARA, CA FIRST BUILDING DEPARTMENT SUBMITTAL SET 10.25.21 1/16" = 1'-0" 1 GROUND FLOOR 1/16" = 1'-0" 2 2ND FLOOR 1/16" = 1'-0" 3 3RD FLOOR 1/16" = 1'-0" 4 4TH FLOOR 1/16" = 1'-0" 5 5TH FLOOR 1/16" = 1'-0" 6 6TH FLOOR Type IIIA Construction BUILDING B MULTISTORY SINGLE OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. Type Actual Area AtNSFrontagePerimeterWIf Allowable Area A/a= Total < 1 BUILDING B 2ND FLOOR T.O.SLAB R-28,158 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,158 SF 0.34 T.O.S.F. 3RD FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 4TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 5TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 6TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 Total Building Area 40,606 SF 1.69 BUILDINGA/a=COMPLIES BUILDING B1.69<2Yes Complies 2ND FLOOR T.O.SLAB <1Yes T.O.S.F. 3RD FLOOR <1Yes T.O.S.F. 4TH FLOOR <1Yes T.O.S.F. 5TH FLOOR <1Yes T.O.S.F. 6TH FLOOR <1Yes Type IIIA Construction - BUILDING C MULTISTORY SINGLE OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. Type Actual Area AtNSFrontagePerimeterWIf Allowable Area A/a= Total < 1 BUILDING C 2ND FLOOR T.O.SLAB R-26,068 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 6,068 SF 0.25 T.O.S.F. 3RD FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 T.O.S.F. 4TH FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 T.O.S.F. 5TH FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 T.O.S.F. 6TH FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 Total Building Area 29,964 SF 1.25 BUILDINGA/a=COMPLIES BUILDING C1.25<2Yes Complies 2ND FLOOR T.O.SLAB <1Yes T.O.S.F. 3RD FLOOR <1Yes T.O.S.F. 4TH FLOOR <1Yes T.O.S.F. 5TH FLOOR <1Yes T.O.S.F. 6TH FLOOR <1Yes Type IA Construction - BUILDING A MULTISTORY MIXED OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. TypeActual AreaAllowable Area I.U. I.U. 434 SFUNLIMITED M M 2,709 SFUNLIMITED R-2 R-2 3,784 SFUNLIMITED S-2 S-2 11,859 SFUNLIMITED Total Building Area 18,786 SF Complies GROUND FLOOR <UNLIMITEDYes BUILDING COMPLIES BUILDING A<UNLIMITEDYes REVISIONS KEYNOTE LEGEND 00.00IMAGINARY LINE BETWEEN BUILDINGS OR PROPERTY LINE OR CENTERLINE OF STREET OR PUBLIC WAY, SCD & SITE PLAN A1 SERIES UP UP W/D DN UP DN UP UP DN UP DN UP DN UP DN UP DN UP UP DN 433 SF BUILDING A I.U. 2,826 SF BUILDING R2,708 SF BUILDING A M 956 SF BUILDING A R-2 11,858 SF BUILDING A6,067 SF BUILDING C R-2 8,158 SF BUILDING B R00.00 5,974 SF BUILDING C R8,111 SF BUILDING B R00.00 5,974 SF BUILDING C R-2 8,111 SF BUILDING B R00.00 148 16 SCALE: 1/16" 1'-0" 32 PROJECT NORTH JOB NO. DRAWN CHECK SHEET SEAL SIGNATURE 1 2 / 1 6 / 2 0 2 1 1 1 2 7 2 0 A M G101 1648.001 AD/AO CA/KF CODE COMPLIANCE ALLOWABLE AREA CALCULATIONS THE MERIDIAN 3941 STEVENS CREEK SANTA CLARA, CA FIRST BUILDING DEPARTMENT SUBMITTAL SET 10.25.21 1/16" = 1'-0" 1 GROUND FLOOR 1/16" = 1'-0" 2 2ND FLOOR 1/16" = 1'-0" 3 3RD FLOOR 1/16" = 1'-0" 4 4TH FLOOR 1/16" = 1'-0" 5 5TH FLOOR 1/16" = 1'-0" 6 6TH FLOOR Type IIIA Construction BUILDING B MULTISTORY SINGLE OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. Type Actual Area AtNSFrontagePerimeterWIf Allowable Area A/a= Total < 1 BUILDING B 2ND FLOOR T.O.SLAB R-28,158 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,158 SF 0.34 T.O.S.F. 3RD FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 4TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 5TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 T.O.S.F. 6TH FLOOR R-28,112 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.34 8,112 SF 0.34 Total Building Area 40,606 SF 1.69 BUILDINGA/a=COMPLIES BUILDING B1.69<2Yes Complies 2ND FLOOR T.O.SLAB <1Yes T.O.S.F. 3RD FLOOR <1Yes T.O.S.F. 4TH FLOOR <1Yes T.O.S.F. 5TH FLOOR <1Yes T.O.S.F. 6TH FLOOR <1Yes Type IIIA Construction BUILDING C MULTISTORY SINGLE OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. Type Actual Area AtNSFrontagePerimeterWIf Allowable Area A/a= Total < 1 BUILDING C 2ND FLOOR T.O.SLAB R-26,068 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 6,068 SF 0.25 T.O.S.F. 3RD FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 T.O.S.F. 4TH FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 T.O.S.F. 5TH FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 T.O.S.F. 6TH FLOOR R-25,974 SF24,000 SF24,000 SF0"1'-0"0"0.000024,000 SF0.25 5,974 SF 0.25 Total Building Area 29,964 SF 1.25 BUILDINGA/a=COMPLIES BUILDING C1.25<2Yes Complies 2ND FLOOR T.O.SLAB <1Yes T.O.S.F. 3RD FLOOR <1Yes T.O.S.F. 4TH FLOOR <1Yes T.O.S.F. 5TH FLOOR <1Yes T.O.S.F. 6TH FLOOR <1Yes Type IA Construction BUILDING A MULTISTORY MIXED OCCUPANCY BUILDING ALLOWABLE AREA CALCULATION Occ. TypeActual AreaAllowable Area I.U. I.U. 434 SFUNLIMITED M M 2,709 SFUNLIMITED R-2 R-2 3,784 SFUNLIMITED S-2 S-2 11,859 SFUNLIMITED Total Building Area 18,786 SF Complies GROUND FLOOR <UNLIMITEDYes BUILDING COMPLIES BUILDING A<UNLIMITEDYes REVISIONS KEYNOTE LEGEND 00.00IMAGINARY LINE BETWEEN BUILDINGS OR PROPERTY LINE OR CENTERLINE OF STREET OR PUBLIC WAY, SCD & SITE PLAN A1 SERIES

4TH FLOOR
