TINY HOUSE COMPETITON
Term...........................2022/2023 5Th semesTer superVisON................dOC.iNg.ArCh. prOf. pŚ jerzy wOjewódkA uNiVersiT y.................silesiAN uNiVersiTy Of TeChNOlOgy
VisuAlizATiONs..........jAkub ŁukAsik
Advertisement
The „bACkpACk” is desigNed fOr peOple whO likes TO TrAVel spONTANeOusly ANd dON’T wANT TO wOrry AbOuT ACCOmOdATiON. prOjeCT wAs iNspired by The bACkpACk, whiCh wAs CreATed fOr eAsier CArryiNg The mOsT NeCessAry ThiNgs. iT is Very uNiVersAl, mANy peOple use The sAme ONe bACkpACk fOr sChOOl, TrAiNiNg Or eVeN hOlidAys mAkiNg iT TrAVel wiTh yOu eVerywhere sTArTiNg frOm This ideA, The premise Of The prOjeCT wAs TO desigN A TiNy hOuse ThAT is eAsy TO TrANspOrT ANd AlsO
Very eAsy TO fOld ANd pACk. This TiNy hOuse wAs desigNed frOm repeTiTiVe elemeNTs whiCh helps while AssembliNg ANd giVes shApe Or iNTeriOr VAriAbilTy . The mAiN mATeriAl is eTfe fOil ANd All The sAme sized CArbON fiber Tubes whiCh, wheN Assembled fOrm The frAme fOr The fOil, mAkiNg The prOjeCT lighTweighT, durAble ANd eAsy TO Assemble. „bACkpACk” AfTer fOldiNg hAs 25 sQuAre meTre (269 sQuAre feeT). The iNTeriOr desigN iNCludes furNiTure ThAT CAN be eAsily fOlded ANd TrANspOrT (CAmpiNg furNiTure). The desigNed hOuse CAN be AlsO CONNeCTed TO exisTiNg elemeNTs suCh As lOOkOuT TOwers Or buildiNgs Three sAmple lOCATiONs Are highlighTed iN The prOjeCT.
TRANSPORT IDEOGRAM
IDEA LOCATION IDEOGRAM
ASSEMBLY IDEOGRAM

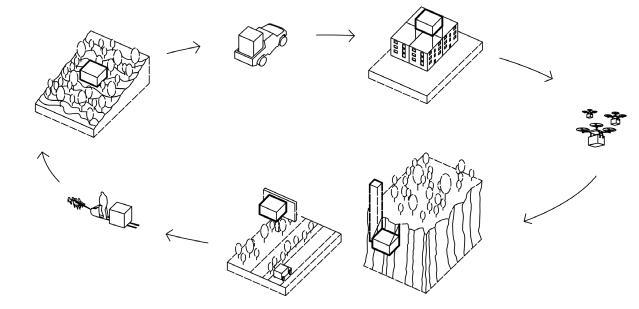

LOCATION AND TRANSPORT IDEOGRAM
Construction
ELEVATION VARIATION 1
ELEVATION VARIATION 2
