SINGLE & MFT SOCKET TESTERS METERING & DSO SAFE ISOLATION & LOTO CIRCUIT & FUSE FINDERS INDUSTRIAL SOCKET TESTERS

PRODUCT GUIDE

go test..

TB118

CONTENTS

Page

Page

DSO & SMART METERING

3

LOCK OFF & TAG OUT DEVICES & KITS

ELECTRICIANS ESSENTIALS

4

INDUSTRIAL SOCKET TESTERS

GAS / HEATING ENGINEERS

5-6

SOCKET TESTERS

13

SINGLE & MULTIFUNCTION

7-8

CIRCUIT & FUSE FINDERS

14

ACCESSORIES

15

SAFE ISOLATION & VOLTAGE INDICATION

9

10 11 - 12

ABOUT SOCKET & SEE We listen to and cater for many industries: SMART mETER 1 2 3 4 5 0

SMART METERING

UTILITIES / DISTRIBUTION NETWORK

FEATURE PAGE: 3

FEATURE PAGE: 3

HEATING / GAS ENGINEERS

FEATURE PAGE: 5 - 6

WHITE GOODS MANUFACTURING

FEATURE PAGE: 4 - 6

F U S E

All our testers are certified to: BS EN 61010 Fully Certified

BS EN 61326 Fully Certified

Be reassured you will see these markings on Socket & See products:

DOMESTIC / COMMERCIAL / INDUSTRIAL FEATURE PAGE: 4 - 6

go test..

Through consistent contact with electricians, engineers and gas installation engineers, Socket & See have been producing electrical test equipment since 1998 with both professional and newly-qualified trades people in mind.

From our humble beginnings with just 3 socket testers, we have developed products for use in domestic, commercial and industrial settings with our primary focus being on innovation, ease-of-use and affordability.

We offer value for money, quality products and friendly, professional advice...

...plus our ethos includes a nimble and agile approach; perfect for bespoke product development, production and delivery! Enquire about bespoke fascias.

powered by

2380..78

Ω

ACV

GO GOO OD D

DSO & SMART METERING

SMART mETER 1 2 3 4 5 0

FIRST!

VIP ESI

Assisting industry engineers to implement and practice safe working procedures during the installation process; the only two-pole tester to perform an impedance check and give a clear colour-coded indication of HiZ/LoZ. This makes it ideal for critical DNO checks.

It has automatic ghost voltage suppression with no need to press buttons. This means the engineer can keep both hands firmly on the tester during measurements. Results are displayed on colour-coded independently operating LEDs on the side and base of the tester.

Suitable for use with PPE, as often required by company policy for compliance purposes and fits safely in a compact and protective carry case, which can be effortlessly carried using either the shoulder strap or belt loop.

DMM DSO

243.1 VACRMS

Ghost interVoltage changeable Suppression prods

Short circuit “glow test”

Dual location visual indication

SOK DSO

DMM DSO

The SOK DSO is a socket tester primarily designed for DSO’s (Distribution System Operators) and MOPs (Meter Operators).

It will indicate cross polarity of incoming supply at a consumer’s installation where supplied in a TN-CS (PME) earthing arrangement.

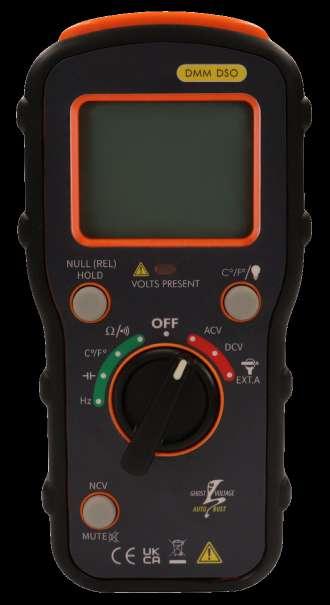

DSO DMM RMS Multimeter; designed specifically for DSO engineers, complete with unique automatic ghost voltage busting functionality and no requirment to select LoZ (making this DMM easy to use).

To identify a reverse polarity on a PME system, a reference to the true mass of earth must be taken. The SOK DSO forces an engineer to reference the true mass of earth by making them push a button to initiate the socket test. This gives them no choice but to conduct the polarity test.

When the engineer touches the push button, they reference earth by capacitive coupling. Capacitive coupling is an incredibly safe way of referencing earth and should the engineer wish, they can even leave insulated gloves on while initiating the test.

VIP ESI TWO POLE SAFETY TESTER PATENTED IMPEDANCE CHECK

SOK DSO

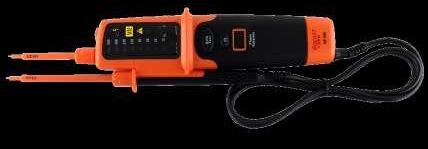

VIP ESI 2-POLE VOLTAGE INDICATOR

If a reverse polarity is detected it is indicated by a warbling tone and a red LED. If no polarity fault is present the SOK DSO will then act as a conventional socket tester.

SOK DSO

TRUE POLARITY TESTER

1 2 3 4 5 0

Tri-colour Audible Socket LEDs warning tester

Meter tail polarity

Hostile environment? It comes with a rugged protective over-mould and a CAT IV 600V safety rating, plus 500mA fused test leads. A reliable tool for professionals and industry experts!

With resistance measurement up to 19.99K Ohms and a continuity feature for quick belling out, this multimeter is suitable for various applications.

It is compatible with a flexi current clamp (1mV = 1A), allowing convenient current measurements, and includes a k-type thermocouple for temperature measurements Comes with fused test leads magnetic fob, K-type probe, soft carry case.

DMM DSO

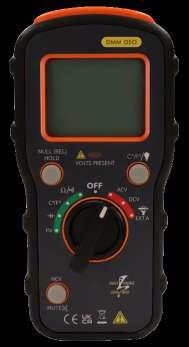

UTILITIES MULTIMETER

TEST Hands-free Volts Ghost K-Type present thermotesting voltage warning couple suppression

3

ELECTRICIAN’S ESSENTIALS The Socket & See multifunction and single function tester range offer an easy to use, cost-effective solution to testing to BS 7671 wiring regulations.

All testers conform to BS EN 61010 safety standards and BS EN 61557 performance standards.

PDL PRO

IRC PRO

MFT 5000

HIGH RESOLUTION LOOP TESTER

INSULATION & CONTINUITY TESTER

MULTIFUNCTION TESTER

200

TEST No trip loop test

Hands-free testing

Continuity test

Buzzer for belling out

Insulation Phase & continuity rotation

TEST

They are suitable for testing in CAT III and CAT IV environments.

High current 2 Voltage wire loop test VLN-VLE-VNE

Hands-free testing

Volts present warning

High current 2 wire loop test

Auto RCD

EXAMPLE CO.

The single function testers are ergonomically designed with a protective rubber boot. They have a large backlit LCD screen for easy-to-read results and a kick stand and magnetic fob for easy use.

PDL PRO

LOOP

0.76 0.60 VLN VLN

243

PDL PRO V

Electrical Contractors

Asset ID: X X X X X Engineer’s Name

Bespoke colour welcome screen (optional)

Hard protective case (included)

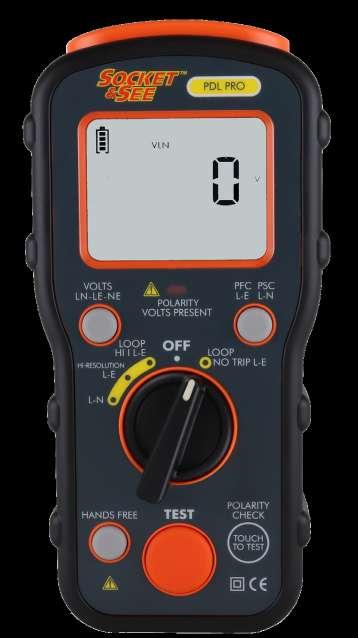

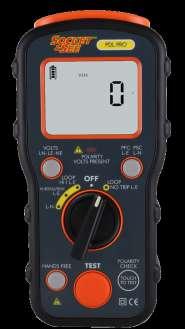

PDL PRO Earth Loop Impedance Tester offers a no trip Zs test and high current Ze testing with milliohm resolution.

V

IRC PRO

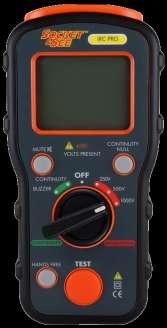

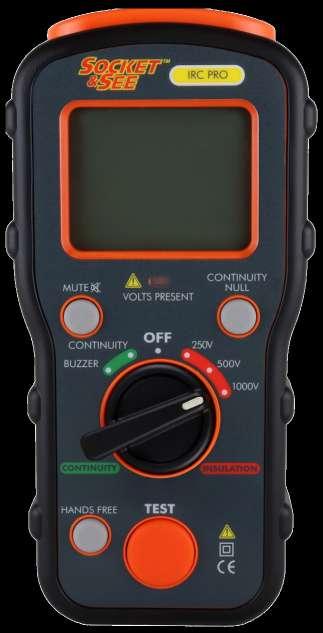

IRC PRO Insulation Resistance and Continuity Tester has a 200mA continuity test with null facility and insulation tests at 250V, 500V and 1000V. There is also a buzzer facility for easy belling out. It is fully protected against accidental connection to earth.

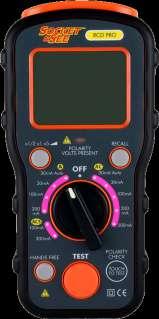

RCD PRO

RCD PRO RCD Tester allows testing in accordance with BS 7671.

Ramp test is available for fault-finding. Dual-colour LCD screen gives clear indication of a pass or fail.

IRC PRO

MFT 5000 M

VRMS

1046

V

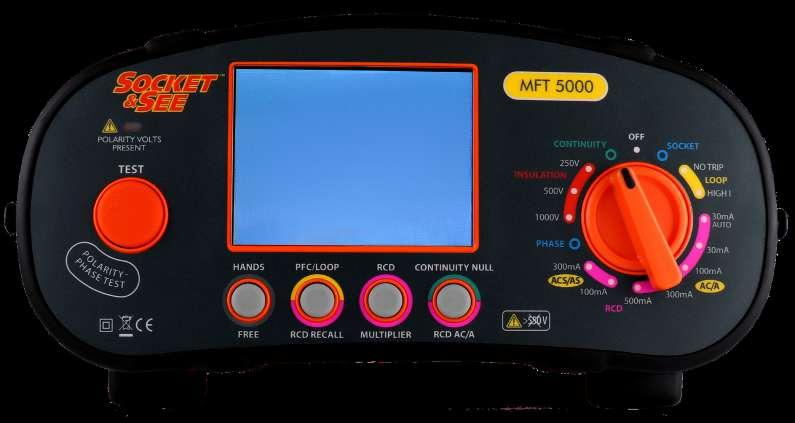

The MFT 5000 Multifunction Tester is suitable for domestic and industrial testing. Its padded neck strap, lightweight design and remote probe make it incredibly easy and comfortable to use.

MFT 5000 issued to: Engineer: J Smith

MFT 5000

Asset ID: 9 8 5 6 2

YOUR LOGO

Electrical Services Ltd.

4

GAS / HEATING ENGINEERS

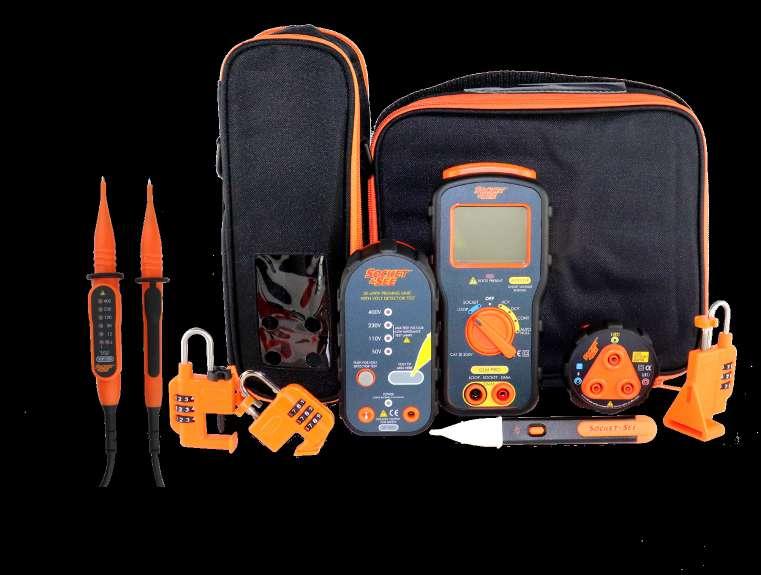

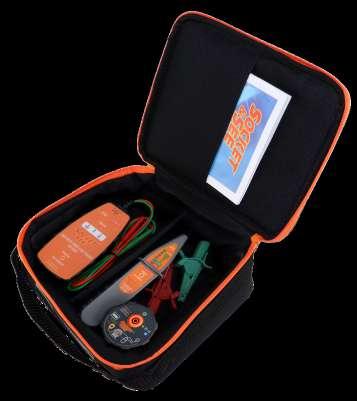

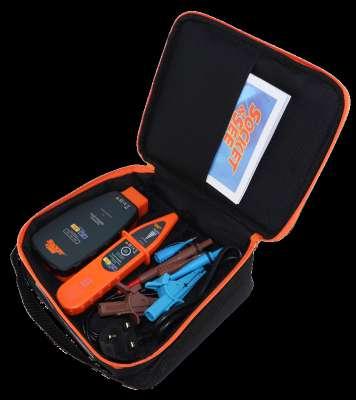

The Socket & See TB118 Advanced Kit and TB118 Essential Kit contain all the equipment a gas engineer needs to safely comply with Technical Bulletin 118 (safe electrical isolation of gas appliances).

ESSENTIALS KIT

For the safe to touch test, both kits contain the Socket & See VVD PRO. This non-contact voltage indicator can be used to check for the presence of hazardous voltage on appliances, pipework and exposed metal work as called for by TB118, BS 6891 and BS 6400. The VVD PRO gives visual and physical warnings of any hazardous voltage detected.

ADVANCED KIT

However the appliance is connected to the mains, Socket & See have an appropriate lock off device to stop unwanted energising. Both kits contain locks for 13 Amp plugs, MCB / RCD and fused spurs. They are accompanied with prohibition tags so the full “lockout - tag out” procedure can be conducted.

To allow the safe isolation procedure to be carried out, each kit includes a two-pole voltage indicator and proving unit.

The VIP150 (Advanced Kit) is small enough to access tight spaces and terminal blocks, and has battery free operation. The VIP200 (Essentials Kit) has an additional continuity test facility, flash light and single pole indication.

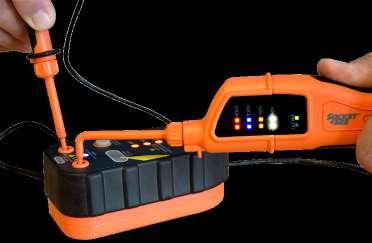

The SP200 / SP400 proving units provide an easily assessable AC “known source” to prove operation of voltage indicators before and after use. This is as covered in Stage 2 and 4 of TB118 safe isolation procedure. The SP400 (Advanced Kit) also features a test pad to prove non-contact voltage detectors, such as the Socket & See VVD PRO. As gas appliances are class 1 (earthed enclosure), TB118 calls for a check of power supply earthing. This earth loop impedance test can be carried out by the PDL234 or DLM PRO without tripping the installation RCD. The DLM PRO, part of the Advanced Kit, also includes multi-meter functionality for appliance fault-finding down to component level.

ESSENTIALS TB118 KIT

ADVANCED TB118 KIT

0.8

Ω

GOOD

5

THE KITS FOR TB118!

TECHNICAL BULLETIN 118 KITS These kits have been specially designed for: Gas / Heating Engineers: Installation, servicing and repair work Switch off and lockout!

Prove electrically dead before commencing work... for your safety and the safety of your colleagues and customers.

• Non-Contact Voltage Detector Perfect for: safe to touch test • Earth Loop Impedance Tester Perfect for: supply earthing tests • 2-Pole Voltage Indicator and Proving Unit Perfect for: proving electrically dead •

Lockout/Tagout Kit Perfect for: ensuring safe working practice

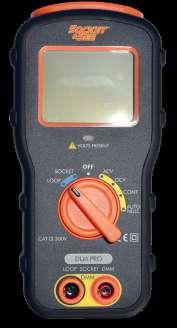

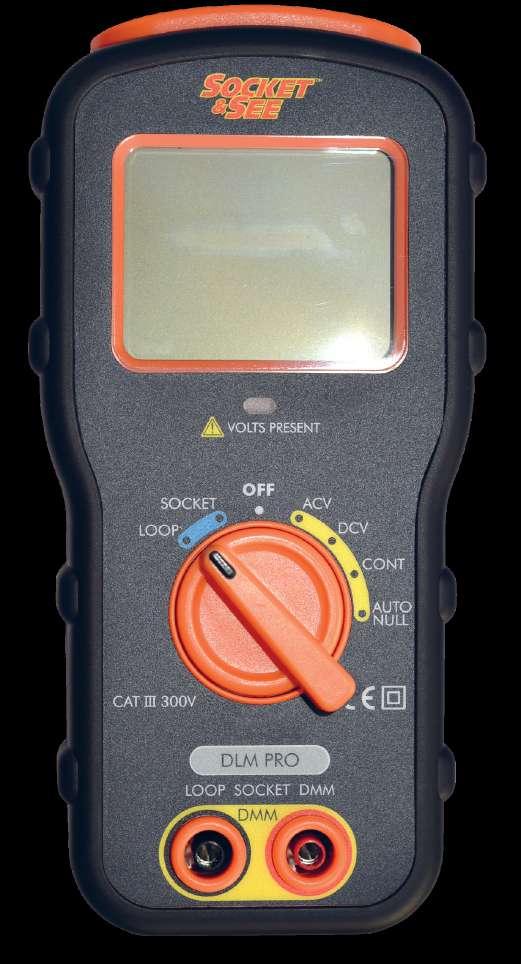

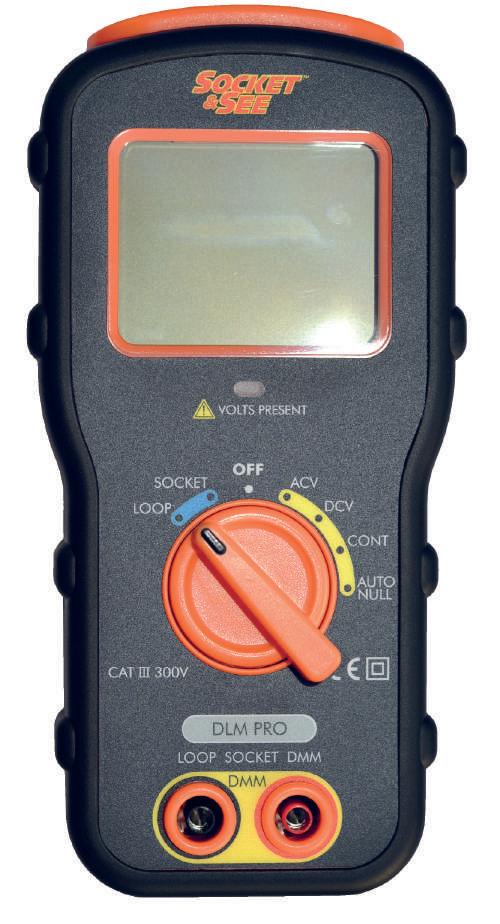

DLM PRO THE TESTER FOR TB118!

DLM PRO COMBINED DMM, LOOP & SOCKET TESTER

Ω

Ghost Loop voltage impedance suppression tester

DLM PRO

The Socket & See DLM PRO has been specifically designed with gas and electrical appliance engineers in mind. It combines a socket tester, an earth loop tester and selected multimeter functions to create another...

0.8 GOOD

0.8

Ω

Socket tester

FIRST!

The DLM PRO combines all the test functions an engineer will need for installation, service or fault-finding of an appliance and development was undertaken alongside key customers, with a focus on developing a feature-rich, cost-effective product.

Ω

GOOD AUTO GVB GHOST VOLTAGE BUSTING AUTO GVB GHOST VOLTAGE BUSTING

Digital multimeter

Design: Ergonomic and robust, with single rotary switch and colour-coding.

Features: AC 0-500V (auto-ghost voltage busting functionality), 40-200Hz, DC 0-500V, Continuity 0-2MΩ, Non-Trip Loop, Belling out function, Auto Null.

Safety: Both visual and audible warnings alert the user and provide ultimate safety.

Indication: When a fault condition occurs the display back-screen will illuminate red.

DLM PRO

DLM PRO

Built-in: Socket Tester functionality to prove correct wiring.

SS130 Socket interface included!

6

DMM, Loop and Socket Tester

SINGLE & MULTIFUNCTION

BS EN 61010 Fully Certified

300V CAT III

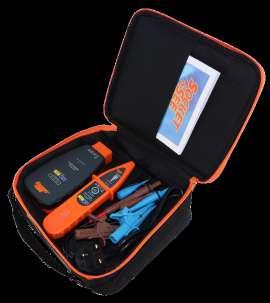

Loop Testing Kit

• • • • • • • • • • •

3 in 1 tester: Combines digital multimeter, loop and socket testing functions Designed for plumbing, gas, heating and domestic appliance engineers Robust and user-friendly with simple colour-coding system Single rotary dial operation with standard 4mm terminals GS38 Fault condition clearly indicated by red backlit screen ACV, DCV and continuity for component fault-finding 50 hrs battery life from 4 x AA alkaline batteries Volts present LED to indicate energised circuits Built-in socket tester functionality to prove correct wiring SS130 Socket interface included Auto-ghost voltage busting functionality

•

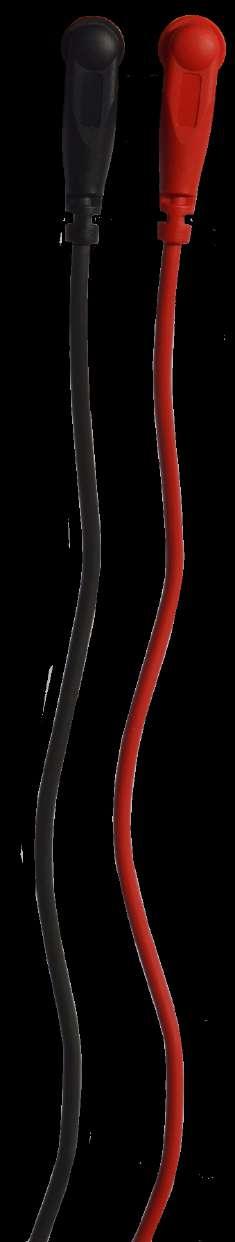

300V CAT III FUSED TEST LEADS

• •

600V CAT IV

600V CAT IV 1000V CAT III

Ω

GOOD

AUTO GVB GHOST VOLTAGE BUSTING

DLM PRO

4 in 1 tester: Combines loop, mains voltage, correct wiring and polarity testing Fully protected against accidental phase to phase connection Accurate main voltage measurement to latest BS 7697 GS38 Polarity test gives ultimate overall system safety check (checks the incoming meter tails) Simple GO/NO-GO loop testing indication Built-in SOK32 correct wiring indication (bright LEDs provide clear indication) Lightweight, compact and battery-free Supplied with GS38 compliant fused test leads, clips, probes and carry case

• •

Digital Multimeter

0.8

PDL234 • • •

Utilities Multimeter BS EN 61326 Fully Certified

DLM PRO

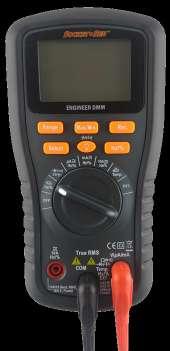

Engineer DMM • • • • • • • •

True RMS Tester: DMM, featuring voltage detection and temperature measurement Check resistance, capacitance, diode and frequency Includes K Type thermocouple (-40°C to 1000°C) Non-contact AC voltage detection Frequency and duty cycle functions Max. / Min. and hold functions Auto-power off saves battery Rugged protective boot and large back-lit display

RMS

V

GS38

DMM DSO • • • • • • • • • •

Capacitance and frequency measurements True RMS utilities digital multimeter Automatic ghost voltage suppression Continuity measurement up to 19.99 Ohms Includes 500mA fused test leads, with GS38 compliant clips and probes Includes a K-type thermocouple for temperature measurements Magnetic fob and hands-free function Non-contact AC voltage indication Volts present indicator (LED) GS38 Compatible with current clamps

DMM DSO

243.1 VACRMS

FUSED TEST LEADS

see everything at socketandsee.co.uk 7

High Res. Digital Earth Loop Tester

500V CAT III BS EN 61557 Certified

• • • • • • • • • •

LOOP

Uses true impedance / accurate measurement of prospective fault current Unique Socket & See Polarity test gives ultimate overall system safety check Fully protected against accidental phase to phase connection Accurate mains voltage measurement LN-LE-NE TESTS No-trip loop test technology TO High current testing to 1mΩ resolution BS 7671 Clear PFC / PSC indication Rugged protective boot Magnetic fob and hands-free function Contact wetting gives repeatable results from the first test

0.608 VLN

243

V

BS EN 61326 Fully Certified

300V CAT IV

PDL PRO

SINGLE & MULTIFUNCTION

RCD PRO RCD Tester

300V CAT IV 500V CAT III BS EN 61557 Certified

Continuity & Insulation Resistance Tester 300V CAT IV 500V CAT III

• • • • • • • • • • •

Tests most commonly found RCD types (AC, A and ACS) Comes complete with Distribution Network Operator (DNO) polarity test pad Simple auto test for 30mA RCDs Polarity, voltage present LED TESTS Ramp test for fault finding TO Auto 0º - 180º toggle BS 7671 AC Voltage VLN Result recall x½ , x1 test on all RCD types x5 test on 30mA RCDs Any fail is clearly indicated by an audible tone and a red back-light

x1/2

2000

mS

PASS

IRC PRO • • • • • • • • •

250,500,1000v insulation testing 200mA continuity test Buzzer for quick and easy belling out Null leads up to 5Ω Protective rubber boot Magnetic fob and hands-free function Protected against accidental mains connection Auto off preserves batter life Null retained after power off

M

VRMS

TESTS TO BS 7671

1046

V

BS EN 61557 Fully Certified

300V CAT IV 600V CAT III BS EN 61557 Fully Certified

MFT5000 • • • • • • • • • • • • •

Large full-colour display and bespoke boot screen available 250V / 500V and 1000V insulation test ranges Phase rotation 200mA continuity testing High accuracy, no trip loop testing Test general and selective RCDs Auto-sequence RCD testing Battery saving auto-sleep Fast push button restart RCD ramp test for fault-finding Two wire high I loop testing Hands-free operation and remote probe included Complete with socket tester function

BS EN 61010 Fully Certified

18th Edition Multifunction Tester

TESTS TO BS 7671

NULL

Vrms

V

see everything at socketandsee.co.uk 8

BS EN 61010 Fully Certified

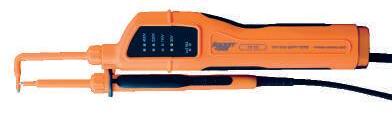

VIP ESI

2-Pole Voltage Indicator

• • • • •

Automatic ghost voltage suppression Clear LED indication of hi / low impedance Secondary base display for safe arms-length indication Front dual; high visibility, colour coded LED display of voltage Interchangeable straight and right-angled compliant test prods

GS38

BS EN 61326 Fully Certified

VIP 200

2-Pole Voltage Indicator

• • • • •

Phase rotation and Single pole voltage detection BS EN 61243 compliant Bright LED torch Audible continuity test 12, 24, 36, 50, 120, 230, 400, 600V AC/DC indication

GS38

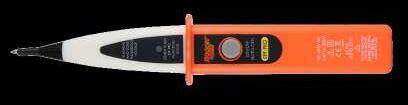

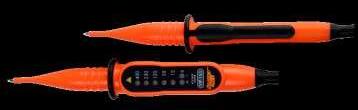

600V CAT IV VIP 150

Voltage Indicator

• • • • •

No batteries required BS EN 61243 compliant Dual insulated, wear indicating cable Compact design encourages safe site use Six voltage range: 6-12-50-120-230-400V AC/DC

GS38

600V CAT IV EPF PRO

Hazardous Voltage/Phase Finder

• • • • •

600V CAT III

Voltage range: 50-600 VAC Single pole contact measurement Fully functional when wearing PPE Detects live metalwork / enclosures Audible / visual heartbeat for correct operation

GS38

300V CAT IV VVD PRO

Non Contact Voltage Detector

• • • • •

Bright LED torch 50 - 1000 VAC 50-60 Hz Balanced sensitivity for more accurate detection Physical indication of volts present given by vibration Visual indication of volts present given by a flashing red LED

1000V CAT IV

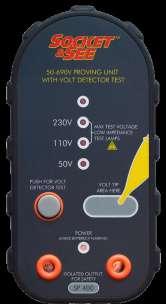

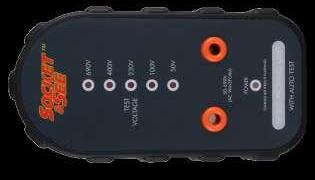

Proving Unit

• • • • •

Step voltage LEDs indicate voltage being generated Generates between 50 – 690V with a 50Hz AC output Test non-contact voltage detectors using the inbuilt test point Test single pole, hazardous voltage indicators and phase finders Proves 2-pole voltage indicators, multimeters and filament test lamps

90 V

SP400

40 06

SAFE ISOLATION & VOLTAGE INDICATION

600V CAT IV

SP200

Proving Unit

• • • • •

Compact design encourages routine safety checks Step voltage LEDs indicate voltage being generated Generates between 50 – 690V with a 50Hz AC output Low battery indication gives ample warning to replace batteries Utilities industry approved for use with low/high impedance testers

see everything at socketandsee.co.uk 9

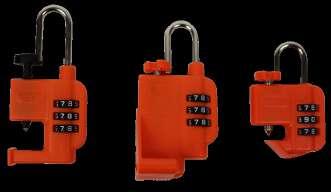

FUSE LOCK

Fuse Lock Off Device

• • • • •

Fits all BS 1363 fused spurs Two warning tags included Set your own combination with no more keys to lose 'Locking off' makes the installation safe and is best practice Robust high-visibility design

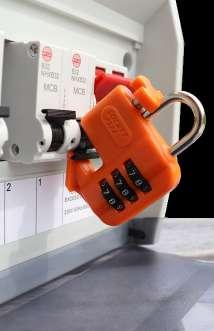

MCB LOCK Compact and lightweight Robust and reliable patented design Set your own combination with no more keys to lose Saves on money / training on complicated lock out kits Fits most known makes of MCB, RCD and mains switches

LOCK OFF & TAG OUT DEVICES & KITS

MCB Lock Off Device

• • • • •

PLUG LOCK

Plus Lock Off Device

• • • • •

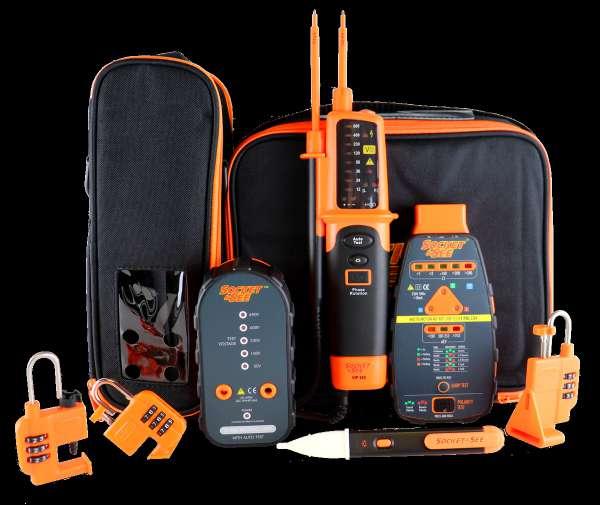

Safe Isolation and Lock Out Tag Out Kits

Fits all BS 1363 plugs Compact high-visibility design Two reusable / wipe clean prohibition tags included Set your own combination with no more keys to lose Saves on money / training on complicated lock out kits

Handy, all-in-one kits Robust, high-visibility patented designs Saves time and money with minimal training required.

ISOKIT415

• • •

VIP150 Voltage Tester SP400 Professional Proving Unit SAFE CASE (for equipment protection)

ISOKIT420

400-690V

• • •

ISOKIT215

• • •

VIP150 Voltage Tester SP200 Professional Proving Unit SAFE CASE (for equipment protection)

VIP200 Voltage Tester SP400 Professional Proving Unit SAFE CASE (for equipment protection)

400-690V

ISOKIT220

• • •

VIP200 Voltage Tester SP200 Professional Proving Unit SAFE CASE (for equipment protection)

BS EN 61326 Fully Certified

3 x Customisable combination locks are included as additional components in the following model numbers: LOCKKIT415, LOCKKIT420, LOCKKIT215, LOCKKIT220

see everything at socketandsee.co.uk 10

BS EN 4343 Testing

SOK110 KIT

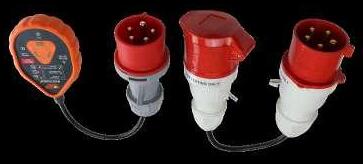

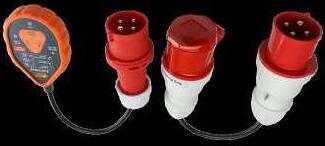

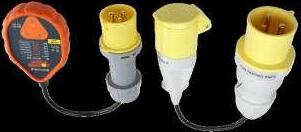

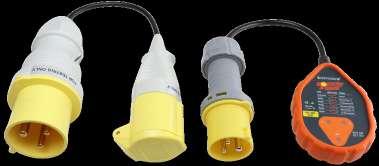

110c 16A/32A 3-Pin Industrial Socket Tester

BS EN 61010 Fully Certified

• •

Includes SOK50, ADP50 32A adaptor and TECC10 carry case Test both 16A and 110v CTE (centre tapped to earth) industrial sockets Suitable for testing 110v 16A and 32A 3 pin systems Complete testing solution ADP50

Socket Tester Adaptor

SOCKET TESTERS

• •

• • • • •

Designed for TESTING ONLY Strong self-closing plug cover to prevent dirt ingress For use with Socket & See SOK50 socket tester (3 pin) Converts 16A tester to 32A (16A socket to 32A plug, 110V) Robust construction for regular use with secure push fit connection SOK50

32A Industrial Socket Tester

• • • • •

Use with SOK ADP50; tests 32A industrial sockets Specifically designed for UK 55-0-55V (110V) construction sites Continuous audible tone = correct. Strong warbling tone = faulty Clearly indicates position of L1, L2 and Centre Tap (long-life LEDs) Hard wearing flexi cable / Secure push-fit connection / Rubber over mould SOK230 KIT

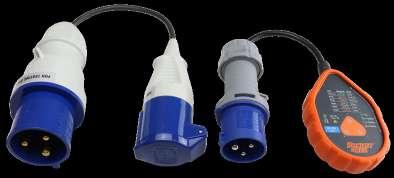

16A/32A 3-Pin Industrial Socket Tester

• • • •

Includes SOK40, ADP40 32A adaptor and TECC10 carry case Test both 16A and 32A industrial sockets Suitable for testing 230V 16A and 32A 3 BS4343 systems Complete testing solution ADP40

Socket Tester Adaptor

• • • • •

Designed for TESTING ONLY Strong self-closing plug cover to prevent dirt ingress For use with Socket & See SOK40 socket tester (3 pin) Converts 16A tester to 32A (16A socket to 32A plug, 230V) Robust construction for regular use with secure push fit connect SOK40

32A Industrial Socket Tester

• • • • •

Use with SOK ADP40; tests 32A industrial sockets Specifically designed for testing 230V BS 4343 socket outlets Continuous audible tone: correct / Strong warbling tone: faulty Clearly indicates L-E reverse; L-N reverse faulty N, E or L; missing L (long-life LEDs) Hard wearing flexi cable / Secure push-fit connection / Rubber over mould SOK400KIT4P

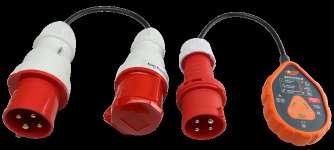

16A/32A 4-Pin Industrial Socket Tester

• • • •

Includes SOK60, ADP60 32A adaptor and TECC10 carry case Test both 16A and 32A industrial sockets Suitable for testing 400V 16A and 32A 4 pin systems Complete testing solution

BS EN 61326 Fully Certified

ADP60

Socket Tester Adaptor

• • • • •

Designed for TESTING ONLY Strong self-closing plug cover to prevent dirt ingress For use with Socket & See SOK60 socket tester (4 pin) Converts 16A tester to 32A (16A socket to 32A plug, 400V) Robust construction for regular use with secure push fit connection

see everything at socketandsee.co.uk 11

SOK60

BS EN 61326 Fully Certified

32A Industrial Socket Tester

• • • • •

Use with SOK ADP60; tests 32A industrial sockets Specifically designed for testing 400V BS 4343 socket outlets Continuous audible tone: correct / Strong warbling tone: faulty Phase clearly identified as L1, L2, L3 Provides instant phase SOK400KIT5P

• • • •

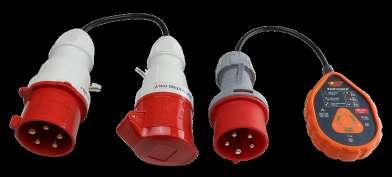

Includes SOK65, ADP65 32A adaptor and TECC10 carry case Test both 16A and 32A industrial sockets Suitable for testing 400V 16A and 32A 5 pin systems Complete testing solution

ADP65

Socket Tester Adaptor

• • • • •

Designed for TESTING ONLY Strong self-closing plug cover to prevent dirt ingress For use with SOK65 socket tester (5 pin) Converts 16A tester to 32A (16A socket to 32A plug, 400V) Robust construction for regular use with secure push fit connection SOK65

32A 5-Pin Industrial Socket Tester

Safe Isolation and Lock Out Tag Out Kits

• • • • •

Use with SOK ADP65; tests 32A industrial sockets Specifically designed for testing 400V 5 pin BS commando (4343) socket outlets Continuous audible tone: correct / Strong warbling tone: faulty Phase clearly identified as L1, L2, L3 and provides instant phase sequence Hard wearing flexi cable / Secure push-fit connection / Rubber over mould

For Data Centers

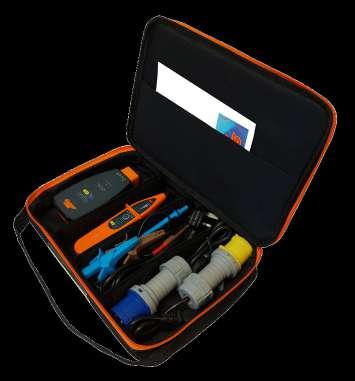

Comprehensive electrical testing kit tailored for data centres.

Includes testers and adaptors for varied and complex setups and ensures accurate, safe, and efficient electrical testing.

SOKDC32KIT

• •

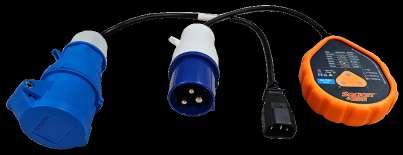

Contains: SOK40/16HD, ADP14B, ADP40, Tecc 40 ADP14B: Perfect for Data Centre PDU (Power Distribution Units) ADP40: Perfect for testing at 32A commando (4343) socket outlets

• •

Contains: SOK40/16HD, ADP14B, Tecc 40 ADP14B: Perfect for Data Centre PDU (Power Distribution Units)

BS EN 61010 Fully Certified

•

SOKDC16KIT

SOCKET TESTERS

16A/32A 5-Pin Industrial Socket Tester

BS EN 4343 Testing

see everything at socketandsee.co.uk 12

SOK 22

Craftsman Socket Tester

• • • • •

Bright, easy-to-read LEDs Loud audible tone for fuse finding Detect good plus 13 wiring fault condition Strong warbling tone gives clear warning of faulty wiring Continuous audible tone gives positive good wiring indication SOK 32

SOCKET TESTERS

BS EN 61010 Fully Certified

Professional Socket Tester

• • • • •

Bright, easy-to-read tri-colour LEDs Detect good plus 17 wiring fault condition Advance electronics with automatic self-test Strong warbling tone gives clear warning of faulty wiring Continuous audible tone gives positive good wiring indication SOK 34

Easy Socket & Earth Loop Tester

• • • • •

Bright, easy-to-read tri-colour LEDs No-trip earth loop impedance test Ergonomic and robust design for repeated long-term use Earth loop results shown as Good / Check or Urgent Check Detect good plus 18 wiring fault conditions with fault locate SOK 36

Professional Socket Tester

• • • • •

Bright, easy-to-read LEDs No-trip earth loop impedance test Quick and easy testing of 30mA RCDs Detects incoming supply polarity swap (L-NE reversal) Ergonomic and robust design for repeated long-term use SOK DSO

True Polarity Tester

• • • • •

Designed for DSOs and MOPs Detect good plus 18 wiring fault condition Ergonomic and robust design for repeated long-term use Utilities approved tester for L-NE reverse supply on PME systems Test initiate button ensures an L-NE supply check on PME systems

SOK22

SOK32

SOK34

SOK36

DNO SOK

Indicates good, plus 13 fault conditions Indicates good, plus 17 fault conditions Continuous tone indicates good Warbling tone indicates fault condition

BS EN 61326 Fully Certified

Bright easy-to-read LEDs No trip indication of earth present Advance electronics to give good indication even on noisy circuits Advanced fault location Tri-colour LEDs Built in self-test Robust over mould No Trip earth loop test, gives GOOD / CHECK / URGENT CHECK indication Polarity test pad, Identifies reverse L-N supply on PME systems 30mA RCD functional test Test initiate button forces user to test for L-N reverse supply on PME systems

see everything at socketandsee.co.uk 13

DCF200

Dead Circuit Finder

• • • • •

BS EN 61326 Fully Certified

•

Battery operated transmitter and receiver Fast identification of dead circuits, tracing cables up to 50cm away Simple single button operation with bright LEDs Auto-adjusts to signal strength (audible 'find’ tone with bar graph display) Ideal for fuse finding, wire tracing, picking and break detection Protected against accidental mains connection

FFCB200

New auto-scan feature and bar graph display Works equally well with circuit breakers or fuses Dual voltage operation 100 to 250 VAC (50-60Hz) Identify which breaker or fuse is protecting a circuit Simple operation with bright LEDs and audible 'find’ tone

CIRCUIT & FUSE FINDERS

Easy Fuse Finder Kit

• • • • •

FFCDCFKIT

Fuse Finder/Dead Circuit Tracer Kit

• • • • •

Combination DCF200 Dead Circuit Tracer and FFCB200 Fuse Finder Complete kit to find and trace live and dead circuits Includes 13A IEC mains lead and fused test lead set for the FFCB200 Includes socket earth adapter and croc clip for the DCF200 Both units are supplied in protective carry cases

FFCB1140

• • • • •

New auto-scan feature and bar graph display Works equally well with circuit breakers or fuses Dual Voltage operation 100 to 250 VAC (50-60Hz) Simple operation with bright LEDs and audible 'find’ tone 110v and 240 commando adaptors included

BS EN 61010 Fully Certified

Dual Voltage Fuse Finder Kit BS EN 4343 Testing

see everything at socketandsee.co.uk 14

SOC/SAFECASE

SAFECASE Proving Unit and 2-Pole Tester Carry Case

SOC/TECC10

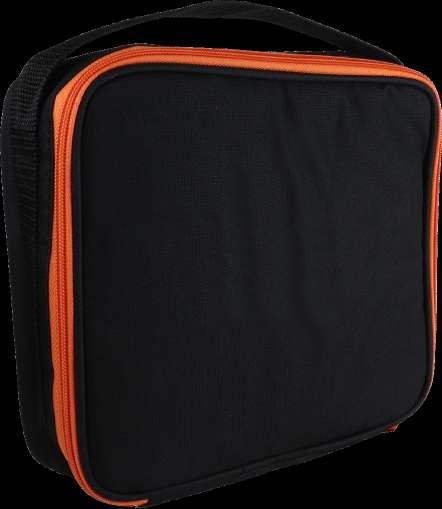

TECC10 Two Compartment Carry Case

SOC/TECC40

TECC40 Large Soft Carry Case

SOC/4MM

TYPE K 4mm Thermocouple Adaptor

SOC/CB400

CB400 Professional Non-Trip Checkbox

SOC/DNO10A2WIRE

DSO 10A 2 WIRE 10A Fused 2 Wire Lead Set

SOC/DLMPROLEAD

DLM PRO LEAD 3 Wire Non-Fused Distribution Board Test Lead Set

SOC/IECPUKA

IECPUKA UKA 13A Mains Lead

SOC/IRCCHECK

IRC CHECK Calibration Check Box

SOC/ITLS400A

ITLS400 Fused Test Leads - (IEC Connector)

SOC/LTKIT10

LTKIT10 Lamp Test Adaptor Kit

SOC/PROLEAD

PRO LEAD Mains Lead including 3 x 4mm Connectors

SOC/XLTP

XLTP Extra Long Test Probes

see everything at socketandsee.co.uk

Socket & See Century Road High Carr Business Park, Newcastle-under-Lyme, Staffordshire - ST5 7UG

go test..

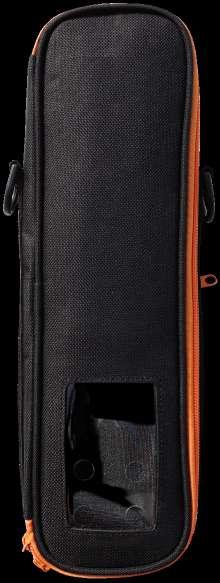

Many Socket & See Testers come complete with a protective case which can be effortlessly carried using either the shoulder strap or belt loop.

Designed in Great Britain

Produced by Socket & See Subject to change (including technical modifications) without notice

Stay connected

SAS143v4
