The ACURA Group Duct Suspension System Tech Data Sheet.

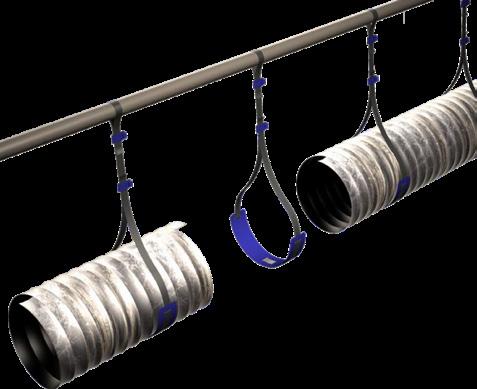

DUCT SUSPENSION SYSTEM
SPECIFICATIONS
• Designed to suit requirements of AS4254.1-2012
Ductwork for air-handling systems in buildings Part 1: Flexible duct
• Registered Design ‘quick clamp’ clips
• Quick release feature on clips allows duct position to be easily adjusted
• Saddle designed to suit flexible duct from 150mm to 500mm diameter
• Saddles come with pivoting belt mounted ‘hook’ for ease of access during installation
• Strap comes in 60m rolls with belt mounted dispenser to stop tangling- dispenser also utilized to hang bags of clips for ease of access during installation
• Fire resistant and UV protected
Tested to AS 60068.3.3 Environmental testing: Guidance - Seismic test methods for equipment.
This standard details the test method for seismically testing ductwork fabrications.
The system passed testing to Performance Level III with horizontal accelerations of 15 m/s2 to a maximum of 32Hz.
