The tried, tested, and trusted fire-rated penetration seals you can rely on.
Snap Fire Collars Range with
ACURA Group sets the standard in fire protection for multi-storey buildings by partnering with global leaders. As a trusted supplier of Snap Fire Systems, we deliver innovative and cost-effective penetration seals that provide superior fire protection and structural integrity.
Our comprehensive range of Snap fire collars—including utility, retrofit, cast-in, and more—effectively addresses the challenges of passive fire design and installation. Each product is carefully engineered to meet diverse needs and provide robust solutions.
At ACURA Group, compliance always comes first. All our Snap fire collars comply with the National Construction Code (NCC) 2022 and are rigorously tested according to Australian Standards AS1530.4 and AS4072.1.
How
we can help
• Specialist supplier
• Huge range in stock
• Technical support
• Fast, friendly delivery
We’ll help you tick all compliance requirements so you have peace of mind and can sleep soundly at night.
Utility Collar
Versatile fire collar with fast on-site customisation, tested for multiple pipe types and wall configurations.
Retrofit Collars
Easy-to-install fire collars for retrofit applications, requiring no wrapping or paste.
Cast-In Collars
An adaptable solution for PVC floor waste, shower pipes, and stack applications.
Extension Top
Adds 50mm to cast-in collars, ensuring flexibility for thicker slabs.
Gas Collars
Fire-resistant retrofit collars for plastic and aluminium composite gas pipes.
Cast-In Shells
Essential components fixed to formwork, creating pipe penetrations while maintaining structural integrity.
Metal Deck Plates
Metal plates designed for precision in creating holes for fire collars on Bondek and metal deck systems.

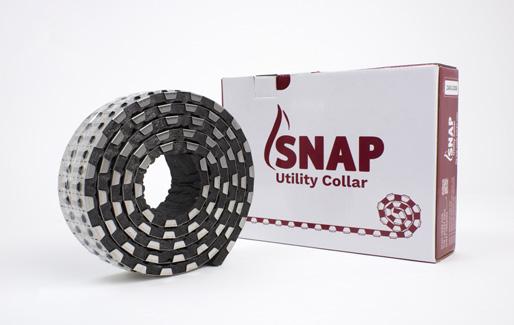

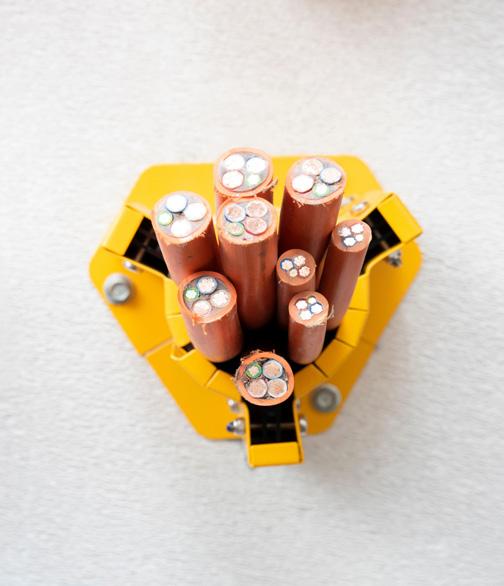

Utility Collar
Streamlined installation, maximum efficiency.
Swiftly adapting to the evolving demands of building re-fits, fitouts, refurbishments, retrofit applications, and final pipe layouts may compromise compliance. Snap Utility Collar addresses this by strictly adhering to industry standards and ensuring efficiency, reliability, and versatility. It offers certified protection for utility penetrations in floors and walls, with a multipurpose, cut-to-fit design for fast on-site customisation.
Special Features
• Collar can be painted apart from the active area of the collar
• Collar can be installed within 40mm of each other – outer edge to outer edge
ACURA: 22UCSNAP SNAP: UCR
ACURA: 22UCSNAP SNAP: UCR
A total of 23 independent tests were conducted at CSIRO on 81 unique specimens, resulting in Utility Collar’s 504 unique installation combinations for various major pipe types, including PVC, PVC + Fittings, HDPE, Triplus, and Raupiano Pipes, across a multitude of elements:
• Concrete Slab (≥ 120, 150 & 175mm)
• Bondek Slab (≥ 120, 150 & 175mm)
• 90mm PB Wall (64mm stud, 1 x 13mm either side)
• 116mm PB Wall (64mm stud, 2 x 13mm either side)
• Concrete and Masonry Wall (≥ 116mm)
• 75mm Hebel PowerPanel Wall (90 & 120 minute walls)
• 78mm SpeedPanel (patched with fire-rated plasterboard)
• Dincel Wall - without removing the plastic (110 & 155mm)
• AFS Rediwall - without removing the plastic (110mm)
• AFS Logicwall - without removing fibre sheeting (110mm)

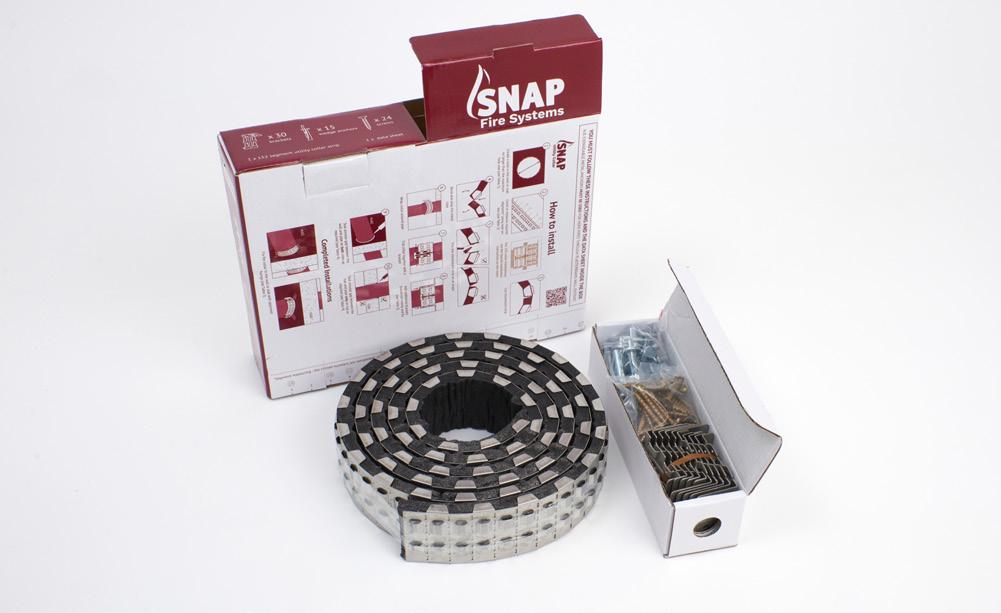

What’s in the Box?

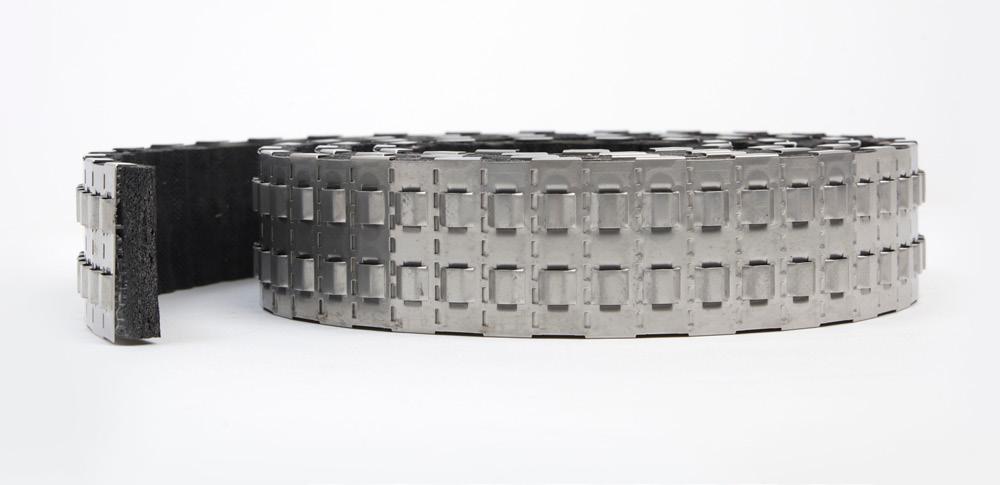

• 152 Segment Strip
• 30 Brackets
• 24 Screws
• 15 Wedge Anchors
• Data Sheet
• *Bracket top up pack sold separately
ACURA: 22UCSNAP SNAP: UCR

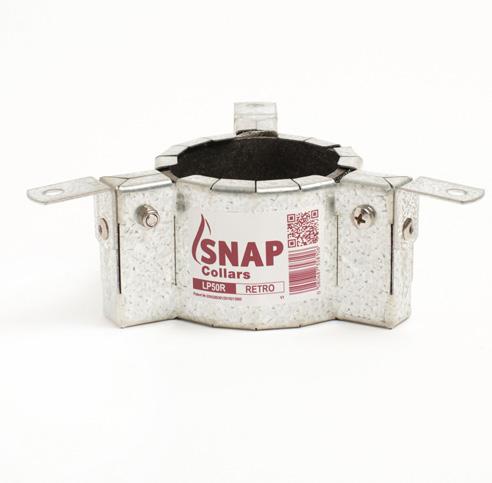

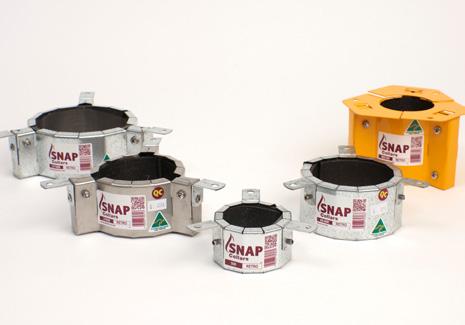

Retrofit Collars
The Retrofit Collar can be fitted both before and after pipe installation, making it versatile for various applications, including floor waste, shower, and stack systems. It provides all Fire Resistance Levels (FRLs) required for framed plasterboard walls, concrete or masonry walls, and concrete slabs. With compatibility across various pipe types such as HDPE, P-PVC, PVC, Rehau Raupiano, Valsir Triplus, and more, Retrofit Collars adapt well to diverse plumbing systems.
• Easy to install - for wide range of fixings
• No messy graphite paste or sealants required inside the collar
• No wrapping required
• Covers a wide range of penetrations
• Comprehensively tested in a genuine independent testing program
ACURA: 22RF-LP50R SNAP: LP50R
ACURA: 22MS70R SNAP: MS70R

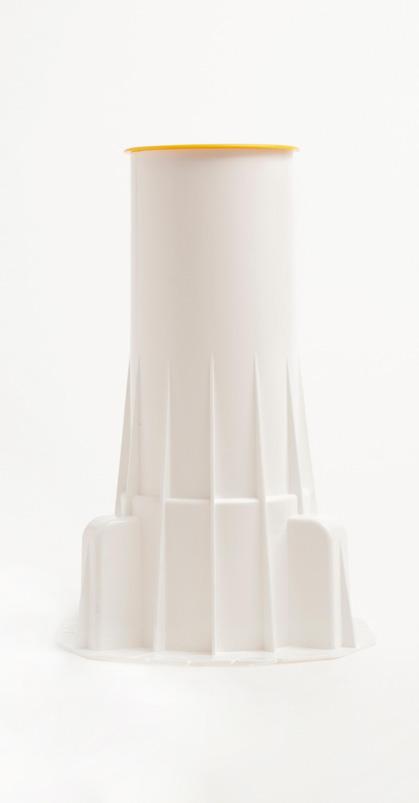

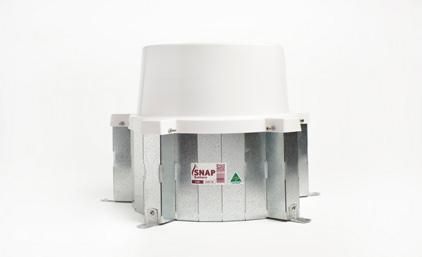

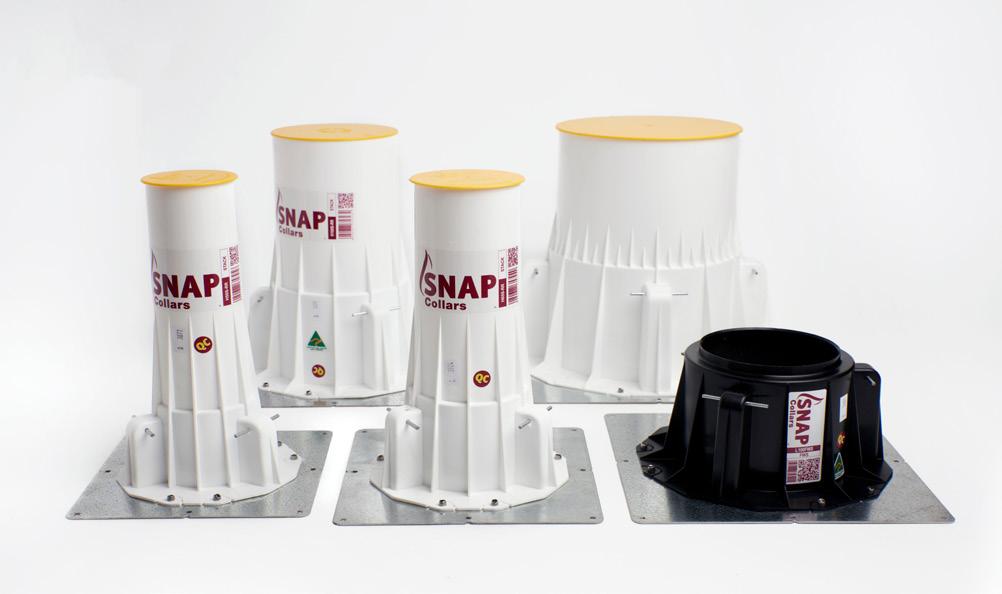

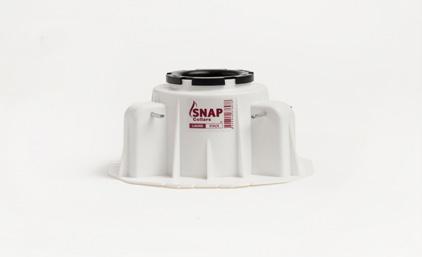

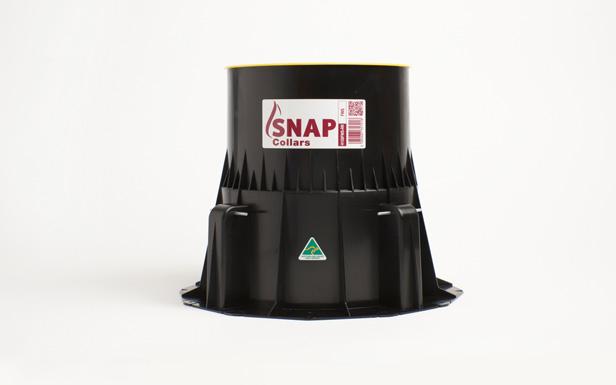

Cast-In Collars
ACURA: 22CIC-H150FWS
SNAP: H150FWS-RR
Designed to be secured to the formwork of a concrete slab before the concrete is poured, the Cast-In Collars create a void through which pipes can pass once the concrete sets. They are available for floor waste, shower, and stack applications in both low-top and high-top configurations, making them adaptable for various construction needs.
ACURA: 22CIC-L50-40S
SNAP: L40-50S
22CIC-L50-40FWS
SNAP: L40-50FWS
ACURA:
ACURA: 22UL100FWS SNAP: UL100FWS
ACURA: 22CIC-250C SNAP: 250C

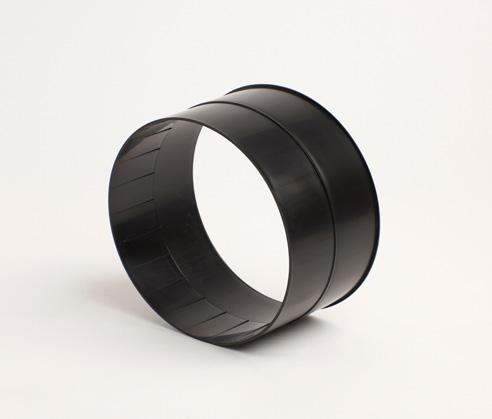

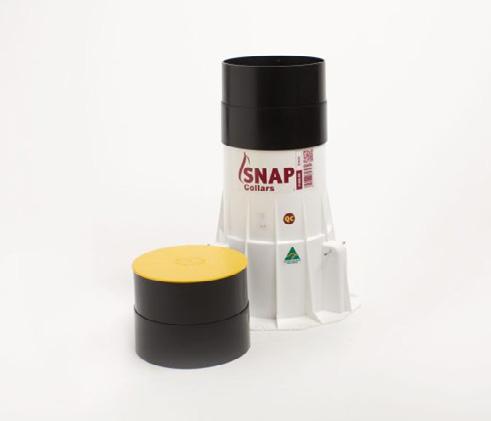

Cast-In Collar Extension Top
Cast-In Collar Extension Tops are designed to increase the height of cast-in collars to accommodate thicker slabs. Each extension adds 50mm to the height of the collar, providing a flexible solution for varying slab thickness requirements.
Need more height?
Just stack them up!
These extensions are compatible with a range of cast-in collar models, including:
• H65S-RR
• H65FWS-RR
• H100S-RR
• H100FWS-RR
• H110S
• H150S-RR
• H150FWS-RR
ACURA: 22100TOP SNAP: 100-EXTENSION

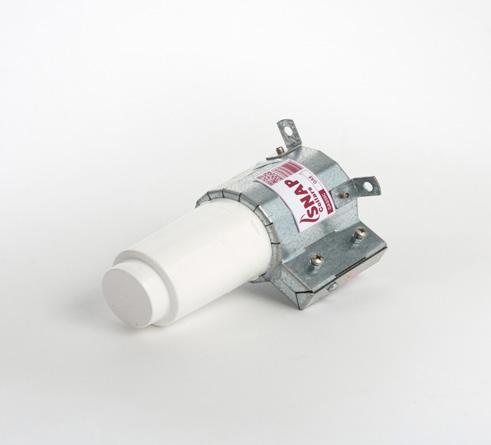

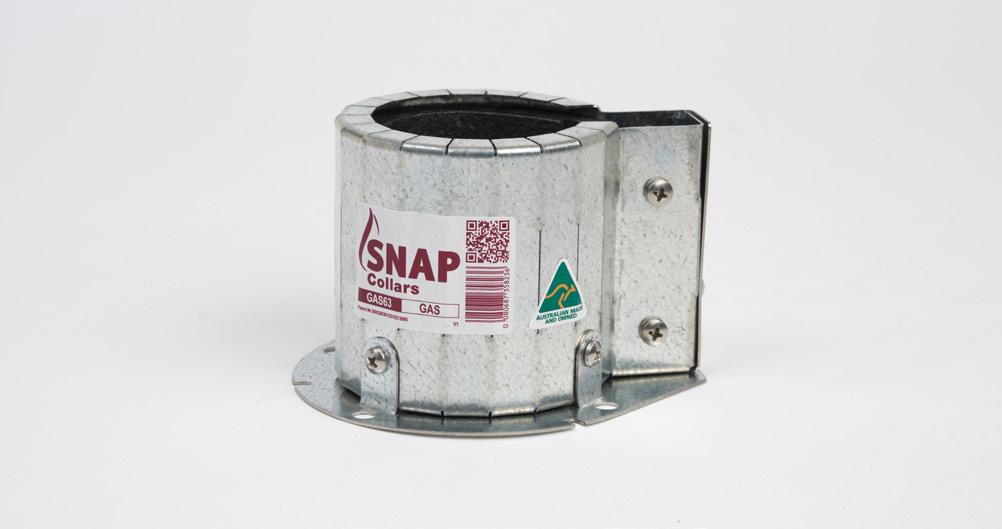

Gas Collars
Gas Collars are metal fire collars designed in a retrofit style. They can be cast in or externally mounted in fire-rated plasterboard, masonry, block, concrete slabs (from 150mm thick), and concrete walls, including Hebel PowerPanel walls (from 75mm thick).
Specifically designed for use with plastic and aluminium composite gas pipes, Gas Collars have been rigorously tested across a range of pipe brands and diameters, ensuring effectiveness and reliability. They comply with the Building Code of Australia (BCA) for manufacturer-specified applications, such as 22GAS32, 22GAS50, and 22GAS63.
and more.
Tested solution on Pex-Al-Pex piping systems
Gas Collars are compatible with the following pipe types:
• PX-AL-PX
• Valsir PEXAL
• Gaspex PX-AL-PX
• Iplex PE-AL-PE
• Rehau PX-AL-PE
ACURA: 22GAS63 SNAP: GAS63
ACURA: 22GAS50C SNAP: GAS50C

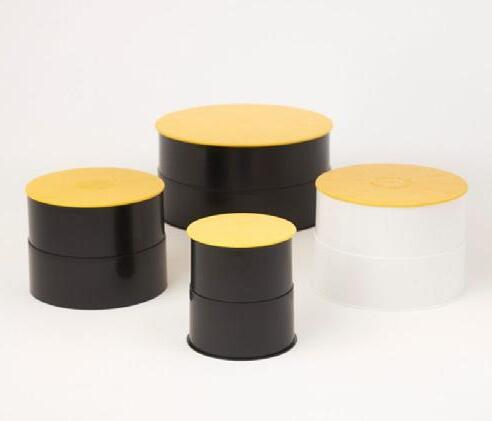

Cast-In Shells
Cast-In Shells are fixed to the formwork before concrete pouring and are designed to create penetrations in slabs. They serve as ideal solutions for accommodating metal pipes and cables, ensuring structural integrity and seamless integration within construction projects.
Penetrations made simple and easy.
ACURA: 22SH150 SNAP: 150-BLANK
ACURA: 22SH100 SNAP: 110-BLANK
ACURA: 22SH100 SNAP: 110-BLANK
ACURA: 22SH65 SNAP: 65-BLANK

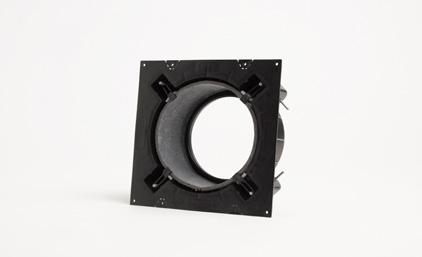

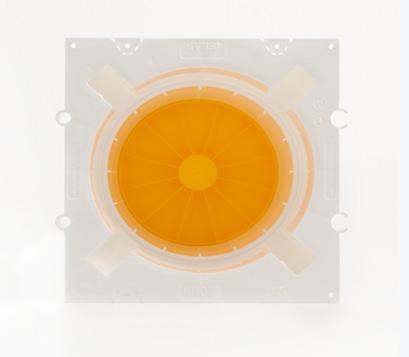

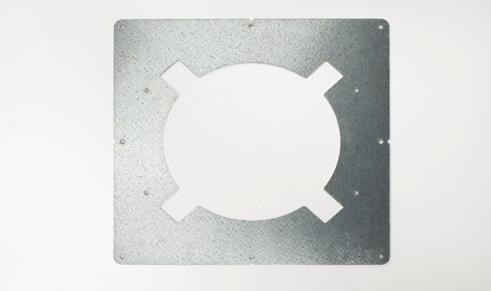

Metal Deck Plates
Metal Deck Plates are designed for installing collars on Bondek and similar metal deck systems. Compatible with various Snap fire collar sizes, including 50mm, 65mm, 100mm, and 150mm, these plates provide clear access to the spring pockets and attach to the steel framework to create the appropriate-sized hole. Sturdy and punched for perfect fitment to each style of fire collar, with pre-done holes for screwing to the deck.
Precise precut plates, saving installation time.
ACURA: 22CIC-100MDP SNAP: M-DPUL100
ACURA: 22CIC-65MDP SNAP: M-DPU65
