Revolutionise cable tray support installation.

Blitz Modular Cable Tray Support Systems with Benefits

Blitz Systems are one-of-a-kind, modular cable support systems that simplify and speed up onsite installations by up to 60%. All Blitz Systems rely on modular gripper patented designs that streamline installation for new and existing infrastructure. Blitz Systems cable tray support systems require up to 80% less fixing than traditional cable support systems.

Designed for commercial electrical, data networks, HVAC, and mechanical installations, Blitz cable tray support systems minimise onsite labour costs, reduce materials and waste, reduce supply expenses, eliminate onsite frustrations, improve safety and gain compliance and peace of mind.

• Fast installation time

• Reduces on site labour costs

• No cutting or deburring

• No nuts or washers

• No need for hot works

• Compatible with existing and traditional systems

Fast. Efficient. Smart.

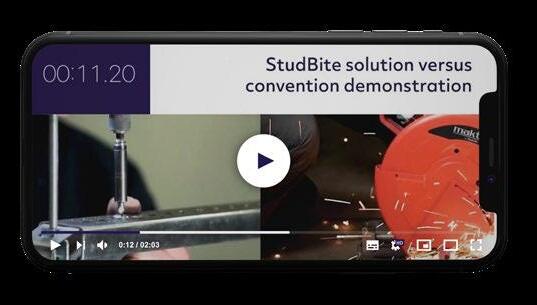

Scan the QR code to watch how Blitz Systems can save you up to 50% of installation time

Blitz Systems - StudBite 4

Channel-to-stud trapeze support adaptor and install-ready trapeze support.

Multi-Fix Single Stud Hanger 6

Multi-fix single stud hanger system.

About Us

Find our more about ACURA Group, how we can help you, and how fast we can delivery solutions on site.

8

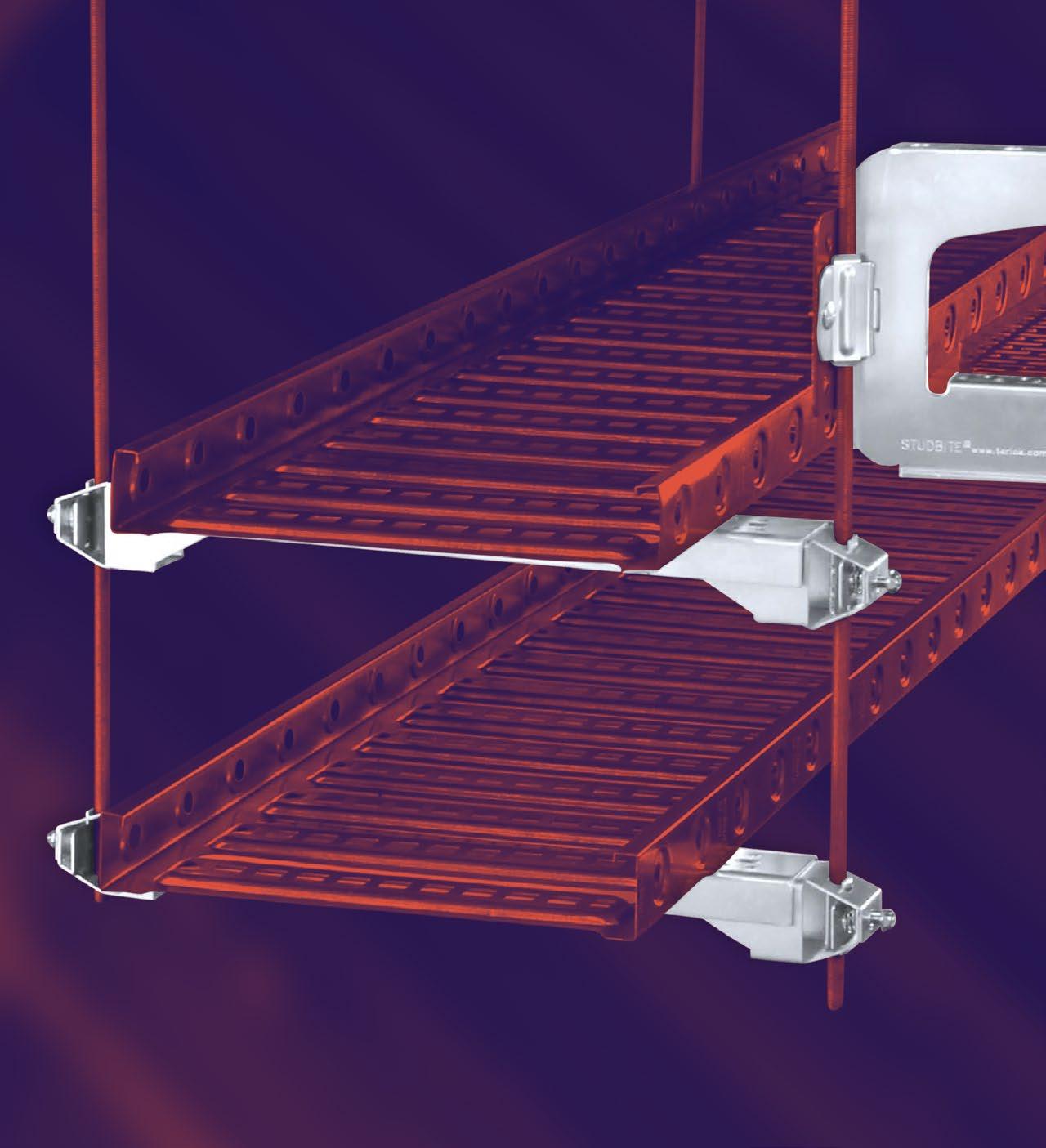

Blitz Systems - StudBite

has never been easier!

Channel-to-Stud Trapeze Support Adaptor

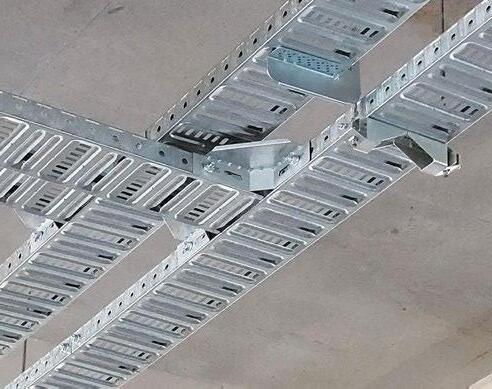

Comprised of compatible modular components, all Blitz Systems are designed for the customisation of multiple configurations including hanging cable tray, trapezes, and ladder tray to suit various stud sizes and channel types.

4 Install ready build options. Traditional channel build options.

Traditional channel can be used by inverting the adaptor.

Inverted Channel Adaptor Clamp required.

Key features:

For spans more than 225, Install-Ready Trapeze Supports are available in 3 sizes (300mm, 450mm, and 600mm). For spans less than 225mm, fit the tray or basket directly onto the adaptor.

• 75% LESS FIXINGS REQUIRED no nuts, washers or channel end caps needed

• No need to deburr stud ends

• No hot works when using pre-cut stud and channel

• Easily adjustable up and down stud

• SWL: M8 Rod = 80kg •

• M10 Rod = 120kg with screws tightened to 2kN 3:1 SF

• Box: 5 Pairs (10 total) 2.14kg box weight

www.acuragroup.com.au

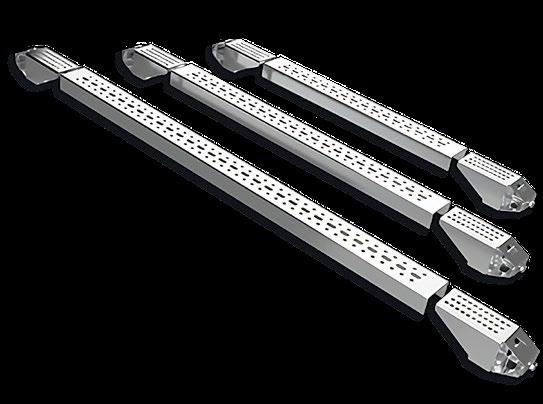

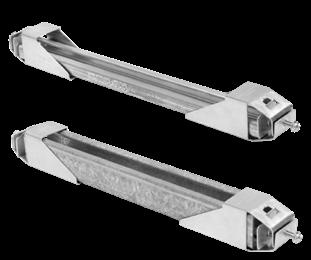

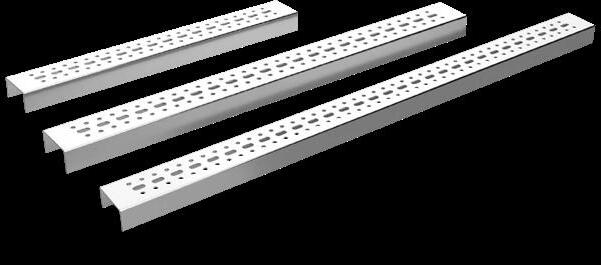

Install-Ready Trapeze Support

Scalable, modular, and compatible with various stud sizes and channel types, STUDBITE Install-Ready Trapeze Supports is a turnkey option for installations that demand adaptability, adjustability, speed, customisation and simplicity.

Key features:

• 80% LESS FIXINGS REQUIRED

• No nuts, washers or channel end caps needed

• No need to deburr stud ends

• No hot works when using pre-cut stud and channel

• Easily adjustable up and down stud

• Use STUDBITE Screws to fix cable tray directly to channel support (Wire Basket clamp available for Basket Tray)

• 50 x 25 x 1.6 Channel

• SWL: M8 Rod = 80kg

• M10 Rod = 120kg with screws tightened to 2kN 3:1 SF

Compatible with M8/M10 stud and deep/shallow channel

1 - Slide adaptors over M8 or M10 threaded rod.

2 - No hot works required when using pre-cut stud and channel.

4 - Easily adjustable for leveling.

3 - STUDBITE PH2 Screws fix cable tray directly to channel support.

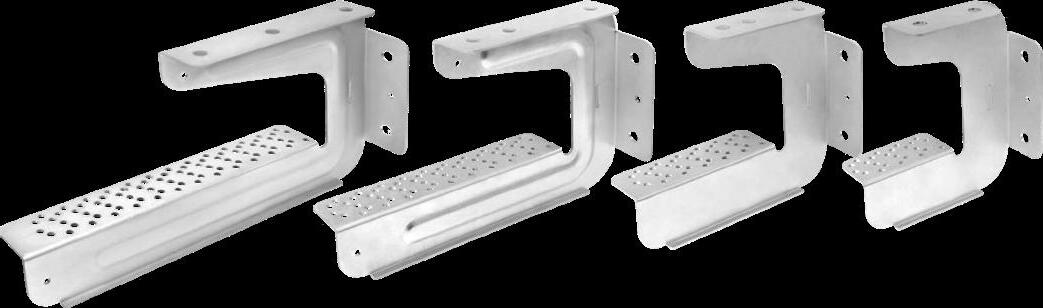

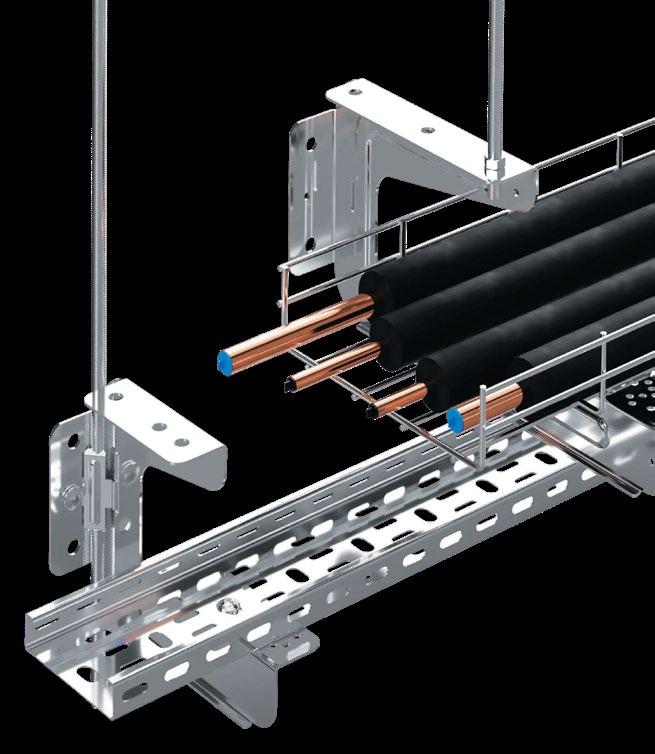

Blitz Systems - Stud Hanger

Multi-Fix Single Stud Hanger

Remove trapeze builds when working along side existing infrastructure.

Revolutionise your trapeze system installations with STUDBITE Multifix Bracket - the adaptable trapeze bracket with multiple fixing options for of cable tray including the unique retrofit feature. No hot work is required, easily adjustable, and compatible with various stud sizes.

Key features:

• Multiple fixing options; top, side and base

• Unique retrofit feature – hanger can fix straight to side of M8/ M10 existing stud

• No hot works when retrofitting

• Easily adjustable up and down stud

• Use STUDBITE Screws to fix cable tray directly to the hanger

• The Wire Basket Clamp is used to fix basket tray to the hanger using the STUDBITE Screws

• 30KG SWL (M8 & M10 Rod) l 3:1 SF

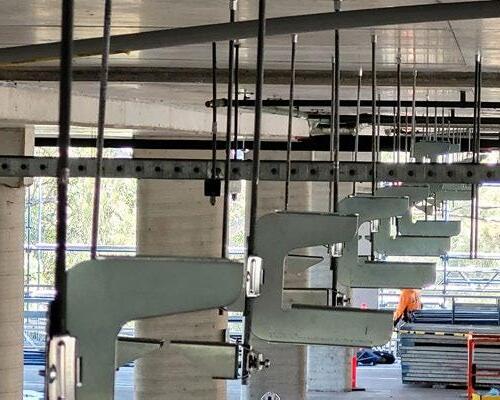

Stud Hanger System Example

ACCESSORIES

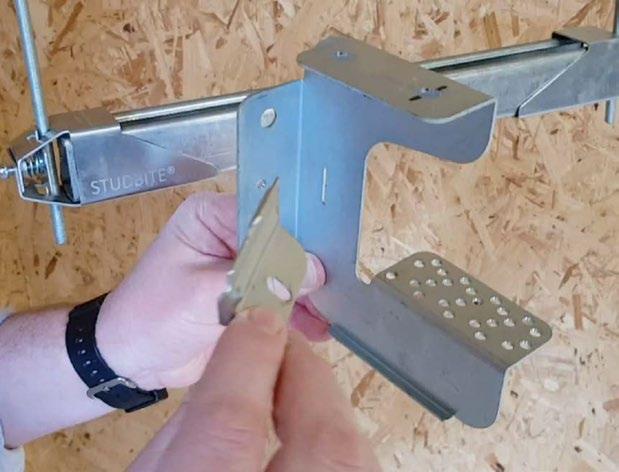

Retro-Fit Clamp Fixes hanger onto the side of M8/M10 stud

Basket Tray Clamp Fixes wire basket to hanger

STUDBITE PH2 Screws M6 x 10mm Trilobular self-thread screws

Who we are ACURA Group

ACURA partners with the trades in commercial construction, delivering high quality, innovative solutions to the MEP-F (HVAC (mechanical), electrical, plumbing, fire) service providers of multi-storey construction projects.

The success of our family owned and operated business is built on sound technical knowledge, world-class service and speed of delivery. High stock holdings and 5 delivery runs every weekday help keep your projects on time and on budget.

You will find our expertise and products in iconic builds across Adelaide, including builds like the Osborne Naval Shipyard, Adelaide Oval, nRAH and SAHMRI, as well as urban developments like the Bowden Precinct, and chain developments like Aldi.

How we can help We’re with you on site

When you’re on site, ‘perhaps’ and ‘maybe’ just won’t cut it. You need certainty and reliability. In fact, you demand it. That’s why ACURA Group is the name more contractors trust. When it comes to meeting project deadlines, we deliver.

• We know our stuff – technical knowledge plus expert support to keep you compliant on site.

• You need it, we deliver it – we deliver directly to you on site when you need it.

• Stacks of stock – we have what you need, and we have plenty of it.

• Customer approved - satisfied customers are what we live for.

Specialist supplier

• Your specialist solutions supplier for the construction industry in SA, covering Plumbing, HVAC, Electrical and Fire Services

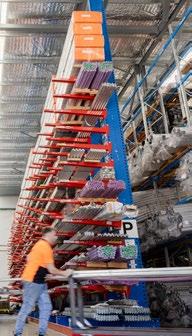

Huge range in stock
