PAKAR GRANDSTAND
VOMITORY STAIR ACCESSTO GRANDSTAND WITH A SINGLE SIDE AISLE
LANDING
Vomitory Landing Platform
Vomitory Landing Platform
PLAN
Stair Steps 280mm going
LowerStep to suit
1.270m
Wide Step
STAIRSTRINGER S6 (6 x Steps)
ELEVATION
SEATING TRUSS
LowerStep to suit rise (1 or 2 step options)
PAKAR GRANDSTAND
VOMITORY STAIR ACCESSTO GRANDSTAND WITH DOUBLE SIDE AISLE
LANDING PLATFORM

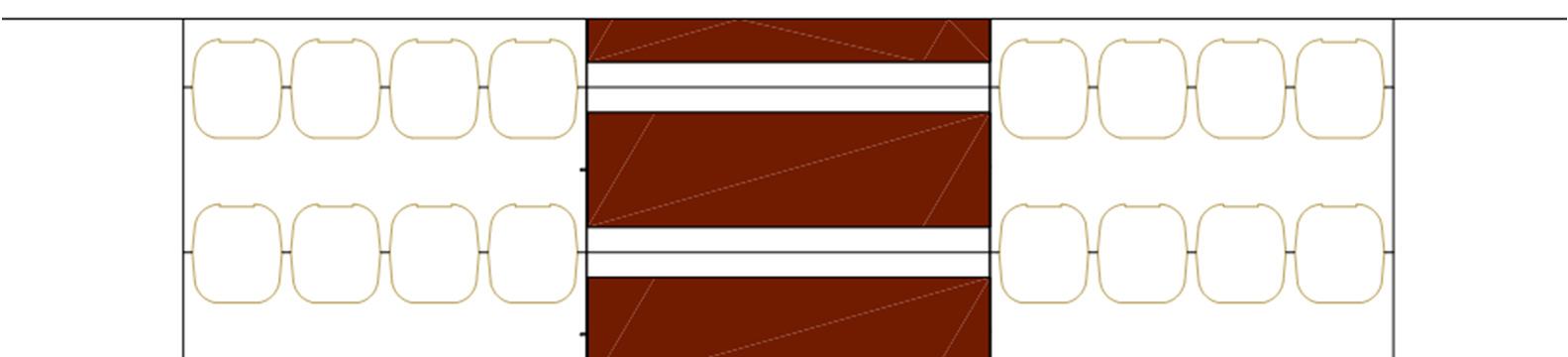

PLAN SHOWINGTHE VOMITORY STAIR ACCESS THROUGH THE GRANDSTAND
SECTION SHOWINGVOMITORY STAIRCASE AND GUARDRAILS TO THE VOMITORY ACCESS ROUTE
SECTION SHOWINGTHE TOPAND SIDE GUARDRAILS
PAKAR GRANDSTAND
REAR STAIR ACCESSTO THE GRANDSTAND
S6 Stairs Stringer
S6 Stairs Stringer
TOP LANDING PLATFORM 1.80m x 0.481m
Seatsupport beam x 4
StdPlatform 1.8m x .520m
Staircase Stair access Step1.8m Stair Step 1.270m
PAKAR GRANDSTAND
PAKAR FRONT STAIRACCESS ONTO GRANDSTAND
PAKAR GRANDSTAND
TYPICAL PAKAR FRONT LOADING STAIRCASEACCESS TO ELEVATED GRANDSTAND
TYPICAL PAKAR FRONT LOADING STAIR ACCESS TO GRANDSTAND
1.800m x 1.500m Landing platform
1.500m Landing side guardrail
1.800m Landing side guardrail
S6 Stairs Stringer
6 x Steps
TYPICAL FRONT STAIRS AND LANDING ACCESS TO THE FRONT OF GRANDSTAND
PAKAR GRANDSTAND
TYPICAL PAKAR REAR LOADING STAIRS ACCESS WITH TOP LANDING
