PAKAR GRANDSTAND
MATERIAL
SeatingTruss
EachTruss T4supports4xrowsof4seatswitha.750mmspacingbetweentherowsThetrussis3.000mlong withahotdipgalvanizedfinishandmadewithhighTensilestrengthsteeltube.
Thetrussstructureisfullyweldedtoproducearigidframework.Thetrussframeareinter-lockedtogether horizontallyandvertically.
TheT4Trusscomeinthreeriserheights: 125mmILow),250mm(Med),375mm(H;,h)
/Ringlock - Standards - Ledgers - Braces
TheseareconstructedfromhotdipgalvanizedhighTensilesteelpipe.Thediametersare48.3mmx3.2mmwt and30.5mmx2mmwt.pipewithwedgelockingpins.

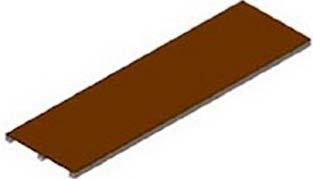

Deck Units ( Platforms)
DeckUnits(Platforms)aremadeof12mmthickantislipPhenolicfilmfaced-plywood.Theplywoodisfixedand supportedon3xunitsofsteelSHS40x40x3mmthickwithahotdipgalvanisedfinish.Wheninstalledontothe grandstandtrussthedeckunitsisheldcaptivebyacleatonthetrussframeandprovideaself-interlocking system.
PAKAR GRANDSTAND
Seat Support Beam (4 x Seats)
The Steel Seat support beam unit is fixed into the Truss Frame units with a Integral hooks and are locked onto the Frame with a hidden locking pin. The seat units when not in use are designed so they can be nested and stacked. The seats are made of UV stabilized polypropylene plastic with a bright and smooth appearance.
Buck Seat : Clearway is : 350mm spacing
Guardrails / Balustrades
SingleAisle Seat
4 x Seat support beam
Side Guardrails are connected to the frame unit and are positioned to provide a barrier height of 1.100m above the deck level. The front and rear balustrades are connected to high strength posts that are connected to the truss frame unit. The imposed loads of the barriers 1KN/m to 2KN/m.
The balustrades rails are constructed to restrict any object greater than 100mm from passing through.
Side Guardrail
Aisles and Gangways
Link Guardrail
Rear Guardrail
Post
Stair Guardrail
Aisle and gangways are generously proportioned to provide for clear unobstructed access. The access to the grandstand is provided by use of a front staircase, rear staircase or internal vomitory staircase access
Stair step
Stairaccess step
Stair step1 x step
The stairs and aisle steps have yellow reflective strips attached to the front face of each nose of the step. Also attached to the front of the steps are non slip tape strip.
C/Step Infill ( Infill's between Decks lifts)
The galvanized steel C/Step infill comes in three rises, 125mm (9 deg) 250mm (18.5 deg) and 375mm (26.5 deg) and used to infill the gaps between the deck units. The C/step infill is fitted between the two deck units and placed under the seating unit .The C/Step seals off the decks and eliminates any gaps no greater than 100mm
C Step profile
PAKAR GRANDSTAND
SECTION SHOWING DIMENSION FOR TWO TYPICAL PAKAR GRANDSTANDS
250mm Rise Grandstand , 18.5 Deg Angle
375mm Rise Grandstand , 26.5 Deg Angle
PAKAR GRANDSTAND
TYPICAL PAKAR GRANDSTAND PARTS
1.800m Bay
PAKAR GRANDSTAND
PAKAR GRANDSTAND SHOWING THE USE OF ALL THREE RISER HEIGHTS
SECTION THROUGH GRANDSTAND 125mm & 250mm & 375mm RISER TO FORM THE GRANDSTAND

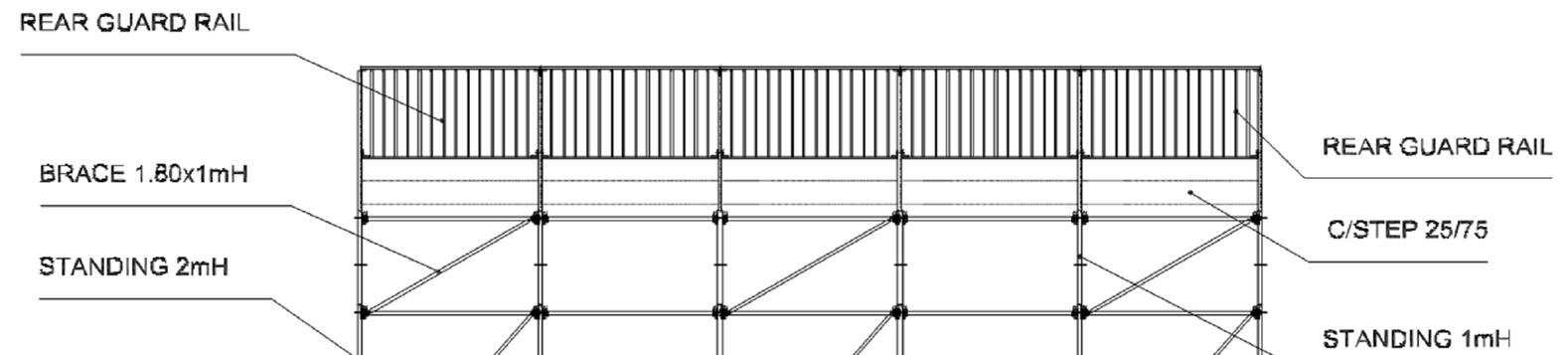

END ELEVATION OF THE GRANDSTAND SHOW GUARDRAILS
GL TRUSS F5 125/75 STARTING TRUSS 0.5mx 3.000m LONG
