3. Property Space Use and Observed Areas

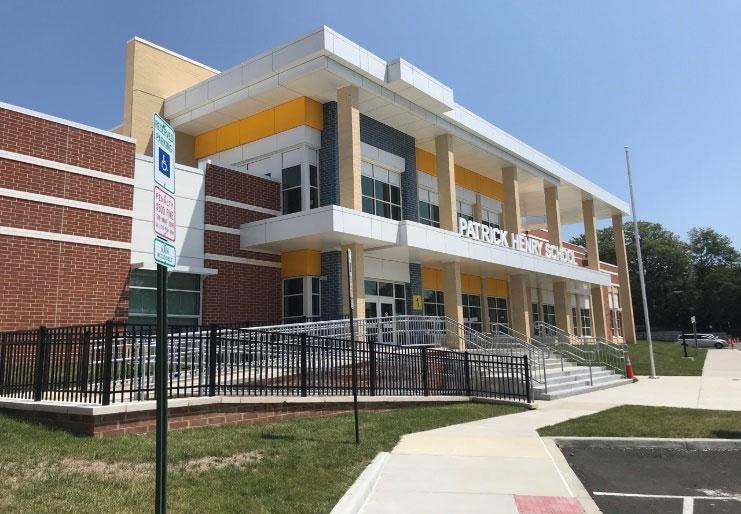

2. Building and Site Information

Systems Summary

System

Structure

Façade

Roof

Description

Masonry bearing walls with metal roof deck supported by open-web steel joists and concrete strip footing foundation system Good

Primary Wall Finish: Brick Secondary Wall Finish: EIFS and metal Windows: Aluminum Good

Primary: Flat construction with single-ply TPO/PVC membrane Condition

Good

Interiors

Elevators

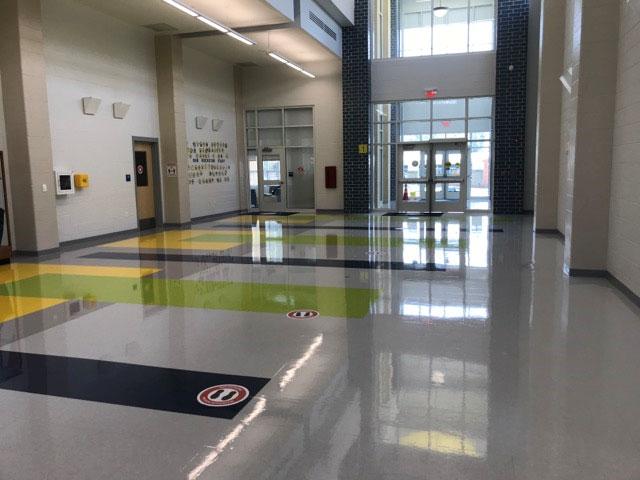

Walls: Painted gypsum board and CMU, ceramic tile, unfinished Floors: Carpet, VCT, ceramic tile, epoxy, and unfinished concrete Ceilings: Painted gypsum board and ACT, unfinished/exposed Good

Passenger: 1 hydraulic car serving all floors Good

Plumbing

Distribution: Copper supply and cast-iron waste and venting Hot Water: Domestic boilers and storage tanks Fixtures: Toilets, urinals, and sinks in all restrooms Good

HVAC

Central System: Boilers, chillers, air handlers, and cooling tower feeding VAV’s and fan coil units Supplemental components: Ductless split-systems and Make-up air units Good

Fire Suppression Wet-pipe sprinkler system, kitchen suppression and fire extinguishers Good

Electrical

Fire Alarm

Source and Distribution: Main switchboard, and distribution panels with copper wiring Interior Lighting: LED Emergency Power: ATS Good

Alarm panel with smoke detectors, heat detectors, alarms, strobes, pull stations, and exit signs Good

Equipment/Special Commercial kitchen equipment Good
